Halow Off, but Halow and UHF antennas installedEB79_6348C01835 RTK ActiveBX992_6221C43829 INS Active

Files


240725/BX_all.T04 240725/EB79_all.T04 240725/EB81_all.T04
Modified: 2024-08-19 12:54:55

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2324']
Start Time : 327600.185
Stop Time : 413412.109
Total Hours : 23.836645555555556

Mean Primary Pos: [39.89646879503809, -105.1150531620664]
Mean Secondary Pos: [39.89649958554355, -105.11504514855535]
Mean Heading: 191.29 (deg)
Mean Slope Distance: 3.4913 (m)
 Modified: 2024-08-19 12:54:55

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 327600.148
Stop Time : 413452.062
Total Hours : 23.847753888888885

Mean Primary Pos: [39.89646780913791, -105.11504210124016]
Mean Secondary Pos: [39.896467123233805, -105.11504202172019]
Mean Heading: 354.92 (deg)
Mean Slope Distance: 0.07657 (m)
 Modified: 2024-08-19 12:54:55

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 327600.264
Stop Time : 412595.318
Total Hours : 23.609737222222222

Mean Primary Pos: [39.89647319186511, -105.11504418250631]
Mean Secondary Pos: [39.896482424496895, -105.11504320049413]
Mean Heading: 184.67 (deg)
Mean Slope Distance: 1.03 (m)

Difference Report Links

240725/results/BX_all_0-EB79_all_0.html
240725/results/BX_all_0-EB81_all_0.html
240725/results/BX_all_1-EB79_all_1.html
240725/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 775875 0.260535266634445 805,063 0.4 776508 0.0867303363262194 805,051 0.1
GPS L2 CM+CL 518581 0.4587235166733838 610,322 0.8 519274 0.1776526458093416 610,271 0.6
GPS L2 E 153971 0.89280708704886 186,413 1.2 157664 0.2508112187943982 189,063 0.7
GPS L5/E5A I+Q 374706 0.13142356941175215 440,302 0.8 375113 0.06684492406288238 440,294 0.3
SBAS L1 CA 259169 0.01871057109453676 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 613729 0.885917562963458 643,530 1.0 587914 0.6390233945781184 643,540 0.7
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 543184 0.5354268535155674 572,052 1.1 521336 0.12178077094234814 573,397 0.4
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 0 638,854 0.4 0 638,865 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 633893 0.16710280757162488 638,863 0.6 633934 0.19952155902664945 638,880 0.5
Galileo E6 BPSK(5)-PD 633852 0.5839702327988237 0 633930 0.17720742037764417 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou E5B/B2 BPSK(2)-B2 29539 3.8342733335590236 603,970 0.8 29322 3.170274878930496 603,936 0.3
BeiDou B1 BPSK(2)-B1 600921 0.1333283409965703 57,942 0.2 600872 -0.1530104581341783 57,851 0.4
BeiDou B3 BPSK(10)-B3 599722 0.5115460163208952 661,924 0.3 599486 0.08159206386804695 661,829 -0.1
QZSS L1 CA 0 661,804 0.5 0 661,361 0.3
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 5737142 0.42571358700900236 0 5435353 0.17517684683957063 0
86,399 Total time (seconds) 6,521,039 0.7 86,399 Total time (seconds) 6,524,338 0.3

Az-El Plots

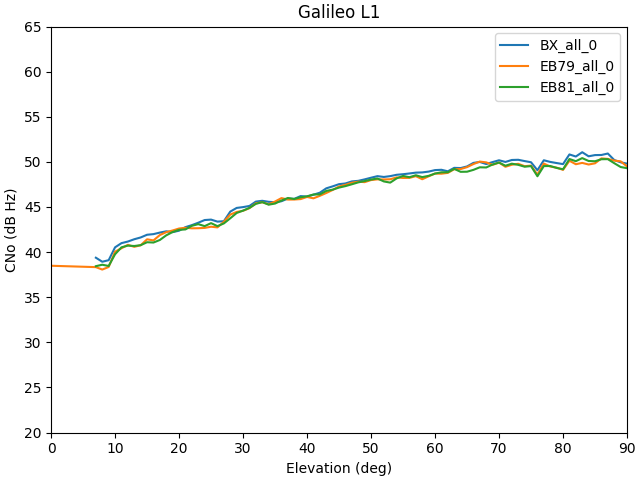

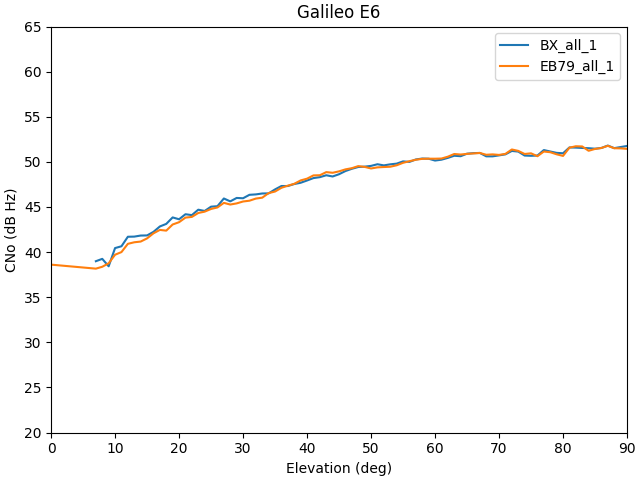

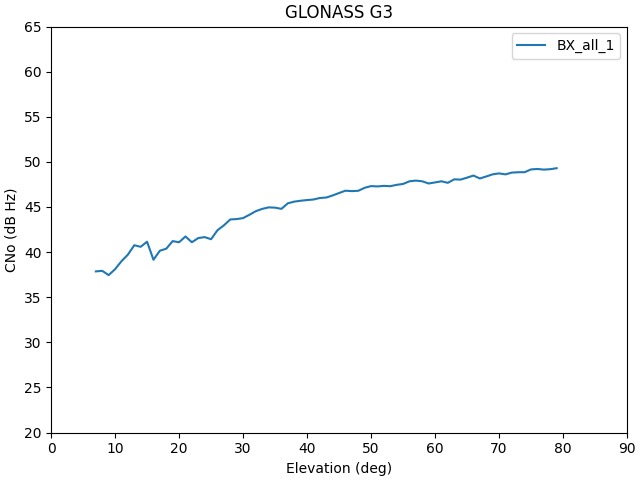

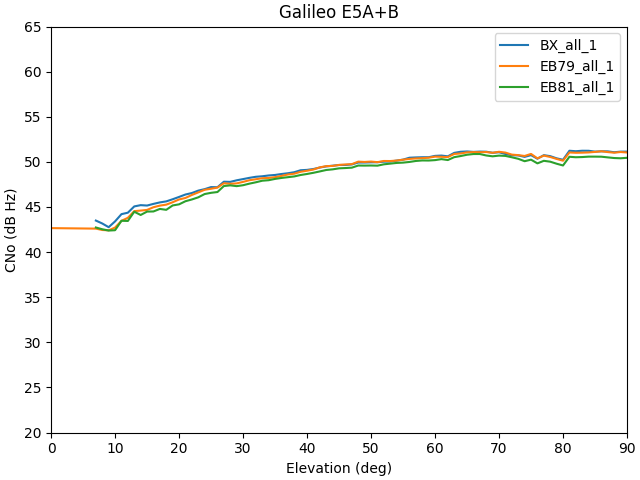

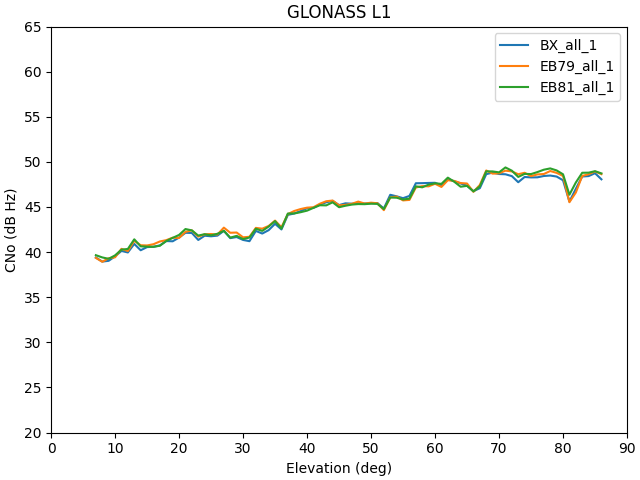

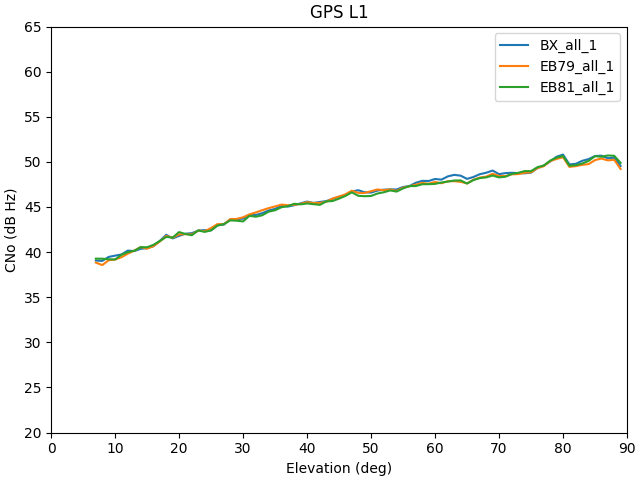

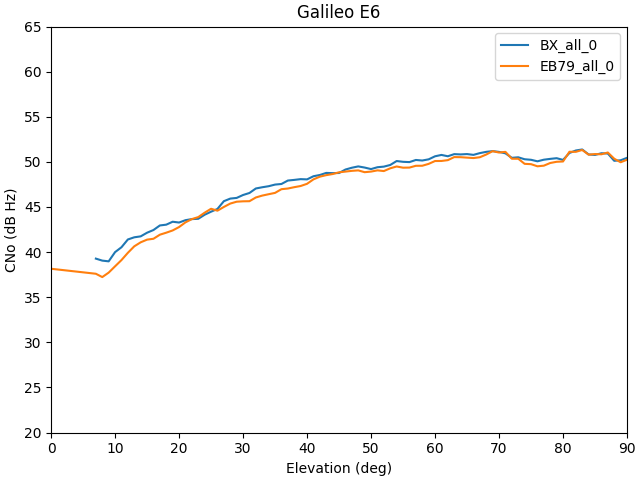

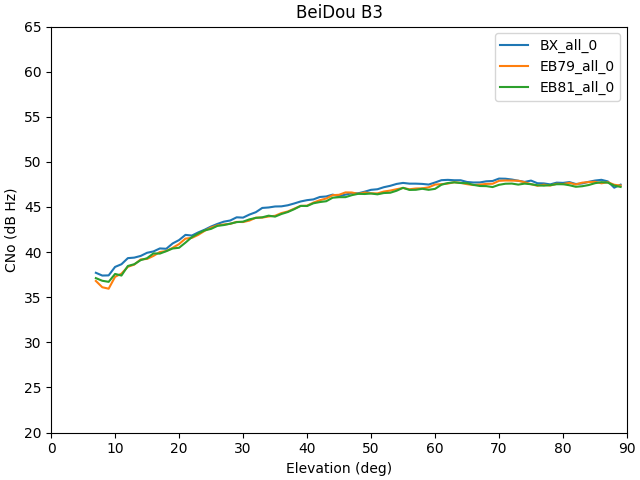

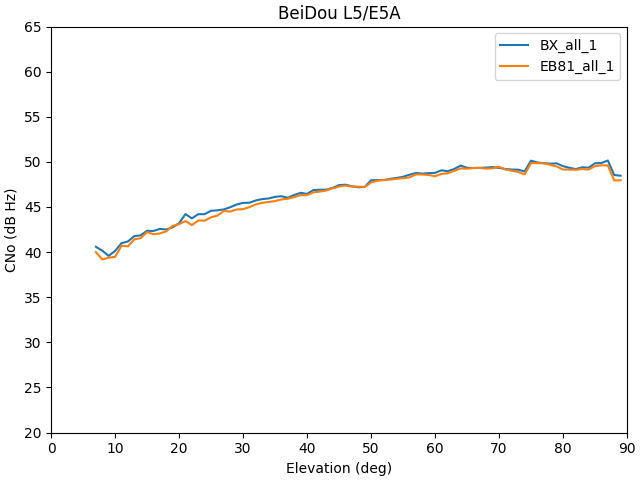

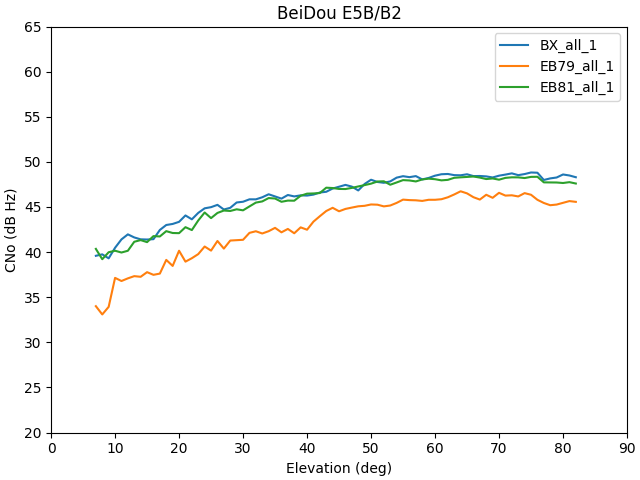

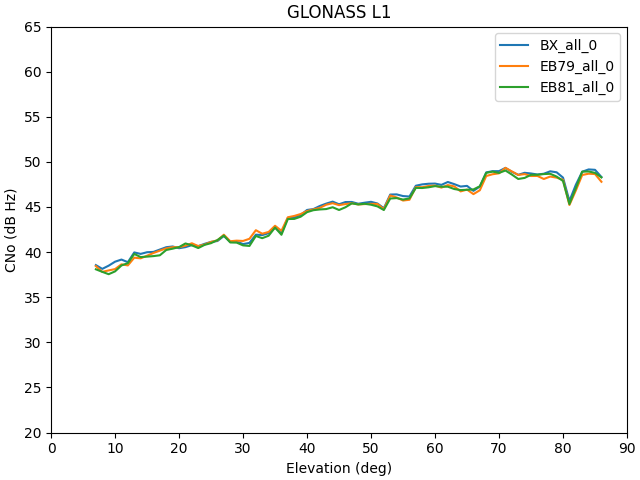

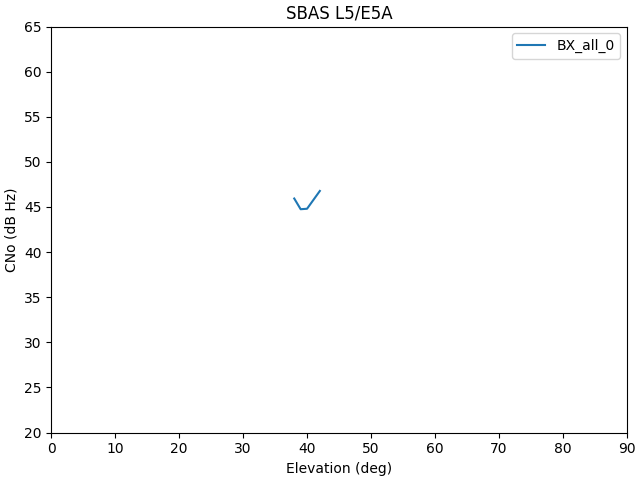

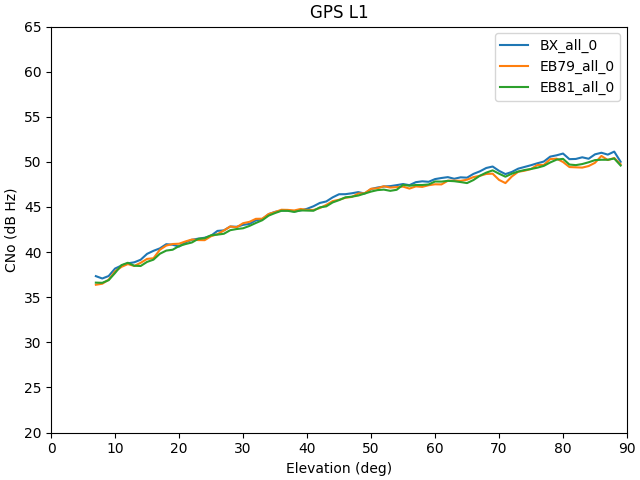

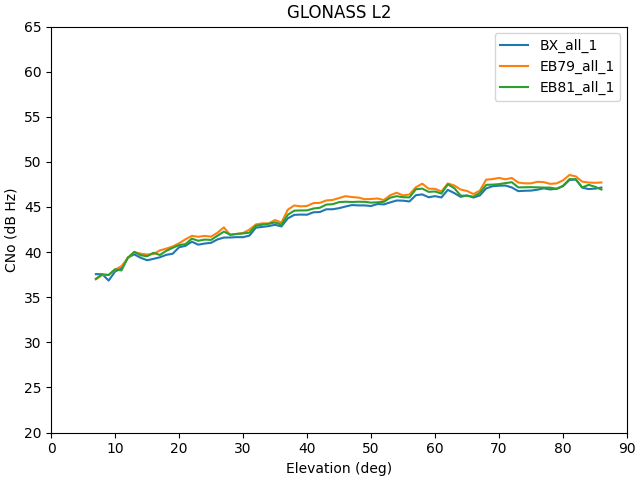

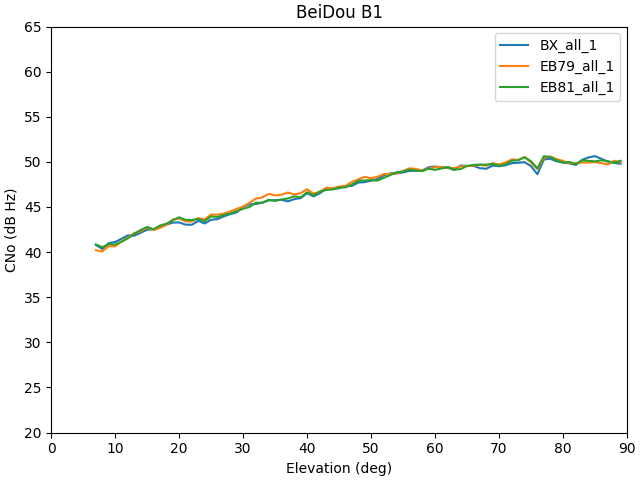

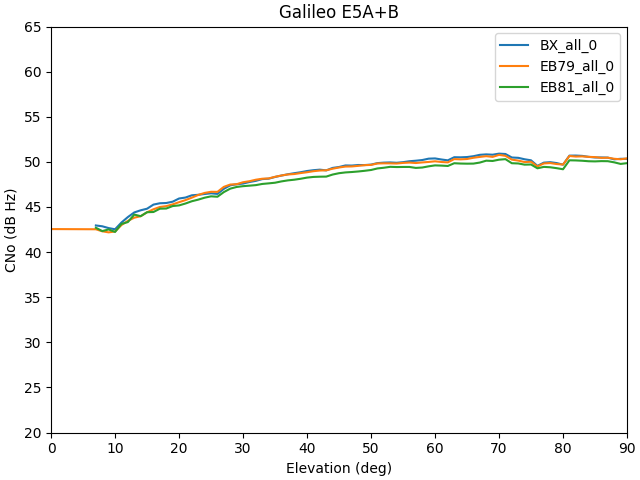

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

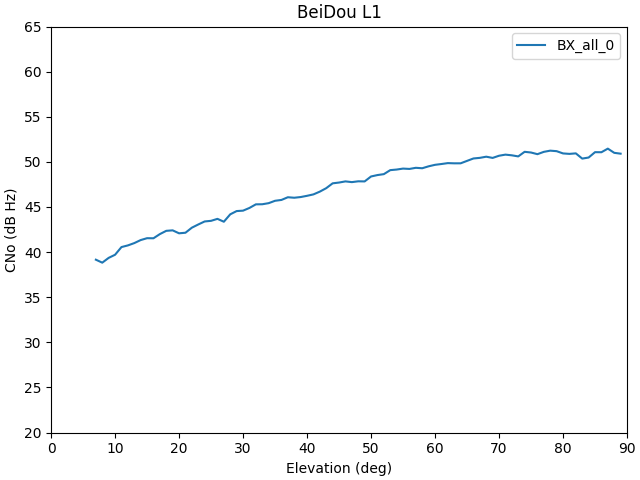

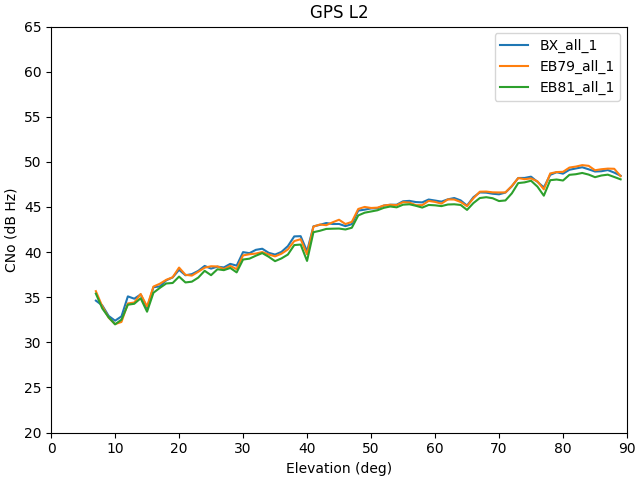

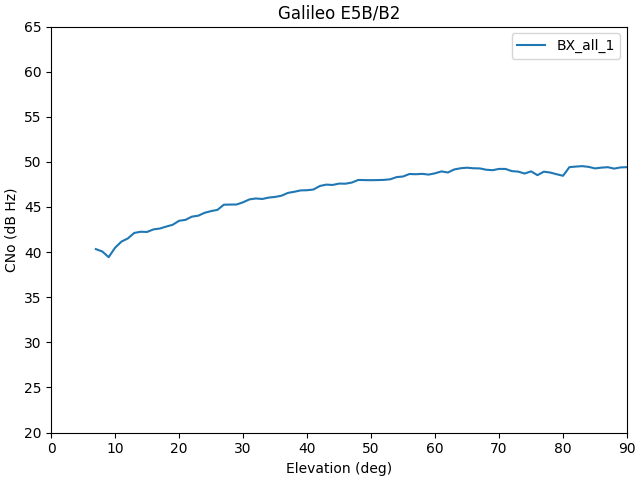

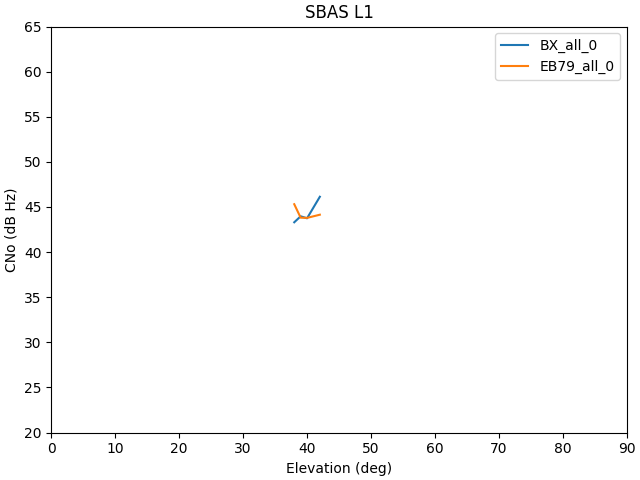

Mean Elevation Plots

Antenna 0

GPS
SBAS
GLONASS

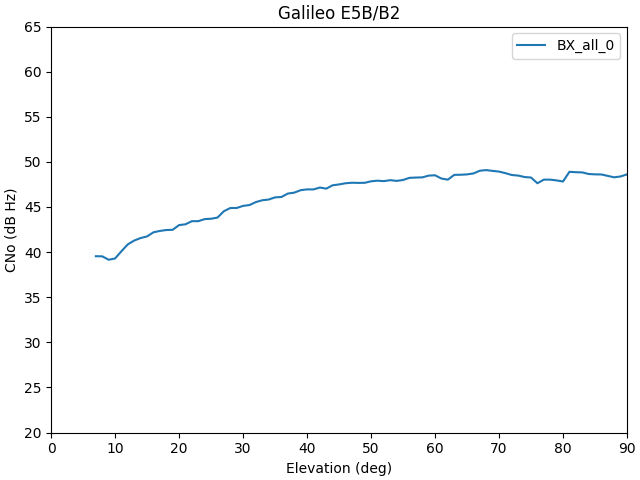

Galileo

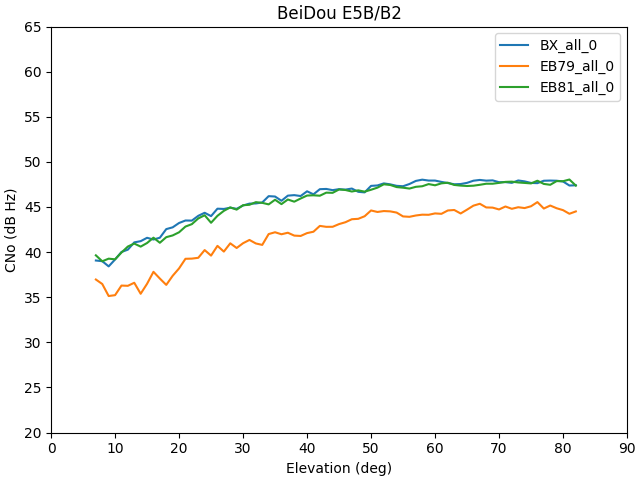

BeiDou

Antenna 1

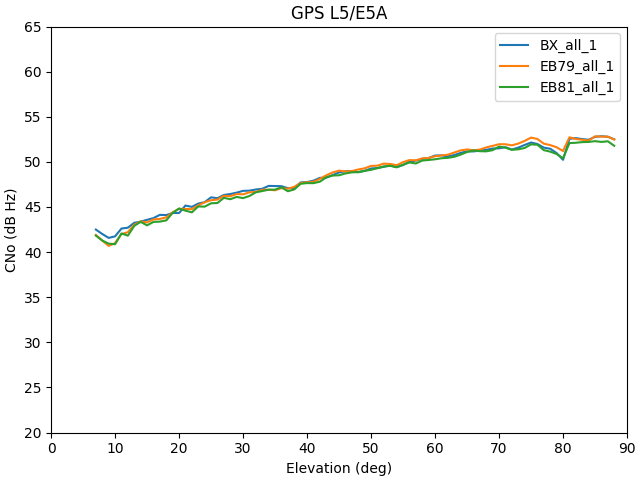

GPS
GLONASS

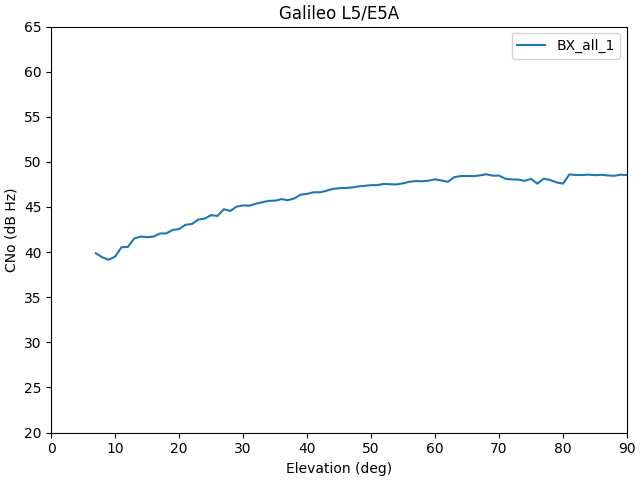

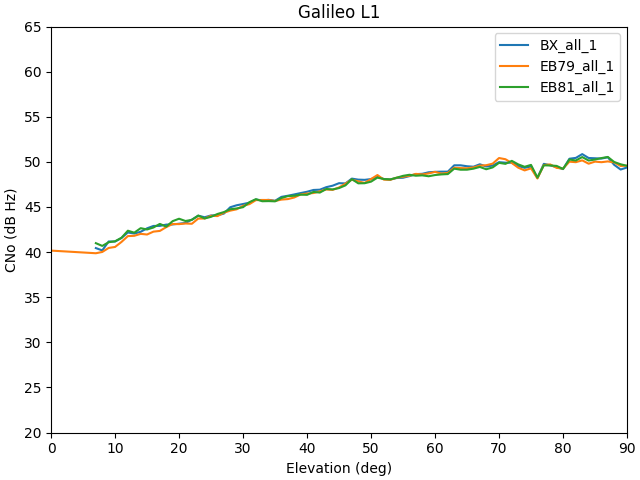

Galileo

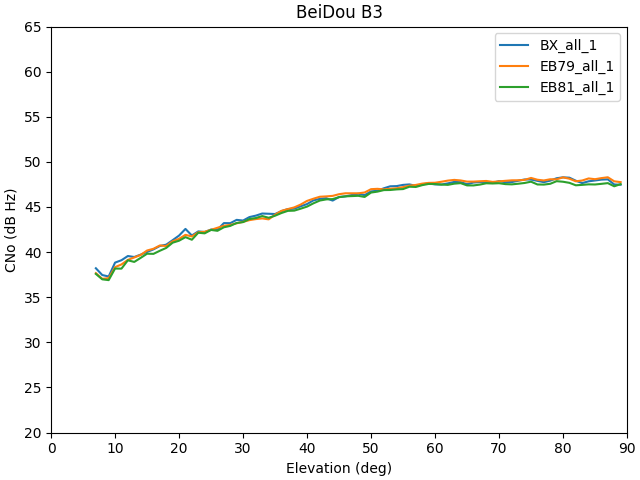

BeiDou

Oscillation Check

BX_all_0: 1459.8
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 6 1,460
0 GLONASS L1 0 24 1,380
0 GLONASS L2 0 12 1,376
0 GLONASS L1 1 24 1,337
0 GLONASS L1 1 14 1,332
0 GPS L1 0 3 1,331
0 BeiDou L1 20 20 1,325
0 GPS L1 0 15 1,298
0 Galileo E6 36 13 1,292
0 GPS L1 0 12 1,282
EB79_all_0: 1756.3
Antenna SVType Freq Track SV osc_factor
0 GPS L2 2 20 1,756
0 GPS L1 0 25 1,751
0 GPS L2 2 19 1,549
0 GPS L1 0 8 1,532
0 BeiDou B1 26 24 1,416
0 GPS L1 0 5 1,406
0 GPS L1 0 12 1,402
0 GPS L1 0 15 1,397
0 BeiDou B1 26 32 1,353
0 GLONASS L1 0 23 1,349
EB81_all_0: 2157.8
Antenna SVType Freq Track SV osc_factor
0 GPS L2 5 25 2,158
0 GLONASS L1 0 16 1,536
0 GPS L1 0 25 1,531
0 GPS L1 0 5 1,498
0 GLONASS L1 0 1 1,430
0 GPS L1 0 12 1,381
0 GLONASS L1 0 5 1,374
0 BeiDou B3 29 24 1,307
0 BeiDou B1 26 42 1,306
0 BeiDou B1 26 24 1,238
BX_all_1: 1777.5
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 9 1,777
1 GLONASS L1 0 22 1,740
1 GLONASS L1 0 24 1,585
1 GLONASS L1 1 22 1,572
1 GLONASS L1 0 15 1,533
1 GLONASS L1 1 9 1,516
1 GLONASS L1 0 16 1,495
1 GPS L2 2 22 1,489
1 GLONASS L1 1 15 1,485
1 GPS L1 0 5 1,463
EB79_all_1: 1764.1
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 9 1,764
1 GPS L1 0 5 1,745
1 GPS L1 0 28 1,645
1 GLONASS L1 0 4 1,465
1 GPS L1 0 31 1,455
1 GPS L2 2 16 1,407
1 GPS L1 0 26 1,388
1 GPS L1 0 6 1,347
1 GPS L2 2 19 1,342
1 BeiDou B1 26 36 1,340
EB81_all_1: 1754.4
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 9 1,754
1 GPS L2 5 25 1,642
1 GLONASS L1 0 22 1,586
1 BeiDou B1 26 44 1,584
1 GLONASS L1 0 16 1,437
1 GPS L1 0 6 1,401
1 GLONASS L2 0 13 1,392
1 GLONASS L1 0 15 1,382
1 GPS L1 0 22 1,364
1 GLONASS L1 0 3 1,308

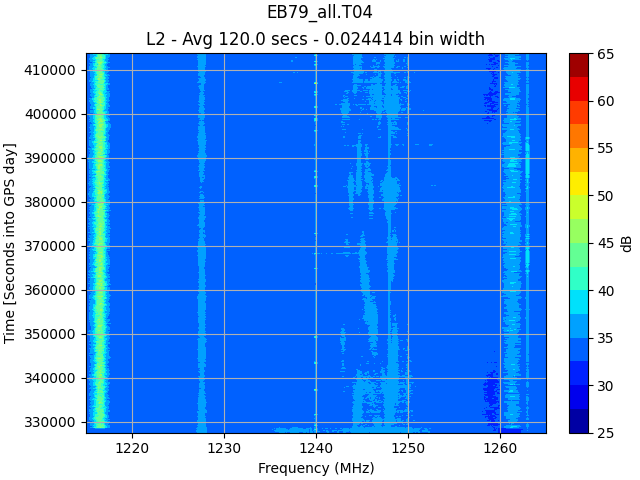

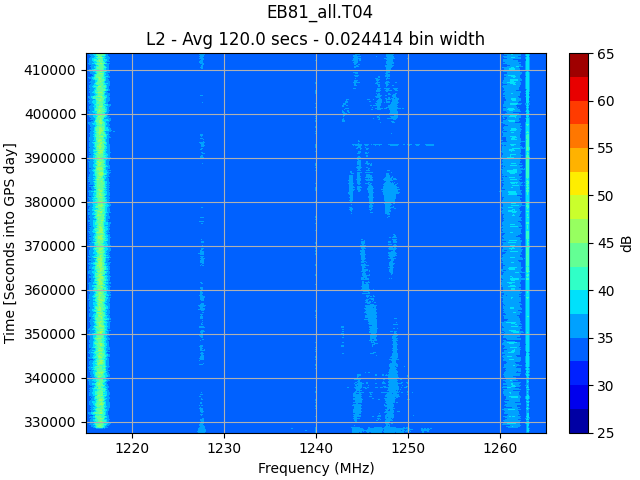

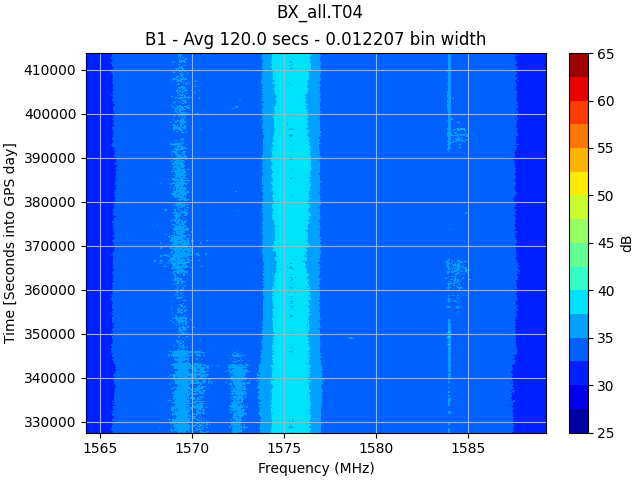

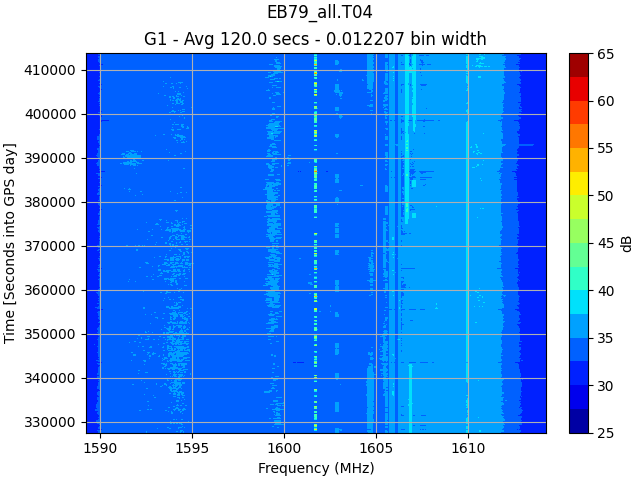

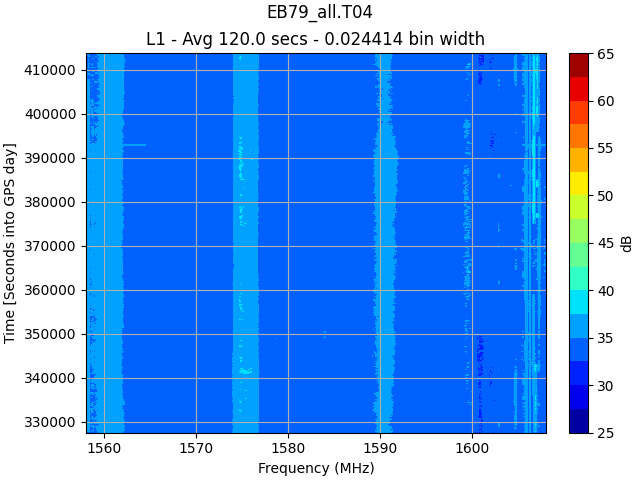

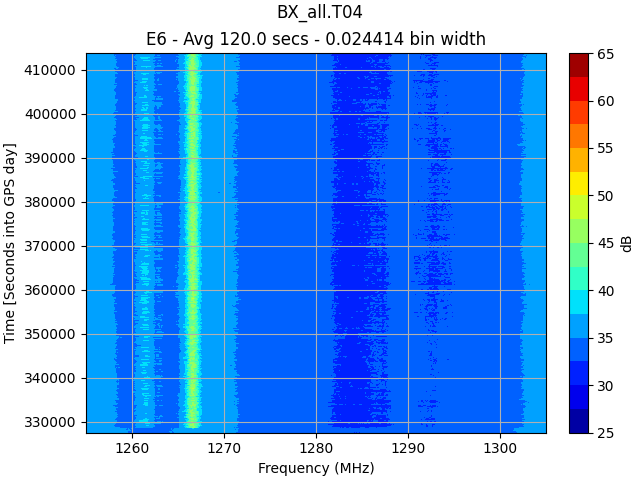

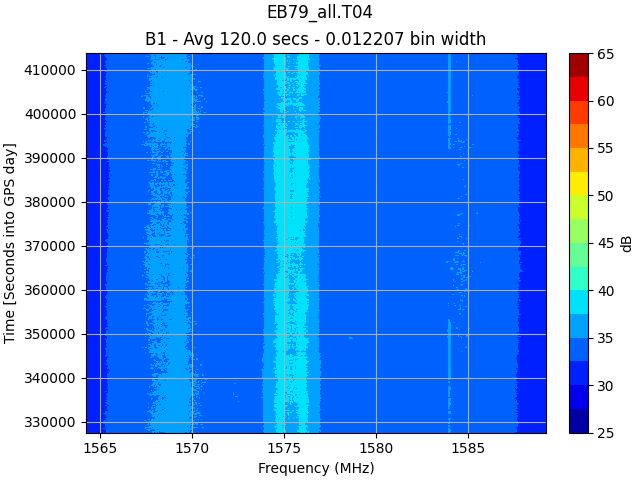

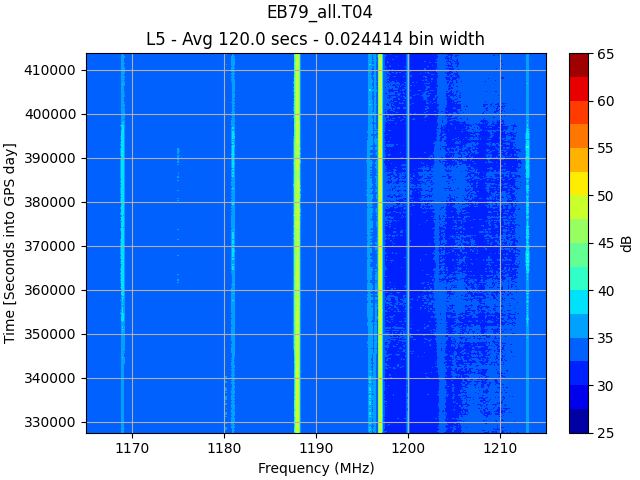

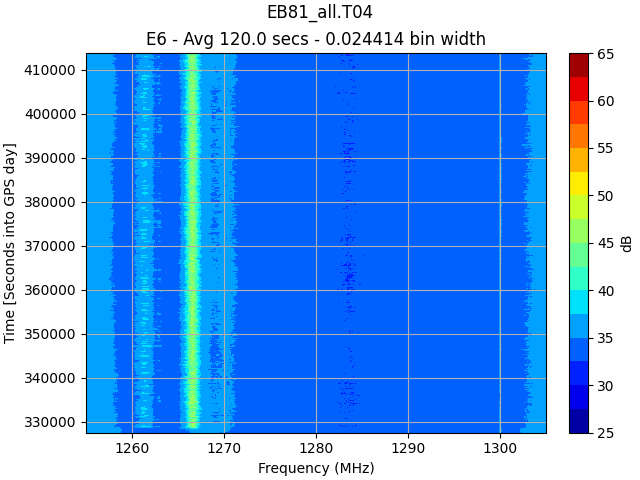

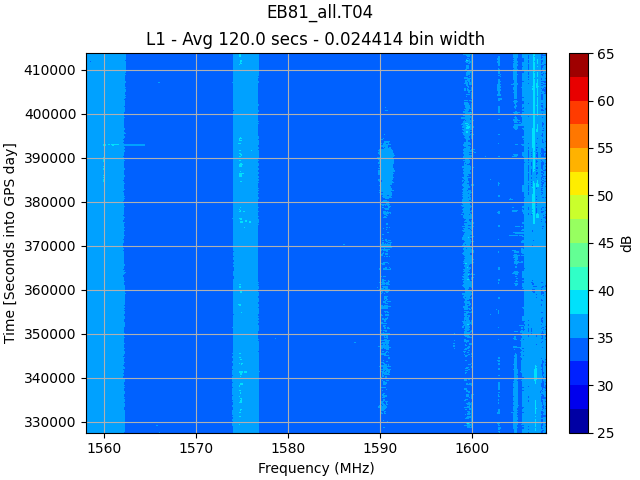

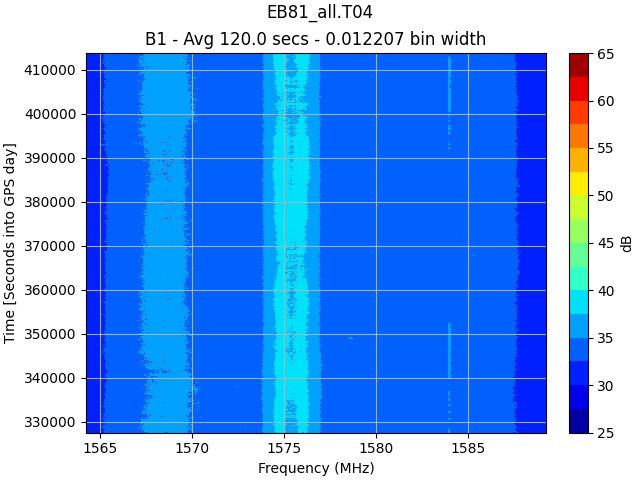

FFT Plots

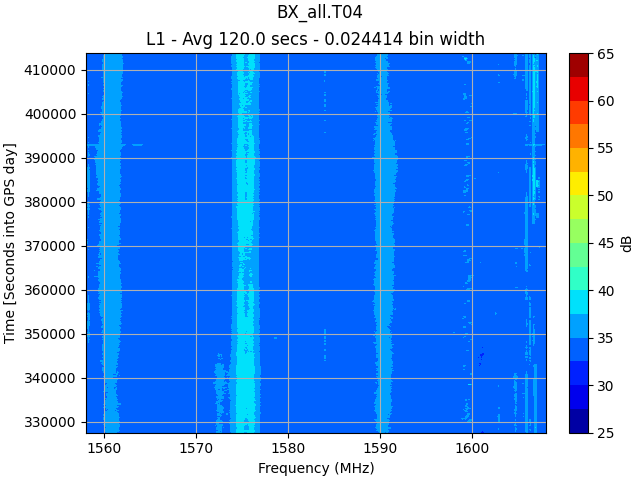

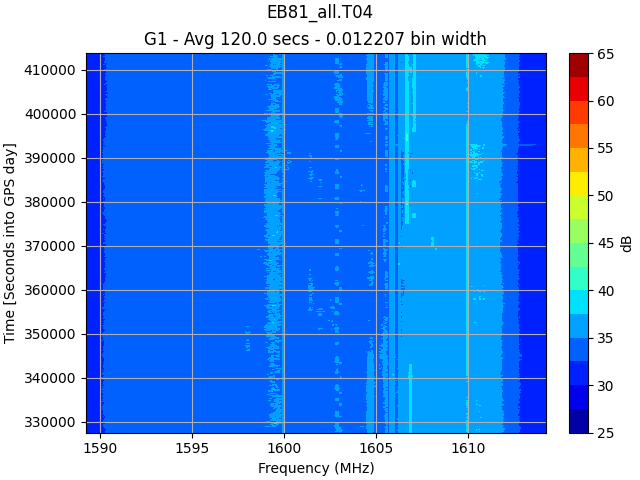

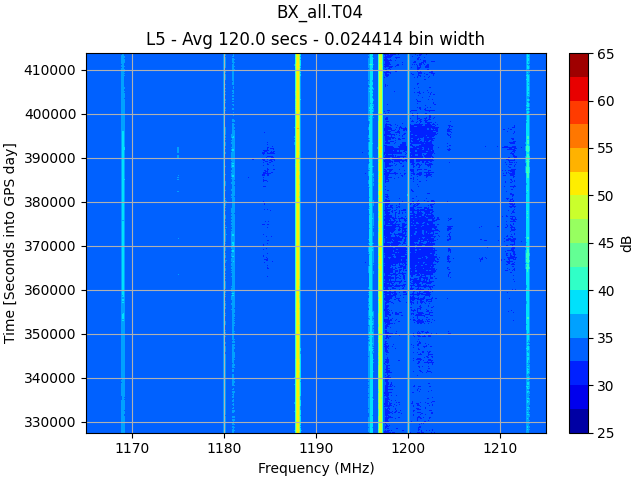

L1 L2 L5 E6 G1 B1

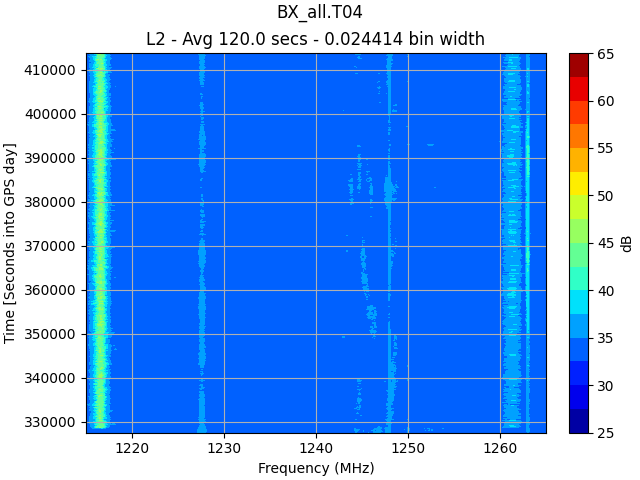

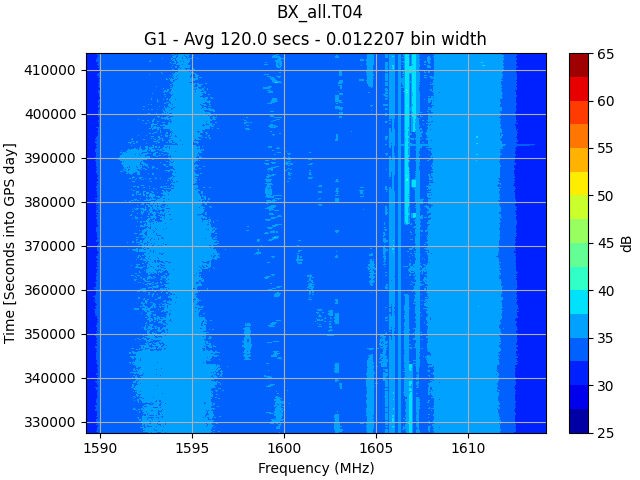

BX
EB79
EB81
