REF File: 240725/BX_all.T04
DUT File: 240725/EB79_all.T04

Comments


Halow Off, but Halow and UHF antennas installed
EB79_6348C01835 RTK Active
BX992_6221C43829 INS Active

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 805687 43.9 44.1 4.3 14.7 55.2 40.5 37.1 89.0
GPS L2 CM+CL 610892 44.1 45.0 4.1 17.9 52.4 34.5 38.4 89.0
GPS L2 E 189665 29.9 30.4 6.7 12.6 45.0 32.4 33.4 77.0
GPS L5/E5A I+Q 440797 47.1 47.5 3.4 20.9 54.1 33.2 37.5 88.0
SBAS L1 CA 259171 44.4 44.1 1.4 33.1 48.4 15.3 39.8 42.0
SBAS L5/E5A I 259167 45.8 45.9 0.9 41.9 48.5 6.6 39.8 42.0
GLONASS L1 CA 645033 43.8 44.6 5.3 15.0 54.3 39.3 36.0 86.0
GLONASS L1 P 643218 42.4 43.1 5.2 13.7 52.1 38.4 36.0 86.0
GLONASS L2 CA 573437 43.5 44.1 4.2 15.8 50.9 35.1 35.8 86.0
GLONASS L2 P 573439 42.0 42.6 4.0 14.8 49.0 34.2 35.8 86.0
GLONASS G3 PD 47482 44.0 44.9 4.2 29.2 50.0 20.8 37.5 79.0
Galileo L1 MBOC-PD 639063 45.5 45.8 3.9 24.5 54.0 29.5 38.4 90.0
Galileo L5/E5A BPSK(10)-PD 639063 45.0 45.6 3.2 29.1 50.6 21.5 38.4 90.0
Galileo E5B/B2 BPSK(10)-PD 639062 45.3 46.0 3.4 24.0 51.0 27.0 38.4 90.0
Galileo E5A+B AltBOC-Comp-PD 639055 47.7 48.3 2.9 20.7 52.8 32.1 38.4 90.0
Galileo E6 BPSK(5)-PD 639057 46.5 47.4 4.2 25.0 53.4 28.4 38.4 90.0
BeiDou L1 BOC-PD 604385 45.4 45.5 4.0 23.6 53.7 30.1 37.0 89.0
BeiDou L5/E5A I+Q 604385 45.5 45.9 3.3 29.9 51.9 22.0 37.0 89.0
BeiDou E5B/B2 BPSK(2)-B2 58029 45.3 46.4 3.1 33.3 49.9 16.6 41.2 82.0
BeiDou B1 BPSK(2)-B1 662422 45.1 45.3 3.9 23.7 53.8 30.1 37.4 89.0
BeiDou B3 BPSK(10)-B3 662407 44.0 44.8 3.7 26.9 51.3 24.4 37.4 89.0
start/stop time: 327,600 413,999
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 10,834,916
Avg Samples/sec: 125.4

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2324']
Start Time : 327600.185
Stop Time : 413412.109
Total Hours : 23.836645555555556
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 776258 43.6 43.9 4.2 19.3 54.5 35.2 37.1 89.0
GPS L2 CM+CL 518915 43.7 44.5 4.2 19.1 51.9 32.8 38.6 89.0
GPS L2 E 156642 29.4 30.0 6.7 12.6 45.1 32.5 34.3 77.0
GPS L5/E5A I+Q 374969 47.1 47.5 3.5 26.7 55.6 28.9 37.8 88.0
SBAS L1 CA 259170 44.4 44.3 0.9 28.6 47.3 18.7 39.8 42.0
GLONASS L1 CA 614113 43.0 43.8 5.3 13.9 53.1 39.2 36.0 86.0
GLONASS L2 CA 543694 43.0 43.6 4.3 9.5 51.3 41.8 35.9 86.0
Galileo L1 BOC-PD 634302 45.2 45.5 4.0 24.3 53.5 29.2 38.4 90.0
Galileo E5A+B AltBOC-Comp-PD 634301 47.6 48.3 3.0 18.7 52.7 34.0 38.4 90.0
Galileo E6 BPSK(5)-PD 634257 46.0 46.8 4.5 19.9 53.2 33.3 38.4 90.0
BeiDou E5B/B2 BPSK(2)-B2 29539 42.3 43.2 2.9 29.8 46.7 16.9 45.1 82.0
BeiDou B1 BPSK(2)-B1 601198 45.0 45.3 3.9 26.3 53.5 27.2 37.3 89.0
BeiDou B3 BPSK(10)-B3 600011 43.5 44.2 3.9 22.2 51.2 29.0 37.4 89.0
start/stop time: 327,600 413,999
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 6,377,369
Avg Samples/sec: 73.8

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 327600.148
Stop Time : 413452.062
Total Hours : 23.847753888888885
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 775875 +0.3 +0.3 +1.7 -18.4 +18.5 +36.9 +37.2 +89.0
GPS L2 CM+CL 518581 +0.5 +0.4 +1.4 -16.2 +14.2 +30.4 +38.6 +89.0
GPS L2 E 153971 +0.9 +0.9 +1.5 -7.2 +8.9 +16.1 +34.7 +77.0
GPS L5/E5A I+Q 374706 +0.1 +0.1 +1.1 -18.7 +10.7 +29.4 +37.8 +88.0
SBAS L1 CA 259169 +0.0 +0.1 +1.7 -4.2 +6.1 +10.3 +39.8 +42.0
GLONASS L1 CA 613729 +0.9 +0.9 +1.6 -12.8 +20.6 +33.4 +36.0 +86.0
GLONASS L2 CA 543184 +0.5 +0.4 +1.5 -16.3 +17.9 +34.2 +35.9 +86.0
Galileo E5A+B AltBOC-Comp-PD 633893 +0.2 +0.1 +0.8 -14.3 +7.2 +21.5 +38.5 +90.0
Galileo E6 BPSK(5)-PD 633852 +0.6 +0.5 +1.5 -12.6 +18.0 +30.6 +38.5 +90.0
BeiDou E5B/B2 BPSK(2)-B2 29539 +3.8 +3.6 +1.4 -0.4 +9.2 +9.6 +45.1 +82.0
BeiDou B1 BPSK(2)-B1 600921 +0.1 +0.1 +1.5 -15.8 +11.5 +27.3 +37.4 +89.0
BeiDou B3 BPSK(10)-B3 599722 +0.5 +0.4 +1.3 -5.9 +13.3 +19.2 +37.4 +89.0
start/stop time: 327,600 413,999
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 5,737,142
Avg Samples/sec: 66.4

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.426
Median = 0.400
Std Dev= 1.486

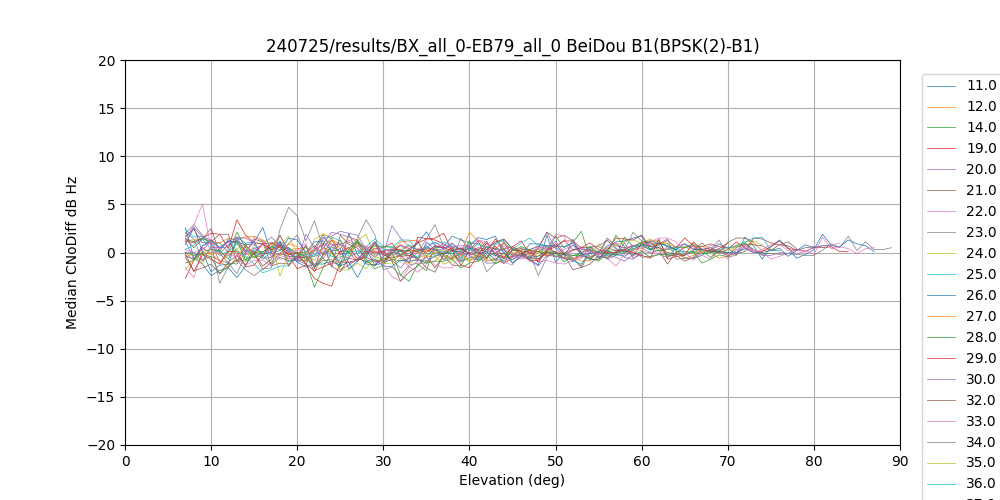

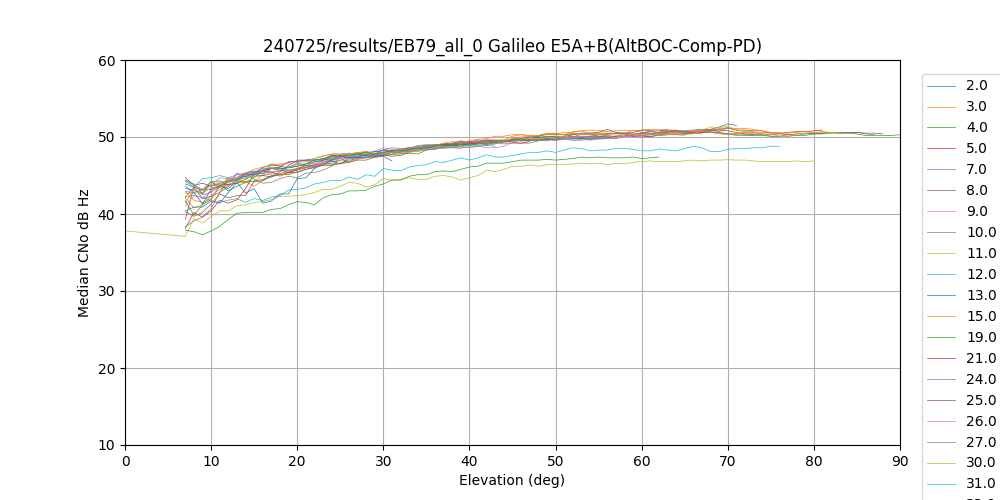

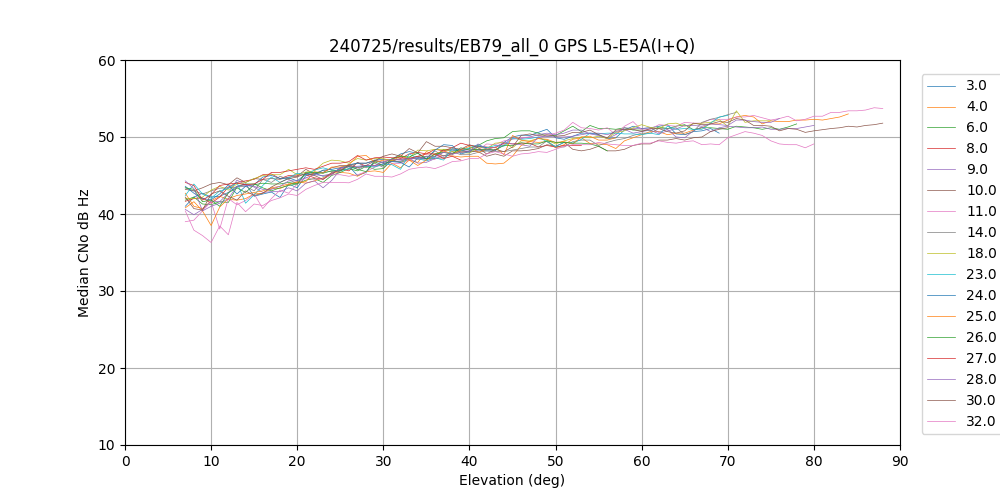

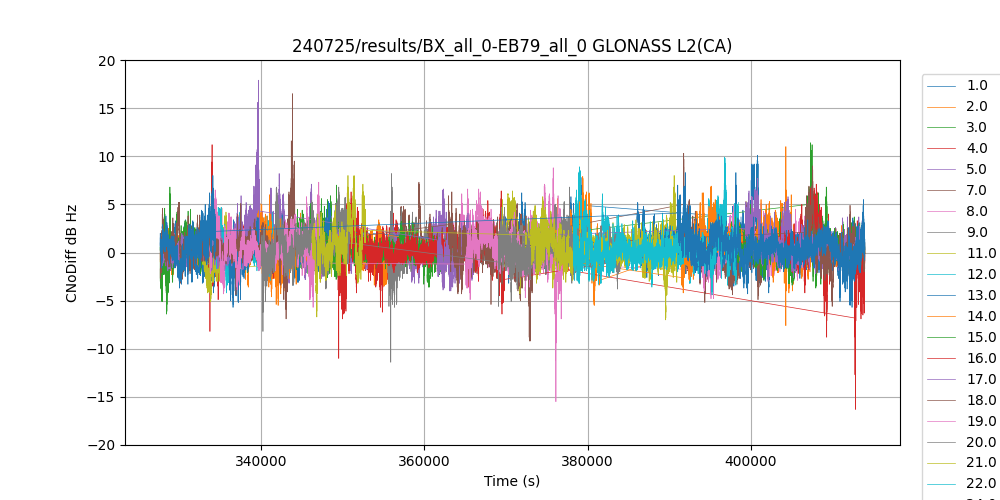

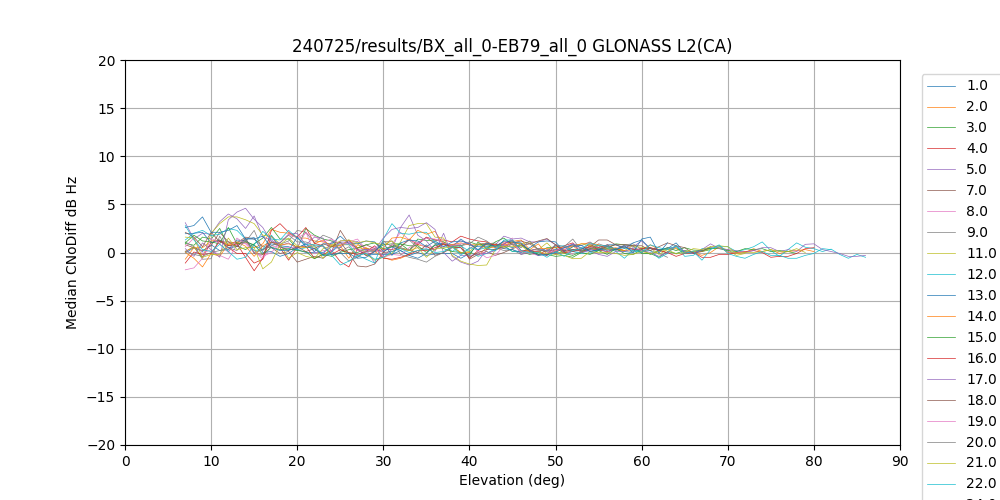

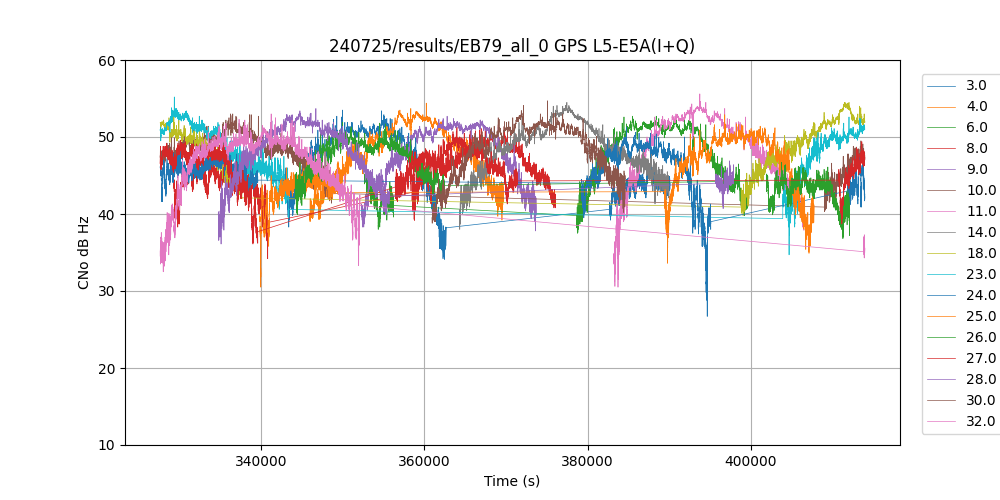

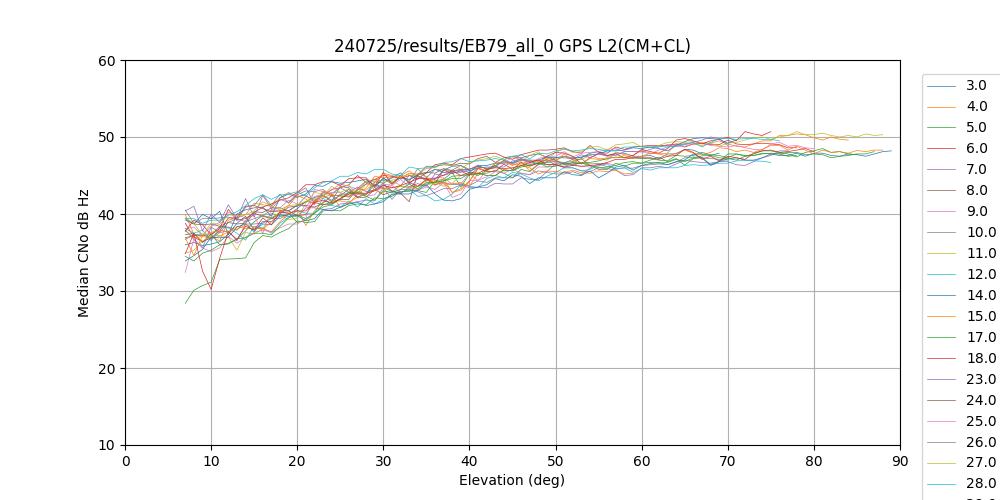

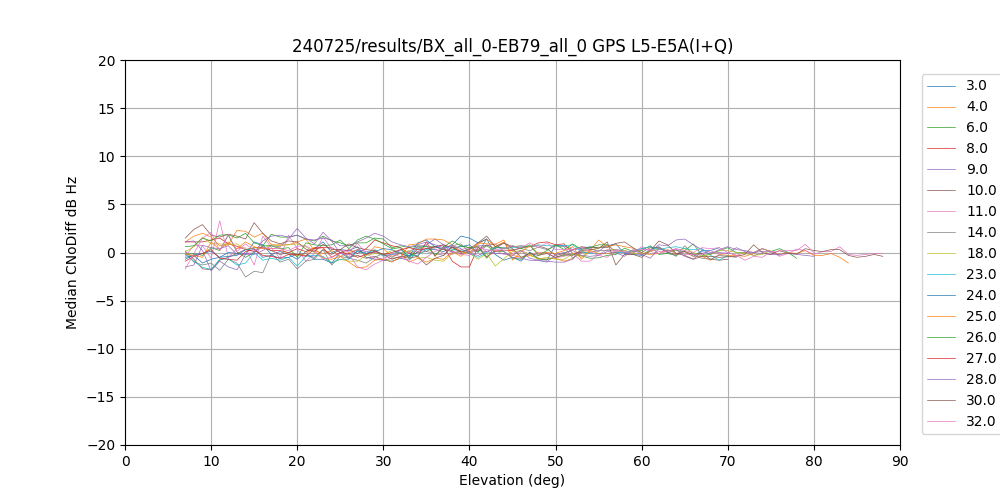

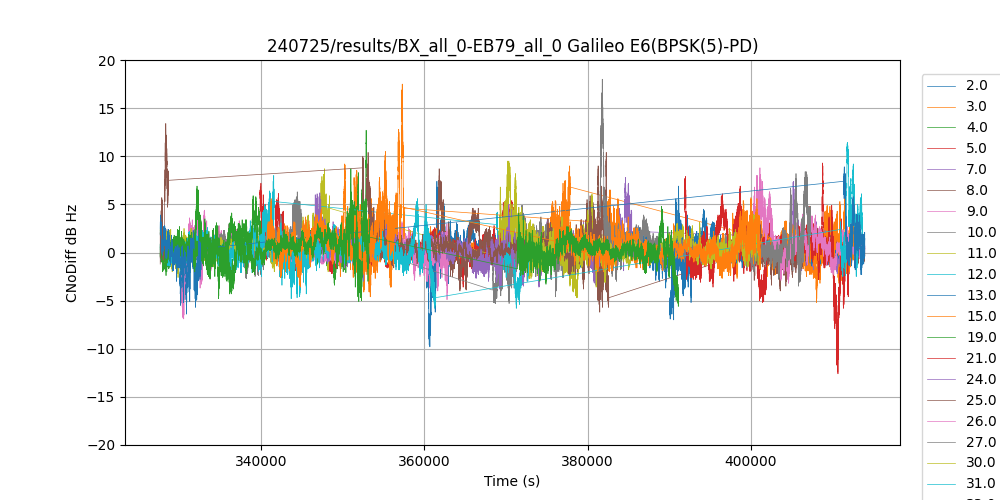

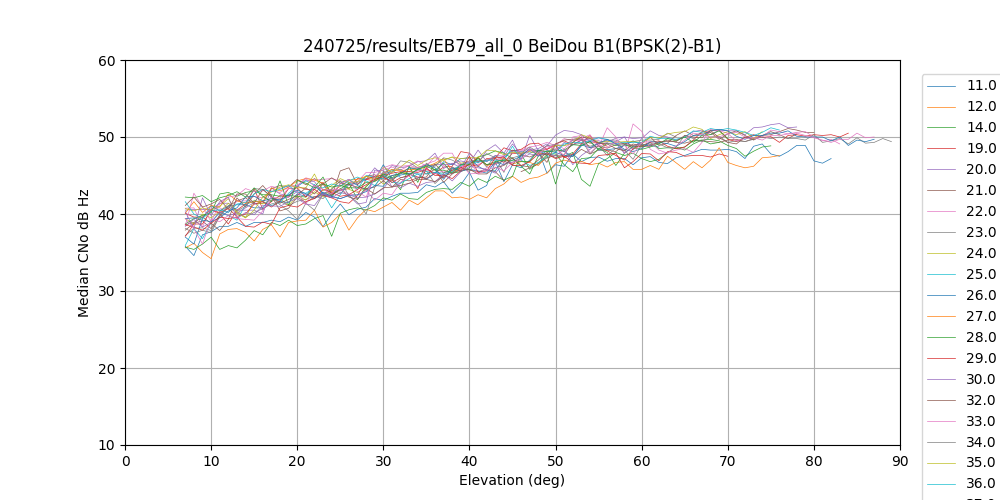

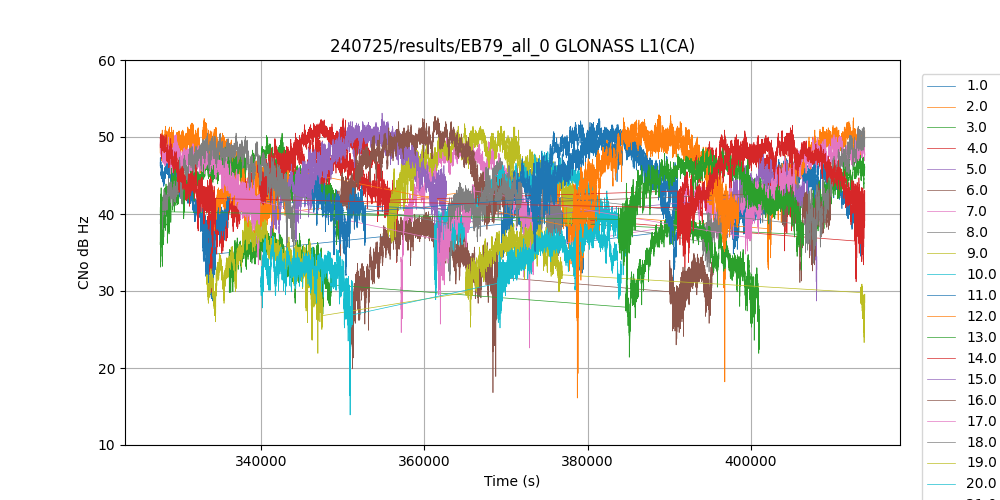

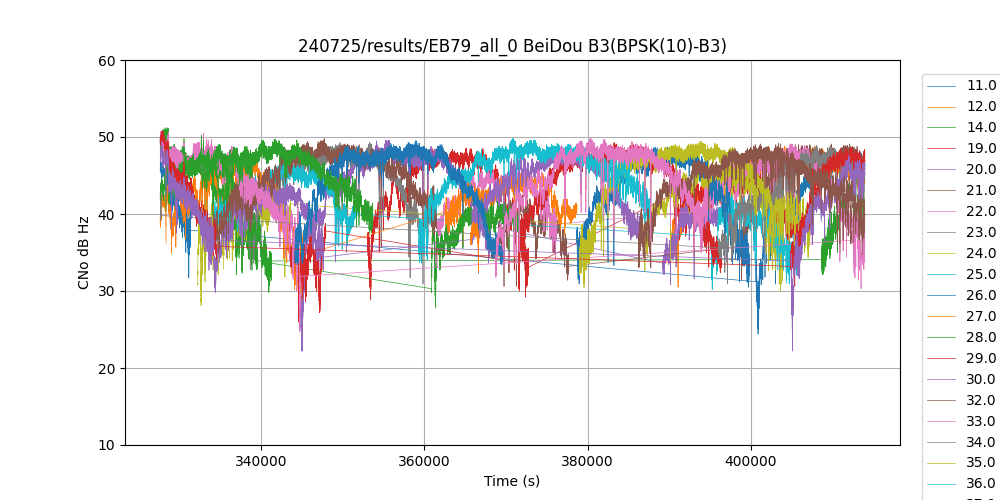

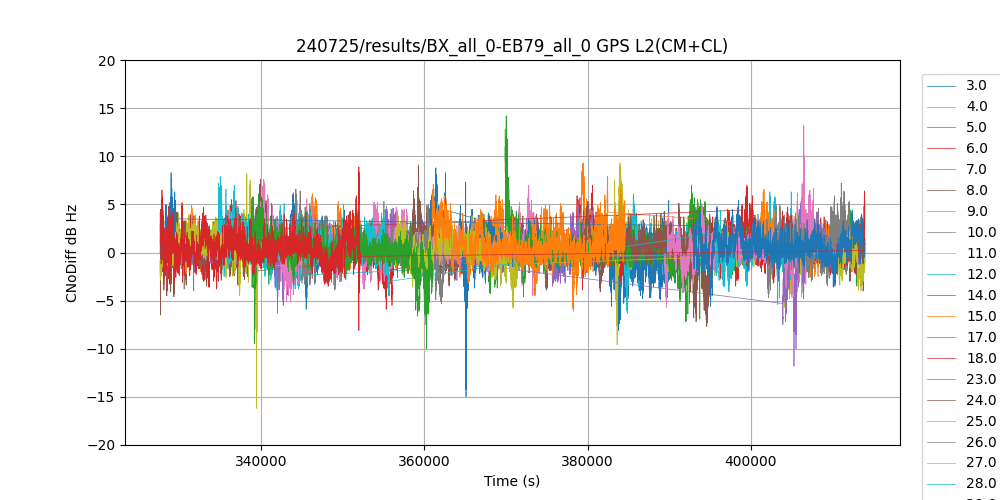

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.0 48.6 28.6 59 [21.0, 29.0] [0.0] 30492
3 32.7 0.0 42.5 52.0 27.4 112 [36.0, 34.0] [0.0] 27069
4 45.4 0.0 44.4 51.6 33.7 1 [37.0] [0.0] 23844
5 40.1 0.0 44.2 52.2 19.9 378 [29.0, 16.0] [0.0] 23003
6 38.4 0.0 43.7 52.6 24.4 42 [28.0, 30.0] [0.0] 24483
7 45.1 0.0 45.8 51.9 33.3 0 [26.0] [0.0] 25484
8 27.4 0.0 41.8 49.9 26.4 182 [37.0, 27.0] [0.0] 29151
9 44.0 0.0 45.5 53.3 32.7 0 [34.0] [0.0] 21426
10 43.4 0.0 46.8 54.1 29.0 251 [35.0, 36.0] [0.0] 26016
11 45.8 0.0 45.1 53.7 22.1 9 [33.0] [0.0] 23288
12 37.2 0.0 43.8 51.9 26.5 168 [37.0, 27.0] [0.0] 24310
13 26.3 0.0 42.6 49.1 27.0 529 [32.0, 21.0, 30.0] [0.0] 30181
14 44.1 0.0 45.3 51.0 32.9 0 [19.0] [0.0] 25733
15 29.2 0.0 42.9 50.2 27.4 566 [29.0, 33.0] [0.0] 28045
16 31.1 0.0 41.8 50.9 28.1 390 [37.0, 32.0] [0.0] 27315
17 45.7 0.0 45.7 53.1 35.0 0 [37.0] [0.0] 24077
18 44.5 0.0 45.0 51.6 33.7 441 [30.0, 35.0] [0.0] 25179
19 44.6 0.0 44.7 51.7 28.9 0 [35.0] [0.0] 24583
20 34.3 0.0 42.7 52.2 28.1 199 [21.0, 25.0] [0.0] 25939
21 26.6 0.0 42.1 48.5 27.9 266 [34.0, 32.0] [0.0] 30259
22 44.4 0.0 45.4 51.3 32.2 0 [17.0] [0.0] 26006
23 43.8 0.0 45.0 52.2 32.8 117 [17.0, 13.0] [0.0] 25797
24 25.6 0.0 40.7 47.3 29.0 372 [26.0, 28.0, 25.0] [0.0] 30007
25 28.6 0.0 41.4 49.8 26.5 133 [31.0, 23.0] [0.0] 28510
26 28.0 0.0 42.0 50.2 28.1 128 [22.0, 28.0] [0.0] 28501
27 26.2 0.0 42.2 48.2 26.0 319 [31.0, 33.0, 27.0] [0.0] 30121
28 39.7 0.0 43.4 50.9 14.7 79 [27.0, 28.0] [0.0] 23151
29 45.4 0.0 45.3 53.4 31.8 438 [14.0, 15.0] [0.0] 22916
30 45.9 0.0 45.8 53.9 27.0 3 [24.0] [0.0] 23639
31 45.3 0.0 45.7 54.5 30.4 2 [30.0] [0.0] 22279
32 44.9 0.0 46.9 55.2 25.9 51 [28.0, 21.0] [0.0] 24883
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 42.8 48.1 32.3 1260 [17.0, 18.0] [0.0] 29415
3 32.8 0.0 42.3 51.2 23.2 942 [36.0, 30.0] [0.0] 26259
4 45.6 0.0 44.3 51.2 31.6 703 [20.0] [0.0] 23108
5 40.0 0.0 43.8 51.7 19.3 1197 [18.0] [0.0] 21988
6 38.5 0.0 43.1 52.4 19.9 816 [24.0, 34.0] [0.0] 23780
7 45.1 0.0 45.3 51.6 26.7 699 [25.0] [0.0] 24812
8 27.4 0.0 41.3 50.5 24.9 1180 [26.0, 24.0] [0.0] 28021
9 44.0 0.0 45.2 53.5 24.9 609 [37.0] [0.0] 20846
10 43.3 0.0 46.6 53.8 28.3 1407 [25.0, 23.0] [0.0] 24891
11 45.9 0.0 45.0 52.3 32.0 905 [29.0] [0.0] 22489
12 37.5 0.0 43.5 51.0 29.4 1141 [26.0] [0.0] 23307
13 26.4 0.0 42.5 48.5 32.0 1305 [17.0, 21.0, 28.0] [0.0] 29063
14 44.3 0.0 45.2 50.4 33.5 698 [19.0] [0.0] 25008
15 29.2 0.0 42.5 50.3 24.8 1615 [15.0, 13.0, 16.0] [0.0] 26939
16 31.4 0.0 41.4 49.7 28.5 1170 [31.0, 35.0, 24.0] [0.0] 26258
17 45.8 0.0 45.5 52.7 31.2 654 [27.0] [0.0] 23462
18 44.7 0.0 44.7 50.8 32.6 1491 [33.0, 35.0] [0.0] 24016
19 44.7 0.0 44.8 51.6 31.4 653 [14.0] [0.0] 23970
20 34.3 0.0 42.3 50.0 28.6 1109 [26.0, 25.0] [0.0] 24905
21 26.6 0.0 41.8 47.8 28.7 1192 [19.0, 26.0] [0.0] 29118
22 44.4 0.0 45.2 50.7 32.2 687 [16.0] [0.0] 25361
23 43.9 0.0 44.7 50.7 34.3 1397 [18.0, 13.0] [0.0] 24613
24 25.7 0.0 40.6 47.3 27.4 1446 [37.0, 24.0, 25.0] [0.0] 28801
25 28.7 0.0 41.4 49.3 25.7 1425 [37.0, 22.0] [0.0] 27211
26 28.1 0.0 41.5 50.4 19.9 1407 [27.0, 19.0] [0.0] 27382
27 26.2 0.0 42.4 48.3 29.3 1513 [27.0, 28.0, 26.0] [0.0] 28977
28 39.8 0.0 42.7 50.8 22.4 1327 [28.0, 21.0] [0.0] 22209
29 45.1 0.0 45.2 53.1 33.2 1068 [14.0, 17.0] [0.0] 21959
30 45.9 0.0 45.7 52.7 29.1 659 [22.0] [0.0] 23017
31 45.5 0.0 45.6 53.4 34.2 725 [33.0] [0.0] 21495
32 45.2 0.0 46.8 54.5 22.9 1181 [23.0, 27.0] [0.0] 23578

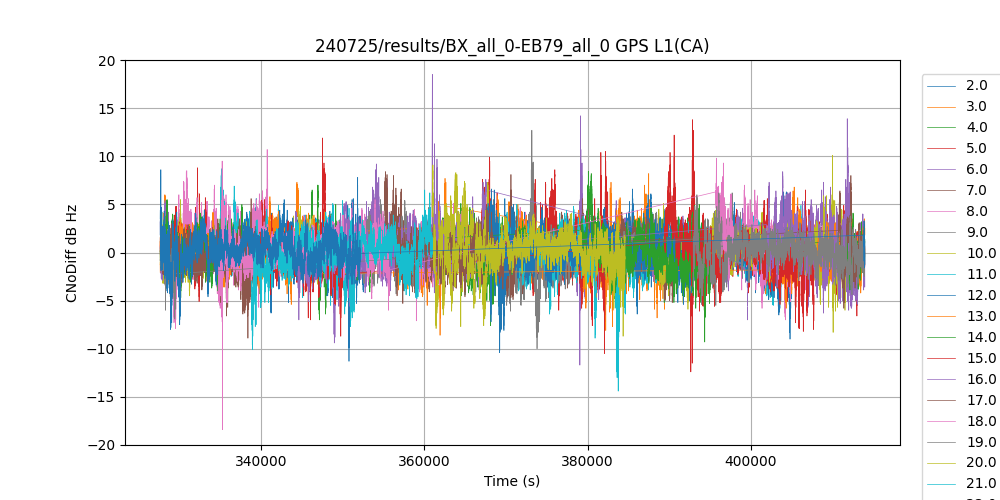

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.3 6.3 -11.3 [21.0, 17.0, 29.0, 18.0] 29400
3 32.8 0.2 8.2 -8.6 [36.0, 34.0, 30.0] 26244
4 45.6 0.1 7.0 -7.0 [37.0, 20.0] 23108
5 40.1 0.4 13.8 -12.4 [29.0, 18.0, 16.0] 21977
6 38.6 0.6 14.2 -11.7 [28.0, 24.0, 30.0, 34.0] 23748
7 45.1 0.5 8.4 -5.3 [26.0, 25.0] 24809
8 27.4 0.6 10.7 -7.9 [37.0, 26.0, 27.0, 24.0] 28014
9 44.0 0.3 12.7 -6.1 [34.0, 37.0] 20846
10 43.3 0.2 10.1 -8.3 [35.0, 25.0, 36.0, 23.0] 24874
11 46.0 0.1 4.9 -14.4 [33.0, 29.0] 22449
12 37.5 0.3 6.6 -9.0 [37.0, 26.0, 27.0] 23306
13 26.4 0.1 7.3 -8.1 [32.0, 17.0, 21.0, 30.0, 28.0] 29045
14 44.3 0.2 4.7 -7.6 [19.0] 25008
15 29.2 0.4 10.5 -10.5 [29.0, 15.0, 33.0, 13.0, 16.0] 26925
16 31.4 0.4 7.6 -9.4 [37.0, 31.0, 32.0, 35.0, 24.0] 26253
17 45.8 0.2 8.1 -5.2 [37.0, 27.0] 23462
18 44.7 0.3 7.0 -7.0 [30.0, 33.0, 35.0] 23986
19 44.7 -0.1 6.2 -10.0 [35.0, 14.0] 23970
20 34.3 0.5 8.3 -7.7 [21.0, 26.0, 25.0] 24883
21 26.6 0.3 8.7 -8.9 [34.0, 19.0, 32.0, 26.0] 29114
22 44.4 0.2 6.6 -10.4 [17.0, 16.0] 25361
23 43.9 0.3 6.8 -5.8 [17.0, 18.0, 13.0] 24612
24 25.7 0.1 8.4 -9.3 [26.0, 37.0, 28.0, 24.0, 25.0] 28801
25 28.7 0.1 12.2 -8.7 [31.0, 37.0, 23.0, 22.0] 27207
26 28.2 0.6 18.5 -7.0 [22.0, 27.0, 28.0, 19.0] 27349
27 26.2 -0.2 8.0 -8.9 [31.0, 27.0, 33.0, 28.0, 26.0] 28934
28 39.8 0.7 9.8 -18.4 [27.0, 28.0, 21.0] 22183
29 45.2 0.1 6.2 -6.9 [14.0, 15.0, 17.0] 21952
30 45.9 0.1 9.1 -8.7 [24.0, 22.0] 23002
31 45.5 0.2 6.5 -10.1 [30.0, 33.0] 21475
32 45.2 0.2 8.6 -8.0 [28.0, 23.0, 21.0, 27.0] 23578
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.3 0.0 29.7 36.4 13.9 67 [21.0, 29.0] [0.0] 30125
13 27.1 0.0 27.3 35.7 13.9 359 [32.0, 21.0, 30.0] [0.0] 28819
16 32.1 0.0 28.3 40.5 12.6 240 [37.0, 32.0] [0.0] 26118
19 45.3 0.0 34.8 45.0 14.8 2 [35.0] [0.0] 24108
20 35.4 0.0 29.9 40.9 13.9 135 [21.0, 25.0] [0.0] 24867
21 27.0 0.0 27.4 36.3 13.9 123 [34.0, 32.0] [0.0] 29629
22 44.4 0.0 33.4 41.6 14.8 0 [17.0] [0.0] 25993
27 8.0 0.0 20.0 21.3 17.8 0 [31.0] [0.0] 6

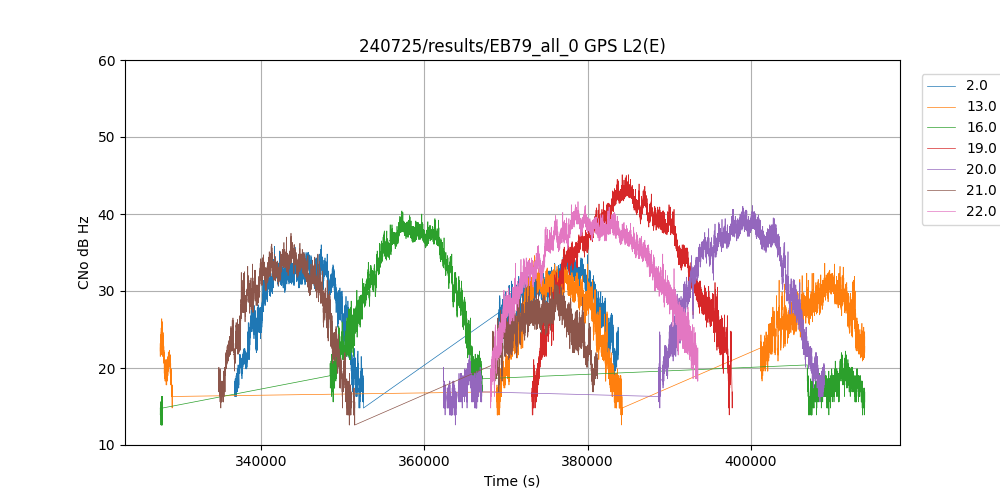

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.6 0.0 29.0 36.0 14.8 628 [17.0, 18.0] [0.0] 25397
13 27.2 0.0 26.4 34.6 12.6 912 [17.0, 21.0, 28.0] [0.0] 23410
16 34.4 0.0 28.0 40.4 12.6 817 [31.0, 35.0, 24.0] [0.0] 21065
19 45.3 0.0 34.1 45.1 13.9 334 [14.0] [0.0] 21594
20 36.0 0.0 28.7 41.1 12.6 522 [26.0, 25.0] [0.0] 18892
21 27.3 0.0 26.9 37.5 12.6 710 [19.0, 26.0] [0.0] 23693
22 45.5 0.0 33.0 41.6 14.8 354 [16.0] [0.0] 22591

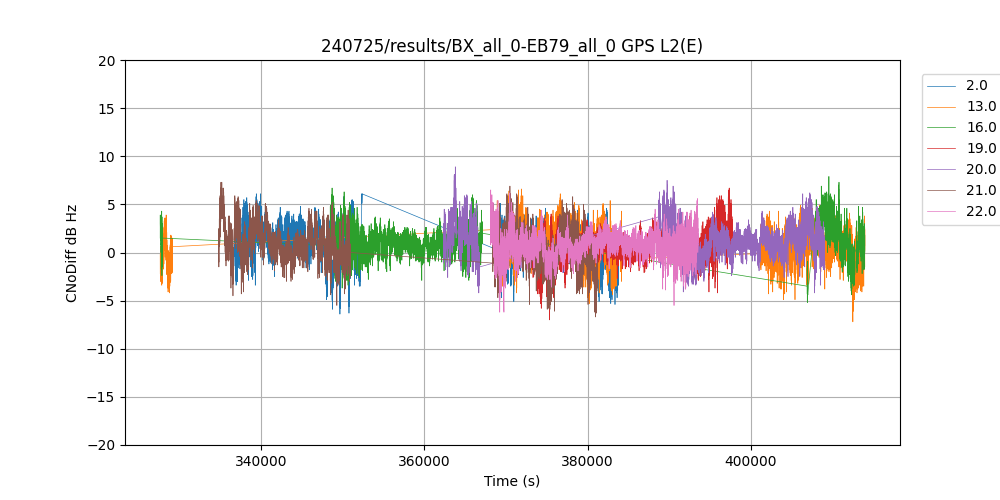

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.8 0.8 6.1 -6.4 [21.0, 17.0, 29.0, 18.0] 25052
13 27.9 1.0 6.6 -7.2 [32.0, 17.0, 21.0, 30.0, 28.0] 22520
16 35.1 1.3 7.9 -5.2 [37.0, 31.0, 32.0, 35.0, 24.0] 20490
19 45.9 0.6 6.7 -7.0 [35.0, 14.0] 21198
20 36.4 1.3 8.9 -4.2 [21.0, 26.0, 25.0] 18660
21 27.5 0.7 7.3 -6.7 [34.0, 19.0, 32.0, 26.0] 23460
22 45.5 0.7 6.5 -6.2 [17.0, 16.0] 22591
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.7 49.6 27.0 116 [36.0, 34.0] [0.0] 27069
4 45.4 0.0 46.2 51.3 37.3 0 [37.0] [0.0] 23844
5 40.1 0.0 44.0 49.5 28.0 283 [29.0, 16.0] [0.0] 23003
6 38.4 0.0 44.8 50.8 29.8 205 [28.0, 30.0] [0.0] 24483
7 45.1 0.0 44.2 49.2 33.6 0 [26.0] [0.0] 25484
8 27.4 0.0 42.9 49.5 32.8 195 [37.0, 27.0] [0.0] 29151
9 44.0 0.0 45.8 50.5 31.5 0 [34.0] [0.0] 21426
10 43.4 0.0 44.9 49.0 34.1 277 [35.0, 36.0] [0.0] 26016
11 45.8 0.0 45.8 51.4 27.5 1 [33.0] [0.0] 23288
12 37.2 0.0 42.8 48.8 28.6 195 [37.0, 27.0] [0.0] 24310
14 44.1 0.0 46.2 51.3 17.9 55 [19.0] [0.0] 25725
15 29.2 0.0 42.2 48.3 31.7 366 [29.0, 33.0] [0.0] 28045
17 45.7 0.0 43.7 50.0 29.8 0 [37.0] [0.0] 24077
18 44.5 0.0 46.5 52.4 35.0 128 [30.0, 35.0] [0.0] 25179
23 43.8 0.0 45.7 51.8 27.2 218 [17.0, 13.0] [0.0] 25797
24 25.6 0.0 42.4 48.7 28.4 164 [26.0, 28.0, 25.0] [0.0] 30007
25 28.6 0.0 41.5 48.2 29.8 180 [31.0, 23.0] [0.0] 28510
26 28.0 0.0 43.0 49.0 30.3 194 [22.0, 28.0] [0.0] 28501
27 26.2 0.0 42.5 48.5 18.2 592 [31.0, 33.0, 27.0] [0.0] 30109
28 39.7 0.0 45.9 51.2 33.5 249 [27.0, 28.0] [0.0] 23151
29 45.4 0.0 44.1 49.5 31.6 446 [14.0, 15.0] [0.0] 22916
30 45.9 0.0 45.7 50.2 36.5 0 [24.0] [0.0] 23639
31 45.3 0.0 43.8 49.5 26.1 37 [30.0] [0.0] 22279
32 44.9 0.0 44.4 49.4 29.0 49 [28.0, 21.0] [0.0] 24883
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.6 49.8 28.0 596 [36.0, 30.0] [0.0] 24293
4 45.7 0.0 45.5 51.9 33.8 357 [20.0] [0.0] 21434
5 38.4 0.0 43.0 49.3 30.0 711 [18.0] [0.0] 18417
6 38.8 0.0 44.4 51.0 30.1 533 [24.0, 34.0] [0.0] 21834
7 45.0 0.0 43.7 49.9 30.8 354 [25.0] [0.0] 23184
8 27.7 0.0 42.6 49.5 30.8 575 [26.0, 24.0] [0.0] 24878
9 43.9 0.0 45.1 50.9 33.0 305 [37.0] [0.0] 19417
10 42.3 0.0 44.4 50.2 34.8 613 [25.0, 23.0] [0.0] 21222
11 47.3 0.0 45.8 51.8 30.2 452 [29.0] [0.0] 19408
12 38.4 0.0 42.6 49.1 30.7 558 [26.0] [0.0] 20207
14 44.3 0.0 46.0 51.2 24.6 356 [19.0] [0.0] 23300
15 28.9 0.0 41.2 48.1 28.1 814 [15.0, 13.0, 16.0] [0.0] 23119
17 45.9 0.0 43.5 50.0 19.1 716 [27.0] [0.0] 21807
18 45.9 0.0 46.1 51.9 32.9 691 [33.0, 35.0] [0.0] 19487
23 44.6 0.0 45.7 51.7 31.7 710 [18.0, 13.0] [0.0] 20304
24 26.1 0.0 42.2 47.8 30.7 823 [37.0, 24.0, 25.0] [0.0] 25099
25 28.4 0.0 40.8 48.3 22.9 931 [37.0, 22.0] [0.0] 23355
26 28.9 0.0 42.6 48.3 30.1 700 [27.0, 19.0] [0.0] 23909
27 26.5 0.0 42.4 48.3 27.0 972 [27.0, 28.0, 26.0] [0.0] 25315
28 40.5 0.0 45.4 50.8 29.9 612 [28.0, 21.0] [0.0] 19209
29 43.3 0.0 43.1 50.2 28.7 727 [14.0, 17.0] [0.0] 18290
30 46.0 0.0 44.9 50.7 30.3 335 [22.0] [0.0] 21442
31 45.4 0.0 43.7 50.1 31.5 364 [33.0] [0.0] 19670
32 43.7 0.0 43.9 49.8 25.3 1040 [23.0, 27.0] [0.0] 20315
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.8 0.1 8.8 -8.1 [36.0, 34.0, 30.0] 24278
4 45.7 0.7 6.1 -3.0 [37.0, 20.0] 21434
5 38.4 0.7 7.0 -4.3 [29.0, 18.0, 16.0] 18407
6 38.9 0.5 7.3 -5.9 [28.0, 24.0, 30.0, 34.0] 21802
7 45.0 0.4 5.0 -3.5 [26.0, 25.0] 23181
8 27.7 0.5 9.1 -4.6 [37.0, 26.0, 27.0, 24.0] 24871
9 43.9 0.7 7.0 -4.5 [34.0, 37.0] 19417
10 42.3 0.4 5.9 -4.0 [35.0, 25.0, 36.0, 23.0] 21205
11 47.4 0.3 9.3 -9.6 [33.0, 29.0] 19368
12 38.4 0.4 6.3 -6.3 [37.0, 26.0, 27.0] 20206
14 44.3 0.2 7.3 -15.0 [19.0] 23293
15 28.9 0.9 9.3 -6.1 [29.0, 15.0, 33.0, 13.0, 16.0] 23105
17 45.9 0.2 14.2 -7.2 [37.0, 27.0] 21807
18 46.0 0.5 7.0 -3.8 [30.0, 33.0, 35.0] 19457
23 44.6 0.2 5.3 -11.8 [17.0, 18.0, 13.0] 20303
24 26.1 0.3 5.3 -7.7 [26.0, 37.0, 28.0, 24.0, 25.0] 25099
25 28.4 0.6 13.2 -5.7 [31.0, 37.0, 23.0, 22.0] 23352
26 28.9 0.6 7.2 -5.3 [22.0, 27.0, 28.0, 19.0] 23876
27 26.5 0.2 8.2 -16.2 [31.0, 27.0, 33.0, 28.0, 26.0] 25260
28 40.5 0.6 7.9 -4.5 [27.0, 28.0, 21.0] 19185
29 43.3 0.8 8.3 -5.6 [14.0, 15.0, 17.0] 18283
30 46.0 0.8 7.1 -3.2 [24.0, 22.0] 21427
31 45.4 0.1 6.1 -10.0 [30.0, 33.0] 19650
32 43.7 0.4 8.9 -8.1 [28.0, 23.0, 21.0, 27.0] 20315
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.3 52.3 36.8 135 [36.0, 34.0] [0.0] 27069
4 45.4 0.0 48.0 53.1 41.0 0 [37.0] [0.0] 23844
6 38.4 0.0 47.4 52.8 38.4 98 [28.0, 30.0] [0.0] 24483
8 27.4 0.0 46.3 50.7 35.9 49 [37.0, 27.0] [0.0] 29151
9 44.0 0.0 48.0 52.4 37.8 0 [34.0] [0.0] 21426
10 43.4 0.0 47.7 51.1 37.7 92 [35.0, 36.0] [0.0] 26016
11 45.8 0.0 48.2 54.1 37.0 0 [33.0] [0.0] 23288
14 44.1 0.0 48.0 53.4 32.2 0 [19.0] [0.0] 25733
18 44.5 0.0 48.8 53.8 38.6 467 [30.0, 35.0] [0.0] 25179
23 43.8 0.0 47.9 53.0 33.9 307 [17.0, 13.0] [0.0] 25797
24 25.6 0.0 45.7 50.8 20.9 322 [26.0, 28.0, 25.0] [0.0] 30006
25 28.6 0.0 45.5 51.1 32.7 81 [31.0, 23.0] [0.0] 28510
26 28.0 0.0 46.3 50.9 39.5 165 [22.0, 28.0] [0.0] 28501
27 26.2 0.0 45.9 49.9 35.0 460 [31.0, 33.0, 27.0] [0.0] 30121
28 39.7 0.0 47.8 53.0 38.4 189 [27.0, 28.0] [0.0] 23151
30 45.9 0.0 48.7 52.7 40.9 0 [24.0] [0.0] 23639
32 44.9 0.0 46.1 50.5 32.1 170 [28.0, 21.0] [0.0] 24883
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.3 53.5 34.1 527 [36.0, 30.0] [0.0] 24346
4 45.7 0.0 47.9 54.4 39.0 373 [20.0] [0.0] 21468
6 38.8 0.0 47.2 53.0 37.5 473 [24.0, 34.0] [0.0] 21863
8 27.7 0.0 45.9 51.7 34.2 799 [26.0, 24.0] [0.0] 24948
9 43.9 0.0 47.8 52.7 37.8 315 [37.0] [0.0] 19442
10 42.3 0.0 47.6 53.0 40.3 619 [25.0, 23.0] [0.0] 21252
11 47.3 0.0 48.4 55.6 30.5 460 [29.0] [0.0] 19443
14 44.3 0.0 48.4 54.5 38.0 363 [19.0] [0.0] 23318
18 45.9 0.0 48.9 54.5 39.8 725 [33.0, 35.0] [0.0] 19520
23 44.6 0.0 48.3 55.2 34.7 806 [18.0, 13.0] [0.0] 20347
24 26.1 0.0 45.6 51.3 26.7 889 [37.0, 24.0, 25.0] [0.0] 25155
25 28.4 0.0 45.3 52.9 30.5 728 [37.0, 22.0] [0.0] 23440
26 28.9 0.0 45.8 51.9 36.8 579 [27.0, 19.0] [0.0] 23981
27 26.5 0.0 46.0 50.3 36.1 699 [27.0, 28.0, 26.0] [0.0] 25391
28 40.4 0.0 47.7 53.7 36.1 530 [28.0, 21.0] [0.0] 19252
30 45.9 0.0 48.4 54.7 38.8 344 [22.0] [0.0] 21473
32 43.7 0.0 46.0 53.0 32.5 624 [23.0, 27.0] [0.0] 20330
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.0 4.6 -4.8 [36.0, 34.0, 30.0] 24331
4 45.7 0.2 3.9 -2.9 [37.0, 20.0] 21468
6 38.8 0.2 5.1 -3.5 [28.0, 24.0, 30.0, 34.0] 21831
8 27.7 0.4 3.8 -3.7 [37.0, 26.0, 27.0, 24.0] 24941
9 43.9 0.2 4.2 -4.1 [34.0, 37.0] 19442
10 42.3 -0.0 3.3 -4.8 [35.0, 25.0, 36.0, 23.0] 21235
11 47.4 0.1 9.8 -3.9 [33.0, 29.0] 19403
14 44.3 -0.4 1.9 -8.3 [19.0] 23318
18 45.9 -0.0 3.3 -4.3 [30.0, 33.0, 35.0] 19490
23 44.6 -0.1 3.4 -6.0 [17.0, 18.0, 13.0] 20346
24 26.1 0.1 10.7 -18.7 [26.0, 37.0, 28.0, 24.0, 25.0] 25154
25 28.4 0.2 5.3 -4.2 [31.0, 37.0, 23.0, 22.0] 23436
26 28.9 0.6 6.1 -4.1 [22.0, 27.0, 28.0, 19.0] 23948
27 26.5 0.1 3.2 -5.6 [31.0, 27.0, 33.0, 28.0, 26.0] 25348
28 40.5 0.2 5.4 -4.9 [27.0, 28.0, 21.0] 19227
30 46.0 0.3 4.6 -3.6 [24.0, 22.0] 21458
32 43.7 0.1 4.7 -7.3 [28.0, 23.0, 21.0, 27.0] 20330
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.1 48.4 33.1 189 [57.0] [0.0] 86371
133 38.0 0.0 43.3 45.3 40.9 28 [56.0] [0.0] 86400
135 39.4 0.0 43.9 45.9 41.4 216 [55.0] [0.0] 86400

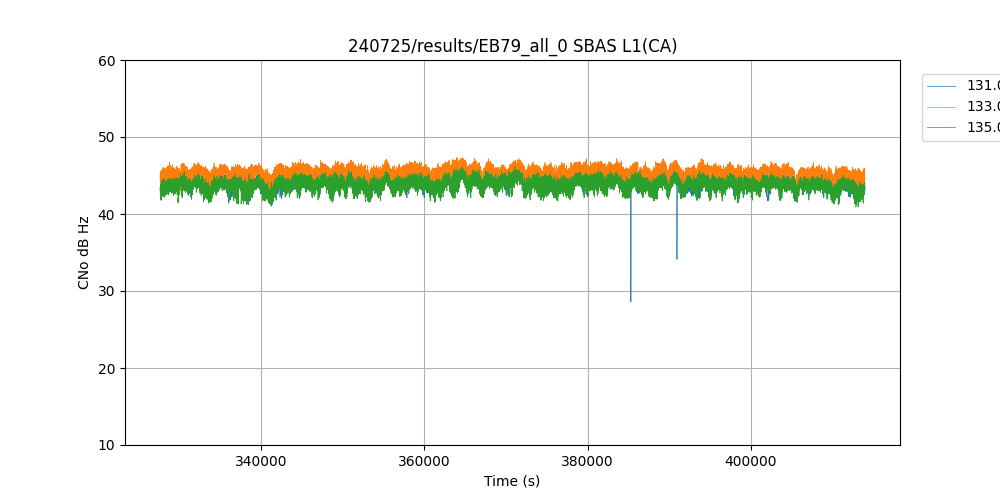

DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 44.1 46.6 28.6 4 [57.0] [0.0] 86370
133 38.0 0.0 45.3 47.3 42.8 0 [56.0] [0.0] 86400
135 39.4 0.0 43.8 46.2 40.9 0 [55.0] [0.0] 86400

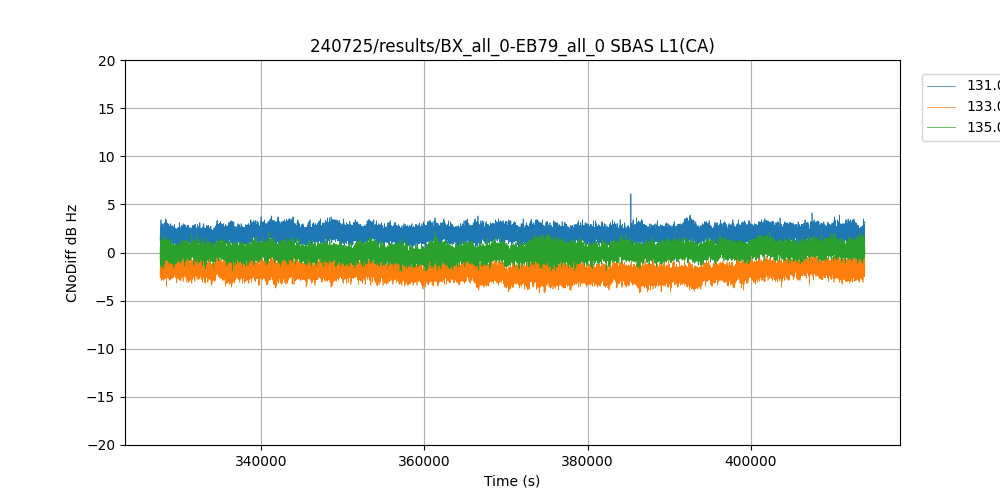

DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 2.0 6.1 -1.0 [57.0] 86369
133 38.0 -2.0 0.1 -4.2 [56.0] 86400
135 39.4 0.1 2.2 -2.0 [55.0] 86400
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.8 48.5 42.1 210 [57.0] [0.0] 86367
133 38.0 0.0 45.9 47.5 43.0 82 [56.0] [0.0] 86400
135 39.4 0.0 44.8 46.4 41.9 88 [55.0] [0.0] 86400
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)

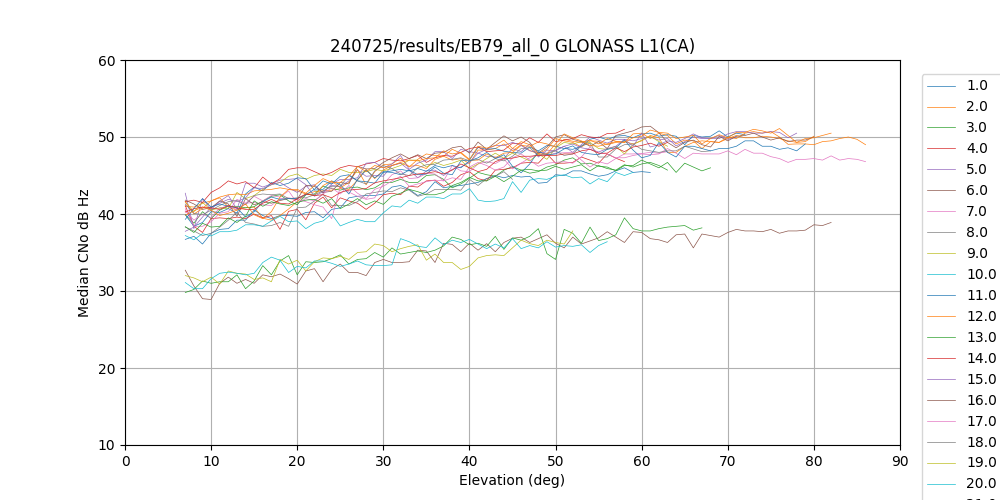

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 42.3 48.6 29.2 184 [1.0] [0.0] 32768
2 42.4 0.0 47.2 53.2 35.0 166 [-4.0] [0.0] 31971
3 39.5 0.0 45.1 51.0 30.8 206 [5.0] [0.0] 29177
4 37.0 0.0 44.8 50.9 30.1 143 [6.0] [0.0] 24695
5 41.6 0.0 47.5 53.5 35.0 0 [1.0] [0.0] 21593
6 36.8 0.0 35.1 42.1 15.0 847 [-4.0] [0.0] 23508
7 30.8 0.0 44.4 51.2 27.3 217 [5.0] [0.0] 25848
8 28.3 0.0 42.9 48.1 29.1 150 [6.0] [0.0] 26812
9 39.8 0.0 47.2 53.2 33.8 0 [-2.0] [0.0] 23105
10 38.8 0.0 42.7 49.4 28.3 0 [-7.0] [0.0] 23421
11 37.4 0.0 46.5 53.8 31.1 234 [0.0] [0.0] 24919
12 35.9 0.0 46.3 53.2 33.0 94 [-1.0] [0.0] 27973
13 33.7 0.0 35.2 41.7 21.9 1994 [-2.0] [0.0] 29160
14 32.9 0.0 47.6 53.4 36.3 189 [-7.0] [0.0] 29604
15 34.9 0.0 46.2 53.8 34.1 94 [0.0] [0.0] 28513
16 36.4 0.0 46.2 53.7 31.3 217 [-1.0] [0.0] 26584
17 43.5 0.0 45.8 52.4 32.6 153 [4.0] [0.0] 31406
18 32.0 0.0 45.4 51.8 32.3 336 [-3.0] [0.0] 32794
19 28.7 0.0 34.9 40.5 24.8 1142 [3.0] [0.0] 27561
20 29.8 0.0 35.1 40.5 19.4 288 [2.0] [0.0] 26347
21 35.4 0.0 45.5 52.4 32.5 34 [4.0] [0.0] 24377
22 44.3 0.0 47.4 54.3 28.8 0 [-3.0] [0.0] 20239
23 38.9 0.0 44.3 50.2 26.6 63 [3.0] [0.0] 22905
24 38.3 0.0 46.2 52.1 35.6 406 [2.0] [0.0] 29753
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 41.4 47.5 28.7 1343 [1.0] [0.0] 30940
2 42.0 0.0 45.9 52.5 32.6 1330 [-4.0] [0.0] 30496
3 39.6 0.0 44.5 50.5 33.2 803 [5.0] [0.0] 27864
4 37.0 0.0 43.9 50.5 29.8 772 [6.0] [0.0] 23859
5 41.6 0.0 46.6 52.0 34.1 532 [1.0] [0.0] 20749
6 36.9 0.0 33.9 41.1 16.8 3181 [-4.0] [0.0] 22448
7 30.9 0.0 43.3 50.2 22.6 2036 [5.0] [0.0] 24588
8 28.3 0.0 41.8 47.3 31.3 2364 [6.0] [0.0] 25518
9 39.8 0.0 46.6 51.7 36.3 957 [-2.0] [0.0] 22229
10 38.8 0.0 42.1 48.2 28.9 855 [-7.0] [0.0] 22582
11 37.3 0.0 45.6 52.4 32.1 1116 [0.0] [0.0] 23751
12 35.5 0.0 45.3 52.0 18.2 951 [-1.0] [0.0] 26811
13 34.2 0.0 34.7 40.7 21.4 3669 [-2.0] [0.0] 27214
14 32.9 0.0 46.9 52.4 35.2 1807 [-7.0] [0.0] 28234
15 35.1 0.0 45.6 53.1 28.7 1508 [0.0] [0.0] 27214
16 36.6 0.0 45.4 52.7 31.1 1357 [-1.0] [0.0] 25367
17 43.2 0.0 44.5 50.3 25.7 2405 [4.0] [0.0] 29901
18 32.1 0.0 44.5 51.4 33.6 2703 [-3.0] [0.0] 31307
19 29.5 0.0 34.2 39.3 21.9 3529 [3.0] [0.0] 25603
20 29.9 0.0 34.0 39.3 13.9 2416 [2.0] [0.0] 25331
21 35.2 0.0 44.3 51.2 31.4 1504 [4.0] [0.0] 23268
22 44.1 0.0 46.8 52.9 16.1 1166 [-3.0] [0.0] 19188
23 39.1 0.0 43.6 48.5 29.4 2019 [3.0] [0.0] 21580
24 38.2 0.0 45.3 51.5 33.1 3004 [2.0] [0.0] 28071

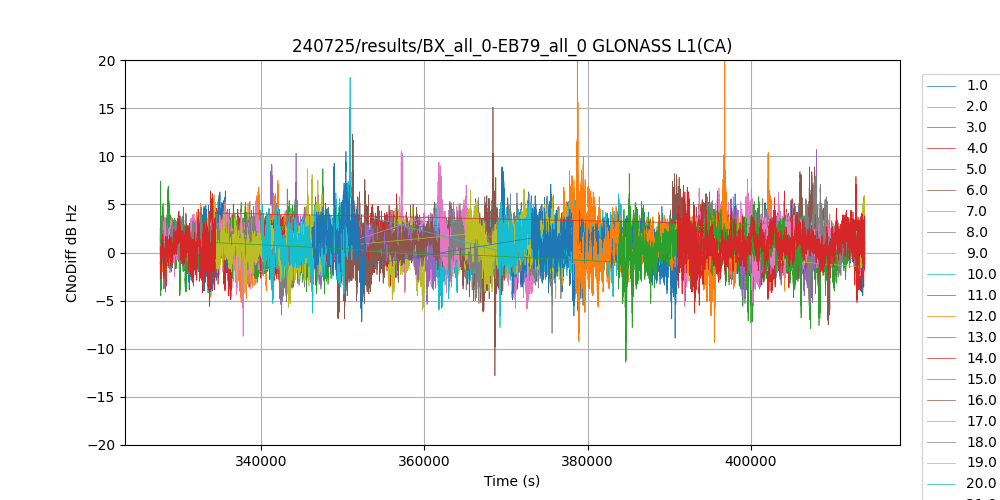

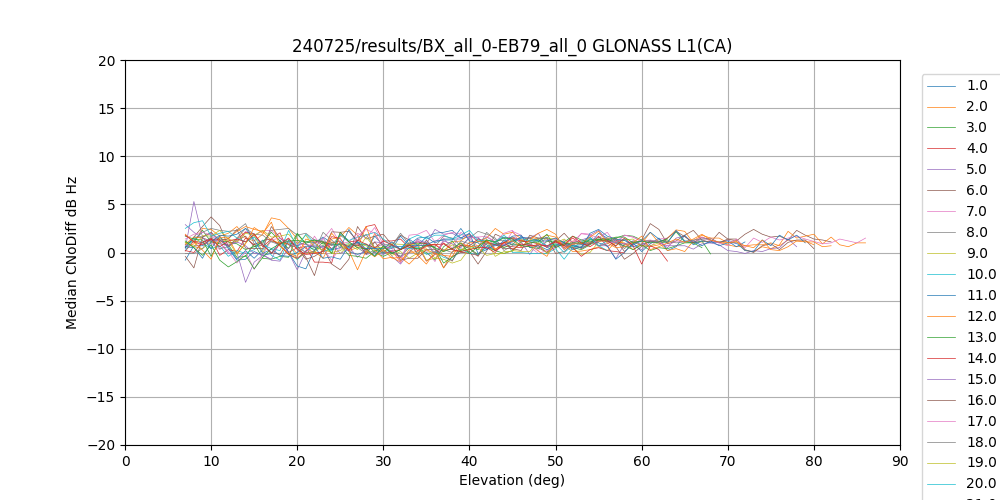

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 30.5 0.9 7.1 -7.2 [1.0] 30908
2 42.0 1.3 10.4 -5.7 [-4.0] 30491
3 39.6 0.7 6.9 -7.9 [5.0] 27849
4 37.0 0.8 7.9 -5.6 [6.0] 23859
5 41.6 0.8 9.2 -6.5 [1.0] 20742
6 37.0 1.2 15.1 -12.8 [-4.0] 22407
7 30.9 1.1 10.5 -5.9 [5.0] 24588
8 28.3 1.1 6.5 -8.4 [6.0] 25518
9 39.8 0.5 5.8 -6.0 [-2.0] 22229
10 38.8 0.6 6.1 -6.0 [-7.0] 22582
11 37.3 0.9 8.9 -8.9 [0.0] 23751
12 35.6 0.9 20.0 -9.4 [-1.0] 26781
13 34.2 0.7 8.7 -7.3 [-2.0] 27214
14 32.9 0.7 6.4 -6.3 [-7.0] 28234
15 35.1 0.7 10.7 -5.4 [0.0] 27180
16 36.6 0.8 8.9 -7.5 [-1.0] 25367
17 43.3 1.2 9.4 -8.7 [4.0] 29827
18 32.2 0.9 7.9 -5.5 [-3.0] 31252
19 29.5 0.8 8.7 -5.7 [3.0] 25590
20 29.9 1.1 18.2 -7.8 [2.0] 25270
21 35.2 1.1 10.5 -7.2 [4.0] 23267
22 44.1 0.7 20.6 -9.3 [-3.0] 19188
23 39.1 0.7 7.4 -11.4 [3.0] 21571
24 38.2 0.8 6.8 -5.5 [2.0] 28064
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 40.8 46.9 28.2 236 [1.0] [0.0] 32768
2 42.4 0.0 46.0 51.4 35.0 357 [-4.0] [0.0] 31971
3 39.5 0.0 43.8 49.4 31.5 279 [5.0] [0.0] 29177
4 37.0 0.0 43.1 48.9 29.8 65 [6.0] [0.0] 24695
5 41.6 0.0 46.1 51.9 36.9 0 [1.0] [0.0] 21593
6 36.9 0.0 33.9 40.5 13.7 1020 [-4.0] [0.0] 23473
7 30.8 0.0 42.8 49.7 29.9 152 [5.0] [0.0] 25848
8 28.3 0.0 41.2 46.2 32.4 38 [6.0] [0.0] 26812
9 39.8 0.0 45.7 51.3 34.8 0 [-2.0] [0.0] 23105
10 38.8 0.0 41.4 48.0 29.1 0 [-7.0] [0.0] 23421
11 37.4 0.0 44.9 51.4 31.5 245 [0.0] [0.0] 24919
12 35.9 0.0 45.4 52.0 33.7 217 [-1.0] [0.0] 27973
13 34.6 0.0 34.1 40.5 23.0 1524 [-2.0] [0.0] 27987
14 32.9 0.0 46.3 51.5 36.5 95 [-7.0] [0.0] 29604
15 34.9 0.0 44.5 51.4 33.4 217 [0.0] [0.0] 28513
16 36.4 0.0 44.8 51.9 32.4 161 [-1.0] [0.0] 26584
17 43.5 0.0 43.9 50.3 32.2 516 [4.0] [0.0] 31406
18 32.0 0.0 43.9 50.2 33.9 448 [-3.0] [0.0] 32794
19 29.1 0.0 33.2 38.4 23.5 2278 [3.0] [0.0] 26959
20 29.8 0.0 34.0 38.9 23.5 194 [2.0] [0.0] 26342
21 35.4 0.0 43.8 50.0 32.0 85 [4.0] [0.0] 24377
22 44.3 0.0 46.2 52.1 33.3 0 [-3.0] [0.0] 20239
23 38.9 0.0 42.5 48.2 29.7 138 [3.0] [0.0] 22905
24 38.3 0.0 44.6 50.0 35.2 216 [2.0] [0.0] 29753
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 38.9 44.7 30.1 303 [1.0] [0.0] 32768
2 42.4 0.0 44.3 49.3 29.4 452 [-4.0] [0.0] 31971
3 39.5 0.0 45.2 49.8 27.7 160 [5.0] [0.0] 29177
4 37.0 0.0 45.2 50.2 15.8 352 [6.0] [0.0] 24688
5 41.6 0.0 45.6 49.5 36.3 0 [1.0] [0.0] 21593
7 30.8 0.0 43.4 49.9 27.1 157 [5.0] [0.0] 25848
8 28.3 0.0 43.9 48.8 21.3 173 [6.0] [0.0] 26812
9 39.8 0.0 46.2 50.6 21.3 49 [-2.0] [0.0] 23105
10 54.5 0.0 36.5 43.1 20.3 13 [-7.0] [0.0] 14
11 37.4 0.0 45.5 50.9 36.4 216 [0.0] [0.0] 24919
12 35.9 0.0 44.1 50.0 31.7 161 [-1.0] [0.0] 27973
13 34.6 0.0 37.0 42.5 21.0 905 [-2.0] [0.0] 27982
14 32.9 0.0 44.9 49.5 31.2 222 [-7.0] [0.0] 29604
15 34.9 0.0 44.4 49.9 36.0 161 [0.0] [0.0] 28513
16 36.4 0.0 44.0 49.9 25.1 115 [-1.0] [0.0] 26584
17 43.5 0.0 44.9 49.7 33.5 472 [4.0] [0.0] 31406
18 32.0 0.0 43.6 50.0 32.3 474 [-3.0] [0.0] 32794
19 29.1 0.0 41.1 46.4 26.9 410 [3.0] [0.0] 26959
20 29.8 0.0 37.8 43.8 23.6 374 [2.0] [0.0] 26343
21 35.4 0.0 43.4 49.2 30.5 89 [4.0] [0.0] 24377
22 44.3 0.0 45.8 50.4 32.2 0 [-3.0] [0.0] 20239
23 54.3 0.0 35.9 41.2 21.0 13 [3.0] [0.0] 15
24 38.3 0.0 45.1 49.3 35.8 299 [2.0] [0.0] 29753
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 38.5 44.5 24.8 1602 [1.0] [0.0] 30885
2 42.0 0.0 43.7 49.2 31.3 966 [-4.0] [0.0] 30479
3 39.6 0.0 44.6 50.3 25.8 924 [5.0] [0.0] 27849
4 37.0 0.0 44.9 49.9 26.5 934 [6.0] [0.0] 23849
5 41.6 0.0 44.8 49.6 30.6 1050 [1.0] [0.0] 20745
7 30.9 0.0 43.1 49.8 19.9 1725 [5.0] [0.0] 24559
8 28.3 0.0 43.2 48.0 28.3 1490 [6.0] [0.0] 25494
9 39.8 0.0 45.8 51.3 22.6 1054 [-2.0] [0.0] 22221
10 56.0 0.0 28.6 34.2 22.8 185 [-7.0] [0.0] 4
11 37.3 0.0 45.0 51.0 33.1 1488 [0.0] [0.0] 23740
12 35.6 0.0 43.3 49.8 27.5 1150 [-1.0] [0.0] 26791
13 35.7 0.0 36.7 42.1 17.9 2163 [-2.0] [0.0] 25272
14 32.9 0.0 44.1 49.4 23.2 2375 [-7.0] [0.0] 28227
15 35.1 0.0 44.0 49.8 33.8 2570 [0.0] [0.0] 27196
16 36.6 0.0 43.7 50.2 30.7 1884 [-1.0] [0.0] 25343
17 43.2 0.0 44.1 50.0 19.2 2686 [4.0] [0.0] 29877
18 32.2 0.0 43.1 49.2 20.5 3127 [-3.0] [0.0] 31274
19 30.0 0.0 40.8 46.6 25.9 2220 [3.0] [0.0] 24635
20 30.3 0.0 37.4 43.5 24.1 2800 [2.0] [0.0] 24739
21 35.2 0.0 43.0 49.4 27.9 1816 [4.0] [0.0] 23252
22 44.1 0.0 45.6 51.2 29.8 849 [-3.0] [0.0] 19174
23 51.9 0.0 31.7 40.9 9.5 601 [3.0] [0.0] 31
24 38.2 0.0 44.5 48.9 32.8 2471 [2.0] [0.0] 28058
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 30.6 0.4 8.3 -4.8 [1.0] 30853
2 42.0 0.5 7.9 -5.5 [-4.0] 30474
3 39.6 0.6 11.4 -6.4 [5.0] 27834
4 37.0 0.4 11.2 -16.3 [6.0] 23842
5 41.6 0.8 8.2 -3.2 [1.0] 20738
7 30.9 0.3 10.3 -9.2 [5.0] 24559
8 28.3 0.7 8.8 -15.5 [6.0] 25494
9 39.8 0.5 8.2 -11.4 [-2.0] 22221
11 37.3 0.5 8.0 -5.1 [0.0] 23740
12 35.6 0.8 9.9 -4.2 [-1.0] 26761
13 35.8 0.5 10.1 -5.7 [-2.0] 25123
14 32.9 0.7 11.0 -7.6 [-7.0] 28227
15 35.1 0.4 6.4 -3.6 [0.0] 27162
16 36.6 0.4 7.1 -11.0 [-1.0] 25343
17 43.3 0.7 17.9 -4.0 [4.0] 29804
18 32.2 0.5 16.5 -6.9 [-3.0] 31219
19 30.0 0.4 7.3 -5.7 [3.0] 24623
20 30.4 0.5 6.8 -8.2 [2.0] 24691
21 35.2 0.4 8.0 -7.0 [4.0] 23251
22 44.1 0.2 5.5 -4.4 [-3.0] 19174
24 38.2 0.6 8.3 -5.7 [2.0] 28051
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 30.5 0.0 37.0 43.0 27.5 473 [1.0] [0.0] 32768
2 42.4 0.0 42.9 47.8 26.7 480 [-4.0] [0.0] 31971
3 39.5 0.0 43.9 48.2 25.8 412 [5.0] [0.0] 29177
4 37.0 0.0 43.4 48.1 20.3 268 [6.0] [0.0] 24693
5 41.6 0.0 44.3 48.5 35.0 0 [1.0] [0.0] 21593
7 30.8 0.0 42.0 48.2 26.6 320 [5.0] [0.0] 25848
8 28.3 0.0 42.4 47.1 24.4 296 [6.0] [0.0] 26812
9 39.8 0.0 44.0 48.4 20.7 222 [-2.0] [0.0] 23105
10 45.8 0.0 28.8 36.7 15.4 3 [-7.0] [0.0] 4
11 37.4 0.0 43.8 48.8 35.2 250 [0.0] [0.0] 24919
12 35.9 0.0 42.3 48.5 29.9 193 [-1.0] [0.0] 27973
13 34.6 0.0 38.4 43.7 21.5 958 [-2.0] [0.0] 27987
14 32.9 0.0 43.2 47.7 31.2 207 [-7.0] [0.0] 29604
15 34.9 0.0 43.0 48.5 35.4 185 [0.0] [0.0] 28513
16 36.4 0.0 42.5 48.2 27.9 264 [-1.0] [0.0] 26584
17 43.5 0.0 43.3 47.9 33.2 628 [4.0] [0.0] 31406
18 32.0 0.0 42.1 48.4 30.9 322 [-3.0] [0.0] 32794
19 29.1 0.0 39.6 44.8 25.8 641 [3.0] [0.0] 26959
20 29.8 0.0 36.3 42.1 21.3 999 [2.0] [0.0] 26343
21 35.4 0.0 42.2 47.6 32.5 202 [4.0] [0.0] 24377
22 44.3 0.0 44.2 49.0 32.2 0 [-3.0] [0.0] 20239
23 54.4 0.0 28.1 40.8 14.8 16 [3.0] [0.0] 17
24 38.3 0.0 43.4 47.2 35.1 246 [2.0] [0.0] 29753
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.8 0.0 44.8 49.0 29.2 3 [-2.0] [0.0] 23105
21 35.4 0.0 43.3 50.0 30.9 134 [4.0] [0.0] 24377
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)

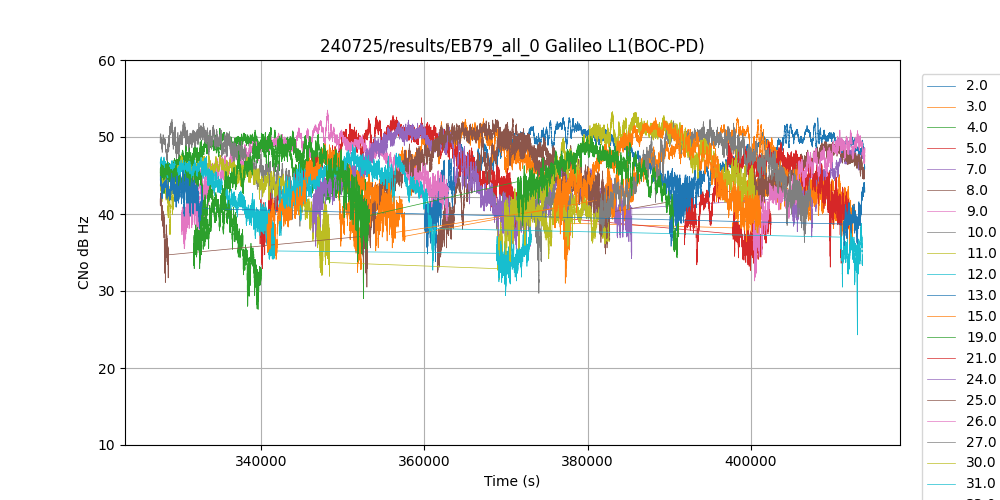

REF Galileo L1(BOC-PD)
DUT Galileo L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 47.4 52.5 33.8 59 [42.0, 53.0] [0.0] 32657
3 34.6 0.0 45.0 52.4 31.0 545 [53.0, 51.0, 47.0] [0.0] 40459
4 50.0 0.0 46.6 51.2 29.0 404 [42.0, 53.0, 52.0] [0.0] 25093
5 41.0 0.0 45.6 52.8 32.7 571 [47.0, 52.0, 51.0, 48.0, 50.0, 40.0, 46.0] [0.0] 35826
7 25.6 0.0 43.2 48.8 34.2 323 [48.0, 52.0, 41.0, 47.0] [0.0] 23132
8 33.9 0.0 45.5 50.8 32.4 592 [46.0, 47.0, 50.0, 53.0, 45.0] [0.0] 34349
9 45.3 0.0 47.0 53.5 35.5 327 [41.0, 52.0, 51.0, 50.0] [0.0] 32545
10 39.9 0.0 45.0 52.3 29.7 430 [43.0, 52.0, 51.0, 50.0, 46.0] [0.0] 26789
11 38.2 0.0 42.0 47.6 31.5 850 [38.0, 51.0, 50.0, 49.0, 39.0, 42.0, 48.0] [0.0] 34293
12 38.2 0.0 41.1 47.5 29.4 366 [44.0, 50.0, 49.0, 48.0, 40.0] [0.0] 18003
13 49.9 0.0 47.3 52.5 35.8 424 [41.0, 45.0, 44.0] [0.0] 23651
15 38.2 0.0 44.9 52.5 32.4 539 [49.0, 38.0, 46.0, 44.0, 43.0] [0.0] 38452
19 37.2 0.0 40.5 46.5 27.6 304 [40.0, 49.0, 48.0, 47.0] [0.0] 12203
21 30.9 0.0 44.2 49.4 33.1 266 [42.0, 43.0] [0.0] 19831
24 39.8 0.0 46.2 52.2 35.8 86 [50.0, 48.0, 46.0, 52.0] [0.0] 24482
25 44.4 0.0 46.3 52.4 30.5 551 [39.0, 48.0, 38.0, 47.0, 42.0] [0.0] 31156
26 34.4 0.0 45.0 50.9 31.3 226 [39.0, 41.0] [0.0] 13559
27 41.4 0.0 46.4 52.3 36.3 319 [39.0, 45.0, 42.0, 40.0] [0.0] 25657
30 45.8 0.0 46.9 53.3 33.8 297 [38.0, 39.0, 46.0, 44.0, 41.0] [0.0] 30894
31 26.2 0.0 43.3 49.0 24.3 393 [48.0, 47.0, 41.0, 40.0] [0.0] 21796
33 16.8 0.0 41.8 45.7 35.9 302 [45.0, 47.0, 39.0] [0.0] 7571
34 34.5 0.0 45.1 52.5 34.1 806 [47.0, 41.0, 40.0, 52.0, 45.0, 43.0] [0.0] 40741
36 33.2 0.0 45.1 50.8 32.9 411 [48.0, 41.0, 39.0, 50.0, 42.0] [0.0] 41163
DIFF Galileo L1(BOC-PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 47.2 51.9 35.4 0 [50.0] [0.0] 32772
3 34.5 0.0 45.2 52.8 24.5 309 [41.0, 46.0] [0.0] 40911
4 49.9 0.0 46.9 51.3 32.6 0 [51.0] [0.0] 25305
5 40.9 0.0 46.0 53.5 32.5 162 [48.0, 42.0] [0.0] 36131
7 25.5 0.0 43.4 49.1 32.4 64 [38.0, 53.0] [0.0] 23470
8 34.0 0.0 46.2 51.6 31.7 300 [49.0, 39.0] [0.0] 34568
9 45.3 0.0 46.9 51.5 34.1 0 [47.0] [0.0] 32659
10 40.1 0.0 45.8 52.9 37.8 185 [41.0, 47.0] [0.0] 26960
11 38.3 0.0 42.3 47.7 30.8 193 [38.0, 43.0] [0.0] 34437
12 38.4 0.0 41.6 48.0 28.0 17 [44.0] [0.0] 18168
13 50.0 0.0 46.8 50.6 34.2 219 [43.0] [0.0] 23912
15 38.2 0.0 45.2 52.0 32.1 308 [44.0, 41.0] [0.0] 38811
19 37.3 0.0 40.8 47.8 28.8 12 [52.0] [0.0] 12376
21 30.9 0.0 44.9 50.5 35.3 213 [48.0] [0.0] 20107
24 39.7 0.0 47.0 52.8 36.4 0 [42.0] [0.0] 24698
25 44.4 0.0 46.8 53.7 31.5 2 [39.0] [0.0] 31297
26 34.4 0.0 45.4 51.1 34.5 239 [51.0] [0.0] 13704
27 41.5 0.0 46.8 52.9 32.4 0 [44.0] [0.0] 25815
30 45.7 0.0 47.6 54.0 35.6 0 [45.0] [0.0] 31103
31 26.2 0.0 44.0 49.0 33.8 336 [49.0, 50.0] [0.0] 21858
33 16.9 0.0 42.2 45.7 34.0 76 [53.0, 47.0] [0.0] 7719
34 34.4 0.0 45.7 52.6 34.7 22 [52.0, 53.0] [0.0] 40966
36 33.2 0.0 45.6 51.1 34.4 202 [46.0, 48.0] [0.0] 41316
DUT Galileo L1(MBOC-PD)
DIFF Galileo L1(MBOC-PD)
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 46.0 50.5 31.8 1 [50.0] [0.0] 32772
3 34.5 0.0 44.5 49.9 32.3 456 [41.0, 46.0] [0.0] 40911
4 49.9 0.0 46.2 50.1 31.6 0 [51.0] [0.0] 25305
5 40.9 0.0 45.8 50.2 36.0 222 [48.0, 42.0] [0.0] 36131
7 25.5 0.0 44.4 49.6 36.6 206 [38.0, 53.0] [0.0] 23470
8 34.0 0.0 44.9 49.7 31.1 260 [49.0, 39.0] [0.0] 34568
9 45.3 0.0 45.7 50.1 31.7 0 [47.0] [0.0] 32659
10 40.1 0.0 44.9 50.2 34.9 52 [41.0, 47.0] [0.0] 26960
11 38.3 0.0 41.8 46.8 29.1 145 [38.0, 43.0] [0.0] 34437
12 38.4 0.0 42.8 47.4 36.1 6 [44.0] [0.0] 18168
13 50.0 0.0 46.2 50.1 33.4 105 [43.0] [0.0] 23912
15 38.2 0.0 44.9 50.6 31.4 88 [44.0, 41.0] [0.0] 38811
19 37.3 0.0 42.0 46.0 34.9 0 [52.0] [0.0] 12376
21 30.9 0.0 44.3 48.9 30.0 167 [48.0] [0.0] 20107
24 39.7 0.0 46.0 49.8 37.1 0 [42.0] [0.0] 24698
25 44.4 0.0 45.7 50.0 30.1 3 [39.0] [0.0] 31297
26 34.4 0.0 45.2 49.4 37.0 245 [51.0] [0.0] 13704
27 41.5 0.0 45.5 50.1 34.9 0 [44.0] [0.0] 25815
30 45.7 0.0 46.3 50.0 35.6 0 [45.0] [0.0] 31103
31 26.2 0.0 44.1 48.2 38.0 160 [49.0, 50.0] [0.0] 21858
33 16.9 0.0 42.1 46.1 34.6 7 [53.0, 47.0] [0.0] 7719
34 34.4 0.0 45.3 50.1 34.5 92 [52.0, 53.0] [0.0] 40966
36 33.2 0.0 44.8 49.2 29.6 233 [46.0, 48.0] [0.0] 41316
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 46.5 51.0 31.8 0 [50.0] [0.0] 32772
3 34.5 0.0 45.0 50.9 33.1 283 [41.0, 46.0] [0.0] 40911
4 49.9 0.0 46.7 50.8 32.6 0 [51.0] [0.0] 25305
5 40.9 0.0 46.3 50.6 37.1 198 [48.0, 42.0] [0.0] 36131
7 25.5 0.0 44.8 50.0 34.8 227 [38.0, 53.0] [0.0] 23470
8 34.0 0.0 45.3 50.2 30.4 166 [49.0, 39.0] [0.0] 34568
9 45.3 0.0 46.5 50.9 31.1 1 [47.0] [0.0] 32659
10 40.1 0.0 45.1 50.7 32.9 227 [41.0, 47.0] [0.0] 26960
11 38.3 0.0 41.9 46.7 28.9 34 [38.0, 43.0] [0.0] 34437
12 38.4 0.0 43.2 48.2 36.7 6 [44.0] [0.0] 18168
13 50.0 0.0 46.7 50.4 30.7 191 [43.0] [0.0] 23912
15 38.2 0.0 45.1 50.5 32.9 294 [44.0, 41.0] [0.0] 38811
19 37.3 0.0 42.4 46.3 36.1 0 [52.0] [0.0] 12376
21 30.9 0.0 44.3 49.3 24.0 253 [48.0] [0.0] 20106
24 39.7 0.0 46.5 50.3 37.3 0 [42.0] [0.0] 24698
25 44.4 0.0 46.1 50.5 34.3 2 [39.0] [0.0] 31297
26 34.4 0.0 45.6 50.0 37.2 43 [51.0] [0.0] 13704
27 41.5 0.0 45.7 50.6 30.6 0 [44.0] [0.0] 25815
30 45.7 0.0 46.8 50.3 37.7 0 [45.0] [0.0] 31103
31 26.2 0.0 44.1 48.5 37.9 187 [49.0, 50.0] [0.0] 21858
33 16.9 0.0 42.1 46.3 35.3 15 [53.0, 47.0] [0.0] 7719
34 34.4 0.0 45.7 50.5 35.9 32 [52.0, 53.0] [0.0] 40966
36 33.2 0.0 45.2 50.2 24.9 198 [46.0, 48.0] [0.0] 41316
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 48.8 52.8 36.9 0 [50.0] [0.0] 32772
3 34.5 0.0 47.5 52.3 38.1 344 [41.0, 46.0] [0.0] 40911
4 49.9 0.0 48.9 52.4 37.0 0 [51.0] [0.0] 25305
5 40.9 0.0 48.5 52.1 41.1 106 [48.0, 42.0] [0.0] 36131
7 25.5 0.0 47.3 52.0 40.0 370 [38.0, 53.0] [0.0] 23470
8 34.0 0.0 47.7 51.9 35.4 265 [49.0, 39.0] [0.0] 34568
9 45.3 0.0 48.6 52.5 20.7 9 [47.0] [0.0] 32651
10 40.1 0.0 47.7 52.5 38.2 103 [41.0, 47.0] [0.0] 26960
11 38.3 0.0 44.5 48.4 32.5 137 [38.0, 43.0] [0.0] 34437
12 38.4 0.0 45.9 50.2 40.5 5 [44.0] [0.0] 18168
13 50.0 0.0 48.9 52.7 37.3 214 [43.0] [0.0] 23912
15 38.2 0.0 47.7 52.4 37.8 271 [44.0, 41.0] [0.0] 38811
19 37.3 0.0 45.3 49.0 39.3 0 [52.0] [0.0] 12376
21 30.9 0.0 46.9 51.0 35.2 177 [48.0] [0.0] 20107
24 39.7 0.0 48.7 52.1 40.6 0 [42.0] [0.0] 24698
25 44.4 0.0 48.4 52.3 37.4 2 [39.0] [0.0] 31297
26 34.4 0.0 47.9 51.9 41.1 136 [51.0] [0.0] 13704
27 41.5 0.0 48.1 52.6 38.1 2 [44.0] [0.0] 25815
30 45.7 0.0 49.0 52.3 40.9 0 [45.0] [0.0] 31103
31 26.2 0.0 47.0 51.0 41.9 439 [49.0, 50.0] [0.0] 21858
33 16.9 0.0 45.2 48.6 39.2 61 [53.0, 47.0] [0.0] 7719
34 34.4 0.0 48.1 52.3 39.3 245 [52.0, 53.0] [0.0] 40966
36 33.2 0.0 47.6 51.6 33.6 151 [46.0, 48.0] [0.0] 41316

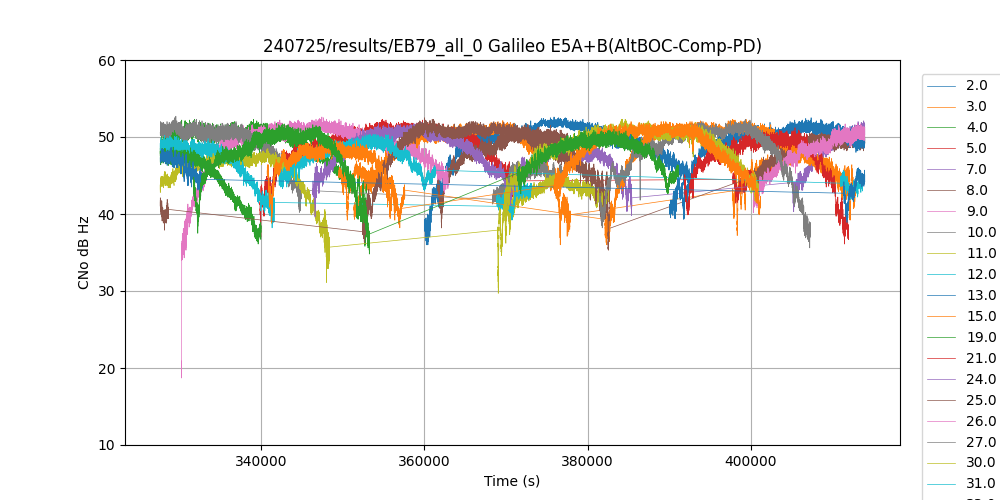

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 48.8 52.6 36.0 151 [42.0, 53.0] [0.0] 32657
3 34.6 0.0 47.3 52.1 36.0 545 [53.0, 51.0, 47.0] [0.0] 40459
4 50.0 0.0 48.8 52.3 35.8 200 [42.0, 53.0, 52.0] [0.0] 25093
5 41.0 0.0 48.2 52.3 37.0 636 [47.0, 52.0, 51.0, 48.0, 50.0, 40.0, 46.0] [0.0] 35826
7 25.6 0.0 47.1 52.1 39.8 290 [48.0, 52.0, 41.0, 47.0] [0.0] 23132
8 33.9 0.0 47.9 51.6 37.2 543 [46.0, 47.0, 50.0, 53.0, 45.0] [0.0] 34349
9 45.3 0.0 48.6 52.6 18.7 427 [41.0, 52.0, 51.0, 50.0] [0.0] 32544
10 39.9 0.0 47.6 52.7 40.2 375 [43.0, 52.0, 51.0, 50.0, 46.0] [0.0] 26789
11 38.2 0.0 44.2 48.5 29.7 393 [38.0, 51.0, 50.0, 49.0, 39.0, 42.0, 48.0] [0.0] 34293
12 38.2 0.0 45.6 50.2 38.2 605 [44.0, 50.0, 49.0, 48.0, 40.0] [0.0] 18003
13 49.9 0.0 49.0 52.5 39.3 227 [41.0, 45.0, 44.0] [0.0] 23651
15 38.2 0.0 47.5 52.3 36.0 734 [49.0, 38.0, 46.0, 44.0, 43.0] [0.0] 38452
19 37.2 0.0 44.4 48.7 36.1 326 [40.0, 49.0, 48.0, 47.0] [0.0] 12203
21 30.9 0.0 47.1 51.2 36.1 270 [42.0, 43.0] [0.0] 19831
24 39.8 0.0 48.3 51.9 39.6 516 [50.0, 48.0, 46.0, 52.0] [0.0] 24482
25 44.4 0.0 48.0 52.5 35.3 737 [39.0, 48.0, 38.0, 47.0, 42.0] [0.0] 31156
26 34.4 0.0 47.7 51.8 40.2 64 [39.0, 41.0] [0.0] 13559
27 41.4 0.0 47.8 52.3 35.6 379 [39.0, 45.0, 42.0, 40.0] [0.0] 25657
30 45.8 0.0 48.7 52.3 39.1 533 [38.0, 39.0, 46.0, 44.0, 41.0] [0.0] 30894
31 26.2 0.0 47.0 50.3 41.9 223 [48.0, 47.0, 41.0, 40.0] [0.0] 21796
33 16.8 0.0 45.3 48.6 38.9 211 [45.0, 47.0, 39.0] [0.0] 7571
34 34.5 0.0 47.9 52.0 38.8 704 [47.0, 41.0, 40.0, 52.0, 45.0, 43.0] [0.0] 40741
36 33.2 0.0 47.7 51.7 34.8 636 [48.0, 41.0, 39.0, 50.0, 42.0] [0.0] 41163
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.3 -0.0 3.1 -4.2 [50.0, 42.0, 53.0] 32635
3 34.6 0.2 6.4 -4.0 [41.0, 53.0, 51.0, 46.0, 47.0] 40453
4 50.0 0.1 3.7 -2.8 [51.0, 42.0, 53.0, 52.0] 25093
5 41.1 0.4 6.7 -2.8 [48.0, 47.0, 52.0, 51.0, 50.0, 42.0, 40.0, 46.0] 35793
7 25.6 0.2 3.8 -2.4 [38.0, 48.0, 52.0, 53.0, 41.0, 47.0] 23123
8 33.9 -0.2 2.8 -5.7 [49.0, 46.0, 47.0, 50.0, 39.0, 53.0, 45.0] 34328
9 45.3 0.0 3.6 -14.3 [47.0, 41.0, 52.0, 51.0, 50.0] 32515
10 39.9 0.1 3.4 -4.3 [41.0, 43.0, 52.0, 51.0, 50.0, 47.0, 46.0] 26769
11 38.2 0.3 7.2 -3.7 [38.0, 51.0, 50.0, 49.0, 43.0, 39.0, 42.0, 48.0] 34210
12 38.2 0.3 4.4 -2.8 [44.0, 50.0, 49.0, 48.0, 40.0] 17968
13 49.9 -0.2 1.9 -3.9 [43.0, 41.0, 45.0, 44.0] 23651
15 38.2 0.2 4.7 -3.5 [44.0, 49.0, 41.0, 38.0, 46.0, 43.0] 38445
19 37.2 0.9 5.1 -1.5 [52.0, 40.0, 49.0, 48.0, 47.0] 12203
21 30.9 -0.2 2.4 -2.9 [48.0, 42.0, 43.0] 19831
24 39.8 0.4 3.7 -2.8 [42.0, 50.0, 48.0, 46.0, 52.0] 24474
25 44.5 0.4 4.9 -1.8 [39.0, 48.0, 38.0, 47.0, 42.0] 31148
26 34.4 0.2 3.5 -1.9 [51.0, 39.0, 41.0] 13559
27 41.4 0.3 6.7 -2.1 [44.0, 39.0, 45.0, 42.0, 40.0] 25620
30 45.8 0.4 4.1 -1.8 [45.0, 38.0, 39.0, 46.0, 44.0, 41.0] 30872
31 26.2 -0.0 2.3 -2.3 [49.0, 48.0, 47.0, 41.0, 50.0, 40.0] 21774
33 16.8 -0.0 2.5 -3.1 [53.0, 45.0, 47.0, 39.0] 7571
34 34.5 0.2 4.7 -3.9 [52.0, 47.0, 41.0, 40.0, 53.0, 45.0, 43.0] 40706
36 33.2 -0.0 3.5 -4.3 [46.0, 48.0, 41.0, 39.0, 50.0, 42.0] 41152
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 47.8 52.4 25.0 0 [50.0] [0.0] 32772
3 34.5 0.0 45.7 52.1 32.8 389 [41.0, 46.0] [0.0] 40905
4 49.9 0.0 48.2 52.7 33.0 0 [51.0] [0.0] 25305
5 40.9 0.0 47.4 52.5 36.8 97 [48.0, 42.0] [0.0] 36131
7 25.5 0.0 45.5 52.0 36.1 148 [38.0, 53.0] [0.0] 23470
8 34.0 0.0 46.6 51.3 29.9 269 [49.0, 39.0] [0.0] 34568
9 45.3 0.0 47.9 52.5 26.0 0 [47.0] [0.0] 32659
10 40.1 0.0 46.5 53.4 31.1 12 [41.0, 47.0] [0.0] 26960
11 38.3 0.0 43.2 48.9 31.5 94 [38.0, 43.0] [0.0] 34437
12 38.4 0.0 43.9 51.0 34.2 17 [44.0] [0.0] 18168
13 50.0 0.0 48.4 52.1 28.0 37 [43.0] [0.0] 23912
15 38.2 0.0 46.6 52.6 32.1 292 [44.0, 41.0] [0.0] 38811
19 37.3 0.0 42.7 48.8 32.6 12 [52.0] [0.0] 12376
21 30.9 0.0 45.4 50.7 26.4 13 [48.0] [0.0] 20107
24 39.7 0.0 48.0 52.5 37.6 0 [42.0] [0.0] 24698
25 44.4 0.0 48.0 52.8 35.0 2 [39.0] [0.0] 31297
26 34.4 0.0 46.6 51.0 34.9 188 [51.0] [0.0] 13704
27 41.5 0.0 47.2 52.3 34.1 0 [44.0] [0.0] 25815
30 45.7 0.0 48.7 52.7 37.4 0 [45.0] [0.0] 31103
31 26.2 0.0 44.7 50.1 35.0 278 [49.0, 50.0] [0.0] 21858
33 16.9 0.0 42.4 49.0 32.2 55 [53.0, 47.0] [0.0] 7719
34 34.4 0.0 46.7 52.5 35.8 67 [52.0, 53.0] [0.0] 40966
36 33.2 0.0 46.3 51.5 30.7 193 [46.0, 48.0] [0.0] 41316

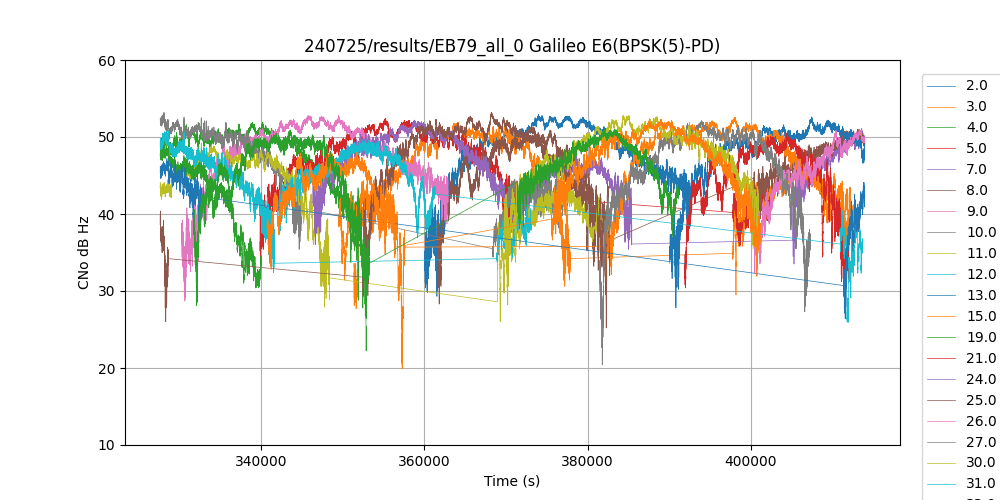

DUT Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.3 0.0 47.7 52.9 29.3 25 [42.0, 53.0] [0.0] 32657
3 34.6 0.0 45.0 51.9 27.7 372 [53.0, 51.0, 47.0] [0.0] 40459
4 50.0 0.0 47.6 52.3 22.2 171 [42.0, 53.0, 52.0] [0.0] 25093
5 41.0 0.0 46.8 52.4 34.0 695 [47.0, 52.0, 51.0, 48.0, 50.0, 40.0, 46.0] [0.0] 35826
7 25.6 0.0 45.1 51.1 33.5 395 [48.0, 52.0, 41.0, 47.0] [0.0] 23132
8 33.9 0.0 46.1 51.0 28.3 394 [46.0, 47.0, 50.0, 53.0, 45.0] [0.0] 34349
9 45.3 0.0 47.7 52.8 28.7 72 [41.0, 52.0, 51.0, 50.0] [0.0] 32545
10 39.9 0.0 46.1 53.2 34.4 384 [43.0, 52.0, 51.0, 50.0, 46.0] [0.0] 26789
11 38.2 0.0 42.5 49.2 26.0 846 [38.0, 51.0, 50.0, 49.0, 39.0, 42.0, 48.0] [0.0] 34291
12 38.2 0.0 43.6 50.8 32.4 369 [44.0, 50.0, 49.0, 48.0, 40.0] [0.0] 18002
13 49.9 0.0 48.1 52.6 27.8 321 [41.0, 45.0, 44.0] [0.0] 23651
15 38.2 0.0 45.6 52.5 19.9 581 [49.0, 38.0, 46.0, 44.0, 43.0] [0.0] 38452
19 37.2 0.0 42.1 48.9 30.4 556 [40.0, 49.0, 48.0, 47.0] [0.0] 12200
21 30.9 0.0 45.0 50.7 28.7 266 [42.0, 43.0] [0.0] 19831
24 39.8 0.0 47.6 52.2 34.7 231 [50.0, 48.0, 46.0, 52.0] [0.0] 24482
25 44.5 0.0 47.0 53.2 25.2 927 [39.0, 48.0, 38.0, 47.0, 42.0] [0.0] 31150
26 34.4 0.0 45.4 51.0 32.0 204 [39.0, 41.0] [0.0] 13559
27 41.4 0.0 46.3 52.1 20.4 444 [39.0, 45.0, 42.0, 40.0] [0.0] 25657
30 45.8 0.0 47.9 52.8 32.1 476 [38.0, 39.0, 46.0, 44.0, 41.0] [0.0] 30894
31 26.2 0.0 44.1 49.6 25.9 188 [48.0, 47.0, 41.0, 40.0] [0.0] 21766
33 16.8 0.0 42.1 47.2 26.4 197 [45.0, 47.0, 39.0] [0.0] 7571
34 34.5 0.0 45.9 52.3 31.9 809 [47.0, 41.0, 40.0, 52.0, 45.0, 43.0] [0.0] 40741
36 33.2 0.0 45.9 51.0 26.4 712 [48.0, 41.0, 39.0, 50.0, 42.0] [0.0] 41160

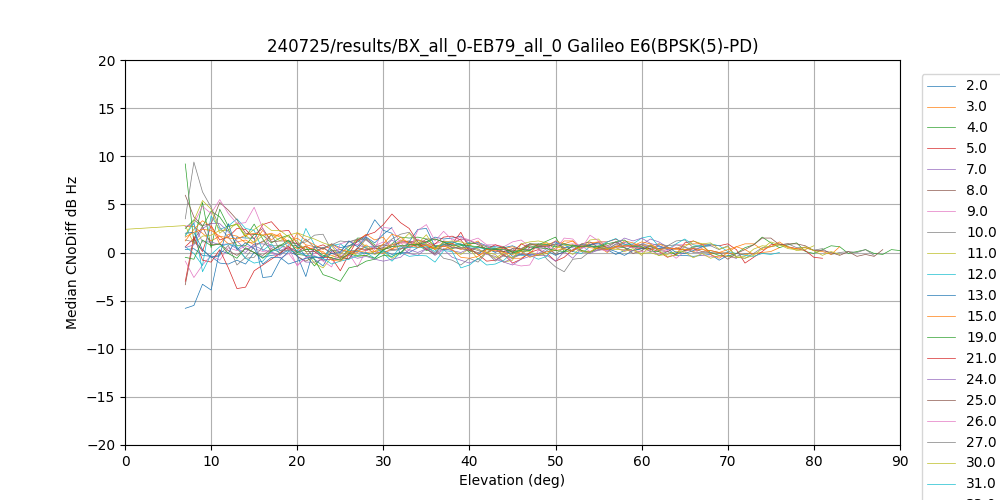

DIFF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.3 0.1 7.4 -9.8 [50.0, 42.0, 53.0] 32635
3 34.6 0.8 9.0 -5.2 [41.0, 53.0, 51.0, 46.0, 47.0] 40447
4 50.0 0.6 12.7 -3.4 [51.0, 42.0, 53.0, 52.0] 25093
5 41.1 0.6 7.2 -5.2 [48.0, 47.0, 52.0, 51.0, 50.0, 42.0, 40.0, 46.0] 35793
7 25.6 0.4 7.8 -3.6 [38.0, 48.0, 52.0, 53.0, 41.0, 47.0] 23123
8 33.9 0.4 8.7 -6.2 [49.0, 46.0, 47.0, 50.0, 39.0, 53.0, 45.0] 34328
9 45.3 0.2 5.9 -6.9 [47.0, 41.0, 52.0, 51.0, 50.0] 32523
10 39.9 0.3 6.3 -5.3 [41.0, 43.0, 52.0, 51.0, 50.0, 47.0, 46.0] 26769
11 38.2 0.7 9.5 -4.7 [38.0, 51.0, 50.0, 49.0, 43.0, 39.0, 42.0, 48.0] 34210
12 38.2 0.2 8.0 -5.8 [44.0, 50.0, 49.0, 48.0, 40.0] 17967
13 49.9 0.3 6.9 -7.0 [43.0, 41.0, 45.0, 44.0] 23651
15 38.2 1.1 17.5 -4.1 [44.0, 49.0, 41.0, 38.0, 46.0, 43.0] 38445
19 37.2 0.6 5.9 -4.3 [52.0, 40.0, 49.0, 48.0, 47.0] 12200
21 30.9 0.4 9.3 -12.6 [48.0, 42.0, 43.0] 19831
24 39.8 0.4 6.2 -3.8 [42.0, 50.0, 48.0, 46.0, 52.0] 24474
25 44.5 0.9 13.4 -2.4 [39.0, 48.0, 38.0, 47.0, 42.0] 31142
26 34.4 1.2 8.8 -3.2 [51.0, 39.0, 41.0] 13559
27 41.4 0.9 18.0 -3.5 [44.0, 39.0, 45.0, 42.0, 40.0] 25620
30 45.8 0.8 9.5 -2.1 [45.0, 38.0, 39.0, 46.0, 44.0, 41.0] 30872
31 26.2 0.5 11.4 -5.8 [49.0, 48.0, 47.0, 41.0, 50.0, 40.0] 21744
33 16.8 0.3 8.9 -6.4 [53.0, 45.0, 47.0, 39.0] 7571
34 34.5 0.8 10.5 -3.6 [52.0, 47.0, 41.0, 40.0, 53.0, 45.0, 43.0] 40706
36 33.2 0.4 8.7 -5.6 [46.0, 48.0, 41.0, 39.0, 50.0, 42.0] 41149
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.0 0.0 44.8 51.1 30.9 19 [51.0, 21.0] [0.0] 34459
20 35.1 0.0 45.2 52.7 26.8 243 [43.0, 24.0] [0.0] 32070
21 37.4 0.0 45.5 52.4 34.9 318 [31.0, 40.0] [0.0] 23681
22 29.9 0.0 44.9 50.7 30.6 154 [30.0, 17.0] [0.0] 34537
23 38.7 0.0 45.9 51.1 34.3 0 [53.0] [0.0] 21672
24 22.9 0.0 43.0 48.2 32.0 25 [45.0, 26.0] [0.0] 28379
25 23.5 0.0 42.8 48.3 30.5 228 [18.0, 50.0] [0.0] 28152
26 37.6 0.0 45.5 50.7 27.5 0 [51.0] [0.0] 21192
27 29.5 0.0 44.3 48.7 33.5 116 [25.0, 22.0] [0.0] 33819
28 32.8 0.0 43.7 51.1 32.9 140 [49.0, 53.0] [0.0] 24471
29 39.3 0.0 44.9 52.2 23.6 155 [44.0, 42.0] [0.0] 29440
30 30.3 0.0 44.1 50.3 30.4 2 [16.0] [0.0] 34135
32 45.0 0.0 46.9 53.3 36.8 0 [29.0] [0.0] 27405
33 44.9 0.0 46.8 53.0 30.7 184 [40.0, 48.0] [0.0] 18674
34 50.5 0.0 46.9 52.7 31.1 340 [47.0, 22.0] [0.0] 18013
35 44.8 0.0 46.9 52.9 33.7 0 [47.0] [0.0] 28327
36 45.1 0.0 47.3 53.0 30.9 0 [52.0] [0.0] 28334
37 45.4 0.0 46.4 53.5 24.6 6 [45.0] [0.0] 25624
38 7.0 0.0 39.1 40.7 37.4 0 [17.0] [0.0] 1066
41 47.1 0.0 47.7 53.2 38.4 0 [50.0] [0.0] 26072
42 32.9 0.0 44.0 50.8 30.8 117 [42.0, 26.0] [0.0] 16064
43 31.3 0.0 43.9 50.0 36.2 328 [34.0, 12.0] [0.0] 15620
44 45.8 0.0 46.7 52.5 34.0 226 [49.0] [0.0] 27716
45 45.4 0.0 47.1 53.7 36.1 0 [46.0] [0.0] 25463
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.0 0.0 44.9 50.1 34.5 116 [51.0, 21.0] [0.0] 34459
20 35.1 0.0 45.3 51.0 31.8 172 [43.0, 24.0] [0.0] 32070
21 37.4 0.0 45.8 50.9 36.7 262 [31.0, 40.0] [0.0] 23681
22 29.9 0.0 45.3 49.7 36.2 365 [30.0, 17.0] [0.0] 34537
23 38.7 0.0 47.4 51.0 40.9 0 [53.0] [0.0] 21672
24 22.9 0.0 44.1 49.0 32.2 246 [45.0, 26.0] [0.0] 28379
25 23.5 0.0 43.4 47.6 35.0 11 [18.0, 50.0] [0.0] 28152
26 37.6 0.0 44.8 49.2 35.0 0 [51.0] [0.0] 21192
27 29.5 0.0 44.3 49.0 29.9 50 [25.0, 22.0] [0.0] 33819
28 32.8 0.0 43.4 49.4 31.3 94 [49.0, 53.0] [0.0] 24471
29 39.3 0.0 44.8 50.2 34.3 228 [44.0, 42.0] [0.0] 29440
30 30.3 0.0 44.7 49.1 34.8 2 [16.0] [0.0] 34135
32 45.0 0.0 47.3 51.3 38.3 0 [29.0] [0.0] 27405
33 44.9 0.0 46.0 51.0 32.8 228 [40.0, 48.0] [0.0] 18674
34 50.5 0.0 46.3 49.9 37.1 146 [47.0, 22.0] [0.0] 18013
35 44.8 0.0 44.9 49.2 31.5 0 [47.0] [0.0] 28327
36 45.1 0.0 47.6 51.8 34.8 0 [52.0] [0.0] 28334
37 45.4 0.0 46.9 51.4 35.8 0 [45.0] [0.0] 25624
38 7.0 0.0 41.1 42.5 39.4 0 [17.0] [0.0] 1066
41 47.1 0.0 47.7 50.9 40.0 0 [50.0] [0.0] 26072
42 32.9 0.0 45.5 51.0 35.4 214 [42.0, 26.0] [0.0] 16064
43 31.3 0.0 44.4 49.1 35.8 163 [34.0, 12.0] [0.0] 15620
44 45.8 0.0 46.2 50.3 31.7 133 [49.0] [0.0] 27716
45 45.4 0.0 47.5 51.9 38.8 0 [46.0] [0.0] 25463
DUT BeiDou L5/E5A(I+Q)
DIFF BeiDou L5/E5A(I+Q)
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.1 0.0 45.0 49.5 33.6 161 [20.0, 38.0] [0.0] 17000
12 49.0 0.0 46.6 49.5 35.9 194 [34.0] [0.0] 23637
14 33.6 0.0 44.0 49.9 33.3 333 [48.0, 52.0] [0.0] 17392
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.3 0.0 41.2 46.1 31.5 9189 [53.0, 46.0, 48.0, 52.0] [0.0] 8709
12 50.9 0.0 43.3 46.7 35.1 13614 [52.0, 53.0, 51.0] [0.0] 12983
14 40.8 0.0 41.8 46.2 29.8 8705 [52.0, 45.0, 46.0, 47.0, 50.0, 51.0] [0.0] 7847
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.3 4.3 9.2 1.0 [20.0, 53.0, 46.0, 48.0, 38.0, 52.0] 8709
12 50.9 3.6 8.8 -0.4 [34.0, 52.0, 53.0, 51.0] 12983
14 40.8 3.8 9.2 0.1 [48.0, 52.0, 45.0, 46.0, 47.0, 50.0, 51.0] 7847
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.1 0.0 42.8 50.1 28.8 410 [20.0, 38.0] [0.0] 17008
12 49.0 0.0 44.3 50.8 28.7 5 [34.0] [0.0] 23637
14 33.6 0.0 41.7 50.1 28.1 290 [48.0, 52.0] [0.0] 17392
19 30.0 0.0 44.6 50.9 32.0 69 [51.0, 21.0] [0.0] 34459
20 35.1 0.0 45.5 53.4 23.7 250 [43.0, 24.0] [0.0] 32070
21 37.4 0.0 45.1 52.4 33.0 362 [31.0, 40.0] [0.0] 23681
22 29.9 0.0 45.2 51.2 29.3 317 [30.0, 17.0] [0.0] 34537
23 38.7 0.0 45.7 51.6 32.9 0 [53.0] [0.0] 21672
24 22.9 0.0 42.7 49.1 24.7 157 [45.0, 26.0] [0.0] 28379
25 23.5 0.0 43.1 48.7 33.2 128 [18.0, 50.0] [0.0] 28152
26 37.6 0.0 45.7 51.3 28.8 0 [51.0] [0.0] 21192
27 29.5 0.0 44.7 49.2 33.5 132 [25.0, 22.0] [0.0] 33819
28 32.8 0.0 44.1 51.6 31.2 61 [49.0, 53.0] [0.0] 24471
29 39.3 0.0 45.3 52.6 29.2 233 [44.0, 42.0] [0.0] 29440
30 30.3 0.0 44.6 51.8 34.8 2 [16.0] [0.0] 34135
32 45.0 0.0 46.4 53.0 35.1 0 [29.0] [0.0] 27405
33 44.9 0.0 46.1 53.0 26.5 30 [40.0, 48.0] [0.0] 18674
34 50.5 0.0 46.7 52.3 34.9 286 [47.0, 22.0] [0.0] 18013
35 44.8 0.0 47.1 53.8 33.8 0 [47.0] [0.0] 28327
36 45.1 0.0 47.1 53.2 29.4 0 [52.0] [0.0] 28334
37 45.4 0.0 46.0 52.3 28.6 0 [45.0] [0.0] 25624
38 7.0 0.0 40.1 41.5 38.6 0 [17.0] [0.0] 1066
41 47.1 0.0 47.2 52.7 37.4 0 [50.0] [0.0] 26072
42 32.9 0.0 43.3 49.6 32.6 294 [42.0, 26.0] [0.0] 16064
43 31.3 0.0 43.8 49.9 35.1 277 [34.0, 12.0] [0.0] 15620
44 45.8 0.0 46.5 52.7 30.7 150 [49.0] [0.0] 27716
45 45.4 0.0 46.3 53.1 33.6 0 [46.0] [0.0] 25463
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 37.1 0.0 42.8 50.3 31.4 838 [53.0, 46.0, 48.0, 19.0, 52.0] [0.0] 13844
12 47.4 0.0 43.7 50.2 29.4 910 [23.0, 52.0, 53.0, 51.0] [0.0] 20078
14 34.9 0.0 42.2 50.5 29.0 715 [52.0, 45.0, 46.0, 47.0, 50.0, 51.0] [0.0] 14103
19 30.7 0.0 44.6 52.2 32.7 1282 [25.0, 52.0, 49.0, 20.0, 51.0, 50.0] [0.0] 32023
20 35.1 0.0 45.3 53.5 29.8 1386 [15.0, 49.0, 46.0, 50.0, 23.0, 52.0, 51.0] [0.0] 31268
21 35.7 0.0 44.4 52.3 31.8 1235 [36.0, 49.0, 45.0, 51.0, 50.0] [0.0] 20321
22 28.8 0.0 45.0 51.3 32.6 1907 [33.0, 49.0, 45.0, 44.0, 16.0, 50.0, 48.0] [0.0] 31135
23 38.9 0.0 45.7 51.9 33.5 301 [46.0, 45.0] [0.0] 20857
24 23.4 0.0 42.8 48.8 32.4 1662 [40.0, 46.0, 45.0, 50.0, 52.0, 51.0, 49.0, 48.0, 38.0, 41.0] [0.0] 24946
25 24.4 0.0 43.0 49.1 29.6 2022 [17.0, 45.0, 44.0, 16.0, 48.0, 47.0, 38.0, 36.0, 24.0, 46.0] [0.0] 24196
26 38.1 0.0 45.5 51.5 31.5 1037 [51.0, 52.0, 50.0, 48.0, 49.0, 30.0, 35.0, 47.0, 37.0] [0.0] 20299
27 28.6 0.0 44.6 49.6 29.9 1691 [50.0, 44.0, 45.0, 43.0, 41.0] [0.0] 31229
28 32.2 0.0 44.3 51.3 32.5 1042 [49.0, 43.0, 44.0, 42.0, 23.0, 41.0] [0.0] 22083
29 39.0 0.0 44.8 52.5 26.3 1899 [35.0, 28.0, 41.0, 44.0, 49.0, 50.0, 51.0, 47.0, 48.0, 30.0] [0.0] 28846
30 30.8 0.0 44.0 51.9 31.9 1864 [16.0, 42.0, 33.0, 22.0, 43.0, 41.0, 36.0, 28.0, 44.0, 49.0, 50.0] [0.0] 31805
32 46.5 0.0 46.5 53.0 30.9 1419 [43.0, 22.0, 32.0, 33.0, 21.0, 40.0, 44.0, 45.0, 46.0] [0.0] 25077
33 46.2 0.0 46.3 52.7 32.2 1402 [48.0, 42.0, 43.0, 21.0, 22.0, 20.0, 36.0, 49.0] [0.0] 15595
34 50.1 0.0 46.4 52.1 33.4 2278 [47.0, 19.0, 28.0, 30.0, 35.0, 36.0, 33.0, 23.0, 24.0, 26.0, 46.0, 48.0, 27.0] [0.0] 14543
35 46.2 0.0 47.3 52.8 32.5 2612 [49.0, 43.0, 48.0, 30.0, 28.0, 23.0, 33.0, 32.0, 21.0, 46.0] [0.0] 25643
36 45.1 0.0 46.9 53.0 29.2 1197 [23.0, 44.0, 45.0, 43.0, 33.0, 36.0, 20.0, 41.0, 47.0, 48.0] [0.0] 27592
37 45.2 0.0 46.0 52.5 31.8 1021 [45.0, 43.0, 42.0, 44.0, 33.0, 23.0] [0.0] 25058
38 7.0 0.0 40.4 43.1 37.9 79 [17.0, 18.0] [0.0] 987
41 46.0 0.0 47.1 52.7 38.1 2062 [36.0, 41.0, 42.0, 31.0, 28.0, 20.0, 21.0, 16.0, 22.0, 40.0] [0.0] 23553
42 31.8 0.0 43.6 49.5 32.0 2042 [34.0, 28.0, 31.0, 20.0, 21.0, 26.0, 33.0, 46.0, 29.0, 22.0, 27.0, 37.0] [0.0] 13862
43 30.6 0.0 43.7 50.7 36.1 1788 [26.0, 28.0, 20.0, 19.0, 12.0, 23.0, 33.0, 27.0, 29.0, 21.0, 22.0] [0.0] 13417
44 45.1 0.0 46.4 52.4 34.7 3124 [28.0, 47.0, 48.0, 23.0, 20.0, 32.0, 31.0, 21.0, 15.0, 26.0, 27.0] [0.0] 24102
45 45.2 0.0 46.2 52.0 30.2 1448 [41.0, 33.0, 23.0, 17.0, 40.0, 44.0, 28.0, 47.0, 30.0] [0.0] 24736
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 37.2 -0.1 6.9 -6.6 [20.0, 53.0, 46.0, 48.0, 38.0, 19.0, 52.0] 13789
12 47.4 0.3 6.7 -4.5 [34.0, 23.0, 52.0, 53.0, 51.0] 20078
14 34.9 -0.0 5.3 -7.1 [48.0, 52.0, 45.0, 46.0, 47.0, 50.0, 51.0] 14103
19 30.7 0.1 6.1 -7.2 [51.0, 25.0, 52.0, 49.0, 21.0, 20.0, 50.0] 31976
20 35.1 0.2 7.3 -14.0 [43.0, 15.0, 49.0, 46.0, 50.0, 24.0, 23.0, 52.0, 51.0] 31257
21 35.7 0.4 9.0 -7.1 [31.0, 36.0, 49.0, 45.0, 40.0, 51.0, 50.0] 20321
22 28.8 0.1 6.9 -6.0 [30.0, 33.0, 49.0, 45.0, 44.0, 17.0, 16.0, 50.0, 48.0] 31116
23 38.9 0.1 5.3 -5.8 [53.0, 46.0, 45.0] 20857
24 23.4 0.1 7.3 -15.8 [45.0, 40.0, 46.0, 26.0, 50.0, 52.0, 51.0, 49.0, 48.0, 38.0, 41.0] 24924
25 24.4 0.3 9.0 -5.6 [18.0, 17.0, 45.0, 44.0, 50.0, 16.0, 48.0, 47.0, 38.0, 36.0, 24.0, 46.0] 24165
26 38.1 0.2 7.0 -7.6 [51.0, 52.0, 50.0, 48.0, 49.0, 30.0, 35.0, 47.0, 37.0] 20299
27 28.6 0.0 9.6 -6.8 [25.0, 50.0, 44.0, 45.0, 43.0, 22.0, 41.0] 31229
28 32.2 -0.2 5.9 -6.5 [49.0, 43.0, 44.0, 42.0, 53.0, 23.0, 41.0] 22083
29 39.0 0.4 10.7 -8.2 [44.0, 35.0, 42.0, 28.0, 41.0, 49.0, 50.0, 51.0, 47.0, 48.0, 30.0] 28846
30 30.8 0.7 8.4 -5.4 [16.0, 42.0, 33.0, 22.0, 43.0, 41.0, 36.0, 28.0, 44.0, 49.0, 50.0] 31801
32 46.5 0.2 11.5 -5.3 [29.0, 43.0, 22.0, 32.0, 33.0, 21.0, 40.0, 44.0, 45.0, 46.0] 25060
33 46.2 -0.0 5.8 -7.3 [40.0, 48.0, 42.0, 43.0, 21.0, 22.0, 20.0, 36.0, 49.0] 15595
34 50.1 0.2 6.2 -5.4 [47.0, 22.0, 19.0, 28.0, 30.0, 35.0, 36.0, 33.0, 23.0, 24.0, 26.0, 46.0, 48.0, 27.0] 14543
35 46.2 0.0 4.7 -6.7 [47.0, 49.0, 43.0, 48.0, 30.0, 28.0, 23.0, 33.0, 32.0, 21.0, 46.0] 25643
36 45.1 0.2 5.2 -7.4 [52.0, 23.0, 44.0, 45.0, 43.0, 33.0, 36.0, 20.0, 41.0, 47.0, 48.0] 27592
37 45.2 0.0 6.8 -7.4 [45.0, 43.0, 42.0, 44.0, 33.0, 23.0] 25058
38 7.0 -0.3 3.0 -3.9 [17.0, 18.0] 987
41 46.0 -0.0 4.5 -3.7 [50.0, 36.0, 41.0, 42.0, 31.0, 28.0, 20.0, 21.0, 16.0, 22.0, 40.0] 23553
42 31.8 -0.4 4.9 -8.0 [42.0, 34.0, 28.0, 31.0, 20.0, 26.0, 21.0, 33.0, 46.0, 29.0, 22.0, 27.0, 37.0] 13856
43 30.6 -0.1 5.0 -4.6 [34.0, 26.0, 28.0, 20.0, 19.0, 12.0, 23.0, 33.0, 27.0, 29.0, 21.0, 22.0] 13412
44 45.1 -0.0 3.9 -6.9 [49.0, 28.0, 47.0, 48.0, 23.0, 20.0, 32.0, 31.0, 21.0, 15.0, 26.0, 27.0] 24042
45 45.2 0.1 10.5 -7.6 [46.0, 41.0, 33.0, 23.0, 17.0, 40.0, 44.0, 28.0, 47.0, 30.0] 24736
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.1 0.0 43.5 48.3 33.4 251 [20.0, 38.0] [0.0] 17000
12 49.0 0.0 45.9 49.3 37.4 200 [34.0] [0.0] 23637
14 33.6 0.0 42.9 51.3 29.9 321 [48.0, 52.0] [0.0] 17392
19 30.0 0.0 43.5 49.3 26.9 184 [51.0, 21.0] [0.0] 34459
20 35.1 0.0 42.9 49.3 31.0 82 [43.0, 24.0] [0.0] 32063
21 37.4 0.0 43.9 50.0 35.6 221 [31.0, 40.0] [0.0] 23681
22 29.9 0.0 44.1 49.4 33.7 295 [30.0, 17.0] [0.0] 34537
23 38.7 0.0 45.4 49.8 36.4 0 [53.0] [0.0] 21672
24 22.9 0.0 42.2 48.3 28.6 56 [45.0, 26.0] [0.0] 28379
25 23.5 0.0 41.9 47.5 33.5 149 [18.0, 50.0] [0.0] 28152
26 37.6 0.0 43.9 48.9 30.9 0 [51.0] [0.0] 21192
27 29.5 0.0 42.6 48.1 26.9 126 [25.0, 22.0] [0.0] 33819
28 32.8 0.0 41.9 50.7 31.5 29 [49.0, 53.0] [0.0] 24471
29 39.3 0.0 43.2 49.5 30.4 236 [44.0, 42.0] [0.0] 29440
30 30.3 0.0 43.2 48.7 32.4 1 [16.0] [0.0] 34135
32 45.0 0.0 45.7 49.8 37.3 0 [29.0] [0.0] 27405
33 44.9 0.0 44.7 51.1 32.3 187 [40.0, 48.0] [0.0] 18674
34 50.5 0.0 44.9 49.4 35.8 293 [47.0, 22.0] [0.0] 18013
35 44.8 0.0 44.8 49.7 29.7 0 [47.0] [0.0] 28327
36 45.1 0.0 46.2 49.8 35.7 0 [52.0] [0.0] 28334
37 45.4 0.0 44.9 49.8 33.8 0 [45.0] [0.0] 25624
38 7.0 0.0 37.1 38.6 35.3 0 [17.0] [0.0] 1066
41 47.1 0.0 46.3 50.6 36.0 0 [50.0] [0.0] 26072
42 32.9 0.0 43.9 50.6 33.0 311 [42.0, 26.0] [0.0] 16064
43 31.3 0.0 42.9 49.1 29.3 231 [34.0, 12.0] [0.0] 15620
44 45.8 0.0 45.0 49.2 32.6 93 [49.0] [0.0] 27716
45 45.4 0.0 45.6 50.0 36.1 0 [46.0] [0.0] 25463
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 37.1 0.0 42.7 48.7 24.4 838 [53.0, 46.0, 48.0, 19.0, 52.0] [0.0] 13768
12 47.5 0.0 44.9 48.8 30.5 1723 [23.0, 52.0, 53.0, 51.0] [0.0] 20030
14 35.1 0.0 42.9 51.2 32.1 841 [52.0, 45.0, 46.0, 47.0, 50.0, 51.0] [0.0] 13943
19 30.7 0.0 43.2 48.5 28.9 1254 [25.0, 52.0, 49.0, 20.0, 51.0, 50.0] [0.0] 31967
20 35.1 0.0 42.6 49.6 22.2 1232 [15.0, 49.0, 46.0, 50.0, 23.0, 52.0, 51.0] [0.0] 31253
21 35.7 0.0 42.6 49.1 30.6 1197 [36.0, 49.0, 45.0, 51.0, 50.0] [0.0] 20280
22 28.8 0.0 43.4 49.1 33.0 1875 [33.0, 49.0, 45.0, 44.0, 16.0, 50.0, 48.0] [0.0] 31086
23 38.9 0.0 45.0 49.3 30.9 302 [46.0, 45.0] [0.0] 20846
24 23.4 0.0 41.5 46.9 28.1 2039 [40.0, 46.0, 45.0, 50.0, 52.0, 51.0, 49.0, 48.0, 38.0, 41.0] [0.0] 24876
25 24.4 0.0 41.6 46.8 30.2 1829 [17.0, 45.0, 44.0, 16.0, 48.0, 47.0, 38.0, 36.0, 24.0, 46.0] [0.0] 24111
26 38.1 0.0 43.5 48.7 30.5 1070 [51.0, 52.0, 50.0, 48.0, 49.0, 30.0, 35.0, 47.0, 37.0] [0.0] 20286
27 28.6 0.0 42.2 47.2 28.6 1249 [50.0, 44.0, 45.0, 43.0, 41.0] [0.0] 31209
28 32.2 0.0 41.3 50.6 27.8 1339 [49.0, 43.0, 44.0, 42.0, 23.0, 41.0] [0.0] 22047
29 39.0 0.0 42.6 49.3 25.9 1018 [35.0, 28.0, 41.0, 44.0, 49.0, 50.0, 51.0, 47.0, 48.0, 30.0] [0.0] 28838
30 30.8 0.0 42.9 49.0 29.8 1982 [16.0, 42.0, 33.0, 22.0, 43.0, 41.0, 36.0, 28.0, 44.0, 49.0, 50.0] [0.0] 31709
32 46.5 0.0 45.3 49.8 34.9 1627 [43.0, 22.0, 32.0, 33.0, 21.0, 40.0, 44.0, 45.0, 46.0] [0.0] 25012
33 46.2 0.0 44.2 50.7 24.7 1360 [48.0, 42.0, 43.0, 21.0, 22.0, 20.0, 36.0, 49.0] [0.0] 15556
34 50.1 0.0 43.8 48.9 30.9 2629 [47.0, 19.0, 28.0, 30.0, 35.0, 36.0, 33.0, 23.0, 24.0, 26.0, 46.0, 48.0, 27.0] [0.0] 14503
35 46.2 0.0 44.8 49.5 30.4 2097 [49.0, 43.0, 48.0, 30.0, 28.0, 23.0, 33.0, 32.0, 21.0, 46.0] [0.0] 25605
36 45.1 0.0 45.7 49.8 33.6 1609 [23.0, 44.0, 45.0, 43.0, 33.0, 36.0, 20.0, 41.0, 47.0, 48.0] [0.0] 27577
37 45.2 0.0 44.4 49.5 33.4 1124 [45.0, 43.0, 42.0, 44.0, 33.0, 23.0] [0.0] 25050
38 7.0 0.0 37.7 39.0 32.6 37 [17.0, 18.0] [0.0] 986
41 46.0 0.0 45.9 50.2 37.5 1711 [36.0, 41.0, 42.0, 31.0, 28.0, 20.0, 21.0, 16.0, 22.0, 40.0] [0.0] 23514
42 31.8 0.0 43.4 50.8 30.6 1779 [34.0, 28.0, 31.0, 20.0, 21.0, 26.0, 33.0, 46.0, 29.0, 22.0, 27.0, 37.0] [0.0] 13821
43 30.6 0.0 41.7 49.4 22.2 2027 [26.0, 28.0, 20.0, 19.0, 12.0, 23.0, 33.0, 27.0, 29.0, 21.0, 22.0] [0.0] 13381
44 45.0 0.0 44.5 49.2 33.0 2822 [28.0, 47.0, 48.0, 23.0, 20.0, 32.0, 31.0, 21.0, 15.0, 26.0, 27.0] [0.0] 24047
45 45.3 0.0 45.1 49.9 31.8 1362 [41.0, 33.0, 23.0, 17.0, 40.0, 44.0, 28.0, 47.0, 30.0] [0.0] 24710
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 37.3 0.8 10.7 -3.5 [20.0, 53.0, 46.0, 48.0, 38.0, 19.0, 52.0] 13705
12 47.5 0.9 8.9 -3.2 [34.0, 23.0, 52.0, 53.0, 51.0] 20030
14 35.1 0.2 8.8 -4.2 [48.0, 52.0, 45.0, 46.0, 47.0, 50.0, 51.0] 13943
19 30.7 0.4 8.0 -5.0 [51.0, 25.0, 52.0, 49.0, 21.0, 20.0, 50.0] 31920
20 35.1 0.3 13.3 -5.2 [43.0, 15.0, 49.0, 46.0, 50.0, 24.0, 23.0, 52.0, 51.0] 31235
21 35.7 0.9 10.5 -2.7 [31.0, 36.0, 49.0, 45.0, 40.0, 51.0, 50.0] 20280
22 28.9 0.6 11.9 -3.7 [30.0, 33.0, 49.0, 45.0, 44.0, 17.0, 16.0, 50.0, 48.0] 31067
23 38.9 0.4 12.0 -3.0 [53.0, 46.0, 45.0] 20846
24 23.4 0.9 9.0 -5.9 [45.0, 40.0, 46.0, 26.0, 50.0, 52.0, 51.0, 49.0, 48.0, 38.0, 41.0] 24857
25 24.4 0.5 9.2 -4.9 [18.0, 17.0, 45.0, 44.0, 50.0, 16.0, 48.0, 47.0, 38.0, 36.0, 24.0, 46.0] 24080
26 38.1 0.5 11.2 -3.3 [51.0, 52.0, 50.0, 48.0, 49.0, 30.0, 35.0, 47.0, 37.0] 20286
27 28.6 0.3 8.9 -5.1 [25.0, 50.0, 44.0, 45.0, 43.0, 22.0, 41.0] 31209
28 32.2 0.4 8.6 -3.4 [49.0, 43.0, 44.0, 42.0, 53.0, 23.0, 41.0] 22047
29 39.0 0.5 10.2 -5.2 [44.0, 35.0, 42.0, 28.0, 41.0, 49.0, 50.0, 51.0, 47.0, 48.0, 30.0] 28838
30 30.8 0.5 7.2 -3.8 [16.0, 42.0, 33.0, 22.0, 43.0, 41.0, 36.0, 28.0, 44.0, 49.0, 50.0] 31705
32 46.5 0.6 7.1 -3.2 [29.0, 43.0, 22.0, 32.0, 33.0, 21.0, 40.0, 44.0, 45.0, 46.0] 24995
33 46.2 0.6 8.7 -4.1 [40.0, 48.0, 42.0, 43.0, 21.0, 22.0, 20.0, 36.0, 49.0] 15556
34 50.1 0.9 10.0 -4.1 [47.0, 22.0, 19.0, 28.0, 30.0, 35.0, 36.0, 33.0, 23.0, 24.0, 26.0, 46.0, 48.0, 27.0] 14503
35 46.2 0.1 7.2 -5.4 [47.0, 49.0, 43.0, 48.0, 30.0, 28.0, 23.0, 33.0, 32.0, 21.0, 46.0] 25605
36 45.1 0.5 7.2 -4.1 [52.0, 23.0, 44.0, 45.0, 43.0, 33.0, 36.0, 20.0, 41.0, 47.0, 48.0] 27577
37 45.2 0.4 5.4 -2.7 [45.0, 43.0, 42.0, 44.0, 33.0, 23.0] 25050
38 7.0 -0.6 4.0 -2.5 [17.0, 18.0] 986
41 46.0 0.3 6.0 -4.0 [50.0, 36.0, 41.0, 42.0, 31.0, 28.0, 20.0, 21.0, 16.0, 22.0, 40.0] 23514
42 31.8 0.4 6.5 -3.5 [42.0, 34.0, 28.0, 31.0, 20.0, 26.0, 21.0, 33.0, 46.0, 29.0, 22.0, 27.0, 37.0] 13815
43 30.6 1.1 8.9 -2.5 [34.0, 26.0, 28.0, 20.0, 19.0, 12.0, 23.0, 33.0, 27.0, 29.0, 21.0, 22.0] 13376
44 45.1 0.5 8.4 -4.2 [49.0, 28.0, 47.0, 48.0, 23.0, 20.0, 32.0, 31.0, 21.0, 15.0, 26.0, 27.0] 23987
45 45.3 0.5 11.1 -3.0 [46.0, 41.0, 33.0, 23.0, 17.0, 40.0, 44.0, 28.0, 47.0, 30.0] 24710
