Comments


CH11

Files


240809_ch11/BX_all.T04 240809_ch11/EB79_all.T04 240809_ch11/EB81_all.T04
Modified: 2024-08-28 15:48:39

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 400754.127
Stop Time : 489600.333
Total Hours : 24.679501666666667

Mean Primary Pos: [39.896475827440355, -105.1150725494536]
Mean Secondary Pos: [39.89648311791683, -105.11507392807052]
Mean Heading: 171.75 (deg)
Mean Slope Distance: 0.81915 (m)
 Modified: 2024-08-28 15:48:39

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 400758.108
Stop Time : 490552.096
Total Hours : 24.94277444444445

Mean Primary Pos: [39.896475567638035, -105.11505802926055]
Mean Secondary Pos: [39.89648518568935, -105.11505737579802]
Mean Heading: 182.98 (deg)
Mean Slope Distance: 1.0709 (m)
 Modified: 2024-08-28 15:48:39

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 400762.099
Stop Time : 490541.121
Total Hours : 24.93861722222222

Mean Primary Pos: [39.8964720484829, -105.11504420488045]
Mean Secondary Pos: [39.89648500487083, -105.11504336256674]
Mean Heading: 182.86 (deg)
Mean Slope Distance: 1.4425 (m)

Difference Report Links

240809_ch11/results/BX_all_0-EB79_all_0.html
240809_ch11/results/BX_all_0-EB81_all_0.html
240809_ch11/results/BX_all_1-EB79_all_1.html
240809_ch11/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 839,729 0.4 839,791 0.5 839,709 0.3 839,755 0.5
GPS L2 CM+CL 645,020 0.2 645,035 0.5 644,860 0.2 644,859 0.4
GPS L2 E 194,191 1.1 193,887 1.4 193,382 0.7 193,127 1.3
GPS L5/E5A I+Q 459,921 0.1 459,903 0.4 459,768 -0.3 459,763 -0.2
SBAS L1 CA 273,123 0.1 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 649,318 1.3 650,818 1.5 649,232 1.0 650,887 1.2
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 552,469 -0.1 553,883 0.5 552,359 0.0 553,247 0.3
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 642,553 0.4 641,809 0.6 642,561 0.3 641,853 0.4
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 642,560 0.3 641,815 0.2 642,567 -0.3 641,853 -0.0
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou L5/E5A I+Q 635,612 0.1 635,428 0.3 635,595 -0.3 635,416 -0.2
BeiDou E5B/B2 BPSK(2)-B2 77,419 0.5 77,412 -0.0 77,418 -0.5 77,390 -0.2
BeiDou B1 BPSK(2)-B1 713,054 0.4 712,862 0.6 712,978 0.0 712,790 0.3
BeiDou B3 BPSK(10)-B3 712,980 0.2 712,771 0.2 712,597 0.0 712,381 0.3
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 7,037,949 0.4 6,765,414 0.6 6,763,026 0.1 6,763,321 0.3

Az-El Plots

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

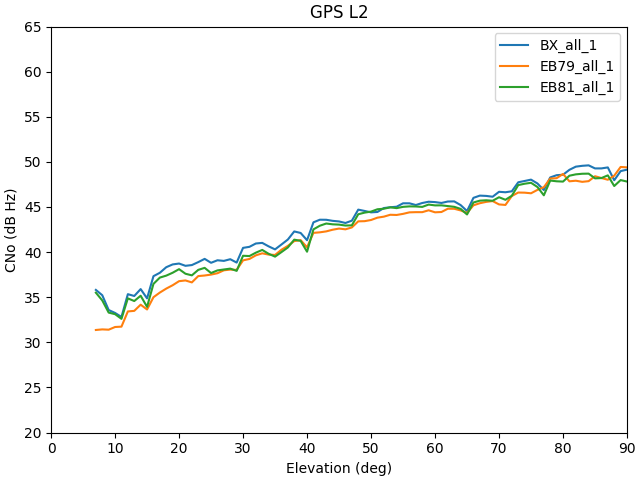

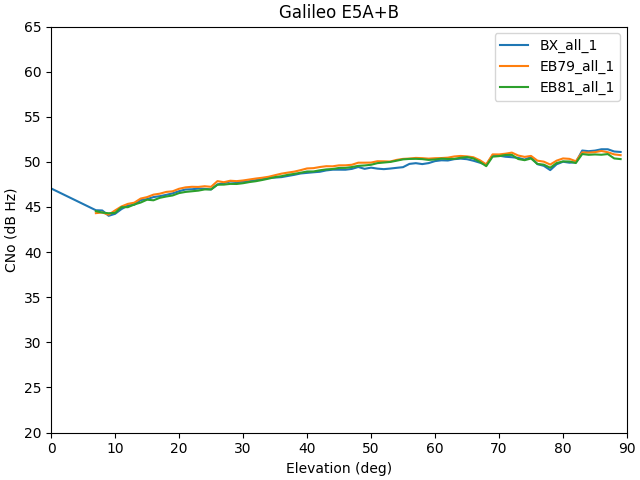

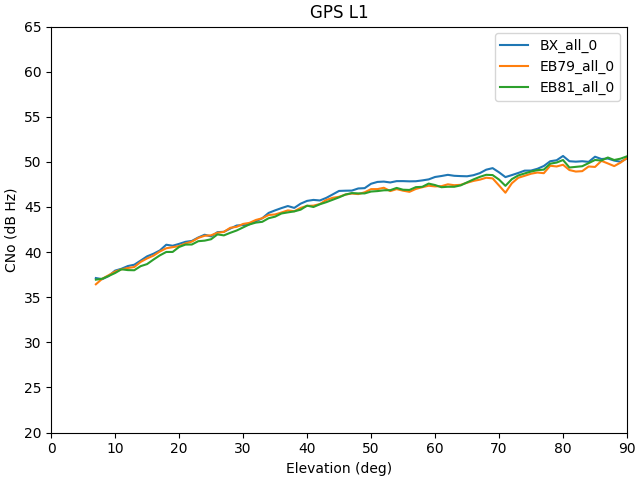

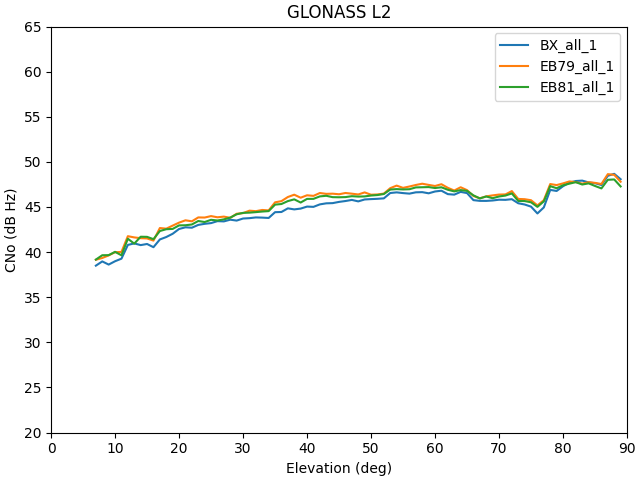

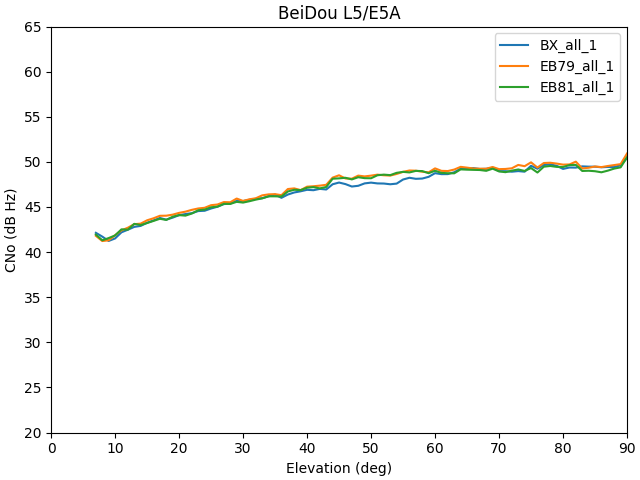

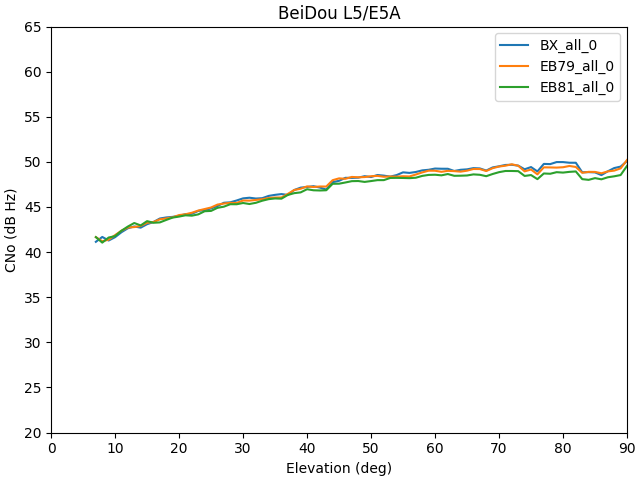

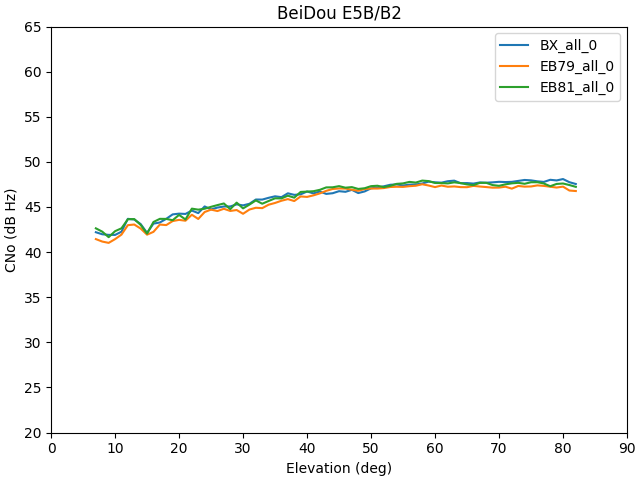

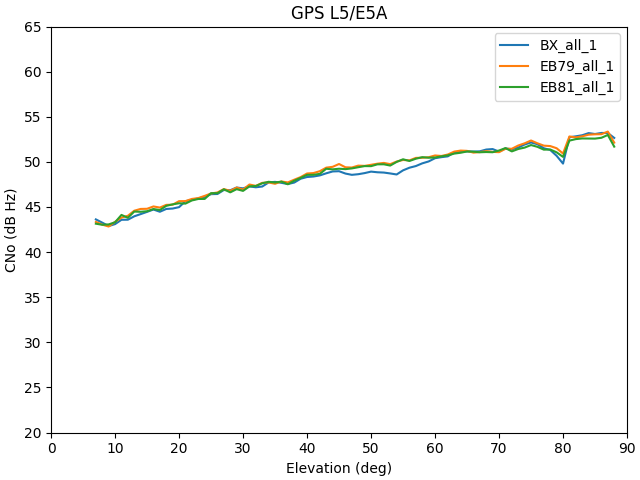

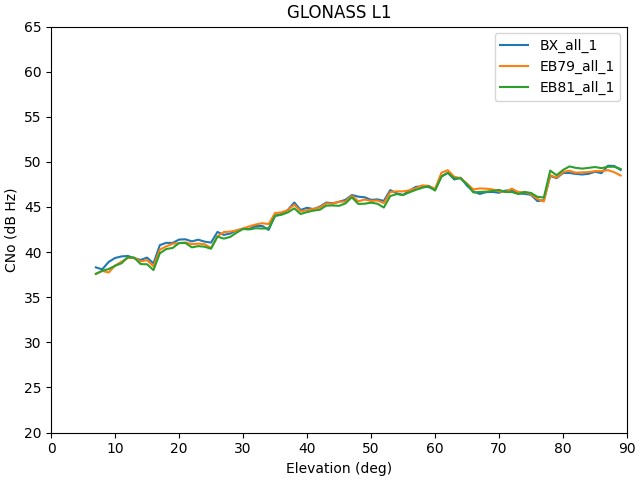

Mean Elevation Plots

Antenna 0

GPS
SBAS
GLONASS
Galileo
BeiDou

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_all_0: 1402.2
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 13 1,402
0 GLONASS L1 1 13 1,304
0 GPS L1 0 6 1,297
0 GLONASS L1 1 14 1,172
0 GLONASS L2 0 11 1,151
0 GLONASS L1 0 9 1,139
0 GLONASS L1 0 14 1,118
0 Galileo E5A+B 14 27 1,091
0 GPS L1 0 2 1,079
0 GLONASS L1 0 8 1,069
EB79_all_0: 1389.2
Antenna SVType Freq Track SV osc_factor
0 GPS L2 2 6 1,389
0 GLONASS L1 0 1 1,354
0 GLONASS L1 0 14 1,305
0 GLONASS L1 0 21 1,237
0 GLONASS L1 0 13 1,218
0 GPS L2 2 17 1,184
0 GPS L2 2 19 1,183
0 GPS L1 0 9 1,179
0 BeiDou B1 26 45 1,172
0 GLONASS L1 0 24 1,162
EB81_all_0: 2133.7
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 6 2,134
0 GLONASS L2 0 21 1,671
0 GLONASS L1 0 15 1,511
0 GLONASS L1 0 1 1,502
0 GLONASS L1 0 14 1,457
0 GPS L1 0 8 1,324
0 BeiDou B1 26 45 1,273
0 GLONASS L1 0 4 1,188
0 GPS L1 0 16 1,182
0 GPS L1 0 12 1,178
BX_all_1: 1932.6
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 30 1,933
1 GLONASS L1 0 14 1,816
1 GLONASS L1 1 14 1,592
1 GPS L1 0 6 1,501
1 GPS L1 0 9 1,444
1 GLONASS L1 0 4 1,382
1 BeiDou B1 26 32 1,375
1 GLONASS L1 0 5 1,310
1 GPS L2 2 19 1,302
1 GPS L1 0 8 1,294
EB79_all_1: 1641.9
Antenna SVType Freq Track SV osc_factor
1 GPS L2 2 6 1,642
1 GPS L1 0 6 1,497
1 GLONASS L1 0 16 1,469
1 GLONASS L1 0 13 1,421
1 GLONASS L1 0 20 1,418
1 GLONASS L1 0 1 1,325
1 GPS L1 0 8 1,232
1 GLONASS L1 0 4 1,222
1 GPS L1 0 9 1,200
1 GPS L1 0 31 1,196
EB81_all_1: 1871.6
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 16 1,872
1 GLONASS L2 0 21 1,825
1 GLONASS L1 0 1 1,729
1 GLONASS L1 0 14 1,487
1 GLONASS L1 0 22 1,426
1 GPS L1 0 25 1,340
1 GLONASS L1 0 13 1,339
1 GLONASS L1 0 20 1,336
1 GPS L2 2 19 1,307
1 GLONASS L1 0 4 1,295

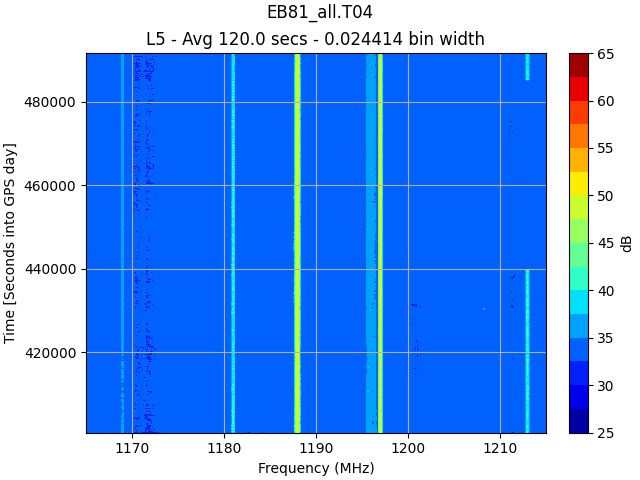

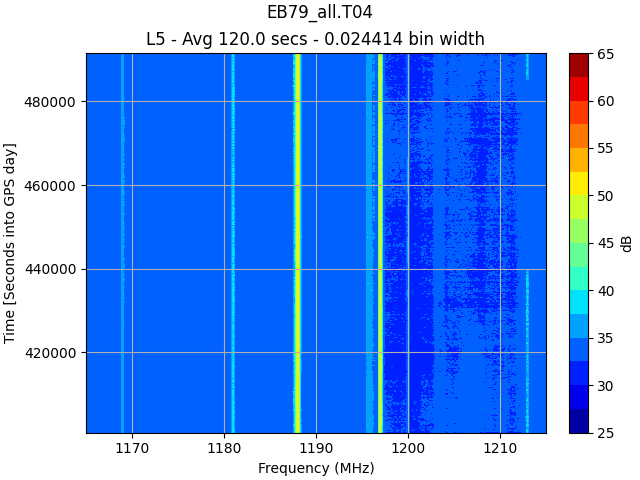

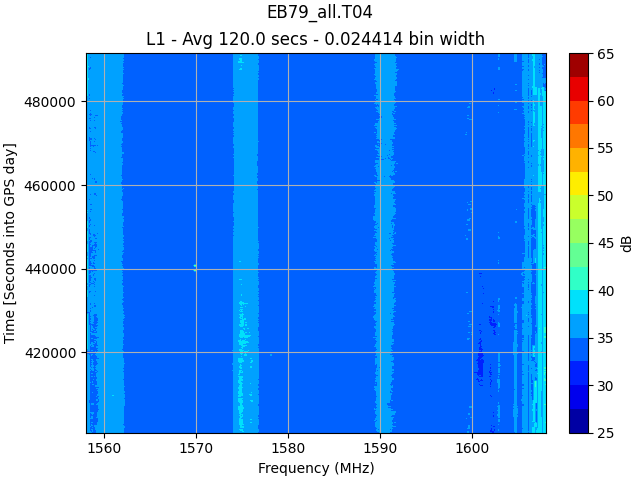

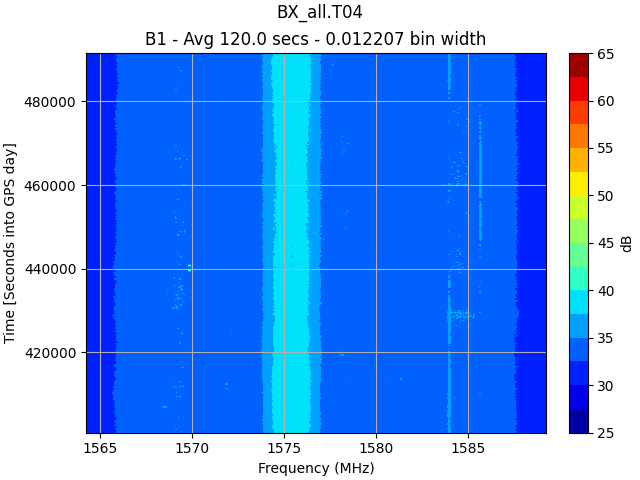

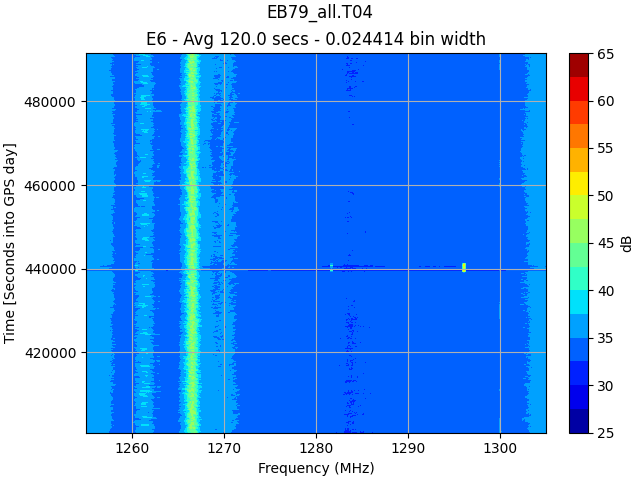

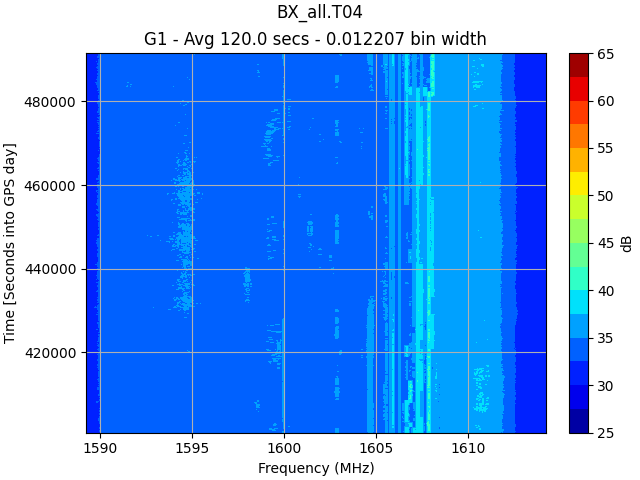

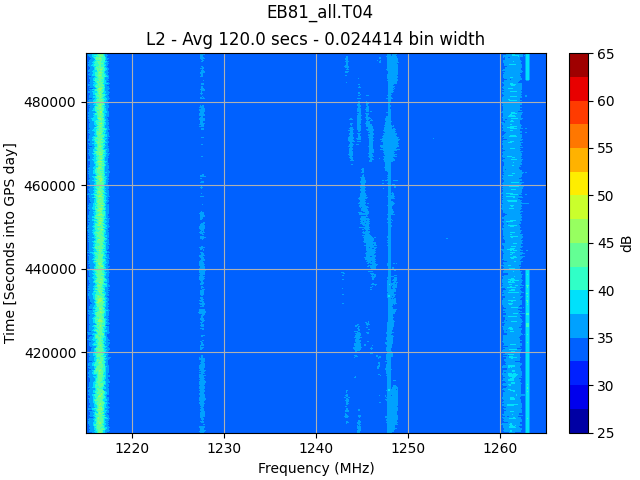

FFT Plots

L1 L2 L5 E6 G1 B1
BX
EB79
EB81
