REF File: 240809_ch11/BX_all.T04
DUT File: 240809_ch11/EB81_all.T04

Comments


CH11

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 840519 43.9 44.2 4.3 12.5 54.5 42.0 37.0 90.0
GPS L2 CM+CL 645651 44.4 44.9 3.4 25.3 52.0 26.7 38.4 90.0
GPS L2 E 194350 30.2 30.5 6.6 13.9 44.4 30.5 32.6 77.0
GPS L5/E5A I+Q 460409 47.6 47.8 3.0 29.8 54.6 24.8 37.0 88.0
SBAS L1 CA 355102 42.8 44.2 4.0 22.9 48.5 25.6 20.2 42.0
SBAS L5/E5A I 273135 46.3 46.3 0.5 44.4 48.4 4.0 39.8 42.0
GLONASS L1 CA 654611 44.3 45.2 5.1 0.0 53.8 53.8 35.7 89.0
GLONASS L1 P 654471 42.8 43.6 5.0 20.9 52.0 31.1 35.7 89.0
GLONASS L2 CA 557722 44.4 44.9 3.6 10.5 52.1 41.6 35.7 89.0
GLONASS L2 P 557690 42.7 43.2 3.5 11.6 49.9 38.3 35.7 89.0
GLONASS G3 PD 46298 45.4 46.0 3.2 29.3 50.8 21.5 39.9 80.0
Galileo L1 MBOC-PD 642969 45.3 45.6 3.9 10.9 53.8 42.9 36.8 89.0
Galileo L5/E5A BPSK(10)-PD 642969 45.1 45.5 2.7 31.1 50.7 19.6 36.8 89.0
Galileo E5B/B2 BPSK(10)-PD 642969 45.6 46.0 2.9 31.6 51.2 19.6 36.8 89.0
Galileo E5A+B AltBOC-Comp-PD 642969 47.9 48.0 2.4 32.8 52.9 20.1 36.8 89.0
Galileo E6 BPSK(5)-PD 642892 47.1 47.5 3.7 27.1 53.8 26.7 36.8 89.0
BeiDou L1 BOC-PD 635931 45.6 45.8 4.1 20.5 53.0 32.5 37.1 90.0
BeiDou L5/E5A I+Q 635932 46.1 46.2 2.9 31.4 52.1 20.7 37.1 90.0
BeiDou E5B/B2 BPSK(2)-B2 77467 45.9 46.5 2.1 36.2 49.9 13.7 41.9 82.0
BeiDou B1 BPSK(2)-B1 713418 45.5 45.9 4.1 21.7 53.2 31.5 37.6 90.0
BeiDou B3 BPSK(10)-B3 713394 44.7 45.3 3.1 24.0 50.8 26.8 37.6 90.0
start/stop time: 400,754 491,798
Total time: 91,044.0 seconds
Total time: 1,517.400 minutes
Total time: 25.290 hours
Total Samples: 11,230,868
Avg Samples/sec: 123.4

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 400754.127
Stop Time : 489600.333
Total Hours : 24.679501666666667
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 840689 43.4 43.7 4.2 14.9 54.5 39.6 37.0 90.0
GPS L2 CM+CL 645699 44.0 44.3 3.2 17.7 51.3 33.6 38.4 90.0
GPS L2 E 194603 28.8 29.2 6.2 13.9 42.5 28.6 32.6 77.0
GPS L5/E5A I+Q 460368 47.2 47.4 2.7 20.2 53.4 33.2 37.0 88.0
GLONASS L1 CA 651377 42.9 43.8 5.0 14.0 53.2 39.2 35.8 89.0
GLONASS L2 CA 554386 43.9 44.6 3.3 9.2 50.7 41.5 35.8 89.0
Galileo L1 MBOC-PD 642489 44.6 45.1 3.9 8.4 53.0 44.6 36.8 89.0
Galileo E5A+B AltBOC-Comp-PD 642495 47.7 47.9 2.3 30.8 52.3 21.5 36.8 89.0
BeiDou L5/E5A I+Q 636119 45.7 45.9 2.6 20.1 51.2 31.1 37.1 90.0
BeiDou E5B/B2 BPSK(2)-B2 77564 45.9 46.6 2.2 31.2 49.7 18.5 41.9 82.0
BeiDou B1 BPSK(2)-B1 713686 44.9 45.3 4.0 18.9 53.0 34.1 37.6 90.0
BeiDou B3 BPSK(10)-B3 713614 44.5 45.1 3.0 18.3 50.2 31.9 37.6 90.0
start/stop time: 400,762 491,820
Total time: 91,058.0 seconds
Total time: 1,517.633 minutes
Total time: 25.294 hours
Total Samples: 6,773,089
Avg Samples/sec: 74.4

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 400762.099
Stop Time : 490541.121
Total Hours : 24.93861722222222
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 839791 +0.5 +0.5 +1.9 -20.3 +23.5 +43.8 +37.1 +90.0
GPS L2 CM+CL 645035 +0.5 +0.5 +1.5 -12.8 +24.4 +37.2 +38.4 +90.0
GPS L2 E 193887 +1.4 +1.5 +1.9 -9.2 +11.2 +20.4 +32.7 +77.0
GPS L5/E5A I+Q 459903 +0.4 +0.4 +1.3 -13.7 +24.1 +37.8 +37.0 +88.0
GLONASS L1 CA 650818 +1.5 +1.5 +2.1 -30.5 +24.0 +54.5 +35.8 +89.0
GLONASS L2 CA 553883 +0.5 +0.5 +1.5 -11.2 +24.4 +35.6 +35.8 +89.0
Galileo L1 MBOC-PD 641809 +0.6 +0.6 +1.6 -23.1 +31.5 +54.6 +36.8 +89.0
Galileo E5A+B AltBOC-Comp-PD 641815 +0.2 +0.2 +0.9 -8.2 +8.3 +16.5 +36.8 +89.0
BeiDou L5/E5A I+Q 635428 +0.3 +0.4 +1.2 -11.4 +20.2 +31.6 +37.1 +90.0
BeiDou E5B/B2 BPSK(2)-B2 77412 -0.0 +0.0 +1.1 -5.9 +9.8 +15.7 +41.9 +82.0
BeiDou B1 BPSK(2)-B1 712862 +0.6 +0.6 +1.8 -12.2 +21.6 +33.8 +37.6 +90.0
BeiDou B3 BPSK(10)-B3 712771 +0.2 +0.3 +1.3 -18.5 +22.6 +41.1 +37.6 +90.0
start/stop time: 400,762 491,798
Total time: 91,036.0 seconds
Total time: 1,517.267 minutes
Total time: 25.288 hours
Total Samples: 6,765,414
Avg Samples/sec: 74.3

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.553
Median = 0.500
Std Dev= 1.611

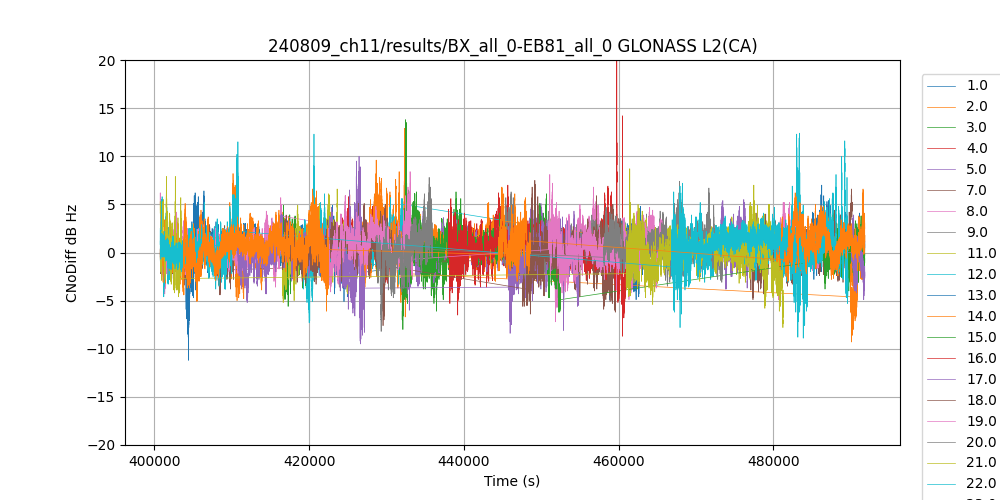

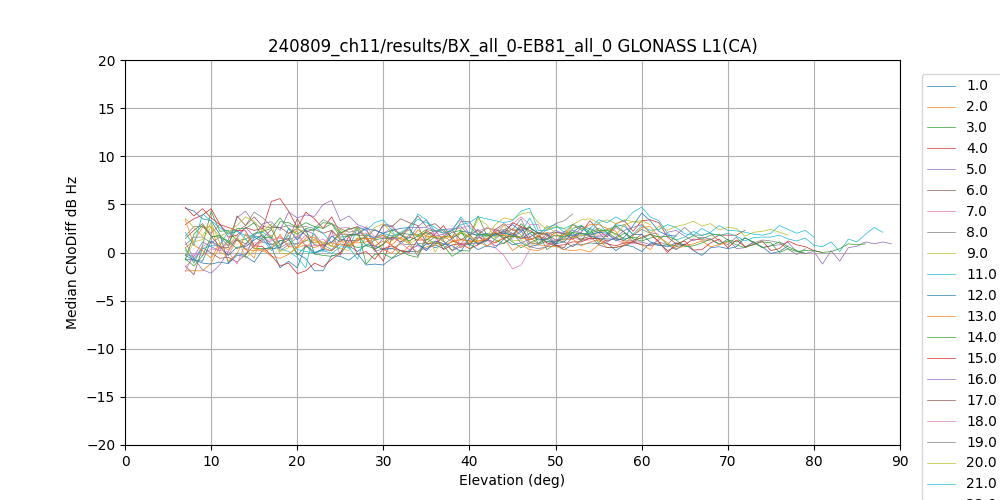

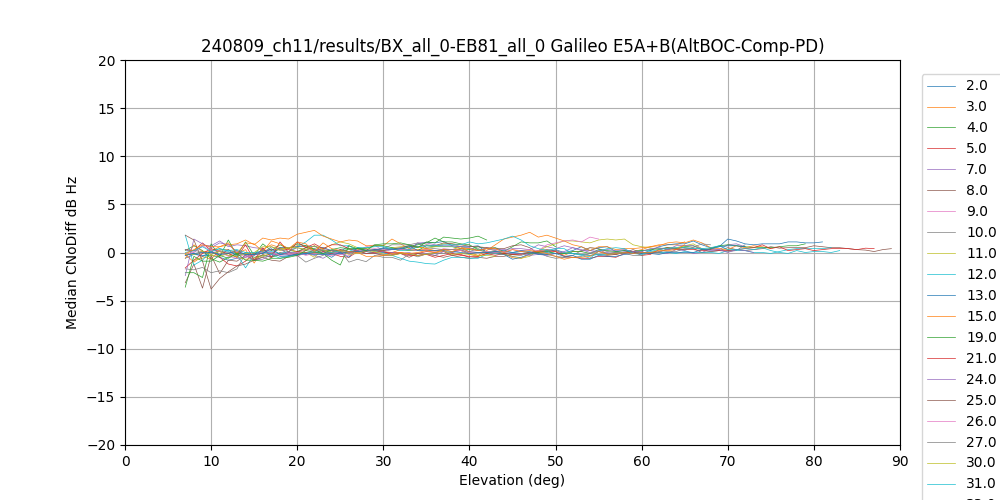

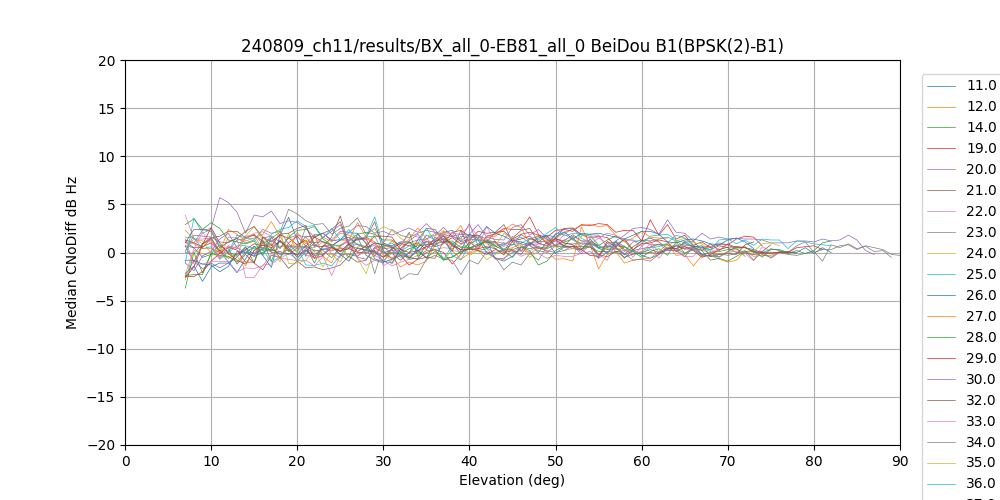

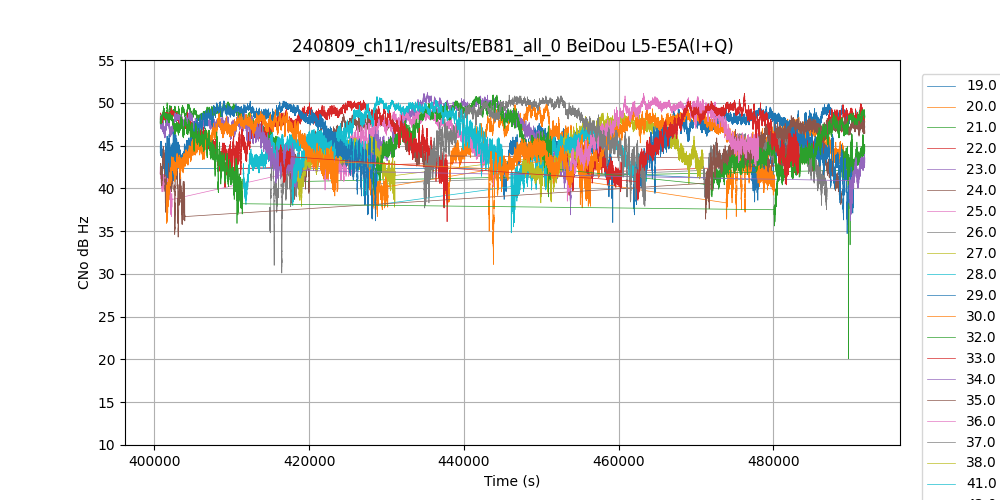

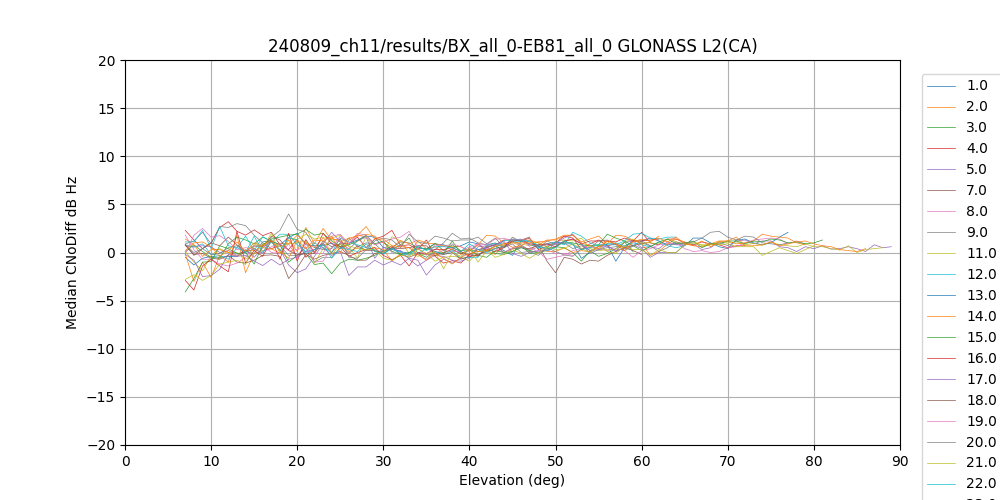

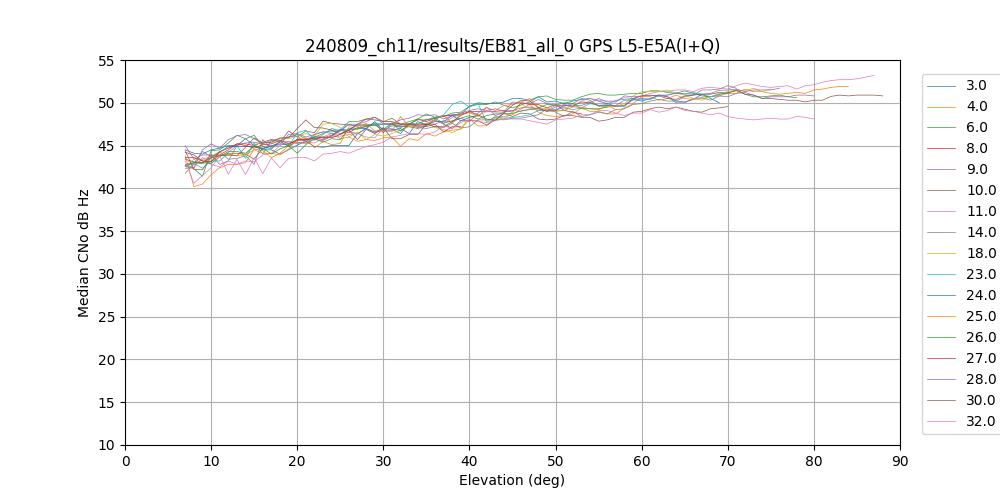

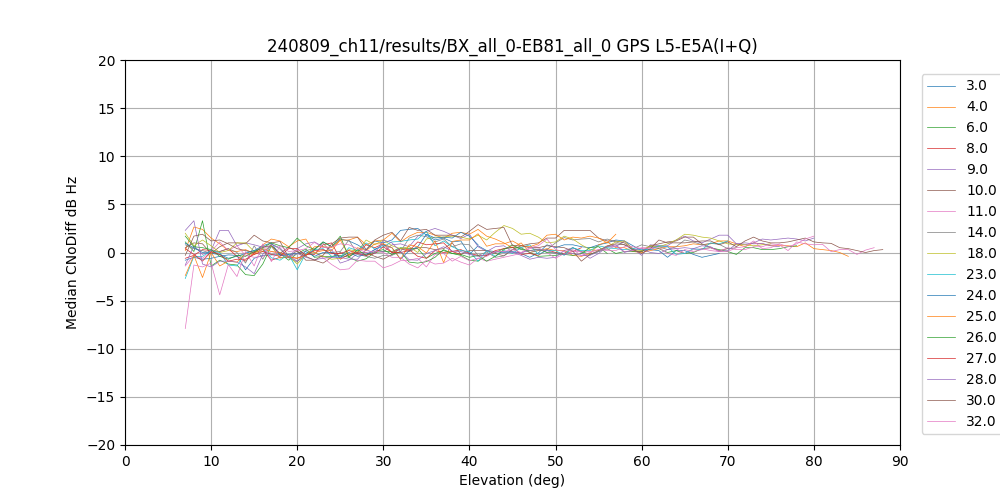

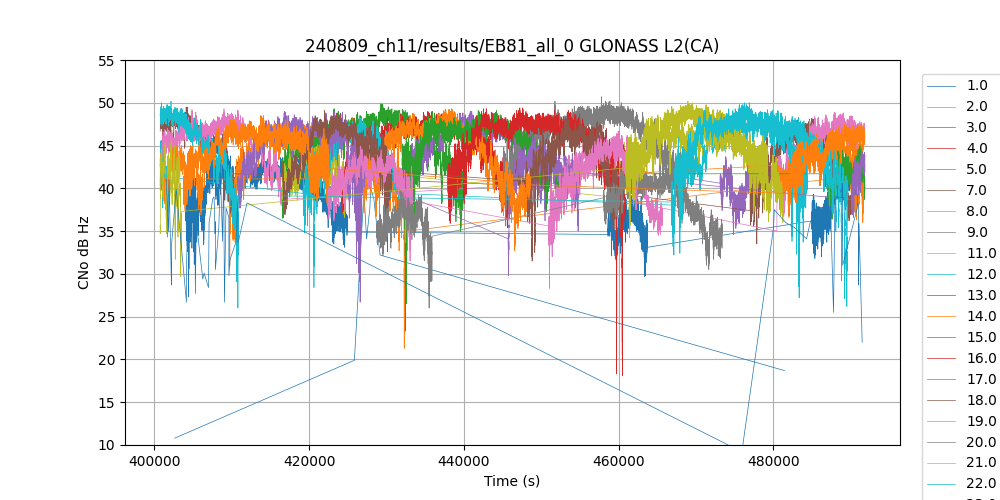

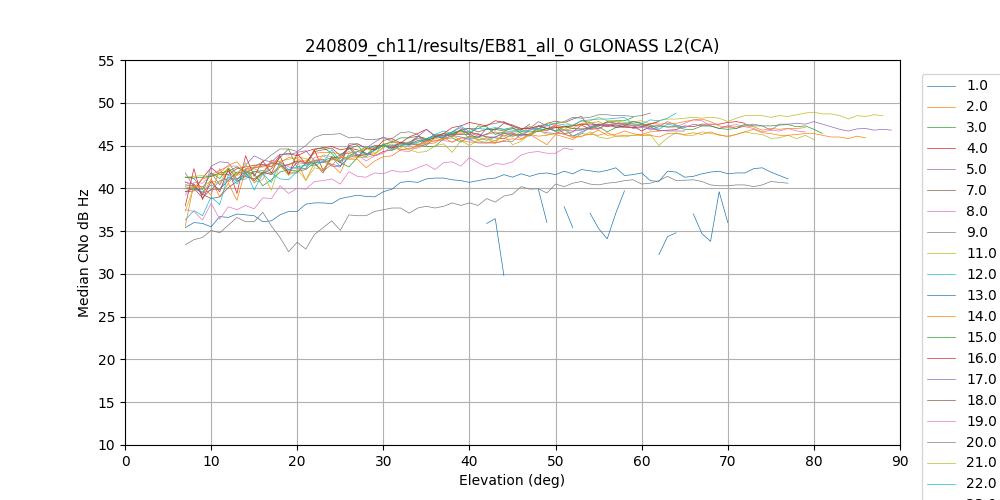

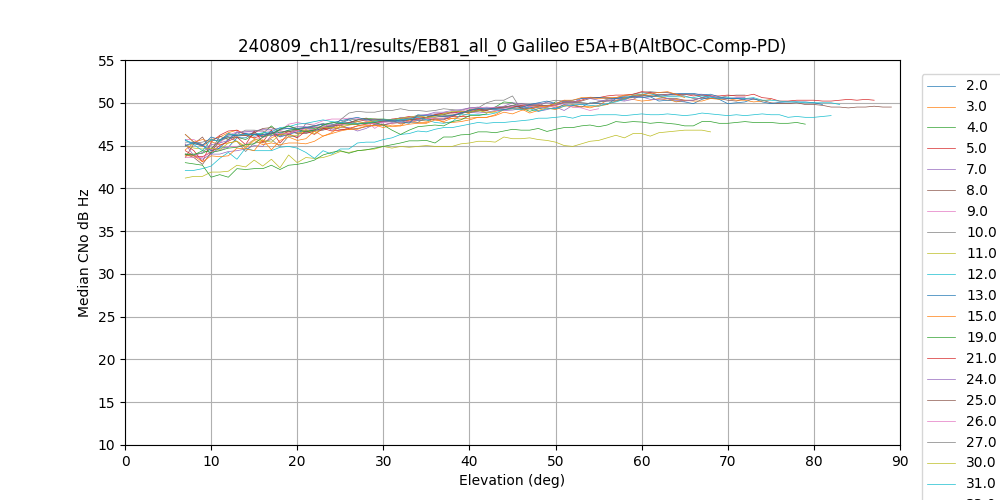

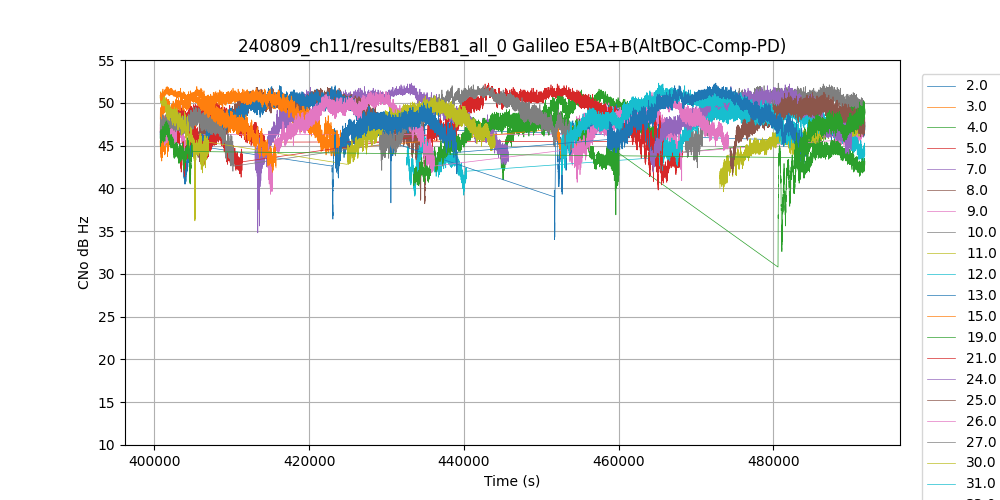

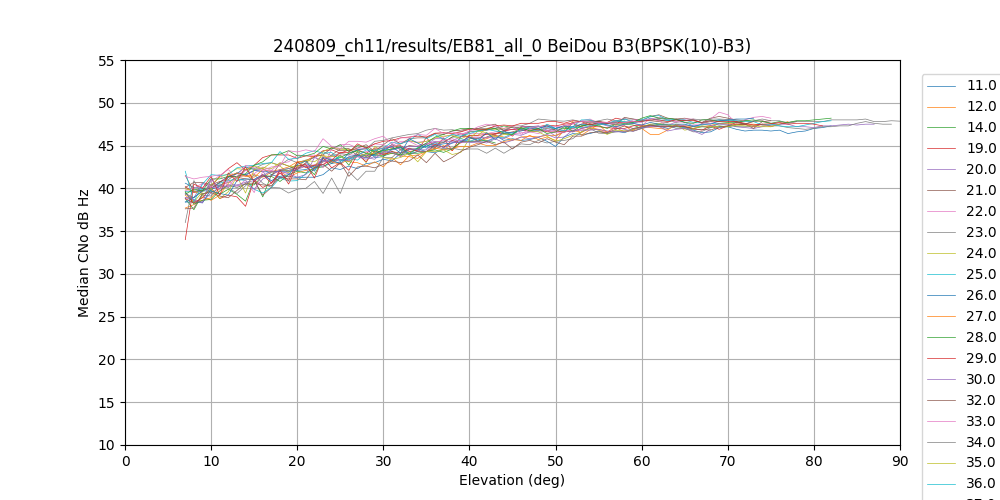

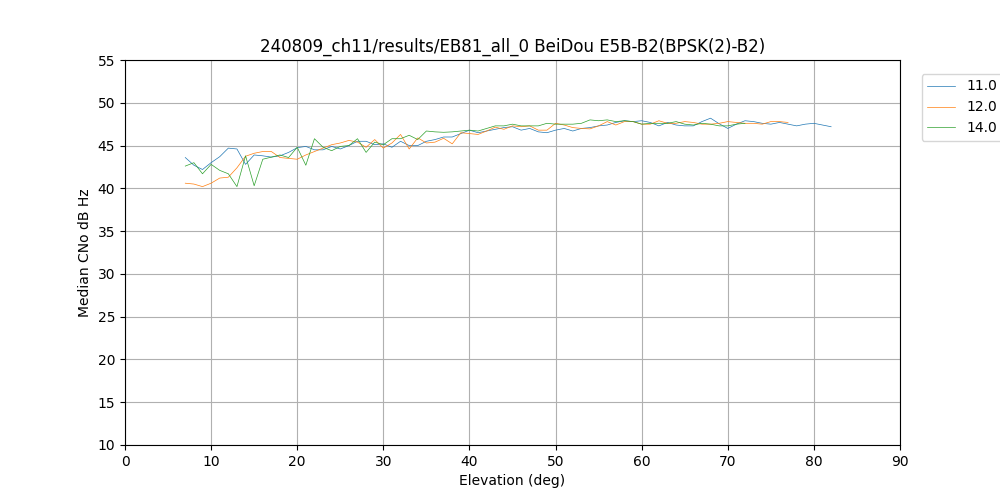

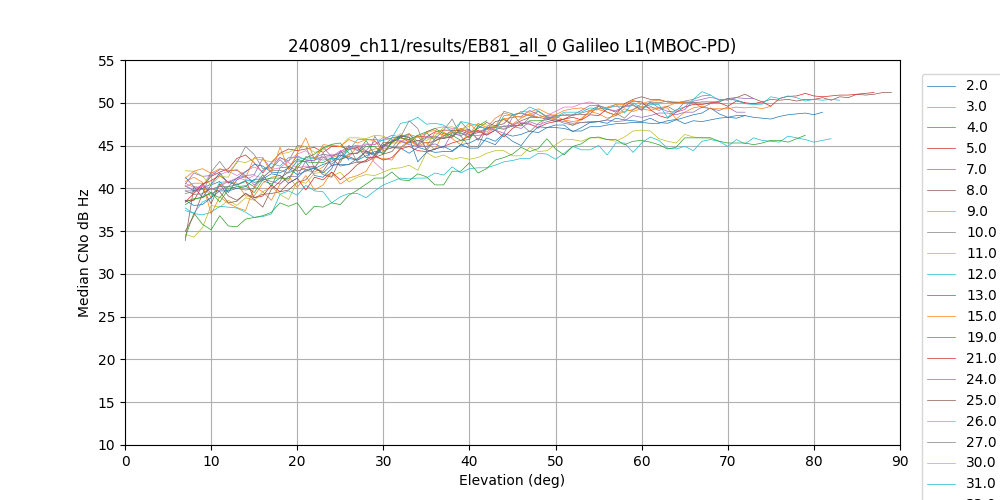

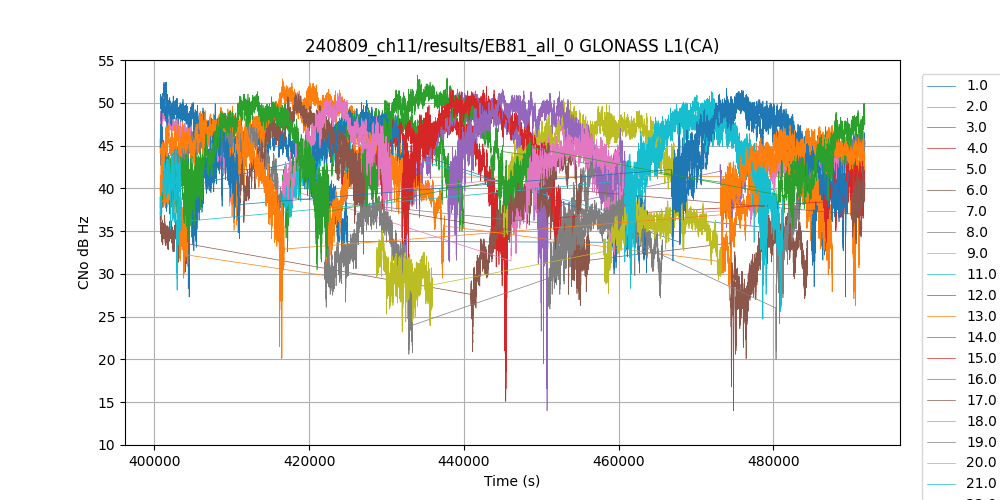

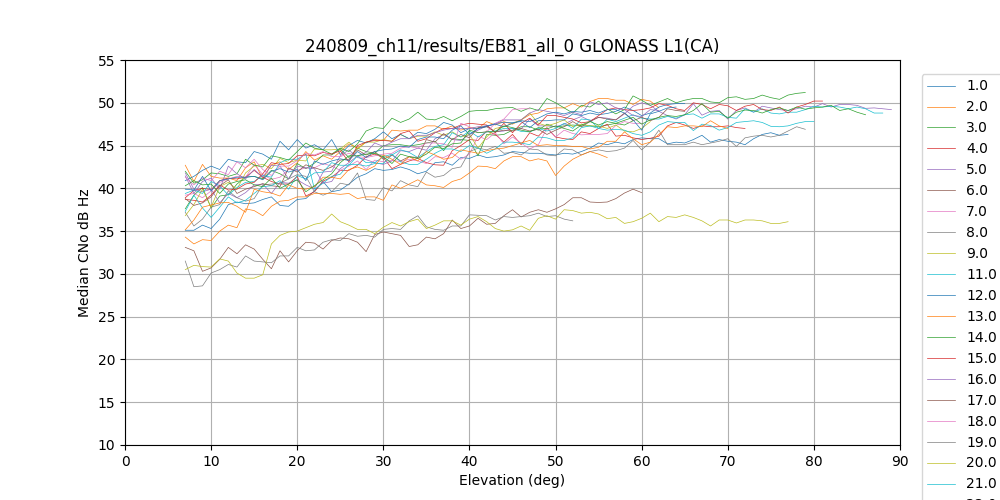

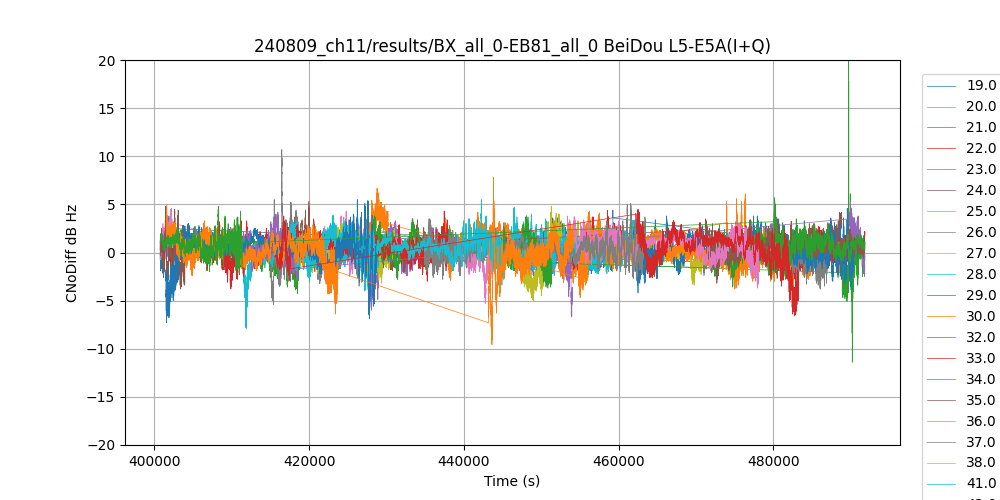

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.2 49.9 27.4 197 [16.0, 35.0] [0.0] 30523
3 32.7 0.0 42.8 52.2 29.8 213 [25.0, 37.0] [0.0] 27101
4 45.4 0.0 44.7 50.6 33.0 0 [20.0] [0.0] 23831
5 41.6 0.0 44.7 51.7 12.5 303 [17.0, 35.0, 19.0] [0.0] 27969
6 38.4 0.0 43.4 52.1 23.6 147 [32.0, 27.0] [0.0] 24505
7 45.1 0.0 45.8 51.9 31.7 1 [29.0] [0.0] 25519
8 27.3 0.0 42.4 50.6 28.5 235 [33.0, 26.0] [0.0] 29161
9 44.0 0.0 44.8 52.4 31.5 0 [37.0] [0.0] 21445
10 43.4 0.0 46.9 53.6 30.6 211 [36.0, 37.0] [0.0] 25864
11 42.7 0.0 44.5 53.4 26.5 207 [33.0, 36.0] [0.0] 25785
12 36.5 0.0 43.7 51.5 26.3 233 [28.0, 33.0] [0.0] 25028
13 26.9 0.0 42.8 49.9 27.1 257 [33.0, 27.0] [0.0] 23311
14 44.1 0.0 45.3 50.7 30.6 0 [18.0] [0.0] 25739
15 31.0 0.0 43.5 50.8 32.2 365 [34.0, 13.0, 24.0] [0.0] 32671
16 29.6 0.0 41.6 50.5 26.9 206 [33.0, 31.0, 36.0] [0.0] 29384
17 45.7 0.0 45.3 52.5 30.3 9 [30.0] [0.0] 24125
18 44.8 0.0 45.3 51.5 33.6 160 [35.0, 30.0] [0.0] 29847
19 44.6 0.0 44.7 51.4 30.5 3 [25.0] [0.0] 24591
20 32.1 0.0 42.1 51.2 28.7 238 [24.0, 19.0, 28.0] [0.0] 30843
21 26.6 0.0 42.3 48.8 23.0 307 [37.0, 21.0] [0.0] 30229
22 44.5 0.0 45.2 51.2 32.4 1 [31.0] [0.0] 25987
23 40.6 0.0 44.5 51.0 28.9 102 [23.0, 14.0] [0.0] 30433
24 25.6 0.0 41.2 48.9 24.5 226 [24.0, 26.0] [0.0] 29804
25 27.3 0.0 41.0 49.7 24.3 287 [29.0, 23.0] [0.0] 32160
26 26.6 0.0 42.2 50.0 26.0 217 [27.0, 24.0, 29.0] [0.0] 33407
27 26.1 0.0 42.5 49.0 26.4 204 [29.0, 32.0] [0.0] 29883
28 39.7 0.0 43.2 50.2 22.5 88 [19.0, 30.0] [0.0] 23145
29 51.2 0.0 46.4 52.5 30.9 105 [16.0, 18.0] [0.0] 27598
30 45.9 0.0 45.7 52.3 29.9 0 [22.0] [0.0] 23662
31 45.3 0.0 45.4 53.9 19.9 54 [35.0] [0.0] 22332
32 45.3 0.0 47.3 54.5 30.6 6 [32.0] [0.0] 24637

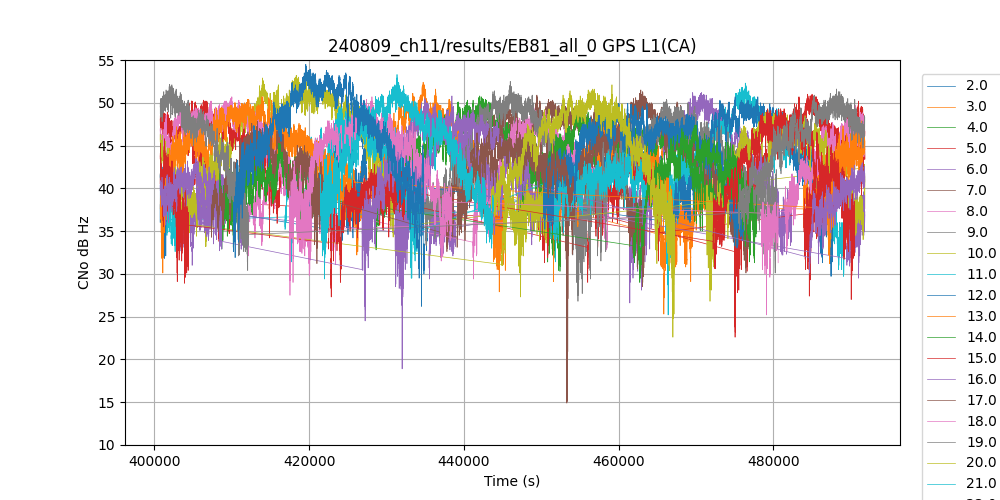

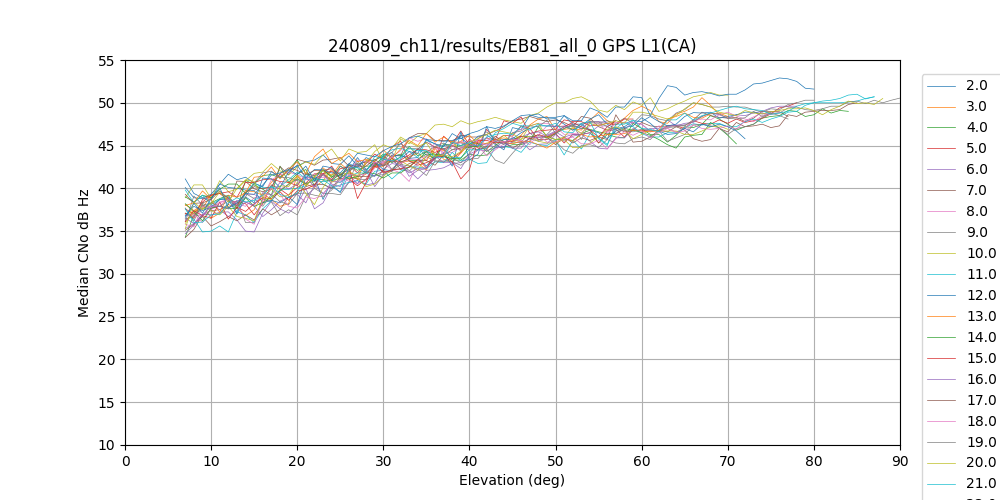

DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.8 49.2 32.7 217 [15.0, 29.0] [0.0] 30543
3 32.7 0.0 42.2 52.4 25.3 176 [31.0, 36.0] [0.0] 27113
4 45.4 0.0 44.2 50.8 30.3 2 [23.0] [0.0] 23839
5 41.7 0.0 44.1 51.0 22.6 269 [17.0, 29.0, 19.0] [0.0] 27964
6 38.6 0.0 42.4 51.2 26.6 239 [35.0, 27.0] [0.0] 24346
7 45.1 0.0 45.1 50.9 28.5 1 [32.0] [0.0] 25520
8 27.4 0.0 41.7 49.6 29.4 91 [34.0, 24.0] [0.0] 29158
9 44.1 0.0 44.2 52.5 26.8 13 [36.0] [0.0] 21427
10 43.3 0.0 47.0 53.2 33.2 186 [37.0, 36.0] [0.0] 25886
11 42.7 0.0 43.2 52.3 25.2 236 [33.0, 37.0] [0.0] 25788
12 36.5 0.0 43.6 50.7 29.7 32 [30.0, 34.0, 31.0] [0.0] 25002
13 26.9 0.0 42.3 48.4 29.1 42 [25.0, 27.0] [0.0] 23351
14 44.1 0.0 44.4 49.7 34.8 0 [19.0] [0.0] 25734
15 31.0 0.0 43.1 50.3 27.4 357 [28.0, 31.0, 24.0] [0.0] 32712
16 29.6 0.0 41.1 50.8 18.9 440 [34.0, 22.0, 37.0] [0.0] 29418
17 45.7 0.0 43.9 51.5 14.9 38 [23.0] [0.0] 24133
18 44.9 0.0 44.9 50.7 29.8 77 [29.0, 34.0] [0.0] 29848
19 44.6 0.0 43.5 50.4 30.1 2 [34.0] [0.0] 24614
20 32.2 0.0 41.5 49.2 26.8 481 [37.0, 20.0, 29.0] [0.0] 30813
21 26.6 0.0 42.2 49.6 29.5 190 [35.0, 20.0] [0.0] 30261
22 44.4 0.0 44.7 50.1 33.0 1 [22.0] [0.0] 25993
23 40.6 0.0 44.7 50.7 30.1 186 [19.0, 14.0] [0.0] 30467
24 25.7 0.0 41.0 47.4 29.0 106 [30.0, 24.0] [0.0] 29782
25 27.3 0.0 41.1 49.3 27.0 316 [27.0, 36.0, 26.0] [0.0] 32167
26 26.6 0.0 41.5 50.5 24.5 202 [24.0, 30.0] [0.0] 33399
27 26.1 0.0 42.4 47.8 31.2 189 [36.0, 35.0] [0.0] 29928
28 39.7 0.0 42.9 50.7 25.2 181 [20.0, 24.0] [0.0] 23175
29 51.1 0.0 45.6 52.1 30.4 106 [16.0, 18.0] [0.0] 27660
30 45.9 0.0 44.9 52.1 22.6 40 [21.0] [0.0] 23667
31 45.3 0.0 44.9 53.3 29.4 0 [29.0] [0.0] 22335
32 45.3 0.0 46.7 54.5 26.2 14 [32.0] [0.0] 24646

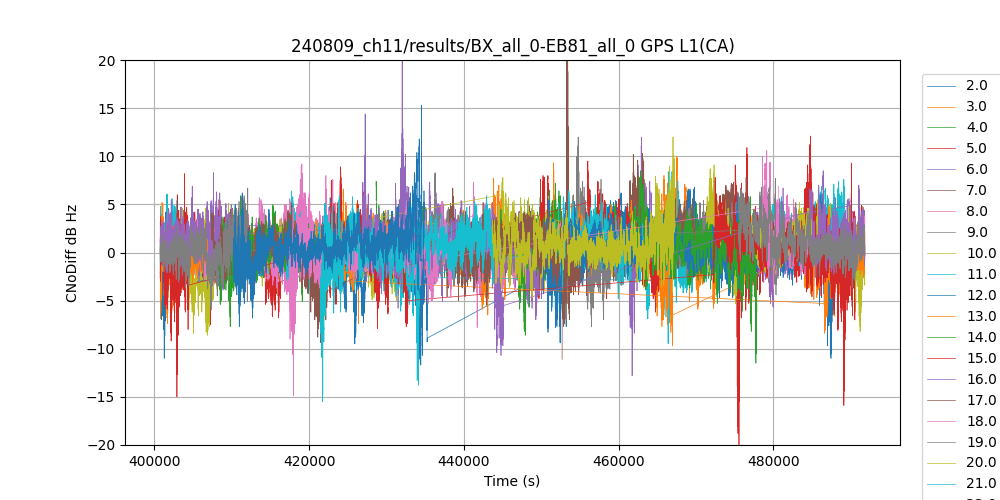

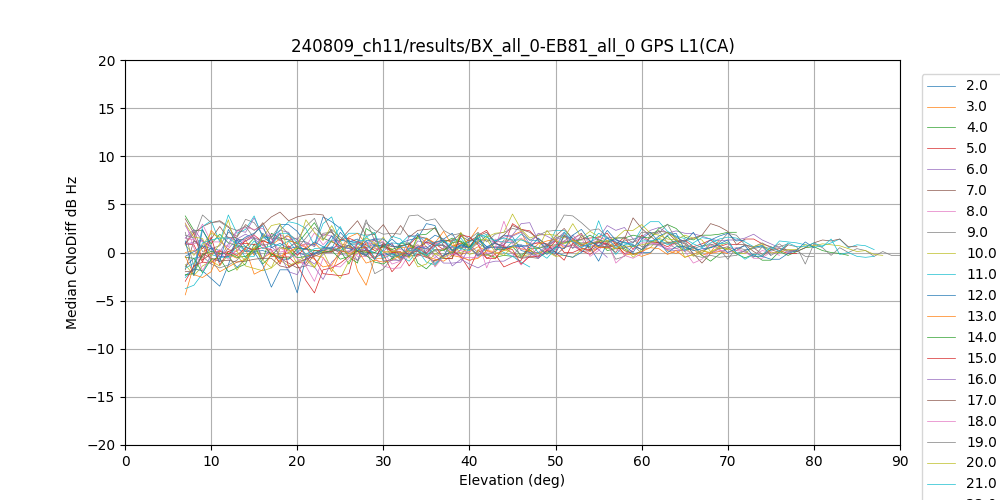

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.0 0.4 6.2 -11.7 [16.0, 15.0, 35.0, 29.0] 30510
3 32.7 0.6 10.0 -7.4 [25.0, 31.0, 37.0, 36.0] 27096
4 45.4 0.5 7.8 -4.5 [20.0, 23.0] 23831
5 41.7 0.6 10.9 -20.3 [17.0, 35.0, 29.0, 19.0] 27936
6 38.6 1.0 12.0 -12.8 [32.0, 35.0, 27.0] 24316
7 45.1 0.7 10.3 -4.6 [29.0, 32.0] 25501
8 27.4 0.7 8.0 -7.8 [33.0, 34.0, 26.0, 24.0] 29134
9 44.1 0.5 12.0 -7.0 [37.0, 36.0] 21427
10 43.4 -0.1 5.1 -8.6 [36.0, 37.0] 25834
11 42.7 1.3 8.4 -9.5 [33.0, 36.0, 37.0] 25776
12 36.5 0.1 6.8 -11.0 [28.0, 30.0, 33.0, 34.0, 31.0] 24997
13 26.9 0.5 9.3 -9.7 [33.0, 25.0, 27.0] 23311
14 44.1 0.9 5.4 -8.6 [18.0, 19.0] 25733
15 31.0 0.4 12.1 -6.8 [34.0, 28.0, 13.0, 31.0, 24.0] 32646
16 29.7 0.6 20.7 -7.0 [33.0, 34.0, 31.0, 22.0, 36.0, 37.0] 29359
17 45.7 1.4 23.5 -11.1 [30.0, 23.0] 24125
18 44.9 0.4 9.0 -5.3 [35.0, 29.0, 30.0, 34.0] 29825
19 44.6 1.2 7.7 -7.7 [25.0, 34.0] 24591
20 32.2 0.5 9.1 -8.4 [24.0, 37.0, 19.0, 20.0, 28.0, 29.0] 30783
21 26.6 0.1 6.4 -13.8 [37.0, 35.0, 21.0, 20.0] 30218
22 44.5 0.5 5.9 -9.4 [31.0, 22.0] 25987
23 40.6 -0.2 6.6 -8.4 [23.0, 19.0, 14.0] 30421
24 25.7 0.2 8.5 -11.5 [24.0, 30.0, 26.0] 29763
25 27.3 -0.0 9.3 -15.9 [29.0, 27.0, 36.0, 23.0, 26.0] 32122
26 26.6 0.7 14.4 -10.7 [27.0, 24.0, 30.0, 29.0] 33340
27 26.1 0.1 5.2 -9.4 [29.0, 36.0, 32.0, 35.0] 29878
28 39.8 0.3 10.6 -14.9 [19.0, 20.0, 30.0, 24.0] 23121
29 51.1 0.7 6.8 -6.0 [16.0, 18.0] 27590
30 45.9 0.8 12.0 -4.7 [22.0, 21.0] 23661
31 45.3 0.5 5.9 -15.5 [35.0, 29.0] 22332
32 45.3 0.6 15.3 -10.7 [32.0] 24627
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.6 38.4 14.8 31 [16.0, 35.0] [0.0] 30523
13 27.0 0.0 28.1 36.8 14.8 89 [33.0, 27.0] [0.0] 23234
16 29.6 0.0 28.0 41.1 15.6 362 [33.0, 31.0, 36.0] [0.0] 29378
19 44.7 0.0 34.9 44.4 15.6 4 [25.0] [0.0] 24579
20 32.1 0.0 29.2 41.1 14.8 92 [24.0, 19.0, 28.0] [0.0] 30843
21 26.9 0.0 28.3 38.3 13.9 54 [37.0, 21.0] [0.0] 29806
22 44.5 0.0 33.4 41.6 16.3 1 [31.0] [0.0] 25987

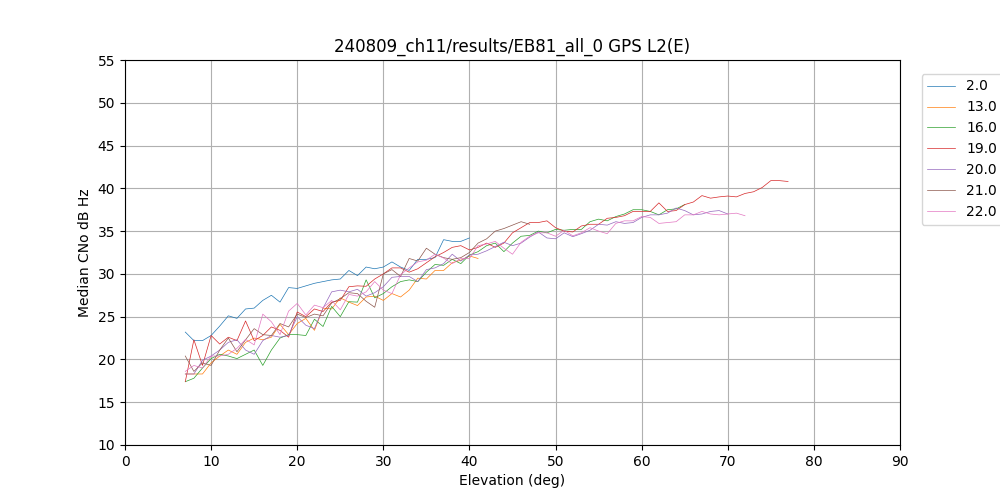

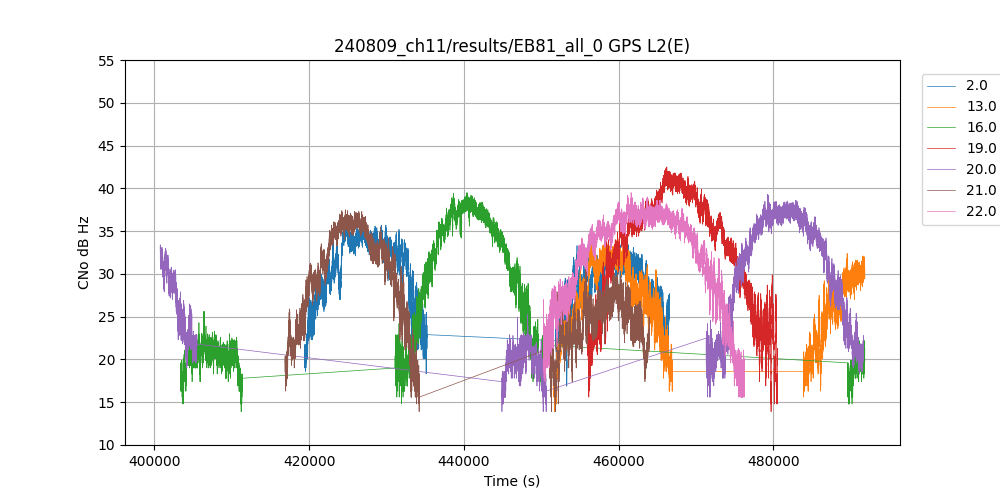

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 29.5 36.3 16.9 210 [15.0, 29.0] [0.0] 30543
13 26.9 0.0 26.6 34.3 13.9 66 [25.0, 27.0] [0.0] 23294
16 29.8 0.0 26.8 39.5 13.9 168 [34.0, 22.0, 37.0] [0.0] 29103
19 44.6 0.0 32.9 42.5 13.9 4 [34.0] [0.0] 24614
20 32.2 0.0 27.8 39.3 13.9 360 [37.0, 20.0, 29.0] [0.0] 30795
21 26.6 0.0 27.3 37.5 13.9 71 [35.0, 20.0] [0.0] 30261
22 44.4 0.0 31.6 39.5 15.6 3 [22.0] [0.0] 25993

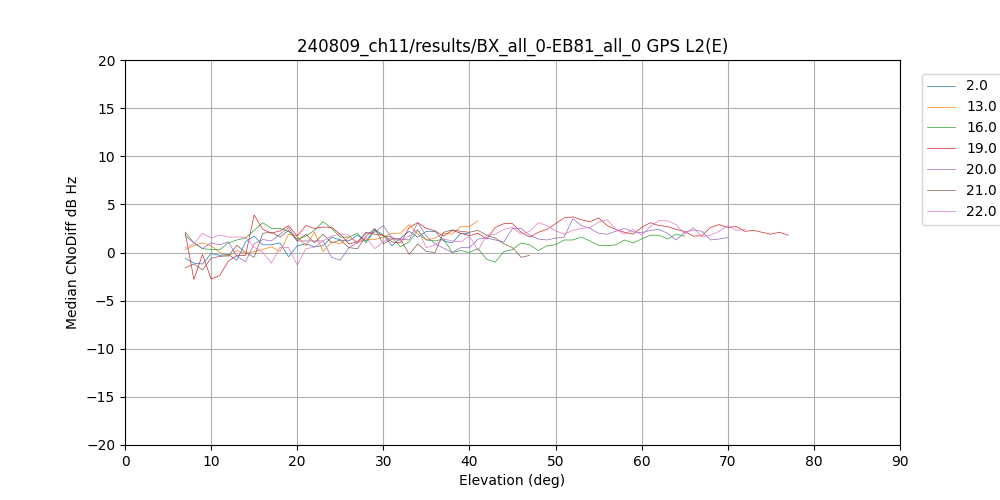

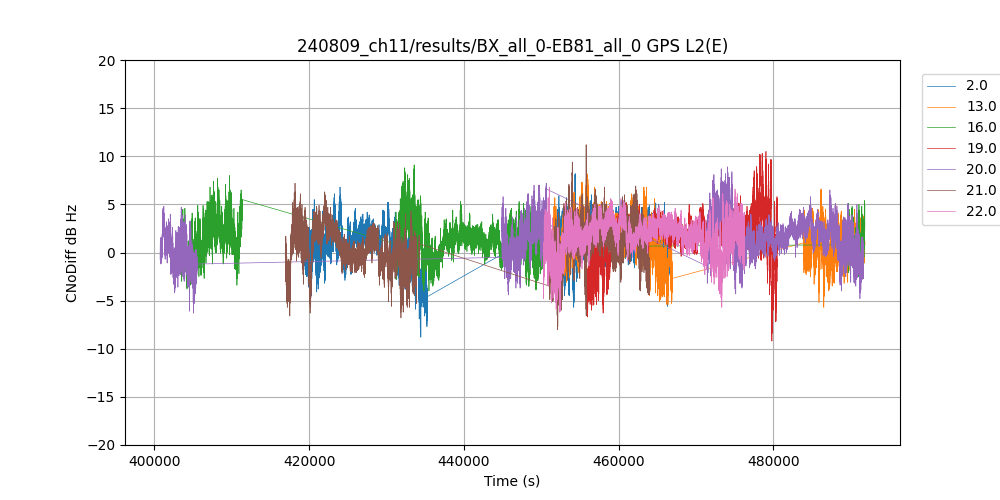

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.0 1.0 8.2 -8.8 [16.0, 15.0, 35.0, 29.0] 30510
13 27.0 1.5 9.0 -5.7 [33.0, 25.0, 27.0] 23183
16 29.9 1.3 9.1 -4.0 [33.0, 34.0, 31.0, 22.0, 36.0, 37.0] 29068
19 44.7 2.0 10.5 -9.2 [25.0, 34.0] 24579
20 32.2 1.4 8.9 -6.3 [24.0, 37.0, 19.0, 20.0, 28.0, 29.0] 30765
21 26.9 0.9 11.2 -8.0 [37.0, 35.0, 21.0, 20.0] 29795
22 44.5 1.8 6.8 -6.2 [31.0, 22.0] 25987
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.0 49.2 34.6 89 [25.0, 37.0] [0.0] 27101
4 45.4 0.0 46.7 51.8 36.0 0 [20.0] [0.0] 23831
5 41.6 0.0 44.6 49.7 31.1 429 [17.0, 35.0, 19.0] [0.0] 27969
6 38.4 0.0 44.9 50.1 32.1 170 [32.0, 27.0] [0.0] 24505
7 45.1 0.0 44.7 49.2 33.0 0 [29.0] [0.0] 25519
8 27.3 0.0 42.9 47.5 33.3 252 [33.0, 26.0] [0.0] 29161
9 44.0 0.0 45.2 49.8 34.0 0 [37.0] [0.0] 21445
10 43.4 0.0 44.9 49.3 36.0 209 [36.0, 37.0] [0.0] 25864
11 42.7 0.0 46.1 52.0 32.4 107 [33.0, 36.0] [0.0] 25785
12 36.5 0.0 43.9 49.3 32.7 67 [28.0, 33.0] [0.0] 25028
14 44.1 0.0 46.7 51.9 29.8 0 [18.0] [0.0] 25739
15 31.0 0.0 42.9 47.6 34.0 319 [34.0, 13.0, 24.0] [0.0] 32671
17 45.7 0.0 44.3 50.0 30.9 0 [30.0] [0.0] 24125
18 44.8 0.0 47.0 51.4 36.5 23 [35.0, 30.0] [0.0] 29847
23 40.6 0.0 46.1 51.2 34.7 12 [23.0, 14.0] [0.0] 30433
24 25.6 0.0 42.4 47.4 33.5 126 [24.0, 26.0] [0.0] 29804
25 27.3 0.0 41.7 48.0 28.1 236 [29.0, 23.0] [0.0] 32160
26 26.6 0.0 42.4 47.8 32.7 54 [27.0, 24.0, 29.0] [0.0] 33407
27 26.1 0.0 42.6 46.9 32.6 50 [29.0, 32.0] [0.0] 29883
28 39.7 0.0 46.4 51.6 36.0 43 [19.0, 30.0] [0.0] 23145
29 51.2 0.0 45.2 49.6 35.7 227 [16.0, 18.0] [0.0] 27598
30 45.9 0.0 44.5 49.3 35.6 0 [22.0] [0.0] 23662
31 45.3 0.0 44.8 50.0 34.2 0 [35.0] [0.0] 22332
32 45.3 0.0 45.0 49.7 25.3 3 [32.0] [0.0] 24637

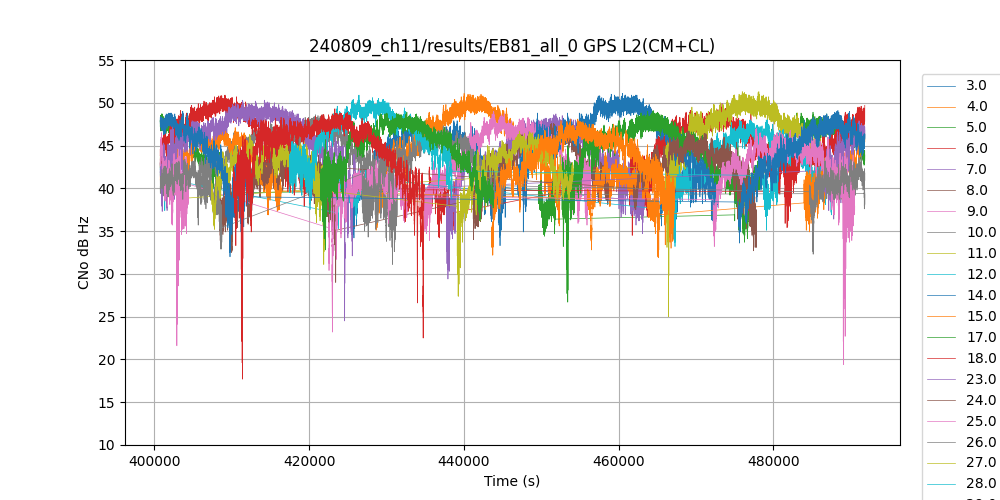

DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.0 47.9 33.3 66 [31.0, 36.0] [0.0] 27113
4 45.4 0.0 45.9 51.1 35.1 0 [23.0] [0.0] 23839
5 41.6 0.0 44.2 48.9 34.4 333 [17.0, 29.0, 19.0] [0.0] 27971
6 38.6 0.0 44.3 49.9 34.2 41 [35.0, 27.0] [0.0] 24346
7 45.1 0.0 43.7 48.7 29.4 0 [32.0] [0.0] 25520
8 27.4 0.0 42.7 47.8 29.0 65 [34.0, 24.0] [0.0] 29158
9 44.1 0.0 44.2 49.0 33.9 0 [36.0] [0.0] 21427
10 43.3 0.0 44.3 48.6 31.1 213 [37.0, 36.0] [0.0] 25886
11 42.7 0.0 46.0 51.3 25.0 201 [33.0, 37.0] [0.0] 25788
12 36.5 0.0 43.2 48.0 33.2 261 [30.0, 34.0, 31.0] [0.0] 25002
14 44.1 0.0 46.3 51.1 34.9 0 [19.0] [0.0] 25734
15 31.0 0.0 42.3 47.6 31.9 216 [28.0, 31.0, 24.0] [0.0] 32712
17 45.7 0.0 44.3 49.1 26.7 4 [23.0] [0.0] 24133
18 44.9 0.0 46.1 50.9 35.4 47 [29.0, 34.0] [0.0] 29848
23 40.6 0.0 45.8 50.3 24.5 194 [19.0, 14.0] [0.0] 30467
24 25.7 0.0 42.1 46.7 32.5 42 [30.0, 24.0] [0.0] 29782
25 27.3 0.0 41.6 47.0 19.4 319 [27.0, 36.0, 26.0] [0.0] 32163
26 26.6 0.0 41.9 47.2 32.3 12 [24.0, 30.0] [0.0] 33399
27 26.1 0.0 42.5 46.7 27.4 229 [36.0, 35.0] [0.0] 29928
28 39.7 0.0 45.8 50.9 35.1 36 [20.0, 24.0] [0.0] 23175
29 51.1 0.0 44.4 49.1 32.0 219 [16.0, 18.0] [0.0] 27660
30 45.9 0.0 43.6 48.1 32.2 1 [21.0] [0.0] 23667
31 45.3 0.0 44.6 48.9 32.8 0 [29.0] [0.0] 22335
32 45.3 0.0 44.7 49.3 17.7 60 [32.0] [0.0] 24646
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.0 6.9 -7.3 [25.0, 31.0, 37.0, 36.0] 27096
4 45.4 0.9 6.2 -5.9 [20.0, 23.0] 23831
5 41.7 0.5 6.6 -7.6 [17.0, 35.0, 29.0, 19.0] 27943
6 38.6 0.6 8.0 -6.3 [32.0, 35.0, 27.0] 24316
7 45.1 1.0 7.2 -5.7 [29.0, 32.0] 25501
8 27.4 0.3 5.7 -4.5 [33.0, 34.0, 26.0, 24.0] 29134
9 44.1 1.0 6.9 -5.4 [37.0, 36.0] 21427
10 43.4 0.7 9.4 -4.7 [36.0, 37.0] 25834
11 42.7 0.1 10.2 -7.7 [33.0, 36.0, 37.0] 25776
12 36.5 0.8 5.9 -4.9 [28.0, 30.0, 33.0, 34.0, 31.0] 24997
14 44.1 0.4 4.3 -9.1 [18.0, 19.0] 25733
15 31.0 0.6 5.7 -6.1 [34.0, 28.0, 13.0, 31.0, 24.0] 32646
17 45.7 -0.0 10.6 -8.1 [30.0, 23.0] 24125
18 44.9 0.9 5.3 -4.2 [35.0, 29.0, 30.0, 34.0] 29825
23 40.6 0.3 11.4 -6.5 [23.0, 19.0, 14.0] 30421
24 25.7 0.2 5.8 -5.7 [24.0, 30.0, 26.0] 29763
25 27.3 0.1 20.0 -12.8 [29.0, 27.0, 36.0, 23.0, 26.0] 32118
26 26.6 0.5 7.7 -6.6 [27.0, 24.0, 30.0, 29.0] 33340
27 26.1 0.1 9.6 -8.8 [29.0, 36.0, 32.0, 35.0] 29878
28 39.8 0.6 8.3 -5.3 [19.0, 20.0, 30.0, 24.0] 23121
29 51.1 0.8 10.2 -3.4 [16.0, 18.0] 27590
30 45.9 0.9 8.3 -3.7 [22.0, 21.0] 23661
31 45.3 0.2 5.3 -5.2 [35.0, 29.0] 22332
32 45.3 0.2 24.4 -11.7 [32.0] 24627
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.2 51.8 40.2 161 [25.0, 37.0] [0.0] 27101
4 45.4 0.0 48.5 52.7 39.9 0 [20.0] [0.0] 23831
6 38.4 0.0 47.9 52.5 37.5 3 [32.0, 27.0] [0.0] 24505
8 27.3 0.0 46.6 50.7 38.0 208 [33.0, 26.0] [0.0] 29161
9 44.0 0.0 49.1 53.0 42.0 0 [37.0] [0.0] 21445
10 43.4 0.0 48.2 51.6 40.4 53 [36.0, 37.0] [0.0] 25864
11 42.7 0.0 48.2 54.6 37.7 46 [33.0, 36.0] [0.0] 25785
14 44.1 0.0 48.6 53.4 41.1 0 [18.0] [0.0] 25739
18 44.8 0.0 49.3 53.5 41.5 33 [35.0, 30.0] [0.0] 29847
23 40.6 0.0 48.4 53.4 38.4 167 [23.0, 14.0] [0.0] 30433
24 25.6 0.0 46.3 50.9 33.3 68 [24.0, 26.0] [0.0] 29804
25 27.3 0.0 46.3 51.9 32.7 233 [29.0, 23.0] [0.0] 32160
26 26.6 0.0 46.3 50.6 39.9 380 [27.0, 24.0, 29.0] [0.0] 33407
27 26.1 0.0 46.4 50.2 39.5 207 [29.0, 32.0] [0.0] 29883
28 39.7 0.0 48.3 52.9 41.5 189 [19.0, 30.0] [0.0] 23145
30 45.9 0.0 49.1 52.9 40.9 0 [22.0] [0.0] 23662
32 45.3 0.0 46.6 50.7 29.8 0 [32.0] [0.0] 24637

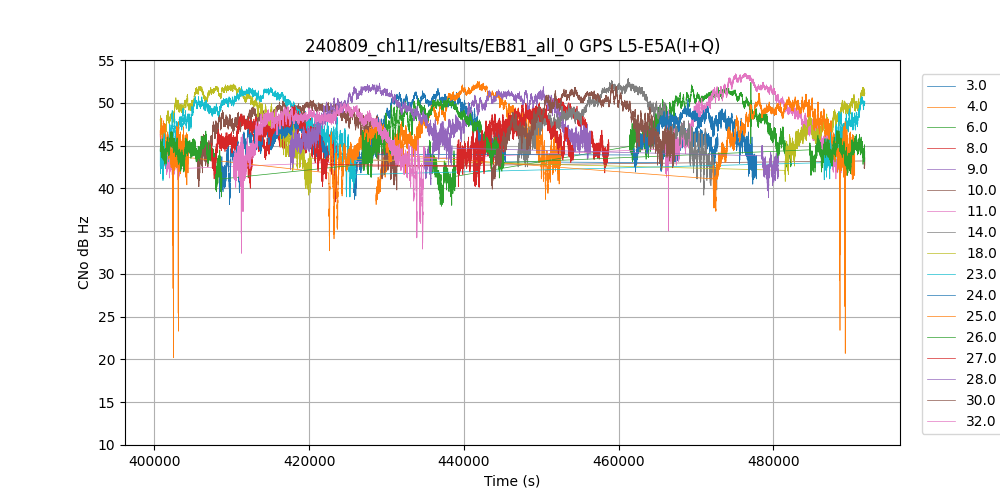

DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.2 51.7 38.7 172 [31.0, 36.0] [0.0] 27113
4 45.4 0.0 47.6 52.5 38.1 0 [23.0] [0.0] 23839
6 38.6 0.0 47.6 52.4 37.9 41 [35.0, 27.0] [0.0] 24346
8 27.4 0.0 46.5 50.7 38.4 10 [34.0, 24.0] [0.0] 29158
9 44.1 0.0 48.3 51.9 40.4 0 [36.0] [0.0] 21427
10 43.3 0.0 47.6 50.3 39.8 118 [37.0, 36.0] [0.0] 25886
11 42.7 0.0 48.2 53.4 35.0 85 [33.0, 37.0] [0.0] 25788
14 44.1 0.0 48.1 52.8 39.2 0 [19.0] [0.0] 25734
18 44.9 0.0 48.3 52.2 39.2 158 [29.0, 34.0] [0.0] 29848
23 40.6 0.0 48.0 51.9 39.0 58 [19.0, 14.0] [0.0] 30467
24 25.7 0.0 46.1 50.4 38.1 239 [30.0, 24.0] [0.0] 29782
25 27.3 0.0 46.0 51.1 20.2 264 [27.0, 36.0, 26.0] [0.0] 32165
26 26.6 0.0 45.9 50.5 39.0 26 [24.0, 30.0] [0.0] 33399
27 26.1 0.0 46.3 49.7 40.1 152 [36.0, 35.0] [0.0] 29928
28 39.7 0.0 47.9 52.3 38.9 71 [20.0, 24.0] [0.0] 23175
30 45.9 0.0 48.2 52.1 39.9 0 [21.0] [0.0] 23667
32 45.3 0.0 46.5 50.0 32.4 0 [32.0] [0.0] 24646

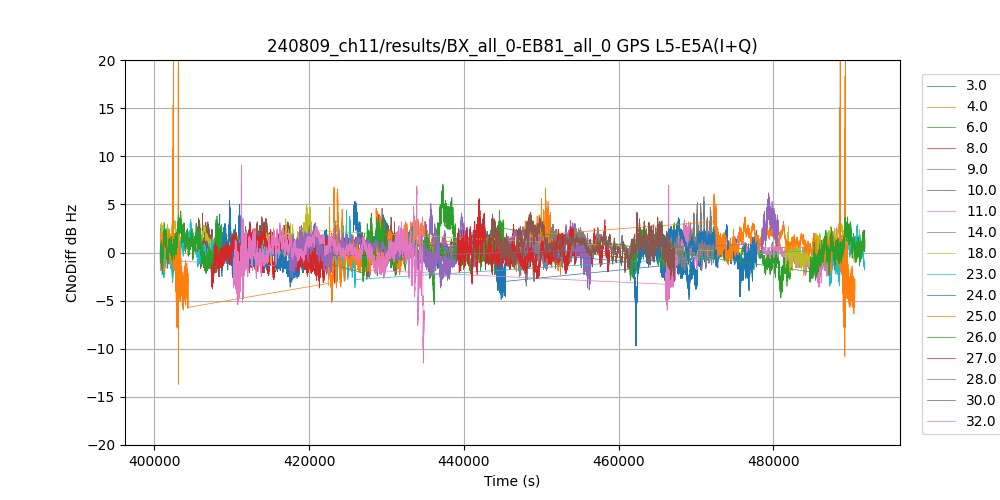

DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.0 5.3 -4.9 [25.0, 31.0, 37.0, 36.0] 27096
4 45.4 0.8 6.7 -2.3 [20.0, 23.0] 23831
6 38.6 0.3 7.1 -5.4 [32.0, 35.0, 27.0] 24316
8 27.4 0.1 3.7 -3.2 [33.0, 34.0, 26.0, 24.0] 29134
9 44.1 0.7 5.1 -3.9 [37.0, 36.0] 21427
10 43.4 0.6 4.6 -2.8 [36.0, 37.0] 25834
11 42.7 0.0 7.0 -6.0 [33.0, 36.0, 37.0] 25776
14 44.1 0.6 5.8 -3.5 [18.0, 19.0] 25733
18 44.9 1.0 5.0 -2.4 [35.0, 29.0, 30.0, 34.0] 29825
23 40.6 0.3 4.4 -3.7 [23.0, 19.0, 14.0] 30421
24 25.7 0.2 5.4 -9.7 [24.0, 30.0, 26.0] 29763
25 27.3 0.3 24.1 -13.7 [29.0, 27.0, 36.0, 23.0, 26.0] 32120
26 26.6 0.4 4.4 -3.1 [27.0, 24.0, 30.0, 29.0] 33340
27 26.1 0.1 5.6 -3.8 [29.0, 36.0, 32.0, 35.0] 29878
28 39.8 0.4 6.2 -3.7 [19.0, 20.0, 30.0, 24.0] 23121
30 45.9 0.9 4.2 -3.0 [22.0, 21.0] 23661
32 45.3 0.1 9.1 -11.5 [32.0] 24627
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.4 48.5 43.9 0 [57.0] [0.0] 91045
133 38.0 0.0 43.6 46.0 41.3 0 [55.0] [0.0] 91045
135 39.3 0.0 44.6 46.8 42.2 0 [56.0] [0.0] 91045
158 -45.0 0.0 36.0 40.3 22.9 548 [54.0] [0.0] 81967
DUT SBAS L1(CA)
DIFF SBAS L1(CA)
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.7 48.4 45.0 0 [57.0] [0.0] 91045
133 38.0 0.0 46.1 47.8 44.5 0 [55.0] [0.0] 91045
135 39.3 0.0 46.1 48.0 44.4 0 [56.0] [0.0] 91045
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 42.3 49.3 26.9 340 [1.0] [0.0] 32795
2 37.4 0.0 47.4 53.1 23.3 53 [-4.0] [0.0] 24867
3 38.7 0.0 46.6 51.8 31.2 0 [5.0] [0.0] 23361
4 41.9 0.0 46.1 51.2 34.8 0 [6.0] [0.0] 21482
5 39.3 0.0 45.8 53.3 14.6 204 [1.0] [0.0] 22650
6 29.1 0.0 35.6 43.1 0.0 1089 [-4.0] [0.0] 29296
7 31.3 0.0 45.3 50.7 27.6 112 [5.0] [0.0] 36240
8 38.1 0.0 44.1 50.3 30.5 260 [6.0] [0.0] 37807
9 39.4 0.0 47.5 52.7 36.6 0 [-2.0] [0.0] 23268
11 36.1 0.0 45.8 52.9 14.3 104 [0.0] [0.0] 27784
12 32.5 0.0 46.5 53.2 29.8 142 [-1.0] [0.0] 30614
13 31.2 0.0 40.8 47.2 26.3 231 [-2.0] [0.0] 33142
14 31.1 0.0 46.8 53.8 36.2 422 [-7.0] [0.0] 33979
15 37.4 0.0 46.2 52.9 30.6 52 [0.0] [0.0] 25784
16 39.5 0.0 47.9 53.4 29.7 16 [-1.0] [0.0] 22914
17 30.1 0.0 44.8 51.2 31.6 349 [4.0] [0.0] 27482
18 28.7 0.0 45.4 51.8 29.3 225 [-3.0] [0.0] 26785
19 29.3 0.0 35.6 41.8 24.3 270 [3.0] [0.0] 26537
20 34.7 0.0 35.5 41.3 23.3 481 [2.0] [0.0] 24567
21 40.3 0.0 45.7 52.5 30.1 208 [4.0] [0.0] 23030
22 39.0 0.0 47.4 53.4 23.5 209 [-3.0] [0.0] 32914
23 44.8 0.0 45.6 50.3 21.2 58 [3.0] [0.0] 34595
24 37.3 0.0 45.7 52.8 30.1 372 [2.0] [0.0] 32718
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 41.5 47.9 27.3 331 [1.0] [0.0] 32825
2 37.4 0.0 46.6 52.8 26.3 39 [-4.0] [0.0] 24870
3 38.7 0.0 45.1 50.3 31.8 0 [5.0] [0.0] 23327
4 41.9 0.0 43.8 49.7 15.1 99 [6.0] [0.0] 21467
5 39.4 0.0 44.5 51.6 14.0 180 [1.0] [0.0] 22617
6 29.4 0.0 34.0 41.6 14.0 4039 [-4.0] [0.0] 28848
7 31.3 0.0 43.3 50.2 31.0 375 [5.0] [0.0] 36283
8 38.2 0.0 42.1 48.6 20.0 456 [6.0] [0.0] 37707
9 39.4 0.0 45.6 50.5 32.7 0 [-2.0] [0.0] 23275
11 36.1 0.0 44.5 51.3 24.7 226 [0.0] [0.0] 27801
12 32.6 0.0 45.9 51.7 33.5 291 [-1.0] [0.0] 30591
13 31.2 0.0 39.9 46.7 26.9 264 [-2.0] [0.0] 33127
14 31.1 0.0 45.2 53.2 32.3 348 [-7.0] [0.0] 33982
15 37.4 0.0 45.0 51.9 29.0 141 [0.0] [0.0] 25783
16 39.4 0.0 46.3 51.6 31.4 0 [-1.0] [0.0] 22929
17 30.1 0.0 43.4 51.1 33.5 143 [4.0] [0.0] 27461
18 28.7 0.0 44.6 51.5 35.3 161 [-3.0] [0.0] 26723
19 29.7 0.0 34.1 39.4 20.6 1351 [3.0] [0.0] 26007
20 36.3 0.0 33.7 39.0 23.2 2927 [2.0] [0.0] 22470
21 40.3 0.0 43.6 49.6 25.6 194 [4.0] [0.0] 23043
22 38.9 0.0 45.9 52.4 27.3 199 [-3.0] [0.0] 32919
23 44.8 0.0 44.1 49.6 20.1 256 [3.0] [0.0] 34597
24 37.3 0.0 44.3 51.3 30.5 272 [2.0] [0.0] 32725

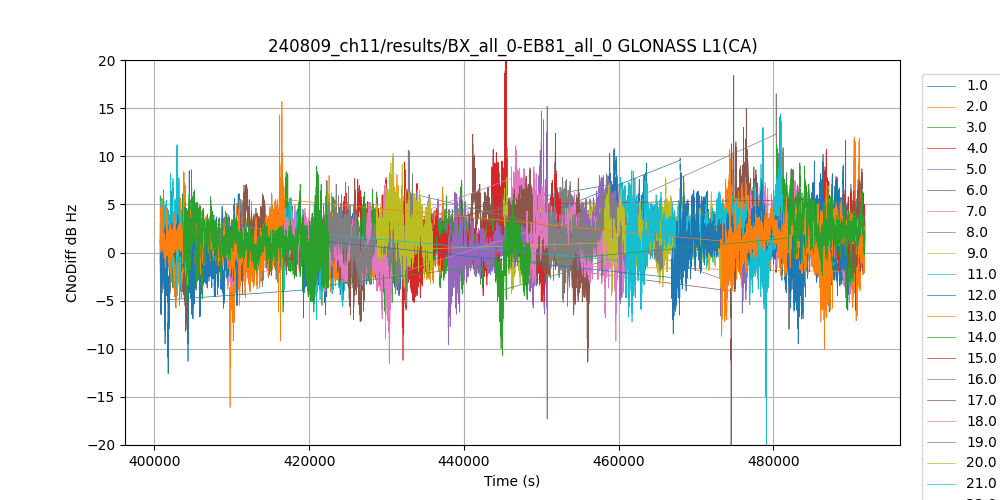

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 36.9 0.8 10.8 -11.3 [1.0] 32773
2 37.5 0.8 12.0 -16.1 [-4.0] 24837
3 38.7 1.5 8.4 -6.2 [5.0] 23327
4 41.9 2.3 24.0 -4.5 [6.0] 21467
5 39.4 1.2 15.2 -17.3 [1.0] 22617
6 29.4 1.7 18.4 -30.5 [-4.0] 28762
7 31.3 2.0 11.1 -9.2 [5.0] 36220
8 38.2 2.1 16.5 -8.0 [6.0] 37679
9 39.4 2.0 7.8 -4.3 [-2.0] 23268
11 36.1 1.4 13.0 -20.5 [0.0] 27784
12 32.6 0.6 9.8 -12.6 [-1.0] 30569
13 31.2 0.9 10.7 -10.0 [-2.0] 33091
14 31.1 1.5 11.2 -6.4 [-7.0] 33971
15 37.4 1.3 12.4 -11.2 [0.0] 25761
16 39.5 1.6 8.0 -9.6 [-1.0] 22914
17 30.1 1.5 8.8 -7.2 [4.0] 27439
18 28.7 0.8 8.2 -11.5 [-3.0] 26721
19 29.7 1.5 10.6 -5.6 [3.0] 25991
20 36.4 2.2 10.3 -4.5 [2.0] 22461
21 40.4 2.1 14.4 -7.2 [4.0] 23009
22 39.0 1.5 11.7 -8.4 [-3.0] 32894
23 44.8 1.5 15.7 -9.2 [3.0] 34575
24 37.3 1.4 9.0 -10.7 [2.0] 32688
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 40.8 47.0 28.4 335 [1.0] [0.0] 32795
2 37.4 0.0 46.1 51.5 27.7 183 [-4.0] [0.0] 24867
3 38.7 0.0 44.8 50.2 30.5 0 [5.0] [0.0] 23361
4 41.9 0.0 44.0 49.0 32.2 0 [6.0] [0.0] 21482
5 39.3 0.0 44.5 51.1 27.1 203 [1.0] [0.0] 22650
6 29.2 0.0 34.4 41.1 22.6 1886 [-4.0] [0.0] 29175
7 31.3 0.0 43.5 48.4 28.1 42 [5.0] [0.0] 36240
8 38.1 0.0 42.1 47.8 29.9 308 [6.0] [0.0] 37807
9 39.4 0.0 46.0 51.1 35.6 0 [-2.0] [0.0] 23268
11 36.1 0.0 44.2 50.7 27.3 224 [0.0] [0.0] 27784
12 32.5 0.0 45.6 51.9 32.2 245 [-1.0] [0.0] 30614
13 31.2 0.0 39.5 45.6 23.1 315 [-2.0] [0.0] 33142
14 31.1 0.0 45.4 52.0 36.0 300 [-7.0] [0.0] 33979
15 37.4 0.0 44.5 50.9 33.0 142 [0.0] [0.0] 25784
16 39.5 0.0 46.5 52.0 31.0 3 [-1.0] [0.0] 22896
17 30.1 0.0 42.7 49.1 31.5 314 [4.0] [0.0] 27482
18 28.7 0.0 44.0 49.6 31.0 214 [-3.0] [0.0] 26785
19 29.3 0.0 33.6 39.6 20.9 2733 [3.0] [0.0] 26537
20 34.7 0.0 34.4 39.9 21.1 608 [2.0] [0.0] 24567
21 40.3 0.0 43.8 50.0 31.9 82 [4.0] [0.0] 23030
22 39.0 0.0 46.2 51.6 31.6 70 [-3.0] [0.0] 32913
23 44.8 0.0 43.6 48.1 29.5 70 [3.0] [0.0] 34595
24 37.3 0.0 44.1 50.8 30.1 377 [2.0] [0.0] 32718
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 39.9 45.0 24.3 199 [1.0] [0.0] 32795
2 37.4 0.0 45.0 49.5 31.2 130 [-4.0] [0.0] 24867
3 38.7 0.0 45.5 50.3 35.3 0 [5.0] [0.0] 23361
4 41.9 0.0 46.4 50.3 37.0 0 [6.0] [0.0] 21482
5 39.3 0.0 44.9 50.2 34.8 245 [1.0] [0.0] 22650
7 31.3 0.0 44.4 49.5 31.9 429 [5.0] [0.0] 36240
8 38.1 0.0 45.2 49.6 33.9 185 [6.0] [0.0] 37807
9 39.4 0.0 47.2 51.4 38.6 0 [-2.0] [0.0] 23268
11 36.1 0.0 45.3 51.4 36.0 27 [0.0] [0.0] 27784
12 32.5 0.0 44.8 49.9 30.5 149 [-1.0] [0.0] 30614
13 39.4 0.0 25.4 38.2 10.5 202 [-2.0] [0.0] 10
14 31.1 0.0 45.0 50.3 34.1 100 [-7.0] [0.0] 33979
15 37.4 0.0 45.1 50.2 34.3 141 [0.0] [0.0] 25784
16 39.5 0.0 46.2 50.7 27.8 2 [-1.0] [0.0] 22897
17 30.1 0.0 43.4 49.8 26.9 399 [4.0] [0.0] 27482
18 28.7 0.0 44.6 50.6 32.1 100 [-3.0] [0.0] 26785
19 29.3 0.0 41.9 46.9 33.5 135 [3.0] [0.0] 26537
20 34.7 0.0 38.4 43.6 26.9 133 [2.0] [0.0] 24567
21 40.3 0.0 44.2 48.9 30.6 253 [4.0] [0.0] 23030
22 39.0 0.0 46.1 52.1 28.9 101 [-3.0] [0.0] 32913
23 55.7 0.0 35.1 42.9 11.0 373 [3.0] [0.0] 152
24 37.3 0.0 44.8 49.8 35.0 305 [2.0] [0.0] 32718
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 39.4 44.6 27.3 284 [1.0] [0.0] 32825
2 37.4 0.0 44.4 48.5 21.3 197 [-4.0] [0.0] 24867
3 38.7 0.0 45.4 49.9 34.9 0 [5.0] [0.0] 23327
4 41.9 0.0 45.5 49.0 35.4 0 [6.0] [0.0] 21467
5 39.4 0.0 44.5 49.0 34.6 207 [1.0] [0.0] 22617
7 31.3 0.0 44.6 49.5 32.1 274 [5.0] [0.0] 36280
8 38.3 0.0 44.9 49.3 35.0 377 [6.0] [0.0] 37593
9 39.4 0.0 46.3 50.7 35.6 0 [-2.0] [0.0] 23275
11 36.1 0.0 44.8 50.2 36.3 225 [0.0] [0.0] 27801
12 32.6 0.0 44.3 49.0 27.2 312 [-1.0] [0.0] 30591
13 44.1 0.0 30.2 40.0 10.8 217 [-2.0] [0.0] 9
14 31.1 0.0 44.1 49.3 36.3 215 [-7.0] [0.0] 33982
15 37.4 0.0 44.6 49.1 23.3 186 [0.0] [0.0] 25783
16 39.5 0.0 45.6 49.4 18.1 53 [-1.0] [0.0] 22916
17 30.1 0.0 43.8 49.0 26.7 75 [4.0] [0.0] 27461
18 28.7 0.0 44.2 49.1 31.5 55 [-3.0] [0.0] 26723
19 29.9 0.0 41.3 46.2 28.3 68 [3.0] [0.0] 25681
20 36.4 0.0 37.9 42.8 26.0 87 [2.0] [0.0] 22435
21 40.3 0.0 44.2 48.6 29.7 95 [4.0] [0.0] 23043
22 38.9 0.0 45.3 50.2 26.0 120 [-3.0] [0.0] 32919
23 56.4 0.0 34.6 42.9 9.2 311 [3.0] [0.0] 66
24 37.3 0.0 44.0 48.4 32.7 165 [2.0] [0.0] 32725
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 36.9 0.5 7.0 -11.2 [1.0] 32773
2 37.5 0.6 12.9 -9.3 [-4.0] 24834
3 38.7 0.1 6.3 -6.1 [5.0] 23327
4 41.9 1.0 7.0 -3.6 [6.0] 21467
5 39.4 0.5 5.5 -6.0 [1.0] 22617
7 31.3 -0.2 6.6 -6.2 [5.0] 36220
8 38.3 0.4 6.8 -7.2 [6.0] 37565
9 39.4 0.9 7.4 -3.5 [-2.0] 23268
11 36.1 0.5 7.0 -5.8 [0.0] 27784
12 32.6 0.5 12.4 -8.9 [-1.0] 30569
13 45.0 0.8 0.8 0.8 [-2.0] 1
14 31.1 0.8 9.6 -4.7 [-7.0] 33971
15 37.4 0.5 13.8 -8.0 [0.0] 25761
16 39.5 0.6 24.4 -8.7 [-1.0] 22884
17 30.1 -0.4 10.0 -9.5 [4.0] 27439
18 28.7 0.4 7.5 -7.6 [-3.0] 26721
19 29.9 0.8 8.4 -4.2 [3.0] 25665
20 36.4 0.7 7.8 -8.2 [2.0] 22426
21 40.4 0.0 8.7 -7.8 [4.0] 23009
22 39.0 0.8 11.6 -7.8 [-3.0] 32893
23 57.0 -10.7 -10.7 -10.7 [3.0] 1
24 37.3 0.8 6.6 -6.1 [2.0] 32688
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 36.9 0.0 37.7 42.6 24.1 729 [1.0] [0.0] 32795
2 37.4 0.0 43.5 48.7 30.8 73 [-4.0] [0.0] 24867
3 38.7 0.0 44.6 48.8 35.4 0 [5.0] [0.0] 23361
4 41.9 0.0 44.3 47.6 36.2 0 [6.0] [0.0] 21482
5 39.3 0.0 43.1 48.0 34.4 47 [1.0] [0.0] 22650
6 15.0 0.0 18.7 18.7 18.7 0 [-4.0] [0.0] 1
7 31.3 0.0 43.3 47.8 33.5 426 [5.0] [0.0] 36240
8 38.1 0.0 43.6 48.0 32.4 213 [6.0] [0.0] 37807
9 39.4 0.0 45.1 49.3 37.2 0 [-2.0] [0.0] 23268
11 36.1 0.0 43.4 48.8 34.5 15 [0.0] [0.0] 27784
12 32.5 0.0 42.9 47.9 30.4 197 [-1.0] [0.0] 30614
13 38.7 0.0 20.0 34.6 13.9 142 [-2.0] [0.0] 15
14 31.1 0.0 43.3 48.3 34.4 323 [-7.0] [0.0] 33979
15 37.4 0.0 43.5 48.5 33.7 214 [0.0] [0.0] 25784
16 39.5 0.0 44.4 48.9 25.3 63 [-1.0] [0.0] 22897
17 30.1 0.0 42.2 48.0 28.8 229 [4.0] [0.0] 27482
18 28.7 0.0 43.0 49.1 32.2 197 [-3.0] [0.0] 26785
19 29.3 0.0 40.2 44.9 32.4 43 [3.0] [0.0] 26537
20 34.7 0.0 36.7 41.8 23.3 313 [2.0] [0.0] 24567
21 40.3 0.0 43.3 47.5 32.8 189 [4.0] [0.0] 23030
22 39.0 0.0 44.4 49.9 28.8 111 [-3.0] [0.0] 32913
23 49.8 0.0 26.6 42.1 11.6 298 [3.0] [0.0] 114
24 37.3 0.0 43.0 47.7 33.4 217 [2.0] [0.0] 32718
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.4 0.0 45.8 49.9 37.6 0 [-2.0] [0.0] 23268
21 40.3 0.0 44.9 50.8 29.3 28 [4.0] [0.0] 23030
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 42.4 47.4 29.4 236 [39.0, 44.0, 48.0] [0.0] 21265
3 40.0 0.0 46.2 51.8 35.2 0 [41.0] [0.0] 23064
4 31.2 0.0 45.1 50.8 34.2 184 [51.0, 38.0] [0.0] 29250
5 24.6 0.0 44.5 49.9 37.3 172 [43.0, 46.0] [0.0] 18325
7 45.5 0.0 46.6 50.9 31.6 0 [50.0] [0.0] 32675
8 45.4 0.0 46.8 53.0 19.1 18 [45.0] [0.0] 29602
9 18.9 0.0 43.6 49.2 35.1 380 [45.0, 41.0, 46.0] [0.0] 22875
10 51.7 0.0 48.3 52.9 33.9 0 [51.0] [0.0] 23160
11 47.1 0.0 44.1 48.5 31.6 0 [43.0] [0.0] 18666
12 41.2 0.0 42.8 48.8 29.1 36 [41.0, 40.0] [0.0] 34387
13 35.5 0.0 44.8 50.0 31.8 25 [40.0, 43.0] [0.0] 40683
15 45.7 0.0 46.0 51.1 33.6 108 [48.0, 50.0] [0.0] 27290
19 36.5 0.0 41.4 49.0 10.9 310 [40.0, 41.0] [0.0] 38348
21 38.3 0.0 46.0 53.1 33.4 150 [50.0, 45.0] [0.0] 38715
24 41.6 0.0 47.0 52.7 30.9 1 [53.0] [0.0] 25945
25 34.0 0.0 46.1 50.8 36.9 0 [52.0] [0.0] 17403
26 33.0 0.0 45.8 51.8 33.0 250 [49.0, 52.0] [0.0] 41425
27 35.6 0.0 46.1 53.7 30.8 210 [46.0, 52.0] [0.0] 34339
30 27.5 0.0 44.8 49.9 33.3 206 [49.0, 48.0] [0.0] 25308
31 45.7 0.0 47.7 53.8 36.4 0 [42.0] [0.0] 31088
33 34.4 0.0 44.8 50.2 34.2 182 [43.0, 50.0] [0.0] 41004
34 39.0 0.0 46.9 52.5 37.8 0 [47.0] [0.0] 14983
36 21.4 0.0 44.0 50.4 34.1 61 [38.0, 39.0] [0.0] 13169
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 41.9 47.4 27.9 221 [44.0, 52.0, 39.0] [0.0] 21176
3 40.0 0.0 46.0 51.3 35.5 0 [43.0] [0.0] 23053
4 31.2 0.0 44.6 49.9 33.0 71 [53.0, 46.0] [0.0] 29293
5 24.5 0.0 43.8 48.3 33.5 38 [45.0, 43.0] [0.0] 18379
7 45.4 0.0 46.5 50.9 34.9 0 [50.0] [0.0] 32711
8 45.4 0.0 46.0 52.4 27.0 13 [41.0] [0.0] 29598
9 18.9 0.0 42.6 47.1 32.7 256 [49.0, 40.0, 52.0] [0.0] 22885
10 51.6 0.0 47.7 52.2 36.1 0 [53.0] [0.0] 23194
11 47.1 0.0 43.9 47.8 32.2 0 [43.0] [0.0] 18723
12 41.2 0.0 41.8 47.8 21.7 32 [44.0, 41.0] [0.0] 34411
13 35.5 0.0 44.1 50.2 31.4 196 [38.0, 44.0] [0.0] 40679
15 45.7 0.0 46.2 51.2 30.6 100 [47.0, 50.0] [0.0] 27258
19 36.9 0.0 40.6 47.6 23.8 159 [43.0, 48.0] [0.0] 37735
21 38.3 0.0 44.7 52.3 28.2 160 [40.0, 52.0] [0.0] 38745
24 41.5 0.0 46.3 52.1 30.3 0 [49.0] [0.0] 25978
25 34.0 0.0 45.3 50.2 33.4 0 [51.0] [0.0] 17403
26 33.0 0.0 45.4 51.8 35.2 85 [46.0, 51.0] [0.0] 41396
27 35.7 0.0 45.5 53.0 32.2 85 [46.0, 51.0] [0.0] 34315
30 27.5 0.0 45.0 50.1 34.8 148 [51.0, 47.0] [0.0] 25299
31 45.6 0.0 46.6 52.6 18.9 12 [42.0] [0.0] 31104
33 34.4 0.0 43.9 49.8 8.4 63 [48.0, 50.0] [0.0] 40986
34 39.0 0.0 46.8 52.3 36.8 0 [48.0] [0.0] 14964
36 21.5 0.0 42.6 49.1 35.7 7 [39.0, 40.0] [0.0] 13204
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 17.8 0.6 9.5 -8.7 [39.0, 44.0, 52.0, 48.0] 21134
3 40.0 0.2 4.4 -5.2 [41.0, 43.0] 23053
4 31.2 0.5 7.9 -5.3 [51.0, 53.0, 38.0, 46.0] 29249
5 24.6 0.7 6.5 -6.1 [43.0, 45.0, 46.0] 18317
7 45.5 0.1 6.4 -7.7 [50.0] 32675
8 45.4 0.9 12.2 -20.8 [45.0, 41.0] 29595
9 18.9 1.0 6.3 -5.6 [45.0, 49.0, 41.0, 40.0, 46.0, 52.0] 22842
10 51.7 0.5 4.5 -7.8 [51.0, 53.0] 23160
11 47.2 0.2 4.2 -6.7 [43.0] 18666
12 41.2 1.0 11.4 -7.8 [41.0, 44.0, 40.0] 34360
13 35.5 0.7 8.9 -7.6 [40.0, 38.0, 43.0, 44.0] 40643
15 45.7 -0.2 8.6 -8.5 [48.0, 47.0, 50.0] 27258
19 37.0 0.8 7.9 -23.1 [40.0, 43.0, 41.0, 48.0] 37688
21 38.3 1.3 9.2 -5.2 [50.0, 40.0, 45.0, 52.0] 38701
24 41.6 0.8 6.5 -10.0 [53.0, 49.0] 25945
25 34.0 0.8 6.4 -3.5 [52.0, 51.0] 17381
26 33.0 0.4 5.5 -7.0 [49.0, 46.0, 52.0, 51.0] 41366
27 35.7 0.6 8.8 -7.5 [46.0, 52.0, 51.0] 34306
30 27.5 -0.2 7.1 -7.2 [49.0, 51.0, 48.0, 47.0] 25286
31 45.7 1.0 21.8 -4.0 [42.0] 31088
33 34.4 1.0 31.5 -4.3 [43.0, 48.0, 50.0] 40971
34 39.0 0.1 4.3 -4.8 [47.0, 48.0] 14964
36 21.4 1.4 5.7 -5.3 [38.0, 39.0, 40.0] 13161
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 43.3 47.6 31.4 291 [39.0, 44.0, 48.0] [0.0] 21265
3 40.0 0.0 45.9 49.5 39.1 0 [41.0] [0.0] 23064
4 31.2 0.0 45.7 50.7 35.7 64 [51.0, 38.0] [0.0] 29250
5 24.6 0.0 43.9 47.3 33.3 29 [43.0, 46.0] [0.0] 18325
7 45.5 0.0 46.3 50.2 37.8 0 [50.0] [0.0] 32675
8 45.4 0.0 45.6 50.1 33.7 0 [45.0] [0.0] 29602
9 18.9 0.0 44.1 47.6 35.7 120 [45.0, 41.0, 46.0] [0.0] 22875
10 51.7 0.0 47.2 50.5 38.1 0 [51.0] [0.0] 23160
11 47.1 0.0 43.3 46.2 34.8 0 [43.0] [0.0] 18666
12 41.2 0.0 43.5 48.5 34.7 187 [41.0, 40.0] [0.0] 34387
13 35.5 0.0 45.3 49.9 33.6 124 [40.0, 43.0] [0.0] 40683
15 45.7 0.0 46.6 50.5 38.9 75 [48.0, 50.0] [0.0] 27290
19 36.5 0.0 41.9 47.4 31.1 75 [40.0, 41.0] [0.0] 38348
21 38.3 0.0 45.2 50.6 35.1 84 [50.0, 45.0] [0.0] 38715
24 41.6 0.0 46.1 50.0 36.1 0 [53.0] [0.0] 25945
25 34.0 0.0 46.0 50.6 36.9 0 [52.0] [0.0] 17403
26 33.0 0.0 45.3 50.2 35.9 66 [49.0, 52.0] [0.0] 41425
27 35.6 0.0 45.9 50.4 39.0 203 [46.0, 52.0] [0.0] 34339
30 27.5 0.0 44.6 48.7 36.7 114 [49.0, 48.0] [0.0] 25308
31 45.7 0.0 46.3 50.4 37.6 0 [42.0] [0.0] 31088
33 34.4 0.0 45.6 49.9 36.8 92 [43.0, 50.0] [0.0] 41004
34 39.0 0.0 45.6 49.6 38.6 0 [47.0] [0.0] 14983
36 21.4 0.0 43.4 49.6 34.8 94 [38.0, 39.0] [0.0] 13169
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 43.4 47.0 32.1 89 [39.0, 44.0, 48.0] [0.0] 21265
3 40.0 0.0 46.8 51.0 40.7 0 [41.0] [0.0] 23064
4 31.2 0.0 46.0 50.9 35.3 229 [51.0, 38.0] [0.0] 29250
5 24.6 0.0 43.9 47.6 31.6 105 [43.0, 46.0] [0.0] 18325
7 45.5 0.0 46.9 51.2 37.0 0 [50.0] [0.0] 32675
8 45.4 0.0 46.4 50.4 33.3 0 [45.0] [0.0] 29602
9 18.9 0.0 44.7 48.4 37.9 155 [45.0, 41.0, 46.0] [0.0] 22875
10 51.7 0.0 47.8 50.9 36.5 0 [51.0] [0.0] 23160
11 47.1 0.0 43.6 46.7 35.2 0 [43.0] [0.0] 18666
12 41.2 0.0 44.1 48.8 33.9 100 [41.0, 40.0] [0.0] 34387
13 35.5 0.0 45.9 50.8 36.8 164 [40.0, 43.0] [0.0] 40683
15 45.7 0.0 47.1 50.6 40.0 110 [48.0, 50.0] [0.0] 27290
19 36.5 0.0 42.4 47.7 31.7 163 [40.0, 41.0] [0.0] 38348
21 38.3 0.0 45.9 51.0 36.0 7 [50.0, 45.0] [0.0] 38715
24 41.6 0.0 46.9 50.8 37.3 0 [53.0] [0.0] 25945
25 34.0 0.0 46.2 49.9 33.6 0 [52.0] [0.0] 17403
26 33.0 0.0 45.9 50.6 35.7 138 [49.0, 52.0] [0.0] 41425
27 35.6 0.0 46.4 51.1 39.0 77 [46.0, 52.0] [0.0] 34339
30 27.5 0.0 45.0 49.3 36.7 65 [49.0, 48.0] [0.0] 25308
31 45.7 0.0 47.1 51.1 38.4 0 [42.0] [0.0] 31088
33 34.4 0.0 46.0 50.6 36.9 210 [43.0, 50.0] [0.0] 41004
34 39.0 0.0 46.2 50.7 38.6 0 [47.0] [0.0] 14983
36 21.4 0.0 43.8 49.4 35.0 164 [38.0, 39.0] [0.0] 13169
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 46.1 49.8 35.9 354 [39.0, 44.0, 48.0] [0.0] 21265
3 40.0 0.0 48.7 52.5 43.4 0 [41.0] [0.0] 23064
4 31.2 0.0 48.2 52.6 39.4 181 [51.0, 38.0] [0.0] 29250
5 24.6 0.0 46.6 49.8 38.7 208 [43.0, 46.0] [0.0] 18325
7 45.5 0.0 49.1 52.7 41.3 0 [50.0] [0.0] 32675
8 45.4 0.0 48.5 52.3 38.2 0 [45.0] [0.0] 29602
9 18.9 0.0 47.0 49.9 40.7 206 [45.0, 41.0, 46.0] [0.0] 22875
10 51.7 0.0 49.9 52.6 41.0 0 [51.0] [0.0] 23160
11 47.1 0.0 45.8 48.3 39.4 0 [43.0] [0.0] 18666
12 41.2 0.0 46.4 50.8 38.3 40 [41.0, 40.0] [0.0] 34387
13 35.5 0.0 48.1 52.7 38.9 138 [40.0, 43.0] [0.0] 40683
15 45.7 0.0 49.3 52.6 42.7 43 [48.0, 50.0] [0.0] 27290
19 36.5 0.0 45.1 50.1 32.8 226 [40.0, 41.0] [0.0] 38348
21 38.3 0.0 48.1 52.9 39.2 201 [50.0, 45.0] [0.0] 38715
24 41.6 0.0 48.9 52.3 40.6 0 [53.0] [0.0] 25945
25 34.0 0.0 48.4 52.1 39.1 0 [52.0] [0.0] 17403
26 33.0 0.0 48.1 52.2 40.9 193 [49.0, 52.0] [0.0] 41425
27 35.6 0.0 48.5 52.8 42.7 134 [46.0, 52.0] [0.0] 34339
30 27.5 0.0 47.3 51.2 40.5 134 [49.0, 48.0] [0.0] 25308
31 45.7 0.0 49.0 52.7 42.5 0 [42.0] [0.0] 31088
33 34.4 0.0 48.2 52.4 40.8 66 [43.0, 50.0] [0.0] 41004
34 39.0 0.0 48.4 52.2 42.6 0 [47.0] [0.0] 14983
36 21.4 0.0 46.3 51.3 38.5 134 [38.0, 39.0] [0.0] 13169
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 46.4 49.1 36.4 325 [44.0, 52.0, 39.0] [0.0] 21176
3 40.0 0.0 48.5 51.7 43.2 0 [43.0] [0.0] 23053
4 31.2 0.0 47.9 51.6 41.0 130 [53.0, 46.0] [0.0] 29293
5 24.5 0.0 46.6 50.0 40.6 238 [45.0, 43.0] [0.0] 18379
7 45.4 0.0 48.8 52.3 34.8 7 [50.0] [0.0] 32711
8 45.4 0.0 48.6 51.8 38.2 1 [41.0] [0.0] 29598
9 18.9 0.0 47.0 50.0 40.9 205 [49.0, 40.0, 52.0] [0.0] 22885
10 51.6 0.0 49.8 52.3 42.4 4 [53.0] [0.0] 23194
11 47.1 0.0 45.4 47.6 39.6 0 [43.0] [0.0] 18723
12 41.2 0.0 46.5 50.6 39.1 99 [44.0, 41.0] [0.0] 34411
13 35.5 0.0 47.8 52.0 34.0 6 [38.0, 44.0] [0.0] 40679
15 45.7 0.0 48.6 51.9 42.0 35 [47.0, 50.0] [0.0] 27258
19 36.9 0.0 44.9 49.9 30.8 202 [43.0, 48.0] [0.0] 37735
21 38.3 0.0 48.0 52.3 39.8 55 [40.0, 52.0] [0.0] 38745
24 41.5 0.0 48.8 52.2 41.9 0 [49.0] [0.0] 25978
25 34.0 0.0 48.2 51.2 41.6 0 [51.0] [0.0] 17403
26 33.0 0.0 47.8 51.3 39.3 146 [46.0, 51.0] [0.0] 41396
27 35.7 0.0 48.3 52.1 42.0 146 [46.0, 51.0] [0.0] 34315
30 27.5 0.0 47.3 51.3 36.2 135 [51.0, 47.0] [0.0] 25299
31 45.6 0.0 48.7 52.3 41.6 0 [42.0] [0.0] 31104
33 34.4 0.0 48.1 52.3 41.2 110 [48.0, 50.0] [0.0] 40992
34 39.0 0.0 48.2 51.9 41.9 0 [48.0] [0.0] 14964
36 21.5 0.0 46.3 50.2 40.5 100 [39.0, 40.0] [0.0] 13204
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 17.8 -0.2 5.1 -6.6 [39.0, 44.0, 52.0, 48.0] 21134
3 40.0 0.3 3.7 -3.1 [41.0, 43.0] 23053
4 31.2 0.4 3.5 -3.6 [51.0, 53.0, 38.0, 46.0] 29249
5 24.6 -0.0 4.6 -5.1 [43.0, 45.0, 46.0] 18317
7 45.5 0.3 8.3 -2.6 [50.0] 32675
8 45.4 -0.1 4.0 -8.2 [45.0, 41.0] 29595
9 18.9 0.0 2.6 -2.8 [45.0, 49.0, 41.0, 40.0, 46.0, 52.0] 22842
10 51.7 0.1 3.0 -5.0 [51.0, 53.0] 23160
11 47.2 0.4 2.6 -2.3 [43.0] 18666
12 41.2 -0.0 4.2 -5.6 [41.0, 44.0, 40.0] 34360
13 35.5 0.3 6.8 -6.5 [40.0, 38.0, 43.0, 44.0] 40643
15 45.7 0.7 3.6 -2.3 [48.0, 47.0, 50.0] 27258
19 37.0 0.2 6.2 -7.2 [40.0, 43.0, 41.0, 48.0] 37688
21 38.3 0.1 4.2 -5.0 [50.0, 40.0, 45.0, 52.0] 38701
24 41.6 0.1 2.9 -5.5 [53.0, 49.0] 25945
25 34.0 0.2 2.9 -5.5 [52.0, 51.0] 17381
26 33.0 0.3 5.2 -3.2 [49.0, 46.0, 52.0, 51.0] 41366
27 35.7 0.2 3.1 -3.3 [46.0, 52.0, 51.0] 34306
30 27.5 -0.1 8.1 -3.7 [49.0, 51.0, 48.0, 47.0] 25286
31 45.7 0.3 2.6 -2.2 [42.0] 31088
33 34.4 0.1 2.7 -3.8 [43.0, 48.0, 50.0] 40977
34 39.0 0.2 2.4 -1.6 [47.0, 48.0] 14964
36 21.4 -0.0 2.5 -5.1 [38.0, 39.0, 40.0] 13161
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 17.7 0.0 43.8 48.0 34.7 165 [39.0, 44.0, 48.0] [0.0] 21265
3 40.0 0.0 47.8 51.8 39.4 0 [41.0] [0.0] 23064
4 31.2 0.0 47.1 52.3 36.4 158 [51.0, 38.0] [0.0] 29250
5 24.6 0.0 45.4 49.8 35.7 58 [43.0, 46.0] [0.0] 18325
7 45.5 0.0 48.9 53.8 36.5 0 [50.0] [0.0] 32675
8 45.4 0.0 48.3 53.0 29.3 5 [45.0] [0.0] 29587
9 18.9 0.0 45.3 49.4 36.6 316 [45.0, 41.0, 46.0] [0.0] 22875
10 51.7 0.0 50.1 53.5 27.3 0 [51.0] [0.0] 23160
11 47.2 0.0 45.7 49.7 29.4 0 [43.0] [0.0] 18665
12 41.2 0.0 45.2 50.5 29.0 131 [41.0, 40.0] [0.0] 34384
13 35.5 0.0 47.2 52.7 34.6 227 [40.0, 43.0] [0.0] 40680
15 45.7 0.0 49.0 53.1 39.5 169 [48.0, 50.0] [0.0] 27290
19 36.5 0.0 42.6 49.1 28.1 182 [40.0, 41.0] [0.0] 38293
21 38.3 0.0 47.3 52.8 29.4 188 [50.0, 45.0] [0.0] 38715
24 41.6 0.0 49.0 53.8 38.7 1 [53.0] [0.0] 25945
25 34.0 0.0 48.1 52.0 27.1 0 [52.0] [0.0] 17403
26 33.0 0.0 47.2 51.8 33.5 250 [49.0, 52.0] [0.0] 41425
27 35.6 0.0 47.9 52.3 38.2 168 [46.0, 52.0] [0.0] 34339
30 27.5 0.0 46.7 51.5 34.7 199 [49.0, 48.0] [0.0] 25308
31 45.7 0.0 48.8 53.0 34.8 0 [42.0] [0.0] 31088
33 34.4 0.0 47.5 52.4 34.9 81 [43.0, 50.0] [0.0] 41004
34 39.0 0.0 47.5 52.3 37.6 0 [47.0] [0.0] 14983
36 21.4 0.0 45.0 51.5 33.2 87 [38.0, 39.0] [0.0] 13169
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.2 51.2 34.5 345 [21.0, 48.0, 31.0] [0.0] 30025
20 29.6 0.0 45.5 51.8 34.2 240 [49.0, 21.0] [0.0] 34693
21 44.3 0.0 46.5 52.1 35.0 196 [44.0, 42.0] [0.0] 21144
22 29.5 0.0 44.6 51.9 20.5 454 [32.0, 20.0, 44.0] [0.0] 25824
23 45.8 0.0 46.5 52.5 29.9 0 [46.0] [0.0] 26134
24 24.2 0.0 44.1 49.8 36.0 173 [22.0, 26.0] [0.0] 27809
25 38.6 0.0 45.3 51.6 32.7 202 [50.0, 51.0] [0.0] 23908
26 22.2 0.0 43.1 50.2 32.1 6 [46.0] [0.0] 28750
27 30.9 0.0 44.5 51.6 34.4 2 [26.0, 15.0] [0.0] 33851
28 28.8 0.0 44.4 49.5 27.6 65 [52.0, 28.0] [0.0] 34950
29 44.8 0.0 46.6 51.4 33.1 0 [49.0] [0.0] 28378
30 41.5 0.0 45.4 52.3 27.4 209 [21.0, 47.0] [0.0] 28077
32 34.3 0.0 45.1 52.5 23.3 55 [33.0, 44.0] [0.0] 32434
33 44.1 0.0 47.2 53.0 29.3 1 [42.0] [0.0] 28700
34 50.3 0.0 46.8 52.5 35.7 238 [26.0, 35.0] [0.0] 19638
35 45.4 0.0 47.1 51.7 35.7 58 [42.0, 45.0] [0.0] 23755
36 44.6 0.0 46.7 52.1 33.3 0 [17.0] [0.0] 24725
37 44.9 0.0 47.4 53.0 33.5 0 [53.0] [0.0] 28570
38 7.0 0.0 39.7 42.6 36.3 0 [17.0] [0.0] 2454
41 45.3 0.0 47.0 52.5 34.6 0 [18.0] [0.0] 27105
42 45.2 0.0 46.7 52.7 29.5 0 [30.0] [0.0] 27228
43 32.1 0.0 44.5 51.5 29.0 211 [13.0, 47.0] [0.0] 33171
44 38.1 0.0 46.1 51.9 34.5 110 [52.0, 34.0] [0.0] 22296
45 35.2 0.0 45.6 51.9 33.3 192 [22.0, 48.0] [0.0] 22312
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 46.1 49.8 38.6 238 [21.0, 48.0, 31.0] [0.0] 30025
20 29.6 0.0 45.7 51.4 36.9 52 [49.0, 21.0] [0.0] 34693
21 44.3 0.0 46.6 50.8 34.0 232 [44.0, 42.0] [0.0] 21144
22 29.5 0.0 45.7 50.5 38.7 339 [32.0, 20.0, 44.0] [0.0] 25824
23 45.8 0.0 47.4 52.1 35.4 0 [46.0] [0.0] 26134
24 24.2 0.0 45.2 49.2 38.9 17 [22.0, 26.0] [0.0] 27809
25 38.6 0.0 45.9 49.9 39.4 2 [50.0, 51.0] [0.0] 23908
26 22.2 0.0 43.5 47.6 34.6 6 [46.0] [0.0] 28750
27 30.9 0.0 45.0 49.7 38.3 50 [26.0, 15.0] [0.0] 33851
28 28.8 0.0 44.3 48.6 31.4 128 [52.0, 28.0] [0.0] 34950
29 44.8 0.0 46.0 49.9 36.4 0 [49.0] [0.0] 28378
30 41.5 0.0 45.7 50.4 36.8 117 [21.0, 47.0] [0.0] 28077
32 34.3 0.0 46.3 51.2 38.1 71 [33.0, 44.0] [0.0] 32435
33 44.1 0.0 47.4 50.9 38.7 0 [42.0] [0.0] 28700
34 50.3 0.0 46.8 50.2 39.1 78 [26.0, 35.0] [0.0] 19638
35 45.4 0.0 45.7 50.0 34.0 16 [42.0, 45.0] [0.0] 23755
36 44.6 0.0 48.3 51.9 40.8 0 [17.0] [0.0] 24725
37 44.9 0.0 47.7 51.9 37.9 0 [53.0] [0.0] 28570
38 7.0 0.0 39.4 41.4 37.3 0 [17.0] [0.0] 2454
41 45.3 0.0 47.8 51.6 39.5 0 [18.0] [0.0] 27105
42 45.2 0.0 47.0 51.1 36.1 0 [30.0] [0.0] 27228
43 32.1 0.0 44.7 49.6 33.0 217 [13.0, 47.0] [0.0] 33171
44 38.1 0.0 45.9 50.1 37.9 84 [52.0, 34.0] [0.0] 22296
45 35.2 0.0 47.2 51.9 37.5 222 [22.0, 48.0] [0.0] 22312

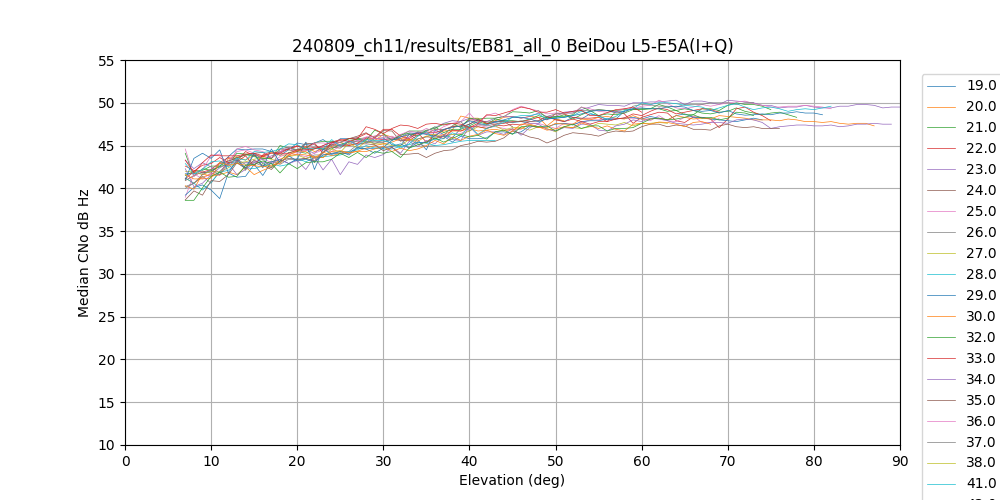

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.6 49.9 36.0 259 [23.0, 47.0] [0.0] 30068
20 29.6 0.0 45.5 50.1 36.4 226 [46.0, 21.0] [0.0] 34657
21 44.3 0.0 46.7 50.1 20.1 138 [53.0, 38.0] [0.0] 21173
22 29.6 0.0 45.3 49.9 39.2 399 [32.0, 41.0, 45.0] [0.0] 25784
23 45.8 0.0 47.4 51.2 36.9 0 [34.0] [0.0] 26143
24 24.1 0.0 44.9 49.3 38.1 163 [21.0, 22.0] [0.0] 27862
25 38.6 0.0 45.7 49.4 36.7 5 [34.0, 53.0] [0.0] 23890
26 22.2 0.0 43.5 47.4 30.1 100 [25.0, 52.0] [0.0] 28699
27 30.9 0.0 44.8 48.8 37.8 170 [17.0, 15.0] [0.0] 33818
28 28.8 0.0 44.1 47.3 34.8 16 [51.0, 30.0] [0.0] 34953
29 44.8 0.0 46.0 49.6 34.7 0 [47.0] [0.0] 28368
30 41.5 0.0 45.4 49.7 36.7 199 [44.0, 48.0] [0.0] 28111
32 34.3 0.0 46.0 50.9 39.0 174 [25.0, 45.0] [0.0] 32427
33 44.0 0.0 46.9 50.3 36.1 0 [27.0] [0.0] 28740
34 50.2 0.0 45.8 49.1 36.2 34 [15.0, 35.0] [0.0] 19699
35 45.5 0.0 45.1 48.5 34.3 170 [41.0, 44.0] [0.0] 23760
36 44.6 0.0 47.4 51.1 38.5 0 [17.0] [0.0] 24701
37 44.9 0.0 47.3 50.9 37.7 0 [49.0] [0.0] 28622
38 7.0 0.0 42.1 43.9 40.3 0 [18.0] [0.0] 2507
41 45.2 0.0 47.0 50.7 38.0 0 [18.0] [0.0] 27142
42 45.1 0.0 46.8 50.2 36.2 0 [42.0] [0.0] 27256
43 32.1 0.0 44.6 49.2 31.1 199 [44.0, 48.0] [0.0] 33130
44 38.1 0.0 45.1 49.2 35.6 210 [50.0, 33.0] [0.0] 22328
45 35.2 0.0 46.8 51.1 38.6 37 [21.0, 46.0] [0.0] 22281
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.8 0.5 4.4 -2.4 [21.0, 23.0, 48.0, 47.0, 31.0] 29988
20 29.6 0.3 6.1 -3.8 [49.0, 46.0, 21.0] 34656
21 44.3 -0.1 20.2 -11.4 [44.0, 53.0, 42.0, 38.0] 21121
22 29.6 0.4 4.4 -3.4 [32.0, 20.0, 41.0, 44.0, 45.0] 25762
23 45.8 -0.0 3.3 -6.7 [46.0, 34.0] 26134
24 24.2 0.3 5.3 -2.7 [22.0, 21.0, 26.0] 27801
25 38.6 0.2 4.6 -5.3 [50.0, 34.0, 51.0, 53.0] 23889
26 22.2 -0.0 10.7 -5.4 [46.0, 25.0, 52.0] 28699
27 30.9 0.2 4.8 -3.7 [26.0, 17.0, 15.0] 33817
28 28.8 0.2 4.7 -7.9 [52.0, 51.0, 28.0, 30.0] 34921
29 44.8 0.1 4.6 -4.2 [49.0, 47.0] 28367
30 41.5 0.3 6.7 -4.7 [21.0, 44.0, 47.0, 48.0] 28077
32 34.3 0.3 3.8 -3.7 [33.0, 25.0, 44.0, 45.0] 32413
33 44.1 0.4 4.3 -3.8 [42.0, 27.0] 28700
34 50.3 0.9 5.4 -2.9 [26.0, 15.0, 35.0] 19630
35 45.4 0.5 4.8 -3.8 [42.0, 41.0, 45.0, 44.0] 23738
36 44.6 0.8 3.8 -3.7 [17.0] 24696
37 44.9 0.4 5.1 -2.9 [53.0, 49.0] 28562
38 7.0 -2.7 -0.4 -5.1 [17.0, 18.0] 2454
41 45.3 0.7 5.5 -3.4 [18.0] 27105
42 45.2 0.2 5.5 -7.3 [30.0, 42.0] 27225
43 32.2 0.1 7.8 -9.6 [13.0, 44.0, 47.0, 48.0] 33105
44 38.1 0.9 5.7 -2.8 [52.0, 50.0, 34.0, 33.0] 22288
45 35.2 0.5 4.5 -6.6 [22.0, 21.0, 48.0, 46.0] 22280
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 45.7 49.7 38.9 241 [51.0, 21.0] [0.0] 27845
12 41.7 0.0 45.9 49.8 38.9 17 [22.0, 50.0] [0.0] 21282
14 44.4 0.0 46.0 49.9 36.2 0 [53.0] [0.0] 28340
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 45.7 49.5 37.4 90 [52.0, 44.0, 50.0] [0.0] 27863
12 41.7 0.0 45.6 49.6 31.2 177 [25.0, 42.0] [0.0] 21313
14 44.3 0.0 46.2 49.7 33.4 4 [49.0] [0.0] 28388
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 39.6 -0.1 5.2 -4.1 [51.0, 52.0, 21.0, 44.0, 50.0] 27824
12 41.7 0.3 9.8 -5.0 [22.0, 25.0, 50.0, 42.0] 21260
14 44.4 -0.2 7.2 -5.9 [53.0, 49.0] 28328
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 43.3 51.0 21.7 207 [51.0, 21.0] [0.0] 27864
12 41.7 0.0 43.0 50.1 31.0 145 [22.0, 50.0] [0.0] 21282
14 44.4 0.0 44.9 51.1 28.7 0 [53.0] [0.0] 28340
19 30.8 0.0 44.9 51.4 33.4 111 [21.0, 48.0, 31.0] [0.0] 30025
20 29.6 0.0 45.8 52.7 31.5 176 [49.0, 21.0] [0.0] 34693
21 44.3 0.0 46.3 52.4 34.0 11 [44.0, 42.0] [0.0] 21144
22 29.5 0.0 44.7 52.0 30.8 62 [32.0, 20.0, 44.0] [0.0] 25824
23 45.8 0.0 46.6 53.2 30.4 0 [46.0] [0.0] 26134
24 24.2 0.0 43.8 49.8 35.6 14 [22.0, 26.0] [0.0] 27809
25 38.6 0.0 45.8 52.8 32.1 192 [50.0, 51.0] [0.0] 23908
26 22.2 0.0 43.2 50.3 32.6 6 [46.0] [0.0] 28750
27 30.9 0.0 45.4 53.0 35.6 211 [26.0, 15.0] [0.0] 33851
28 28.8 0.0 45.0 50.0 30.4 191 [52.0, 28.0] [0.0] 34950
29 44.8 0.0 47.3 53.2 31.3 0 [49.0] [0.0] 28378
30 41.5 0.0 46.1 52.9 30.4 36 [21.0, 47.0] [0.0] 28077
32 34.3 0.0 44.9 52.8 31.1 160 [33.0, 44.0] [0.0] 32435
33 44.1 0.0 47.1 52.9 31.6 0 [42.0] [0.0] 28700
34 50.3 0.0 46.4 52.5 34.6 99 [26.0, 35.0] [0.0] 19638
35 45.4 0.0 47.4 52.9 32.0 167 [42.0, 45.0] [0.0] 23755
36 44.6 0.0 47.0 52.6 33.4 0 [17.0] [0.0] 24725
37 44.9 0.0 47.2 52.5 32.5 0 [53.0] [0.0] 28570
38 7.0 0.0 40.2 43.1 35.9 0 [17.0] [0.0] 2454
41 45.3 0.0 46.9 52.7 36.5 0 [18.0] [0.0] 27105
42 45.2 0.0 45.9 52.1 31.9 0 [30.0] [0.0] 27228
43 32.1 0.0 44.5 51.9 31.2 176 [13.0, 47.0] [0.0] 33171
44 38.1 0.0 45.8 51.8 34.6 94 [52.0, 34.0] [0.0] 22296
45 35.2 0.0 45.4 52.0 32.6 37 [22.0, 48.0] [0.0] 22312
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 43.3 51.4 31.0 300 [52.0, 44.0, 50.0] [0.0] 27863
12 41.7 0.0 42.6 50.2 28.7 148 [25.0, 42.0] [0.0] 21313
14 44.3 0.0 44.7 50.7 28.7 4 [49.0] [0.0] 28388
19 30.8 0.0 44.1 51.3 30.7 303 [23.0, 47.0] [0.0] 30068
20 29.6 0.0 45.1 52.0 35.6 160 [46.0, 21.0] [0.0] 34657
21 44.3 0.0 46.2 52.9 32.6 59 [53.0, 38.0] [0.0] 21174
22 29.6 0.0 44.3 52.1 28.4 450 [32.0, 41.0, 45.0] [0.0] 25784
23 45.8 0.0 45.7 52.4 26.9 5 [34.0] [0.0] 26143
24 24.1 0.0 43.4 49.8 32.4 224 [21.0, 22.0] [0.0] 27862
25 38.6 0.0 45.2 52.2 20.0 68 [34.0, 53.0] [0.0] 23890
26 22.2 0.0 42.9 48.9 31.4 171 [25.0, 52.0] [0.0] 28699
27 30.9 0.0 44.3 52.7 33.5 141 [17.0, 15.0] [0.0] 33818
28 28.8 0.0 44.7 48.9 35.5 67 [51.0, 30.0] [0.0] 34953
29 44.8 0.0 46.3 52.3 32.2 0 [47.0] [0.0] 28368
30 41.5 0.0 44.3 51.7 19.5 145 [44.0, 48.0] [0.0] 28111
32 34.3 0.0 44.0 52.8 18.9 35 [25.0, 45.0] [0.0] 32427
33 44.0 0.0 47.1 52.2 35.9 0 [27.0] [0.0] 28740
34 50.2 0.0 46.1 52.9 31.6 219 [15.0, 35.0] [0.0] 19699
35 45.5 0.0 46.8 52.0 34.3 9 [41.0, 44.0] [0.0] 23760
36 44.6 0.0 46.0 52.1 34.9 0 [17.0] [0.0] 24701
37 44.9 0.0 46.5 51.6 33.9 0 [49.0] [0.0] 28622
38 7.0 0.0 37.2 40.3 31.7 0 [18.0] [0.0] 2507
41 45.2 0.0 46.3 53.0 27.6 3 [18.0] [0.0] 27142
42 45.1 0.0 45.5 51.7 29.2 1 [42.0] [0.0] 27256
43 32.1 0.0 43.9 52.6 25.7 115 [44.0, 48.0] [0.0] 33132
44 38.1 0.0 45.1 52.7 32.7 123 [50.0, 33.0] [0.0] 22328
45 35.2 0.0 44.8 51.2 28.5 143 [21.0, 46.0] [0.0] 22281
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 39.5 0.1 7.6 -12.2 [51.0, 52.0, 21.0, 44.0, 50.0] 27843
12 41.7 0.4 7.8 -4.8 [22.0, 25.0, 50.0, 42.0] 21260
14 44.4 0.1 6.2 -8.3 [53.0, 49.0] 28328
19 30.8 0.8 9.5 -5.7 [21.0, 23.0, 48.0, 47.0, 31.0] 29988
20 29.6 0.7 6.7 -7.7 [49.0, 46.0, 21.0] 34656
21 44.3 0.1 5.6 -7.3 [44.0, 53.0, 42.0, 38.0] 21122
22 29.6 0.4 8.4 -10.4 [32.0, 20.0, 41.0, 44.0, 45.0] 25762
23 45.8 0.9 9.8 -7.7 [46.0, 34.0] 26134
24 24.2 0.4 8.9 -5.8 [22.0, 21.0, 26.0] 27801
25 38.6 0.6 12.1 -4.7 [50.0, 34.0, 51.0, 53.0] 23889
26 22.2 0.3 5.9 -8.1 [46.0, 25.0, 52.0] 28699
27 30.9 1.1 7.6 -5.3 [26.0, 17.0, 15.0] 33817
28 28.8 0.3 6.4 -9.7 [52.0, 51.0, 28.0, 30.0] 34921
29 44.8 1.0 8.1 -6.8 [49.0, 47.0] 28367
30 41.5 1.8 21.6 -7.9 [21.0, 44.0, 47.0, 48.0] 28077
32 34.3 0.9 16.3 -6.4 [33.0, 25.0, 44.0, 45.0] 32413
33 44.1 -0.0 6.6 -9.2 [42.0, 27.0] 28700
34 50.3 0.3 7.9 -4.2 [26.0, 15.0, 35.0] 19630
35 45.4 0.6 6.7 -5.9 [42.0, 41.0, 45.0, 44.0] 23738
36 44.6 1.1 7.3 -5.7 [17.0] 24696
37 44.9 0.7 7.5 -7.2 [53.0, 49.0] 28562
38 7.0 3.0 8.3 -0.7 [17.0, 18.0] 2454
41 45.3 0.7 11.4 -4.8 [18.0] 27105
42 45.2 0.4 9.0 -7.6 [30.0, 42.0] 27225
43 32.2 0.6 9.5 -7.4 [13.0, 44.0, 47.0, 48.0] 33107
44 38.1 0.7 6.8 -4.9 [52.0, 50.0, 34.0, 33.0] 22288
45 35.2 0.5 9.4 -7.8 [22.0, 21.0, 48.0, 46.0] 22280
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 44.2 49.4 33.4 256 [51.0, 21.0] [0.0] 27845
12 41.7 0.0 45.0 49.6 33.7 242 [22.0, 50.0] [0.0] 21282
14 44.4 0.0 45.5 50.0 34.6 0 [53.0] [0.0] 28340
19 30.8 0.0 44.8 49.5 34.2 294 [21.0, 48.0, 31.0] [0.0] 30025
20 29.6 0.0 44.0 49.4 25.6 207 [49.0, 21.0] [0.0] 34693
21 44.3 0.0 45.2 50.0 34.2 233 [44.0, 42.0] [0.0] 21144
22 29.5 0.0 44.2 50.0 33.9 351 [32.0, 20.0, 44.0] [0.0] 25824
23 45.8 0.0 45.7 50.0 32.1 0 [46.0] [0.0] 26134
24 24.2 0.0 43.7 49.0 35.3 62 [22.0, 26.0] [0.0] 27809
25 38.6 0.0 45.1 50.0 28.8 189 [50.0, 51.0] [0.0] 23908
26 22.2 0.0 42.7 47.5 34.2 7 [46.0] [0.0] 28750
27 30.9 0.0 43.9 48.9 33.0 77 [26.0, 15.0] [0.0] 33851
28 28.8 0.0 43.4 48.5 32.7 95 [52.0, 28.0] [0.0] 34950
29 44.8 0.0 45.2 49.8 32.5 0 [49.0] [0.0] 28378
30 41.5 0.0 44.1 49.5 33.3 70 [21.0, 47.0] [0.0] 28077
32 34.3 0.0 44.6 50.8 32.4 6 [33.0, 44.0] [0.0] 32430
33 44.1 0.0 45.8 49.6 37.1 0 [42.0] [0.0] 28700
34 50.3 0.0 45.3 49.4 35.8 190 [26.0, 35.0] [0.0] 19638
35 45.4 0.0 45.5 49.6 32.9 175 [42.0, 45.0] [0.0] 23755
36 44.6 0.0 46.4 50.5 37.7 0 [17.0] [0.0] 24725
37 44.9 0.0 45.8 50.6 30.5 0 [53.0] [0.0] 28570
38 7.0 0.0 37.2 39.7 34.2 0 [17.0] [0.0] 2454
41 45.3 0.0 46.1 50.0 29.3 0 [18.0] [0.0] 27105
42 45.2 0.0 45.7 49.7 31.1 0 [30.0] [0.0] 27228
43 32.1 0.0 43.5 49.5 31.6 124 [13.0, 47.0] [0.0] 33171
44 38.1 0.0 44.5 49.8 35.5 230 [52.0, 34.0] [0.0] 22296
45 35.2 0.0 45.3 49.6 24.0 107 [22.0, 48.0] [0.0] 22312
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 39.5 0.0 44.1 48.8 34.2 231 [52.0, 44.0, 50.0] [0.0] 27863
12 41.7 0.0 44.4 48.8 35.1 73 [25.0, 42.0] [0.0] 21313
14 44.3 0.0 45.3 49.3 18.3 6 [49.0] [0.0] 28386
19 30.8 0.0 44.6 49.3 35.7 269 [23.0, 47.0] [0.0] 30068
20 29.6 0.0 43.9 48.8 24.4 220 [46.0, 21.0] [0.0] 34657
21 44.3 0.0 45.4 49.3 30.8 244 [53.0, 38.0] [0.0] 21174
22 29.6 0.0 44.0 49.8 33.2 304 [32.0, 41.0, 45.0] [0.0] 25780
23 45.8 0.0 45.9 49.5 29.3 3 [34.0] [0.0] 26138
24 24.1 0.0 43.6 48.8 33.4 155 [21.0, 22.0] [0.0] 27862
25 38.6 0.0 44.5 49.4 25.4 165 [34.0, 53.0] [0.0] 23881
26 22.2 0.0 42.4 46.7 29.6 179 [25.0, 52.0] [0.0] 28699
27 30.9 0.0 43.6 48.5 33.1 186 [17.0, 15.0] [0.0] 33818
28 28.8 0.0 43.3 47.2 34.4 79 [51.0, 30.0] [0.0] 34953
29 44.8 0.0 45.1 49.0 31.4 0 [47.0] [0.0] 28368
30 41.5 0.0 44.4 48.8 31.6 154 [44.0, 48.0] [0.0] 28088
32 34.3 0.0 44.3 50.2 29.6 238 [25.0, 45.0] [0.0] 32404
33 44.0 0.0 45.6 49.5 34.1 0 [27.0] [0.0] 28740
34 50.2 0.0 44.8 48.8 34.8 231 [15.0, 35.0] [0.0] 19699
35 45.5 0.0 44.9 48.9 28.1 20 [41.0, 44.0] [0.0] 23760
36 44.6 0.0 45.8 50.2 35.3 0 [17.0] [0.0] 24701
37 44.9 0.0 45.5 49.3 28.4 0 [49.0] [0.0] 28622
38 7.0 0.0 40.2 42.0 37.2 0 [18.0] [0.0] 2507
41 45.2 0.0 45.7 49.5 26.4 3 [18.0] [0.0] 27142
42 45.1 0.0 45.7 49.4 25.7 1 [42.0] [0.0] 27256
43 32.1 0.0 43.3 48.7 28.7 138 [44.0, 48.0] [0.0] 33126
44 38.1 0.0 43.7 48.9 31.9 110 [50.0, 33.0] [0.0] 22328
45 35.2 0.0 45.4 49.3 36.9 44 [21.0, 46.0] [0.0] 22281
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 39.6 0.1 5.2 -7.0 [51.0, 52.0, 21.0, 44.0, 50.0] 27824
12 41.7 0.6 4.5 -3.7 [22.0, 25.0, 50.0, 42.0] 21260
14 44.4 0.2 22.6 -5.0 [53.0, 49.0] 28326
19 30.8 0.3 4.6 -4.4 [21.0, 23.0, 48.0, 47.0, 31.0] 29988
20 29.6 0.1 6.2 -5.2 [49.0, 46.0, 21.0] 34656
21 44.3 -0.1 7.8 -4.9 [44.0, 53.0, 42.0, 38.0] 21122
22 29.6 0.3 7.0 -5.2 [32.0, 20.0, 41.0, 44.0, 45.0] 25758
23 45.8 -0.2 4.7 -6.2 [46.0, 34.0] 26129
24 24.2 0.2 5.7 -4.3 [22.0, 21.0, 26.0] 27801
25 38.6 0.6 12.6 -3.5 [50.0, 34.0, 51.0, 53.0] 23880
26 22.2 0.2 6.6 -5.2 [46.0, 25.0, 52.0] 28699
27 30.9 0.4 5.4 -4.7 [26.0, 17.0, 15.0] 33817
28 28.8 0.1 4.6 -5.7 [52.0, 51.0, 28.0, 30.0] 34921
29 44.8 0.1 7.8 -6.6 [49.0, 47.0] 28367
30 41.6 -0.3 3.5 -5.7 [21.0, 44.0, 47.0, 48.0] 28054
32 34.3 0.3 5.6 -5.7 [33.0, 25.0, 44.0, 45.0] 32390
33 44.1 0.2 6.0 -3.7 [42.0, 27.0] 28700
34 50.3 0.6 6.3 -3.9 [26.0, 15.0, 35.0] 19630
35 45.4 0.7 8.7 -5.8 [42.0, 41.0, 45.0, 44.0] 23738
36 44.6 0.6 4.8 -3.6 [17.0] 24696
37 44.9 0.3 6.3 -4.7 [53.0, 49.0] 28562
38 7.0 -3.0 -0.8 -6.2 [17.0, 18.0] 2454
41 45.3 0.5 4.6 -6.0 [18.0] 27105
42 45.2 0.0 12.1 -5.3 [30.0, 42.0] 27225
43 32.2 0.2 7.0 -7.9 [13.0, 44.0, 47.0, 48.0] 33101
44 38.1 0.8 6.7 -3.0 [52.0, 50.0, 34.0, 33.0] 22288
45 35.2 -0.2 3.3 -18.5 [22.0, 21.0, 48.0, 46.0] 22280
