Comments


SUHF receiving CMRx on 469.6 MHz, 12.5 kHz BW, CMRx, TM3 at 9600.
P4-03 East, Long engineering cable.
P4-05 West, Production cable sample.
4W Ethernet 10 Mbps, no traffic.
2W interfaces disabled (powered off).

Files


1114_469.6mhz/BX_gt35.T04 1114_469.6mhz/P4-03_gt35.T04 1114_469.6mhz/P4-05_gt35.T04
Modified: 2023-11-17 11:43:28

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 23.526 hours

Mean Primary Pos: [39.89647322516041, -105.11505749464374]
Mean Secondary Pos: [39.89647204274042, -105.11505656920899]
Mean Heading: 329.02 (deg)
Mean Slope Distance: 0.15336 (m)
 Modified: 2023-11-17 11:43:32

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 23.394 hours

Mean Primary Pos: [39.89646848703495, -105.11502895134653]
Mean Secondary Pos: [39.89646743353875, -105.11502776477404]
Mean Heading: 319.17 (deg)
Mean Slope Distance: 0.15482 (m)
 Modified: 2023-11-17 11:43:28

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 23.456 hours

Mean Primary Pos: [39.89646844315888, -105.11505703435006]
Mean Secondary Pos: [39.89646736549506, -105.1150558904177]
Mean Heading: 320.84 (deg)
Mean Slope Distance: 0.15454 (m)

Difference Report Links

1114_469.6mhz/results/BX_gt35_0-P4-03_gt35_0.html
1114_469.6mhz/results/BX_gt35_0-P4-05_gt35_0.html
1114_469.6mhz/results/BX_gt35_1-P4-03_gt35_1.html
1114_469.6mhz/results/BX_gt35_1-P4-05_gt35_1.html

Summary Table

SVType Freq Track N_Samples_P4-03_0 CNo_Mean_P4-03_0 N_Samples_P4-05_0 CNo_Mean_P4-05_0 N_Samples_P4-03_1 CNo_Mean_P4-03_1 N_Samples_P4-05_1 CNo_Mean_P4-05_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 389,401 0.1 389,421 0.2 389,401 0.2 389,421 0.1
GPS L2 CM+CL 309,573 0.2 309,591 0.1 309,573 0.0 309,591 -0.1
GPS L2 E 79,828 0.5 79,830 0.5 79,828 0.1 79,830 -0.1
GPS L5/E5A I+Q 216,589 0.6 216,601 0.2 216,589 0.0 216,601 -0.0
SBAS L1 CA 254,226 -0.3 254,250 0.9 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 303,852 0.5 303,887 0.4 303,852 0.7 303,887 0.3
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 258,677 0.3 258,703 0.0 258,676 -0.2 258,705 -0.1
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 280,819 0.1 280,848 0.2 280,819 0.1 280,848 -0.0
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 280,819 0.2 280,848 0.2 280,819 0.1 280,848 0.2
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 301,453 0.2 301,481 0.3 301,453 0.3 301,481 0.2
BeiDou L5/E5A I+Q 301,453 0.5 301,481 0.2 301,453 0.1 301,481 0.0
BeiDou E5B/B2 BPSK(2)-B2 36,677 0.0 36,676 0.1 36,677 0.0 36,676 0.4
BeiDou B1 BPSK(2)-B1 338,130 0.1 338,157 0.0 338,130 0.0 338,157 -0.0
BeiDou B3 BPSK(10)-B3 338,130 0.1 338,157 0.1 338,130 -0.0 338,157 0.0
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS MSS 51,652 -1.0 52,022 -0.1 0 0
Total 3,689,627 0.2 3,689,931 0.2 3,435,400 0.1 3,435,683 0.1

Az-El Plots

BX_gt35_0-P4-03_gt35_0 BX_gt35_0-P4-05_gt35_0 BX_gt35_1-P4-03_gt35_1 BX_gt35_1-P4-05_gt35_1

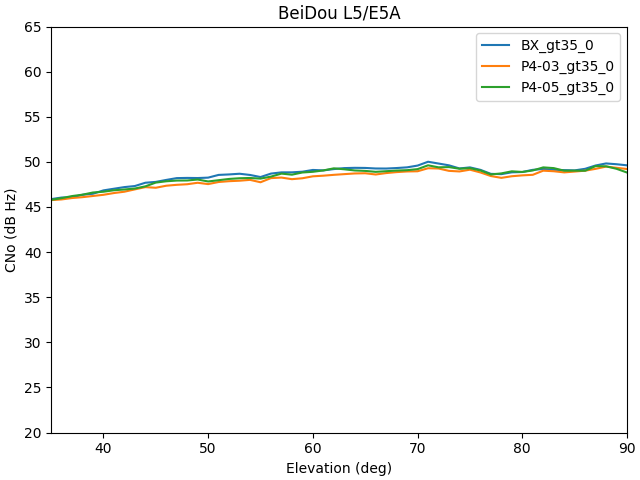

Mean Elevation Plots

Antenna 0

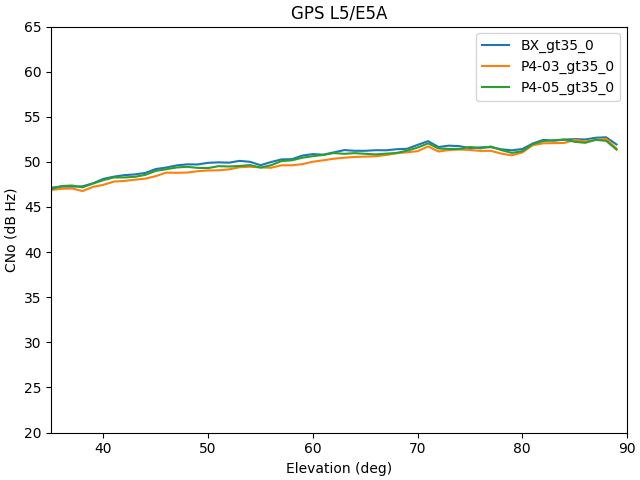

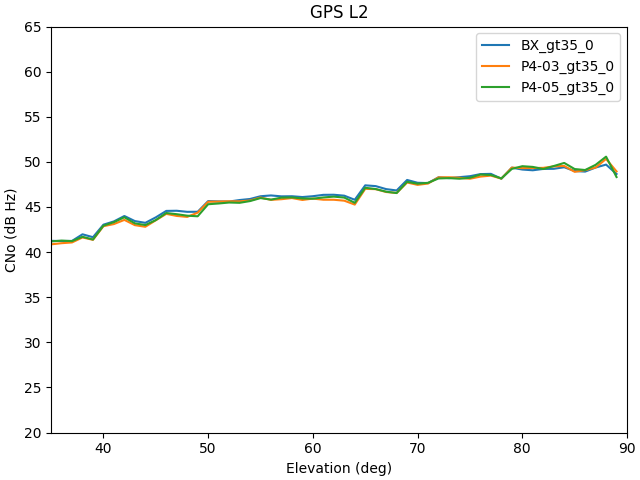

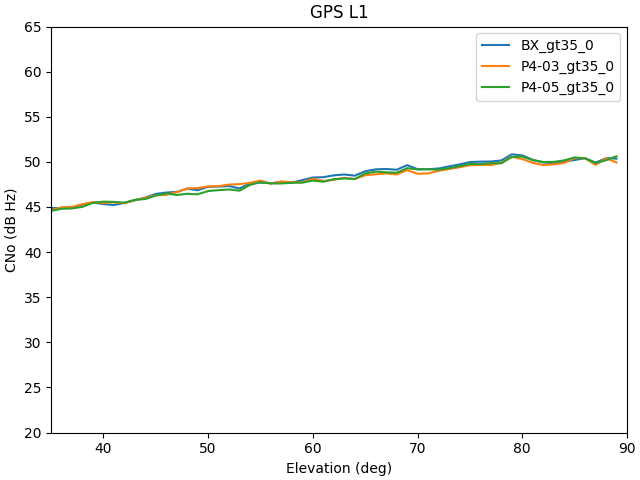

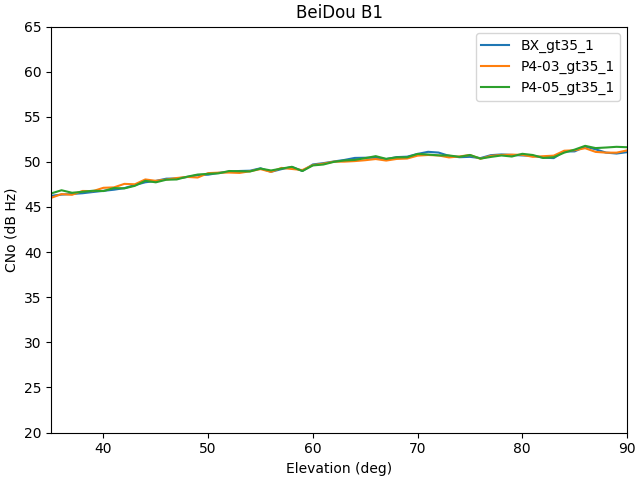

GPS

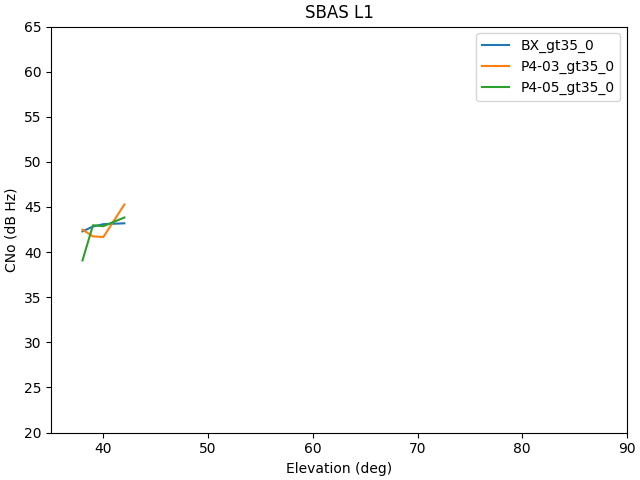

SBAS

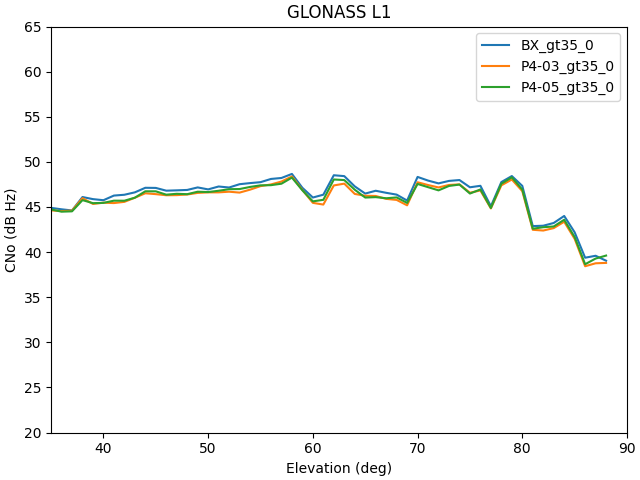

GLONASS

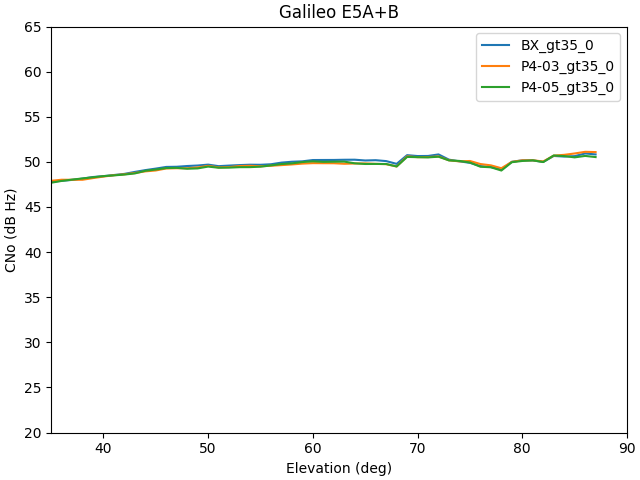

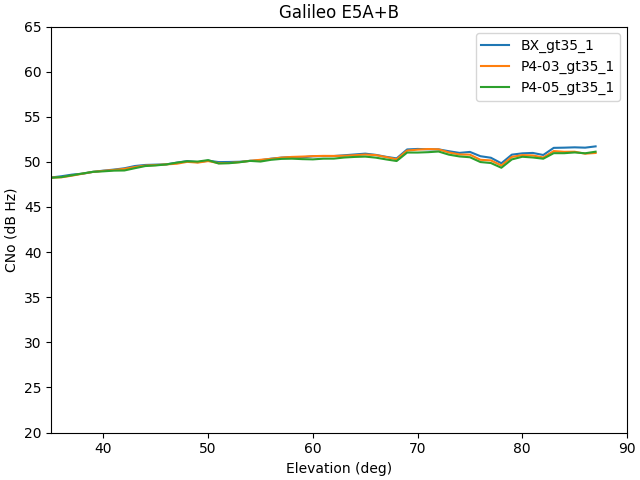

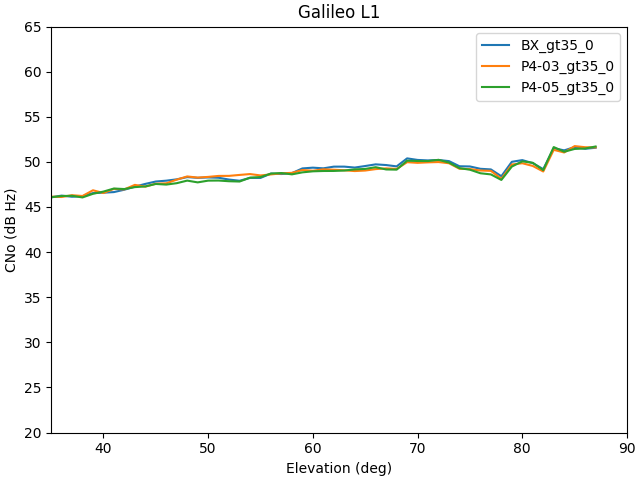

Galileo

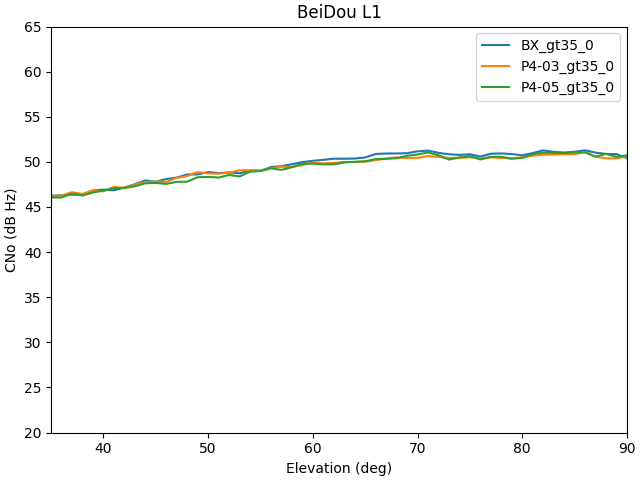

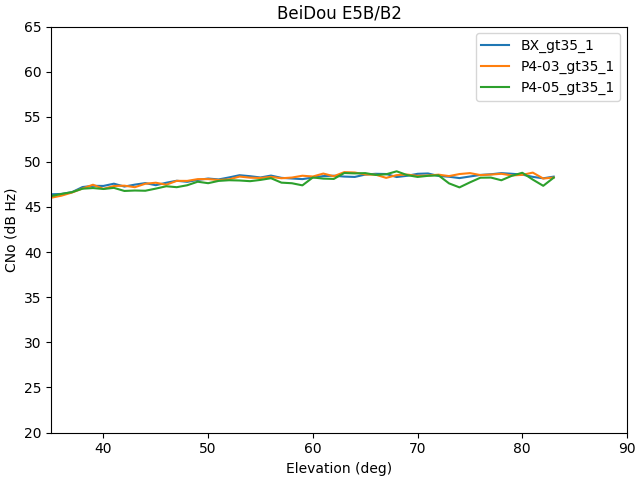

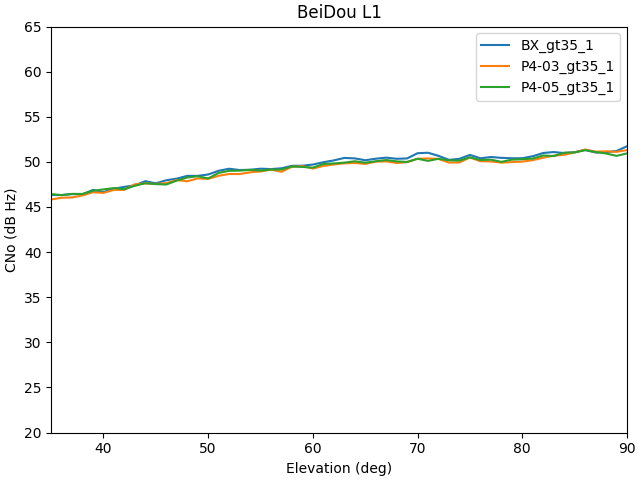

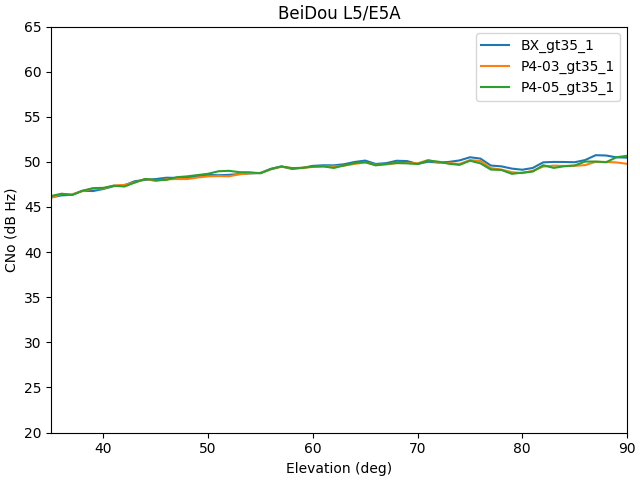

BeiDou

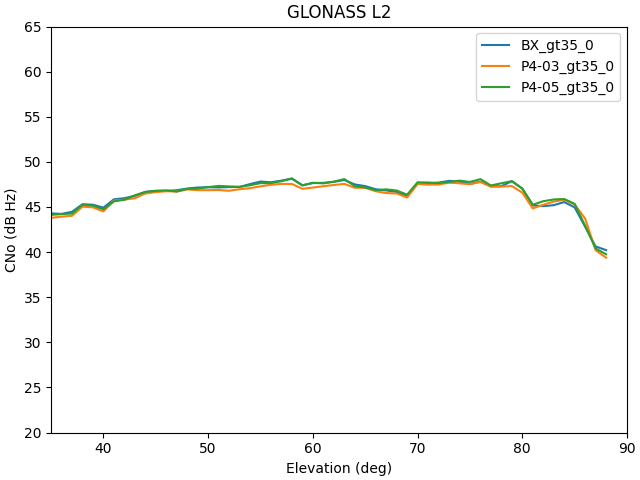

Antenna 1

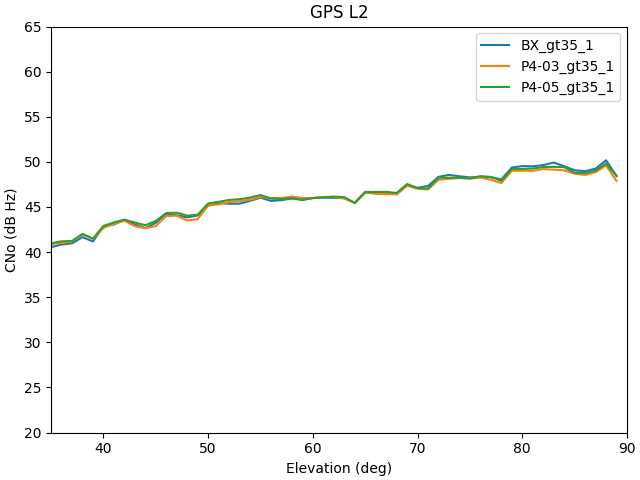

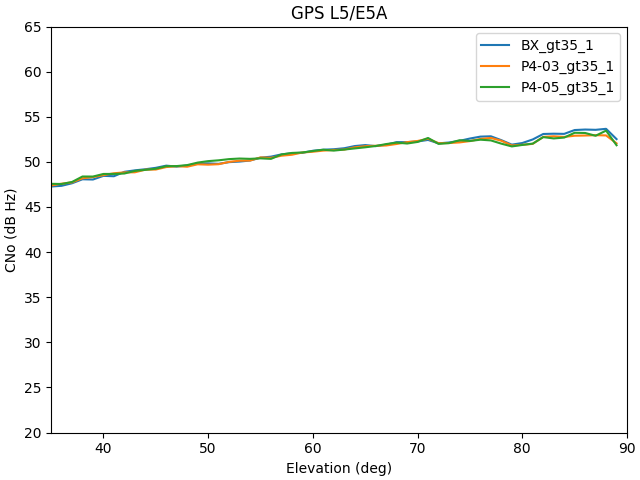

GPS

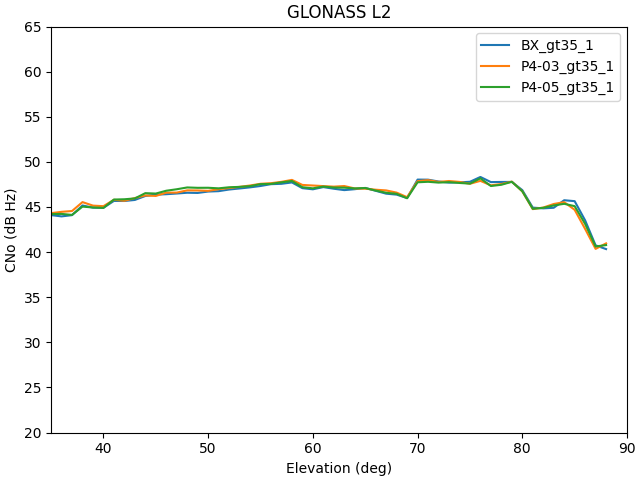

GLONASS

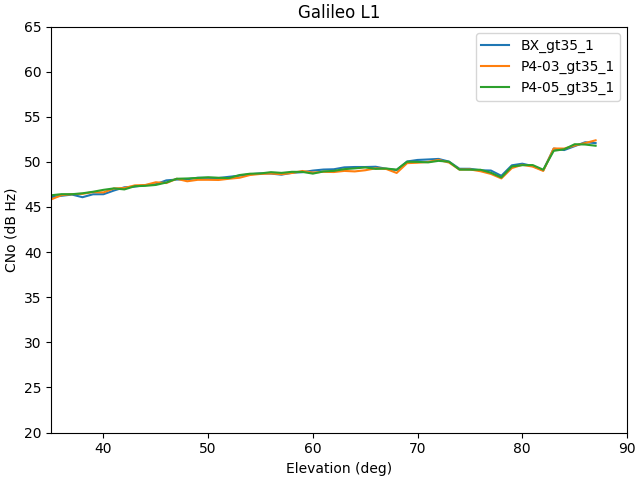

Galileo
BeiDou

Oscillation Check

BX_gt35_0: 1376.2
Antenna SVType Freq Track SV osc_factor
0 BeiDou B1 26 25 1,376
0 GPS L1 0 29 1,312
0 GPS L1 0 28 1,198
0 BeiDou E5B/B2 28 14 1,126
0 Galileo E5A+B 14 12 1,117
0 BeiDou B3 29 21 1,072
0 Galileo E5A+B 14 26 1,057
0 Galileo E5A+B 14 25 1,054
0 Galileo E5A+B 14 19 1,048
0 BeiDou B3 29 45 1,042
P4-03_gt35_0: 1489.1
Antenna SVType Freq Track SV osc_factor
0 GLONASS L2 0 12 1,489
0 GLONASS L1 0 14 1,318
0 BeiDou B1 26 25 1,233
0 GLONASS L2 0 11 1,140
0 Galileo E5A+B 14 26 1,116
0 Galileo E5A+B 14 21 1,094
0 GLONASS L1 0 11 1,089
0 BeiDou B3 29 45 1,077
0 BeiDou B3 29 21 1,062
0 GPS L1 0 4 1,044
P4-05_gt35_0: 1305.8
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 18 1,306
0 GPS L1 0 30 1,247
0 BeiDou B1 26 25 1,227
0 GPS L1 0 4 1,210
0 GLONASS L1 0 3 1,190
0 GLONASS L1 0 2 1,186
0 BeiDou B3 29 21 1,181
0 BeiDou B3 29 45 1,151
0 GLONASS L1 0 11 1,101
0 GPS L1 0 29 1,085
BX_gt35_1: 1331.4
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 12 1,331
1 BeiDou B1 26 25 1,329
1 GLONASS L1 0 18 1,280
1 BeiDou B3 29 21 1,084
1 BeiDou B3 29 45 1,052
1 GPS L1 0 5 1,048
1 BeiDou B3 29 42 989
1 Galileo E5A+B 14 25 983
1 Galileo E5A+B 14 26 983
1 BeiDou B3 29 26 969
P4-03_gt35_1: 1585.2
Antenna SVType Freq Track SV osc_factor
1 GLONASS L2 0 12 1,585
1 BeiDou B1 26 25 1,262
1 GLONASS L1 0 18 1,116
1 GLONASS L2 0 11 1,042
1 GLONASS L1 0 9 1,038
1 Galileo E5A+B 14 19 1,000
1 GLONASS L1 0 12 995
1 GLONASS L2 0 17 980
1 BeiDou B3 29 21 978
1 BeiDou B3 29 45 975
P4-05_gt35_1: 1348.0
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,348
1 GLONASS L1 0 12 1,316
1 GLONASS L1 0 18 1,237
1 BeiDou B3 29 21 1,072
1 GPS L1 0 29 1,050
1 BeiDou B3 29 45 1,041
1 GPS L2 5 4 1,032
1 GPS L2 5 9 1,017
1 BeiDou B3 29 42 1,013
1 GPS L1 0 13 989

FFT Plots

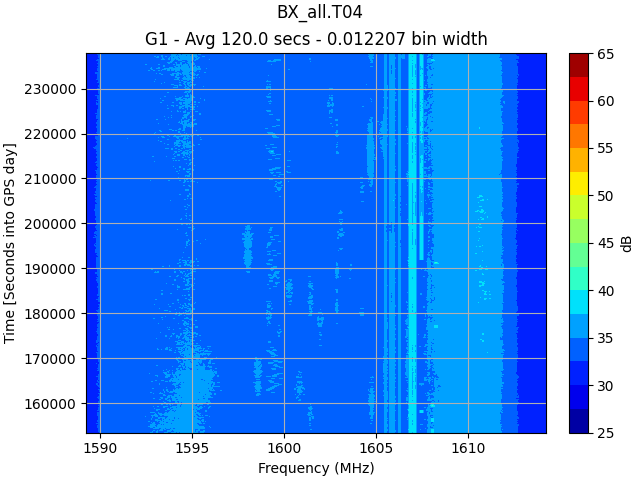

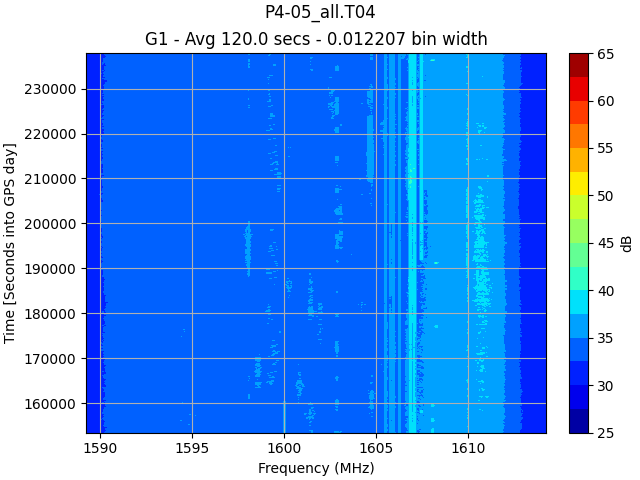

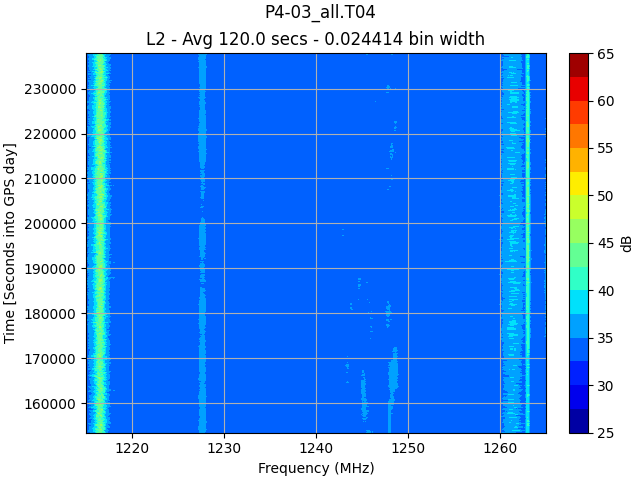

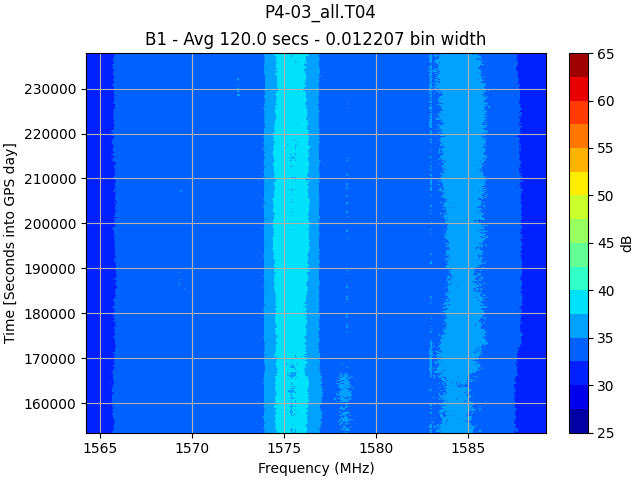

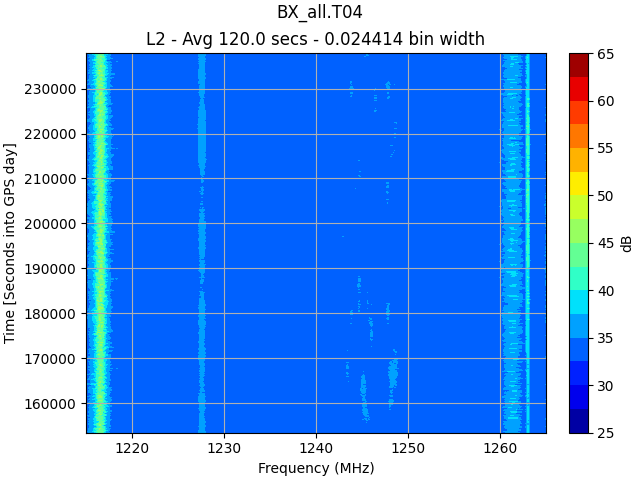

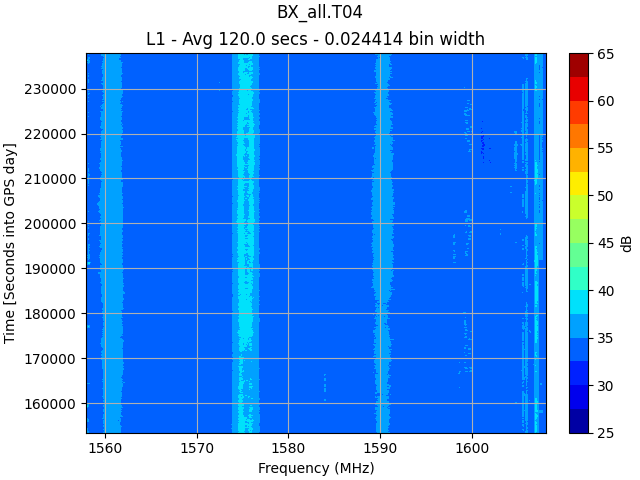

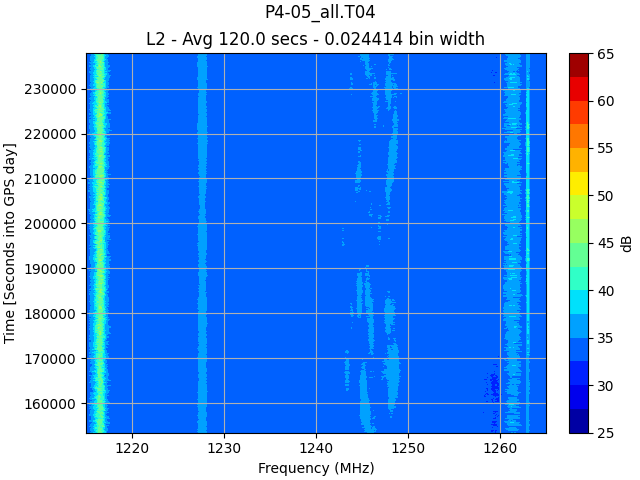

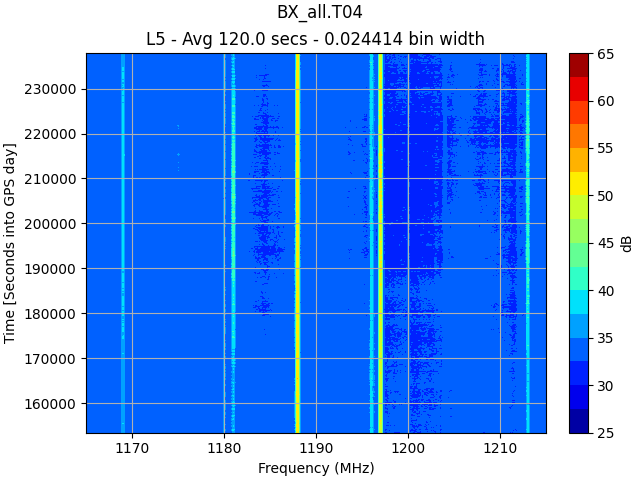

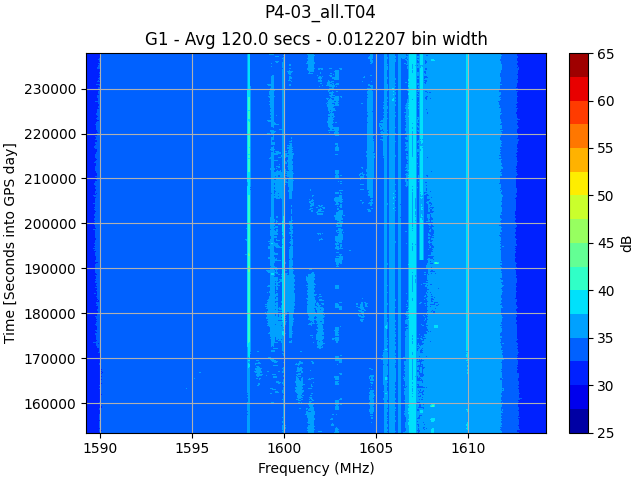

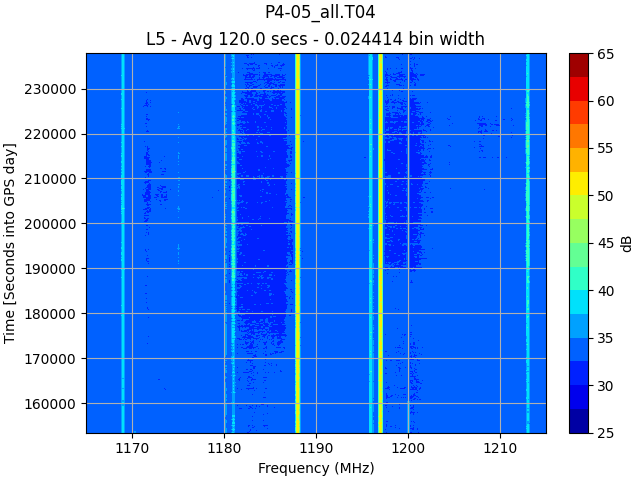

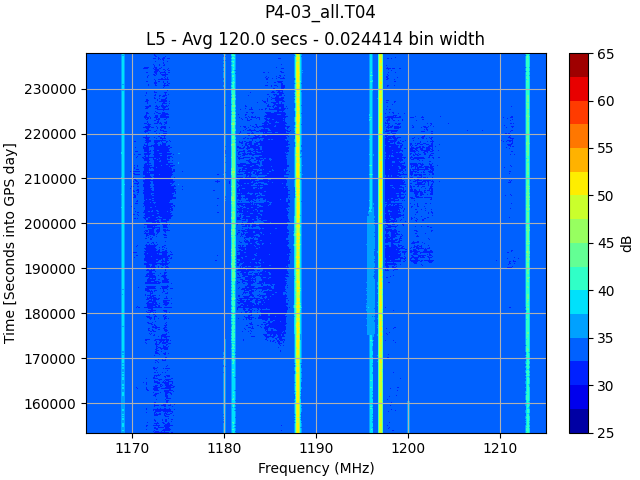

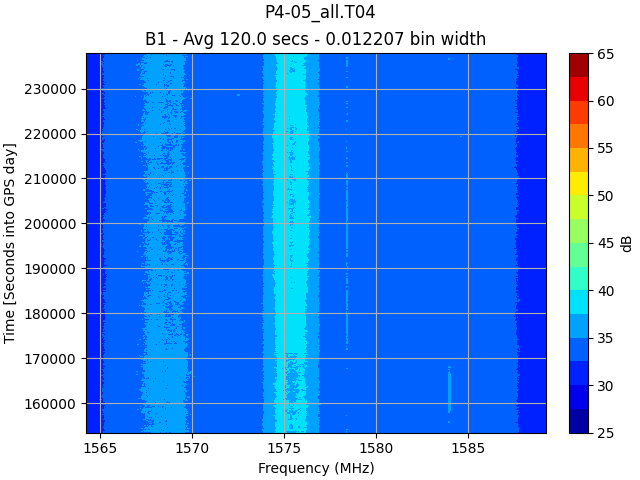

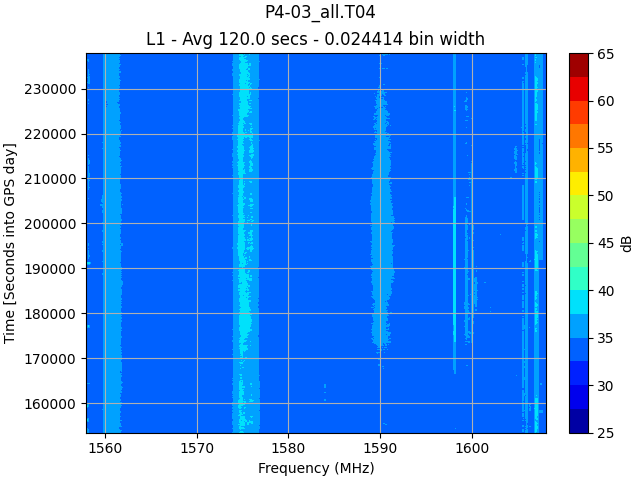

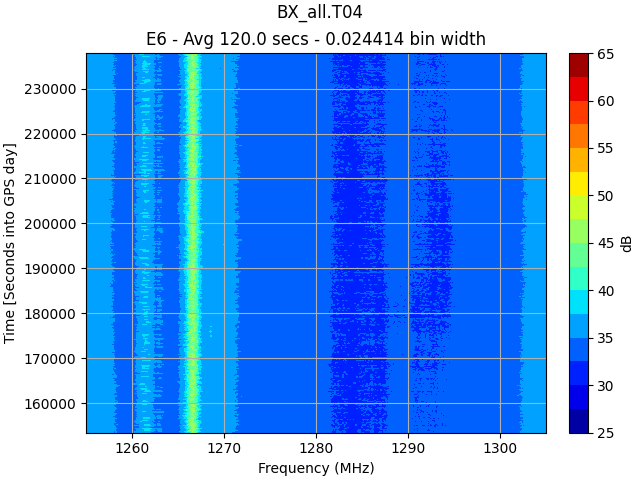

L1 L2 L5 E6 G1 B1
BX
P4-03
P4-05
