REF File: 1114_469.6mhz/BX_gt35.T04
DUT File: 1114_469.6mhz/P4-05_gt35.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 389441 47.5 47.5 2.3 37.6 56.1 18.5 55.5 89.0
GPS L2 CM+CL 309608 47.7 47.8 1.7 40.9 52.5 11.6 56.6 89.0
GPS L2 E 79833 36.6 36.5 3.3 28.3 45.3 17.0 51.2 78.0
GPS L5/E5A I+Q 216614 50.0 50.0 1.8 44.1 54.3 10.2 55.8 89.0
SBAS L1 CA 254250 42.8 42.9 0.8 39.7 45.6 5.9 39.9 42.0
GLONASS L1 CA 303906 46.8 48.3 4.5 30.9 54.8 23.9 53.6 88.0
GLONASS L2 CA 258757 46.7 47.4 2.6 1.0 51.4 50.4 53.2 88.0
Galileo L1 MBOC-PD 280858 48.4 48.3 2.3 39.4 54.8 15.4 54.7 87.0
Galileo E5A+B AltBOC-Comp-PD 280858 49.5 49.7 1.5 44.2 53.4 9.2 54.7 87.0
BeiDou L1 BOC-PD 301499 49.1 49.3 2.0 40.9 53.5 12.6 55.8 90.0
BeiDou L5/E5A I+Q 301499 48.3 48.5 1.5 42.6 52.1 9.5 55.8 90.0
BeiDou E5B/B2 BPSK(2)-B2 36680 47.5 47.5 0.7 44.3 50.0 5.7 53.4 83.0
BeiDou B1 BPSK(2)-B1 338179 48.7 48.9 2.3 39.4 54.1 14.7 55.5 90.0
BeiDou B3 BPSK(10)-B3 338179 47.5 47.6 1.1 41.8 50.2 8.4 55.5 90.0
MSS MSS None 58811 49.2 49.3 0.8 45.1 51.6 6.5 NaN NaN
start/stop time: 153,380 238,129
Total time: 84,749.0 seconds
Total time: 1,412.483 minutes
Total time: 23.541 hours
Total Samples: 3,748,972
Avg Samples/sec: 44.2

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 389463 47.3 47.3 2.3 37.9 54.7 16.8 55.5 89.0
GPS L2 CM+CL 309629 47.6 47.6 1.8 39.9 52.7 12.8 56.6 89.0
GPS L2 E 79834 36.0 36.0 3.3 25.8 44.8 19.0 51.2 78.0
GPS L5/E5A I+Q 216627 49.7 49.9 1.8 43.3 54.5 11.2 55.8 89.0
SBAS L1 CA 254268 41.9 42.9 2.2 36.3 45.9 9.6 39.9 42.0
GLONASS L1 CA 303935 46.4 47.9 4.4 29.8 53.9 24.1 53.6 88.0
GLONASS L2 CA 258801 46.6 47.3 2.6 7.5 52.1 44.6 53.2 88.0
Galileo L1 MBOC-PD 280882 48.2 48.1 2.2 39.2 53.8 14.6 54.7 87.0
Galileo E5A+B AltBOC-Comp-PD 280882 49.3 49.6 1.5 42.7 52.6 9.9 54.7 87.0
BeiDou L1 BOC-PD 301518 48.8 49.0 1.9 40.5 53.7 13.2 55.8 90.0
BeiDou L5/E5A I+Q 301518 48.1 48.2 1.5 42.2 51.9 9.7 55.8 90.0
BeiDou E5B/B2 BPSK(2)-B2 36677 47.4 47.4 0.9 43.0 50.3 7.3 53.4 83.0
BeiDou B1 BPSK(2)-B1 338195 48.6 48.9 2.2 38.7 54.4 15.7 55.6 90.0
BeiDou B3 BPSK(10)-B3 338195 47.3 47.5 1.1 40.9 50.4 9.5 55.6 90.0
MSS MSS NaN 58738 49.3 49.5 1.1 46.1 51.8 5.7 NaN NaN
start/stop time: 153,378 238,133
Total time: 84,755.0 seconds
Total time: 1,412.583 minutes
Total time: 23.543 hours
Total Samples: 3,749,162
Avg Samples/sec: 44.2

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 389421 +0.2 +0.2 +1.1 -5.3 +6.6 +11.9 +55.5 +89.0
GPS L2 CM+CL 309591 +0.1 +0.1 +0.9 -4.4 +5.4 +9.8 +56.6 +89.0
GPS L2 E 79830 +0.5 +0.5 +1.1 -4.7 +6.2 +10.9 +51.2 +78.0
GPS L5/E5A I+Q 216601 +0.2 +0.2 +0.7 -3.1 +3.7 +6.8 +55.8 +89.0
SBAS L1 CA 254250 +0.9 +0.1 +1.8 -2.6 +6.0 +8.6 +39.9 +42.0
GLONASS L1 CA 303887 +0.4 +0.4 +1.2 -5.7 +5.6 +11.3 +53.6 +88.0
GLONASS L2 CA 258703 +0.0 +0.0 +0.8 -4.3 +25.4 +29.7 +53.2 +88.0
Galileo L1 MBOC-PD 280848 +0.2 +0.2 +0.9 -4.3 +5.0 +9.3 +54.7 +87.0
Galileo E5A+B AltBOC-Comp-PD 280848 +0.2 +0.2 +0.5 -2.4 +2.5 +4.9 +54.7 +87.0
BeiDou L1 BOC-PD 301481 +0.3 +0.3 +0.9 -4.2 +5.6 +9.8 +55.8 +90.0
BeiDou L5/E5A I+Q 301481 +0.2 +0.2 +0.7 -3.0 +3.2 +6.2 +55.8 +90.0
BeiDou E5B/B2 BPSK(2)-B2 36676 +0.1 +0.1 +0.8 -2.5 +3.8 +6.3 +53.4 +83.0
BeiDou B1 BPSK(2)-B1 338157 +0.0 +0.0 +1.1 -5.9 +5.3 +11.2 +55.6 +90.0
BeiDou B3 BPSK(10)-B3 338157 +0.1 +0.1 +0.6 -2.8 +3.3 +6.1 +55.6 +90.0
MSS MSS nan 52022 -0.1 -0.2 +0.9 -2.9 +3.0 +5.9 +nan +nan
start/stop time: 153,380 238,129
Total time: 84,749.0 seconds
Total time: 1,412.483 minutes
Total time: 23.541 hours
Total Samples: 3,741,953
Avg Samples/sec: 44.2

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.232
Median = 0.200
Std Dev= 1.008

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 45.4 48.7 41.2 0 [14.0] [0.0] 7156
3 55.5 0.0 47.9 51.9 41.8 119 [31.0, 32.0] [0.0] 10423
4 60.4 -0.0 47.0 52.0 40.9 0 [34.0] [0.0] 14888
5 58.8 -0.0 47.8 51.8 41.6 0 [34.0] [0.0] 12785
6 59.3 0.0 48.3 52.8 38.4 0 [36.0] [0.0] 12982
7 58.8 -0.0 47.9 52.1 40.7 0 [29.0] [0.0] 16233
8 47.4 0.0 46.5 50.7 40.9 0 [36.0] [0.0] 9456
9 59.5 0.0 48.6 53.2 40.4 0 [33.0] [0.0] 13211
10 55.7 -0.0 49.4 54.5 39.0 0 [22.0] [0.0] 16769
11 61.2 -0.0 47.7 52.1 40.8 0 [32.0] [0.0] 14427
12 57.5 -0.0 48.3 51.9 41.4 0 [29.0] [0.0] 12438
13 37.3 0.1 45.9 49.3 40.9 22 [4.0, 37.0] [0.0] 8867
14 56.5 0.0 47.1 51.1 40.5 0 [11.0] [0.0] 16753
15 51.1 -0.0 47.1 50.3 42.3 0 [24.0] [0.0] 10605
16 52.4 -0.0 46.4 49.6 40.1 0 [21.0] [0.0] 10827
17 60.9 -0.0 48.2 52.5 41.3 0 [3.0] [0.0] 14972
18 58.3 0.0 47.5 52.2 41.4 0 [25.0] [0.0] 15593
19 58.8 0.0 47.6 52.1 39.4 0 [24.0] [0.0] 15394
20 54.3 -0.0 46.1 49.7 40.7 0 [30.0] [0.0] 11843
21 43.7 -0.0 46.0 49.0 40.2 0 [17.0] [0.0] 8546
22 56.5 0.0 47.5 51.3 40.7 0 [15.0] [0.0] 17200
23 56.1 -0.0 47.0 51.1 40.9 0 [35.0] [0.0] 16466
24 39.6 0.0 45.1 49.0 41.2 0 [23.0] [0.0] 6228
25 47.9 0.0 46.4 50.5 38.5 0 [18.0] [0.0] 9700
26 50.3 0.0 46.3 50.0 41.1 0 [25.0] [0.0] 9019
27 37.1 0.0 45.5 48.1 41.4 248 [28.0, 32.0] [0.0] 8716
28 59.4 0.0 46.2 50.6 37.6 185 [16.0, 13.0] [0.0] 11590
29 61.1 -0.0 48.3 52.7 41.1 0 [21.0] [0.0] 13776
30 61.3 -0.0 48.8 53.1 40.3 0 [22.0] [0.0] 14670
31 58.5 0.0 48.2 52.6 43.2 26 [11.0, 24.0] [0.0] 12185
32 59.3 -0.0 50.2 56.1 42.4 0 [20.0] [0.0] 15723
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 0.0 45.7 48.8 42.1 0 [24.0] [0.0] 7156
3 55.5 0.0 47.9 52.0 41.3 219 [21.0, 34.0] [0.0] 10430
4 60.4 0.0 46.6 51.3 39.8 0 [14.0] [0.0] 14887
5 58.8 0.0 47.8 51.9 42.1 0 [15.0] [0.0] 12787
6 59.3 0.0 48.1 52.8 38.9 0 [35.0] [0.0] 12983
7 58.8 -0.0 47.5 51.4 42.1 0 [34.0] [0.0] 16233
8 47.4 0.0 46.5 50.2 41.4 0 [35.0] [0.0] 9457
9 59.5 0.0 48.5 52.9 40.0 0 [29.0] [0.0] 13212
10 55.7 -0.0 49.2 53.8 42.5 0 [17.0] [0.0] 16768
11 61.2 -0.0 47.6 52.4 40.5 0 [34.0] [0.0] 14426
12 57.5 -0.0 48.0 52.4 43.3 0 [17.0] [0.0] 12439
13 37.3 0.0 45.5 48.9 40.5 113 [8.0, 36.0] [0.0] 8868
14 56.5 -0.0 47.0 51.2 40.0 0 [15.0] [0.0] 16751
15 51.1 0.0 47.0 50.1 41.3 0 [25.0] [0.0] 10605
16 52.4 0.0 46.1 50.0 37.9 0 [3.0] [0.0] 10827
17 60.9 -0.0 48.1 52.8 42.3 0 [6.0] [0.0] 14972
18 58.3 0.0 47.3 51.2 42.0 0 [32.0] [0.0] 15593
19 58.8 -0.0 47.3 52.2 40.5 0 [23.0] [0.0] 15394
20 54.3 0.0 45.9 49.6 39.5 0 [33.0] [0.0] 11843
21 43.7 -0.0 45.9 49.3 38.8 0 [22.0] [0.0] 8546
22 56.5 -0.0 47.3 51.1 38.7 0 [22.0] [0.0] 17200
23 56.1 -0.0 46.8 50.8 41.4 0 [37.0] [0.0] 16464
24 39.6 0.0 44.7 48.9 39.6 0 [19.0] [0.0] 6228
25 47.9 -0.0 46.3 51.0 40.9 0 [20.0] [0.0] 9699
26 50.3 0.0 46.4 50.3 40.3 0 [30.0] [0.0] 9021
27 37.1 -0.0 45.2 49.0 40.0 191 [26.0, 34.0] [0.0] 8715
28 59.4 -0.0 46.2 50.2 39.4 85 [13.0] [0.0] 11599
29 61.1 -0.0 48.3 52.6 40.8 0 [31.0] [0.0] 13775
30 61.3 -0.0 48.5 53.0 39.2 0 [24.0] [0.0] 14670
31 58.5 -0.0 48.0 52.1 42.5 62 [31.0, 25.0] [0.0] 12191
32 59.3 -0.0 49.8 54.7 40.6 0 [21.0] [0.0] 15724
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 -0.2 2.5 -3.6 [14.0, 24.0] 7155
3 55.5 -0.0 4.6 -3.4 [31.0, 21.0, 32.0, 34.0] 10423
4 60.4 0.5 6.6 -4.8 [34.0, 14.0] 14887
5 58.8 0.0 4.2 -4.0 [34.0, 15.0] 12785
6 59.3 0.2 5.2 -4.8 [36.0, 35.0] 12982
7 58.8 0.4 5.3 -5.1 [29.0, 34.0] 16233
8 47.4 0.1 3.5 -3.3 [36.0, 35.0] 9456
9 59.5 0.1 5.6 -3.4 [33.0, 29.0] 13211
10 55.7 0.2 3.8 -5.3 [22.0, 17.0] 16768
11 61.2 0.0 3.5 -3.7 [32.0, 34.0] 14426
12 57.5 0.3 5.5 -4.0 [29.0, 17.0] 12437
13 37.3 0.4 5.3 -3.9 [4.0, 8.0, 37.0, 36.0] 8867
14 56.5 0.1 3.4 -4.9 [11.0, 15.0] 16751
15 51.1 0.1 4.2 -3.2 [24.0, 25.0] 10604
16 52.4 0.3 4.3 -3.8 [21.0, 3.0] 10826
17 60.9 0.1 3.0 -4.3 [3.0, 6.0] 14972
18 58.3 0.2 5.9 -3.6 [25.0, 32.0] 15592
19 58.8 0.3 4.5 -3.6 [24.0, 23.0] 15394
20 54.3 0.3 3.8 -3.3 [30.0, 33.0] 11843
21 43.7 0.1 4.2 -4.4 [17.0, 22.0] 8546
22 56.5 0.2 3.8 -2.7 [15.0, 22.0] 17199
23 56.1 0.2 4.4 -4.5 [35.0, 37.0] 16464
24 39.6 0.4 4.7 -3.2 [23.0, 19.0] 6228
25 47.9 0.1 4.2 -5.2 [18.0, 20.0] 9699
26 50.3 -0.1 2.7 -3.7 [25.0, 30.0] 9019
27 37.1 0.3 4.2 -4.0 [28.0, 26.0, 32.0, 34.0] 8714
28 59.4 -0.0 3.5 -4.6 [16.0, 13.0] 11589
29 61.1 0.0 5.7 -4.1 [21.0, 31.0] 13775
30 61.3 0.3 5.9 -3.4 [22.0, 24.0] 14670
31 58.5 0.2 3.9 -4.4 [11.0, 31.0, 24.0, 25.0] 12184
32 59.3 0.4 4.1 -3.1 [20.0, 21.0] 15722
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 35.1 37.9 29.3 0 [14.0] [0.0] 7156
13 37.3 0.1 32.2 35.9 28.4 28 [4.0, 37.0] [0.0] 8867
16 52.4 -0.0 35.8 40.3 28.3 0 [21.0] [0.0] 10827
19 58.8 0.0 39.8 45.3 30.4 0 [24.0] [0.0] 15394
20 54.3 -0.0 36.6 40.3 28.9 0 [30.0] [0.0] 11843
21 43.7 -0.0 34.8 39.4 28.7 0 [17.0] [0.0] 8546
22 56.5 0.0 37.8 42.3 29.4 0 [15.0] [0.0] 17200

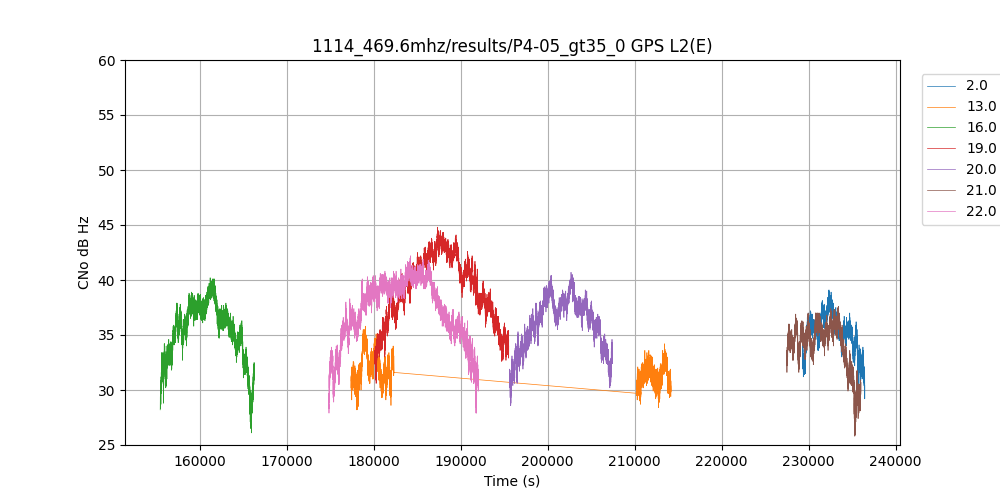

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 0.0 35.2 39.1 29.2 0 [24.0] [0.0] 7156
13 37.3 0.0 31.7 35.8 28.2 217 [8.0, 36.0] [0.0] 8868
16 52.4 0.0 35.4 40.2 26.1 0 [3.0] [0.0] 10827
19 58.8 -0.0 39.2 44.8 30.6 0 [23.0] [0.0] 15394
20 54.3 0.0 36.0 40.7 28.6 0 [33.0] [0.0] 11843
21 43.7 -0.0 34.0 37.6 25.8 0 [22.0] [0.0] 8546
22 56.5 -0.0 37.2 42.2 27.9 0 [22.0] [0.0] 17200

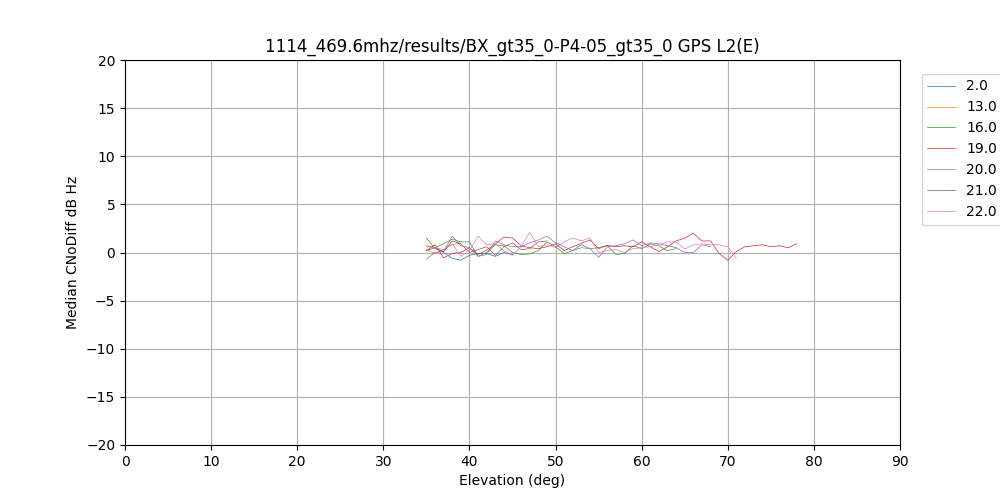

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 -0.1 3.9 -3.6 [14.0, 24.0] 7155
13 37.3 0.5 4.5 -3.8 [4.0, 8.0, 37.0, 36.0] 8867
16 52.4 0.4 4.6 -3.5 [21.0, 3.0] 10826
19 58.8 0.6 4.1 -4.4 [24.0, 23.0] 15394
20 54.3 0.6 3.9 -3.2 [30.0, 33.0] 11843
21 43.7 0.8 6.2 -4.7 [17.0, 22.0] 8546
22 56.5 0.6 5.9 -3.0 [15.0, 22.0] 17199
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.5 0.0 48.0 50.3 44.1 75 [31.0, 32.0] [0.0] 10423
4 60.4 -0.0 48.6 52.5 42.5 0 [34.0] [0.0] 14888
5 58.8 -0.0 47.2 50.1 42.6 0 [34.0] [0.0] 12785
6 59.3 0.0 48.6 50.9 44.2 0 [36.0] [0.0] 12982
7 58.8 -0.0 46.4 49.9 40.9 0 [29.0] [0.0] 16233
8 47.4 0.0 47.2 49.3 43.5 0 [36.0] [0.0] 9456
9 59.5 0.0 48.5 51.2 42.2 0 [33.0] [0.0] 13211
10 55.7 -0.0 48.2 51.1 43.7 0 [22.0] [0.0] 16769
11 61.2 -0.0 49.1 52.1 45.6 0 [32.0] [0.0] 14427
12 57.5 -0.0 46.8 49.7 42.2 0 [29.0] [0.0] 12438
14 56.5 0.0 48.7 51.8 43.1 0 [11.0] [0.0] 16753
15 51.1 -0.0 45.7 48.6 41.4 0 [24.0] [0.0] 10605
17 60.9 -0.0 46.9 50.0 41.8 0 [3.0] [0.0] 14972
18 58.3 0.0 48.8 51.7 42.8 0 [25.0] [0.0] 15593
23 56.1 -0.0 48.2 51.2 43.6 0 [35.0] [0.0] 16466
24 39.6 0.0 46.5 48.8 44.1 0 [23.0] [0.0] 6228
25 47.9 0.0 46.8 48.8 43.8 0 [18.0] [0.0] 9700
26 50.3 0.0 47.1 49.2 43.4 0 [25.0] [0.0] 9019
27 37.1 0.0 45.5 47.9 42.3 241 [28.0, 32.0] [0.0] 8716
28 59.4 0.0 48.7 51.5 44.7 118 [16.0, 13.0] [0.0] 11590
29 61.1 -0.0 47.2 50.0 41.3 0 [21.0] [0.0] 13776
30 61.3 -0.0 48.0 50.9 42.7 0 [22.0] [0.0] 14670
31 58.5 0.0 46.4 49.5 41.4 5 [11.0, 24.0] [0.0] 12185
32 59.3 -0.0 47.8 50.9 43.0 0 [20.0] [0.0] 15723
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.5 0.0 47.7 50.0 44.5 13 [21.0, 34.0] [0.0] 10430
4 60.4 0.0 48.7 52.3 42.8 0 [14.0] [0.0] 14887
5 58.8 0.0 47.1 50.2 42.8 0 [15.0] [0.0] 12787
6 59.3 0.0 48.5 51.4 43.7 0 [35.0] [0.0] 12983
7 58.8 -0.0 46.3 50.1 39.9 0 [34.0] [0.0] 16233
8 47.4 0.0 47.2 49.7 43.7 0 [35.0] [0.0] 9457
9 59.5 0.0 48.5 50.9 42.2 0 [29.0] [0.0] 13212
10 55.7 -0.0 48.2 51.3 44.1 0 [17.0] [0.0] 16768
11 61.2 -0.0 49.1 52.7 44.9 0 [34.0] [0.0] 14426
12 57.5 -0.0 46.7 49.6 42.1 0 [17.0] [0.0] 12439
14 56.5 -0.0 48.6 52.1 42.2 0 [15.0] [0.0] 16751
15 51.1 0.0 45.7 49.0 41.0 0 [25.0] [0.0] 10605
17 60.9 -0.0 46.7 50.5 40.0 0 [6.0] [0.0] 14972
18 58.3 0.0 48.8 51.8 43.9 0 [32.0] [0.0] 15593
23 56.1 -0.0 48.0 51.4 43.4 0 [37.0] [0.0] 16464
24 39.6 0.0 46.0 49.4 41.4 0 [19.0] [0.0] 6228
25 47.9 -0.0 46.4 48.6 42.9 0 [20.0] [0.0] 9699
26 50.3 0.0 46.9 49.3 43.3 0 [30.0] [0.0] 9021
27 37.1 -0.0 45.7 48.0 43.2 14 [26.0, 34.0] [0.0] 8715
28 59.4 -0.0 48.7 51.7 44.3 69 [13.0] [0.0] 11599
29 61.1 -0.0 47.1 50.4 41.4 0 [31.0] [0.0] 13775
30 61.3 -0.0 48.0 50.8 42.6 0 [24.0] [0.0] 14670
31 58.5 -0.0 46.3 49.9 41.7 249 [31.0, 25.0] [0.0] 12191
32 59.3 -0.0 47.6 50.7 42.1 0 [21.0] [0.0] 15724
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 55.5 0.2 3.3 -2.3 [31.0, 21.0, 32.0, 34.0] 10423
4 60.4 -0.1 4.2 -3.0 [34.0, 14.0] 14887
5 58.8 0.1 3.2 -2.0 [34.0, 15.0] 12785
6 59.3 0.1 3.5 -3.0 [36.0, 35.0] 12982
7 58.8 0.1 3.6 -3.0 [29.0, 34.0] 16233
8 47.4 -0.0 2.5 -3.1 [36.0, 35.0] 9456
9 59.5 -0.0 3.0 -3.8 [33.0, 29.0] 13211
10 55.7 -0.0 2.7 -2.7 [22.0, 17.0] 16768
11 61.2 0.0 2.8 -2.3 [32.0, 34.0] 14426
12 57.5 0.1 3.2 -3.0 [29.0, 17.0] 12437
14 56.5 0.1 3.5 -2.9 [11.0, 15.0] 16751
15 51.1 -0.0 3.1 -3.1 [24.0, 25.0] 10604
17 60.9 0.2 3.9 -2.4 [3.0, 6.0] 14972
18 58.3 0.0 3.0 -4.4 [25.0, 32.0] 15592
23 56.1 0.2 3.5 -2.8 [35.0, 37.0] 16464
24 39.6 0.5 5.4 -3.1 [23.0, 19.0] 6228
25 47.9 0.4 3.6 -2.8 [18.0, 20.0] 9699
26 50.3 0.1 2.6 -2.6 [25.0, 30.0] 9019
27 37.1 -0.2 3.1 -2.9 [28.0, 26.0, 32.0, 34.0] 8714
28 59.4 0.0 2.8 -3.0 [16.0, 13.0] 11589
29 61.1 0.1 3.3 -2.4 [21.0, 31.0] 13775
30 61.3 0.0 4.2 -3.0 [22.0, 24.0] 14670
31 58.5 0.1 3.1 -2.7 [11.0, 31.0, 24.0, 25.0] 12184
32 59.3 0.3 3.9 -2.9 [20.0, 21.0] 15722
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.5 0.0 50.7 52.8 46.5 39 [31.0, 32.0] [0.0] 10423
4 60.4 -0.0 50.3 53.2 45.7 0 [34.0] [0.0] 14888
6 59.3 0.0 50.2 53.3 45.8 0 [36.0] [0.0] 12982
8 47.4 0.0 49.3 50.8 45.8 0 [36.0] [0.0] 9456
9 59.5 0.0 50.6 52.6 45.9 0 [33.0] [0.0] 13211
10 55.7 -0.0 49.7 52.0 45.8 0 [22.0] [0.0] 16769
11 61.2 -0.0 50.9 53.9 45.2 0 [32.0] [0.0] 14427
14 56.5 0.0 50.6 54.3 45.9 0 [11.0] [0.0] 16753
18 58.3 0.0 50.8 53.3 45.4 0 [25.0] [0.0] 15593
23 56.1 -0.0 49.9 53.2 45.5 0 [35.0] [0.0] 16466
24 39.6 0.0 48.5 50.0 45.8 0 [23.0] [0.0] 6228
25 47.9 0.0 49.3 52.0 46.8 0 [18.0] [0.0] 9700
26 50.3 0.0 49.4 51.2 46.0 0 [25.0] [0.0] 9019
27 37.1 0.0 47.0 48.8 44.8 118 [28.0, 32.0] [0.0] 8716
28 59.4 0.0 50.5 52.9 45.8 45 [16.0, 13.0] [0.0] 11590
30 61.3 -0.0 51.1 53.0 45.8 0 [22.0] [0.0] 14670
32 59.3 -0.0 48.5 51.0 44.1 0 [20.0] [0.0] 15723
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.5 0.0 50.4 52.2 47.6 134 [21.0, 34.0] [0.0] 10430
4 60.4 0.0 50.0 53.4 45.1 0 [14.0] [0.0] 14887
6 59.3 0.0 49.8 53.2 44.0 0 [35.0] [0.0] 12983
8 47.4 0.0 48.9 51.4 45.1 0 [35.0] [0.0] 9457
9 59.5 0.0 50.4 52.3 46.3 0 [29.0] [0.0] 13212
10 55.7 -0.0 49.5 52.2 45.2 0 [17.0] [0.0] 16768
11 61.2 -0.0 50.5 54.5 43.3 0 [34.0] [0.0] 14426
14 56.5 -0.0 50.3 54.1 44.6 0 [15.0] [0.0] 16751
18 58.3 0.0 50.8 53.9 45.6 0 [32.0] [0.0] 15593
23 56.1 -0.0 49.5 53.0 45.2 0 [37.0] [0.0] 16464
24 39.6 0.0 48.1 50.0 45.8 0 [19.0] [0.0] 6228
25 47.9 -0.0 49.1 51.6 45.1 0 [20.0] [0.0] 9699
26 50.3 0.0 49.0 51.5 45.0 0 [30.0] [0.0] 9021
27 37.1 -0.0 47.2 49.1 43.4 148 [26.0, 34.0] [0.0] 8715
28 59.4 -0.0 50.2 52.9 44.5 25 [13.0] [0.0] 11599
30 61.3 -0.0 50.9 53.5 46.4 0 [24.0] [0.0] 14670
32 59.3 -0.0 48.4 50.8 44.1 0 [21.0] [0.0] 15724
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 55.5 0.3 2.2 -2.5 [31.0, 21.0, 32.0, 34.0] 10423
4 60.4 0.3 2.4 -2.0 [34.0, 14.0] 14887
6 59.3 0.3 2.3 -1.4 [36.0, 35.0] 12982
8 47.4 0.3 2.7 -1.9 [36.0, 35.0] 9456
9 59.5 0.2 2.0 -2.1 [33.0, 29.0] 13211
10 55.7 0.1 2.4 -2.7 [22.0, 17.0] 16768
11 61.2 0.3 2.7 -1.6 [32.0, 34.0] 14426
14 56.5 0.3 3.0 -1.7 [11.0, 15.0] 16751
18 58.3 -0.0 2.1 -2.2 [25.0, 32.0] 15592
23 56.1 0.3 2.9 -1.4 [35.0, 37.0] 16464
24 39.6 0.4 3.0 -2.7 [23.0, 19.0] 6228
25 47.9 0.1 3.7 -1.9 [18.0, 20.0] 9699
26 50.3 0.4 2.7 -1.8 [25.0, 30.0] 9019
27 37.1 -0.2 3.6 -3.1 [28.0, 26.0, 32.0, 34.0] 8714
28 59.4 0.3 2.1 -1.5 [16.0, 13.0] 11589
30 61.3 0.2 1.9 -2.3 [22.0, 24.0] 14670
32 59.3 0.1 2.7 -2.0 [20.0, 21.0] 15722
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 43.2 45.6 40.9 0 [57.0] [0.0] 84750
133 38.0 0.0 42.3 44.5 39.7 0 [55.0] [0.0] 84750
135 39.6 0.0 43.0 45.1 40.6 0 [54.0] [0.0] 84750
DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 43.8 45.9 41.3 0 [55.0] [0.0] 84756
133 38.0 0.0 39.1 41.3 36.3 0 [54.0] [0.0] 84756
135 39.6 0.0 42.9 44.9 40.6 0 [57.0] [0.0] 84756
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 -0.6 1.4 -2.6 [57.0, 55.0] 84750
133 38.0 3.2 6.0 1.0 [55.0, 54.0] 84750
135 39.6 0.1 1.9 -2.0 [54.0, 57.0] 84750
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.2 0.0 44.5 48.3 39.3 167 [1.0] [0.0] 10004
2 49.3 0.0 49.3 52.8 43.1 0 [-4.0] [0.0] 8707
3 59.2 -0.0 47.8 51.5 42.2 0 [5.0] [0.0] 11050
4 59.3 -0.0 48.1 51.2 43.0 0 [6.0] [0.0] 12372
5 50.5 0.0 49.9 53.5 42.9 71 [1.0] [0.0] 15491
6 57.3 -0.0 38.8 42.0 33.7 204 [-4.0] [0.0] 19239
7 58.1 -0.0 48.7 52.2 42.7 54 [5.0] [0.0] 12940
8 52.8 0.0 45.9 48.8 40.6 0 [6.0] [0.0] 9566
9 57.1 0.0 49.0 52.8 43.7 150 [-2.0] [0.0] 14174
10 52.4 0.0 44.9 48.9 38.0 0 [-7.0] [0.0] 13683
11 49.7 -0.0 49.9 54.8 44.9 0 [0.0] [0.0] 14339
12 56.9 -0.0 50.3 54.2 44.0 0 [-1.0] [0.0] 12907
13 61.1 0.0 39.2 43.9 31.6 0 [-2.0] [0.0] 11637
14 52.3 -0.0 51.2 54.5 44.1 0 [-7.0] [0.0] 9487
15 39.7 -0.0 48.7 52.1 44.6 265 [0.0] [0.0] 11192
16 58.0 -0.0 49.7 53.1 44.3 252 [-1.0] [0.0] 13606
17 49.4 -0.0 48.8 53.2 42.6 0 [4.0] [0.0] 14192
18 55.4 -0.0 49.6 52.6 43.4 0 [-3.0] [0.0] 12911
19 60.8 -0.0 39.0 41.8 33.3 0 [3.0] [0.0] 11897
20 50.6 -0.0 37.4 40.7 30.9 111 [2.0] [0.0] 12914
21 46.3 -0.0 48.6 52.3 43.7 3 [4.0] [0.0] 14777
22 58.0 -0.0 50.1 53.7 44.0 0 [-3.0] [0.0] 10744
23 59.1 0.0 47.2 50.6 41.8 0 [3.0] [0.0] 12264
24 51.6 0.0 49.8 53.2 44.5 0 [2.0] [0.0] 13813
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.2 -0.0 44.4 48.2 39.4 142 [1.0] [0.0] 10004
2 49.3 -0.0 49.2 53.0 44.6 0 [-4.0] [0.0] 8709
3 59.2 -0.0 46.7 50.6 39.1 0 [5.0] [0.0] 11052
4 59.3 -0.0 47.2 50.3 41.2 0 [6.0] [0.0] 12370
5 50.5 0.0 49.4 52.9 43.6 218 [1.0] [0.0] 15495
6 57.3 0.0 38.3 41.9 31.4 13 [-4.0] [0.0] 19244
7 58.0 -0.0 48.3 52.4 41.8 46 [5.0] [0.0] 12946
8 52.8 -0.0 45.5 48.4 41.3 0 [6.0] [0.0] 9565
9 57.1 -0.0 48.5 52.1 40.9 64 [-2.0] [0.0] 14177
10 52.4 0.0 44.4 47.9 36.6 0 [-7.0] [0.0] 13684
11 49.7 0.0 49.6 53.4 44.6 0 [0.0] [0.0] 14341
12 56.9 0.0 50.1 52.9 45.1 0 [-1.0] [0.0] 12907
13 61.1 0.0 39.0 42.8 29.8 0 [-2.0] [0.0] 11636
14 52.3 0.0 50.7 53.9 44.6 0 [-7.0] [0.0] 9485
15 39.7 0.0 48.7 52.3 44.5 364 [0.0] [0.0] 11194
16 58.0 0.0 49.5 53.1 43.4 199 [-1.0] [0.0] 13610
17 49.4 -0.0 48.3 51.5 42.6 0 [4.0] [0.0] 14192
18 55.4 0.0 49.2 53.0 42.4 0 [-3.0] [0.0] 12914
19 60.8 0.0 38.4 41.4 31.9 0 [3.0] [0.0] 11897
20 50.6 -0.0 37.2 40.7 32.4 78 [2.0] [0.0] 12912
21 46.3 0.0 48.3 52.5 42.2 129 [4.0] [0.0] 14779
22 58.0 0.0 49.6 52.6 44.5 0 [-3.0] [0.0] 10744
23 59.1 -0.0 46.5 49.7 41.3 0 [3.0] [0.0] 12264
24 51.6 -0.0 49.2 52.7 42.9 0 [2.0] [0.0] 13814

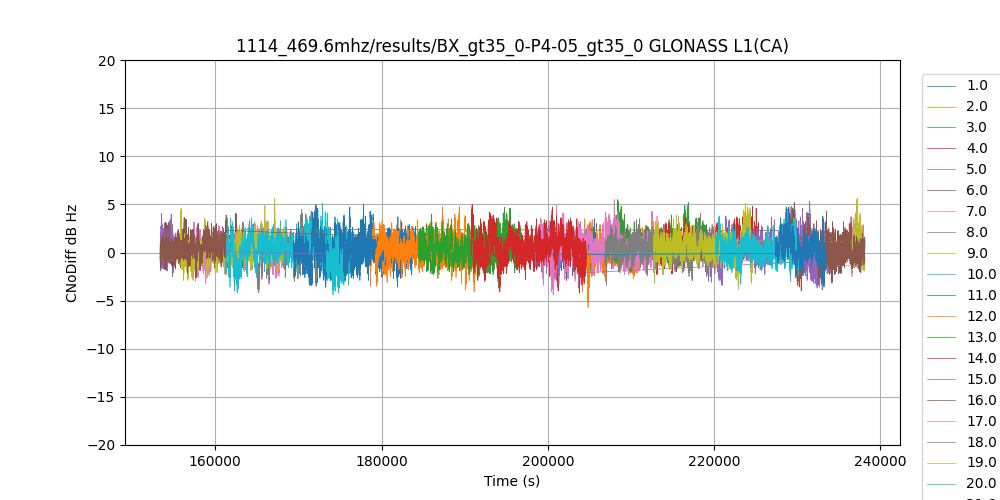

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.2 0.1 3.9 -3.5 [1.0] 10004
2 49.3 0.1 3.5 -5.7 [-4.0] 8707
3 59.2 1.1 5.5 -2.1 [5.0] 11050
4 59.3 0.9 4.8 -2.3 [6.0] 12370
5 50.5 0.5 5.3 -3.4 [1.0] 15490
6 57.3 0.5 5.2 -4.0 [-4.0] 19238
7 58.1 0.4 4.1 -3.3 [5.0] 12939
8 52.8 0.4 4.5 -4.2 [6.0] 9565
9 57.1 0.5 5.6 -3.0 [-2.0] 14172
10 52.4 0.5 5.1 -4.4 [-7.0] 13683
11 49.7 0.3 5.0 -3.6 [0.0] 14339
12 56.9 0.2 3.5 -4.1 [-1.0] 12907
13 61.1 0.2 4.6 -3.7 [-2.0] 11636
14 52.3 0.4 4.2 -4.1 [-7.0] 9485
15 39.7 -0.0 4.1 -3.9 [0.0] 11191
16 58.0 0.2 4.3 -3.4 [-1.0] 13604
17 49.4 0.5 5.5 -4.4 [4.0] 14192
18 55.4 0.4 4.1 -3.4 [-3.0] 12911
19 60.8 0.6 5.1 -3.8 [3.0] 11896
20 50.6 0.1 4.3 -3.7 [2.0] 12912
21 46.3 0.3 4.7 -3.6 [4.0] 14776
22 58.0 0.5 4.8 -3.5 [-3.0] 10743
23 59.1 0.7 4.7 -2.3 [3.0] 12264
24 51.6 0.6 5.0 -4.2 [2.0] 13813
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.2 0.0 41.4 44.8 37.4 225 [1.0] [0.0] 10004
2 49.3 0.0 46.8 48.8 43.0 0 [-4.0] [0.0] 8707
3 59.2 -0.0 47.8 50.0 42.7 0 [5.0] [0.0] 11050
4 59.3 -0.0 47.9 50.0 44.7 0 [6.0] [0.0] 12372
5 50.5 0.0 47.5 50.2 42.8 149 [1.0] [0.0] 15491
7 58.1 -0.0 48.0 51.1 44.2 246 [5.0] [0.0] 12940
8 52.8 0.0 47.3 49.8 43.6 0 [6.0] [0.0] 9566
9 57.1 0.0 48.8 51.4 44.3 96 [-2.0] [0.0] 14174
10 58.1 0.1 30.4 41.4 1.0 15 [-7.0] [0.0] 16
11 49.7 -0.0 48.3 51.0 44.0 0 [0.0] [0.0] 14339
12 56.9 -0.0 48.1 50.3 43.4 0 [-1.0] [0.0] 12907
13 61.1 0.0 40.7 43.1 37.1 0 [-2.0] [0.0] 11637
14 52.3 -0.0 47.6 49.9 44.7 0 [-7.0] [0.0] 9487
15 39.7 -0.0 46.1 48.5 43.0 218 [0.0] [0.0] 11192
16 58.0 -0.0 47.7 50.0 43.8 148 [-1.0] [0.0] 13606
17 49.4 -0.0 47.4 50.3 43.4 0 [4.0] [0.0] 14192
18 55.4 -0.0 47.6 50.4 43.3 0 [-3.0] [0.0] 12911
19 60.8 -0.0 45.6 48.0 42.5 0 [3.0] [0.0] 11897
20 50.6 -0.0 41.0 43.9 37.3 192 [2.0] [0.0] 12914
21 46.3 -0.0 46.8 49.4 43.2 157 [4.0] [0.0] 14777
22 58.0 -0.0 48.5 50.8 44.3 0 [-3.0] [0.0] 10744
23 59.0 0.0 35.4 42.4 24.8 20 [3.0] [0.0] 21
24 51.6 0.0 47.5 50.0 42.5 0 [2.0] [0.0] 13813
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.2 -0.0 41.3 45.0 37.9 114 [1.0] [0.0] 10004
2 49.3 -0.0 46.7 48.4 43.9 0 [-4.0] [0.0] 8709
3 59.2 -0.0 48.1 50.2 43.9 0 [5.0] [0.0] 11052
4 59.3 -0.0 48.0 50.4 43.9 0 [6.0] [0.0] 12370
5 50.5 0.0 47.3 50.5 42.7 74 [1.0] [0.0] 15495
7 58.0 -0.0 48.0 50.6 44.3 13 [5.0] [0.0] 12946
8 52.8 -0.0 47.5 49.8 44.0 0 [6.0] [0.0] 9565
9 57.1 -0.0 49.0 52.1 44.9 34 [-2.0] [0.0] 14177
10 60.1 -0.0 31.6 41.8 7.5 26 [-7.0] [0.0] 27
11 49.7 0.0 48.2 51.3 43.8 0 [0.0] [0.0] 14341
12 56.9 0.0 48.1 50.3 44.3 0 [-1.0] [0.0] 12907
13 61.1 0.0 40.6 43.2 36.7 0 [-2.0] [0.0] 11636
14 52.3 0.0 47.6 50.0 43.6 0 [-7.0] [0.0] 9485
15 39.7 0.0 45.8 48.1 42.4 271 [0.0] [0.0] 11194
16 58.0 0.0 47.7 50.5 43.8 9 [-1.0] [0.0] 13610
17 49.4 -0.0 47.4 50.2 42.8 0 [4.0] [0.0] 14192
18 55.4 0.0 47.6 50.0 43.8 0 [-3.0] [0.0] 12914
19 60.8 0.0 45.6 48.1 42.0 0 [3.0] [0.0] 11897
20 50.6 -0.0 40.9 43.9 35.4 226 [2.0] [0.0] 12912
21 46.3 0.0 46.5 48.9 42.5 130 [4.0] [0.0] 14779
22 58.0 0.0 48.8 51.0 44.5 0 [-3.0] [0.0] 10744
23 59.3 -0.1 36.1 43.7 15.5 30 [3.0] [0.0] 31
24 51.6 -0.0 47.3 50.3 42.8 0 [2.0] [0.0] 13814
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.2 0.1 3.7 -2.7 [1.0] 10004
2 49.3 0.1 3.2 -3.3 [-4.0] 8707
3 59.2 -0.3 2.9 -2.8 [5.0] 11050
4 59.3 -0.1 2.9 -2.4 [6.0] 12370
5 50.5 0.1 3.0 -2.3 [1.0] 15490
7 58.1 -0.0 3.6 -3.1 [5.0] 12939
8 52.8 -0.2 2.6 -3.3 [6.0] 9565
9 57.1 -0.2 2.9 -3.8 [-2.0] 14172
10 64.0 25.4 25.4 25.4 [-7.0] 1
11 49.7 0.0 3.0 -2.7 [0.0] 14339
12 56.9 -0.1 4.6 -3.0 [-1.0] 12907
13 61.1 0.2 3.5 -3.3 [-2.0] 11636
14 52.3 0.0 3.2 -3.0 [-7.0] 9485
15 39.7 0.4 3.0 -2.5 [0.0] 11191
16 58.0 -0.0 2.6 -2.7 [-1.0] 13604
17 49.4 0.0 3.7 -3.9 [4.0] 14192
18 55.4 -0.0 4.2 -4.3 [-3.0] 12911
19 60.8 -0.0 2.9 -2.8 [3.0] 11896
20 50.6 0.1 3.5 -3.2 [2.0] 12912
21 46.3 0.3 3.6 -2.6 [4.0] 14776
22 58.0 -0.3 2.7 -4.2 [-3.0] 10743
24 51.6 0.2 3.2 -2.7 [2.0] 13813
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 54.0 0.0 49.5 52.9 43.2 0 [44.0] [0.0] 9767
4 44.4 -0.0 47.5 50.6 42.6 137 [50.0, 40.0] [0.0] 20284
7 48.5 0.0 47.5 49.8 43.8 0 [42.0] [0.0] 6664
9 57.2 -0.0 48.6 51.5 44.1 0 [53.0] [0.0] 15613
10 56.8 0.0 49.7 53.5 43.6 0 [50.0] [0.0] 21418
11 55.9 0.0 45.9 49.4 39.4 0 [52.0] [0.0] 22216
12 59.7 -0.0 45.9 49.2 41.0 0 [45.0] [0.0] 19326
15 42.1 -0.0 47.2 49.8 42.4 0 [50.0] [0.0] 8695
19 58.6 0.0 45.4 48.7 40.2 0 [45.0] [0.0] 16273
21 60.7 0.0 50.0 54.5 44.5 0 [53.0] [0.0] 18935
24 56.5 0.0 50.1 53.5 45.1 0 [49.0] [0.0] 15311
25 42.5 -0.0 47.9 50.9 41.0 46 [48.0, 39.0] [0.0] 9967
26 43.3 0.0 47.8 50.5 43.7 0 [39.0] [0.0] 9409
27 54.3 0.0 49.4 52.5 44.3 0 [51.0] [0.0] 14388
30 40.7 0.0 47.4 49.7 45.3 0 [38.0] [0.0] 4775
31 60.1 0.0 50.3 54.8 44.4 0 [41.0] [0.0] 19619
33 56.0 -0.0 47.8 50.7 42.6 0 [51.0] [0.0] 14742
34 55.5 0.0 49.8 53.0 42.5 0 [51.0] [0.0] 14533
36 60.2 -0.0 49.8 53.7 42.7 0 [42.0] [0.0] 18923
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 54.0 0.0 49.6 52.8 44.7 0 [49.0] [0.0] 9773
4 44.4 -0.0 47.3 50.0 42.3 2 [42.0, 47.0] [0.0] 20285
7 48.5 -0.0 47.4 50.0 43.6 0 [52.0] [0.0] 6667
9 57.2 0.0 48.4 50.9 44.3 0 [53.0] [0.0] 15612
10 56.8 -0.0 49.6 53.1 44.7 0 [52.0] [0.0] 21418
11 55.9 -0.0 45.7 48.8 39.2 0 [46.0] [0.0] 22218
12 59.7 -0.0 45.7 48.6 41.8 0 [48.0] [0.0] 19328
15 42.1 0.0 47.1 50.0 43.9 0 [52.0] [0.0] 8700
19 58.6 -0.0 45.3 48.6 41.1 0 [51.0] [0.0] 16274
21 60.7 -0.0 49.8 53.7 43.6 0 [47.0] [0.0] 18936
24 56.5 -0.0 49.9 52.9 45.0 0 [51.0] [0.0] 15312
25 42.5 0.0 47.6 50.5 42.8 122 [43.0, 39.0] [0.0] 9972
26 43.3 0.0 47.8 50.7 42.8 0 [40.0] [0.0] 9409
27 54.3 0.0 49.2 52.6 43.0 0 [49.0] [0.0] 14386
30 40.7 -0.0 47.8 49.4 46.1 0 [53.0] [0.0] 4777
31 60.1 0.0 49.9 53.8 44.0 0 [41.0] [0.0] 19617
33 56.0 -0.0 47.4 50.0 43.2 0 [49.0] [0.0] 14741
34 55.5 0.0 49.6 52.5 43.6 0 [41.0] [0.0] 14535
36 60.2 0.0 49.5 53.3 43.7 0 [40.0] [0.0] 18922
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 54.0 -0.0 2.4 -4.3 [44.0, 49.0] 9767
4 44.4 0.2 4.6 -3.0 [50.0, 42.0, 40.0, 47.0] 20284
7 48.5 0.1 2.2 -2.6 [42.0, 52.0] 6664
9 57.2 0.2 2.8 -2.8 [53.0] 15612
10 56.8 0.2 4.0 -3.8 [50.0, 52.0] 21418
11 55.9 0.2 2.6 -3.4 [52.0, 46.0] 22216
12 59.7 0.2 3.3 -3.1 [45.0, 48.0] 19326
15 42.1 0.0 3.5 -3.5 [50.0, 52.0] 8695
19 58.6 0.0 5.0 -3.6 [45.0, 51.0] 16273
21 60.7 0.2 3.7 -3.7 [53.0, 47.0] 18935
24 56.6 0.2 4.0 -2.9 [49.0, 51.0] 15310
25 42.5 0.3 3.3 -3.6 [48.0, 43.0, 39.0] 9966
26 43.3 0.0 3.4 -2.7 [39.0, 40.0] 9408
27 54.3 0.2 3.8 -2.9 [51.0, 49.0] 14386
30 40.7 -0.4 2.7 -3.2 [38.0, 53.0] 4775
31 60.1 0.4 4.1 -3.0 [41.0] 19617
33 56.0 0.4 3.1 -2.5 [51.0, 49.0] 14741
34 55.5 0.2 5.0 -3.5 [51.0, 41.0] 14533
36 60.2 0.3 5.0 -3.5 [42.0, 40.0] 18922
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 54.0 0.0 50.3 53.1 46.9 0 [44.0] [0.0] 9767
4 44.4 -0.0 49.4 51.7 47.1 74 [50.0, 40.0] [0.0] 20284
7 48.5 0.0 49.7 52.2 47.4 0 [42.0] [0.0] 6664
9 57.2 -0.0 50.1 52.4 46.6 0 [53.0] [0.0] 15613
10 56.8 0.0 50.4 52.6 47.4 0 [50.0] [0.0] 21418
11 55.9 0.0 46.7 49.0 44.2 0 [52.0] [0.0] 22216
12 59.7 -0.0 48.4 51.0 45.2 0 [45.0] [0.0] 19326
15 42.1 -0.0 49.1 51.3 47.2 0 [50.0] [0.0] 8695
19 58.6 0.0 47.4 49.6 44.4 0 [45.0] [0.0] 16273
21 60.7 0.0 50.3 52.4 47.0 0 [53.0] [0.0] 18935
24 56.5 0.0 50.4 52.6 47.2 0 [49.0] [0.0] 15311
25 42.5 -0.0 49.0 51.6 47.0 137 [48.0, 39.0] [0.0] 9967
26 43.3 0.0 49.2 51.3 47.0 0 [39.0] [0.0] 9409
27 54.3 0.0 50.0 52.8 47.1 0 [51.0] [0.0] 14388
30 40.7 0.0 48.9 50.5 47.0 0 [38.0] [0.0] 4775
31 60.1 0.0 50.4 52.9 45.8 0 [41.0] [0.0] 19619
33 56.0 -0.0 50.3 53.4 47.3 0 [51.0] [0.0] 14742
34 55.5 0.0 50.3 52.5 47.0 0 [51.0] [0.0] 14533
36 60.2 -0.0 50.3 52.4 45.8 0 [42.0] [0.0] 18923
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 54.0 0.0 49.9 52.2 46.0 0 [49.0] [0.0] 9773
4 44.4 -0.0 49.3 51.5 46.7 219 [42.0, 47.0] [0.0] 20285
7 48.5 -0.0 49.5 51.5 47.3 0 [52.0] [0.0] 6667
9 57.2 0.0 50.0 52.1 46.2 0 [53.0] [0.0] 15612
10 56.8 -0.0 50.1 52.3 47.4 0 [52.0] [0.0] 21418
11 55.9 -0.0 46.5 48.4 42.7 0 [46.0] [0.0] 22218
12 59.7 -0.0 48.3 50.7 44.7 0 [48.0] [0.0] 19328
15 42.1 0.0 49.1 51.3 46.2 0 [52.0] [0.0] 8700
19 58.6 -0.0 47.3 49.4 44.2 0 [51.0] [0.0] 16274
21 60.7 -0.0 50.0 52.2 46.6 0 [47.0] [0.0] 18936
24 56.5 -0.0 50.3 52.1 47.2 0 [51.0] [0.0] 15312
25 42.5 0.0 48.8 51.1 46.0 123 [43.0, 39.0] [0.0] 9972
26 43.3 0.0 49.2 51.3 47.1 0 [40.0] [0.0] 9409
27 54.3 0.0 49.8 52.0 46.6 0 [49.0] [0.0] 14386
30 40.7 -0.0 48.3 50.2 46.5 0 [53.0] [0.0] 4777
31 60.1 0.0 50.2 52.1 46.8 0 [41.0] [0.0] 19617
33 56.0 -0.0 50.3 52.6 47.0 0 [49.0] [0.0] 14741
34 55.5 0.0 50.3 52.1 47.4 0 [41.0] [0.0] 14535
36 60.2 0.0 50.3 52.4 46.6 0 [40.0] [0.0] 18922

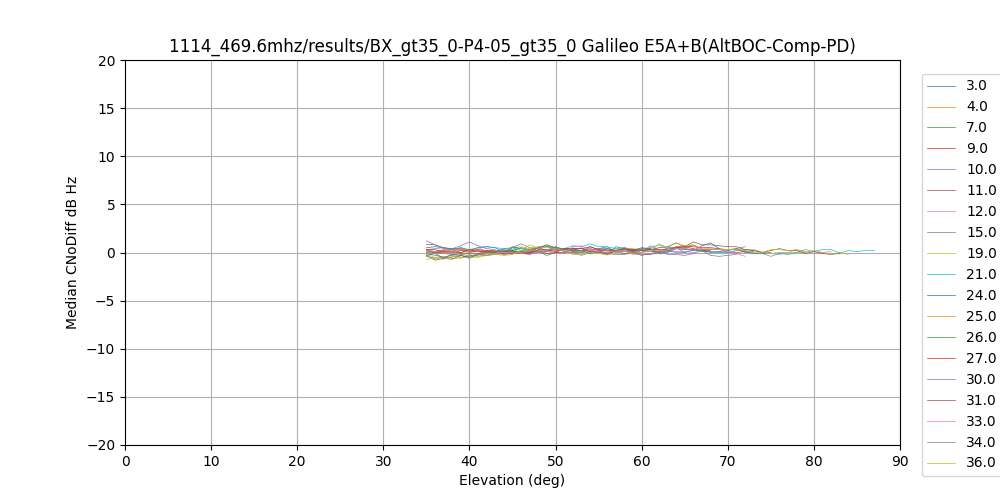

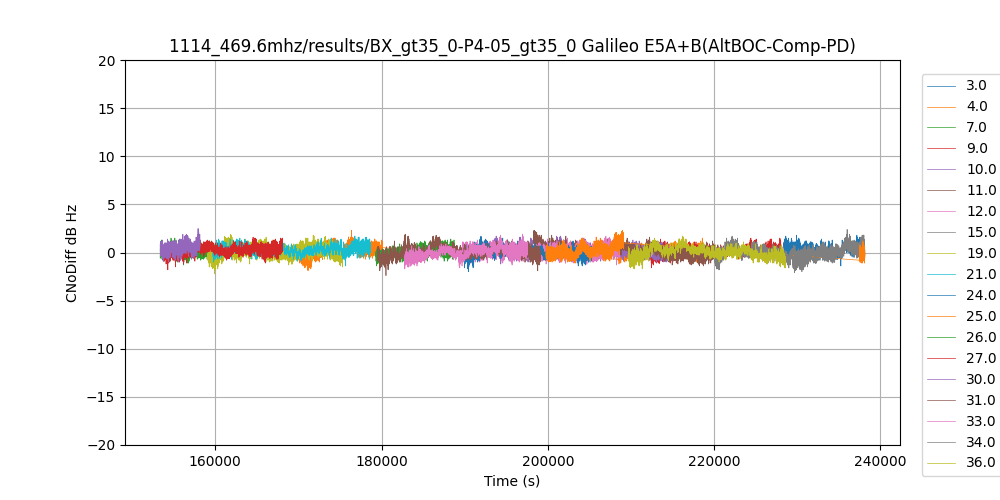

DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 54.0 0.4 1.8 -1.4 [44.0, 49.0] 9767
4 44.4 0.2 2.3 -1.9 [50.0, 42.0, 40.0, 47.0] 20284
7 48.5 0.2 1.5 -1.3 [42.0, 52.0] 6664
9 57.2 0.1 1.5 -1.6 [53.0] 15612
10 56.8 0.3 1.7 -1.2 [50.0, 52.0] 21418
11 55.9 0.2 2.3 -1.4 [52.0, 46.0] 22216
12 59.7 0.1 1.7 -1.6 [45.0, 48.0] 19326
15 42.1 -0.0 2.4 -2.1 [50.0, 52.0] 8695
19 58.6 0.1 1.9 -2.2 [45.0, 51.0] 16273
21 60.7 0.3 1.7 -1.4 [53.0, 47.0] 18935
24 56.6 0.1 1.7 -2.0 [49.0, 51.0] 15310
25 42.5 0.2 2.3 -1.1 [48.0, 43.0, 39.0] 9966
26 43.3 0.1 1.4 -1.5 [39.0, 40.0] 9408
27 54.3 0.2 1.6 -1.8 [51.0, 49.0] 14386
30 40.7 0.5 2.5 -1.0 [38.0, 53.0] 4775
31 60.1 0.1 1.9 -2.4 [41.0] 19617
33 56.0 0.0 1.9 -1.7 [51.0, 49.0] 14741
34 55.5 -0.0 1.7 -1.8 [51.0, 41.0] 14533
36 60.2 0.0 1.7 -1.7 [42.0, 40.0] 18922
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.6 0.0 50.0 52.8 45.9 0 [46.0] [0.0] 12826
20 56.7 0.0 49.8 53.0 43.2 0 [41.0] [0.0] 18632
21 67.1 -0.0 49.7 53.1 43.1 0 [15.0] [0.0] 10315
22 43.1 0.0 47.6 52.3 42.7 209 [46.0, 11.0] [0.0] 5837
23 57.5 0.0 49.9 53.5 45.0 0 [40.0] [0.0] 14111
24 56.9 0.0 49.9 53.4 42.9 0 [48.0] [0.0] 19038
25 60.7 -0.0 49.5 52.6 44.1 0 [12.0] [0.0] 16867
26 59.7 -0.0 48.9 52.1 43.3 0 [23.0] [0.0] 17470
27 58.9 -0.0 49.2 53.0 40.9 0 [16.0] [0.0] 17680
28 56.5 0.0 49.0 52.3 43.9 0 [38.0] [0.0] 19031
29 47.6 -0.0 47.7 50.6 42.0 0 [49.0] [0.0] 10544
30 59.2 -0.0 48.8 51.4 42.8 0 [47.0] [0.0] 14614
32 61.2 -0.0 49.7 52.9 43.6 0 [26.0] [0.0] 15740
33 40.6 -0.0 47.7 50.2 45.2 199 [44.0, 9.0] [0.0] 14427
34 56.9 -0.0 49.1 52.0 42.8 0 [42.0] [0.0] 13773
36 44.6 0.0 46.4 50.4 42.4 111 [52.0, 47.0] [0.0] 3425
37 45.5 0.0 48.4 51.8 42.4 0 [44.0] [0.0] 9755
41 52.9 -0.0 48.9 51.6 43.9 0 [15.0] [0.0] 12349
42 54.2 -0.0 49.3 52.1 44.7 0 [20.0] [0.0] 12773
43 60.8 -0.0 49.5 53.3 44.2 0 [17.0] [0.0] 16636
44 44.4 0.0 47.4 49.7 41.8 0 [35.0] [0.0] 9208
45 60.6 0.0 49.7 52.5 45.0 0 [40.0] [0.0] 9117
46 50.5 0.0 48.3 50.8 43.4 0 [48.0] [0.0] 7331

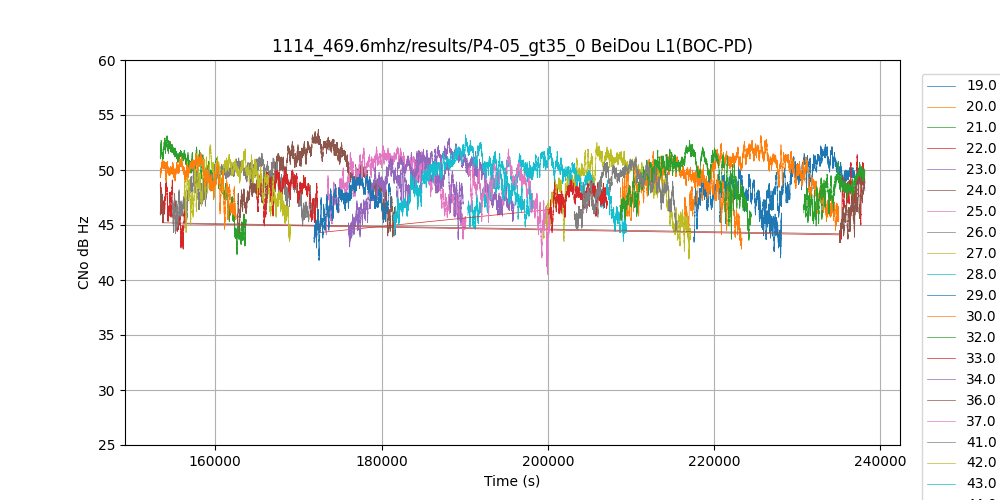

DUT BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.6 0.0 49.3 52.3 44.0 0 [48.0] [0.0] 12830
20 56.7 -0.0 49.6 53.1 43.9 0 [45.0] [0.0] 18630
21 67.1 0.0 49.3 53.1 42.3 0 [22.0] [0.0] 10317
22 43.1 -0.0 47.2 51.4 42.8 226 [20.0, 11.0] [0.0] 5841
23 57.5 -0.0 49.6 52.9 45.3 0 [32.0] [0.0] 14110
24 56.9 -0.0 49.7 53.7 43.9 0 [50.0] [0.0] 19038
25 60.7 0.0 49.2 52.2 43.7 0 [31.0] [0.0] 16866
26 59.7 -0.0 48.7 51.5 44.2 0 [19.0] [0.0] 17471
27 58.9 0.0 48.8 52.5 41.9 0 [50.0] [0.0] 17680
28 56.5 -0.0 48.7 52.1 43.5 0 [44.0] [0.0] 19033
29 47.6 0.0 47.3 50.2 42.0 0 [51.0] [0.0] 10541
30 59.2 -0.0 48.6 51.7 42.8 0 [38.0] [0.0] 14616
32 61.2 -0.0 49.4 52.7 43.6 0 [28.0] [0.0] 15742
33 40.6 -0.0 47.8 50.2 44.3 108 [48.0, 9.0] [0.0] 14427
34 56.9 -0.0 48.7 51.9 43.0 0 [11.0] [0.0] 13772
36 44.6 0.0 46.5 50.2 43.4 180 [18.0, 43.0] [0.0] 3432
37 45.5 0.0 48.1 51.9 40.5 0 [45.0] [0.0] 9754
41 52.9 -0.0 48.5 51.2 44.5 0 [22.0] [0.0] 12348
42 54.2 0.0 48.9 52.3 43.5 0 [16.0] [0.0] 12770
43 60.8 0.0 49.3 53.2 44.0 0 [26.0] [0.0] 16637
44 44.4 -0.0 47.2 49.6 41.8 0 [37.0] [0.0] 9210
45 60.6 0.0 49.3 51.5 44.6 0 [12.0] [0.0] 9118
46 50.5 -0.0 48.1 50.8 44.9 0 [50.0] [0.0] 7335

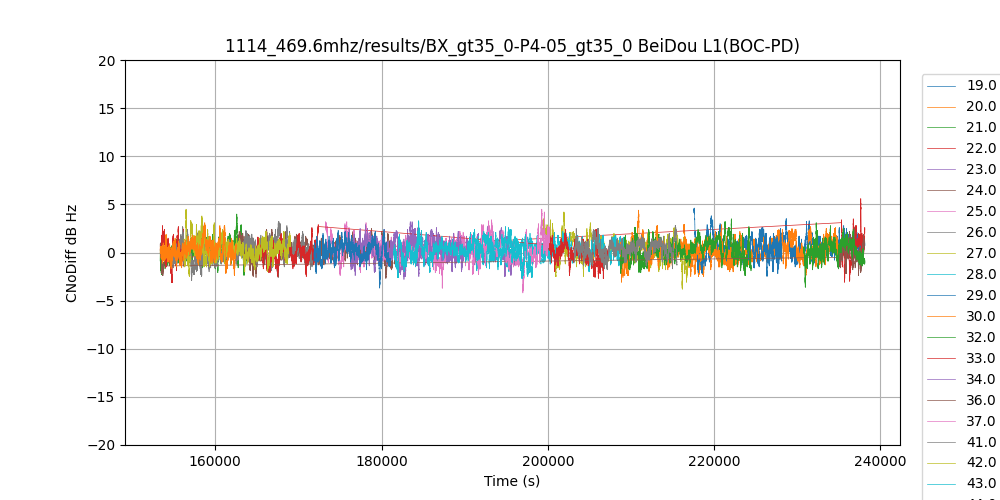

DIFF BeiDou L1(BOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 59.6 0.7 3.5 -1.5 [46.0, 48.0] 12826
20 56.7 0.2 2.9 -2.5 [41.0, 45.0] 18630
21 67.1 0.4 4.0 -2.4 [15.0, 22.0] 10315
22 43.1 0.4 5.6 -3.1 [46.0, 20.0, 11.0] 5835
23 57.5 0.3 3.2 -2.8 [40.0, 32.0] 14110
24 56.9 0.2 2.5 -2.7 [48.0, 50.0] 19038
25 60.7 0.3 3.2 -3.7 [12.0, 31.0] 16866
26 59.7 0.2 3.2 -2.9 [23.0, 19.0] 17470
27 58.9 0.4 4.2 -3.8 [16.0, 50.0] 17679
28 56.5 0.2 2.3 -2.0 [38.0, 44.0] 19031
29 47.6 0.4 4.6 -2.5 [49.0, 51.0] 10541
30 59.2 0.2 4.4 -3.1 [47.0, 38.0] 14614
32 61.2 0.3 3.5 -2.4 [26.0, 28.0] 15740
33 40.6 -0.1 2.9 -2.7 [44.0, 48.0, 9.0] 14426
34 56.9 0.4 2.9 -2.4 [42.0, 11.0] 13772
36 44.6 -0.1 2.6 -2.4 [52.0, 18.0, 47.0, 43.0] 3425
37 45.5 0.3 4.5 -4.2 [44.0, 45.0] 9754
41 52.9 0.4 2.8 -1.8 [15.0, 22.0] 12348
42 54.2 0.4 4.5 -2.5 [20.0, 16.0] 12770
43 60.8 0.2 3.3 -2.7 [17.0, 26.0] 16636
44 44.4 0.2 2.4 -3.7 [35.0, 37.0] 9208
45 60.6 0.4 3.1 -2.4 [40.0, 12.0] 9116
46 50.5 0.2 3.1 -3.6 [48.0, 50.0] 7331
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.6 0.0 49.1 51.0 43.5 0 [46.0] [0.0] 12826
20 56.7 0.0 48.6 51.3 44.5 0 [41.0] [0.0] 18632
21 67.1 -0.0 49.5 51.4 44.9 0 [15.0] [0.0] 10315
22 43.1 0.0 47.9 51.1 45.1 110 [46.0, 11.0] [0.0] 5837
23 57.5 0.0 49.9 51.9 46.3 0 [40.0] [0.0] 14111
24 56.9 0.0 49.4 52.1 45.7 0 [48.0] [0.0] 19038
25 60.7 -0.0 48.3 50.5 43.2 0 [12.0] [0.0] 16867
26 59.7 -0.0 47.6 50.1 43.6 0 [23.0] [0.0] 17470
27 58.9 -0.0 48.0 50.2 43.7 0 [16.0] [0.0] 17680
28 56.5 0.0 46.9 49.7 42.6 0 [38.0] [0.0] 19031
29 47.6 -0.0 47.1 49.3 44.2 0 [49.0] [0.0] 10544
30 59.2 -0.0 47.8 49.9 44.3 0 [47.0] [0.0] 14614
32 61.2 -0.0 48.9 50.8 44.4 0 [26.0] [0.0] 15740
33 40.6 -0.0 47.2 49.6 45.4 211 [44.0, 9.0] [0.0] 14427
34 56.9 -0.0 48.0 50.1 44.3 0 [42.0] [0.0] 13773
36 44.6 0.0 48.1 51.3 44.9 80 [52.0, 47.0] [0.0] 3425
37 45.5 0.0 48.6 50.3 45.8 0 [44.0] [0.0] 9755
41 52.9 -0.0 48.8 50.8 45.3 0 [15.0] [0.0] 12349
42 54.2 -0.0 49.1 51.6 44.7 0 [20.0] [0.0] 12773
43 60.8 -0.0 47.9 49.9 43.4 0 [17.0] [0.0] 16636
44 44.4 0.0 46.9 48.8 44.6 0 [35.0] [0.0] 9208
45 60.6 0.0 49.3 51.4 45.5 0 [40.0] [0.0] 9117
46 50.5 0.0 48.6 50.3 45.1 0 [48.0] [0.0] 7331

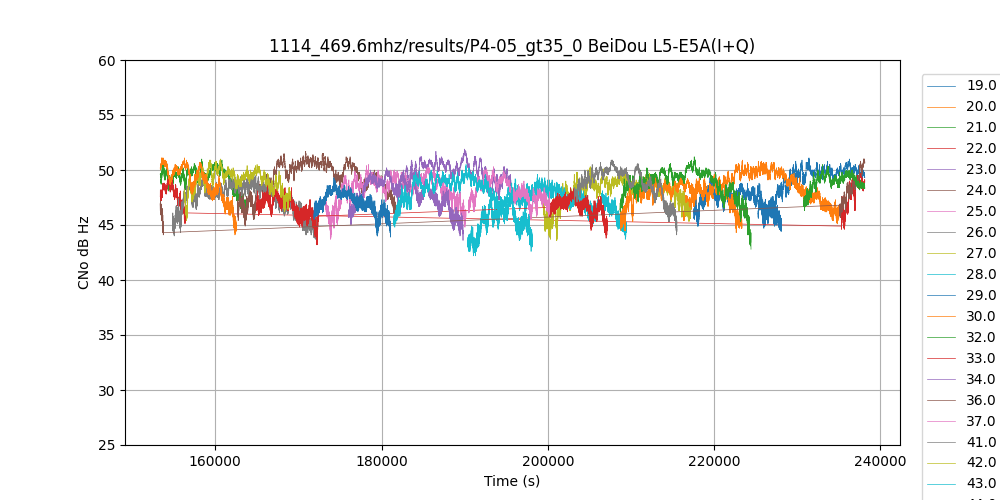

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.6 0.0 49.0 51.1 44.7 0 [48.0] [0.0] 12830
20 56.7 -0.0 48.4 50.9 45.1 0 [45.0] [0.0] 18630
21 67.1 0.0 49.2 51.0 45.9 0 [22.0] [0.0] 10317
22 43.1 -0.0 47.8 49.7 44.6 222 [20.0, 11.0] [0.0] 5841
23 57.5 -0.0 49.7 51.9 46.6 0 [32.0] [0.0] 14110
24 56.9 -0.0 49.2 51.7 44.9 0 [50.0] [0.0] 19038
25 60.7 0.0 48.2 50.5 43.7 0 [31.0] [0.0] 16866
26 59.7 -0.0 47.3 49.6 43.7 0 [19.0] [0.0] 17471
27 58.9 0.0 47.9 50.3 43.6 0 [50.0] [0.0] 17680
28 56.5 -0.0 46.7 49.6 42.2 0 [44.0] [0.0] 19033
29 47.6 0.0 47.1 49.3 44.4 0 [51.0] [0.0] 10541
30 59.2 -0.0 47.7 49.6 44.3 0 [38.0] [0.0] 14616
32 61.2 -0.0 48.6 51.2 42.8 0 [28.0] [0.0] 15742
33 40.6 -0.0 46.5 48.6 43.2 237 [48.0, 9.0] [0.0] 14427
34 56.9 -0.0 47.7 50.2 43.6 0 [11.0] [0.0] 13772
36 44.6 0.0 48.1 51.0 44.1 2 [18.0, 43.0] [0.0] 3432
37 45.5 0.0 48.0 50.3 45.5 0 [45.0] [0.0] 9754
41 52.9 -0.0 48.7 50.9 44.1 0 [22.0] [0.0] 12348
42 54.2 0.0 49.0 51.0 45.4 0 [16.0] [0.0] 12770
43 60.8 0.0 47.7 50.5 42.6 0 [26.0] [0.0] 16637
44 44.4 -0.0 46.9 49.3 43.9 0 [37.0] [0.0] 9210
45 60.6 0.0 48.8 51.1 44.1 0 [12.0] [0.0] 9118
46 50.5 -0.0 48.9 50.5 46.3 0 [50.0] [0.0] 7335

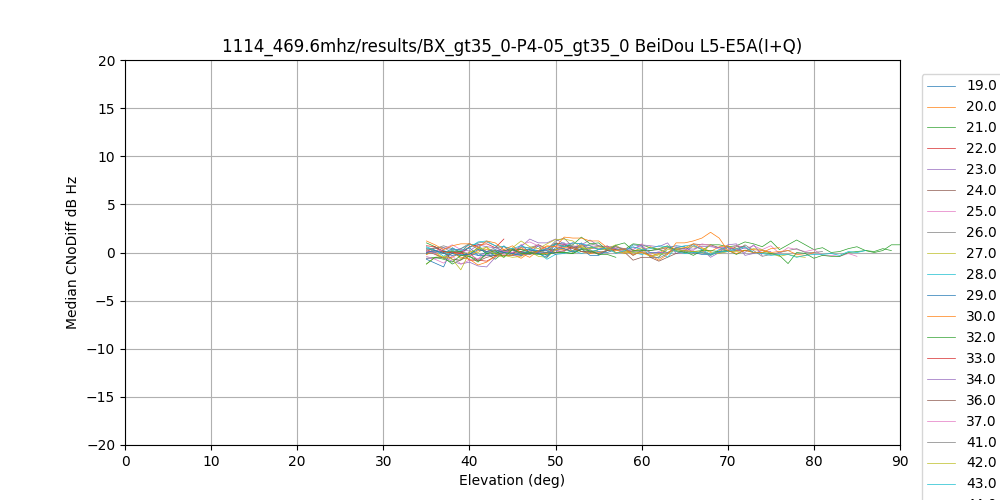

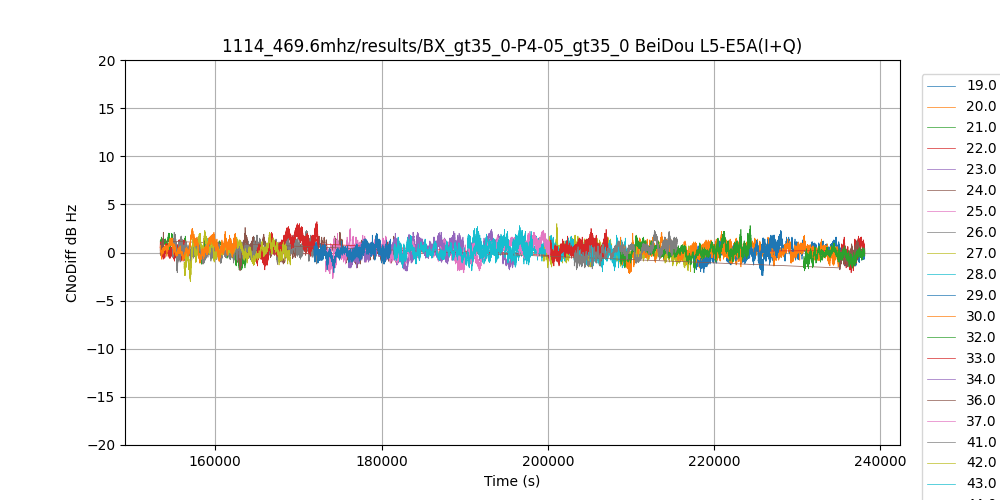

DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 59.6 0.1 1.6 -2.4 [46.0, 48.0] 12826
20 56.7 0.2 2.2 -1.6 [41.0, 45.0] 18630
21 67.1 0.3 2.0 -1.8 [15.0, 22.0] 10315
22 43.1 0.1 1.7 -2.1 [46.0, 20.0, 11.0] 5835
23 57.5 0.2 2.4 -1.9 [40.0, 32.0] 14110
24 56.9 0.2 2.6 -1.9 [48.0, 50.0] 19038
25 60.7 0.1 2.5 -2.7 [12.0, 31.0] 16866
26 59.7 0.3 2.3 -2.1 [23.0, 19.0] 17470
27 58.9 0.0 3.0 -2.0 [16.0, 50.0] 17679
28 56.5 0.2 2.7 -2.0 [38.0, 44.0] 19031
29 47.6 -0.0 2.3 -2.1 [49.0, 51.0] 10541
30 59.2 0.1 2.1 -2.2 [47.0, 38.0] 14614
32 61.2 0.2 2.8 -2.1 [26.0, 28.0] 15740
33 40.6 0.7 3.2 -1.8 [44.0, 48.0, 9.0] 14426
34 56.9 0.3 2.2 -1.6 [42.0, 11.0] 13772
36 44.6 0.0 2.1 -1.8 [52.0, 18.0, 47.0, 43.0] 3425
37 45.5 0.6 2.3 -1.9 [44.0, 45.0] 9754
41 52.9 0.1 2.3 -1.8 [15.0, 22.0] 12348
42 54.2 0.2 2.3 -3.0 [20.0, 16.0] 12770
43 60.8 0.2 2.8 -1.6 [17.0, 26.0] 16636
44 44.4 0.0 2.0 -2.1 [35.0, 37.0] 9208
45 60.6 0.5 2.5 -1.1 [40.0, 12.0] 9116
46 50.5 -0.3 1.0 -1.9 [48.0, 50.0] 7331

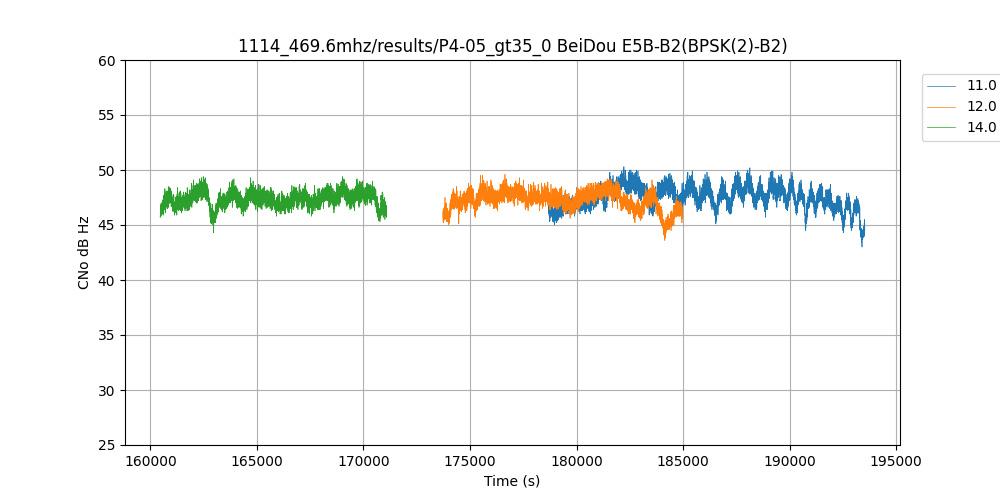

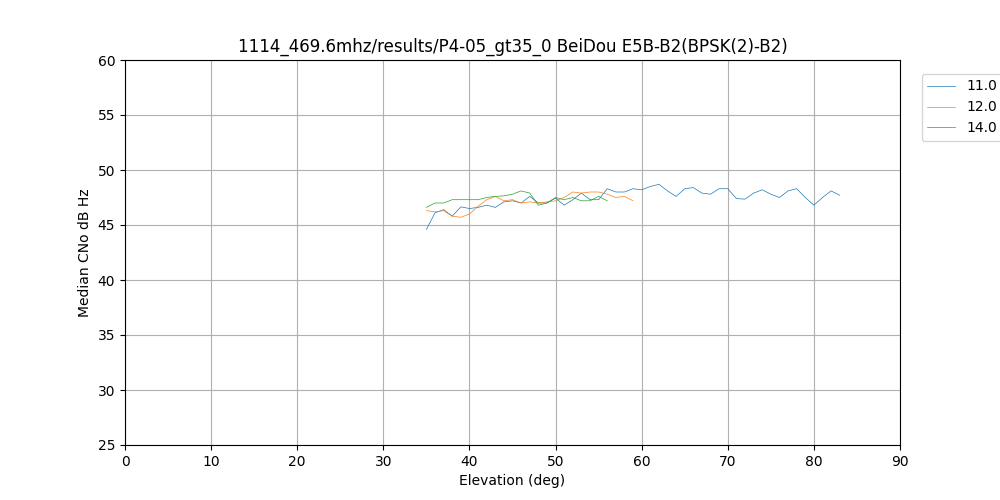

REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.5 50.0 44.3 0 [19.0] [0.0] 14833
12 49.8 0.0 47.2 49.6 44.7 0 [25.0] [0.0] 11229
14 48.0 -0.0 47.6 49.8 44.8 0 [47.0] [0.0] 10618
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.5 50.3 43.0 0 [39.0] [0.0] 14833
12 49.8 0.0 47.2 49.6 43.6 0 [30.0] [0.0] 11226
14 48.0 0.0 47.3 49.4 44.3 0 [45.0] [0.0] 10618

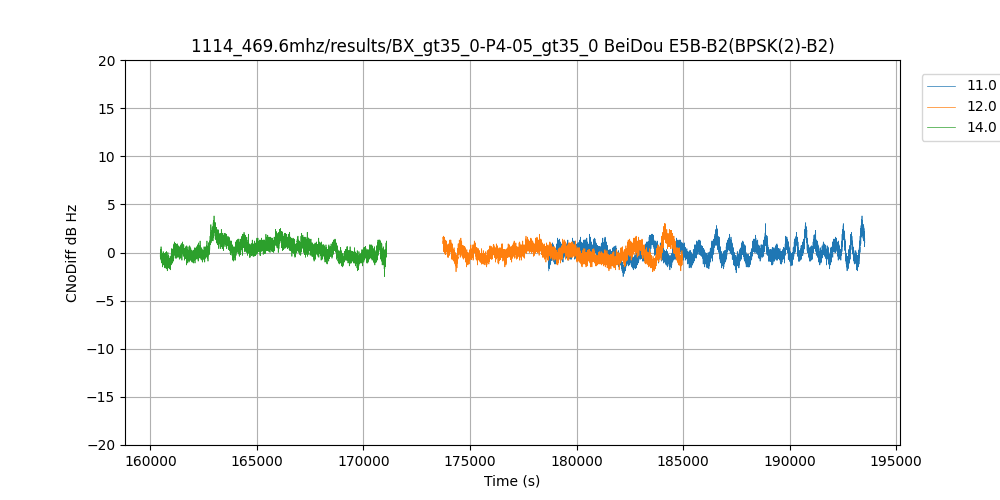

DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 60.1 0.1 3.8 -2.5 [19.0, 39.0] 14832
12 49.8 -0.0 3.0 -2.0 [25.0, 30.0] 11226
14 48.0 0.3 3.8 -2.5 [47.0, 45.0] 10618

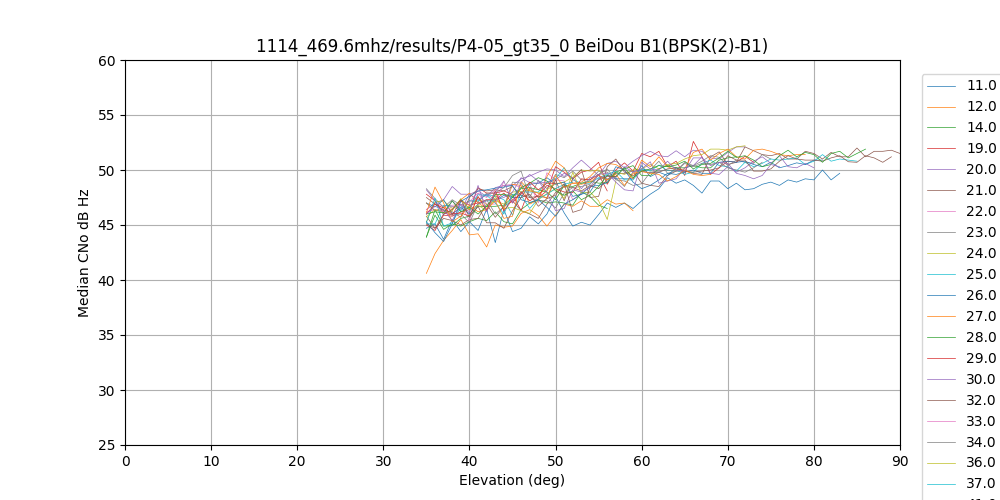

REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.3 51.0 39.4 0 [19.0] [0.0] 14833
12 49.8 0.0 45.8 48.5 40.2 0 [25.0] [0.0] 11229
14 48.0 -0.0 46.3 50.5 41.6 0 [47.0] [0.0] 10618
19 59.6 0.0 50.0 53.5 44.6 0 [46.0] [0.0] 12826
20 56.7 0.0 50.4 53.9 43.9 0 [41.0] [0.0] 18632
21 67.1 -0.0 49.7 53.6 41.8 0 [15.0] [0.0] 10315
22 43.1 0.0 47.7 52.8 41.2 148 [46.0, 11.0] [0.0] 5837
23 57.5 0.0 49.3 52.8 43.8 0 [40.0] [0.0] 14111
24 56.9 0.0 49.6 54.1 42.6 0 [48.0] [0.0] 19038
25 60.7 -0.0 49.4 53.0 43.4 0 [12.0] [0.0] 16867
26 59.7 -0.0 48.9 53.0 43.1 0 [23.0] [0.0] 17470
27 58.9 -0.0 49.6 53.4 41.8 0 [16.0] [0.0] 17680
28 56.5 0.0 49.1 53.2 42.3 0 [38.0] [0.0] 19031
29 47.6 -0.0 48.2 52.1 43.2 0 [49.0] [0.0] 10544
30 59.2 -0.0 49.3 52.6 43.4 0 [47.0] [0.0] 14614
32 61.2 -0.0 49.4 53.2 43.7 0 [26.0] [0.0] 15740
33 40.6 -0.0 46.7 50.5 42.8 135 [44.0, 9.0] [0.0] 14427
34 56.9 -0.0 48.9 52.4 43.2 0 [42.0] [0.0] 13773
36 44.6 0.0 46.2 49.6 43.7 168 [52.0, 47.0] [0.0] 3425
37 45.5 0.0 47.5 51.4 42.2 0 [44.0] [0.0] 9755
41 52.9 -0.0 48.0 51.2 42.2 0 [15.0] [0.0] 12349
42 54.2 -0.0 48.3 51.8 42.8 0 [20.0] [0.0] 12773
43 60.8 -0.0 49.3 53.8 43.1 0 [17.0] [0.0] 16636
44 44.4 0.0 47.2 50.3 41.4 0 [35.0] [0.0] 9208
45 60.6 0.0 49.3 51.9 44.1 0 [40.0] [0.0] 9117
46 50.5 0.0 47.8 50.5 43.0 0 [48.0] [0.0] 7331
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.2 52.0 40.3 0 [39.0] [0.0] 14833
12 49.8 0.0 45.6 48.9 38.7 0 [30.0] [0.0] 11226
14 48.0 0.0 46.3 49.2 41.6 0 [45.0] [0.0] 10618
19 59.6 0.0 49.6 53.7 43.3 0 [48.0] [0.0] 12830
20 56.7 -0.0 50.3 54.4 43.9 0 [45.0] [0.0] 18630
21 67.1 0.0 49.8 53.4 43.7 0 [22.0] [0.0] 10317
22 43.1 -0.0 47.7 52.9 40.5 208 [20.0, 11.0] [0.0] 5841
23 57.5 -0.0 49.5 53.1 44.3 0 [32.0] [0.0] 14110
24 56.9 -0.0 49.8 54.0 42.8 0 [50.0] [0.0] 19038
25 60.7 0.0 49.1 53.3 41.8 0 [31.0] [0.0] 16866
26 59.7 -0.0 49.1 52.4 44.1 0 [19.0] [0.0] 17471
27 58.9 0.0 49.6 54.3 43.2 0 [50.0] [0.0] 17680
28 56.5 -0.0 49.0 53.0 40.5 0 [44.0] [0.0] 19033
29 47.6 0.0 48.0 51.5 42.5 0 [51.0] [0.0] 10541
30 59.2 -0.0 49.3 52.9 43.6 0 [38.0] [0.0] 14616
32 61.2 -0.0 49.3 52.7 43.2 0 [28.0] [0.0] 15742
33 40.6 -0.0 47.1 51.3 43.4 76 [48.0, 9.0] [0.0] 14427
34 56.9 -0.0 48.7 52.4 43.2 0 [11.0] [0.0] 13772
36 44.6 0.0 46.9 50.6 43.7 212 [18.0, 43.0] [0.0] 3432
37 45.5 0.0 47.3 50.9 41.6 0 [45.0] [0.0] 9754
41 52.9 -0.0 48.0 51.9 40.9 0 [22.0] [0.0] 12348
42 54.2 0.0 48.4 52.1 41.9 0 [16.0] [0.0] 12770
43 60.8 0.0 49.4 53.4 43.9 0 [26.0] [0.0] 16637
44 44.4 -0.0 47.5 50.3 41.8 0 [37.0] [0.0] 9210
45 60.6 0.0 49.1 52.1 44.5 0 [12.0] [0.0] 9118
46 50.5 -0.0 47.9 51.4 43.0 0 [50.0] [0.0] 7335
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 60.1 0.1 4.3 -3.8 [19.0, 39.0] 14832
12 49.8 0.3 5.3 -3.8 [25.0, 30.0] 11226
14 48.0 0.0 4.3 -3.4 [47.0, 45.0] 10618
19 59.6 0.4 4.9 -3.3 [46.0, 48.0] 12826
20 56.7 0.2 4.2 -3.8 [41.0, 45.0] 18630
21 67.1 -0.0 4.3 -3.5 [15.0, 22.0] 10315
22 43.1 0.0 3.6 -5.9 [46.0, 20.0, 11.0] 5835
23 57.5 -0.2 3.5 -3.8 [40.0, 32.0] 14110
24 56.9 -0.2 3.8 -4.0 [48.0, 50.0] 19038
25 60.7 0.3 4.6 -4.0 [12.0, 31.0] 16866
26 59.7 -0.1 2.9 -3.5 [23.0, 19.0] 17470
27 58.9 -0.0 3.9 -3.8 [16.0, 50.0] 17679
28 56.5 0.1 4.1 -3.7 [38.0, 44.0] 19031
29 47.6 0.2 3.6 -3.6 [49.0, 51.0] 10541
30 59.2 0.0 3.6 -3.6 [47.0, 38.0] 14614
32 61.2 0.1 4.0 -3.7 [26.0, 28.0] 15740
33 40.6 -0.5 3.0 -4.5 [44.0, 48.0, 9.0] 14426
34 56.9 0.2 3.9 -3.2 [42.0, 11.0] 13772
36 44.6 -0.7 3.2 -3.9 [52.0, 18.0, 47.0, 43.0] 3425
37 45.5 0.2 5.1 -3.4 [44.0, 45.0] 9754
41 52.9 0.1 3.7 -3.5 [15.0, 22.0] 12348
42 54.2 -0.1 5.2 -3.7 [20.0, 16.0] 12770
43 60.8 -0.1 3.7 -4.1 [17.0, 26.0] 16636
44 44.4 -0.3 2.8 -3.8 [35.0, 37.0] 9208
45 60.6 0.2 3.7 -2.5 [40.0, 12.0] 9116
46 50.5 -0.1 3.3 -3.2 [48.0, 50.0] 7331

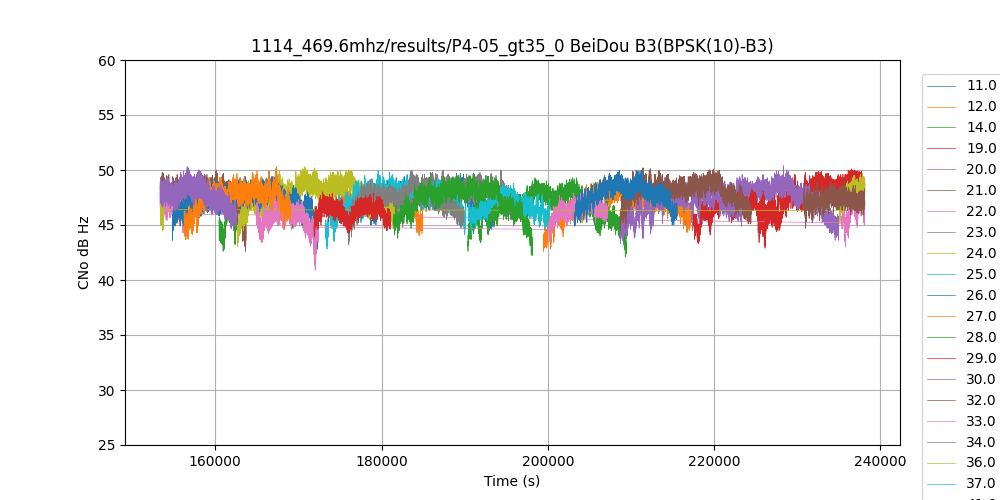

REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.5 49.4 44.6 0 [19.0] [0.0] 14833
12 49.8 0.0 47.5 49.7 44.3 0 [25.0] [0.0] 11229
14 48.0 -0.0 47.2 49.4 43.9 0 [47.0] [0.0] 10618
19 59.6 0.0 48.0 50.0 43.9 0 [46.0] [0.0] 12826
20 56.7 0.0 47.6 49.8 43.2 0 [41.0] [0.0] 18632
21 67.1 -0.0 48.2 49.9 43.5 0 [15.0] [0.0] 10315
22 43.1 0.0 46.7 48.9 42.8 49 [46.0, 11.0] [0.0] 5837
23 57.5 0.0 48.1 50.2 44.2 0 [40.0] [0.0] 14111
24 56.9 0.0 47.9 50.0 43.2 0 [48.0] [0.0] 19038
25 60.7 -0.0 47.6 50.0 42.2 0 [12.0] [0.0] 16867
26 59.7 -0.0 47.4 49.4 42.9 0 [23.0] [0.0] 17470
27 58.9 -0.0 47.1 49.4 41.8 0 [16.0] [0.0] 17680
28 56.5 0.0 46.9 49.4 42.9 0 [38.0] [0.0] 19031
29 47.6 -0.0 46.7 48.9 43.0 0 [49.0] [0.0] 10544
30 59.2 -0.0 47.2 49.4 43.0 0 [47.0] [0.0] 14614
32 61.2 -0.0 48.1 50.0 44.7 0 [26.0] [0.0] 15740
33 40.6 -0.0 46.4 48.3 43.1 49 [44.0, 9.0] [0.0] 14427
34 56.9 -0.0 47.5 49.9 43.4 0 [42.0] [0.0] 13773
36 44.6 0.0 47.9 49.8 44.5 131 [52.0, 47.0] [0.0] 3425
37 45.5 0.0 47.2 48.9 43.8 0 [44.0] [0.0] 9755
41 52.9 -0.0 47.9 49.9 43.1 0 [15.0] [0.0] 12349
42 54.2 -0.0 47.9 50.2 43.9 0 [20.0] [0.0] 12773
43 60.8 -0.0 47.4 49.9 42.5 0 [17.0] [0.0] 16636
44 44.4 0.0 46.2 48.3 43.0 0 [35.0] [0.0] 9208
45 60.6 0.0 48.1 50.0 44.7 0 [40.0] [0.0] 9117
46 50.5 0.0 47.5 49.3 44.0 0 [48.0] [0.0] 7331
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 60.1 -0.0 47.5 49.7 44.6 0 [39.0] [0.0] 14833
12 49.8 0.0 47.1 49.1 44.0 0 [30.0] [0.0] 11226
14 48.0 0.0 46.8 49.1 42.6 0 [45.0] [0.0] 10618
19 59.6 0.0 47.9 50.1 42.9 0 [48.0] [0.0] 12830
20 56.7 -0.0 47.5 50.4 43.6 0 [45.0] [0.0] 18630
21 67.1 0.0 48.1 50.0 42.6 0 [22.0] [0.0] 10317
22 43.1 -0.0 46.7 48.8 43.0 88 [20.0, 11.0] [0.0] 5841
23 57.5 -0.0 48.0 50.0 44.8 0 [32.0] [0.0] 14110
24 56.9 -0.0 47.8 50.3 43.0 0 [50.0] [0.0] 19038
25 60.7 0.0 47.5 50.0 42.8 0 [31.0] [0.0] 16866
26 59.7 -0.0 47.5 49.9 42.8 0 [19.0] [0.0] 17471
27 58.9 0.0 47.0 49.3 42.6 0 [50.0] [0.0] 17680
28 56.5 -0.0 46.7 49.3 42.1 0 [44.0] [0.0] 19033
29 47.6 0.0 46.4 48.3 43.3 0 [51.0] [0.0] 10541
30 59.2 -0.0 47.1 49.6 43.3 0 [38.0] [0.0] 14616
32 61.2 -0.0 48.1 50.2 44.5 0 [28.0] [0.0] 15742
33 40.6 -0.0 46.1 48.2 40.9 77 [48.0, 9.0] [0.0] 14427
34 56.9 -0.0 47.4 50.0 43.2 0 [11.0] [0.0] 13772
36 44.6 0.0 47.8 49.7 44.5 62 [18.0, 43.0] [0.0] 3432
37 45.5 0.0 46.8 48.8 44.1 0 [45.0] [0.0] 9754
41 52.9 -0.0 47.9 50.0 44.9 0 [22.0] [0.0] 12348
42 54.2 0.0 47.7 50.3 43.7 0 [16.0] [0.0] 12770
43 60.8 0.0 47.3 49.8 42.2 0 [26.0] [0.0] 16637
44 44.4 -0.0 46.3 48.0 43.9 0 [37.0] [0.0] 9210
45 60.6 0.0 48.0 50.3 44.5 0 [12.0] [0.0] 9118
46 50.5 -0.0 47.4 49.0 44.7 0 [50.0] [0.0] 7335

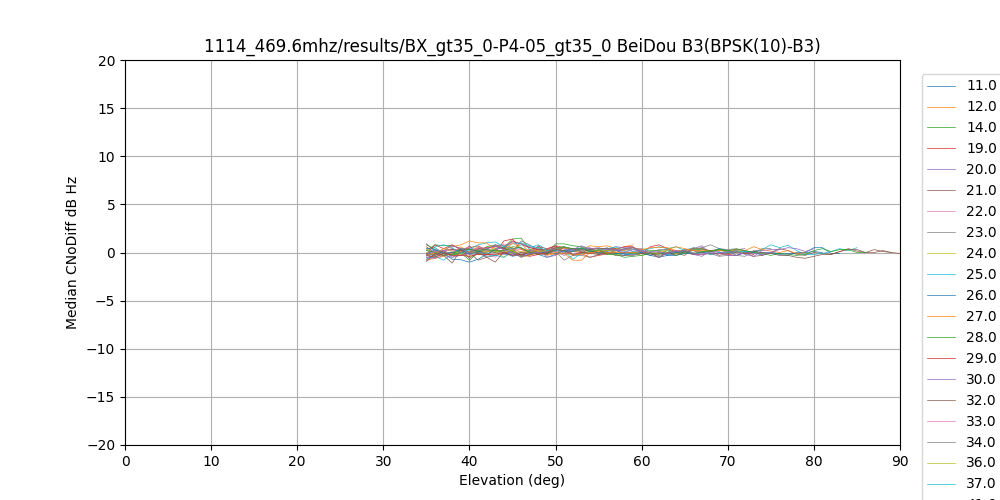

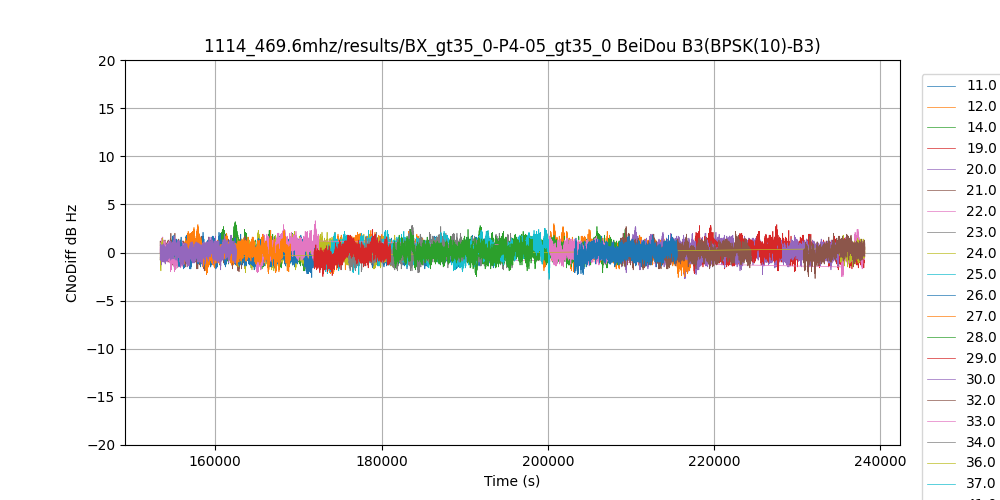

DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 60.1 0.0 1.8 -1.7 [19.0, 39.0] 14832
12 49.8 0.4 2.3 -2.2 [25.0, 30.0] 11226
14 48.0 0.4 3.2 -1.9 [47.0, 45.0] 10618
19 59.6 0.1 2.9 -2.0 [46.0, 48.0] 12826
20 56.7 0.0 2.1 -2.7 [41.0, 45.0] 18630
21 67.1 0.0 2.0 -2.0 [15.0, 22.0] 10315
22 43.1 -0.1 2.4 -2.5 [46.0, 20.0, 11.0] 5835
23 57.5 0.2 2.8 -2.1 [40.0, 32.0] 14110
24 56.9 0.1 2.3 -2.1 [48.0, 50.0] 19038
25 60.7 0.1 2.3 -2.3 [12.0, 31.0] 16866
26 59.7 -0.0 2.1 -2.6 [23.0, 19.0] 17470
27 58.9 0.1 3.0 -2.6 [16.0, 50.0] 17679
28 56.5 0.2 2.8 -2.5 [38.0, 44.0] 19031
29 47.6 0.3 2.8 -2.2 [49.0, 51.0] 10541
30 59.2 0.1 2.7 -2.1 [47.0, 38.0] 14614
32 61.2 0.0 2.7 -1.8 [26.0, 28.0] 15740
33 40.6 0.4 3.3 -2.1 [44.0, 48.0, 9.0] 14426
34 56.9 0.1 2.1 -2.0 [42.0, 11.0] 13772
36 44.6 0.1 1.8 -1.9 [52.0, 18.0, 47.0, 43.0] 3425
37 45.5 0.4 2.5 -2.8 [44.0, 45.0] 9754
41 52.9 -0.0 1.9 -2.3 [15.0, 22.0] 12348
42 54.2 0.2 2.9 -2.3 [20.0, 16.0] 12770
43 60.8 0.1 2.4 -1.9 [17.0, 26.0] 16636
44 44.4 -0.1 2.4 -2.5 [35.0, 37.0] 9208
45 60.6 0.1 1.9 -1.8 [40.0, 12.0] 9116
46 50.5 0.1 2.0 -2.7 [48.0, 50.0] 7331
MSS Ref

Mean CNo: 49.18
MSS DUT

Mean CNo: 49.28
MSS Diff

Mean Diff CNo: -0.11
