Comments


Run with Ch 10 = 901 MHz, 2 MHz BW (local whip)

Files


240726/BX_all.T04 240726/EB79_all.T04 240726/EB81_all.T04
Modified: 2024-08-19 17:18:52

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2324']
Start Time : 417600.278
Stop Time : 507012.195
Total Hours : 24.836643611111114

Mean Primary Pos: [39.89647569292147, -105.11507173477099]
Mean Secondary Pos: [39.896490967759604, -105.11506488262279]
Mean Heading: 198.99 (deg)
Mean Slope Distance: 1.7963 (m)
 Modified: 2024-08-19 17:18:52

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 417600.159
Stop Time : 507052.116
Total Hours : 24.84776583333333

Mean Primary Pos: [39.89647500552967, -105.11505742917812]
Mean Secondary Pos: [39.89645851000327, -105.11506839963505]
Mean Heading: 27.032 (deg)
Mean Slope Distance: 2.0592 (m)
 Modified: 2024-08-19 17:18:52

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 417600.294
Stop Time : 506195.473
Total Hours : 24.609771944444446

Mean Primary Pos: [39.89647775182676, -105.11503891558868]
Mean Secondary Pos: [39.89649303613358, -105.11503369239931]
Mean Heading: 194.69 (deg)
Mean Slope Distance: 1.757 (m)

Difference Report Links

240726/results/BX_all_0-EB79_all_0.html
240726/results/BX_all_0-EB81_all_0.html
240726/results/BX_all_1-EB79_all_1.html
240726/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 832135 0.26863922320296585 832,265 0.3 832133 0.09172115515188074 832,252 0.1
GPS L2 CM+CL 636998 0.4031094289150044 637,169 0.8 636953 0.13412229787755142 637,115 0.5
GPS L2 E 45004 1.0430272864634256 186,078 1.2 46801 0.25673169376722715 189,786 0.6
GPS L5/E5A I+Q 465277 0.07411262538229914 465,486 0.8 465252 0.011624667921900382 465,468 0.2
SBAS L1 CA 269600 0.007473293768545981 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 662960 0.8587012791118621 663,088 1.0 663107 0.5990686269335115 663,263 0.6
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 595283 0.5231548691966679 595,578 1.1 599144 0.07139035023299907 599,626 0.4
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 0 656,972 0.4 0 656,958 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 656998 0.06700994523575417 657,022 0.5 657044 0.0520237609657801 657,049 0.4
Galileo E6 BPSK(5)-PD 656895 0.6118372038149172 0 656613 0.11139483988285337 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou E5B/B2 BPSK(2)-B2 21071 3.992226282568459 630,590 0.7 23598 3.2234341893380796 630,586 0.3
BeiDou B1 BPSK(2)-B1 697886 0.128036240876017 67,251 0.2 697841 -0.17346974454066175 67,251 0.1
BeiDou B3 BPSK(10)-B3 697854 0.46012890948536495 697,866 0.3 697644 0.01831894203920621 697,850 -0.1
QZSS L1 CA 0 697,739 0.5 0 697,580 0.3
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 6237961 0.38233451603817303 0 5976130 0.11618134143668211 0
89,872 Total time (seconds) 6,787,104 0.6 89,872 Total time (seconds) 6,794,784 0.3

Az-El Plots

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

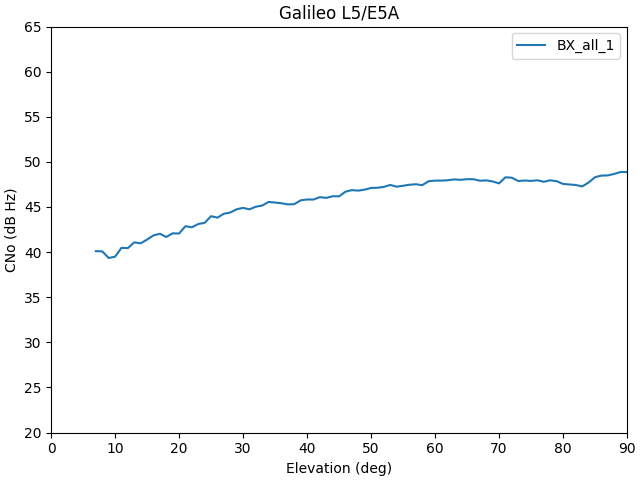

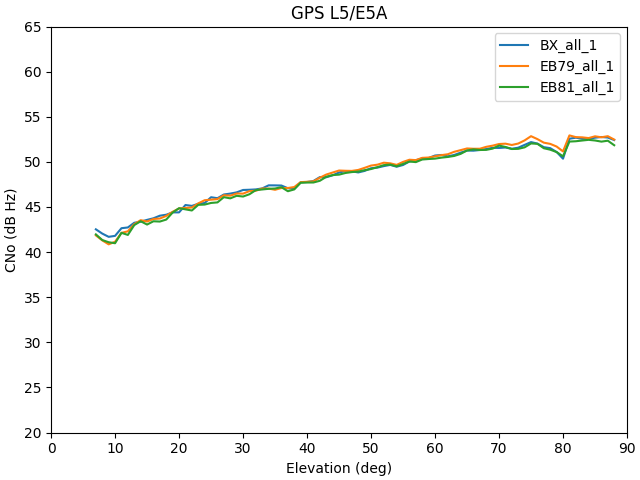

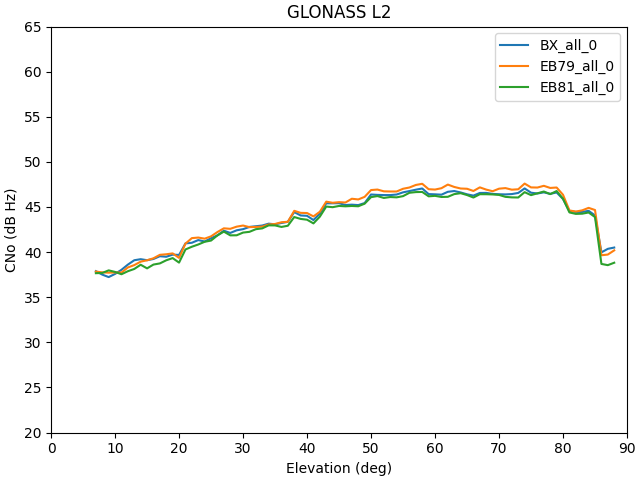

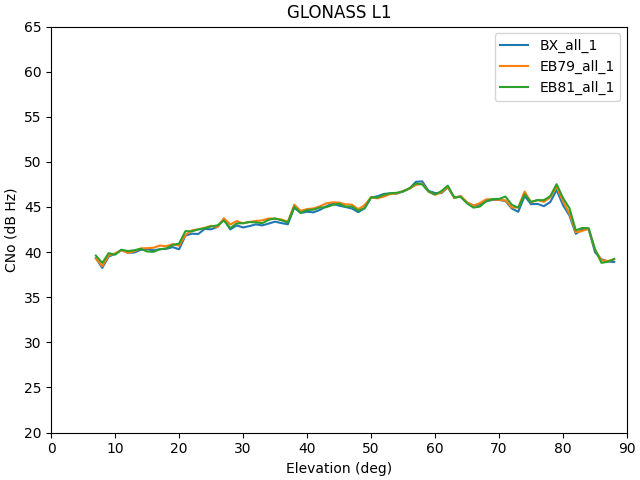

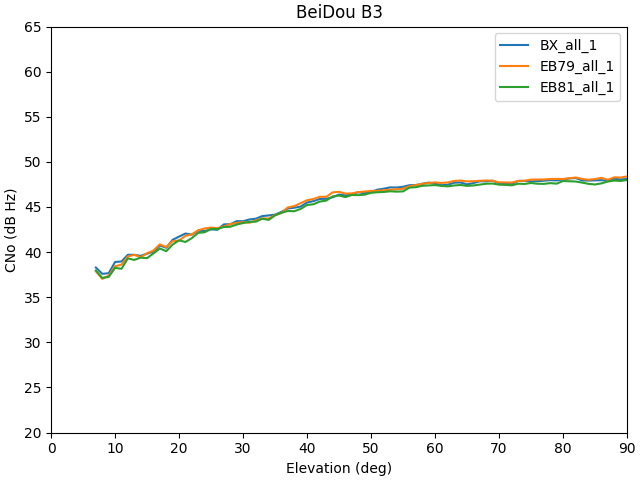

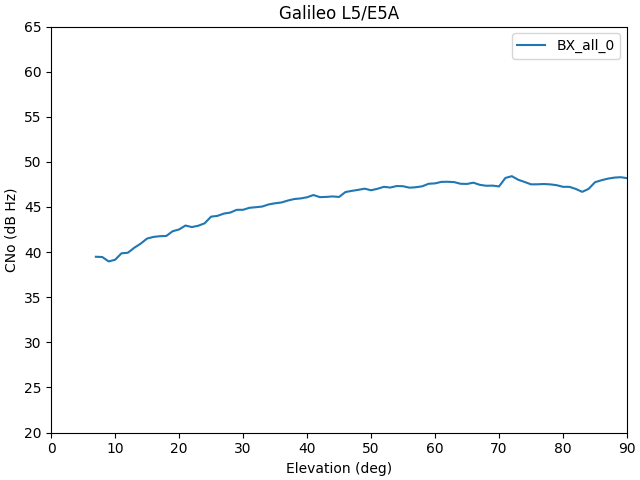

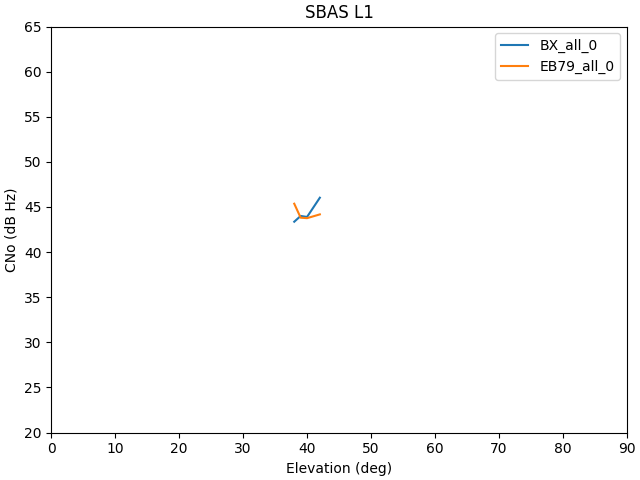

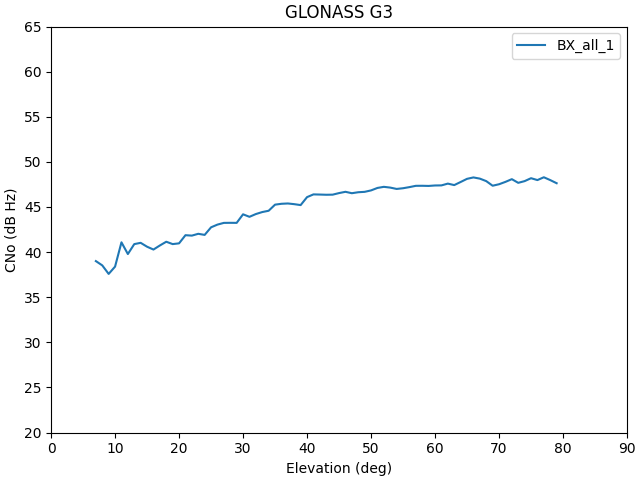

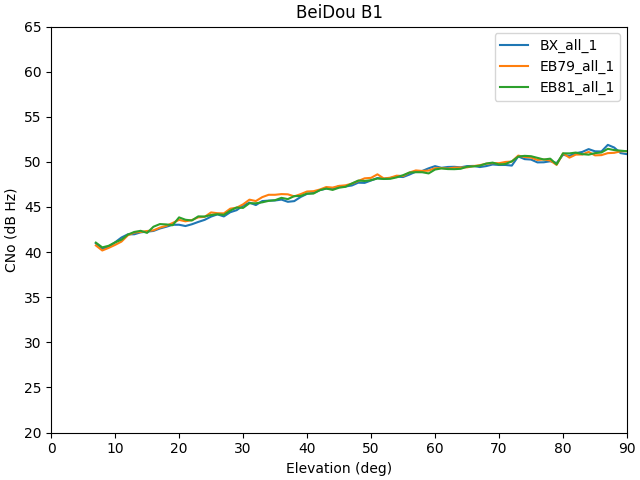

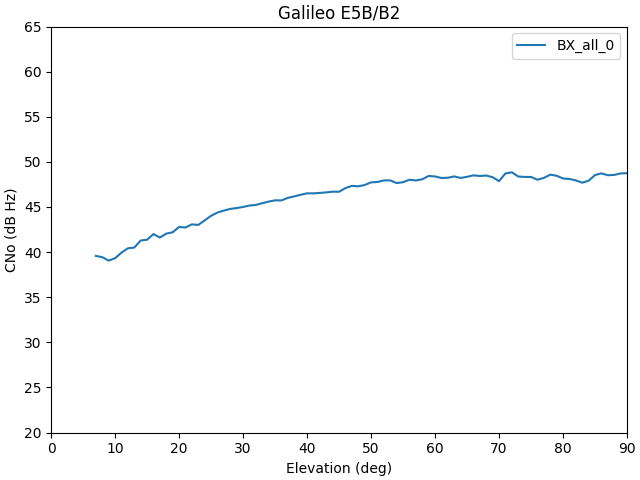

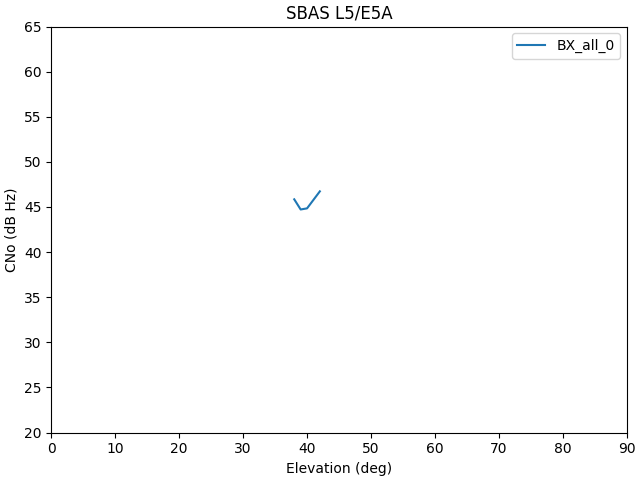

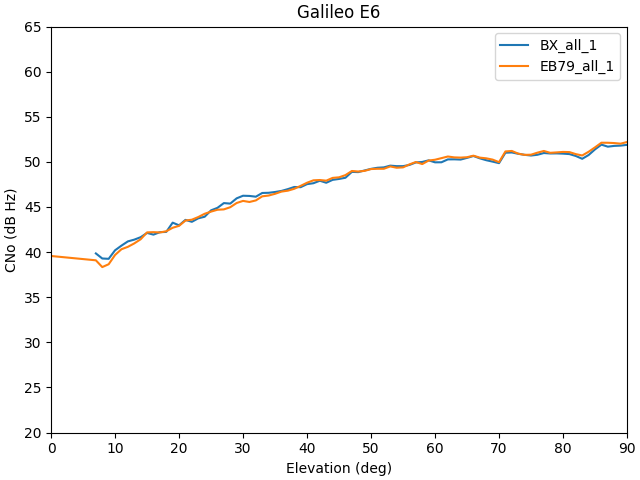

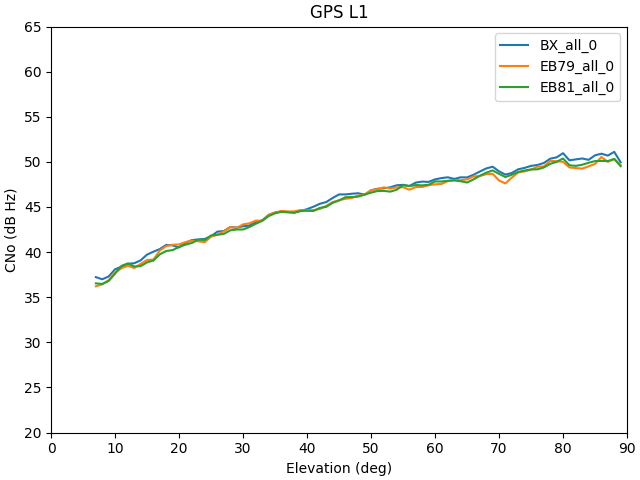

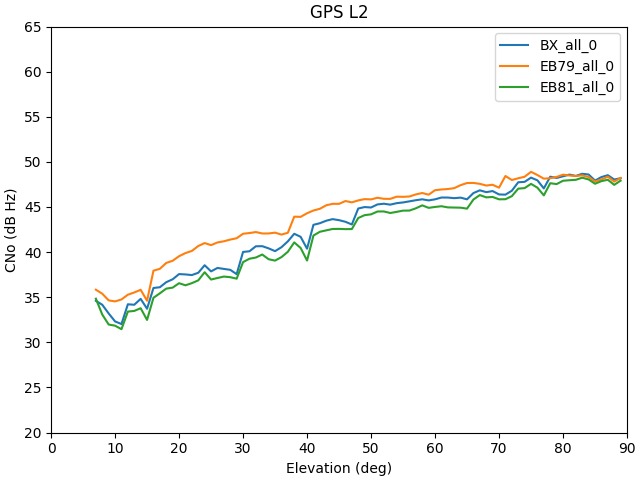

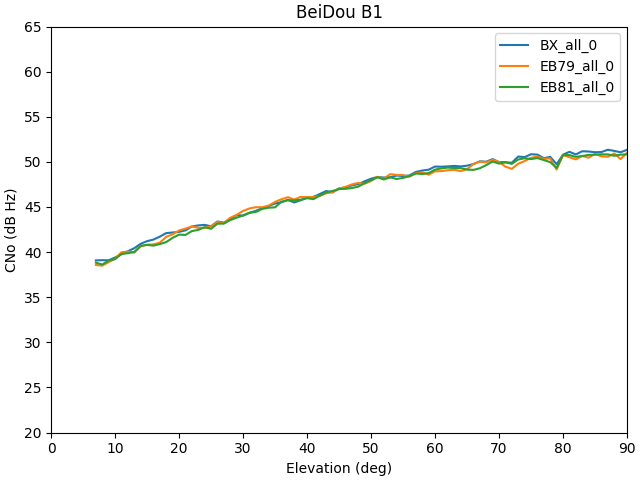

Mean Elevation Plots

Antenna 0

GPS
SBAS
GLONASS
Galileo
BeiDou

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_all_0: 1744.9
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 15 1,745
0 GLONASS L1 1 15 1,518
0 GLONASS L1 0 18 1,495
0 GPS L1 0 5 1,432
0 GLONASS L1 0 9 1,429
0 GLONASS L1 0 23 1,353
0 GLONASS L1 1 18 1,346
0 GLONASS L1 0 2 1,340
0 GPS L1 0 15 1,336
0 GPS L1 0 20 1,331
EB79_all_0: 1668.7
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 9 1,669
0 GPS L1 0 15 1,550
0 GLONASS L2 0 13 1,408
0 Galileo E6 36 36 1,361
0 BeiDou B1 26 44 1,356
0 GPS L1 0 25 1,331
0 GPS L1 0 5 1,288
0 GLONASS L1 0 23 1,284
0 GPS L1 0 8 1,270
0 GLONASS L1 0 10 1,269
EB81_all_0: 2094.5
Antenna SVType Freq Track SV osc_factor
0 GPS L2 5 25 2,095
0 GLONASS L1 0 9 1,921
0 GPS L1 0 5 1,805
0 GPS L2 5 27 1,641
0 GPS L1 0 15 1,565
0 GPS L1 0 8 1,553
0 GPS L1 0 12 1,546
0 GPS L1 0 4 1,540
0 BeiDou B1 26 36 1,502
0 GLONASS L1 0 23 1,482
BX_all_1: 2036.3
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 17 2,036
1 GLONASS L1 0 16 1,800
1 GLONASS L1 1 16 1,734
1 GLONASS L1 0 18 1,572
1 GLONASS L1 0 9 1,568
1 GLONASS L1 1 17 1,532
1 GLONASS L1 0 10 1,444
1 GLONASS L1 1 18 1,438
1 GLONASS L1 1 9 1,424
1 GPS L1 0 5 1,371
EB79_all_1: 1903.9
Antenna SVType Freq Track SV osc_factor
1 GPS L1 0 27 1,904
1 GLONASS L1 0 16 1,379
1 Galileo L1 20 34 1,367
1 Galileo L1 20 24 1,261
1 GLONASS L1 0 11 1,213
1 GLONASS L1 0 7 1,197
1 GLONASS L1 0 9 1,187
1 GPS L1 0 14 1,152
1 GPS L1 0 6 1,111
1 GLONASS L1 0 24 1,061
EB81_all_1: 1863.4
Antenna SVType Freq Track SV osc_factor
1 GPS L1 0 27 1,863
1 GLONASS L1 0 9 1,690
1 GPS L2 5 25 1,657
1 GLONASS L1 0 16 1,567
1 Galileo L1 23 34 1,447
1 BeiDou L5/E5A 8 26 1,396
1 Galileo L1 23 24 1,360
1 GLONASS L1 0 17 1,359
1 GLONASS L1 0 23 1,349
1 GPS L1 0 22 1,342

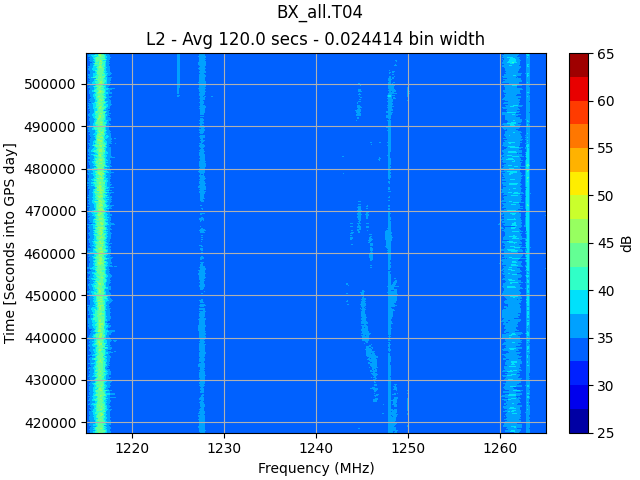

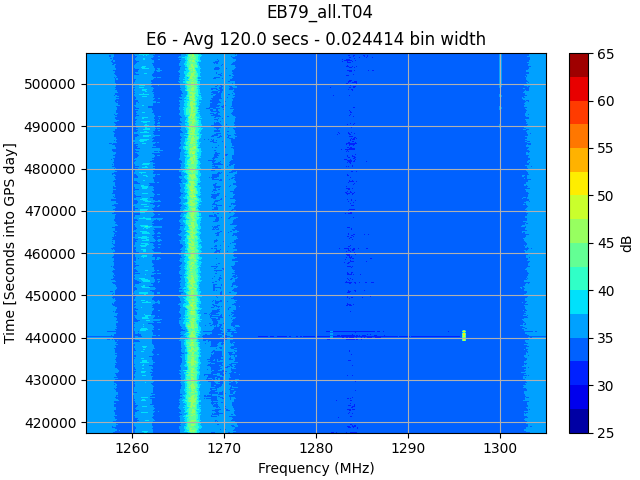

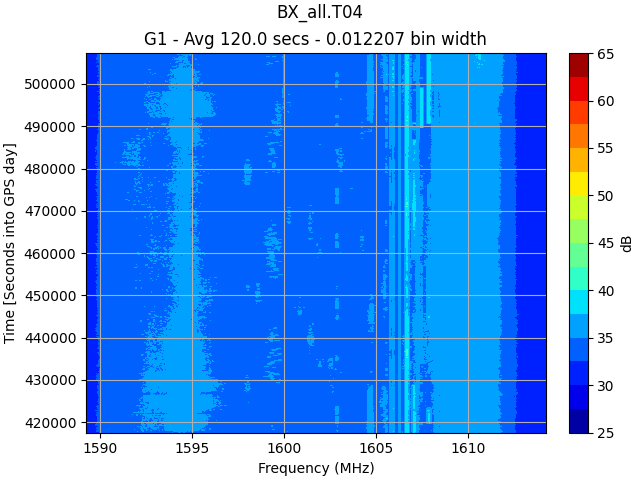

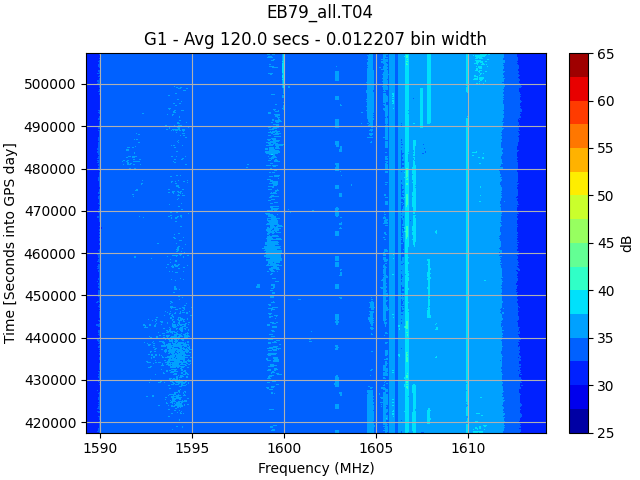

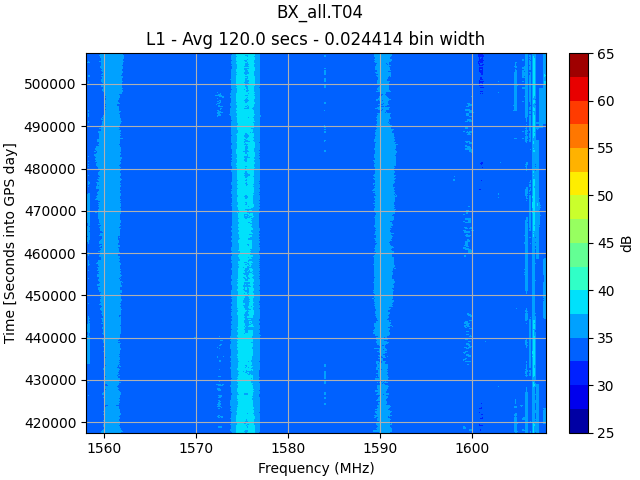

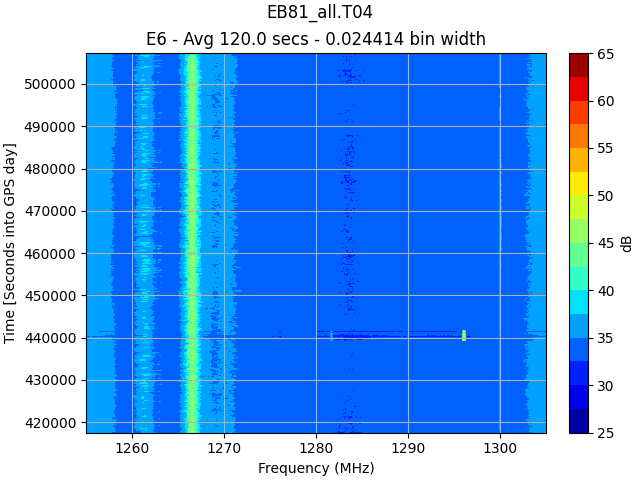

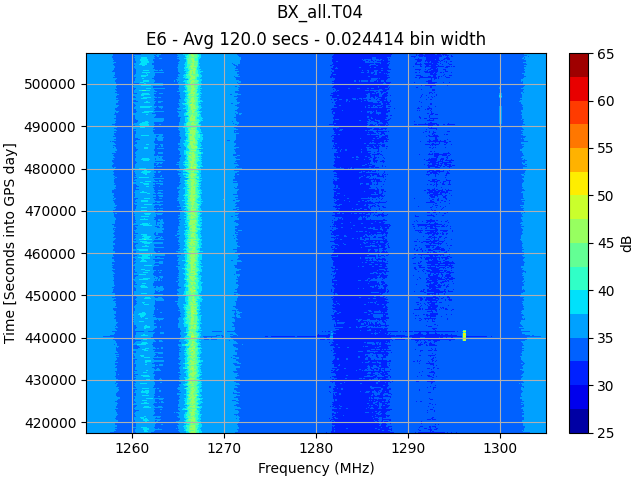

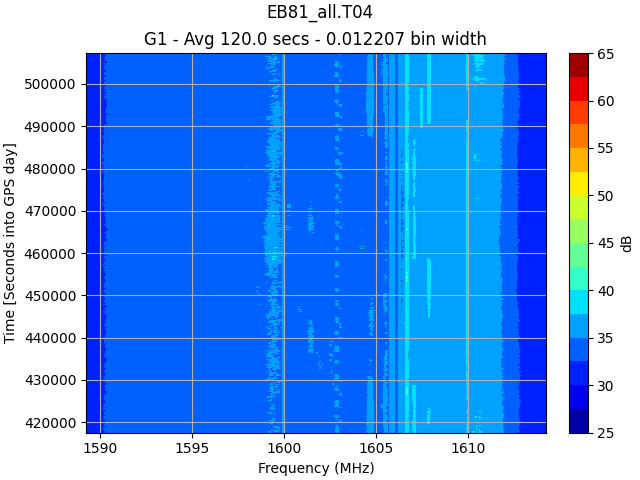

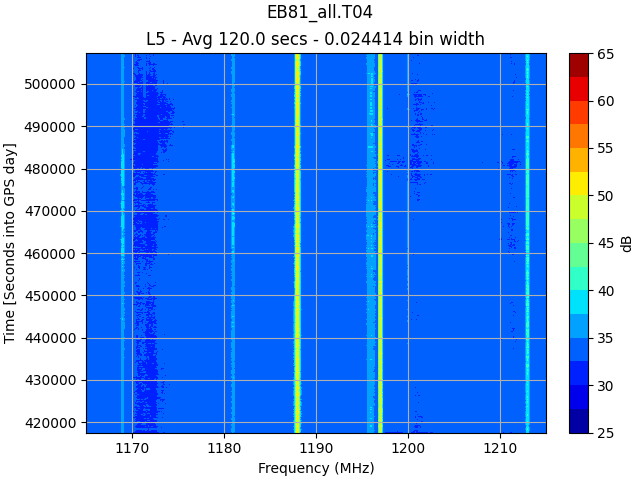

FFT Plots

L1 L2 L5 E6 G1 B1
BX
EB79
EB81
