REF File: 240726/BX_all.T04
DUT File: 240726/EB79_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 833215 44.3 44.5 3.8 10.2 55.0 44.8 37.1 89.0
GPS L2 CM+CL 637883 43.6 44.1 4.0 17.9 51.7 33.8 38.5 89.0
GPS L2 E 193380 29.7 30.2 6.3 10.9 43.5 32.6 32.9 77.0
GPS L5/E5A I+Q 466062 47.2 47.3 3.3 19.4 54.0 34.6 37.7 88.0
GLONASS L1 CA 664754 44.0 45.1 5.0 16.5 54.4 37.9 36.3 88.0
GLONASS L1 P 664165 42.5 43.6 5.0 21.3 52.3 31.0 36.3 88.0
GLONASS L2 CA 600776 43.3 44.2 4.2 8.2 51.0 42.8 35.6 88.0
GLONASS L2 P 600461 41.9 42.6 3.9 1.0 48.8 47.8 35.6 88.0

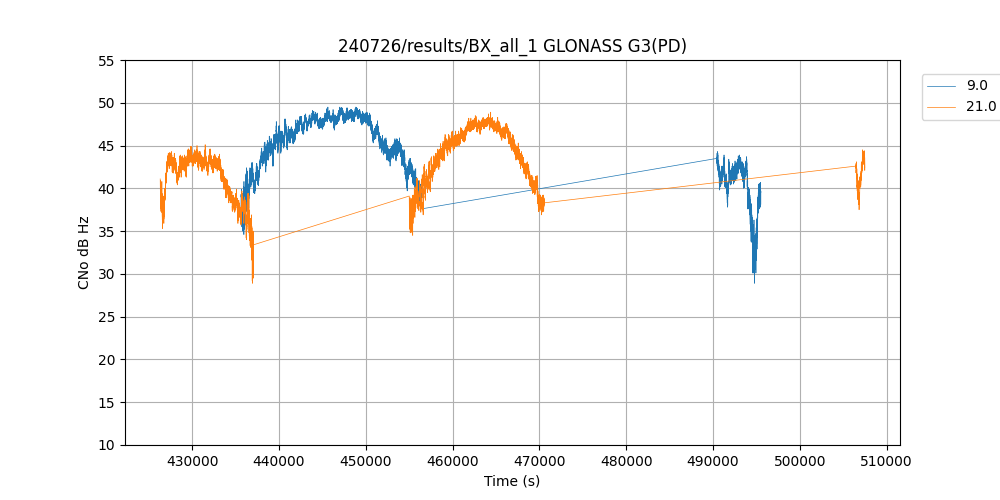

GLONASS G3 PD 53157 43.5 43.6 3.6 28.9 49.5 20.6 33.1 79.0
Galileo L1 MBOC-PD 657531 45.4 45.6 3.6 21.9 53.8 31.9 36.7 90.0
Galileo L5/E5A BPSK(10)-PD 657524 44.6 45.1 3.2 21.4 51.4 30.0 36.7 90.0

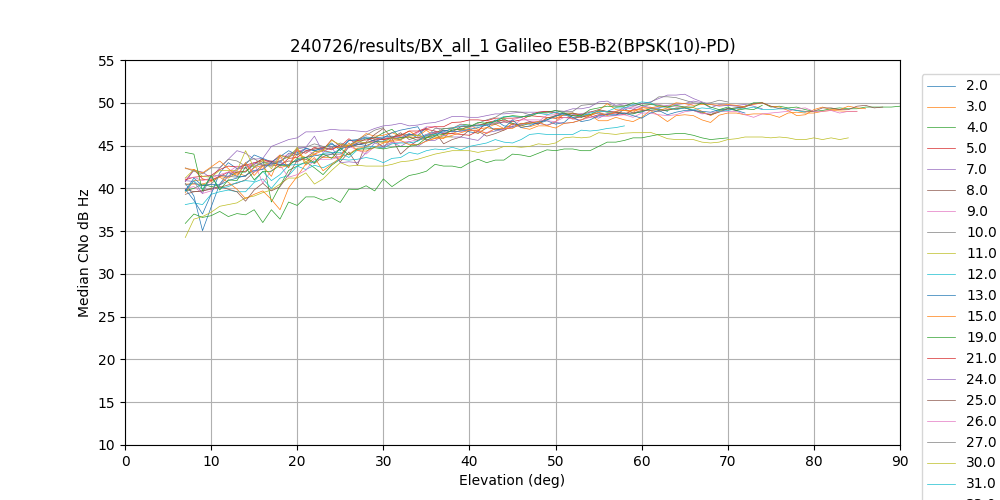

Galileo E5B/B2 BPSK(10)-PD 657531 45.2 45.6 3.3 20.4 51.9 31.5 36.7 90.0
Galileo E5A+B AltBOC-Comp-PD 657531 47.7 48.0 2.8 33.8 54.7 20.9 36.7 90.0

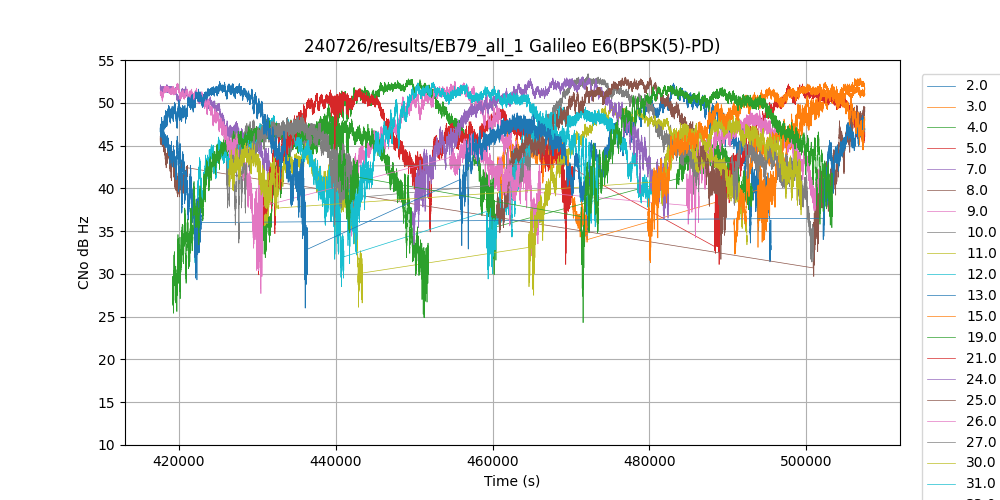

Galileo E6 BPSK(5)-PD 657475 46.0 46.5 4.2 21.8 52.9 31.1 36.7 90.0
BeiDou L1 BOC-PD 631034 45.7 45.8 3.5 18.5 53.7 35.2 36.9 90.0
BeiDou L5/E5A I+Q 631035 45.6 45.8 3.3 28.3 51.9 23.6 36.9 90.0
BeiDou E5B/B2 BPSK(2)-B2 67300 45.5 46.0 3.0 32.9 51.6 18.7 38.9 79.0

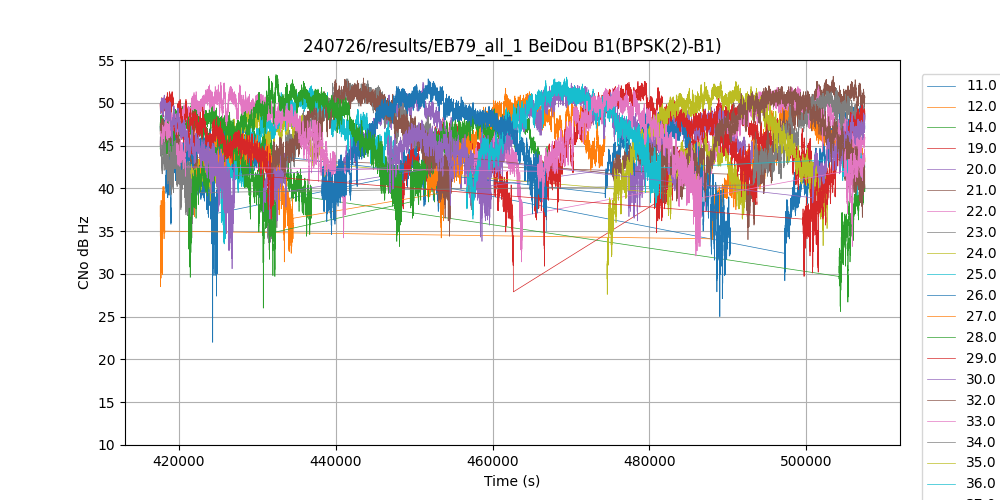

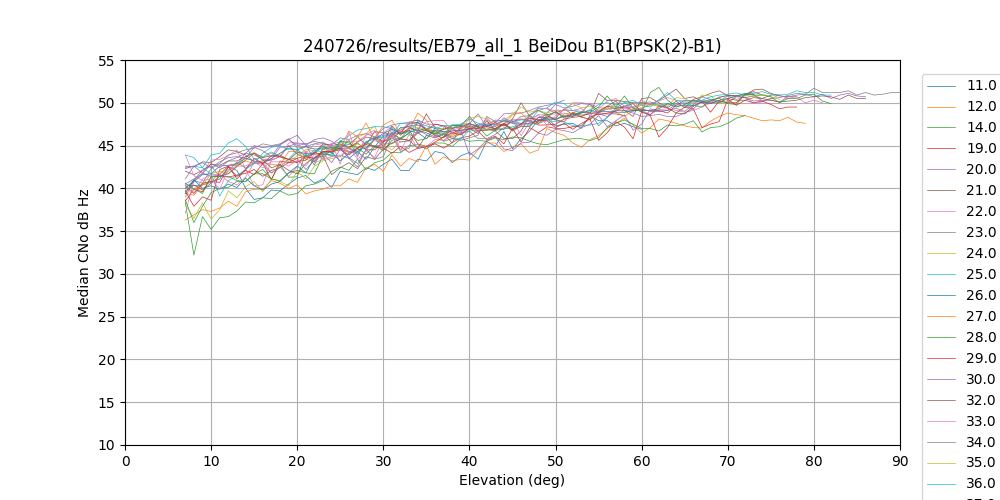

BeiDou B1 BPSK(2)-B1 698347 45.6 45.6 3.5 19.0 53.4 34.4 37.1 90.0

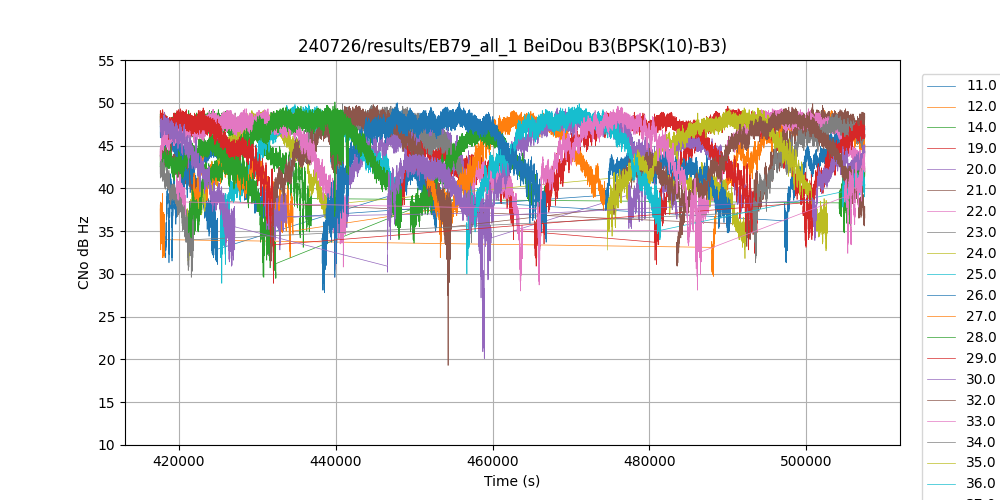

BeiDou B3 BPSK(10)-B3 698289 43.9 44.3 3.6 16.9 49.9 33.0 37.1 90.0
start/stop time: 417,600 507,472
Total time: 89,872.0 seconds
Total time: 1,497.867 minutes
Total time: 24.964 hours
Total Samples: 10,727,450
Avg Samples/sec: 119.4

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2324']
Start Time : 417600.278
Stop Time : 507012.195
Total Hours : 24.836643611111114
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 832722 44.2 44.6 3.8 18.6 53.7 35.1 37.1 89.0
GPS L2 CM+CL 637418 43.5 43.9 4.2 16.8 52.0 35.2 38.5 89.0
GPS L2 E 47032 27.9 29.3 6.5 12.6 40.0 27.4 29.3 70.0
GPS L5/E5A I+Q 465565 47.2 47.2 3.6 20.4 54.1 33.7 37.8 88.0
GLONASS L1 CA 663462 43.5 44.7 5.1 15.2 53.8 38.6 36.3 88.0
GLONASS L2 CA 599524 43.3 44.1 4.3 13.2 51.3 38.1 35.7 88.0
Galileo L1 BOC-PD 657515 45.3 45.5 3.7 0.0 53.8 53.8 36.7 90.0
Galileo E5A+B AltBOC-Comp-PD 657651 47.6 48.0 3.0 33.2 54.0 20.8 36.7 90.0
Galileo E6 BPSK(5)-PD 657272 45.9 46.3 4.4 24.3 53.4 29.1 36.7 90.0
BeiDou E5B/B2 BPSK(2)-B2 23606 42.3 42.3 3.7 30.0 48.2 18.2 37.6 72.0
BeiDou B1 BPSK(2)-B1 698169 45.7 46.0 3.6 22.0 53.3 31.3 37.1 90.0
BeiDou B3 BPSK(10)-B3 698025 43.8 44.4 3.7 19.3 50.1 30.8 37.1 90.0
start/stop time: 417,600 507,475
Total time: 89,875.0 seconds
Total time: 1,497.917 minutes
Total time: 24.965 hours
Total Samples: 6,637,961
Avg Samples/sec: 73.9

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2324']
Start Time : 417600.159
Stop Time : 507052.116
Total Hours : 24.84776583333333
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 832133 +0.1 +0.1 +1.4 -26.2 +12.8 +39.0 +37.2 +89.0
GPS L2 CM+CL 636953 +0.1 +0.1 +1.5 -16.7 +15.4 +32.1 +38.5 +89.0
GPS L2 E 46801 +0.3 +0.2 +1.6 -7.0 +7.0 +14.0 +29.4 +70.0
GPS L5/E5A I+Q 465252 +0.0 -0.1 +1.2 -23.0 +21.9 +44.9 +37.8 +88.0
GLONASS L1 CA 663107 +0.6 +0.6 +1.5 -16.7 +18.8 +35.5 +36.3 +88.0
GLONASS L2 CA 599144 +0.1 +0.0 +1.5 -14.5 +18.9 +33.4 +35.7 +88.0
Galileo E5A+B AltBOC-Comp-PD 657044 +0.1 +0.0 +0.9 -8.6 +6.1 +14.7 +36.8 +90.0
Galileo E6 BPSK(5)-PD 656613 +0.1 +0.0 +1.5 -16.1 +12.0 +28.1 +36.8 +90.0
BeiDou E5B/B2 BPSK(2)-B2 23598 +3.2 +3.0 +1.4 -1.3 +11.2 +12.5 +37.6 +72.0
BeiDou B1 BPSK(2)-B1 697841 -0.2 -0.2 +1.4 -19.5 +10.5 +30.0 +37.1 +90.0
BeiDou B3 BPSK(10)-B3 697644 +0.0 +0.0 +1.2 -20.2 +21.9 +42.1 +37.1 +90.0
start/stop time: 417,600 507,472
Total time: 89,872.0 seconds
Total time: 1,497.867 minutes
Total time: 24.964 hours
Total Samples: 5,976,130
Avg Samples/sec: 66.5

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.116
Median = 0.000
Std Dev= 1.388

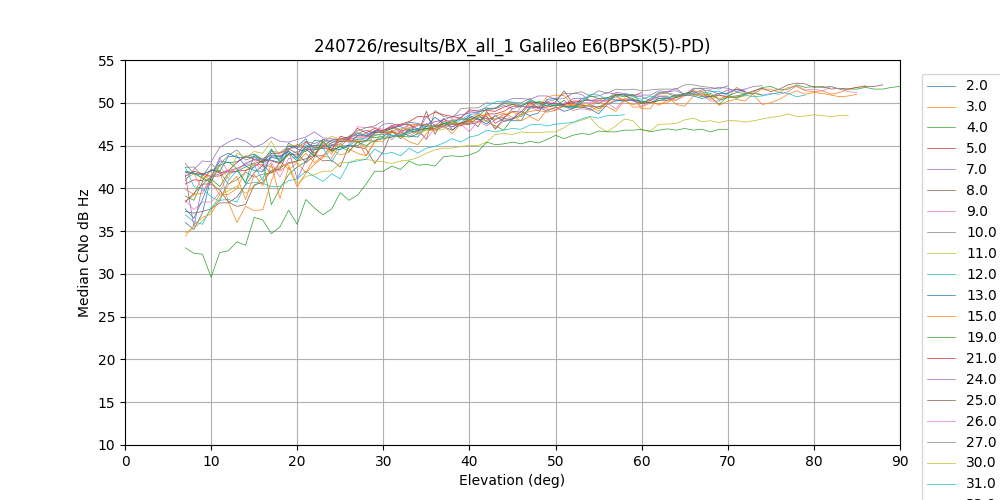

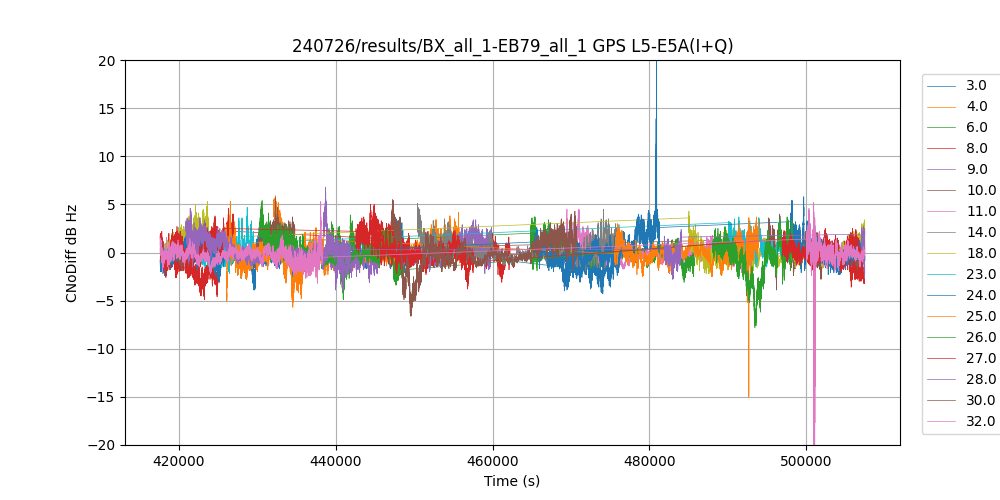

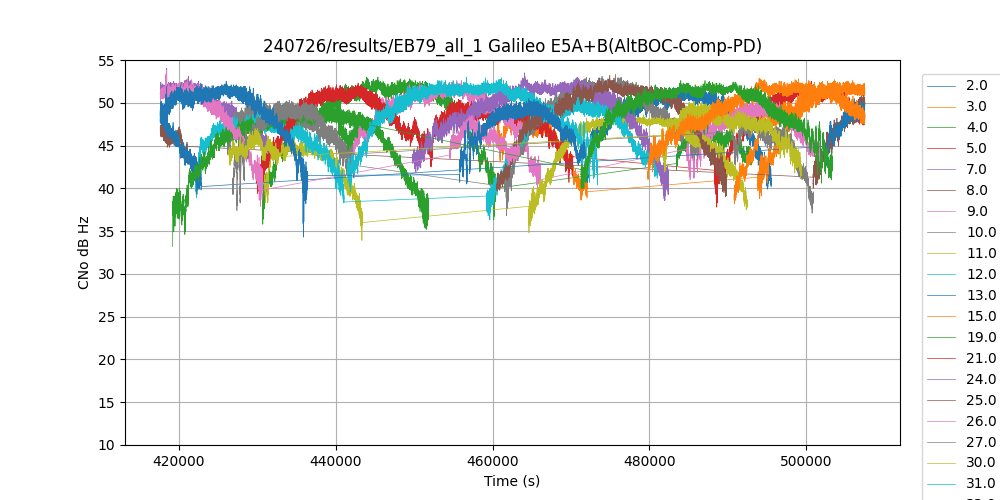

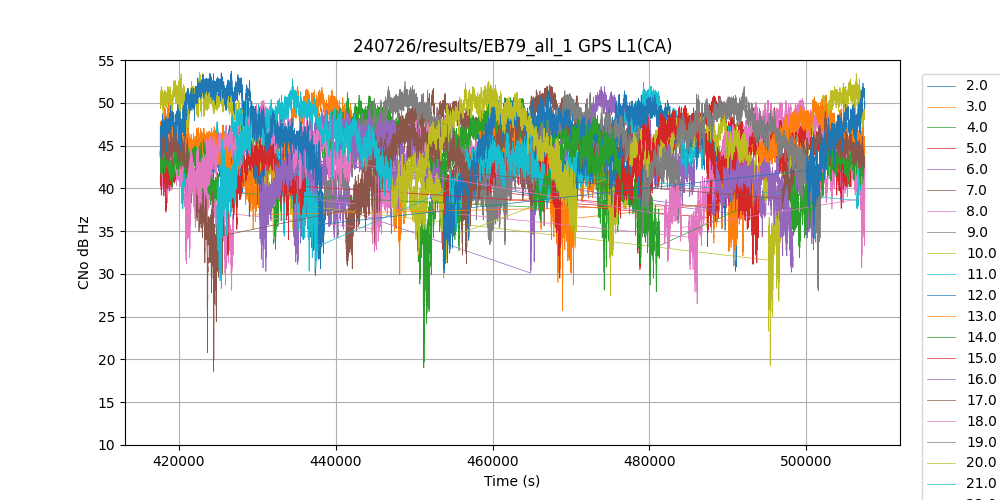

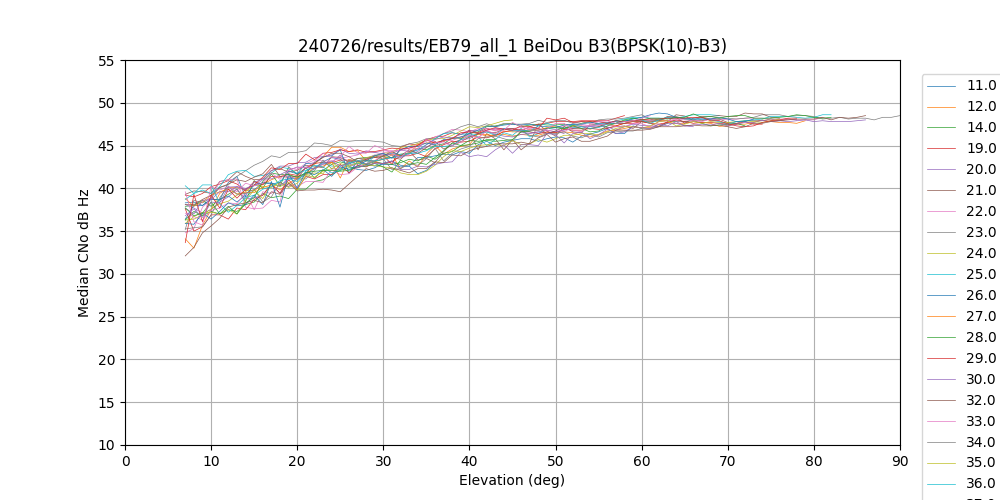

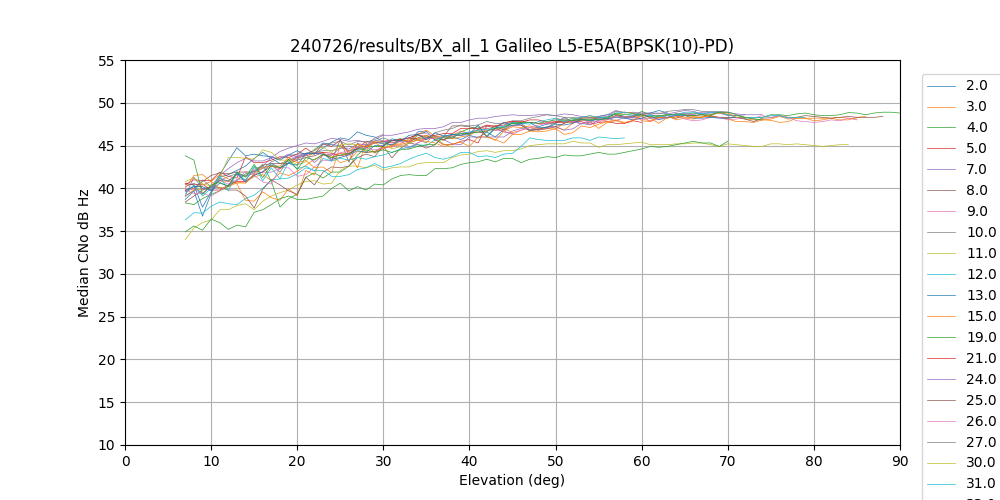

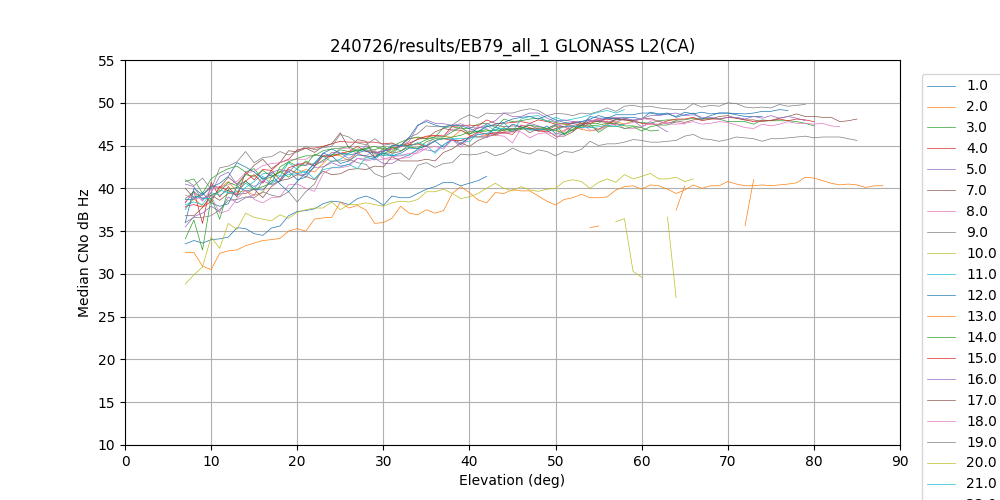

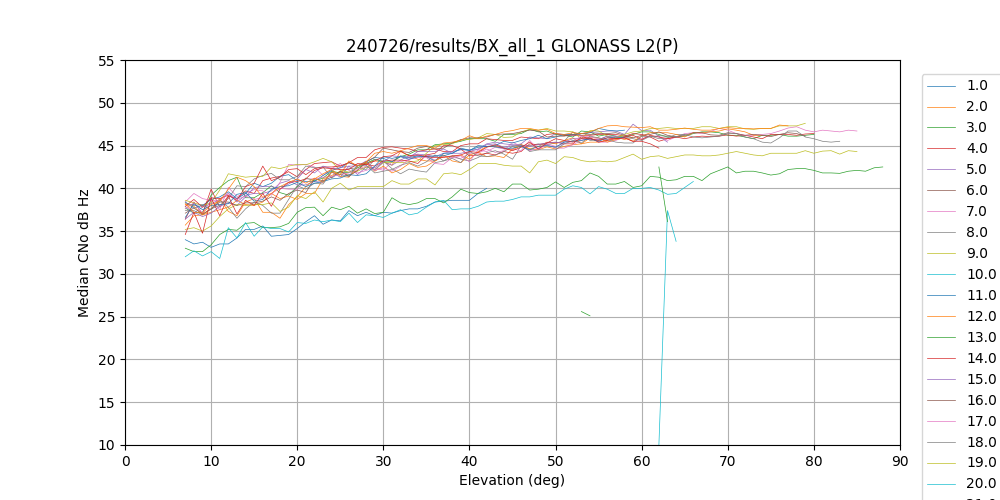

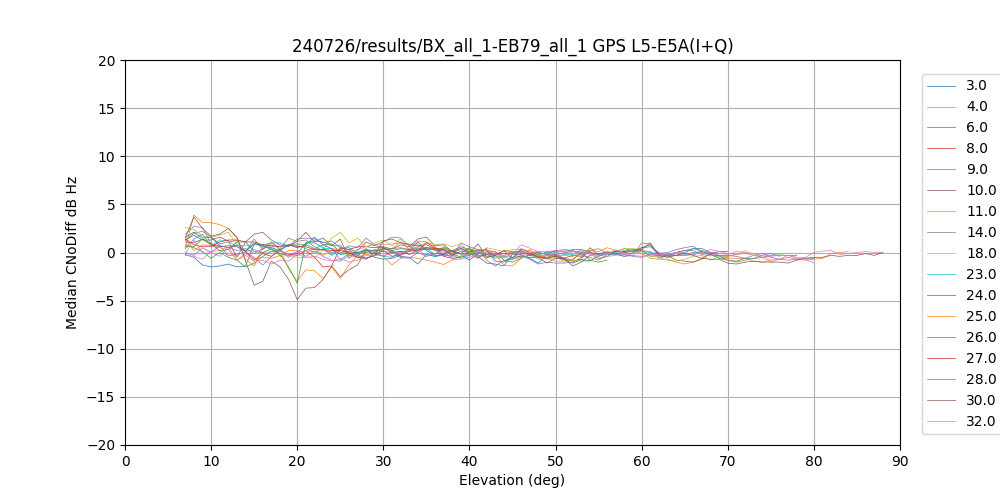

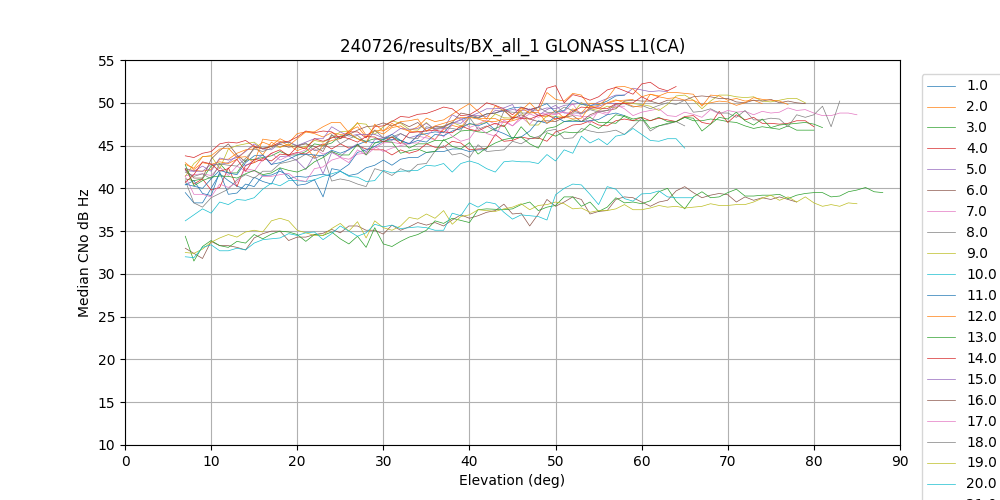

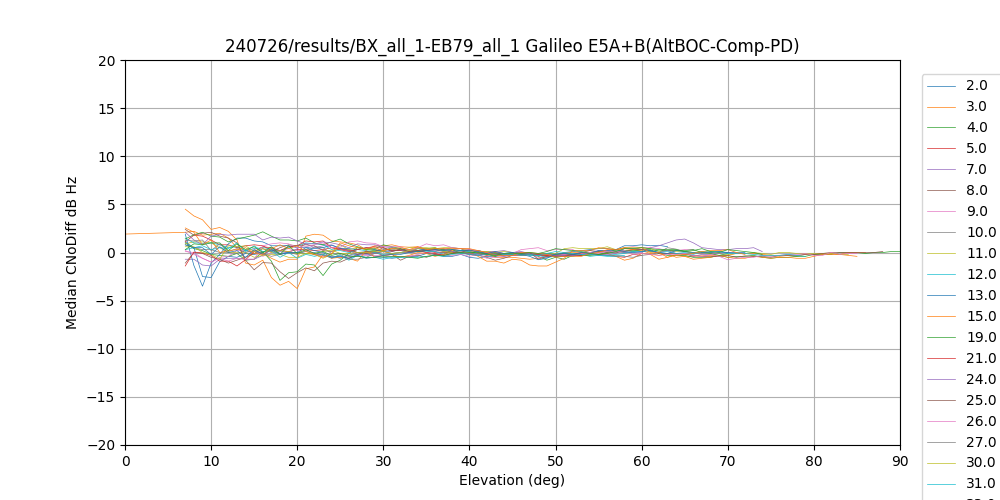

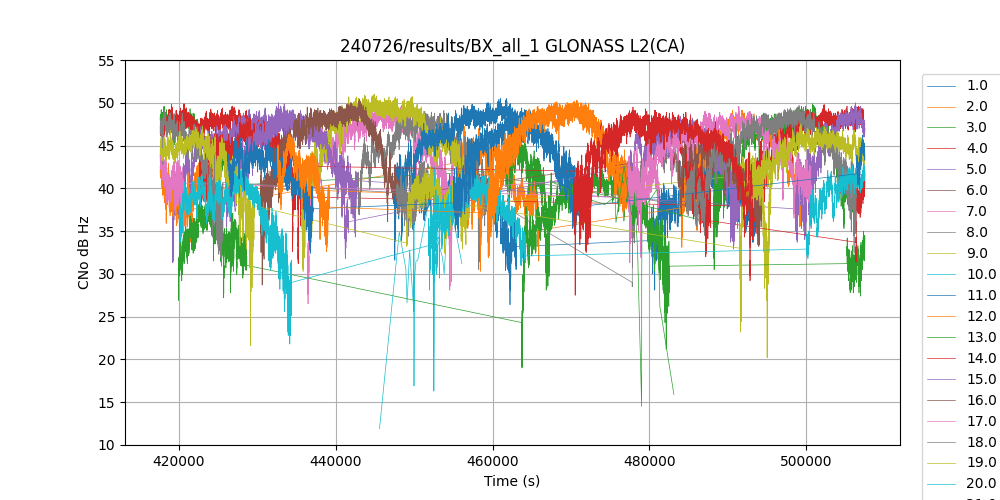

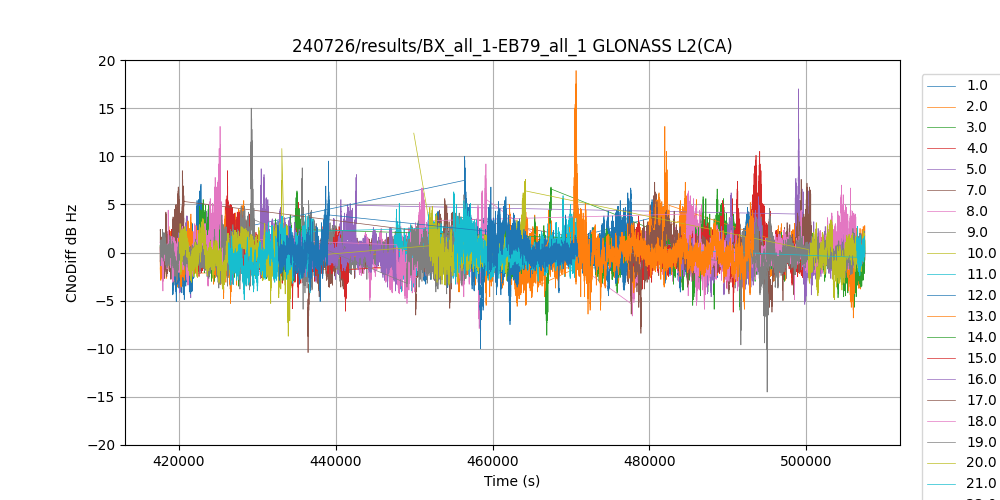

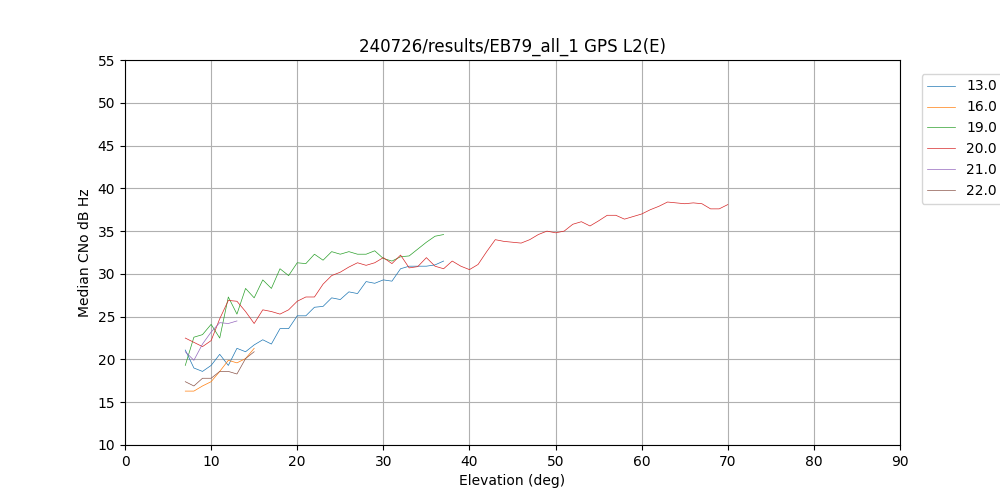

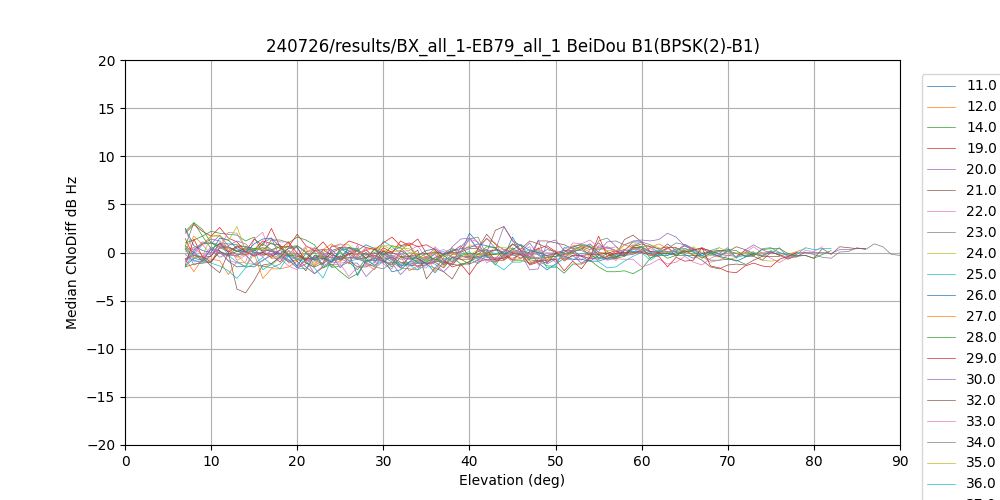

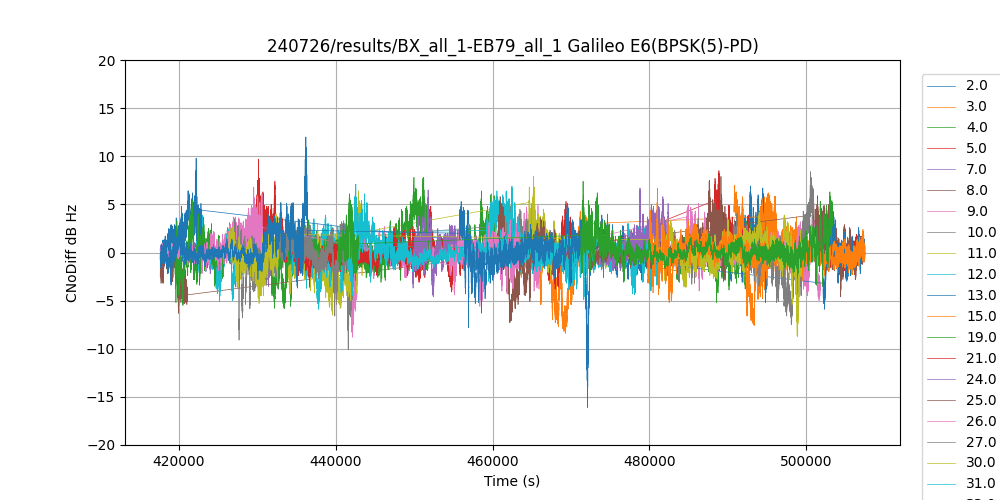

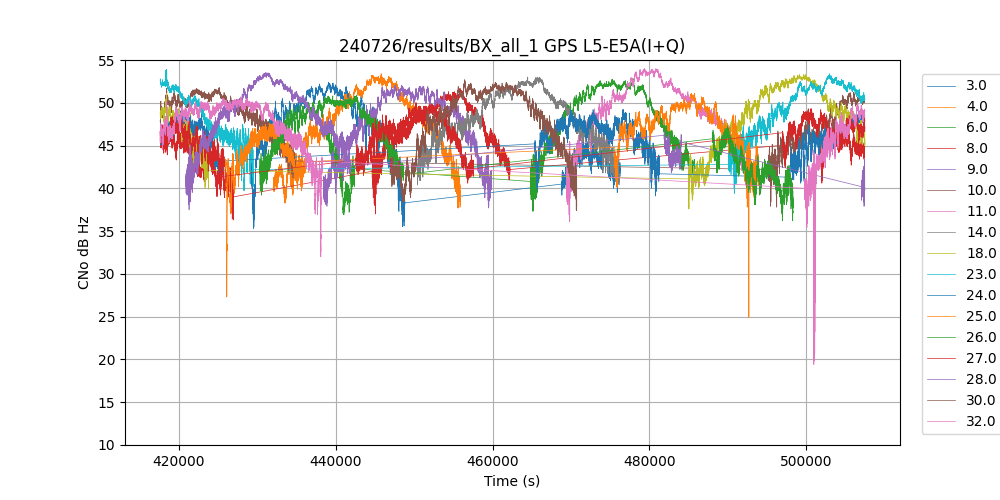

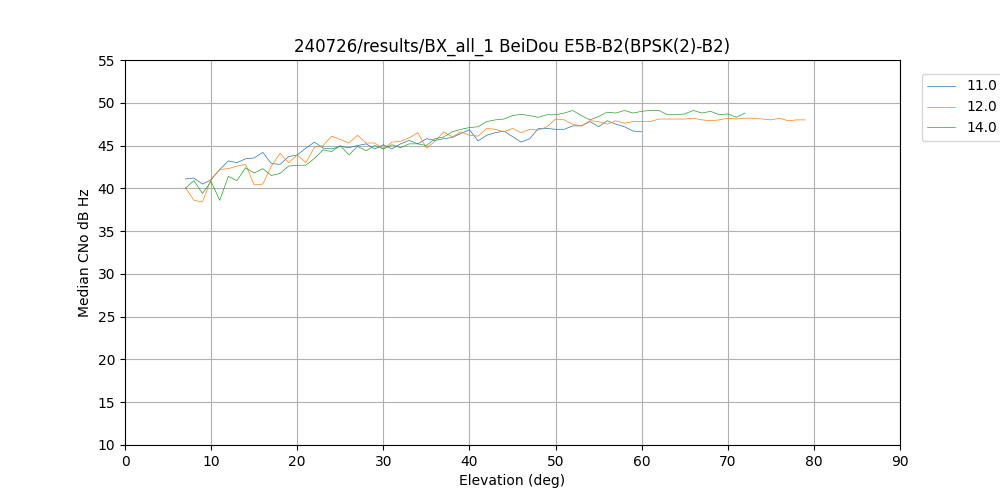

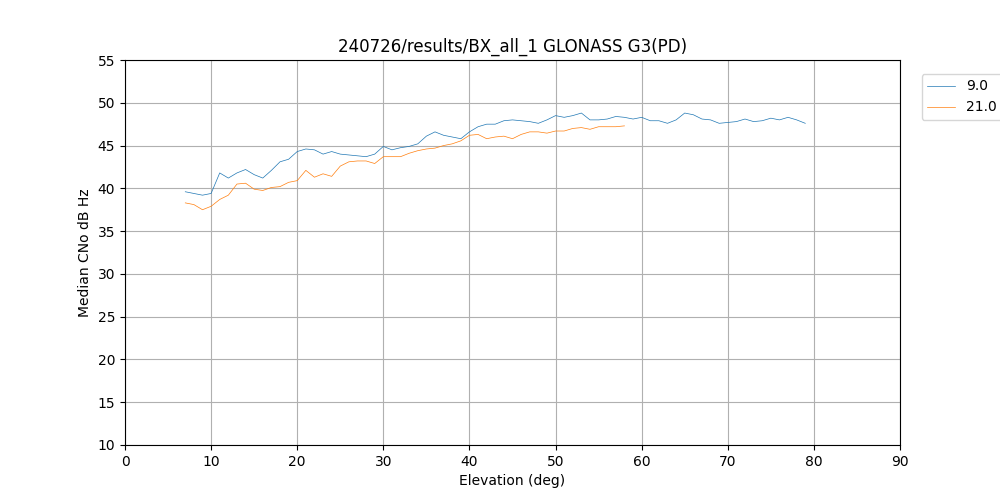

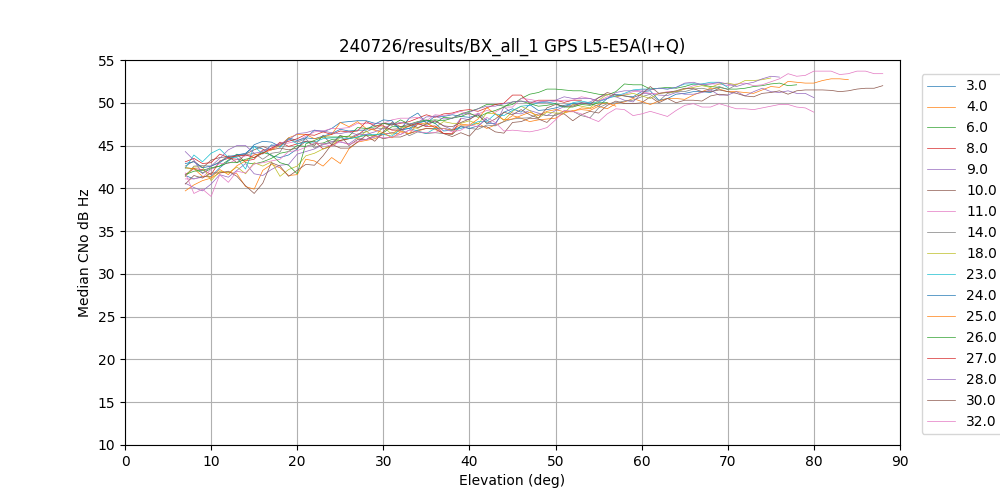

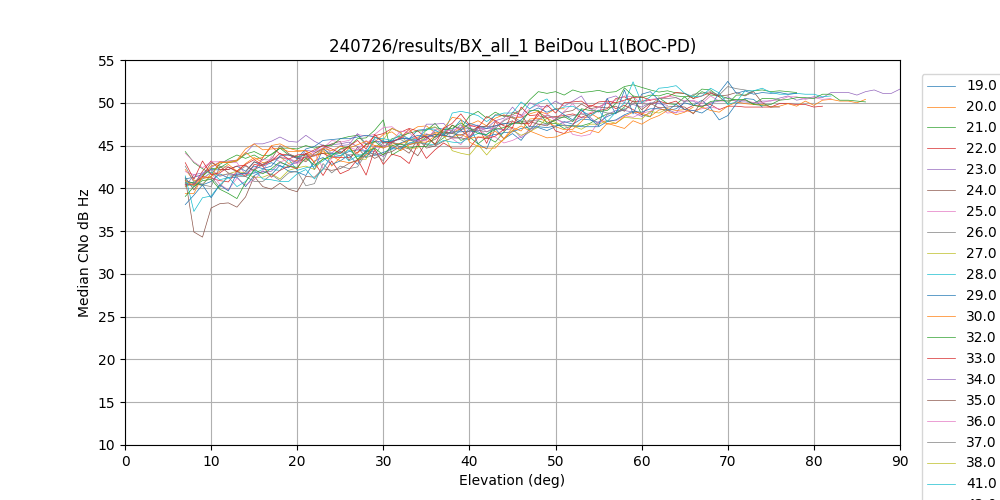

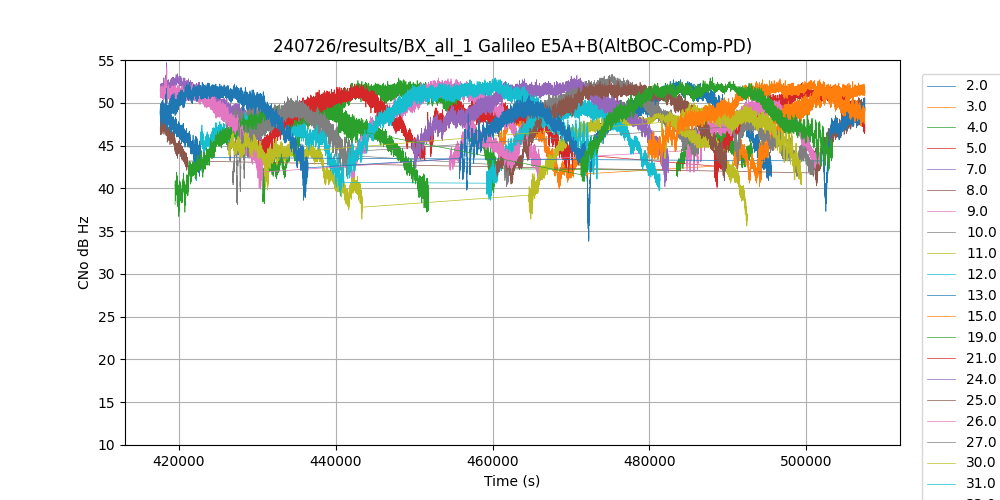

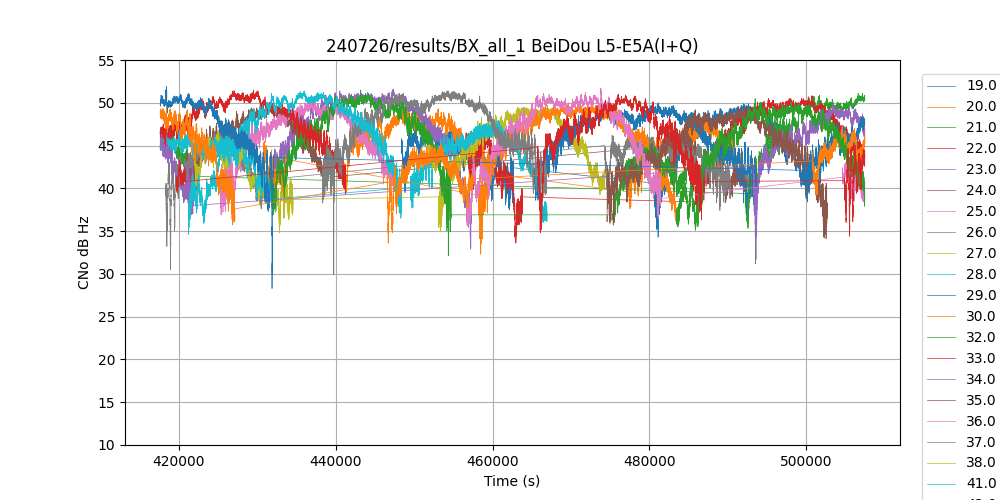

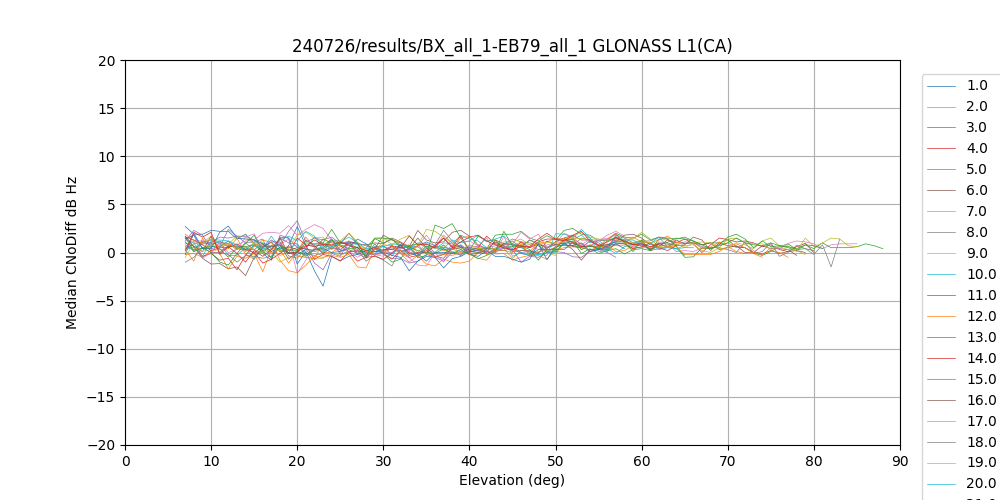

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.4 50.2 26.8 73 [74.0, 90.0] [1.0] 30541
3 32.7 0.0 44.3 52.3 29.2 183 [95.0, 92.0] [1.0] 27087
4 45.4 0.0 44.8 51.7 34.4 0 [72.0] [1.0] 23836
5 40.1 0.0 45.1 50.6 25.8 148 [76.0, 81.0] [1.0] 23021
6 38.3 0.0 44.1 51.8 32.4 218 [83.0, 80.0] [1.0] 24556
7 45.1 0.0 45.5 52.4 27.0 0 [82.0] [1.0] 25480
8 26.8 0.0 42.2 49.3 31.2 182 [90.0, 88.0, 91.0] [1.0] 32849
9 44.0 0.0 45.6 52.4 34.0 0 [92.0] [1.0] 21419
10 45.6 0.0 46.9 54.6 25.3 172 [94.0, 90.0] [1.0] 29528
11 45.8 0.0 46.0 52.7 33.5 0 [91.0] [1.0] 23315
12 37.3 0.0 45.2 51.2 31.6 134 [90.0, 94.0] [1.0] 24292
13 26.4 0.0 43.4 50.4 29.8 214 [94.0, 84.0] [1.0] 29925
14 44.1 0.0 44.5 50.9 24.8 20 [87.0] [1.0] 25743
15 28.0 0.0 43.4 49.4 31.0 250 [87.0, 91.0, 82.0] [1.0] 29966
16 31.3 0.0 42.5 49.5 29.2 24 [77.0, 91.0] [1.0] 27048
17 45.7 0.0 46.2 52.5 33.1 0 [76.0] [1.0] 24084
18 43.3 0.0 44.6 52.4 32.0 34 [93.0, 92.0] [1.0] 28671
19 44.7 0.0 45.1 51.2 34.3 0 [95.0] [1.0] 24561
20 34.3 0.0 43.3 50.2 30.1 250 [85.0, 86.0] [1.0] 25970
21 26.1 0.0 42.7 49.6 26.4 285 [82.0, 85.0, 95.0] [1.0] 31260
22 44.4 0.0 44.7 51.6 10.2 92 [74.0] [1.0] 26001
23 45.7 0.0 44.5 52.2 21.7 235 [71.0, 73.0] [1.0] 29293
24 26.4 0.0 41.8 48.5 28.2 377 [83.0, 78.0, 85.0] [1.0] 33496
25 28.6 0.0 42.9 49.8 32.4 3 [92.0, 85.0] [1.0] 28521
26 27.9 0.0 42.4 49.7 30.0 16 [86.0, 93.0] [1.0] 28550
27 27.1 0.0 42.7 48.6 27.0 281 [85.0, 91.0, 86.0] [1.0] 33622
28 39.1 0.0 44.0 50.0 28.5 298 [89.0, 92.0, 76.0] [1.0] 23616
29 45.6 0.0 45.8 52.3 33.1 0 [79.0] [1.0] 22697
30 45.9 0.0 45.9 53.2 32.2 0 [83.0] [1.0] 23608
31 45.3 0.0 46.3 53.0 29.5 2 [93.0] [1.0] 22305
32 45.9 0.0 47.6 55.0 31.8 145 [79.0, 81.0] [1.0] 28354
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.5 49.5 29.8 242 [73.0, 80.0] [1.0] 30472
3 32.8 0.0 44.2 51.9 29.9 181 [94.0, 95.0] [1.0] 26941
4 45.4 0.0 44.6 51.2 32.7 0 [72.0] [1.0] 23856
5 40.1 0.0 44.9 50.8 30.5 36 [76.0, 80.0] [1.0] 23029
6 38.3 0.0 44.2 51.9 30.1 198 [90.0, 84.0] [1.0] 24534
7 45.1 0.0 45.3 51.7 30.6 1 [85.0] [1.0] 25485
8 26.8 0.0 41.9 48.6 28.1 297 [80.0, 84.0, 91.0] [1.0] 32873
9 44.0 0.0 45.5 52.5 33.8 0 [95.0] [1.0] 21395
10 45.7 0.0 46.8 53.6 19.3 215 [81.0, 89.0] [1.0] 29489
11 45.8 0.0 45.6 52.4 31.6 2 [91.0] [1.0] 23317
12 37.3 0.0 45.2 51.4 30.3 192 [86.0, 92.0] [1.0] 24264
13 26.4 0.0 43.1 49.6 25.7 31 [92.0, 88.0] [1.0] 29923
14 44.1 0.0 44.5 50.6 19.0 139 [82.0] [1.0] 25731
15 28.0 0.0 43.7 49.4 29.5 265 [74.0, 91.0, 84.0] [1.0] 30022
16 31.3 0.0 42.4 49.2 31.1 127 [77.0, 91.0] [1.0] 27046
17 45.7 0.0 45.9 52.1 31.2 2 [73.0] [1.0] 24076
18 43.3 0.0 44.3 50.5 26.5 178 [93.0, 94.0] [1.0] 28668
19 44.6 0.0 44.8 51.4 33.4 2 [94.0] [1.0] 24572
20 34.2 0.0 43.1 49.0 27.4 157 [80.0, 86.0] [1.0] 26021
21 26.1 0.0 42.9 50.2 30.3 76 [95.0, 81.0] [1.0] 31226
22 44.4 0.0 44.8 51.4 30.1 3 [74.0] [1.0] 26012
23 45.7 0.0 44.7 50.9 30.9 53 [71.0, 73.0] [1.0] 29285
24 26.4 0.0 41.8 48.5 27.9 275 [83.0, 78.0, 85.0] [1.0] 33504
25 28.6 0.0 42.8 49.7 31.1 185 [90.0, 85.0] [1.0] 28512
26 27.9 0.0 42.4 49.4 30.2 56 [89.0, 93.0] [1.0] 28515
27 27.1 0.0 42.9 49.0 18.6 491 [84.0, 91.0, 86.0] [1.0] 33655
28 39.1 0.0 43.9 50.3 30.7 207 [91.0, 95.0, 76.0] [1.0] 23611
29 45.6 0.0 45.6 51.9 28.0 0 [79.0] [1.0] 22700
30 45.9 0.0 45.8 52.5 33.1 0 [83.0] [1.0] 23625
31 45.3 0.0 46.0 52.8 28.3 1 [93.0] [1.0] 22285
32 46.3 0.0 47.5 53.7 34.0 178 [85.0, 80.0] [1.0] 28078

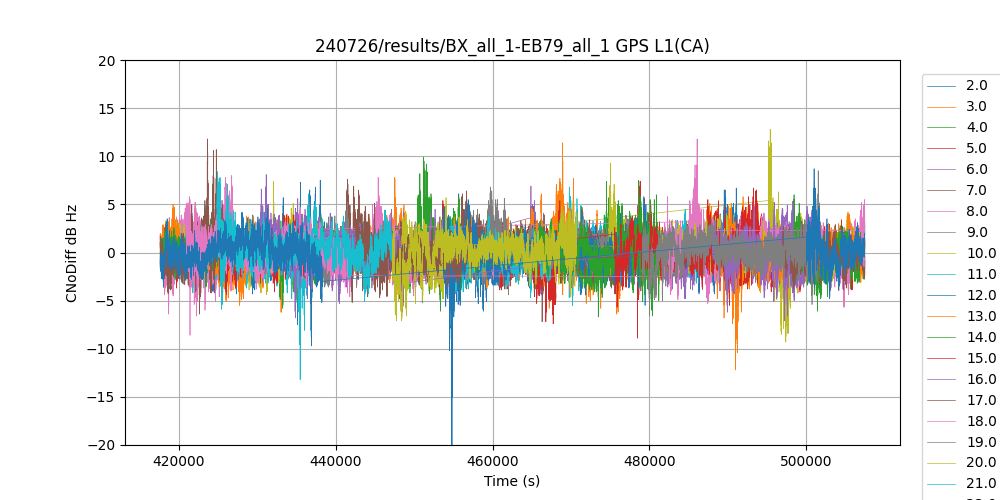

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.1 7.5 -9.7 [74.0, 73.0, 90.0, 80.0] 30463
3 32.9 0.2 7.8 -6.4 [95.0, 94.0, 92.0] 26907
4 45.4 0.2 5.8 -6.1 [72.0] 23836
5 40.2 0.2 7.4 -8.9 [76.0, 81.0, 80.0] 22991
6 38.3 -0.1 6.9 -5.3 [83.0, 90.0, 80.0, 84.0] 24534
7 45.1 0.2 7.6 -7.2 [82.0, 85.0] 25478
8 26.8 0.3 8.0 -6.6 [90.0, 80.0, 88.0, 84.0, 91.0] 32849
9 44.0 0.1 5.6 -5.4 [92.0, 95.0] 21395
10 45.7 0.1 12.8 -9.3 [94.0, 81.0, 90.0, 89.0] 29486
11 45.8 0.4 6.8 -5.5 [91.0] 23299
12 37.3 -0.0 6.7 -4.4 [90.0, 86.0, 94.0, 92.0] 24263
13 26.4 0.3 11.4 -6.8 [94.0, 92.0, 84.0, 88.0] 29919
14 44.1 -0.0 9.9 -6.7 [87.0, 82.0] 25731
15 28.0 -0.3 5.5 -7.4 [87.0, 74.0, 91.0, 82.0, 84.0] 29954
16 31.4 0.1 6.0 -6.8 [77.0, 91.0] 27020
17 45.7 0.3 6.4 -4.3 [76.0, 73.0] 24075
18 43.4 0.3 11.8 -6.4 [93.0, 92.0, 94.0] 28646
19 44.7 0.2 6.8 -4.4 [95.0, 94.0] 24554
20 34.3 0.2 9.3 -5.3 [85.0, 80.0, 86.0] 25968
21 26.1 -0.2 6.1 -13.2 [82.0, 95.0, 85.0, 81.0] 31199
22 44.4 -0.1 5.8 -26.2 [74.0] 25999
23 45.7 -0.2 5.8 -12.2 [71.0, 73.0] 29275
24 26.4 0.0 7.5 -6.6 [83.0, 78.0, 85.0] 33454
25 28.6 0.0 6.7 -5.7 [92.0, 90.0, 85.0] 28498
26 28.0 0.0 8.1 -7.1 [86.0, 89.0, 93.0] 28504
27 27.1 -0.2 11.8 -6.4 [85.0, 84.0, 91.0, 86.0] 33601
28 39.2 0.1 5.8 -8.6 [89.0, 91.0, 92.0, 95.0, 76.0] 23581
29 45.6 0.2 8.5 -6.6 [79.0] 22697
30 45.9 0.1 5.2 -7.1 [83.0] 23607
31 45.3 0.4 8.4 -5.9 [93.0] 22275
32 46.3 0.2 8.7 -5.2 [79.0, 85.0, 81.0, 80.0] 28075

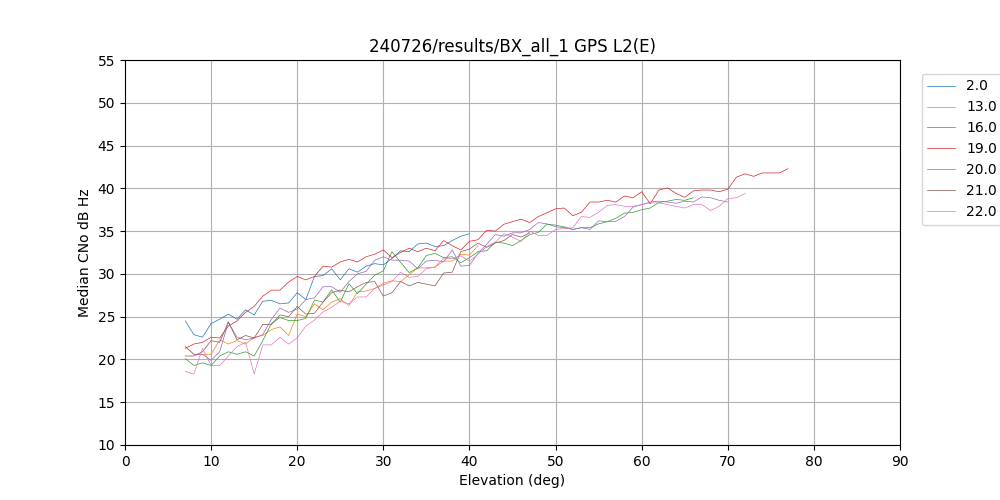

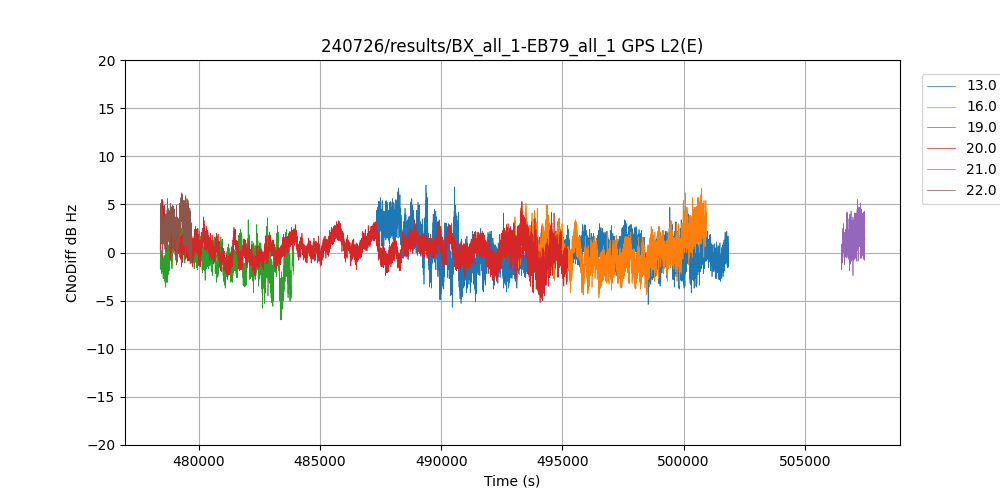

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 29.8 36.7 14.8 175 [74.0, 90.0] [1.0] 30541
13 26.8 0.0 27.4 35.3 13.9 11 [94.0, 84.0] [1.0] 29301
16 31.4 0.0 27.8 40.2 14.8 128 [77.0, 91.0] [1.0] 26932
19 44.8 0.0 34.6 43.5 13.9 1 [95.0] [1.0] 24496
20 34.7 0.0 29.5 40.6 12.6 154 [85.0, 86.0] [1.0] 25603
21 26.1 0.0 27.3 37.0 13.9 162 [82.0, 85.0, 95.0] [1.0] 31113
22 45.2 0.0 32.3 41.4 10.9 6 [74.0] [1.0] 25394
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
13 25.4 0.0 26.8 33.7 13.9 0 [88.0] [1.0] 14510
16 12.3 0.0 19.5 25.8 12.6 3 [91.0] [1.0] 7926
19 21.7 0.0 29.8 36.0 14.8 0 [94.0] [1.0] 5510
20 45.7 0.0 33.3 40.0 19.9 0 [86.0] [1.0] 16796
21 10.3 0.0 22.9 26.8 17.8 0 [81.0] [1.0] 996
22 11.0 0.0 18.4 22.3 13.9 0 [74.0] [1.0] 1294

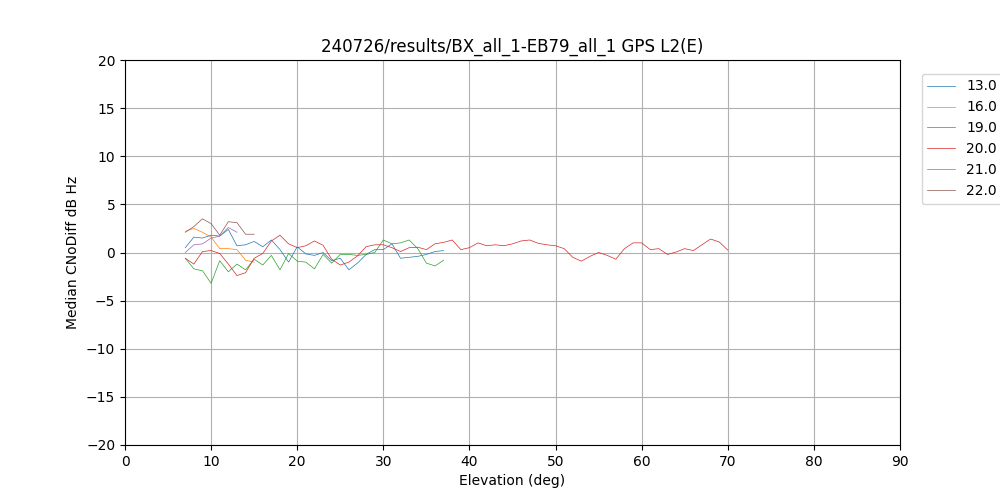

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
13 25.4 0.2 7.0 -5.7 [84.0, 88.0] 14507
16 12.4 0.2 6.7 -4.7 [91.0] 7795
19 21.9 -0.7 3.9 -7.0 [95.0, 94.0] 5445
20 45.7 0.4 5.5 -5.2 [86.0] 16792
21 10.3 1.5 5.5 -2.4 [95.0, 81.0] 969
22 11.0 2.7 6.2 -1.3 [74.0] 1293

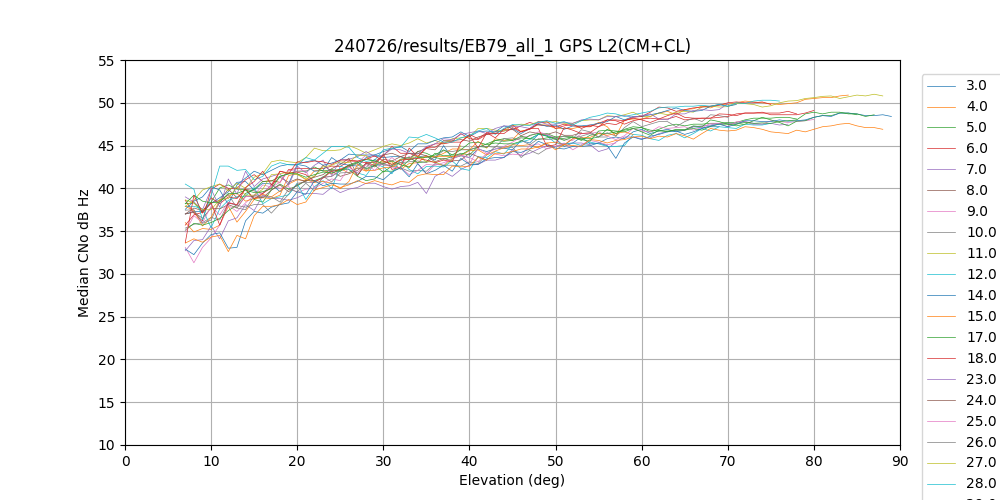

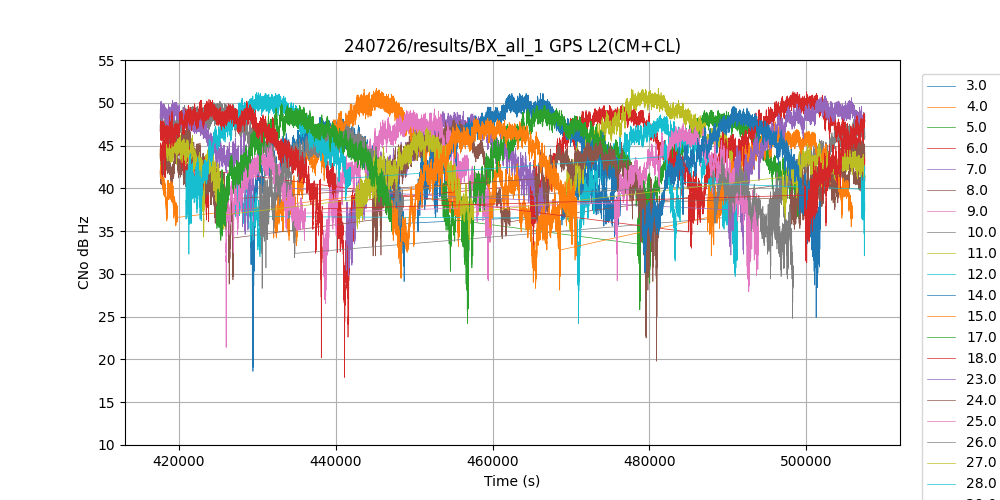

REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.3 48.5 18.6 97 [95.0, 92.0] [1.0] 27076
4 45.4 0.0 45.0 51.7 33.2 0 [72.0] [1.0] 23836
5 40.1 0.0 43.6 49.1 25.8 172 [76.0, 81.0] [1.0] 23021
6 38.3 0.0 44.0 49.8 17.9 481 [83.0, 80.0] [1.0] 24549
7 45.1 0.0 43.6 49.0 29.8 0 [82.0] [1.0] 25480
8 26.8 0.0 42.1 48.0 28.8 287 [90.0, 88.0, 91.0] [1.0] 32849
9 44.0 0.0 43.6 49.3 26.5 3 [92.0] [1.0] 21419
10 45.6 0.0 45.0 50.2 29.4 140 [94.0, 90.0] [1.0] 29528
11 45.8 0.0 46.5 51.7 35.0 0 [91.0] [1.0] 23315
12 37.3 0.0 42.2 48.6 24.2 147 [90.0, 94.0] [1.0] 24292
14 44.1 0.0 46.1 51.1 34.9 0 [87.0] [1.0] 25743
15 28.0 0.0 41.1 47.8 28.1 85 [87.0, 91.0, 82.0] [1.0] 29966
17 45.7 0.0 44.1 49.7 24.2 11 [76.0] [1.0] 24084
18 43.3 0.0 45.7 51.3 33.0 173 [93.0, 92.0] [1.0] 28671
23 45.7 0.0 46.2 50.8 32.2 172 [71.0, 73.0] [1.0] 29293
24 26.4 0.0 41.8 47.3 19.8 277 [83.0, 78.0, 85.0] [1.0] 33494
25 28.6 0.0 41.4 47.6 21.4 296 [92.0, 85.0] [1.0] 28521
26 27.9 0.0 41.0 47.5 24.8 253 [86.0, 93.0] [1.0] 28550
27 27.1 0.0 42.5 47.1 34.0 165 [85.0, 91.0, 86.0] [1.0] 33622
28 39.1 0.0 45.6 51.2 31.5 404 [89.0, 92.0, 76.0] [1.0] 23616
29 45.6 0.0 43.2 49.6 24.9 2 [79.0] [1.0] 22697
30 45.9 0.0 42.9 48.2 29.5 0 [83.0] [1.0] 23608
31 45.3 0.0 44.6 49.9 33.9 0 [93.0] [1.0] 22305
32 46.0 0.0 45.2 50.4 20.2 186 [79.0, 81.0] [1.0] 28348
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.8 0.0 42.5 48.8 28.7 139 [94.0, 95.0] [1.0] 26941
4 45.4 0.0 45.0 51.8 30.9 0 [72.0] [1.0] 23856
5 40.1 0.0 43.3 49.5 25.5 148 [76.0, 80.0] [1.0] 23029
6 38.3 0.0 43.8 50.2 29.6 46 [90.0, 84.0] [1.0] 24534
7 45.1 0.0 43.1 49.1 28.8 0 [85.0] [1.0] 25485
8 26.8 0.0 42.2 48.1 27.4 197 [80.0, 84.0, 91.0] [1.0] 32873
9 44.0 0.0 43.6 49.3 23.5 127 [95.0] [1.0] 21395
10 45.7 0.0 44.7 50.7 30.7 82 [81.0, 89.0] [1.0] 29465
11 45.8 0.0 46.2 52.0 33.1 2 [91.0] [1.0] 23317
12 37.3 0.0 42.1 48.8 23.9 283 [86.0, 92.0] [1.0] 24264
14 44.1 0.0 46.0 50.9 31.1 0 [82.0] [1.0] 25731
15 28.0 0.0 41.0 48.1 20.5 387 [74.0, 91.0, 84.0] [1.0] 30022
17 45.7 0.0 44.0 50.0 16.8 111 [73.0] [1.0] 24069
18 43.3 0.0 45.3 51.4 30.6 37 [93.0, 94.0] [1.0] 28668
23 45.7 0.0 46.2 51.0 33.4 151 [71.0, 73.0] [1.0] 29285
24 26.4 0.0 41.9 47.5 28.6 242 [83.0, 78.0, 85.0] [1.0] 33503
25 28.6 0.0 41.5 47.8 26.7 77 [90.0, 85.0] [1.0] 28512
26 27.9 0.0 41.3 48.1 28.6 142 [89.0, 93.0] [1.0] 28515
27 27.1 0.0 42.1 47.0 31.2 206 [84.0, 91.0, 86.0] [1.0] 33655
28 39.1 0.0 45.2 51.6 28.0 219 [91.0, 95.0, 76.0] [1.0] 23611
29 45.6 0.0 42.8 49.8 22.9 21 [79.0] [1.0] 22700
30 45.9 0.0 42.6 48.5 29.9 0 [83.0] [1.0] 23625
31 45.3 0.0 44.3 49.9 31.6 0 [93.0] [1.0] 22285
32 46.3 0.0 45.3 50.4 23.0 102 [85.0, 80.0] [1.0] 28078
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.9 -0.2 6.1 -16.7 [95.0, 94.0, 92.0] 26896
4 45.4 0.0 6.9 -9.2 [72.0] 23836
5 40.2 0.2 9.4 -7.6 [76.0, 81.0, 80.0] 22991
6 38.4 0.2 7.5 -16.1 [83.0, 90.0, 80.0, 84.0] 24527
7 45.1 0.5 7.2 -3.9 [82.0, 85.0] 25478
8 26.8 -0.1 8.0 -6.9 [90.0, 80.0, 88.0, 84.0, 91.0] 32849
9 44.0 0.0 7.9 -5.4 [92.0, 95.0] 21395
10 45.7 0.3 7.2 -3.9 [94.0, 81.0, 90.0, 89.0] 29462
11 45.8 0.2 6.3 -3.6 [91.0] 23299
12 37.3 0.1 12.2 -9.5 [90.0, 86.0, 94.0, 92.0] 24263
14 44.1 0.1 9.0 -5.5 [87.0, 82.0] 25731
15 28.0 0.1 15.4 -10.3 [87.0, 74.0, 91.0, 82.0, 84.0] 29954
17 45.7 0.1 14.9 -7.1 [76.0, 73.0] 24068
18 43.4 0.4 7.7 -4.6 [93.0, 92.0, 94.0] 28646
23 45.7 0.1 5.0 -8.1 [71.0, 73.0] 29275
24 26.4 -0.0 6.1 -13.5 [83.0, 78.0, 85.0] 33451
25 28.6 -0.1 8.3 -7.4 [92.0, 90.0, 85.0] 28498
26 28.0 -0.3 5.5 -6.4 [86.0, 89.0, 93.0] 28504
27 27.1 0.3 7.5 -5.8 [85.0, 84.0, 91.0, 86.0] 33601
28 39.2 0.4 11.0 -6.0 [89.0, 91.0, 92.0, 95.0, 76.0] 23581
29 45.6 0.3 7.4 -5.3 [79.0] 22697
30 45.9 0.2 7.6 -6.7 [83.0] 23607
31 45.3 0.3 5.2 -3.6 [93.0] 22275
32 46.3 -0.1 5.8 -7.2 [79.0, 85.0, 81.0, 80.0] 28069
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.5 52.4 35.3 55 [95.0, 92.0] [1.0] 27087
4 45.4 0.0 47.5 53.4 37.7 0 [72.0] [1.0] 23836
6 38.3 0.0 47.4 52.8 36.9 177 [83.0, 80.0] [1.0] 24556
8 26.8 0.0 45.9 51.7 36.3 179 [90.0, 88.0, 91.0] [1.0] 32849
9 44.0 0.0 47.5 52.1 37.7 0 [92.0] [1.0] 21419
10 45.6 0.0 47.9 51.8 37.8 26 [94.0, 90.0] [1.0] 29528
11 45.8 0.0 48.9 54.0 36.1 0 [91.0] [1.0] 23315
14 44.1 0.0 48.1 53.0 40.4 0 [87.0] [1.0] 25743
18 43.3 0.0 48.1 53.3 37.6 171 [93.0, 92.0] [1.0] 28671
23 45.7 0.0 48.8 53.9 39.4 1 [71.0, 73.0] [1.0] 29293
24 26.4 0.0 46.1 49.2 39.1 208 [83.0, 78.0, 85.0] [1.0] 33496
25 28.6 0.0 46.0 51.1 24.9 243 [92.0, 85.0] [1.0] 28521
26 27.9 0.0 45.5 50.9 36.2 151 [86.0, 93.0] [1.0] 28550
27 27.1 0.0 46.2 49.8 40.5 333 [85.0, 91.0, 86.0] [1.0] 33622
28 39.1 0.0 47.9 53.5 37.5 201 [89.0, 92.0, 76.0] [1.0] 23616
30 45.9 0.0 47.8 52.7 37.4 0 [83.0] [1.0] 23608
32 45.9 0.0 46.9 50.7 19.4 212 [79.0, 81.0] [1.0] 28352
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.8 0.0 46.9 52.5 36.0 137 [94.0, 95.0] [1.0] 26941
4 45.4 0.0 47.5 53.7 35.0 0 [72.0] [1.0] 23856
6 38.3 0.0 47.4 53.5 36.5 78 [90.0, 84.0] [1.0] 24534
8 26.8 0.0 46.1 51.6 33.1 283 [80.0, 84.0, 91.0] [1.0] 32873
9 44.0 0.0 47.6 52.5 31.6 0 [95.0] [1.0] 21395
10 45.7 0.0 47.7 51.8 38.0 112 [81.0, 89.0] [1.0] 29466
11 45.8 0.0 48.8 54.1 33.8 2 [91.0] [1.0] 23317
14 44.1 0.0 47.9 52.9 37.2 0 [82.0] [1.0] 25731
18 43.3 0.0 47.8 54.1 33.9 68 [93.0, 94.0] [1.0] 28668
23 45.7 0.0 48.8 53.8 37.9 248 [71.0, 73.0] [1.0] 29285
24 26.4 0.0 45.9 50.0 20.4 105 [83.0, 78.0, 85.0] [1.0] 33503
25 28.6 0.0 46.1 50.7 30.8 146 [90.0, 85.0] [1.0] 28512
26 27.9 0.0 45.7 51.6 35.1 90 [89.0, 93.0] [1.0] 28515
27 27.1 0.0 46.0 50.3 39.2 283 [84.0, 91.0, 86.0] [1.0] 33655
28 39.1 0.0 47.8 53.9 35.8 386 [91.0, 95.0, 76.0] [1.0] 23611
30 45.9 0.0 47.9 53.0 35.2 0 [83.0] [1.0] 23625
32 46.3 0.0 47.2 50.9 28.1 84 [85.0, 80.0] [1.0] 28078
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.9 -0.4 3.5 -4.3 [95.0, 94.0, 92.0] 26907
4 45.4 -0.0 5.9 -5.7 [72.0] 23836
6 38.3 0.0 3.9 -4.9 [83.0, 90.0, 80.0, 84.0] 24534
8 26.8 -0.2 5.0 -4.9 [90.0, 80.0, 88.0, 84.0, 91.0] 32849
9 44.0 -0.1 6.8 -3.9 [92.0, 95.0] 21395
10 45.7 0.2 5.7 -3.9 [94.0, 81.0, 90.0, 89.0] 29463
11 45.8 0.1 4.5 -2.8 [91.0] 23299
14 44.1 0.2 5.1 -1.9 [87.0, 82.0] 25731
18 43.4 0.3 5.3 -2.2 [93.0, 92.0, 94.0] 28646
23 45.7 0.1 4.7 -2.7 [71.0, 73.0] 29275
24 26.4 0.2 21.9 -3.1 [83.0, 78.0, 85.0] 33453
25 28.6 -0.1 5.3 -15.0 [92.0, 90.0, 85.0] 28498
26 28.0 -0.2 5.4 -7.8 [86.0, 89.0, 93.0] 28504
27 27.1 0.2 5.0 -3.8 [85.0, 84.0, 91.0, 86.0] 33601
28 39.2 0.2 4.6 -2.8 [89.0, 91.0, 92.0, 95.0, 76.0] 23581
30 45.9 -0.1 5.5 -6.6 [83.0] 23607
32 46.3 -0.3 5.3 -23.0 [79.0, 85.0, 81.0, 80.0] 28073

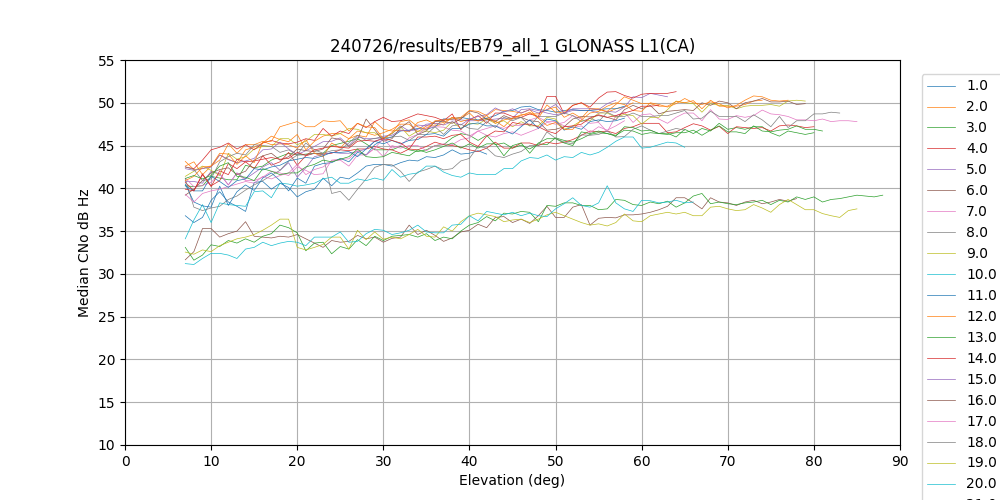

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 42.4 48.1 27.1 172 [1.0] [1.0] 26764
2 28.7 0.0 46.4 52.2 32.7 365 [-4.0] [1.0] 28738
3 36.4 0.0 45.1 50.8 31.2 286 [5.0] [1.0] 34126
4 47.2 0.0 46.0 51.1 27.4 158 [6.0] [1.0] 32443
5 38.4 0.0 47.2 53.3 17.7 127 [1.0] [1.0] 32316
6 42.7 0.0 36.3 42.5 21.5 430 [-4.0] [1.0] 21154
7 37.9 0.0 45.4 51.7 34.7 253 [5.0] [1.0] 23218
8 31.2 0.0 43.5 50.0 34.6 242 [6.0] [1.0] 25700
9 37.2 0.0 46.7 53.2 32.8 99 [-2.0] [1.0] 25878
10 39.9 0.0 42.7 49.4 27.4 0 [-7.0] [1.0] 22712
11 38.6 0.0 46.7 53.7 21.0 16 [0.0] [1.0] 23433
12 37.3 0.0 47.2 53.4 36.0 149 [-1.0] [1.0] 25292
13 34.1 0.0 35.6 42.0 22.3 238 [-2.0] [1.0] 29775
14 32.5 0.0 47.7 54.4 34.6 221 [-7.0] [1.0] 30500
15 33.0 0.0 46.8 52.0 32.9 96 [0.0] [1.0] 29591
16 35.1 0.0 46.6 52.7 28.6 101 [-1.0] [1.0] 28526
17 36.2 0.0 45.5 52.9 25.2 41 [4.0] [1.0] 26330
18 38.1 0.0 46.4 52.6 32.1 291 [-3.0] [1.0] 33576
19 41.9 0.0 36.5 41.1 19.9 354 [3.0] [1.0] 35950
20 30.8 0.0 35.3 41.8 16.5 649 [2.0] [1.0] 34099
21 29.2 0.0 44.8 50.7 26.9 224 [4.0] [1.0] 27284
22 34.9 0.0 46.6 52.8 35.0 111 [-3.0] [1.0] 24329
23 44.1 0.0 45.1 51.1 25.0 0 [3.0] [1.0] 20066
24 39.4 0.0 47.0 53.0 31.5 0 [2.0] [1.0] 22954
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 41.6 46.7 16.1 443 [1.0] [1.0] 26752
2 28.7 0.0 46.1 51.4 34.3 337 [-4.0] [1.0] 28741
3 36.3 0.0 44.2 49.9 34.2 251 [5.0] [1.0] 34173
4 47.2 0.0 45.4 50.5 32.1 122 [6.0] [1.0] 32463
5 38.4 0.0 46.6 52.3 28.1 186 [1.0] [1.0] 32318
6 43.5 0.0 35.8 41.8 20.6 43 [-4.0] [1.0] 20687
7 37.8 0.0 44.5 51.7 31.2 221 [5.0] [1.0] 23266
8 31.3 0.0 43.0 48.9 34.1 189 [6.0] [1.0] 25681
9 37.2 0.0 46.1 51.9 34.1 237 [-2.0] [1.0] 25883
10 40.0 0.0 42.1 48.5 23.5 8 [-7.0] [1.0] 22686
11 38.6 0.0 46.5 52.5 29.0 0 [0.0] [1.0] 23431
12 37.3 0.0 46.8 52.3 35.9 246 [-1.0] [1.0] 25220
13 34.4 0.0 35.2 40.8 15.2 528 [-2.0] [1.0] 29463
14 32.5 0.0 47.3 53.8 34.1 271 [-7.0] [1.0] 30501
15 33.0 0.0 46.2 51.5 21.1 87 [0.0] [1.0] 29591
16 35.1 0.0 46.0 51.9 30.4 3 [-1.0] [1.0] 28514
17 36.1 0.0 44.9 50.9 25.8 64 [4.0] [1.0] 26372
18 38.1 0.0 46.0 50.8 36.2 138 [-3.0] [1.0] 33551
19 41.9 0.0 35.7 40.3 23.9 492 [3.0] [1.0] 35920
20 31.1 0.0 34.5 41.8 18.4 2116 [2.0] [1.0] 33712
21 29.2 0.0 44.2 49.9 26.7 224 [4.0] [1.0] 27298
22 35.0 0.0 46.4 52.2 35.1 30 [-3.0] [1.0] 24269
23 44.2 0.0 44.6 49.3 28.3 0 [3.0] [1.0] 20060
24 39.4 0.0 46.1 52.8 31.4 0 [2.0] [1.0] 22910
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 28.1 0.8 18.8 -6.1 [1.0] 26749
2 28.7 0.3 5.8 -5.7 [-4.0] 28708
3 36.4 0.9 5.4 -6.4 [5.0] 34099
4 47.2 0.6 5.8 -9.0 [6.0] 32443
5 38.4 0.6 7.6 -16.7 [1.0] 32315
6 43.5 0.6 8.7 -6.8 [-4.0] 20685
7 37.9 0.9 7.5 -3.7 [5.0] 23218
8 31.3 0.5 6.5 -6.2 [6.0] 25669
9 37.2 0.6 6.1 -5.6 [-2.0] 25876
10 40.0 0.6 8.8 -5.2 [-7.0] 22682
11 38.6 0.2 7.4 -10.0 [0.0] 23431
12 37.3 0.5 6.6 -5.5 [-1.0] 25220
13 34.4 0.4 14.1 -6.1 [-2.0] 29445
14 32.5 0.4 7.4 -6.5 [-7.0] 30480
15 33.0 0.6 17.5 -5.4 [0.0] 29586
16 35.1 0.6 6.4 -7.9 [-1.0] 28509
17 36.2 0.6 9.9 -10.3 [4.0] 26330
18 38.1 0.4 6.6 -7.8 [-3.0] 33536
19 41.9 0.8 7.5 -9.4 [3.0] 35895
20 31.1 0.9 11.4 -8.4 [2.0] 33709
21 29.2 0.5 10.6 -5.6 [4.0] 27283
22 35.0 0.2 6.5 -5.2 [-3.0] 24269
23 44.2 0.5 6.8 -6.1 [3.0] 20060
24 39.4 0.9 6.2 -5.8 [2.0] 22910
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 40.8 46.0 25.1 231 [1.0] [1.0] 26762
2 28.7 0.0 45.0 50.5 34.6 320 [-4.0] [1.0] 28736
3 36.4 0.0 43.6 49.4 32.9 284 [5.0] [1.0] 34124
4 47.2 0.0 44.2 48.7 29.7 225 [6.0] [1.0] 32442
5 38.4 0.0 45.8 51.3 23.5 103 [1.0] [1.0] 32314
6 43.4 0.0 35.0 40.6 24.5 77 [-4.0] [1.0] 20743
7 37.9 0.0 43.6 49.6 32.7 50 [5.0] [1.0] 23216
8 31.2 0.0 41.6 48.0 32.7 104 [6.0] [1.0] 25698
9 37.2 0.0 45.1 51.6 34.3 189 [-2.0] [1.0] 25876
10 39.9 0.0 41.3 47.3 30.5 1 [-7.0] [1.0] 22711
11 38.6 0.0 45.0 51.7 25.1 3 [0.0] [1.0] 23432
12 37.3 0.0 46.2 52.1 36.7 69 [-1.0] [1.0] 25290
13 34.1 0.0 34.2 40.4 21.9 1076 [-2.0] [1.0] 29770
14 32.5 0.0 46.3 52.3 37.1 209 [-7.0] [1.0] 30497
15 33.0 0.0 45.0 50.0 33.2 191 [0.0] [1.0] 29589
16 35.1 0.0 45.2 51.0 23.9 113 [-1.0] [1.0] 28524
17 36.2 0.0 43.6 50.2 24.9 21 [4.0] [1.0] 26329
18 38.1 0.0 44.9 50.7 32.8 189 [-3.0] [1.0] 33574
19 41.9 0.0 34.6 39.0 23.4 503 [3.0] [1.0] 35927
20 30.9 0.0 34.2 40.5 21.3 828 [2.0] [1.0] 33985
21 29.3 0.0 43.1 48.6 30.5 235 [4.0] [1.0] 27281
22 34.9 0.0 45.4 51.7 35.4 67 [-3.0] [1.0] 24327
23 44.1 0.0 43.3 48.8 27.1 2 [3.0] [1.0] 20065
24 39.4 0.0 45.4 51.0 31.8 1 [2.0] [1.0] 22953
DUT GLONASS L1(P)
DIFF GLONASS L1(P)

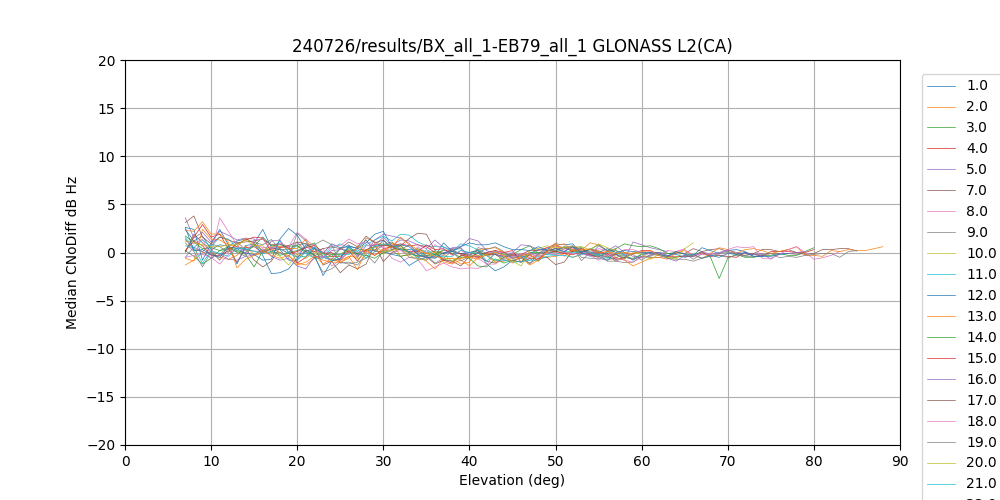

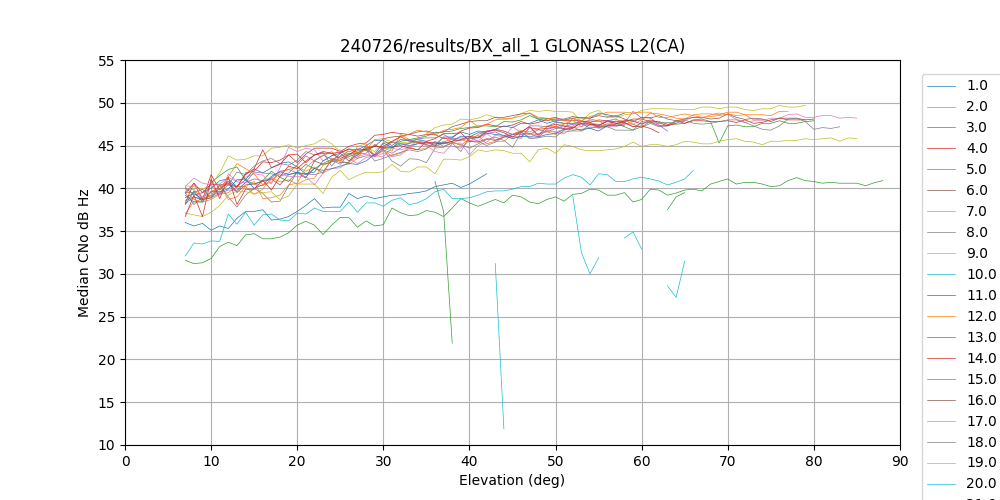

REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 38.7 43.8 26.4 169 [1.0] [1.0] 26762
2 28.7 0.0 43.1 49.1 31.5 214 [-4.0] [1.0] 28736
3 36.4 0.0 44.5 49.9 28.1 264 [5.0] [1.0] 34124
4 47.2 0.0 46.4 49.9 31.2 126 [6.0] [1.0] 32442
5 38.4 0.0 45.1 50.0 31.3 124 [1.0] [1.0] 32314
6 69.0 0.0 8.2 8.2 8.2 0 [-4.0] [1.0] 1
7 37.9 0.0 44.2 50.1 26.5 31 [5.0] [1.0] 23216
8 31.2 0.0 43.9 49.3 28.5 215 [6.0] [1.0] 25697
9 37.2 0.0 45.4 51.0 20.2 268 [-2.0] [1.0] 25875
10 59.1 0.0 30.5 42.5 11.9 30 [-7.0] [1.0] 31
11 38.6 0.0 45.8 50.5 31.6 1 [0.0] [1.0] 23432
12 37.3 0.0 44.3 50.0 30.3 231 [-1.0] [1.0] 25290
13 34.2 0.0 36.1 42.9 19.0 478 [-2.0] [1.0] 29741
14 32.5 0.0 44.4 49.3 31.4 296 [-7.0] [1.0] 30497
15 33.0 0.0 44.5 49.1 31.8 57 [0.0] [1.0] 29589
16 35.1 0.0 44.3 50.4 28.7 121 [-1.0] [1.0] 28524
17 36.2 0.0 44.3 49.6 31.3 116 [4.0] [1.0] 26329
18 38.1 0.0 44.0 49.7 30.9 342 [-3.0] [1.0] 33574
19 41.9 0.0 42.4 47.5 21.6 186 [3.0] [1.0] 35926
20 30.8 0.0 37.9 42.9 21.8 627 [2.0] [1.0] 34095
21 29.3 0.0 43.4 49.0 32.4 292 [4.0] [1.0] 27281
22 34.9 0.0 44.6 50.3 31.9 239 [-3.0] [1.0] 24327
23 51.7 0.0 34.9 42.6 14.5 19 [3.0] [1.0] 20
24 39.4 0.0 44.8 49.5 27.5 1 [2.0] [1.0] 22953
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 38.5 43.2 27.7 21 [1.0] [1.0] 26749
2 28.7 0.0 43.3 49.0 32.2 227 [-4.0] [1.0] 28739
3 36.3 0.0 44.6 49.6 27.1 295 [5.0] [1.0] 34171
4 47.2 0.0 46.2 49.8 26.8 227 [6.0] [1.0] 32462
5 38.4 0.0 44.7 50.2 24.1 106 [1.0] [1.0] 32316
7 37.8 0.0 44.3 49.9 31.7 182 [5.0] [1.0] 23264
8 31.3 0.0 43.9 49.4 29.9 14 [6.0] [1.0] 25679
9 37.2 0.0 45.5 51.3 26.8 155 [-2.0] [1.0] 25881
10 60.4 0.0 31.6 40.1 13.2 13 [-7.0] [1.0] 14
11 38.6 0.0 45.7 50.6 32.6 1 [0.0] [1.0] 23430
12 37.3 0.0 44.2 50.4 29.6 103 [-1.0] [1.0] 25217
13 34.4 0.0 36.1 42.4 18.0 837 [-2.0] [1.0] 29431
14 32.5 0.0 44.3 49.3 30.5 292 [-7.0] [1.0] 30498
15 33.0 0.0 44.4 49.6 28.7 123 [0.0] [1.0] 29589
16 35.1 0.0 44.3 50.3 26.6 205 [-1.0] [1.0] 28511
17 36.1 0.0 44.1 49.4 28.4 55 [4.0] [1.0] 26371
18 38.1 0.0 43.7 49.5 21.3 406 [-3.0] [1.0] 33549
19 41.9 0.0 42.5 47.7 16.4 335 [3.0] [1.0] 35892
20 31.3 0.0 38.1 43.6 20.8 257 [2.0] [1.0] 33302
21 29.2 0.0 43.5 49.0 32.2 296 [4.0] [1.0] 27295
22 35.0 0.0 44.4 50.3 27.6 26 [-3.0] [1.0] 24267
23 56.8 0.0 36.3 42.3 30.9 14 [3.0] [1.0] 15
24 39.5 0.0 44.8 49.0 19.4 126 [2.0] [1.0] 22882
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 28.1 0.2 5.8 -7.5 [1.0] 26746
2 28.7 -0.2 7.3 -5.6 [-4.0] 28706
3 36.4 -0.1 6.8 -8.6 [5.0] 34097
4 47.2 0.2 10.5 -5.8 [6.0] 32442
5 38.4 0.4 17.0 -5.4 [1.0] 32313
7 37.9 -0.1 7.3 -10.4 [5.0] 23216
8 31.3 -0.0 9.2 -7.9 [6.0] 25666
9 37.2 -0.1 8.8 -14.5 [-2.0] 25873
10 61.3 5.0 12.4 0.5 [-7.0] 3
11 38.6 0.2 5.9 -4.1 [0.0] 23430
12 37.3 0.1 10.0 -10.0 [-1.0] 25217
13 34.4 0.1 13.1 -6.8 [-2.0] 29412
14 32.5 0.1 6.4 -5.5 [-7.0] 30477
15 33.0 0.1 8.5 -6.2 [0.0] 29584
16 35.1 -0.0 8.7 -4.6 [-1.0] 28506
17 36.2 0.2 8.5 -8.4 [4.0] 26329
18 38.1 0.3 13.1 -5.9 [-3.0] 33534
19 42.0 -0.1 15.0 -9.6 [3.0] 35865
20 31.3 -0.0 10.8 -8.7 [2.0] 33299
21 29.3 -0.0 6.3 -4.9 [4.0] 27280
22 35.0 0.3 9.5 -5.1 [-3.0] 24267
24 39.5 0.0 18.9 -6.4 [2.0] 22882
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 28.1 0.0 36.8 41.4 24.2 498 [1.0] [1.0] 26761
2 28.7 0.0 41.5 47.2 29.5 258 [-4.0] [1.0] 28736
3 36.4 0.0 43.1 48.2 25.9 434 [5.0] [1.0] 34124
4 47.2 0.0 44.6 48.1 27.8 80 [6.0] [1.0] 32442
5 38.4 0.0 43.8 48.7 31.6 72 [1.0] [1.0] 32314
6 40.3 0.0 15.8 17.8 13.4 2 [-4.0] [1.0] 3
7 37.9 0.0 42.6 48.4 22.6 286 [5.0] [1.0] 23215
8 31.2 0.0 42.4 47.7 29.4 92 [6.0] [1.0] 25697
9 37.2 0.0 43.2 48.8 20.6 608 [-2.0] [1.0] 25873
10 57.7 0.0 22.9 39.6 1.0 12 [-7.0] [1.0] 13
11 38.6 0.0 44.1 48.7 31.2 1 [0.0] [1.0] 23432
12 37.3 0.0 42.4 48.0 31.2 37 [-1.0] [1.0] 25290
13 34.2 0.0 37.6 43.7 17.5 593 [-2.0] [1.0] 29745
14 32.5 0.0 42.8 47.3 28.4 476 [-7.0] [1.0] 30497
15 33.0 0.0 43.1 47.2 32.4 88 [0.0] [1.0] 29589
16 35.1 0.0 42.4 48.7 29.7 174 [-1.0] [1.0] 28524
17 36.2 0.0 42.9 47.6 31.3 148 [4.0] [1.0] 26329
18 38.1 0.0 42.4 48.0 31.0 354 [-3.0] [1.0] 33574
19 41.9 0.0 40.9 46.0 23.0 521 [3.0] [1.0] 35928
20 31.0 0.0 36.7 41.7 14.3 1585 [2.0] [1.0] 33808
21 29.3 0.0 42.0 47.2 31.7 445 [4.0] [1.0] 27281
22 34.9 0.0 43.1 48.7 28.9 209 [-3.0] [1.0] 24327
23 52.2 0.0 31.6 42.5 25.1 5 [3.0] [1.0] 6
24 39.4 0.0 43.0 47.6 23.8 50 [2.0] [1.0] 22953
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 37.2 0.0 44.4 49.5 28.9 249 [-2.0] [1.0] 25876
21 29.3 0.0 42.7 48.9 28.9 53 [4.0] [1.0] 27281
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(BOC-PD)

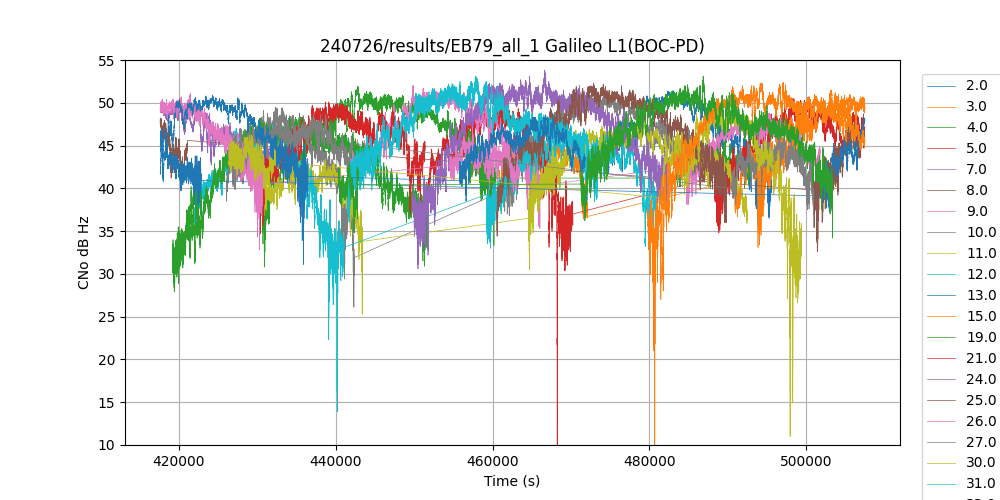

DUT Galileo L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 46.4 51.4 35.6 0 [104.0] [1.0] 23690
3 34.2 0.0 45.1 50.8 33.1 105 [102.0, 111.0] [1.0] 25076
4 37.5 0.0 45.7 51.9 30.8 193 [102.0, 103.0] [1.0] 39399
5 34.3 0.0 45.1 50.5 0.0 71 [101.0, 97.0] [1.0] 37651
7 39.7 0.0 46.5 50.0 41.2 0 [105.0] [1.0] 13907
8 22.5 0.0 43.6 48.7 32.6 173 [104.0, 108.0] [1.0] 10060
9 33.3 0.0 46.4 52.0 35.3 9 [104.0, 107.0] [1.0] 41359
10 34.2 0.0 45.8 51.2 26.1 236 [108.0, 98.0] [1.0] 41033
11 35.9 0.0 42.5 47.8 25.3 250 [96.0, 111.0] [1.0] 40523
12 33.3 0.0 42.1 47.5 13.9 267 [104.0, 108.0] [1.0] 41117
13 20.7 0.0 42.9 48.2 34.7 214 [103.0, 107.0] [1.0] 10526
15 44.2 0.0 46.6 51.5 36.7 0 [105.0] [1.0] 16672
19 45.4 0.0 42.4 48.3 27.9 111 [100.0] [1.0] 32691
21 33.8 0.0 45.8 50.1 34.7 0 [97.0] [1.0] 21531
24 45.4 0.0 46.9 53.8 30.6 3 [103.0] [1.0] 32604
25 45.2 0.0 46.9 52.3 34.4 0 [105.0] [1.0] 29257
26 34.0 0.0 45.1 51.1 32.8 175 [102.0, 100.0] [1.0] 21858
27 18.4 0.0 44.5 48.6 36.9 30 [98.0, 106.0] [1.0] 25636
30 21.9 0.0 43.8 49.7 11.0 347 [99.0, 108.0] [1.0] 24012
31 45.6 0.0 47.3 53.1 36.0 0 [106.0] [1.0] 31837
33 36.6 0.0 46.2 50.9 31.1 7 [101.0, 99.0] [1.0] 34822
34 48.8 0.0 47.1 52.4 0.0 122 [101.0] [1.0] 27662
36 42.1 0.0 46.3 53.1 34.2 246 [107.0, 109.0] [1.0] 34592
DIFF Galileo L1(BOC-PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 46.2 51.0 37.3 0 [105.0] [1.0] 23693
3 34.3 0.0 45.4 51.8 29.5 181 [108.0, 104.0] [1.0] 25047
4 37.5 0.0 45.9 52.0 32.0 125 [109.0, 101.0] [1.0] 39393
5 34.3 0.0 45.7 51.0 31.2 189 [100.0, 97.0] [1.0] 37708
7 39.6 0.0 46.6 49.9 42.3 0 [111.0] [1.0] 13918
8 22.5 0.0 44.2 48.8 35.3 166 [97.0, 107.0] [1.0] 10044
9 33.2 0.0 46.2 51.1 37.2 45 [105.0, 103.0] [1.0] 41367
10 34.2 0.0 45.8 51.6 27.0 227 [101.0, 98.0] [1.0] 41050
11 36.0 0.0 42.7 47.8 30.2 108 [96.0, 104.0] [1.0] 40454
12 33.2 0.0 42.3 47.5 29.6 238 [103.0, 107.0] [1.0] 41280
13 20.7 0.0 43.0 47.7 37.6 152 [101.0, 109.0] [1.0] 10543
15 44.2 0.0 46.7 51.4 35.9 0 [108.0] [1.0] 16675
19 45.8 0.0 42.5 49.3 21.9 112 [104.0] [1.0] 32341
21 33.8 0.0 46.0 50.5 37.3 0 [97.0] [1.0] 21548
24 45.4 0.0 47.3 53.8 32.1 0 [101.0] [1.0] 32599
25 45.2 0.0 47.1 53.3 33.8 1 [109.0] [1.0] 29270
26 33.9 0.0 45.3 51.3 36.2 136 [109.0, 104.0] [1.0] 21889
27 18.4 0.0 44.4 48.9 36.9 178 [98.0, 109.0] [1.0] 25633
30 21.9 0.0 44.1 50.6 27.2 141 [99.0, 107.0] [1.0] 24105
31 45.5 0.0 47.6 53.8 37.5 0 [106.0] [1.0] 31844
33 36.6 0.0 45.7 50.3 34.2 146 [105.0, 99.0] [1.0] 34860
34 48.8 0.0 47.7 53.5 28.4 1 [100.0] [1.0] 27657
36 42.1 0.0 46.7 53.8 36.5 126 [110.0, 111.0] [1.0] 34613

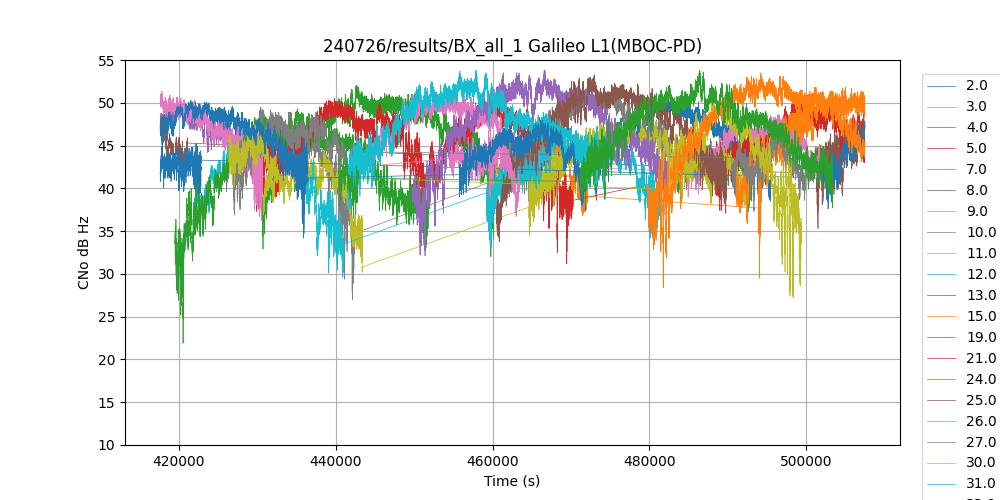

DUT Galileo L1(MBOC-PD)
DIFF Galileo L1(MBOC-PD)
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 45.8 50.4 30.0 0 [105.0] [1.0] 23693
3 34.3 0.0 43.9 50.0 35.6 61 [108.0, 104.0] [1.0] 25047
4 37.5 0.0 44.5 50.4 33.6 251 [109.0, 101.0] [1.0] 39393
5 34.3 0.0 45.4 49.6 36.1 181 [100.0, 97.0] [1.0] 37708
7 39.6 0.0 46.5 51.4 38.2 0 [111.0] [1.0] 13918
8 22.5 0.0 43.4 48.9 36.3 206 [97.0, 107.0] [1.0] 10044
9 33.2 0.0 45.0 50.4 35.3 216 [105.0, 103.0] [1.0] 41367
10 34.2 0.0 45.4 50.6 35.7 193 [101.0, 98.0] [1.0] 41050
11 36.0 0.0 41.6 46.6 30.5 101 [96.0, 104.0] [1.0] 40454
12 33.2 0.0 42.8 47.4 32.3 106 [103.0, 107.0] [1.0] 41280
13 20.7 0.0 43.7 47.7 33.1 16 [101.0, 109.0] [1.0] 10543
15 44.2 0.0 45.3 50.1 36.3 0 [108.0] [1.0] 16675
19 45.8 0.0 42.5 46.9 21.4 18 [104.0] [1.0] 32334
21 33.8 0.0 45.3 49.9 37.8 0 [97.0] [1.0] 21548
24 45.4 0.0 46.3 50.4 35.8 0 [101.0] [1.0] 32599
25 45.2 0.0 45.4 50.2 36.0 0 [109.0] [1.0] 29270
26 33.9 0.0 43.8 50.9 35.3 104 [109.0, 104.0] [1.0] 21889
27 18.4 0.0 43.0 47.7 31.4 76 [98.0, 109.0] [1.0] 25633
30 21.9 0.0 43.4 48.0 36.8 197 [99.0, 107.0] [1.0] 24105
31 45.5 0.0 46.0 50.6 33.9 0 [106.0] [1.0] 31844
33 36.6 0.0 45.2 50.0 32.6 127 [105.0, 99.0] [1.0] 34860
34 48.8 0.0 46.4 50.4 36.9 0 [100.0] [1.0] 27657
36 42.1 0.0 46.0 50.3 36.0 99 [110.0, 111.0] [1.0] 34613
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 45.8 50.6 20.4 8 [105.0] [1.0] 23693
3 34.3 0.0 44.7 50.4 34.7 84 [108.0, 104.0] [1.0] 25047
4 37.5 0.0 45.3 51.2 33.9 17 [109.0, 101.0] [1.0] 39393
5 34.3 0.0 46.0 50.8 35.5 101 [100.0, 97.0] [1.0] 37708
7 39.6 0.0 47.5 51.8 39.5 0 [111.0] [1.0] 13918
8 22.5 0.0 43.1 48.1 36.2 175 [97.0, 107.0] [1.0] 10044
9 33.2 0.0 45.6 51.3 35.5 104 [105.0, 103.0] [1.0] 41367
10 34.2 0.0 46.0 51.9 36.1 178 [101.0, 98.0] [1.0] 41050
11 36.0 0.0 42.1 47.4 31.9 247 [96.0, 104.0] [1.0] 40454
12 33.2 0.0 43.6 48.6 35.7 212 [103.0, 107.0] [1.0] 41280
13 20.7 0.0 43.7 48.3 32.7 250 [101.0, 109.0] [1.0] 10543
15 44.2 0.0 46.1 50.7 36.0 0 [108.0] [1.0] 16675
19 45.8 0.0 43.0 48.0 31.3 1 [104.0] [1.0] 32341
21 33.8 0.0 46.1 50.4 38.4 0 [97.0] [1.0] 21548
24 45.4 0.0 46.8 51.3 37.2 0 [101.0] [1.0] 32599
25 45.2 0.0 46.3 51.2 37.1 0 [109.0] [1.0] 29270
26 33.9 0.0 44.8 51.2 35.7 59 [109.0, 104.0] [1.0] 21889
27 18.4 0.0 43.4 48.5 28.9 72 [98.0, 109.0] [1.0] 25633
30 21.9 0.0 43.9 48.2 34.3 165 [99.0, 107.0] [1.0] 24105
31 45.5 0.0 46.6 51.4 35.7 0 [106.0] [1.0] 31844
33 36.6 0.0 45.7 50.6 27.7 156 [105.0, 99.0] [1.0] 34860
34 48.8 0.0 47.4 51.2 39.3 0 [100.0] [1.0] 27657
36 42.1 0.0 46.6 51.2 36.5 106 [110.0, 111.0] [1.0] 34613
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 48.4 52.7 33.8 2 [105.0] [1.0] 23693
3 34.3 0.0 47.1 52.3 39.9 24 [108.0, 104.0] [1.0] 25047
4 37.5 0.0 47.6 52.9 38.2 136 [109.0, 101.0] [1.0] 39393
5 34.3 0.0 48.3 52.3 40.1 129 [100.0, 97.0] [1.0] 37708
7 39.6 0.0 49.5 54.7 42.7 0 [111.0] [1.0] 13918
8 22.5 0.0 46.2 50.6 40.3 25 [97.0, 107.0] [1.0] 10044
9 33.2 0.0 48.0 52.9 39.9 62 [105.0, 103.0] [1.0] 41367
10 34.2 0.0 48.4 53.3 40.2 145 [101.0, 98.0] [1.0] 41050
11 36.0 0.0 44.6 48.8 35.6 215 [96.0, 104.0] [1.0] 40454
12 33.2 0.0 46.3 50.7 38.6 134 [103.0, 107.0] [1.0] 41280
13 20.7 0.0 46.6 50.5 37.3 132 [101.0, 109.0] [1.0] 10543
15 44.2 0.0 48.4 52.5 40.6 0 [108.0] [1.0] 16675
19 45.8 0.0 45.8 50.1 36.7 0 [104.0] [1.0] 32341
21 33.8 0.0 48.3 52.2 42.4 0 [97.0] [1.0] 21548
24 45.4 0.0 49.1 53.2 40.2 0 [101.0] [1.0] 32599
25 45.2 0.0 48.5 52.7 40.5 0 [109.0] [1.0] 29270
26 33.9 0.0 47.2 54.0 39.9 220 [109.0, 104.0] [1.0] 21889
27 18.4 0.0 46.2 50.8 38.1 240 [98.0, 109.0] [1.0] 25633
30 21.9 0.0 46.6 50.0 40.4 227 [99.0, 107.0] [1.0] 24105
31 45.5 0.0 48.9 52.9 41.1 0 [106.0] [1.0] 31844
33 36.6 0.0 48.1 52.4 38.6 228 [105.0, 99.0] [1.0] 34860
34 48.8 0.0 49.4 52.8 42.8 0 [100.0] [1.0] 27657
36 42.1 0.0 48.9 53.0 40.8 192 [110.0, 111.0] [1.0] 34613
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 48.4 52.0 39.9 0 [104.0] [1.0] 23690
3 34.2 0.0 47.1 52.4 38.6 197 [102.0, 111.0] [1.0] 25076
4 37.5 0.0 47.8 53.0 35.8 142 [102.0, 103.0] [1.0] 39399
5 34.3 0.0 48.1 52.5 37.8 160 [101.0, 97.0] [1.0] 37685
7 39.7 0.0 49.5 54.0 43.3 0 [105.0] [1.0] 13907
8 22.5 0.0 46.2 51.0 40.0 40 [104.0, 108.0] [1.0] 10060
9 33.3 0.0 48.1 52.6 39.7 28 [104.0, 107.0] [1.0] 41359
10 34.2 0.0 48.3 53.3 36.8 195 [108.0, 98.0] [1.0] 41033
11 35.9 0.0 44.6 48.6 33.9 61 [96.0, 111.0] [1.0] 40523
12 33.3 0.0 46.1 51.1 36.3 33 [104.0, 108.0] [1.0] 41132
13 20.7 0.0 46.1 50.5 39.3 217 [103.0, 107.0] [1.0] 10526
15 44.2 0.0 48.6 52.7 38.2 0 [105.0] [1.0] 16672
19 45.4 0.0 45.4 49.9 33.2 21 [100.0] [1.0] 32691
21 33.8 0.0 48.2 52.3 39.4 0 [97.0] [1.0] 21531
24 45.4 0.0 48.8 53.5 38.6 0 [103.0] [1.0] 32604
25 45.2 0.0 48.4 52.9 39.0 0 [105.0] [1.0] 29257
26 34.0 0.0 47.3 53.8 37.9 71 [102.0, 100.0] [1.0] 21858
27 18.4 0.0 46.1 50.3 37.1 10 [98.0, 106.0] [1.0] 25636
30 21.9 0.0 46.5 50.2 41.1 106 [99.0, 108.0] [1.0] 24099
31 45.6 0.0 49.0 53.0 39.6 0 [106.0] [1.0] 31837
33 36.6 0.0 48.2 52.5 34.3 138 [101.0, 99.0] [1.0] 34822
34 48.8 0.0 49.3 52.8 41.0 0 [101.0] [1.0] 27662
36 42.1 0.0 48.8 52.6 40.0 164 [107.0, 109.0] [1.0] 34592
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 38.0 -0.0 2.5 -8.6 [105.0, 104.0] 23690
3 34.3 -0.0 5.4 -5.2 [108.0, 102.0, 104.0, 111.0] 25021
4 37.5 -0.1 4.7 -4.6 [109.0, 102.0, 101.0, 103.0] 39383
5 34.3 0.2 3.9 -2.0 [100.0, 101.0, 97.0] 37682
7 39.7 0.1 2.0 -2.6 [111.0, 105.0] 13907
8 22.5 0.0 2.8 -2.7 [97.0, 104.0, 107.0, 108.0] 10044
9 33.3 -0.1 3.2 -4.5 [105.0, 104.0, 103.0, 107.0] 41347
10 34.2 0.1 4.4 -3.1 [101.0, 108.0, 98.0] 41015
11 36.0 0.0 4.0 -4.1 [96.0, 104.0, 111.0] 40454
12 33.3 0.1 3.9 -3.4 [103.0, 104.0, 107.0, 108.0] 41122
13 20.7 0.5 3.8 -5.8 [101.0, 103.0, 109.0, 107.0] 10523
15 44.2 -0.3 5.2 -5.2 [108.0, 105.0] 16669
19 45.8 0.3 4.5 -2.1 [104.0, 100.0] 32339
21 33.8 0.1 4.7 -3.2 [97.0] 21530
24 45.4 0.3 4.2 -1.7 [101.0, 103.0] 32599
25 45.2 0.0 4.1 -4.4 [109.0, 105.0] 29248
26 34.0 -0.1 4.2 -3.4 [109.0, 102.0, 104.0, 100.0] 21858
27 18.4 0.1 5.3 -3.6 [98.0, 109.0, 106.0] 25631
30 21.9 0.1 2.8 -2.8 [99.0, 107.0, 108.0] 24085
31 45.6 -0.1 3.0 -2.2 [106.0] 31826
33 36.6 -0.0 6.1 -2.7 [105.0, 101.0, 99.0] 34822
34 48.8 0.1 3.7 -1.7 [100.0, 101.0] 27657
36 42.1 0.1 3.1 -2.0 [110.0, 107.0, 111.0, 109.0] 34592
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 46.6 51.7 21.8 0 [105.0] [1.0] 23693
3 34.3 0.0 44.9 52.4 32.7 90 [108.0, 104.0] [1.0] 25047
4 37.5 0.0 46.0 52.9 33.4 177 [109.0, 101.0] [1.0] 39393
5 34.3 0.0 46.8 52.2 33.7 165 [100.0, 97.0] [1.0] 37708
7 39.6 0.0 48.3 52.4 39.4 0 [111.0] [1.0] 13918
8 22.5 0.0 42.9 49.9 31.7 135 [97.0, 107.0] [1.0] 10044
9 33.2 0.0 46.2 52.5 28.6 160 [105.0, 103.0] [1.0] 41367
10 34.2 0.0 47.0 52.6 28.6 246 [101.0, 98.0] [1.0] 41050
11 36.0 0.0 43.1 49.5 26.9 99 [96.0, 104.0] [1.0] 40454
12 33.2 0.0 43.9 49.9 27.4 235 [103.0, 107.0] [1.0] 41280
13 20.7 0.0 44.0 49.1 29.4 100 [101.0, 109.0] [1.0] 10543
15 44.2 0.0 46.8 52.9 34.7 0 [108.0] [1.0] 16675
19 45.8 0.0 43.4 48.6 22.2 71 [104.0] [1.0] 32285
21 33.8 0.0 46.9 51.4 36.4 0 [97.0] [1.0] 21548
24 45.4 0.0 48.4 52.8 32.3 0 [101.0] [1.0] 32599
25 45.2 0.0 47.5 52.9 34.5 1 [109.0] [1.0] 29270
26 33.9 0.0 45.6 52.3 25.2 195 [109.0, 104.0] [1.0] 21889
27 18.4 0.0 43.4 49.2 25.1 107 [98.0, 109.0] [1.0] 25633
30 21.9 0.0 44.4 49.7 30.4 59 [99.0, 107.0] [1.0] 24105
31 45.5 0.0 47.7 52.2 32.1 0 [106.0] [1.0] 31844
33 36.6 0.0 46.9 52.8 27.0 85 [105.0, 99.0] [1.0] 34860
34 48.8 0.0 48.2 52.2 32.4 1 [100.0] [1.0] 27657
36 42.1 0.0 47.4 52.0 30.2 76 [110.0, 111.0] [1.0] 34613
DUT Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.0 0.0 46.4 52.3 31.4 0 [104.0] [1.0] 23690
3 34.2 0.0 45.0 52.2 33.1 152 [102.0, 111.0] [1.0] 25076
4 37.5 0.0 46.0 52.8 29.9 111 [102.0, 103.0] [1.0] 39399
5 34.3 0.0 46.5 52.2 31.1 273 [101.0, 97.0] [1.0] 37638
7 39.7 0.0 48.3 52.1 40.5 0 [105.0] [1.0] 13907
8 22.5 0.0 43.1 49.7 29.7 144 [104.0, 108.0] [1.0] 10060
9 33.3 0.0 46.2 52.5 32.1 91 [104.0, 107.0] [1.0] 41359
10 34.2 0.0 46.9 53.4 35.8 84 [108.0, 98.0] [1.0] 41033
11 35.9 0.0 43.2 49.6 26.1 232 [96.0, 111.0] [1.0] 40523
12 33.3 0.0 43.9 49.7 28.5 312 [104.0, 108.0] [1.0] 41051
13 20.7 0.0 43.1 48.5 29.3 81 [103.0, 107.0] [1.0] 10526
15 44.2 0.0 47.1 52.9 32.3 0 [105.0] [1.0] 16672
19 45.4 0.0 42.9 48.4 24.9 109 [100.0] [1.0] 32687
21 33.8 0.0 46.6 51.7 29.9 0 [97.0] [1.0] 21531
24 45.4 0.0 48.1 53.0 33.4 3 [103.0] [1.0] 32604
25 45.2 0.0 47.4 53.0 31.7 0 [105.0] [1.0] 29257
26 34.0 0.0 45.3 52.3 27.7 113 [102.0, 100.0] [1.0] 21858
27 18.4 0.0 43.7 48.6 31.4 57 [98.0, 106.0] [1.0] 25636
30 22.0 0.0 44.5 48.6 36.7 85 [99.0, 108.0] [1.0] 23933
31 45.6 0.0 47.7 52.4 31.2 0 [106.0] [1.0] 31837
33 36.6 0.0 46.6 52.5 26.0 76 [101.0, 99.0] [1.0] 34822
34 48.9 0.0 48.2 52.4 31.3 63 [101.0] [1.0] 27581
36 42.1 0.0 47.0 52.0 24.3 235 [107.0, 109.0] [1.0] 34592
DIFF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 38.0 0.2 6.9 -16.1 [105.0, 104.0] 23690
3 34.3 -0.0 6.2 -8.4 [108.0, 102.0, 104.0, 111.0] 25021
4 37.5 -0.0 6.4 -5.8 [109.0, 102.0, 101.0, 103.0] 39383
5 34.3 0.3 8.5 -4.1 [100.0, 101.0, 97.0] 37635
7 39.7 -0.1 2.3 -3.5 [111.0, 105.0] 13907
8 22.5 -0.2 5.9 -6.3 [97.0, 104.0, 107.0, 108.0] 10044
9 33.3 -0.0 5.1 -8.8 [105.0, 104.0, 103.0, 107.0] 41347
10 34.2 0.1 4.8 -10.1 [101.0, 108.0, 98.0] 41015
11 36.0 -0.1 7.9 -6.5 [96.0, 104.0, 111.0] 40454
12 33.4 0.1 6.9 -5.9 [103.0, 104.0, 107.0, 108.0] 41041
13 20.7 0.9 9.8 -5.9 [101.0, 103.0, 109.0, 107.0] 10523
15 44.2 -0.4 7.0 -7.6 [108.0, 105.0] 16669
19 45.8 0.4 7.8 -5.5 [104.0, 100.0] 32283
21 33.8 0.3 9.7 -3.6 [97.0] 21530
24 45.4 0.3 6.7 -4.6 [101.0, 103.0] 32599
25 45.2 0.1 7.9 -7.3 [109.0, 105.0] 29248
26 34.0 0.3 6.8 -5.6 [109.0, 102.0, 104.0, 100.0] 21858
27 18.4 -0.3 8.4 -9.1 [98.0, 109.0, 106.0] 25631
30 22.0 -0.1 4.2 -8.7 [99.0, 107.0, 108.0] 23919
31 45.6 0.1 7.1 -4.9 [106.0] 31826
33 36.6 0.3 12.0 -7.8 [105.0, 101.0, 99.0] 34822
34 48.9 0.0 6.7 -5.2 [100.0, 101.0] 27576
36 42.1 0.4 7.4 -3.5 [110.0, 107.0, 111.0, 109.0] 34592
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.3 0.0 44.4 50.0 25.6 152 [102.0, 76.0] [1.0] 34359
20 29.6 0.0 45.4 50.6 34.1 56 [108.0, 89.0] [1.0] 34695
21 44.1 0.0 47.2 53.0 38.6 203 [98.0, 96.0] [1.0] 19940
22 38.6 0.0 45.9 51.1 30.5 86 [80.0, 99.0] [1.0] 28834
23 45.8 0.0 47.0 52.2 35.5 0 [107.0] [1.0] 26133
24 24.1 0.0 44.2 49.2 35.8 46 [78.0] [1.0] 27894
25 40.5 0.0 46.2 50.5 35.3 0 [102.0] [1.0] 22395
26 22.2 0.0 43.1 48.1 18.5 219 [107.0, 108.0] [1.0] 28760
27 30.9 0.0 44.2 50.3 33.7 63 [75.0, 79.0] [1.0] 33845
28 29.9 0.0 44.4 49.9 28.6 210 [108.0, 86.0] [1.0] 32212
29 44.8 0.0 46.3 51.8 34.9 0 [102.0] [1.0] 28368
30 41.4 0.0 45.8 51.5 22.5 43 [73.0, 110.0] [1.0] 28197
32 34.3 0.0 46.2 53.5 35.2 204 [90.0, 103.0] [1.0] 32446
33 48.9 0.0 47.6 53.0 37.0 0 [106.0] [1.0] 23621
34 37.8 0.0 46.4 51.8 34.4 88 [80.0, 89.0] [1.0] 18511
35 45.0 0.0 45.9 52.4 27.4 4 [106.0] [1.0] 28102
36 40.9 0.0 46.4 51.9 35.7 191 [72.0, 84.0] [1.0] 27582
37 44.9 0.0 46.8 53.1 31.9 0 [111.0] [1.0] 28579
38 7.0 0.0 42.6 44.1 40.9 0 [76.0] [1.0] 1272
41 45.2 0.0 46.8 53.7 34.0 0 [76.0] [1.0] 27155
42 36.8 0.0 45.7 52.9 32.8 69 [84.0, 110.0] [1.0] 22302
43 25.7 0.0 44.3 50.3 30.8 165 [70.0, 110.0, 87.0] [1.0] 27145
44 47.1 0.0 46.8 52.4 37.5 0 [88.0] [1.0] 24019
45 33.1 0.0 46.1 52.1 34.9 294 [78.0, 97.0, 79.0] [1.0] 24668
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.3 0.0 45.1 50.0 34.3 166 [102.0, 76.0] [1.0] 34359
20 29.6 0.0 45.4 49.5 37.6 69 [108.0, 89.0] [1.0] 34695
21 44.1 0.0 46.5 51.1 31.2 79 [98.0, 96.0] [1.0] 19940
22 38.6 0.0 45.9 50.8 33.6 182 [80.0, 99.0] [1.0] 28834
23 45.8 0.0 47.4 51.6 32.9 0 [107.0] [1.0] 26133
24 24.1 0.0 44.9 50.0 38.3 164 [78.0] [1.0] 27894
25 40.5 0.0 46.1 50.2 36.9 0 [102.0] [1.0] 22395
26 22.2 0.0 43.4 47.2 30.5 207 [107.0, 108.0] [1.0] 28761
27 30.9 0.0 44.3 49.8 34.8 213 [75.0, 79.0] [1.0] 33845
28 29.9 0.0 43.9 48.5 36.0 35 [108.0, 86.0] [1.0] 32212
29 44.8 0.0 46.3 50.0 36.9 0 [102.0] [1.0] 28368
30 41.4 0.0 45.6 50.0 32.3 157 [73.0, 110.0] [1.0] 28197
32 34.3 0.0 45.3 51.5 32.1 187 [90.0, 103.0] [1.0] 32446
33 48.9 0.0 47.9 51.5 39.3 0 [106.0] [1.0] 23621
34 37.8 0.0 45.2 49.9 31.7 141 [80.0, 89.0] [1.0] 18511
35 45.0 0.0 44.8 49.6 34.1 0 [106.0] [1.0] 28102
36 40.9 0.0 46.0 51.7 35.4 208 [72.0, 84.0] [1.0] 27582
37 44.9 0.0 47.5 51.4 29.9 0 [111.0] [1.0] 28579
38 7.0 0.0 43.5 45.0 41.8 0 [76.0] [1.0] 1272
41 45.2 0.0 46.6 51.4 34.6 0 [76.0] [1.0] 27155
42 36.8 0.0 46.3 51.9 28.3 54 [84.0, 110.0] [1.0] 22302
43 25.7 0.0 43.5 49.6 33.6 62 [70.0, 110.0, 87.0] [1.0] 27145
44 47.1 0.0 45.5 50.5 35.1 0 [88.0] [1.0] 24019
45 33.1 0.0 45.9 51.0 34.4 374 [78.0, 97.0, 79.0] [1.0] 24668
DUT BeiDou L5/E5A(I+Q)
DIFF BeiDou L5/E5A(I+Q)
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 27.6 0.0 44.3 49.9 32.9 294 [96.0, 81.0, 105.0] [1.0] 24562
12 47.6 0.0 46.2 49.9 34.1 119 [92.0, 98.0] [1.0] 20101
14 43.6 0.0 46.2 51.6 34.7 104 [110.0, 111.0] [1.0] 22637
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 22.3 0.0 39.9 46.0 30.0 9914 [111.0, 81.0] [1.0] 9905
12 8.3 0.0 35.3 38.1 31.6 107 [110.0] [1.0] 108
14 49.0 0.0 44.1 48.2 31.1 13539 [109.0] [1.0] 13593
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 22.3 3.5 11.2 -1.3 [96.0, 111.0, 81.0] 9897
12 8.3 5.2 7.6 1.3 [92.0, 110.0] 108
14 49.0 3.0 10.5 0.1 [110.0, 109.0] 13593
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 27.6 0.0 42.4 49.2 30.5 24 [96.0, 81.0, 105.0] [1.0] 24562
12 47.5 0.0 44.1 49.6 26.4 51 [92.0, 98.0] [1.0] 20106
14 43.5 0.0 43.7 49.9 29.9 131 [110.0, 111.0] [1.0] 22642
19 30.3 0.0 44.5 51.4 29.2 188 [102.0, 76.0] [1.0] 34359
20 29.6 0.0 45.9 51.4 36.3 164 [108.0, 89.0] [1.0] 34695
21 44.1 0.0 46.9 53.0 35.3 206 [98.0, 96.0] [1.0] 19940
22 38.6 0.0 46.2 53.4 19.0 57 [80.0, 99.0] [1.0] 28834
23 45.8 0.0 47.0 53.4 31.6 0 [107.0] [1.0] 26133
24 24.1 0.0 44.1 49.5 35.9 10 [78.0] [1.0] 27894
25 40.5 0.0 46.3 52.1 31.2 0 [102.0] [1.0] 22395
26 22.2 0.0 43.5 48.6 24.5 177 [107.0, 108.0] [1.0] 28761
27 30.9 0.0 45.3 52.0 34.6 25 [75.0, 79.0] [1.0] 33845
28 29.9 0.0 45.0 49.7 27.4 79 [108.0, 86.0] [1.0] 32212
29 44.8 0.0 47.2 52.9 26.9 0 [102.0] [1.0] 28368
30 41.4 0.0 46.5 53.4 33.3 21 [73.0, 110.0] [1.0] 28197
32 34.3 0.0 45.9 52.9 33.6 165 [90.0, 103.0] [1.0] 32446
33 48.9 0.0 47.4 52.7 35.5 0 [106.0] [1.0] 23621
34 37.8 0.0 45.8 51.7 33.6 238 [80.0, 89.0] [1.0] 18511
35 45.0 0.0 46.6 52.5 30.9 0 [106.0] [1.0] 28102
36 40.9 0.0 46.6 53.3 37.6 30 [72.0, 84.0] [1.0] 27582
37 44.9 0.0 46.6 52.7 32.4 0 [111.0] [1.0] 28579
38 7.0 0.0 42.9 44.7 41.0 0 [76.0] [1.0] 1272
41 45.2 0.0 46.4 53.1 34.3 0 [76.0] [1.0] 27155
42 36.8 0.0 44.6 50.4 29.9 205 [84.0, 110.0] [1.0] 22304
43 25.7 0.0 44.3 52.5 31.4 253 [70.0, 110.0, 87.0] [1.0] 27145
44 47.1 0.0 46.4 52.8 36.5 0 [88.0] [1.0] 24019
45 33.1 0.0 45.6 52.2 34.0 257 [78.0, 97.0, 79.0] [1.0] 24668
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 27.6 0.0 42.8 50.0 22.0 302 [111.0, 81.0, 104.0] [1.0] 24589
12 47.5 0.0 44.3 50.3 28.5 3 [110.0, 98.0] [1.0] 20112
14 43.6 0.0 44.0 50.5 25.6 88 [109.0] [1.0] 22598
19 30.3 0.0 44.7 50.5 27.9 254 [111.0, 76.0] [1.0] 34306
20 29.6 0.0 46.0 52.4 35.7 212 [105.0, 90.0] [1.0] 34677
21 44.1 0.0 47.1 53.1 34.0 197 [108.0, 96.0] [1.0] 19944
22 38.6 0.0 46.5 51.9 31.4 53 [88.0, 99.0] [1.0] 28805
23 45.8 0.0 47.1 52.8 32.1 0 [110.0] [1.0] 26145
24 24.1 0.0 44.4 50.0 36.4 203 [78.0] [1.0] 27836
25 40.5 0.0 46.7 52.0 33.5 0 [111.0] [1.0] 22377
26 22.2 0.0 43.8 49.5 25.0 24 [110.0, 106.0] [1.0] 28726
27 30.9 0.0 45.2 51.7 31.4 187 [74.0, 79.0] [1.0] 33860
28 29.9 0.0 45.0 50.0 26.0 153 [107.0, 89.0] [1.0] 32222
29 44.8 0.0 46.9 52.5 30.9 0 [100.0] [1.0] 28358
30 41.4 0.0 46.7 52.3 33.8 136 [77.0, 110.0] [1.0] 28207
32 34.3 0.0 46.1 52.9 34.4 118 [86.0, 107.0] [1.0] 32441
33 48.9 0.0 47.8 52.4 34.2 0 [106.0] [1.0] 23630
34 37.8 0.0 46.0 51.7 31.1 79 [88.0, 90.0] [1.0] 18509
35 45.0 0.0 46.5 52.5 27.6 29 [102.0] [1.0] 28092
36 40.9 0.0 46.9 53.0 36.4 28 [72.0, 88.0] [1.0] 27598
37 44.9 0.0 46.7 52.8 34.6 0 [109.0] [1.0] 28605
38 7.0 0.0 40.8 42.6 39.0 0 [76.0] [1.0] 1243
41 45.2 0.0 46.6 53.3 29.6 0 [75.0] [1.0] 27152
42 36.7 0.0 44.7 51.3 29.7 163 [87.0, 110.0] [1.0] 22373
43 25.7 0.0 44.6 50.9 30.6 195 [86.0, 108.0, 83.0] [1.0] 27130
44 47.2 0.0 46.8 52.0 36.6 0 [87.0] [1.0] 23992
45 33.2 0.0 45.7 52.1 33.2 317 [78.0, 97.0, 79.0] [1.0] 24642
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 27.6 -0.5 10.5 -5.8 [96.0, 111.0, 81.0, 105.0, 104.0] 24562
12 47.6 -0.2 5.1 -9.0 [92.0, 110.0, 98.0] 20096
14 43.6 -0.3 7.1 -4.2 [110.0, 109.0, 111.0] 22595
19 30.3 -0.2 8.7 -8.0 [102.0, 111.0, 76.0] 34305
20 29.6 -0.1 6.6 -4.6 [108.0, 105.0, 89.0, 90.0] 34647
21 44.1 -0.2 5.4 -5.8 [98.0, 108.0, 96.0] 19940
22 38.6 -0.3 7.9 -19.5 [80.0, 88.0, 99.0] 28802
23 45.8 -0.1 8.2 -4.6 [107.0, 110.0] 26133
24 24.1 -0.4 4.0 -5.8 [78.0] 27836
25 40.5 -0.5 4.9 -6.0 [102.0, 111.0] 22377
26 22.2 -0.2 9.6 -4.8 [107.0, 110.0, 108.0, 106.0] 28724
27 30.9 0.1 9.5 -5.3 [75.0, 74.0, 79.0] 33844
28 30.0 -0.1 7.4 -5.9 [108.0, 107.0, 86.0, 89.0] 32200
29 44.8 0.3 6.1 -6.0 [102.0, 100.0] 28358
30 41.4 -0.1 5.2 -5.7 [73.0, 77.0, 110.0] 28194
32 34.3 -0.2 4.4 -5.8 [90.0, 86.0, 103.0, 107.0] 32436
33 48.9 -0.4 3.7 -3.6 [106.0] 23621
34 37.8 -0.2 4.5 -5.1 [80.0, 88.0, 89.0, 90.0] 18506
35 45.0 0.1 6.1 -4.3 [106.0, 102.0] 28092
36 40.9 -0.3 5.5 -5.9 [72.0, 84.0, 88.0] 27582
37 44.9 -0.2 5.4 -6.8 [111.0, 109.0] 28575
38 7.0 2.0 5.0 0.1 [76.0] 1242
41 45.2 -0.2 6.4 -5.2 [76.0, 75.0] 27146
42 36.8 -0.1 6.3 -6.2 [84.0, 87.0, 110.0] 22300
43 25.7 -0.3 8.2 -5.5 [70.0, 86.0, 110.0, 108.0, 87.0, 83.0] 27115
44 47.2 -0.4 5.1 -6.8 [88.0, 87.0] 23989
45 33.2 -0.0 5.2 -5.1 [78.0, 97.0, 79.0] 24624
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 27.6 0.0 42.2 48.6 33.4 425 [96.0, 81.0, 105.0] [1.0] 24562
12 47.6 0.0 44.7 49.0 32.0 190 [92.0, 98.0] [1.0] 20101
14 43.6 0.0 44.7 49.5 32.8 110 [110.0, 111.0] [1.0] 22637
19 30.3 0.0 43.8 49.8 33.8 149 [102.0, 76.0] [1.0] 34359
20 29.6 0.0 43.2 48.8 32.3 189 [108.0, 89.0] [1.0] 34695
21 44.1 0.0 44.9 49.3 34.7 139 [98.0, 96.0] [1.0] 19940
22 38.6 0.0 44.4 49.8 31.2 60 [80.0, 99.0] [1.0] 28820
23 45.8 0.0 45.8 49.8 31.2 0 [107.0] [1.0] 26133
24 24.1 0.0 42.2 49.1 32.6 106 [78.0] [1.0] 27894
25 40.5 0.0 45.0 49.9 19.3 0 [102.0] [1.0] 22395
26 22.2 0.0 41.5 46.0 27.8 214 [107.0, 108.0] [1.0] 28735
27 30.9 0.0 43.1 49.3 31.9 141 [75.0, 79.0] [1.0] 33845
28 29.9 0.0 42.1 47.8 28.4 21 [108.0, 86.0] [1.0] 32212
29 44.8 0.0 44.6 49.1 32.8 0 [102.0] [1.0] 28368
30 41.4 0.0 44.2 49.4 26.7 64 [73.0, 110.0] [1.0] 28197
32 34.3 0.0 43.7 49.6 16.9 106 [90.0, 103.0] [1.0] 32444
33 48.9 0.0 46.0 49.8 28.0 0 [106.0] [1.0] 23621
34 37.8 0.0 43.7 48.5 28.1 111 [80.0, 89.0] [1.0] 18511
35 45.0 0.0 44.4 49.3 31.9 0 [106.0] [1.0] 28102
36 40.9 0.0 44.3 49.6 32.5 116 [72.0, 84.0] [1.0] 27582
37 44.9 0.0 45.3 49.7 27.7 0 [111.0] [1.0] 28579
38 7.0 0.0 40.5 42.1 38.6 0 [76.0] [1.0] 1272
41 45.2 0.0 44.9 49.9 31.9 0 [76.0] [1.0] 27155
42 36.8 0.0 44.5 49.9 21.7 104 [84.0, 110.0] [1.0] 22298
43 25.7 0.0 41.8 48.3 22.3 448 [70.0, 110.0, 87.0] [1.0] 27145
44 47.1 0.0 44.0 49.3 30.4 0 [88.0] [1.0] 24019
45 33.1 0.0 43.6 49.7 25.7 442 [78.0, 97.0, 79.0] [1.0] 24668
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 27.6 0.0 42.1 48.2 31.1 268 [111.0, 81.0, 104.0] [1.0] 24584
12 47.5 0.0 45.0 49.1 29.7 57 [110.0, 98.0] [1.0] 20112
14 43.7 0.0 44.9 49.2 33.1 28 [109.0] [1.0] 22522
19 30.3 0.0 43.8 49.6 31.1 180 [111.0, 76.0] [1.0] 34306
20 29.6 0.0 43.2 48.1 29.3 197 [105.0, 90.0] [1.0] 34677
21 44.1 0.0 44.6 49.9 33.2 198 [108.0, 96.0] [1.0] 19944
22 38.6 0.0 44.1 49.3 28.0 152 [88.0, 99.0] [1.0] 28805
23 45.8 0.0 45.6 49.9 32.1 0 [110.0] [1.0] 26145
24 24.1 0.0 42.3 49.1 31.5 9 [78.0] [1.0] 27836
25 40.5 0.0 44.8 49.8 28.9 0 [111.0] [1.0] 22377
26 22.2 0.0 41.7 45.8 31.3 32 [110.0, 106.0] [1.0] 28706
27 30.9 0.0 43.0 49.1 31.9 177 [74.0, 79.0] [1.0] 33860
28 29.9 0.0 42.4 47.6 29.5 225 [107.0, 89.0] [1.0] 32222
29 44.8 0.0 44.7 49.3 30.9 0 [100.0] [1.0] 28358
30 41.4 0.0 43.9 49.4 20.1 85 [77.0, 110.0] [1.0] 28206
32 34.3 0.0 43.7 49.8 19.3 134 [86.0, 107.0] [1.0] 32440
33 48.9 0.0 45.9 49.3 29.6 0 [106.0] [1.0] 23630
34 37.8 0.0 43.3 48.7 29.6 218 [88.0, 90.0] [1.0] 18509
35 45.1 0.0 44.3 49.4 32.7 0 [102.0] [1.0] 28057
36 40.9 0.0 44.3 49.9 30.0 128 [72.0, 88.0] [1.0] 27598
37 44.9 0.0 45.2 50.0 27.8 0 [109.0] [1.0] 28605
38 7.0 0.0 40.3 42.6 36.6 0 [76.0] [1.0] 1243
41 45.2 0.0 44.7 50.1 34.0 0 [75.0] [1.0] 27146
42 36.7 0.0 44.7 49.4 28.9 58 [87.0, 110.0] [1.0] 22373
43 25.7 0.0 41.8 48.9 30.2 378 [86.0, 108.0, 83.0] [1.0] 27130
44 47.2 0.0 44.1 49.5 30.9 0 [87.0] [1.0] 23992
45 33.2 0.0 43.8 49.6 28.7 222 [78.0, 97.0, 79.0] [1.0] 24642
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 27.6 0.1 6.6 -4.0 [96.0, 111.0, 81.0, 105.0, 104.0] 24557
12 47.6 -0.3 6.3 -6.3 [92.0, 110.0, 98.0] 20091
14 43.7 -0.1 4.5 -3.2 [110.0, 109.0, 111.0] 22519
19 30.3 -0.1 5.9 -6.0 [102.0, 111.0, 76.0] 34305
20 29.6 0.0 6.1 -3.6 [108.0, 105.0, 89.0, 90.0] 34647
21 44.1 0.3 5.6 -2.4 [98.0, 108.0, 96.0] 19940
22 38.6 0.2 9.3 -4.3 [80.0, 88.0, 99.0] 28788
23 45.8 0.2 5.8 -6.3 [107.0, 110.0] 26133
24 24.1 -0.2 6.6 -7.5 [78.0] 27836
25 40.5 0.2 5.9 -12.7 [102.0, 111.0] 22377
26 22.2 -0.2 4.3 -6.7 [107.0, 110.0, 108.0, 106.0] 28678
27 30.9 0.1 4.5 -3.1 [75.0, 74.0, 79.0] 33844
28 30.0 -0.3 5.0 -4.6 [108.0, 107.0, 86.0, 89.0] 32200
29 44.8 -0.1 5.3 -3.8 [102.0, 100.0] 28358
30 41.4 0.3 19.9 -6.6 [73.0, 77.0, 110.0] 28193
32 34.3 -0.0 21.9 -20.2 [90.0, 86.0, 103.0, 107.0] 32433
33 48.9 0.1 4.3 -4.0 [106.0] 23621
34 37.8 0.5 5.6 -6.0 [80.0, 88.0, 89.0, 90.0] 18506
35 45.1 0.2 4.3 -4.7 [106.0, 102.0] 28057
36 40.9 -0.0 5.8 -6.6 [72.0, 84.0, 88.0] 27582
37 44.9 0.1 8.5 -4.2 [111.0, 109.0] 28575
38 7.0 0.2 2.8 -1.8 [76.0] 1242
41 45.2 0.1 4.4 -6.9 [76.0, 75.0] 27140
42 36.8 -0.2 3.5 -8.7 [84.0, 87.0, 110.0] 22294
43 25.7 0.0 5.8 -4.4 [70.0, 86.0, 110.0, 108.0, 87.0, 83.0] 27115
44 47.2 -0.1 4.4 -9.8 [88.0, 87.0] 23989
45 33.2 -0.2 5.6 -6.5 [78.0, 97.0, 79.0] 24624
