Comments


CH1

Files


240807_ch1/BX_all.T04 240807_ch1/EB79_all.T04 240807_ch1/EB81_all.T04
Modified: 2024-08-28 14:04:54

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 231640.128
Stop Time : 309600.337
Total Hours : 21.65561361111111

Mean Primary Pos: [39.89647588076936, -105.1150725435813]
Mean Secondary Pos: [39.896478956434926, -105.1150774358889]
Mean Heading: 129.33 (deg)
Mean Slope Distance: 0.53959 (m)
 Modified: 2024-08-28 14:04:54

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 229605.108
Stop Time : 310551.886
Total Hours : 22.485216111111107

Mean Primary Pos: [39.89647545948316, -105.1150581313043]
Mean Secondary Pos: [39.89647994402751, -105.11506177139185]
Mean Heading: 148.09 (deg)
Mean Slope Distance: 0.58745 (m)
 Modified: 2024-08-28 14:04:54

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 229608.102
Stop Time : 310540.828
Total Hours : 22.481312777777767

Mean Primary Pos: [39.896474600549645, -105.11504698705585]
Mean Secondary Pos: [39.89647975642095, -105.1150477502076]
Mean Heading: 173.52 (deg)
Mean Slope Distance: 0.57699 (m)

Difference Report Links

240807_ch1/results/BX_all_0-EB79_all_0.html
240807_ch1/results/BX_all_0-EB81_all_0.html
240807_ch1/results/BX_all_1-EB79_all_1.html
240807_ch1/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 746,905 0.1 747,114 0.3 746,892 -0.1 747,087 0.0
GPS L2 CM+CL 564,262 0.2 564,463 0.5 563,919 0.2 564,105 0.5
GPS L2 E 182,108 0.4 181,981 0.8 181,156 0.1 179,922 0.5
GPS L5/E5A I+Q 414,444 -0.0 414,624 0.4 414,105 -0.1 414,265 -0.2
SBAS L1 CA 241,839 -0.3 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 575,429 0.6 575,245 1.0 575,366 0.3 575,239 0.5
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 493,744 -0.0 491,410 0.6 492,758 -0.0 492,629 0.2
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 591,510 0.0 591,535 0.3 591,493 -0.1 591,518 0.0
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 591,510 0.2 591,535 0.2 591,493 -0.2 591,535 0.0
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou L5/E5A I+Q 566,506 -0.0 566,552 0.4 566,491 -0.2 566,549 -0.1
BeiDou E5B/B2 BPSK(2)-B2 48,090 0.4 48,107 0.1 48,062 0.1 48,077 0.1
BeiDou B1 BPSK(2)-B1 614,637 -0.0 614,697 0.3 614,617 -0.4 614,687 -0.2
BeiDou B3 BPSK(10)-B3 614,552 0.2 614,542 0.2 614,531 -0.0 614,539 0.2
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 6,245,536 0.1 6,001,805 0.4 6,000,883 -0.1 6,000,152 0.1

Az-El Plots

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

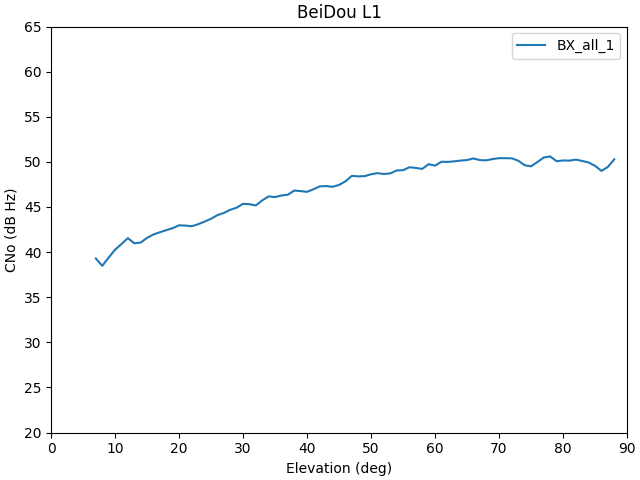

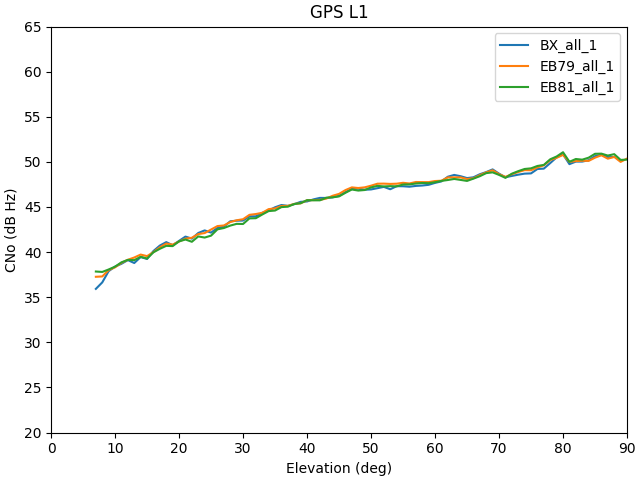

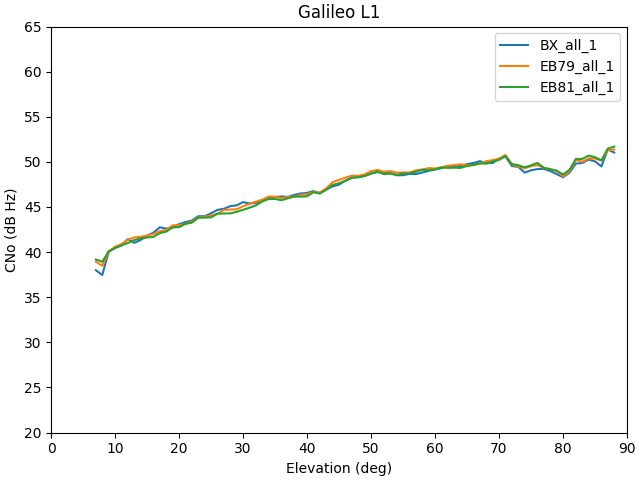

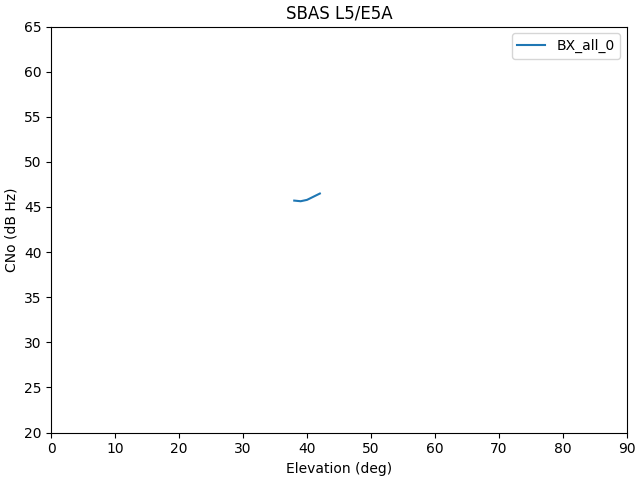

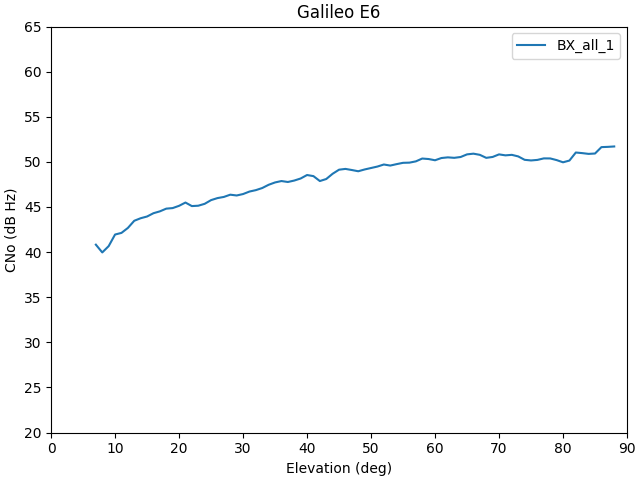

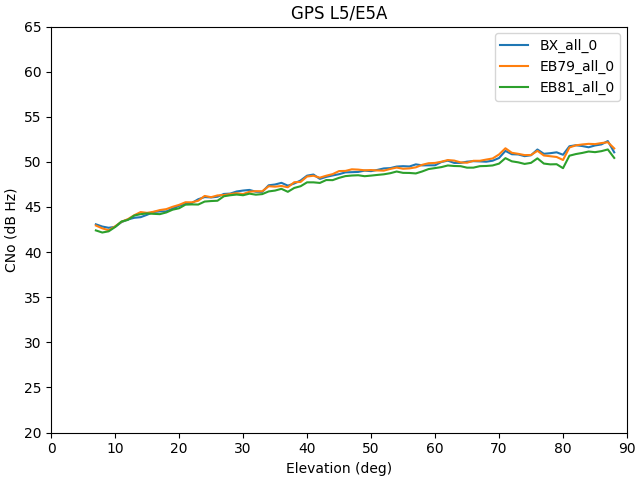

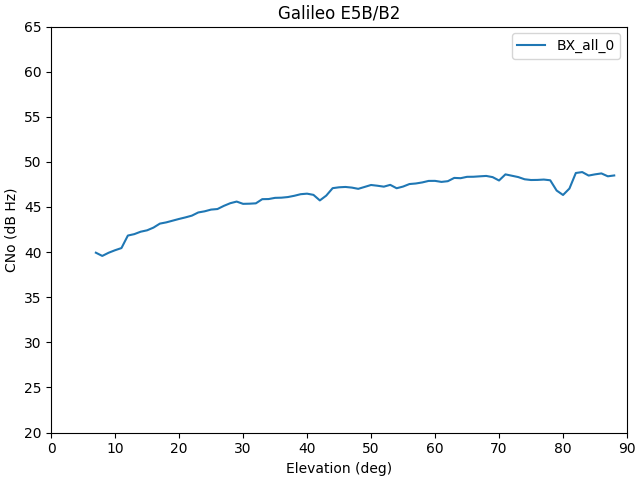

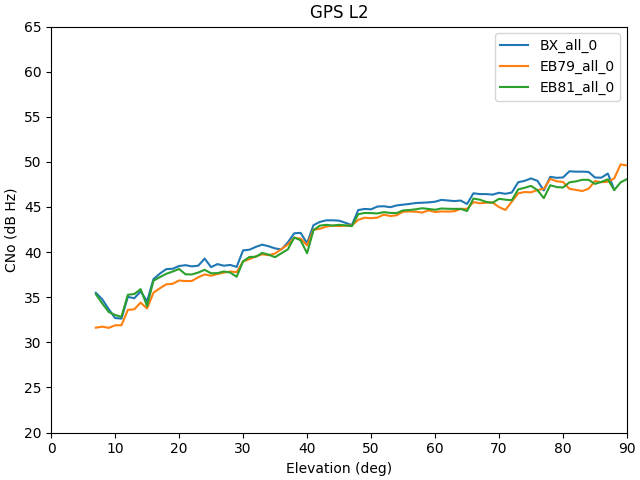

Mean Elevation Plots

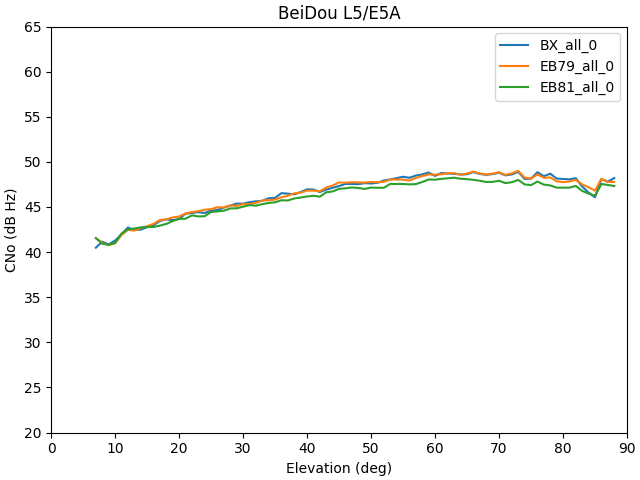

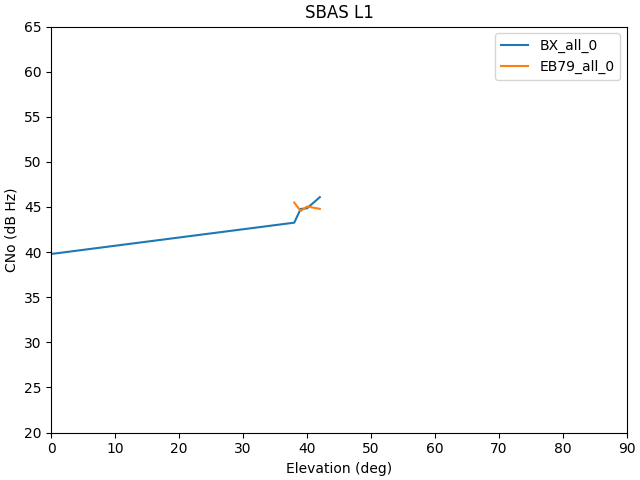

Antenna 0

GPS
SBAS
GLONASS
Galileo
BeiDou

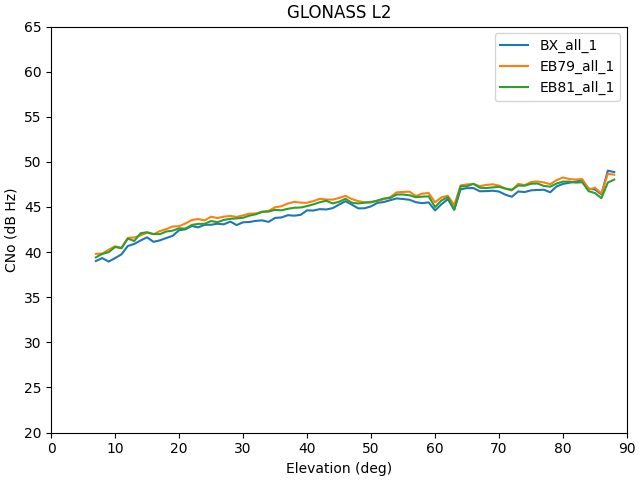

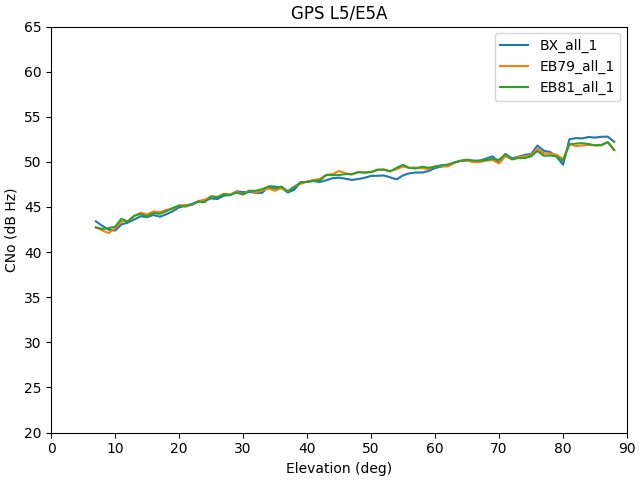

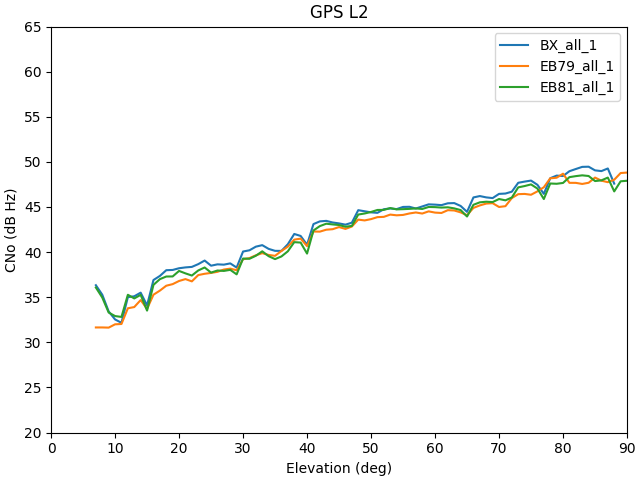

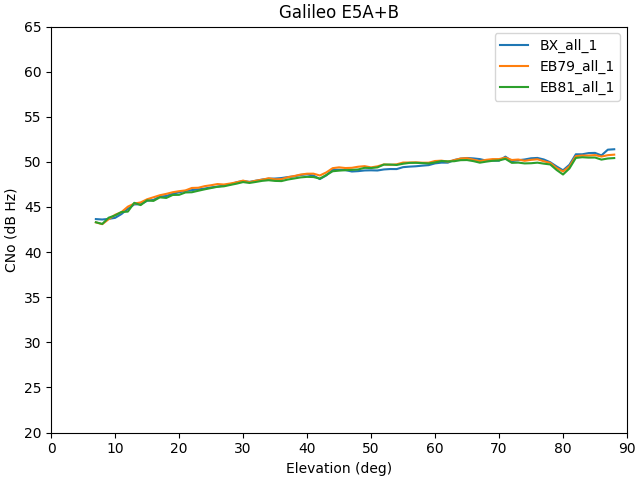

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_all_0: 1552.2
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 11 1,552
0 GPS L1 0 25 1,505
0 GPS L1 0 29 1,503
0 GLONASS L1 1 11 1,411
0 Galileo E5A+B 14 10 1,405
0 GLONASS L1 1 19 1,400
0 GLONASS L1 0 12 1,346
0 GLONASS L1 0 3 1,325
0 Galileo E5A+B 14 4 1,245
0 GLONASS L1 0 19 1,238
EB79_all_0: 1388.0
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 12 1,388
0 GPS L1 0 29 1,361
0 GLONASS L1 0 15 1,339
0 GLONASS L1 0 18 1,330
0 GLONASS L1 0 3 1,287
0 GPS L1 0 9 1,254
0 GLONASS L1 0 11 1,241
0 GPS L1 0 8 1,228
0 GPS L2 2 28 1,225
0 Galileo E5A+B 14 10 1,207
EB81_all_0: 1978.3
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 6 1,978
0 GPS L1 0 8 1,371
0 GLONASS L1 0 19 1,277
0 GPS L1 0 16 1,264
0 BeiDou B1 26 22 1,263
0 GLONASS L1 0 12 1,261
0 GLONASS L1 0 7 1,198
0 GLONASS L1 0 8 1,195
0 BeiDou B3 29 33 1,189
0 BeiDou B3 29 44 1,179
BX_all_1: 1704.2
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 1 12 1,704
1 GLONASS L1 0 12 1,699
1 GPS L1 0 5 1,476
1 GPS L1 0 3 1,467
1 GPS L1 0 9 1,448
1 BeiDou L1 20 22 1,388
1 BeiDou B3 29 33 1,330
1 BeiDou B3 29 41 1,318
1 GLONASS L1 0 3 1,298
1 BeiDou B3 29 28 1,275
EB79_all_1: 1572.2
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 11 1,572
1 GLONASS L1 0 2 1,546
1 GPS L2 2 6 1,496
1 GLONASS L1 0 19 1,481
1 GPS L1 0 3 1,450
1 GLONASS L1 0 7 1,400
1 GPS L1 0 6 1,387
1 GPS L1 0 11 1,375
1 GPS L1 0 9 1,355
1 GPS L2 2 3 1,333
EB81_all_1: 1719.5
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 19 1,720
1 GLONASS L1 0 7 1,466
1 GPS L1 0 6 1,460
1 GPS L2 5 25 1,446
1 GLONASS L2 0 9 1,404
1 GLONASS L1 0 12 1,378
1 GPS L1 0 31 1,352
1 GLONASS L1 0 1 1,324
1 GPS L1 0 9 1,316
1 BeiDou E5B/B2 28 11 1,288

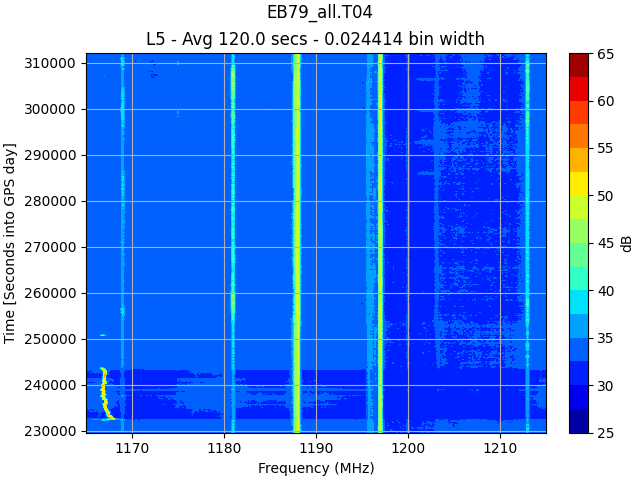

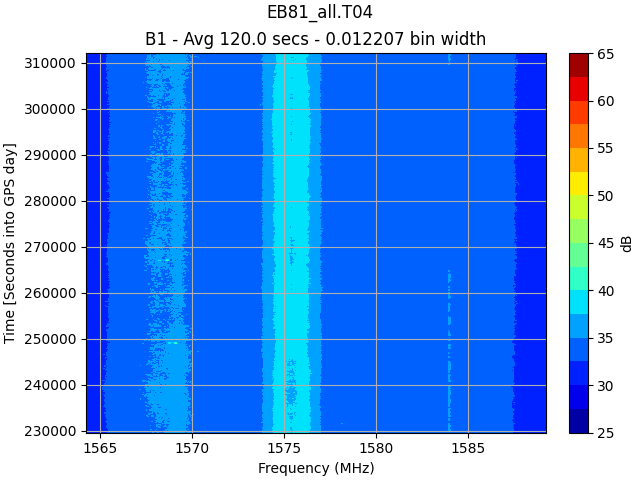

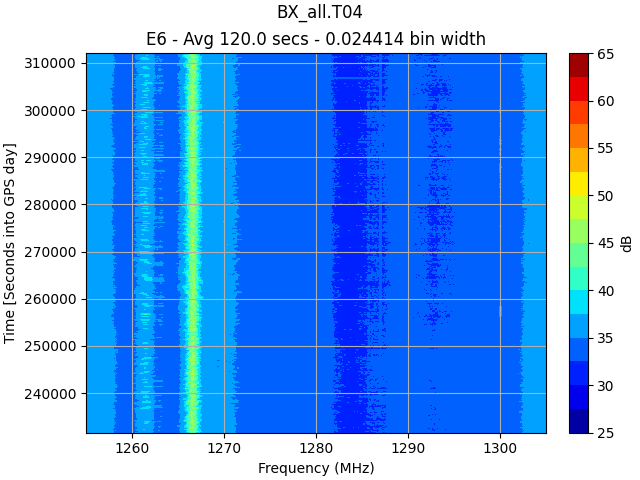

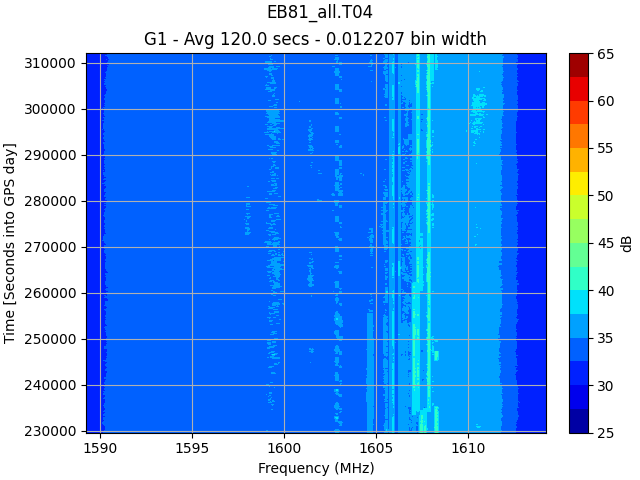

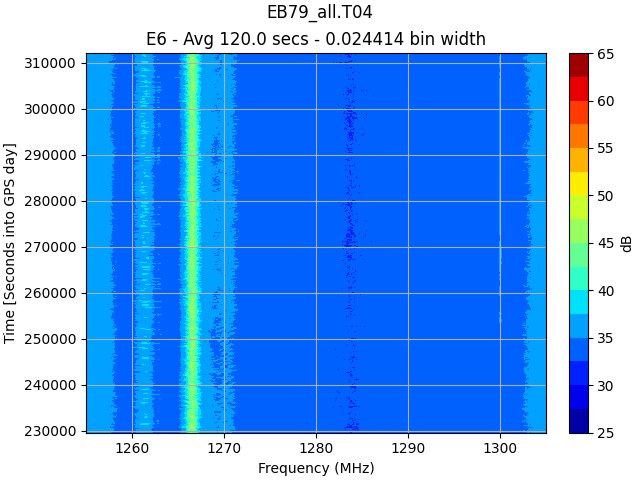

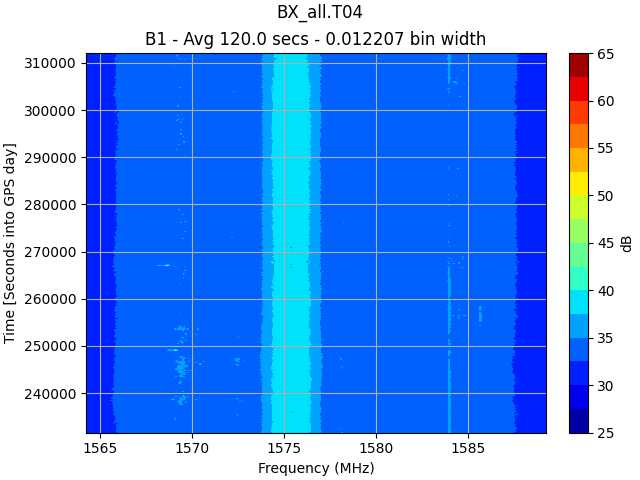

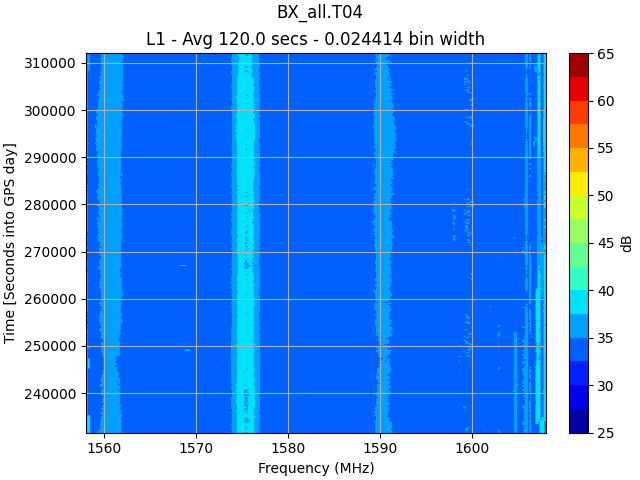

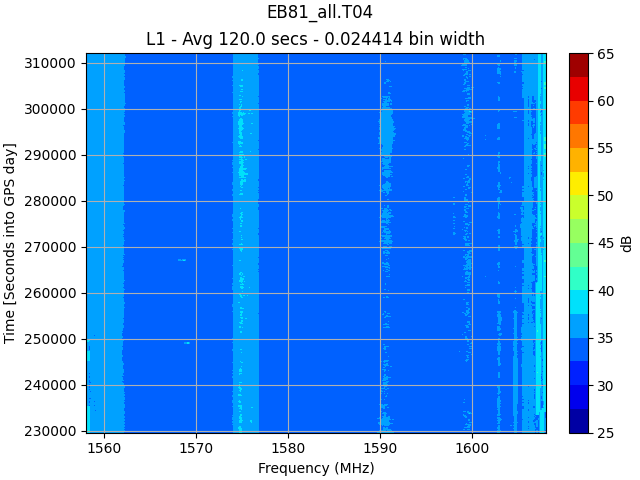

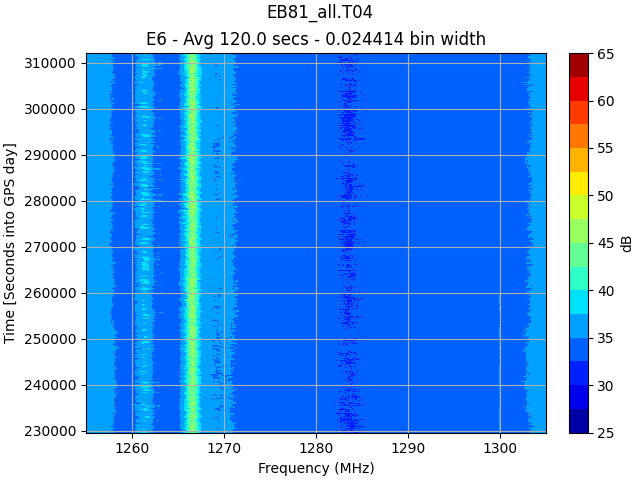

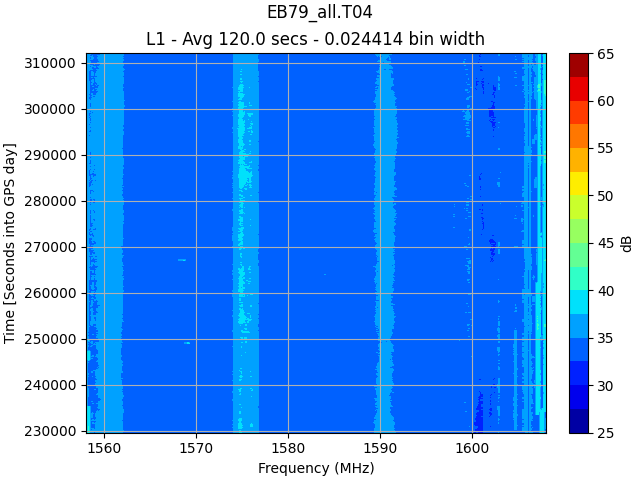

FFT Plots

L1 L2 L5 E6 G1 B1
BX
EB79
EB81
