REF File: 240807_ch1/BX_all.T04
DUT File: 240807_ch1/EB79_all.T04

Comments


CH1

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 747505 44.0 44.3 4.2 19.3 54.1 34.8 37.3 88.0
GPS L2 CM+CL 564702 44.3 44.7 3.4 21.5 51.8 30.3 38.6 88.0
GPS L2 E 182272 30.3 30.7 6.6 12.6 43.7 31.1 33.1 77.0
GPS L5/E5A I+Q 414828 47.2 47.3 2.9 31.2 53.9 22.7 38.2 88.0
SBAS L1 CA 311109 42.7 44.1 4.0 21.6 48.5 26.9 20.9 42.0
SBAS L5/E5A I 241839 46.0 46.0 0.8 39.6 48.6 9.0 39.8 42.0
GLONASS L1 CA 575935 44.3 45.1 5.1 17.3 54.4 37.1 36.0 88.0
GLONASS L1 P 574090 42.8 43.6 4.9 20.6 52.4 31.8 36.1 88.0
GLONASS L2 CA 494186 44.4 44.9 3.3 1.0 51.5 50.5 36.4 88.0
GLONASS L2 P 494180 42.8 43.3 3.3 10.2 49.6 39.4 36.4 88.0
GLONASS G3 PD 52063 44.3 44.4 2.8 31.8 49.8 18.0 39.0 83.0
Galileo L1 MBOC-PD 591757 45.7 46.1 4.0 9.1 54.2 45.1 38.7 88.0
Galileo L5/E5A BPSK(10)-PD 591757 45.0 45.6 3.0 28.9 50.4 21.5 38.7 88.0
Galileo E5B/B2 BPSK(10)-PD 591757 45.4 46.0 3.3 28.7 51.0 22.3 38.7 88.0
Galileo E5A+B AltBOC-Comp-PD 591757 47.8 48.2 2.6 34.2 52.7 18.5 38.7 88.0
Galileo E6 BPSK(5)-PD 591739 47.2 47.8 3.8 23.8 53.2 29.4 38.7 88.0
BeiDou L1 BOC-PD 566855 45.7 45.8 4.0 25.1 52.9 27.8 37.1 88.0
BeiDou L5/E5A I+Q 566855 45.6 45.8 2.8 31.4 51.4 20.0 37.1 88.0
BeiDou E5B/B2 BPSK(2)-B2 48129 45.3 46.5 3.0 29.7 50.1 20.4 37.7 71.0
BeiDou B1 BPSK(2)-B1 615014 45.5 45.8 4.0 19.9 53.8 33.9 37.1 88.0
BeiDou B3 BPSK(10)-B3 614943 44.6 45.2 3.1 16.9 50.8 33.9 37.1 88.0
start/stop time: 231,640 312,252
Total time: 80,612.0 seconds
Total time: 1,343.533 minutes
Total time: 22.392 hours
Total Samples: 10,023,272
Avg Samples/sec: 124.3

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 231640.128
Stop Time : 309600.337
Total Hours : 21.65561361111111
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 767541 43.9 44.3 4.0 15.4 54.0 38.6 37.2 90.0
GPS L2 CM+CL 580133 44.1 44.5 3.4 19.5 51.6 32.1 38.6 90.0
GPS L2 E 767415 36.7 37.0 7.7 12.6 52.5 39.9 37.2 90.0
GPS L5/E5A I+Q 424026 47.2 47.3 2.8 21.0 53.4 32.4 37.9 88.0
SBAS L1 CA 247980 45.0 45.0 0.8 42.4 48.2 5.8 39.8 42.0
GLONASS L1 CA 589965 43.7 44.5 5.0 17.3 54.1 36.8 35.9 88.0
GLONASS L2 CA 506300 44.5 45.0 3.3 6.4 51.5 45.1 36.3 88.0
Galileo L1 MBOC-PD 609600 45.6 46.1 3.8 28.8 53.2 24.4 38.7 88.0
Galileo E5A+B AltBOC-Comp-PD 609595 47.6 48.0 2.5 18.5 52.7 34.2 38.7 88.0
BeiDou L5/E5A I+Q 579507 45.6 45.8 2.7 18.6 51.1 32.5 37.2 88.0
BeiDou E5B/B2 BPSK(2)-B2 52268 44.9 45.8 2.8 34.0 49.5 15.5 37.6 71.0
BeiDou B1 BPSK(2)-B1 631787 45.5 45.8 3.8 23.3 53.5 30.2 37.2 88.0
BeiDou B3 BPSK(10)-B3 631768 44.4 45.0 3.0 21.3 50.4 29.1 37.2 88.0
start/stop time: 229,605 312,264
Total time: 82,659.0 seconds
Total time: 1,377.650 minutes
Total time: 22.961 hours
Total Samples: 6,997,885
Avg Samples/sec: 84.7

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 229605.108
Stop Time : 310551.886
Total Hours : 22.485216111111107
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 746905 +0.1 +0.2 +1.6 -17.7 +24.2 +41.9 +37.3 +88.0
GPS L2 CM+CL 564262 +0.2 +0.2 +1.3 -13.6 +19.2 +32.8 +38.6 +88.0
GPS L2 E 182108 +0.4 +0.5 +1.6 -8.9 +8.1 +17.0 +33.2 +77.0
GPS L5/E5A I+Q 414444 -0.0 +0.0 +1.1 -11.8 +22.6 +34.4 +38.3 +88.0
SBAS L1 CA 241839 -0.3 +0.0 +1.6 -4.2 +3.2 +7.4 +39.8 +42.0
GLONASS L1 CA 575429 +0.6 +0.7 +1.6 -16.9 +13.1 +30.0 +36.0 +88.0
GLONASS L2 CA 493744 -0.0 +0.0 +1.4 -10.2 +22.3 +32.5 +36.4 +88.0
Galileo L1 MBOC-PD 591510 +0.0 +0.1 +1.3 -27.7 +7.0 +34.7 +38.7 +88.0
Galileo E5A+B AltBOC-Comp-PD 591510 +0.2 +0.2 +0.9 -6.0 +8.3 +14.3 +38.7 +88.0
BeiDou L5/E5A I+Q 566506 -0.0 +0.0 +1.1 -10.4 +23.0 +33.4 +37.1 +88.0
BeiDou E5B/B2 BPSK(2)-B2 48090 +0.4 +0.4 +1.4 -9.0 +7.9 +16.9 +37.7 +71.0
BeiDou B1 BPSK(2)-B1 614637 -0.0 +0.1 +1.5 -20.2 +9.6 +29.8 +37.1 +88.0
BeiDou B3 BPSK(10)-B3 614552 +0.2 +0.2 +1.1 -21.0 +20.3 +41.3 +37.1 +88.0
start/stop time: 231,640 312,252
Total time: 80,612.0 seconds
Total time: 1,343.533 minutes
Total time: 22.392 hours
Total Samples: 6,245,536
Avg Samples/sec: 77.5

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.111
Median = 0.200
Std Dev= 1.365

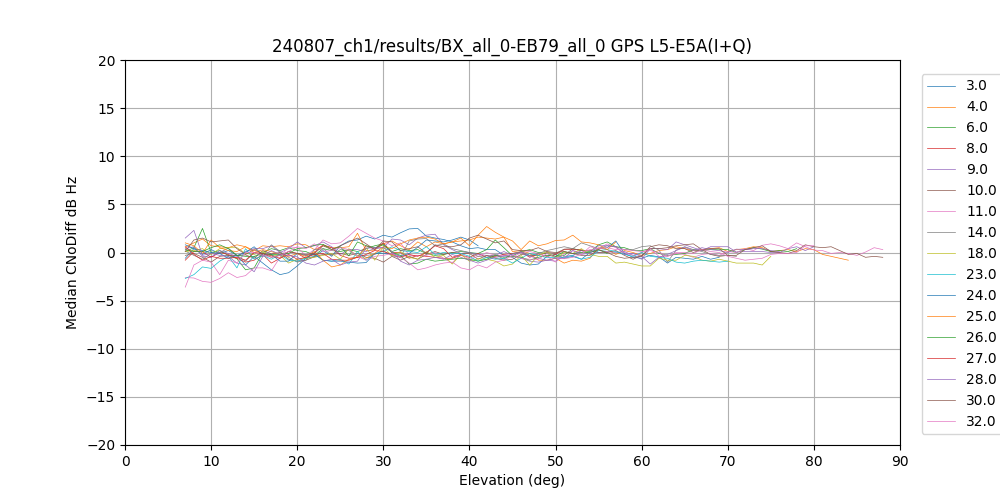

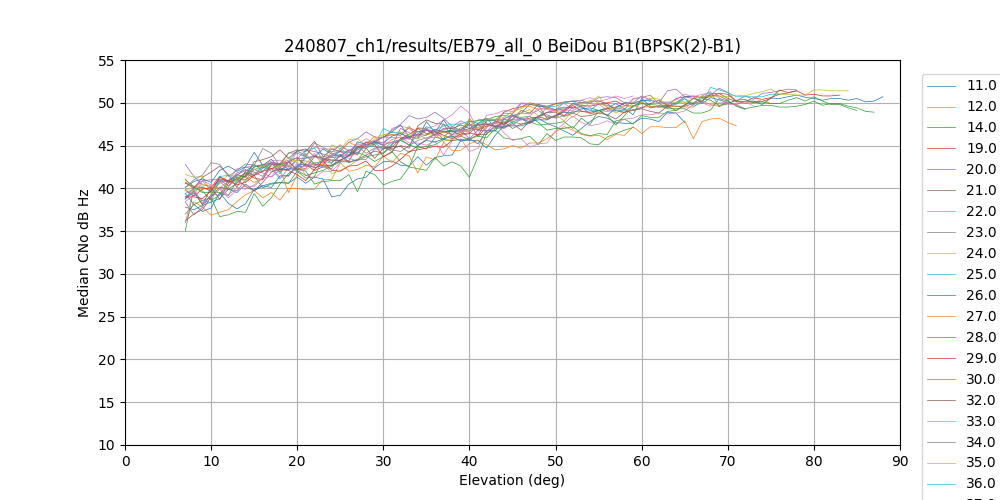

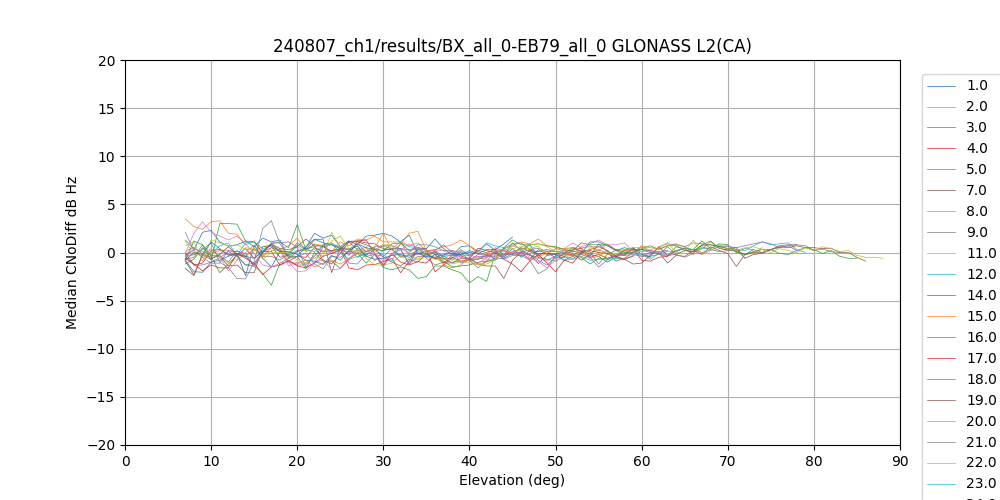

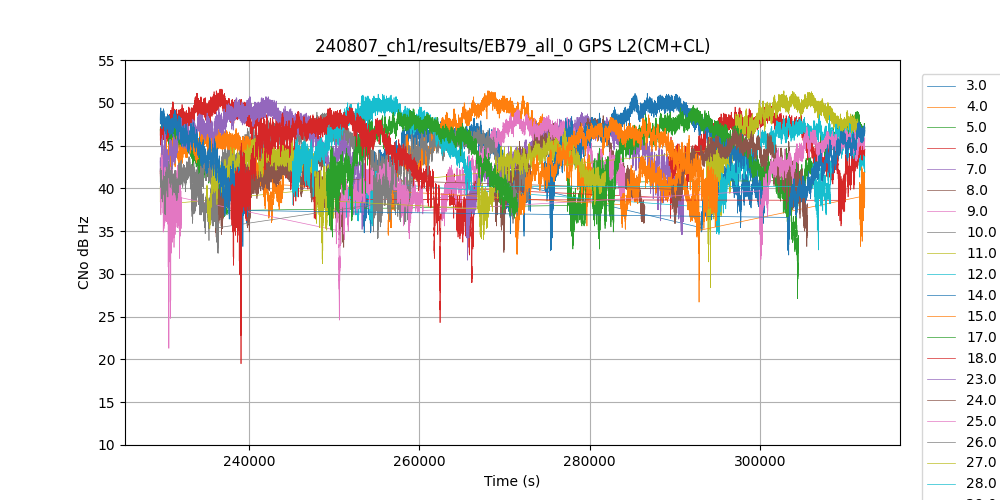

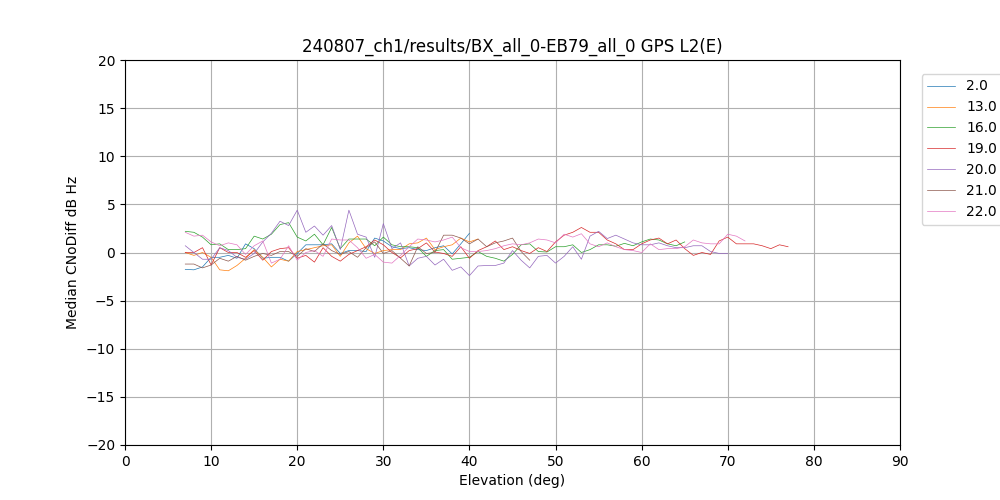

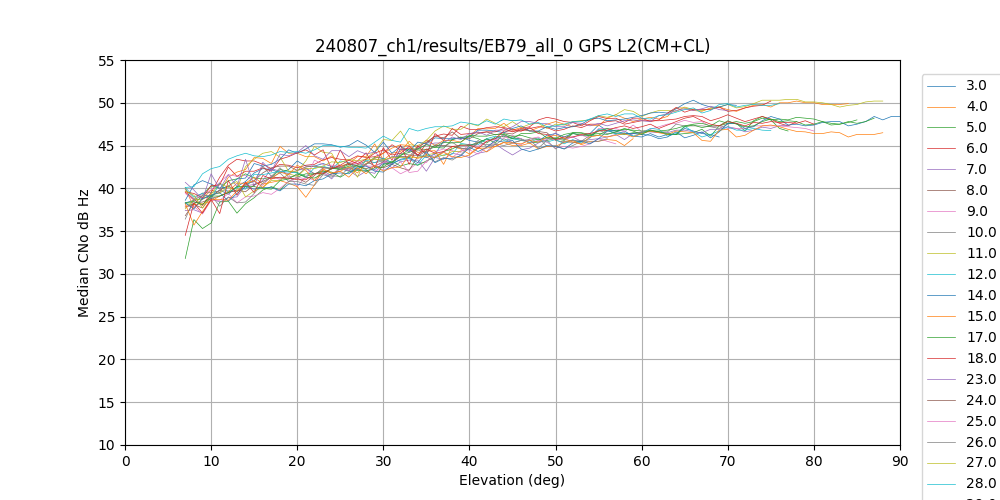

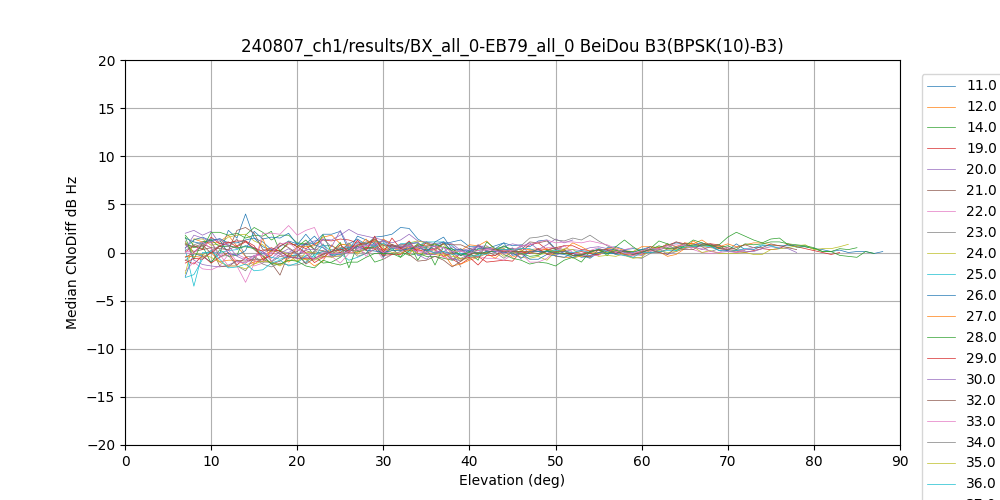

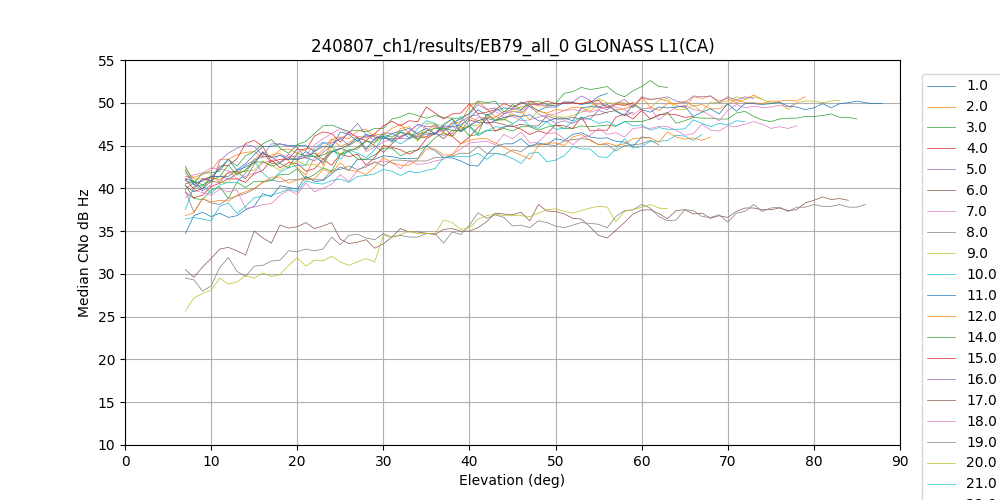

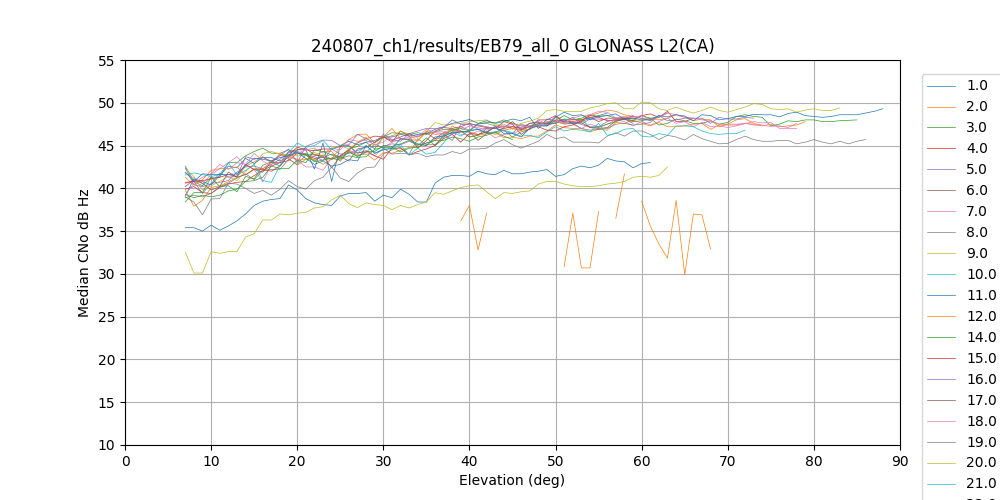

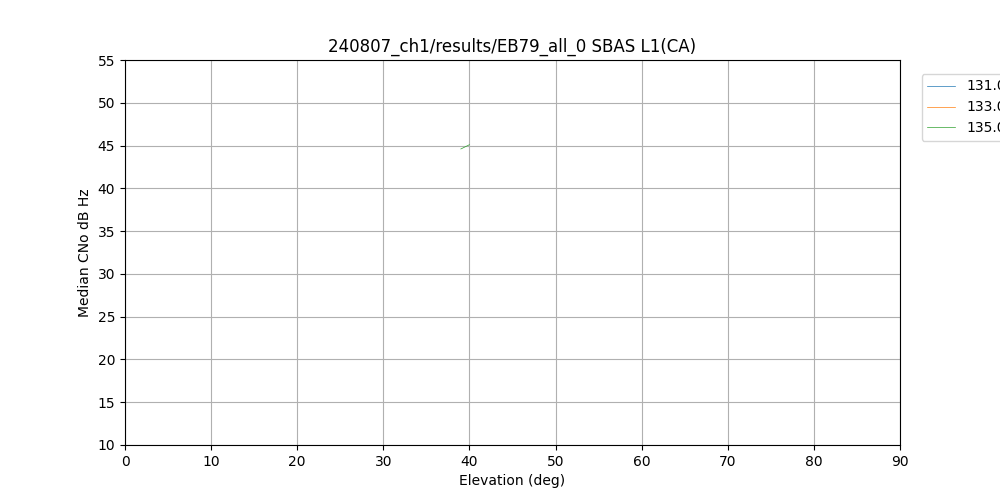

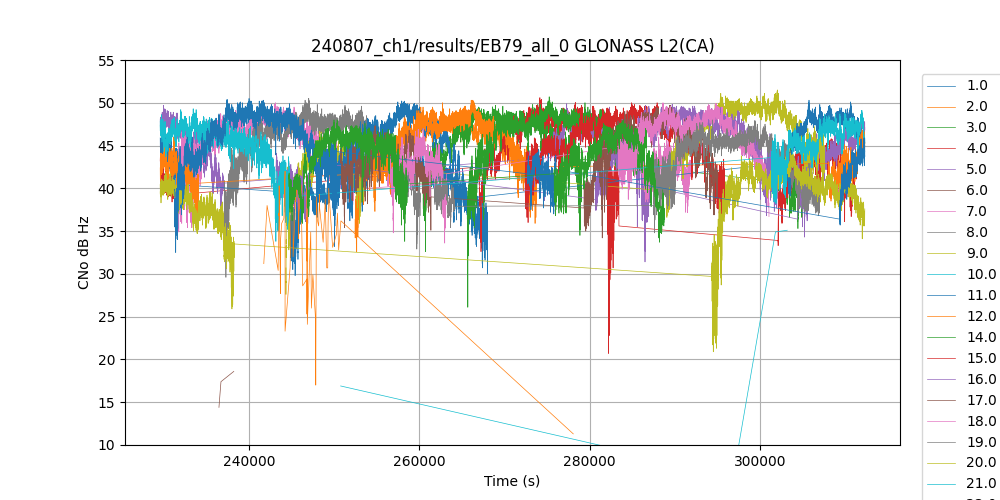

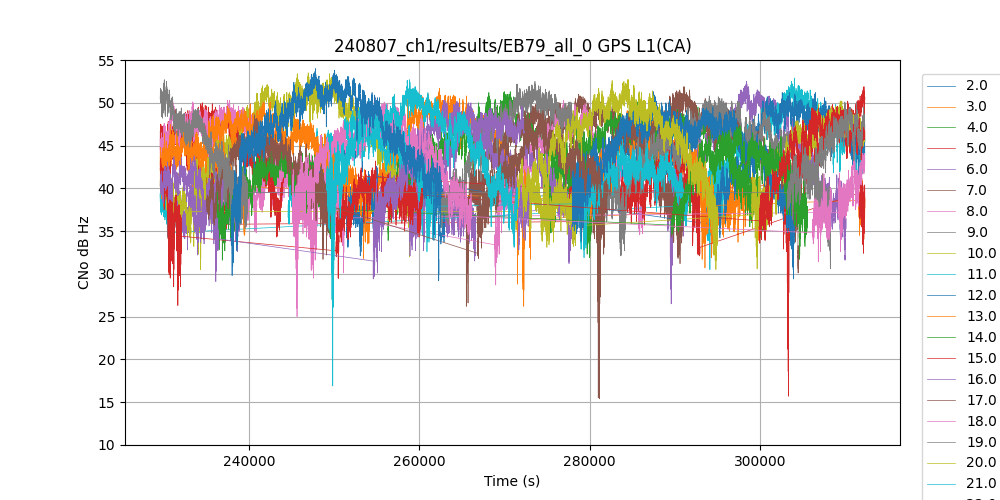

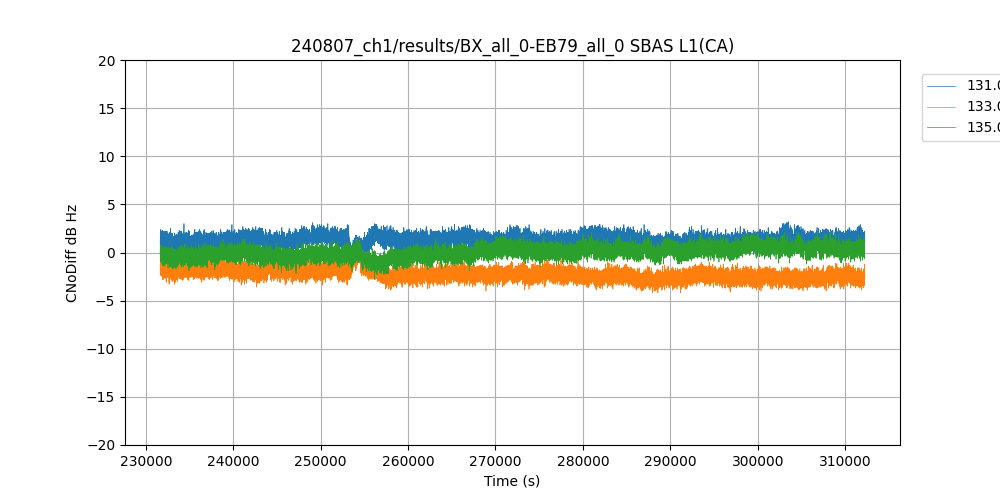

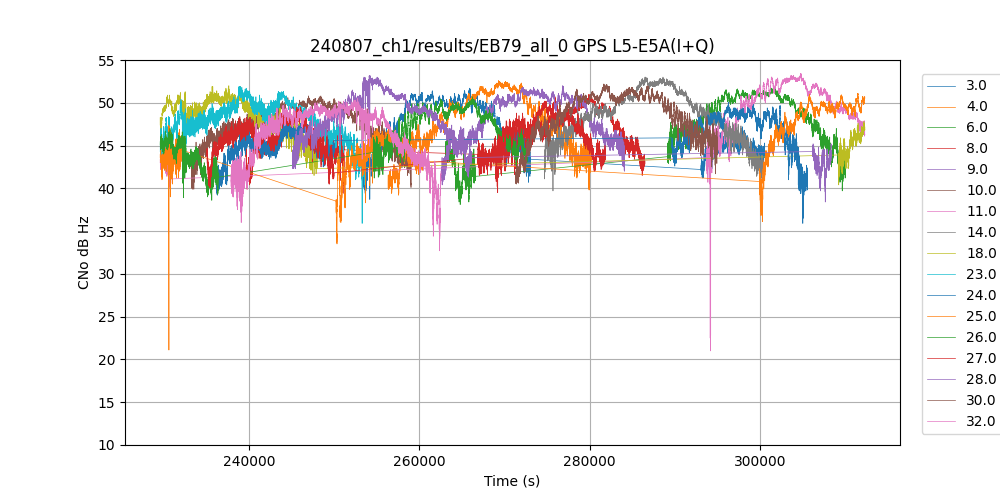

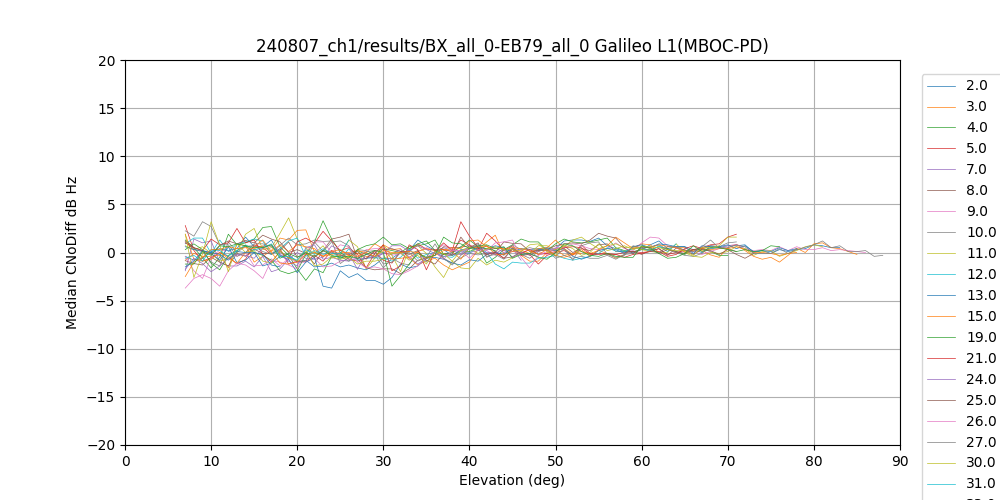

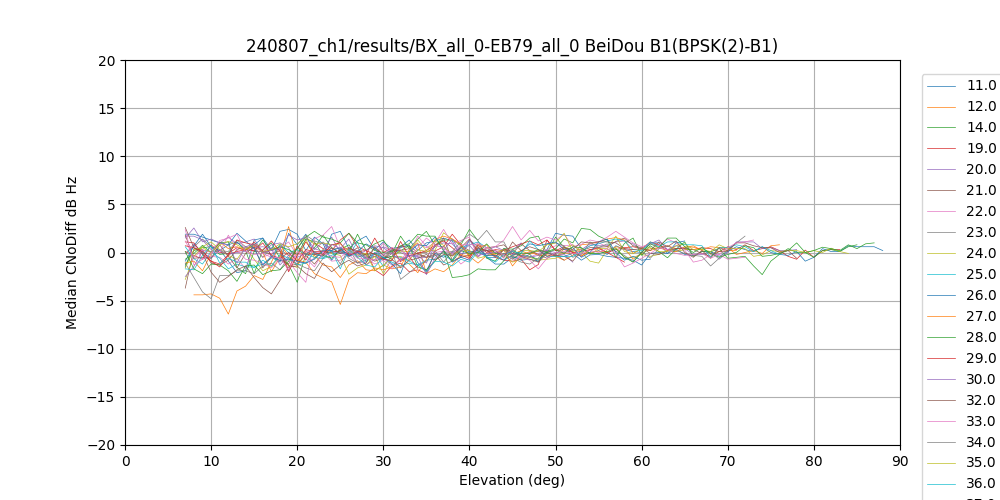

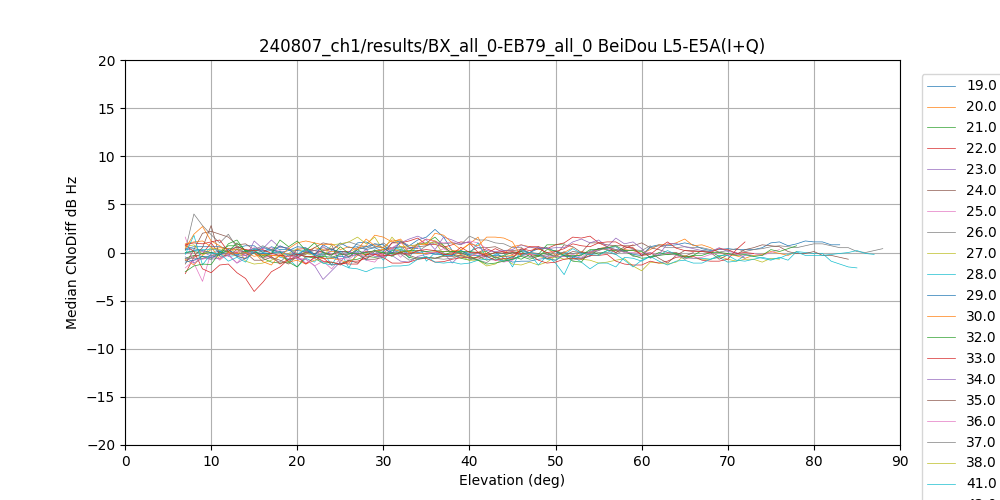

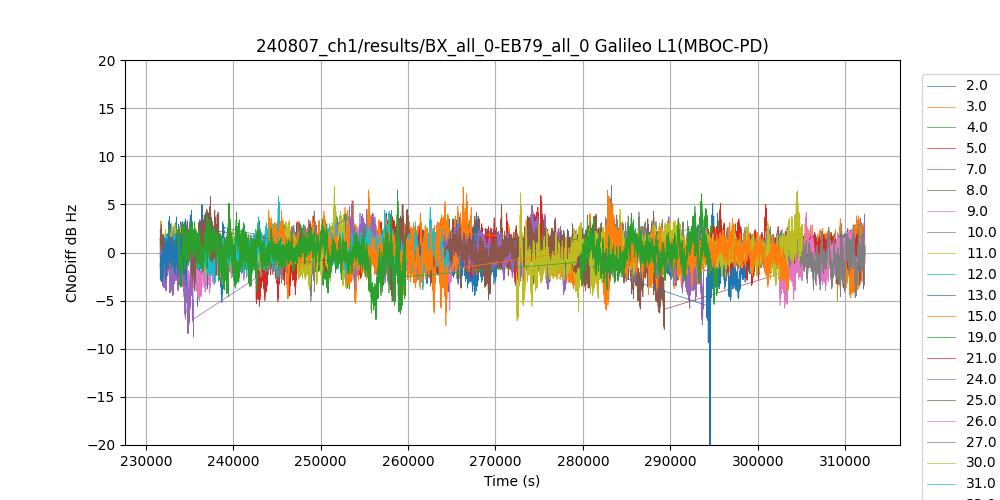

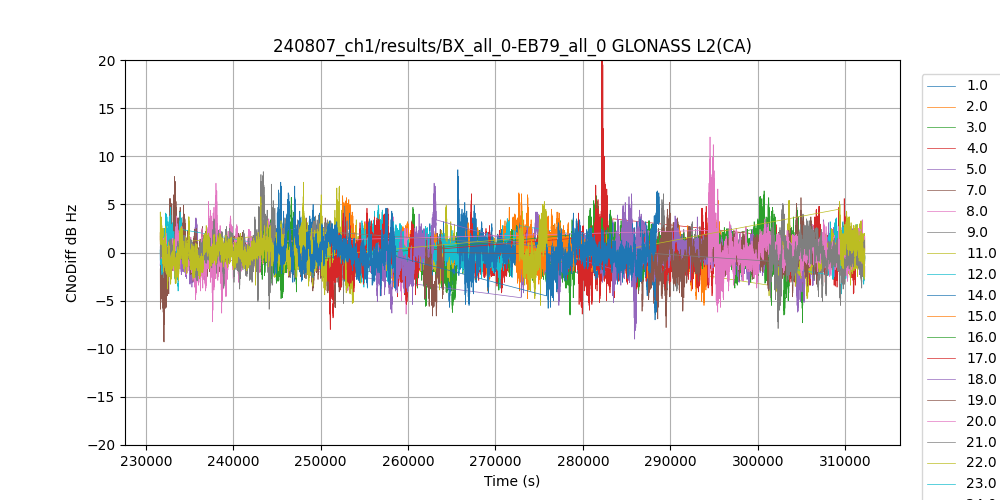

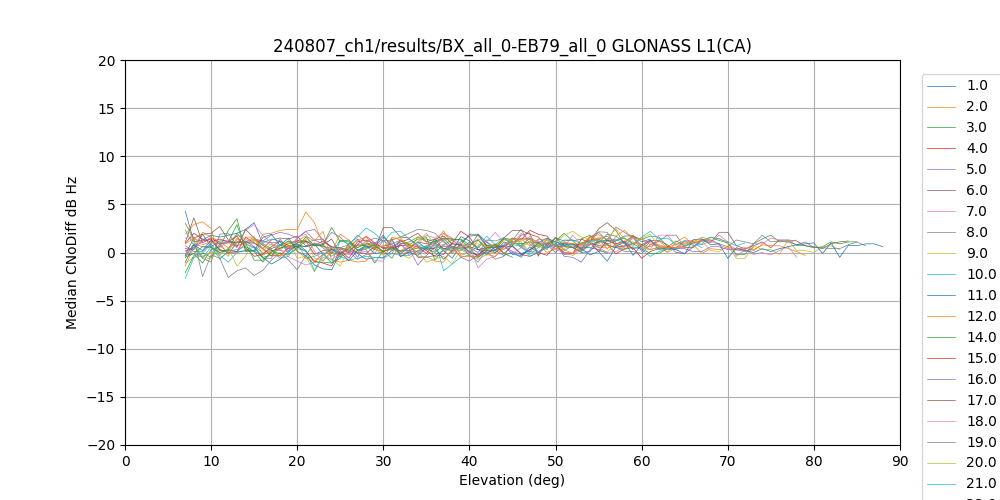

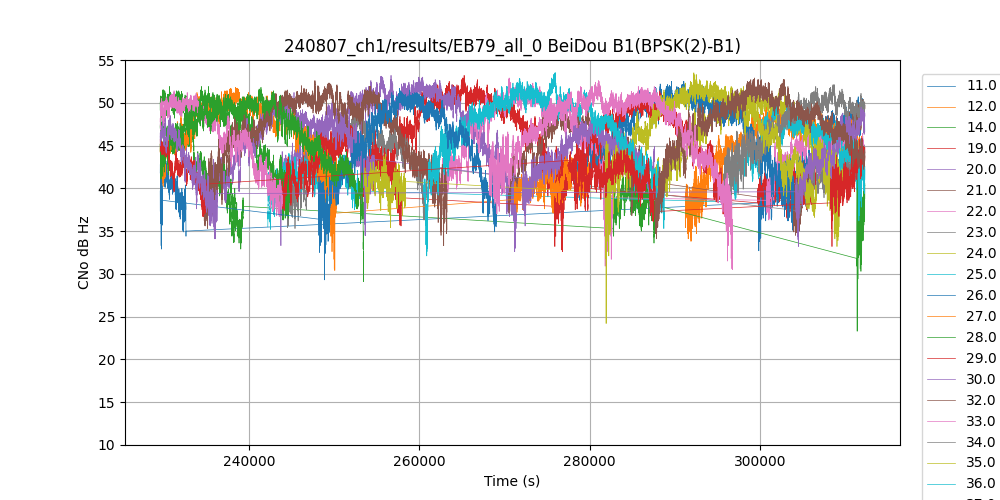

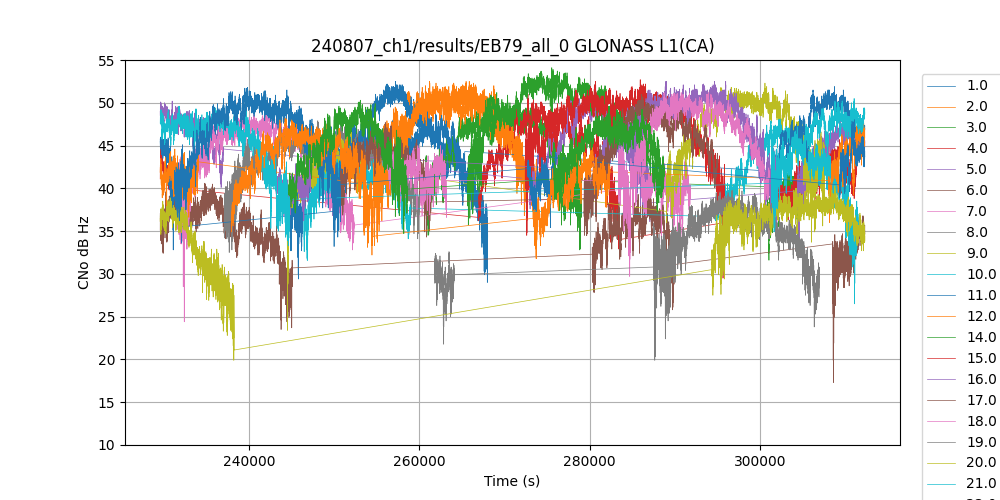

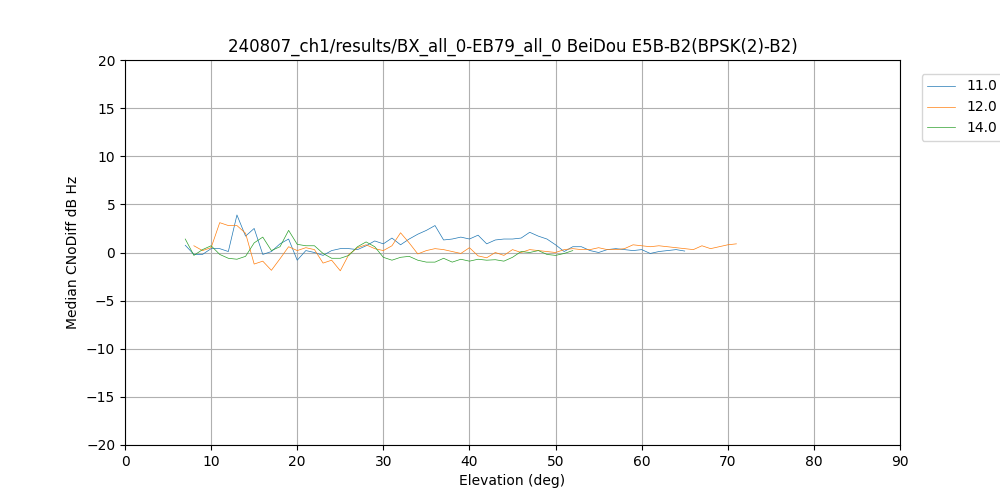

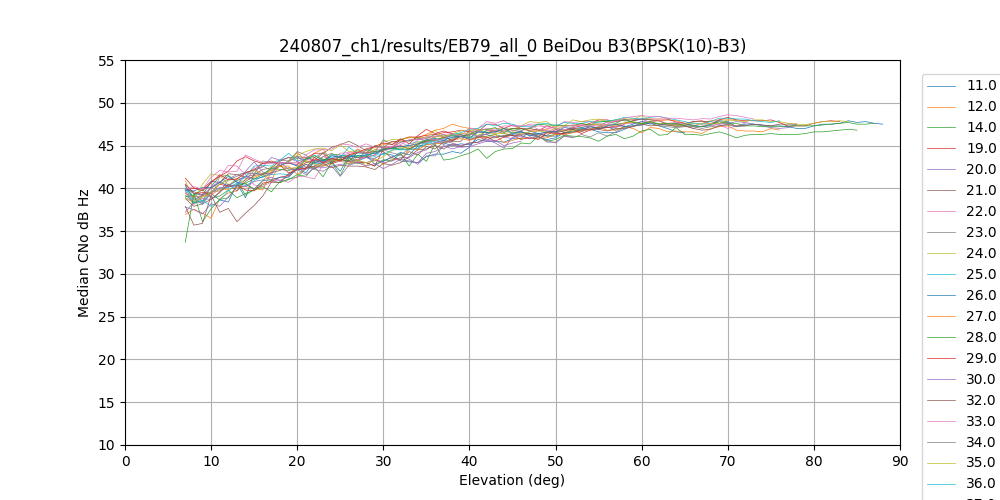

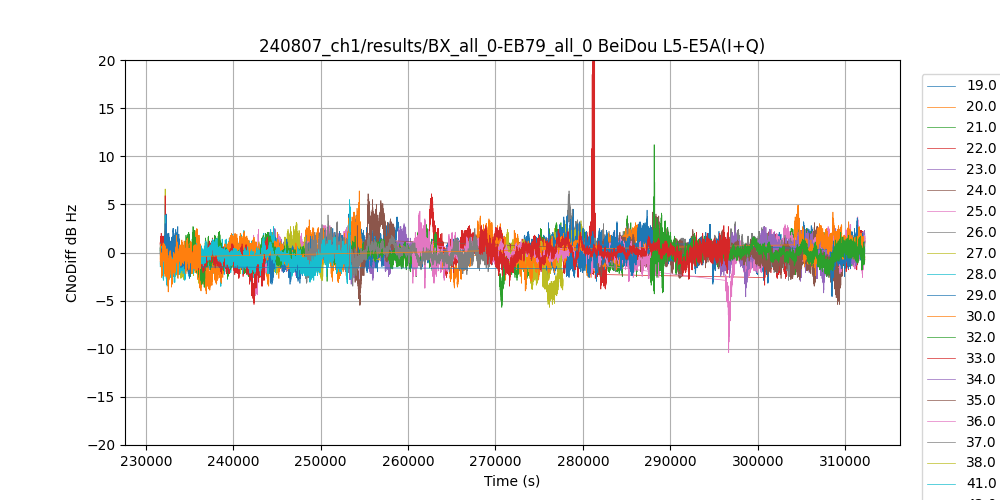

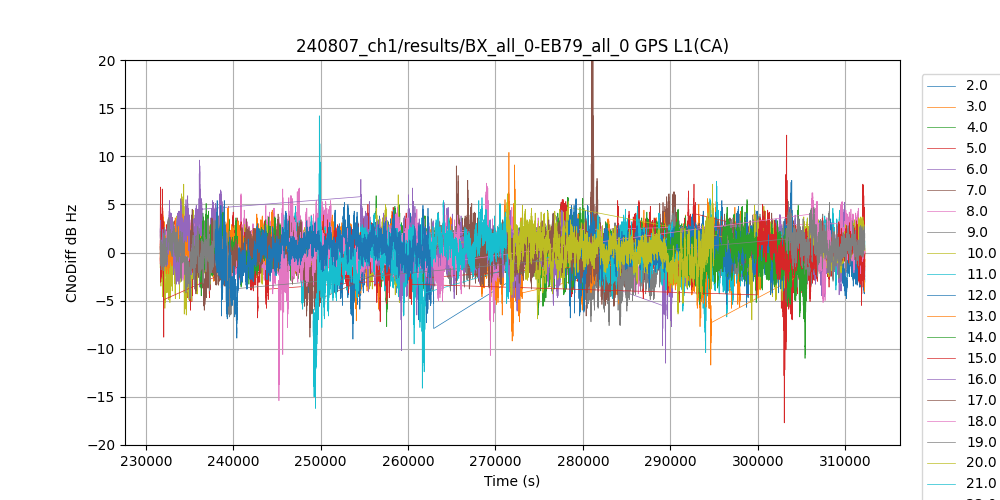

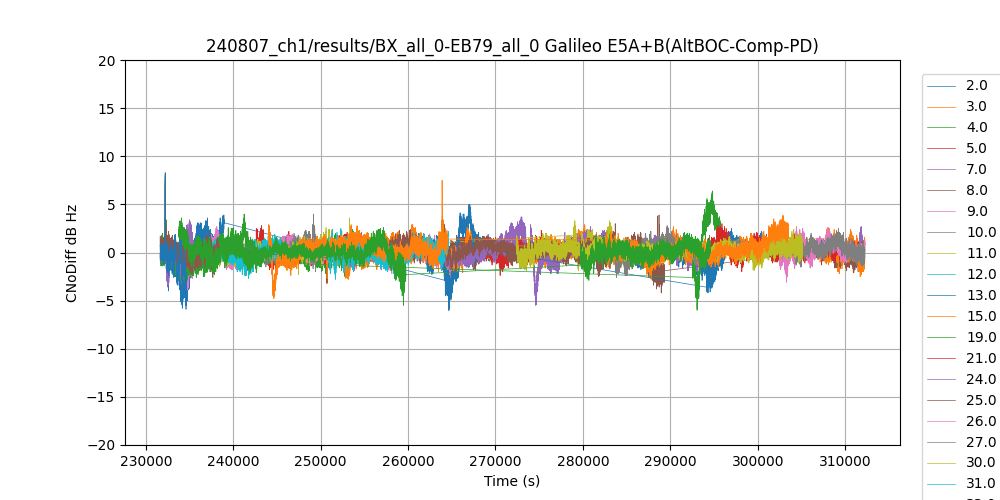

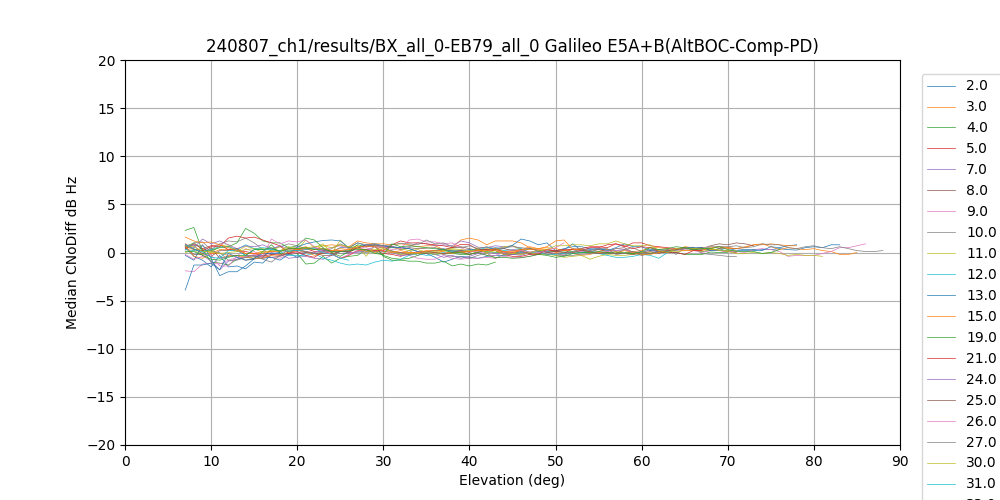

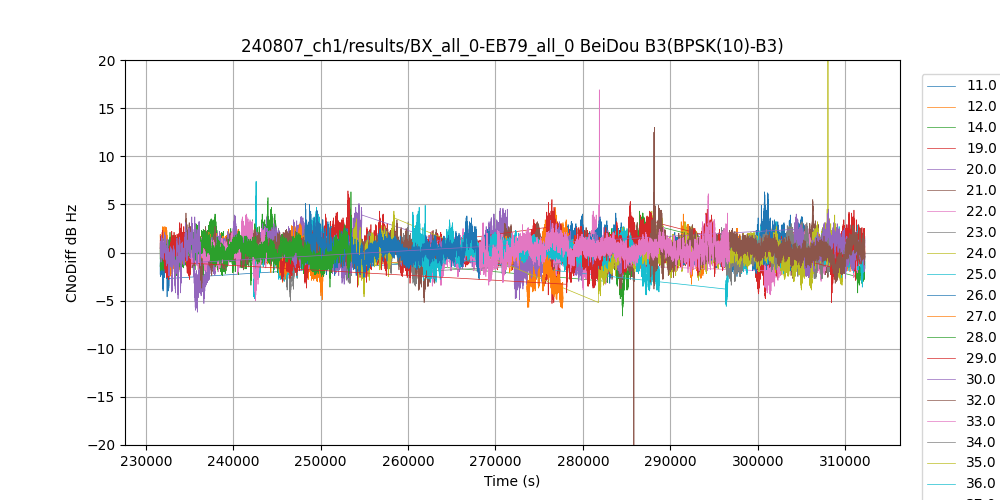

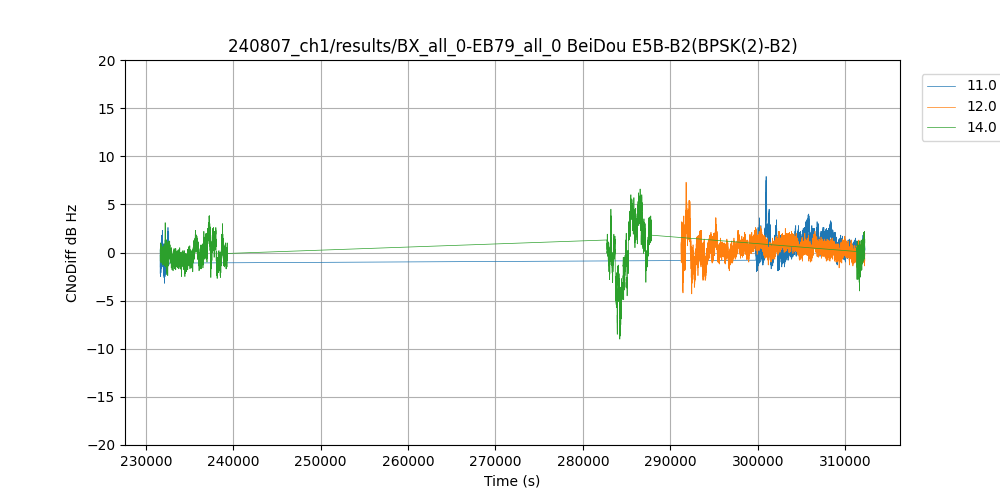

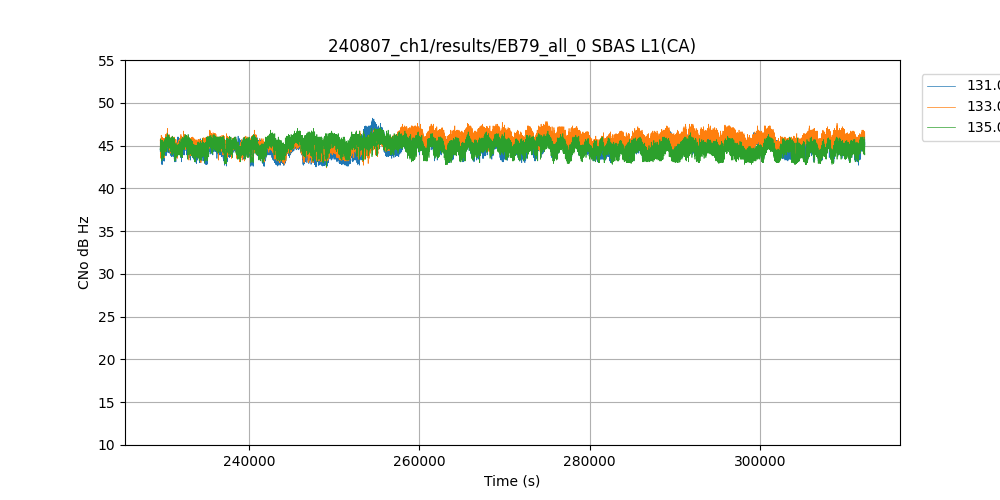

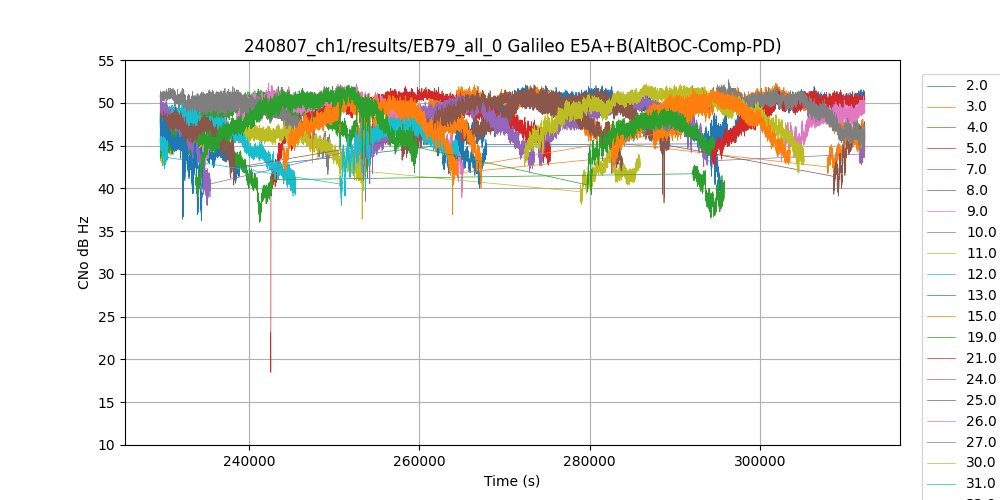

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.0 49.4 29.0 97 [16.0, 27.0] [0.0] 30532
3 32.7 0.0 42.7 51.9 28.3 39 [22.0, 36.0] [0.0] 27106
4 45.4 0.0 44.7 51.2 34.0 0 [34.0] [0.0] 23848
5 32.6 0.0 42.7 50.8 19.3 272 [19.0, 27.0, 15.0] [0.0] 17528
6 38.4 0.0 43.4 51.9 21.8 265 [31.0, 35.0] [0.0] 24499
7 45.1 0.0 45.8 51.4 27.9 0 [36.0] [0.0] 25494
8 27.3 0.0 42.4 49.8 25.6 211 [34.0, 26.0] [0.0] 29166
9 44.0 0.0 45.0 53.0 29.5 1 [33.0] [0.0] 21447
10 43.5 0.0 46.8 53.8 31.8 0 [31.0] [0.0] 25794
11 52.6 0.0 46.2 53.0 26.3 3 [34.0] [0.0] 18516
12 40.5 0.0 44.7 51.4 27.3 232 [34.0, 27.0] [0.0] 20996
13 26.9 0.0 43.0 50.1 25.6 237 [35.0, 32.0, 37.0] [0.0] 24359
14 44.1 0.0 45.0 50.9 31.7 0 [23.0] [0.0] 25741
15 29.2 0.0 43.4 50.1 31.9 226 [33.0, 22.0, 35.0] [0.0] 22264
16 31.7 0.0 42.3 50.3 25.6 42 [30.0, 19.0] [0.0] 26536
17 45.7 0.0 45.4 52.3 31.2 5 [16.0] [0.0] 24100
18 46.0 0.0 44.7 51.3 33.1 82 [37.0, 36.0] [0.0] 19433
19 44.6 0.0 44.7 51.5 29.8 2 [28.0] [0.0] 24598
20 34.0 0.0 42.3 50.9 29.9 100 [31.0, 21.0, 29.0] [0.0] 20527
21 26.6 0.0 42.1 48.8 21.3 233 [20.0, 21.0] [0.0] 30276
22 44.5 0.0 45.2 50.2 31.7 1 [20.0] [0.0] 25975
23 47.5 0.0 45.5 50.7 33.8 0 [29.0] [0.0] 22041
24 25.6 0.0 41.1 48.8 25.0 249 [23.0, 18.0] [0.0] 29821
25 28.9 0.0 41.9 50.2 27.0 90 [18.0, 25.0, 22.0] [0.0] 23017
26 30.8 0.0 43.0 50.0 29.4 8 [27.0, 24.0] [0.0] 23061
27 26.1 0.0 42.4 49.3 27.9 157 [25.0, 31.0] [0.0] 29883
28 39.7 0.0 43.2 50.1 20.3 79 [26.0, 36.0] [0.0] 23154
29 35.3 0.0 44.6 50.7 30.5 58 [13.0, 14.0] [0.0] 17172
30 45.9 0.0 45.8 52.6 32.2 0 [25.0] [0.0] 23656
31 45.3 0.0 45.4 53.2 20.2 82 [37.0] [0.0] 22320
32 45.3 0.0 47.2 54.1 31.6 6 [28.0] [0.0] 24645
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.1 49.5 33.7 23 [18.0, 31.0] [0.0] 30495
3 32.7 0.0 43.0 51.7 26.2 56 [24.0, 33.0] [0.0] 27099
4 45.4 0.0 44.4 51.3 31.9 0 [21.0] [0.0] 23849
5 34.5 0.0 43.4 51.9 15.7 295 [19.0, 31.0, 15.0] [0.0] 19584
6 38.4 0.0 43.4 52.5 26.5 31 [27.0, 30.0] [0.0] 24515
7 45.1 0.0 45.4 51.0 26.2 6 [33.0] [0.0] 25488
8 27.4 0.0 42.0 50.3 28.7 262 [33.0, 35.0] [0.0] 29132
9 44.0 0.0 45.3 52.5 32.7 0 [29.0] [0.0] 21458
10 43.5 0.0 46.7 53.5 30.5 0 [37.0] [0.0] 25770
11 49.9 0.0 45.7 52.9 30.5 224 [24.0, 29.0] [0.0] 19823
12 40.4 0.0 44.9 51.2 32.1 206 [33.0, 25.0] [0.0] 21037
13 27.3 0.0 43.1 49.1 30.7 126 [36.0, 37.0] [0.0] 26424
14 44.2 0.0 44.9 50.1 34.2 0 [26.0] [0.0] 25716
15 30.1 0.0 43.3 50.0 32.1 236 [34.0, 24.0, 35.0] [0.0] 24309
16 31.2 0.0 41.8 49.6 31.2 79 [33.0, 32.0] [0.0] 27070
17 45.7 0.0 45.2 51.9 15.4 57 [21.0] [0.0] 24098
18 46.1 0.0 44.5 50.3 29.5 34 [10.0, 33.0] [0.0] 21480
19 44.6 0.0 44.7 50.8 30.6 1 [27.0] [0.0] 24593
20 33.0 0.0 42.1 50.2 30.6 478 [18.0, 20.0, 23.0] [0.0] 22584
21 26.6 0.0 42.5 49.5 31.9 205 [27.0, 20.0] [0.0] 30248
22 44.4 0.0 44.9 51.3 29.4 0 [32.0] [0.0] 25992
23 45.4 0.0 45.0 50.1 33.7 0 [31.0] [0.0] 24076
24 25.7 0.0 41.3 47.3 31.6 105 [24.0, 18.0] [0.0] 29784
25 27.9 0.0 41.5 49.5 26.3 190 [6.0, 25.0, 20.0] [0.0] 25004
26 29.9 0.0 42.5 50.3 29.1 60 [22.0, 34.0] [0.0] 25061
27 26.2 0.0 42.6 48.7 31.7 223 [25.0, 28.0] [0.0] 29848
28 39.7 0.0 43.2 50.6 25.0 20 [28.0, 33.0] [0.0] 23151
29 40.1 0.0 44.8 52.7 33.8 220 [29.0, 14.0] [0.0] 19259
30 45.9 0.0 45.6 52.7 30.5 2 [23.0] [0.0] 23644
31 45.3 0.0 45.4 52.7 16.9 11 [17.0] [0.0] 22332
32 45.3 0.0 47.0 54.0 29.2 3 [22.0] [0.0] 24618
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.1 4.9 -7.9 [16.0, 18.0, 27.0, 31.0] 30495
3 32.7 -0.3 10.4 -9.2 [22.0, 24.0, 36.0, 33.0] 27082
4 45.4 0.3 5.9 -7.7 [34.0, 21.0] 23848
5 32.6 -0.4 12.2 -17.7 [19.0, 27.0, 31.0, 15.0] 17498
6 38.4 0.0 5.2 -11.5 [31.0, 27.0, 35.0, 30.0] 24498
7 45.1 0.4 9.0 -4.4 [36.0, 33.0] 25488
8 27.4 0.4 7.2 -10.7 [34.0, 33.0, 26.0, 35.0] 29122
9 44.0 -0.3 4.2 -7.6 [33.0, 29.0] 21446
10 43.5 0.1 7.1 -6.5 [31.0, 37.0] 25770
11 52.6 -0.0 7.4 -10.4 [34.0, 29.0] 18516
12 40.5 -0.2 5.4 -9.0 [34.0, 33.0, 27.0, 25.0] 20990
13 26.9 -0.1 5.6 -11.7 [35.0, 36.0, 32.0, 37.0] 24339
14 44.2 0.2 5.5 -6.5 [23.0, 26.0] 25715
15 29.2 0.3 7.1 -6.8 [33.0, 34.0, 22.0, 24.0, 35.0] 22250
16 31.7 0.4 6.7 -10.2 [30.0, 33.0, 19.0, 32.0] 26497
17 45.7 0.2 24.2 -6.6 [16.0, 21.0] 24098
18 46.0 0.5 6.7 -4.3 [37.0, 10.0, 36.0, 33.0] 19428
19 44.6 -0.0 5.2 -7.6 [28.0, 27.0] 24593
20 34.0 -0.0 5.3 -7.0 [31.0, 18.0, 21.0, 20.0, 29.0, 23.0] 20511
21 26.6 -0.4 4.8 -14.1 [20.0, 27.0, 21.0] 30233
22 44.5 0.3 7.5 -6.8 [20.0, 32.0] 25975
23 47.5 0.4 4.4 -3.7 [29.0, 31.0] 22041
24 25.7 -0.2 5.1 -11.0 [23.0, 24.0, 18.0] 29784
25 29.0 0.2 6.8 -8.8 [18.0, 6.0, 25.0, 22.0, 20.0] 22944
26 30.8 0.3 9.6 -6.1 [27.0, 22.0, 24.0, 34.0] 23022
27 26.2 -0.2 5.1 -8.8 [25.0, 31.0, 28.0] 29848
28 39.8 -0.0 6.6 -15.4 [26.0, 28.0, 36.0, 33.0] 23131
29 35.3 0.4 5.3 -6.7 [13.0, 29.0, 14.0] 17172
30 45.9 0.2 7.1 -6.4 [25.0, 23.0] 23633
31 45.3 -0.0 14.2 -16.2 [37.0, 17.0] 22320
32 45.3 0.2 5.4 -8.9 [28.0, 22.0] 24618
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.3 38.2 14.8 42 [16.0, 27.0] [0.0] 30532
13 26.9 0.0 28.0 36.0 14.8 294 [35.0, 32.0, 37.0] [0.0] 24285
16 31.7 0.0 28.8 40.5 16.3 89 [30.0, 19.0] [0.0] 26536
19 44.6 0.0 34.8 43.7 14.8 2 [28.0] [0.0] 24598
20 34.1 0.0 29.0 40.5 14.8 104 [31.0, 21.0, 29.0] [0.0] 20486
21 26.8 0.0 28.0 38.0 12.6 61 [20.0, 21.0] [0.0] 29860
22 44.5 0.0 33.3 40.9 14.8 2 [20.0] [0.0] 25975

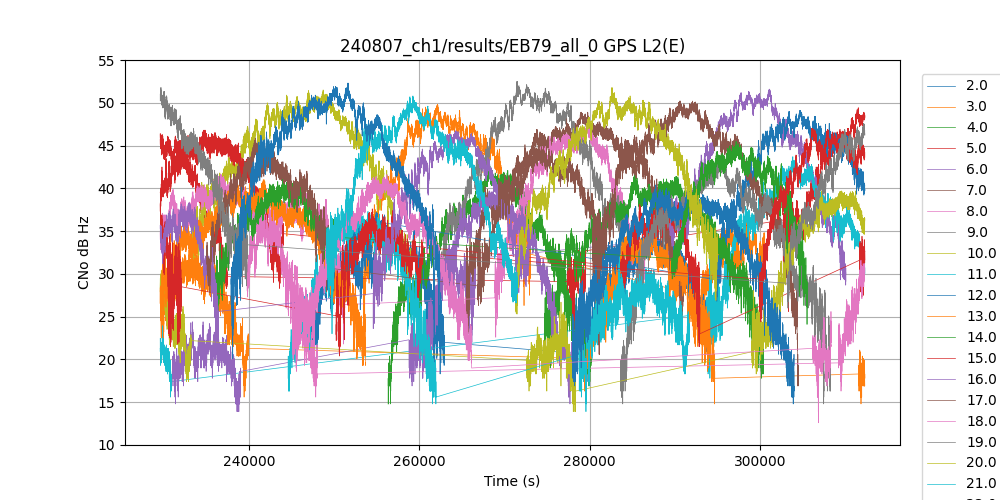

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 30.1 36.9 17.4 235 [18.0, 31.0] [0.0] 30495
3 32.7 0.0 39.7 49.8 23.3 4 [24.0, 33.0] [0.0] 27099
4 45.4 0.0 33.0 42.8 14.8 0 [21.0] [0.0] 23845
5 34.6 0.0 39.7 49.4 23.4 387 [19.0, 31.0, 15.0] [0.0] 19558
6 38.4 0.0 41.3 51.6 22.0 184 [27.0, 30.0] [0.0] 24515
7 45.1 0.0 41.6 48.9 21.8 6 [33.0] [0.0] 25488
8 27.4 0.0 38.1 47.5 21.8 228 [33.0, 35.0] [0.0] 29132
9 44.0 0.0 44.1 52.5 28.6 0 [29.0] [0.0] 21458
10 43.5 0.0 43.9 51.5 26.7 0 [37.0] [0.0] 25770
11 49.9 0.0 35.1 43.7 15.6 17 [24.0, 29.0] [0.0] 19823
12 40.4 0.0 41.4 49.1 25.8 208 [33.0, 25.0] [0.0] 21037
13 27.3 0.0 27.7 35.2 14.8 49 [36.0, 37.0] [0.0] 26424
14 44.2 0.0 34.2 41.5 17.8 0 [26.0] [0.0] 25716
15 30.1 0.0 38.6 46.8 21.5 346 [34.0, 24.0, 35.0] [0.0] 24309
16 31.2 0.0 27.7 39.7 13.9 31 [33.0, 32.0] [0.0] 27064
17 45.8 0.0 42.1 50.2 16.9 23 [21.0] [0.0] 24029
18 46.1 0.0 33.4 41.6 15.6 57 [10.0, 33.0] [0.0] 21480
19 44.6 0.0 34.4 43.8 14.8 1 [27.0] [0.0] 24593
20 33.0 0.0 28.3 39.7 13.9 204 [18.0, 20.0, 23.0] [0.0] 22584
21 26.6 0.0 27.8 37.6 13.9 207 [27.0, 20.0] [0.0] 30248
22 44.4 0.0 32.5 40.4 14.8 0 [32.0] [0.0] 25992
23 45.4 0.0 34.1 41.0 19.3 0 [31.0] [0.0] 24076
24 25.7 0.0 38.1 45.5 24.0 100 [24.0, 18.0] [0.0] 29784
25 27.9 0.0 37.0 47.0 20.4 137 [6.0, 25.0, 20.0] [0.0] 25004
26 29.9 0.0 38.0 46.7 21.8 172 [22.0, 34.0] [0.0] 25061
27 26.2 0.0 39.2 45.9 26.3 235 [25.0, 28.0] [0.0] 29848
28 39.7 0.0 31.8 41.6 12.6 102 [28.0, 33.0] [0.0] 23141
29 40.1 0.0 41.3 51.8 26.0 65 [29.0, 14.0] [0.0] 19259
30 45.9 0.0 43.2 51.8 25.3 2 [23.0] [0.0] 23644
31 45.3 0.0 42.0 50.8 23.0 4 [17.0] [0.0] 22321
32 45.3 0.0 43.9 52.3 18.3 3 [22.0] [0.0] 24618
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.3 5.9 -7.2 [16.0, 18.0, 27.0, 31.0] 30495
13 26.9 0.2 6.0 -7.0 [35.0, 36.0, 32.0, 37.0] 24267
16 31.7 0.9 8.1 -4.7 [30.0, 33.0, 19.0, 32.0] 26491
19 44.6 0.4 7.0 -5.6 [28.0, 27.0] 24593
20 34.1 0.4 8.1 -6.8 [31.0, 18.0, 21.0, 20.0, 29.0, 23.0] 20470
21 26.9 0.0 6.5 -8.9 [20.0, 27.0, 21.0] 29817
22 44.5 0.7 5.4 -5.3 [20.0, 32.0] 25975
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.8 34.7 45 [22.0, 36.0] [0.0] 27106
4 45.4 0.0 46.4 51.4 36.5 0 [34.0] [0.0] 23848
5 32.6 0.0 43.3 49.3 33.5 359 [19.0, 27.0, 15.0] [0.0] 17528
6 38.4 0.0 44.7 49.9 31.9 239 [31.0, 35.0] [0.0] 24499
7 45.1 0.0 44.6 49.1 30.5 0 [36.0] [0.0] 25494
8 27.3 0.0 42.9 47.3 32.6 210 [34.0, 26.0] [0.0] 29166
9 44.0 0.0 44.9 49.2 34.4 0 [33.0] [0.0] 21447
10 43.5 0.0 44.7 49.3 35.7 0 [31.0] [0.0] 25794
11 52.6 0.0 47.7 51.8 30.8 0 [34.0] [0.0] 18516
12 40.5 0.0 44.1 49.3 34.4 108 [34.0, 27.0] [0.0] 20996
14 44.1 0.0 46.6 51.7 21.5 6 [23.0] [0.0] 25741
15 29.2 0.0 42.4 47.6 31.9 285 [33.0, 22.0, 35.0] [0.0] 22264
17 45.7 0.0 44.3 49.7 31.3 0 [16.0] [0.0] 24100
18 46.0 0.0 46.5 51.4 36.7 67 [37.0, 36.0] [0.0] 19433
23 47.5 0.0 46.5 51.2 33.7 0 [29.0] [0.0] 22041
24 25.6 0.0 42.1 47.3 31.8 178 [23.0, 18.0] [0.0] 29821
25 28.9 0.0 42.0 48.1 31.6 215 [18.0, 25.0, 22.0] [0.0] 23017
26 30.8 0.0 42.8 47.4 31.0 167 [27.0, 24.0] [0.0] 23061
27 26.1 0.0 42.4 46.8 32.1 127 [25.0, 31.0] [0.0] 29883
28 39.7 0.0 46.2 51.5 36.4 9 [26.0, 36.0] [0.0] 23154
29 35.3 0.0 43.4 48.4 35.6 93 [13.0, 14.0] [0.0] 17172
30 45.9 0.0 44.3 48.7 35.4 0 [25.0] [0.0] 23656
31 45.3 0.0 44.7 49.6 34.8 0 [37.0] [0.0] 22320
32 45.3 0.0 44.7 49.5 28.2 1 [28.0] [0.0] 24645
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.0 48.2 34.4 83 [24.0, 33.0] [0.0] 27099
4 45.4 0.0 46.1 51.4 34.5 0 [21.0] [0.0] 23849
5 34.5 0.0 43.3 49.0 32.9 236 [19.0, 31.0, 15.0] [0.0] 19584
6 38.4 0.0 44.4 49.8 29.0 112 [27.0, 30.0] [0.0] 24515
7 45.1 0.0 44.1 48.9 31.6 0 [33.0] [0.0] 25488
8 27.4 0.0 42.8 48.5 32.5 59 [33.0, 35.0] [0.0] 29132
9 44.0 0.0 44.5 49.2 35.6 0 [29.0] [0.0] 21458
10 43.5 0.0 44.4 48.9 35.8 0 [37.0] [0.0] 25770
11 49.9 0.0 47.0 51.4 28.4 249 [24.0, 29.0] [0.0] 19823
12 40.4 0.0 43.8 48.6 34.6 162 [33.0, 25.0] [0.0] 21037
14 44.2 0.0 46.5 51.1 32.7 0 [26.0] [0.0] 25716
15 30.1 0.0 42.3 47.2 26.7 143 [34.0, 24.0, 35.0] [0.0] 24309
17 45.7 0.0 44.3 49.7 27.1 1 [21.0] [0.0] 24098
18 46.1 0.0 46.4 51.6 35.6 2 [10.0, 33.0] [0.0] 21480
23 45.4 0.0 46.5 50.7 35.2 0 [31.0] [0.0] 24076
24 25.7 0.0 42.1 47.0 33.2 229 [24.0, 18.0] [0.0] 29784
25 27.9 0.0 41.6 47.2 21.3 423 [6.0, 25.0, 20.0] [0.0] 25002
26 29.9 0.0 42.3 47.2 32.4 66 [22.0, 34.0] [0.0] 25061
27 26.2 0.0 42.4 47.0 31.2 118 [25.0, 28.0] [0.0] 29848
28 39.7 0.0 46.0 51.0 32.8 55 [28.0, 33.0] [0.0] 23151
29 40.1 0.0 43.4 49.4 32.2 90 [29.0, 14.0] [0.0] 19259
30 45.9 0.0 43.9 48.6 32.3 0 [23.0] [0.0] 23644
31 45.3 0.0 44.6 49.3 34.3 0 [17.0] [0.0] 22332
32 45.3 0.0 44.8 49.5 19.5 13 [22.0] [0.0] 24618
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.0 6.1 -6.0 [22.0, 24.0, 36.0, 33.0] 27082
4 45.4 0.4 6.4 -5.3 [34.0, 21.0] 23848
5 32.6 0.3 5.4 -5.0 [19.0, 27.0, 31.0, 15.0] 17498
6 38.4 0.2 9.8 -6.7 [31.0, 27.0, 35.0, 30.0] 24498
7 45.1 0.5 5.4 -3.4 [36.0, 33.0] 25488
8 27.4 0.1 9.2 -5.0 [34.0, 33.0, 26.0, 35.0] 29122
9 44.0 0.4 5.1 -5.6 [33.0, 29.0] 21446
10 43.5 0.2 4.2 -4.3 [31.0, 37.0] 25770
11 52.6 0.1 5.6 -8.8 [34.0, 29.0] 18516
12 40.5 0.3 5.0 -4.2 [34.0, 33.0, 27.0, 25.0] 20990
14 44.2 0.1 4.6 -13.6 [23.0, 26.0] 25715
15 29.2 0.2 7.4 -7.2 [33.0, 34.0, 22.0, 24.0, 35.0] 22250
17 45.7 -0.0 7.0 -7.3 [16.0, 21.0] 24098
18 46.0 0.3 5.7 -5.8 [37.0, 10.0, 36.0, 33.0] 19428
23 47.5 -0.2 3.7 -6.7 [29.0, 31.0] 22041
24 25.7 -0.0 5.0 -6.3 [23.0, 24.0, 18.0] 29784
25 29.0 0.2 10.8 -5.7 [18.0, 6.0, 25.0, 22.0, 20.0] 22944
26 30.8 0.3 7.1 -5.0 [27.0, 22.0, 24.0, 34.0] 23022
27 26.2 -0.0 5.8 -5.6 [25.0, 31.0, 28.0] 29848
28 39.8 0.2 6.0 -4.4 [26.0, 28.0, 36.0, 33.0] 23131
29 35.3 0.5 6.5 -3.9 [13.0, 29.0, 14.0] 17172
30 45.9 0.3 6.3 -3.8 [25.0, 23.0] 23633
31 45.3 0.0 7.2 -5.1 [37.0, 17.0] 22320
32 45.3 -0.0 19.2 -5.9 [28.0, 22.0] 24618
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.8 51.6 35.8 0 [22.0, 36.0] [0.0] 27106
4 45.4 0.0 48.1 52.4 39.5 0 [34.0] [0.0] 23848
6 38.4 0.0 47.7 52.2 37.5 127 [31.0, 35.0] [0.0] 24499
8 27.3 0.0 46.3 50.5 37.0 183 [34.0, 26.0] [0.0] 29166
9 44.0 0.0 48.5 52.3 41.3 0 [33.0] [0.0] 21447
10 43.5 0.0 47.2 51.3 38.4 0 [31.0] [0.0] 25794
11 52.6 0.0 49.7 53.9 37.5 0 [34.0] [0.0] 18516
14 44.1 0.0 48.4 53.0 38.3 0 [23.0] [0.0] 25741
18 46.0 0.0 47.1 52.0 40.3 29 [37.0, 36.0] [0.0] 19433
23 47.5 0.0 47.4 52.0 34.0 0 [29.0] [0.0] 22041
24 25.6 0.0 45.8 50.6 31.4 125 [23.0, 18.0] [0.0] 29821
25 28.9 0.0 46.4 51.7 35.5 243 [18.0, 25.0, 22.0] [0.0] 23017
26 30.8 0.0 46.3 50.3 38.8 116 [27.0, 24.0] [0.0] 23061
27 26.1 0.0 45.8 49.6 38.0 157 [25.0, 31.0] [0.0] 29883
28 39.7 0.0 47.9 53.5 40.9 98 [26.0, 36.0] [0.0] 23154
30 45.9 0.0 48.8 52.3 40.9 0 [25.0] [0.0] 23656
32 45.3 0.0 46.0 50.5 31.2 0 [28.0] [0.0] 24645
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.9 51.7 38.5 55 [24.0, 33.0] [0.0] 27099
4 45.4 0.0 47.7 52.6 39.2 0 [21.0] [0.0] 23849
6 38.4 0.0 47.5 51.7 38.1 217 [27.0, 30.0] [0.0] 24515
8 27.4 0.0 46.5 51.0 39.4 245 [33.0, 35.0] [0.0] 29132
9 44.0 0.0 48.3 52.0 40.4 0 [29.0] [0.0] 21458
10 43.5 0.0 47.3 50.8 39.9 0 [37.0] [0.0] 25770
11 49.9 0.0 49.2 53.4 21.0 229 [24.0, 29.0] [0.0] 19821
14 44.2 0.0 48.4 53.0 39.7 0 [26.0] [0.0] 25716
18 46.1 0.0 47.8 52.0 40.4 77 [10.0, 33.0] [0.0] 21480
23 45.4 0.0 47.8 51.9 35.9 0 [31.0] [0.0] 24076
24 25.7 0.0 45.9 50.1 35.9 166 [24.0, 18.0] [0.0] 29784
25 27.9 0.0 45.8 51.1 21.1 173 [6.0, 25.0, 20.0] [0.0] 25004
26 29.9 0.0 46.2 50.7 38.6 17 [22.0, 34.0] [0.0] 25061
27 26.2 0.0 46.0 49.9 40.1 239 [25.0, 28.0] [0.0] 29848
28 39.7 0.0 47.9 53.2 38.4 18 [28.0, 33.0] [0.0] 23151
30 45.9 0.0 48.5 52.2 40.5 0 [23.0] [0.0] 23644
32 45.3 0.0 46.3 50.5 32.7 0 [22.0] [0.0] 24618
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.1 5.0 -4.3 [22.0, 24.0, 36.0, 33.0] 27082
4 45.4 0.4 3.8 -2.1 [34.0, 21.0] 23848
6 38.4 0.3 6.2 -6.4 [31.0, 27.0, 35.0, 30.0] 24498
8 27.4 -0.2 4.0 -4.8 [34.0, 33.0, 26.0, 35.0] 29122
9 44.0 0.3 3.0 -3.0 [33.0, 29.0] 21446
10 43.5 -0.1 2.2 -3.3 [31.0, 37.0] 25770
11 52.7 -0.0 22.6 -6.6 [34.0, 29.0] 18514
14 44.2 0.0 2.9 -3.7 [23.0, 26.0] 25715
18 46.0 -0.5 4.4 -3.6 [37.0, 10.0, 36.0, 33.0] 19428
23 47.5 -0.6 4.9 -4.1 [29.0, 31.0] 22041
24 25.7 -0.0 4.5 -11.8 [23.0, 24.0, 18.0] 29784
25 29.0 0.4 6.7 -5.7 [18.0, 6.0, 25.0, 22.0, 20.0] 22944
26 30.8 0.0 4.0 -2.9 [27.0, 22.0, 24.0, 34.0] 23022
27 26.2 -0.2 3.3 -4.8 [25.0, 31.0, 28.0] 29848
28 39.8 0.0 5.5 -3.7 [26.0, 28.0, 36.0, 33.0] 23131
30 45.9 0.3 3.3 -3.1 [25.0, 23.0] 23633
32 45.3 -0.3 4.5 -5.7 [28.0, 22.0] 24618
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.1 48.5 44.2 0 [57.0] [0.0] 80613
133 38.0 0.0 43.3 46.5 41.3 0 [55.0] [0.0] 80613
135 39.5 0.0 44.8 46.8 42.7 0 [56.0] [0.0] 80613
158 -45.0 0.0 35.7 40.0 21.6 366 [54.0] [0.0] 69270
DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 44.8 48.2 42.5 0 [55.0] [0.0] 82660
133 38.0 0.0 45.5 47.8 42.4 0 [57.0] [0.0] 82660
135 39.5 0.0 44.8 47.1 42.5 0 [56.0] [0.0] 82660
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 1.3 3.2 -1.8 [57.0, 55.0] 80613
133 38.0 -2.2 1.4 -4.2 [55.0, 57.0] 80613
135 39.5 0.0 2.2 -2.8 [56.0] 80613
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.5 48.6 40.6 0 [57.0] [0.0] 80613
133 38.0 0.0 45.7 47.9 40.1 0 [55.0] [0.0] 80613
135 39.5 0.0 45.7 47.6 39.6 0 [56.0] [0.0] 80613
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 44.0 49.6 31.2 0 [1.0] [0.0] 23182
2 42.3 0.0 48.2 53.4 37.3 0 [-4.0] [0.0] 21284
3 38.1 0.0 44.6 51.7 30.4 209 [5.0] [0.0] 23154
4 31.5 0.0 44.4 51.0 27.9 152 [6.0] [0.0] 25703
5 29.4 0.0 46.1 51.5 30.3 409 [1.0] [0.0] 27317
6 35.1 0.0 36.0 41.1 19.0 1252 [-4.0] [0.0] 27030
7 36.4 0.0 43.7 49.8 31.7 143 [5.0] [0.0] 26429
8 39.4 0.0 44.0 49.1 20.2 54 [6.0] [0.0] 22972
9 35.5 0.0 45.5 52.7 31.8 136 [-2.0] [0.0] 28058
10 33.7 0.0 41.7 48.2 25.6 50 [-7.0] [0.0] 29233
11 34.4 0.0 47.5 52.6 37.1 222 [0.0] [0.0] 26869
12 36.2 0.0 46.6 52.8 37.3 128 [-1.0] [0.0] 24661
14 39.7 0.0 49.0 54.4 19.3 13 [-7.0] [0.0] 22969
15 38.9 0.0 48.2 53.5 33.3 0 [0.0] [0.0] 23378
16 36.9 0.0 47.0 53.7 29.7 25 [-1.0] [0.0] 25469
17 30.0 0.0 45.8 51.8 36.2 155 [4.0] [0.0] 26229
18 34.9 0.0 45.8 51.9 34.2 216 [-3.0] [0.0] 24507
19 41.1 0.0 34.6 40.3 17.3 2073 [3.0] [0.0] 21735
20 40.2 0.0 35.8 41.3 22.9 1077 [2.0] [0.0] 24543
21 43.1 0.0 46.5 51.2 32.7 50 [4.0] [0.0] 24005
22 37.4 0.0 45.9 52.2 24.7 250 [-3.0] [0.0] 24866
23 32.1 0.0 42.7 48.7 31.1 249 [3.0] [0.0] 25557
24 28.2 0.0 45.6 50.9 26.0 47 [2.0] [0.0] 26785
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.1 0.0 43.3 48.2 29.0 0 [1.0] [0.0] 23136
2 42.3 0.0 47.3 52.3 34.9 0 [-4.0] [0.0] 21288
3 38.2 0.0 44.1 50.7 31.6 219 [5.0] [0.0] 23097
4 30.4 0.0 43.7 51.0 32.9 126 [6.0] [0.0] 27234
5 31.0 0.0 45.7 51.4 32.7 54 [1.0] [0.0] 29415
6 35.7 0.0 35.1 40.6 17.3 1399 [-4.0] [0.0] 28989
7 36.4 0.0 42.9 49.3 24.4 180 [5.0] [0.0] 26451
8 39.4 0.0 43.3 47.9 32.5 0 [6.0] [0.0] 22982
9 35.5 0.0 45.2 52.3 23.4 46 [-2.0] [0.0] 28049
10 33.7 0.0 41.6 48.1 26.5 9 [-7.0] [0.0] 29177
11 33.1 0.0 46.6 52.5 32.8 218 [0.0] [0.0] 28930
12 34.4 0.0 45.6 52.5 33.3 386 [-1.0] [0.0] 26703
14 39.8 0.0 48.6 54.1 35.7 0 [-7.0] [0.0] 22958
15 38.9 0.0 47.8 52.7 29.5 0 [0.0] [0.0] 23398
16 36.9 0.0 46.4 52.5 35.0 216 [-1.0] [0.0] 25445
17 30.0 0.0 44.8 51.0 34.3 74 [4.0] [0.0] 26258
18 34.9 0.0 45.2 51.2 29.7 5 [-3.0] [0.0] 24515
19 41.1 0.0 34.2 39.8 19.9 1938 [3.0] [0.0] 21732
20 40.9 0.0 35.3 40.3 19.9 1543 [2.0] [0.0] 26599
21 43.3 0.0 45.8 50.5 33.3 145 [4.0] [0.0] 26070
22 37.0 0.0 45.6 51.8 34.8 280 [-3.0] [0.0] 25220
23 32.1 0.0 42.3 48.2 31.8 92 [3.0] [0.0] 25553
24 28.2 0.0 45.1 50.3 34.7 180 [2.0] [0.0] 26766
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.1 0.8 10.2 -4.3 [1.0] 23136
2 42.3 0.9 7.3 -5.1 [-4.0] 21284
3 38.2 0.5 6.7 -7.8 [5.0] 23097
4 31.5 0.5 6.0 -11.5 [6.0] 25648
5 29.4 0.6 6.8 -8.3 [1.0] 27317
6 35.2 1.0 12.4 -8.6 [-4.0] 26933
7 36.5 0.8 13.1 -6.4 [5.0] 26411
8 39.4 0.8 5.3 -16.5 [6.0] 22972
9 35.5 0.2 8.8 -8.9 [-2.0] 28049
10 33.7 0.1 8.8 -9.8 [-7.0] 29177
11 34.4 0.5 7.9 -3.6 [0.0] 26869
12 36.2 0.7 7.4 -4.9 [-1.0] 24652
14 39.8 0.3 5.6 -16.9 [-7.0] 22958
15 38.9 0.5 9.7 -6.1 [0.0] 23378
16 36.9 0.6 8.1 -10.4 [-1.0] 25436
17 30.0 1.0 7.5 -5.4 [4.0] 26229
18 35.0 0.6 11.2 -5.7 [-3.0] 24485
19 41.2 0.4 8.2 -11.7 [3.0] 21707
20 40.2 0.6 7.9 -9.9 [2.0] 24543
21 43.1 0.8 6.7 -7.8 [4.0] 24005
22 37.4 0.2 6.9 -12.1 [-3.0] 24854
23 32.1 0.3 6.1 -9.2 [3.0] 25534
24 28.2 0.5 6.7 -12.1 [2.0] 26755
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 42.5 47.7 31.3 0 [1.0] [0.0] 23182
2 42.3 0.0 46.9 52.2 37.0 0 [-4.0] [0.0] 21284
3 38.1 0.0 42.7 49.3 28.3 245 [5.0] [0.0] 23154
4 31.5 0.0 42.4 48.9 31.1 210 [6.0] [0.0] 25703
5 29.4 0.0 44.7 50.1 33.2 287 [1.0] [0.0] 27317
6 35.6 0.0 34.9 39.8 20.9 871 [-4.0] [0.0] 26499
7 36.4 0.0 42.4 48.4 32.6 201 [5.0] [0.0] 26429
8 39.4 0.0 42.0 46.8 23.6 186 [6.0] [0.0] 22972
9 35.5 0.0 44.0 51.0 31.0 100 [-2.0] [0.0] 28058
10 33.7 0.0 40.4 46.8 28.0 192 [-7.0] [0.0] 29233
11 34.4 0.0 45.8 50.6 37.1 242 [0.0] [0.0] 26869
12 36.2 0.0 45.6 51.7 36.8 227 [-1.0] [0.0] 24661
14 39.7 0.0 47.5 52.4 27.2 2 [-7.0] [0.0] 22969
15 38.9 0.0 46.4 51.2 33.2 0 [0.0] [0.0] 23378
16 36.9 0.0 45.6 52.1 30.6 218 [-1.0] [0.0] 25468
17 30.0 0.0 43.8 49.5 35.4 224 [4.0] [0.0] 26229
18 34.9 0.0 44.3 50.2 34.3 236 [-3.0] [0.0] 24507
19 43.1 0.0 33.1 38.5 20.6 2519 [3.0] [0.0] 20443
20 40.2 0.0 34.7 40.2 22.9 2534 [2.0] [0.0] 24522
21 43.1 0.0 44.7 49.4 32.5 98 [4.0] [0.0] 24005
22 37.4 0.0 44.7 50.7 28.8 253 [-3.0] [0.0] 24866
23 32.1 0.0 40.8 46.7 30.8 68 [3.0] [0.0] 25557
24 28.2 0.0 44.1 49.1 28.7 230 [2.0] [0.0] 26785
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.7 45.3 29.9 0 [1.0] [0.0] 23182
2 42.3 0.0 45.8 49.8 36.9 0 [-4.0] [0.0] 21284
3 38.1 0.0 44.4 50.1 33.3 227 [5.0] [0.0] 23154
4 31.5 0.0 44.3 49.9 32.7 88 [6.0] [0.0] 25703
5 29.4 0.0 44.4 49.6 32.0 186 [1.0] [0.0] 27317
6 67.8 0.0 12.5 19.0 1.0 9 [-4.0] [0.0] 10
7 36.4 0.0 44.5 49.6 33.3 235 [5.0] [0.0] 26429
8 39.4 0.0 45.3 50.2 30.8 0 [6.0] [0.0] 22972
9 35.5 0.0 45.7 51.5 33.0 163 [-2.0] [0.0] 28058
10 53.7 0.0 31.6 41.2 11.5 184 [-7.0] [0.0] 11
11 34.4 0.0 45.7 50.0 33.6 42 [0.0] [0.0] 26869
12 36.2 0.0 45.3 50.2 35.2 351 [-1.0] [0.0] 24661
14 39.7 0.0 45.9 50.5 29.2 0 [-7.0] [0.0] 22969
15 38.9 0.0 45.8 49.9 35.1 0 [0.0] [0.0] 23378
16 36.9 0.0 45.6 50.5 35.3 190 [-1.0] [0.0] 25468
17 30.0 0.0 43.9 49.2 32.0 153 [4.0] [0.0] 26229
18 34.9 0.0 45.0 50.2 34.1 36 [-3.0] [0.0] 24507
19 41.1 0.0 42.9 48.1 33.5 116 [3.0] [0.0] 21723
20 40.2 0.0 39.1 44.3 24.1 116 [2.0] [0.0] 24522
21 43.1 0.0 45.2 48.9 33.8 50 [4.0] [0.0] 24005
22 37.4 0.0 45.2 50.5 36.4 207 [-3.0] [0.0] 24866
23 57.3 0.0 35.3 43.8 6.1 83 [3.0] [0.0] 84
24 28.2 0.0 43.7 48.6 32.4 128 [2.0] [0.0] 26785
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.1 0.0 40.5 45.4 29.8 2 [1.0] [0.0] 23136
2 42.3 0.0 45.3 50.0 32.6 0 [-4.0] [0.0] 21288
3 38.2 0.0 45.1 49.9 32.6 62 [5.0] [0.0] 23097
4 30.4 0.0 44.3 50.6 20.7 332 [6.0] [0.0] 27234
5 31.0 0.0 44.8 49.9 31.4 301 [1.0] [0.0] 29415
6 69.0 0.0 16.8 18.6 14.4 2 [-4.0] [0.0] 3
7 36.4 0.0 44.8 50.0 34.9 219 [5.0] [0.0] 26451
8 39.4 0.0 45.4 50.5 29.6 0 [6.0] [0.0] 22982
9 35.5 0.0 45.5 51.5 27.6 9 [-2.0] [0.0] 28049
10 46.0 0.0 23.3 35.1 6.4 191 [-7.0] [0.0] 4
11 33.1 0.0 45.7 50.3 33.2 485 [0.0] [0.0] 28930
12 34.4 0.0 44.9 50.3 35.6 145 [-1.0] [0.0] 26703
14 39.8 0.0 45.8 50.7 26.1 2 [-7.0] [0.0] 22958
15 38.9 0.0 45.8 50.0 35.6 0 [0.0] [0.0] 23398
16 36.9 0.0 45.2 49.8 35.9 88 [-1.0] [0.0] 25445
17 30.0 0.0 44.4 49.7 34.2 193 [4.0] [0.0] 26258
18 34.9 0.0 45.2 50.0 33.6 174 [-3.0] [0.0] 24515
19 41.1 0.0 43.2 48.0 34.8 176 [3.0] [0.0] 21730
20 40.9 0.0 39.2 44.1 20.9 456 [2.0] [0.0] 26591
21 43.3 0.0 45.3 49.3 33.8 94 [4.0] [0.0] 26070
22 37.0 0.0 45.0 50.5 32.5 116 [-3.0] [0.0] 25220
23 57.9 0.0 34.0 42.0 11.3 256 [3.0] [0.0] 57
24 28.2 0.0 43.7 48.0 33.7 226 [2.0] [0.0] 26766
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.1 0.3 7.3 -5.7 [1.0] 23136
2 42.3 0.6 6.2 -4.0 [-4.0] 21284
3 38.2 -0.7 4.7 -7.3 [5.0] 23097
4 31.5 -0.2 22.3 -5.4 [6.0] 25648
5 29.4 -0.2 6.1 -9.0 [1.0] 27317
7 36.5 -0.3 7.9 -9.3 [5.0] 26411
8 39.4 -0.1 5.3 -7.2 [6.0] 22972
9 35.5 0.2 7.1 -5.3 [-2.0] 28049
11 34.4 -0.2 6.9 -5.3 [0.0] 26869
12 36.2 0.3 4.9 -4.3 [-1.0] 24652
14 39.8 0.1 8.6 -7.0 [-7.0] 22958
15 38.9 0.0 5.4 -5.5 [0.0] 23378
16 36.9 0.4 6.4 -4.8 [-1.0] 25435
17 30.0 -0.5 7.0 -8.0 [4.0] 26229
18 35.0 -0.2 7.2 -6.3 [-3.0] 24485
19 41.2 -0.4 5.7 -6.9 [3.0] 21695
20 40.2 0.0 12.0 -6.2 [2.0] 24514
21 43.1 -0.1 8.4 -7.9 [4.0] 24005
22 37.4 0.1 7.3 -5.5 [-3.0] 24854
23 68.0 -10.2 -10.2 -10.2 [3.0] 1
24 28.2 0.0 6.9 -5.8 [2.0] 26755
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 38.6 42.8 26.7 21 [1.0] [0.0] 23182
2 42.3 0.0 44.0 47.6 36.5 0 [-4.0] [0.0] 21284
3 38.1 0.0 43.4 48.6 33.6 122 [5.0] [0.0] 23154
4 31.5 0.0 42.4 47.7 31.0 2 [6.0] [0.0] 25703
5 29.4 0.0 42.8 47.6 32.8 421 [1.0] [0.0] 27317
6 51.5 0.0 15.2 16.3 13.9 135 [-4.0] [0.0] 4
7 36.4 0.0 43.4 48.1 34.6 145 [5.0] [0.0] 26429
8 39.4 0.0 43.7 48.1 31.0 0 [6.0] [0.0] 22972
9 35.5 0.0 43.4 49.6 29.4 264 [-2.0] [0.0] 28058
10 28.4 0.0 16.5 20.1 13.2 107 [-7.0] [0.0] 5
11 34.4 0.0 43.9 48.9 34.0 348 [0.0] [0.0] 26869
12 36.2 0.0 43.2 47.7 34.8 167 [-1.0] [0.0] 24661
14 39.7 0.0 44.3 48.7 31.8 0 [-7.0] [0.0] 22969
15 38.9 0.0 44.1 47.9 35.1 0 [0.0] [0.0] 23378
16 36.9 0.0 43.7 48.1 34.0 237 [-1.0] [0.0] 25468
17 30.0 0.0 42.9 47.2 31.6 128 [4.0] [0.0] 26229
18 34.9 0.0 43.3 48.3 32.8 75 [-3.0] [0.0] 24507
19 41.1 0.0 41.1 45.6 31.9 168 [3.0] [0.0] 21723
20 40.2 0.0 37.5 42.7 22.3 454 [2.0] [0.0] 24522
21 43.1 0.0 44.7 48.0 36.2 86 [4.0] [0.0] 24005
22 37.4 0.0 43.5 48.8 35.3 90 [-3.0] [0.0] 24866
23 47.8 0.0 25.9 41.9 10.2 299 [3.0] [0.0] 90
24 28.2 0.0 42.0 47.5 32.5 102 [2.0] [0.0] 26785
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 35.5 0.0 44.3 49.8 31.8 166 [-2.0] [0.0] 28058
21 43.1 0.0 44.4 49.2 36.9 127 [4.0] [0.0] 24005
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 45.5 51.0 34.4 16 [44.0, 39.0] [0.0] 37574
3 41.3 0.0 46.4 52.8 33.2 196 [46.0, 51.0] [0.0] 35153
4 44.1 0.0 46.1 50.8 36.8 0 [42.0] [0.0] 22345
5 45.5 0.0 47.6 53.2 33.7 0 [47.0] [0.0] 32734
7 29.6 0.0 44.7 49.2 32.2 29 [44.0, 41.0] [0.0] 20442
8 37.8 0.0 46.5 52.5 32.1 60 [41.0, 45.0] [0.0] 29139
9 45.6 0.0 46.1 51.3 32.1 0 [40.0] [0.0] 30568
10 49.4 0.0 47.7 53.1 33.2 0 [51.0] [0.0] 17857
11 43.0 0.0 42.8 48.4 30.6 15 [45.0, 47.0] [0.0] 28939
12 39.0 0.0 42.5 47.8 32.6 3 [52.0] [0.0] 13858
13 42.7 0.0 45.1 50.6 9.1 255 [45.0, 46.0] [0.0] 23846
15 36.1 0.0 45.5 51.4 34.9 140 [44.0, 52.0] [0.0] 39190
19 25.4 0.0 39.6 45.3 31.1 120 [50.0, 47.0] [0.0] 14339
21 44.5 0.0 48.0 52.7 38.8 0 [44.0] [0.0] 17947
24 28.7 0.0 44.9 50.3 30.5 167 [47.0, 43.0] [0.0] 24014
25 37.1 0.0 45.8 51.9 34.1 250 [53.0, 49.0] [0.0] 32613
26 30.2 0.0 45.1 50.4 34.3 0 [47.0] [0.0] 9757
27 46.3 0.0 47.8 53.1 37.0 0 [40.0] [0.0] 29707
30 45.4 0.0 48.1 54.2 33.1 1 [45.0] [0.0] 32732
31 19.0 0.0 42.4 46.4 33.1 0 [51.0] [0.0] 13824
33 12.6 0.0 39.9 42.4 32.9 0 [49.0] [0.0] 2989
34 33.1 0.0 46.1 52.0 34.6 201 [48.0, 38.0] [0.0] 41337
36 34.9 0.0 45.5 52.7 33.7 233 [41.0, 43.0] [0.0] 40853
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 45.4 51.0 34.2 167 [53.0, 38.0] [0.0] 37574
3 41.3 0.0 46.5 52.7 36.8 71 [46.0, 52.0] [0.0] 35149
4 42.0 0.0 45.5 50.6 36.9 0 [48.0] [0.0] 24371
5 45.4 0.0 47.3 52.3 32.7 0 [49.0] [0.0] 32788
7 29.6 0.0 44.9 49.2 34.8 183 [45.0, 40.0] [0.0] 20462
8 37.7 0.0 46.7 52.9 33.6 36 [42.0, 43.0] [0.0] 29169
9 45.6 0.0 46.3 50.6 34.8 0 [45.0] [0.0] 30558
10 50.7 0.0 47.7 52.4 34.9 0 [52.0] [0.0] 19899
11 42.7 0.0 42.8 47.9 32.4 41 [41.0, 49.0] [0.0] 30986
12 42.4 0.0 43.0 48.4 28.8 2 [40.0] [0.0] 15892
13 42.7 0.0 45.3 50.5 30.5 243 [43.0, 46.0] [0.0] 23900
15 36.1 0.0 45.3 51.2 35.0 112 [44.0, 49.0] [0.0] 39192
19 26.4 0.0 39.5 44.9 30.6 258 [51.0, 48.0] [0.0] 16827
21 44.6 0.0 47.8 52.2 38.1 0 [45.0] [0.0] 17941
24 29.0 0.0 45.4 50.6 33.4 121 [46.0, 40.0] [0.0] 26073
25 36.6 0.0 45.5 51.8 34.1 249 [47.0, 48.0] [0.0] 34669
26 30.2 0.0 45.8 50.4 38.3 0 [48.0] [0.0] 9777
27 46.3 0.0 47.7 53.1 34.6 0 [41.0] [0.0] 29701
30 45.4 0.0 47.9 53.2 33.7 0 [47.0] [0.0] 32753
31 18.4 0.0 42.2 46.6 33.3 47 [53.0, 52.0] [0.0] 14712
33 16.4 0.0 41.2 44.0 33.9 0 [39.0] [0.0] 5032
34 33.1 0.0 46.1 51.9 32.6 71 [47.0, 40.0] [0.0] 41339
36 34.9 0.0 45.6 52.3 31.6 238 [50.0, 44.0] [0.0] 40836
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 39.4 0.1 5.0 -5.6 [44.0, 53.0, 39.0, 38.0] 37562
3 41.4 -0.1 6.5 -6.0 [46.0, 51.0, 52.0] 35137
4 44.1 0.2 4.3 -4.2 [42.0, 48.0] 22336
5 45.5 0.2 5.9 -5.6 [47.0, 49.0] 32734
7 29.6 -0.2 4.9 -7.5 [44.0, 45.0, 41.0, 40.0] 20422
8 37.8 -0.2 5.0 -8.0 [41.0, 42.0, 45.0, 43.0] 29125
9 45.6 -0.2 3.8 -6.4 [40.0, 45.0] 30548
10 49.4 0.2 4.3 -5.1 [51.0, 52.0] 17857
11 43.0 0.1 6.9 -6.2 [45.0, 41.0, 47.0, 49.0] 28929
12 39.0 -0.0 5.8 -3.1 [52.0, 40.0] 13857
13 42.7 -0.1 5.1 -27.7 [45.0, 43.0, 46.0] 23837
15 36.1 0.2 6.8 -5.3 [44.0, 52.0, 49.0] 39180
19 25.4 0.4 6.1 -5.4 [50.0, 51.0, 47.0, 48.0] 14320
21 44.6 0.2 5.1 -3.4 [44.0, 45.0] 17929
24 28.8 -0.4 5.4 -8.8 [47.0, 46.0, 43.0, 40.0] 24001
25 37.1 0.3 5.8 -5.1 [53.0, 47.0, 49.0, 48.0] 32610
26 30.2 -0.7 4.2 -5.8 [47.0, 48.0] 9757
27 46.3 0.1 7.0 -4.7 [40.0, 41.0] 29689
30 45.4 0.2 6.4 -7.1 [45.0, 47.0] 32732
31 19.0 0.2 4.7 -3.9 [51.0, 52.0] 13820
33 12.6 -0.4 2.0 -3.4 [49.0, 39.0] 2989
34 33.1 -0.0 6.5 -7.6 [48.0, 47.0, 38.0, 40.0] 41326
36 34.9 -0.1 6.5 -7.0 [41.0, 50.0, 43.0, 44.0] 40813
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 44.9 50.4 31.9 252 [44.0, 39.0] [0.0] 37574
3 41.3 0.0 45.6 49.8 37.4 167 [46.0, 51.0] [0.0] 35153
4 44.1 0.0 45.5 49.0 37.2 0 [42.0] [0.0] 22345
5 45.5 0.0 46.2 49.8 37.1 0 [47.0] [0.0] 32734
7 29.6 0.0 45.7 49.8 38.0 103 [44.0, 41.0] [0.0] 20442
8 37.8 0.0 45.3 49.7 34.7 117 [41.0, 45.0] [0.0] 29139
9 45.6 0.0 45.3 49.7 33.1 0 [40.0] [0.0] 30568
10 49.4 0.0 45.7 50.1 38.3 0 [51.0] [0.0] 17857
11 43.0 0.0 41.9 45.9 35.5 88 [45.0, 47.0] [0.0] 28939
12 39.0 0.0 41.6 47.4 35.5 0 [52.0] [0.0] 13858
13 42.7 0.0 45.3 49.8 34.5 118 [45.0, 46.0] [0.0] 23846
15 36.1 0.0 45.6 50.2 36.4 63 [44.0, 52.0] [0.0] 39190
19 25.4 0.0 39.1 43.4 32.3 151 [50.0, 47.0] [0.0] 14339
21 44.5 0.0 46.5 49.7 39.3 0 [44.0] [0.0] 17947
24 28.7 0.0 44.0 48.3 32.3 9 [47.0, 43.0] [0.0] 24014
25 37.1 0.0 45.1 49.8 35.5 89 [53.0, 49.0] [0.0] 32613
26 30.2 0.0 45.2 49.2 38.1 0 [47.0] [0.0] 9757
27 46.3 0.0 46.5 50.3 38.5 0 [40.0] [0.0] 29707
30 45.4 0.0 46.5 50.1 38.9 0 [45.0] [0.0] 32732
31 19.0 0.0 42.5 44.9 34.1 0 [51.0] [0.0] 13824
33 12.6 0.0 37.7 43.0 28.9 0 [49.0] [0.0] 2989
34 33.1 0.0 45.7 50.3 37.7 135 [48.0, 38.0] [0.0] 41337
36 34.9 0.0 44.6 50.0 34.2 208 [41.0, 43.0] [0.0] 40853
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 45.1 50.6 31.9 82 [44.0, 39.0] [0.0] 37574
3 41.3 0.0 46.5 50.9 37.1 142 [46.0, 51.0] [0.0] 35153
4 44.1 0.0 45.4 49.8 35.0 0 [42.0] [0.0] 22345
5 45.5 0.0 46.9 50.7 35.3 0 [47.0] [0.0] 32734
7 29.6 0.0 45.7 50.6 32.6 12 [44.0, 41.0] [0.0] 20442
8 37.8 0.0 45.9 50.5 35.2 214 [41.0, 45.0] [0.0] 29139
9 45.6 0.0 45.8 50.4 32.9 0 [40.0] [0.0] 30568
10 49.4 0.0 45.7 50.3 38.9 0 [51.0] [0.0] 17857
11 43.0 0.0 41.8 46.2 36.0 55 [45.0, 47.0] [0.0] 28939
12 39.0 0.0 41.4 47.6 34.6 0 [52.0] [0.0] 13858
13 42.7 0.0 45.9 50.6 34.3 164 [45.0, 46.0] [0.0] 23846
15 36.1 0.0 46.2 50.8 35.4 244 [44.0, 52.0] [0.0] 39190
19 25.4 0.0 38.3 44.2 28.7 93 [50.0, 47.0] [0.0] 14339
21 44.5 0.0 47.0 50.3 39.2 0 [44.0] [0.0] 17947
24 28.7 0.0 44.5 48.9 32.8 241 [47.0, 43.0] [0.0] 24014
25 37.1 0.0 45.8 50.6 35.3 108 [53.0, 49.0] [0.0] 32613
26 30.2 0.0 45.8 49.4 37.3 0 [47.0] [0.0] 9757
27 46.3 0.0 47.0 50.6 39.3 0 [40.0] [0.0] 29707
30 45.4 0.0 47.1 51.0 37.8 0 [45.0] [0.0] 32732
31 19.0 0.0 43.2 46.2 35.9 0 [51.0] [0.0] 13824
33 12.6 0.0 38.3 43.7 28.9 6 [49.0] [0.0] 2989
34 33.1 0.0 46.1 50.5 31.9 165 [48.0, 38.0] [0.0] 41337
36 34.9 0.0 45.0 50.4 35.7 249 [41.0, 43.0] [0.0] 40853
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 47.8 52.3 38.0 121 [44.0, 39.0] [0.0] 37574
3 41.3 0.0 48.5 52.4 39.4 81 [46.0, 51.0] [0.0] 35153
4 44.1 0.0 48.3 51.7 39.1 0 [42.0] [0.0] 22345
5 45.5 0.0 48.9 52.4 40.2 0 [47.0] [0.0] 32734
7 29.6 0.0 48.1 52.3 39.6 203 [44.0, 41.0] [0.0] 20442
8 37.8 0.0 48.0 52.0 39.2 35 [41.0, 45.0] [0.0] 29139
9 45.6 0.0 48.2 52.5 37.2 1 [40.0] [0.0] 30568
10 49.4 0.0 48.6 51.8 41.6 0 [51.0] [0.0] 17857
11 43.0 0.0 44.7 48.6 38.9 129 [45.0, 47.0] [0.0] 28939
12 39.0 0.0 45.3 50.3 39.4 0 [52.0] [0.0] 13858
13 42.7 0.0 48.1 52.4 39.1 185 [45.0, 46.0] [0.0] 23846
15 36.1 0.0 48.3 52.7 38.6 173 [44.0, 52.0] [0.0] 39190
19 25.4 0.0 42.7 47.0 34.8 123 [50.0, 47.0] [0.0] 14339
21 44.5 0.0 49.1 51.8 43.1 0 [44.0] [0.0] 17947
24 28.7 0.0 47.0 51.0 37.4 88 [47.0, 43.0] [0.0] 24014
25 37.1 0.0 48.1 52.4 41.1 188 [53.0, 49.0] [0.0] 32613
26 30.2 0.0 47.9 51.2 42.8 0 [47.0] [0.0] 9757
27 46.3 0.0 49.1 52.4 42.6 0 [40.0] [0.0] 29707
30 45.4 0.0 49.2 52.5 42.7 0 [45.0] [0.0] 32732
31 19.0 0.0 45.7 48.3 38.9 0 [51.0] [0.0] 13824
33 12.6 0.0 42.1 46.5 34.2 3 [49.0] [0.0] 2989
34 33.1 0.0 48.3 52.3 39.2 44 [48.0, 38.0] [0.0] 41337
36 34.9 0.0 47.6 51.9 38.7 246 [41.0, 43.0] [0.0] 40853
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 47.8 52.1 39.3 86 [53.0, 38.0] [0.0] 37574
3 41.3 0.0 48.1 52.1 39.6 188 [46.0, 52.0] [0.0] 35149
4 42.0 0.0 48.2 51.9 38.2 0 [48.0] [0.0] 24371
5 45.4 0.0 48.6 51.9 18.5 17 [49.0] [0.0] 32783
7 29.6 0.0 47.9 51.2 42.5 225 [45.0, 40.0] [0.0] 20462
8 37.7 0.0 47.9 52.0 38.3 180 [42.0, 43.0] [0.0] 29169
9 45.6 0.0 48.3 52.3 38.9 0 [45.0] [0.0] 30558
10 50.7 0.0 48.8 51.9 41.6 0 [52.0] [0.0] 19899
11 42.7 0.0 44.6 47.9 36.4 83 [41.0, 49.0] [0.0] 30986
12 42.4 0.0 45.8 49.9 39.1 0 [40.0] [0.0] 15892
13 42.7 0.0 47.9 51.9 40.0 80 [43.0, 46.0] [0.0] 23900
15 36.1 0.0 48.2 52.3 39.0 115 [44.0, 49.0] [0.0] 39192
19 26.4 0.0 42.9 47.0 36.0 199 [51.0, 48.0] [0.0] 16827
21 44.6 0.0 48.7 51.6 42.7 0 [45.0] [0.0] 17941
24 29.0 0.0 46.9 51.0 38.0 68 [46.0, 40.0] [0.0] 26073
25 36.6 0.0 47.8 52.1 39.6 249 [47.0, 48.0] [0.0] 34669
26 30.2 0.0 47.6 50.8 43.2 0 [48.0] [0.0] 9777
27 46.3 0.0 48.7 52.7 41.7 0 [41.0] [0.0] 29701
30 45.4 0.0 48.8 52.2 41.8 0 [47.0] [0.0] 32753
31 18.4 0.0 45.7 48.8 38.0 153 [53.0, 52.0] [0.0] 14712
33 16.4 0.0 44.1 48.3 36.2 2 [39.0] [0.0] 5032
34 33.1 0.0 47.9 51.9 36.9 107 [47.0, 40.0] [0.0] 41339
36 34.9 0.0 47.6 52.1 39.2 223 [50.0, 44.0] [0.0] 40836
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 39.4 -0.1 3.9 -5.9 [44.0, 53.0, 39.0, 38.0] 37562
3 41.4 0.4 2.9 -2.2 [46.0, 51.0, 52.0] 35137
4 44.1 -0.1 8.0 -3.2 [42.0, 48.0] 22336
5 45.5 0.3 2.8 -3.2 [47.0, 49.0] 32734
7 29.6 0.2 2.9 -5.5 [44.0, 45.0, 41.0, 40.0] 20422
8 37.8 0.1 3.9 -4.2 [41.0, 42.0, 45.0, 43.0] 29125
9 45.6 -0.1 2.7 -3.9 [40.0, 45.0] 30548
10 49.4 0.0 6.5 -2.2 [51.0, 52.0] 17857
11 43.0 0.1 7.8 -2.4 [45.0, 41.0, 47.0, 49.0] 28929
12 39.0 -0.1 5.9 -2.7 [52.0, 40.0] 13857
13 42.7 0.2 5.0 -6.0 [45.0, 43.0, 46.0] 23837
15 36.1 0.1 2.7 -2.8 [44.0, 52.0, 49.0] 39180
19 25.4 0.1 6.4 -6.0 [50.0, 51.0, 47.0, 48.0] 14320
21 44.6 0.4 3.0 -2.0 [44.0, 45.0] 17929
24 28.8 0.2 6.9 -3.6 [47.0, 46.0, 43.0, 40.0] 24001
25 37.1 0.2 7.4 -2.6 [53.0, 47.0, 49.0, 48.0] 32610
26 30.2 0.3 2.7 -3.1 [47.0, 48.0] 9757
27 46.3 0.3 2.8 -2.6 [40.0, 41.0] 29689
30 45.4 0.3 2.4 -1.9 [45.0, 47.0] 32732
31 19.0 -0.1 2.5 -2.8 [51.0, 52.0] 13820
33 12.6 -0.8 8.3 -5.4 [49.0, 39.0] 2989
34 33.1 0.4 7.5 -4.8 [48.0, 47.0, 38.0, 40.0] 41326
36 34.9 0.1 3.6 -5.5 [41.0, 50.0, 43.0, 44.0] 40813
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 39.4 0.0 47.0 52.2 34.3 24 [44.0, 39.0] [0.0] 37574
3 41.3 0.0 47.5 52.3 35.2 209 [46.0, 51.0] [0.0] 35153
4 44.1 0.0 48.3 51.9 37.2 0 [42.0] [0.0] 22345
5 45.5 0.0 48.4 53.0 35.0 0 [47.0] [0.0] 32733
7 29.6 0.0 47.2 52.2 33.1 36 [44.0, 41.0] [0.0] 20442
8 37.8 0.0 47.6 52.8 33.5 239 [41.0, 45.0] [0.0] 29139
9 45.6 0.0 48.0 52.3 28.9 0 [40.0] [0.0] 30568
10 49.4 0.0 48.8 52.5 34.0 0 [51.0] [0.0] 17857
11 43.0 0.0 44.3 49.1 33.6 234 [45.0, 47.0] [0.0] 28939
12 39.0 0.0 44.5 49.6 35.2 3 [52.0] [0.0] 13858
13 42.7 0.0 47.5 52.2 34.5 218 [45.0, 46.0] [0.0] 23829
15 36.1 0.0 47.6 52.9 37.4 237 [44.0, 52.0] [0.0] 39190
19 25.4 0.0 40.3 47.2 23.8 115 [50.0, 47.0] [0.0] 14339
21 44.5 0.0 48.5 52.6 36.3 0 [44.0] [0.0] 17947
24 28.7 0.0 46.4 51.8 34.6 8 [47.0, 43.0] [0.0] 24014
25 37.1 0.0 47.9 52.9 34.3 101 [53.0, 49.0] [0.0] 32613
26 30.2 0.0 47.0 51.8 34.8 0 [47.0] [0.0] 9757
27 46.3 0.0 48.9 53.0 38.4 0 [40.0] [0.0] 29707
30 45.4 0.0 48.9 53.2 35.5 1 [45.0] [0.0] 32732
31 19.0 0.0 43.9 47.2 29.8 0 [51.0] [0.0] 13824
33 12.6 0.0 41.6 45.6 30.8 0 [49.0] [0.0] 2989
34 33.1 0.0 47.0 52.1 32.2 91 [48.0, 38.0] [0.0] 41337
36 34.9 0.0 46.9 52.7 34.5 217 [41.0, 43.0] [0.0] 40853
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 37.0 0.0 45.2 52.4 25.1 20 [53.0, 51.0] [0.0] 31124
20 44.8 0.0 47.5 52.9 33.8 0 [30.0] [0.0] 27648
21 27.4 0.0 45.0 50.9 33.5 53 [52.0, 13.0] [0.0] 24255
22 31.8 0.0 45.6 52.2 33.7 99 [42.0, 23.0] [0.0] 31748
23 23.9 0.0 43.8 49.1 36.6 209 [33.0, 19.0] [0.0] 24608
24 39.4 0.0 46.6 51.8 31.8 0 [37.0] [0.0] 21976
25 24.2 0.0 43.4 49.9 33.7 36 [53.0, 30.0] [0.0] 26579
26 45.6 0.0 47.0 52.3 34.7 0 [19.0] [0.0] 25666
27 37.2 0.0 44.6 51.2 26.3 222 [43.0, 48.0] [0.0] 27373
28 51.4 0.0 46.5 51.7 35.9 0 [46.0] [0.0] 13251
29 29.9 0.0 44.3 50.0 32.9 184 [50.0, 17.0] [0.0] 34322
30 29.2 0.0 44.4 50.2 27.6 25 [49.0, 37.0] [0.0] 34677
32 44.1 0.0 47.1 52.9 31.0 0 [39.0] [0.0] 28652
33 41.7 0.0 46.0 51.3 34.3 0 [48.0] [0.0] 12251
34 46.8 0.0 47.7 51.9 35.0 0 [43.0] [0.0] 16540
35 38.9 0.0 45.5 52.5 25.4 176 [38.0, 48.0] [0.0] 29626
36 45.2 0.0 46.8 52.8 28.9 4 [50.0] [0.0] 28229
37 37.4 0.0 45.9 51.5 33.7 0 [52.0] [0.0] 21065
38 7.0 0.0 40.4 42.6 37.6 0 [20.0] [0.0] 2346
41 50.3 0.0 47.3 52.2 32.4 0 [24.0] [0.0] 21860
42 16.1 0.0 42.4 46.3 35.2 70 [23.0, 53.0, 48.0] [0.0] 17229
43 23.9 0.0 43.7 49.8 34.5 55 [28.0, 20.0] [0.0] 12705
44 49.2 0.0 47.2 52.2 32.9 0 [49.0] [0.0] 24580
45 44.8 0.0 47.7 52.8 34.9 0 [51.0] [0.0] 28545
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 37.0 0.0 46.3 51.2 36.5 13 [53.0, 51.0] [0.0] 31124
20 44.8 0.0 47.0 50.9 36.4 0 [30.0] [0.0] 27648
21 27.4 0.0 45.4 49.2 35.7 24 [52.0, 13.0] [0.0] 24255
22 31.8 0.0 45.6 50.7 36.4 191 [42.0, 23.0] [0.0] 31748
23 23.9 0.0 44.6 47.8 37.7 65 [33.0, 19.0] [0.0] 24608
24 39.4 0.0 47.5 51.3 36.5 0 [37.0] [0.0] 21976
25 24.2 0.0 43.9 49.3 31.4 203 [53.0, 30.0] [0.0] 26579
26 45.6 0.0 46.4 49.9 36.9 0 [19.0] [0.0] 25666
27 37.2 0.0 44.4 48.9 36.7 203 [43.0, 48.0] [0.0] 27373
28 51.4 0.0 44.3 48.2 39.2 0 [46.0] [0.0] 13251
29 29.9 0.0 45.0 49.2 36.7 6 [50.0, 17.0] [0.0] 34322
30 29.2 0.0 44.0 48.6 34.5 48 [49.0, 37.0] [0.0] 34677
32 44.1 0.0 46.5 50.9 37.1 0 [39.0] [0.0] 28652
33 41.7 0.0 45.2 50.2 37.9 0 [48.0] [0.0] 12251
34 46.8 0.0 46.6 49.6 38.8 0 [43.0] [0.0] 16540
35 38.9 0.0 44.6 50.0 35.6 126 [38.0, 48.0] [0.0] 29626
36 45.2 0.0 47.0 51.2 37.5 0 [50.0] [0.0] 28229
37 37.4 0.0 46.6 50.3 38.2 0 [52.0] [0.0] 21065
38 7.0 0.0 38.7 40.8 36.2 0 [20.0] [0.0] 2346
41 50.3 0.0 46.0 50.5 33.6 0 [24.0] [0.0] 21860
42 16.1 0.0 43.9 47.6 37.9 209 [23.0, 53.0, 48.0] [0.0] 17229
43 23.9 0.0 43.2 49.1 36.9 173 [28.0, 20.0] [0.0] 12705
44 49.2 0.0 46.6 50.3 32.6 0 [49.0] [0.0] 24580
45 44.8 0.0 47.9 51.4 40.4 0 [51.0] [0.0] 28545
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 37.1 0.0 46.0 50.7 35.2 151 [53.0, 52.0] [0.0] 31087
20 44.8 0.0 46.7 50.6 37.2 0 [51.0] [0.0] 27661
21 27.4 0.0 45.4 48.8 38.8 188 [36.0, 13.0] [0.0] 24276
22 31.8 0.0 45.4 50.3 18.6 143 [39.0, 26.0] [0.0] 31729
23 23.9 0.0 44.8 48.1 38.7 229 [29.0, 19.0] [0.0] 24599
24 39.5 0.0 47.3 50.9 37.7 0 [35.0] [0.0] 21931
25 24.1 0.0 43.8 48.0 31.6 218 [53.0, 24.0] [0.0] 26669
26 45.6 0.0 45.9 49.4 31.8 0 [19.0] [0.0] 25651
27 36.4 0.0 44.8 48.9 37.3 155 [44.0, 25.0] [0.0] 29448
28 54.0 0.0 45.2 49.0 39.2 0 [28.0] [0.0] 15302
29 29.9 0.0 44.9 48.9 34.9 156 [32.0, 17.0] [0.0] 34340
30 29.2 0.0 44.1 49.0 33.7 135 [39.0, 51.0] [0.0] 34708
32 44.1 0.0 46.7 51.0 37.3 0 [42.0] [0.0] 28671
33 45.4 0.0 46.4 50.4 40.1 0 [27.0] [0.0] 14296
34 46.8 0.0 46.4 49.2 39.9 0 [44.0] [0.0] 16581
35 39.0 0.0 44.6 49.5 34.1 4 [43.0] [0.0] 29594
36 45.2 0.0 47.2 50.9 36.6 0 [50.0] [0.0] 28202
37 37.0 0.0 46.6 50.1 37.0 85 [25.0, 36.0] [0.0] 21368
38 7.0 0.0 42.0 44.1 39.8 0 [19.0] [0.0] 2336
41 48.6 0.0 46.6 49.9 30.1 0 [43.0] [0.0] 23869
42 17.8 0.0 44.0 48.9 38.6 319 [23.0, 53.0, 47.0] [0.0] 19310
43 25.9 0.0 43.1 48.7 36.3 185 [21.0, 32.0] [0.0] 14778
44 49.2 0.0 46.6 50.1 24.7 5 [51.0] [0.0] 24562
45 44.8 0.0 47.8 51.1 39.4 0 [52.0] [0.0] 28539
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 37.1 0.4 4.0 -3.2 [53.0, 51.0, 52.0] 31077
20 44.8 0.3 3.8 -3.7 [30.0, 51.0] 27648
21 27.4 -0.0 3.8 -5.7 [52.0, 36.0, 13.0] 24255
22 31.8 0.3 23.0 -3.8 [42.0, 39.0, 23.0, 26.0] 31715
23 23.9 -0.2 3.0 -4.2 [33.0, 29.0, 19.0] 24587
24 39.5 0.3 4.6 -5.4 [37.0, 35.0] 21931
25 24.2 0.1 3.7 -10.4 [53.0, 30.0, 24.0] 26571
26 45.6 0.5 6.4 -2.9 [19.0] 25651
27 37.2 -0.4 6.6 -3.8 [43.0, 44.0, 48.0, 25.0] 27361
28 51.4 -0.5 5.0 -3.5 [46.0, 28.0] 13251
29 30.0 0.1 4.5 -3.3 [50.0, 32.0, 17.0] 34302
30 29.2 -0.2 6.4 -4.3 [49.0, 39.0, 37.0, 51.0] 34666
32 44.1 -0.2 2.9 -3.6 [39.0, 42.0] 28652
33 41.7 -0.8 5.9 -5.4 [48.0, 27.0] 12251
34 46.8 0.2 2.7 -4.6 [43.0, 44.0] 16540
35 39.0 -0.0 6.1 -5.5 [38.0, 43.0, 48.0] 29591
36 45.2 -0.2 4.3 -3.7 [50.0] 28202
37 37.4 -0.0 3.9 -3.5 [52.0, 36.0] 21065
38 7.0 -3.3 -0.6 -5.7 [20.0, 19.0] 2336
41 50.3 -0.6 5.5 -3.5 [24.0, 43.0] 21834
42 16.1 0.1 4.4 -4.6 [23.0, 53.0, 48.0, 47.0] 17226
43 23.9 0.5 4.9 -4.1 [28.0, 21.0, 20.0, 32.0] 12705
44 49.3 -0.0 11.2 -4.3 [49.0, 51.0] 24550
45 44.8 0.1 2.8 -3.5 [51.0, 52.0] 28539
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 34.6 0.0 45.6 49.3 33.6 134 [39.0, 25.0] [0.0] 13448
12 50.8 0.0 47.1 50.1 34.0 2 [50.0] [0.0] 20980
14 20.6 0.0 42.4 48.7 29.7 30 [34.0, 42.0] [0.0] 13701
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 32.3 0.0 44.5 48.7 34.0 88 [50.0, 22.0] [0.0] 15496
12 50.7 0.0 46.6 49.5 34.3 0 [53.0] [0.0] 21052
14 25.1 0.0 43.0 48.6 35.3 97 [49.0, 39.0, 42.0] [0.0] 15720
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 34.6 0.8 7.9 -3.2 [39.0, 50.0, 25.0, 22.0] 13448
12 50.8 0.4 7.3 -4.3 [50.0, 53.0] 20980
14 20.6 0.0 6.6 -9.0 [34.0, 49.0, 42.0, 39.0] 13662
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 34.6 0.0 43.8 51.1 32.1 54 [39.0, 25.0] [0.0] 13448
12 50.8 0.0 45.1 50.3 24.9 21 [50.0] [0.0] 21009
14 20.6 0.0 40.5 49.0 29.5 148 [34.0, 42.0] [0.0] 13701
19 37.0 0.0 45.3 52.8 22.8 96 [53.0, 51.0] [0.0] 31124
20 44.8 0.0 48.0 53.8 36.5 0 [30.0] [0.0] 27648
21 27.4 0.0 44.8 51.1 33.1 218 [52.0, 13.0] [0.0] 24255
22 31.8 0.0 45.8 53.2 32.3 92 [42.0, 23.0] [0.0] 31748
23 23.9 0.0 43.6 49.8 36.0 10 [33.0, 19.0] [0.0] 24608
24 39.4 0.0 46.3 52.2 32.7 0 [37.0] [0.0] 21976
25 24.2 0.0 43.5 50.0 34.6 43 [53.0, 30.0] [0.0] 26579
26 45.6 0.0 47.0 52.6 32.9 0 [19.0] [0.0] 25666
27 37.2 0.0 45.2 51.7 27.3 155 [43.0, 48.0] [0.0] 27373
28 51.4 0.0 46.6 52.2 35.1 0 [46.0] [0.0] 13251
29 29.9 0.0 44.8 51.4 35.0 202 [50.0, 17.0] [0.0] 34322
30 29.2 0.0 44.5 50.7 19.9 276 [49.0, 37.0] [0.0] 34677
32 44.1 0.0 46.8 52.7 27.0 1 [39.0] [0.0] 28652
33 41.7 0.0 45.8 50.9 35.4 0 [48.0] [0.0] 12251
34 46.8 0.0 47.3 52.1 32.2 0 [43.0] [0.0] 16540
35 38.9 0.0 45.9 53.1 30.5 60 [38.0, 48.0] [0.0] 29627
36 45.2 0.0 46.9 53.7 30.4 0 [50.0] [0.0] 28229
37 37.4 0.0 45.4 51.6 35.2 0 [52.0] [0.0] 21065
38 7.0 0.0 40.7 43.0 37.9 0 [20.0] [0.0] 2346
41 50.3 0.0 46.7 52.5 31.0 0 [24.0] [0.0] 21860
42 16.1 0.0 41.5 46.3 32.6 308 [23.0, 53.0, 48.0] [0.0] 17229
43 23.9 0.0 43.6 49.5 34.6 88 [28.0, 20.0] [0.0] 12705
44 49.2 0.0 47.5 53.1 34.2 0 [49.0] [0.0] 24580
45 44.8 0.0 47.1 52.5 32.9 0 [51.0] [0.0] 28545
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 32.3 0.0 43.1 50.7 32.7 161 [50.0, 22.0] [0.0] 15496
12 50.7 0.0 45.3 49.9 33.8 0 [53.0] [0.0] 21052
14 25.1 0.0 40.9 48.1 23.3 294 [49.0, 39.0, 42.0] [0.0] 15729
19 37.1 0.0 45.5 53.2 32.6 45 [53.0, 52.0] [0.0] 31087
20 44.8 0.0 47.6 53.2 32.6 0 [51.0] [0.0] 27661
21 27.4 0.0 44.8 50.4 34.5 206 [36.0, 13.0] [0.0] 24276
22 31.8 0.0 45.9 52.9 30.9 11 [39.0, 26.0] [0.0] 31731
23 23.9 0.0 43.3 49.0 35.3 222 [29.0, 19.0] [0.0] 24599
24 39.5 0.0 46.7 51.9 33.2 0 [35.0] [0.0] 21931
25 24.1 0.0 43.7 50.5 35.2 210 [53.0, 24.0] [0.0] 26670
26 45.6 0.0 46.9 52.5 35.1 0 [19.0] [0.0] 25651
27 36.4 0.0 45.2 51.8 30.4 208 [44.0, 25.0] [0.0] 29448
28 54.0 0.0 47.1 51.9 36.3 0 [28.0] [0.0] 15302
29 29.9 0.0 44.7 51.4 33.2 62 [32.0, 17.0] [0.0] 34340
30 29.2 0.0 45.0 51.2 34.5 54 [39.0, 51.0] [0.0] 34708
32 44.1 0.0 46.9 52.6 33.3 0 [42.0] [0.0] 28671
33 45.4 0.0 46.1 51.4 36.7 0 [27.0] [0.0] 14296
34 46.8 0.0 47.5 52.1 37.9 0 [44.0] [0.0] 16581
35 39.0 0.0 45.8 53.5 24.2 7 [43.0] [0.0] 29594
36 45.2 0.0 47.2 53.5 32.1 0 [50.0] [0.0] 28202
37 37.0 0.0 45.2 51.7 29.3 154 [25.0, 36.0] [0.0] 21368
38 7.0 0.0 40.4 43.3 37.6 0 [19.0] [0.0] 2336
41 48.6 0.0 46.5 51.8 29.1 0 [43.0] [0.0] 23869
42 17.8 0.0 41.6 46.3 33.2 29 [23.0, 53.0, 47.0] [0.0] 19310
43 25.9 0.0 43.5 49.5 33.2 208 [21.0, 32.0] [0.0] 14778
44 49.2 0.0 47.6 52.9 34.1 0 [51.0] [0.0] 24562
45 44.8 0.0 47.0 52.6 30.5 0 [52.0] [0.0] 28539
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 34.6 0.4 5.2 -4.6 [39.0, 50.0, 25.0, 22.0] 13448
12 50.8 -0.3 3.5 -10.3 [50.0, 53.0] 21009
14 20.6 0.4 8.8 -5.3 [34.0, 49.0, 42.0, 39.0] 13671
19 37.1 -0.2 4.5 -15.5 [53.0, 51.0, 52.0] 31077
20 44.8 0.4 7.1 -3.5 [30.0, 51.0] 27648
21 27.4 0.0 6.0 -8.0 [52.0, 36.0, 13.0] 24255
22 31.8 -0.1 6.7 -6.6 [42.0, 39.0, 23.0, 26.0] 31717
23 23.9 0.3 5.6 -4.7 [33.0, 29.0, 19.0] 24587
24 39.5 -0.3 5.0 -6.9 [37.0, 35.0] 21931
25 24.2 -0.2 4.6 -6.0 [53.0, 30.0, 24.0] 26571
26 45.6 0.1 5.7 -5.4 [19.0] 25651
27 37.2 -0.1 7.0 -11.9 [43.0, 44.0, 48.0, 25.0] 27361
28 51.4 -0.0 3.9 -5.4 [46.0, 28.0] 13251
29 30.0 0.1 5.7 -6.1 [50.0, 32.0, 17.0] 34302
30 29.2 -0.4 4.0 -20.2 [49.0, 39.0, 37.0, 51.0] 34666
32 44.1 -0.1 4.7 -9.2 [39.0, 42.0] 28652
33 41.7 0.3 4.5 -4.3 [48.0, 27.0] 12251
34 46.8 -0.2 4.3 -8.2 [43.0, 44.0] 16540
35 39.0 0.1 7.3 -7.4 [38.0, 43.0, 48.0] 29592
36 45.2 -0.3 4.4 -11.0 [50.0] 28202
37 37.4 0.1 9.6 -4.1 [52.0, 36.0] 21065
38 7.0 0.3 3.8 -2.6 [20.0, 19.0] 2336
41 50.3 0.1 4.5 -5.0 [24.0, 43.0] 21834
42 16.1 0.2 5.6 -5.8 [23.0, 53.0, 48.0, 47.0] 17226
43 23.9 0.5 6.5 -3.7 [28.0, 21.0, 20.0, 32.0] 12705
44 49.3 -0.2 3.6 -6.9 [49.0, 51.0] 24550
45 44.8 0.1 7.9 -7.1 [51.0, 52.0] 28539
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 34.6 0.0 44.6 49.0 33.6 113 [39.0, 25.0] [0.0] 13448
12 50.8 0.0 46.6 49.9 32.4 2 [50.0] [0.0] 20980
14 20.6 0.0 41.9 47.8 33.7 213 [34.0, 42.0] [0.0] 13701
19 37.0 0.0 44.8 50.1 35.5 138 [53.0, 51.0] [0.0] 31118
20 44.8 0.0 45.6 49.5 35.5 0 [30.0] [0.0] 27648
21 27.4 0.0 44.5 49.0 16.9 155 [52.0, 13.0] [0.0] 24253
22 31.8 0.0 44.3 49.7 34.2 90 [42.0, 23.0] [0.0] 31748
23 23.9 0.0 43.3 47.2 35.3 149 [33.0, 19.0] [0.0] 24608
24 39.4 0.0 45.7 49.8 36.8 0 [37.0] [0.0] 21976
25 24.2 0.0 43.0 48.6 30.2 188 [53.0, 30.0] [0.0] 26579
26 45.6 0.0 45.6 49.5 35.8 0 [19.0] [0.0] 25666
27 37.2 0.0 43.7 50.0 34.3 112 [43.0, 48.0] [0.0] 27373
28 51.4 0.0 45.0 49.1 37.2 0 [46.0] [0.0] 13251
29 29.9 0.0 43.7 48.5 30.4 254 [50.0, 17.0] [0.0] 34322
30 29.2 0.0 43.1 48.5 30.0 75 [49.0, 37.0] [0.0] 34644
32 44.1 0.0 45.7 50.2 35.7 1 [39.0] [0.0] 28652
33 41.7 0.0 45.3 50.3 37.1 0 [48.0] [0.0] 12251
34 46.8 0.0 45.8 49.1 36.8 0 [43.0] [0.0] 16540
35 38.9 0.0 44.1 49.8 34.0 97 [38.0, 48.0] [0.0] 29626
36 45.2 0.0 45.9 49.7 34.0 0 [50.0] [0.0] 28229
37 37.4 0.0 45.1 49.2 36.4 0 [52.0] [0.0] 21065
38 7.0 0.0 37.2 40.0 33.9 0 [20.0] [0.0] 2346
41 50.3 0.0 45.8 50.8 31.1 0 [24.0] [0.0] 21860
42 16.1 0.0 42.5 47.4 35.9 439 [23.0, 53.0, 48.0] [0.0] 17229
43 23.9 0.0 42.3 47.6 35.6 53 [28.0, 20.0] [0.0] 12705
44 49.2 0.0 45.6 49.2 31.4 0 [49.0] [0.0] 24580
45 44.8 0.0 46.5 50.3 36.0 0 [51.0] [0.0] 28545
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 32.3 0.0 43.6 48.4 33.9 220 [50.0, 22.0] [0.0] 15496
12 50.7 0.0 46.5 49.5 33.0 0 [53.0] [0.0] 21052
14 25.1 0.0 42.6 49.0 34.8 269 [49.0, 39.0, 42.0] [0.0] 15720
19 37.1 0.0 44.7 49.9 33.9 53 [53.0, 52.0] [0.0] 31087
20 44.8 0.0 45.0 49.5 34.2 0 [51.0] [0.0] 27661
21 27.4 0.0 44.2 48.3 33.6 70 [36.0, 13.0] [0.0] 24276
22 31.8 0.0 44.4 49.2 23.5 155 [39.0, 26.0] [0.0] 31731
23 23.9 0.0 43.3 47.7 34.1 124 [29.0, 19.0] [0.0] 24599
24 39.5 0.0 45.5 49.9 21.3 1 [35.0] [0.0] 21931
25 24.1 0.0 42.9 48.1 26.9 63 [53.0, 24.0] [0.0] 26665
26 45.6 0.0 45.0 49.7 34.9 0 [19.0] [0.0] 25651
27 36.4 0.0 43.5 49.0 35.5 178 [44.0, 25.0] [0.0] 29448
28 54.0 0.0 44.7 48.4 34.7 0 [28.0] [0.0] 15302
29 29.9 0.0 43.4 48.6 34.4 25 [32.0, 17.0] [0.0] 34340
30 29.2 0.0 43.0 47.8 32.4 184 [39.0, 51.0] [0.0] 34708
32 44.1 0.0 45.5 49.7 34.8 0 [42.0] [0.0] 28671
33 45.4 0.0 45.4 49.9 36.8 0 [27.0] [0.0] 14296
34 46.8 0.0 45.6 48.7 35.8 0 [44.0] [0.0] 16581
35 39.0 0.0 44.2 49.7 34.0 3 [43.0] [0.0] 29589
36 45.2 0.0 45.8 49.5 34.4 0 [50.0] [0.0] 28202
37 37.0 0.0 44.7 49.1 34.0 233 [25.0, 36.0] [0.0] 21368
38 7.0 0.0 40.0 41.7 38.1 0 [19.0] [0.0] 2336
41 48.6 0.0 45.7 50.4 26.5 0 [43.0] [0.0] 23869
42 17.8 0.0 42.5 47.7 36.1 330 [23.0, 53.0, 47.0] [0.0] 19310
43 25.9 0.0 42.2 47.3 33.6 15 [21.0, 32.0] [0.0] 14778
44 49.2 0.0 45.4 48.8 21.8 0 [51.0] [0.0] 24562
45 44.8 0.0 46.1 49.8 35.4 0 [52.0] [0.0] 28539
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 34.6 0.7 6.3 -4.6 [39.0, 50.0, 25.0, 22.0] 13448
12 50.8 0.2 4.0 -3.3 [50.0, 53.0] 20980
14 20.6 0.0 4.3 -6.6 [34.0, 49.0, 42.0, 39.0] 13662
19 37.1 0.1 6.4 -5.2 [53.0, 51.0, 52.0] 31071
20 44.8 0.6 4.6 -2.3 [30.0, 51.0] 27648
21 27.4 0.3 5.5 -21.0 [52.0, 36.0, 13.0] 24253
22 31.8 -0.1 16.9 -4.4 [42.0, 39.0, 23.0, 26.0] 31717
23 23.9 0.0 3.6 -5.0 [33.0, 29.0, 19.0] 24587
24 39.5 0.3 20.3 -3.4 [37.0, 35.0] 21931
25 24.2 0.1 7.4 -5.6 [53.0, 30.0, 24.0] 26571
26 45.6 0.5 4.1 -3.2 [19.0] 25651
27 37.2 0.1 4.7 -5.7 [43.0, 44.0, 48.0, 25.0] 27361
28 51.4 0.5 5.7 -3.4 [46.0, 28.0] 13251
29 30.0 0.3 5.5 -5.3 [50.0, 32.0, 17.0] 34302
30 29.2 0.0 5.1 -6.2 [49.0, 39.0, 37.0, 51.0] 34633
32 44.1 0.2 4.1 -5.2 [39.0, 42.0] 28652
33 41.7 0.2 4.0 -5.0 [48.0, 27.0] 12251
34 46.8 0.2 3.1 -3.4 [43.0, 44.0] 16540
35 39.0 -0.1 4.3 -5.2 [38.0, 43.0, 48.0] 29586
36 45.2 0.1 4.9 -4.4 [50.0] 28202
37 37.4 0.4 5.1 -2.8 [52.0, 36.0] 21065
38 7.0 -2.8 -0.3 -5.8 [20.0, 19.0] 2336
41 50.3 0.1 6.3 -3.6 [24.0, 43.0] 21834
42 16.1 0.4 5.3 -5.2 [23.0, 53.0, 48.0, 47.0] 17226
43 23.9 0.4 4.5 -4.8 [28.0, 21.0, 20.0, 32.0] 12705
44 49.3 0.3 13.0 -3.8 [49.0, 51.0] 24550
45 44.8 0.4 6.1 -3.4 [51.0, 52.0] 28539
