Comments


SUHF receiving CMRx on 469.5 MHz, 25 kHz BW, CMRx, TM3 at 9600.
P4-03 East, Long engineering cable.
P4-05 West, Production cable sample.
4W Ethernet 10 Mbps, no traffic.
2W interfaces disabled (powered off).

Files


1115_469.5mhz/BX_gt35.T04 1115_469.5mhz/P4-03_gt35.T04 1115_469.5mhz/P4-05_gt35.T04
Modified: 2023-11-17 12:29:44

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 25.641 hours

Mean Primary Pos: [39.89647323709127, -105.11505749705576]
Mean Secondary Pos: [39.89647206175603, -105.11505655844647]
Mean Heading: 328.5 (deg)
Mean Slope Distance: 0.15327 (m)
 Modified: 2023-11-17 12:29:49

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 26.483 hours

Mean Primary Pos: [39.89646835047229, -105.11502833166786]
Mean Secondary Pos: [39.89646729812033, -105.11502714675011]
Mean Heading: 319.18 (deg)
Mean Slope Distance: 0.15463 (m)
 Modified: 2023-11-17 12:29:44

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 26.569 hours

Mean Primary Pos: [39.89646844449561, -105.11505682350801]
Mean Secondary Pos: [39.89646736609813, -105.1150556792056]
Mean Heading: 320.85 (deg)
Mean Slope Distance: 0.15462 (m)

Difference Report Links

1115_469.5mhz/results/BX_gt35_0-P4-03_gt35_0.html
1115_469.5mhz/results/BX_gt35_0-P4-05_gt35_0.html
1115_469.5mhz/results/BX_gt35_1-P4-03_gt35_1.html
1115_469.5mhz/results/BX_gt35_1-P4-05_gt35_1.html

Summary Table

SVType Freq Track N_Samples_P4-03_0 CNo_Mean_P4-03_0 N_Samples_P4-05_0 CNo_Mean_P4-05_0 N_Samples_P4-03_1 CNo_Mean_P4-03_1 N_Samples_P4-05_1 CNo_Mean_P4-05_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 439,370 0.1 439,401 0.2 439,370 0.2 439,401 0.1
GPS L2 CM+CL 352,144 0.2 352,166 0.1 352,144 0.0 352,166 -0.2
GPS L2 E 87,226 0.4 87,235 0.5 87,226 0.1 87,235 -0.2
GPS L5/E5A I+Q 251,957 0.5 251,974 0.3 251,957 0.1 251,974 0.0
SBAS L1 CA 287,391 -0.4 287,412 0.8 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 350,981 0.4 351,007 0.5 350,981 0.6 351,007 0.3
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 299,410 0.3 299,433 0.1 299,411 -0.1 299,432 -0.1
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 326,196 0.1 326,219 0.2 326,196 0.1 326,219 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 326,196 0.1 326,219 0.1 326,196 0.0 326,219 0.2
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 348,760 0.2 348,792 0.3 348,760 0.3 348,792 0.2
BeiDou L5/E5A I+Q 348,760 0.4 348,792 0.3 348,760 0.1 348,792 0.1
BeiDou E5B/B2 BPSK(2)-B2 44,284 -0.4 44,282 0.1 44,284 -0.0 44,282 0.3
BeiDou B1 BPSK(2)-B1 393,044 0.1 393,074 0.0 393,044 0.0 393,074 -0.0
BeiDou B3 BPSK(10)-B3 393,044 0.1 393,074 0.1 393,044 -0.1 393,074 0.0
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS MSS 58,655 -1.0 58,588 -0.1 0 0
Total 4,248,763 0.2 4,249,080 0.2 3,961,373 0.1 3,961,667 0.1

Az-El Plots

BX_gt35_0-P4-03_gt35_0 BX_gt35_0-P4-05_gt35_0 BX_gt35_1-P4-03_gt35_1 BX_gt35_1-P4-05_gt35_1

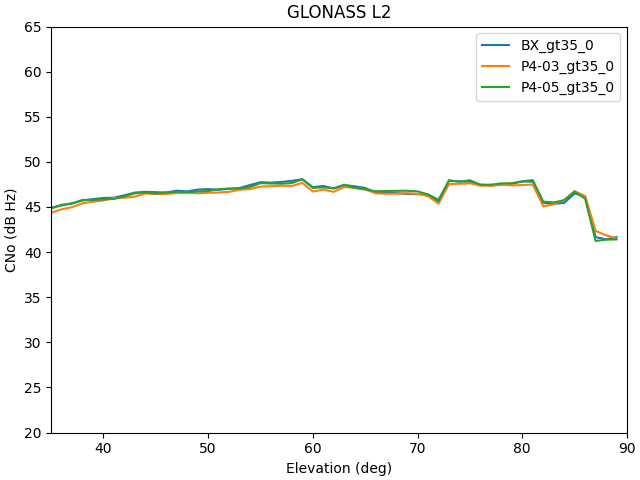

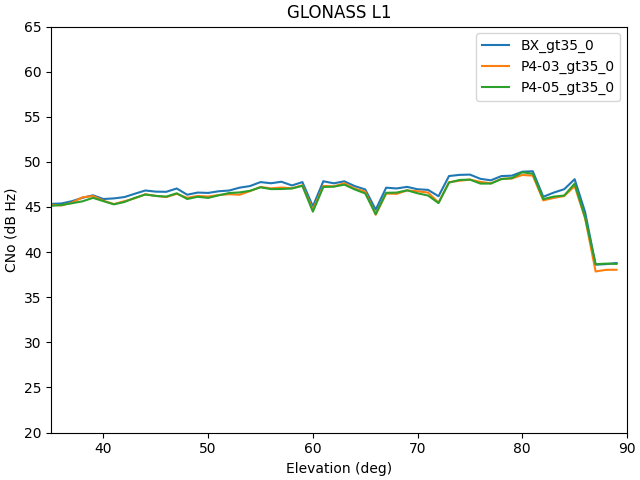

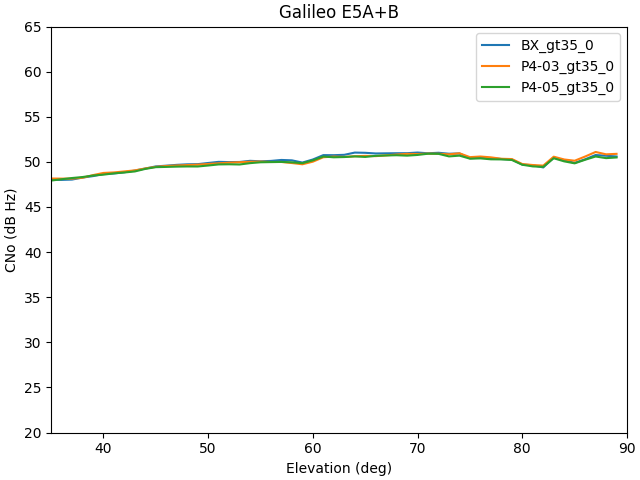

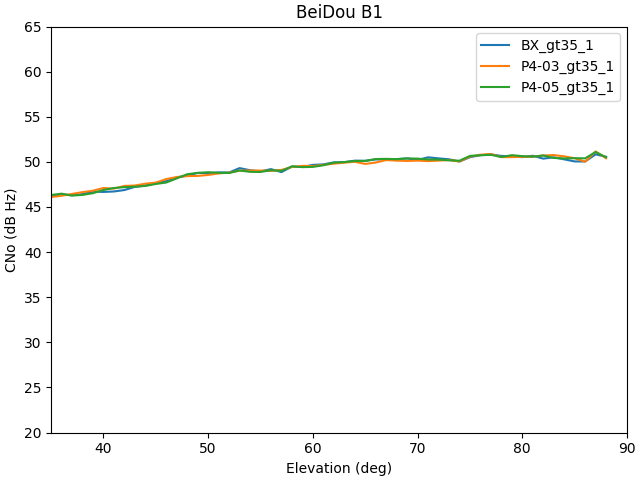

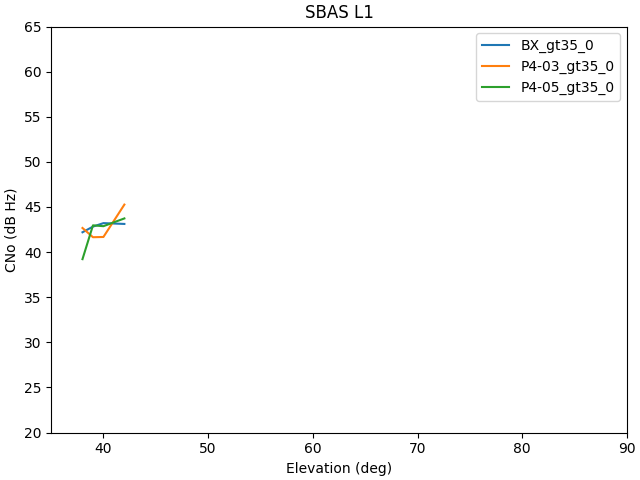

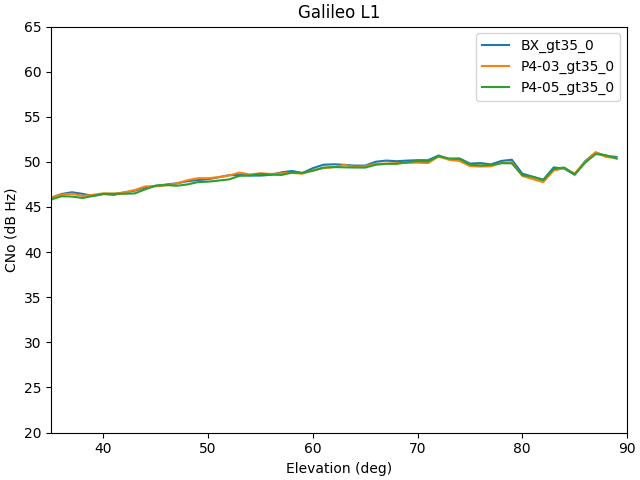

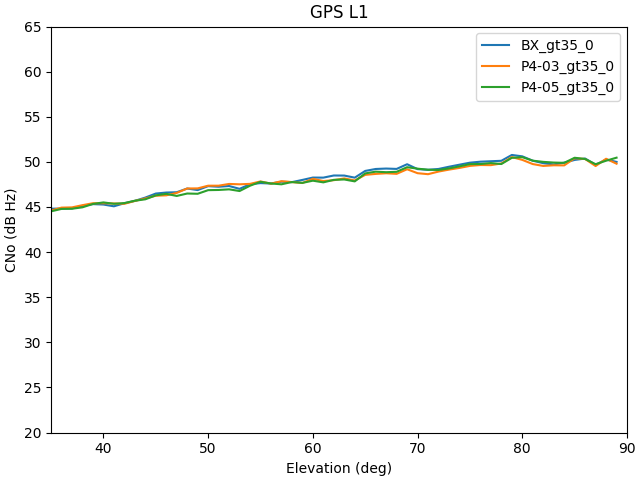

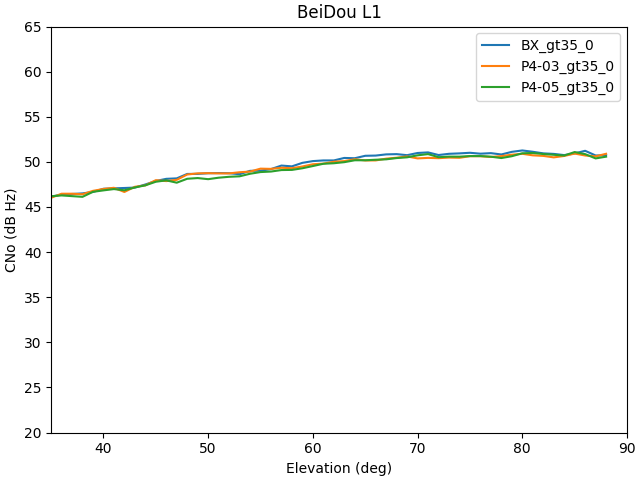

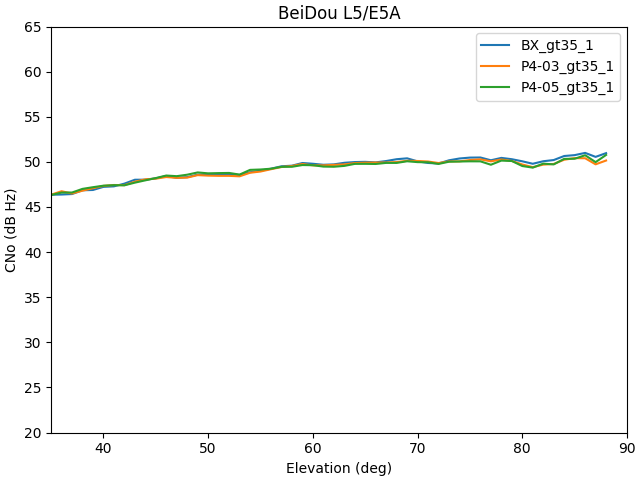

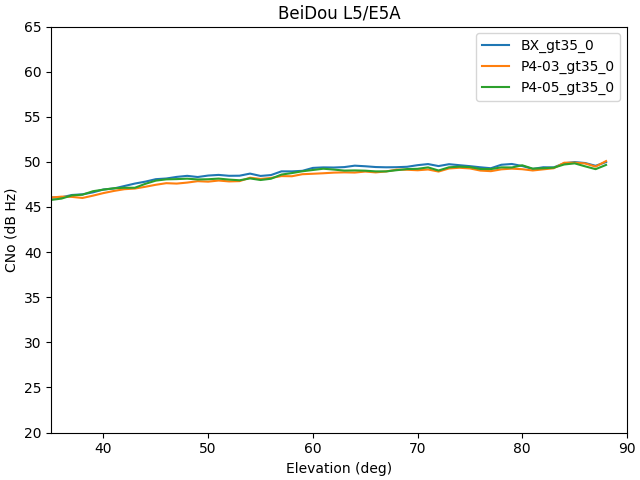

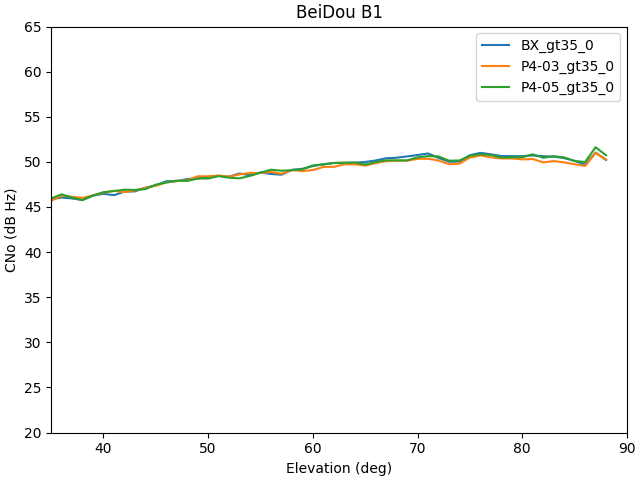

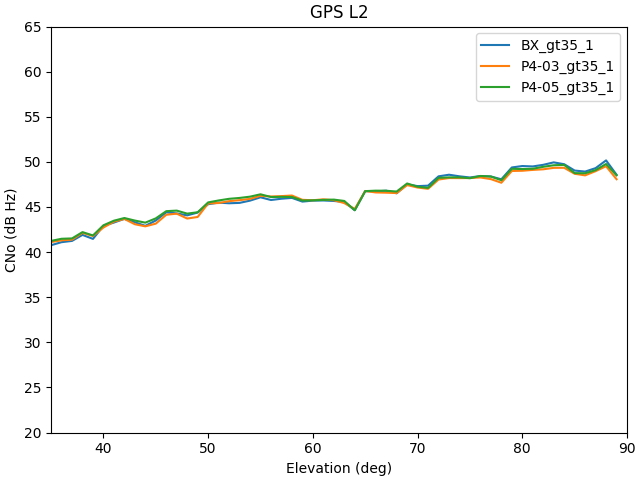

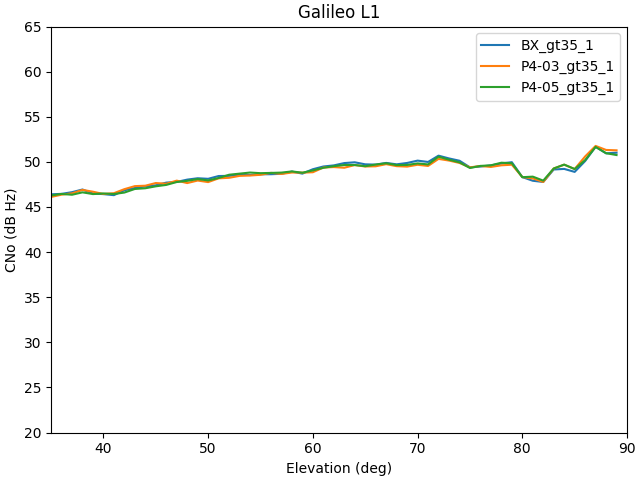

Mean Elevation Plots

Antenna 0

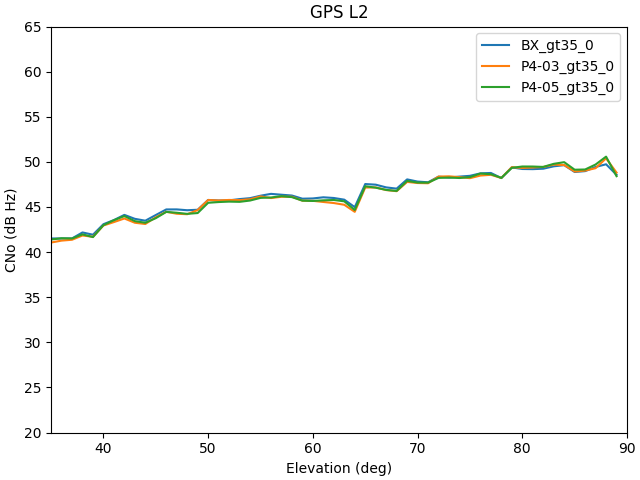

GPS
SBAS
GLONASS
Galileo

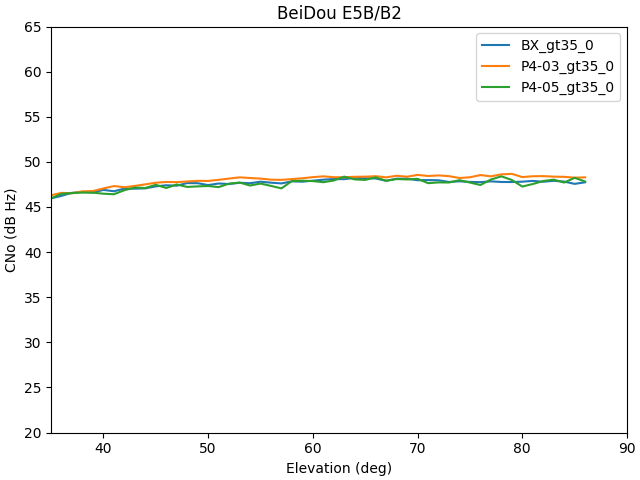

BeiDou

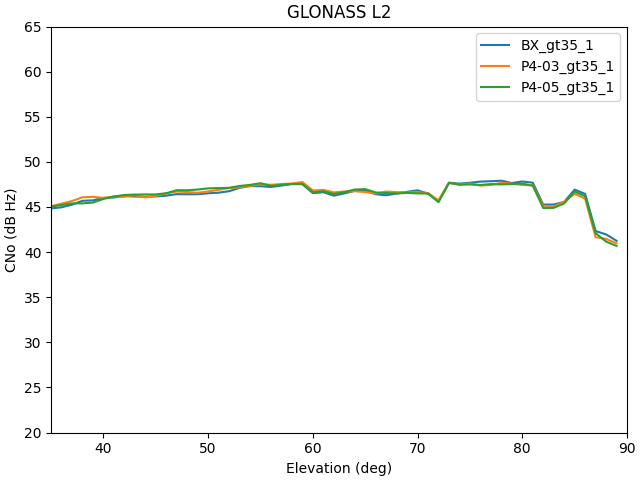

Antenna 1

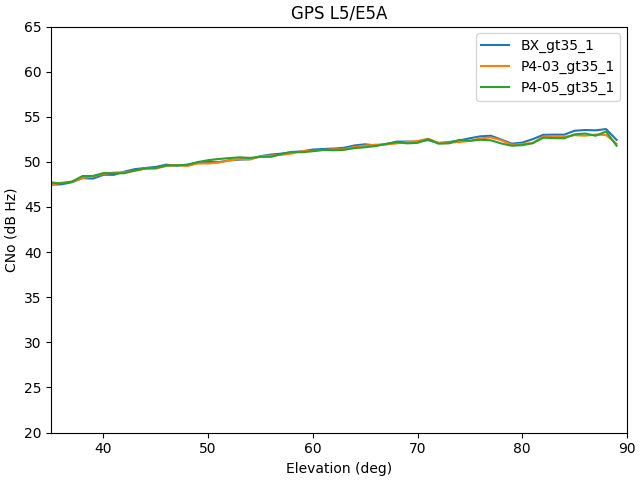

GPS

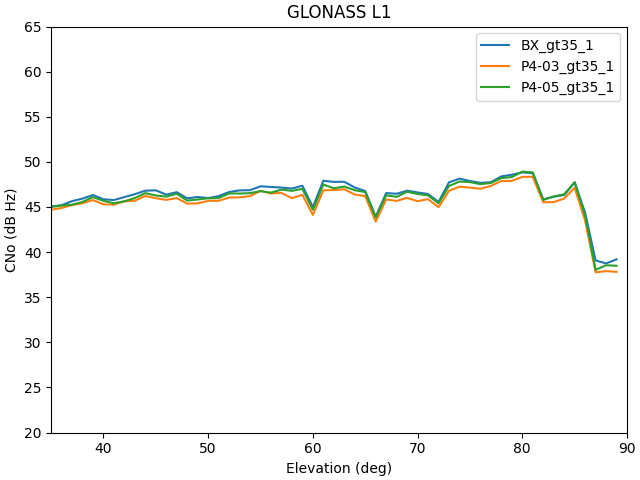

GLONASS

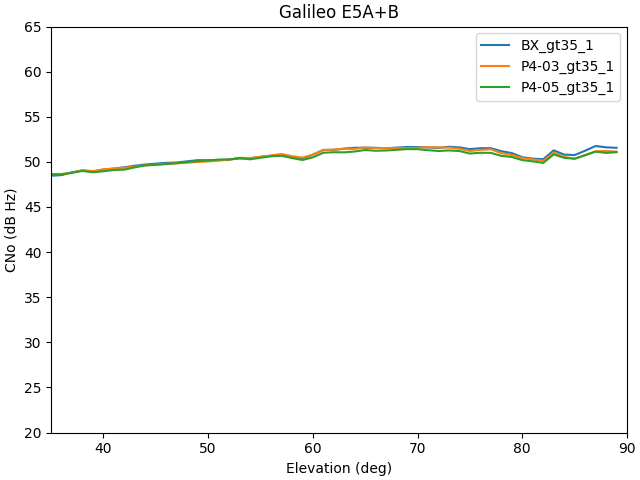

Galileo

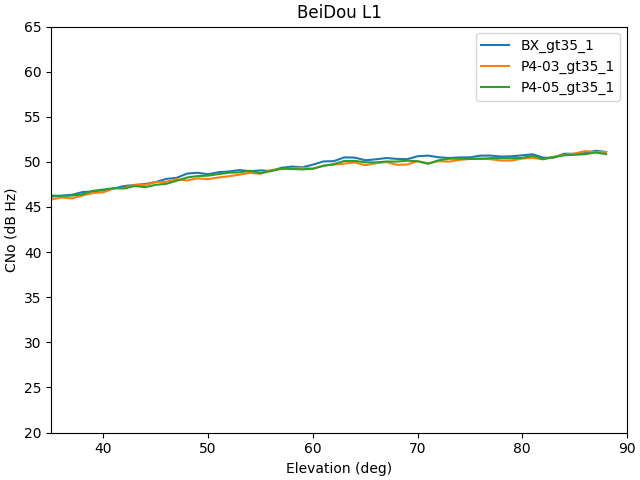

BeiDou

Oscillation Check

BX_gt35_0: 1376.5
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 29 1,377
0 BeiDou B1 26 25 1,179
0 Galileo E5A+B 14 25 1,100
0 GPS L1 0 5 1,074
0 GLONASS L1 0 19 1,037
0 GLONASS L1 0 21 1,005
0 Galileo E5A+B 14 12 1,000
0 GLONASS L1 0 22 985
0 BeiDou E5B/B2 28 12 981
0 GPS L1 0 28 952
P4-03_gt35_0: 1381.5
Antenna SVType Freq Track SV osc_factor
0 GLONASS L2 0 12 1,382
0 GPS L1 0 25 1,171
0 BeiDou B1 26 25 1,140
0 Galileo E5A+B 14 25 1,114
0 GLONASS L2 0 13 1,060
0 GPS L1 0 18 1,038
0 GLONASS L2 0 19 994
0 Galileo E5A+B 14 30 948
0 GPS L1 0 16 944
0 GLONASS L2 0 18 942
P4-05_gt35_0: 1238.3
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 30 1,238
0 BeiDou B1 26 25 1,200
0 GPS L1 0 4 1,048
0 GLONASS L1 0 23 1,031
0 GLONASS L1 0 13 1,019
0 BeiDou B3 29 12 1,010
0 BeiDou B3 29 24 994
0 GLONASS L1 0 12 992
0 GLONASS L1 0 24 981
0 GPS L1 0 29 979
BX_gt35_1: 1302.0
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,302
1 GLONASS L2 0 19 1,291
1 GLONASS L1 0 19 1,275
1 GPS L1 0 5 1,259
1 GLONASS L2 0 12 1,093
1 Galileo E5A+B 14 25 1,078
1 GLONASS L1 0 13 1,056
1 BeiDou B3 29 24 1,032
1 GLONASS L1 0 24 1,025
1 BeiDou B3 29 12 998
P4-03_gt35_1: 1471.8
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 19 1,472
1 GLONASS L2 0 12 1,454
1 GLONASS L1 0 21 1,264
1 GLONASS L2 0 13 1,191
1 GLONASS L1 0 22 1,171
1 BeiDou B1 26 25 1,168
1 GLONASS L1 0 3 971
1 GPS L2 5 18 968
1 GLONASS L1 0 10 963
1 GLONASS L2 0 18 902
P4-05_gt35_1: 1333.6
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,334
1 GLONASS L1 0 19 1,189
1 GPS L1 0 29 1,133
1 GLONASS L1 0 10 1,017
1 GLONASS L1 0 13 1,000
1 BeiDou L1 20 28 980
1 BeiDou B1 26 12 963
1 GPS L2 5 11 962
1 GLONASS L1 0 5 958
1 BeiDou B3 29 24 926

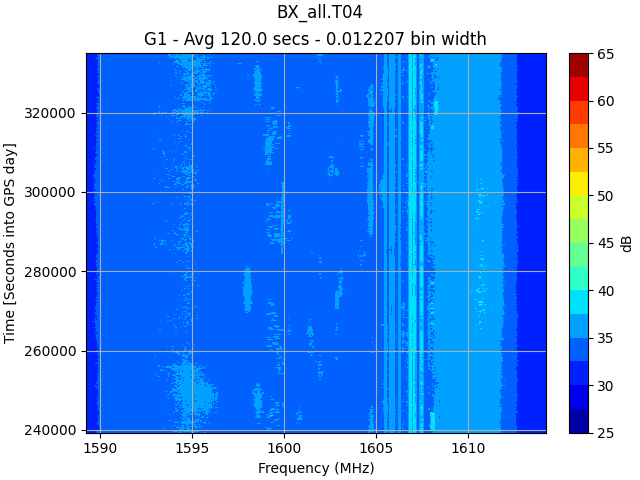

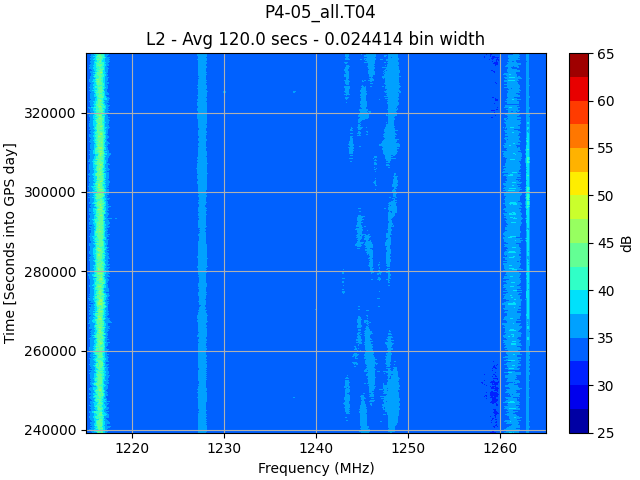

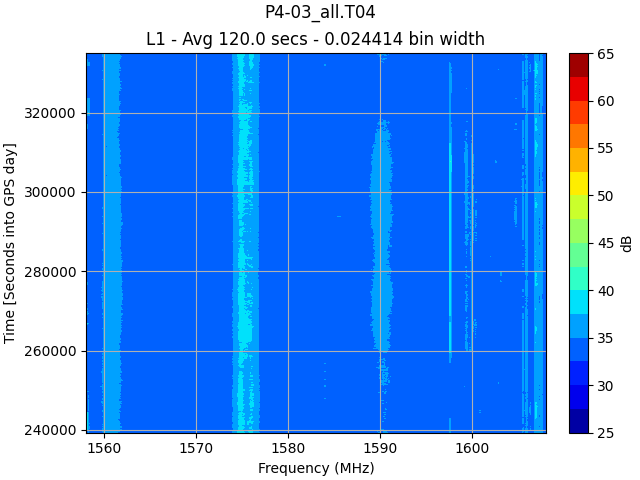

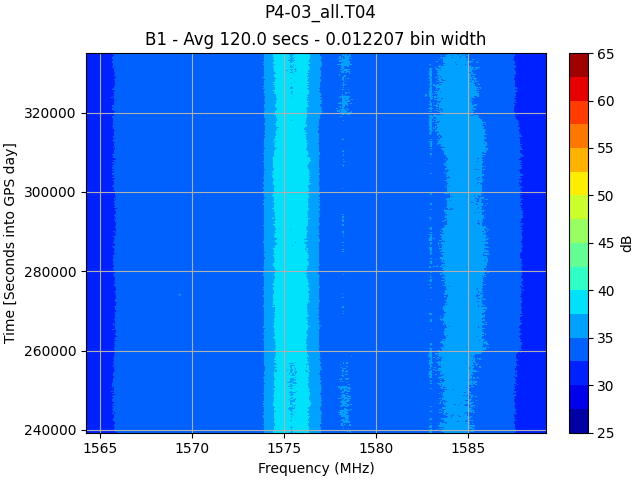

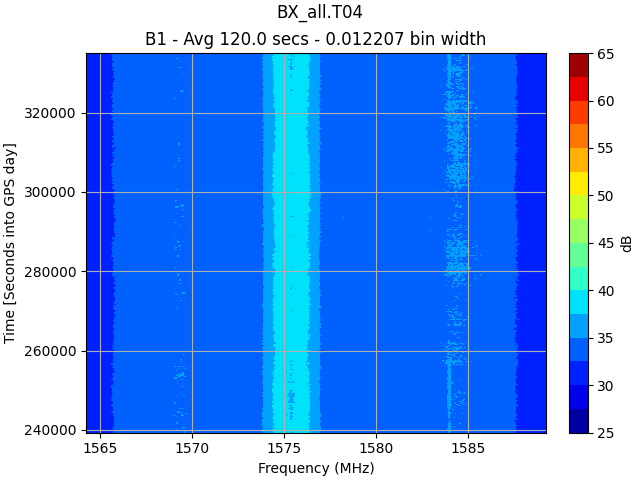

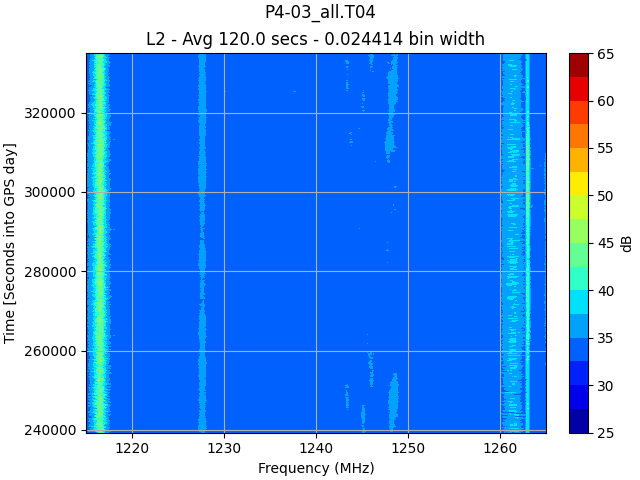

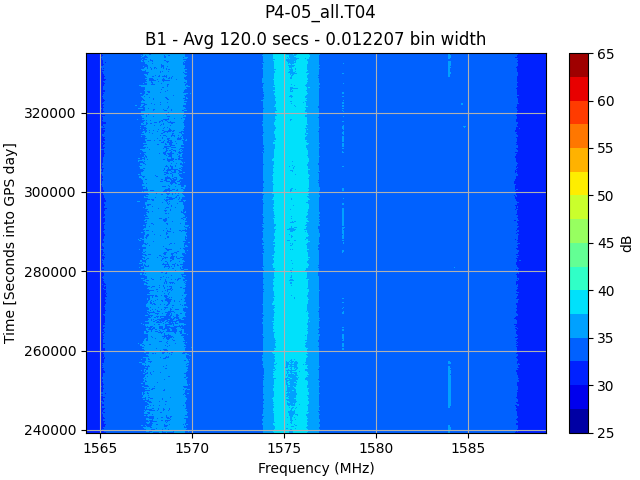

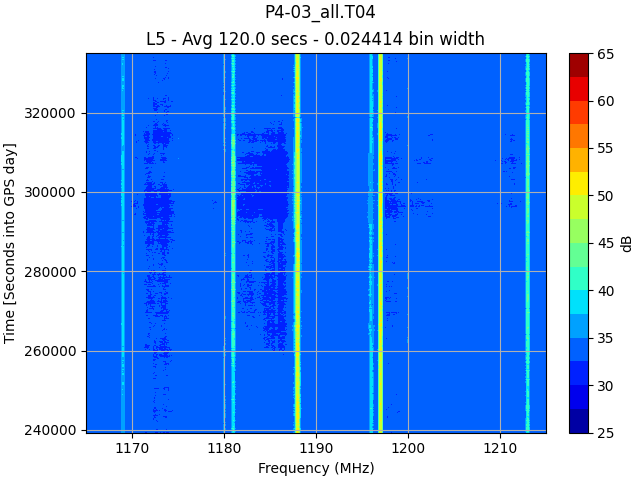

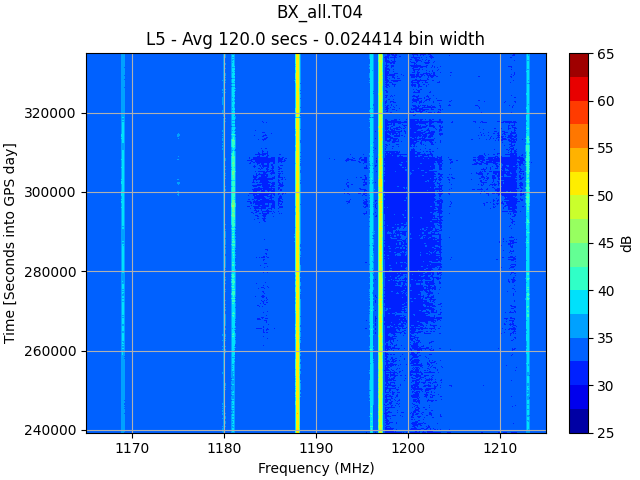

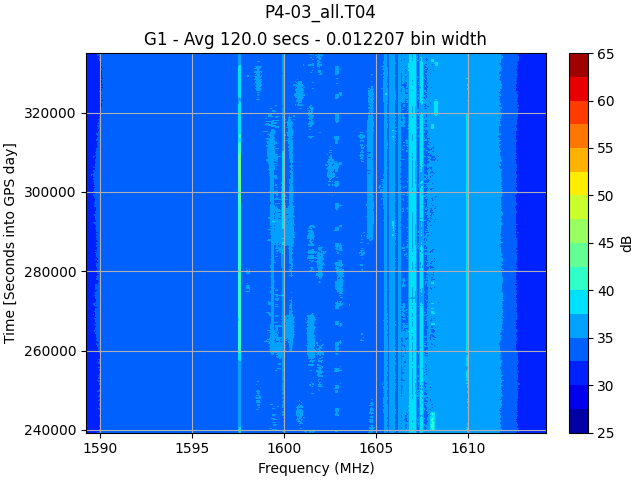

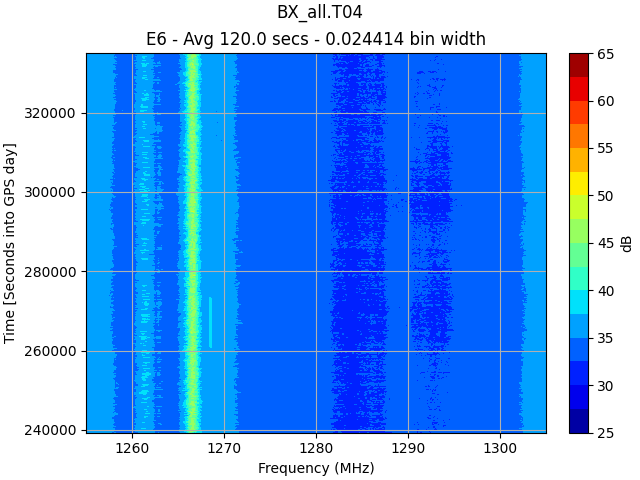

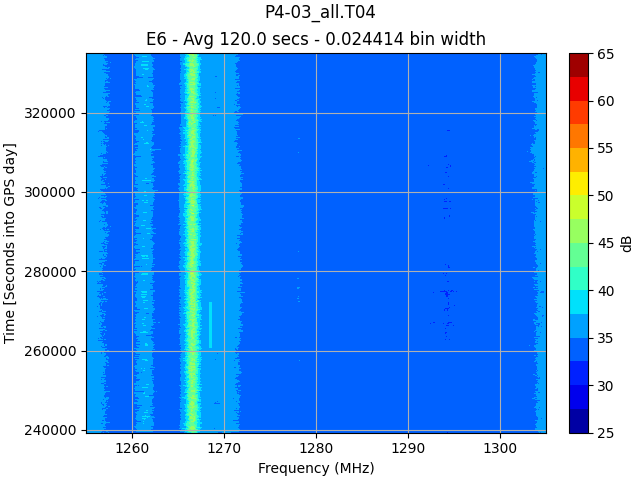

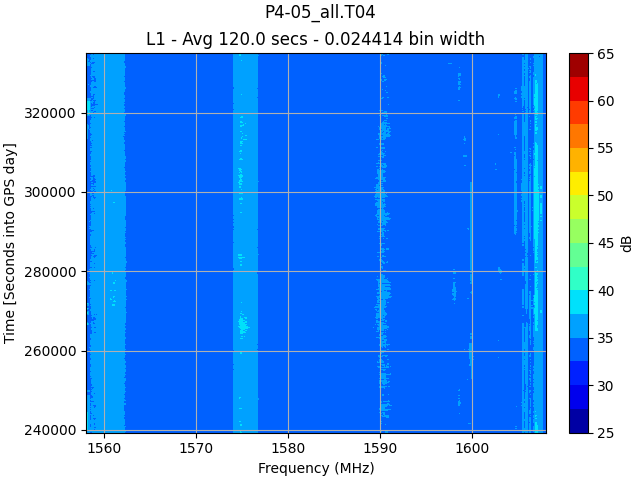

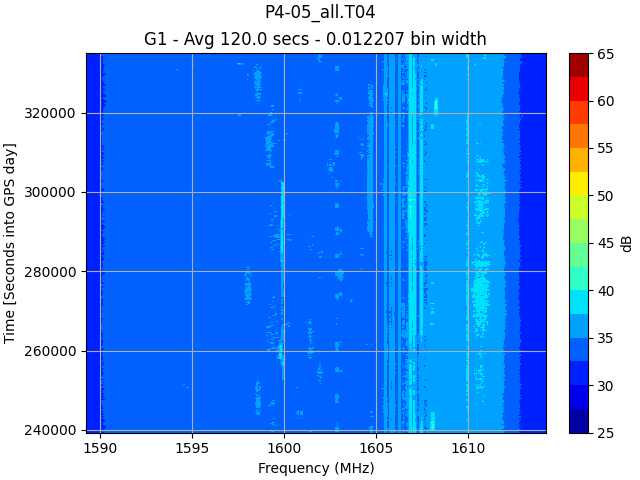

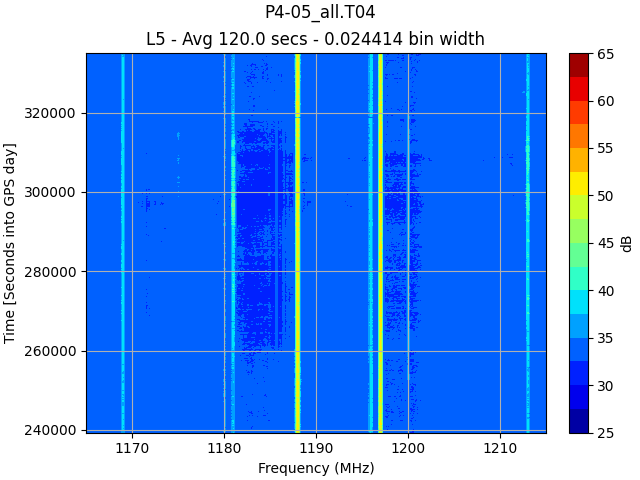

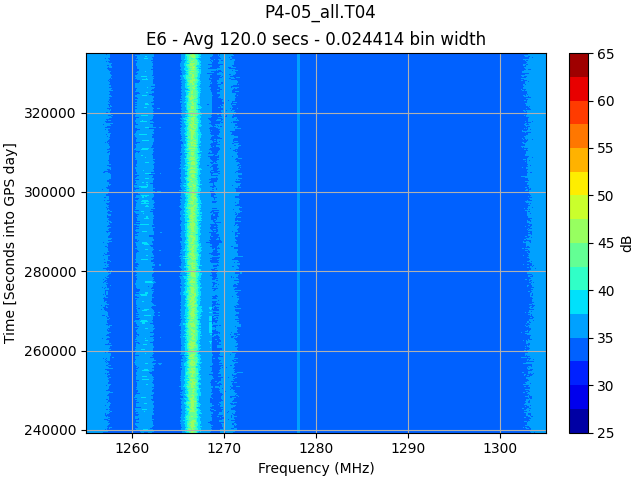

FFT Plots

L1 L2 L5 E6 G1 B1
BX
P4-03
P4-05
