REF File: 1115_469.5mhz/BX_gt35.T04
DUT File: 1115_469.5mhz/P4-03_gt35.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 439427 47.5 47.5 2.3 37.6 55.9 18.3 55.4 89.0
GPS L2 CM+CL 352187 47.7 47.8 1.7 41.1 52.3 11.2 56.4 89.0
GPS L2 E 87240 36.5 36.6 3.2 28.4 45.1 16.7 51.5 78.0
GPS L5/E5A I+Q 251990 50.0 50.1 1.8 41.4 54.6 13.2 55.5 89.0

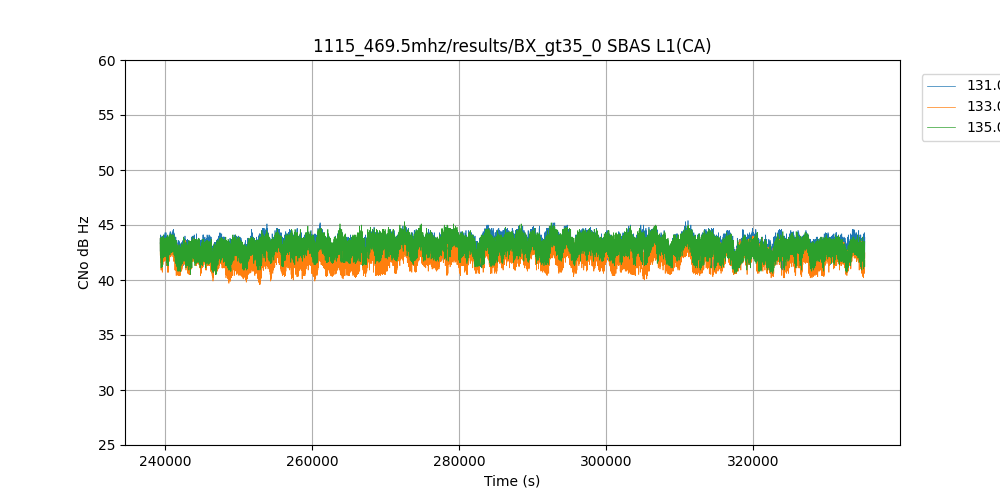

SBAS L1 CA 287412 42.8 42.8 0.8 39.6 45.4 5.8 39.8 42.0
GLONASS L1 CA 351026 46.8 48.0 4.3 31.0 55.2 24.2 53.8 89.0
GLONASS L2 CA 299491 46.8 47.4 2.4 10.4 51.5 41.1 53.5 89.0
Galileo L1 MBOC-PD 326235 48.5 48.8 2.2 39.7 54.1 14.4 56.5 89.0
Galileo E5A+B AltBOC-Comp-PD 326235 49.9 50.3 1.5 43.1 54.9 11.8 56.5 89.0
BeiDou L1 BOC-PD 348812 49.1 49.3 2.0 40.6 53.8 13.2 56.1 88.0

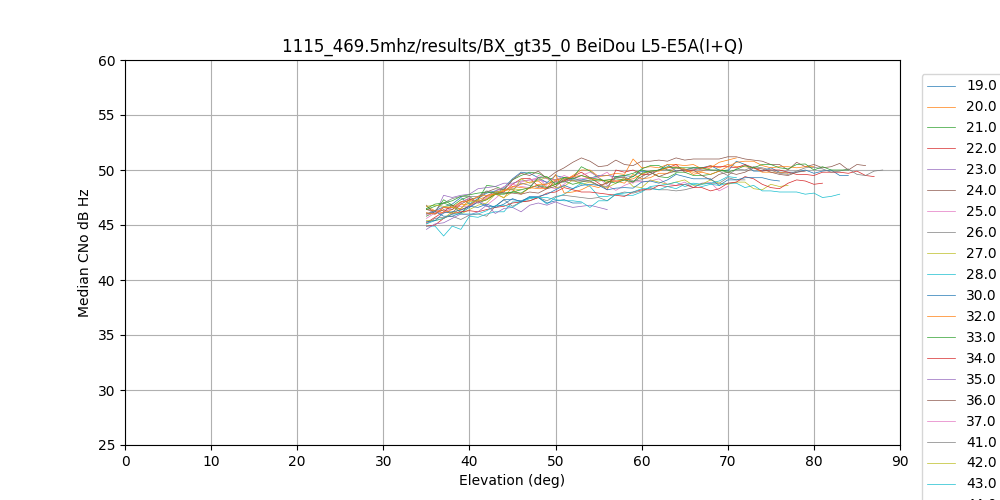

BeiDou L5/E5A I+Q 348812 48.5 48.6 1.5 42.2 52.8 10.6 56.1 88.0

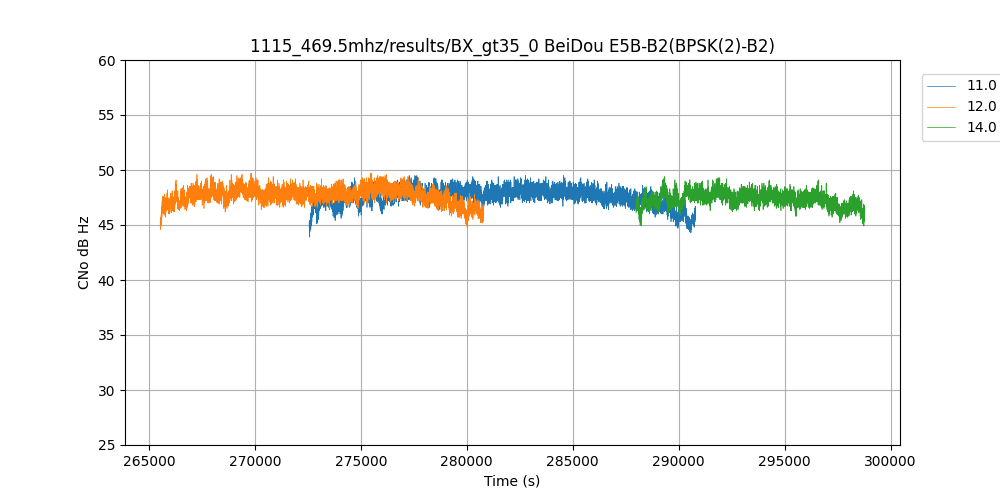

BeiDou E5B/B2 BPSK(2)-B2 44286 47.5 47.6 0.7 43.9 49.7 5.8 56.4 86.0
BeiDou B1 BPSK(2)-B1 393098 48.6 48.8 2.2 39.4 54.4 15.0 56.1 88.0
BeiDou B3 BPSK(10)-B3 393098 47.5 47.8 1.1 40.9 50.3 9.4 56.1 88.0
MSS MSS None 66265 49.2 49.3 0.9 44.9 51.5 6.6 NaN NaN
start/stop time: 239,372 335,175
Total time: 95,803.0 seconds
Total time: 1,596.717 minutes
Total time: 26.612 hours
Total Samples: 4,315,614
Avg Samples/sec: 45.0

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 439402 47.3 47.5 2.2 38.0 55.5 17.5 55.4 89.0
GPS L2 CM+CL 352167 47.5 47.6 1.7 40.1 52.4 12.3 56.4 89.0
GPS L2 E 87235 36.1 36.4 3.2 26.2 44.5 18.3 51.5 78.0
GPS L5/E5A I+Q 251973 49.5 49.6 1.8 40.5 54.0 13.5 55.5 89.0
SBAS L1 CA 287391 43.2 42.8 1.7 38.8 47.6 8.8 39.8 42.0
GLONASS L1 CA 351004 46.4 47.9 4.3 30.6 54.2 23.6 53.8 89.0
GLONASS L2 CA 299467 46.5 47.2 2.5 10.1 51.4 41.3 53.5 89.0
Galileo L1 MBOC-PD 326205 48.4 48.7 2.1 39.6 54.0 14.4 56.5 89.0
Galileo E5A+B AltBOC-Comp-PD 326205 49.8 50.3 1.4 43.5 54.7 11.2 56.5 89.0
BeiDou L1 BOC-PD 348773 48.9 49.2 1.8 40.0 53.1 13.1 56.1 88.0
BeiDou L5/E5A I+Q 348773 48.0 48.1 1.4 41.6 52.1 10.5 56.1 88.0
BeiDou E5B/B2 BPSK(2)-B2 44286 47.9 48.0 0.8 44.4 50.1 5.7 56.4 86.0
BeiDou B1 BPSK(2)-B1 393059 48.5 48.7 2.0 40.0 54.8 14.8 56.1 88.0

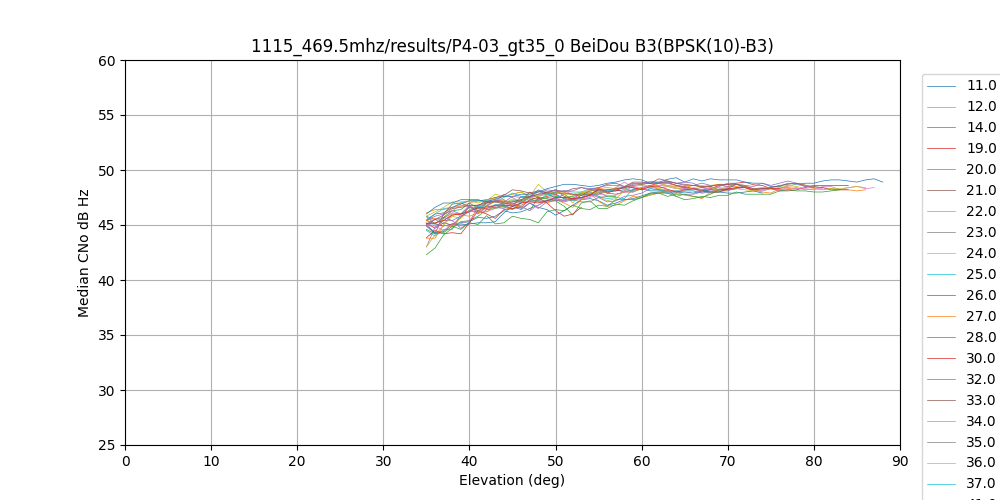

BeiDou B3 BPSK(10)-B3 393059 47.5 47.7 1.2 38.6 50.6 12.0 56.1 88.0

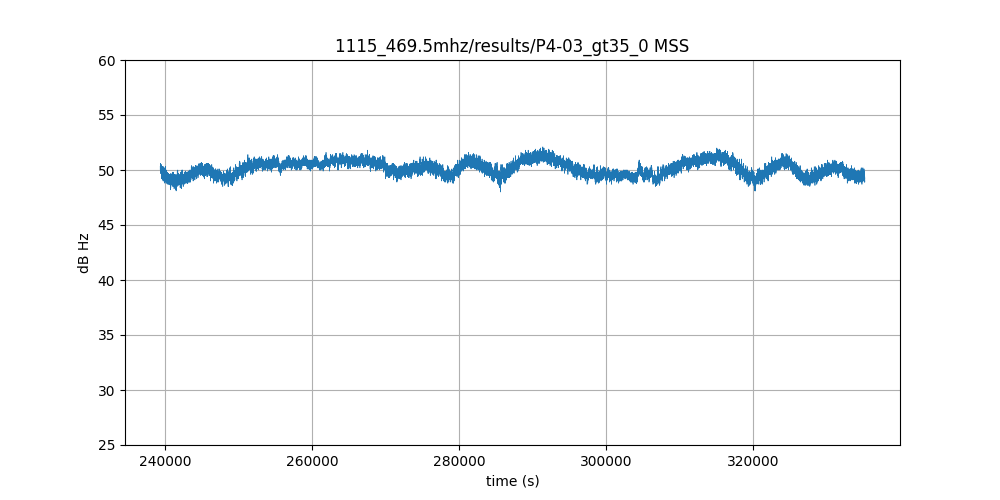

MSS MSS NaN 66448 50.1 50.2 0.6 48.0 52.1 4.1 NaN NaN
start/stop time: 239,375 335,171
Total time: 95,796.0 seconds
Total time: 1,596.600 minutes
Total time: 26.610 hours
Total Samples: 4,315,447
Avg Samples/sec: 45.0

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 439370 +0.1 +0.1 +1.2 -5.4 +6.4 +11.8 +55.4 +89.0
GPS L2 CM+CL 352144 +0.2 +0.2 +0.9 -4.4 +4.4 +8.8 +56.4 +89.0
GPS L2 E 87226 +0.4 +0.4 +1.2 -4.3 +5.2 +9.5 +51.5 +78.0
GPS L5/E5A I+Q 251957 +0.5 +0.5 +0.7 -2.7 +4.1 +6.8 +55.5 +89.0
SBAS L1 CA 287391 -0.4 -0.5 +1.5 -4.0 +3.5 +7.5 +39.8 +42.0
GLONASS L1 CA 350981 +0.4 +0.4 +1.2 -5.9 +5.8 +11.7 +53.8 +89.0
GLONASS L2 CA 299410 +0.3 +0.3 +0.9 -5.2 +5.1 +10.3 +53.5 +89.0
Galileo L1 MBOC-PD 326196 +0.1 +0.1 +1.0 -4.9 +5.4 +10.3 +56.5 +89.0
Galileo E5A+B AltBOC-Comp-PD 326196 +0.1 +0.1 +0.5 -2.2 +2.5 +4.7 +56.5 +89.0
BeiDou L1 BOC-PD 348760 +0.2 +0.2 +1.1 -4.5 +5.1 +9.6 +56.1 +88.0
BeiDou L5/E5A I+Q 348760 +0.4 +0.5 +0.7 -2.5 +3.6 +6.1 +56.1 +88.0
BeiDou E5B/B2 BPSK(2)-B2 44284 -0.4 -0.4 +0.6 -2.9 +2.3 +5.2 +56.4 +86.0
BeiDou B1 BPSK(2)-B1 393044 +0.1 +0.1 +1.1 -6.5 +5.4 +11.9 +56.1 +88.0
BeiDou B3 BPSK(10)-B3 393044 +0.1 +0.0 +0.7 -3.7 +3.8 +7.5 +56.1 +88.0
MSS MSS nan 58655 -1.0 -1.0 +0.8 -4.2 +1.3 +5.5 +nan +nan
start/stop time: 239,375 335,171
Total time: 95,796.0 seconds
Total time: 1,596.600 minutes
Total time: 26.610 hours
Total Samples: 4,307,418
Avg Samples/sec: 45.0

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.169
Median = 0.200
Std Dev= 1.024

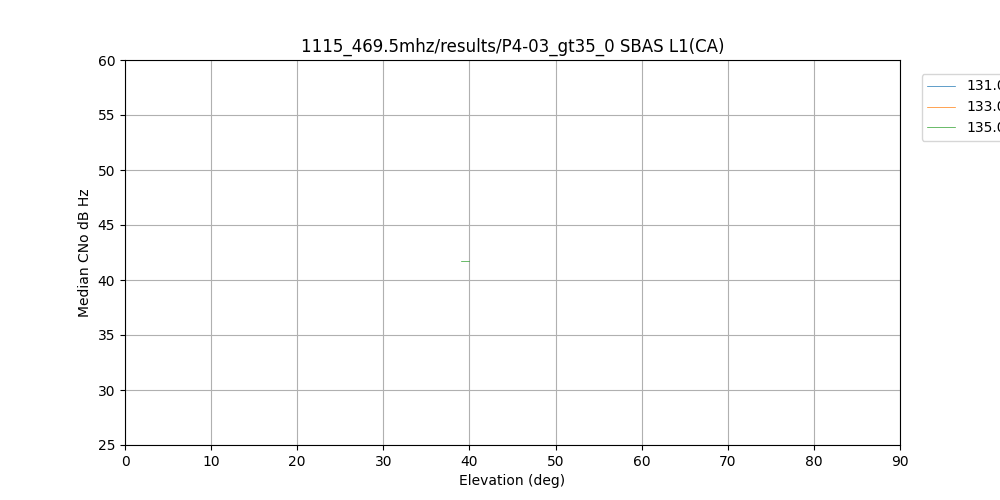

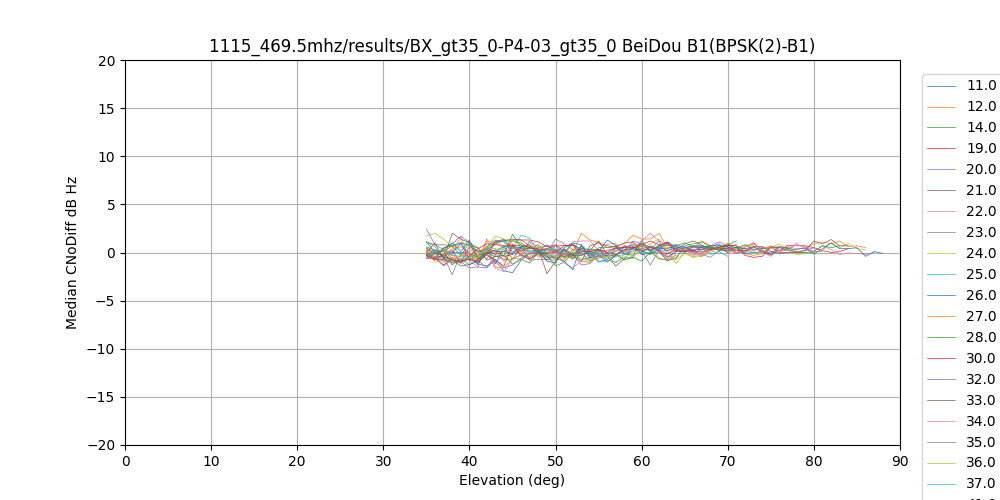

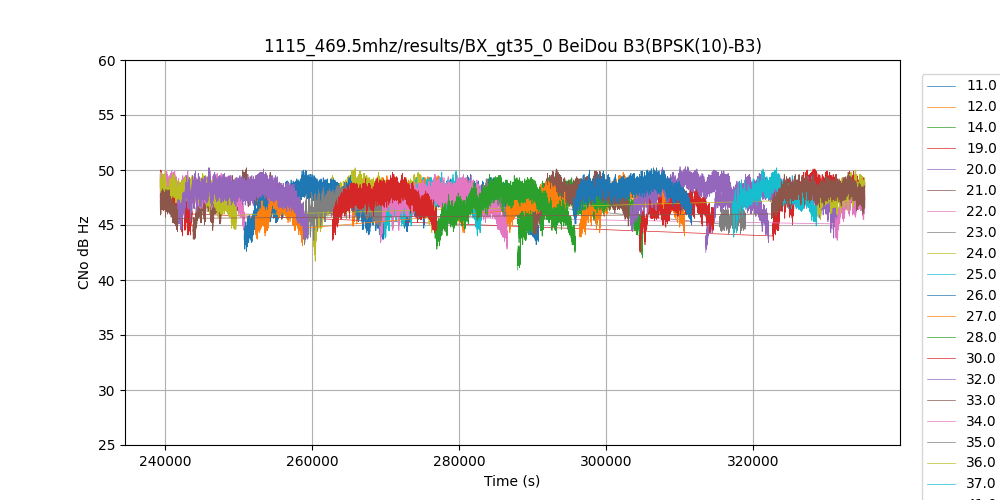

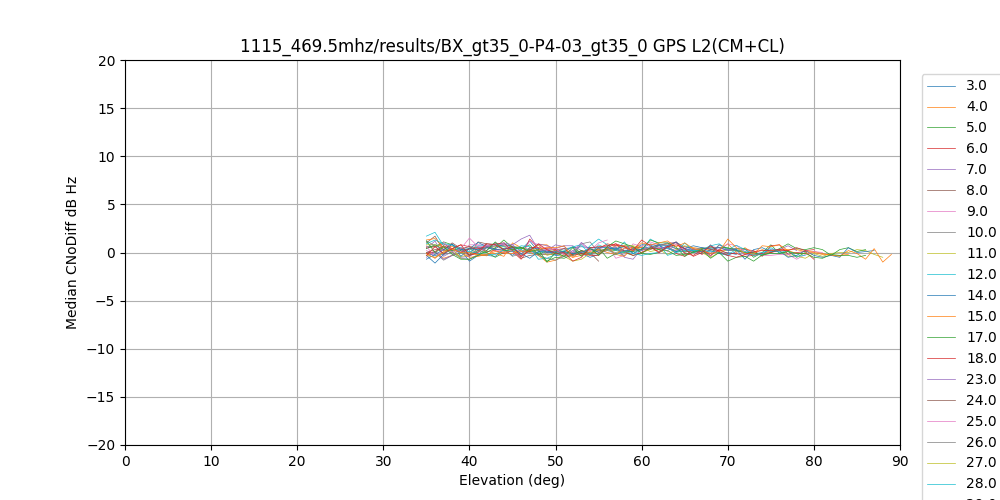

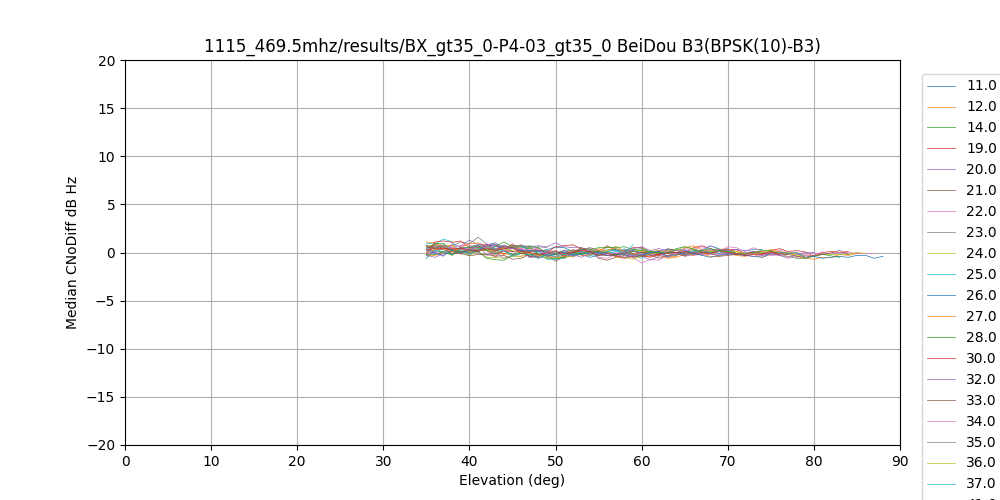

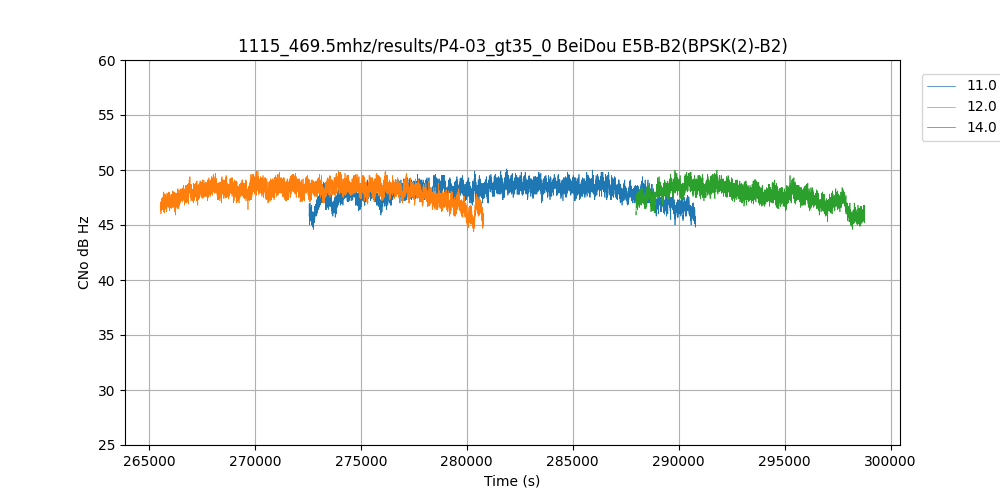

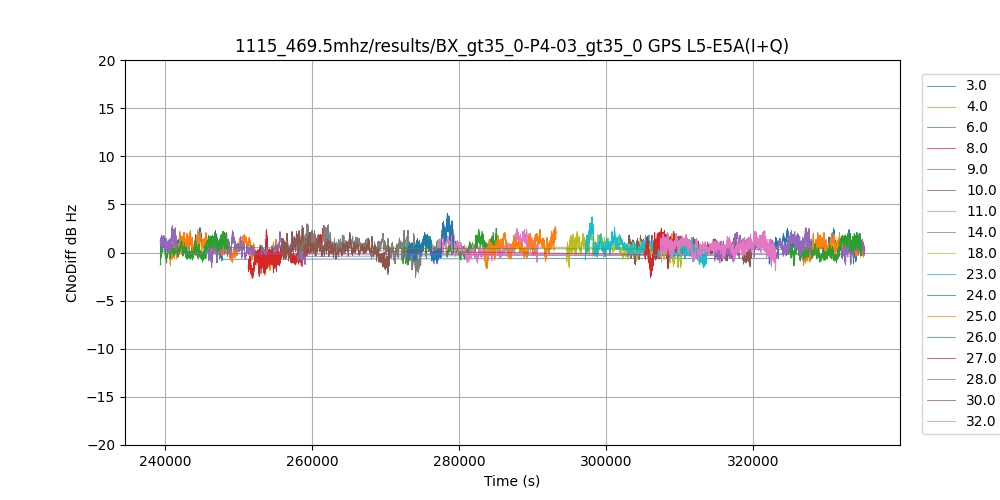

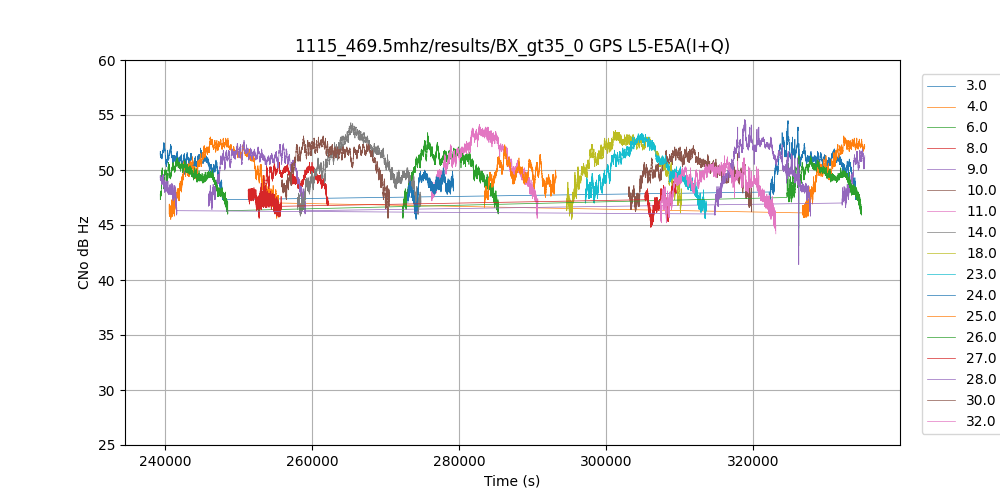

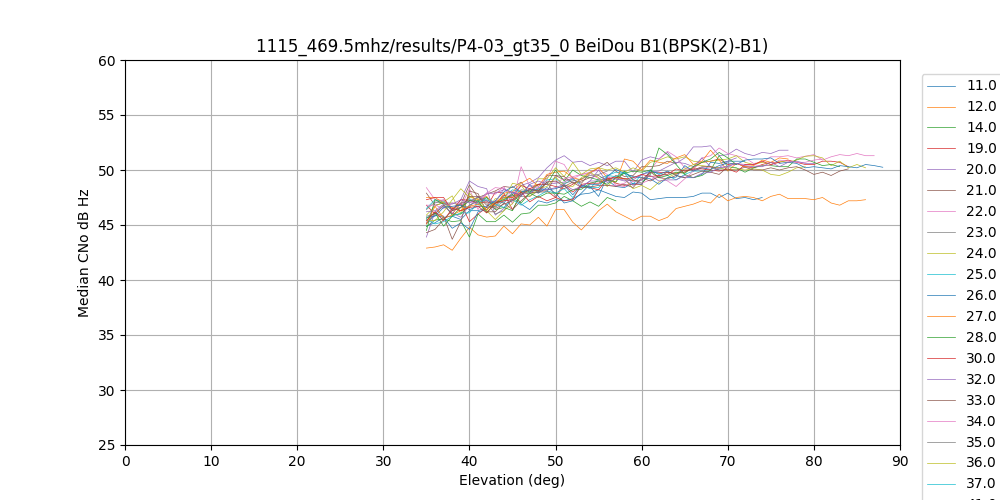

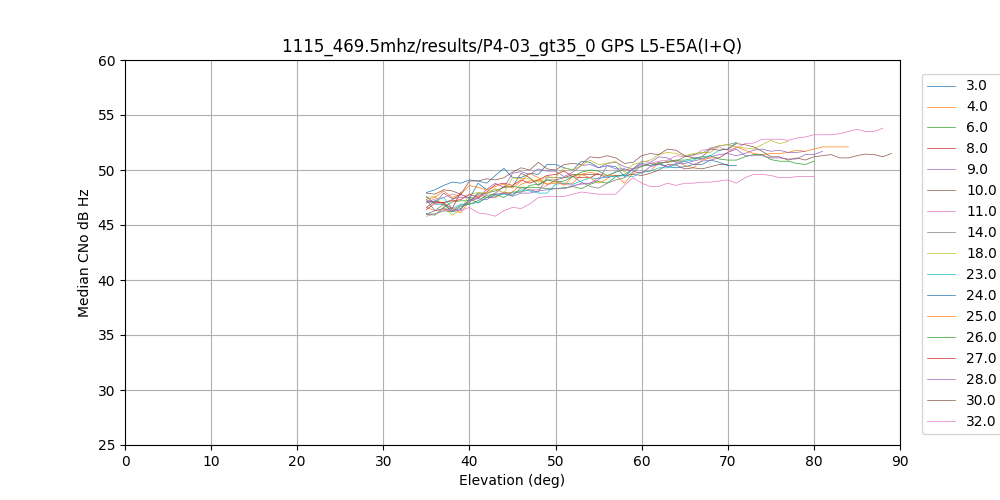

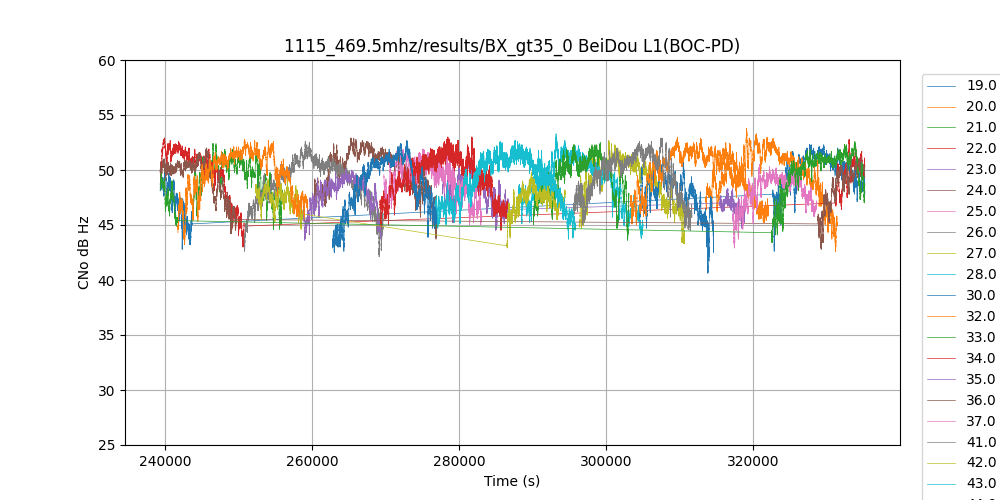

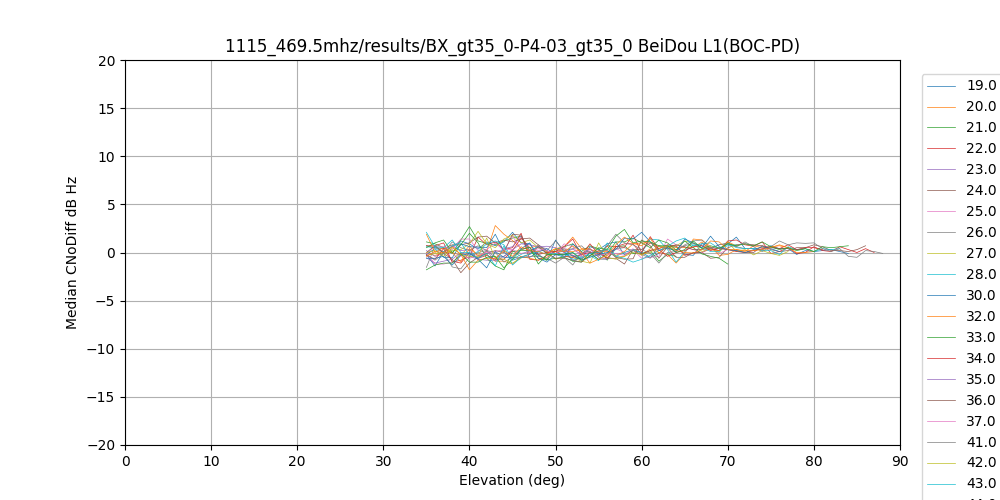

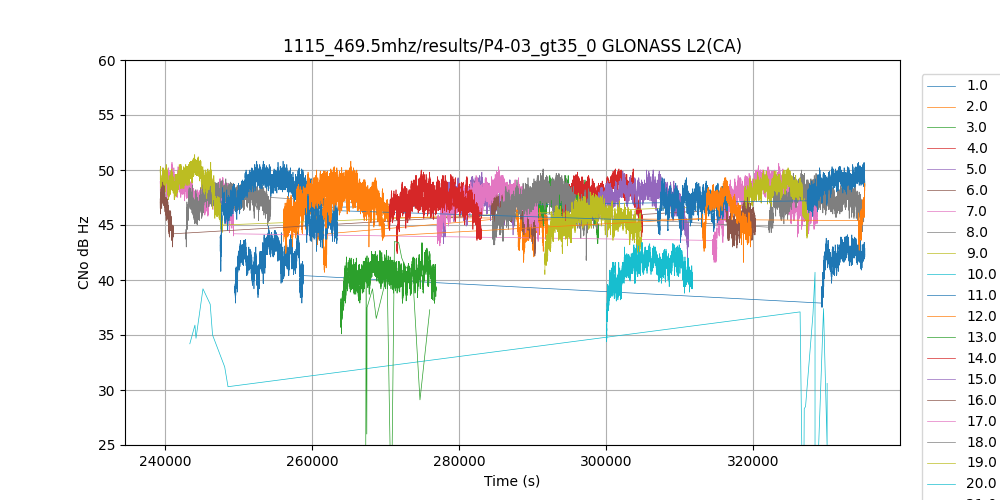

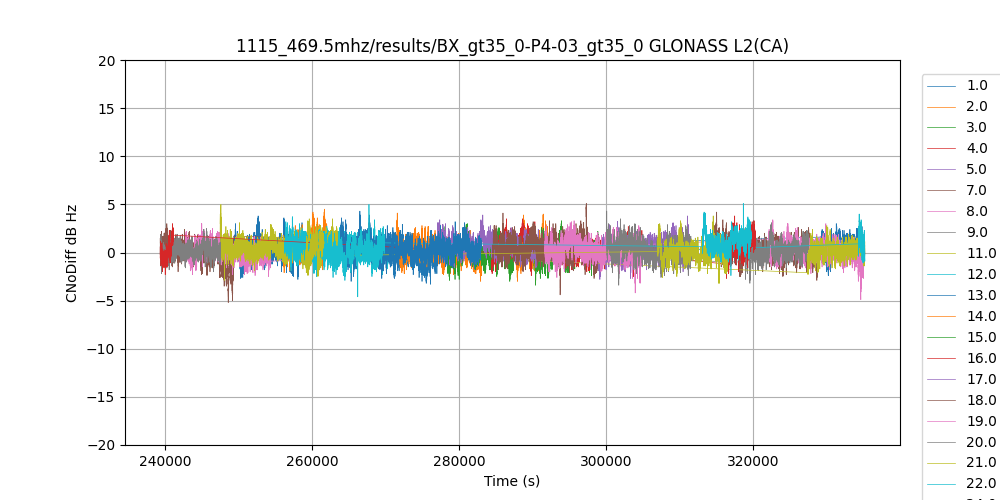

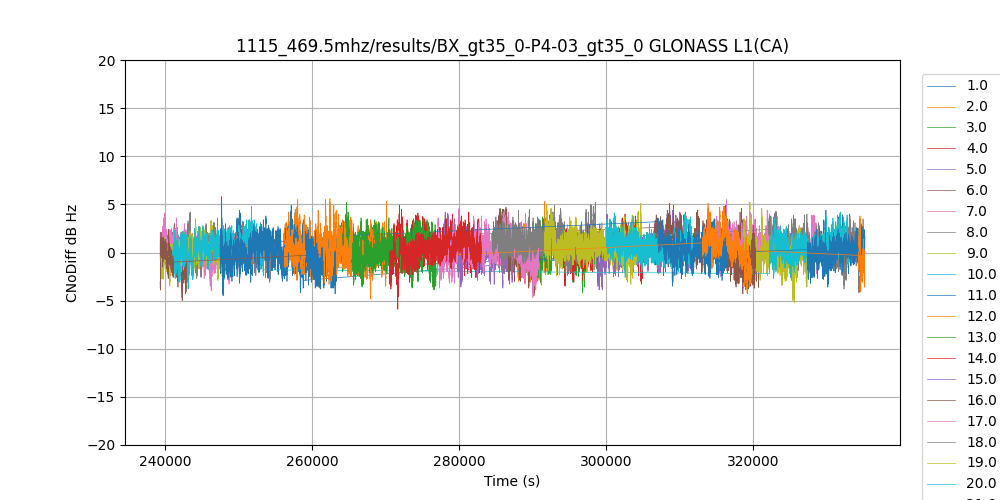

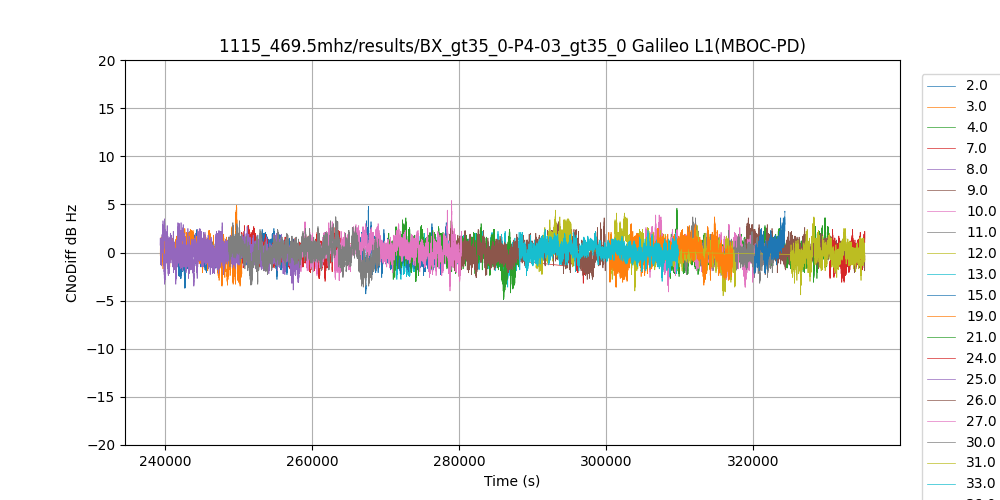

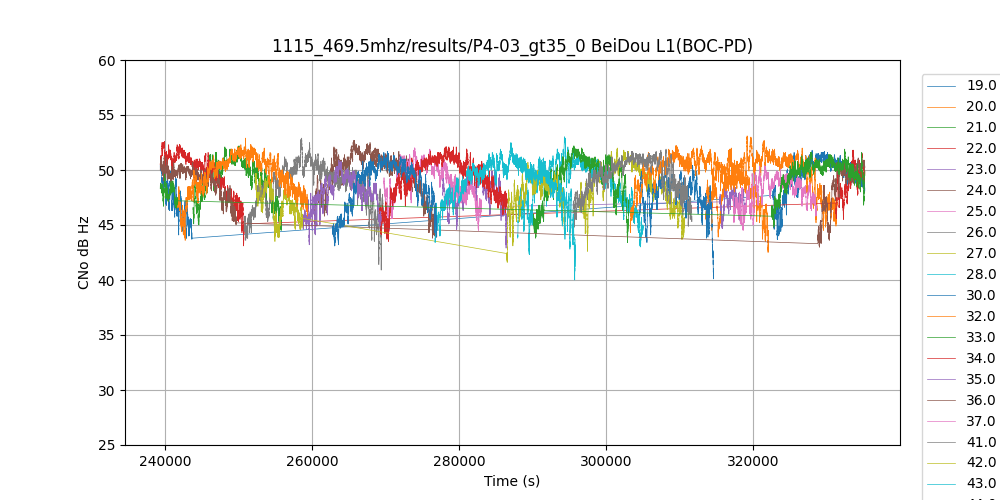

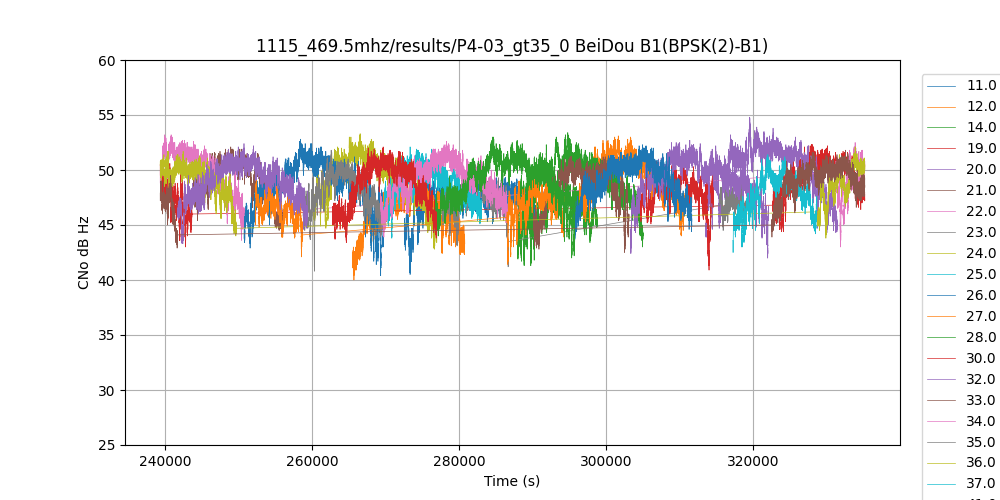

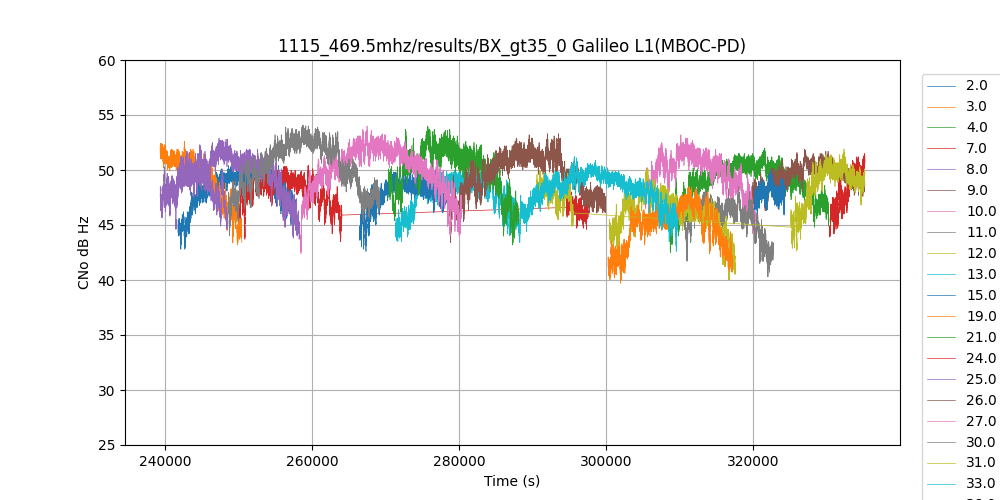

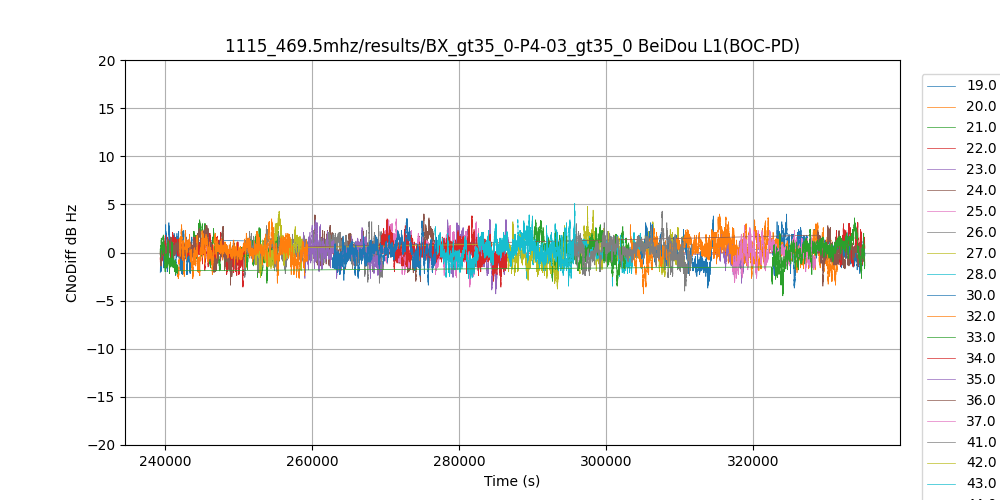

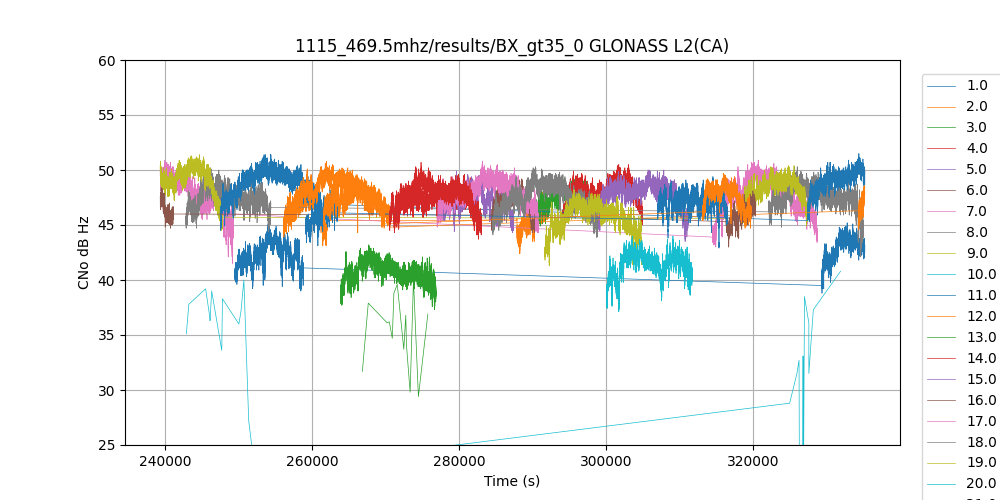

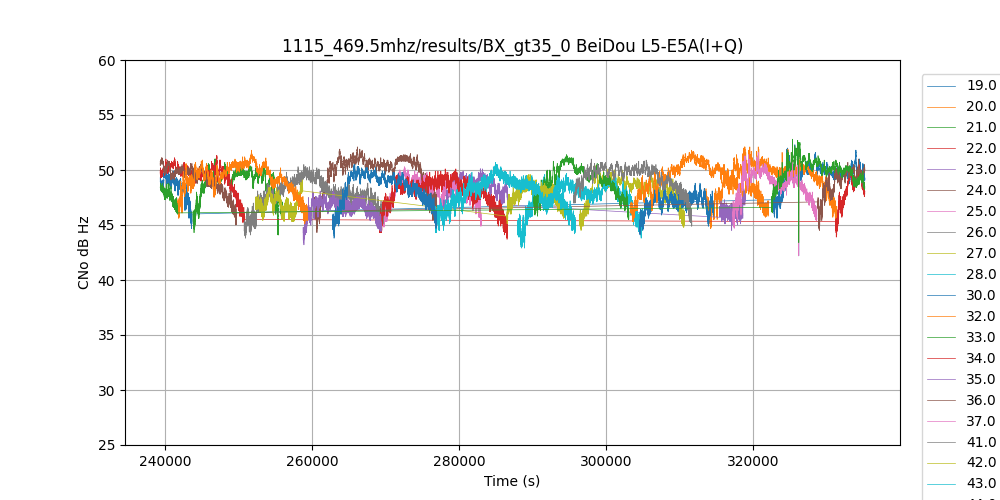

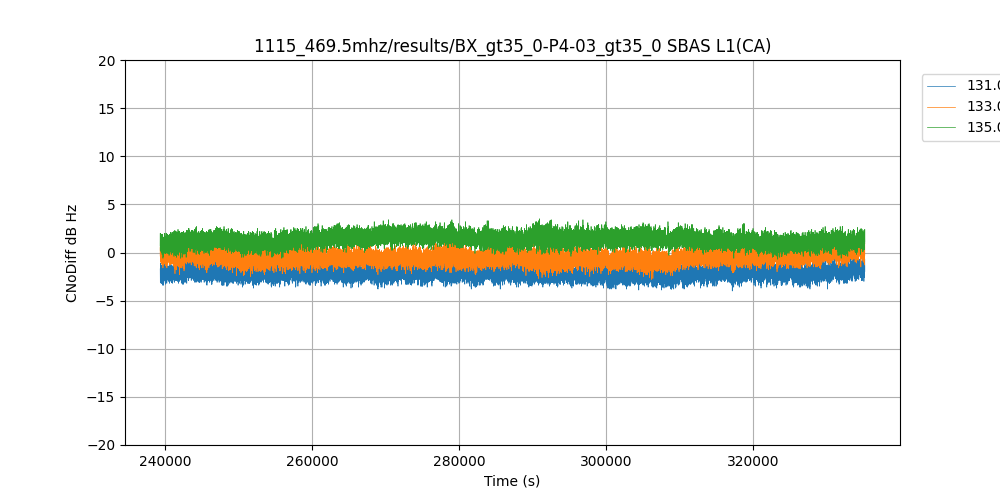

Plots

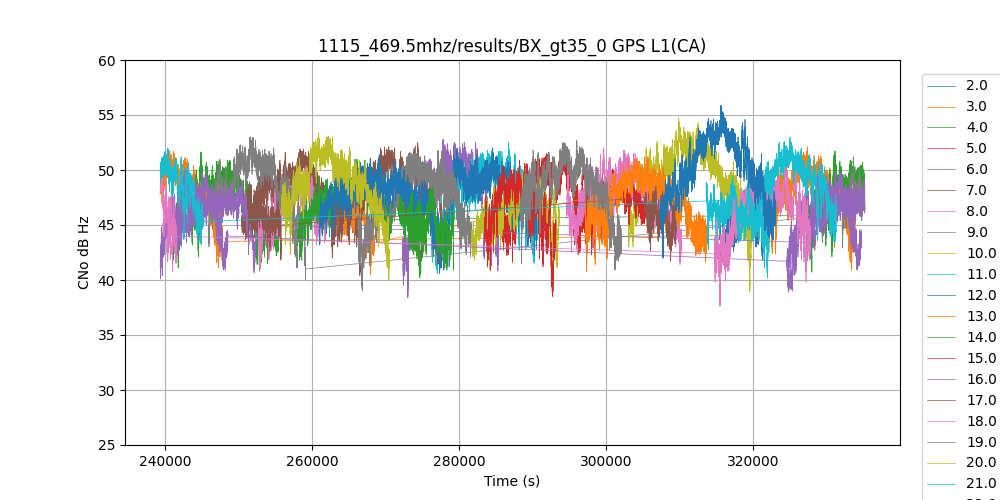

REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 45.4 48.6 41.1 0 [30.0] [0.0] 7152
3 56.9 0.0 47.9 52.1 40.9 56 [32.0, 34.0] [0.0] 20300
4 60.5 -0.0 47.1 51.7 40.7 163 [35.0, 25.0] [0.0] 23332
5 58.8 0.0 48.0 52.0 41.6 0 [33.0] [0.0] 12790
6 59.3 -0.0 48.2 52.8 38.4 0 [22.0] [0.0] 12985
7 58.8 -0.0 47.8 51.9 40.4 0 [27.0] [0.0] 16232
8 47.4 0.0 46.5 50.4 41.0 0 [22.0] [0.0] 9464
9 56.8 -0.0 48.3 53.0 40.0 125 [36.0, 32.0] [0.0] 16290
10 55.7 -0.0 49.5 54.7 38.9 0 [16.0] [0.0] 16770
11 61.2 0.0 47.7 52.5 40.6 0 [34.0] [0.0] 14427
12 57.5 -0.0 48.4 52.0 41.2 0 [27.0] [0.0] 12437
13 37.3 0.0 45.9 49.4 40.5 124 [6.0, 37.0] [0.0] 8867
14 56.5 0.0 47.0 51.0 40.2 0 [24.0] [0.0] 16754
15 51.0 -0.0 47.1 50.7 42.3 0 [29.0] [0.0] 10602
16 53.5 0.0 46.3 49.8 40.7 199 [30.0, 27.0] [0.0] 18248
17 60.9 0.0 48.0 52.5 41.4 0 [30.0] [0.0] 14971
18 58.3 -0.0 47.7 52.0 41.4 0 [31.0] [0.0] 15593
19 58.8 0.0 47.5 52.2 39.0 0 [25.0] [0.0] 15391
20 54.3 0.0 46.2 50.0 40.9 0 [28.0] [0.0] 11842
21 43.7 0.0 45.9 49.4 40.2 0 [33.0] [0.0] 8542
22 56.5 0.0 47.4 51.4 40.6 0 [10.0] [0.0] 17198
23 56.1 -0.0 47.2 51.2 40.8 0 [25.0] [0.0] 16466
24 39.6 0.0 45.0 48.4 40.9 0 [31.0] [0.0] 6232
25 47.9 0.0 46.6 50.9 38.5 0 [17.0] [0.0] 9700
26 49.6 0.0 46.0 50.3 38.9 214 [26.0, 23.0] [0.0] 19313
27 37.1 -0.0 45.5 48.5 41.7 178 [23.0, 34.0] [0.0] 8713
28 56.4 -0.0 46.2 50.5 37.6 212 [13.0, 35.0] [0.0] 15258
29 61.1 -0.0 48.4 52.7 40.9 0 [20.0] [0.0] 13775
30 61.3 0.0 48.7 53.4 40.0 0 [29.0] [0.0] 14671
31 59.1 0.0 48.4 53.0 43.2 43 [24.0, 29.0] [0.0] 19390
32 59.3 -0.0 50.2 55.9 42.0 0 [28.0] [0.0] 15722
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 0.0 45.6 49.3 40.4 0 [29.0] [0.0] 7150
3 56.9 0.0 47.8 52.1 41.6 245 [34.0, 32.0] [0.0] 20295
4 60.5 -0.0 46.9 51.1 41.7 203 [35.0, 24.0] [0.0] 23329
5 58.8 -0.0 48.0 51.9 41.8 0 [34.0] [0.0] 12789
6 59.3 -0.0 48.1 52.4 40.5 0 [22.0] [0.0] 12983
7 58.8 -0.0 47.4 51.6 41.6 0 [26.0] [0.0] 16231
8 47.4 0.0 46.5 50.9 41.1 0 [22.0] [0.0] 9462
9 56.8 0.0 48.1 53.0 41.9 247 [36.0, 30.0] [0.0] 16284
10 55.7 0.0 49.3 53.9 41.3 0 [15.0] [0.0] 16769
11 61.2 -0.0 47.8 52.2 42.2 0 [32.0] [0.0] 14427
12 57.5 -0.0 48.1 52.5 40.9 0 [26.0] [0.0] 12437
13 37.3 -0.0 45.6 49.3 41.7 129 [6.0, 37.0] [0.0] 8866
14 56.5 -0.0 46.9 50.5 39.2 0 [19.0] [0.0] 16754
15 51.0 -0.0 47.3 50.2 41.5 0 [31.0] [0.0] 10600
16 53.5 -0.0 46.3 49.7 40.7 226 [29.0, 26.0] [0.0] 18245
17 60.9 0.0 48.0 52.2 42.4 0 [29.0] [0.0] 14973
18 58.3 -0.0 47.3 51.6 40.1 0 [33.0] [0.0] 15593
19 58.8 0.0 47.4 51.7 39.2 0 [35.0] [0.0] 15392
20 54.3 0.0 46.2 49.8 40.4 0 [30.0] [0.0] 11844
21 43.7 0.0 45.8 49.5 38.0 0 [34.0] [0.0] 8539
22 56.5 0.0 47.1 51.3 40.5 0 [12.0] [0.0] 17199
23 56.1 -0.0 47.0 50.9 40.3 0 [24.0] [0.0] 16464
24 39.6 -0.0 44.7 48.9 40.1 0 [33.0] [0.0] 6233
25 47.9 -0.0 46.3 51.2 39.1 0 [23.0] [0.0] 9703
26 49.6 0.0 46.3 51.1 40.2 191 [25.0, 27.0] [0.0] 19314
27 37.1 -0.0 45.5 49.0 39.9 176 [24.0, 32.0] [0.0] 8717
28 56.4 -0.0 46.1 50.1 39.8 167 [14.0, 35.0] [0.0] 15254
29 61.1 -0.0 48.2 52.6 41.8 0 [21.0] [0.0] 13777
30 61.3 -0.0 48.5 53.0 39.7 0 [27.0] [0.0] 14670
31 59.1 -0.0 48.3 52.3 43.6 136 [19.0, 31.0] [0.0] 19387
32 59.3 0.0 50.1 55.5 42.8 0 [28.0] [0.0] 15722

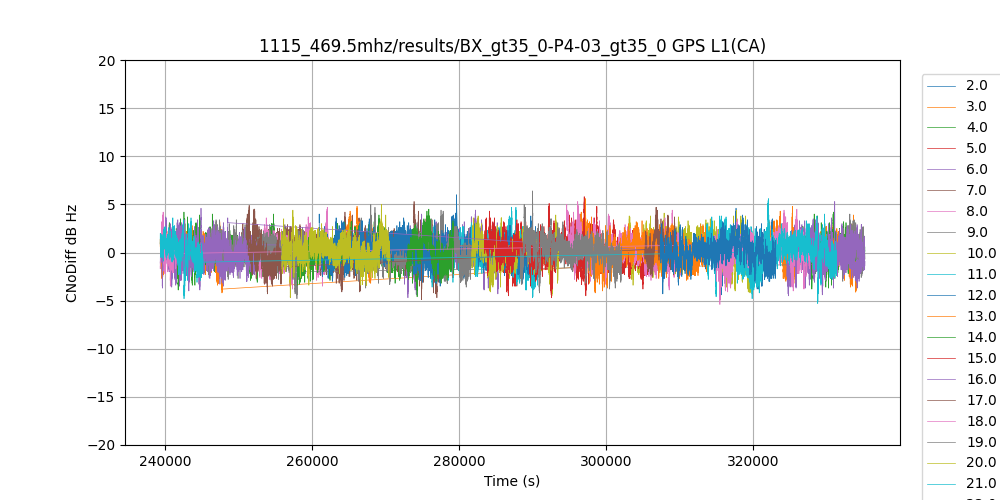

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 -0.2 4.6 -4.4 [30.0, 29.0] 7150
3 56.9 0.1 4.8 -4.2 [32.0, 34.0] 20295
4 60.5 0.3 4.2 -3.9 [35.0, 25.0, 24.0] 23327
5 58.8 0.0 5.8 -4.5 [33.0, 34.0] 12789
6 59.3 0.1 4.4 -4.7 [22.0] 12983
7 58.8 0.4 4.5 -4.1 [27.0, 26.0] 16231
8 47.4 -0.0 4.7 -3.8 [22.0] 9462
9 56.8 0.2 4.0 -4.8 [36.0, 32.0, 30.0] 16284
10 55.7 0.2 4.4 -4.2 [16.0, 15.0] 16769
11 61.2 -0.1 4.7 -4.7 [34.0, 32.0] 14427
12 57.5 0.3 6.0 -3.2 [27.0, 26.0] 12436
13 37.3 0.3 4.8 -3.7 [6.0, 37.0] 8864
14 56.5 0.0 3.9 -4.6 [24.0, 19.0] 16754
15 51.0 -0.2 4.8 -3.8 [29.0, 31.0] 10600
16 53.5 0.1 5.3 -4.4 [30.0, 29.0, 27.0, 26.0] 18242
17 60.9 0.1 5.3 -4.9 [30.0, 29.0] 14971
18 58.3 0.3 5.3 -3.9 [31.0, 33.0] 15592
19 58.8 0.1 5.0 -3.7 [25.0, 35.0] 15391
20 54.3 0.0 3.9 -4.5 [28.0, 30.0] 11842
21 43.7 0.1 5.6 -4.6 [33.0, 34.0] 8539
22 56.5 0.3 4.0 -3.5 [10.0, 12.0] 17198
23 56.1 0.1 5.6 -4.2 [25.0, 24.0] 16464
24 39.6 0.3 4.5 -3.2 [31.0, 33.0] 6232
25 47.9 0.3 5.1 -4.7 [17.0, 23.0] 9700
26 49.6 -0.3 3.7 -4.5 [26.0, 25.0, 23.0, 27.0] 19310
27 37.1 0.1 4.9 -4.3 [23.0, 24.0, 34.0, 32.0] 8713
28 56.4 0.1 4.5 -5.4 [13.0, 14.0, 35.0] 15253
29 61.1 0.2 6.4 -4.2 [20.0, 21.0] 13775
30 61.3 0.2 5.0 -4.7 [29.0, 27.0] 14670
31 59.1 0.1 4.0 -5.3 [24.0, 19.0, 29.0, 31.0] 19385
32 59.3 0.1 3.9 -4.3 [28.0] 15722

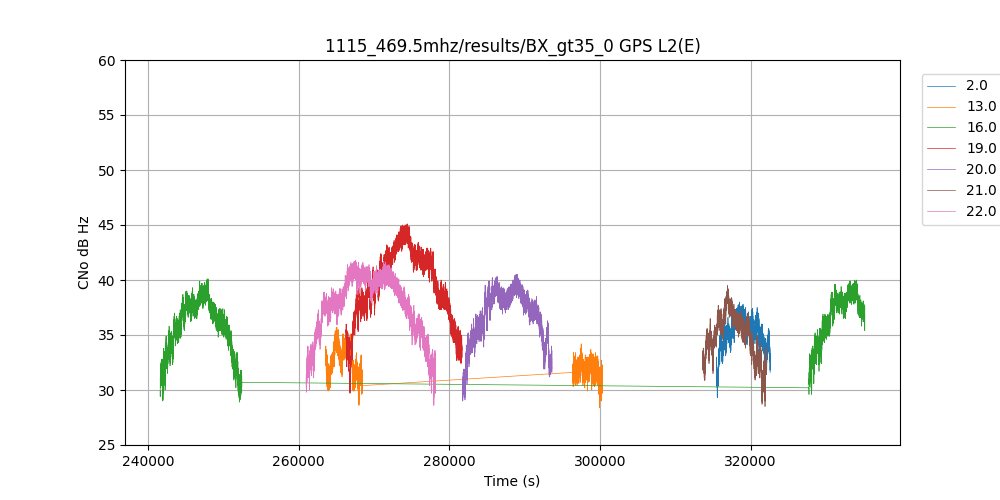

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 35.1 38.0 29.3 0 [30.0] [0.0] 7152
13 37.3 0.0 32.3 35.7 28.4 13 [6.0, 37.0] [0.0] 8867
16 53.5 0.0 36.0 40.1 28.9 26 [30.0, 27.0] [0.0] 18248
19 58.8 0.0 39.6 45.1 29.7 0 [25.0] [0.0] 15391
20 54.3 0.0 36.7 40.5 29.0 0 [28.0] [0.0] 11842
21 43.7 0.0 34.8 39.5 28.5 0 [33.0] [0.0] 8542
22 56.5 0.0 37.6 41.8 28.6 0 [10.0] [0.0] 17198

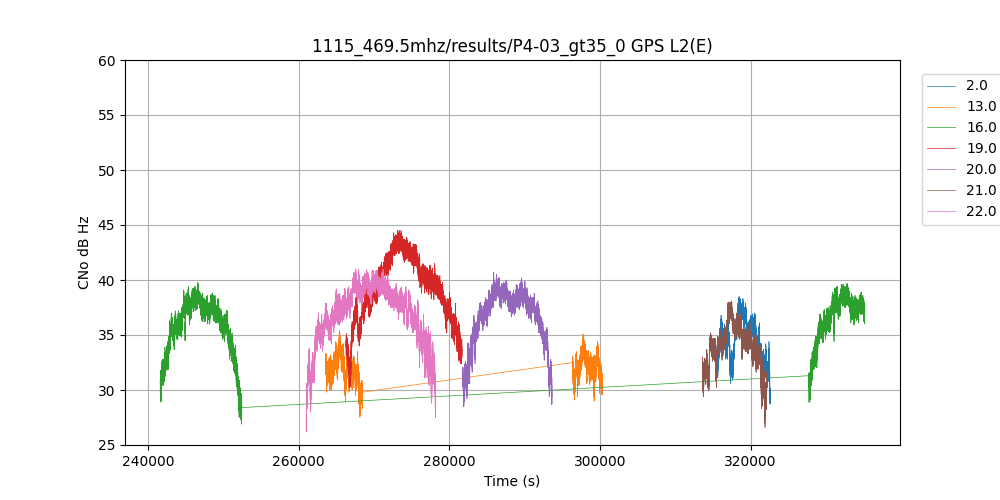

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 0.0 34.5 38.5 28.7 0 [29.0] [0.0] 7150
13 37.3 -0.0 31.9 35.4 27.5 133 [6.0, 37.0] [0.0] 8866
16 53.5 -0.0 36.0 39.8 26.9 194 [29.0, 26.0] [0.0] 18245
19 58.8 0.0 39.2 44.5 30.2 0 [35.0] [0.0] 15392
20 54.3 0.0 36.6 40.7 28.5 0 [30.0] [0.0] 11844
21 43.7 0.0 33.9 38.1 26.6 0 [34.0] [0.0] 8539
22 56.5 0.0 36.9 41.0 26.2 0 [12.0] [0.0] 17199

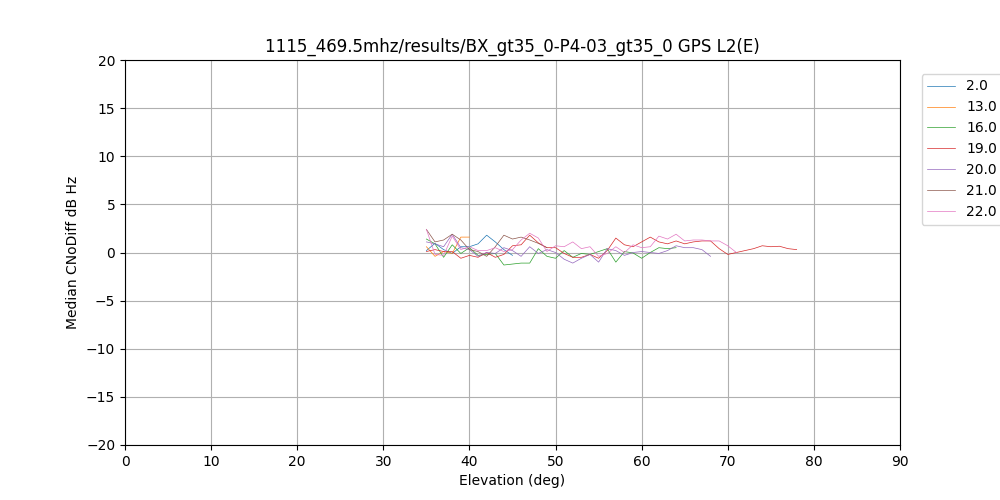

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 0.6 4.8 -3.5 [30.0, 29.0] 7150
13 37.3 0.3 5.2 -4.3 [6.0, 37.0] 8864
16 53.5 0.0 4.2 -3.6 [30.0, 29.0, 27.0, 26.0] 18242
19 58.8 0.4 4.8 -3.1 [25.0, 35.0] 15391
20 54.3 0.1 4.2 -3.3 [28.0, 30.0] 11842
21 43.7 1.0 5.0 -2.7 [33.0, 34.0] 8539
22 56.5 0.8 4.9 -3.8 [10.0, 12.0] 17198

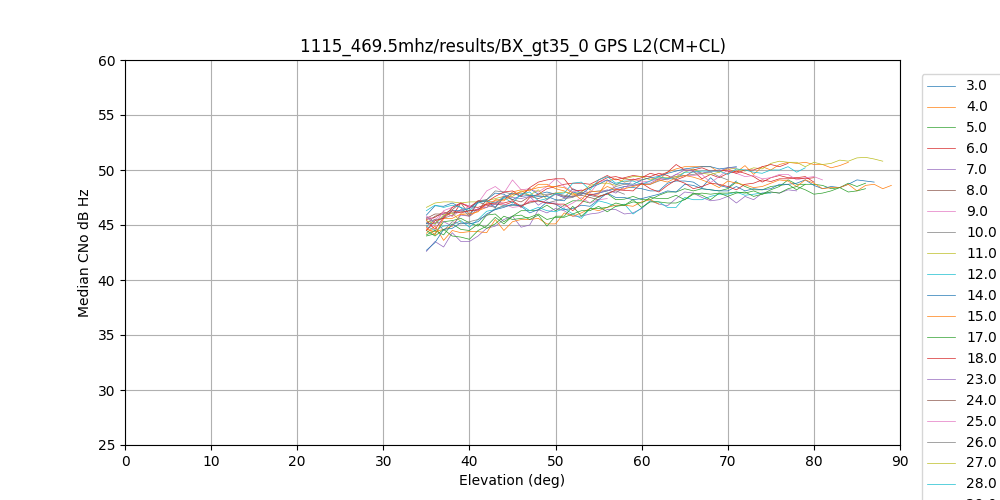

REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 56.9 0.0 48.1 50.4 44.2 60 [32.0, 34.0] [0.0] 20300
4 60.5 -0.0 48.7 52.1 42.4 36 [35.0, 25.0] [0.0] 23332
5 58.8 0.0 47.3 50.2 42.7 0 [33.0] [0.0] 12790
6 59.3 -0.0 48.6 50.9 44.0 0 [22.0] [0.0] 12985
7 58.8 -0.0 46.4 49.6 41.1 0 [27.0] [0.0] 16232
8 47.4 0.0 47.2 49.1 43.4 0 [22.0] [0.0] 9464
9 56.8 -0.0 48.4 51.4 42.3 120 [36.0, 32.0] [0.0] 16290
10 55.7 -0.0 48.3 51.1 44.1 0 [16.0] [0.0] 16770
11 61.2 0.0 49.1 52.3 45.5 0 [34.0] [0.0] 14427
12 57.5 -0.0 46.7 49.3 42.1 0 [27.0] [0.0] 12437
14 56.5 0.0 48.7 51.9 42.6 0 [24.0] [0.0] 16754
15 51.0 -0.0 45.9 48.6 41.8 0 [29.0] [0.0] 10602
17 60.9 0.0 46.9 50.2 42.2 0 [30.0] [0.0] 14971
18 58.3 -0.0 49.0 52.1 43.2 0 [31.0] [0.0] 15593
23 56.1 -0.0 48.3 51.4 43.6 0 [25.0] [0.0] 16466
24 39.6 0.0 46.4 48.8 44.0 0 [31.0] [0.0] 6232
25 47.9 0.0 46.8 49.0 43.8 0 [17.0] [0.0] 9700
26 49.6 0.0 47.0 49.5 42.6 209 [26.0, 23.0] [0.0] 19313
27 37.1 -0.0 45.6 48.1 42.1 0 [23.0, 34.0] [0.0] 8713
28 56.4 -0.0 48.5 51.4 44.9 63 [13.0, 35.0] [0.0] 15258
29 61.1 -0.0 47.3 50.2 41.1 0 [20.0] [0.0] 13775
30 61.3 0.0 48.0 51.0 42.2 0 [29.0] [0.0] 14671
31 59.1 0.0 46.6 49.6 41.8 47 [24.0, 29.0] [0.0] 19390
32 59.3 -0.0 47.9 50.6 43.1 0 [28.0] [0.0] 15722
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 56.9 0.0 47.9 50.3 42.6 219 [34.0, 32.0] [0.0] 20295
4 60.5 -0.0 48.6 52.0 42.8 152 [35.0, 24.0] [0.0] 23329
5 58.8 -0.0 47.1 50.0 41.5 0 [34.0] [0.0] 12789
6 59.3 -0.0 48.4 50.9 42.5 0 [22.0] [0.0] 12983
7 58.8 -0.0 46.1 49.6 40.1 0 [26.0] [0.0] 16231
8 47.4 0.0 47.1 49.7 41.4 0 [22.0] [0.0] 9462
9 56.8 0.0 48.2 51.1 42.3 98 [36.0, 30.0] [0.0] 16284
10 55.7 0.0 48.0 50.9 43.6 0 [15.0] [0.0] 16769
11 61.2 -0.0 49.0 52.4 43.6 0 [32.0] [0.0] 14427
12 57.5 -0.0 46.4 49.1 40.8 0 [26.0] [0.0] 12437
14 56.5 -0.0 48.4 52.3 42.6 0 [19.0] [0.0] 16754
15 51.0 -0.0 45.8 49.0 41.1 0 [31.0] [0.0] 10600
17 60.9 0.0 46.7 49.9 40.9 0 [29.0] [0.0] 14973
18 58.3 -0.0 48.8 52.1 43.0 0 [33.0] [0.0] 15593
23 56.1 -0.0 47.9 51.5 43.6 0 [24.0] [0.0] 16464
24 39.6 -0.0 45.9 48.0 42.7 0 [33.0] [0.0] 6233
25 47.9 -0.0 46.2 48.4 41.1 0 [23.0] [0.0] 9703
26 49.6 0.0 47.1 49.8 42.3 28 [25.0, 27.0] [0.0] 19314
27 37.1 -0.0 45.7 48.3 42.3 240 [24.0, 32.0] [0.0] 8717
28 56.4 -0.0 48.4 51.7 43.9 52 [14.0, 35.0] [0.0] 15254
29 61.1 -0.0 47.1 50.3 41.3 0 [21.0] [0.0] 13777
30 61.3 -0.0 47.8 50.7 42.8 0 [27.0] [0.0] 14670
31 59.1 -0.0 46.5 49.9 41.1 204 [19.0, 31.0] [0.0] 19387
32 59.3 0.0 47.6 50.3 42.6 0 [28.0] [0.0] 15722
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 56.9 0.2 3.7 -2.4 [32.0, 34.0] 20295
4 60.5 0.1 2.7 -4.4 [35.0, 25.0, 24.0] 23327
5 58.8 0.2 2.8 -2.4 [33.0, 34.0] 12789
6 59.3 0.2 2.8 -2.4 [22.0] 12983
7 58.8 0.3 2.8 -3.7 [27.0, 26.0] 16231
8 47.4 0.0 4.4 -2.8 [22.0] 9462
9 56.8 0.2 3.4 -2.3 [36.0, 32.0, 30.0] 16284
10 55.7 0.3 3.4 -2.6 [16.0, 15.0] 16769
11 61.2 0.1 3.1 -2.8 [34.0, 32.0] 14427
12 57.5 0.4 4.4 -4.0 [27.0, 26.0] 12436
14 56.5 0.3 3.8 -2.5 [24.0, 19.0] 16754
15 51.0 0.1 3.5 -3.7 [29.0, 31.0] 10600
17 60.9 0.2 2.7 -3.2 [30.0, 29.0] 14971
18 58.3 0.2 3.8 -2.4 [31.0, 33.0] 15592
23 56.1 0.4 4.2 -2.4 [25.0, 24.0] 16464
24 39.6 0.6 3.4 -2.5 [31.0, 33.0] 6232
25 47.9 0.6 4.3 -3.8 [17.0, 23.0] 9700
26 49.6 -0.1 2.7 -2.7 [26.0, 25.0, 23.0, 27.0] 19310
27 37.1 -0.1 3.3 -2.9 [23.0, 24.0, 34.0, 32.0] 8713
28 56.4 0.1 3.0 -3.2 [13.0, 14.0, 35.0] 15253
29 61.1 0.2 3.6 -3.2 [20.0, 21.0] 13775
30 61.3 0.2 3.0 -2.9 [29.0, 27.0] 14670
31 59.1 0.0 3.8 -3.2 [24.0, 19.0, 29.0, 31.0] 19385
32 59.3 0.2 2.7 -3.5 [28.0] 15722
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 56.9 0.0 50.8 54.5 44.7 157 [32.0, 34.0] [0.0] 20300
4 60.5 -0.0 50.3 53.1 45.5 247 [35.0, 25.0] [0.0] 23332
6 59.3 -0.0 50.2 53.4 45.6 0 [22.0] [0.0] 12985
8 47.4 0.0 49.2 50.8 45.6 0 [22.0] [0.0] 9464
9 56.8 -0.0 50.3 52.7 46.0 71 [36.0, 32.0] [0.0] 16290
10 55.7 -0.0 49.9 52.2 46.2 0 [16.0] [0.0] 16770
11 61.2 0.0 51.0 54.1 45.6 0 [34.0] [0.0] 14427
14 56.5 0.0 50.5 54.3 45.8 0 [24.0] [0.0] 16754
18 58.3 -0.0 51.0 53.6 45.5 0 [31.0] [0.0] 15593
23 56.1 -0.0 50.1 53.3 45.6 0 [25.0] [0.0] 16466
24 39.6 0.0 48.5 50.2 45.5 0 [31.0] [0.0] 6232
25 47.9 0.0 49.6 52.3 46.6 0 [17.0] [0.0] 9700
26 49.6 0.0 49.3 51.3 43.1 57 [26.0, 23.0] [0.0] 19313
27 37.1 -0.0 47.0 49.0 44.8 120 [23.0, 34.0] [0.0] 8713
28 56.4 -0.0 50.2 54.6 41.4 116 [13.0, 35.0] [0.0] 15258
30 61.3 0.0 51.0 53.1 45.6 0 [29.0] [0.0] 14671
32 59.3 -0.0 48.8 51.3 44.2 0 [28.0] [0.0] 15722
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 56.9 0.0 50.1 53.1 43.9 130 [34.0, 32.0] [0.0] 20295
4 60.5 -0.0 49.8 52.8 45.2 57 [35.0, 24.0] [0.0] 23329
6 59.3 -0.0 49.7 51.9 44.7 0 [22.0] [0.0] 12983
8 47.4 0.0 48.9 50.9 45.1 0 [22.0] [0.0] 9462
9 56.8 0.0 49.9 52.4 46.1 231 [36.0, 30.0] [0.0] 16284
10 55.7 0.0 49.4 51.3 45.8 0 [15.0] [0.0] 16769
11 61.2 -0.0 50.5 54.0 46.1 0 [32.0] [0.0] 14427
14 56.5 -0.0 49.8 53.4 43.6 0 [19.0] [0.0] 16754
18 58.3 -0.0 50.5 53.2 44.5 0 [33.0] [0.0] 15593
23 56.1 -0.0 49.5 53.0 44.7 0 [24.0] [0.0] 16464
24 39.6 -0.0 47.6 49.6 43.8 0 [33.0] [0.0] 6233
25 47.9 -0.0 48.8 51.3 45.9 0 [23.0] [0.0] 9703
26 49.6 0.0 48.9 51.4 43.0 196 [25.0, 27.0] [0.0] 19314
27 37.1 -0.0 47.2 50.5 44.8 180 [24.0, 32.0] [0.0] 8717
28 56.4 -0.0 49.5 53.9 40.5 41 [14.0, 35.0] [0.0] 15254
30 61.3 -0.0 50.6 52.8 46.6 0 [27.0] [0.0] 14670
32 59.3 0.0 48.1 51.0 44.5 0 [28.0] [0.0] 15722
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 56.9 0.7 2.6 -1.2 [32.0, 34.0] 20295
4 60.5 0.5 2.6 -2.4 [35.0, 25.0, 24.0] 23327
6 59.3 0.5 2.5 -1.3 [22.0] 12983
8 47.4 0.3 2.8 -2.5 [22.0] 9462
9 56.8 0.4 2.3 -1.6 [36.0, 32.0, 30.0] 16284
10 55.7 0.5 1.9 -1.5 [16.0, 15.0] 16769
11 61.2 0.5 2.8 -1.2 [34.0, 32.0] 14427
14 56.5 0.7 3.0 -2.6 [24.0, 19.0] 16754
18 58.3 0.5 2.3 -1.6 [31.0, 33.0] 15592
23 56.1 0.6 3.7 -1.6 [25.0, 24.0] 16464
24 39.6 0.9 4.1 -1.2 [31.0, 33.0] 6232
25 47.9 0.7 2.7 -1.7 [17.0, 23.0] 9700
26 49.6 0.4 2.2 -1.4 [26.0, 25.0, 23.0, 27.0] 19310
27 37.1 -0.2 2.5 -2.7 [23.0, 24.0, 34.0, 32.0] 8713
28 56.4 0.8 2.8 -1.1 [13.0, 14.0, 35.0] 15253
30 61.3 0.4 2.6 -2.3 [29.0, 27.0] 14670
32 59.3 0.7 2.3 -1.9 [28.0] 15722
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 -0.0 43.1 45.4 40.8 0 [57.0] [0.0] 95804
133 38.0 -0.0 42.2 44.2 39.6 0 [55.0] [0.0] 95804
135 39.5 -0.0 43.0 45.3 40.5 0 [54.0] [0.0] 95804
DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 -0.0 45.3 47.6 42.7 0 [56.0] [0.0] 95797
133 38.0 -0.0 42.7 45.1 39.9 0 [57.0] [0.0] 95797
135 39.5 -0.0 41.7 43.8 38.8 0 [55.0] [0.0] 95797
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 -2.1 -0.2 -4.0 [57.0, 56.0] 95797
133 38.0 -0.5 2.1 -2.8 [55.0, 57.0] 95797
135 39.5 1.3 3.5 -0.7 [54.0, 55.0] 95797
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 54.8 -0.0 46.2 49.2 38.2 75 [1.0] [0.0] 15140
2 39.6 -0.0 48.9 52.3 44.5 87 [-4.0] [0.0] 10062
3 49.4 -0.0 47.2 50.2 41.4 0 [5.0] [0.0] 8736
4 58.8 -0.0 48.4 52.4 41.2 0 [6.0] [0.0] 10899
5 59.6 0.0 50.3 53.5 44.8 0 [1.0] [0.0] 12296
6 49.6 0.0 38.1 42.0 31.4 246 [-4.0] [0.0] 17672
7 54.7 0.0 48.4 52.5 42.0 31 [5.0] [0.0] 24172
8 58.6 -0.0 46.8 50.6 40.0 186 [6.0] [0.0] 24423
9 56.2 -0.0 48.8 52.8 44.1 193 [-2.0] [0.0] 17276
10 59.1 -0.0 44.8 48.7 38.8 128 [-7.0] [0.0] 23073
11 56.6 -0.0 49.7 54.2 42.5 173 [0.0] [0.0] 21520
12 49.4 -0.0 49.9 53.4 44.6 217 [-1.0] [0.0] 15169
13 56.2 0.0 39.3 43.3 31.0 0 [-2.0] [0.0] 12984
14 60.8 -0.0 51.5 55.2 46.1 0 [-7.0] [0.0] 11510
15 52.7 -0.0 49.9 53.8 43.8 0 [0.0] [0.0] 9576
16 39.9 0.0 48.4 52.4 44.1 454 [-1.0] [0.0] 11710
17 51.1 0.0 49.0 52.7 43.0 0 [4.0] [0.0] 13755
18 48.8 -0.0 49.3 52.9 44.7 0 [-3.0] [0.0] 14281
19 53.3 0.0 38.3 41.3 32.2 0 [3.0] [0.0] 13165
20 61.3 0.0 38.0 41.4 31.2 0 [2.0] [0.0] 11683
21 48.3 -0.0 48.9 52.5 42.1 58 [4.0] [0.0] 13846
22 45.4 -0.0 49.4 53.2 42.8 215 [-3.0] [0.0] 14820
23 59.0 -0.0 46.7 50.5 40.4 0 [3.0] [0.0] 10835
24 59.3 -0.0 49.6 53.0 43.7 0 [2.0] [0.0] 12423
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 54.8 -0.0 45.8 48.6 38.9 225 [1.0] [0.0] 15137
2 39.6 0.0 48.7 51.7 44.2 120 [-4.0] [0.0] 10064
3 49.4 -0.0 47.2 50.5 41.6 0 [5.0] [0.0] 8734
4 58.8 -0.0 47.8 51.4 41.7 0 [6.0] [0.0] 10900
5 59.6 -0.0 49.8 53.2 45.4 0 [1.0] [0.0] 12296
6 49.6 0.0 37.5 40.3 32.6 102 [-4.0] [0.0] 17668
7 54.7 0.0 47.8 52.1 40.4 56 [5.0] [0.0] 24167
8 58.6 0.0 46.3 49.4 40.8 104 [6.0] [0.0] 24421
9 56.2 0.0 48.9 52.1 42.7 192 [-2.0] [0.0] 17270
10 59.1 -0.0 44.1 48.1 38.9 116 [-7.0] [0.0] 23070
11 56.6 0.0 49.5 53.3 40.8 137 [0.0] [0.0] 21518
12 49.4 -0.0 49.7 52.9 43.0 105 [-1.0] [0.0] 15165
13 56.2 -0.0 39.0 42.7 32.8 0 [-2.0] [0.0] 12985
14 60.8 0.0 50.6 54.2 45.8 0 [-7.0] [0.0] 11510
15 52.7 -0.0 49.9 53.3 44.6 0 [0.0] [0.0] 9579
16 39.9 0.0 48.7 51.5 45.1 418 [-1.0] [0.0] 11705
17 51.1 -0.0 48.6 52.2 40.9 0 [4.0] [0.0] 13756
18 48.8 0.0 48.1 51.4 41.8 0 [-3.0] [0.0] 14282
19 53.3 -0.0 37.6 41.5 30.6 0 [3.0] [0.0] 13164
20 61.3 -0.0 37.4 41.0 31.1 0 [2.0] [0.0] 11683
21 48.3 -0.0 48.9 52.3 41.1 189 [4.0] [0.0] 13850
22 45.4 -0.0 49.0 52.5 41.0 129 [-3.0] [0.0] 14822
23 59.0 0.0 46.3 49.8 41.1 0 [3.0] [0.0] 10834
24 59.3 0.0 49.3 52.4 44.9 0 [2.0] [0.0] 12424
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 54.8 0.4 4.4 -4.2 [1.0] 15135
2 39.6 0.3 5.5 -3.4 [-4.0] 10062
3 49.4 0.1 3.9 -4.2 [5.0] 8734
4 58.8 0.5 4.0 -3.5 [6.0] 10899
5 59.6 0.5 4.4 -3.9 [1.0] 12296
6 49.6 0.6 5.1 -5.0 [-4.0] 17667
7 54.7 0.6 5.5 -4.0 [5.0] 24167
8 58.6 0.5 4.3 -4.2 [6.0] 24421
9 56.2 -0.1 5.2 -5.2 [-2.0] 17270
10 59.1 0.7 4.8 -3.8 [-7.0] 23070
11 56.6 0.1 5.8 -4.5 [0.0] 21516
12 49.4 0.2 5.3 -4.1 [-1.0] 15165
13 56.2 0.4 5.2 -3.9 [-2.0] 12984
14 60.8 0.8 4.9 -2.6 [-7.0] 11509
15 52.7 -0.0 4.2 -3.7 [0.0] 9576
16 39.9 -0.3 4.7 -4.5 [-1.0] 11705
17 51.1 0.4 4.6 -4.7 [4.0] 13755
18 48.8 1.2 5.2 -2.4 [-3.0] 14281
19 53.3 0.7 5.1 -3.3 [3.0] 13164
20 61.3 0.6 4.1 -2.6 [2.0] 11683
21 48.3 -0.0 4.9 -4.3 [4.0] 13846
22 45.4 0.5 5.6 -4.8 [-3.0] 14819
23 59.0 0.4 3.4 -3.6 [3.0] 10834
24 59.3 0.3 4.2 -5.9 [2.0] 12423
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 54.8 -0.0 42.5 45.2 38.8 195 [1.0] [0.0] 15140
2 39.6 -0.0 46.1 48.9 42.4 240 [-4.0] [0.0] 10062
3 49.4 -0.0 47.3 49.5 44.5 0 [5.0] [0.0] 8736
4 58.8 -0.0 48.1 50.5 44.6 0 [6.0] [0.0] 10899
5 59.6 0.0 47.9 50.0 43.5 0 [1.0] [0.0] 12296
6 45.8 -0.2 16.5 19.5 10.4 5 [-4.0] [0.0] 6
7 54.7 0.0 47.8 50.9 41.5 191 [5.0] [0.0] 24172
8 58.6 -0.0 47.6 50.3 42.1 145 [6.0] [0.0] 24423
9 56.2 -0.0 48.7 51.4 44.5 224 [-2.0] [0.0] 17276
10 67.6 -0.2 33.1 40.8 12.7 130 [-7.0] [0.0] 25
11 56.6 -0.0 48.9 51.5 44.5 53 [0.0] [0.0] 21520
12 49.4 -0.0 47.8 50.8 44.2 199 [-1.0] [0.0] 15169
13 56.2 0.0 40.7 43.2 37.3 0 [-2.0] [0.0] 12984
14 60.8 -0.0 47.7 50.7 44.1 0 [-7.0] [0.0] 11510
15 52.7 -0.0 47.3 49.9 44.3 0 [0.0] [0.0] 9576
16 39.9 0.0 46.6 49.4 43.0 357 [-1.0] [0.0] 11710
17 51.1 0.0 48.0 50.8 44.3 0 [4.0] [0.0] 13755
18 48.8 -0.0 47.5 50.3 43.9 0 [-3.0] [0.0] 14281
19 53.3 0.0 45.6 48.2 41.3 0 [3.0] [0.0] 13165
20 61.3 0.0 41.4 44.0 37.1 0 [2.0] [0.0] 11683
21 48.3 -0.0 46.7 49.4 42.9 186 [4.0] [0.0] 13846
22 45.4 -0.0 47.5 49.7 44.3 163 [-3.0] [0.0] 14820
23 64.2 0.1 35.4 40.0 29.4 13 [3.0] [0.0] 14
24 59.3 -0.0 47.3 49.5 43.7 0 [2.0] [0.0] 12423
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 54.8 -0.0 42.1 44.9 37.5 85 [1.0] [0.0] 15137
2 39.6 0.0 45.4 48.4 40.7 122 [-4.0] [0.0] 10064
3 49.4 -0.0 47.4 49.5 43.3 0 [5.0] [0.0] 8734
4 58.8 -0.0 48.0 50.1 43.9 0 [6.0] [0.0] 10900
5 59.6 -0.0 47.6 50.0 42.0 0 [1.0] [0.0] 12296
6 56.0 0.4 10.1 10.1 10.1 0 [-4.0] [0.0] 1
7 54.7 0.0 47.6 50.7 41.6 18 [5.0] [0.0] 24167
8 58.6 0.0 47.4 50.0 43.0 168 [6.0] [0.0] 24421
9 56.2 0.0 48.5 51.4 43.8 81 [-2.0] [0.0] 17270
10 70.5 0.0 31.8 40.7 13.9 195 [-7.0] [0.0] 18
11 56.6 0.0 48.5 50.8 40.8 105 [0.0] [0.0] 21518
12 49.4 -0.0 47.4 50.8 42.4 73 [-1.0] [0.0] 15165
13 56.2 -0.0 40.5 43.4 35.1 0 [-2.0] [0.0] 12985
14 60.8 0.0 47.6 50.0 42.4 0 [-7.0] [0.0] 11510
15 52.7 -0.0 47.3 49.8 43.3 0 [0.0] [0.0] 9579
16 39.9 0.0 46.0 48.9 42.2 304 [-1.0] [0.0] 11705
17 51.1 -0.0 47.3 50.3 43.1 0 [4.0] [0.0] 13756
18 48.8 0.0 47.0 50.1 41.8 0 [-3.0] [0.0] 14282
19 53.3 -0.0 45.4 48.0 40.5 0 [3.0] [0.0] 13164
20 61.3 -0.0 41.1 43.4 34.4 0 [2.0] [0.0] 11683
21 48.3 -0.0 46.5 49.3 42.6 152 [4.0] [0.0] 13850
22 45.4 -0.0 47.0 50.0 41.6 91 [-3.0] [0.0] 14822
23 62.5 -0.0 35.8 43.5 18.0 15 [3.0] [0.0] 16
24 59.3 0.0 47.1 49.6 43.6 0 [2.0] [0.0] 12424
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 54.8 0.4 3.8 -2.8 [1.0] 15135
2 39.6 0.8 4.5 -3.0 [-4.0] 10062
3 49.4 -0.0 3.3 -3.4 [5.0] 8734
4 58.8 0.1 2.7 -2.5 [6.0] 10899
5 59.6 0.3 3.8 -2.8 [1.0] 12296
7 54.7 0.1 4.2 -5.2 [5.0] 24167
8 58.6 0.1 3.4 -4.9 [6.0] 24421
9 56.2 0.2 3.1 -3.2 [-2.0] 17270
11 56.6 0.4 5.0 -2.9 [0.0] 21516
12 49.4 0.4 4.0 -2.5 [-1.0] 15165
13 56.2 0.2 4.3 -3.3 [-2.0] 12984
14 60.8 0.1 4.1 -3.0 [-7.0] 11509
15 52.7 0.0 3.0 -3.0 [0.0] 9576
16 39.9 0.6 3.8 -2.7 [-1.0] 11705
17 51.1 0.7 3.9 -1.7 [4.0] 13755
18 48.8 0.4 5.1 -4.4 [-3.0] 14281
19 53.3 0.2 3.3 -4.2 [3.0] 13164
20 61.3 0.3 4.3 -3.4 [2.0] 11683
21 48.3 0.2 3.8 -3.2 [4.0] 13846
22 45.4 0.6 5.1 -4.6 [-3.0] 14819
24 59.3 0.2 3.2 -2.7 [2.0] 12423
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 58.3 0.0 48.3 51.2 42.8 0 [49.0] [0.0] 16054
3 58.7 0.0 49.2 52.6 43.2 0 [44.0] [0.0] 11090
4 57.8 -0.0 48.9 52.0 42.5 0 [52.0] [0.0] 21700
7 49.8 -0.0 47.8 50.4 43.5 223 [51.0, 47.0] [0.0] 16798
8 61.1 -0.0 49.6 52.9 43.7 0 [38.0] [0.0] 18445
9 61.2 -0.0 49.4 51.9 45.1 0 [49.0] [0.0] 16263
10 56.6 -0.0 49.8 53.2 44.2 0 [44.0] [0.0] 14981
11 49.9 -0.0 45.6 48.5 40.3 0 [38.0] [0.0] 12365
12 60.6 -0.0 46.1 50.2 40.0 0 [41.0] [0.0] 17094
13 60.0 -0.0 47.9 50.7 43.5 0 [50.0] [0.0] 16623
15 48.7 0.0 47.8 50.3 42.6 0 [42.0] [0.0] 11830
19 59.7 -0.0 44.8 48.5 39.7 0 [48.0] [0.0] 16899
21 60.8 0.0 50.1 54.0 43.2 0 [39.0] [0.0] 17746
24 50.9 0.0 48.1 51.5 43.9 0 [43.0] [0.0] 4764
25 47.7 -0.0 48.4 51.5 44.6 0 [39.0] [0.0] 9124
26 57.4 -0.0 49.6 53.3 43.4 0 [49.0] [0.0] 21195
27 57.2 0.0 50.0 54.0 42.4 0 [46.0] [0.0] 21889
30 59.0 0.0 50.3 54.1 44.0 0 [45.0] [0.0] 20564
31 48.7 -0.0 48.4 51.9 42.7 16 [43.0, 45.0] [0.0] 15075
33 56.5 -0.0 48.2 51.2 42.6 0 [45.0] [0.0] 21612
36 36.2 0.0 47.9 50.0 45.9 0 [53.0] [0.0] 4124
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 58.3 0.0 48.3 50.4 44.1 0 [50.0] [0.0] 16051
3 58.7 0.0 49.1 52.6 41.0 0 [52.0] [0.0] 11086
4 57.8 -0.0 48.9 51.5 42.7 0 [51.0] [0.0] 21699
7 49.8 -0.0 47.8 50.7 42.6 247 [47.0, 52.0] [0.0] 16799
8 61.0 -0.0 49.7 52.9 44.7 0 [38.0] [0.0] 18447
9 61.2 -0.0 49.0 51.5 43.7 0 [47.0] [0.0] 16258
10 56.6 -0.0 49.7 52.7 45.2 0 [49.0] [0.0] 14982
11 49.9 -0.0 45.5 48.3 40.9 0 [41.0] [0.0] 12363
12 60.6 0.0 46.0 49.6 41.2 0 [40.0] [0.0] 17094
13 60.0 0.0 47.9 50.1 43.4 0 [49.0] [0.0] 16625
15 48.7 -0.0 48.0 50.6 40.2 0 [46.0] [0.0] 11830
19 59.7 0.0 44.8 48.3 39.6 0 [50.0] [0.0] 16897
21 60.8 0.0 50.1 53.8 44.9 0 [39.0] [0.0] 17744
24 50.8 0.0 48.5 51.8 44.3 0 [42.0] [0.0] 4760
25 47.7 0.0 48.5 50.9 44.2 0 [39.0] [0.0] 9121
26 57.4 0.0 49.6 52.7 42.7 0 [47.0] [0.0] 21194
27 57.2 -0.0 49.7 54.0 42.1 0 [44.0] [0.0] 21890
30 59.0 -0.0 50.3 53.7 43.6 0 [45.0] [0.0] 20563
31 48.7 0.0 48.1 52.0 43.5 137 [42.0, 52.0] [0.0] 15068
33 56.5 0.0 48.0 51.0 42.8 0 [45.0] [0.0] 21610
36 36.2 -0.0 47.4 49.3 43.9 0 [43.0] [0.0] 4124
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 58.3 0.1 2.5 -3.7 [49.0, 50.0] 16051
3 58.7 0.1 4.9 -3.5 [44.0, 52.0] 11086
4 57.8 0.1 4.6 -3.1 [52.0, 51.0] 21699
7 49.8 -0.0 2.8 -3.2 [51.0, 47.0, 52.0] 16797
8 61.1 -0.0 3.5 -3.9 [38.0] 18445
9 61.2 0.3 3.6 -2.3 [49.0, 47.0] 16258
10 56.6 0.1 3.9 -4.1 [44.0, 49.0] 14981
11 49.9 0.0 3.7 -3.2 [38.0, 41.0] 12363
12 60.6 0.1 4.1 -4.5 [41.0, 40.0] 17094
13 60.0 -0.0 2.5 -3.6 [50.0, 49.0] 16623
15 48.7 -0.1 4.8 -4.3 [42.0, 46.0] 11829
19 59.7 -0.0 3.7 -3.6 [48.0, 50.0] 16897
21 60.8 0.1 3.6 -4.9 [39.0] 17744
24 50.8 -0.3 2.4 -3.1 [43.0, 42.0] 4760
25 47.7 -0.1 3.3 -3.3 [39.0] 9121
26 57.4 0.1 3.6 -2.8 [49.0, 47.0] 21194
27 57.2 0.3 5.4 -4.0 [46.0, 44.0] 21889
30 59.0 0.0 3.7 -3.6 [45.0] 20563
31 48.7 0.2 4.4 -4.4 [43.0, 42.0, 45.0, 52.0] 15068
33 56.5 0.2 2.4 -3.0 [45.0] 21610
36 36.2 0.5 4.3 -2.2 [53.0, 43.0] 4124
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 58.3 0.0 50.3 52.9 47.1 0 [49.0] [0.0] 16054
3 58.7 0.0 50.2 52.5 47.3 0 [44.0] [0.0] 11090
4 57.8 -0.0 50.5 54.7 43.5 0 [52.0] [0.0] 21700
7 49.8 -0.0 50.1 52.4 46.8 25 [51.0, 47.0] [0.0] 16798
8 61.1 -0.0 50.4 52.8 46.5 0 [38.0] [0.0] 18445
9 61.2 -0.0 50.8 54.9 46.0 0 [49.0] [0.0] 16263
10 56.6 -0.0 50.8 53.7 47.0 0 [44.0] [0.0] 14981
11 49.9 -0.0 46.5 48.8 44.0 0 [38.0] [0.0] 12365
12 60.6 -0.0 48.5 51.1 45.4 0 [41.0] [0.0] 17094
13 60.0 -0.0 50.4 52.8 47.0 0 [50.0] [0.0] 16623
15 48.7 0.0 49.9 51.7 47.6 0 [42.0] [0.0] 11830
19 59.7 -0.0 47.3 49.7 43.5 0 [48.0] [0.0] 16899
21 60.8 0.0 50.7 52.8 46.8 0 [39.0] [0.0] 17746
24 50.9 0.0 50.0 52.3 47.1 0 [43.0] [0.0] 4764
25 47.7 -0.0 49.5 51.4 47.2 0 [39.0] [0.0] 9124
26 57.4 -0.0 50.3 53.0 47.1 0 [49.0] [0.0] 21195
27 57.2 0.0 50.6 52.9 47.4 0 [46.0] [0.0] 21889
30 59.0 0.0 50.3 52.8 46.9 0 [45.0] [0.0] 20564
31 48.7 -0.0 49.4 52.6 43.1 150 [43.0, 45.0] [0.0] 15075
33 56.5 -0.0 50.5 52.6 47.4 0 [45.0] [0.0] 21612
36 36.2 0.0 48.0 50.8 46.7 0 [53.0] [0.0] 4124
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 58.3 0.0 50.3 52.7 47.1 0 [50.0] [0.0] 16051
3 58.7 0.0 50.4 52.6 48.0 0 [52.0] [0.0] 11086
4 57.8 -0.0 50.3 54.5 43.9 0 [51.0] [0.0] 21699
7 49.8 -0.0 49.9 52.3 47.2 70 [47.0, 52.0] [0.0] 16799
8 61.0 -0.0 50.5 52.6 47.0 0 [38.0] [0.0] 18447
9 61.2 -0.0 50.6 54.7 45.3 0 [47.0] [0.0] 16258
10 56.6 -0.0 50.5 53.9 47.2 0 [49.0] [0.0] 14982
11 49.9 -0.0 46.2 49.0 44.0 0 [41.0] [0.0] 12363
12 60.6 0.0 48.5 50.8 45.5 0 [40.0] [0.0] 17094
13 60.0 0.0 50.4 52.5 47.3 0 [49.0] [0.0] 16625
15 48.7 -0.0 49.8 52.0 47.3 0 [46.0] [0.0] 11830
19 59.7 0.0 47.3 49.8 43.5 0 [50.0] [0.0] 16897
21 60.8 0.0 50.6 52.7 46.9 0 [39.0] [0.0] 17744
24 50.8 0.0 50.1 52.2 47.8 0 [42.0] [0.0] 4760
25 47.7 0.0 49.5 51.5 46.9 0 [39.0] [0.0] 9121
26 57.4 0.0 50.3 52.6 47.3 0 [47.0] [0.0] 21194
27 57.2 -0.0 50.4 52.7 47.6 0 [44.0] [0.0] 21890
30 59.0 -0.0 50.4 52.4 47.3 0 [45.0] [0.0] 20563
31 48.7 0.0 49.5 52.7 44.0 194 [42.0, 52.0] [0.0] 15068
33 56.5 0.0 50.3 52.5 47.4 0 [45.0] [0.0] 21610
36 36.2 -0.0 48.0 50.5 46.5 0 [43.0] [0.0] 4124
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 58.3 -0.0 1.5 -1.7 [49.0, 50.0] 16051
3 58.7 -0.1 1.2 -1.8 [44.0, 52.0] 11086
4 57.8 0.1 1.7 -2.2 [52.0, 51.0] 21699
7 49.8 0.2 1.8 -1.8 [51.0, 47.0, 52.0] 16797
8 61.1 -0.0 1.4 -1.8 [38.0] 18445
9 61.2 0.2 2.5 -1.3 [49.0, 47.0] 16258
10 56.6 0.2 1.6 -1.5 [44.0, 49.0] 14981
11 49.9 0.3 1.8 -1.2 [38.0, 41.0] 12363
12 60.6 0.0 1.6 -1.5 [41.0, 40.0] 17094
13 60.0 0.0 1.6 -1.5 [50.0, 49.0] 16623
15 48.7 0.0 1.7 -1.3 [42.0, 46.0] 11829
19 59.7 0.0 1.9 -2.1 [48.0, 50.0] 16897
21 60.8 0.1 1.6 -1.8 [39.0] 17744
24 50.8 -0.1 1.3 -1.7 [43.0, 42.0] 4760
25 47.7 -0.0 2.0 -1.3 [39.0] 9121
26 57.4 0.0 1.2 -2.0 [49.0, 47.0] 21194
27 57.2 0.2 1.8 -1.6 [46.0, 44.0] 21889
30 59.0 -0.1 1.5 -1.7 [45.0] 20563
31 48.7 -0.1 2.4 -1.9 [43.0, 42.0, 45.0, 52.0] 15068
33 56.5 0.2 1.6 -1.6 [45.0] 21610
36 36.2 0.1 1.8 -1.5 [53.0, 43.0] 4124
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.7 -0.0 49.1 52.3 42.6 96 [46.0, 8.0] [0.0] 16806
20 58.2 0.0 49.8 53.8 42.6 0 [17.0] [0.0] 17845
21 52.3 -0.0 49.4 52.4 44.6 0 [12.0] [0.0] 12121
22 61.1 -0.0 49.8 52.9 43.0 187 [11.0, 41.0] [0.0] 15342
23 41.5 -0.0 47.8 51.6 44.5 184 [48.0, 15.0] [0.0] 12452
24 60.9 -0.0 49.9 52.9 43.7 0 [13.0] [0.0] 16721
25 55.1 -0.0 49.3 51.9 45.0 0 [37.0] [0.0] 13241
26 57.1 -0.0 48.8 52.6 42.1 0 [43.0] [0.0] 18890
27 58.3 0.0 49.1 52.7 43.3 0 [46.0] [0.0] 14235
28 60.1 -0.0 49.1 53.3 43.8 0 [24.0] [0.0] 17026
30 46.3 -0.0 47.6 50.8 40.6 0 [50.0] [0.0] 10038
32 56.4 -0.0 49.7 53.0 45.0 0 [51.0] [0.0] 18813
33 55.0 -0.0 49.4 52.5 43.6 0 [40.0] [0.0] 12983
34 59.7 -0.0 49.5 53.0 44.5 0 [19.0] [0.0] 17293
35 47.7 0.0 47.8 50.1 43.6 0 [14.0] [0.0] 10582
36 59.6 -0.0 49.0 52.0 42.8 222 [47.0, 42.0] [0.0] 16700
37 49.7 0.0 48.0 50.5 42.9 0 [47.0] [0.0] 11404
41 61.1 0.0 49.6 52.9 44.5 0 [18.0] [0.0] 16098
42 40.7 -0.0 47.3 49.8 42.9 226 [50.0, 9.0] [0.0] 14327
43 56.7 -0.0 49.1 52.7 43.7 0 [52.0] [0.0] 19044
44 57.9 -0.0 48.6 52.7 42.5 0 [44.0] [0.0] 14164
45 59.3 0.0 49.6 52.8 43.2 0 [53.0] [0.0] 17642
46 60.4 -0.0 49.4 52.6 43.4 227 [48.0, 46.0] [0.0] 15045
DUT BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.7 0.0 48.8 51.8 43.7 27 [51.0, 8.0] [0.0] 16798
20 58.2 0.0 49.4 53.1 43.9 0 [22.0] [0.0] 17843
21 52.3 -0.0 49.2 52.2 44.5 0 [9.0] [0.0] 12119
22 61.1 0.0 49.5 52.6 43.1 40 [11.0, 40.0] [0.0] 15335
23 41.5 0.0 47.7 50.3 42.9 32 [48.0, 20.0] [0.0] 12451
24 60.9 0.0 49.6 52.7 43.8 0 [14.0] [0.0] 16720
25 55.1 0.0 49.0 52.0 44.4 0 [37.0] [0.0] 13238
26 57.1 0.0 48.5 52.9 40.9 0 [42.0] [0.0] 18889
27 58.3 -0.0 48.8 52.0 42.6 0 [44.0] [0.0] 14236
28 60.1 0.0 48.8 53.0 42.3 0 [19.0] [0.0] 17027
30 46.3 -0.0 47.6 50.4 40.1 0 [53.0] [0.0] 10039
32 56.4 -0.0 49.4 52.2 42.5 0 [48.0] [0.0] 18813
33 55.0 -0.0 49.3 52.2 43.4 0 [29.0] [0.0] 12982
34 59.7 -0.0 49.3 52.1 43.5 0 [20.0] [0.0] 17292
35 47.7 -0.0 47.9 50.9 43.2 0 [15.0] [0.0] 10581
36 59.6 0.0 48.8 51.3 43.0 177 [30.0, 44.0] [0.0] 16695
37 49.7 -0.0 48.0 50.4 44.5 0 [46.0] [0.0] 11403
41 61.1 -0.0 49.4 51.9 44.8 0 [17.0] [0.0] 16098
42 40.7 0.0 47.5 50.7 41.6 23 [49.0, 11.0] [0.0] 14326
43 56.7 0.0 48.8 52.5 40.0 0 [51.0] [0.0] 19044
44 57.9 0.0 48.6 51.7 43.1 0 [7.0] [0.0] 14165
45 59.3 0.0 49.5 52.9 43.6 0 [53.0] [0.0] 17642
46 60.4 -0.0 49.4 51.9 44.8 179 [48.0, 45.0] [0.0] 15037
DIFF BeiDou L1(BOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 59.7 0.3 4.0 -3.7 [46.0, 51.0, 8.0] 16798
20 58.2 0.3 4.0 -3.4 [17.0, 22.0] 17843
21 52.3 0.2 3.4 -3.2 [12.0, 9.0] 12119
22 61.1 0.2 3.1 -3.6 [11.0, 41.0, 40.0] 15334
23 41.5 0.1 3.4 -4.3 [48.0, 15.0, 20.0] 12450
24 60.9 0.3 4.0 -3.0 [13.0, 14.0] 16720
25 55.1 0.2 3.5 -3.6 [37.0] 13238
26 57.1 0.3 3.2 -3.2 [43.0, 42.0] 18888
27 58.3 0.3 4.8 -2.5 [46.0, 44.0] 14235
28 60.1 0.3 3.9 -3.5 [24.0, 19.0] 17026
30 46.3 0.0 3.8 -3.7 [50.0, 53.0] 10038
32 56.4 0.3 3.7 -4.3 [51.0, 48.0] 18813
33 55.0 0.1 3.4 -3.5 [40.0, 29.0] 12982
34 59.7 0.2 3.8 -3.6 [19.0, 20.0] 17292
35 47.7 -0.1 3.4 -2.7 [14.0, 15.0] 10581
36 59.6 0.2 2.8 -3.5 [47.0, 30.0, 42.0, 44.0] 16693
37 49.7 -0.0 2.8 -3.1 [47.0, 46.0] 11403
41 61.1 0.1 4.3 -4.0 [18.0, 17.0] 16098
42 40.7 -0.2 4.3 -3.8 [50.0, 49.0, 9.0, 11.0] 14324
43 56.7 0.2 5.1 -3.5 [52.0, 51.0] 19044
44 57.9 0.0 3.5 -3.4 [44.0, 7.0] 14164
45 59.3 0.2 3.5 -3.2 [53.0] 17641
46 60.4 0.1 3.6 -4.5 [48.0, 46.0, 45.0] 15036
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.7 -0.0 49.2 52.3 42.2 120 [46.0, 8.0] [0.0] 16806
20 58.2 0.0 49.2 52.5 43.4 0 [17.0] [0.0] 17845
21 52.3 -0.0 48.8 51.0 44.1 0 [12.0] [0.0] 12121
22 61.1 -0.0 49.0 51.3 43.9 169 [11.0, 41.0] [0.0] 15342
23 41.5 -0.0 47.8 50.1 44.5 128 [48.0, 15.0] [0.0] 12452
24 60.9 -0.0 49.8 52.1 44.3 0 [13.0] [0.0] 16721
25 55.1 -0.0 48.1 50.3 44.8 0 [37.0] [0.0] 13241
26 57.1 -0.0 47.7 50.5 43.8 0 [43.0] [0.0] 18890
27 58.3 0.0 48.1 50.4 44.5 0 [46.0] [0.0] 14235
28 60.1 -0.0 47.5 49.7 42.9 0 [24.0] [0.0] 17026
30 46.3 -0.0 46.9 48.8 44.1 0 [50.0] [0.0] 10038
32 56.4 -0.0 49.0 51.8 45.3 0 [51.0] [0.0] 18813
33 55.0 -0.0 49.0 51.4 45.5 0 [40.0] [0.0] 12983
34 59.7 -0.0 47.9 50.1 43.7 0 [19.0] [0.0] 17293
35 47.7 0.0 46.4 48.1 43.2 0 [14.0] [0.0] 10582
36 59.6 -0.0 48.9 51.1 44.5 190 [47.0, 42.0] [0.0] 16700
37 49.7 0.0 48.6 51.6 42.2 0 [47.0] [0.0] 11404
41 61.1 0.0 49.2 51.0 44.9 0 [18.0] [0.0] 16098
42 40.7 -0.0 47.3 49.6 45.1 152 [50.0, 9.0] [0.0] 14327
43 56.7 -0.0 47.8 50.7 44.2 0 [52.0] [0.0] 19044
44 57.9 -0.0 48.3 50.5 43.8 0 [44.0] [0.0] 14164
45 59.3 0.0 49.2 51.8 45.1 0 [53.0] [0.0] 17642
46 60.4 -0.0 49.5 52.8 43.4 244 [48.0, 46.0] [0.0] 15045
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 59.7 0.0 48.8 51.6 42.2 104 [51.0, 8.0] [0.0] 16798
20 58.2 0.0 48.7 52.0 43.0 0 [22.0] [0.0] 17843
21 52.3 -0.0 48.2 50.2 44.5 0 [9.0] [0.0] 12119
22 61.1 0.0 48.5 51.5 44.7 142 [11.0, 40.0] [0.0] 15335
23 41.5 0.0 47.5 49.9 44.6 32 [48.0, 20.0] [0.0] 12451
24 60.9 0.0 49.4 51.7 44.6 0 [14.0] [0.0] 16720
25 55.1 0.0 47.7 49.8 44.7 0 [37.0] [0.0] 13238
26 57.1 0.0 47.4 49.8 43.0 0 [42.0] [0.0] 18889
27 58.3 -0.0 47.7 49.5 44.1 0 [44.0] [0.0] 14236
28 60.1 0.0 47.1 49.4 42.5 0 [19.0] [0.0] 17027
30 46.3 -0.0 46.2 48.1 43.0 0 [53.0] [0.0] 10039
32 56.4 -0.0 48.4 51.2 43.3 0 [48.0] [0.0] 18813
33 55.0 -0.0 48.7 51.0 44.8 0 [29.0] [0.0] 12982
34 59.7 -0.0 47.5 49.7 43.8 0 [20.0] [0.0] 17292
35 47.7 -0.0 46.0 47.9 43.3 0 [15.0] [0.0] 10581
36 59.6 0.0 48.4 50.5 44.1 188 [30.0, 44.0] [0.0] 16695
37 49.7 -0.0 48.2 51.3 41.6 0 [46.0] [0.0] 11403
41 61.1 -0.0 48.7 50.7 44.6 0 [17.0] [0.0] 16098
42 40.7 0.0 47.0 50.0 44.1 38 [49.0, 11.0] [0.0] 14326
43 56.7 0.0 47.3 50.0 43.2 0 [51.0] [0.0] 19044
44 57.9 0.0 47.9 50.0 43.3 0 [7.0] [0.0] 14165
45 59.3 0.0 48.8 51.2 45.8 0 [53.0] [0.0] 17642
46 60.4 -0.0 48.9 52.1 43.0 183 [48.0, 45.0] [0.0] 15037
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 59.7 0.4 2.6 -2.5 [46.0, 51.0, 8.0] 16798
20 58.2 0.5 2.9 -2.4 [17.0, 22.0] 17843
21 52.3 0.7 2.3 -2.3 [12.0, 9.0] 12119
22 61.1 0.5 2.2 -2.0 [11.0, 41.0, 40.0] 15334
23 41.5 0.4 3.2 -2.0 [48.0, 15.0, 20.0] 12450
24 60.9 0.4 2.5 -2.4 [13.0, 14.0] 16720
25 55.1 0.4 2.5 -2.0 [37.0] 13238
26 57.1 0.4 2.5 -1.6 [43.0, 42.0] 18888
27 58.3 0.4 2.3 -1.6 [46.0, 44.0] 14235
28 60.1 0.4 2.6 -1.9 [24.0, 19.0] 17026
30 46.3 0.7 3.6 -1.9 [50.0, 53.0] 10038
32 56.4 0.6 3.2 -2.1 [51.0, 48.0] 18813
33 55.0 0.3 1.8 -2.1 [40.0, 29.0] 12982
34 59.7 0.3 2.0 -2.0 [19.0, 20.0] 17292
35 47.7 0.4 2.6 -2.5 [14.0, 15.0] 10581
36 59.6 0.5 2.3 -1.6 [47.0, 30.0, 42.0, 44.0] 16693
37 49.7 0.4 2.5 -2.2 [47.0, 46.0] 11403
41 61.1 0.5 2.5 -1.2 [18.0, 17.0] 16098
42 40.7 0.3 3.4 -2.4 [50.0, 49.0, 9.0, 11.0] 14324
43 56.7 0.4 3.2 -2.2 [52.0, 51.0] 19044
44 57.9 0.4 3.1 -2.3 [44.0, 7.0] 14164
45 59.3 0.4 2.1 -1.7 [53.0] 17641
46 60.4 0.6 2.5 -1.0 [48.0, 46.0, 45.0] 15036
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 0.0 47.5 49.5 43.9 0 [53.0] [0.0] 18239
12 60.8 -0.0 47.6 49.7 44.6 0 [35.0] [0.0] 15249
14 48.5 -0.0 47.3 49.4 44.9 0 [8.0] [0.0] 10798
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 -0.0 48.0 50.1 44.6 0 [53.0] [0.0] 18241
12 60.8 -0.0 47.9 49.9 44.4 0 [43.0] [0.0] 15249
14 48.5 0.0 47.7 50.0 44.6 0 [10.0] [0.0] 10796
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 57.3 -0.4 2.1 -2.9 [53.0] 18239
12 60.8 -0.3 2.3 -2.2 [35.0, 43.0] 15249
14 48.5 -0.4 2.3 -2.7 [8.0, 10.0] 10796
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 0.0 47.2 51.1 40.2 0 [53.0] [0.0] 18239
12 60.8 -0.0 46.2 50.0 39.4 0 [35.0] [0.0] 15249
14 48.5 -0.0 46.4 49.2 41.6 0 [8.0] [0.0] 10798
19 59.7 -0.0 49.2 53.4 41.4 42 [46.0, 8.0] [0.0] 16806
20 58.2 0.0 50.3 54.4 43.4 0 [17.0] [0.0] 17845
21 52.3 -0.0 49.1 52.3 43.2 0 [12.0] [0.0] 12121
22 61.1 -0.0 49.8 53.4 43.7 229 [11.0, 41.0] [0.0] 15342
23 41.5 -0.0 47.1 50.0 42.1 12 [48.0, 15.0] [0.0] 12452
24 60.9 -0.0 49.5 53.5 43.5 0 [13.0] [0.0] 16721
25 55.1 -0.0 48.9 52.1 42.7 0 [37.0] [0.0] 13241
26 57.1 -0.0 48.8 52.9 40.4 0 [43.0] [0.0] 18890
27 58.3 0.0 49.6 53.8 44.5 0 [46.0] [0.0] 14235
28 60.1 -0.0 49.4 53.3 43.6 0 [24.0] [0.0] 17026
30 46.3 -0.0 48.2 51.6 42.7 0 [50.0] [0.0] 10038
32 56.4 -0.0 49.4 53.4 41.7 0 [51.0] [0.0] 18813
33 55.0 -0.0 48.8 52.0 42.8 0 [40.0] [0.0] 12983
34 59.7 -0.0 49.2 53.0 44.0 0 [19.0] [0.0] 17293
35 47.7 0.0 48.0 51.1 42.8 0 [14.0] [0.0] 10582
36 59.6 -0.0 49.0 52.0 42.8 119 [47.0, 42.0] [0.0] 16700
37 49.7 0.0 47.7 50.9 42.6 0 [47.0] [0.0] 11404
41 61.1 0.0 49.1 53.0 43.3 0 [18.0] [0.0] 16098
42 40.7 -0.0 46.3 49.0 41.7 249 [50.0, 9.0] [0.0] 14327
43 56.7 -0.0 49.0 53.4 42.4 0 [52.0] [0.0] 19044
44 57.9 -0.0 48.7 52.7 42.2 0 [44.0] [0.0] 14164
45 59.3 0.0 48.9 52.4 42.4 0 [53.0] [0.0] 17642
46 60.4 -0.0 48.8 52.0 41.6 202 [48.0, 46.0] [0.0] 15045
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 -0.0 47.1 49.6 40.5 0 [53.0] [0.0] 18241
12 60.8 -0.0 45.9 49.3 40.0 0 [43.0] [0.0] 15249
14 48.5 0.0 46.2 49.1 41.3 0 [10.0] [0.0] 10796
19 59.7 0.0 48.9 52.3 43.0 184 [51.0, 8.0] [0.0] 16798
20 58.2 0.0 50.1 54.8 43.9 0 [22.0] [0.0] 17843
21 52.3 -0.0 49.2 52.1 44.5 0 [9.0] [0.0] 12119
22 61.1 0.0 49.7 53.2 43.0 48 [11.0, 40.0] [0.0] 15335
23 41.5 0.0 47.3 50.7 41.2 215 [48.0, 20.0] [0.0] 12451
24 60.9 0.0 49.3 53.3 42.8 0 [14.0] [0.0] 16720
25 55.1 0.0 48.8 52.1 43.8 0 [37.0] [0.0] 13238
26 57.1 0.0 48.6 52.8 40.4 0 [42.0] [0.0] 18889
27 58.3 -0.0 49.5 53.1 44.0 0 [44.0] [0.0] 14236
28 60.1 0.0 49.1 53.4 43.0 0 [19.0] [0.0] 17027
30 46.3 -0.0 48.0 51.1 40.9 0 [53.0] [0.0] 10039
32 56.4 -0.0 49.1 52.7 42.0 0 [48.0] [0.0] 18813
33 55.0 -0.0 48.4 51.2 42.5 0 [29.0] [0.0] 12982
34 59.7 -0.0 49.1 52.6 43.9 0 [20.0] [0.0] 17292
35 47.7 -0.0 48.1 51.8 40.8 0 [15.0] [0.0] 10581
36 59.6 0.0 49.0 52.1 43.8 232 [30.0, 44.0] [0.0] 16695
37 49.7 -0.0 47.8 51.4 42.5 0 [46.0] [0.0] 11403
41 61.1 -0.0 49.0 52.3 43.5 0 [17.0] [0.0] 16098
42 40.7 0.0 46.6 49.7 41.4 147 [49.0, 11.0] [0.0] 14326
43 56.7 0.0 48.9 53.0 42.0 0 [51.0] [0.0] 19044
44 57.9 0.0 48.6 52.1 43.4 0 [7.0] [0.0] 14165
45 59.3 0.0 48.9 52.4 43.3 0 [53.0] [0.0] 17642
46 60.4 -0.0 48.7 51.8 42.9 131 [48.0, 45.0] [0.0] 15037
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 57.3 0.1 4.0 -3.7 [53.0] 18239
12 60.8 0.3 4.7 -3.6 [35.0, 43.0] 15249
14 48.5 0.1 3.8 -4.2 [8.0, 10.0] 10796
19 59.7 0.3 3.9 -4.7 [46.0, 51.0, 8.0] 16798
20 58.2 0.2 4.7 -4.5 [17.0, 22.0] 17843
21 52.3 -0.1 3.4 -3.2 [12.0, 9.0] 12119
22 61.1 0.1 4.0 -3.9 [11.0, 41.0, 40.0] 15334
23 41.5 -0.2 5.4 -6.5 [48.0, 15.0, 20.0] 12450
24 60.9 0.2 4.0 -3.4 [13.0, 14.0] 16720
25 55.1 0.1 3.5 -3.5 [37.0] 13238
26 57.1 0.2 3.4 -4.8 [43.0, 42.0] 18888
27 58.3 0.1 3.5 -3.7 [46.0, 44.0] 14235
28 60.1 0.3 5.0 -3.8 [24.0, 19.0] 17026
30 46.3 0.2 4.3 -4.3 [50.0, 53.0] 10038
32 56.4 0.2 4.2 -3.8 [51.0, 48.0] 18813
33 55.0 0.4 4.7 -3.3 [40.0, 29.0] 12982
34 59.7 0.1 4.1 -4.4 [19.0, 20.0] 17292
35 47.7 -0.1 4.6 -4.1 [14.0, 15.0] 10581
36 59.6 -0.0 3.2 -4.1 [47.0, 30.0, 42.0, 44.0] 16693
37 49.7 -0.1 3.3 -3.6 [47.0, 46.0] 11403
41 61.1 0.1 4.2 -3.9 [18.0, 17.0] 16098
42 40.7 -0.3 4.0 -4.6 [50.0, 49.0, 9.0, 11.0] 14324
43 56.7 0.1 3.8 -4.7 [52.0, 51.0] 19044
44 57.9 0.1 3.4 -3.4 [44.0, 7.0] 14164
45 59.3 -0.0 4.0 -4.4 [53.0] 17641
46 60.4 0.1 3.2 -4.9 [48.0, 46.0, 45.0] 15036
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 0.0 47.4 49.6 43.2 0 [53.0] [0.0] 18239
12 60.8 -0.0 47.7 49.5 44.3 0 [35.0] [0.0] 15249
14 48.5 -0.0 47.3 49.3 43.4 0 [8.0] [0.0] 10798
19 59.7 -0.0 47.9 50.1 43.6 18 [46.0, 8.0] [0.0] 16806
20 58.2 0.0 47.6 49.7 42.5 0 [17.0] [0.0] 17845
21 52.3 -0.0 47.7 50.2 43.7 0 [12.0] [0.0] 12121
22 61.1 -0.0 47.9 49.9 43.6 210 [11.0, 41.0] [0.0] 15342
23 41.5 -0.0 46.9 49.3 44.2 166 [48.0, 15.0] [0.0] 12452
24 60.9 -0.0 47.7 50.2 41.7 0 [13.0] [0.0] 16721
25 55.1 -0.0 47.5 49.9 43.8 0 [37.0] [0.0] 13241
26 57.1 -0.0 47.2 50.0 42.6 0 [43.0] [0.0] 18890
27 58.3 0.0 47.4 49.8 43.9 0 [46.0] [0.0] 14235
28 60.1 -0.0 47.0 49.3 40.9 0 [24.0] [0.0] 17026
30 46.3 -0.0 46.5 48.9 42.5 0 [50.0] [0.0] 10038
32 56.4 -0.0 48.0 50.3 43.4 0 [51.0] [0.0] 18813
33 55.0 -0.0 48.0 50.1 44.1 0 [40.0] [0.0] 12983
34 59.7 -0.0 47.4 49.6 42.8 0 [19.0] [0.0] 17293
35 47.7 0.0 47.0 48.8 43.2 0 [14.0] [0.0] 10582
36 59.6 -0.0 48.0 50.0 44.6 229 [47.0, 42.0] [0.0] 16700
37 49.7 0.0 47.8 50.2 43.9 0 [47.0] [0.0] 11404
41 61.1 0.0 48.3 50.2 45.0 0 [18.0] [0.0] 16098
42 40.7 -0.0 46.8 49.0 43.1 76 [50.0, 9.0] [0.0] 14327
43 56.7 -0.0 47.0 49.6 42.5 0 [52.0] [0.0] 19044
44 57.9 -0.0 47.5 49.8 43.6 0 [44.0] [0.0] 14164
45 59.3 0.0 48.0 50.2 43.7 0 [53.0] [0.0] 17642
46 60.4 -0.0 47.9 49.8 44.4 205 [48.0, 46.0] [0.0] 15045
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 57.3 -0.0 47.3 49.8 42.7 0 [53.0] [0.0] 18241
12 60.8 -0.0 47.9 49.9 44.4 0 [43.0] [0.0] 15249
14 48.5 0.0 47.2 49.2 43.8 0 [10.0] [0.0] 10796
19 59.7 0.0 47.8 50.0 43.0 238 [51.0, 8.0] [0.0] 16798
20 58.2 0.0 47.5 49.7 41.3 0 [22.0] [0.0] 17843
21 52.3 -0.0 47.6 50.2 42.0 0 [9.0] [0.0] 12119
22 61.1 0.0 47.7 50.0 42.3 210 [11.0, 40.0] [0.0] 15335
23 41.5 0.0 46.4 49.3 42.6 235 [48.0, 20.0] [0.0] 12451
24 60.9 0.0 47.8 49.9 41.1 0 [14.0] [0.0] 16720
25 55.1 0.0 47.4 49.7 42.4 0 [37.0] [0.0] 13238
26 57.1 0.0 47.2 49.9 42.0 0 [42.0] [0.0] 18889
27 58.3 -0.0 47.3 49.9 41.4 0 [44.0] [0.0] 14236
28 60.1 0.0 47.0 49.5 38.6 0 [19.0] [0.0] 17027
30 46.3 -0.0 46.0 48.8 42.1 0 [53.0] [0.0] 10039
32 56.4 -0.0 47.8 50.3 42.6 0 [48.0] [0.0] 18813
33 55.0 -0.0 48.0 49.9 43.6 0 [29.0] [0.0] 12982
34 59.7 -0.0 47.5 49.8 42.4 0 [20.0] [0.0] 17292
35 47.7 -0.0 46.9 48.7 43.4 0 [15.0] [0.0] 10581
36 59.6 0.0 48.0 49.9 44.7 48 [30.0, 44.0] [0.0] 16695
37 49.7 -0.0 47.7 49.6 43.7 0 [46.0] [0.0] 11403
41 61.1 -0.0 48.4 50.6 44.3 0 [17.0] [0.0] 16098
42 40.7 0.0 46.2 48.7 42.9 9 [49.0, 11.0] [0.0] 14326
43 56.7 0.0 46.8 49.6 41.8 0 [51.0] [0.0] 19044
44 57.9 0.0 47.6 50.0 43.6 0 [7.0] [0.0] 14165
45 59.3 0.0 48.0 50.3 43.4 0 [53.0] [0.0] 17642
46 60.4 -0.0 48.0 50.3 43.2 220 [48.0, 45.0] [0.0] 15037
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 57.3 0.2 2.9 -2.0 [53.0] 18239
12 60.8 -0.2 2.0 -2.3 [35.0, 43.0] 15249
14 48.5 0.0 2.1 -3.1 [8.0, 10.0] 10796
19 59.7 0.1 3.1 -3.0 [46.0, 51.0, 8.0] 16798
20 58.2 0.0 3.1 -2.1 [17.0, 22.0] 17843
21 52.3 0.0 2.3 -2.8 [12.0, 9.0] 12119
22 61.1 0.2 2.6 -2.2 [11.0, 41.0, 40.0] 15334
23 41.5 0.5 2.8 -2.4 [48.0, 15.0, 20.0] 12450
24 60.9 -0.0 3.1 -2.4 [13.0, 14.0] 16720
25 55.1 0.1 3.1 -2.6 [37.0] 13238
26 57.1 0.1 2.6 -2.7 [43.0, 42.0] 18888
27 58.3 0.1 3.3 -2.2 [46.0, 44.0] 14235
28 60.1 -0.1 3.8 -3.7 [24.0, 19.0] 17026
30 46.3 0.5 3.3 -2.4 [50.0, 53.0] 10038
32 56.4 0.2 2.8 -2.1 [51.0, 48.0] 18813
33 55.0 -0.1 2.8 -2.8 [40.0, 29.0] 12982
34 59.7 -0.1 2.4 -2.7 [19.0, 20.0] 17292
35 47.7 0.1 2.2 -2.9 [14.0, 15.0] 10581
36 59.6 -0.1 2.2 -2.4 [47.0, 30.0, 42.0, 44.0] 16693
37 49.7 0.1 3.2 -2.3 [47.0, 46.0] 11403
41 61.1 -0.1 2.1 -2.2 [18.0, 17.0] 16098
42 40.7 0.6 3.4 -1.7 [50.0, 49.0, 9.0, 11.0] 14324
43 56.7 0.2 2.6 -2.3 [52.0, 51.0] 19044
44 57.9 -0.0 1.9 -2.2 [44.0, 7.0] 14164
45 59.3 -0.0 2.3 -2.6 [53.0] 17641
46 60.4 -0.0 2.2 -1.8 [48.0, 46.0, 45.0] 15036
MSS Ref

Mean CNo: 49.17
MSS DUT

Mean CNo: 50.15
MSS Diff

Mean Diff CNo: -0.97
