Comments


No Radios Running.
P4-03 East, Long engineering cable.
P4-05 West, Production cable sample.
4W Ethernet 10 Mbps, no traffic.
2W interfaces disabled (powered off).

Files


1113_no_radio/BX_gt35.T04 1113_no_radio/P4-03_gt35.T04 1113_no_radio/P4-05_gt35.T04
Modified: 2023-11-15 15:34:58

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 20.131 hours

Mean Primary Pos: [39.896473222486165, -105.11505752117932]
Mean Secondary Pos: [39.896472041175564, -105.1150565973485]
Mean Heading: 329.04 (deg)
Mean Slope Distance: 0.15318 (m)
 Modified: 2023-11-15 15:34:58

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 21.611 hours

Mean Primary Pos: [39.89647320651581, -105.11504338176982]
Mean Secondary Pos: [39.896472155818024, -105.11504219741101]
Mean Heading: 319.15 (deg)
Mean Slope Distance: 0.15446 (m)
 Modified: 2023-11-15 15:34:58

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 21.586 hours

Mean Primary Pos: [39.89647326192399, -105.11507184911402]
Mean Secondary Pos: [39.89647218534228, -105.11507070683582]
Mean Heading: 320.85 (deg)
Mean Slope Distance: 0.15436 (m)

Difference Report Links

1113_no_radio/results/BX_gt35_0-P4-03_gt35_0.html
1113_no_radio/results/BX_gt35_0-P4-05_gt35_0.html
1113_no_radio/results/BX_gt35_1-P4-03_gt35_1.html
1113_no_radio/results/BX_gt35_1-P4-05_gt35_1.html

Summary Table

SVType Freq Track N_Samples_P4-03_0 CNo_Mean_P4-03_0 N_Samples_P4-05_0 CNo_Mean_P4-05_0 N_Samples_P4-03_1 CNo_Mean_P4-03_1 N_Samples_P4-05_1 CNo_Mean_P4-05_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 363,600 0.1 363,605 0.2 363,600 0.2 363,605 0.1
GPS L2 CM+CL 286,475 0.3 286,481 0.2 286,475 0.0 286,481 -0.1
GPS L2 E 77,125 0.5 77,124 0.6 77,125 0.1 77,124 -0.1
GPS L5/E5A I+Q 199,255 0.6 199,253 0.3 199,255 0.0 199,253 0.1
SBAS L1 CA 236,919 -0.2 236,928 1.0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 281,848 0.5 281,857 0.5 281,848 0.7 281,857 0.4
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 243,135 0.3 243,144 0.0 243,135 -0.2 243,144 -0.1
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 275,709 0.1 275,720 0.2 275,709 0.0 275,720 -0.0
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 275,709 0.3 275,720 0.2 275,709 0.1 275,720 0.3
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 280,866 0.2 280,878 0.4 280,866 0.3 280,878 0.2
BeiDou L5/E5A I+Q 280,866 0.5 280,878 0.3 280,866 0.1 280,878 0.1
BeiDou E5B/B2 BPSK(2)-B2 18,127 -0.2 18,128 0.1 18,127 -0.1 18,128 0.2
BeiDou B1 BPSK(2)-B1 298,993 0.1 299,006 0.1 298,993 0.0 299,006 -0.0
BeiDou B3 BPSK(10)-B3 298,993 0.1 299,006 0.1 298,993 -0.1 299,006 -0.0
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS MSS 51,061 -1.0 48,313 -0.2 0 0
Total 3,417,620 0.2 3,417,728 0.3 3,180,701 0.1 3,180,800 0.1

Az-El Plots

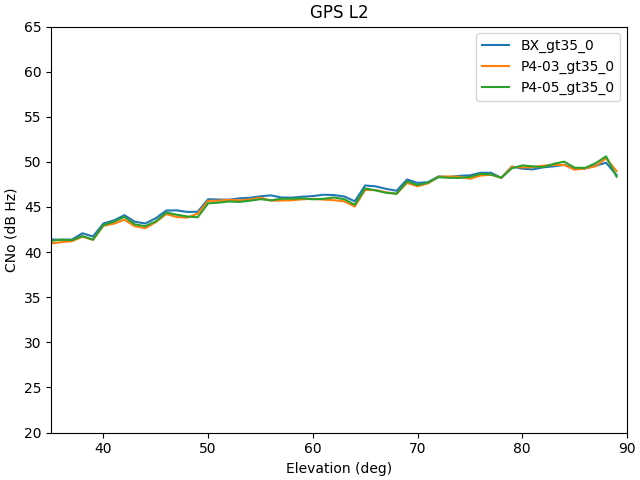

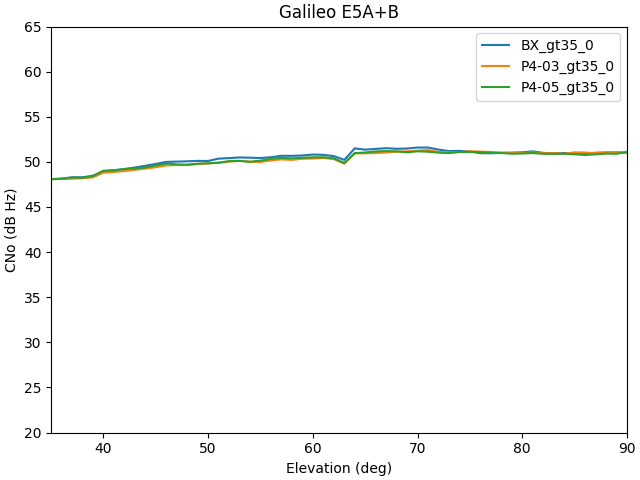

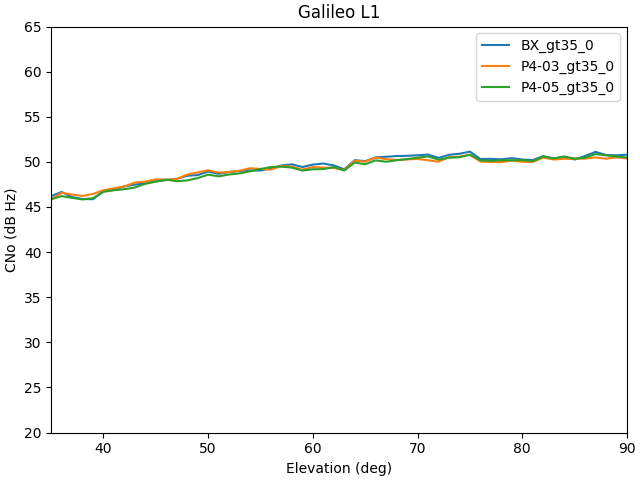

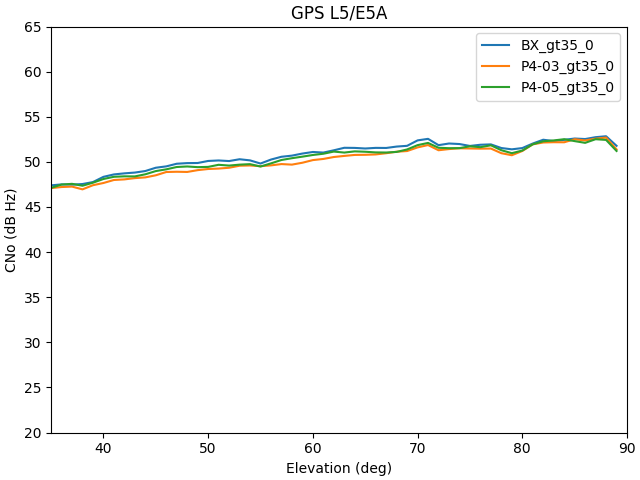

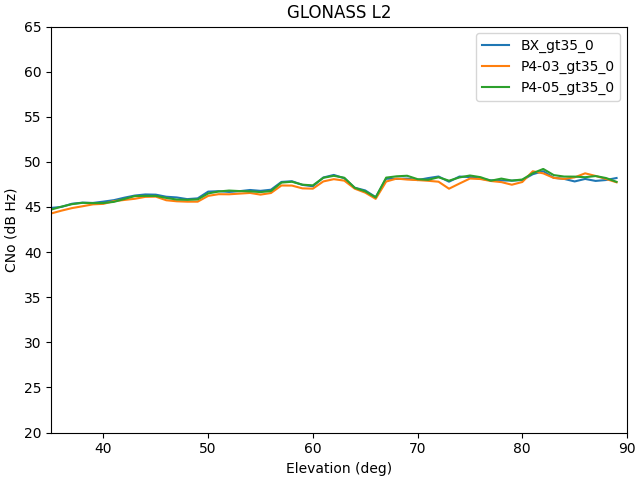

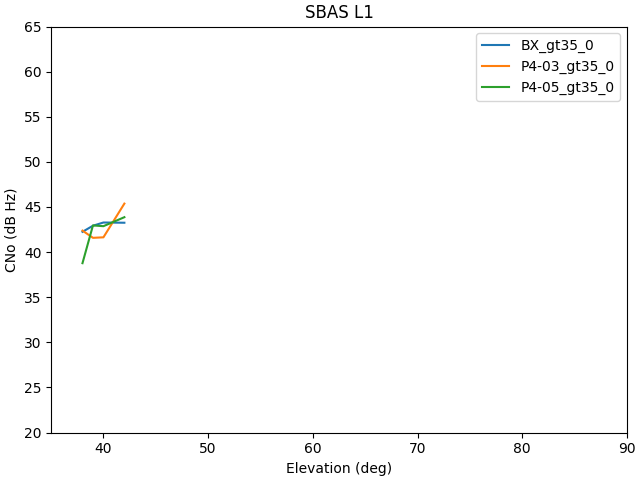

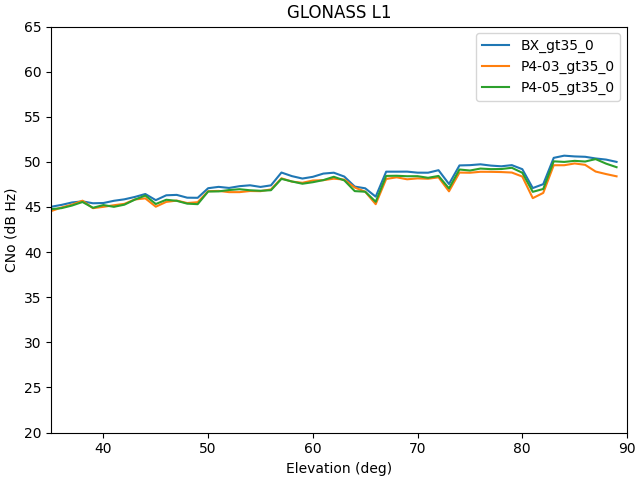

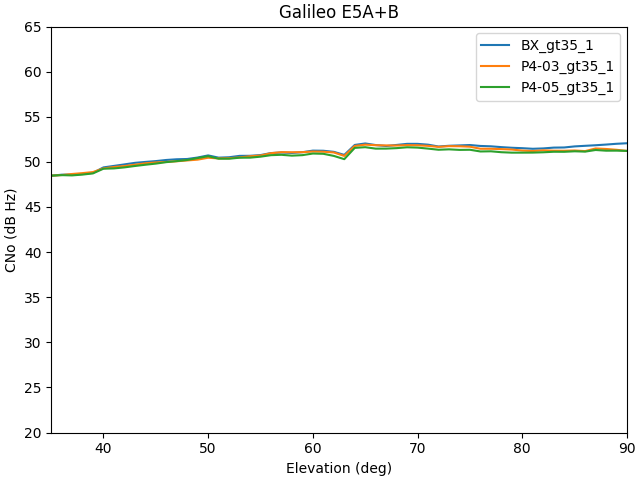

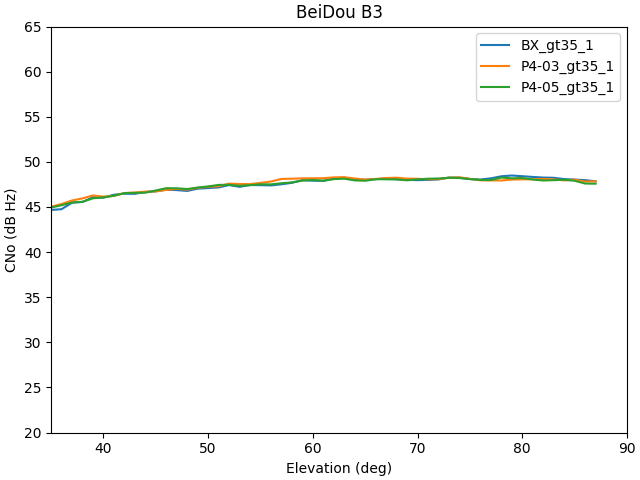

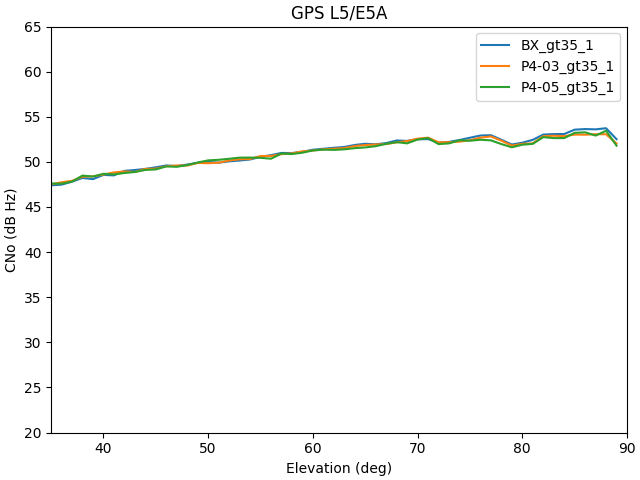

BX_gt35_0-P4-03_gt35_0 BX_gt35_0-P4-05_gt35_0 BX_gt35_1-P4-03_gt35_1 BX_gt35_1-P4-05_gt35_1

Mean Elevation Plots

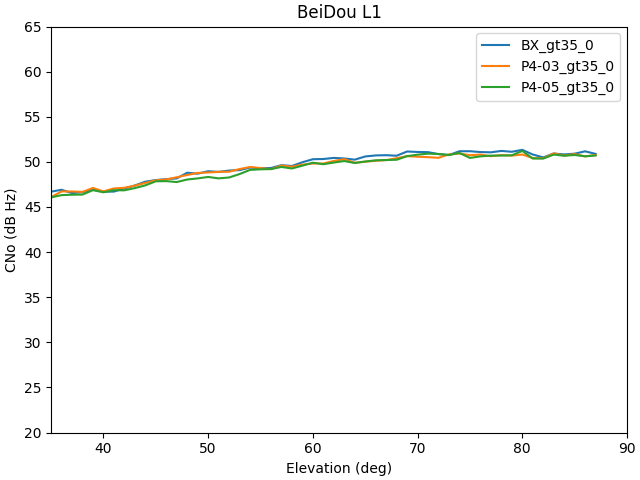

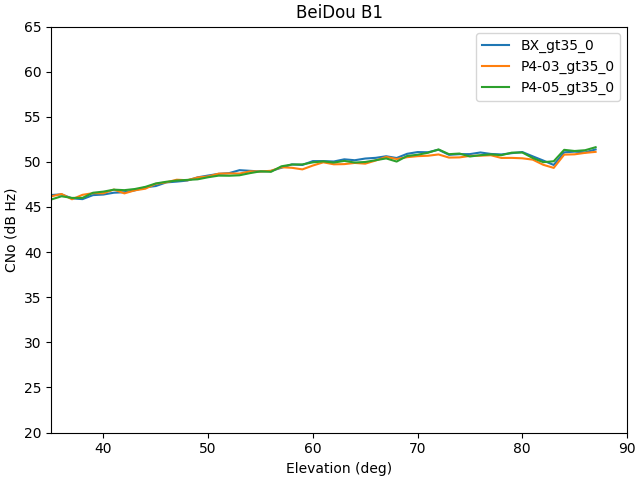

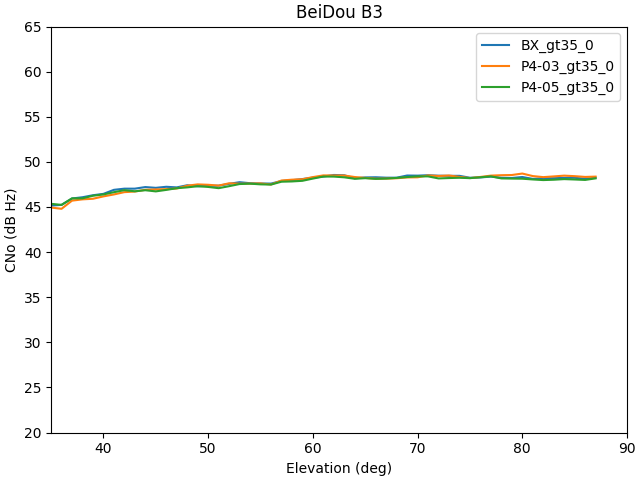

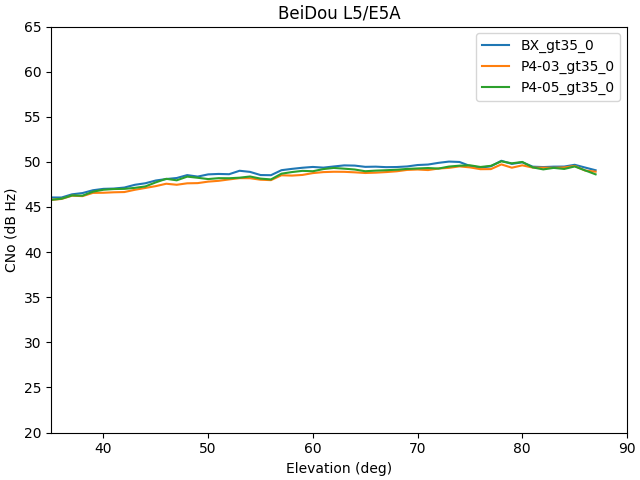

Antenna 0

GPS
SBAS
GLONASS
Galileo
BeiDou

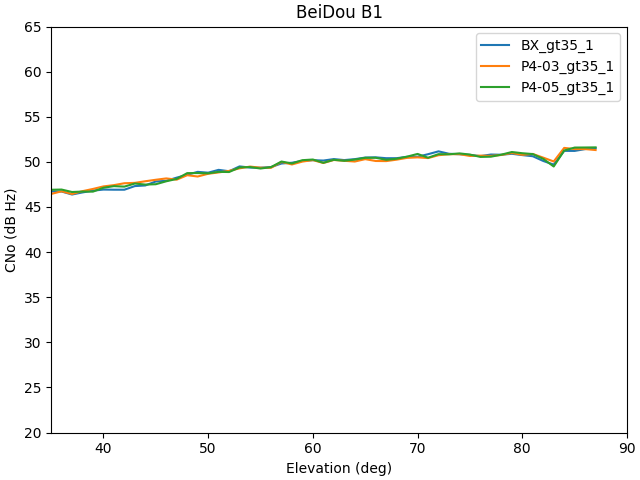

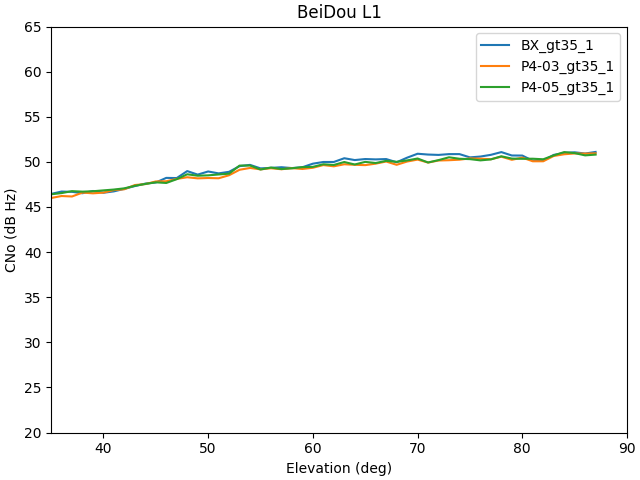

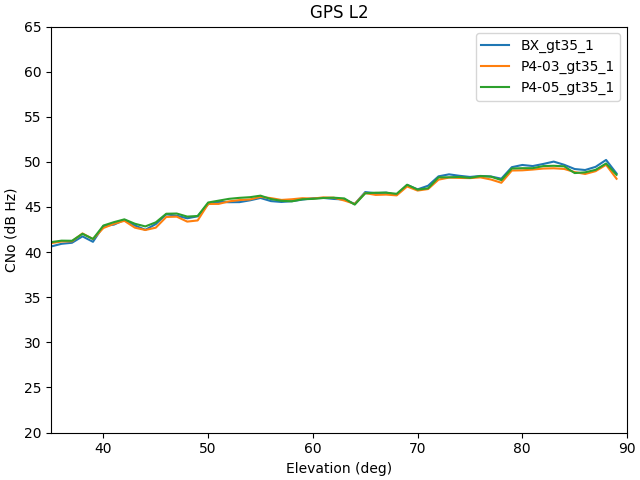

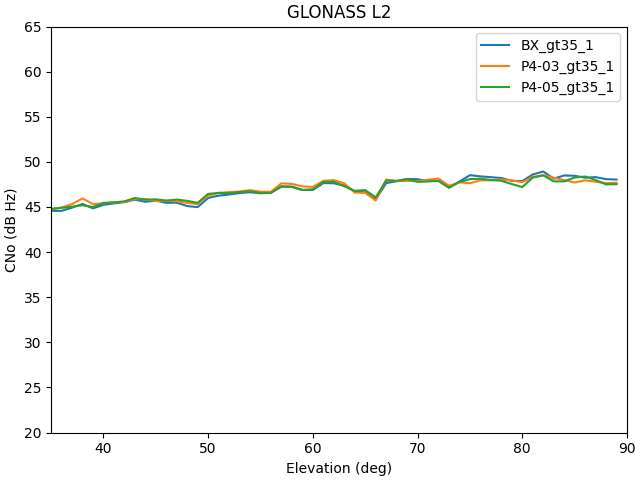

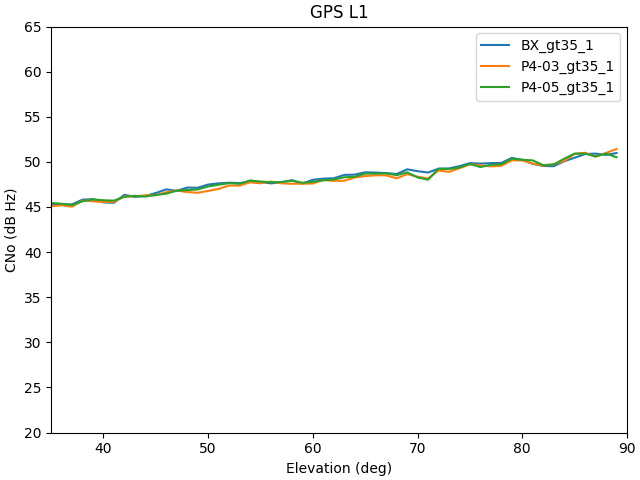

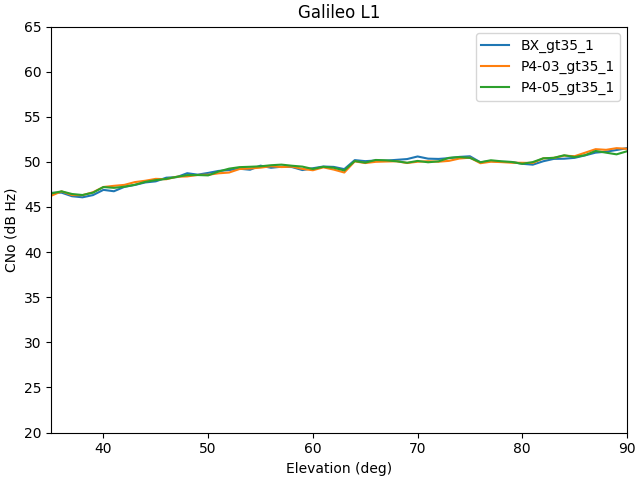

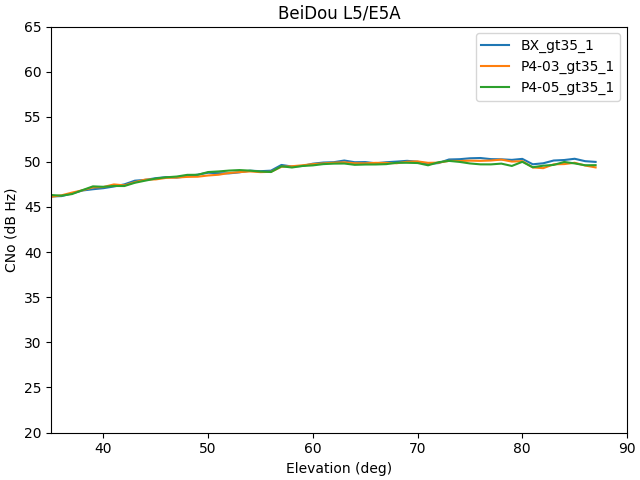

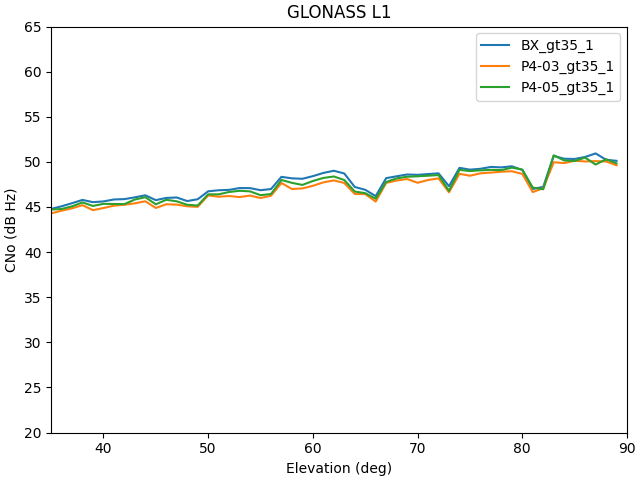

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_gt35_0: 1360.0
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 29 1,360
0 BeiDou E5B/B2 28 14 1,079
0 GLONASS L1 0 8 1,068
0 Galileo E5A+B 14 10 1,039
0 BeiDou E5B/B2 28 11 1,015
0 GLONASS L1 0 5 994
0 BeiDou B3 29 22 952
0 Galileo E5A+B 14 26 948
0 GPS L1 0 5 944
0 GPS L1 0 7 940
P4-03_gt35_0: 1584.0
Antenna SVType Freq Track SV osc_factor
0 GLONASS L2 0 17 1,584
0 GLONASS L2 0 24 1,255
0 GPS L1 0 18 1,191
0 Galileo E5A+B 14 10 1,149
0 Galileo E5A+B 14 31 1,122
0 Galileo E5A+B 14 26 1,116
0 Galileo E5A+B 14 24 1,088
0 GLONASS L1 0 11 1,023
0 BeiDou E5B/B2 28 11 985
0 Galileo E5A+B 14 9 960
P4-05_gt35_0: 1325.8
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 11 1,326
0 GPS L1 0 30 1,249
0 GLONASS L1 0 22 1,192
0 GPS L1 0 29 1,111
0 Galileo E5A+B 14 10 1,086
0 GLONASS L1 0 5 1,056
0 BeiDou E5B/B2 28 11 1,005
0 GLONASS L1 0 24 991
0 Galileo E5A+B 14 26 986
0 GLONASS L1 0 20 985
BX_gt35_1: 1436.3
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 11 1,436
1 GLONASS L2 0 24 1,271
1 BeiDou B1 26 25 1,151
1 GPS L1 0 5 1,123
1 Galileo E5A+B 14 26 1,021
1 BeiDou B3 29 36 971
1 BeiDou B3 29 22 969
1 Galileo E5A+B 14 31 950
1 Galileo E5A+B 14 10 942
1 GLONASS L1 0 14 937
P4-03_gt35_1: 1346.4
Antenna SVType Freq Track SV osc_factor
1 GLONASS L2 0 24 1,346
1 GLONASS L2 0 11 1,322
1 GPS L2 5 18 1,190
1 GLONASS L2 0 17 1,157
1 BeiDou B1 26 25 1,137
1 GPS L1 0 28 1,029
1 GLONASS L1 0 18 996
1 GLONASS L1 0 7 996
1 GLONASS L1 0 20 992
1 GLONASS L1 0 17 935
P4-05_gt35_1: 1216.8
Antenna SVType Freq Track SV osc_factor
1 GPS L1 0 29 1,217
1 BeiDou B1 26 25 1,195
1 GLONASS L1 0 11 1,029
1 GLONASS L1 0 24 962
1 GLONASS L1 0 22 953
1 GLONASS L1 0 3 937
1 Galileo E5A+B 14 26 926
1 Galileo E5A+B 14 31 909
1 BeiDou E5B/B2 28 11 900
1 Galileo E5A+B 14 24 885

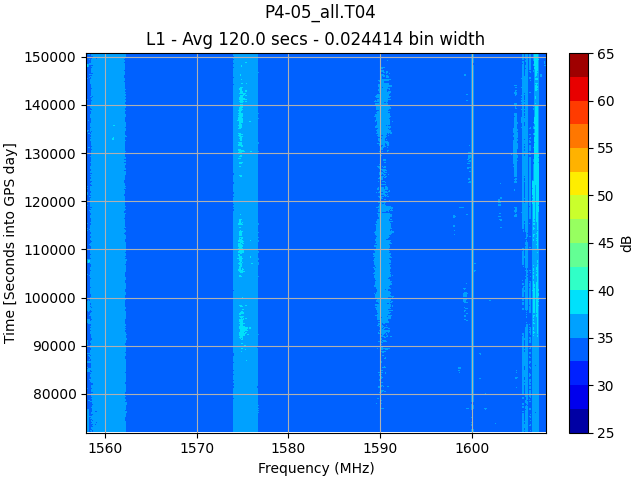

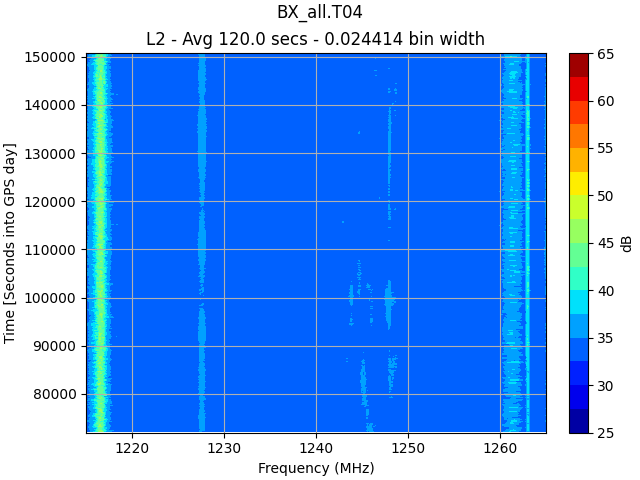

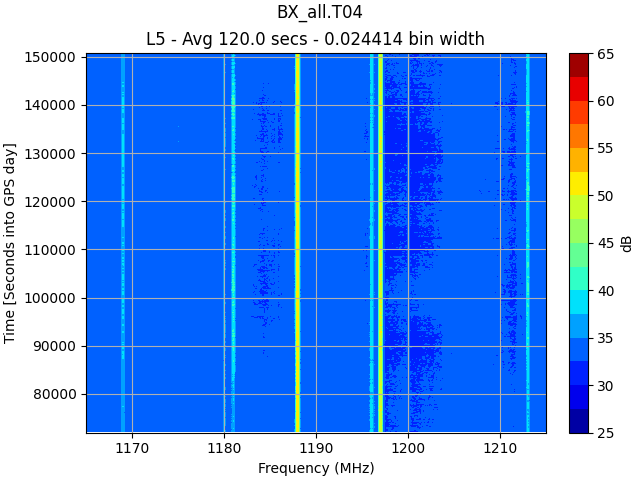

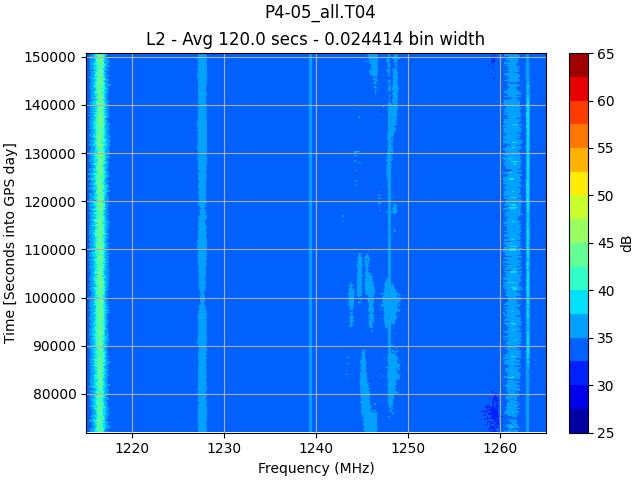

FFT Plots

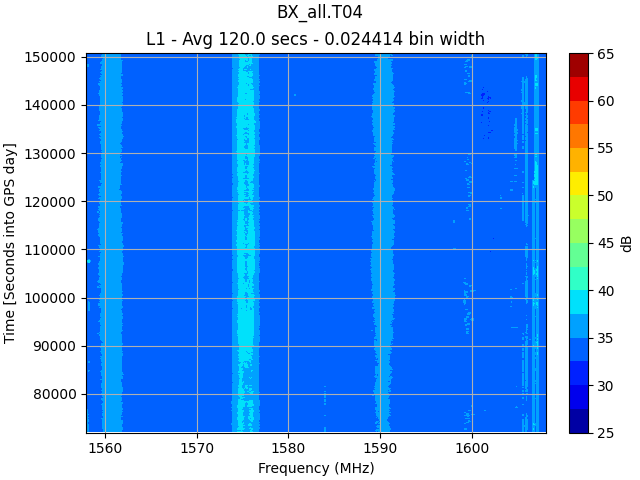

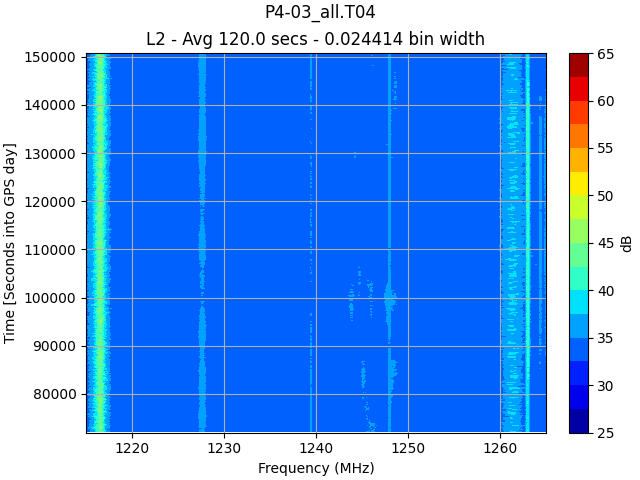

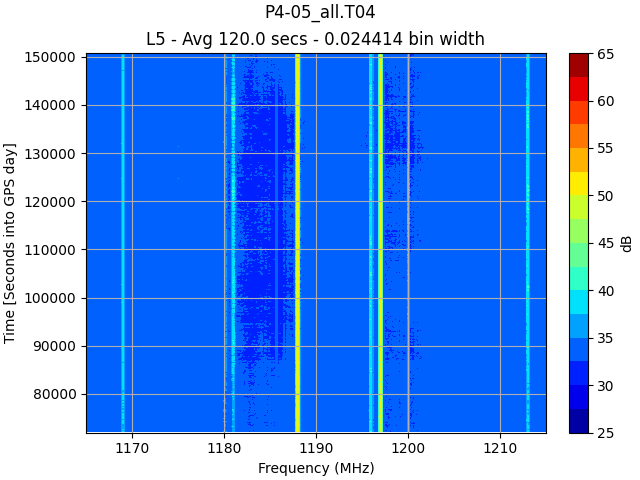

L1 L2 L5 E6 G1 B1
BX
P4-03
P4-05
