REF File: 1113_no_radio/BX_gt35.T04
DUT File: 1113_no_radio/P4-05_gt35.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 363633 47.6 47.6 2.3 38.6 55.0 16.4 55.5 89.0
GPS L2 CM+CL 286504 47.4 47.6 1.9 39.9 52.3 12.4 56.6 89.0
GPS L2 E 77129 36.3 36.4 3.2 25.6 44.6 19.0 51.4 78.0
GPS L5/E5A I+Q 199273 50.5 50.7 2.0 44.3 55.0 10.7 56.0 89.0
GLONASS L1 CA 281878 47.0 48.6 4.3 31.9 54.7 22.8 53.6 89.0
GLONASS L2 CA 243211 46.3 47.2 2.7 1.0 51.0 50.0 53.6 89.0
Galileo L1 MBOC-PD 275732 48.9 49.2 2.0 38.8 54.3 15.5 56.4 90.0
Galileo E5A+B AltBOC-Comp-PD 275732 50.7 51.2 1.5 43.5 53.8 10.3 56.4 90.0
BeiDou L1 BOC-PD 280888 48.9 49.2 2.0 40.1 53.7 13.6 55.2 87.0
BeiDou L5/E5A I+Q 280888 48.8 49.1 1.6 42.5 52.3 9.8 55.2 87.0
BeiDou E5B/B2 BPSK(2)-B2 18128 47.7 47.8 1.0 44.5 50.3 5.8 54.0 83.0
BeiDou B1 BPSK(2)-B1 299016 49.0 49.2 2.1 38.4 53.9 15.5 55.1 87.0
BeiDou B3 BPSK(10)-B3 299016 47.2 47.4 1.3 40.4 50.3 9.9 55.1 87.0
start/stop time: 72,000 150,977
Total time: 78,977.0 seconds
Total time: 1,316.283 minutes
Total time: 21.938 hours
Total Samples: 3,181,028
Avg Samples/sec: 40.3

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 363638 47.5 47.5 2.1 39.7 54.5 14.8 55.5 89.0
GPS L2 CM+CL 286507 47.5 47.6 1.8 40.3 52.1 11.8 56.6 89.0
GPS L2 E 77131 36.4 36.8 3.0 26.6 43.7 17.1 51.4 78.0
GPS L5/E5A I+Q 199270 50.4 50.6 2.0 43.6 55.3 11.7 56.0 89.0
GLONASS L1 CA 281880 46.6 48.2 4.3 31.8 53.5 21.7 53.6 89.0
GLONASS L2 CA 243217 46.4 47.3 2.6 1.0 51.2 50.2 53.6 89.0
Galileo L1 MBOC-PD 275735 48.9 49.1 1.9 40.9 53.4 12.5 56.4 90.0
Galileo E5A+B AltBOC-Comp-PD 275735 50.4 50.8 1.4 43.7 53.2 9.5 56.4 90.0
BeiDou L1 BOC-PD 280902 48.7 49.0 1.8 41.1 53.2 12.1 55.2 87.0
BeiDou L5/E5A I+Q 280902 48.7 48.9 1.6 41.6 52.3 10.7 55.2 87.0
BeiDou E5B/B2 BPSK(2)-B2 18129 47.4 47.6 1.1 42.4 50.2 7.8 54.0 83.0
BeiDou B1 BPSK(2)-B1 299031 49.0 49.3 2.0 40.8 54.4 13.6 55.1 87.0
BeiDou B3 BPSK(10)-B3 299031 47.2 47.5 1.2 41.4 50.3 8.9 55.1 87.0
start/stop time: 72,000 150,979
Total time: 78,979.0 seconds
Total time: 1,316.317 minutes
Total time: 21.939 hours
Total Samples: 3,181,108
Avg Samples/sec: 40.3

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 363605 +0.1 +0.1 +1.1 -6.3 +6.0 +12.3 +55.5 +89.0
GPS L2 CM+CL 286481 -0.1 -0.1 +0.9 -5.0 +5.3 +10.3 +56.6 +89.0
GPS L2 E 77124 -0.1 -0.1 +1.0 -4.9 +5.4 +10.3 +51.4 +78.0
GPS L5/E5A I+Q 199253 +0.1 +0.1 +0.8 -3.0 +4.6 +7.6 +56.0 +89.0
GLONASS L1 CA 281857 +0.4 +0.4 +1.2 -5.0 +6.4 +11.4 +53.6 +89.0
GLONASS L2 CA 243144 -0.1 -0.1 +1.0 -5.0 +4.4 +9.4 +53.6 +89.0
Galileo L1 MBOC-PD 275720 -0.0 +0.0 +0.9 -5.0 +3.9 +8.9 +56.4 +90.0
Galileo E5A+B AltBOC-Comp-PD 275720 +0.3 +0.3 +0.5 -2.1 +2.7 +4.8 +56.4 +90.0
BeiDou L1 BOC-PD 280878 +0.2 +0.2 +1.0 -5.4 +5.0 +10.4 +55.2 +87.0
BeiDou L5/E5A I+Q 280878 +0.1 +0.1 +0.7 -3.1 +4.4 +7.5 +55.2 +87.0
BeiDou E5B/B2 BPSK(2)-B2 18128 +0.2 +0.2 +0.7 -2.6 +3.1 +5.7 +54.0 +83.0
BeiDou B1 BPSK(2)-B1 299006 -0.0 +0.0 +1.0 -5.0 +5.6 +10.6 +55.1 +87.0
BeiDou B3 BPSK(10)-B3 299006 -0.0 +0.0 +0.7 -3.8 +3.5 +7.3 +55.1 +87.0
start/stop time: 72,000 150,977
Total time: 78,977.0 seconds
Total time: 1,316.283 minutes
Total time: 21.938 hours
Total Samples: 3,180,800
Avg Samples/sec: 40.3

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.071
Median = 0.100
Std Dev= 0.936

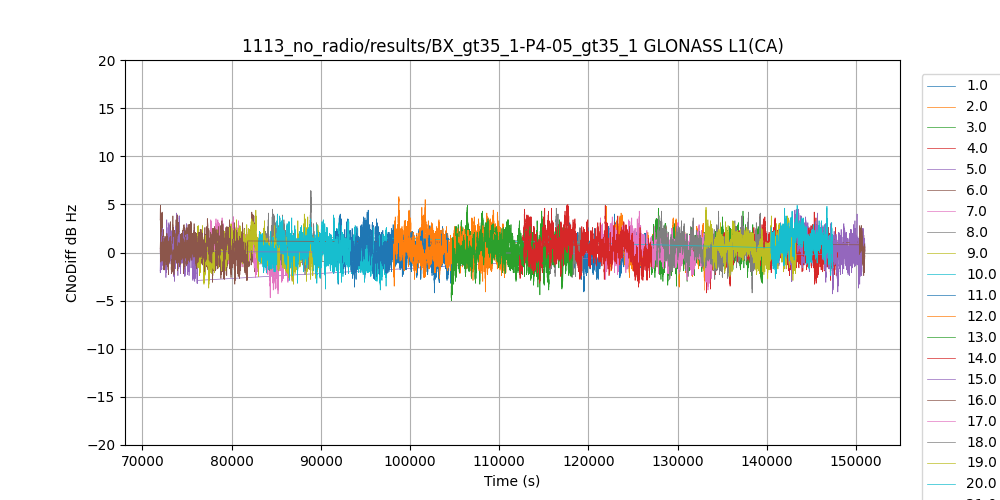

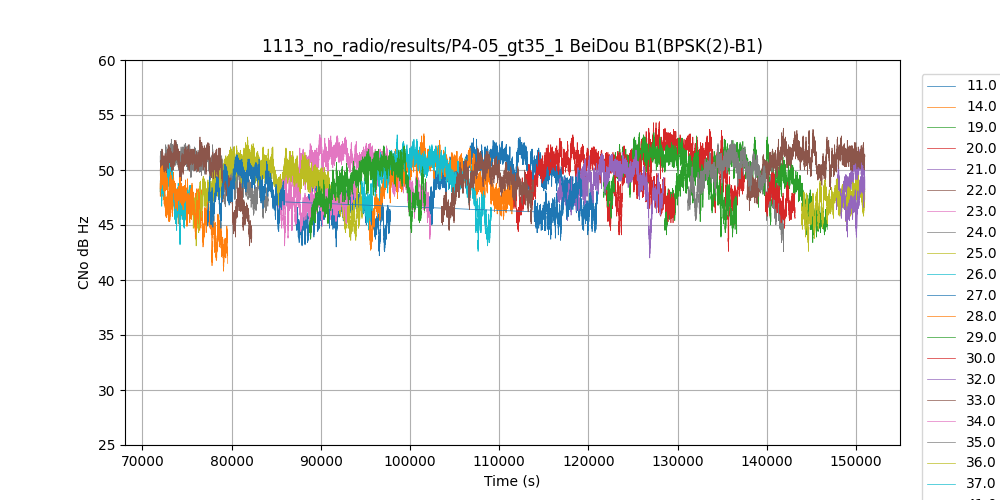

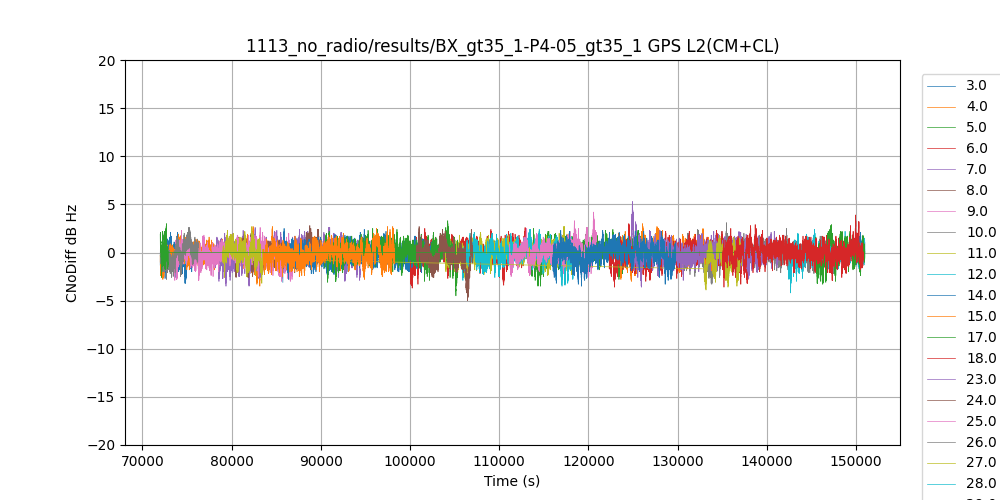

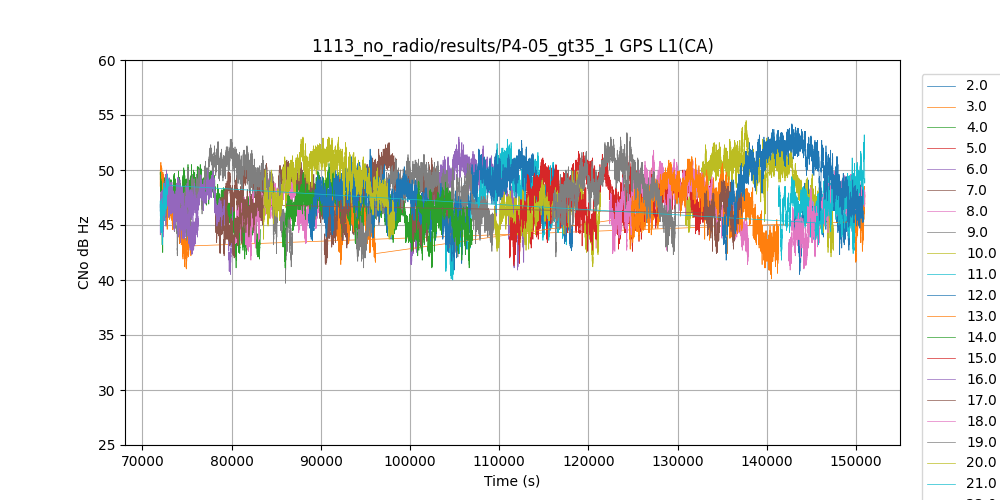

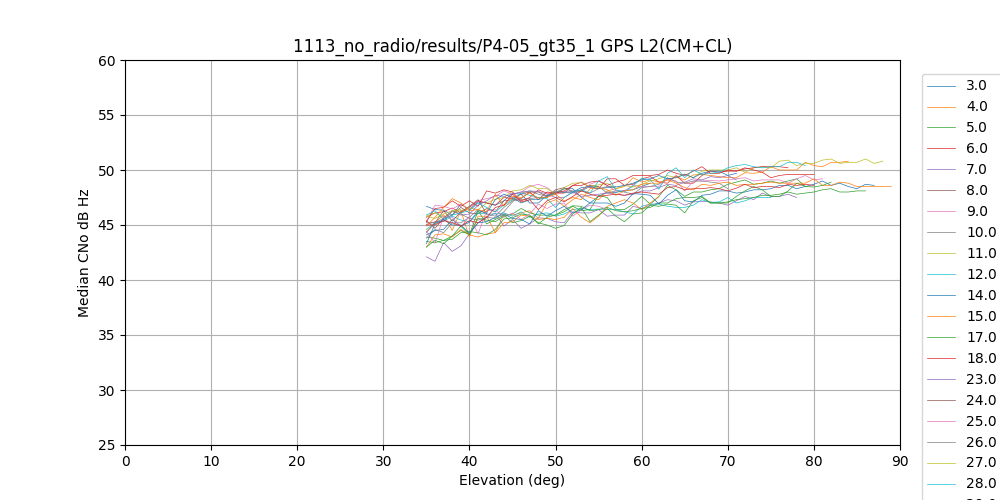

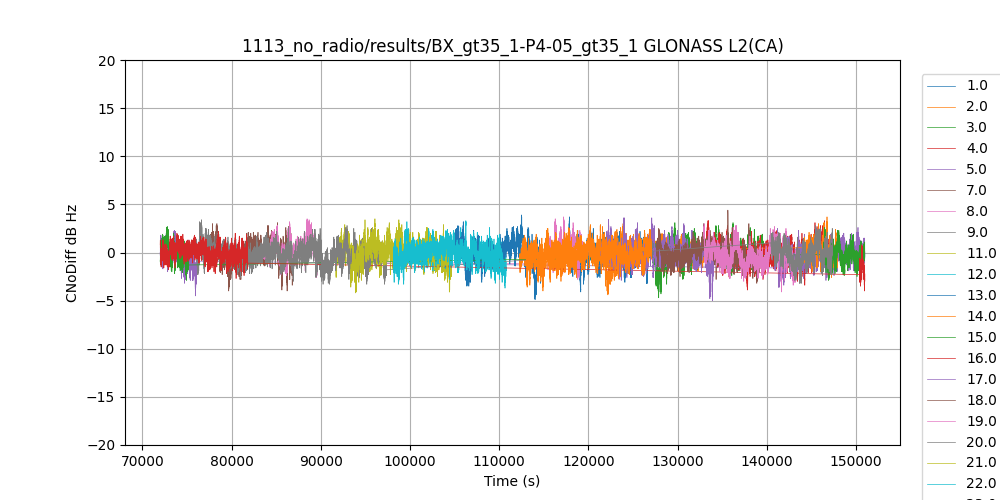

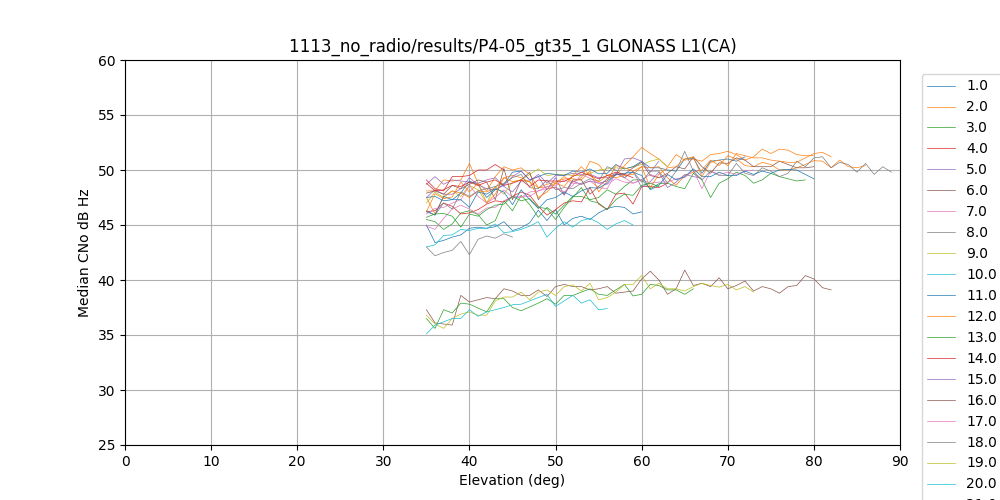

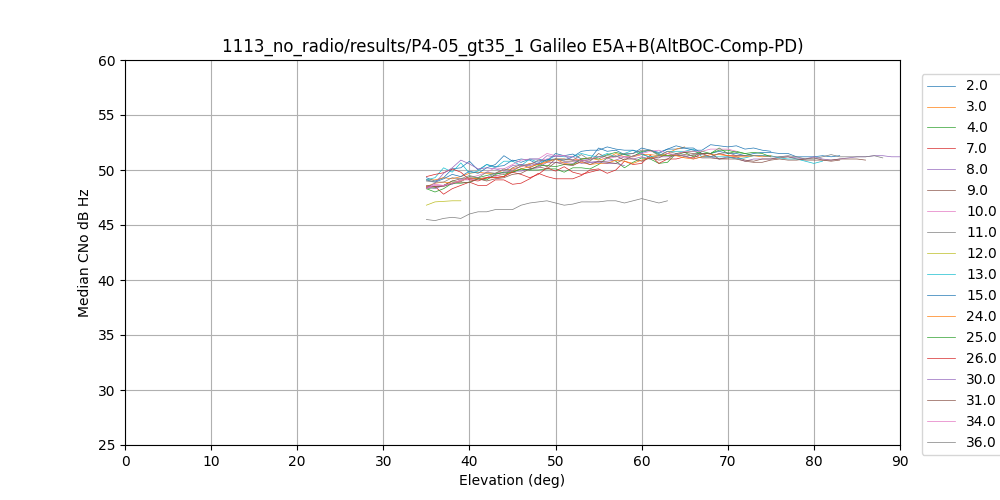

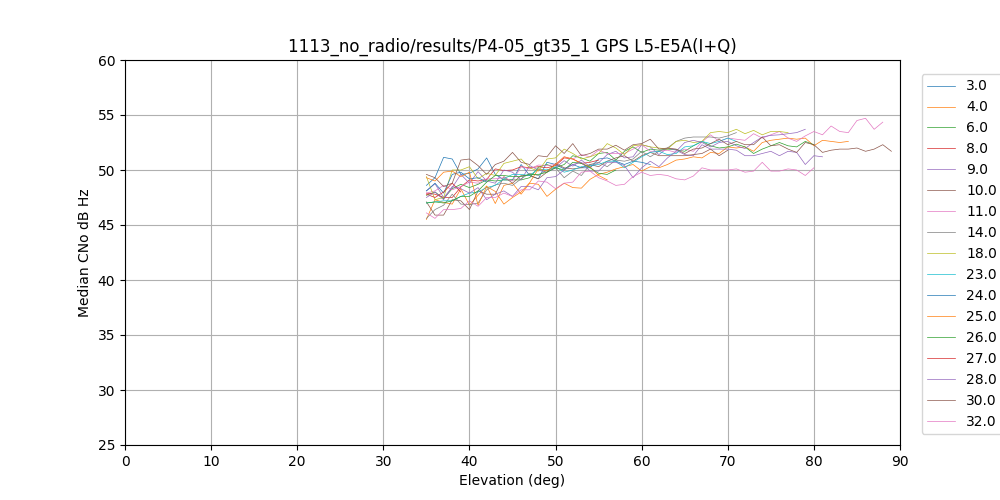

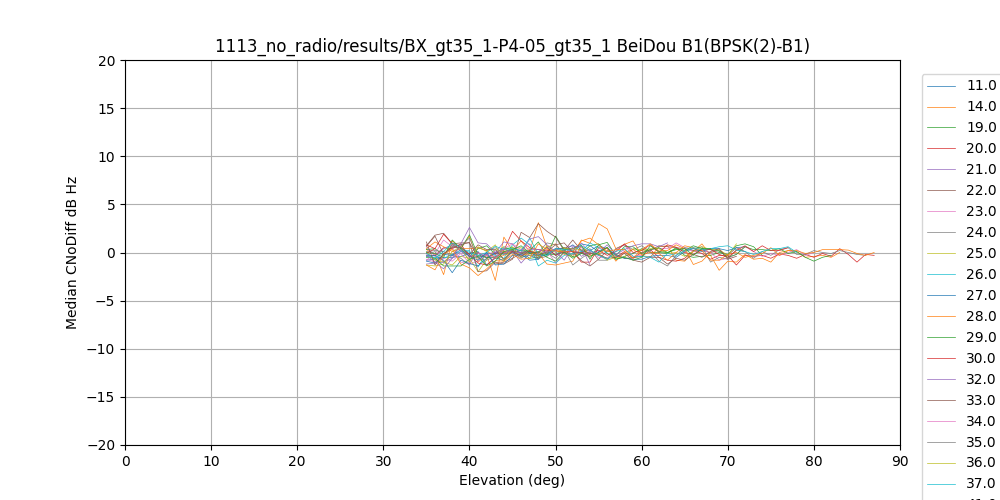

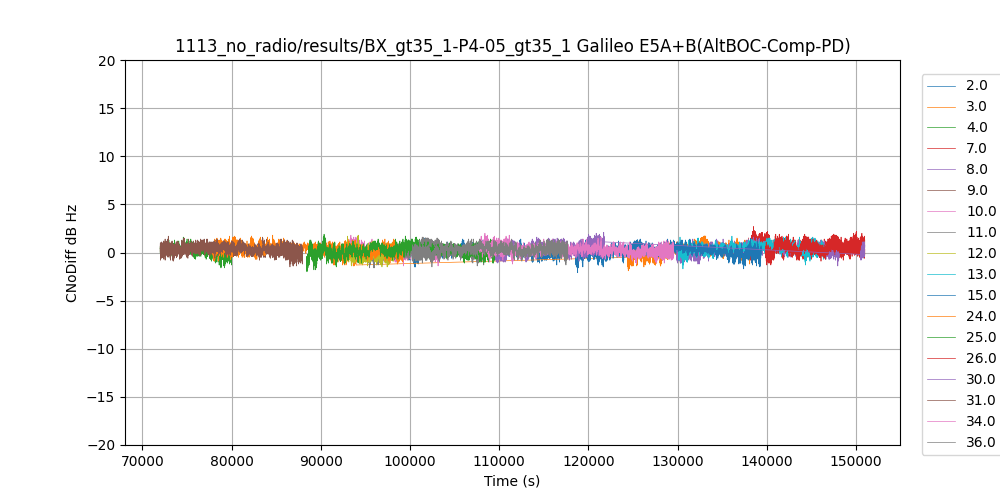

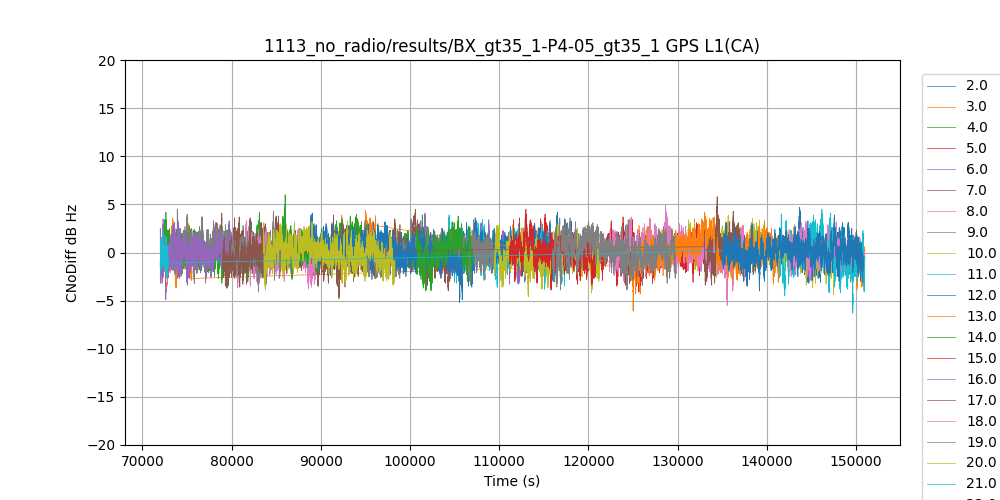

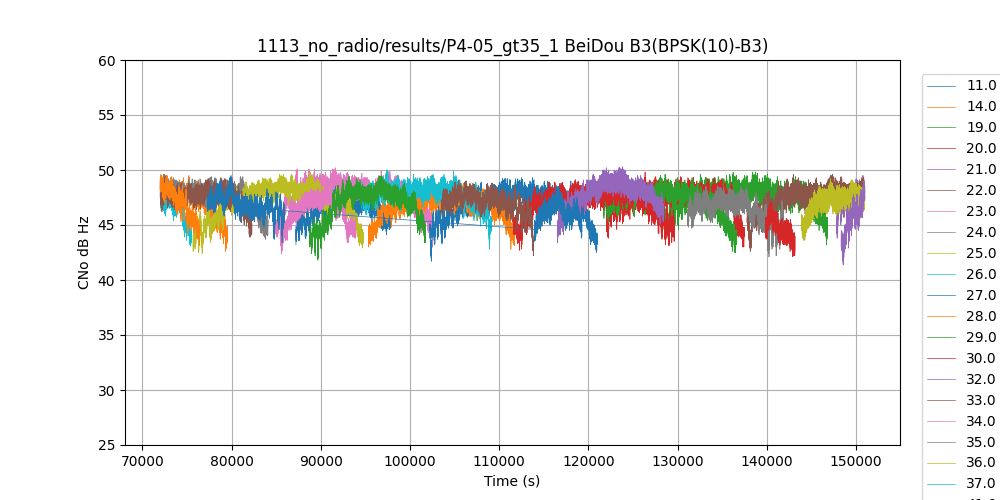

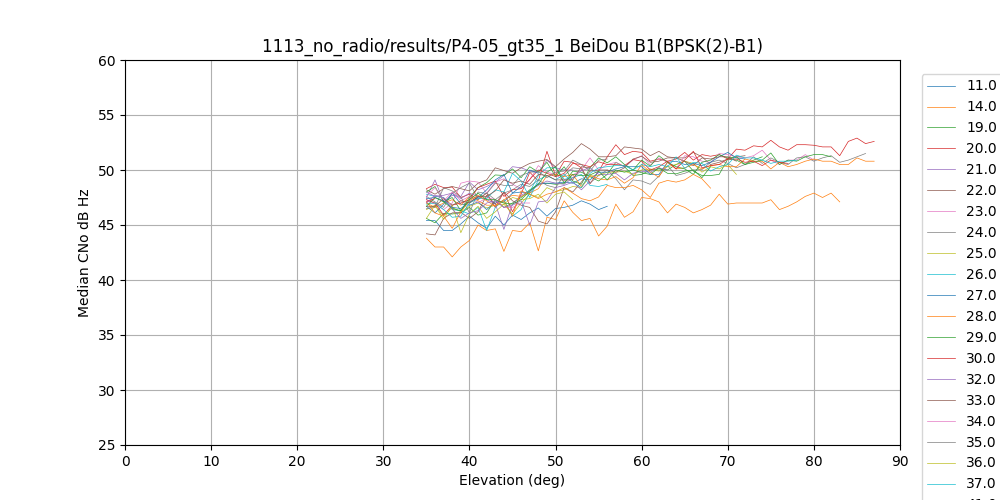

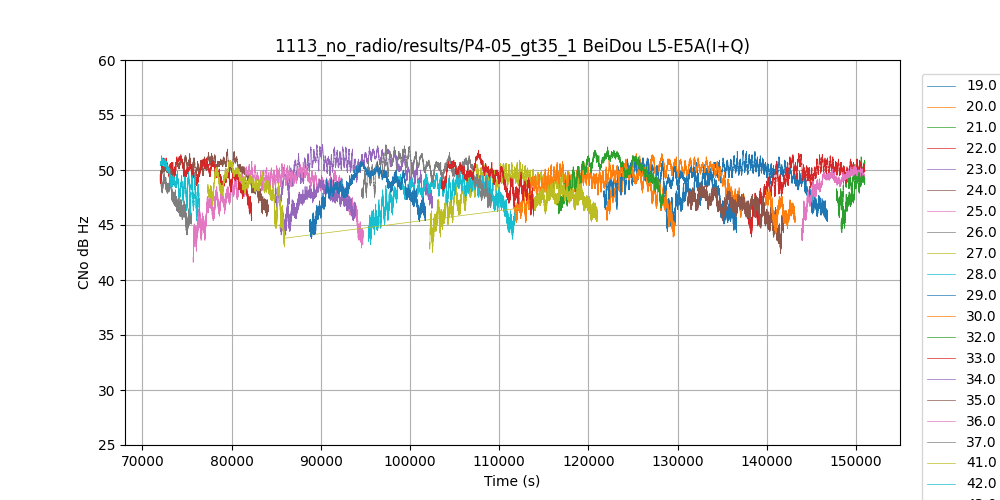

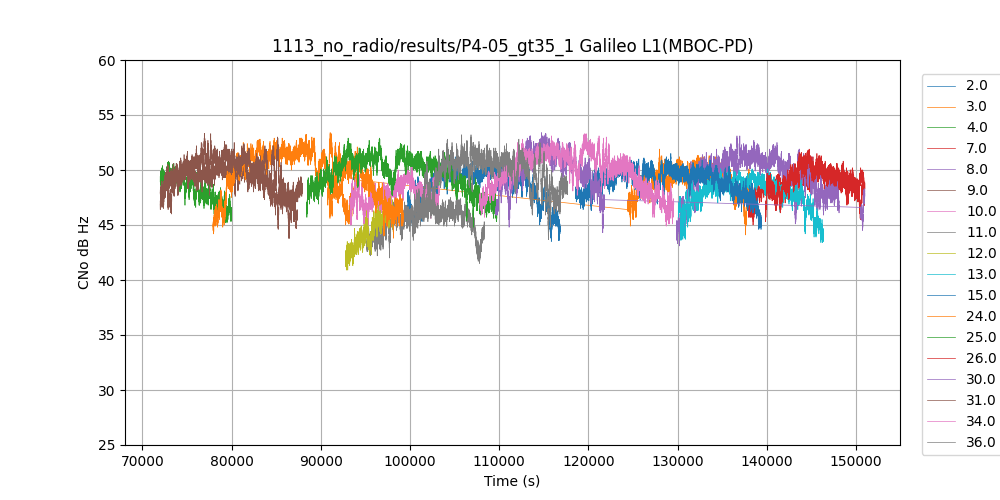

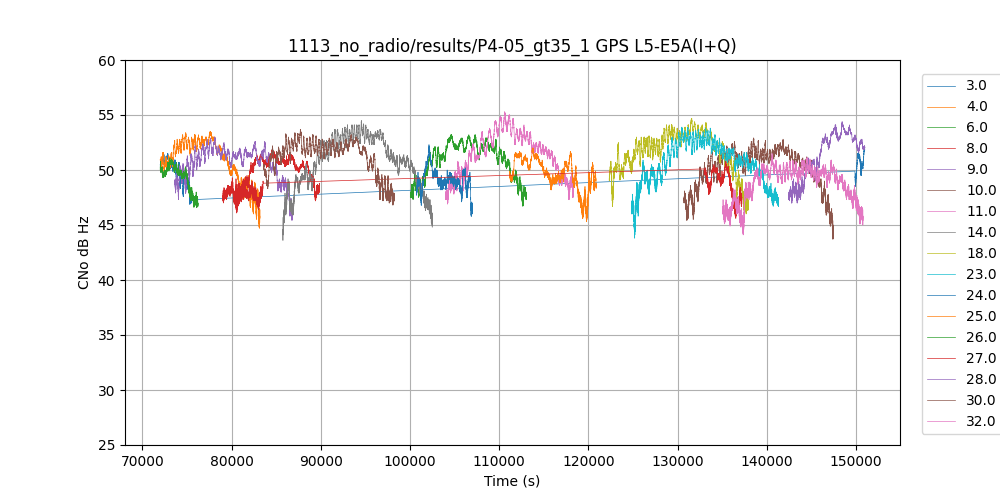

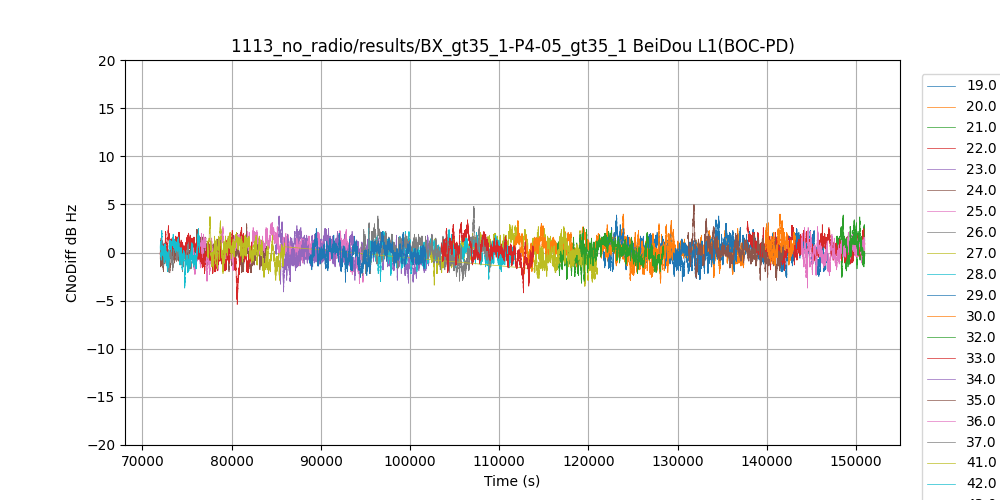

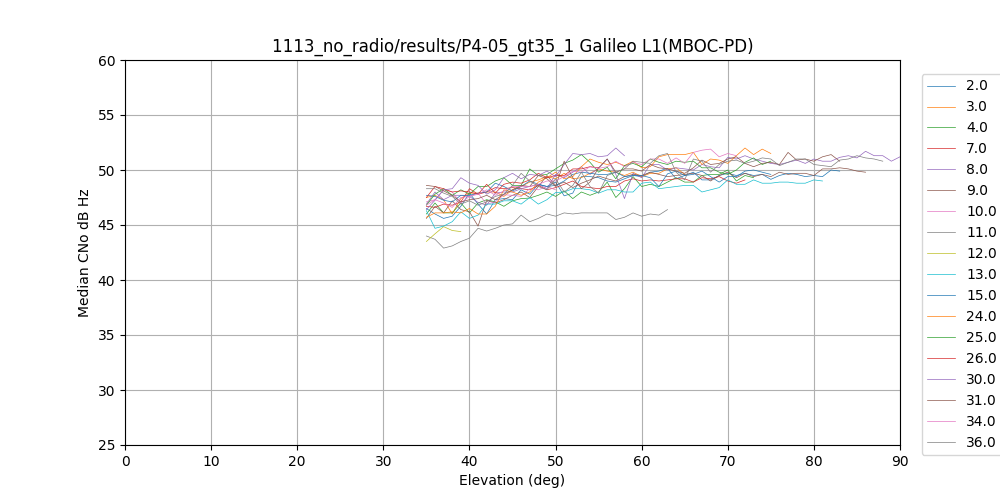

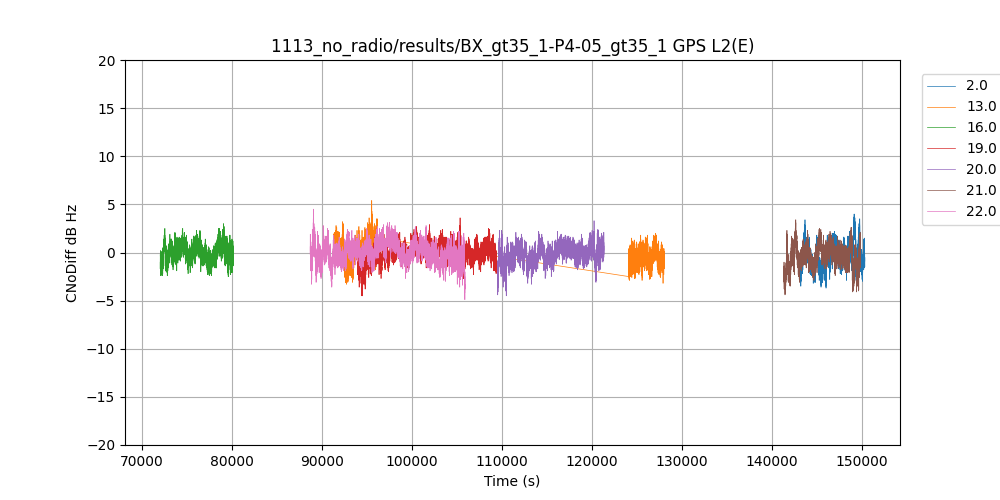

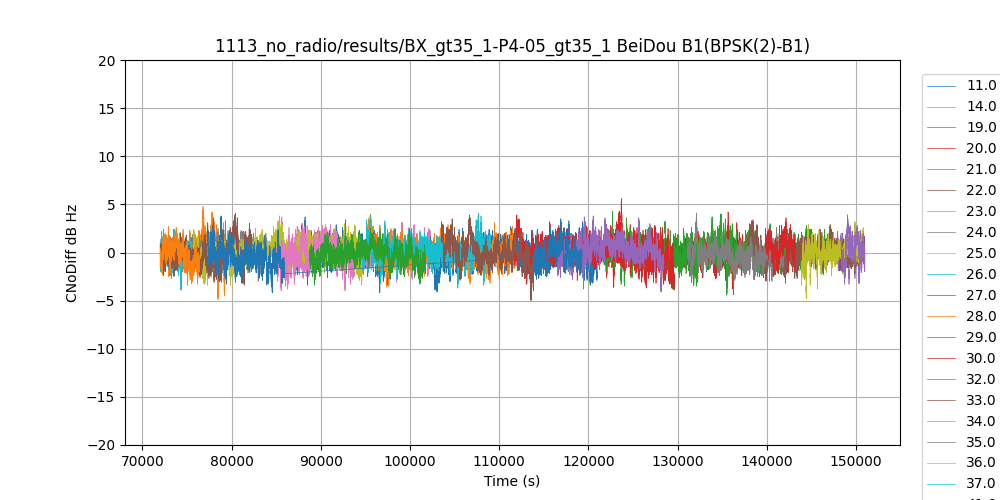

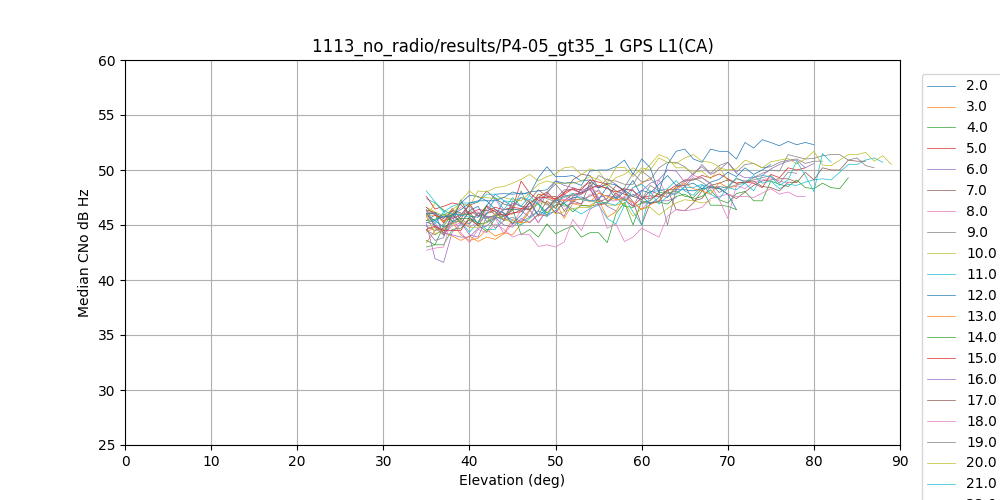

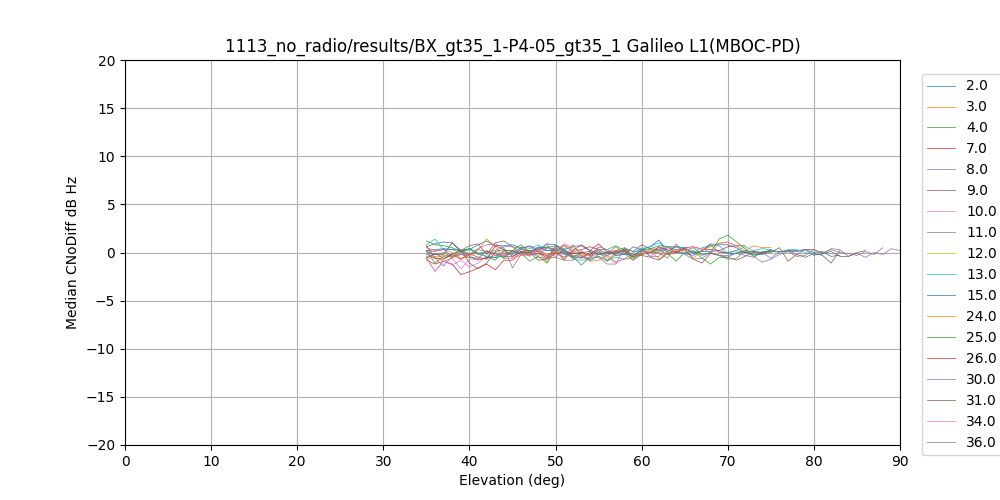

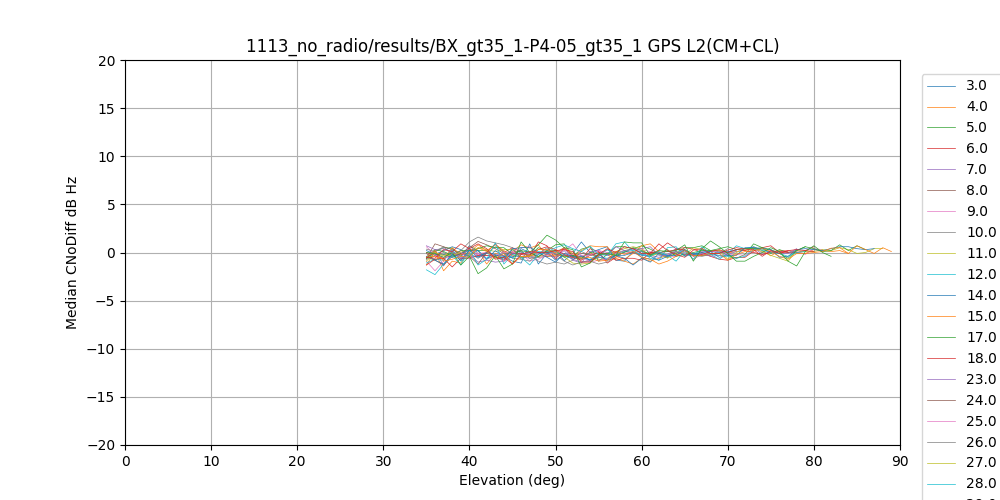

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 46.1 49.2 42.6 0 [76.0] [1.0] 7159
3 45.9 0.0 45.1 49.9 40.2 65 [90.0, 89.0] [1.0] 4648
4 65.4 0.0 47.3 51.9 42.0 0 [78.0] [1.0] 11176
5 58.8 0.0 48.0 51.8 40.4 0 [89.0] [1.0] 12785
6 59.3 0.0 48.1 52.2 38.9 0 [92.0] [1.0] 12980
7 58.8 0.0 47.9 51.7 42.0 0 [87.0] [1.0] 16232
8 47.4 -0.0 46.3 49.3 41.5 0 [92.0] [1.0] 9455
9 59.6 -0.0 48.8 54.3 41.4 0 [88.0] [1.0] 13214
10 55.7 -0.0 49.6 55.0 39.6 0 [93.0] [1.0] 16767
11 61.2 -0.0 47.6 52.3 39.7 0 [87.0] [1.0] 14429
12 57.5 0.0 48.6 52.5 42.4 0 [91.0] [1.0] 12441
13 37.3 -0.0 46.2 49.5 41.2 112 [62.0, 86.0] [1.0] 8869
14 56.5 -0.0 47.0 50.9 39.6 0 [71.0] [1.0] 16753
15 51.1 -0.0 47.3 50.5 43.2 0 [73.0] [1.0] 10610
16 55.0 0.0 46.7 49.6 41.1 0 [74.0] [1.0] 8114
17 60.9 -0.0 47.7 53.0 40.9 0 [74.0] [1.0] 14973
18 58.3 0.0 47.6 52.7 40.9 0 [90.0] [1.0] 15592
19 58.8 -0.0 47.5 52.2 41.1 0 [86.0] [1.0] 15393
20 54.3 -0.0 46.1 50.2 39.0 0 [85.0] [1.0] 11843
21 43.7 -0.0 46.6 50.0 38.6 0 [94.0] [1.0] 8550
22 56.4 -0.0 47.5 51.6 39.2 0 [65.0] [1.0] 17201
23 56.1 0.0 47.2 52.3 39.4 0 [84.0] [1.0] 16467
24 39.6 -0.0 46.0 49.3 42.2 0 [90.0] [1.0] 6225
25 47.9 -0.0 47.1 51.1 40.6 0 [83.0] [1.0] 9700
26 47.2 -0.0 46.0 49.3 41.5 0 [79.0] [1.0] 4237
27 37.1 0.0 45.9 49.7 40.2 67 [81.0, 83.0] [1.0] 8714
28 63.3 -0.0 46.2 50.2 40.0 0 [74.0] [1.0] 8518
29 61.1 -0.0 48.6 53.2 41.8 0 [80.0] [1.0] 13775
30 61.3 0.0 49.2 53.4 42.1 0 [84.0] [1.0] 14674
31 55.2 0.0 47.2 51.1 42.7 196 [85.0, 69.0] [1.0] 6415
32 59.3 -0.0 49.9 54.5 42.7 0 [87.0] [1.0] 15724
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 46.1 49.1 40.5 0 [72.0] [1.0] 7160
3 45.9 -0.0 45.6 50.7 41.0 148 [89.0, 93.0] [1.0] 4653
4 65.4 -0.0 47.0 50.5 41.1 0 [80.0] [1.0] 11175
5 58.8 0.0 48.0 51.7 42.6 0 [91.0] [1.0] 12785
6 59.3 0.0 48.2 53.0 40.9 0 [94.0] [1.0] 12980
7 58.8 0.0 47.7 51.0 42.4 0 [86.0] [1.0] 16234
8 47.4 -0.0 46.4 49.4 41.8 0 [94.0] [1.0] 9452
9 59.6 0.0 48.5 52.8 39.7 0 [88.0] [1.0] 13213
10 55.7 -0.0 49.3 54.5 42.1 0 [95.0] [1.0] 16767
11 61.2 0.0 47.5 52.8 40.0 0 [86.0] [1.0] 14428
12 57.5 -0.0 48.4 52.7 42.7 0 [92.0] [1.0] 12441
13 37.3 0.0 45.9 49.3 41.4 119 [63.0, 84.0] [1.0] 8866
14 56.5 0.0 46.5 50.9 41.1 0 [70.0] [1.0] 16754
15 51.1 -0.0 47.4 50.2 42.8 0 [78.0] [1.0] 10609
16 55.0 -0.0 47.0 50.0 40.5 0 [79.0] [1.0] 8115
17 60.9 -0.0 47.7 52.5 41.4 0 [79.0] [1.0] 14975
18 58.3 -0.0 47.4 51.8 41.4 0 [77.0] [1.0] 15592
19 58.8 -0.0 47.5 51.4 41.1 0 [84.0] [1.0] 15393
20 54.3 0.0 46.3 49.9 41.2 0 [93.0] [1.0] 11845
21 43.7 -0.0 46.8 49.4 41.8 0 [91.0] [1.0] 8551
22 56.5 0.0 47.2 51.9 40.9 0 [68.0] [1.0] 17201
23 56.1 0.0 46.9 51.2 40.1 0 [83.0] [1.0] 16466
24 39.6 -0.0 45.8 49.0 41.1 0 [89.0] [1.0] 6224
25 47.9 -0.0 47.0 51.1 41.3 0 [73.0] [1.0] 9698
26 47.2 -0.0 45.8 49.3 42.3 0 [76.0] [1.0] 4236
27 37.1 0.0 45.9 49.1 42.0 15 [81.0, 86.0] [1.0] 8715
28 63.3 0.0 46.2 49.9 40.9 0 [71.0] [1.0] 8520
29 61.1 0.0 48.4 53.4 42.1 0 [80.0] [1.0] 13776
30 61.3 -0.0 49.3 53.0 43.7 0 [85.0] [1.0] 14673
31 55.2 0.0 47.4 53.2 43.2 114 [87.0, 68.0] [1.0] 6417
32 59.3 -0.0 49.9 54.2 41.8 0 [88.0] [1.0] 15724
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 0.1 4.7 -3.2 [76.0, 72.0] 7159
3 45.9 -0.5 3.6 -3.9 [90.0, 89.0, 93.0] 4648
4 65.4 0.3 4.2 -3.7 [78.0, 80.0] 11175
5 58.8 0.1 4.0 -4.1 [89.0, 91.0] 12784
6 59.3 -0.0 4.1 -3.5 [92.0, 94.0] 12978
7 58.8 0.2 4.1 -4.8 [87.0, 86.0] 16232
8 47.4 -0.1 3.3 -3.8 [92.0, 94.0] 9452
9 59.6 0.3 4.5 -4.1 [88.0] 13212
10 55.7 0.3 3.9 -4.4 [93.0, 95.0] 16766
11 61.2 0.1 3.9 -3.8 [87.0, 86.0] 14428
12 57.5 0.2 4.2 -3.6 [91.0, 92.0] 12440
13 37.3 0.3 4.4 -4.3 [62.0, 63.0, 86.0, 84.0] 8866
14 56.5 0.4 6.0 -4.0 [71.0, 70.0] 16752
15 51.1 -0.0 3.7 -3.5 [73.0, 78.0] 10609
16 55.0 -0.2 3.3 -4.9 [74.0, 79.0] 8114
17 60.9 -0.0 4.5 -4.0 [74.0, 79.0] 14973
18 58.3 0.2 4.9 -5.5 [90.0, 77.0] 15591
19 58.8 0.0 3.5 -3.4 [86.0, 84.0] 15392
20 54.3 -0.3 2.9 -4.6 [85.0, 93.0] 11843
21 43.7 -0.1 4.0 -6.3 [94.0, 91.0] 8550
22 56.5 0.3 4.1 -5.2 [65.0, 68.0] 17200
23 56.1 0.2 4.2 -6.1 [84.0, 83.0] 16466
24 39.6 0.1 3.8 -4.0 [90.0, 89.0] 6224
25 47.9 0.1 4.5 -3.4 [83.0, 73.0] 9698
26 47.2 0.2 3.5 -3.4 [79.0, 76.0] 4236
27 37.1 -0.0 5.8 -3.7 [81.0, 83.0, 86.0] 8713
28 63.3 0.0 3.2 -2.9 [74.0, 71.0] 8518
29 61.1 0.2 3.6 -3.9 [80.0] 13775
30 61.3 -0.0 3.3 -3.9 [84.0, 85.0] 14673
31 55.2 -0.2 4.5 -4.2 [85.0, 87.0, 69.0, 68.0] 6415
32 59.3 0.1 3.9 -4.0 [87.0, 88.0] 15723
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 35.2 38.6 30.4 0 [76.0] [1.0] 7159
13 37.3 -0.0 32.3 35.9 27.5 87 [62.0, 86.0] [1.0] 8869
16 55.0 0.0 36.6 40.1 28.6 0 [74.0] [1.0] 8114
19 58.8 -0.0 39.3 44.6 28.5 0 [86.0] [1.0] 15393
20 54.3 -0.0 36.6 40.9 27.3 0 [85.0] [1.0] 11843
21 43.7 -0.0 34.3 37.7 27.4 0 [94.0] [1.0] 8550
22 56.4 -0.0 36.8 40.9 25.6 0 [65.0] [1.0] 17201
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 35.5 40.0 30.8 0 [72.0] [1.0] 7160
13 37.3 0.0 32.4 35.1 26.6 95 [63.0, 84.0] [1.0] 8866
16 55.0 -0.0 36.6 40.0 29.4 0 [79.0] [1.0] 8115
19 58.8 -0.0 39.3 43.7 30.6 0 [84.0] [1.0] 15393
20 54.3 0.0 36.8 41.2 28.1 0 [93.0] [1.0] 11845
21 43.7 -0.0 34.8 38.8 28.7 0 [91.0] [1.0] 8551
22 56.5 0.0 36.8 41.2 28.0 0 [68.0] [1.0] 17201
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 -0.4 4.0 -3.7 [76.0, 72.0] 7159
13 37.3 -0.1 5.4 -3.3 [62.0, 63.0, 86.0, 84.0] 8866
16 55.0 -0.0 3.0 -2.5 [74.0, 79.0] 8114
19 58.8 0.0 3.6 -4.5 [86.0, 84.0] 15392
20 54.3 -0.2 3.3 -4.5 [85.0, 93.0] 11843
21 43.7 -0.4 3.4 -4.4 [94.0, 91.0] 8550
22 56.5 0.0 4.5 -4.9 [65.0, 68.0] 17200
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 45.9 0.0 47.0 49.5 42.6 163 [90.0, 89.0] [1.0] 4648
4 65.4 0.0 48.7 52.1 42.0 0 [78.0] [1.0] 11176
5 58.8 0.0 47.2 50.9 41.4 0 [89.0] [1.0] 12785
6 59.3 0.0 48.5 51.4 43.2 0 [92.0] [1.0] 12980
7 58.8 0.0 46.0 49.5 40.3 0 [87.0] [1.0] 16232
8 47.4 -0.0 47.4 49.9 42.9 0 [92.0] [1.0] 9455
9 59.6 -0.0 48.1 50.7 41.4 0 [88.0] [1.0] 13214
10 55.7 -0.0 47.5 50.3 41.1 0 [93.0] [1.0] 16767
11 61.2 -0.0 48.9 52.3 43.6 0 [87.0] [1.0] 14429
12 57.5 0.0 46.4 49.1 41.8 0 [91.0] [1.0] 12441
14 56.5 -0.0 48.1 51.2 41.4 0 [71.0] [1.0] 16753
15 51.1 -0.0 45.8 49.3 39.9 0 [73.0] [1.0] 10610
17 60.9 -0.0 46.6 50.2 40.5 0 [74.0] [1.0] 14973
18 58.3 0.0 48.7 51.6 41.2 0 [90.0] [1.0] 15592
23 56.1 0.0 47.9 50.5 42.2 0 [84.0] [1.0] 16467
24 39.6 -0.0 45.8 48.5 40.9 0 [90.0] [1.0] 6225
25 47.9 -0.0 46.2 48.7 42.3 0 [83.0] [1.0] 9700
26 47.2 -0.0 47.0 49.3 43.7 0 [79.0] [1.0] 4237
27 37.1 0.0 45.6 48.4 41.7 93 [81.0, 83.0] [1.0] 8714
28 63.3 -0.0 48.9 52.1 42.3 0 [74.0] [1.0] 8518
29 61.1 -0.0 46.8 50.5 40.9 0 [80.0] [1.0] 13775
30 61.3 0.0 47.7 50.2 42.7 0 [84.0] [1.0] 14674
31 55.2 0.0 45.8 50.0 40.9 127 [85.0, 69.0] [1.0] 6415
32 59.3 -0.0 47.6 50.4 40.0 0 [87.0] [1.0] 15724
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 45.9 -0.0 47.2 49.5 44.1 154 [89.0, 93.0] [1.0] 4653
4 65.4 -0.0 48.9 52.1 42.6 0 [80.0] [1.0] 11175
5 58.8 0.0 47.1 50.3 41.7 0 [91.0] [1.0] 12785
6 59.3 0.0 48.5 51.3 43.6 0 [94.0] [1.0] 12980
7 58.8 0.0 46.1 49.2 40.4 0 [86.0] [1.0] 16234
8 47.4 -0.0 47.4 50.0 43.5 0 [94.0] [1.0] 9452
9 59.6 0.0 48.4 50.8 43.4 0 [88.0] [1.0] 13213
10 55.7 -0.0 47.8 50.8 42.0 0 [95.0] [1.0] 16767
11 61.2 0.0 49.0 52.0 43.7 0 [86.0] [1.0] 14428
12 57.5 -0.0 46.5 49.0 42.4 0 [92.0] [1.0] 12441
14 56.5 0.0 48.3 51.6 40.9 0 [70.0] [1.0] 16754
15 51.1 -0.0 45.7 48.8 40.8 0 [78.0] [1.0] 10609
17 60.9 -0.0 46.5 49.5 41.7 0 [79.0] [1.0] 14975
18 58.3 -0.0 48.9 51.5 43.6 0 [77.0] [1.0] 15592
23 56.1 0.0 47.9 51.1 40.3 0 [83.0] [1.0] 16466
24 39.6 -0.0 46.2 48.9 41.1 0 [89.0] [1.0] 6224
25 47.9 -0.0 46.1 48.9 41.2 0 [73.0] [1.0] 9698
26 47.2 -0.0 47.2 49.4 43.5 0 [76.0] [1.0] 4236
27 37.1 0.0 46.0 49.1 42.8 169 [81.0, 86.0] [1.0] 8715
28 63.3 0.0 49.1 51.8 44.1 0 [71.0] [1.0] 8520
29 61.1 0.0 47.0 50.1 41.1 0 [80.0] [1.0] 13776
30 61.3 -0.0 47.9 50.7 41.6 0 [85.0] [1.0] 14673
31 55.2 0.0 45.9 49.5 40.8 82 [87.0, 68.0] [1.0] 6417
32 59.3 -0.0 47.5 50.0 42.2 0 [88.0] [1.0] 15724
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 45.9 -0.2 2.1 -3.2 [90.0, 89.0, 93.0] 4648
4 65.4 -0.2 2.7 -3.5 [78.0, 80.0] 11175
5 58.8 0.1 2.5 -3.5 [89.0, 91.0] 12784
6 59.3 -0.0 2.6 -3.7 [92.0, 94.0] 12978
7 58.8 -0.2 2.6 -3.5 [87.0, 86.0] 16232
8 47.4 -0.1 2.8 -2.6 [92.0, 94.0] 9452
9 59.6 -0.2 2.6 -3.0 [88.0] 13212
10 55.7 -0.2 3.1 -3.3 [93.0, 95.0] 16766
11 61.2 -0.1 2.7 -2.7 [87.0, 86.0] 14428
12 57.5 -0.1 2.4 -3.5 [91.0, 92.0] 12440
14 56.5 -0.2 2.5 -3.1 [71.0, 70.0] 16752
15 51.1 0.1 3.0 -3.0 [73.0, 78.0] 10609
17 60.9 0.1 3.3 -4.5 [74.0, 79.0] 14973
18 58.3 -0.2 3.0 -3.6 [90.0, 77.0] 15591
23 56.1 -0.0 5.3 -3.6 [84.0, 83.0] 16466
24 39.6 -0.4 2.7 -5.0 [90.0, 89.0] 6224
25 47.9 0.1 4.2 -2.6 [83.0, 73.0] 9698
26 47.2 -0.2 2.6 -2.8 [79.0, 76.0] 4236
27 37.1 -0.4 2.7 -3.9 [81.0, 83.0, 86.0] 8713
28 63.3 -0.2 2.4 -4.2 [74.0, 71.0] 8518
29 61.1 -0.2 2.3 -3.5 [80.0] 13775
30 61.3 -0.2 2.7 -2.8 [84.0, 85.0] 14673
31 55.2 -0.1 3.0 -3.3 [85.0, 87.0, 69.0, 68.0] 6415
32 59.3 0.0 3.9 -3.6 [87.0, 88.0] 15723
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 45.9 0.0 49.9 51.8 47.2 248 [90.0, 89.0] [1.0] 4648
4 65.4 0.0 50.9 53.7 44.9 0 [78.0] [1.0] 11176
6 59.3 0.0 50.9 53.2 46.0 0 [92.0] [1.0] 12980
8 47.4 -0.0 49.6 51.6 45.5 0 [92.0] [1.0] 9455
9 59.6 -0.0 50.8 52.7 45.7 0 [88.0] [1.0] 13214
10 55.7 -0.0 50.2 52.6 44.3 0 [93.0] [1.0] 16767
11 61.2 -0.0 51.7 55.0 47.1 0 [87.0] [1.0] 14429
14 56.5 -0.0 50.7 53.9 45.1 0 [71.0] [1.0] 16753
18 58.3 0.0 51.8 54.5 44.6 0 [90.0] [1.0] 15592
23 56.1 0.0 50.7 53.7 44.7 0 [84.0] [1.0] 16467
24 39.6 -0.0 48.7 52.0 44.4 0 [90.0] [1.0] 6225
25 47.9 -0.0 49.9 51.9 46.5 0 [83.0] [1.0] 9700
26 47.2 -0.0 49.4 51.3 46.2 0 [79.0] [1.0] 4237
27 37.1 0.0 48.2 50.7 45.0 75 [81.0, 83.0] [1.0] 8714
28 63.3 -0.0 51.5 54.3 46.3 0 [74.0] [1.0] 8518
30 61.3 0.0 51.4 53.2 44.7 0 [84.0] [1.0] 14674
32 59.3 -0.0 49.1 51.6 44.7 0 [87.0] [1.0] 15724
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 45.9 -0.0 49.9 52.0 46.9 42 [89.0, 93.0] [1.0] 4653
4 65.4 -0.0 50.8 53.5 44.7 0 [80.0] [1.0] 11175
6 59.3 0.0 50.9 53.2 46.7 0 [94.0] [1.0] 12980
8 47.4 -0.0 49.9 51.8 46.1 0 [94.0] [1.0] 9452
9 59.6 0.0 50.6 53.0 45.4 0 [88.0] [1.0] 13213
10 55.7 -0.0 50.2 52.9 43.7 0 [95.0] [1.0] 16767
11 61.2 0.0 51.4 55.3 46.9 0 [86.0] [1.0] 14428
14 56.5 0.0 50.8 54.5 43.6 0 [70.0] [1.0] 16754
18 58.3 -0.0 51.6 54.7 46.0 0 [77.0] [1.0] 15592
23 56.1 0.0 50.6 53.9 43.8 0 [83.0] [1.0] 16466
24 39.6 -0.0 49.0 52.3 45.8 0 [89.0] [1.0] 6224
25 47.9 -0.0 49.7 52.0 45.3 0 [73.0] [1.0] 9698
26 47.2 -0.0 49.2 51.1 46.6 0 [76.0] [1.0] 4236
27 37.1 0.0 48.3 50.8 45.6 232 [81.0, 86.0] [1.0] 8715
28 63.3 0.0 51.3 54.4 47.0 0 [71.0] [1.0] 8520
30 61.3 -0.0 51.3 53.7 46.8 0 [85.0] [1.0] 14673
32 59.3 -0.0 48.7 51.5 44.1 0 [88.0] [1.0] 15724
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 45.9 0.0 2.0 -1.5 [90.0, 89.0, 93.0] 4648
4 65.4 0.1 2.0 -2.2 [78.0, 80.0] 11175
6 59.3 -0.0 2.0 -2.3 [92.0, 94.0] 12978
8 47.4 -0.3 1.0 -2.4 [92.0, 94.0] 9452
9 59.6 0.2 2.9 -1.8 [88.0] 13212
10 55.7 0.1 2.4 -2.4 [93.0, 95.0] 16766
11 61.2 0.2 2.0 -1.5 [87.0, 86.0] 14428
14 56.5 -0.1 2.2 -2.1 [71.0, 70.0] 16752
18 58.3 0.1 2.3 -2.3 [90.0, 77.0] 15591
23 56.1 0.1 3.1 -1.6 [84.0, 83.0] 16466
24 39.6 -0.3 3.3 -3.0 [90.0, 89.0] 6224
25 47.9 0.2 4.6 -2.4 [83.0, 73.0] 9698
26 47.2 0.2 1.5 -0.9 [79.0, 76.0] 4236
27 37.1 -0.1 2.4 -2.4 [81.0, 83.0, 86.0] 8713
28 63.3 0.1 1.8 -2.0 [74.0, 71.0] 8518
30 61.3 0.1 2.0 -2.9 [84.0, 85.0] 14673
32 59.3 0.3 3.5 -2.0 [87.0, 88.0] 15723
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 50.1 0.0 45.6 49.3 41.6 0 [1.0] [1.0] 8898
2 59.2 -0.0 50.6 54.7 46.3 0 [-4.0] [1.0] 11027
3 58.9 -0.0 48.0 51.8 39.0 0 [5.0] [1.0] 12514
4 51.6 0.0 47.7 52.3 41.2 0 [6.0] [1.0] 13747
5 51.1 0.0 49.6 53.2 44.6 51 [1.0] [1.0] 14224
6 60.9 0.0 39.6 43.4 35.1 79 [-4.0] [1.0] 10753
7 51.9 -0.0 48.4 51.9 41.3 0 [5.0] [1.0] 9348
8 39.7 -0.0 43.8 46.7 38.7 46 [6.0] [1.0] 9917
9 51.8 0.0 49.8 54.7 44.0 0 [-2.0] [1.0] 14087
10 49.8 0.0 45.0 49.2 38.7 0 [-7.0] [1.0] 14365
11 56.1 0.0 50.0 54.0 43.6 0 [0.0] [1.0] 12962
12 60.9 0.0 50.3 53.6 44.9 0 [-1.0] [1.0] 11535
13 53.4 -0.0 38.8 42.3 33.3 0 [-2.0] [1.0] 9725
14 39.2 -0.0 49.8 53.1 44.8 3 [-7.0] [1.0] 9639
15 48.8 0.0 49.0 52.7 43.7 35 [0.0] [1.0] 7772
16 61.0 0.0 50.0 53.4 44.5 42 [-1.0] [1.0] 10426
17 56.3 0.0 48.9 52.2 43.8 0 [4.0] [1.0] 12775
18 61.3 0.0 49.7 53.0 44.1 0 [-3.0] [1.0] 11627
19 56.6 0.0 39.0 44.3 31.9 0 [3.0] [1.0] 10294
20 46.0 0.0 37.9 42.4 32.4 12 [2.0] [1.0] 15091
21 59.4 0.0 48.8 52.5 44.1 0 [4.0] [1.0] 10975
22 59.9 -0.0 50.0 53.5 43.1 0 [-3.0] [1.0] 12285
23 51.2 -0.0 47.3 52.1 40.0 0 [3.0] [1.0] 13599
24 49.7 0.0 49.6 53.7 43.8 0 [2.0] [1.0] 14293
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 50.1 0.0 45.4 49.3 40.6 0 [1.0] [1.0] 8897
2 59.2 0.0 50.3 53.5 44.9 0 [-4.0] [1.0] 11027
3 59.0 0.0 47.7 51.1 39.7 0 [5.0] [1.0] 12512
4 51.6 -0.0 47.3 50.7 39.1 0 [6.0] [1.0] 13748
5 51.1 0.0 49.1 52.3 44.5 19 [1.0] [1.0] 14225
6 60.9 0.0 39.1 42.3 33.8 140 [-4.0] [1.0] 10753
7 51.9 -0.0 48.1 51.4 43.0 0 [5.0] [1.0] 9347
8 39.7 0.0 43.1 46.7 38.3 14 [6.0] [1.0] 9919
9 51.7 -0.0 49.5 53.3 44.1 0 [-2.0] [1.0] 14087
10 49.8 0.0 44.7 48.0 39.4 0 [-7.0] [1.0] 14365
11 56.1 0.0 49.8 53.5 43.9 0 [0.0] [1.0] 12963
12 60.9 0.0 49.5 52.6 44.5 0 [-1.0] [1.0] 11534
13 53.4 -0.0 38.4 41.4 34.0 0 [-2.0] [1.0] 9725
14 39.2 0.0 49.4 52.3 45.0 175 [-7.0] [1.0] 9639
15 48.8 0.0 48.9 52.1 45.5 143 [0.0] [1.0] 7774
16 61.0 0.0 49.6 52.8 45.8 56 [-1.0] [1.0] 10427
17 56.3 -0.0 48.6 52.1 43.3 0 [4.0] [1.0] 12776
18 61.3 -0.0 49.1 53.2 42.8 0 [-3.0] [1.0] 11627
19 56.6 -0.0 38.4 42.3 32.7 0 [3.0] [1.0] 10295
20 46.0 -0.0 37.3 42.4 31.8 185 [2.0] [1.0] 15091
21 59.4 -0.0 48.6 52.1 44.8 0 [4.0] [1.0] 10975
22 59.9 -0.0 49.6 53.4 43.1 0 [-3.0] [1.0] 12284
23 51.2 -0.0 47.1 50.7 41.0 0 [3.0] [1.0] 13598
24 49.7 -0.0 49.1 52.3 44.7 0 [2.0] [1.0] 14292
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 50.1 0.1 4.0 -4.1 [1.0] 8897
2 59.2 0.3 4.8 -3.9 [-4.0] 11026
3 59.0 0.2 4.6 -3.5 [5.0] 12512
4 51.6 0.4 4.2 -4.2 [6.0] 13747
5 51.1 0.5 4.5 -3.7 [1.0] 14223
6 60.9 0.5 4.9 -3.3 [-4.0] 10751
7 51.9 0.2 3.7 -4.7 [5.0] 9347
8 39.7 0.7 6.4 -2.6 [6.0] 9917
9 51.8 0.3 4.4 -3.7 [-2.0] 14086
10 49.8 0.2 4.0 -3.9 [-7.0] 14365
11 56.1 0.2 4.4 -4.2 [0.0] 12962
12 60.9 0.8 5.5 -4.1 [-1.0] 11534
13 53.4 0.4 4.9 -4.4 [-2.0] 9725
14 39.2 0.5 5.0 -3.3 [-7.0] 9637
15 48.8 0.1 3.4 -4.3 [0.0] 7771
16 61.0 0.4 3.5 -2.9 [-1.0] 10425
17 56.3 0.3 4.3 -3.9 [4.0] 12775
18 61.3 0.5 4.3 -4.2 [-3.0] 11626
19 56.6 0.6 4.7 -2.9 [3.0] 10294
20 46.0 0.6 4.9 -3.8 [2.0] 15089
21 59.4 0.1 4.2 -3.6 [4.0] 10974
22 59.9 0.3 5.8 -3.5 [-3.0] 12284
23 51.2 0.2 4.3 -5.0 [3.0] 13598
24 49.7 0.5 4.9 -3.6 [2.0] 14292
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 50.1 0.0 42.6 45.4 38.4 0 [1.0] [1.0] 8898
2 59.2 -0.0 47.2 50.1 39.0 0 [-4.0] [1.0] 11027
3 58.9 -0.0 47.0 50.3 42.0 0 [5.0] [1.0] 12514
4 51.6 0.0 47.4 49.9 43.4 0 [6.0] [1.0] 13747
5 51.1 0.0 46.9 49.9 40.4 9 [1.0] [1.0] 14224
7 51.9 -0.0 47.0 49.7 41.9 0 [5.0] [1.0] 9348
8 39.7 -0.0 46.2 49.4 42.6 137 [6.0] [1.0] 9917
9 51.8 0.0 48.4 50.9 43.7 0 [-2.0] [1.0] 14087
10 49.1 -0.0 30.7 40.6 1.0 21 [-7.0] [1.0] 22
11 56.1 0.0 48.4 51.0 40.9 0 [0.0] [1.0] 12962
12 60.9 0.0 47.9 50.2 42.7 0 [-1.0] [1.0] 11535
13 53.4 -0.0 40.3 43.7 34.3 0 [-2.0] [1.0] 9725
14 39.2 -0.0 46.0 49.1 42.8 103 [-7.0] [1.0] 9639
15 48.8 0.0 46.6 49.3 42.3 66 [0.0] [1.0] 7772
16 61.0 0.0 47.7 50.2 40.3 249 [-1.0] [1.0] 10426
17 56.3 0.0 47.2 49.8 39.9 0 [4.0] [1.0] 12775
18 61.3 0.0 47.5 50.2 43.2 0 [-3.0] [1.0] 11627
19 56.6 0.0 45.3 48.1 39.9 0 [3.0] [1.0] 10294
20 46.0 0.0 40.5 43.6 36.1 149 [2.0] [1.0] 15091
21 59.4 0.0 46.5 49.8 40.1 0 [4.0] [1.0] 10975
22 59.9 -0.0 48.4 50.8 43.9 0 [-3.0] [1.0] 12285
23 48.5 0.1 36.9 42.4 28.3 27 [3.0] [1.0] 28
24 49.7 0.0 46.9 49.4 41.6 0 [2.0] [1.0] 14293
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 50.1 0.0 42.8 45.2 37.3 0 [1.0] [1.0] 8897
2 59.2 0.0 47.2 49.8 41.3 0 [-4.0] [1.0] 11027
3 59.0 0.0 47.0 49.9 42.7 0 [5.0] [1.0] 12512
4 51.6 -0.0 47.4 50.0 42.0 0 [6.0] [1.0] 13748
5 51.1 0.0 47.2 49.8 42.6 109 [1.0] [1.0] 14225
6 52.0 -0.3 1.0 1.0 1.0 0 [-4.0] [1.0] 1
7 51.9 -0.0 47.0 50.2 41.3 0 [5.0] [1.0] 9347
8 39.7 0.0 45.8 48.6 41.1 64 [6.0] [1.0] 9919
9 51.7 -0.0 48.4 51.1 42.4 0 [-2.0] [1.0] 14087
10 55.7 -0.1 34.0 40.4 24.6 16 [-7.0] [1.0] 17
11 56.1 0.0 48.5 51.2 43.0 0 [0.0] [1.0] 12963
12 60.9 0.0 48.0 50.4 44.2 0 [-1.0] [1.0] 11534
13 53.4 -0.0 40.4 42.9 37.0 0 [-2.0] [1.0] 9725
14 39.2 0.0 46.0 49.3 42.7 217 [-7.0] [1.0] 9639
15 48.8 0.0 46.9 49.8 41.3 22 [0.0] [1.0] 7774
16 61.0 0.0 47.8 49.8 42.2 156 [-1.0] [1.0] 10427
17 56.3 -0.0 47.2 50.0 42.0 0 [4.0] [1.0] 12776
18 61.3 -0.0 47.7 50.9 43.9 0 [-3.0] [1.0] 11627
19 56.6 -0.0 45.6 48.4 41.9 0 [3.0] [1.0] 10295
20 46.0 -0.0 40.8 44.3 35.7 67 [2.0] [1.0] 15091
21 59.4 -0.0 46.4 49.3 40.3 0 [4.0] [1.0] 10975
22 59.9 -0.0 48.5 51.2 44.2 0 [-3.0] [1.0] 12284
23 53.6 0.0 35.9 43.9 20.9 34 [3.0] [1.0] 35
24 49.7 -0.0 47.2 49.7 42.1 0 [2.0] [1.0] 14292
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 50.1 -0.2 3.7 -4.1 [1.0] 8897
2 59.2 -0.1 3.0 -4.4 [-4.0] 11026
3 59.0 -0.0 3.1 -4.7 [5.0] 12512
4 51.6 -0.1 3.3 -3.9 [6.0] 13747
5 51.1 -0.3 2.6 -4.5 [1.0] 14223
7 51.9 -0.0 3.1 -4.0 [5.0] 9347
8 39.7 0.4 3.7 -2.8 [6.0] 9917
9 51.8 -0.1 3.4 -3.0 [-2.0] 14086
11 56.1 -0.1 3.5 -4.1 [0.0] 12962
12 60.9 -0.1 3.2 -3.7 [-1.0] 11534
13 53.4 -0.1 3.9 -4.9 [-2.0] 9725
14 39.2 -0.0 3.7 -3.1 [-7.0] 9637
15 48.8 -0.2 2.7 -2.9 [0.0] 7771
16 61.0 -0.1 2.2 -4.0 [-1.0] 10425
17 56.3 -0.0 3.6 -5.0 [4.0] 12775
18 61.3 -0.1 4.4 -3.2 [-3.0] 11626
19 56.6 -0.3 3.0 -4.1 [3.0] 10294
20 46.0 -0.3 2.8 -3.3 [2.0] 15089
21 59.4 0.1 3.4 -4.2 [4.0] 10974
22 59.9 -0.1 3.3 -3.3 [-3.0] 12284
23 40.0 -1.2 -1.2 -1.2 [3.0] 1
24 49.7 -0.3 2.9 -4.0 [2.0] 14292
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.1 0.0 48.8 51.8 44.1 0 [105.0] [1.0] 17087
3 49.5 0.0 48.7 51.7 43.5 160 [110.0, 109.0] [1.0] 16992
4 55.7 0.0 47.9 50.4 44.6 0 [103.0] [1.0] 7997
7 60.4 -0.0 48.8 51.5 43.5 0 [100.0] [1.0] 13028
8 61.1 -0.0 49.4 52.7 43.6 0 [102.0] [1.0] 18240
9 63.6 0.0 49.2 52.0 44.4 0 [104.0] [1.0] 15357
10 44.6 -0.0 47.5 51.0 42.2 0 [103.0] [1.0] 9979
11 51.9 0.0 45.3 48.0 41.5 0 [109.0] [1.0] 13162
12 37.4 0.0 43.9 47.3 38.8 0 [99.0] [1.0] 5345
13 59.4 0.0 47.9 51.1 43.0 0 [108.0] [1.0] 16270
15 57.7 0.0 49.0 52.1 44.3 0 [103.0] [1.0] 20785
24 58.0 -0.0 49.9 53.7 43.6 0 [102.0] [1.0] 21295
25 58.0 -0.0 49.9 53.8 44.8 0 [111.0] [1.0] 21322
26 47.3 0.0 49.0 51.9 43.5 0 [97.0] [1.0] 11138
30 48.4 0.0 49.8 53.4 43.8 22 [100.0, 96.0] [1.0] 12620
31 61.7 0.0 49.5 52.3 44.0 0 [108.0] [1.0] 15937
34 56.4 -0.0 49.9 54.3 43.0 0 [106.0] [1.0] 21732
36 60.9 -0.0 49.5 52.9 44.2 0 [104.0] [1.0] 17446
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.1 -0.0 48.6 51.3 43.5 0 [105.0] [1.0] 17086
3 49.5 -0.0 48.8 51.9 44.1 19 [99.0, 106.0] [1.0] 16989
4 55.7 -0.0 48.2 50.8 45.0 0 [103.0] [1.0] 7995
7 60.4 0.0 48.7 50.8 45.0 0 [101.0] [1.0] 13031
8 61.1 -0.0 49.5 53.1 43.1 0 [111.0] [1.0] 18241
9 63.6 0.0 49.0 51.2 43.8 0 [104.0] [1.0] 15356
10 44.6 -0.0 47.8 50.3 45.0 0 [103.0] [1.0] 9979
11 51.9 -0.0 45.4 48.0 41.5 0 [98.0] [1.0] 13163
12 37.4 0.0 44.4 47.6 40.9 0 [102.0] [1.0] 5344
13 59.4 -0.0 47.8 50.1 43.4 0 [98.0] [1.0] 16271
15 57.7 0.0 49.0 51.5 44.6 0 [109.0] [1.0] 20786
24 58.0 -0.0 49.8 53.4 43.8 0 [109.0] [1.0] 21295
25 58.0 -0.0 49.6 52.9 44.8 0 [106.0] [1.0] 21323
26 47.3 0.0 49.2 51.9 45.3 0 [99.0] [1.0] 11141
30 48.4 -0.0 49.9 53.4 44.3 23 [96.0] [1.0] 12621
31 61.7 -0.0 49.8 53.3 46.0 0 [108.0] [1.0] 15938
34 56.4 -0.0 49.9 53.3 44.9 0 [107.0] [1.0] 21730
36 60.9 -0.0 49.6 53.2 43.6 0 [104.0] [1.0] 17446
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 60.1 0.2 3.9 -3.0 [105.0] 17086
3 49.5 -0.1 2.9 -3.1 [110.0, 99.0, 109.0, 106.0] 16989
4 55.7 -0.3 2.5 -2.8 [103.0] 7995
7 60.4 0.1 2.3 -3.4 [100.0, 101.0] 13028
8 61.1 -0.1 3.7 -3.8 [102.0, 111.0] 18240
9 63.6 0.2 2.8 -2.6 [104.0] 15356
10 44.6 -0.3 2.6 -5.0 [103.0] 9979
11 51.9 -0.0 2.6 -2.8 [109.0, 98.0] 13162
12 37.4 -0.5 2.4 -3.0 [99.0, 102.0] 5344
13 59.4 0.1 3.2 -2.8 [108.0, 98.0] 16270
15 57.7 0.0 3.5 -2.8 [103.0, 109.0] 20785
24 58.0 0.1 3.0 -2.8 [102.0, 109.0] 21295
25 58.0 0.2 3.9 -4.4 [111.0, 106.0] 21322
26 47.3 -0.1 3.7 -3.5 [97.0, 99.0] 11138
30 48.4 -0.1 3.8 -3.5 [100.0, 96.0] 12618
31 61.7 -0.3 2.7 -3.6 [108.0] 15937
34 56.4 0.0 3.5 -4.3 [106.0, 107.0] 21730
36 60.9 -0.1 3.8 -3.9 [104.0] 17446
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.1 0.0 51.3 53.6 48.2 0 [105.0] [1.0] 17087
3 49.5 0.0 50.6 53.4 47.5 1 [110.0, 109.0] [1.0] 16992
4 55.7 0.0 50.7 53.3 47.4 0 [103.0] [1.0] 7997
7 60.4 -0.0 51.0 52.9 47.5 0 [100.0] [1.0] 13028
8 61.1 -0.0 50.9 53.2 47.2 0 [102.0] [1.0] 18240
9 63.6 0.0 51.1 53.1 47.3 0 [104.0] [1.0] 15357
10 44.6 -0.0 50.1 52.4 47.3 0 [103.0] [1.0] 9979
11 51.9 0.0 47.0 48.8 43.5 0 [109.0] [1.0] 13162
12 37.4 0.0 47.0 48.6 45.7 0 [99.0] [1.0] 5345
13 59.4 0.0 51.2 53.1 47.6 0 [108.0] [1.0] 16270
15 57.7 0.0 51.4 53.7 47.3 0 [103.0] [1.0] 20785
24 58.0 -0.0 50.9 53.1 47.3 0 [102.0] [1.0] 21295
25 58.0 -0.0 50.9 53.4 46.1 0 [111.0] [1.0] 21322
26 47.3 0.0 50.1 52.3 47.4 0 [97.0] [1.0] 11138
30 48.4 0.0 50.7 52.9 46.9 68 [100.0, 96.0] [1.0] 12620
31 61.7 0.0 50.8 52.9 47.4 0 [108.0] [1.0] 15937
34 56.4 -0.0 51.2 53.8 47.7 0 [106.0] [1.0] 21732
36 60.9 -0.0 51.1 53.0 47.2 0 [104.0] [1.0] 17446
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.1 -0.0 51.1 53.0 48.0 0 [105.0] [1.0] 17086
3 49.5 -0.0 50.5 53.1 47.4 199 [99.0, 106.0] [1.0] 16989
4 55.7 -0.0 50.5 52.9 47.6 0 [103.0] [1.0] 7995
7 60.4 0.0 50.5 52.6 47.0 0 [101.0] [1.0] 13031
8 61.1 -0.0 50.6 52.4 47.1 0 [111.0] [1.0] 18241
9 63.6 0.0 50.8 52.7 47.7 0 [104.0] [1.0] 15356
10 44.6 -0.0 50.1 52.7 46.6 0 [103.0] [1.0] 9979
11 51.9 -0.0 46.8 48.4 43.7 0 [98.0] [1.0] 13163
12 37.4 0.0 47.1 48.6 45.5 0 [102.0] [1.0] 5344
13 59.4 -0.0 50.8 52.8 47.5 0 [98.0] [1.0] 16271
15 57.7 0.0 51.3 53.2 47.7 0 [109.0] [1.0] 20786
24 58.0 -0.0 50.5 52.6 47.2 0 [109.0] [1.0] 21295
25 58.0 -0.0 50.8 53.1 46.4 0 [106.0] [1.0] 21323
26 47.3 0.0 49.5 51.9 46.8 0 [99.0] [1.0] 11141
30 48.4 -0.0 50.3 52.5 46.9 27 [96.0] [1.0] 12621
31 61.7 -0.0 50.5 52.4 47.4 0 [108.0] [1.0] 15938
34 56.4 -0.0 50.9 53.2 47.5 0 [107.0] [1.0] 21730
36 60.9 -0.0 50.8 53.0 47.3 0 [104.0] [1.0] 17446
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 60.1 0.2 1.5 -1.5 [105.0] 17086
3 49.5 0.1 1.7 -1.9 [110.0, 99.0, 109.0, 106.0] 16989
4 55.7 0.2 1.6 -1.6 [103.0] 7995
7 60.4 0.5 2.7 -0.8 [100.0, 101.0] 13028
8 61.1 0.4 1.6 -1.4 [102.0, 111.0] 18240
9 63.6 0.3 1.6 -1.5 [104.0] 15356
10 44.6 0.1 1.8 -1.4 [103.0] 9979
11 51.9 0.2 1.6 -1.6 [109.0, 98.0] 13162
12 37.4 -0.1 1.8 -1.5 [99.0, 102.0] 5344
13 59.4 0.4 1.7 -1.7 [108.0, 98.0] 16270
15 57.7 0.1 1.5 -2.1 [103.0, 109.0] 20785
24 58.0 0.4 1.8 -1.2 [102.0, 109.0] 21295
25 58.0 0.1 1.9 -2.0 [111.0, 106.0] 21322
26 47.3 0.5 2.2 -1.3 [97.0, 99.0] 11138
30 48.4 0.4 2.1 -1.1 [100.0, 96.0] 12618
31 61.7 0.3 1.7 -1.2 [108.0] 15937
34 56.4 0.3 2.0 -1.2 [106.0, 107.0] 21730
36 60.9 0.2 1.4 -1.5 [104.0] 17446
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 57.5 0.0 49.1 53.1 42.9 0 [105.0] [1.0] 18203
20 61.0 -0.0 49.6 52.9 43.9 0 [88.0] [1.0] 15424
21 43.2 0.0 48.9 52.7 45.1 0 [73.0] [1.0] 3181
22 59.3 -0.0 50.5 53.6 47.7 0 [104.0] [1.0] 13188
23 59.5 -0.0 49.9 53.7 45.1 0 [69.0] [1.0] 17605
24 64.3 -0.0 49.7 52.1 45.8 0 [77.0] [1.0] 12077
25 56.8 0.0 48.8 52.7 41.6 0 [106.0] [1.0] 19040
26 45.3 0.0 47.4 49.9 43.8 0 [96.0] [1.0] 3478
27 56.9 -0.0 48.8 52.7 42.4 0 [77.0] [1.0] 18754
28 61.0 0.0 48.5 51.5 41.5 0 [81.0] [1.0] 16397
29 59.9 -0.0 48.9 52.5 42.5 0 [98.0] [1.0] 14912
30 58.4 -0.0 49.3 52.8 44.7 0 [107.0] [1.0] 18014
32 51.7 -0.0 49.0 52.1 44.7 0 [110.0] [1.0] 11904
33 58.8 0.0 49.6 52.6 43.2 0 [75.0] [1.0] 10264
34 42.8 0.0 46.6 48.6 41.8 0 [91.0] [1.0] 8476
35 48.0 -0.0 48.4 51.8 43.1 0 [91.0] [1.0] 10730
36 47.3 0.0 46.5 48.9 40.1 0 [110.0] [1.0] 7086
37 58.6 -0.0 49.8 53.2 43.4 0 [98.0] [1.0] 14528
41 41.2 0.0 48.0 51.3 43.8 198 [105.0, 70.0] [1.0] 13981
42 51.0 -0.0 47.6 50.7 44.5 0 [93.0] [1.0] 4425
43 54.4 0.0 48.3 51.4 44.1 0 [97.0] [1.0] 12977
44 35.7 0.0 47.4 48.9 45.7 0 [99.0] [1.0] 3297
45 44.2 -0.0 47.5 50.0 44.6 0 [98.0] [1.0] 2645
46 46.8 -0.0 49.6 52.6 43.8 0 [108.0] [1.0] 10302
DUT BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 57.5 -0.0 49.0 52.1 43.5 0 [105.0] [1.0] 18204
20 61.0 0.0 49.6 53.2 42.9 0 [110.0] [1.0] 15424
21 43.2 0.0 48.1 51.9 45.5 0 [78.0] [1.0] 3184
22 59.3 0.0 49.9 52.7 45.6 0 [104.0] [1.0] 13191
23 59.5 0.0 49.6 52.5 44.6 0 [110.0] [1.0] 17606
24 64.3 -0.0 49.7 52.5 45.8 0 [75.0] [1.0] 12078
25 56.8 -0.0 48.5 51.3 43.7 0 [107.0] [1.0] 19041
26 45.3 -0.0 47.6 50.3 44.7 0 [65.0] [1.0] 3478
27 56.9 -0.0 48.5 51.4 44.2 0 [87.0] [1.0] 18754
28 61.0 -0.0 48.4 51.8 41.1 0 [81.0] [1.0] 16398
29 59.9 -0.0 48.6 52.0 42.5 0 [100.0] [1.0] 14912
30 58.4 0.0 48.9 52.3 43.6 0 [85.0] [1.0] 18013
32 51.7 0.0 49.1 51.8 45.5 0 [103.0] [1.0] 11904
33 58.8 -0.0 49.5 52.0 43.4 0 [71.0] [1.0] 10262
34 42.8 -0.0 46.9 48.7 44.3 0 [92.0] [1.0] 8477
35 48.0 -0.0 48.3 51.7 43.2 0 [92.0] [1.0] 10730
36 47.3 0.0 46.4 48.5 42.5 0 [70.0] [1.0] 7088
37 58.6 -0.0 49.5 53.0 44.1 0 [100.0] [1.0] 14527
41 41.2 0.0 48.0 50.9 43.9 228 [105.0, 71.0] [1.0] 13981
42 50.9 -0.0 47.7 50.0 43.4 0 [93.0] [1.0] 4427
43 54.4 0.0 48.4 51.4 43.7 0 [67.0] [1.0] 12979
44 35.7 0.0 46.5 48.6 44.2 0 [82.0] [1.0] 3297
45 44.2 0.0 46.8 49.5 43.7 0 [100.0] [1.0] 2647
46 46.8 -0.0 49.4 52.0 45.3 0 [97.0] [1.0] 10300
DIFF BeiDou L1(BOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 57.5 0.1 2.6 -3.0 [105.0] 18203
20 61.0 0.0 4.0 -3.2 [88.0, 110.0] 15423
21 43.2 0.7 3.9 -1.9 [73.0, 78.0] 3181
22 59.3 0.6 3.2 -1.9 [104.0] 13188
23 59.5 0.3 3.8 -3.2 [69.0, 110.0] 17605
24 64.3 -0.0 3.0 -2.1 [77.0, 75.0] 12077
25 56.8 0.4 3.1 -3.2 [106.0, 107.0] 19040
26 45.3 -0.2 1.5 -2.1 [96.0, 65.0] 3478
27 56.9 0.3 2.9 -3.5 [77.0, 87.0] 18753
28 61.0 0.1 2.6 -3.0 [81.0] 16397
29 59.9 0.3 3.9 -2.8 [98.0, 100.0] 14911
30 58.4 0.4 3.3 -2.3 [107.0, 85.0] 18013
32 51.7 -0.1 2.6 -3.2 [110.0, 103.0] 11904
33 58.8 0.1 2.8 -5.4 [75.0, 71.0] 10262
34 42.8 -0.3 2.2 -4.1 [91.0, 92.0] 8476
35 48.0 0.1 5.0 -2.9 [91.0, 92.0] 10730
36 47.3 0.1 2.7 -3.7 [110.0, 70.0] 7086
37 58.6 0.3 4.8 -3.0 [98.0, 100.0] 14527
41 41.2 -0.0 3.7 -2.9 [105.0, 70.0, 71.0] 13980
42 51.0 -0.1 2.5 -3.7 [93.0] 4425
43 54.4 -0.1 2.5 -3.1 [97.0, 67.0] 12977
44 35.7 0.9 4.0 -1.4 [99.0, 82.0] 3297
45 44.2 0.7 3.7 -2.6 [98.0, 100.0] 2645
46 46.8 0.2 3.4 -4.2 [108.0, 97.0] 10300
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 57.5 0.0 49.2 51.5 44.5 0 [105.0] [1.0] 18203
20 61.0 -0.0 49.7 51.8 45.6 0 [88.0] [1.0] 15424
21 43.2 0.0 48.9 51.1 45.8 0 [73.0] [1.0] 3181
22 59.3 -0.0 49.4 51.7 43.4 0 [104.0] [1.0] 13188
23 59.5 -0.0 50.2 52.3 44.0 0 [69.0] [1.0] 17605
24 64.3 -0.0 49.9 51.6 45.6 0 [77.0] [1.0] 12077
25 56.8 0.0 48.1 50.7 42.5 0 [106.0] [1.0] 19040
26 45.3 0.0 47.1 49.1 44.5 0 [96.0] [1.0] 3478
27 56.9 -0.0 48.2 50.8 43.3 0 [77.0] [1.0] 18754
28 61.0 0.0 47.9 50.2 43.6 0 [81.0] [1.0] 16397
29 59.9 -0.0 49.0 51.0 44.9 0 [98.0] [1.0] 14912
30 58.4 -0.0 48.6 50.7 43.1 0 [107.0] [1.0] 18014
32 51.7 -0.0 49.7 52.0 44.8 0 [110.0] [1.0] 11904
33 58.8 0.0 49.6 51.5 45.7 0 [75.0] [1.0] 10264
34 42.8 0.0 47.0 49.2 42.8 0 [91.0] [1.0] 8476
35 48.0 -0.0 47.0 49.5 43.0 0 [91.0] [1.0] 10730
36 47.3 0.0 48.6 50.6 43.8 0 [110.0] [1.0] 7086
37 58.6 -0.0 50.1 52.1 45.8 0 [98.0] [1.0] 14528
41 41.2 0.0 47.9 50.7 43.9 177 [105.0, 70.0] [1.0] 13981
42 51.0 -0.0 48.5 51.6 44.8 0 [93.0] [1.0] 4425
43 54.4 0.0 48.2 50.8 43.7 0 [97.0] [1.0] 12977
44 35.7 0.0 45.6 48.0 43.5 0 [99.0] [1.0] 3297
45 44.2 -0.0 47.6 49.8 45.4 0 [98.0] [1.0] 2645
46 46.8 -0.0 49.1 51.1 44.5 0 [108.0] [1.0] 10302
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 57.5 -0.0 48.9 51.8 44.2 0 [105.0] [1.0] 18204
20 61.0 0.0 49.5 51.5 45.4 0 [110.0] [1.0] 15424
21 43.2 0.0 48.8 51.2 45.7 0 [78.0] [1.0] 3184
22 59.3 0.0 49.3 51.5 43.9 0 [104.0] [1.0] 13191
23 59.5 0.0 50.2 52.3 46.1 0 [110.0] [1.0] 17606
24 64.3 -0.0 49.8 51.9 45.8 0 [75.0] [1.0] 12078
25 56.8 -0.0 48.1 50.8 41.6 0 [107.0] [1.0] 19041
26 45.3 -0.0 47.1 49.8 44.1 0 [65.0] [1.0] 3478
27 56.9 -0.0 48.2 50.9 42.5 0 [87.0] [1.0] 18754
28 61.0 -0.0 47.7 50.1 43.2 0 [81.0] [1.0] 16398
29 59.9 -0.0 48.7 51.1 44.3 0 [100.0] [1.0] 14912
30 58.4 0.0 48.6 51.0 43.9 0 [85.0] [1.0] 18013
32 51.7 0.0 49.7 52.1 46.0 0 [103.0] [1.0] 11904
33 58.8 -0.0 49.5 51.4 45.4 0 [71.0] [1.0] 10262
34 42.8 -0.0 47.0 49.5 44.0 0 [92.0] [1.0] 8477
35 48.0 -0.0 46.6 48.8 42.4 0 [92.0] [1.0] 10730
36 47.3 0.0 48.7 50.5 43.6 0 [70.0] [1.0] 7088
37 58.6 -0.0 50.0 52.3 46.6 0 [100.0] [1.0] 14527
41 41.2 0.0 48.1 50.9 43.0 103 [105.0, 71.0] [1.0] 13981
42 50.9 -0.0 48.7 51.3 45.4 0 [93.0] [1.0] 4427
43 54.4 0.0 48.2 50.8 43.8 0 [67.0] [1.0] 12979
44 35.7 0.0 46.3 48.3 44.2 0 [82.0] [1.0] 3297
45 44.2 0.0 47.7 49.8 44.3 0 [100.0] [1.0] 2647
46 46.8 -0.0 49.2 51.8 45.8 0 [97.0] [1.0] 10300
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 57.5 0.3 4.3 -2.2 [105.0] 18203
20 61.0 0.2 2.1 -1.7 [88.0, 110.0] 15423
21 43.2 0.1 2.1 -1.7 [73.0, 78.0] 3181
22 59.3 0.1 2.6 -3.0 [104.0] 13188
23 59.5 0.0 2.2 -3.0 [69.0, 110.0] 17605
24 64.3 0.1 2.0 -1.7 [77.0, 75.0] 12077
25 56.8 0.1 4.4 -3.1 [106.0, 107.0] 19040
26 45.3 -0.0 1.5 -1.7 [96.0, 65.0] 3478
27 56.9 0.1 2.9 -2.1 [77.0, 87.0] 18753
28 61.0 0.2 2.4 -2.8 [81.0] 16397
29 59.9 0.3 3.2 -1.8 [98.0, 100.0] 14911
30 58.4 -0.0 2.5 -2.8 [107.0, 85.0] 18013
32 51.7 -0.0 2.1 -2.6 [110.0, 103.0] 11904
33 58.8 0.1 1.9 -2.4 [75.0, 71.0] 10262
34 42.8 -0.1 1.6 -2.8 [91.0, 92.0] 8476
35 48.0 0.4 3.1 -1.8 [91.0, 92.0] 10730
36 47.3 -0.1 2.2 -1.3 [110.0, 70.0] 7086
37 58.6 0.1 2.7 -2.3 [98.0, 100.0] 14527
41 41.2 -0.2 3.6 -2.3 [105.0, 70.0, 71.0] 13980
42 51.0 -0.2 1.9 -2.8 [93.0] 4425
43 54.4 -0.0 1.9 -2.2 [97.0, 67.0] 12977
44 35.7 -0.7 1.4 -2.9 [99.0, 82.0] 3297
45 44.2 -0.1 2.1 -1.7 [98.0, 100.0] 2645
46 46.8 -0.1 2.7 -2.4 [108.0, 97.0] 10300
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 0.0 47.4 49.9 44.5 0 [66.0] [1.0] 10566
14 62.4 0.0 48.0 50.3 44.6 0 [80.0] [1.0] 7562
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 -0.0 47.1 50.0 42.4 0 [83.0] [1.0] 10567
14 62.4 0.0 47.9 50.2 44.3 0 [82.0] [1.0] 7562
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.0 0.4 3.1 -1.6 [66.0, 83.0] 10566
14 62.4 0.1 2.7 -2.6 [80.0, 82.0] 7562
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 0.0 46.1 49.2 40.0 0 [66.0] [1.0] 10566
14 62.4 0.0 46.1 49.1 38.4 0 [80.0] [1.0] 7562
19 57.5 0.0 49.2 53.5 43.3 0 [105.0] [1.0] 18203
20 61.0 -0.0 50.3 53.5 43.9 0 [88.0] [1.0] 15424
21 43.2 0.0 49.1 53.5 45.9 0 [73.0] [1.0] 3181
22 59.3 -0.0 50.9 53.8 46.7 0 [104.0] [1.0] 13188
23 59.5 -0.0 49.9 53.5 44.6 0 [69.0] [1.0] 17605
24 64.3 -0.0 49.8 52.4 45.3 0 [77.0] [1.0] 12077
25 56.8 0.0 49.0 53.0 42.6 0 [106.0] [1.0] 19040
26 45.3 0.0 47.6 50.7 42.6 0 [96.0] [1.0] 3478
27 56.9 -0.0 49.5 53.2 43.4 0 [77.0] [1.0] 18754
28 61.0 0.0 49.3 52.5 44.3 0 [81.0] [1.0] 16397
29 59.9 -0.0 49.9 53.9 41.8 0 [98.0] [1.0] 14912
30 58.4 -0.0 49.8 53.5 42.5 0 [107.0] [1.0] 18014
32 51.7 -0.0 49.1 52.3 43.4 0 [110.0] [1.0] 11904
33 58.8 0.0 49.4 52.5 43.5 0 [75.0] [1.0] 10264
34 42.8 0.0 47.0 49.3 42.5 0 [91.0] [1.0] 8476
35 48.0 -0.0 49.0 52.1 43.4 0 [91.0] [1.0] 10730
36 47.3 0.0 47.2 50.5 41.8 0 [110.0] [1.0] 7086
37 58.6 -0.0 49.5 53.2 43.6 0 [98.0] [1.0] 14528
41 41.2 0.0 47.5 50.7 43.7 110 [105.0, 70.0] [1.0] 13981
42 51.0 -0.0 47.4 50.6 43.7 0 [93.0] [1.0] 4425
43 54.4 0.0 48.7 52.7 43.3 0 [97.0] [1.0] 12977
44 35.7 0.0 47.8 50.5 45.6 0 [99.0] [1.0] 3297
45 44.2 -0.0 47.4 50.4 44.2 0 [98.0] [1.0] 2645
46 46.8 -0.0 48.8 51.8 40.8 0 [108.0] [1.0] 10302
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 -0.0 46.1 49.2 42.2 0 [83.0] [1.0] 10567
14 62.4 0.0 46.0 49.5 40.8 0 [82.0] [1.0] 7562
19 57.5 -0.0 49.1 53.0 43.4 0 [105.0] [1.0] 18204
20 61.0 0.0 50.4 54.4 42.6 0 [110.0] [1.0] 15424
21 43.2 0.0 49.1 51.9 46.3 0 [78.0] [1.0] 3184
22 59.3 0.0 50.8 53.8 46.3 0 [104.0] [1.0] 13191
23 59.5 0.0 49.9 53.2 43.7 0 [110.0] [1.0] 17606
24 64.3 -0.0 49.8 52.8 45.6 0 [75.0] [1.0] 12078
25 56.8 -0.0 49.0 53.0 43.1 0 [107.0] [1.0] 19041
26 45.3 -0.0 47.8 51.0 43.2 0 [65.0] [1.0] 3478
27 56.9 -0.0 49.6 53.0 44.1 0 [87.0] [1.0] 18754
28 61.0 -0.0 49.3 53.3 42.7 0 [81.0] [1.0] 16398
29 59.9 -0.0 49.8 53.4 43.9 0 [100.0] [1.0] 14912
30 58.4 0.0 49.7 53.2 44.4 0 [85.0] [1.0] 18013
32 51.7 0.0 48.8 51.8 42.0 0 [103.0] [1.0] 11904
33 58.8 -0.0 49.6 53.0 43.1 0 [71.0] [1.0] 10262
34 42.8 -0.0 47.1 49.5 43.1 0 [92.0] [1.0] 8477
35 48.0 -0.0 49.3 52.7 42.6 0 [92.0] [1.0] 10730
36 47.3 0.0 47.1 49.5 42.6 0 [70.0] [1.0] 7088
37 58.6 -0.0 49.4 53.2 42.6 0 [100.0] [1.0] 14527
41 41.2 0.0 47.8 51.4 43.6 210 [105.0, 71.0] [1.0] 13981
42 50.9 -0.0 47.7 50.4 43.8 0 [93.0] [1.0] 4427
43 54.4 0.0 48.8 52.2 43.8 0 [67.0] [1.0] 12979
44 35.7 0.0 47.3 49.8 44.7 0 [82.0] [1.0] 3297
45 44.2 0.0 47.1 49.8 43.9 0 [100.0] [1.0] 2647
46 46.8 -0.0 48.8 52.0 44.5 0 [97.0] [1.0] 10300
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.0 -0.0 3.7 -4.2 [66.0, 83.0] 10566
14 62.4 0.1 4.8 -4.9 [80.0, 82.0] 7562
19 57.5 0.0 3.2 -3.8 [105.0] 18203
20 61.0 -0.1 5.6 -3.8 [88.0, 110.0] 15423
21 43.2 -0.0 2.3 -3.3 [73.0, 78.0] 3181
22 59.3 0.1 3.4 -3.2 [104.0] 13188
23 59.5 0.0 3.7 -3.8 [69.0, 110.0] 17605
24 64.3 -0.0 3.3 -3.0 [77.0, 75.0] 12077
25 56.8 0.0 3.8 -3.4 [106.0, 107.0] 19040
26 45.3 -0.2 2.4 -3.9 [96.0, 65.0] 3478
27 56.9 -0.1 3.3 -4.1 [77.0, 87.0] 18753
28 61.0 -0.0 4.0 -3.6 [81.0] 16397
29 59.9 0.1 4.3 -4.4 [98.0, 100.0] 14911
30 58.4 0.1 3.9 -3.9 [107.0, 85.0] 18013
32 51.7 0.2 3.8 -4.1 [110.0, 103.0] 11904
33 58.8 -0.2 4.1 -3.4 [75.0, 71.0] 10262
34 42.8 -0.1 3.0 -4.0 [91.0, 92.0] 8476
35 48.0 -0.3 4.1 -3.1 [91.0, 92.0] 10730
36 47.3 0.1 3.2 -4.8 [110.0, 70.0] 7086
37 58.6 0.2 4.1 -3.7 [98.0, 100.0] 14527
41 41.2 -0.4 3.8 -4.2 [105.0, 70.0, 71.0] 13980
42 51.0 -0.2 2.7 -3.3 [93.0] 4425
43 54.4 -0.2 3.4 -3.4 [97.0, 67.0] 12977
44 35.7 0.5 3.6 -2.5 [99.0, 82.0] 3297
45 44.2 0.3 3.9 -3.3 [98.0, 100.0] 2645
46 46.8 -0.0 3.9 -5.0 [108.0, 97.0] 10300

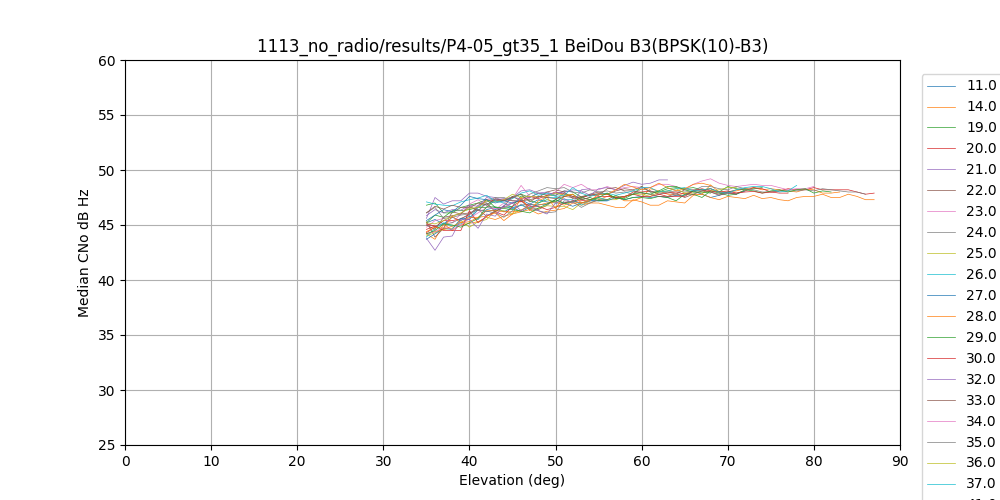

REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 0.0 46.4 48.3 42.6 0 [66.0] [1.0] 10566
14 62.4 0.0 47.1 49.7 42.4 0 [80.0] [1.0] 7562
19 57.5 0.0 47.6 49.7 43.0 0 [105.0] [1.0] 18203
20 61.0 -0.0 47.5 49.8 42.3 0 [88.0] [1.0] 15424
21 43.2 0.0 47.6 49.4 44.4 0 [73.0] [1.0] 3181
22 59.3 -0.0 47.3 50.0 41.8 0 [104.0] [1.0] 13188
23 59.5 -0.0 47.7 50.3 42.0 0 [69.0] [1.0] 17605
24 64.3 -0.0 48.1 50.0 43.8 0 [77.0] [1.0] 12077
25 56.8 0.0 47.2 49.7 43.1 0 [106.0] [1.0] 19040
26 45.3 0.0 46.5 48.5 43.8 0 [96.0] [1.0] 3478
27 56.9 -0.0 46.9 49.1 40.9 0 [77.0] [1.0] 18754
28 61.0 0.0 46.8 49.4 42.2 0 [81.0] [1.0] 16397
29 59.9 -0.0 47.2 49.8 42.1 0 [98.0] [1.0] 14912
30 58.4 -0.0 47.0 49.9 41.4 0 [107.0] [1.0] 18014
32 51.7 -0.0 47.9 50.3 42.7 0 [110.0] [1.0] 11904
33 58.8 0.0 47.5 50.0 43.3 0 [75.0] [1.0] 10264
34 42.8 0.0 46.4 48.7 42.6 0 [91.0] [1.0] 8476
35 48.0 -0.0 46.6 49.1 43.2 0 [91.0] [1.0] 10730
36 47.3 0.0 46.9 49.0 42.8 0 [110.0] [1.0] 7086
37 58.6 -0.0 47.6 49.9 43.0 0 [98.0] [1.0] 14528
41 41.2 0.0 46.7 49.0 42.6 223 [105.0, 70.0] [1.0] 13981
42 51.0 -0.0 46.9 50.1 41.6 0 [93.0] [1.0] 4425
43 54.4 0.0 47.0 49.6 42.4 0 [97.0] [1.0] 12977
44 35.7 0.0 43.4 45.7 40.4 0 [99.0] [1.0] 3297
45 44.2 -0.0 46.1 49.3 42.4 0 [98.0] [1.0] 2645
46 46.8 -0.0 47.5 49.4 43.3 0 [108.0] [1.0] 10302
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.0 -0.0 46.6 48.8 43.2 0 [83.0] [1.0] 10567
14 62.4 0.0 47.2 49.5 42.6 0 [82.0] [1.0] 7562
19 57.5 -0.0 47.7 49.8 43.2 0 [105.0] [1.0] 18204
20 61.0 0.0 47.5 49.8 43.0 0 [110.0] [1.0] 15424
21 43.2 0.0 47.5 49.2 43.8 0 [78.0] [1.0] 3184
22 59.3 0.0 47.5 49.6 42.6 0 [104.0] [1.0] 13191
23 59.5 0.0 47.9 50.2 43.0 0 [110.0] [1.0] 17606
24 64.3 -0.0 47.7 49.6 43.7 0 [75.0] [1.0] 12078
25 56.8 -0.0 47.1 49.8 42.4 0 [107.0] [1.0] 19041
26 45.3 -0.0 46.4 48.4 43.1 0 [65.0] [1.0] 3478
27 56.9 -0.0 47.0 49.3 41.7 0 [87.0] [1.0] 18754
28 61.0 -0.0 46.8 48.8 42.8 0 [81.0] [1.0] 16398
29 59.9 -0.0 47.3 49.6 42.5 0 [100.0] [1.0] 14912
30 58.4 0.0 47.1 49.3 42.7 0 [85.0] [1.0] 18013
32 51.7 0.0 47.9 50.3 43.4 0 [103.0] [1.0] 11904
33 58.8 -0.0 47.6 49.5 43.9 0 [71.0] [1.0] 10262
34 42.8 -0.0 46.3 48.8 42.4 0 [92.0] [1.0] 8477
35 48.0 -0.0 46.5 48.6 42.1 0 [92.0] [1.0] 10730
36 47.3 0.0 47.3 49.2 43.6 0 [70.0] [1.0] 7088
37 58.6 -0.0 47.8 50.0 42.8 0 [100.0] [1.0] 14527
41 41.2 0.0 46.6 49.5 43.4 130 [105.0, 71.0] [1.0] 13981
42 50.9 -0.0 47.0 49.6 43.2 0 [93.0] [1.0] 4427
43 54.4 0.0 46.9 49.5 41.8 0 [67.0] [1.0] 12979
44 35.7 0.0 44.8 47.1 42.1 0 [82.0] [1.0] 3297
45 44.2 0.0 45.8 49.0 41.4 0 [100.0] [1.0] 2647
46 46.8 -0.0 47.2 49.1 42.2 0 [97.0] [1.0] 10300
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.0 -0.2 2.0 -2.8 [66.0, 83.0] 10566
14 62.4 -0.1 2.1 -2.3 [80.0, 82.0] 7562
19 57.5 -0.1 2.7 -3.4 [105.0] 18203
20 61.0 0.0 2.1 -3.5 [88.0, 110.0] 15423
21 43.2 0.1 2.5 -2.0 [73.0, 78.0] 3181
22 59.3 -0.2 2.1 -3.5 [104.0] 13188
23 59.5 -0.2 2.0 -3.5 [69.0, 110.0] 17605
24 64.3 0.3 2.9 -1.8 [77.0, 75.0] 12077
25 56.8 0.0 3.1 -2.3 [106.0, 107.0] 19040
26 45.3 0.1 2.2 -2.0 [96.0, 65.0] 3478
27 56.9 -0.1 2.7 -2.5 [77.0, 87.0] 18753
28 61.0 0.0 2.3 -3.2 [81.0] 16397
29 59.9 -0.1 2.1 -2.4 [98.0, 100.0] 14911
30 58.4 -0.1 2.0 -3.5 [107.0, 85.0] 18013
32 51.7 0.0 2.3 -2.9 [110.0, 103.0] 11904
33 58.8 -0.1 2.3 -2.7 [75.0, 71.0] 10262
34 42.8 0.0 2.3 -2.0 [91.0, 92.0] 8476
35 48.0 0.1 3.5 -1.9 [91.0, 92.0] 10730
36 47.3 -0.4 1.3 -2.5 [110.0, 70.0] 7086
37 58.6 -0.2 2.3 -3.0 [98.0, 100.0] 14527
41 41.2 0.1 2.8 -2.7 [105.0, 70.0, 71.0] 13980
42 51.0 -0.1 2.3 -3.2 [93.0] 4425
43 54.4 0.1 2.5 -2.3 [97.0, 67.0] 12977
44 35.7 -1.4 0.8 -3.8 [99.0, 82.0] 3297
45 44.2 0.3 3.0 -1.9 [98.0, 100.0] 2645
46 46.8 0.3 2.5 -2.6 [108.0, 97.0] 10300
