Comments


No Radios Running.
P4-03 East, Long engineering cable.
P4-05 West, Production cable sample.
4W Ethernet 10 Mbps, no traffic.
2W interfaces disabled (powered off).

Files


1112_no_radio/BX_gt35.T04 1112_no_radio/P4-03_gt35.T04 1112_no_radio/P4-05_gt35.T04
Modified: 2023-11-15 15:13:10

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 334.131 hours

Mean Primary Pos: [39.89647358636722, -105.1150577197886]
Mean Secondary Pos: [39.89647233548949, -105.11505848006013]
Mean Heading: 25.0 (deg)
Mean Slope Distance: 0.15347 (m)
 Modified: 2023-11-15 15:13:10

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 335.611 hours

Mean Primary Pos: [39.89647356170964, -105.11504350472526]
Mean Secondary Pos: [39.8964724503444, -105.11504409085748]
Mean Heading: 22.029 (deg)
Mean Slope Distance: 0.13331 (m)
 Modified: 2023-11-15 15:13:10

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 335.586 hours

Mean Primary Pos: [39.89647357721769, -105.11507203497418]
Mean Secondary Pos: [39.896472457440154, -105.11507271676257]
Mean Heading: 25.038 (deg)
Mean Slope Distance: 0.13743 (m)

Difference Report Links

1112_no_radio/results/BX_gt35_0-P4-03_gt35_0.html
1112_no_radio/results/BX_gt35_0-P4-05_gt35_0.html
1112_no_radio/results/BX_gt35_1-P4-03_gt35_1.html
1112_no_radio/results/BX_gt35_1-P4-05_gt35_1.html

Summary Table

SVType Freq Track N_Samples_P4-03_0 CNo_Mean_P4-03_0 N_Samples_P4-05_0 CNo_Mean_P4-05_0 N_Samples_P4-03_1 CNo_Mean_P4-03_1 N_Samples_P4-05_1 CNo_Mean_P4-05_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 395,973 0.1 395,976 0.2 395,973 0.2 395,976 0.1
GPS L2 CM+CL 315,884 0.3 315,888 0.1 315,884 0.0 315,888 -0.1
GPS L2 E 80,089 0.5 80,088 0.5 80,089 0.1 80,088 -0.1
GPS L5/E5A I+Q 221,229 0.6 221,231 0.3 221,229 0.1 221,231 0.0
SBAS L1 CA 259,198 -0.4 259,198 1.1 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 311,539 0.5 311,543 0.4 311,539 0.6 311,543 0.3
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 274,694 0.4 274,696 0.1 274,691 -0.2 274,695 -0.1
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 293,487 0.1 285,282 0.2 293,487 0.1 285,282 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 293,487 0.2 285,282 0.2 293,487 0.1 285,282 0.2
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 312,636 0.1 312,630 0.3 312,636 0.3 312,630 0.2
BeiDou L5/E5A I+Q 312,636 0.5 312,630 0.2 312,636 0.1 312,630 0.0
BeiDou E5B/B2 BPSK(2)-B2 17,613 0.4 17,613 0.2 17,613 0.1 17,613 0.1
BeiDou B1 BPSK(2)-B1 330,249 0.1 330,243 0.1 330,249 0.0 330,243 0.0
BeiDou B3 BPSK(10)-B3 330,249 0.2 330,243 0.1 330,249 -0.1 330,243 -0.0
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS MSS 44,633 -1.0 44,281 -0.2 0 0
Total 3,748,963 0.2 3,732,543 0.3 3,489,762 0.1 3,473,344 0.1

Az-El Plots

BX_gt35_0-P4-03_gt35_0 BX_gt35_0-P4-05_gt35_0 BX_gt35_1-P4-03_gt35_1 BX_gt35_1-P4-05_gt35_1

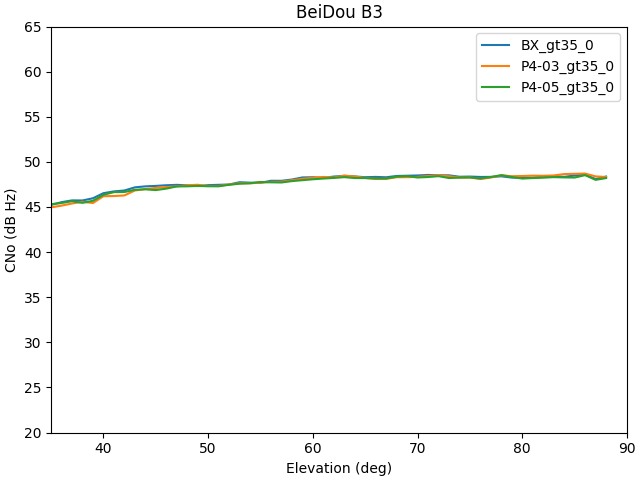

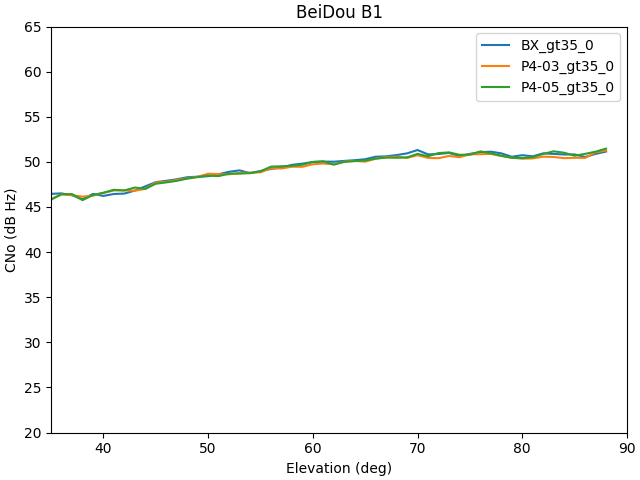

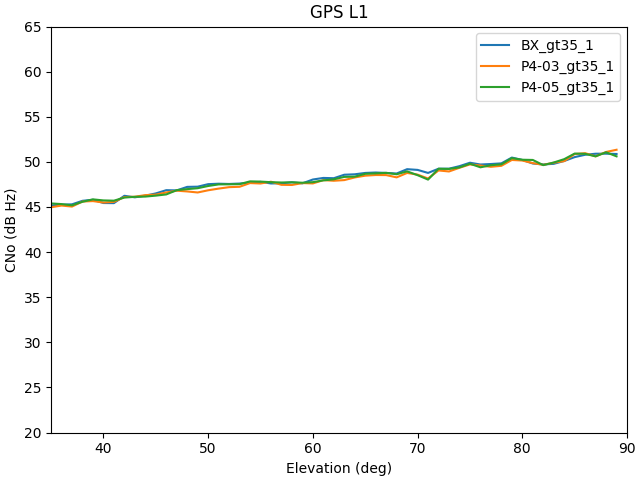

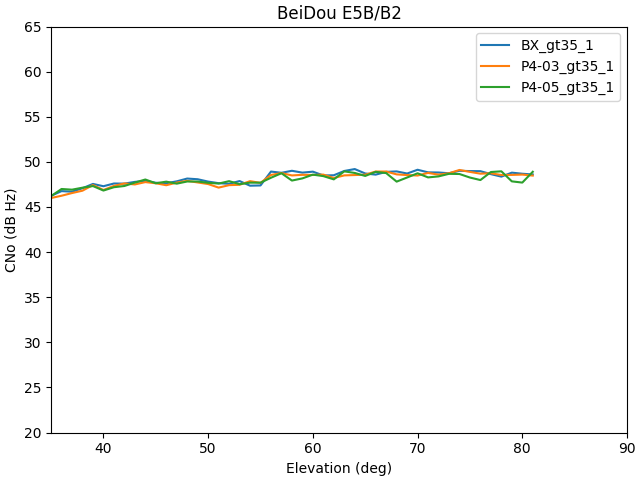

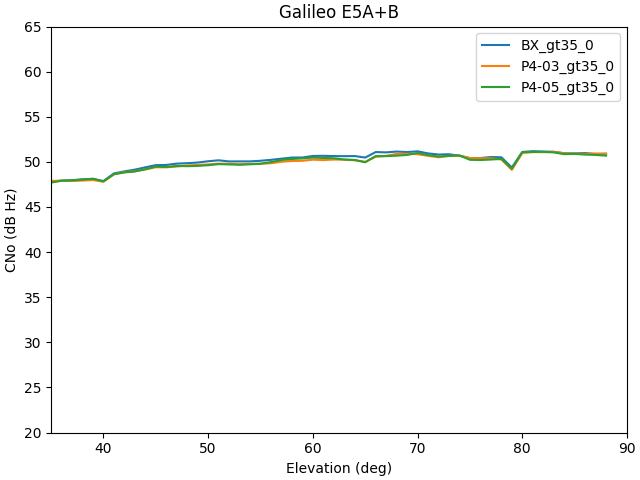

Mean Elevation Plots

Antenna 0

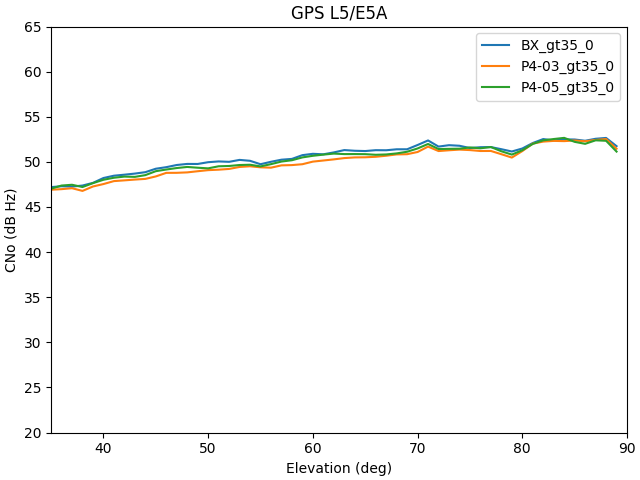

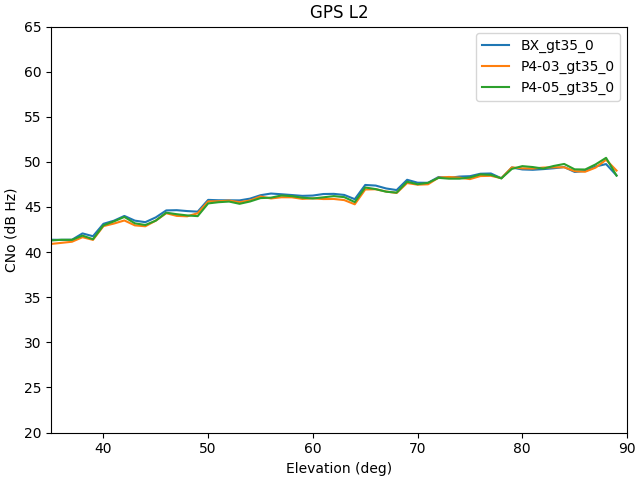

GPS

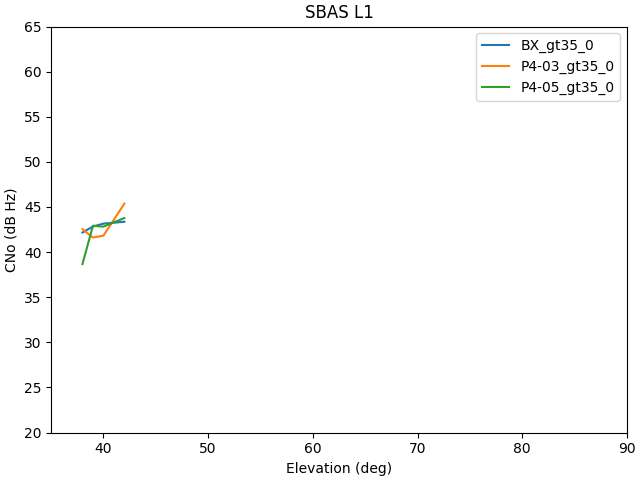

SBAS

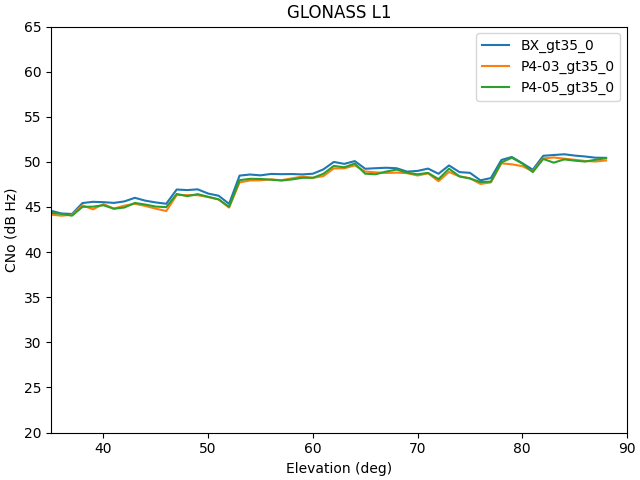

GLONASS
Galileo

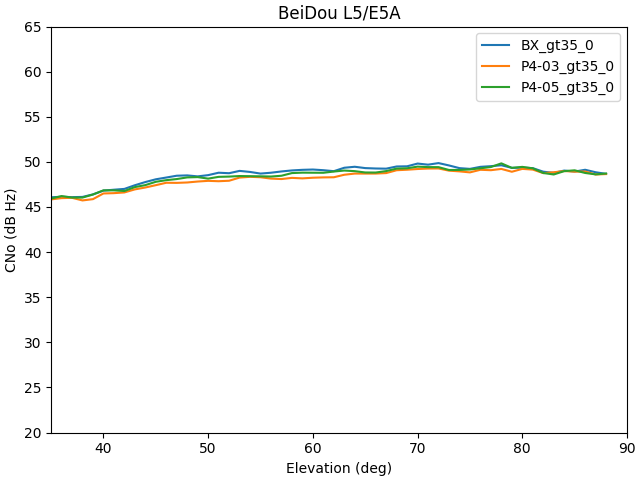

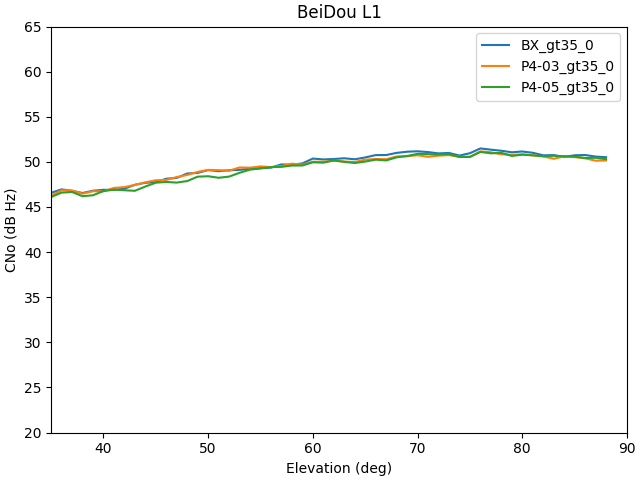

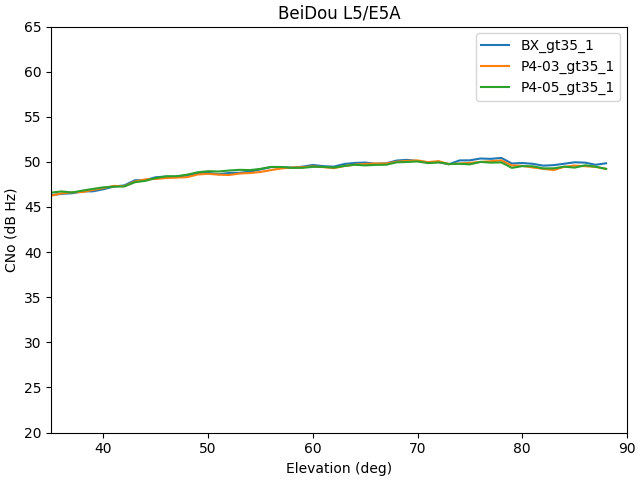

BeiDou

Antenna 1

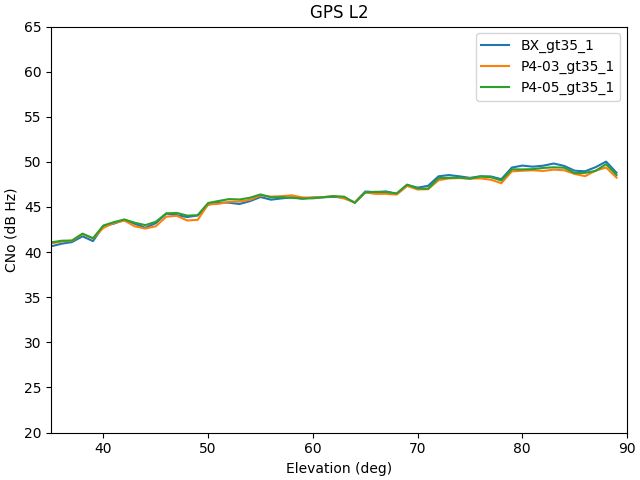

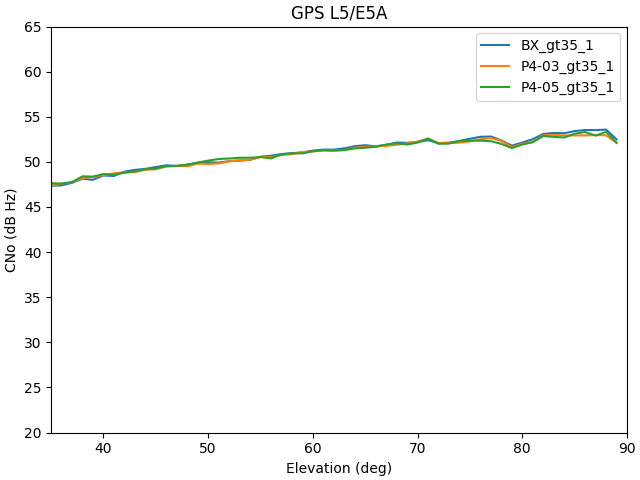

GPS

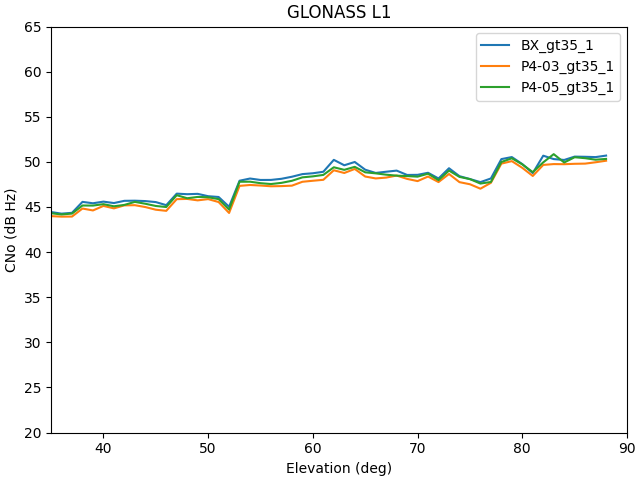

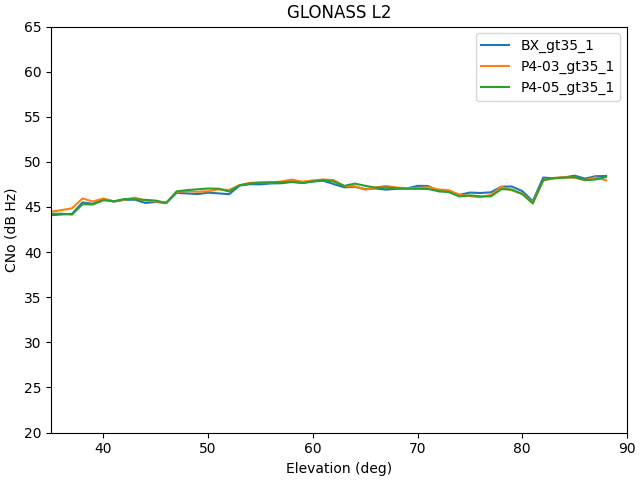

GLONASS

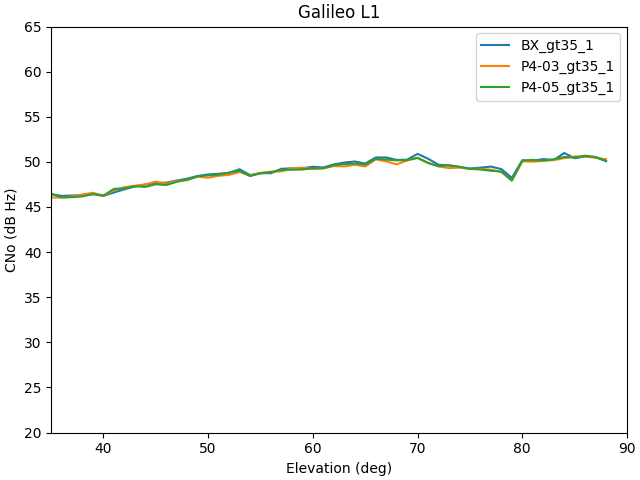

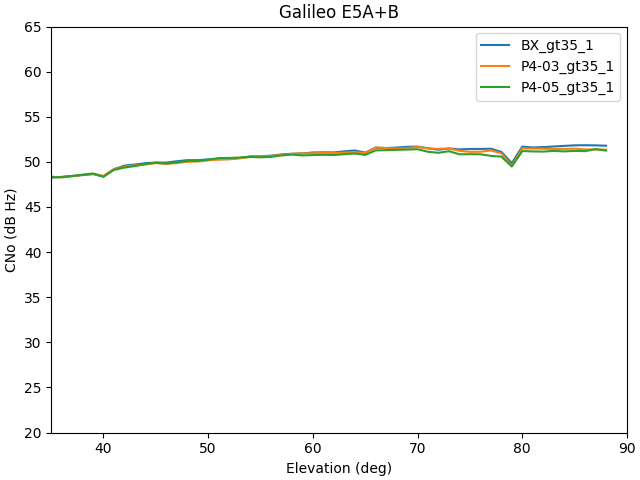

Galileo
BeiDou

Oscillation Check

BX_gt35_0: 1372.3
Antenna SVType Freq Track SV osc_factor
0 BeiDou B1 26 25 1,372
0 GPS L1 0 29 1,372
0 GLONASS L1 0 18 1,160
0 Galileo E5A+B 14 12 1,151
0 Galileo E5A+B 14 34 1,146
0 Galileo E5A+B 14 7 1,137
0 BeiDou E5B/B2 28 12 995
0 GPS L1 0 6 968
0 GLONASS L1 0 8 949
0 BeiDou B3 29 29 929
P4-03_gt35_0: 1374.6
Antenna SVType Freq Track SV osc_factor
0 BeiDou B1 26 25 1,375
0 Galileo E5A+B 14 34 1,264
0 Galileo E5A+B 14 7 1,208
0 Galileo E5A+B 14 8 1,177
0 GLONASS L1 0 2 1,138
0 Galileo E5A+B 14 25 1,089
0 GLONASS L2 0 24 1,068
0 Galileo E5A+B 14 12 1,035
0 Galileo E5A+B 14 30 1,024
0 GLONASS L1 0 19 1,017
P4-05_gt35_0: 1400.6
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 30 1,401
0 BeiDou B1 26 25 1,368
0 Galileo E5A+B 14 34 1,207
0 Galileo E5A+B 14 7 1,128
0 GPS L1 0 29 1,121
0 Galileo E5A+B 14 12 1,093
0 GLONASS L1 0 18 1,063
0 GLONASS L1 0 9 1,063
0 BeiDou B3 29 20 1,007
0 BeiDou B3 29 41 1,004
BX_gt35_1: 1306.7
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,307
1 Galileo E5A+B 14 7 1,199
1 Galileo E5A+B 14 34 1,148
1 Galileo E5A+B 14 12 1,116
1 GLONASS L1 0 24 1,082
1 GPS L1 0 5 1,065
1 BeiDou B3 29 36 1,027
1 Galileo E5A+B 14 2 1,003
1 GLONASS L1 0 10 1,001
1 Galileo E5A+B 14 30 992
P4-03_gt35_1: 1354.6
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,355
1 GLONASS L1 0 14 1,103
1 GLONASS L1 0 10 1,086
1 GLONASS L1 0 24 1,065
1 GLONASS L1 0 21 1,056
1 GPS L2 5 18 1,054
1 Galileo E5A+B 14 12 1,045
1 Galileo E5A+B 14 7 1,008
1 GLONASS L2 0 7 985
1 GPS L1 0 3 982
P4-05_gt35_1: 1365.2
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 25 1,365
1 GPS L1 0 29 1,263
1 GLONASS L1 0 24 1,171
1 GLONASS L1 0 10 1,131
1 Galileo E5A+B 14 12 1,035
1 Galileo E5A+B 14 13 981
1 GLONASS L1 0 2 967
1 Galileo E5A+B 14 34 951
1 Galileo E5A+B 14 7 951
1 Galileo E5A+B 14 2 942

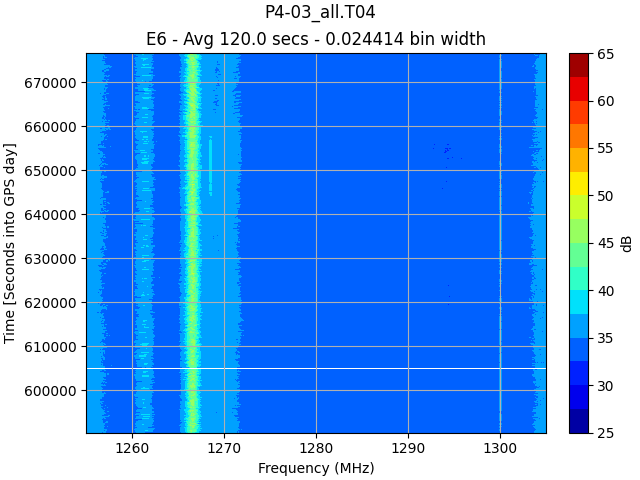

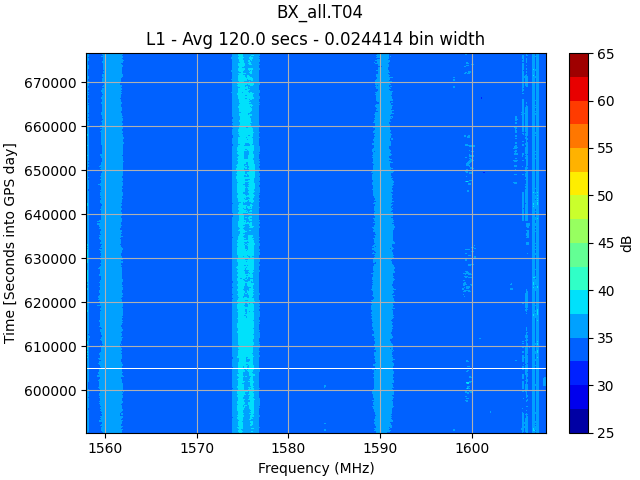

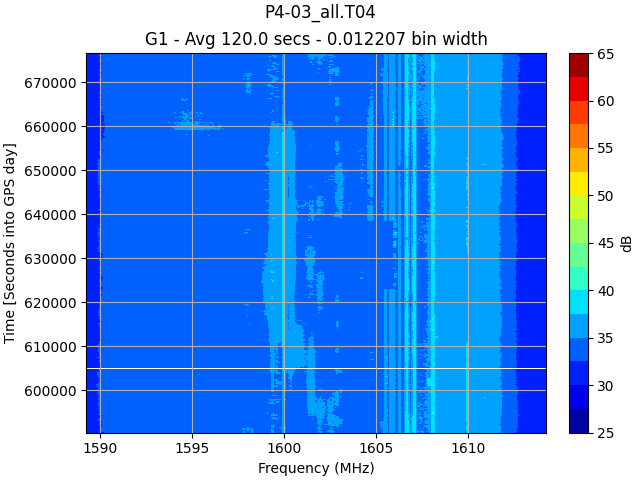

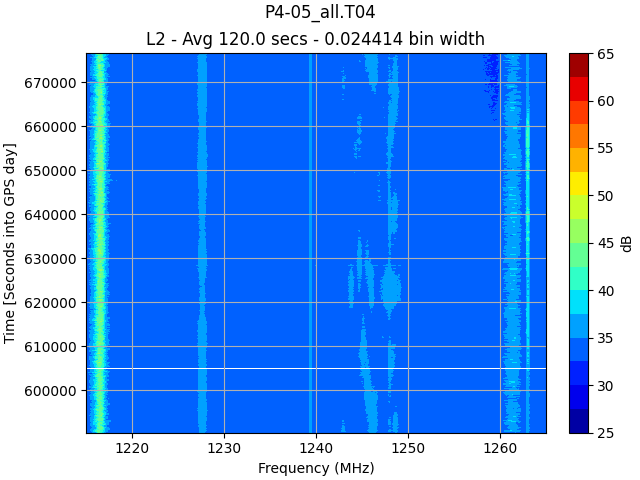

FFT Plots

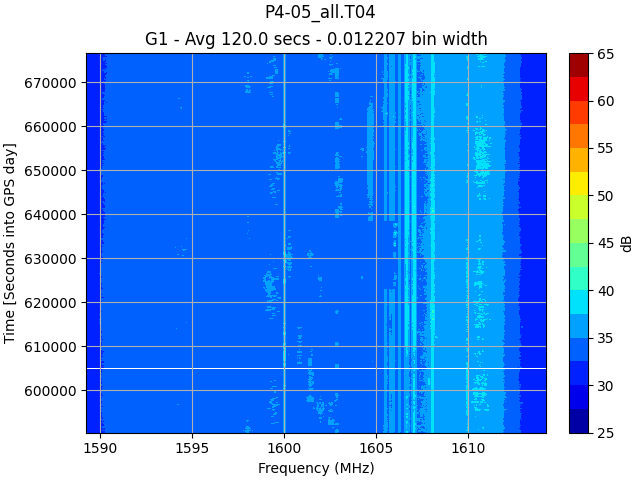

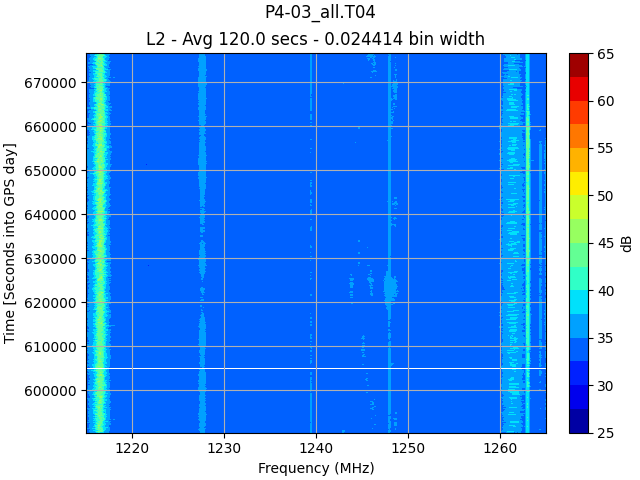

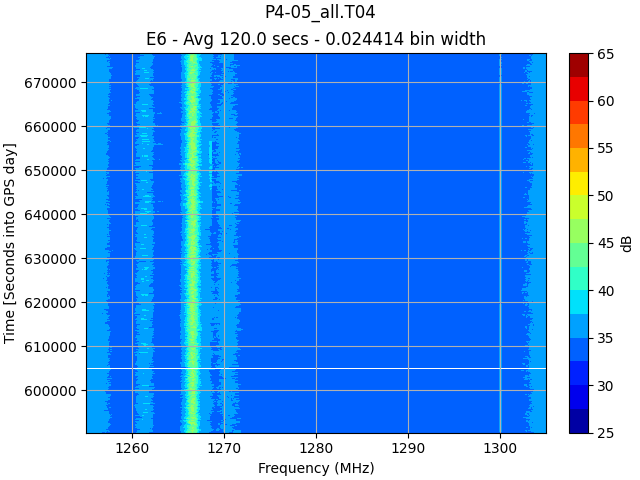

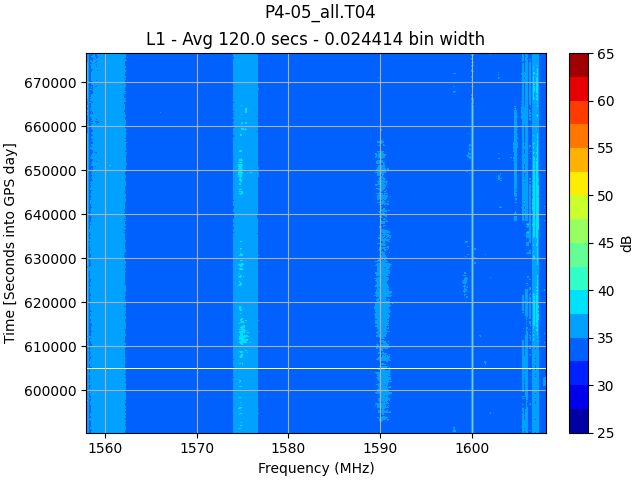

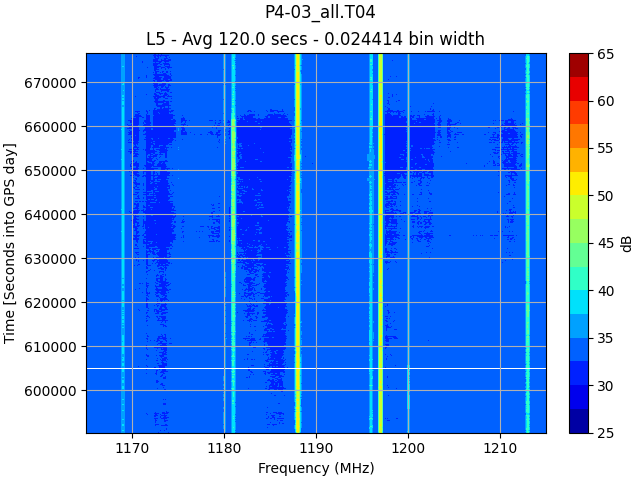

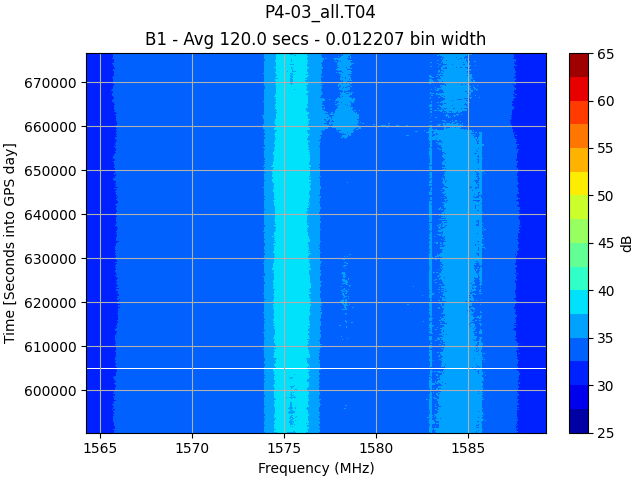

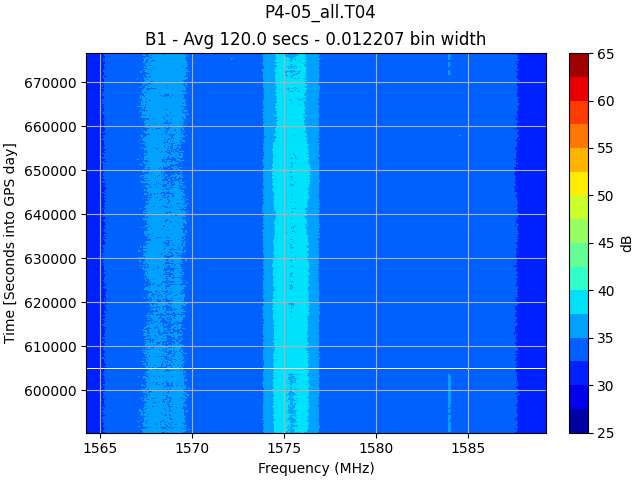

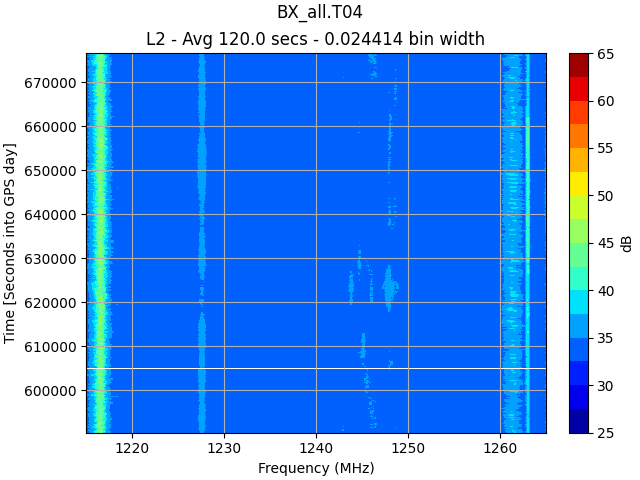

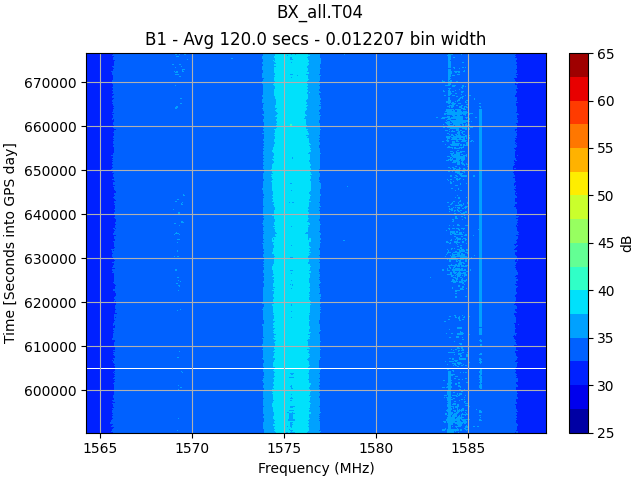

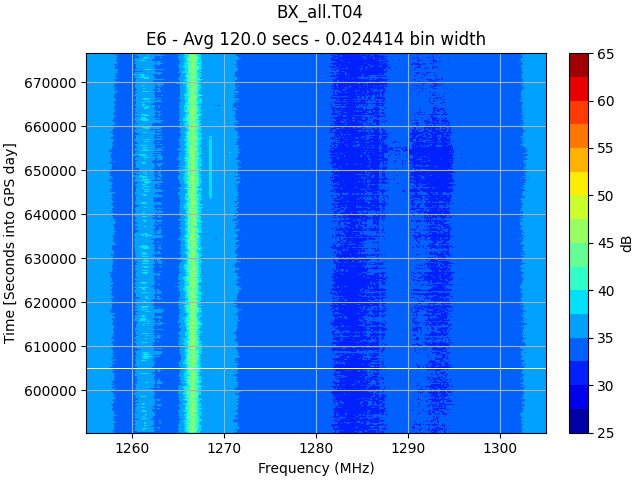

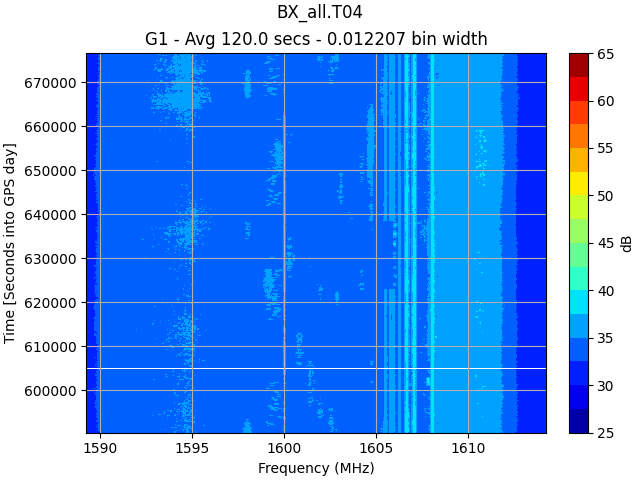

L1 L2 L5 E6 G1 B1
BX
P4-03
P4-05
