REF File: 1112_no_radio/BX_gt35.T04
DUT File: 1112_no_radio/P4-03_gt35.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 396004 47.6 47.6 2.2 38.6 55.2 16.6 55.5 89.0
GPS L2 CM+CL 315907 47.4 47.6 1.8 39.5 52.1 12.6 56.6 89.0
GPS L2 E 80097 36.2 36.2 3.2 25.3 44.3 19.0 51.2 78.0
GPS L5/E5A I+Q 221244 50.4 50.6 1.9 44.2 54.9 10.7 55.7 89.0
GLONASS L1 CA 311557 47.1 48.4 4.4 31.3 55.0 23.7 53.5 88.0
GLONASS L2 CA 274761 46.5 47.2 2.5 15.2 51.2 36.0 53.7 88.0
Galileo L1 MBOC-PD 293496 48.6 48.6 2.3 38.9 54.8 15.9 55.7 88.0
Galileo E5A+B AltBOC-Comp-PD 293496 50.4 50.8 1.6 42.2 53.8 11.6 55.7 88.0
BeiDou L1 BOC-PD 312652 49.0 49.2 2.0 41.2 53.9 12.7 55.5 88.0
BeiDou L5/E5A I+Q 312652 48.7 48.9 1.6 41.7 52.2 10.5 55.5 88.0
BeiDou E5B/B2 BPSK(2)-B2 17613 47.8 47.9 1.0 43.4 50.5 7.1 51.5 81.0
BeiDou B1 BPSK(2)-B1 330265 49.1 49.3 2.0 39.9 53.9 14.0 55.3 88.0

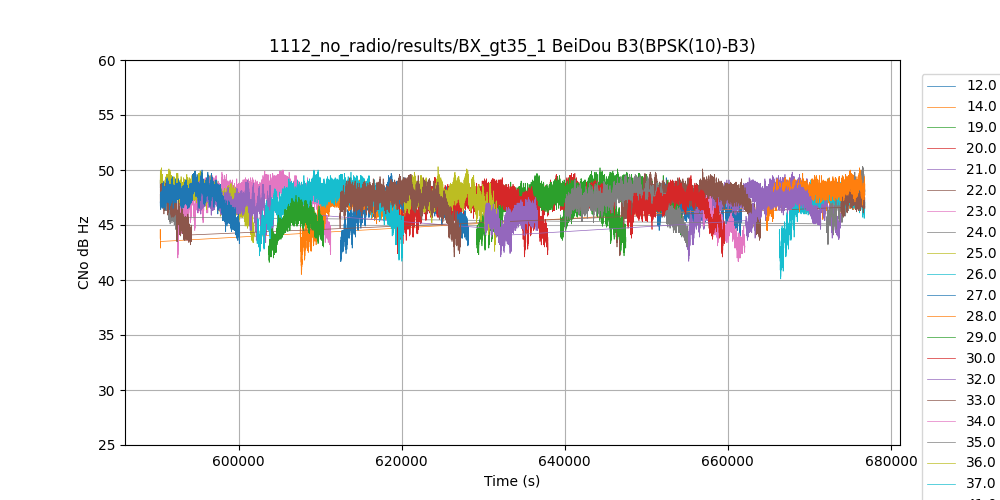

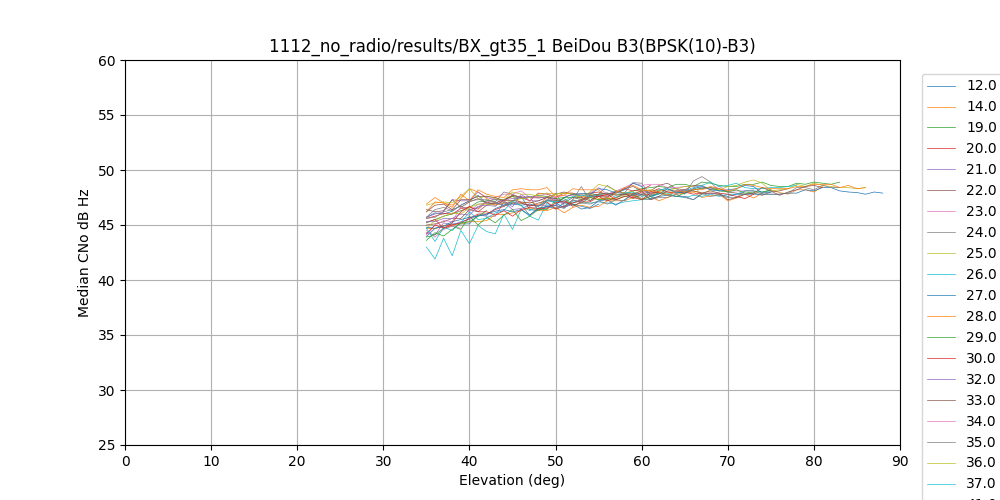

BeiDou B3 BPSK(10)-B3 330265 47.2 47.5 1.3 40.1 50.3 10.2 55.3 88.0
start/stop time: 590,400 676,799
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 3,490,009
Avg Samples/sec: 40.4

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 395991 47.3 47.3 2.1 36.7 54.4 17.7 55.5 89.0
GPS L2 CM+CL 315900 47.3 47.5 1.7 39.0 51.9 12.9 56.6 89.0
GPS L2 E 80091 36.1 36.0 3.1 25.6 43.2 17.6 51.2 78.0
GPS L5/E5A I+Q 221240 50.3 50.5 1.9 42.8 54.3 11.5 55.7 89.0
GLONASS L1 CA 311553 46.5 47.8 4.4 31.6 53.9 22.3 53.5 88.0
GLONASS L2 CA 274797 46.6 47.3 2.4 13.4 51.0 37.6 53.7 88.0
Galileo L1 MBOC-PD 293503 48.4 48.6 2.1 37.4 54.1 16.7 55.7 88.0

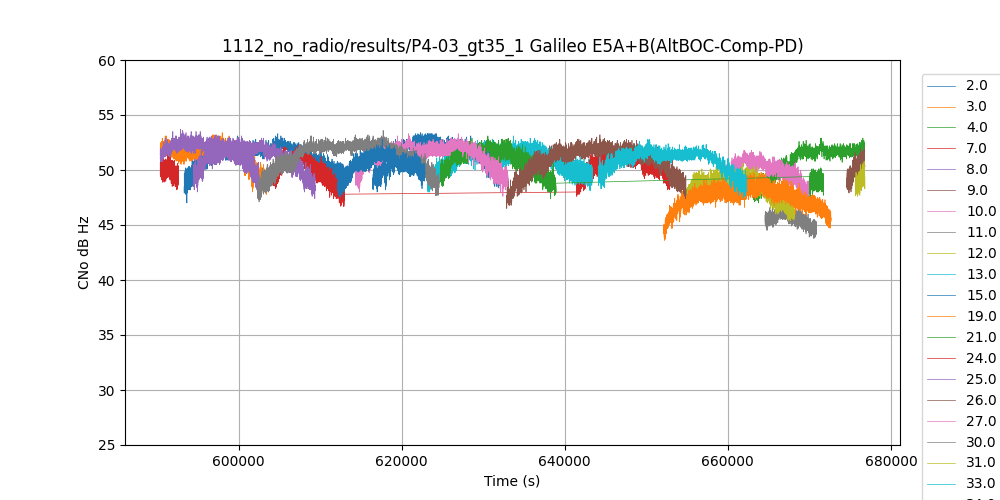

Galileo E5A+B AltBOC-Comp-PD 293503 50.3 50.7 1.6 43.6 53.7 10.1 55.7 88.0
BeiDou L1 BOC-PD 312643 48.6 48.9 1.8 40.6 52.9 12.3 55.5 88.0
BeiDou L5/E5A I+Q 312643 48.6 48.8 1.6 42.8 52.2 9.4 55.5 88.0

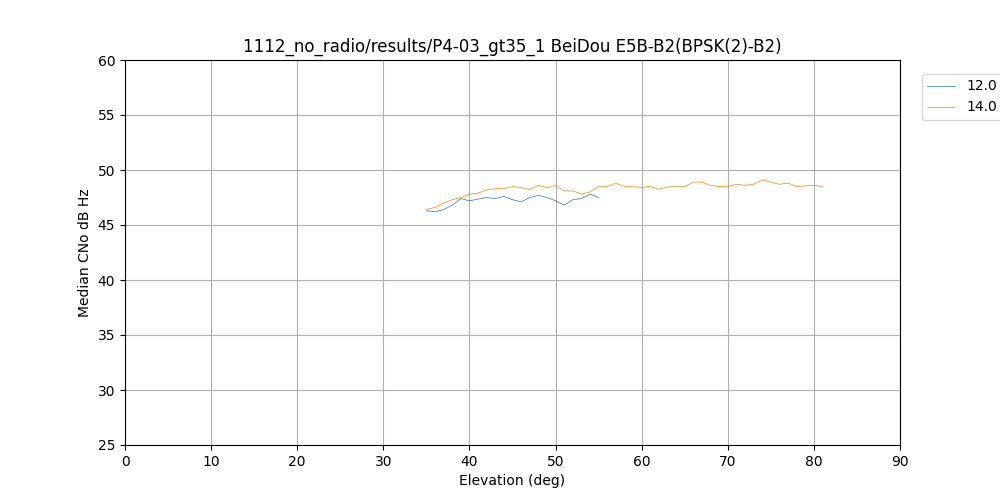

BeiDou E5B/B2 BPSK(2)-B2 17614 47.7 47.8 1.0 42.4 50.3 7.9 51.5 81.0
BeiDou B1 BPSK(2)-B1 330257 49.0 49.3 1.9 38.9 53.4 14.5 55.3 88.0
BeiDou B3 BPSK(10)-B3 330257 47.3 47.6 1.2 40.8 50.0 9.2 55.3 88.0
start/stop time: 590,400 676,799
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 3,489,992
Avg Samples/sec: 40.4

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version :
Navigation Processor Version: 6.21
Radio library version : 5.61
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 395973 +0.2 +0.2 +1.2 -6.2 +9.1 +15.3 +55.5 +89.0
GPS L2 CM+CL 315884 +0.0 +0.1 +0.9 -4.4 +6.4 +10.8 +56.6 +89.0
GPS L2 E 80089 +0.1 +0.2 +1.1 -5.8 +5.8 +11.6 +51.2 +78.0
GPS L5/E5A I+Q 221229 +0.1 +0.1 +0.6 -3.1 +3.6 +6.7 +55.7 +89.0
GLONASS L1 CA 311539 +0.6 +0.7 +1.2 -5.6 +5.8 +11.4 +53.5 +88.0
GLONASS L2 CA 274691 -0.2 -0.1 +1.0 -5.9 +6.2 +12.1 +53.7 +88.0
Galileo L1 MBOC-PD 293487 +0.1 +0.2 +1.0 -5.8 +4.7 +10.5 +55.7 +88.0
Galileo E5A+B AltBOC-Comp-PD 293487 +0.1 +0.1 +0.4 -2.8 +2.4 +5.2 +55.7 +88.0
BeiDou L1 BOC-PD 312636 +0.3 +0.3 +1.1 -4.7 +5.7 +10.4 +55.5 +88.0
BeiDou L5/E5A I+Q 312636 +0.1 +0.1 +0.6 -2.8 +3.4 +6.2 +55.5 +88.0
BeiDou E5B/B2 BPSK(2)-B2 17613 +0.1 +0.2 +0.6 -2.7 +2.2 +4.9 +51.5 +81.0
BeiDou B1 BPSK(2)-B1 330249 +0.0 +0.1 +1.1 -7.9 +5.9 +13.8 +55.3 +88.0
BeiDou B3 BPSK(10)-B3 330249 -0.1 -0.1 +0.7 -3.8 +4.3 +8.1 +55.3 +88.0
start/stop time: 590,400 676,799
Total time: 86,399.0 seconds
Total time: 1,439.983 minutes
Total time: 24.000 hours
Total Samples: 3,489,762
Avg Samples/sec: 40.4

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.131
Median = 0.100
Std Dev= 0.967

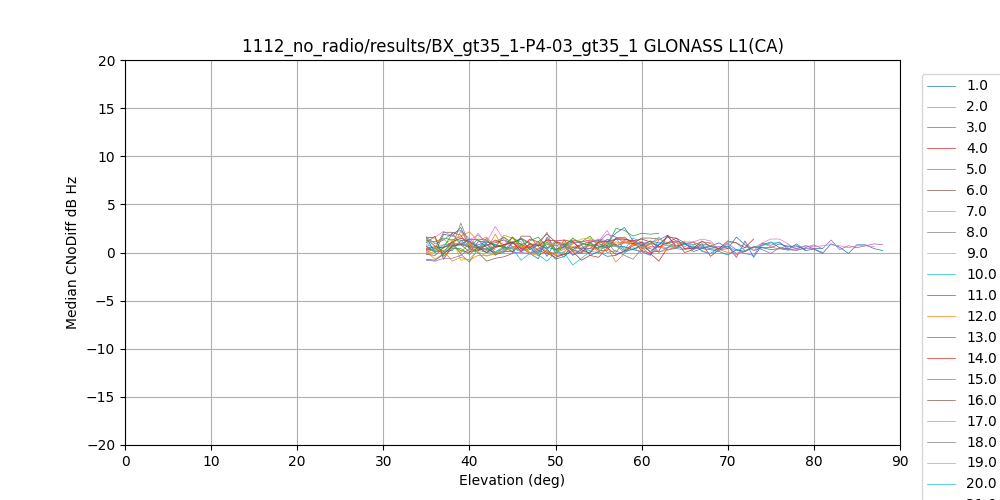

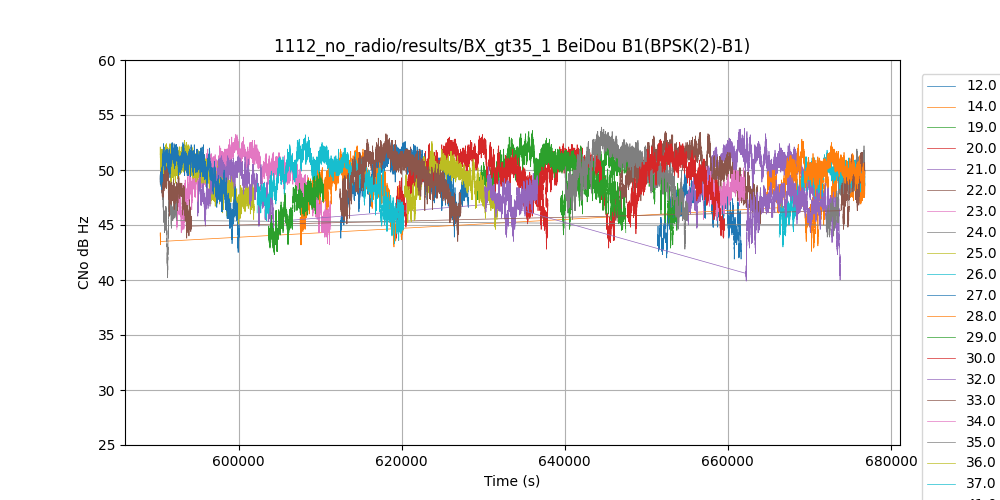

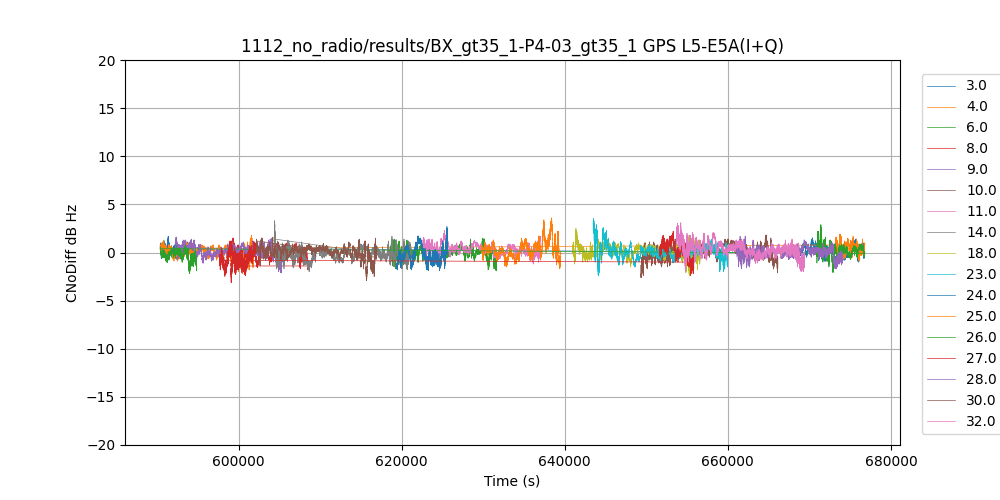

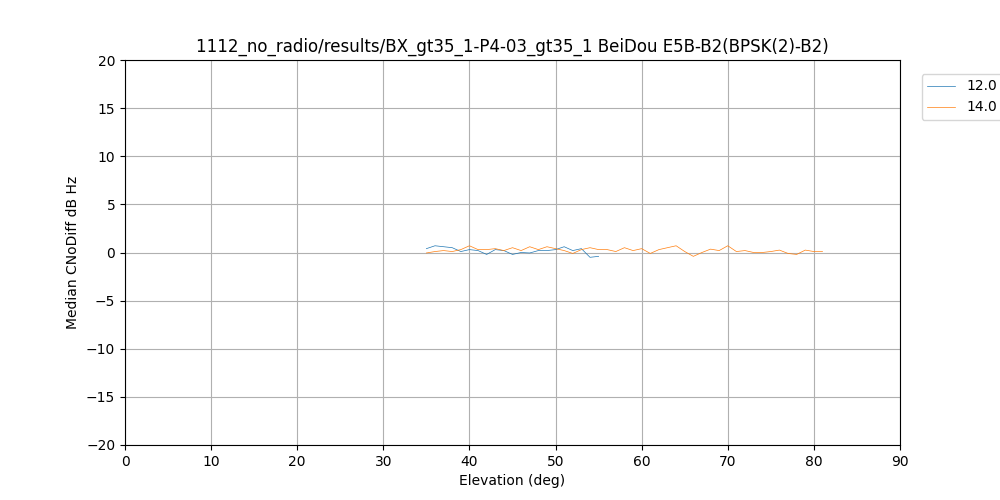

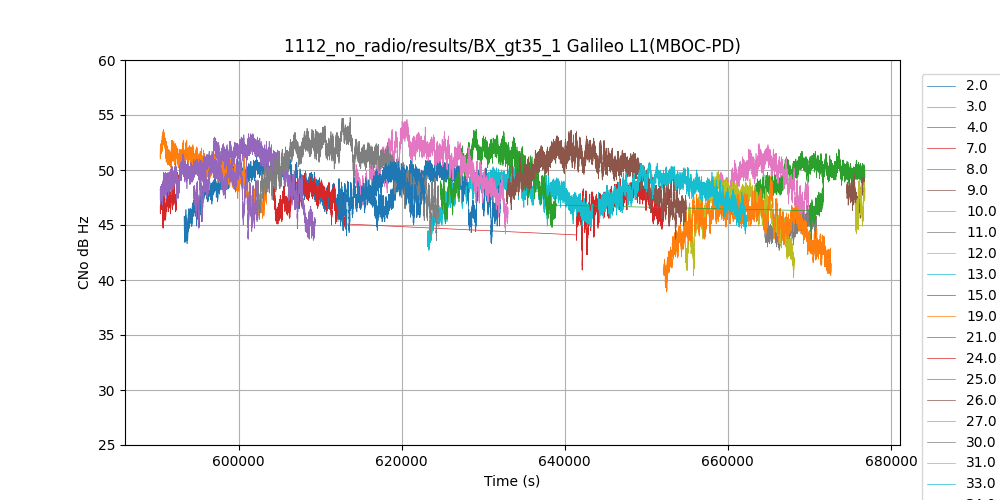

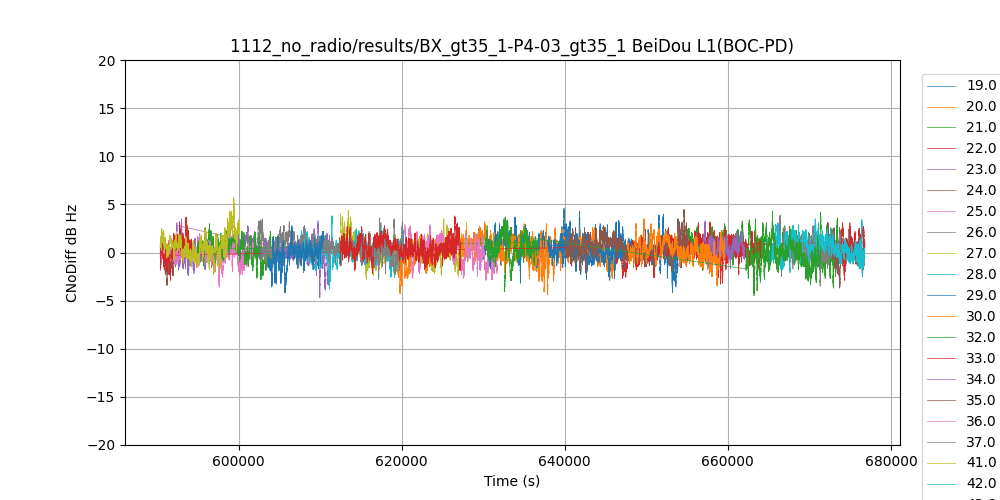

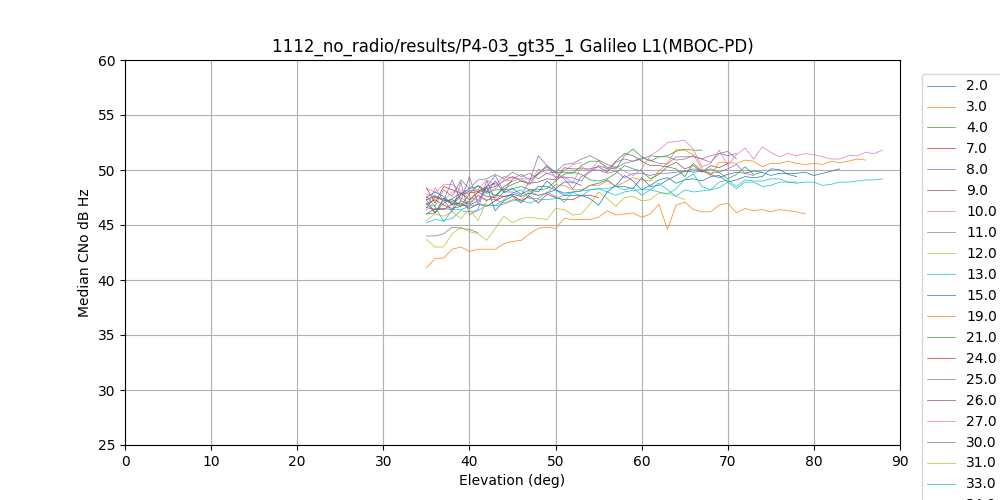

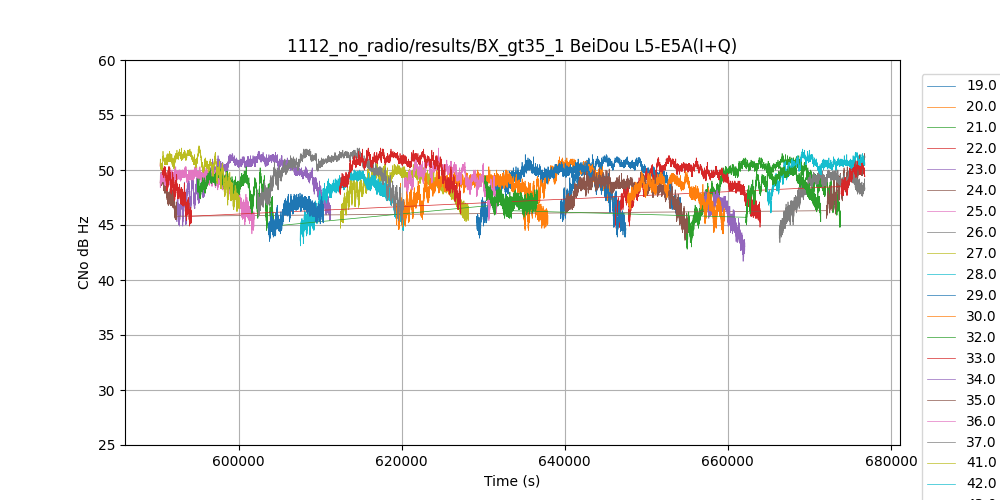

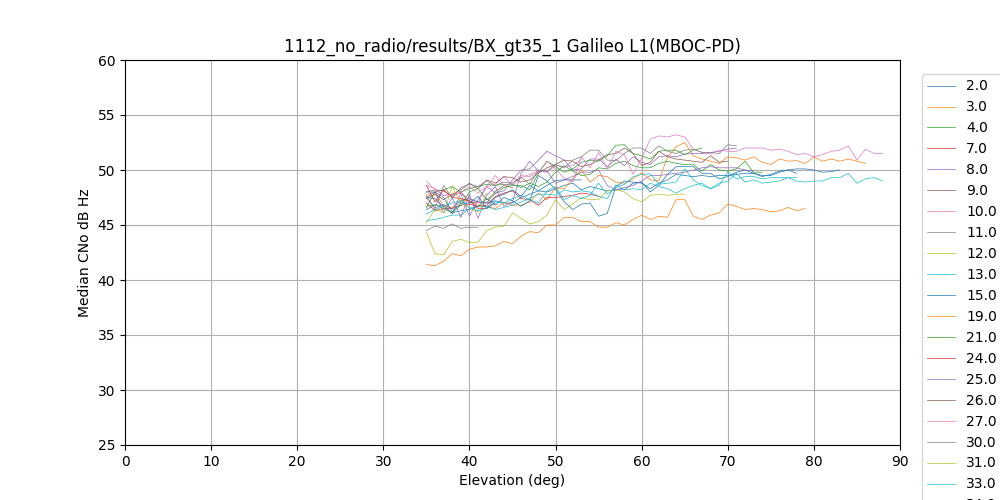

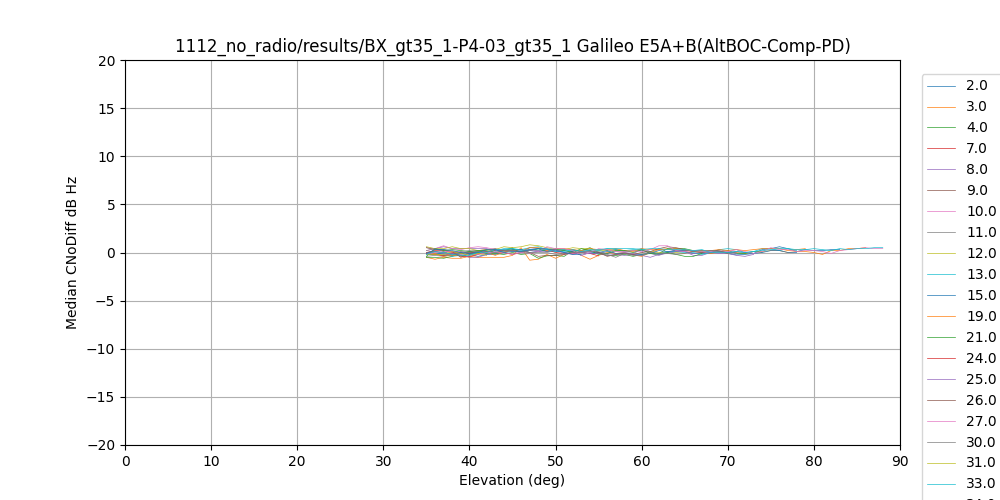

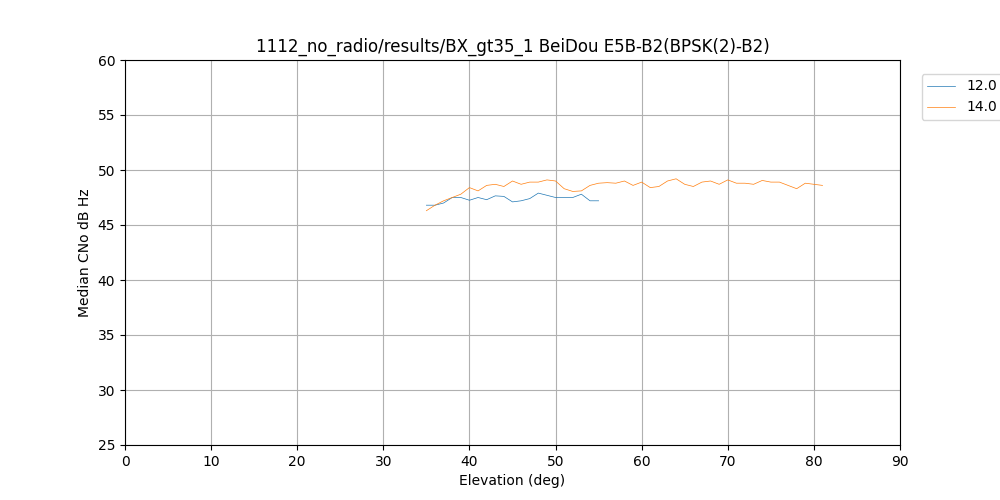

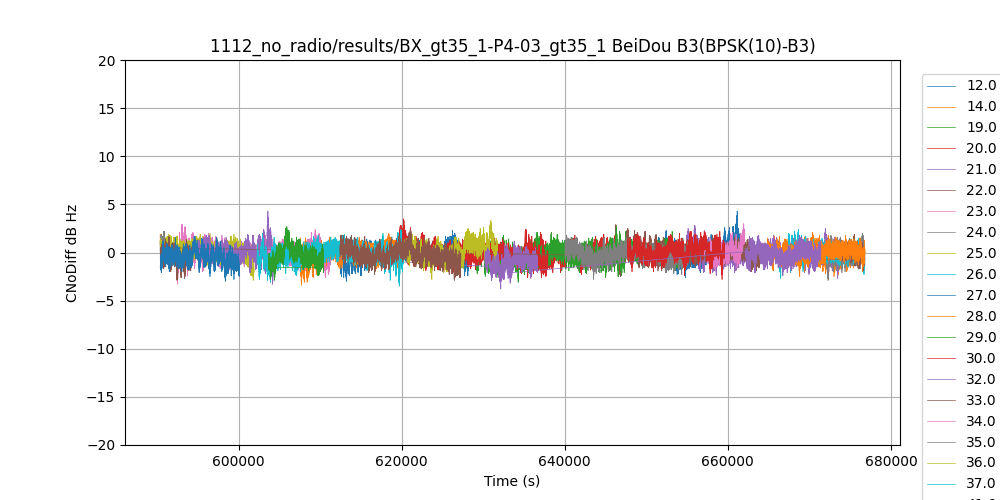

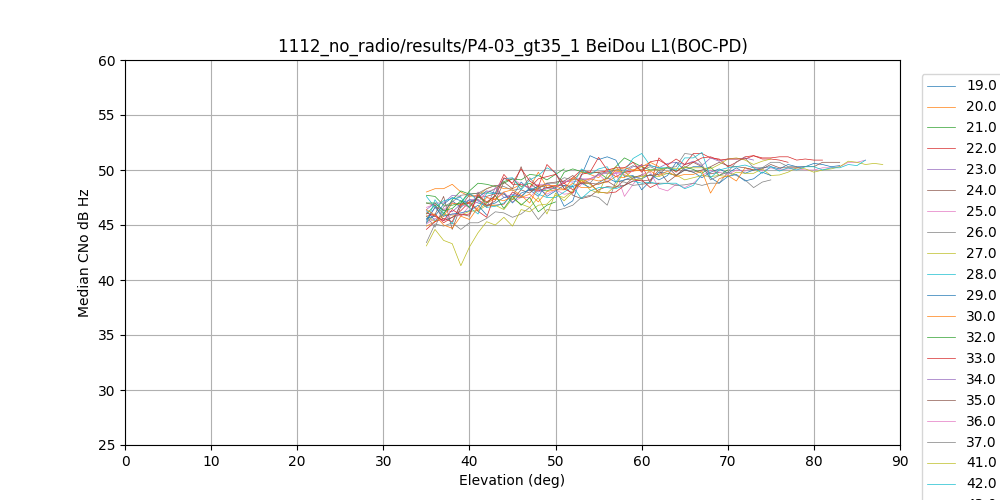

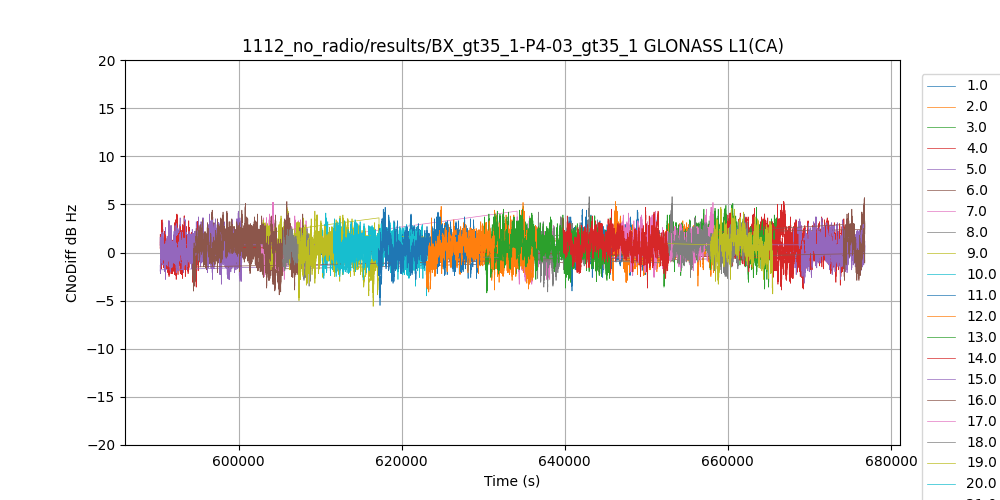

Plots

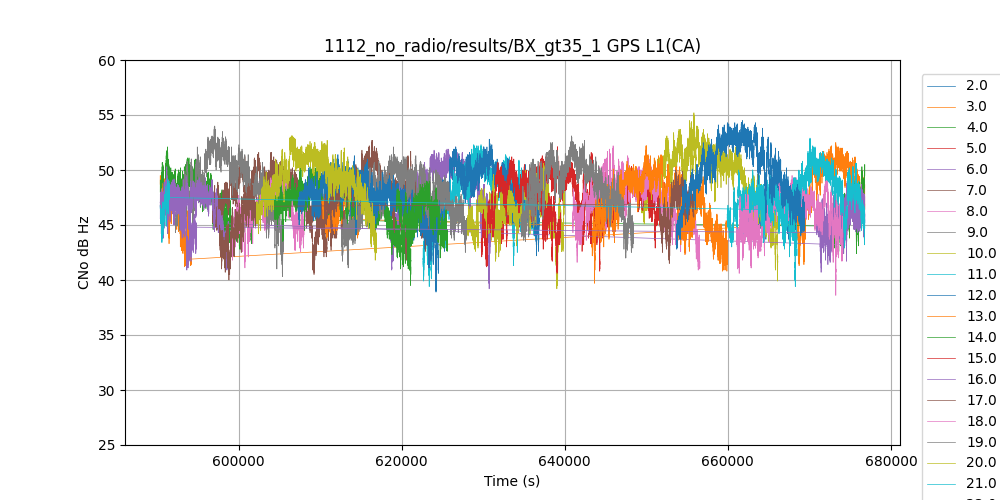

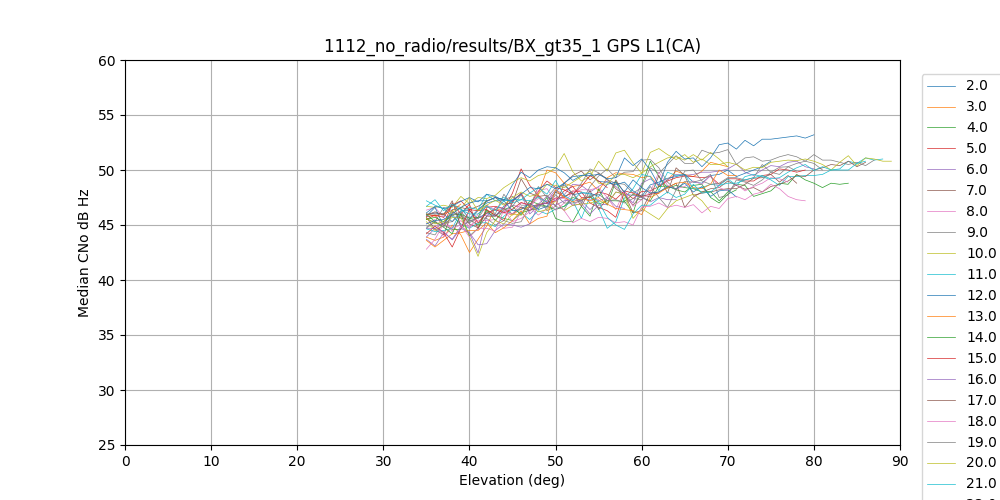

REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 46.2 49.3 43.0 0 [71.0] [1.0] 7164
3 55.6 -0.0 48.0 52.5 41.2 60 [94.0, 90.0] [1.0] 12068
4 60.4 -0.0 47.1 52.1 42.3 23 [74.0, 78.0] [1.0] 15137
5 58.8 -0.0 48.1 52.1 40.8 0 [92.0] [1.0] 12783
6 59.3 -0.0 48.2 52.1 39.2 0 [95.0] [1.0] 12979
7 58.8 -0.0 47.8 51.6 42.1 0 [80.0] [1.0] 16234
8 47.4 0.0 46.2 49.3 41.1 0 [95.0] [1.0] 9451
9 59.6 0.0 48.8 54.0 40.3 0 [91.0] [1.0] 13216
10 55.7 0.0 49.6 55.2 39.9 0 [87.0] [1.0] 16767
11 61.2 -0.0 47.7 52.3 39.4 0 [88.0] [1.0] 14427
12 57.5 0.0 48.7 52.8 42.2 0 [81.0] [1.0] 12443
13 37.3 0.0 46.2 49.8 42.1 40 [62.0, 83.0] [1.0] 8869
14 56.5 0.0 47.0 51.0 39.5 0 [92.0] [1.0] 16754
15 51.1 -0.0 47.2 50.3 42.6 0 [85.0] [1.0] 10612
16 52.4 -0.0 46.6 50.3 40.9 177 [87.0, 74.0] [1.0] 11071
17 60.9 -0.0 47.7 52.7 40.5 0 [87.0] [1.0] 14976
18 58.3 -0.0 47.5 52.2 40.9 0 [67.0] [1.0] 15590
19 58.8 -0.0 47.5 52.1 41.1 0 [78.0] [1.0] 15393
20 54.3 0.0 46.2 50.6 39.2 0 [76.0] [1.0] 11843
21 43.7 0.0 46.7 50.0 39.4 0 [92.0] [1.0] 8556
22 56.5 0.0 47.4 51.4 38.9 0 [85.0] [1.0] 17201
23 56.1 -0.0 47.1 52.2 39.7 0 [89.0] [1.0] 16466
24 39.6 0.0 45.9 49.0 41.4 0 [82.0] [1.0] 6224
25 47.9 0.0 47.2 51.2 40.6 0 [73.0] [1.0] 9701
26 49.2 -0.0 45.8 49.2 40.7 2 [84.0, 79.0] [1.0] 10350
27 37.1 -0.0 45.8 50.0 40.0 55 [76.0, 90.0] [1.0] 8715
28 58.8 -0.0 46.1 50.3 38.6 0 [70.0] [1.0] 13000
29 61.1 0.0 48.6 53.1 42.0 0 [94.0] [1.0] 13777
30 61.3 -0.0 49.1 53.1 41.8 0 [70.0] [1.0] 14674
31 60.5 -0.0 48.0 52.9 42.8 132 [85.0] [1.0] 13838
32 59.3 -0.0 50.0 54.5 42.8 0 [81.0] [1.0] 15725

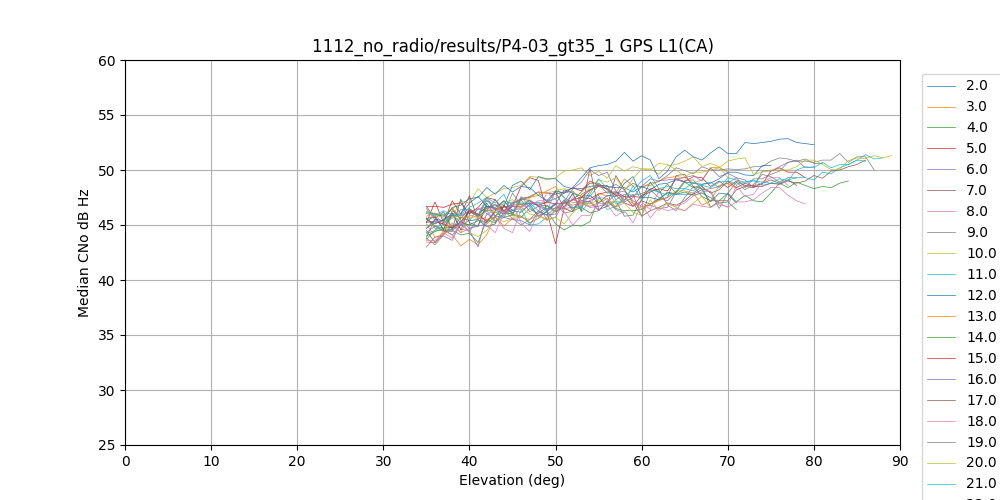

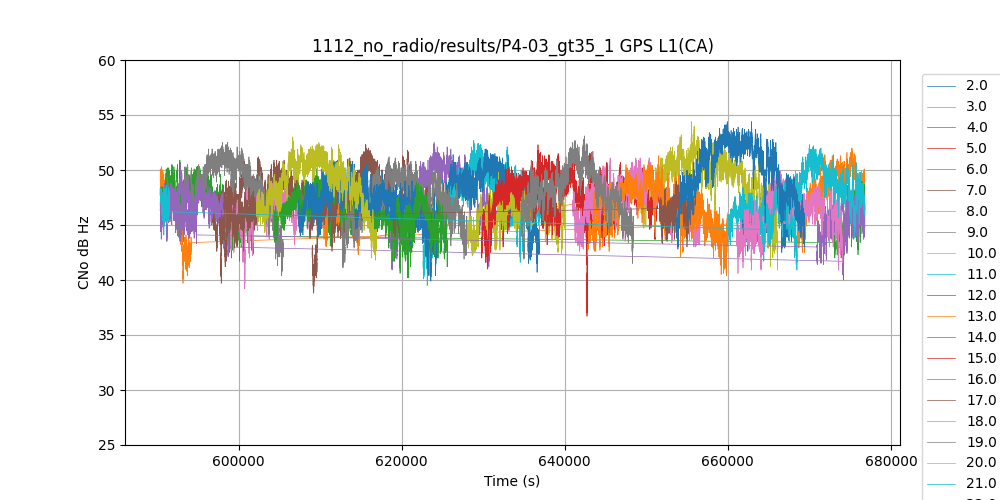

DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 45.8 49.1 42.5 0 [74.0] [1.0] 7162
3 55.6 -0.0 47.6 52.0 39.7 58 [94.0, 88.0] [1.0] 12069
4 60.4 0.0 46.7 50.9 40.0 102 [66.0, 79.0] [1.0] 15137
5 58.8 -0.0 48.0 52.3 36.7 0 [94.0] [1.0] 12782
6 59.3 -0.0 48.0 52.5 40.9 0 [91.0] [1.0] 12977
7 58.8 -0.0 47.4 51.2 42.6 0 [86.0] [1.0] 16231
8 47.4 0.0 46.2 49.0 39.2 0 [91.0] [1.0] 9449
9 59.6 0.0 48.4 52.5 40.4 0 [92.0] [1.0] 13214
10 55.7 0.0 49.2 54.4 40.9 0 [85.0] [1.0] 16768
11 61.2 -0.0 47.6 52.7 39.5 0 [88.0] [1.0] 14430
12 57.5 -0.0 48.2 51.9 40.7 0 [81.0] [1.0] 12445
13 37.3 -0.0 46.0 50.0 42.3 235 [62.0, 87.0] [1.0] 8866
14 56.5 0.0 46.5 50.9 40.2 0 [77.0] [1.0] 16753
15 51.1 -0.0 47.3 50.7 43.3 0 [90.0] [1.0] 10612
16 52.4 0.0 46.5 50.5 40.5 183 [85.0, 80.0] [1.0] 11070
17 60.9 -0.0 47.6 52.3 38.8 0 [85.0] [1.0] 14976
18 58.3 -0.0 47.1 51.1 42.6 0 [68.0] [1.0] 15592
19 58.8 -0.0 47.3 51.2 41.1 0 [84.0] [1.0] 15393
20 54.3 0.0 46.2 50.0 42.2 0 [78.0] [1.0] 11844
21 43.7 0.0 46.2 49.0 40.9 0 [94.0] [1.0] 8556
22 56.5 -0.0 47.1 51.0 39.9 0 [82.0] [1.0] 17200
23 56.1 -0.0 46.7 51.3 40.4 0 [95.0] [1.0] 16466
24 39.6 0.0 45.5 48.9 41.2 0 [80.0] [1.0] 6221
25 47.9 0.0 47.2 50.2 41.0 0 [74.0] [1.0] 9701
26 49.2 -0.0 45.9 48.8 41.4 240 [79.0, 76.0] [1.0] 10350
27 37.1 -0.0 45.9 49.0 39.7 236 [81.0, 88.0] [1.0] 8713
28 58.8 -0.0 46.1 50.2 40.6 0 [73.0] [1.0] 13000
29 61.1 -0.0 48.2 53.1 41.5 0 [89.0] [1.0] 13777
30 61.3 -0.0 48.8 53.0 41.8 0 [74.0] [1.0] 14674
31 60.5 0.0 48.0 52.3 41.7 71 [77.0, 90.0] [1.0] 13837
32 59.3 0.0 50.0 54.4 42.8 0 [81.0] [1.0] 15726

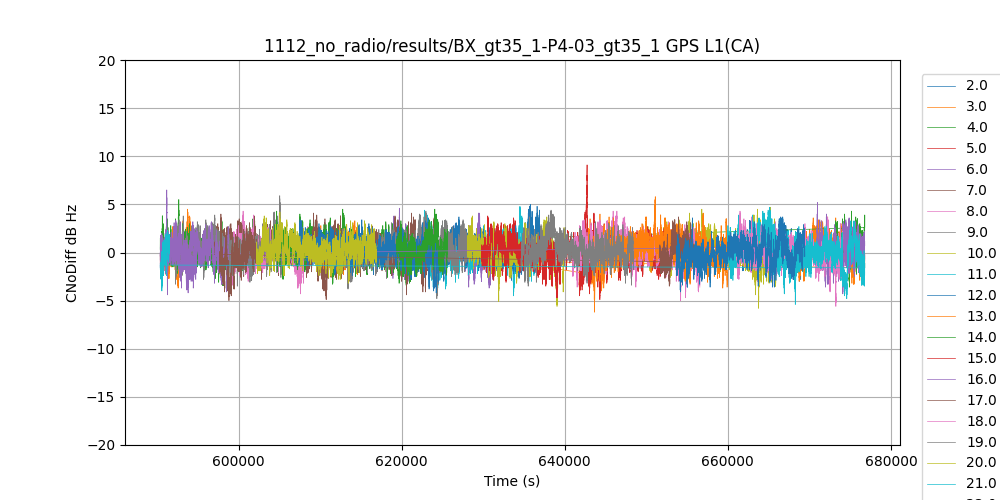

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 0.4 3.7 -3.0 [71.0, 74.0] 7162
3 55.6 0.3 4.5 -3.7 [90.0, 88.0, 94.0] 12068
4 60.4 0.4 5.5 -3.6 [78.0, 79.0, 74.0, 66.0] 15137
5 58.8 0.1 9.1 -4.9 [92.0, 94.0] 12782
6 59.3 0.1 4.6 -3.7 [95.0, 91.0] 12977
7 58.8 0.4 3.8 -4.9 [80.0, 86.0] 16231
8 47.4 0.0 4.3 -4.3 [95.0, 91.0] 9449
9 59.6 0.4 5.9 -3.5 [91.0, 92.0] 13214
10 55.7 0.4 4.7 -5.8 [87.0, 85.0] 16767
11 61.2 0.1 4.8 -4.5 [88.0] 14427
12 57.5 0.5 5.0 -3.0 [81.0] 12443
13 37.3 0.3 4.0 -3.3 [62.0, 83.0, 87.0] 8866
14 56.5 0.5 4.5 -3.4 [92.0, 77.0] 16752
15 51.1 -0.1 4.1 -3.9 [85.0, 90.0] 10611
16 52.4 0.1 6.5 -4.4 [74.0, 80.0, 87.0, 85.0] 11070
17 60.9 0.1 4.1 -4.4 [87.0, 85.0] 14975
18 58.3 0.4 4.3 -5.0 [67.0, 68.0] 15590
19 58.8 0.2 4.3 -4.8 [78.0, 84.0] 15392
20 54.3 0.1 3.8 -5.6 [76.0, 78.0] 11843
21 43.7 0.4 3.9 -5.4 [92.0, 94.0] 8556
22 56.5 0.3 3.6 -4.2 [85.0, 82.0] 17200
23 56.1 0.3 5.8 -6.2 [89.0, 95.0] 16466
24 39.6 0.4 4.5 -2.5 [82.0, 80.0] 6221
25 47.9 -0.0 3.8 -4.7 [73.0, 74.0] 9701
26 49.2 -0.1 5.2 -4.3 [79.0, 76.0, 84.0] 10349
27 37.1 -0.1 4.0 -5.0 [90.0, 88.0, 76.0, 81.0] 8712
28 58.8 0.0 4.3 -5.6 [70.0, 73.0] 13000
29 61.1 0.3 4.4 -3.5 [94.0, 89.0] 13776
30 61.3 0.3 4.2 -3.2 [70.0, 74.0] 14674
31 60.5 -0.1 4.7 -4.8 [85.0, 90.0, 77.0] 13837
32 59.3 -0.0 3.7 -4.1 [81.0] 15725

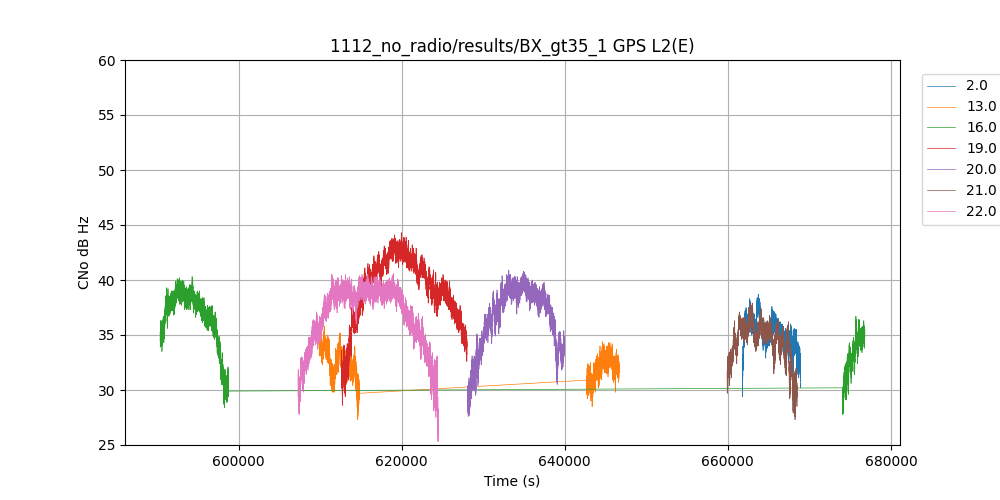

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 35.1 38.7 29.4 0 [71.0] [1.0] 7164
13 37.3 0.0 32.3 35.8 27.3 223 [62.0, 83.0] [1.0] 8869
16 52.4 -0.0 35.8 40.3 27.8 205 [87.0, 74.0] [1.0] 11071
19 58.8 -0.0 39.2 44.3 28.6 0 [78.0] [1.0] 15393
20 54.3 0.0 36.7 40.9 27.6 0 [76.0] [1.0] 11843
21 43.7 0.0 34.3 37.9 27.3 0 [92.0] [1.0] 8556
22 56.5 0.0 36.7 40.6 25.3 0 [85.0] [1.0] 17201

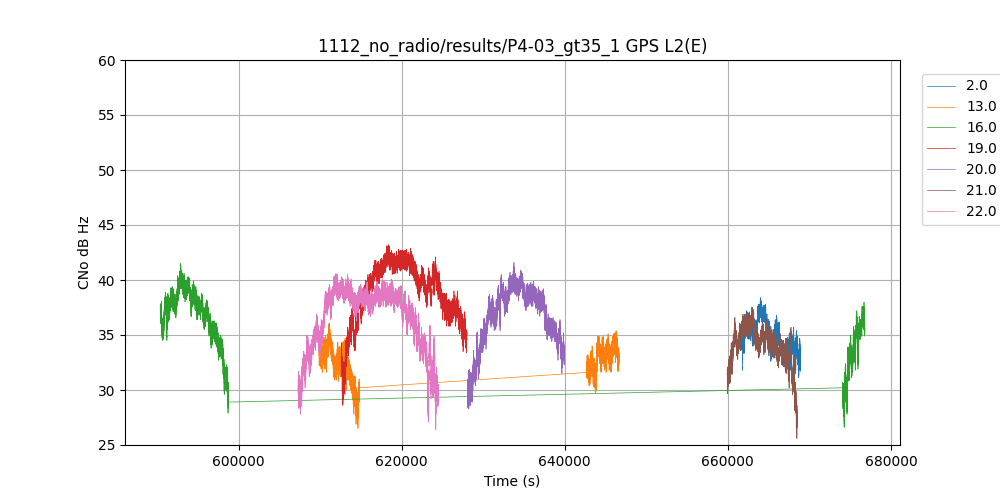

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 41.1 -0.0 34.8 38.4 31.1 0 [74.0] [1.0] 7162
13 37.3 -0.0 32.6 36.1 26.5 163 [62.0, 87.0] [1.0] 8866
16 52.4 0.0 36.0 41.5 26.6 26 [85.0, 80.0] [1.0] 11070
19 58.8 -0.0 38.9 43.2 28.6 0 [84.0] [1.0] 15393
20 54.3 0.0 36.7 41.6 28.3 0 [78.0] [1.0] 11844
21 43.7 0.0 34.0 37.5 25.6 0 [94.0] [1.0] 8556
22 56.5 -0.0 36.5 40.6 26.4 0 [82.0] [1.0] 17200

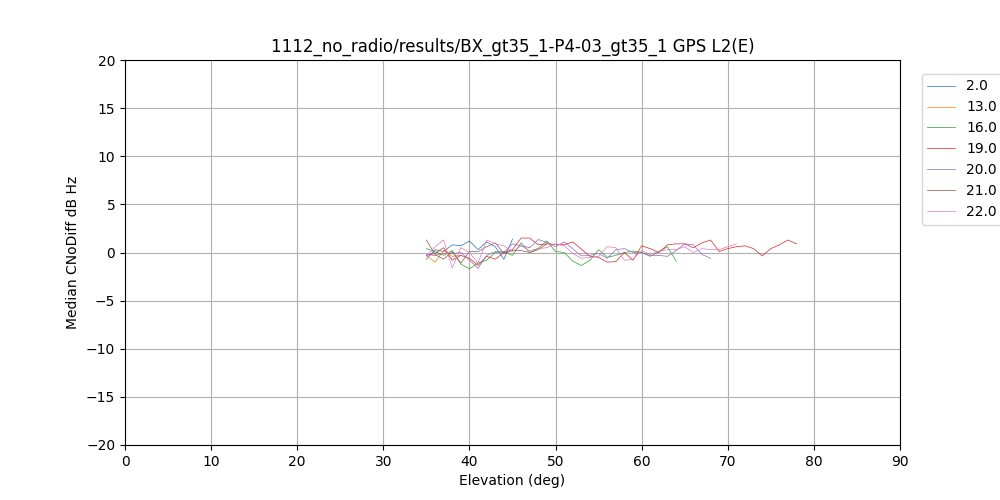

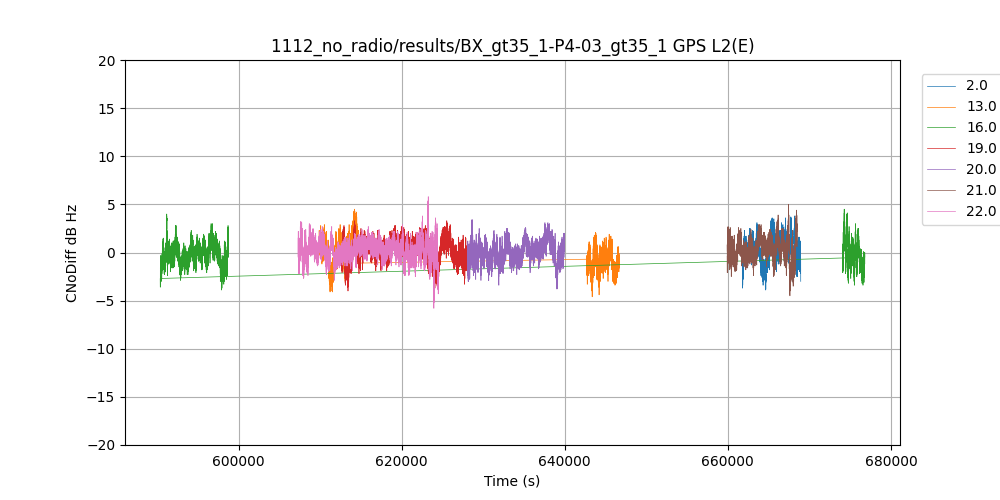

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 41.1 0.3 3.8 -3.9 [71.0, 74.0] 7162
13 37.3 -0.3 4.5 -4.6 [62.0, 83.0, 87.0] 8866
16 52.4 -0.2 4.5 -3.9 [74.0, 80.0, 87.0, 85.0] 11070
19 58.8 0.3 3.3 -4.0 [78.0, 84.0] 15392
20 54.3 0.0 3.4 -3.8 [76.0, 78.0] 11843
21 43.7 0.3 5.0 -4.5 [92.0, 94.0] 8556
22 56.5 0.3 5.8 -5.8 [85.0, 82.0] 17200

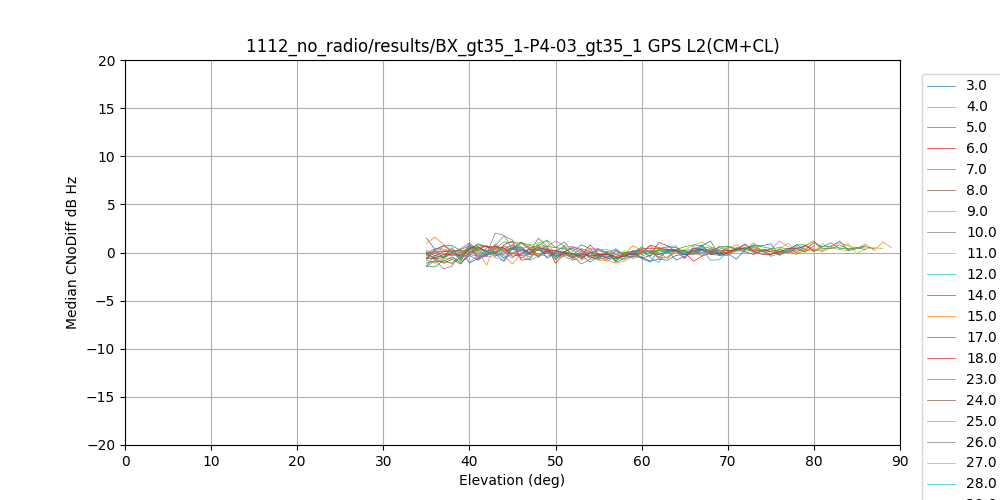

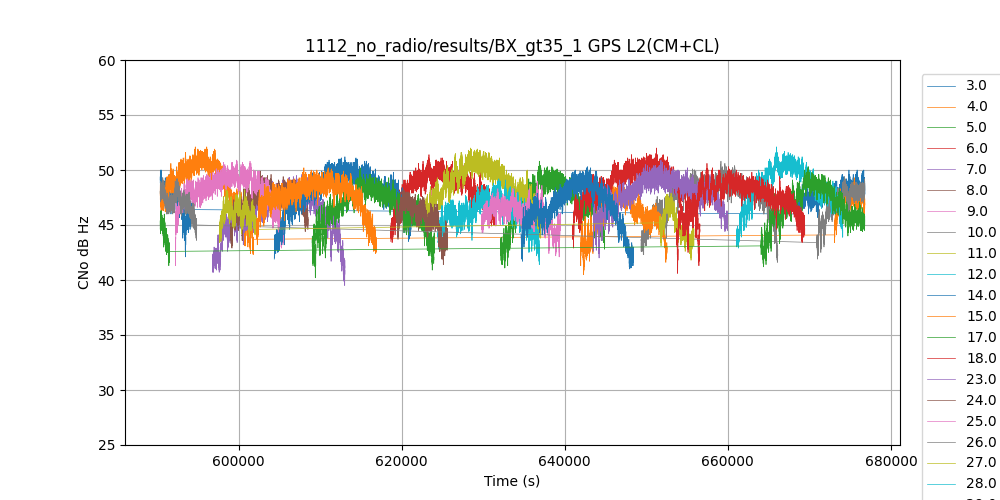

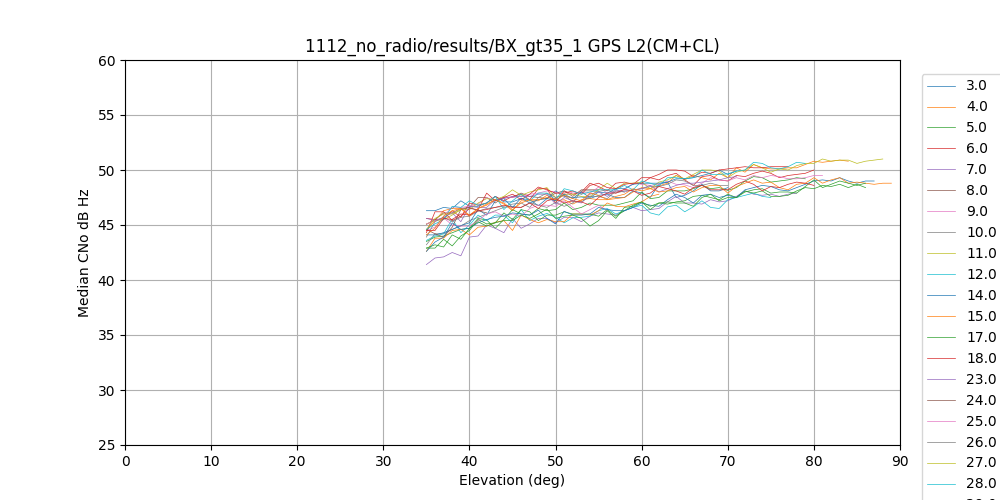

REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.6 -0.0 47.6 50.0 42.1 243 [94.0, 90.0] [1.0] 12068
4 60.4 -0.0 48.3 52.1 42.3 21 [74.0, 78.0] [1.0] 15137
5 58.8 -0.0 47.1 50.8 41.1 0 [92.0] [1.0] 12783
6 59.3 -0.0 48.4 51.4 43.4 0 [95.0] [1.0] 12979
7 58.8 -0.0 46.0 49.6 39.5 0 [80.0] [1.0] 16234
8 47.4 0.0 47.4 49.9 42.9 0 [95.0] [1.0] 9451
9 59.6 0.0 48.2 50.9 41.3 0 [91.0] [1.0] 13216
10 55.7 0.0 47.5 50.8 41.6 0 [87.0] [1.0] 16767
11 61.2 -0.0 48.8 52.0 43.0 0 [88.0] [1.0] 14427
12 57.5 0.0 46.2 49.2 41.4 0 [81.0] [1.0] 12443
14 56.5 0.0 48.1 51.2 41.9 0 [92.0] [1.0] 16754
15 51.1 -0.0 45.9 49.1 40.5 0 [85.0] [1.0] 10612
17 60.9 -0.0 46.6 50.2 40.2 0 [87.0] [1.0] 14976
18 58.3 -0.0 48.6 52.0 41.3 0 [67.0] [1.0] 15590
23 56.1 -0.0 47.9 50.9 42.0 0 [89.0] [1.0] 16466
24 39.6 0.0 45.8 48.2 41.4 0 [82.0] [1.0] 6224
25 47.9 0.0 46.1 49.0 42.1 0 [73.0] [1.0] 9701
26 49.2 -0.0 47.0 49.4 41.9 15 [84.0, 79.0] [1.0] 10350
27 37.1 -0.0 45.6 48.2 41.8 102 [76.0, 90.0] [1.0] 8715
28 58.8 -0.0 48.5 52.1 42.9 0 [70.0] [1.0] 13000
29 61.1 0.0 46.8 50.3 41.0 0 [94.0] [1.0] 13777
30 61.3 -0.0 47.7 50.2 42.4 0 [70.0] [1.0] 14674
31 60.5 -0.0 46.5 50.3 41.2 30 [85.0] [1.0] 13838
32 59.3 -0.0 47.5 50.6 40.6 0 [81.0] [1.0] 15725

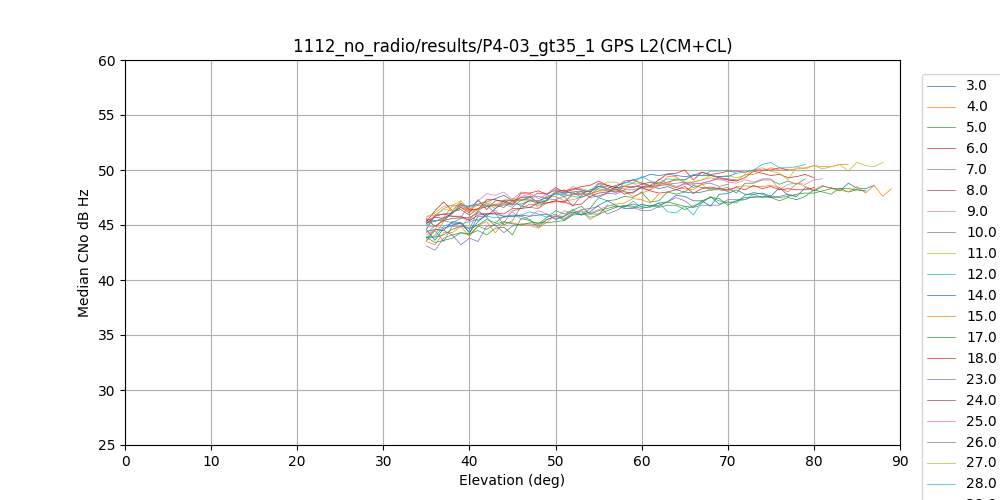

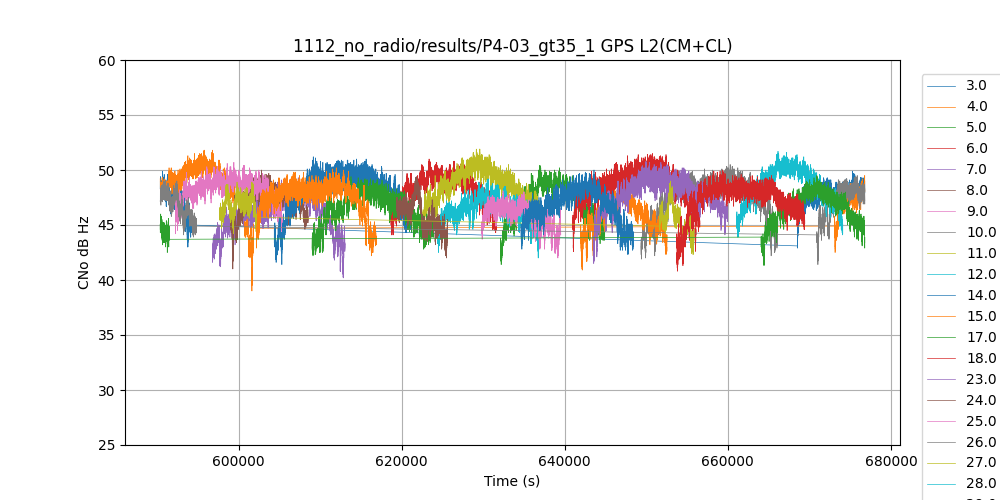

DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.6 -0.0 47.6 49.9 42.9 155 [94.0, 88.0] [1.0] 12069
4 60.4 0.0 48.3 51.8 39.0 203 [66.0, 79.0] [1.0] 15137
5 58.8 -0.0 47.0 50.4 41.4 0 [94.0] [1.0] 12782
6 59.3 -0.0 48.3 51.0 44.1 0 [91.0] [1.0] 12977
7 58.8 -0.0 46.1 49.3 40.2 0 [86.0] [1.0] 16231
8 47.4 0.0 47.2 50.0 41.0 0 [91.0] [1.0] 9449
9 59.6 0.0 48.2 50.7 43.9 0 [92.0] [1.0] 13214
10 55.7 0.0 47.5 50.5 41.9 0 [85.0] [1.0] 16768
11 61.2 -0.0 48.6 51.9 43.7 0 [88.0] [1.0] 14430
12 57.5 -0.0 46.4 49.2 42.0 0 [81.0] [1.0] 12445
14 56.5 0.0 48.1 51.2 41.4 0 [77.0] [1.0] 16753
15 51.1 -0.0 45.9 49.1 40.9 0 [90.0] [1.0] 10612
17 60.9 -0.0 46.4 49.4 42.2 0 [85.0] [1.0] 14976
18 58.3 -0.0 48.6 51.5 42.6 0 [68.0] [1.0] 15592
23 56.1 -0.0 47.8 50.8 41.5 0 [95.0] [1.0] 16466
24 39.6 0.0 45.9 49.4 42.0 0 [80.0] [1.0] 6221
25 47.9 0.0 45.9 48.1 42.0 0 [74.0] [1.0] 9701
26 49.2 -0.0 47.0 49.5 41.4 30 [79.0, 76.0] [1.0] 10350
27 37.1 -0.0 46.2 49.0 42.3 100 [81.0, 88.0] [1.0] 8713
28 58.8 -0.0 48.5 51.7 43.9 0 [73.0] [1.0] 13000
29 61.1 -0.0 46.8 50.0 42.3 0 [89.0] [1.0] 13777
30 61.3 -0.0 47.5 50.2 42.2 0 [74.0] [1.0] 14674
31 60.5 0.0 46.3 49.5 41.3 97 [77.0, 90.0] [1.0] 13837
32 59.3 0.0 47.3 50.0 40.8 0 [81.0] [1.0] 15726
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 55.6 -0.0 4.2 -3.6 [90.0, 88.0, 94.0] 12068
4 60.4 0.1 6.4 -2.7 [78.0, 79.0, 74.0, 66.0] 15137
5 58.8 0.1 3.4 -3.9 [92.0, 94.0] 12782
6 59.3 0.1 2.8 -2.8 [95.0, 91.0] 12977
7 58.8 -0.1 3.1 -4.0 [80.0, 86.0] 16231
8 47.4 0.2 4.7 -2.5 [95.0, 91.0] 9449
9 59.6 0.0 2.3 -3.4 [91.0, 92.0] 13214
10 55.7 0.0 3.4 -3.1 [87.0, 85.0] 16767
11 61.2 0.2 2.9 -2.8 [88.0] 14427
12 57.5 -0.1 2.8 -3.3 [81.0] 12443
14 56.5 -0.1 2.6 -2.6 [92.0, 77.0] 16752
15 51.1 -0.0 3.8 -4.0 [85.0, 90.0] 10611
17 60.9 0.2 3.0 -3.7 [87.0, 85.0] 14975
18 58.3 0.0 3.2 -4.4 [67.0, 68.0] 15590
23 56.1 0.0 4.7 -3.5 [89.0, 95.0] 16466
24 39.6 -0.1 2.9 -3.6 [82.0, 80.0] 6221
25 47.9 0.3 4.2 -2.6 [73.0, 74.0] 9701
26 49.2 0.0 3.4 -2.9 [79.0, 76.0, 84.0] 10349
27 37.1 -0.6 3.0 -3.7 [90.0, 88.0, 76.0, 81.0] 8712
28 58.8 0.0 2.8 -3.0 [70.0, 73.0] 13000
29 61.1 0.0 3.0 -4.0 [94.0, 89.0] 13776
30 61.3 0.2 3.0 -3.0 [70.0, 74.0] 14674
31 60.5 0.2 3.0 -3.8 [85.0, 90.0, 77.0] 13837
32 59.3 0.2 4.3 -3.3 [81.0] 15725
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.6 -0.0 50.9 52.8 47.3 116 [94.0, 90.0] [1.0] 12068
4 60.4 -0.0 50.6 53.9 44.6 49 [74.0, 78.0] [1.0] 15137
6 59.3 -0.0 50.8 53.2 46.1 0 [95.0] [1.0] 12979
8 47.4 0.0 49.7 51.8 45.3 0 [95.0] [1.0] 9451
9 59.6 0.0 50.9 52.7 45.8 0 [91.0] [1.0] 13216
10 55.7 0.0 50.0 52.3 44.2 0 [87.0] [1.0] 16767
11 61.2 -0.0 51.6 54.9 47.2 0 [88.0] [1.0] 14427
14 56.5 0.0 50.7 53.8 45.2 0 [92.0] [1.0] 16754
18 58.3 -0.0 51.5 54.1 44.3 0 [67.0] [1.0] 15590
23 56.1 -0.0 50.4 53.3 44.7 0 [89.0] [1.0] 16466
24 39.6 0.0 48.7 51.8 44.6 0 [82.0] [1.0] 6224
25 47.9 0.0 49.8 51.8 46.2 0 [73.0] [1.0] 9701
26 49.2 -0.0 49.6 51.8 45.8 73 [84.0, 79.0] [1.0] 10350
27 37.1 -0.0 48.0 50.4 44.6 170 [76.0, 90.0] [1.0] 8715
28 58.8 -0.0 50.8 54.3 46.0 0 [70.0] [1.0] 13000
30 61.3 -0.0 51.4 53.3 45.2 0 [70.0] [1.0] 14674
32 59.3 -0.0 48.9 51.2 44.5 0 [81.0] [1.0] 15725
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 55.6 -0.0 50.8 52.7 46.3 142 [94.0, 88.0] [1.0] 12069
4 60.4 0.0 50.6 53.6 44.6 198 [66.0, 79.0] [1.0] 15137
6 59.3 -0.0 50.8 53.2 46.8 0 [91.0] [1.0] 12977
8 47.4 0.0 49.9 51.9 45.5 0 [91.0] [1.0] 9449
9 59.6 0.0 50.8 53.0 46.3 0 [92.0] [1.0] 13214
10 55.7 0.0 50.0 52.0 45.2 0 [85.0] [1.0] 16768
11 61.2 -0.0 51.3 54.3 45.9 0 [88.0] [1.0] 14430
14 56.5 0.0 50.9 54.1 42.8 0 [77.0] [1.0] 16753
18 58.3 -0.0 51.3 53.9 44.1 0 [68.0] [1.0] 15592
23 56.1 -0.0 50.3 53.1 43.9 0 [95.0] [1.0] 16466
24 39.6 0.0 49.0 51.1 43.6 0 [80.0] [1.0] 6221
25 47.9 0.0 49.4 51.9 45.8 0 [74.0] [1.0] 9701
26 49.2 -0.0 49.6 51.7 44.9 13 [79.0, 76.0] [1.0] 10350
27 37.1 -0.0 48.2 50.1 46.4 191 [81.0, 88.0] [1.0] 8713
28 58.8 -0.0 50.9 54.3 46.2 0 [73.0] [1.0] 13000
30 61.3 -0.0 51.3 53.2 46.0 0 [74.0] [1.0] 14674
32 59.3 0.0 48.5 50.9 43.7 0 [81.0] [1.0] 15726
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 55.6 0.1 1.7 -1.2 [90.0, 88.0, 94.0] 12068
4 60.4 0.1 1.9 -2.2 [78.0, 79.0, 74.0, 66.0] 15137
6 59.3 -0.1 1.5 -1.9 [95.0, 91.0] 12977
8 47.4 -0.3 1.5 -3.1 [95.0, 91.0] 9449
9 59.6 0.2 1.6 -2.1 [91.0, 92.0] 13214
10 55.7 0.1 1.8 -2.6 [87.0, 85.0] 16767
11 61.2 0.3 2.3 -1.2 [88.0] 14427
14 56.5 -0.2 3.3 -2.0 [92.0, 77.0] 16752
18 58.3 0.2 2.5 -2.4 [67.0, 68.0] 15590
23 56.1 0.1 3.5 -2.4 [89.0, 95.0] 16466
24 39.6 -0.3 2.7 -1.9 [82.0, 80.0] 6221
25 47.9 0.3 3.6 -1.7 [73.0, 74.0] 9701
26 49.2 -0.1 2.9 -2.2 [79.0, 76.0, 84.0] 10349
27 37.1 -0.2 2.2 -2.5 [90.0, 88.0, 76.0, 81.0] 8712
28 58.8 -0.0 1.7 -1.7 [70.0, 73.0] 13000
30 61.3 0.0 1.6 -2.9 [70.0, 74.0] 14674
32 59.3 0.3 3.1 -2.0 [81.0] 15725
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 59.6 0.0 46.2 49.8 40.1 0 [1.0] [1.0] 11133
2 59.0 0.0 50.5 54.3 44.3 0 [-4.0] [1.0] 12486
3 51.4 0.0 48.2 52.8 43.2 0 [5.0] [1.0] 13918
4 50.5 -0.0 46.5 50.6 41.4 173 [6.0] [1.0] 18980
5 61.4 -0.0 49.8 53.7 44.0 187 [1.0] [1.0] 18802
6 49.7 -0.0 39.4 42.7 32.9 241 [-4.0] [1.0] 9631
7 39.3 0.0 47.2 50.1 42.3 204 [5.0] [1.0] 10098
8 49.0 -0.0 44.9 50.3 38.8 0 [6.0] [1.0] 8625
9 50.9 -0.0 49.6 53.4 43.1 0 [-2.0] [1.0] 14275
10 56.1 0.0 45.0 49.4 38.9 0 [-7.0] [1.0] 13035
11 61.2 0.0 50.0 53.8 44.5 0 [0.0] [1.0] 11619
12 52.5 -0.0 50.3 53.7 45.5 0 [-1.0] [1.0] 9538
13 40.1 0.0 37.4 40.6 31.7 115 [-2.0] [1.0] 9368
14 49.1 -0.0 49.8 53.9 46.1 214 [-7.0] [1.0] 12156
15 62.9 0.0 50.1 53.7 44.7 216 [0.0] [1.0] 17834
16 50.7 0.0 50.0 55.0 42.7 203 [-1.0] [1.0] 16467
17 61.0 0.0 49.1 53.0 44.1 0 [4.0] [1.0] 11461
18 49.7 0.0 49.4 53.0 43.9 196 [-3.0] [1.0] 13222
19 45.8 0.0 37.5 41.1 31.3 139 [3.0] [1.0] 15167
20 58.2 0.0 37.2 40.5 33.1 0 [2.0] [1.0] 10635
21 58.7 0.0 48.4 52.4 38.4 0 [4.0] [1.0] 12380
22 52.4 0.0 50.2 54.4 43.7 0 [-3.0] [1.0] 13660
23 48.9 -0.0 47.0 51.2 41.4 0 [3.0] [1.0] 14184
24 56.5 -0.0 49.6 53.2 44.1 0 [2.0] [1.0] 12883
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 59.6 0.0 45.5 49.2 40.4 0 [1.0] [1.0] 11134
2 59.0 -0.0 49.9 53.6 43.0 0 [-4.0] [1.0] 12486
3 51.4 0.0 47.0 50.5 42.6 0 [5.0] [1.0] 13916
4 50.5 0.0 45.6 49.0 40.5 160 [6.0] [1.0] 18980
5 61.4 0.0 49.1 52.7 43.2 91 [1.0] [1.0] 18805
6 49.7 0.0 38.9 41.8 34.3 3 [-4.0] [1.0] 9633
7 39.3 0.0 46.6 50.5 41.9 3 [5.0] [1.0] 10098
8 49.0 -0.0 44.4 48.9 39.0 0 [6.0] [1.0] 8624
9 50.9 -0.0 49.0 53.1 43.7 0 [-2.0] [1.0] 14275
10 56.1 -0.0 44.5 48.2 39.8 0 [-7.0] [1.0] 13035
11 61.2 -0.0 49.3 53.8 44.3 0 [0.0] [1.0] 11619
12 52.6 0.0 49.9 53.2 43.7 0 [-1.0] [1.0] 9536
13 40.1 -0.0 36.6 40.9 31.6 77 [-2.0] [1.0] 9366
14 49.1 -0.0 49.6 53.7 43.1 73 [-7.0] [1.0] 12157
15 62.9 0.0 49.7 53.2 45.8 34 [0.0] [1.0] 17833
16 50.7 0.0 49.2 53.9 43.1 40 [-1.0] [1.0] 16467
17 61.0 -0.0 48.1 52.3 41.6 0 [4.0] [1.0] 11463
18 49.7 -0.0 48.8 52.4 42.9 251 [-3.0] [1.0] 13220
19 45.8 -0.0 36.9 40.1 33.1 189 [3.0] [1.0] 15164
20 58.2 -0.0 36.7 39.4 33.1 0 [2.0] [1.0] 10636
21 58.7 -0.0 48.0 52.1 42.0 0 [4.0] [1.0] 12379
22 52.4 -0.0 49.8 53.8 43.7 0 [-3.0] [1.0] 13661
23 48.9 0.0 46.3 50.1 41.8 0 [3.0] [1.0] 14184
24 56.5 0.0 48.8 52.0 43.2 0 [2.0] [1.0] 12882
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 59.6 0.7 4.5 -4.0 [1.0] 11133
2 59.0 0.6 5.3 -3.5 [-4.0] 12485
3 51.4 1.3 5.1 -3.8 [5.0] 13916
4 50.5 0.9 5.3 -3.8 [6.0] 18980
5 61.4 0.7 4.3 -2.8 [1.0] 18802
6 49.7 0.5 5.7 -4.4 [-4.0] 9631
7 39.3 0.6 5.2 -3.3 [5.0] 10098
8 49.0 0.5 5.8 -4.1 [6.0] 8624
9 50.9 0.6 4.7 -5.6 [-2.0] 14275
10 56.1 0.4 4.1 -4.5 [-7.0] 13034
11 61.2 0.6 4.5 -2.8 [0.0] 11619
12 52.6 0.4 4.8 -3.9 [-1.0] 9536
13 40.1 0.7 4.8 -4.2 [-2.0] 9366
14 49.1 0.2 5.0 -3.9 [-7.0] 12156
15 62.9 0.4 4.0 -3.3 [0.0] 17833
16 50.7 0.8 5.3 -4.0 [-1.0] 16467
17 61.0 1.0 5.2 -2.6 [4.0] 11461
18 49.7 0.6 5.8 -3.5 [-3.0] 13220
19 45.8 0.6 4.7 -5.0 [3.0] 15164
20 58.2 0.5 3.7 -2.8 [2.0] 10635
21 58.7 0.4 4.7 -5.5 [4.0] 12379
22 52.4 0.4 5.2 -4.1 [-3.0] 13660
23 48.9 0.7 4.5 -3.7 [3.0] 14183
24 56.5 0.9 4.7 -3.7 [2.0] 12882
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 59.6 0.0 42.6 45.4 36.5 0 [1.0] [1.0] 11133
2 59.0 0.0 47.2 49.7 43.2 0 [-4.0] [1.0] 12486
3 51.4 0.0 47.1 49.8 41.6 0 [5.0] [1.0] 13918
4 50.5 -0.0 47.2 50.2 41.3 216 [6.0] [1.0] 18980
5 61.4 -0.0 47.5 49.6 42.0 77 [1.0] [1.0] 18802
7 39.3 0.0 46.1 49.6 40.0 210 [5.0] [1.0] 10098
8 49.0 -0.0 47.0 49.5 41.4 0 [6.0] [1.0] 8625
9 50.9 -0.0 48.5 51.2 43.5 0 [-2.0] [1.0] 14275
10 68.5 0.1 34.8 40.2 26.0 7 [-7.0] [1.0] 8
11 61.2 0.0 48.4 50.8 42.8 0 [0.0] [1.0] 11619
12 52.5 -0.0 47.2 49.9 41.2 0 [-1.0] [1.0] 9538
13 40.1 0.0 39.2 42.5 35.9 190 [-2.0] [1.0] 9368
14 49.1 -0.0 47.3 49.6 42.0 144 [-7.0] [1.0] 12156
15 62.9 0.0 47.4 50.0 39.0 9 [0.0] [1.0] 17834
16 50.7 0.0 47.4 49.9 43.1 20 [-1.0] [1.0] 16467
17 61.0 0.0 47.1 49.9 41.8 0 [4.0] [1.0] 11461
18 49.7 0.0 47.1 50.3 41.4 62 [-3.0] [1.0] 13222
19 45.8 0.0 44.9 47.5 39.8 134 [3.0] [1.0] 15167
20 58.2 0.0 40.9 44.0 32.8 0 [2.0] [1.0] 10635
21 58.7 0.0 46.5 49.6 41.7 0 [4.0] [1.0] 12380
22 52.4 0.0 47.7 50.3 43.9 0 [-3.0] [1.0] 13660
23 50.2 0.0 34.3 44.3 15.2 45 [3.0] [1.0] 46
24 56.5 -0.0 47.1 49.3 40.2 0 [2.0] [1.0] 12883
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 59.6 0.0 42.6 44.9 38.8 0 [1.0] [1.0] 11134
2 59.0 -0.0 47.2 49.3 43.5 0 [-4.0] [1.0] 12486
3 51.4 0.0 47.4 50.2 43.3 0 [5.0] [1.0] 13916
4 50.5 0.0 47.7 50.7 43.1 22 [6.0] [1.0] 18980
5 61.4 0.0 47.6 49.9 43.8 248 [1.0] [1.0] 18805
7 39.3 0.0 46.4 49.6 39.2 6 [5.0] [1.0] 10098
8 49.0 -0.0 47.4 50.0 43.3 0 [6.0] [1.0] 8624
9 50.9 -0.0 48.6 51.0 43.1 0 [-2.0] [1.0] 14275
10 54.9 0.1 34.4 40.5 24.0 9 [-7.0] [1.0] 10
11 61.2 -0.0 48.6 50.8 44.3 0 [0.0] [1.0] 11619
12 52.6 0.0 47.3 49.7 43.6 0 [-1.0] [1.0] 9536
13 40.1 -0.0 39.4 43.0 34.3 115 [-2.0] [1.0] 9366
14 49.1 -0.0 47.6 50.0 44.0 125 [-7.0] [1.0] 12157
15 62.9 0.0 47.5 49.8 43.4 178 [0.0] [1.0] 17833
16 50.7 0.0 47.7 50.3 41.5 244 [-1.0] [1.0] 16467
17 61.0 -0.0 47.3 49.6 42.8 0 [4.0] [1.0] 11463
18 49.7 -0.0 47.3 50.1 41.1 11 [-3.0] [1.0] 13220
19 45.8 -0.0 45.0 47.8 40.1 91 [3.0] [1.0] 15164
20 58.2 -0.0 41.1 43.9 35.3 0 [2.0] [1.0] 10636
21 58.7 -0.0 46.7 49.1 42.7 0 [4.0] [1.0] 12379
22 52.4 -0.0 47.6 50.5 40.2 0 [-3.0] [1.0] 13661
23 50.2 -0.0 34.5 43.1 13.4 85 [3.0] [1.0] 86
24 56.5 0.0 47.2 49.7 41.0 0 [2.0] [1.0] 12882
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 59.6 0.0 3.4 -3.6 [1.0] 11133
2 59.0 0.1 3.1 -3.6 [-4.0] 12485
3 51.4 -0.3 3.0 -4.2 [5.0] 13916
4 50.5 -0.4 2.2 -5.9 [6.0] 18980
5 61.4 -0.1 2.7 -3.5 [1.0] 18802
7 39.3 -0.3 4.0 -3.2 [5.0] 10098
8 49.0 -0.4 2.3 -4.1 [6.0] 8624
9 50.9 -0.1 2.7 -3.7 [-2.0] 14275
11 61.2 -0.2 2.0 -3.1 [0.0] 11619
12 52.6 -0.1 3.3 -4.4 [-1.0] 9536
13 40.1 -0.2 4.7 -4.2 [-2.0] 9366
14 49.1 -0.3 3.3 -3.7 [-7.0] 12156
15 62.9 -0.1 2.8 -5.4 [0.0] 17833
16 50.7 -0.3 4.1 -4.3 [-1.0] 16467
17 61.0 -0.2 2.4 -3.3 [4.0] 11461
18 49.7 -0.2 5.7 -5.0 [-3.0] 13220
19 45.8 -0.1 2.9 -4.0 [3.0] 15164
20 58.2 -0.3 2.5 -4.0 [2.0] 10635
21 58.7 -0.2 3.1 -4.9 [4.0] 12379
22 52.4 0.1 6.2 -3.8 [-3.0] 13660
24 56.5 -0.1 2.8 -5.3 [2.0] 12882
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.0 0.0 48.6 51.6 43.3 0 [110.0] [1.0] 19614
3 66.6 0.0 49.9 53.7 45.4 0 [105.0] [1.0] 13037
4 59.0 0.0 49.6 51.9 45.6 0 [103.0] [1.0] 13679
7 44.7 0.0 47.2 49.7 40.9 130 [106.0, 109.0] [1.0] 20062
8 55.5 0.0 49.9 53.3 43.6 0 [97.0] [1.0] 14882
9 39.6 -0.0 47.8 49.7 45.6 0 [104.0] [1.0] 2182
10 46.3 -0.0 49.4 52.4 45.0 0 [107.0] [1.0] 10797
11 38.4 -0.0 44.7 46.8 42.7 0 [98.0] [1.0] 6281
12 52.9 -0.0 46.3 49.9 40.2 0 [100.0] [1.0] 13543
13 58.5 0.0 48.0 51.2 42.7 0 [98.0] [1.0] 20209
15 58.3 0.0 48.4 51.1 43.3 0 [105.0] [1.0] 15722
19 59.1 0.0 45.1 49.4 38.9 0 [101.0] [1.0] 20474
21 51.7 -0.0 49.7 53.7 43.7 247 [99.0, 111.0] [1.0] 15861
24 39.2 -0.1 47.2 49.8 44.7 0 [98.0] [1.0] 2210
25 59.6 0.0 49.2 51.7 43.7 0 [101.0] [1.0] 12066
26 56.3 0.0 49.9 53.6 43.7 0 [104.0] [1.0] 21979
27 60.9 0.0 50.4 54.6 44.2 0 [100.0] [1.0] 18708
30 56.9 -0.0 50.5 54.8 43.6 0 [107.0] [1.0] 22218
31 38.4 -0.1 46.8 49.1 44.2 0 [108.0] [1.0] 1167
33 60.9 0.0 48.2 50.7 44.2 0 [102.0] [1.0] 18146
34 46.0 -0.0 48.1 50.8 44.0 0 [96.0] [1.0] 10659
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.0 0.0 48.5 51.0 42.4 0 [100.0] [1.0] 19614
3 66.6 -0.0 49.8 53.1 45.7 0 [102.0] [1.0] 13038
4 59.0 0.0 49.2 51.3 45.8 0 [105.0] [1.0] 13678
7 44.7 0.0 47.1 49.6 42.8 141 [103.0, 111.0] [1.0] 20062
8 55.5 -0.0 49.7 52.8 43.4 0 [105.0] [1.0] 14883
9 39.6 0.0 47.3 49.8 45.2 0 [101.0] [1.0] 2182
10 46.3 0.0 49.4 52.1 44.8 0 [109.0] [1.0] 10797
11 38.4 -0.0 44.4 46.5 41.9 0 [98.0] [1.0] 6281
12 52.9 -0.0 46.3 49.7 40.7 0 [104.0] [1.0] 13546
13 58.5 -0.0 47.8 50.4 41.5 0 [97.0] [1.0] 20208
15 58.3 0.0 48.5 51.0 44.9 0 [109.0] [1.0] 15721
19 59.1 0.0 45.2 48.6 37.4 0 [106.0] [1.0] 20475
21 51.7 -0.0 49.6 53.7 43.3 93 [98.0, 96.0] [1.0] 15865
24 39.2 -0.0 48.2 49.8 45.8 0 [96.0] [1.0] 2209
25 59.6 -0.0 49.4 52.1 45.3 0 [109.0] [1.0] 12066
26 56.3 -0.0 49.5 52.8 44.2 0 [101.0] [1.0] 21977
27 60.9 -0.0 50.0 54.1 43.5 0 [106.0] [1.0] 18708
30 56.9 -0.0 50.2 54.0 43.0 0 [107.0] [1.0] 22218
31 38.4 0.0 46.0 48.0 44.2 0 [108.0] [1.0] 1167
33 60.9 0.0 48.0 50.5 43.7 0 [100.0] [1.0] 18146
34 46.0 0.0 48.2 51.0 43.7 0 [108.0] [1.0] 10662
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 60.0 0.1 3.4 -3.2 [110.0, 100.0] 19614
3 66.6 0.1 3.3 -2.3 [105.0, 102.0] 13037
4 59.0 0.4 3.0 -1.9 [103.0, 105.0] 13678
7 44.7 0.1 3.7 -5.8 [106.0, 103.0, 109.0, 111.0] 20061
8 55.5 0.1 3.6 -3.6 [97.0, 105.0] 14882
9 39.6 0.5 3.2 -2.2 [104.0, 101.0] 2182
10 46.3 -0.0 2.8 -3.3 [107.0, 109.0] 10797
11 38.4 0.3 2.9 -2.6 [98.0] 6281
12 52.9 0.0 4.1 -3.6 [100.0, 104.0] 13543
13 58.5 0.2 2.6 -2.9 [98.0, 97.0] 20208
15 58.3 -0.1 2.9 -3.7 [105.0, 109.0] 15721
19 59.1 -0.1 3.7 -3.6 [101.0, 106.0] 20474
21 51.7 0.1 4.7 -3.2 [99.0, 98.0, 111.0, 96.0] 15861
24 39.2 -0.9 1.8 -3.7 [98.0, 96.0] 2209
25 59.6 -0.2 4.3 -3.5 [101.0, 109.0] 12066
26 56.3 0.4 3.7 -4.8 [104.0, 101.0] 21977
27 60.9 0.3 3.8 -3.3 [100.0, 106.0] 18707
30 56.9 0.3 4.3 -3.5 [107.0] 22217
31 38.4 0.8 3.4 -1.7 [108.0] 1167
33 60.9 0.2 2.9 -2.1 [102.0, 100.0] 18146
34 46.0 -0.1 3.4 -4.3 [96.0, 108.0] 10659
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.0 0.0 51.0 53.3 47.2 0 [110.0] [1.0] 19614
3 66.6 0.0 51.2 53.4 47.1 0 [105.0] [1.0] 13037
4 59.0 0.0 50.6 53.3 46.6 0 [103.0] [1.0] 13679
7 44.7 0.0 50.0 52.3 46.8 201 [106.0, 109.0] [1.0] 20062
8 55.5 0.0 51.0 53.3 47.8 0 [97.0] [1.0] 14882
9 39.6 -0.0 50.1 52.2 48.2 0 [104.0] [1.0] 2182
10 46.3 -0.0 49.9 52.2 47.3 0 [107.0] [1.0] 10797
11 38.4 -0.0 45.4 47.3 42.2 0 [98.0] [1.0] 6281
12 52.9 -0.0 48.5 50.7 45.7 0 [100.0] [1.0] 13543
13 58.5 0.0 51.0 53.3 48.1 0 [98.0] [1.0] 20209
15 58.3 0.0 51.3 53.8 48.0 0 [105.0] [1.0] 15722
19 59.1 0.0 47.6 50.0 44.2 0 [101.0] [1.0] 20474
21 51.7 -0.0 50.5 53.0 47.4 101 [99.0, 111.0] [1.0] 15861
24 39.2 -0.1 49.6 51.5 48.1 0 [98.0] [1.0] 2210
25 59.6 0.0 51.4 53.5 48.2 0 [101.0] [1.0] 12066
26 56.3 0.0 50.8 53.4 46.8 0 [104.0] [1.0] 21979
27 60.9 0.0 51.2 53.7 47.7 0 [100.0] [1.0] 18708
30 56.9 -0.0 51.0 53.6 47.0 0 [107.0] [1.0] 22218
31 38.4 -0.1 48.7 50.5 47.3 0 [108.0] [1.0] 1167
33 60.9 0.0 50.9 52.9 47.0 0 [102.0] [1.0] 18146
34 46.0 -0.0 50.3 52.5 47.5 0 [96.0] [1.0] 10659
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 60.0 0.0 50.9 53.3 47.0 0 [100.0] [1.0] 19614
3 66.6 -0.0 51.2 53.4 47.8 0 [102.0] [1.0] 13038
4 59.0 0.0 50.7 52.9 47.0 0 [105.0] [1.0] 13678
7 44.7 0.0 50.0 52.3 46.7 19 [103.0, 111.0] [1.0] 20062
8 55.5 -0.0 50.8 53.1 47.4 0 [105.0] [1.0] 14883
9 39.6 0.0 49.8 52.0 47.9 0 [101.0] [1.0] 2182
10 46.3 0.0 49.7 51.8 47.0 0 [109.0] [1.0] 10797
11 38.4 -0.0 45.5 47.3 43.8 0 [98.0] [1.0] 6281
12 52.9 -0.0 48.3 50.6 45.4 0 [104.0] [1.0] 13546
13 58.5 -0.0 50.8 53.1 48.0 0 [97.0] [1.0] 20208
15 58.3 0.0 51.3 53.4 48.0 0 [109.0] [1.0] 15721
19 59.1 0.0 47.4 49.8 43.6 0 [106.0] [1.0] 20475
21 51.7 -0.0 50.5 53.1 47.4 211 [98.0, 96.0] [1.0] 15865
24 39.2 -0.0 49.7 51.4 48.2 0 [96.0] [1.0] 2209
25 59.6 -0.0 51.5 53.7 48.2 0 [109.0] [1.0] 12066
26 56.3 -0.0 50.7 53.2 46.5 0 [101.0] [1.0] 21977
27 60.9 -0.0 51.1 53.3 47.6 0 [106.0] [1.0] 18708
30 56.9 -0.0 51.0 53.6 47.1 0 [107.0] [1.0] 22218
31 38.4 0.0 48.9 50.8 47.6 0 [108.0] [1.0] 1167
33 60.9 0.0 50.7 52.8 47.5 0 [100.0] [1.0] 18146
34 46.0 0.0 50.3 52.8 47.6 0 [108.0] [1.0] 10662
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 60.0 0.1 2.4 -1.7 [110.0, 100.0] 19614
3 66.6 -0.0 1.6 -1.9 [105.0, 102.0] 13037
4 59.0 -0.1 1.1 -1.7 [103.0, 105.0] 13678
7 44.7 -0.0 1.8 -1.7 [106.0, 103.0, 109.0, 111.0] 20061
8 55.5 0.2 1.7 -1.1 [97.0, 105.0] 14882
9 39.6 0.2 1.2 -0.9 [104.0, 101.0] 2182
10 46.3 0.2 1.6 -1.3 [107.0, 109.0] 10797
11 38.4 -0.2 1.5 -2.8 [98.0] 6281
12 52.9 0.3 2.1 -1.3 [100.0, 104.0] 13543
13 58.5 0.2 1.9 -1.7 [98.0, 97.0] 20208
15 58.3 -0.0 1.7 -1.7 [105.0, 109.0] 15721
19 59.1 0.2 2.1 -2.0 [101.0, 106.0] 20474
21 51.7 -0.0 1.6 -1.8 [99.0, 98.0, 111.0, 96.0] 15861
24 39.2 -0.1 1.2 -1.6 [98.0, 96.0] 2209
25 59.6 -0.1 1.2 -1.1 [101.0, 109.0] 12066
26 56.3 0.0 1.6 -1.8 [104.0, 101.0] 21977
27 60.9 0.1 1.6 -1.4 [100.0, 106.0] 18707
30 56.9 -0.0 1.7 -1.5 [107.0] 22217
31 38.4 -0.2 0.9 -1.4 [108.0] 1167
33 60.9 0.2 1.6 -1.8 [102.0, 100.0] 18146
34 46.0 0.1 1.6 -1.3 [96.0, 108.0] 10659
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 60.0 -0.0 49.2 51.9 43.0 0 [74.0] [1.0] 14834
20 50.5 0.0 49.1 51.7 44.7 0 [106.0] [1.0] 11467
21 56.2 -0.0 49.5 53.3 43.1 0 [99.0] [1.0] 18881
22 58.2 -0.0 49.6 53.0 44.6 0 [105.0] [1.0] 17813
23 57.3 0.0 49.5 53.2 42.8 0 [104.0] [1.0] 18871
24 48.3 -0.0 47.5 51.5 43.7 150 [77.0] [1.0] 6695
25 64.3 -0.0 49.0 51.9 44.8 0 [81.0] [1.0] 11495
26 61.2 0.0 48.3 50.7 43.2 0 [96.0] [1.0] 10486
27 61.1 -0.0 48.7 52.3 43.1 0 [83.0] [1.0] 15673
28 53.7 0.0 48.2 50.8 44.2 0 [109.0] [1.0] 12696
29 57.9 0.0 49.0 53.0 43.9 0 [110.0] [1.0] 18259
30 57.3 -0.0 48.9 52.5 41.2 0 [108.0] [1.0] 18569
32 42.2 -0.0 48.5 52.3 44.3 219 [82.0, 71.0] [1.0] 13339
33 46.4 0.0 48.1 52.1 44.5 171 [99.0, 75.0] [1.0] 6722
34 37.5 0.0 47.8 49.7 45.8 0 [86.0] [1.0] 5073
35 60.1 -0.0 49.5 52.9 43.6 0 [111.0] [1.0] 15038
36 49.4 0.0 48.7 51.7 43.5 0 [101.0] [1.0] 11310
37 58.9 -0.0 49.8 53.7 44.6 0 [89.0] [1.0] 17958
41 61.4 0.0 49.7 52.4 43.9 0 [100.0] [1.0] 9699
42 64.5 -0.0 50.2 53.5 45.8 0 [93.0] [1.0] 11999
43 39.6 -0.0 45.8 49.1 41.8 0 [67.0] [1.0] 6715
44 51.1 -0.0 48.8 52.1 43.4 0 [75.0] [1.0] 11853
45 42.0 -0.0 47.0 49.8 42.7 189 [79.0, 72.0] [1.0] 12393
46 59.5 -0.0 50.0 53.9 43.4 0 [111.0] [1.0] 14814
DUT BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 60.0 0.0 48.9 52.2 43.7 0 [75.0] [1.0] 14833
20 50.5 0.0 49.0 52.3 44.9 0 [105.0] [1.0] 11467
21 56.2 -0.0 49.0 52.9 42.3 0 [103.0] [1.0] 18881
22 58.2 -0.0 49.4 52.8 44.2 0 [77.0] [1.0] 17812
23 57.3 -0.0 49.3 52.6 43.2 0 [110.0] [1.0] 18871
24 48.3 -0.0 47.7 51.5 41.8 169 [82.0, 75.0] [1.0] 6696
25 64.3 -0.0 49.1 51.7 45.5 0 [78.0] [1.0] 11495
26 61.2 0.0 48.0 50.6 42.4 0 [65.0] [1.0] 10487
27 61.1 -0.0 48.4 51.6 41.4 0 [87.0] [1.0] 15673
28 53.7 -0.0 48.0 50.6 44.3 0 [111.0] [1.0] 12696
29 57.9 -0.0 48.5 52.7 42.1 0 [110.0] [1.0] 18258
30 57.3 -0.0 48.7 51.7 42.9 0 [104.0] [1.0] 18568
32 42.2 0.0 48.2 50.8 43.8 131 [98.0, 73.0] [1.0] 13337
33 46.4 0.0 47.5 50.7 43.7 184 [72.0, 71.0] [1.0] 6722
34 37.5 -0.0 47.3 48.9 44.9 0 [102.0] [1.0] 5070
35 60.1 -0.0 48.9 51.8 42.7 0 [80.0] [1.0] 15038
36 49.4 -0.0 48.5 50.8 43.0 0 [102.0] [1.0] 11309
37 58.9 -0.0 49.2 52.8 43.7 0 [95.0] [1.0] 17957
41 61.4 -0.0 49.0 51.9 40.6 0 [83.0] [1.0] 9699
42 64.5 0.0 49.6 52.3 45.5 0 [93.0] [1.0] 11999
43 39.6 -0.0 46.1 48.8 42.1 0 [70.0] [1.0] 6714
44 51.1 0.0 48.6 51.5 43.4 0 [71.0] [1.0] 11854
45 42.0 -0.0 46.9 49.6 41.9 72 [103.0, 99.0] [1.0] 12392
46 59.5 -0.0 49.5 52.3 43.4 0 [61.0] [1.0] 14815
DIFF BeiDou L1(BOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 60.0 0.3 4.6 -4.2 [74.0, 75.0] 14833
20 50.5 0.1 3.0 -4.1 [106.0, 105.0] 11466
21 56.2 0.5 4.2 -3.7 [99.0, 103.0] 18881
22 58.2 0.3 3.2 -3.3 [105.0, 77.0] 17812
23 57.3 0.1 3.5 -4.7 [104.0, 110.0] 18870
24 48.3 -0.2 3.1 -3.7 [77.0, 75.0, 82.0] 6695
25 64.3 -0.1 2.5 -3.6 [81.0, 78.0] 11495
26 61.2 0.3 3.9 -3.5 [96.0, 65.0] 10486
27 61.1 0.2 4.4 -2.8 [83.0, 87.0] 15673
28 53.7 0.2 3.8 -3.8 [109.0, 111.0] 12696
29 57.9 0.5 3.7 -3.2 [110.0] 18258
30 57.3 0.2 3.2 -4.4 [108.0, 104.0] 18568
32 42.2 0.3 3.0 -4.1 [71.0, 73.0, 82.0, 98.0] 13337
33 46.4 0.7 3.7 -2.9 [75.0, 71.0, 99.0, 72.0] 6722
34 37.5 0.5 3.3 -1.7 [86.0, 102.0] 5070
35 60.1 0.6 4.5 -2.1 [111.0, 80.0] 15038
36 49.4 0.2 2.9 -2.9 [101.0, 102.0] 11309
37 58.9 0.6 3.6 -2.8 [89.0, 95.0] 17957
41 61.4 0.7 5.7 -2.3 [100.0, 83.0] 9699
42 64.5 0.6 3.5 -2.5 [93.0] 11999
43 39.6 -0.3 2.8 -4.2 [67.0, 70.0] 6714
44 51.1 0.3 3.5 -3.5 [75.0, 71.0] 11853
45 42.0 0.1 4.3 -4.5 [79.0, 103.0, 72.0, 99.0] 12392
46 59.5 0.5 3.8 -2.2 [111.0, 61.0] 14813
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 60.0 -0.0 49.5 51.4 45.3 0 [74.0] [1.0] 14834
20 50.5 0.0 49.0 51.2 44.5 0 [106.0] [1.0] 11467
21 56.2 -0.0 49.0 51.5 42.8 0 [99.0] [1.0] 18881
22 58.2 -0.0 48.8 51.3 44.7 0 [105.0] [1.0] 17813
23 57.3 0.0 49.4 51.7 44.9 0 [104.0] [1.0] 18871
24 48.3 -0.0 48.5 51.5 45.5 200 [77.0] [1.0] 6695
25 64.3 -0.0 48.5 50.6 44.2 0 [81.0] [1.0] 11495
26 61.2 0.0 48.1 50.1 43.4 0 [96.0] [1.0] 10486
27 61.1 -0.0 48.5 50.6 44.7 0 [83.0] [1.0] 15673
28 53.7 0.0 47.6 50.0 43.1 0 [109.0] [1.0] 12696
29 57.9 0.0 48.7 51.4 43.8 0 [110.0] [1.0] 18259
30 57.3 -0.0 48.1 50.4 44.6 0 [108.0] [1.0] 18569
32 42.2 -0.0 47.9 50.3 44.5 75 [82.0, 71.0] [1.0] 13339
33 46.4 0.0 48.7 51.0 44.9 94 [99.0, 75.0] [1.0] 6722
34 37.5 0.0 45.9 48.2 41.7 0 [86.0] [1.0] 5073
35 60.1 -0.0 48.1 50.2 43.6 0 [111.0] [1.0] 15038
36 49.4 0.0 49.3 52.0 45.4 0 [101.0] [1.0] 11310
37 58.9 -0.0 49.9 52.0 45.2 0 [89.0] [1.0] 17958
41 61.4 0.0 50.1 52.2 46.2 0 [100.0] [1.0] 9699
42 64.5 -0.0 50.2 51.9 46.1 0 [93.0] [1.0] 11999
43 39.6 -0.0 46.1 47.9 43.5 0 [67.0] [1.0] 6715
44 51.1 -0.0 47.9 49.9 44.2 0 [75.0] [1.0] 11853
45 42.0 -0.0 48.2 50.4 45.0 243 [79.0, 72.0] [1.0] 12393
46 59.5 -0.0 50.3 52.0 46.0 0 [111.0] [1.0] 14814

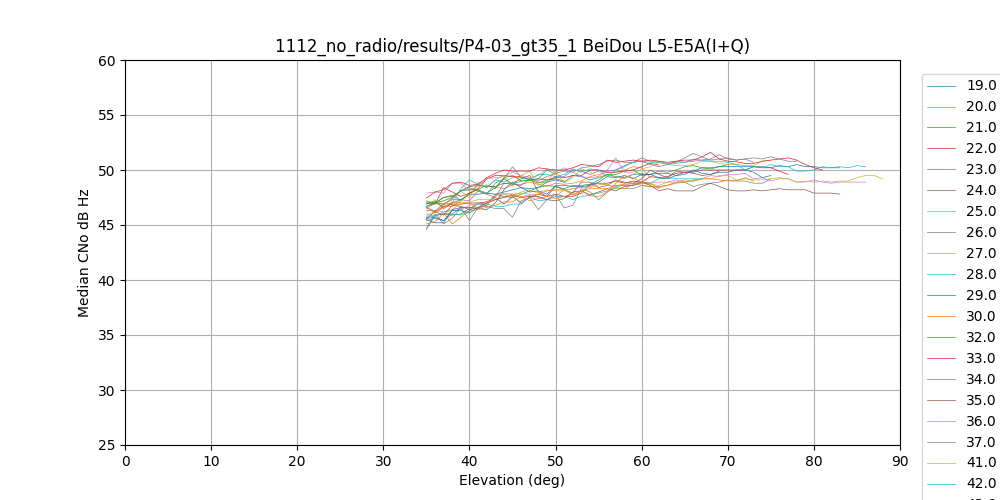

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 60.0 0.0 49.3 51.3 45.4 0 [75.0] [1.0] 14833
20 50.5 0.0 48.8 51.2 43.7 0 [105.0] [1.0] 11467
21 56.2 -0.0 49.0 51.2 43.6 0 [103.0] [1.0] 18881
22 58.2 -0.0 48.6 51.1 44.6 0 [77.0] [1.0] 17812
23 57.3 -0.0 49.7 52.2 43.4 0 [110.0] [1.0] 18871
24 48.3 -0.0 48.5 50.5 45.1 126 [82.0, 75.0] [1.0] 6696
25 64.3 -0.0 48.4 50.2 44.9 0 [78.0] [1.0] 11495
26 61.2 0.0 48.1 50.3 43.8 0 [65.0] [1.0] 10487
27 61.1 -0.0 48.4 50.2 44.8 0 [87.0] [1.0] 15673
28 53.7 -0.0 47.7 50.2 42.8 0 [111.0] [1.0] 12696
29 57.9 -0.0 48.6 50.8 43.0 0 [110.0] [1.0] 18258
30 57.3 -0.0 47.9 50.2 43.0 0 [104.0] [1.0] 18568
32 42.2 0.0 48.0 50.7 43.9 138 [98.0, 73.0] [1.0] 13337
33 46.4 0.0 48.8 51.1 45.5 88 [72.0, 71.0] [1.0] 6722
34 37.5 -0.0 45.9 47.8 43.3 0 [102.0] [1.0] 5070
35 60.1 -0.0 47.6 49.7 43.4 0 [80.0] [1.0] 15038
36 49.4 -0.0 49.0 51.8 45.8 0 [102.0] [1.0] 11309
37 58.9 -0.0 49.9 52.1 44.6 0 [95.0] [1.0] 17957
41 61.4 -0.0 49.9 51.8 45.9 0 [83.0] [1.0] 9699
42 64.5 0.0 50.0 51.9 46.3 0 [93.0] [1.0] 11999
43 39.6 -0.0 46.3 48.1 43.7 0 [70.0] [1.0] 6714
44 51.1 0.0 47.5 50.2 43.4 0 [71.0] [1.0] 11854
45 42.0 -0.0 48.2 50.7 44.1 30 [103.0, 99.0] [1.0] 12392
46 59.5 -0.0 50.1 52.2 46.1 0 [61.0] [1.0] 14815

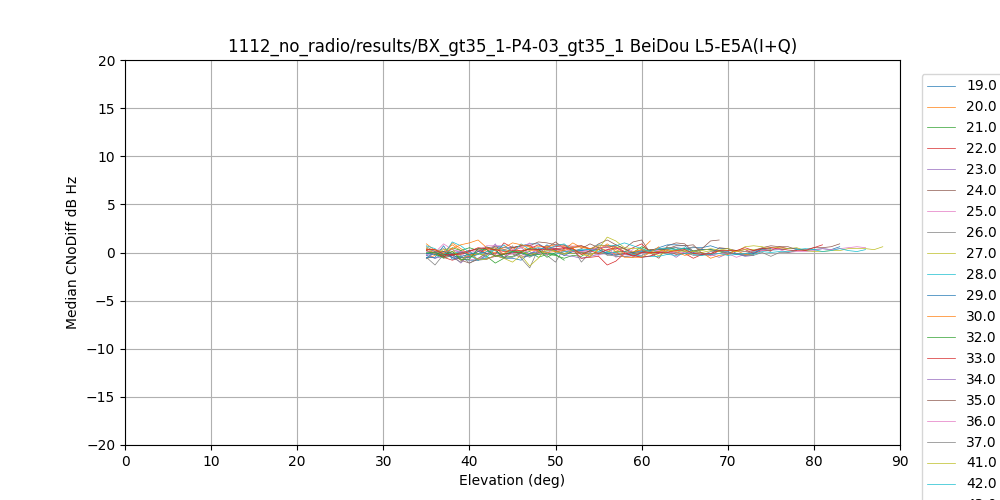

DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 60.0 0.2 1.6 -1.8 [74.0, 75.0] 14833
20 50.5 0.2 2.8 -1.9 [106.0, 105.0] 11466
21 56.2 0.0 2.5 -2.5 [99.0, 103.0] 18881
22 58.2 0.3 2.9 -2.2 [105.0, 77.0] 17812
23 57.3 -0.2 3.3 -2.5 [104.0, 110.0] 18870
24 48.3 0.0 1.9 -2.4 [77.0, 75.0, 82.0] 6695
25 64.3 0.1 1.7 -2.3 [81.0, 78.0] 11495
26 61.2 -0.0 1.9 -2.7 [96.0, 65.0] 10486
27 61.1 0.2 1.6 -1.9 [83.0, 87.0] 15673
28 53.7 -0.1 2.5 -2.2 [109.0, 111.0] 12696
29 57.9 0.1 2.1 -2.8 [110.0] 18258
30 57.3 0.1 3.4 -2.1 [108.0, 104.0] 18568
32 42.2 -0.1 2.9 -2.4 [71.0, 73.0, 82.0, 98.0] 13337
33 46.4 -0.1 2.1 -2.3 [75.0, 71.0, 99.0, 72.0] 6722
34 37.5 -0.1 1.8 -2.6 [86.0, 102.0] 5070
35 60.1 0.4 2.1 -2.4 [111.0, 80.0] 15038
36 49.4 0.4 2.9 -1.7 [101.0, 102.0] 11309
37 58.9 -0.0 2.6 -2.3 [89.0, 95.0] 17957
41 61.4 0.2 1.9 -1.9 [100.0, 83.0] 9699
42 64.5 0.2 2.0 -1.2 [93.0] 11999
43 39.6 -0.2 1.3 -2.0 [67.0, 70.0] 6714
44 51.1 0.4 2.7 -2.1 [75.0, 71.0] 11853
45 42.0 -0.0 2.5 -1.9 [79.0, 103.0, 72.0, 99.0] 12392
46 59.5 0.2 1.8 -1.6 [111.0, 61.0] 14813
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 0.0 47.3 49.6 43.4 0 [108.0] [1.0] 10245
14 57.6 0.0 48.5 50.5 45.2 78 [108.0, 80.0] [1.0] 7368
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 -0.0 47.2 49.6 42.4 0 [108.0] [1.0] 10246
14 57.6 -0.0 48.3 50.3 44.4 12 [103.0, 82.0] [1.0] 7368
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
12 47.2 0.1 2.2 -2.7 [108.0] 10245
14 57.6 0.2 1.8 -1.7 [80.0, 82.0, 108.0, 103.0] 7368
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 0.0 46.5 49.9 41.9 0 [108.0] [1.0] 10245
14 57.6 0.0 47.8 50.9 42.6 233 [108.0, 80.0] [1.0] 7368
19 60.0 -0.0 49.3 52.7 42.9 0 [74.0] [1.0] 14834
20 50.5 0.0 49.2 52.4 42.9 0 [106.0] [1.0] 11467
21 56.2 -0.0 49.6 53.8 40.0 0 [99.0] [1.0] 18881
22 58.2 -0.0 50.0 53.5 45.1 0 [105.0] [1.0] 17813
23 57.3 0.0 49.4 53.2 43.2 0 [104.0] [1.0] 18871
24 48.3 -0.0 47.8 52.2 40.2 200 [77.0] [1.0] 6695
25 64.3 -0.0 49.4 52.7 45.1 0 [81.0] [1.0] 11495
26 61.2 0.0 48.8 51.8 43.0 0 [96.0] [1.0] 10486
27 61.1 -0.0 49.3 52.7 43.8 0 [83.0] [1.0] 15673
28 53.7 0.0 48.5 52.2 43.0 0 [109.0] [1.0] 12696
29 57.9 0.0 49.9 53.6 44.3 0 [110.0] [1.0] 18259
30 57.3 -0.0 49.8 53.2 42.8 0 [108.0] [1.0] 18569
32 42.2 -0.0 48.2 51.3 43.5 3 [82.0, 71.0] [1.0] 13339
33 46.4 0.0 48.1 51.6 43.8 147 [99.0, 75.0] [1.0] 6722
34 37.5 0.0 48.1 50.3 45.4 0 [86.0] [1.0] 5073
35 60.1 -0.0 50.1 53.9 42.8 0 [111.0] [1.0] 15038
36 49.4 0.0 49.0 52.6 44.6 0 [101.0] [1.0] 11310
37 58.9 -0.0 49.3 53.2 43.3 0 [89.0] [1.0] 17958
41 61.4 0.0 49.5 52.5 42.5 0 [100.0] [1.0] 9699
42 64.5 -0.0 49.7 52.8 46.1 0 [93.0] [1.0] 11999
43 39.6 -0.0 46.5 49.8 42.3 0 [67.0] [1.0] 6715
44 51.1 -0.0 49.3 52.7 43.8 0 [75.0] [1.0] 11853
45 42.0 -0.0 47.1 50.3 39.9 204 [79.0, 72.0] [1.0] 12393
46 59.5 -0.0 49.6 53.3 43.5 0 [111.0] [1.0] 14814

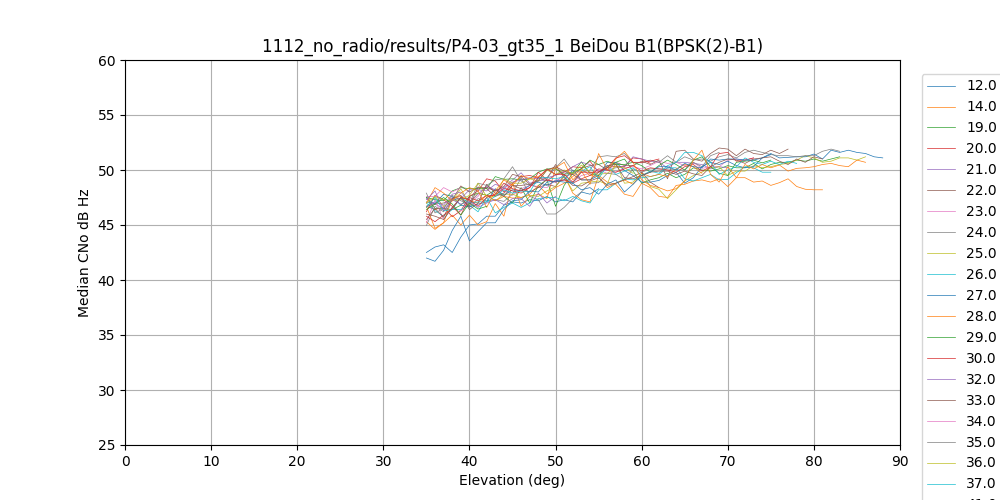

DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 -0.0 46.5 49.6 38.9 0 [108.0] [1.0] 10246
14 57.6 -0.0 47.8 51.0 43.5 109 [103.0, 82.0] [1.0] 7368
19 60.0 0.0 49.3 52.6 43.0 0 [75.0] [1.0] 14833
20 50.5 0.0 49.4 52.8 43.8 0 [105.0] [1.0] 11467
21 56.2 -0.0 49.4 53.3 41.0 0 [103.0] [1.0] 18881
22 58.2 -0.0 50.1 53.4 45.4 0 [77.0] [1.0] 17812
23 57.3 -0.0 49.4 52.7 42.7 0 [110.0] [1.0] 18871
24 48.3 -0.0 47.9 52.5 43.0 151 [82.0, 75.0] [1.0] 6696
25 64.3 -0.0 49.4 52.5 44.6 0 [78.0] [1.0] 11495
26 61.2 0.0 48.8 51.6 44.9 0 [65.0] [1.0] 10487
27 61.1 -0.0 49.5 53.0 43.5 0 [87.0] [1.0] 15673
28 53.7 -0.0 48.7 52.0 43.4 0 [111.0] [1.0] 12696
29 57.9 -0.0 49.7 53.3 42.5 0 [110.0] [1.0] 18258
30 57.3 -0.0 49.5 52.7 43.4 0 [104.0] [1.0] 18568
32 42.2 0.0 48.1 51.0 44.1 91 [98.0, 73.0] [1.0] 13337
33 46.4 0.0 48.0 51.9 43.4 111 [72.0, 71.0] [1.0] 6722
34 37.5 -0.0 48.1 50.1 45.5 0 [102.0] [1.0] 5070
35 60.1 -0.0 50.0 53.4 43.2 0 [80.0] [1.0] 15038
36 49.4 -0.0 49.1 52.7 45.1 0 [102.0] [1.0] 11309
37 58.9 -0.0 49.3 53.0 43.7 0 [95.0] [1.0] 17957
41 61.4 -0.0 49.3 52.8 40.6 0 [83.0] [1.0] 9699
42 64.5 0.0 49.7 53.0 45.6 0 [93.0] [1.0] 11999
43 39.6 -0.0 46.5 49.3 40.8 0 [70.0] [1.0] 6714
44 51.1 0.0 49.2 53.0 43.5 0 [71.0] [1.0] 11854
45 42.0 -0.0 47.2 50.1 41.3 234 [103.0, 99.0] [1.0] 12392
46 59.5 -0.0 49.3 52.7 43.1 0 [61.0] [1.0] 14815

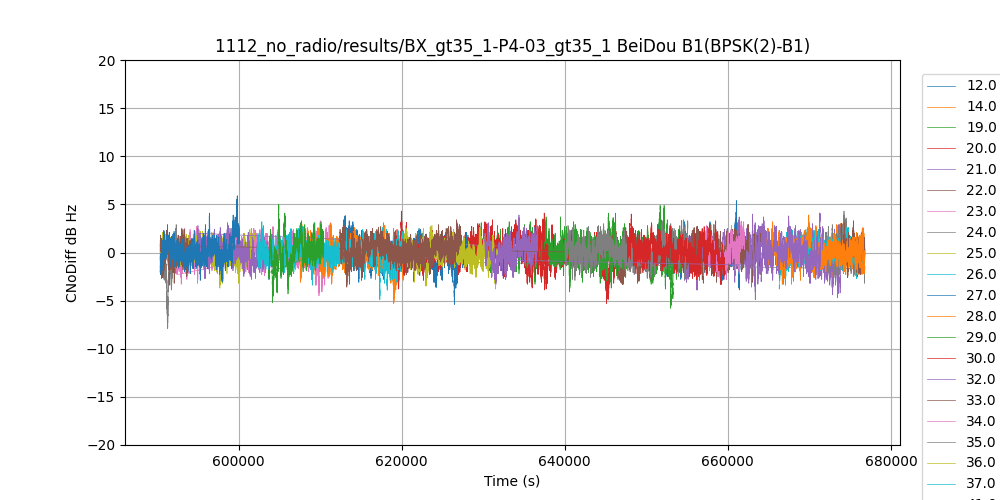

DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
12 47.2 -0.0 5.4 -3.9 [108.0] 10245
14 57.6 0.1 3.0 -2.8 [80.0, 82.0, 108.0, 103.0] 7368
19 60.0 -0.0 4.9 -5.8 [74.0, 75.0] 14833
20 50.5 -0.1 4.1 -5.3 [106.0, 105.0] 11466
21 56.2 0.2 4.1 -4.7 [99.0, 103.0] 18881
22 58.2 -0.1 3.3 -3.3 [105.0, 77.0] 17812
23 57.3 0.0 3.3 -4.5 [104.0, 110.0] 18870
24 48.3 -0.1 4.3 -7.9 [77.0, 75.0, 82.0] 6695
25 64.3 0.0 3.2 -3.7 [81.0, 78.0] 11495
26 61.2 -0.0 2.8 -3.8 [96.0, 65.0] 10486
27 61.1 -0.2 3.8 -5.4 [83.0, 87.0] 15673
28 53.7 -0.2 3.0 -5.3 [109.0, 111.0] 12696
29 57.9 0.2 4.1 -3.7 [110.0] 18258
30 57.3 0.3 4.3 -3.9 [108.0, 104.0] 18568
32 42.2 0.1 3.9 -2.8 [71.0, 73.0, 82.0, 98.0] 13337
33 46.4 0.1 3.3 -3.4 [75.0, 71.0, 99.0, 72.0] 6722
34 37.5 0.0 3.2 -2.8 [86.0, 102.0] 5070
35 60.1 0.2 3.4 -2.9 [111.0, 80.0] 15038
36 49.4 -0.2 2.8 -3.8 [101.0, 102.0] 11309
37 58.9 -0.0 3.2 -4.9 [89.0, 95.0] 17957
41 61.4 0.2 5.9 -3.1 [100.0, 83.0] 9699
42 64.5 0.0 3.9 -3.3 [93.0] 11999
43 39.6 0.0 5.0 -5.2 [67.0, 70.0] 6714
44 51.1 0.1 4.0 -3.3 [75.0, 71.0] 11853
45 42.0 -0.1 4.0 -4.9 [79.0, 103.0, 72.0, 99.0] 12392
46 59.5 0.3 3.4 -3.6 [111.0, 61.0] 14813
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 0.0 46.7 49.3 43.7 0 [108.0] [1.0] 10245
14 57.6 0.0 47.5 49.3 42.9 58 [108.0, 80.0] [1.0] 7368
19 60.0 -0.0 47.9 50.2 43.6 0 [74.0] [1.0] 14834
20 50.5 0.0 47.5 49.7 42.1 0 [106.0] [1.0] 11467
21 56.2 -0.0 47.2 49.8 41.7 0 [99.0] [1.0] 18881
22 58.2 -0.0 47.6 50.1 42.2 0 [105.0] [1.0] 17813
23 57.3 0.0 47.7 50.0 42.0 0 [104.0] [1.0] 18871
24 48.3 -0.0 47.3 50.3 43.2 129 [77.0] [1.0] 6695
25 64.3 -0.0 47.8 50.2 43.4 0 [81.0] [1.0] 11495
26 61.2 0.0 47.0 49.2 40.1 0 [96.0] [1.0] 10486
27 61.1 -0.0 47.0 49.7 41.7 0 [83.0] [1.0] 15673
28 53.7 0.0 46.7 49.1 40.5 0 [109.0] [1.0] 12696
29 57.9 0.0 47.0 49.7 42.2 0 [110.0] [1.0] 18259
30 57.3 -0.0 47.1 49.3 42.3 0 [108.0] [1.0] 18569
32 42.2 -0.0 46.8 49.4 43.4 50 [82.0, 71.0] [1.0] 13339
33 46.4 0.0 46.8 48.9 43.2 87 [99.0, 75.0] [1.0] 6722
34 37.5 0.0 44.8 47.7 41.7 0 [86.0] [1.0] 5073
35 60.1 -0.0 47.3 49.6 43.0 0 [111.0] [1.0] 15038
36 49.4 0.0 47.7 50.3 42.6 0 [101.0] [1.0] 11310
37 58.9 -0.0 47.4 50.0 41.7 0 [89.0] [1.0] 17958
41 61.4 0.0 47.6 50.0 43.3 0 [100.0] [1.0] 9699
42 64.5 -0.0 48.1 50.2 44.5 0 [93.0] [1.0] 11999
43 39.6 -0.0 45.3 47.7 41.6 0 [67.0] [1.0] 6715
44 51.1 -0.0 46.8 49.5 42.1 0 [75.0] [1.0] 11853
45 42.0 -0.0 46.4 49.0 42.1 118 [79.0, 72.0] [1.0] 12393
46 59.5 -0.0 47.5 49.6 42.1 0 [111.0] [1.0] 14814
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
12 47.2 -0.0 46.6 48.9 41.4 0 [108.0] [1.0] 10246
14 57.6 -0.0 47.7 49.4 42.1 34 [103.0, 82.0] [1.0] 7368
19 60.0 0.0 48.0 49.9 44.2 0 [75.0] [1.0] 14833
20 50.5 0.0 47.5 49.9 42.2 0 [105.0] [1.0] 11467
21 56.2 -0.0 47.3 49.8 41.0 0 [103.0] [1.0] 18881
22 58.2 -0.0 47.6 49.3 42.7 0 [77.0] [1.0] 17812
23 57.3 -0.0 47.8 49.8 43.0 0 [110.0] [1.0] 18871
24 48.3 -0.0 47.3 49.8 44.5 133 [82.0, 75.0] [1.0] 6696
25 64.3 -0.0 47.7 49.3 45.0 0 [78.0] [1.0] 11495
26 61.2 0.0 47.0 49.1 41.6 0 [65.0] [1.0] 10487
27 61.1 -0.0 47.1 49.0 42.6 0 [87.0] [1.0] 15673
28 53.7 -0.0 46.8 49.5 42.4 0 [111.0] [1.0] 12696
29 57.9 -0.0 47.3 49.6 42.0 0 [110.0] [1.0] 18258
30 57.3 -0.0 47.1 49.3 41.7 0 [104.0] [1.0] 18568
32 42.2 0.0 46.9 48.7 42.8 14 [98.0, 73.0] [1.0] 13337
33 46.4 0.0 47.0 49.2 43.2 94 [72.0, 71.0] [1.0] 6722
34 37.5 -0.0 44.7 47.6 40.8 0 [102.0] [1.0] 5070
35 60.1 -0.0 47.5 49.7 43.4 0 [80.0] [1.0] 15038
36 49.4 -0.0 47.5 49.8 43.6 0 [102.0] [1.0] 11309
37 58.9 -0.0 47.6 50.0 42.3 0 [95.0] [1.0] 17957
41 61.4 -0.0 48.1 50.0 44.7 0 [83.0] [1.0] 9699
42 64.5 0.0 48.1 50.0 44.8 0 [93.0] [1.0] 11999
43 39.6 -0.0 45.6 47.8 42.7 0 [70.0] [1.0] 6714
44 51.1 0.0 46.7 49.1 42.7 0 [71.0] [1.0] 11854
45 42.0 -0.0 46.9 49.3 43.9 48 [103.0, 99.0] [1.0] 12392
46 59.5 -0.0 47.7 49.6 43.8 0 [61.0] [1.0] 14815
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
12 47.2 0.1 4.3 -2.6 [108.0] 10245
14 57.6 -0.1 2.1 -2.5 [80.0, 82.0, 108.0, 103.0] 7368
19 60.0 -0.1 2.2 -2.2 [74.0, 75.0] 14833
20 50.5 -0.1 2.4 -2.6 [106.0, 105.0] 11466
21 56.2 -0.0 2.8 -2.7 [99.0, 103.0] 18881
22 58.2 0.0 2.9 -2.5 [105.0, 77.0] 17812
23 57.3 -0.0 2.9 -3.3 [104.0, 110.0] 18870
24 48.3 -0.0 2.2 -2.9 [77.0, 75.0, 82.0] 6695
25 64.3 0.1 2.0 -2.9 [81.0, 78.0] 11495
26 61.2 -0.0 2.4 -2.7 [96.0, 65.0] 10486
27 61.1 -0.1 2.3 -3.0 [83.0, 87.0] 15673
28 53.7 -0.1 2.0 -3.4 [109.0, 111.0] 12696
29 57.9 -0.2 2.7 -3.1 [110.0] 18258
30 57.3 -0.0 3.5 -2.6 [108.0, 104.0] 18568
32 42.2 -0.2 4.3 -3.3 [71.0, 73.0, 82.0, 98.0] 13337
33 46.4 -0.3 1.9 -2.9 [75.0, 71.0, 99.0, 72.0] 6722
34 37.5 0.1 3.0 -1.8 [86.0, 102.0] 5070
35 60.1 -0.2 1.8 -2.8 [111.0, 80.0] 15038
36 49.4 0.2 3.3 -2.8 [101.0, 102.0] 11309
37 58.9 -0.2 2.4 -3.5 [89.0, 95.0] 17957
41 61.4 -0.5 1.7 -3.0 [100.0, 83.0] 9699
42 64.5 0.0 1.8 -2.5 [93.0] 11999
43 39.6 -0.3 2.7 -2.9 [67.0, 70.0] 6714
44 51.1 0.1 2.2 -2.8 [75.0, 71.0] 11853
45 42.0 -0.5 1.8 -3.8 [79.0, 103.0, 72.0, 99.0] 12392
46 59.5 -0.2 2.4 -2.9 [111.0, 61.0] 14813
