20250122_CSNMR-3818_heading P3-09_all.T04

Meta Data


Serial Number : 6210C10311
Firmware Date : Jan 17, 2025
Release Ver : 5.70
Nav Proc Ver : 0.61
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.0000 m
week_list : ['2350']
Start Time : 340862.0
Stop Time : 341999.9
Total Hours : 0.1494674999999956
Total Time: 1137.9000000000233 seconds = 0.316 hours

P3-09_d35-2.tsv

Heading, Antenna distance

Weighted Mean N_samples: 11380
Weighted Mean heading_w_mean: 274.7372
Weighted Mean heading_mean: 274.6118
Weighted Mean heading_std: 3.2255
Weighted Mean dist_mean: 0.0756
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0109
Weighted Mean vprec: 0.0182
Weighted Mean vdiff_mean: 0.0015
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.97377437972202 -105.15253490524630 1650.39427210886402 0.11111564518901 0.00716056113475 0.01798246333787 11380
1 39.97377432356537 -105.15253402095900 1650.39280509487230 0.02699017378872 0.00279441965264 0.00305513914899 11380

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 1.0 1.0
0 0.05 1.0 1.0 1.0
0 0.10 1.0 1.0 1.0
1 0.03 1.0 1.0 1.0
1 0.05 1.0 1.0 1.0
1 0.10 1.0 1.0 1.0

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 4.0 5.0 0.0 0x17:02x 11380 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 11380 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

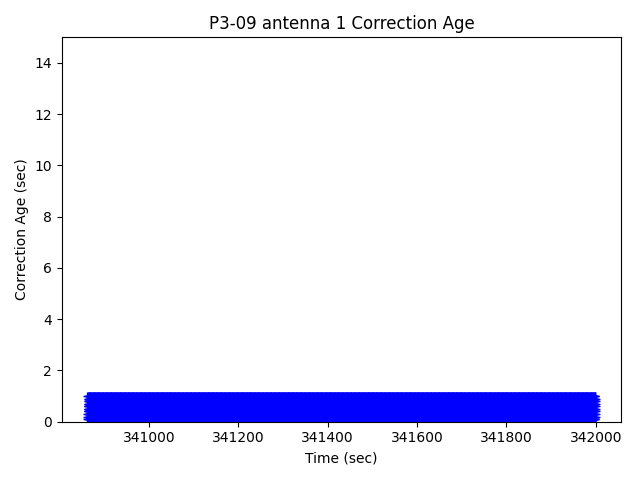

Individual Antennas
