1_hour_Dozer_NEW_FW BX992_____202412101700.T04

Meta Data

Serial Number : 6221C43829
Firmware Date : Aug 8, 2024
Release Ver : 5.70
Nav Proc Ver : 0.53
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2344']
Start Time : 234000.0
Stop Time : 237599.9
Total Hours : 0.0
Total Time: 3599.899999999994 seconds = 1.000 hours

BX992_d35-2.tsv

Heading, Antenna distance

Weighted Mean heading_mean: 90.3806
Weighted Mean dist_mean: 1.3237
Weighted Mean ant_list: [0, 1]

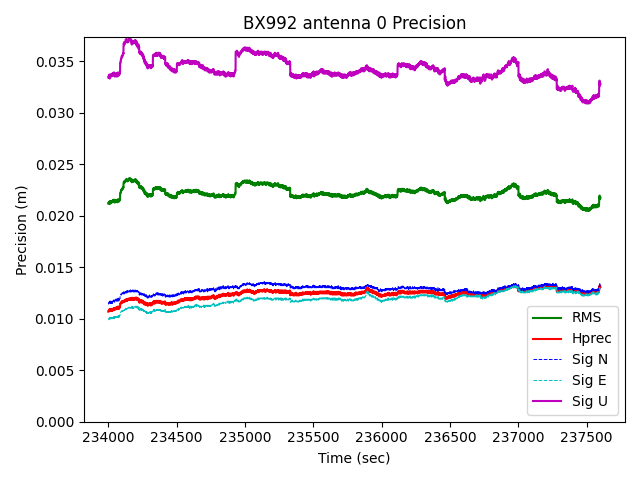

Weighted Mean hprec: 0.0178
Weighted Mean vprec: 0.0342

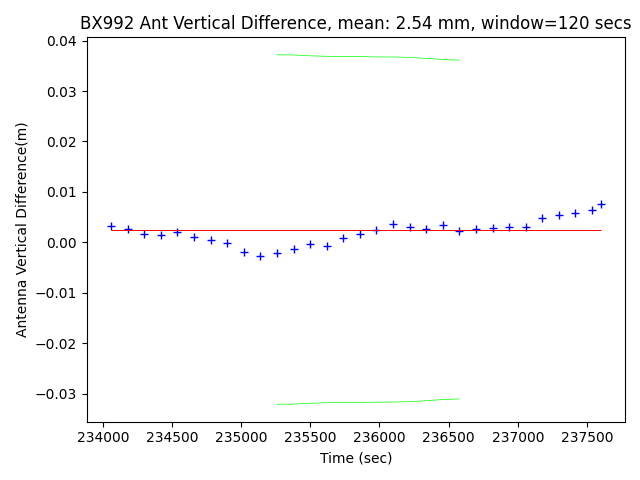

Weighted Mean vdiff_mean: 0.0025
Weighted Mean heading_uptime: 0.0000

Stats

antenna	w_mean_lat	w_mean_lon	w_mean_hgt	std_err	std_err_hprec	std_err_vprec	count
0	39.89583574095005	-105.11334682555191	1645.49455883164001	0.11657393684983	0.01239164571843	0.03412548558059	36000
1	39.89583582001920	-105.11336234193330	1645.49201533855171	0.01128000974267	0.00211696238092	0.00219036177884	36000

Uptime

antenna	limit	h_uptime	v_uptime	hv_uptime
0	0.03	1.0	0.0	0.0
0	0.05	1.0	1.0	1.0
0	0.10	1.0	1.0	1.0
1	0.03	1.0	1.0	1.0
1	0.05	1.0	1.0	1.0
1	0.10	1.0	1.0	1.0

Fix Summary

VSysFlgs	MFixType	MFixMode	MFixInfo	MSysFlgs	count	Fix_Description	Ant	VFixType	VFixMode	VFixInfo
NaN	15.0	5.0	1.0	0x17:02x	36000	RTx; 3D solution; AM	0	NaN	NaN	NaN
0x0:02x	NaN	NaN	NaN	NaN	36000	RTK fixed; 3D solution; Unknown fix_info RTK value 10.	1	4.0	5.0	10.0

Flags Bit Table

Bit	Description
0	1 if this is the master position (i.e. record 29 position)
1	1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3	1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4	rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5	rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6	1 if a baseline length constraint was used to form RTK vector.
7	1 if a clock constraint was used to form RTK vector.
8	1 if the RTK position is bridged
9	1 if the OmniSTAR position is authenticated

Individual Antennas
