REF File: 240805/BX_all.T04
DUT File: 240805/EB79_all.T04

Comments


Run with Ch 152 = 925.5 MHz, 1 MHz BW (remote whip)

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 836012 44.0 44.7 4.4 10.5 55.4 44.9 37.3 90.0
GPS L2 CM+CL 634545 44.2 44.5 3.4 18.6 52.3 33.7 38.6 90.0
GPS L2 E 199631 30.2 30.9 6.5 13.9 43.9 30.0 33.3 77.0
GPS L5/E5A I+Q 453318 47.2 47.2 2.9 22.8 53.6 30.8 37.6 88.0
GLONASS L1 CA 651225 44.4 45.3 4.9 19.0 54.1 35.1 35.7 89.0
GLONASS L1 P 650245 42.8 43.7 4.8 18.8 52.2 33.4 35.7 89.0
GLONASS L2 CA 575446 44.2 44.8 3.4 10.6 51.3 40.7 36.0 89.0
GLONASS L2 P 575404 42.5 43.2 3.4 1.0 49.3 48.3 36.0 89.0

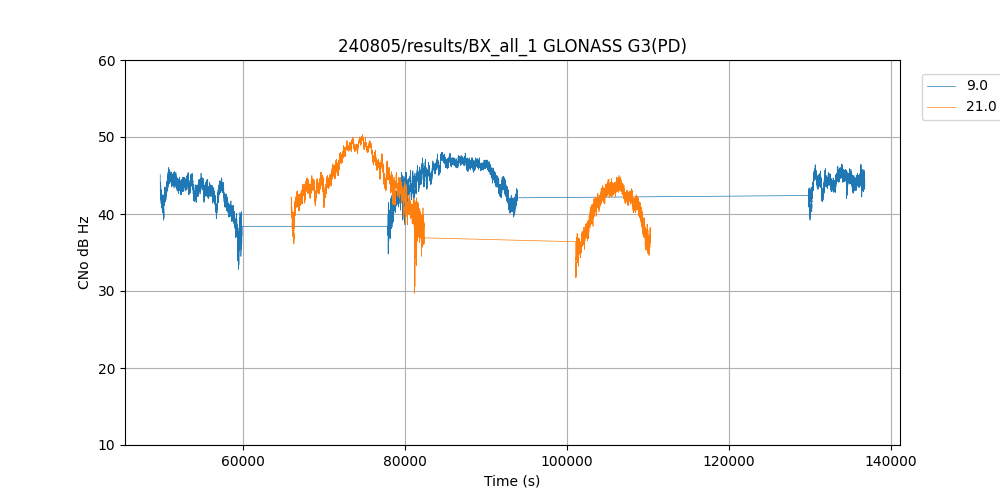

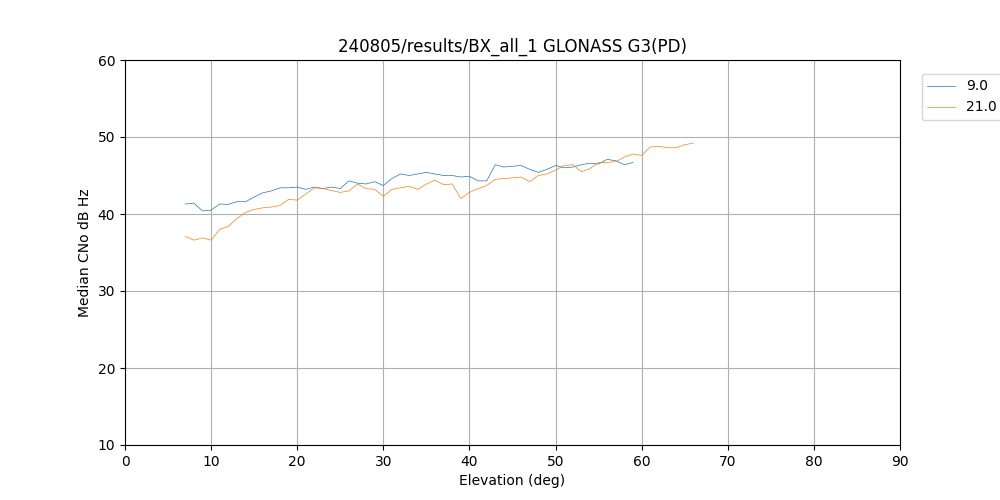

GLONASS G3 PD 58666 43.5 43.7 2.9 29.7 50.3 20.6 30.4 66.0
Galileo L1 MBOC-PD 637089 45.2 45.7 3.9 0.0 53.9 53.9 37.1 90.0
Galileo L5/E5A BPSK(10)-PD 637472 44.8 45.0 2.7 30.8 50.8 20.0 37.1 90.0
Galileo E5B/B2 BPSK(10)-PD 637470 45.6 45.8 2.8 19.4 51.5 32.1 37.1 90.0
Galileo E5A+B AltBOC-Comp-PD 637472 47.8 47.9 2.3 36.2 53.0 16.8 37.1 90.0
Galileo E6 BPSK(5)-PD 636909 46.9 47.2 3.5 24.9 53.3 28.4 37.1 90.0
BeiDou L1 BOC-PD 638630 45.7 46.3 3.9 20.0 53.8 33.8 37.4 89.0
BeiDou L5/E5A I+Q 638630 45.7 45.8 2.7 20.9 52.2 31.3 37.4 89.0
BeiDou E5B/B2 BPSK(2)-B2 93833 45.3 45.7 2.2 34.5 49.5 15.0 33.0 85.0
BeiDou B1 BPSK(2)-B1 732520 45.4 45.9 3.8 11.1 53.7 42.6 36.9 89.0
BeiDou B3 BPSK(10)-B3 732364 44.3 44.7 3.0 21.1 50.3 29.2 36.9 89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 10,656,881
Avg Samples/sec: 118.4

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 46800.213
Stop Time : 133200.189
Total Hours : 23.999993333333336
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 835859 44.1 44.6 3.9 16.7 54.3 37.6 37.3 90.0
GPS L2 CM+CL 634710 43.9 44.2 3.5 18.1 52.0 33.9 38.6 90.0
GPS L2 E 835701 36.6 37.1 7.8 10.9 53.0 42.1 37.3 90.0
GPS L5/E5A I+Q 453535 47.4 47.5 3.1 21.0 54.1 33.1 37.5 88.0
GLONASS L1 CA 650578 43.9 44.9 4.8 17.4 53.4 36.0 35.7 89.0
GLONASS L2 CA 573936 44.2 44.9 3.4 15.3 50.9 35.6 36.0 89.0
Galileo L1 MBOC-PD 638324 45.3 45.7 3.6 20.6 53.4 32.8 37.1 90.0
Galileo E5A+B AltBOC-Comp-PD 638324 47.9 48.0 2.5 35.9 53.0 17.1 37.1 90.0
BeiDou L5/E5A I+Q 638692 45.9 46.1 2.9 18.5 51.8 33.3 37.4 89.0
BeiDou E5B/B2 BPSK(2)-B2 93701 45.1 45.5 2.5 24.0 49.8 25.8 33.1 85.0
BeiDou B1 BPSK(2)-B1 732417 45.6 46.1 3.8 24.5 54.3 29.8 36.9 89.0
BeiDou B3 BPSK(10)-B3 732378 44.3 44.7 3.1 18.6 50.0 31.4 36.9 89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 7,458,155
Avg Samples/sec: 82.9

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 46800.355
Stop Time : 136608.289
Total Hours : 24.94664833333333
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 835377 -0.1 +0.1 +2.0 -28.1 +15.0 +43.1 +37.3 +90.0
GPS L2 CM+CL 634131 +0.3 +0.3 +1.6 -22.2 +18.7 +40.9 +38.6 +90.0
GPS L2 E 199392 +0.4 +0.5 +2.0 -11.1 +10.7 +21.8 +33.3 +77.0
GPS L5/E5A I+Q 453037 -0.2 -0.2 +1.3 -18.6 +20.6 +39.2 +37.6 +88.0
GLONASS L1 CA 648756 +0.5 +0.5 +1.8 -16.7 +17.0 +33.7 +35.8 +89.0
GLONASS L2 CA 572576 -0.0 +0.0 +1.6 -14.9 +15.4 +30.3 +36.1 +89.0
Galileo L1 MBOC-PD 636833 -0.1 +0.0 +1.7 -34.2 +9.1 +43.3 +37.1 +90.0
Galileo E5A+B AltBOC-Comp-PD 637216 -0.1 -0.1 +0.9 -5.3 +7.3 +12.6 +37.1 +90.0
BeiDou L5/E5A I+Q 638275 -0.2 -0.2 +1.3 -21.7 +24.7 +46.4 +37.4 +89.0
BeiDou E5B/B2 BPSK(2)-B2 93664 +0.2 +0.0 +1.4 -7.2 +15.5 +22.7 +33.1 +85.0
BeiDou B1 BPSK(2)-B1 732006 -0.2 -0.2 +1.7 -23.7 +12.7 +36.4 +36.9 +89.0
BeiDou B3 BPSK(10)-B3 731834 +0.1 +0.0 +1.3 -20.5 +19.9 +40.4 +36.9 +89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 6,813,097
Avg Samples/sec: 75.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.016
Median = 0.000
Std Dev= 1.583

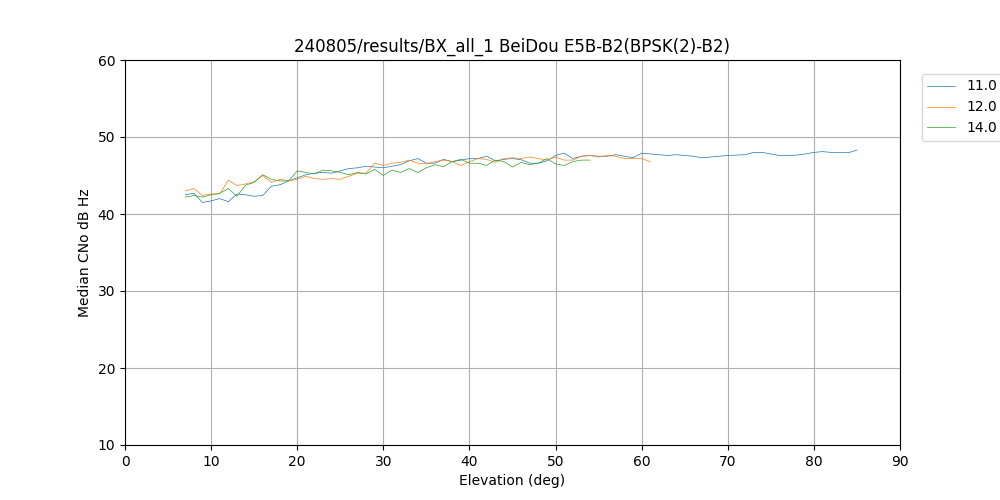

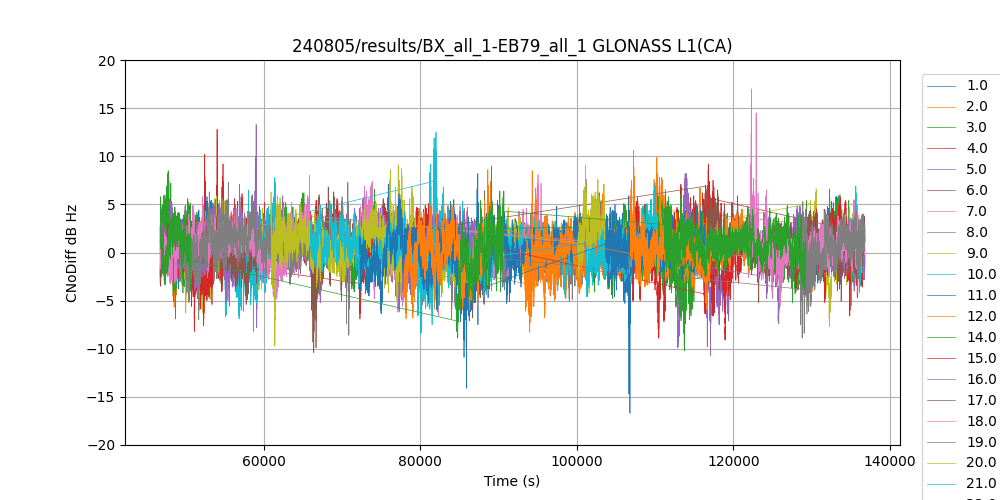

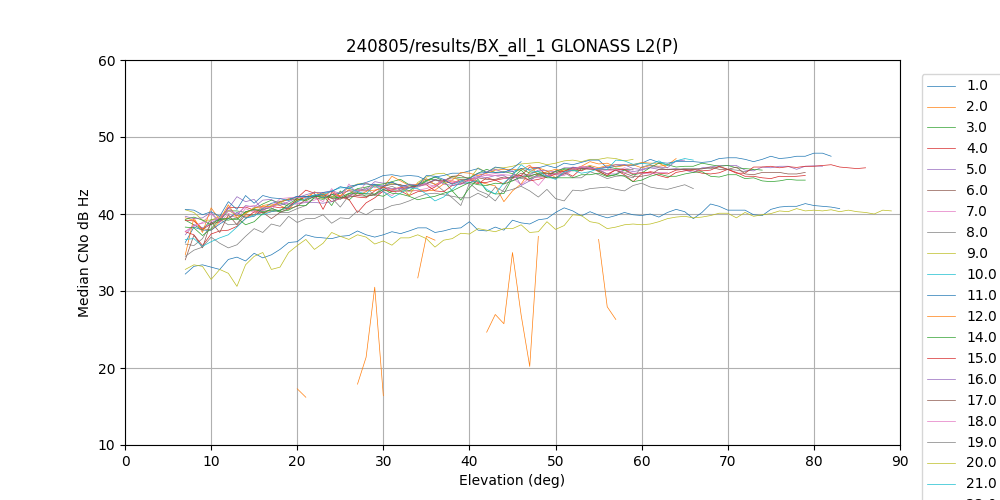

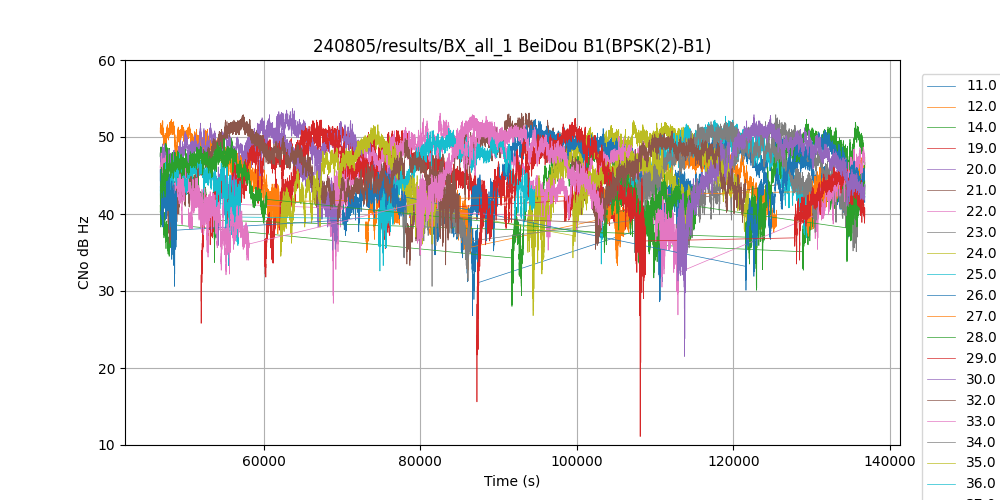

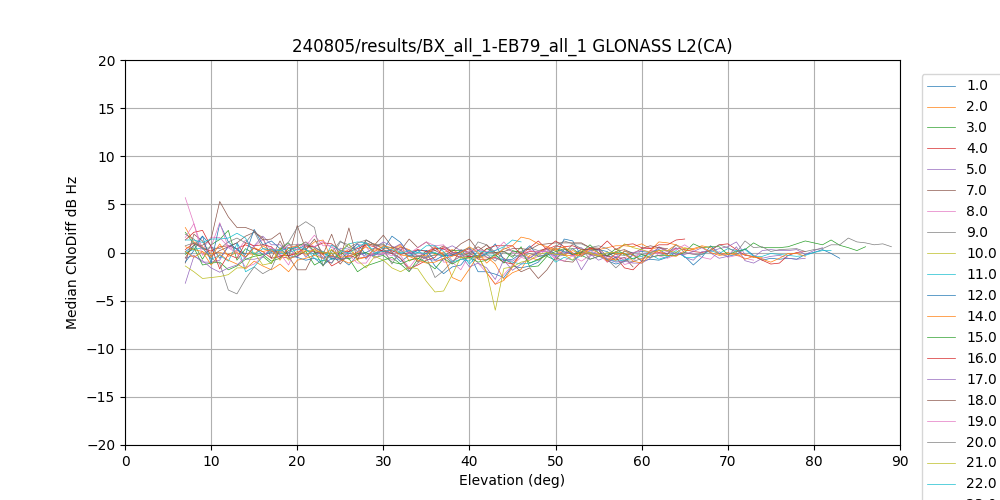

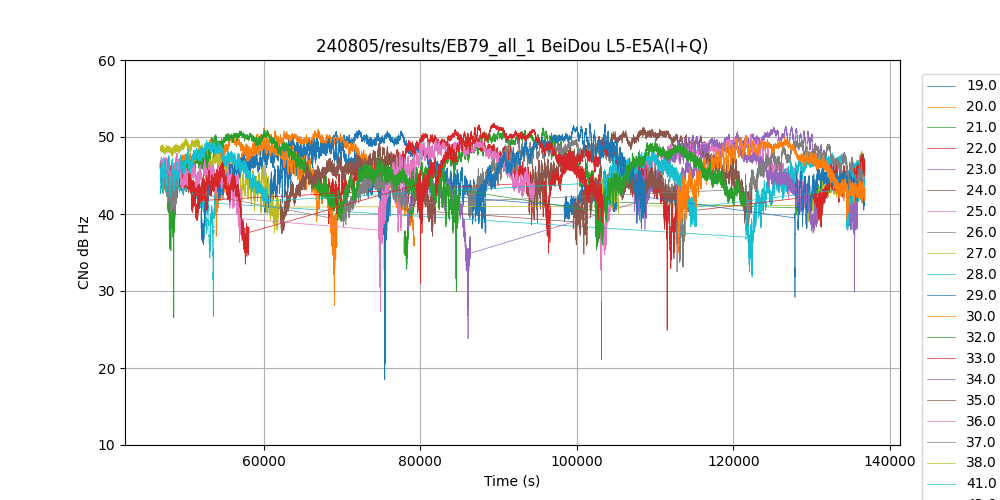

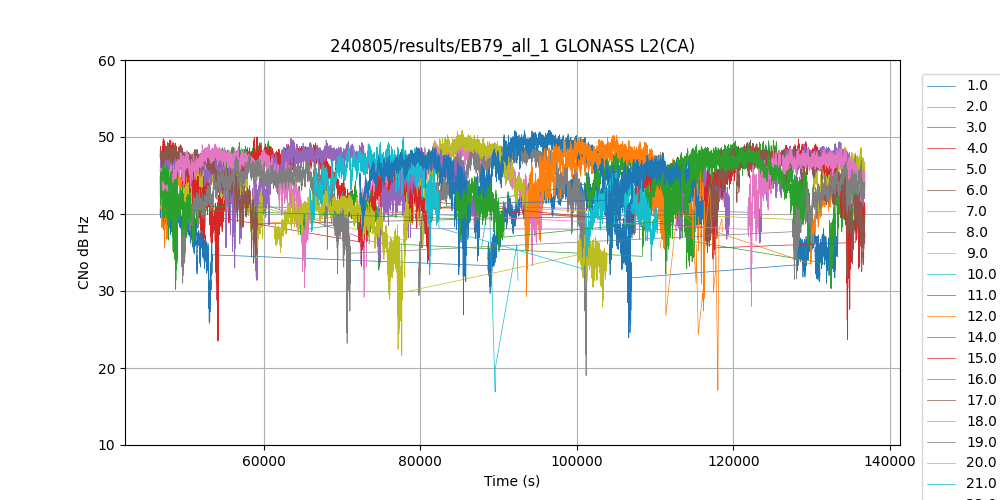

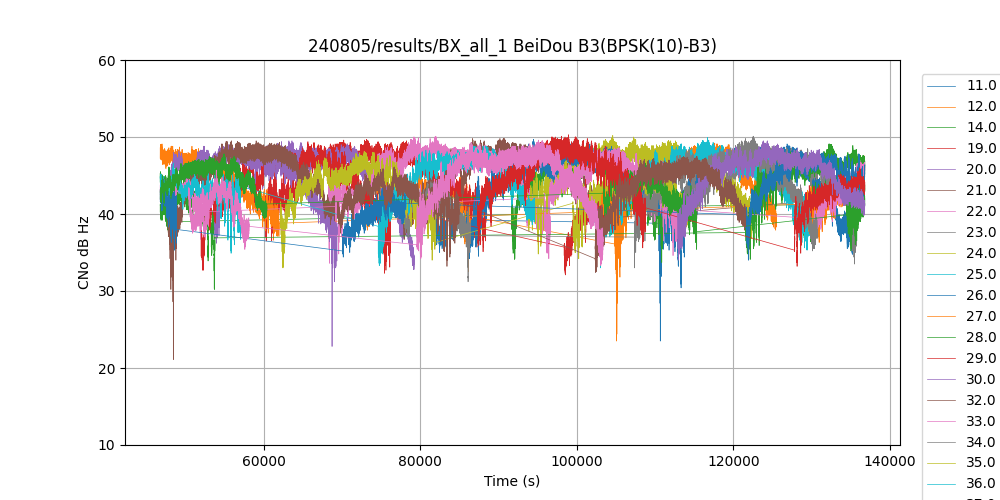

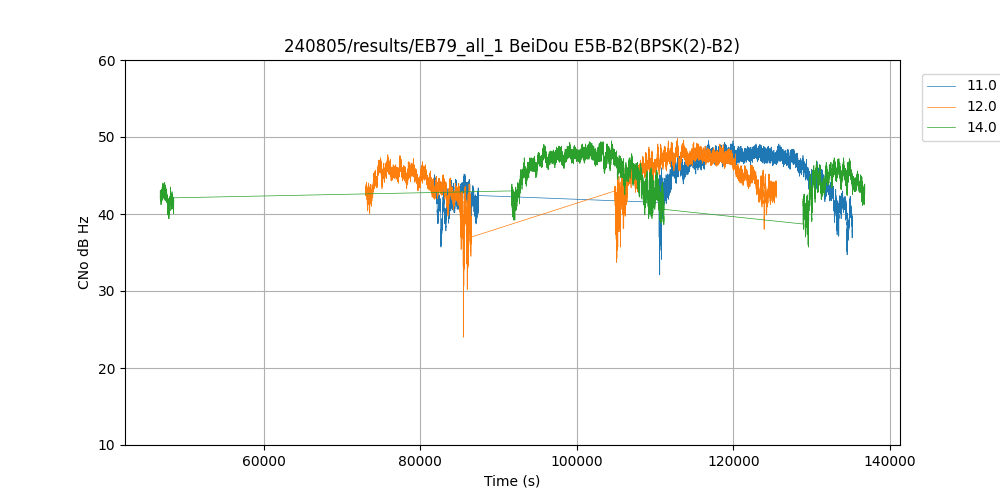

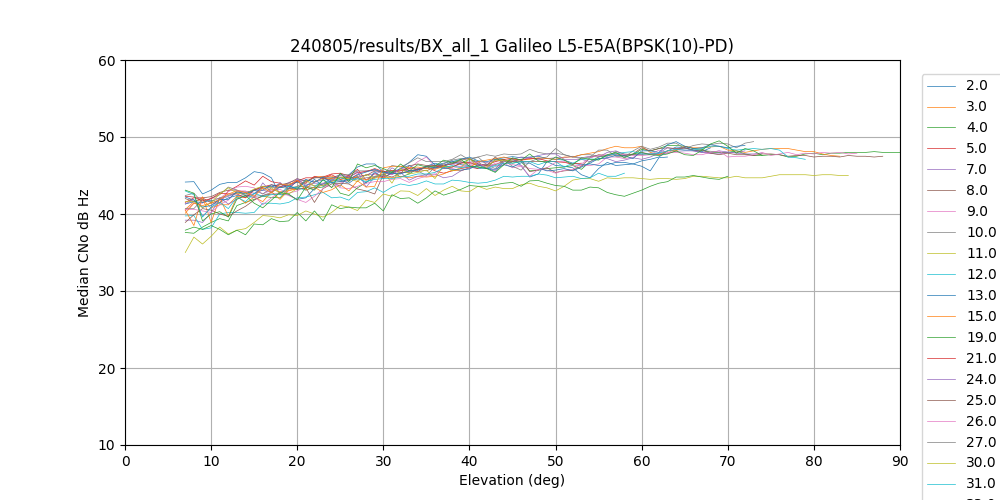

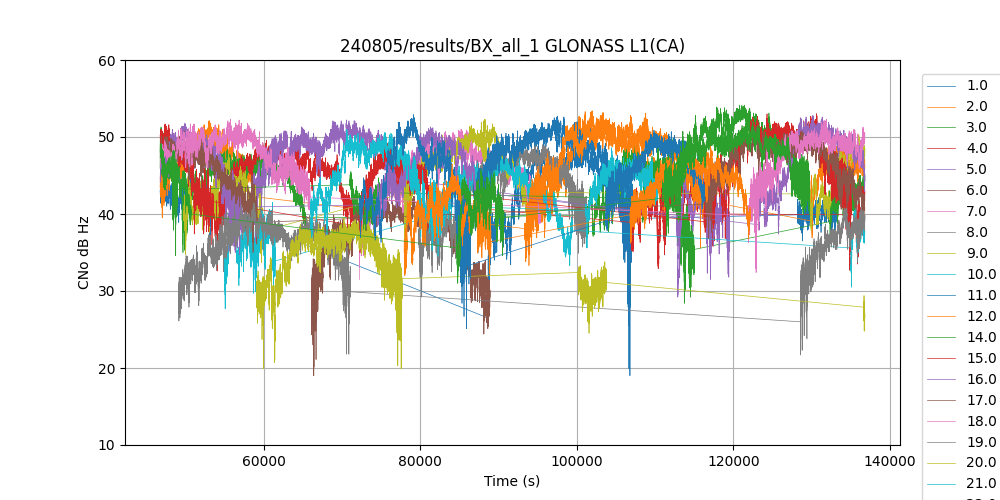

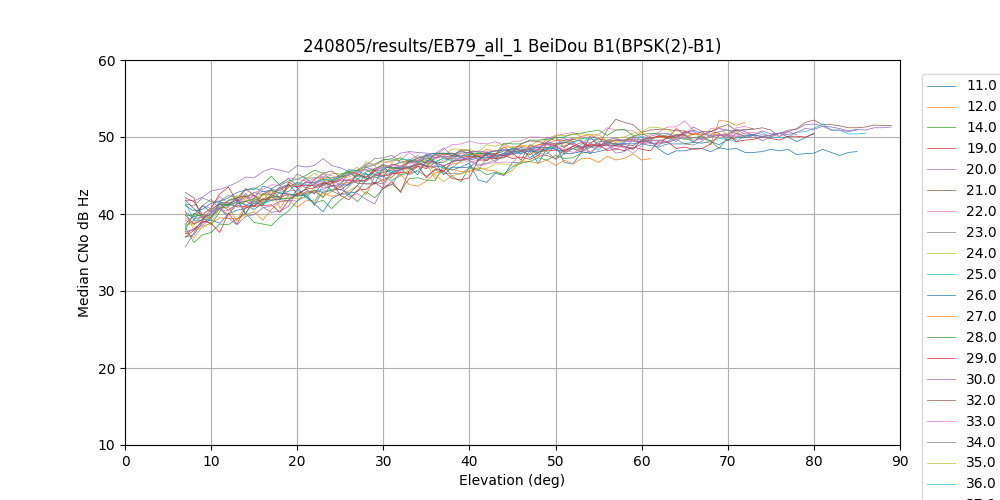

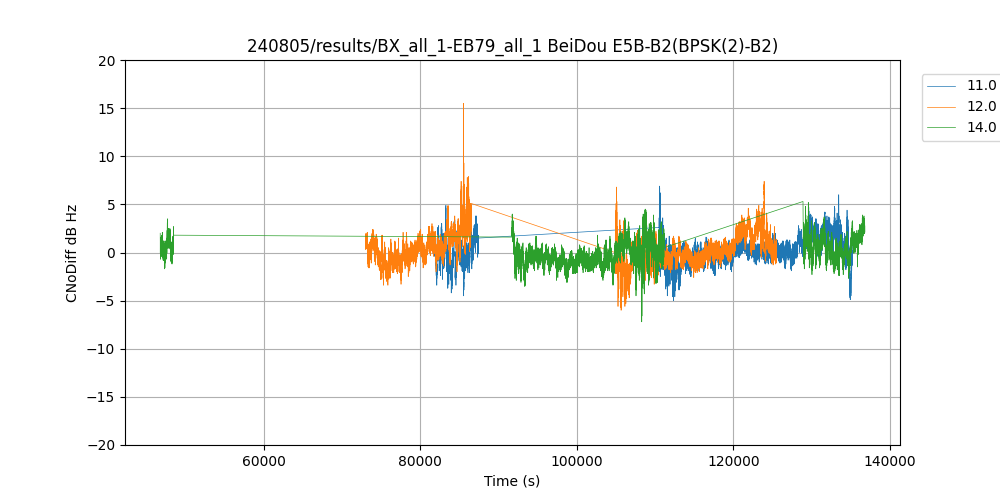

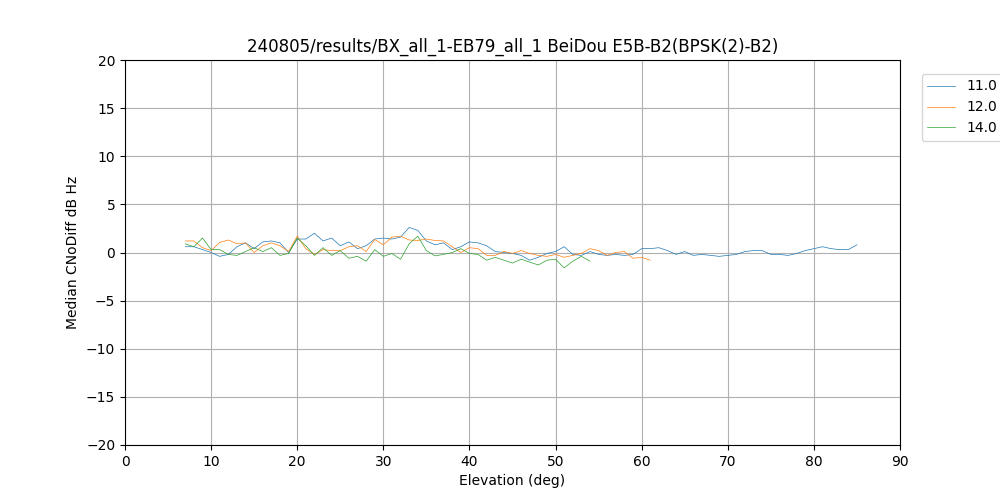

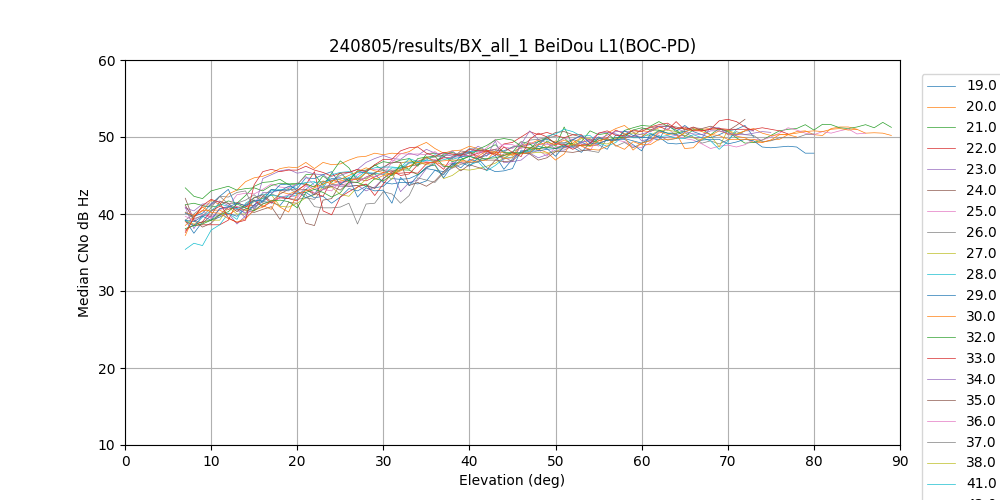

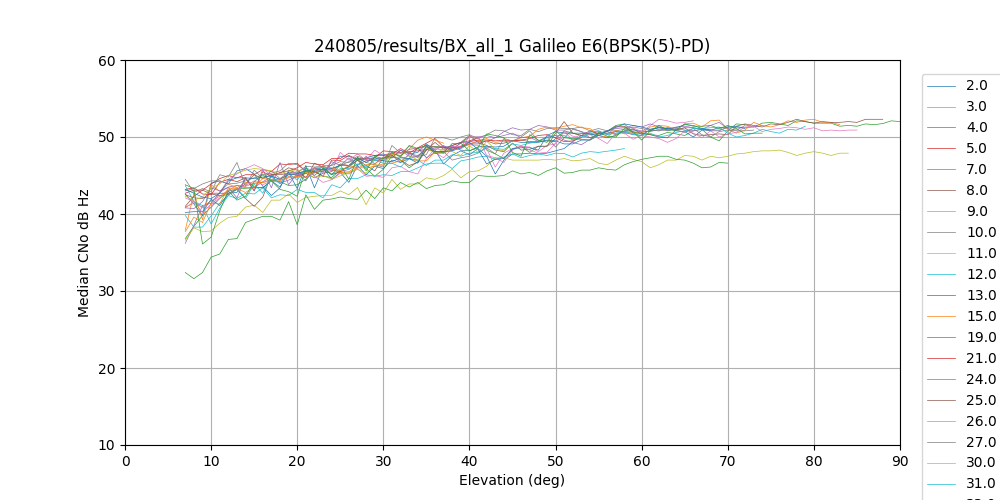

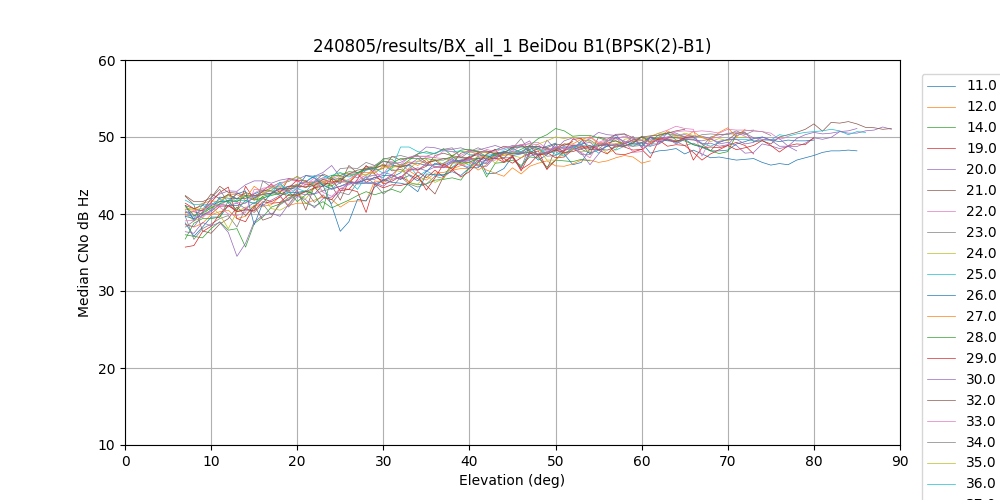

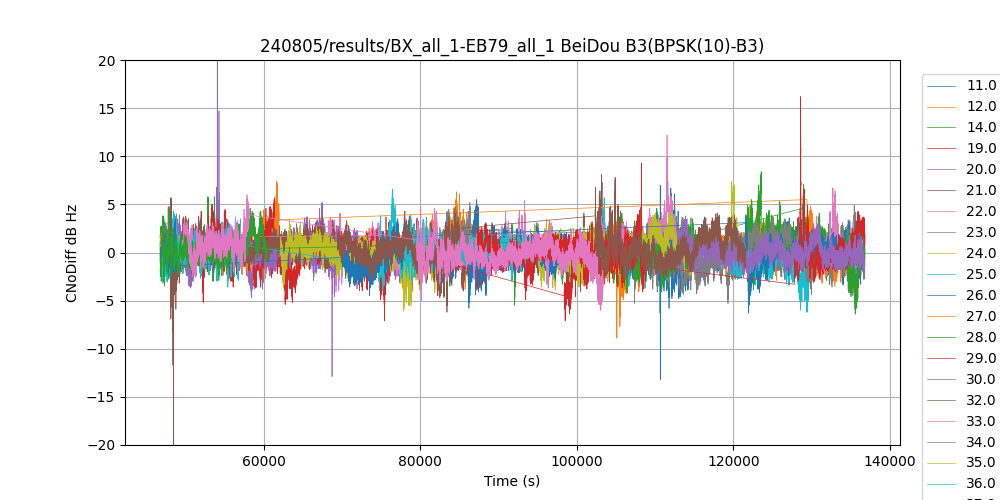

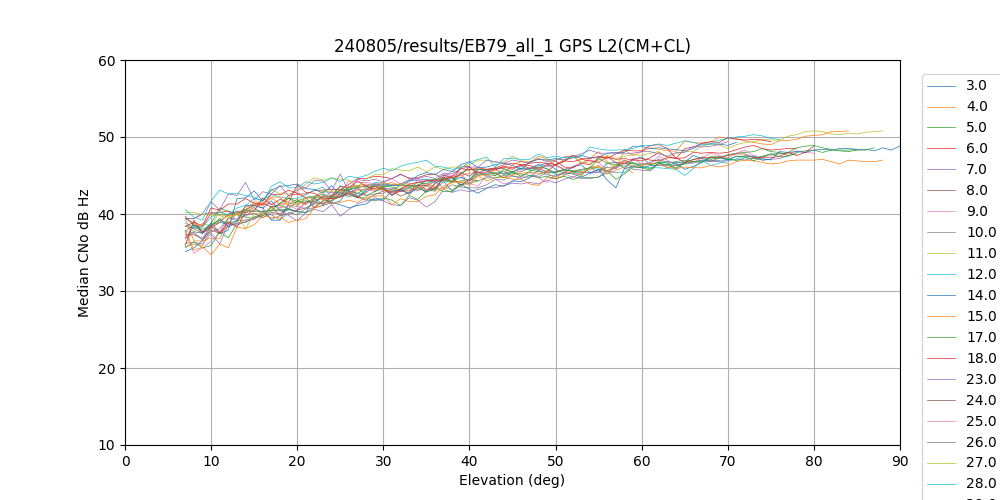

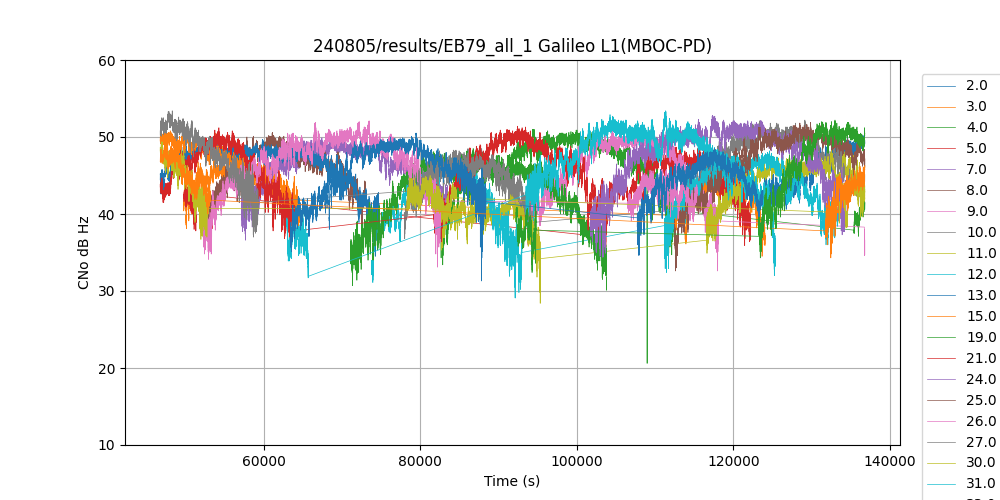

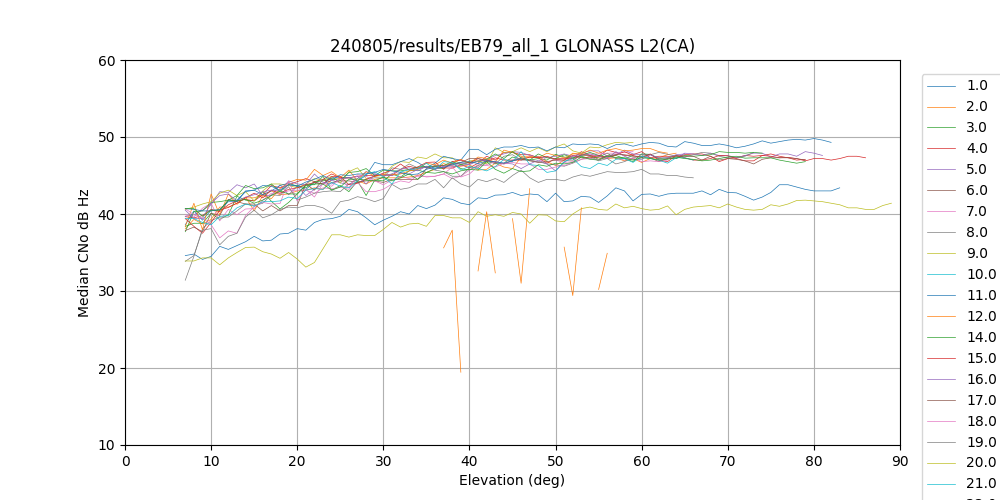

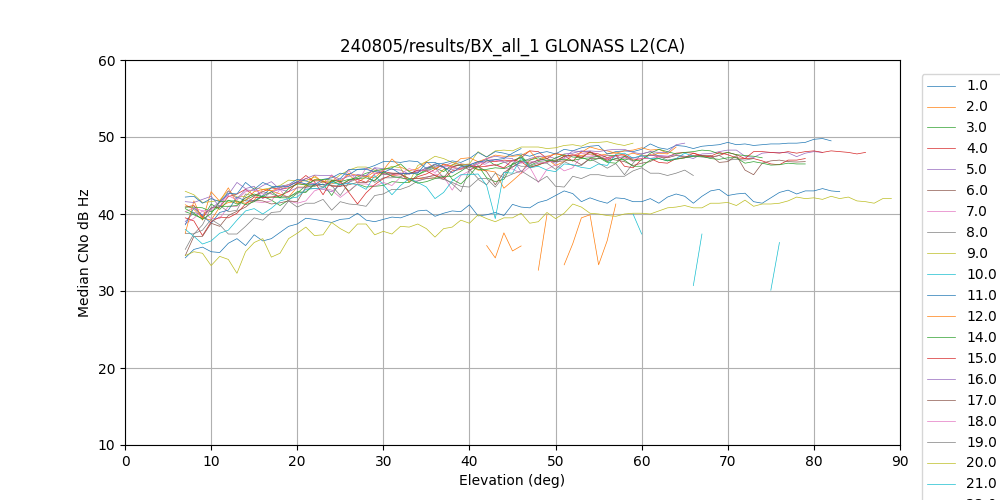

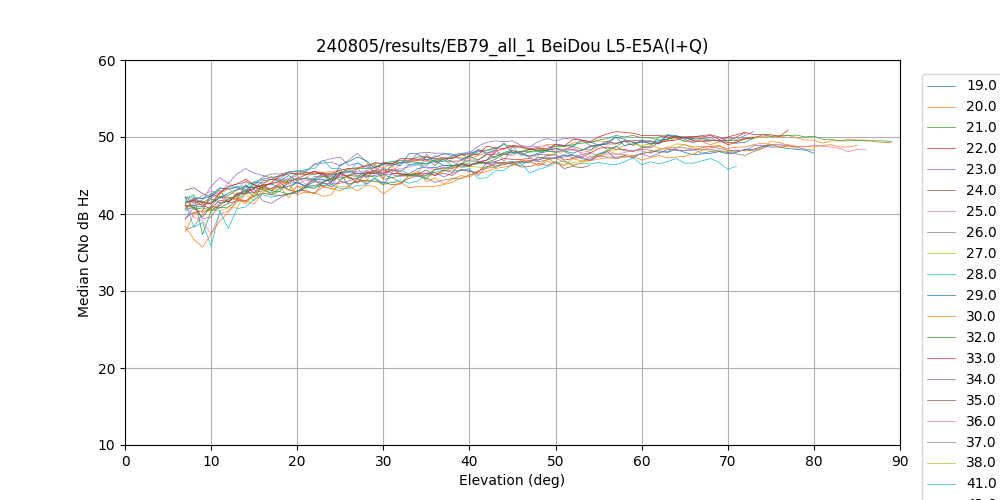

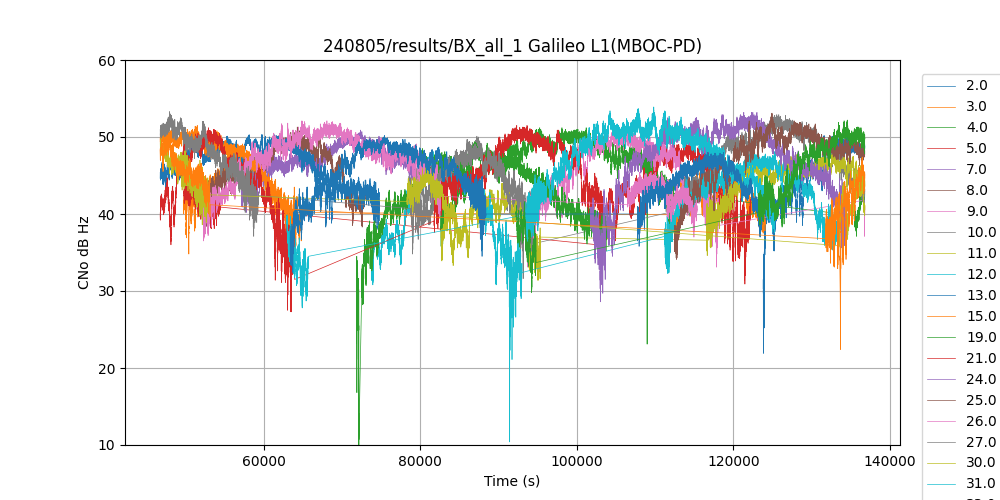

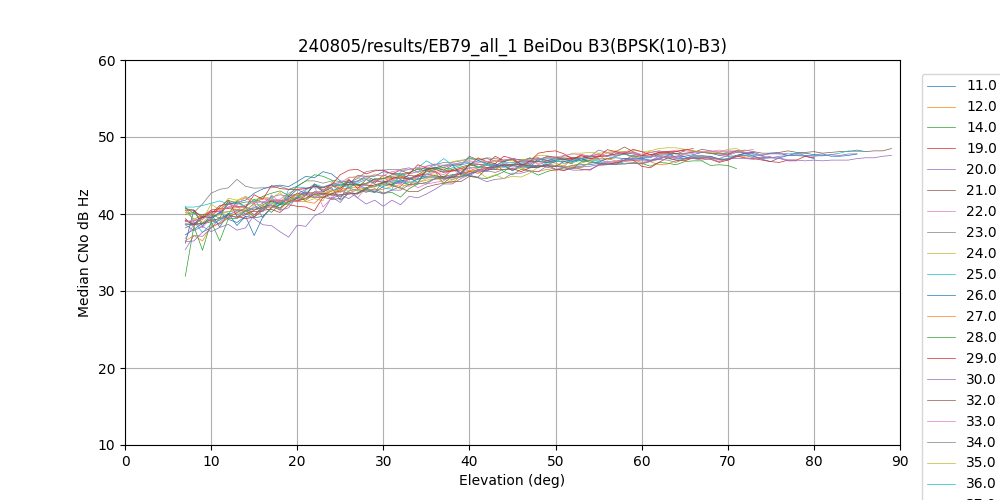

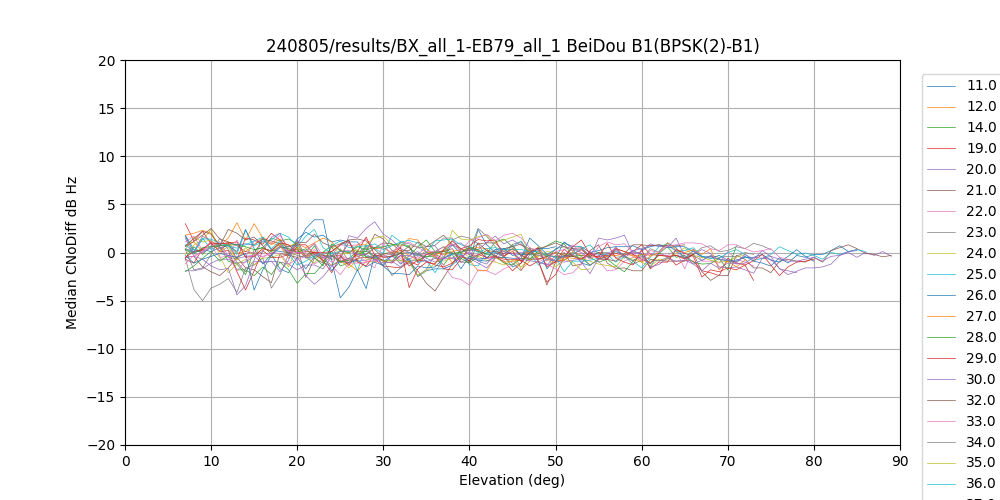

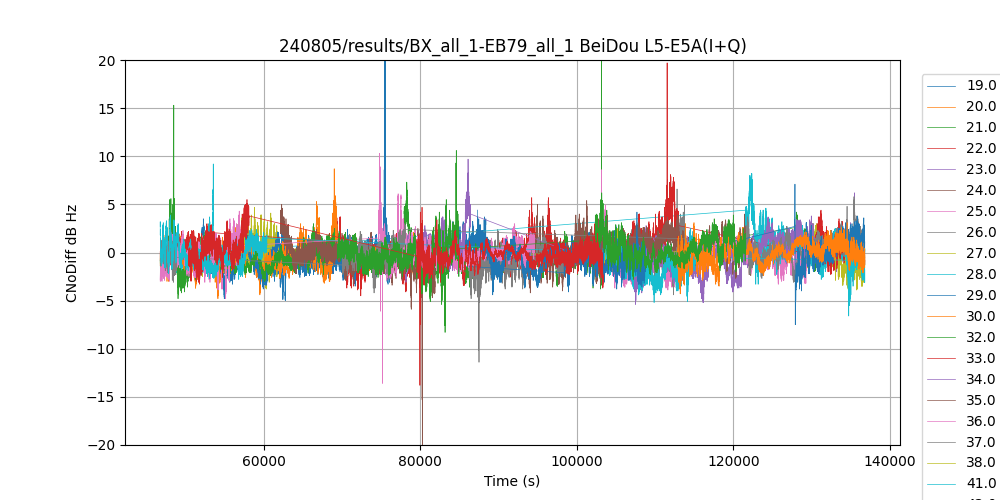

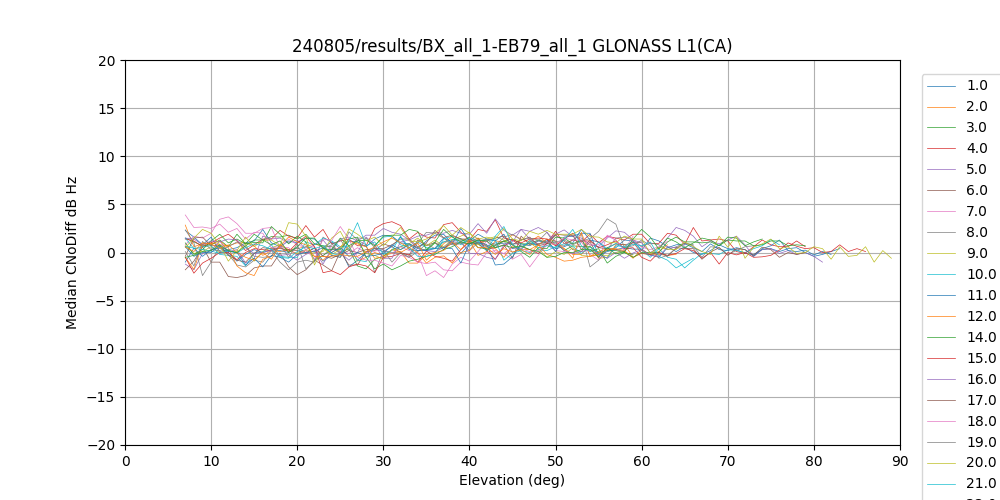

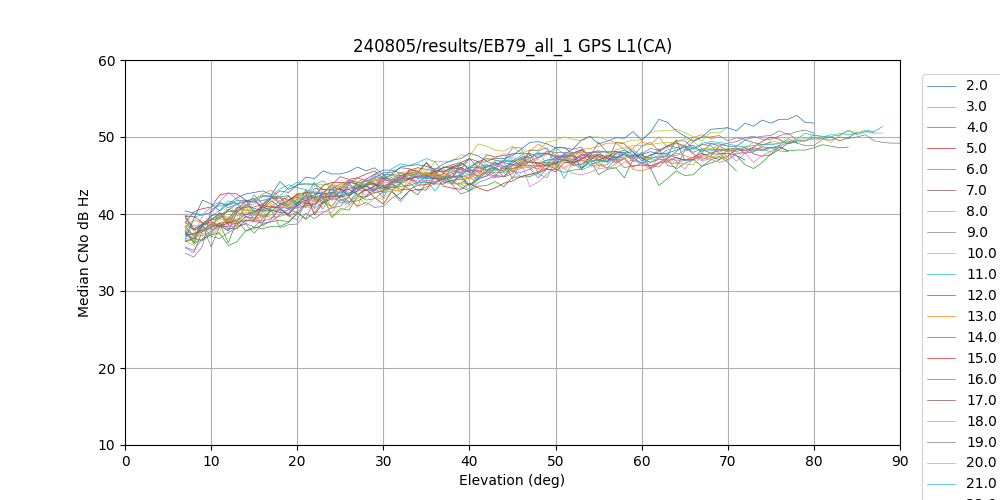

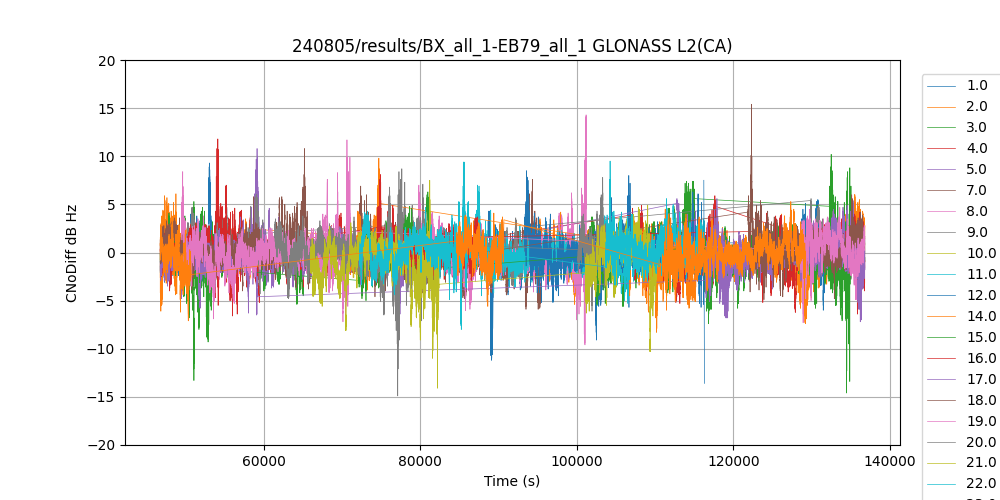

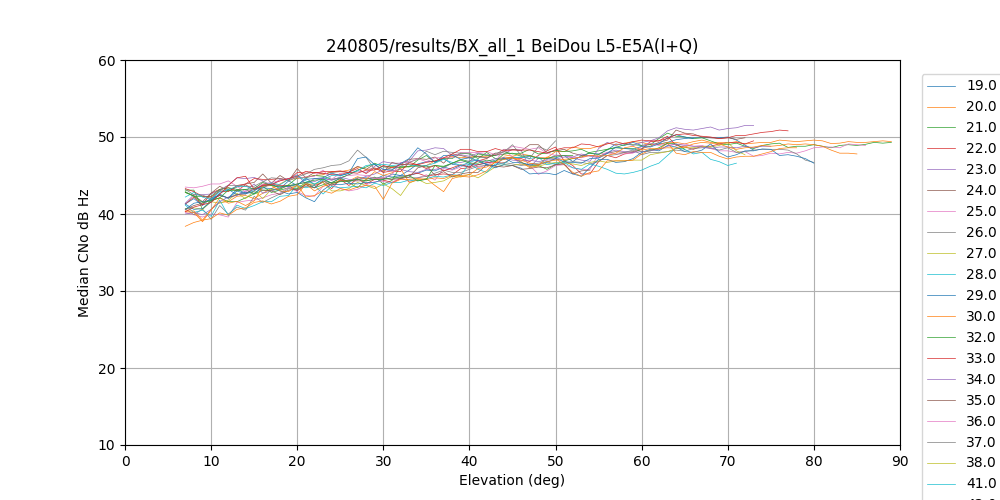

Plots

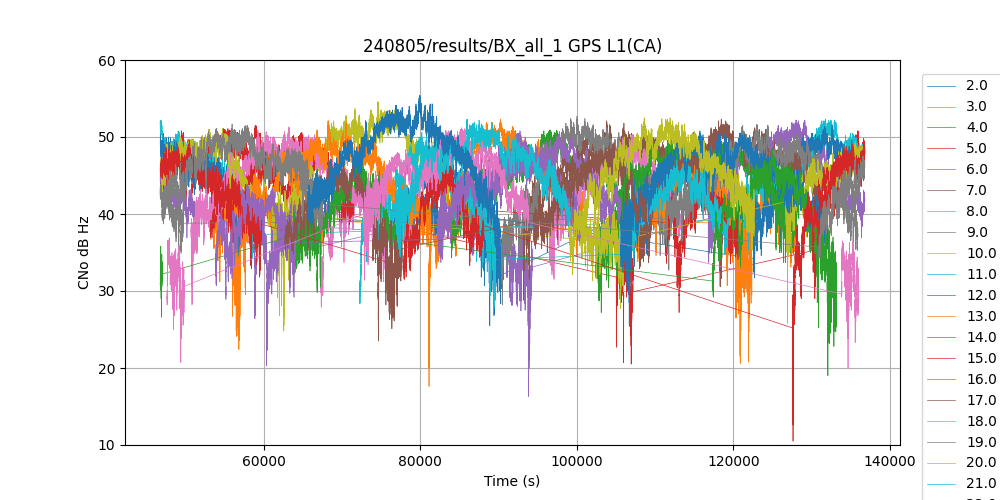

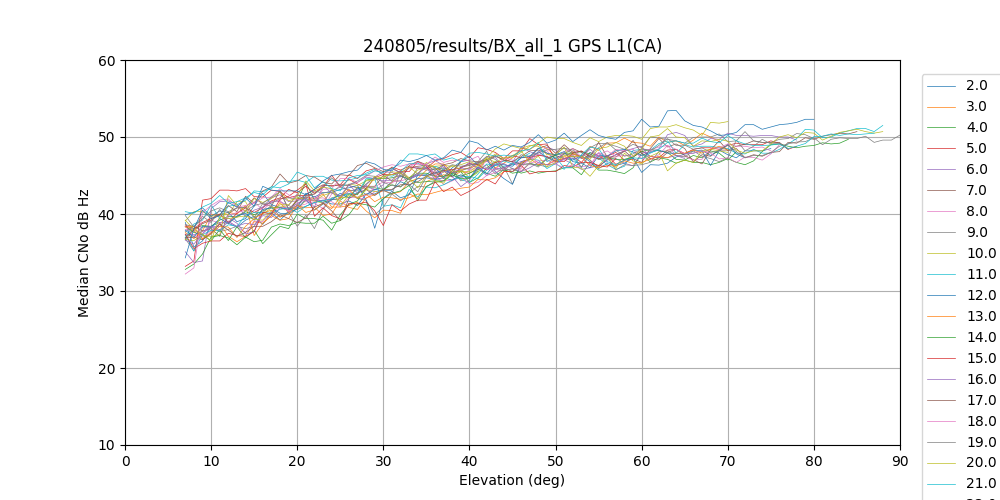

REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.3 49.3 25.5 148 [74.0, 95.0] [1.0] 30510
3 32.7 0.0 43.5 52.3 17.6 192 [79.0, 94.0] [1.0] 27074
4 45.4 0.0 44.8 50.9 34.3 0 [91.0] [1.0] 23840
5 40.2 0.0 45.2 51.5 20.5 493 [75.0, 72.0] [1.0] 26886
6 36.4 0.0 43.7 52.2 16.3 515 [86.0, 88.0, 89.0] [1.0] 28333
7 45.1 0.0 45.7 52.1 28.8 0 [87.0] [1.0] 25519
8 27.3 0.0 42.3 50.2 27.9 64 [89.0, 82.0] [1.0] 29174
9 44.1 0.0 45.0 52.7 28.2 5 [94.0] [1.0] 21419
10 43.5 0.0 46.7 54.6 24.8 44 [95.0] [1.0] 25764
11 48.6 0.0 46.3 52.3 30.4 151 [88.0, 87.0] [1.0] 27184
12 41.5 0.0 44.8 51.6 31.7 319 [90.0, 91.0, 95.0] [1.0] 28049
13 26.4 0.0 42.1 49.5 20.6 251 [87.0, 71.0] [1.0] 29957
14 44.2 0.0 44.5 50.5 27.2 19 [75.0] [1.0] 25702
15 29.1 0.0 43.3 50.6 27.2 91 [86.0, 72.0] [1.0] 27787
16 31.2 0.0 42.5 50.4 20.3 336 [88.0, 80.0] [1.0] 27101
17 45.7 0.0 46.2 52.3 32.9 0 [92.0] [1.0] 24115
18 44.2 0.0 44.8 51.3 28.2 0 [93.0] [1.0] 24957
19 41.4 0.0 44.6 51.6 33.1 175 [83.0, 79.0] [1.0] 27542
20 37.9 0.0 43.8 51.1 25.8 435 [82.0, 77.0, 83.0] [1.0] 29905
21 26.6 0.0 42.1 50.6 27.9 120 [84.0, 77.0] [1.0] 30256
22 44.4 0.0 44.9 50.8 25.4 6 [80.0] [1.0] 26007
23 43.5 0.0 44.2 52.1 22.4 157 [72.0] [1.0] 25545
24 25.5 0.0 40.3 48.4 19.0 616 [84.0, 83.0, 86.0] [1.0] 30051
25 31.3 0.0 42.1 49.8 10.5 397 [81.0, 92.0, 78.0] [1.0] 32404
26 28.0 0.0 42.3 50.8 28.9 256 [77.0, 72.0] [1.0] 28485
27 26.1 0.0 41.7 49.3 23.5 239 [92.0, 88.0] [1.0] 29919
28 36.9 0.0 43.1 51.2 19.9 1074 [93.0, 78.0, 86.0] [1.0] 25365
29 43.2 0.0 45.4 51.7 34.3 32 [74.0, 71.0] [1.0] 26541
30 45.9 0.0 45.8 52.5 32.1 0 [81.0] [1.0] 23647
31 45.3 0.0 46.5 52.3 34.4 0 [93.0] [1.0] 22332
32 45.3 0.0 47.6 55.4 30.5 3 [94.0] [1.0] 24642

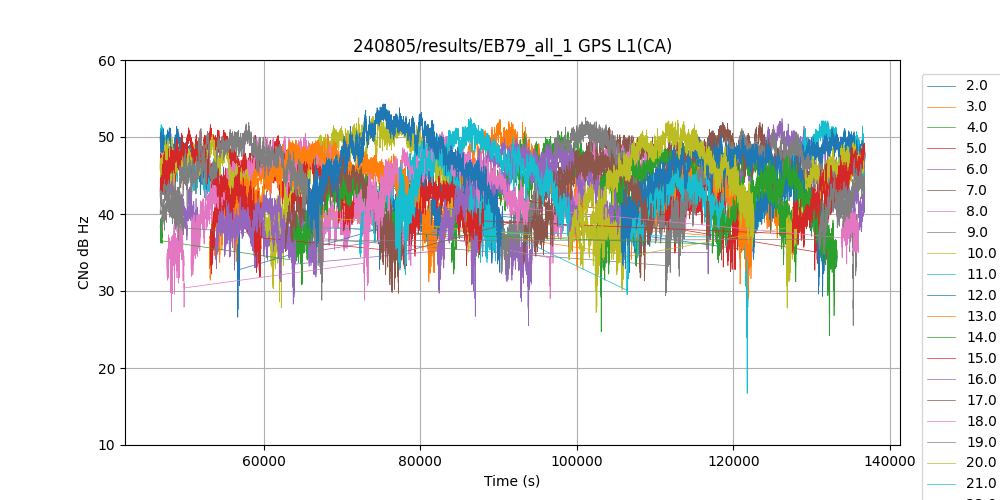

DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.3 49.1 32.8 46 [74.0, 94.0] [1.0] 30487
3 32.7 0.0 43.6 52.3 31.2 155 [79.0, 93.0] [1.0] 27104
4 45.4 0.0 44.4 50.7 32.2 0 [92.0] [1.0] 23802
5 40.2 0.0 45.2 51.6 32.7 300 [75.0, 72.0, 73.0] [1.0] 26869
6 36.3 0.0 43.6 52.4 25.5 392 [84.0, 86.0, 87.0] [1.0] 28378
7 45.1 0.0 45.6 51.2 33.5 0 [91.0] [1.0] 25520
8 27.4 0.0 42.3 49.5 29.0 242 [89.0, 83.0] [1.0] 29157
9 44.1 0.0 44.9 52.5 32.1 1 [88.0] [1.0] 21424
10 43.5 0.0 46.7 53.2 27.8 4 [94.0] [1.0] 25782
11 48.6 0.0 45.7 52.1 16.7 250 [89.0, 91.0] [1.0] 27167
12 41.5 0.0 45.2 51.4 26.6 365 [90.0, 91.0, 94.0] [1.0] 28054
13 26.4 0.0 42.8 48.8 29.0 256 [87.0, 73.0] [1.0] 29932
14 44.1 0.0 44.5 49.6 24.7 6 [76.0] [1.0] 25734
15 29.1 0.0 43.4 50.2 32.2 4 [84.0, 70.0] [1.0] 27766
16 31.2 0.0 42.0 49.8 26.7 65 [89.0, 80.0] [1.0] 27078
17 45.7 0.0 45.8 51.9 31.3 1 [92.0] [1.0] 24093
18 44.1 0.0 44.5 50.5 31.9 0 [95.0] [1.0] 24960
19 41.4 0.0 44.4 51.1 25.5 243 [85.0, 79.0] [1.0] 27538
20 38.0 0.0 43.3 50.3 27.2 227 [83.0, 77.0] [1.0] 29858
21 26.6 0.0 42.6 49.5 29.5 77 [81.0, 80.0] [1.0] 30259
22 44.4 0.0 44.9 50.3 29.3 2 [82.0] [1.0] 25993
23 43.5 0.0 44.9 50.3 32.3 0 [72.0] [1.0] 25565
24 25.5 0.0 41.1 47.6 24.2 141 [82.0, 85.0] [1.0] 30080
25 31.3 0.0 42.9 51.2 31.8 336 [81.0, 93.0, 80.0] [1.0] 32368
26 28.0 0.0 42.0 49.9 28.3 163 [77.0, 72.0] [1.0] 28495
27 26.1 0.0 42.6 48.5 29.7 81 [93.0, 90.0] [1.0] 29887
28 36.9 0.0 43.4 50.7 27.3 247 [95.0, 78.0, 85.0] [1.0] 25357
29 43.1 0.0 44.9 51.9 28.8 82 [74.0, 72.0] [1.0] 26564
30 45.9 0.0 45.6 52.2 34.0 0 [81.0] [1.0] 23628
31 45.3 0.0 46.1 52.5 32.1 0 [95.0] [1.0] 22312
32 45.3 0.0 47.6 54.3 32.4 0 [88.0] [1.0] 24648

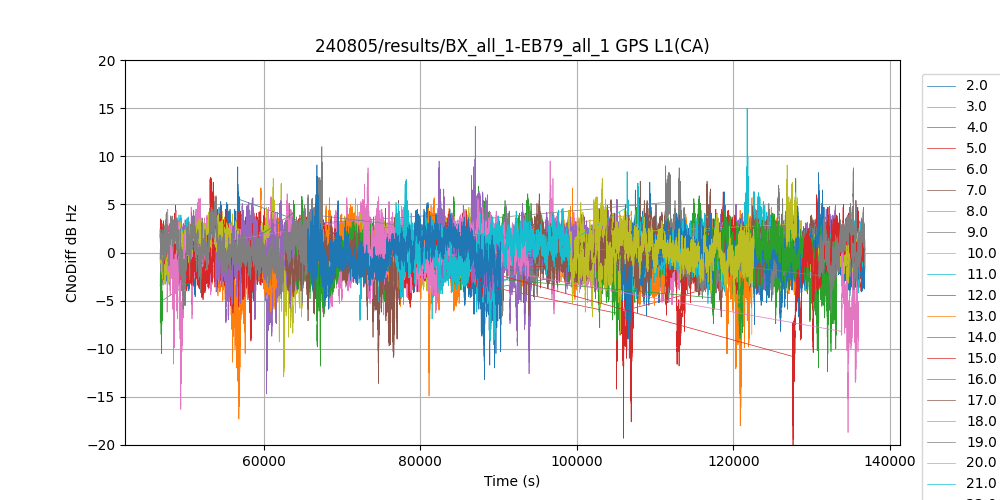

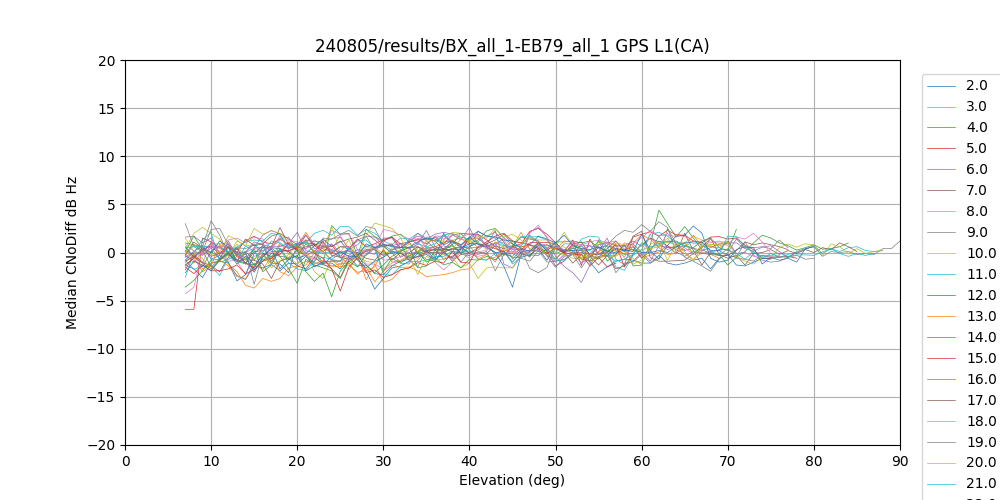

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.9 7.3 -13.2 [74.0, 95.0, 94.0] 30472
3 32.7 -0.1 6.7 -14.9 [79.0, 94.0, 93.0] 27053
4 45.4 0.4 6.9 -6.8 [91.0, 92.0] 23802
5 40.2 0.1 6.0 -19.3 [75.0, 72.0, 73.0] 26868
6 36.4 0.0 5.1 -12.6 [86.0, 84.0, 88.0, 89.0, 87.0] 28326
7 45.1 0.1 7.4 -6.7 [87.0, 91.0] 25518
8 27.4 0.1 9.5 -6.4 [89.0, 82.0, 83.0] 29149
9 44.1 0.1 5.0 -6.6 [94.0, 88.0] 21415
10 43.5 0.0 7.7 -12.9 [95.0, 94.0] 25758
11 48.6 0.6 15.0 -5.3 [88.0, 89.0, 87.0, 91.0] 27166
12 41.5 -0.5 8.9 -8.2 [90.0, 91.0, 95.0, 94.0] 28012
13 26.4 -0.7 7.8 -18.0 [87.0, 71.0, 73.0] 29932
14 44.2 -0.1 7.7 -9.1 [75.0, 76.0] 25702
15 29.1 -0.0 7.8 -11.8 [86.0, 84.0, 72.0, 70.0] 27756
16 31.2 0.5 13.1 -14.7 [88.0, 89.0, 80.0] 27072
17 45.7 0.4 7.4 -5.0 [92.0] 24093
18 44.2 0.3 6.1 -6.9 [93.0, 95.0] 24951
19 41.5 0.2 9.0 -4.8 [83.0, 85.0, 79.0] 27524
20 38.0 0.5 9.1 -8.3 [82.0, 83.0, 77.0] 29832
21 26.6 -0.5 8.4 -9.2 [84.0, 81.0, 77.0, 80.0] 30240
22 44.5 0.0 8.3 -11.0 [80.0, 82.0] 25982
23 43.5 -0.7 6.7 -17.3 [72.0] 25545
24 25.5 -0.8 5.8 -12.4 [84.0, 82.0, 83.0, 85.0, 86.0] 30042
25 31.3 -0.8 4.3 -28.1 [81.0, 92.0, 93.0, 78.0, 80.0] 32363
26 28.0 0.2 9.5 -7.3 [77.0, 72.0] 28468
27 26.2 -0.8 5.4 -13.6 [92.0, 93.0, 88.0, 90.0] 29881
28 36.9 -0.4 8.8 -18.7 [93.0, 95.0, 78.0, 86.0, 85.0] 25335
29 43.2 0.6 11.0 -6.3 [74.0, 71.0, 72.0] 26540
30 45.9 0.2 7.7 -5.3 [81.0] 23627
31 45.3 0.4 7.6 -4.6 [93.0, 95.0] 22312
32 45.3 0.0 9.1 -5.9 [94.0, 88.0] 24641

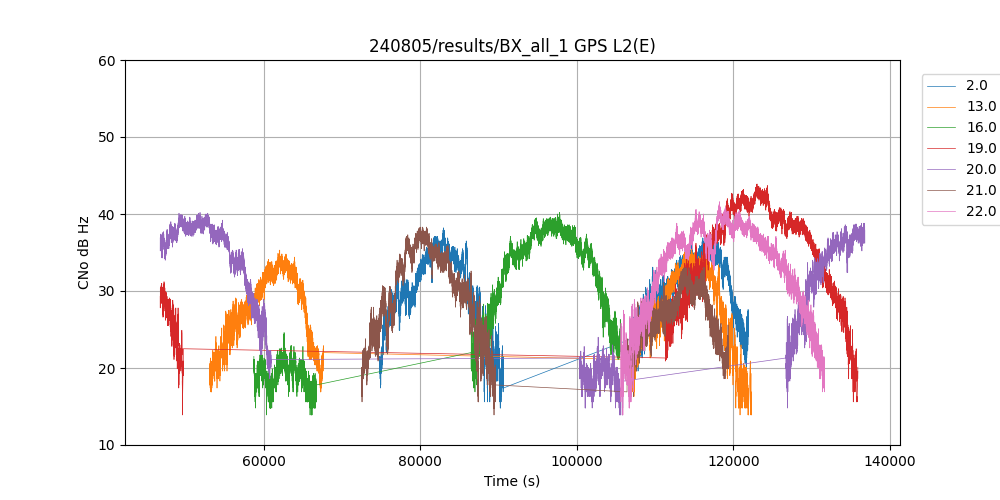

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 38.2 14.8 116 [74.0, 95.0] [1.0] 30510
13 26.7 0.0 27.4 35.4 13.9 258 [87.0, 71.0] [1.0] 29461
16 31.5 0.0 28.6 40.2 13.9 244 [88.0, 80.0] [1.0] 26702
19 41.6 0.0 33.9 43.9 13.9 164 [83.0, 79.0] [1.0] 27384
20 38.3 0.0 30.9 40.2 13.9 411 [82.0, 77.0, 83.0] [1.0] 29547
21 26.7 0.0 28.2 38.3 13.9 220 [84.0, 77.0] [1.0] 30026
22 44.4 0.0 32.7 41.6 13.9 4 [80.0] [1.0] 26001

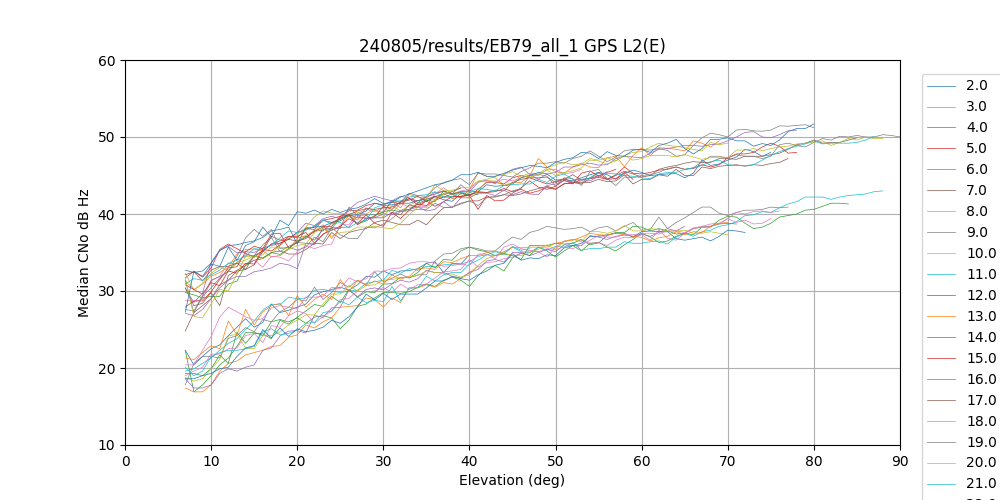

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 29.8 36.7 13.9 252 [74.0, 94.0] [1.0] 30487
3 32.7 0.0 40.0 50.6 24.6 2 [79.0, 93.0] [1.0] 27104
4 45.5 0.0 32.7 43.0 12.6 0 [92.0] [1.0] 23734
5 40.2 0.0 41.7 50.0 25.2 187 [75.0, 72.0, 73.0] [1.0] 26869
6 36.3 0.0 41.0 51.9 22.3 91 [84.0, 86.0, 87.0] [1.0] 28378
7 45.1 0.0 41.2 48.2 20.9 0 [91.0] [1.0] 25520
8 27.4 0.0 37.8 47.1 19.9 103 [89.0, 83.0] [1.0] 29157
9 44.1 0.0 43.7 53.0 22.6 1 [88.0] [1.0] 21418
10 43.5 0.0 43.5 50.5 23.5 4 [94.0] [1.0] 25782
11 48.6 0.0 34.5 43.8 16.9 232 [89.0, 91.0] [1.0] 27149
12 41.5 0.0 41.5 50.5 23.6 312 [90.0, 91.0, 94.0] [1.0] 28046
13 26.4 0.0 26.8 35.4 12.6 66 [87.0, 73.0] [1.0] 29932
14 44.1 0.0 33.3 40.3 12.6 4 [76.0] [1.0] 25726
15 29.1 0.0 38.5 47.2 19.0 250 [84.0, 70.0] [1.0] 27766
16 31.2 0.0 27.7 39.6 10.9 104 [89.0, 80.0] [1.0] 27078
17 45.7 0.0 42.1 50.5 21.8 1 [92.0] [1.0] 24093
18 44.1 0.0 32.9 41.4 15.6 0 [95.0] [1.0] 24960
19 41.5 0.0 33.3 42.7 13.9 51 [85.0, 79.0] [1.0] 27499
20 38.0 0.0 30.5 40.3 13.9 269 [83.0, 77.0] [1.0] 29858
21 26.6 0.0 27.9 37.4 13.9 16 [81.0, 80.0] [1.0] 30259
22 44.4 0.0 32.1 39.6 13.9 2 [82.0] [1.0] 25993
23 43.5 0.0 33.6 41.2 15.6 0 [72.0] [1.0] 25565
24 25.5 0.0 37.5 45.4 21.3 80 [82.0, 85.0] [1.0] 30069
25 31.3 0.0 38.8 47.5 21.1 20 [81.0, 93.0, 80.0] [1.0] 32368
26 28.0 0.0 36.7 46.4 19.6 158 [77.0, 72.0] [1.0] 28495
27 26.1 0.0 39.0 45.2 24.4 73 [93.0, 90.0] [1.0] 29887
28 36.9 0.0 31.4 42.0 14.8 390 [95.0, 78.0, 85.0] [1.0] 25357
29 43.1 0.0 41.4 51.0 20.9 108 [74.0, 72.0] [1.0] 26564
30 45.9 0.0 42.7 50.8 20.9 0 [81.0] [1.0] 23628
31 45.3 0.0 42.6 50.8 26.9 0 [95.0] [1.0] 22312
32 45.3 0.0 44.5 52.6 18.6 0 [88.0] [1.0] 24648
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.1 10.7 -11.1 [74.0, 95.0, 94.0] 30472
13 26.7 0.3 7.7 -8.1 [87.0, 71.0, 73.0] 29445
16 31.5 0.8 7.5 -7.7 [88.0, 89.0, 80.0] 26673
19 41.7 0.5 8.9 -7.5 [83.0, 85.0, 79.0] 27327
20 38.4 0.3 5.9 -6.6 [82.0, 83.0, 77.0] 29474
21 26.7 0.2 8.4 -6.9 [84.0, 81.0, 77.0, 80.0] 30025
22 44.5 0.7 7.6 -6.0 [80.0, 82.0] 25976
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.4 30.7 210 [79.0, 94.0] [1.0] 27055
4 45.4 0.0 45.8 52.3 31.8 0 [91.0] [1.0] 23840
5 40.2 0.0 44.1 49.4 28.7 78 [75.0, 72.0] [1.0] 26886
6 36.4 0.0 44.7 49.8 31.5 328 [86.0, 88.0, 89.0] [1.0] 28333
7 45.1 0.0 44.0 49.5 33.7 0 [87.0] [1.0] 25519
8 27.3 0.0 43.1 48.2 30.1 59 [89.0, 82.0] [1.0] 29174
9 44.1 0.0 43.9 49.3 28.5 0 [94.0] [1.0] 21419
10 43.5 0.0 44.4 48.9 27.0 0 [95.0] [1.0] 25764
11 48.6 0.0 46.9 52.3 34.3 182 [88.0, 87.0] [1.0] 27184
12 41.5 0.0 43.4 48.8 32.1 276 [90.0, 91.0, 95.0] [1.0] 28049
14 44.2 0.0 46.6 51.7 34.9 0 [75.0] [1.0] 25702
15 29.1 0.0 42.3 47.7 27.2 231 [86.0, 72.0] [1.0] 27787
17 45.7 0.0 44.3 50.7 29.7 0 [92.0] [1.0] 24115
18 44.2 0.0 46.4 52.2 37.6 0 [93.0] [1.0] 24957
23 43.5 0.0 46.5 51.7 35.6 0 [72.0] [1.0] 25545
24 25.5 0.0 42.6 47.3 32.2 159 [84.0, 83.0, 86.0] [1.0] 30051
25 31.4 0.0 42.0 47.5 24.2 205 [81.0, 92.0, 78.0] [1.0] 32287
26 28.0 0.0 42.1 47.4 19.2 171 [77.0, 72.0] [1.0] 28485
27 26.1 0.0 42.7 47.5 18.6 137 [92.0, 88.0] [1.0] 29917
28 37.0 0.0 45.9 51.5 30.1 255 [93.0, 78.0, 86.0] [1.0] 25314
29 43.2 0.0 43.7 50.4 31.2 39 [74.0, 71.0] [1.0] 26541
30 45.9 0.0 43.7 48.9 31.0 0 [81.0] [1.0] 23647
31 45.3 0.0 44.7 50.2 34.3 0 [93.0] [1.0] 22332
32 45.3 0.0 45.0 50.2 25.1 5 [94.0] [1.0] 24642
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.6 33.9 237 [79.0, 93.0] [1.0] 27104
4 45.4 0.0 45.6 52.0 32.4 0 [92.0] [1.0] 23802
5 40.2 0.0 44.0 49.5 32.2 73 [75.0, 72.0, 73.0] [1.0] 26869
6 36.3 0.0 43.9 50.0 32.6 207 [84.0, 86.0, 87.0] [1.0] 28378
7 45.1 0.0 43.6 49.1 26.7 1 [91.0] [1.0] 25520
8 27.4 0.0 42.1 48.2 24.7 176 [89.0, 83.0] [1.0] 29157
9 44.1 0.0 44.6 49.6 28.2 0 [88.0] [1.0] 21423
10 43.5 0.0 44.2 48.4 33.9 0 [94.0] [1.0] 25782
11 48.6 0.0 46.5 51.7 34.9 226 [89.0, 91.0] [1.0] 27167
12 41.5 0.0 43.7 49.8 28.9 160 [90.0, 91.0, 94.0] [1.0] 28054
14 44.1 0.0 45.8 50.5 25.2 6 [76.0] [1.0] 25734
15 29.1 0.0 42.2 48.0 18.1 291 [84.0, 70.0] [1.0] 27763
17 45.7 0.0 43.9 49.5 28.6 0 [92.0] [1.0] 24093
18 44.1 0.0 45.7 51.3 33.9 0 [95.0] [1.0] 24960
23 43.5 0.0 46.1 50.8 34.6 0 [72.0] [1.0] 25565
24 25.5 0.0 41.7 47.5 29.3 166 [82.0, 85.0] [1.0] 30080
25 31.3 0.0 42.2 47.8 29.6 56 [81.0, 93.0, 80.0] [1.0] 32368
26 28.0 0.0 41.6 47.5 28.1 173 [77.0, 72.0] [1.0] 28495
27 26.1 0.0 42.2 46.4 31.3 2 [93.0, 90.0] [1.0] 29887
28 36.9 0.0 45.3 51.3 29.7 233 [95.0, 78.0, 85.0] [1.0] 25357
29 43.1 0.0 43.5 49.8 26.2 175 [74.0, 72.0] [1.0] 26564
30 45.9 0.0 43.6 48.2 31.3 0 [81.0] [1.0] 23628
31 45.3 0.0 44.7 49.7 34.7 0 [95.0] [1.0] 22312
32 45.3 0.0 44.9 49.9 22.8 27 [88.0] [1.0] 24648
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.0 5.9 -5.6 [79.0, 94.0, 93.0] 27034
4 45.4 0.3 5.8 -6.8 [91.0, 92.0] 23802
5 40.2 0.1 6.6 -8.9 [75.0, 72.0, 73.0] 26868
6 36.4 0.8 8.4 -8.2 [86.0, 84.0, 88.0, 89.0, 87.0] 28326
7 45.1 0.4 10.6 -4.3 [87.0, 91.0] 25518
8 27.4 0.9 9.6 -5.7 [89.0, 82.0, 83.0] 29149
9 44.1 -0.7 6.4 -6.9 [94.0, 88.0] 21414
10 43.5 0.2 7.7 -13.3 [95.0, 94.0] 25758
11 48.6 0.3 5.2 -4.4 [88.0, 89.0, 87.0, 91.0] 27166
12 41.5 -0.3 8.8 -5.8 [90.0, 91.0, 95.0, 94.0] 28012
14 44.2 0.7 14.7 -8.2 [75.0, 76.0] 25702
15 29.1 0.0 18.7 -6.4 [86.0, 84.0, 72.0, 70.0] 27753
17 45.7 0.4 6.2 -7.3 [92.0] 24093
18 44.2 0.7 7.3 -4.4 [93.0, 95.0] 24951
23 43.5 0.4 6.6 -5.8 [72.0] 25545
24 25.5 0.9 7.9 -5.2 [84.0, 82.0, 83.0, 85.0, 86.0] 30042
25 31.4 -0.2 6.3 -14.3 [81.0, 92.0, 93.0, 78.0, 80.0] 32246
26 28.0 0.5 6.7 -16.8 [77.0, 72.0] 28468
27 26.2 0.5 7.5 -22.2 [92.0, 93.0, 88.0, 90.0] 29879
28 37.0 0.5 9.3 -6.7 [93.0, 95.0, 78.0, 86.0, 85.0] 25285
29 43.2 0.2 7.7 -6.1 [74.0, 71.0, 72.0] 26540
30 45.9 0.0 6.4 -7.0 [81.0] 23627
31 45.3 0.1 5.1 -4.8 [93.0, 95.0] 22312
32 45.3 0.2 6.3 -9.0 [94.0, 88.0] 24641
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.0 53.2 39.9 80 [79.0, 94.0] [1.0] 27055
4 45.4 0.0 47.6 53.5 38.1 0 [91.0] [1.0] 23840
6 36.4 0.0 47.4 52.8 37.9 277 [86.0, 88.0, 89.0] [1.0] 28333
8 27.3 0.0 46.1 51.0 22.8 260 [89.0, 82.0] [1.0] 29174
9 44.1 0.0 47.8 52.7 38.2 0 [94.0] [1.0] 21419
10 43.5 0.0 47.6 51.8 32.7 0 [95.0] [1.0] 25764
11 48.6 0.0 48.9 53.6 37.5 216 [88.0, 87.0] [1.0] 27184
14 44.2 0.0 48.0 52.7 39.1 0 [75.0] [1.0] 25702
18 44.2 0.0 48.3 53.2 40.5 0 [93.0] [1.0] 24957
23 43.5 0.0 48.3 53.1 38.7 0 [72.0] [1.0] 25545
24 25.5 0.0 46.0 49.5 37.4 334 [84.0, 83.0, 86.0] [1.0] 30051
25 31.4 0.0 46.3 51.5 28.9 323 [81.0, 92.0, 78.0] [1.0] 32287
26 28.0 0.0 45.9 50.4 38.5 110 [77.0, 72.0] [1.0] 28485
27 26.1 0.0 46.2 50.0 38.6 246 [92.0, 88.0] [1.0] 29919
28 37.0 0.0 47.8 53.5 39.2 322 [93.0, 78.0, 86.0] [1.0] 25314
30 45.9 0.0 48.2 52.8 39.5 0 [81.0] [1.0] 23647
32 45.3 0.0 46.6 51.1 27.5 1 [94.0] [1.0] 24642
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.1 52.4 39.4 247 [79.0, 93.0] [1.0] 27104
4 45.4 0.0 47.9 53.3 38.0 0 [92.0] [1.0] 23802
6 36.3 0.0 47.1 52.8 38.9 364 [84.0, 86.0, 87.0] [1.0] 28378
8 27.4 0.0 46.3 51.1 31.8 16 [89.0, 83.0] [1.0] 29157
9 44.1 0.0 48.3 52.7 37.6 0 [88.0] [1.0] 21424
10 43.5 0.0 47.8 51.5 39.2 0 [94.0] [1.0] 25782
11 48.6 0.0 49.1 54.1 32.7 192 [89.0, 91.0] [1.0] 27167
14 44.1 0.0 47.9 52.8 38.4 0 [76.0] [1.0] 25734
18 44.1 0.0 48.4 53.9 37.1 0 [95.0] [1.0] 24960
23 43.5 0.0 48.5 52.7 40.4 0 [72.0] [1.0] 25565
24 25.5 0.0 45.8 52.0 21.0 159 [82.0, 85.0] [1.0] 30079
25 31.3 0.0 46.7 52.1 35.4 428 [81.0, 93.0, 80.0] [1.0] 32368
26 28.0 0.0 46.1 50.6 36.4 236 [77.0, 72.0] [1.0] 28495
27 26.1 0.0 46.1 49.8 38.5 222 [93.0, 90.0] [1.0] 29887
28 36.9 0.0 47.8 53.9 32.3 46 [95.0, 78.0, 85.0] [1.0] 25357
30 45.9 0.0 48.5 52.4 37.5 0 [81.0] [1.0] 23628
32 45.3 0.0 47.2 51.0 29.9 0 [88.0] [1.0] 24648
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.1 4.0 -5.3 [79.0, 94.0, 93.0] 27034
4 45.4 -0.2 5.1 -3.9 [91.0, 92.0] 23802
6 36.4 0.3 4.8 -5.2 [86.0, 84.0, 88.0, 89.0, 87.0] 28326
8 27.4 -0.2 8.6 -18.6 [89.0, 82.0, 83.0] 29149
9 44.1 -0.5 5.3 -4.6 [94.0, 88.0] 21415
10 43.5 -0.2 4.3 -12.2 [95.0, 94.0] 25758
11 48.6 -0.2 11.1 -3.7 [88.0, 89.0, 87.0, 91.0] 27166
14 44.2 0.1 5.9 -4.4 [75.0, 76.0] 25702
18 44.2 -0.1 6.2 -4.4 [93.0, 95.0] 24951
23 43.5 -0.2 4.2 -4.2 [72.0] 25545
24 25.5 0.2 20.6 -4.7 [84.0, 82.0, 83.0, 85.0, 86.0] 30041
25 31.4 -0.4 4.9 -13.0 [81.0, 92.0, 93.0, 78.0, 80.0] 32246
26 28.0 -0.2 3.9 -4.2 [77.0, 72.0] 28468
27 26.2 0.0 4.7 -5.0 [92.0, 93.0, 88.0, 90.0] 29881
28 37.0 -0.0 9.0 -4.0 [93.0, 95.0, 78.0, 86.0, 85.0] 25285
30 45.9 -0.3 4.9 -4.3 [81.0] 23627
32 45.3 -0.6 4.1 -15.7 [94.0, 88.0] 24641
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.3 0.0 42.9 49.2 19.0 351 [1.0] [1.0] 30078
2 31.2 0.0 47.1 53.4 36.9 96 [-4.0] [1.0] 35661
3 31.8 0.0 43.8 49.0 28.4 348 [5.0] [1.0] 34055
4 34.2 0.0 43.8 49.6 32.6 80 [6.0] [1.0] 29788
5 36.2 0.0 46.3 52.2 29.2 195 [1.0] [1.0] 26895
6 39.5 0.0 37.2 42.8 19.0 730 [-4.0] [1.0] 22784
7 38.8 0.0 45.5 51.0 31.5 0 [5.0] [1.0] 23279
8 42.2 0.0 43.3 49.1 29.2 0 [6.0] [1.0] 21410
9 29.5 0.0 45.2 52.3 33.7 131 [-2.0] [1.0] 33016
10 33.2 0.0 40.9 47.4 27.7 244 [-7.0] [1.0] 26148
11 44.4 0.0 47.9 52.7 35.0 0 [0.0] [1.0] 20244
12 39.6 0.0 47.6 53.1 33.3 0 [-1.0] [1.0] 22953
14 35.8 0.0 47.5 54.1 34.6 81 [-7.0] [1.0] 27301
15 35.6 0.0 46.7 53.0 32.7 335 [0.0] [1.0] 34702
16 34.6 0.0 46.8 52.8 34.7 458 [-1.0] [1.0] 36929
17 41.3 0.0 46.5 51.4 35.0 146 [4.0] [1.0] 32663
18 43.9 0.0 47.9 52.3 32.4 35 [-3.0] [1.0] 34037
19 39.7 0.0 36.1 41.4 21.7 689 [3.0] [1.0] 30151
20 39.9 0.0 33.7 39.5 19.9 2065 [2.0] [1.0] 22363
21 31.6 0.0 45.1 51.0 34.5 104 [4.0] [1.0] 25655
22 28.2 0.0 45.7 52.9 25.1 24 [-3.0] [1.0] 26745
23 29.7 0.0 42.6 49.0 32.0 191 [3.0] [1.0] 26401
24 33.1 0.0 45.9 52.3 31.0 388 [2.0] [1.0] 27967
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.4 0.0 42.3 49.6 29.9 236 [1.0] [1.0] 30068
2 31.2 0.0 46.7 53.0 34.6 308 [-4.0] [1.0] 35664
3 31.8 0.0 43.1 48.5 30.9 327 [5.0] [1.0] 34063
4 34.2 0.0 42.5 49.2 26.1 301 [6.0] [1.0] 29760
5 36.2 0.0 45.7 51.3 24.5 165 [1.0] [1.0] 26899
6 38.9 0.0 37.0 42.0 24.7 213 [-4.0] [1.0] 23225
7 38.7 0.0 44.9 49.8 31.7 0 [5.0] [1.0] 23322
8 42.2 0.0 43.0 49.0 32.3 0 [6.0] [1.0] 21379
9 29.5 0.0 44.7 51.5 33.7 272 [-2.0] [1.0] 32969
10 33.2 0.0 40.8 48.2 26.8 252 [-7.0] [1.0] 26119
11 44.4 0.0 47.4 52.3 30.4 0 [0.0] [1.0] 20204
12 39.7 0.0 47.5 52.9 30.9 0 [-1.0] [1.0] 22942
14 35.8 0.0 47.0 53.4 34.6 337 [-7.0] [1.0] 27259
15 35.6 0.0 46.5 52.9 34.1 46 [0.0] [1.0] 34708
16 34.6 0.0 46.5 52.5 31.4 412 [-1.0] [1.0] 36934
17 41.3 0.0 45.9 51.1 34.1 65 [4.0] [1.0] 32666
18 43.9 0.0 47.3 51.9 17.9 223 [-3.0] [1.0] 34021
19 38.8 0.0 35.1 39.7 20.9 917 [3.0] [1.0] 31206
20 42.3 0.0 32.9 39.1 17.4 4786 [2.0] [1.0] 20437
21 31.6 0.0 44.9 50.6 32.1 82 [4.0] [1.0] 25671
22 28.2 0.0 45.7 51.7 28.9 195 [-3.0] [1.0] 26731
23 29.8 0.0 42.5 49.2 28.9 11 [3.0] [1.0] 26345
24 33.1 0.0 45.2 51.8 32.4 253 [2.0] [1.0] 27986
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 33.4 0.6 5.9 -16.7 [1.0] 30046
2 31.2 0.4 9.9 -6.8 [-4.0] 35661
3 31.8 0.7 6.6 -10.2 [5.0] 34033
4 34.2 1.2 12.8 -8.9 [6.0] 29758
5 36.2 0.6 13.3 -10.7 [1.0] 26894
6 39.5 0.2 6.8 -10.4 [-4.0] 22784
7 38.8 0.6 8.1 -6.6 [5.0] 23279
8 42.2 0.3 7.6 -7.9 [6.0] 21379
9 29.6 0.5 6.9 -7.7 [-2.0] 32956
10 33.2 0.2 12.5 -8.2 [-7.0] 26105
11 44.4 0.5 8.2 -7.5 [0.0] 20204
12 39.7 0.0 8.5 -8.3 [-1.0] 22942
14 35.8 0.6 8.5 -6.9 [-7.0] 27259
15 35.6 0.1 10.2 -9.1 [0.0] 34675
16 34.6 0.4 7.1 -7.4 [-1.0] 36929
17 41.3 0.6 7.0 -5.4 [4.0] 32663
18 43.9 0.6 17.0 -5.6 [-3.0] 34021
19 39.8 0.8 7.3 -8.9 [3.0] 30076
20 42.3 1.2 9.1 -9.7 [2.0] 20420
21 31.6 0.2 9.2 -8.4 [4.0] 25641
22 28.2 0.0 7.1 -14.1 [-3.0] 26731
23 29.8 0.2 10.6 -6.9 [3.0] 26345
24 33.1 0.6 9.0 -8.9 [2.0] 27955
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.4 0.0 41.3 47.5 26.2 236 [1.0] [1.0] 30049
2 31.2 0.0 45.7 51.3 34.5 260 [-4.0] [1.0] 35659
3 31.8 0.0 42.1 47.2 30.0 303 [5.0] [1.0] 34052
4 34.2 0.0 41.7 47.3 31.2 120 [6.0] [1.0] 29785
5 36.2 0.0 44.8 50.5 28.8 207 [1.0] [1.0] 26893
6 39.7 0.0 35.8 40.7 18.8 1302 [-4.0] [1.0] 22596
7 38.8 0.0 44.0 49.3 32.4 1 [5.0] [1.0] 23277
8 42.2 0.0 41.4 47.0 30.7 2 [6.0] [1.0] 21409
9 29.5 0.0 43.5 50.3 33.3 180 [-2.0] [1.0] 33013
10 33.2 0.0 39.6 45.9 26.9 249 [-7.0] [1.0] 26144
11 44.4 0.0 46.1 50.7 35.7 1 [0.0] [1.0] 20243
12 39.6 0.0 46.6 51.6 33.7 1 [-1.0] [1.0] 22952
14 35.8 0.0 46.1 52.2 36.7 71 [-7.0] [1.0] 27299
15 35.6 0.0 44.7 50.6 32.7 119 [0.0] [1.0] 34700
16 34.6 0.0 45.3 50.9 34.4 244 [-1.0] [1.0] 36927
17 41.3 0.0 44.5 48.8 33.5 112 [4.0] [1.0] 32662
18 43.9 0.0 46.3 50.8 34.9 112 [-3.0] [1.0] 34036
19 39.9 0.0 34.1 39.2 20.4 1811 [3.0] [1.0] 29908
20 40.5 0.0 32.7 38.4 20.7 5429 [2.0] [1.0] 21883
21 31.6 0.0 43.3 48.8 34.9 172 [4.0] [1.0] 25653
22 28.2 0.0 44.4 50.7 29.0 121 [-3.0] [1.0] 26743
23 29.7 0.0 40.7 46.6 29.5 236 [3.0] [1.0] 26398
24 33.1 0.0 44.4 50.6 29.8 379 [2.0] [1.0] 27964
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.4 0.0 38.9 45.0 20.7 341 [1.0] [1.0] 30046
2 31.2 0.0 44.5 50.0 31.3 266 [-4.0] [1.0] 35659
3 31.8 0.0 44.1 49.6 34.0 127 [5.0] [1.0] 34052
4 34.2 0.0 44.5 49.9 28.2 212 [6.0] [1.0] 29785
5 36.2 0.0 44.9 49.9 31.4 165 [1.0] [1.0] 26893
6 56.7 0.0 16.0 19.2 10.8 2 [-4.0] [1.0] 3
7 38.8 0.0 44.7 49.4 30.6 5 [5.0] [1.0] 23278
8 42.2 0.0 44.8 49.6 26.0 3 [6.0] [1.0] 21409
9 29.5 0.0 45.5 50.7 34.7 160 [-2.0] [1.0] 33013
10 65.8 0.0 31.0 41.9 10.6 25 [-7.0] [1.0] 26
11 44.4 0.0 46.5 51.3 36.0 1 [0.0] [1.0] 20243
12 39.6 0.0 46.1 50.2 32.9 1 [-1.0] [1.0] 22952
14 35.8 0.0 44.5 50.0 31.8 355 [-7.0] [1.0] 27299
15 35.6 0.0 44.2 50.1 24.1 211 [0.0] [1.0] 34700
16 34.6 0.0 45.6 50.8 34.1 409 [-1.0] [1.0] 36927
17 41.3 0.0 44.6 48.9 29.2 96 [4.0] [1.0] 32662
18 43.9 0.0 46.2 49.7 35.5 77 [-3.0] [1.0] 34036
19 39.8 0.0 43.1 47.6 30.5 4 [3.0] [1.0] 29976
20 40.3 0.0 38.2 43.6 20.5 292 [2.0] [1.0] 22080
21 31.6 0.0 42.9 49.5 26.8 224 [4.0] [1.0] 25652
22 28.2 0.0 45.1 49.9 28.7 193 [-3.0] [1.0] 26743
23 47.7 0.0 34.1 42.4 11.0 197 [3.0] [1.0] 47
24 33.1 0.0 43.7 48.7 32.2 119 [2.0] [1.0] 27965
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.4 0.0 39.0 45.4 23.9 124 [1.0] [1.0] 30066
2 31.2 0.0 44.3 49.7 33.5 158 [-4.0] [1.0] 35662
3 31.8 0.0 44.3 49.5 30.3 397 [5.0] [1.0] 34060
4 34.2 0.0 44.6 50.0 23.5 235 [6.0] [1.0] 29757
5 36.2 0.0 45.0 49.9 31.4 121 [1.0] [1.0] 26897
6 53.0 0.0 15.3 15.3 15.3 0 [-4.0] [1.0] 1
7 38.7 0.0 45.1 49.7 29.2 1 [5.0] [1.0] 23321
8 42.3 0.0 45.1 49.5 19.0 30 [6.0] [1.0] 21375
9 29.6 0.0 45.1 50.9 31.7 312 [-2.0] [1.0] 32966
10 68.9 0.0 29.9 42.5 16.9 7 [-7.0] [1.0] 8
11 44.4 0.0 46.7 50.9 33.9 1 [0.0] [1.0] 20203
12 39.7 0.0 46.1 50.2 29.3 1 [-1.0] [1.0] 22941
14 35.8 0.0 44.8 49.6 30.2 111 [-7.0] [1.0] 27257
15 35.6 0.0 44.5 49.8 23.7 234 [0.0] [1.0] 34706
16 34.6 0.0 45.2 49.4 33.0 341 [-1.0] [1.0] 36932
17 41.3 0.0 45.0 49.6 31.8 150 [4.0] [1.0] 32665
18 43.9 0.0 45.5 49.1 28.0 137 [-3.0] [1.0] 34020
19 39.2 0.0 43.0 47.6 23.2 25 [3.0] [1.0] 30734
20 42.8 0.0 38.2 43.0 21.6 97 [2.0] [1.0] 19948
21 31.6 0.0 43.8 50.0 30.4 195 [4.0] [1.0] 25669
22 28.2 0.0 44.7 48.7 26.9 30 [-3.0] [1.0] 26729
23 46.9 0.0 33.8 43.3 17.1 34 [3.0] [1.0] 35
24 33.1 0.0 43.8 48.7 32.2 320 [2.0] [1.0] 27984
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 33.4 -0.2 9.3 -11.2 [1.0] 30041
2 31.2 0.3 6.0 -8.3 [-4.0] 35659
3 31.8 -0.1 10.2 -8.0 [5.0] 34030
4 34.2 -0.1 11.8 -6.6 [6.0] 29755
5 36.2 -0.1 10.8 -6.8 [1.0] 26892
7 38.8 -0.5 7.6 -5.9 [5.0] 23278
8 42.3 -0.2 14.3 -9.6 [6.0] 21375
9 29.6 0.4 7.3 -7.1 [-2.0] 32953
10 75.0 0.2 0.2 0.2 [-7.0] 1
11 44.4 -0.2 7.0 -5.3 [0.0] 20203
12 39.7 0.1 8.5 -5.7 [-1.0] 22941
14 35.8 -0.4 9.8 -7.4 [-7.0] 27257
15 35.6 -0.3 8.8 -14.6 [0.0] 34673
16 34.6 0.3 8.1 -6.4 [-1.0] 36927
17 41.3 -0.4 5.6 -7.2 [4.0] 32662
18 43.9 0.7 15.4 -4.9 [-3.0] 34020
19 40.2 0.0 11.7 -7.6 [3.0] 29672
20 42.9 0.1 8.7 -14.9 [2.0] 19915
21 31.7 -0.9 7.5 -14.1 [4.0] 25638
22 28.2 0.4 9.5 -8.0 [-3.0] 26729
23 51.0 -3.0 7.5 -13.6 [3.0] 2
24 33.1 -0.1 5.3 -7.1 [2.0] 27953

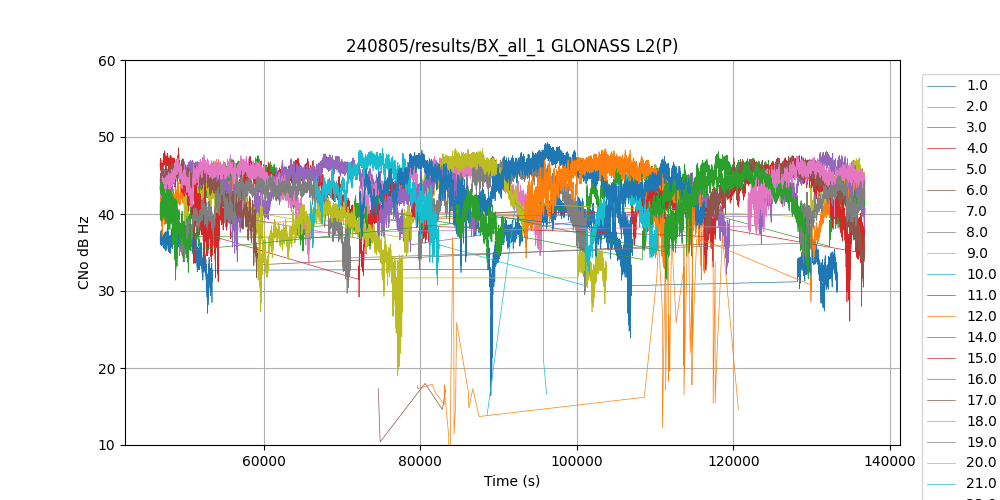

REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 33.4 0.0 36.8 42.9 16.4 889 [1.0] [1.0] 30018
2 31.2 0.0 42.9 48.5 28.6 164 [-4.0] [1.0] 35659
3 31.8 0.0 43.1 47.7 33.8 437 [5.0] [1.0] 34052
4 34.2 0.0 42.4 47.5 31.2 336 [6.0] [1.0] 29785
5 36.2 0.0 43.1 47.8 32.1 31 [1.0] [1.0] 26893
6 48.4 0.0 15.5 18.0 10.4 4 [-4.0] [1.0] 5
7 38.8 0.0 43.7 48.0 34.1 1 [5.0] [1.0] 23278
8 42.2 0.0 43.2 47.5 29.5 6 [6.0] [1.0] 21409
9 29.5 0.0 43.4 48.5 33.7 181 [-2.0] [1.0] 33013
10 46.2 0.0 26.3 41.4 13.9 4 [-7.0] [1.0] 5
11 44.4 0.0 44.6 49.3 34.4 1 [0.0] [1.0] 20243
12 39.6 0.0 44.2 48.3 31.4 1 [-1.0] [1.0] 22952
14 35.8 0.0 42.8 48.1 31.4 241 [-7.0] [1.0] 27299
15 35.6 0.0 42.5 48.6 26.1 335 [0.0] [1.0] 34700
16 34.6 0.0 43.6 48.1 33.8 260 [-1.0] [1.0] 36927
17 41.3 0.0 43.5 47.5 28.0 188 [4.0] [1.0] 32662
18 43.9 0.0 44.4 47.7 33.5 162 [-3.0] [1.0] 34036
19 39.8 0.0 41.3 45.2 29.7 248 [3.0] [1.0] 29976
20 40.3 0.0 36.6 42.2 19.0 832 [2.0] [1.0] 22076
21 31.6 0.0 42.4 48.5 30.5 257 [4.0] [1.0] 25652
22 28.2 0.0 43.4 48.3 32.4 7 [-3.0] [1.0] 26743
23 38.0 0.0 23.6 42.4 1.0 152 [3.0] [1.0] 56
24 33.1 0.0 41.6 46.7 31.5 330 [2.0] [1.0] 27965
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 29.5 0.0 43.9 48.0 32.8 146 [-2.0] [1.0] 33013
21 31.6 0.0 43.0 50.3 29.7 120 [4.0] [1.0] 25653
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)

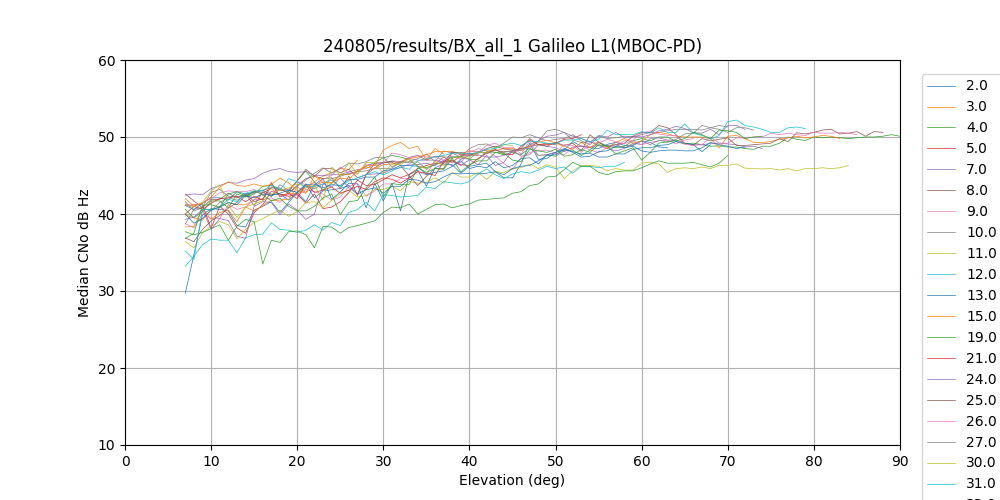

REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.9 0.0 45.1 50.3 21.9 23 [101.0] [1.0] 12975
3 17.9 0.0 43.0 48.6 34.8 58 [110.0, 98.0] [1.0] 25787
4 43.9 0.0 46.5 51.2 23.1 156 [111.0, 108.0] [1.0] 31131
5 23.7 0.0 43.3 49.8 30.9 68 [107.0, 100.0] [1.0] 23167
7 42.0 0.0 46.7 50.9 40.2 0 [109.0] [1.0] 26322
8 32.0 0.0 46.0 51.3 38.3 0 [96.0] [1.0] 20609
9 39.2 0.0 45.7 51.1 33.1 114 [102.0, 100.0] [1.0] 24401
10 35.0 0.0 46.2 52.9 31.6 141 [101.0, 96.0] [1.0] 39633
11 39.2 0.0 42.6 47.9 31.4 64 [97.0, 110.0] [1.0] 32894
12 33.2 0.0 41.9 48.2 10.4 139 [102.0, 107.0] [1.0] 41236
13 48.8 0.0 46.6 50.3 38.0 0 [103.0] [1.0] 27980
15 43.5 0.0 46.8 51.5 34.6 0 [104.0] [1.0] 18049
19 46.6 0.0 43.0 49.4 0.0 110 [104.0] [1.0] 31554
21 33.7 0.0 45.4 51.5 27.3 243 [108.0, 98.0] [1.0] 38709
24 45.4 0.0 47.2 53.2 28.6 4 [106.0] [1.0] 32593
25 50.0 0.0 47.5 53.1 34.1 0 [111.0] [1.0] 24302
26 37.9 0.0 46.2 52.1 36.5 64 [97.0, 110.0] [1.0] 39173
27 31.6 0.0 46.0 53.3 34.8 228 [105.0, 100.0] [1.0] 27778
30 17.0 0.0 43.4 49.8 35.7 131 [101.0, 106.0, 107.0] [1.0] 15700
31 42.6 0.0 46.5 53.9 27.8 215 [106.0, 105.0] [1.0] 34552
33 34.3 0.0 44.9 50.2 32.4 19 [105.0, 99.0] [1.0] 41049
34 20.1 0.0 43.6 50.3 22.4 48 [99.0, 104.0] [1.0] 11377
36 39.9 0.0 45.0 52.2 29.8 39 [106.0, 103.0] [1.0] 16118

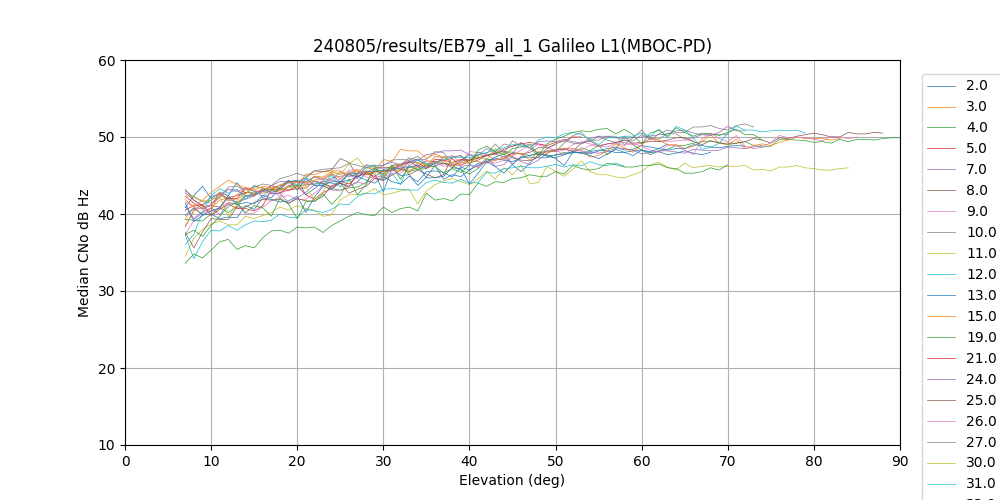

DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.8 0.0 45.9 50.2 38.6 0 [101.0] [1.0] 12992
3 17.8 0.0 43.3 47.4 34.5 238 [110.0, 98.0] [1.0] 25803
4 43.9 0.0 46.0 51.0 20.6 179 [111.0, 108.0] [1.0] 31138
5 23.7 0.0 44.0 48.7 35.7 138 [106.0, 100.0] [1.0] 23175
7 42.1 0.0 46.1 50.0 36.6 0 [108.0] [1.0] 26300
8 32.0 0.0 45.9 50.6 37.9 0 [96.0] [1.0] 20636
9 39.1 0.0 45.9 51.1 32.6 83 [102.0, 100.0] [1.0] 24424
10 35.0 0.0 46.3 52.2 33.4 107 [101.0, 96.0] [1.0] 39655
11 39.2 0.0 42.6 48.3 28.4 27 [97.0, 109.0] [1.0] 32854
12 33.2 0.0 42.7 48.2 29.1 251 [103.0, 107.0] [1.0] 41301
13 48.8 0.0 46.5 49.8 34.5 0 [102.0] [1.0] 27990
15 43.5 0.0 46.6 51.0 36.2 0 [103.0] [1.0] 18049
19 45.4 0.0 42.9 48.5 30.1 2 [104.0] [1.0] 32722
21 33.7 0.0 46.1 51.4 36.4 9 [109.0, 98.0] [1.0] 38709
24 45.4 0.0 47.6 52.8 34.4 1 [106.0] [1.0] 32625
25 50.0 0.0 46.9 51.9 32.6 0 [111.0] [1.0] 24302
26 37.9 0.0 45.8 52.1 33.1 198 [97.0, 104.0] [1.0] 39149
27 31.6 0.0 46.3 53.4 37.0 109 [107.0, 100.0] [1.0] 27754
30 17.0 0.0 43.1 49.4 36.7 121 [101.0, 106.0, 107.0] [1.0] 15648
31 42.6 0.0 46.7 53.4 31.7 27 [106.0, 105.0] [1.0] 34560
33 34.3 0.0 45.0 50.5 31.3 199 [105.0, 99.0] [1.0] 41025
34 20.1 0.0 44.2 49.5 34.3 68 [99.0, 105.0] [1.0] 11387
36 39.8 0.0 45.5 52.2 32.4 43 [106.0, 103.0] [1.0] 16126
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 38.9 -0.8 3.9 -19.0 [101.0] 12975
3 17.9 -0.3 5.6 -5.1 [110.0, 98.0] 25781
4 43.9 0.5 5.6 -4.0 [111.0, 108.0] 31118
5 23.7 -0.6 4.6 -8.9 [107.0, 106.0, 100.0] 23153
7 42.1 0.6 5.3 -7.1 [109.0, 108.0] 26292
8 32.0 0.1 4.8 -4.4 [96.0] 20609
9 39.2 -0.2 5.5 -5.5 [102.0, 100.0] 24401
10 35.0 -0.1 4.6 -8.9 [101.0, 96.0] 39633
11 39.2 0.0 5.8 -6.8 [97.0, 110.0, 109.0] 32854
12 33.2 -0.8 4.8 -23.0 [102.0, 103.0, 107.0] 41235
13 48.8 0.1 6.1 -5.6 [103.0, 102.0] 27980
15 43.5 0.2 3.3 -5.1 [104.0, 103.0] 18049
19 46.6 -0.2 6.9 -34.2 [104.0] 31554
21 33.7 -0.6 5.7 -12.2 [108.0, 109.0, 98.0] 38707
24 45.4 -0.5 4.9 -9.1 [106.0] 32593
25 50.0 0.5 6.2 -3.2 [111.0] 24302
26 37.9 0.5 9.1 -5.6 [97.0, 110.0, 104.0] 39145
27 31.6 -0.3 4.4 -6.7 [105.0, 107.0, 100.0] 27754
30 17.0 0.3 7.0 -4.9 [101.0, 106.0, 107.0] 15648
31 42.6 -0.2 7.2 -9.7 [106.0, 105.0] 34542
33 34.3 -0.1 5.2 -6.8 [105.0, 99.0] 41013
34 20.1 -0.6 3.7 -18.0 [99.0, 104.0, 105.0] 11377
36 39.9 -0.5 7.2 -7.3 [106.0, 103.0] 16118
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.9 0.0 45.6 48.9 40.4 0 [101.0] [1.0] 12975
3 17.9 0.0 43.1 46.7 32.6 250 [110.0, 98.0] [1.0] 25787
4 43.9 0.0 45.2 50.3 33.8 214 [111.0, 108.0] [1.0] 31131
5 23.7 0.0 44.1 48.5 35.1 157 [107.0, 100.0] [1.0] 23167
7 42.0 0.0 45.9 49.9 37.2 0 [109.0] [1.0] 26322
8 32.0 0.0 45.3 48.7 40.4 0 [96.0] [1.0] 20609
9 39.2 0.0 45.6 49.8 35.9 24 [102.0, 100.0] [1.0] 24401
10 35.0 0.0 45.5 49.8 37.0 155 [101.0, 96.0] [1.0] 39633
11 39.2 0.0 41.9 46.5 32.0 105 [97.0, 110.0] [1.0] 32894
12 33.2 0.0 43.0 47.0 32.0 128 [102.0, 107.0] [1.0] 41236
13 48.8 0.0 46.7 50.3 39.1 0 [103.0] [1.0] 27980
15 43.5 0.0 45.8 50.3 33.1 0 [104.0] [1.0] 18049
19 46.2 0.0 42.7 46.8 30.8 0 [104.0] [1.0] 31937
21 33.7 0.0 45.5 48.7 37.3 142 [108.0, 98.0] [1.0] 38709
24 45.4 0.0 46.1 50.3 36.8 0 [106.0] [1.0] 32593
25 50.0 0.0 45.9 50.0 37.8 0 [111.0] [1.0] 24302
26 37.9 0.0 44.7 50.0 36.0 105 [97.0, 110.0] [1.0] 39173
27 31.6 0.0 45.1 50.5 33.9 133 [105.0, 100.0] [1.0] 27778
30 17.0 0.0 42.9 48.1 36.5 128 [101.0, 106.0, 107.0] [1.0] 15700
31 42.6 0.0 45.6 50.0 35.6 28 [106.0, 105.0] [1.0] 34552
33 34.3 0.0 45.2 50.8 35.2 120 [105.0, 99.0] [1.0] 41049
34 20.1 0.0 43.0 47.1 35.9 102 [99.0, 104.0] [1.0] 11377
36 39.9 0.0 45.6 50.4 36.1 242 [106.0, 103.0] [1.0] 16118
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.9 0.0 45.9 49.6 38.7 0 [101.0] [1.0] 12975
3 17.9 0.0 44.0 48.2 35.0 187 [110.0, 98.0] [1.0] 25787
4 43.9 0.0 46.1 50.9 19.4 265 [111.0, 108.0] [1.0] 31129
5 23.7 0.0 44.8 48.5 35.7 133 [107.0, 100.0] [1.0] 23167
7 42.0 0.0 46.8 50.7 37.9 0 [109.0] [1.0] 26322
8 32.0 0.0 46.3 49.9 39.9 0 [96.0] [1.0] 20609
9 39.2 0.0 46.6 51.5 34.4 111 [102.0, 100.0] [1.0] 24401
10 35.0 0.0 46.0 50.5 37.7 216 [101.0, 96.0] [1.0] 39633
11 39.2 0.0 42.4 47.0 31.1 48 [97.0, 110.0] [1.0] 32894
12 33.2 0.0 43.8 48.1 35.9 239 [102.0, 107.0] [1.0] 41236
13 48.8 0.0 47.6 50.9 40.2 0 [103.0] [1.0] 27980
15 43.5 0.0 47.0 51.2 35.8 0 [104.0] [1.0] 18049
19 46.2 0.0 43.3 47.6 28.6 2 [104.0] [1.0] 31937
21 33.7 0.0 46.4 49.8 38.3 111 [108.0, 98.0] [1.0] 38709
24 45.4 0.0 46.7 50.9 37.4 0 [106.0] [1.0] 32593
25 50.0 0.0 46.8 50.7 38.2 0 [111.0] [1.0] 24302
26 37.9 0.0 45.9 50.8 37.8 48 [97.0, 110.0] [1.0] 39173
27 31.6 0.0 45.8 51.1 35.0 47 [105.0, 100.0] [1.0] 27778
30 17.0 0.0 43.8 49.2 38.1 384 [101.0, 106.0, 107.0] [1.0] 15700
31 42.6 0.0 46.4 50.8 38.2 55 [106.0, 105.0] [1.0] 34552
33 34.3 0.0 46.1 51.0 37.0 59 [105.0, 99.0] [1.0] 41049
34 20.1 0.0 44.1 48.6 37.2 165 [99.0, 104.0] [1.0] 11377
36 39.9 0.0 46.2 50.8 36.9 57 [106.0, 103.0] [1.0] 16118
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.9 0.0 48.3 51.3 43.5 0 [101.0] [1.0] 12975
3 17.9 0.0 46.4 50.1 38.9 142 [110.0, 98.0] [1.0] 25787
4 43.9 0.0 48.2 52.7 37.1 195 [111.0, 108.0] [1.0] 31131
5 23.7 0.0 47.2 50.7 41.9 119 [107.0, 100.0] [1.0] 23167
7 42.0 0.0 48.8 52.3 41.6 0 [109.0] [1.0] 26322
8 32.0 0.0 48.2 51.2 43.5 0 [96.0] [1.0] 20609
9 39.2 0.0 48.6 52.7 39.6 92 [102.0, 100.0] [1.0] 24401
10 35.0 0.0 48.2 52.2 42.2 47 [101.0, 96.0] [1.0] 39633
11 39.2 0.0 44.7 48.5 36.2 52 [97.0, 110.0] [1.0] 32894
12 33.2 0.0 46.3 49.9 38.1 230 [102.0, 107.0] [1.0] 41236
13 48.8 0.0 49.5 52.8 43.6 0 [103.0] [1.0] 27980
15 43.5 0.0 48.9 52.6 39.3 0 [104.0] [1.0] 18049
19 46.2 0.0 45.9 49.6 38.5 1 [104.0] [1.0] 31937
21 33.7 0.0 48.4 51.4 42.6 62 [108.0, 98.0] [1.0] 38709
24 45.4 0.0 48.9 52.7 41.8 0 [106.0] [1.0] 32593
25 50.0 0.0 48.9 52.8 42.0 0 [111.0] [1.0] 24302
26 37.9 0.0 47.9 52.8 41.4 52 [97.0, 110.0] [1.0] 39173
27 31.6 0.0 48.0 52.9 39.8 26 [105.0, 100.0] [1.0] 27778
30 17.0 0.0 46.3 51.2 41.5 381 [101.0, 106.0, 107.0] [1.0] 15700
31 42.6 0.0 48.6 52.5 41.4 231 [106.0, 105.0] [1.0] 34552
33 34.3 0.0 48.2 53.0 40.0 213 [105.0, 99.0] [1.0] 41049
34 20.1 0.0 46.5 50.5 42.0 116 [99.0, 104.0] [1.0] 11377
36 39.9 0.0 48.4 52.8 40.7 105 [106.0, 103.0] [1.0] 16118
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.8 0.0 48.9 51.6 42.9 0 [101.0] [1.0] 12992
3 17.8 0.0 46.7 50.1 37.4 183 [110.0, 98.0] [1.0] 25803
4 43.9 0.0 48.6 52.9 38.9 21 [111.0, 108.0] [1.0] 31138
5 23.7 0.0 46.8 51.1 39.1 240 [106.0, 100.0] [1.0] 23175
7 42.1 0.0 49.2 53.0 41.6 0 [108.0] [1.0] 26300
8 32.0 0.0 48.4 51.5 43.7 0 [96.0] [1.0] 20636
9 39.1 0.0 48.8 52.1 41.5 126 [102.0, 100.0] [1.0] 24424
10 35.0 0.0 48.3 52.7 36.5 160 [101.0, 96.0] [1.0] 39655
11 39.2 0.0 44.9 48.3 37.3 155 [97.0, 109.0] [1.0] 32854
12 33.2 0.0 46.3 50.5 39.0 182 [103.0, 107.0] [1.0] 41301
13 48.8 0.0 49.6 52.5 42.1 0 [102.0] [1.0] 27990
15 43.5 0.0 49.0 52.8 39.0 0 [103.0] [1.0] 18049
19 45.4 0.0 45.9 49.2 35.9 4 [104.0] [1.0] 32722
21 33.7 0.0 48.4 51.7 39.6 97 [109.0, 98.0] [1.0] 38709
24 45.4 0.0 48.9 52.1 39.9 0 [106.0] [1.0] 32625
25 50.0 0.0 49.5 52.2 41.6 0 [111.0] [1.0] 24302
26 37.9 0.0 48.0 52.9 39.8 187 [97.0, 104.0] [1.0] 39149
27 31.6 0.0 48.0 52.8 38.8 176 [107.0, 100.0] [1.0] 27754
30 17.0 0.0 46.0 50.9 39.3 116 [101.0, 106.0, 107.0] [1.0] 15648
31 42.6 0.0 48.8 52.8 41.2 157 [106.0, 105.0] [1.0] 34560
33 34.3 0.0 48.1 52.6 40.9 65 [105.0, 99.0] [1.0] 41025
34 20.1 0.0 45.8 51.3 38.9 200 [99.0, 105.0] [1.0] 11387
36 39.8 0.0 48.2 51.9 42.4 137 [106.0, 103.0] [1.0] 16126
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 38.9 -0.7 3.5 -3.7 [101.0] 12975
3 17.9 -0.3 5.4 -3.4 [110.0, 98.0] 25781
4 43.9 -0.4 2.7 -5.3 [111.0, 108.0] 31118
5 23.7 0.3 6.0 -2.3 [107.0, 106.0, 100.0] 23153
7 42.1 -0.4 3.2 -3.2 [109.0, 108.0] 26292
8 32.0 -0.1 3.0 -2.6 [96.0] 20609
9 39.2 -0.2 2.8 -3.2 [102.0, 100.0] 24401
10 35.0 -0.1 7.3 -3.1 [101.0, 96.0] 39633
11 39.2 -0.1 3.3 -3.9 [97.0, 110.0, 109.0] 32854
12 33.2 0.1 3.7 -3.3 [102.0, 103.0, 107.0] 41235
13 48.8 -0.2 2.7 -2.4 [103.0, 102.0] 27980
15 43.5 -0.1 4.3 -2.0 [104.0, 103.0] 18049
19 46.2 -0.1 5.8 -2.6 [104.0] 31937
21 33.7 -0.0 5.1 -2.5 [108.0, 109.0, 98.0] 38707
24 45.4 0.0 3.5 -3.4 [106.0] 32593
25 50.0 -0.6 2.3 -4.3 [111.0] 24302
26 37.9 -0.1 3.9 -3.2 [97.0, 110.0, 104.0] 39145
27 31.6 -0.0 4.1 -3.0 [105.0, 107.0, 100.0] 27754
30 17.0 0.3 4.4 -2.1 [101.0, 106.0, 107.0] 15648
31 42.6 -0.2 3.1 -3.6 [106.0, 105.0] 34542
33 34.3 0.1 4.5 -4.5 [105.0, 99.0] 41013
34 20.1 0.7 5.6 -2.5 [99.0, 104.0, 105.0] 11377
36 39.9 0.2 3.6 -3.6 [106.0, 103.0] 16118
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 38.9 0.0 47.7 52.1 35.5 14 [101.0] [1.0] 12957
3 17.9 0.0 44.2 48.4 35.9 94 [110.0, 98.0] [1.0] 25787
4 43.9 0.0 47.6 52.9 30.4 256 [111.0, 108.0] [1.0] 31127
5 23.7 0.0 46.2 50.9 35.1 221 [107.0, 100.0] [1.0] 23167
7 42.0 0.0 48.0 52.3 31.2 0 [109.0] [1.0] 26322
8 32.0 0.0 47.1 50.9 38.1 0 [96.0] [1.0] 20609
9 39.2 0.0 48.2 52.9 34.8 241 [102.0, 100.0] [1.0] 24401
10 35.0 0.0 47.6 52.2 31.5 240 [101.0, 96.0] [1.0] 39633
11 39.2 0.0 44.1 49.3 29.9 214 [97.0, 110.0] [1.0] 32894
12 33.3 0.0 45.0 49.8 27.8 85 [102.0, 107.0] [1.0] 41195
13 48.8 0.0 48.9 52.4 33.0 0 [103.0] [1.0] 27980
15 43.5 0.0 48.3 52.9 35.9 0 [104.0] [1.0] 18049
19 46.7 0.0 44.3 49.0 24.9 44 [104.0] [1.0] 31463
21 33.7 0.0 47.8 51.4 36.9 82 [108.0, 98.0] [1.0] 38709
24 45.4 0.0 48.7 52.9 37.6 4 [106.0] [1.0] 32593
25 50.0 0.0 48.9 53.3 38.8 0 [111.0] [1.0] 24302
26 37.9 0.0 46.6 52.2 33.1 214 [97.0, 110.0] [1.0] 39173
27 31.6 0.0 46.9 51.9 35.2 223 [105.0, 100.0] [1.0] 27778
30 17.0 0.0 44.3 50.2 34.0 176 [101.0, 106.0, 107.0] [1.0] 15700
31 42.6 0.0 47.6 52.6 35.4 175 [106.0, 105.0] [1.0] 34552
33 34.3 0.0 47.1 53.0 34.8 11 [105.0, 99.0] [1.0] 41049
34 20.1 0.0 44.4 50.5 34.7 213 [99.0, 104.0] [1.0] 11351
36 39.9 0.0 47.4 52.3 31.5 188 [106.0, 103.0] [1.0] 16118
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.4 0.0 46.5 53.0 34.8 0 [107.0] [1.0] 28281
20 45.5 0.0 47.9 52.5 37.4 0 [79.0] [1.0] 25462
21 41.2 0.0 46.8 52.8 35.5 110 [90.0, 77.0] [1.0] 28650
22 44.3 0.0 47.1 53.5 23.2 6 [110.0] [1.0] 28326
23 41.8 0.0 46.5 52.3 32.2 0 [97.0] [1.0] 23096
24 44.9 0.0 47.2 53.8 28.4 1 [103.0] [1.0] 28685
25 45.8 0.0 47.0 52.2 35.5 0 [74.0] [1.0] 26733
26 45.4 0.0 46.8 51.4 35.1 0 [109.0] [1.0] 27610
27 37.7 0.0 45.3 52.9 34.0 38 [111.0, 88.0] [1.0] 22546
28 38.7 0.0 45.4 51.7 20.5 95 [102.0] [1.0] 22195
29 36.8 0.0 45.1 51.2 34.4 8 [100.0, 110.0] [1.0] 30833
30 51.0 0.0 47.6 52.1 34.0 0 [78.0] [1.0] 22583
32 39.0 0.0 47.1 51.8 39.0 0 [84.0] [1.0] 21255
33 25.4 0.0 43.5 49.6 26.8 386 [79.0, 85.0, 73.0] [1.0] 29655
34 34.5 0.0 45.4 52.3 27.7 183 [103.0, 104.0] [1.0] 31978
35 29.4 0.0 44.1 49.7 20.0 228 [111.0, 93.0] [1.0] 34602
36 30.9 0.0 44.7 51.3 26.0 60 [109.0, 75.0] [1.0] 30262
37 26.4 0.0 44.1 50.9 32.1 230 [107.0, 106.0, 109.0] [1.0] 25306
38 7.0 0.0 39.7 41.6 36.7 0 [73.0] [1.0] 2199
41 23.7 0.0 44.1 50.2 36.0 97 [76.0, 101.0, 106.0] [1.0] 27847
42 33.7 0.0 45.4 51.8 32.0 0 [108.0, 105.0] [1.0] 30463
43 49.6 0.0 47.4 52.1 31.0 0 [84.0] [1.0] 23877
44 29.1 0.0 44.3 49.9 22.7 44 [108.0, 76.0] [1.0] 34708
45 35.4 0.0 45.5 52.5 32.1 184 [106.0, 99.0] [1.0] 31478
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.4 0.0 46.7 51.0 38.3 0 [107.0] [1.0] 28281
20 45.5 0.0 46.7 50.9 37.4 0 [79.0] [1.0] 25462
21 41.2 0.0 46.1 51.2 35.4 43 [90.0, 77.0] [1.0] 28650
22 44.3 0.0 46.4 51.0 37.4 0 [110.0] [1.0] 28326
23 41.8 0.0 47.4 52.2 35.7 0 [97.0] [1.0] 23096
24 44.9 0.0 47.4 51.7 38.6 0 [103.0] [1.0] 28685
25 45.8 0.0 45.8 50.6 33.1 0 [74.0] [1.0] 26733
26 45.4 0.0 45.6 49.9 33.5 0 [109.0] [1.0] 27610
27 37.7 0.0 44.9 49.8 37.4 191 [111.0, 88.0] [1.0] 22546
28 38.7 0.0 44.5 49.1 34.9 6 [102.0] [1.0] 22195
29 36.8 0.0 44.8 49.9 36.5 43 [100.0, 110.0] [1.0] 30833
30 51.0 0.0 46.2 50.1 34.4 0 [78.0] [1.0] 22583
32 39.0 0.0 46.5 50.2 39.2 0 [84.0] [1.0] 21255
33 25.4 0.0 45.2 49.3 37.8 288 [79.0, 85.0, 73.0] [1.0] 29655
34 34.5 0.0 45.1 50.0 32.6 249 [103.0, 104.0] [1.0] 31978
35 29.4 0.0 44.1 48.5 20.9 14 [111.0, 93.0] [1.0] 34601
36 30.9 0.0 45.7 49.4 26.9 108 [109.0, 75.0] [1.0] 30262
37 26.4 0.0 45.3 50.6 37.5 248 [107.0, 106.0, 109.0] [1.0] 25306
38 7.0 0.0 42.8 45.1 39.4 0 [73.0] [1.0] 2199
41 23.7 0.0 44.7 48.7 34.6 198 [76.0, 101.0, 106.0] [1.0] 27847
42 33.7 0.0 45.8 51.1 29.5 238 [108.0, 105.0] [1.0] 30463
43 49.6 0.0 46.3 50.7 35.5 0 [84.0] [1.0] 23877
44 29.1 0.0 44.7 49.5 34.9 25 [108.0, 76.0] [1.0] 34709
45 35.4 0.0 46.3 51.6 28.2 146 [106.0, 99.0] [1.0] 31478
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.3 0.0 47.0 50.9 37.5 0 [107.0] [1.0] 28334
20 45.5 0.0 47.2 51.2 35.9 0 [79.0] [1.0] 25468
21 41.3 0.0 46.4 51.2 21.1 182 [87.0, 105.0] [1.0] 28637
22 44.3 0.0 46.7 51.0 34.9 0 [110.0] [1.0] 28333
23 41.8 0.0 47.6 51.4 29.9 0 [97.0] [1.0] 23094
24 44.8 0.0 47.5 51.2 38.8 0 [103.0] [1.0] 28729
25 45.8 0.0 46.3 50.3 28.7 0 [74.0] [1.0] 26734
26 45.4 0.0 46.1 49.8 32.5 0 [109.0] [1.0] 27621
27 37.7 0.0 45.2 49.9 37.5 237 [111.0, 90.0] [1.0] 22545
28 38.8 0.0 44.1 47.9 26.7 225 [105.0, 102.0] [1.0] 22175
29 36.8 0.0 45.2 49.9 18.5 98 [100.0, 82.0] [1.0] 30842
30 51.0 0.0 46.5 50.3 28.1 1 [78.0] [1.0] 22584
32 38.9 0.0 47.0 50.9 26.5 4 [82.0] [1.0] 21295
33 25.5 0.0 44.6 49.5 24.9 265 [79.0, 84.0, 74.0] [1.0] 29614
34 34.5 0.0 44.8 50.2 23.8 94 [102.0, 72.0] [1.0] 32013
35 29.4 0.0 43.9 49.3 34.8 226 [111.0, 95.0] [1.0] 34536
36 31.0 0.0 45.8 49.6 27.3 98 [108.0, 75.0] [1.0] 30195
37 26.4 0.0 45.2 49.6 38.4 20 [106.0, 104.0] [1.0] 25287
38 7.0 0.0 42.9 44.8 40.1 0 [73.0] [1.0] 2201
41 23.7 0.0 45.5 49.6 37.9 212 [76.0, 101.0, 106.0] [1.0] 27841
42 33.6 0.0 46.3 51.8 29.2 107 [108.0, 110.0] [1.0] 30553
43 49.6 0.0 46.3 50.2 35.0 0 [86.0] [1.0] 23877
44 29.1 0.0 44.6 49.7 29.9 163 [109.0, 75.0] [1.0] 34704
45 35.4 0.0 46.4 51.8 30.9 212 [104.0, 99.0] [1.0] 31480
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 44.4 -0.3 3.7 -5.0 [107.0] 28273
20 45.5 -0.4 2.6 -4.8 [79.0] 25461
21 41.3 -0.3 20.0 -4.6 [90.0, 87.0, 77.0, 105.0] 28636
22 44.3 -0.3 5.7 -4.5 [110.0] 28326
23 41.8 -0.2 6.2 -5.2 [97.0] 23094
24 44.9 -0.1 5.0 -4.2 [103.0] 28685
25 45.8 -0.5 8.6 -3.9 [74.0] 26733
26 45.4 -0.5 6.6 -11.4 [109.0] 27609
27 37.7 -0.2 4.7 -3.9 [111.0, 88.0, 90.0] 22544
28 38.8 0.4 9.2 -3.3 [102.0, 105.0] 22165
29 36.8 -0.4 24.7 -4.8 [100.0, 110.0, 82.0] 30829
30 51.0 -0.3 8.7 -3.7 [78.0] 22583
32 39.0 -0.6 15.3 -4.8 [84.0, 82.0] 21255
33 25.5 0.6 19.7 -3.3 [79.0, 85.0, 84.0, 73.0, 74.0] 29609
34 34.5 0.3 9.7 -5.4 [103.0, 102.0, 104.0, 72.0] 31964
35 29.4 0.2 5.4 -21.7 [111.0, 93.0, 95.0] 34535
36 31.0 -0.2 10.3 -13.6 [109.0, 108.0, 75.0] 30195
37 26.4 0.2 5.8 -4.2 [107.0, 106.0, 109.0, 104.0] 25256
38 7.0 -0.0 2.7 -2.1 [73.0] 2199
41 23.7 -0.8 3.9 -6.6 [76.0, 101.0, 106.0] 27821
42 33.7 -0.5 7.1 -7.5 [108.0, 105.0, 110.0] 30456
43 49.6 0.0 3.1 -4.3 [84.0, 86.0] 23877
44 29.1 0.1 10.6 -8.3 [108.0, 109.0, 76.0, 75.0] 34693
45 35.4 -0.1 5.5 -13.8 [106.0, 104.0, 99.0] 31477
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.2 0.0 45.3 49.5 35.2 27 [86.0, 108.0] [1.0] 30590
12 30.8 0.0 45.3 49.0 34.5 106 [77.0, 78.0] [1.0] 34088
14 30.1 0.0 45.2 48.8 35.5 116 [106.0, 107.0, 94.0] [1.0] 29155
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 45.1 49.5 32.1 159 [86.0, 108.0] [1.0] 30529
12 30.8 0.0 45.0 49.8 24.0 102 [77.0, 78.0] [1.0] 34111
14 30.2 0.0 45.2 49.5 35.7 212 [104.0, 107.0, 93.0] [1.0] 29061
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.3 0.2 6.9 -5.0 [86.0, 108.0] 30526
12 30.8 0.3 15.5 -6.0 [77.0, 78.0] 34088
14 30.2 -0.0 5.3 -7.2 [106.0, 104.0, 107.0, 94.0, 93.0] 29050
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.2 0.0 44.2 51.2 26.8 114 [86.0, 108.0] [1.0] 30590
12 30.8 0.0 43.0 49.4 32.7 69 [77.0, 78.0] [1.0] 34088
14 30.1 0.0 42.5 49.5 28.0 286 [106.0, 107.0, 94.0] [1.0] 29155
19 44.4 0.0 46.4 51.4 31.8 0 [107.0] [1.0] 28281
20 45.5 0.0 47.5 53.7 35.9 0 [79.0] [1.0] 25462
21 41.2 0.0 46.0 53.1 33.3 249 [90.0, 77.0] [1.0] 28650
22 44.3 0.0 47.3 53.1 28.4 0 [110.0] [1.0] 28326
23 41.8 0.0 45.8 52.9 31.9 0 [97.0] [1.0] 23096
24 44.9 0.0 46.9 52.1 26.8 0 [103.0] [1.0] 28685
25 45.8 0.0 46.8 52.7 33.5 0 [74.0] [1.0] 26733
26 45.4 0.0 46.5 52.3 34.3 0 [109.0] [1.0] 27610
27 37.7 0.0 46.3 52.3 37.1 253 [111.0, 88.0] [1.0] 22546
28 38.7 0.0 46.0 52.3 30.1 94 [102.0] [1.0] 22195
29 36.8 0.0 45.2 52.2 25.8 209 [100.0, 110.0] [1.0] 30833
30 51.0 0.0 47.5 52.5 35.3 0 [78.0] [1.0] 22583
32 39.0 0.0 46.9 52.9 36.2 0 [84.0] [1.0] 21255
33 25.4 0.0 43.7 50.1 26.9 184 [79.0, 85.0, 73.0] [1.0] 29655
34 34.5 0.0 45.2 52.0 30.6 184 [103.0, 104.0] [1.0] 31978
35 29.4 0.0 44.9 51.6 34.3 132 [111.0, 93.0] [1.0] 34602
36 30.9 0.0 45.6 51.1 32.6 197 [109.0, 75.0] [1.0] 30262
37 26.4 0.0 43.9 50.9 30.1 284 [107.0, 106.0, 109.0] [1.0] 25306
38 7.0 0.0 40.9 43.3 38.7 0 [73.0] [1.0] 2199
41 23.7 0.0 43.6 49.8 33.8 227 [76.0, 101.0, 106.0] [1.0] 27847
42 33.6 0.0 44.4 52.4 11.1 258 [108.0, 105.0] [1.0] 30519
43 49.6 0.0 46.8 52.9 21.5 17 [84.0] [1.0] 23877
44 29.1 0.0 45.3 50.8 33.4 113 [108.0, 76.0] [1.0] 34709
45 35.4 0.0 45.1 52.7 32.1 232 [106.0, 99.0] [1.0] 31478
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 44.1 51.9 28.1 74 [86.0, 108.0] [1.0] 30529
12 30.8 0.0 43.1 49.3 26.2 230 [77.0, 78.0] [1.0] 34111
14 30.2 0.0 42.8 49.7 30.3 285 [104.0, 107.0, 93.0] [1.0] 29066
19 44.3 0.0 46.9 52.8 30.0 0 [107.0] [1.0] 28334
20 45.5 0.0 47.9 53.2 33.1 0 [79.0] [1.0] 25468
21 41.3 0.0 46.7 53.6 24.5 230 [87.0, 105.0] [1.0] 28638
22 44.3 0.0 47.9 54.3 28.6 0 [110.0] [1.0] 28333
23 41.8 0.0 46.4 52.5 29.4 0 [97.0] [1.0] 23094
24 44.8 0.0 47.4 52.5 33.1 0 [103.0] [1.0] 28730
25 45.8 0.0 46.7 52.8 35.4 0 [74.0] [1.0] 26734
26 45.4 0.0 47.0 52.3 33.8 0 [109.0] [1.0] 27621
27 37.7 0.0 46.0 53.4 31.6 242 [111.0, 90.0] [1.0] 22545
28 38.8 0.0 46.8 52.0 33.5 36 [105.0, 102.0] [1.0] 22175
29 36.8 0.0 45.6 52.1 27.8 165 [100.0, 82.0] [1.0] 30856
30 51.0 0.0 47.9 52.9 35.3 0 [78.0] [1.0] 22584
32 38.9 0.0 46.4 51.8 32.7 0 [82.0] [1.0] 21295
33 25.5 0.0 44.2 49.8 34.0 165 [79.0, 84.0, 74.0] [1.0] 29617
34 34.5 0.0 45.3 52.1 34.1 5 [102.0, 72.0] [1.0] 32013
35 29.4 0.0 45.0 51.4 33.3 142 [111.0, 95.0] [1.0] 34536
36 31.0 0.0 45.3 51.3 29.7 29 [108.0, 75.0] [1.0] 30195
37 26.4 0.0 44.4 50.8 34.5 223 [106.0, 104.0] [1.0] 25287
38 7.0 0.0 39.7 42.0 37.0 0 [73.0] [1.0] 2201
41 23.7 0.0 43.6 49.8 32.7 273 [76.0, 101.0, 106.0] [1.0] 27841
42 33.6 0.0 44.5 52.2 29.6 89 [108.0, 110.0] [1.0] 30553
43 49.6 0.0 47.4 52.9 32.4 0 [86.0] [1.0] 23877
44 29.1 0.0 44.9 51.2 32.8 223 [109.0, 75.0] [1.0] 34704
45 35.4 0.0 45.2 52.2 29.8 9 [104.0, 99.0] [1.0] 31480
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.3 0.2 7.5 -12.1 [86.0, 108.0] 30526
12 30.8 -0.1 11.1 -6.7 [77.0, 78.0] 34088
14 30.2 -0.3 8.0 -9.4 [106.0, 104.0, 107.0, 94.0, 93.0] 29055
19 44.4 -0.5 6.6 -6.9 [107.0] 28273
20 45.5 -0.4 7.8 -8.3 [79.0] 25461
21 41.3 -0.6 12.7 -9.0 [90.0, 87.0, 77.0, 105.0] 28637
22 44.3 -0.5 9.2 -9.9 [110.0] 28326
23 41.8 -0.6 8.9 -9.8 [97.0] 23094
24 44.9 -0.5 6.6 -12.4 [103.0] 28685
25 45.8 0.1 6.1 -4.1 [74.0] 26733
26 45.4 -0.5 7.5 -11.5 [109.0] 27609
27 37.7 0.2 8.2 -4.2 [111.0, 88.0, 90.0] 22544
28 38.8 -0.8 4.6 -10.8 [102.0, 105.0] 22165
29 36.8 -0.4 8.2 -6.9 [100.0, 110.0, 82.0] 30830
30 51.0 -0.4 4.9 -5.3 [78.0] 22583
32 39.0 0.5 8.5 -3.8 [84.0, 82.0] 21255
33 25.5 -0.5 7.0 -8.7 [79.0, 85.0, 84.0, 73.0, 74.0] 29612
34 34.5 -0.1 6.6 -11.3 [103.0, 102.0, 104.0, 72.0] 31964
35 29.4 -0.2 7.3 -6.7 [111.0, 93.0, 95.0] 34536
36 31.0 0.3 9.0 -6.4 [109.0, 108.0, 75.0] 30195
37 26.4 -0.5 5.6 -8.5 [107.0, 106.0, 109.0, 104.0] 25256
38 7.0 1.2 4.2 -1.7 [73.0] 2199
41 23.7 0.0 7.6 -5.8 [76.0, 101.0, 106.0] 27821
42 33.6 -0.1 7.5 -23.7 [108.0, 105.0, 110.0] 30512
43 49.6 -0.6 3.6 -16.6 [84.0, 86.0] 23877
44 29.1 0.4 8.5 -5.8 [108.0, 109.0, 76.0, 75.0] 34693
45 35.4 -0.1 7.7 -8.3 [106.0, 104.0, 99.0] 31477
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.2 0.0 43.6 49.1 23.5 217 [86.0, 108.0] [1.0] 30590
12 30.8 0.0 44.1 49.2 23.5 252 [77.0, 78.0] [1.0] 34088
14 30.1 0.0 43.5 48.6 33.7 302 [106.0, 107.0, 94.0] [1.0] 29155
19 44.4 0.0 45.6 49.7 35.1 0 [107.0] [1.0] 28281
20 45.5 0.0 45.0 49.5 32.8 0 [79.0] [1.0] 25462
21 41.2 0.0 44.9 49.8 35.5 128 [90.0, 77.0] [1.0] 28650
22 44.3 0.0 45.5 50.1 33.6 0 [110.0] [1.0] 28326
23 41.8 0.0 45.4 50.1 33.5 0 [97.0] [1.0] 23096
24 44.9 0.0 46.0 50.2 34.8 0 [103.0] [1.0] 28685
25 45.8 0.0 44.8 49.9 33.0 0 [74.0] [1.0] 26733
26 45.4 0.0 44.8 49.7 30.4 0 [109.0] [1.0] 27610
27 37.7 0.0 44.0 49.1 36.3 62 [111.0, 88.0] [1.0] 22546
28 38.7 0.0 44.1 49.1 30.2 6 [102.0] [1.0] 22195
29 36.8 0.0 43.4 48.8 32.1 38 [100.0, 110.0] [1.0] 30833
30 51.0 0.0 45.3 49.0 22.8 0 [78.0] [1.0] 22583
32 39.0 0.0 45.4 49.5 21.1 0 [84.0] [1.0] 21255
33 25.4 0.0 43.9 48.7 34.6 241 [79.0, 85.0, 73.0] [1.0] 29655
34 34.5 0.0 43.6 48.9 31.2 212 [103.0, 104.0] [1.0] 31978
35 29.4 0.0 43.3 48.1 33.0 188 [111.0, 93.0] [1.0] 34602
36 30.9 0.0 44.3 48.8 33.3 211 [109.0, 75.0] [1.0] 30262
37 26.4 0.0 43.2 48.7 34.0 112 [107.0, 106.0, 109.0] [1.0] 25306
38 7.0 0.0 41.2 43.0 38.4 0 [73.0] [1.0] 2199
41 23.7 0.0 43.7 47.8 35.2 368 [76.0, 101.0, 106.0] [1.0] 27847
42 33.7 0.0 44.8 50.3 33.2 105 [108.0, 105.0] [1.0] 30380
43 49.7 0.0 45.4 49.5 34.0 7 [84.0] [1.0] 23860
44 29.1 0.0 43.2 47.5 32.4 207 [108.0, 76.0] [1.0] 34709
45 35.4 0.0 44.2 49.6 33.3 112 [106.0, 99.0] [1.0] 31478
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 43.8 49.2 31.4 251 [86.0, 108.0] [1.0] 30529
12 30.8 0.0 43.9 49.5 28.1 53 [77.0, 78.0] [1.0] 34111
14 30.2 0.0 43.5 48.7 31.4 376 [104.0, 107.0, 93.0] [1.0] 29061
19 44.3 0.0 45.6 49.4 34.8 0 [107.0] [1.0] 28334
20 45.5 0.0 45.1 48.9 18.6 1 [79.0] [1.0] 25467
21 41.3 0.0 44.9 49.6 28.2 202 [87.0, 105.0] [1.0] 28628
22 44.3 0.0 45.4 49.6 33.3 0 [110.0] [1.0] 28333
23 41.8 0.0 45.9 49.8 33.0 0 [97.0] [1.0] 23094
24 44.8 0.0 46.0 49.8 33.9 0 [103.0] [1.0] 28725
25 45.8 0.0 45.3 49.5 34.3 0 [74.0] [1.0] 26734
26 45.4 0.0 45.0 49.3 31.1 0 [109.0] [1.0] 27621
27 37.7 0.0 43.8 48.7 30.4 113 [111.0, 90.0] [1.0] 22545
28 38.8 0.0 43.4 48.1 25.2 200 [105.0, 102.0] [1.0] 22175
29 36.8 0.0 43.7 48.8 31.9 218 [100.0, 82.0] [1.0] 30838
30 51.0 0.0 44.9 48.6 31.7 0 [78.0] [1.0] 22584
32 38.9 0.0 45.0 49.6 33.0 0 [82.0] [1.0] 21295
33 25.5 0.0 43.0 47.8 30.8 300 [79.0, 84.0, 74.0] [1.0] 29617
34 34.5 0.0 43.3 49.1 29.3 14 [102.0, 72.0] [1.0] 32013
35 29.4 0.0 43.2 48.2 35.0 207 [111.0, 95.0] [1.0] 34536
36 31.0 0.0 44.1 48.7 33.5 94 [108.0, 75.0] [1.0] 30195
37 26.4 0.0 43.5 48.4 34.5 232 [106.0, 104.0] [1.0] 25287
38 7.0 0.0 40.4 43.4 37.0 0 [73.0] [1.0] 2201
41 23.7 0.0 43.8 48.0 35.0 415 [76.0, 101.0, 106.0] [1.0] 27841
42 33.6 0.0 44.7 50.0 20.1 250 [108.0, 110.0] [1.0] 30553
43 49.6 0.0 45.3 49.1 32.7 0 [86.0] [1.0] 23877
44 29.1 0.0 42.8 48.1 27.0 4 [109.0, 75.0] [1.0] 34704
45 35.4 0.0 44.2 49.6 32.3 44 [104.0, 99.0] [1.0] 31480
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.3 -0.2 7.0 -13.2 [86.0, 108.0] 30526
12 30.8 0.2 6.3 -8.9 [77.0, 78.0] 34088
14 30.2 -0.0 7.1 -5.5 [106.0, 104.0, 107.0, 94.0, 93.0] 29050
19 44.4 -0.1 5.7 -5.4 [107.0] 28273
20 45.5 -0.1 19.9 -4.7 [79.0] 25460
21 41.3 0.1 8.1 -4.7 [90.0, 87.0, 77.0, 105.0] 28627
22 44.3 0.1 5.4 -4.1 [110.0] 28326
23 41.8 -0.5 4.9 -5.3 [97.0] 23094
24 44.9 -0.0 7.4 -3.9 [103.0] 28685
25 45.8 -0.5 5.7 -6.2 [74.0] 26733
26 45.4 -0.1 6.7 -5.8 [109.0] 27609
27 37.7 0.2 7.4 -3.5 [111.0, 88.0, 90.0] 22544
28 38.8 0.7 8.4 -3.9 [102.0, 105.0] 22165
29 36.8 -0.3 5.0 -7.1 [100.0, 110.0, 82.0] 30830
30 51.0 0.4 5.2 -12.9 [78.0] 22583
32 39.0 0.5 5.7 -20.5 [84.0, 82.0] 21255
33 25.5 0.9 12.2 -3.3 [79.0, 85.0, 84.0, 73.0, 74.0] 29612
34 34.5 0.3 5.2 -5.3 [103.0, 102.0, 104.0, 72.0] 31964
35 29.4 0.0 4.2 -6.1 [111.0, 93.0, 95.0] 34536
36 31.0 0.2 6.6 -4.0 [109.0, 108.0, 75.0] 30195
37 26.4 -0.3 3.9 -6.3 [107.0, 106.0, 109.0, 104.0] 25256
38 7.0 0.8 3.7 -1.6 [73.0] 2199
41 23.7 -0.1 4.8 -6.4 [76.0, 101.0, 106.0] 27821
42 33.7 0.0 16.2 -4.9 [108.0, 105.0, 110.0] 30373
43 49.7 0.0 3.8 -2.8 [84.0, 86.0] 23860
44 29.1 0.3 7.8 -6.2 [108.0, 109.0, 76.0, 75.0] 34693
45 35.4 -0.0 6.0 -6.0 [106.0, 104.0, 99.0] 31477
