REF File: 240802/BX_all.T04
DUT File: 240802/EB79_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816977 44.1 44.6 4.3 9.8 55.2 45.4 37.0 89.0
GPS L2 CM+CL 619704 44.2 44.5 3.5 13.8 52.6 38.8 38.4 89.0
GPS L2 E 195835 30.2 30.9 6.5 12.6 44.0 31.4 32.9 77.0
GPS L5/E5A I+Q 446037 47.3 47.2 2.9 20.1 53.8 33.7 37.2 88.0
GLONASS L1 CA 622892 44.2 45.2 5.0 8.5 53.6 45.1 35.9 86.0
GLONASS L1 P 621264 42.6 43.6 4.9 19.8 51.9 32.1 36.0 86.0
GLONASS L2 CA 544181 44.3 44.8 3.5 1.0 51.6 50.6 35.7 86.0
GLONASS L2 P 544170 42.7 43.2 3.4 1.0 49.8 48.8 35.7 86.0
GLONASS G3 PD 47452 44.6 45.2 3.2 35.2 49.9 14.7 37.5 79.0
Galileo L1 MBOC-PD 622311 45.2 45.6 3.8 16.8 54.2 37.4 36.7 90.0
Galileo L5/E5A BPSK(10)-PD 622315 44.9 45.3 2.8 20.2 50.8 30.6 36.7 90.0
Galileo E5B/B2 BPSK(10)-PD 622317 45.7 46.1 2.9 21.9 51.9 30.0 36.7 90.0
Galileo E5A+B AltBOC-Comp-PD 622317 47.9 48.2 2.4 35.3 53.5 18.2 36.7 90.0
Galileo E6 BPSK(5)-PD 622207 46.8 47.2 3.6 24.1 53.7 29.6 36.8 90.0
BeiDou L1 BOC-PD 611979 45.6 46.0 4.0 23.4 53.6 30.2 36.9 90.0
BeiDou L5/E5A I+Q 611981 45.8 45.8 2.8 26.9 52.1 25.2 36.9 90.0
BeiDou E5B/B2 BPSK(2)-B2 72473 45.9 46.4 2.3 20.1 50.7 30.6 42.0 82.0
BeiDou B1 BPSK(2)-B1 684591 45.4 45.8 3.7 12.8 53.9 41.1 37.5 90.0
BeiDou B3 BPSK(10)-B3 684176 44.4 44.8 3.0 17.4 50.5 33.1 37.5 90.0
start/stop time: 403,387 490,881
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 10,235,179
Avg Samples/sec: 117.0

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 403387.145
Stop Time : 489600.188
Total Hours : 23.9480675
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816930 44.1 44.6 4.0 16.3 54.3 38.0 37.0 89.0
GPS L2 CM+CL 619890 43.9 44.3 3.7 15.1 52.3 37.2 38.4 89.0
GPS L2 E 816897 36.6 36.9 7.8 12.6 52.9 40.3 37.0 89.0
GPS L5/E5A I+Q 446242 47.3 47.5 3.1 23.3 54.4 31.1 37.2 88.0
GLONASS L1 CA 621263 43.7 44.5 4.8 18.8 53.4 34.6 36.0 86.0
GLONASS L2 CA 543065 44.2 44.7 3.6 1.0 51.5 50.5 35.8 86.0
Galileo L1 MBOC-PD 622099 45.2 45.6 3.6 29.0 53.7 24.7 36.8 90.0
Galileo E5A+B AltBOC-Comp-PD 622099 47.8 48.2 2.6 34.5 53.2 18.7 36.8 90.0
BeiDou L5/E5A I+Q 611799 45.8 46.0 3.0 21.8 51.8 30.0 37.0 90.0
BeiDou E5B/B2 BPSK(2)-B2 73001 45.9 46.8 2.5 24.2 50.2 26.0 41.8 82.0
BeiDou B1 BPSK(2)-B1 684817 45.7 46.2 3.7 23.8 54.3 30.5 37.5 90.0
BeiDou B3 BPSK(10)-B3 684786 44.4 44.9 3.2 16.3 50.1 33.8 37.5 90.0
start/stop time: 403,385 490,879
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 7,162,888
Avg Samples/sec: 81.9

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 403385.106
Stop Time : 489600.287
Total Hours : 23.948661388888883
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816299 -0.0 +0.1 +1.9 -27.9 +19.4 +47.3 +37.0 +89.0
GPS L2 CM+CL 619153 +0.3 +0.2 +1.5 -26.2 +22.2 +48.4 +38.4 +89.0
GPS L2 E 195688 +0.3 +0.5 +1.9 -12.0 +8.7 +20.7 +32.9 +77.0
GPS L5/E5A I+Q 445670 -0.0 -0.1 +1.4 -25.7 +20.8 +46.5 +37.3 +88.0
GLONASS L1 CA 620980 +0.6 +0.6 +1.8 -21.5 +14.2 +35.7 +36.0 +86.0
GLONASS L2 CA 542481 +0.1 +0.1 +1.6 -20.4 +21.4 +41.8 +35.8 +86.0
Galileo L1 MBOC-PD 621758 -0.0 +0.1 +1.7 -19.9 +10.0 +29.9 +36.8 +90.0
Galileo E5A+B AltBOC-Comp-PD 621764 +0.0 +0.0 +0.9 -7.1 +8.5 +15.6 +36.8 +90.0
BeiDou L5/E5A I+Q 611557 -0.0 -0.1 +1.3 -10.1 +20.4 +30.5 +37.0 +90.0
BeiDou E5B/B2 BPSK(2)-B2 72449 -0.0 -0.1 +1.4 -18.9 +19.3 +38.2 +42.1 +82.0
BeiDou B1 BPSK(2)-B1 684134 -0.3 -0.2 +1.8 -23.0 +11.7 +34.7 +37.5 +90.0
BeiDou B3 BPSK(10)-B3 683714 +0.1 +0.0 +1.3 -21.5 +24.6 +46.1 +37.5 +90.0
start/stop time: 403,387 490,879
Total time: 87,492.0 seconds
Total time: 1,458.200 minutes
Total time: 24.303 hours
Total Samples: 6,535,647
Avg Samples/sec: 74.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.072
Median = 0.100
Std Dev= 1.594

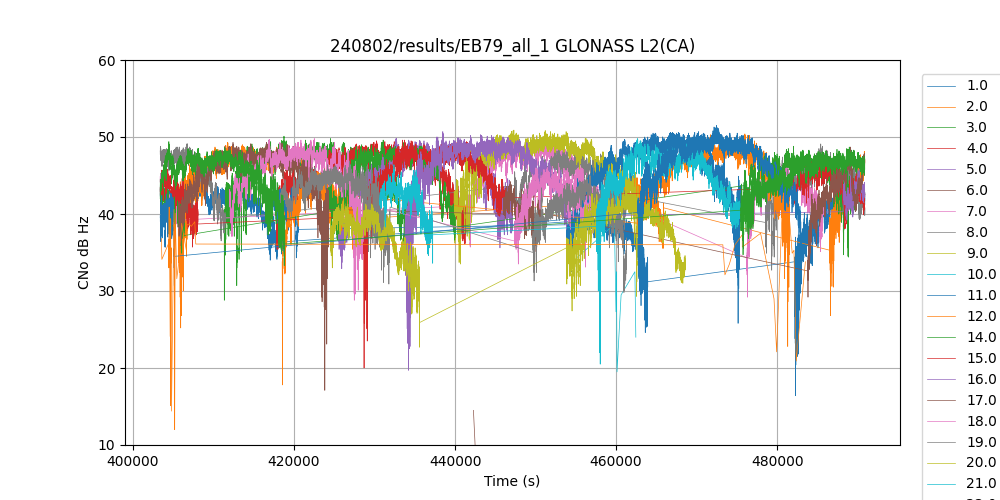

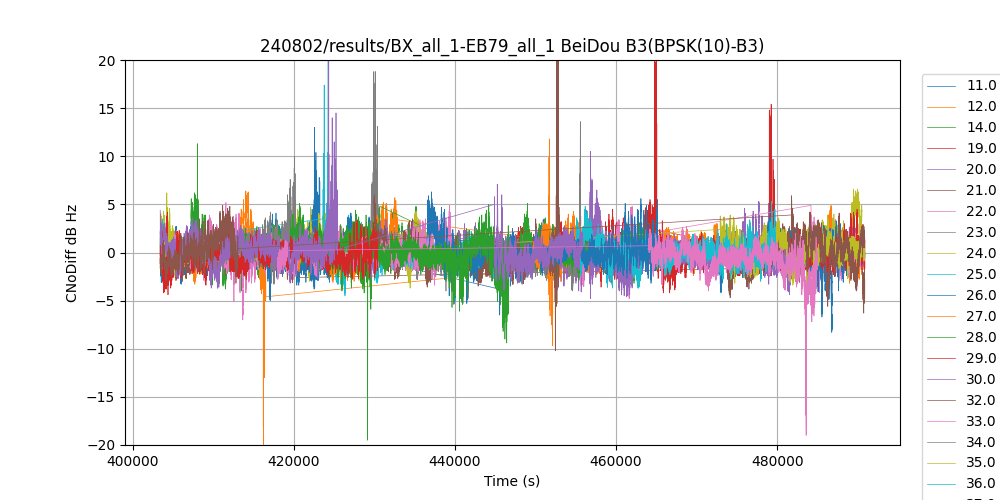

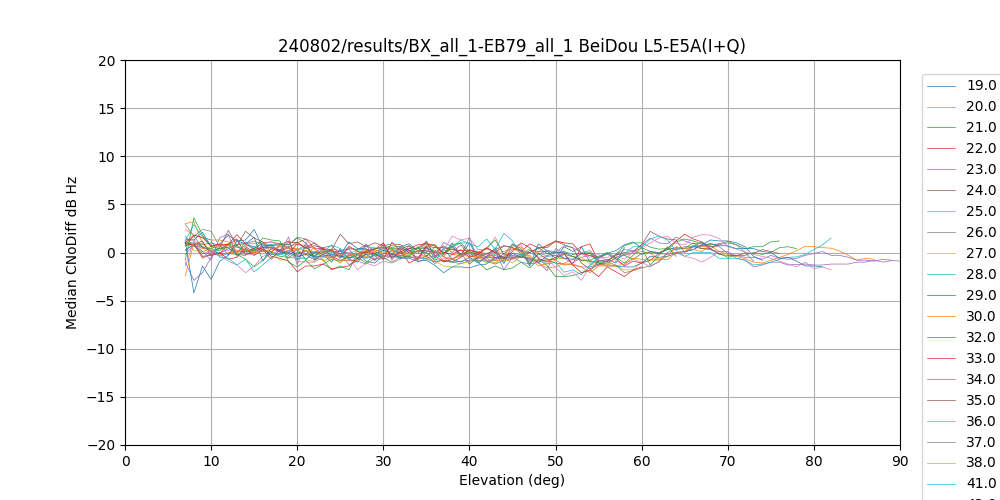

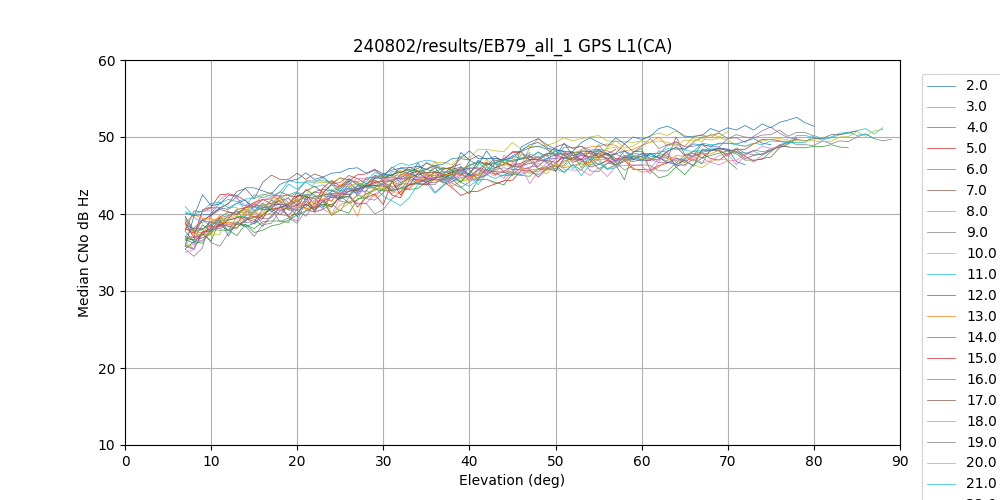

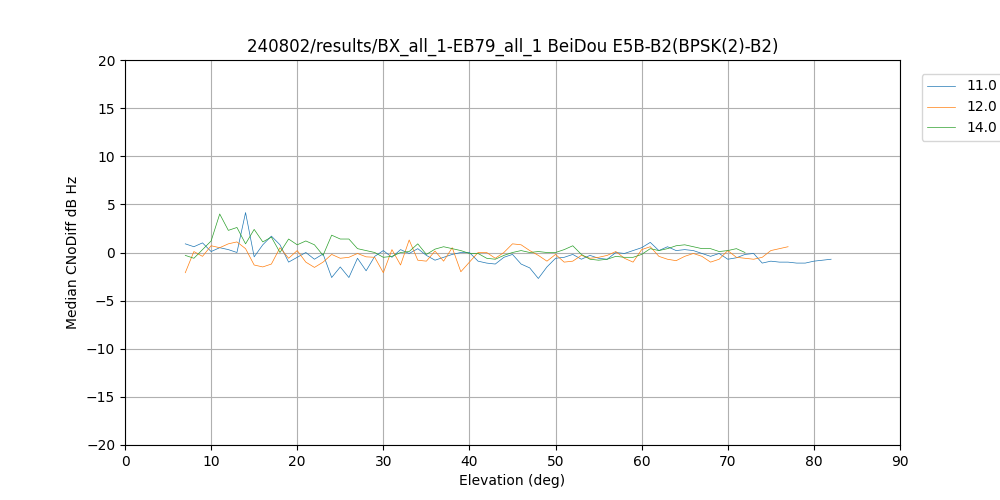

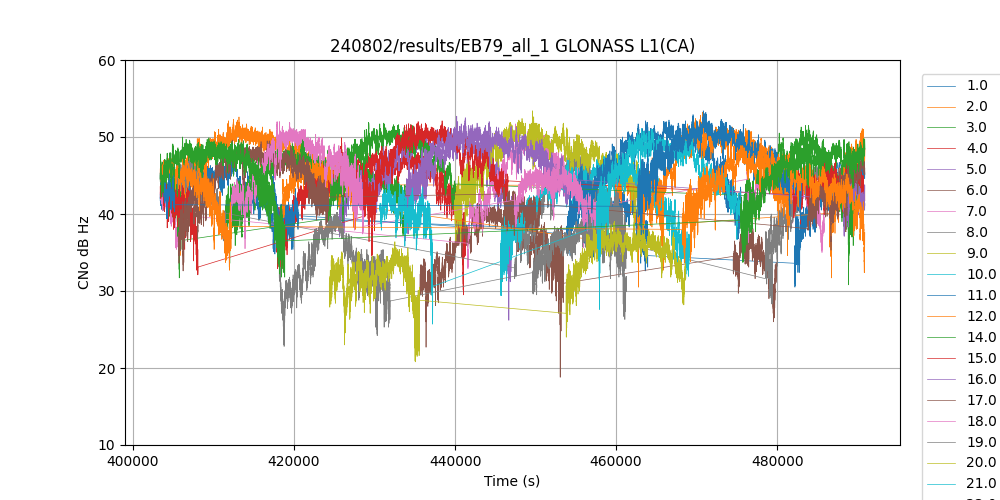

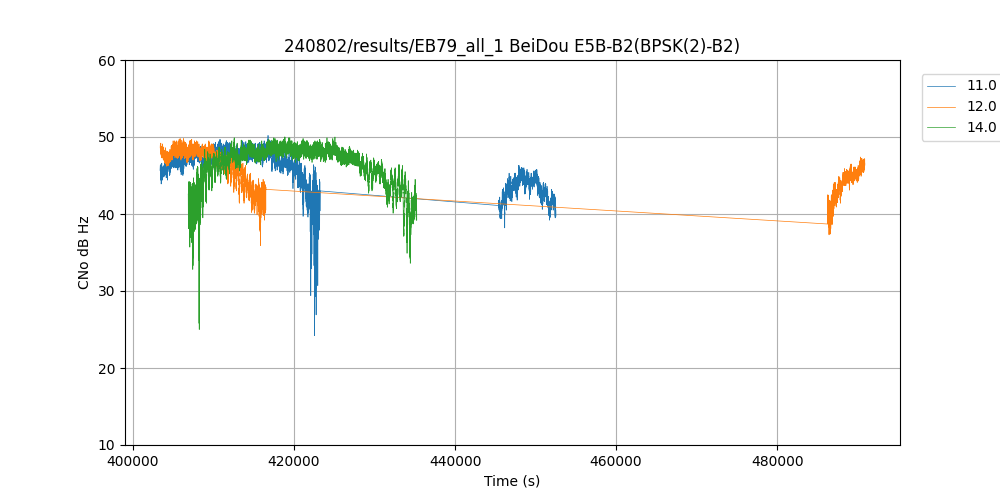

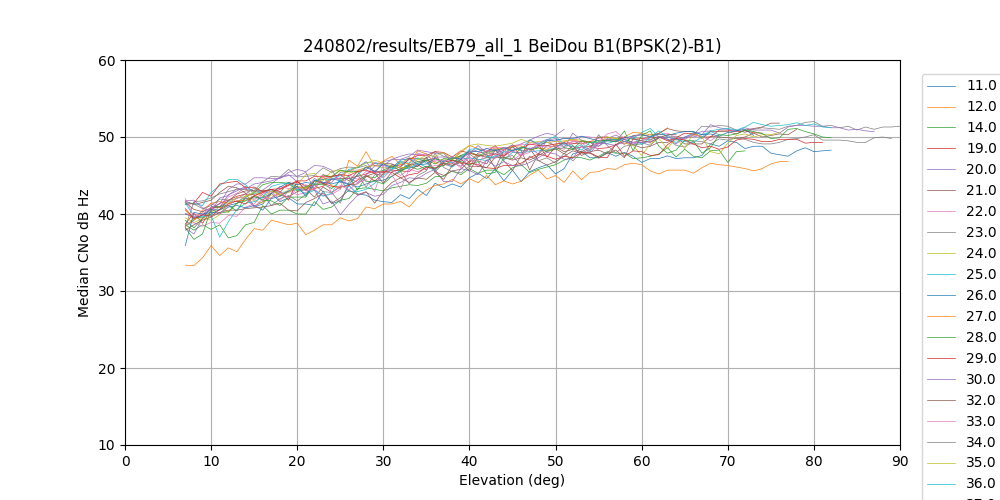

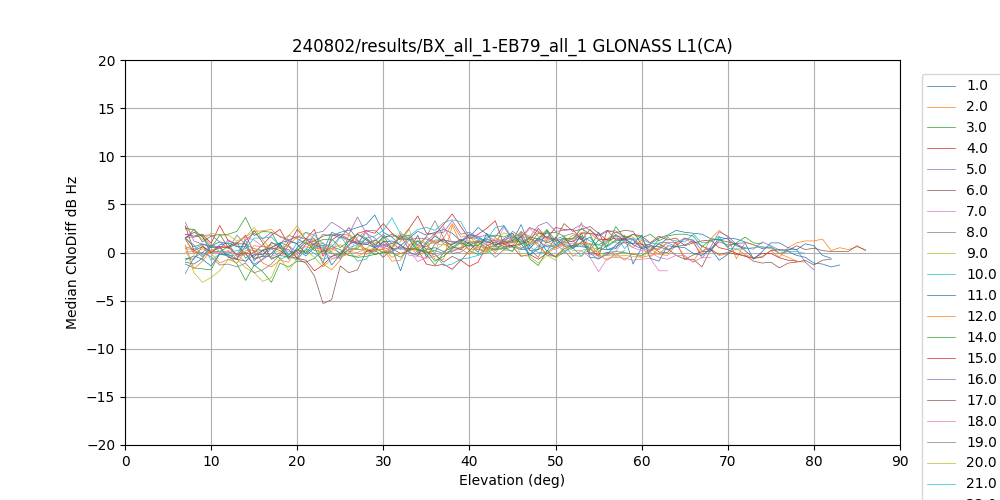

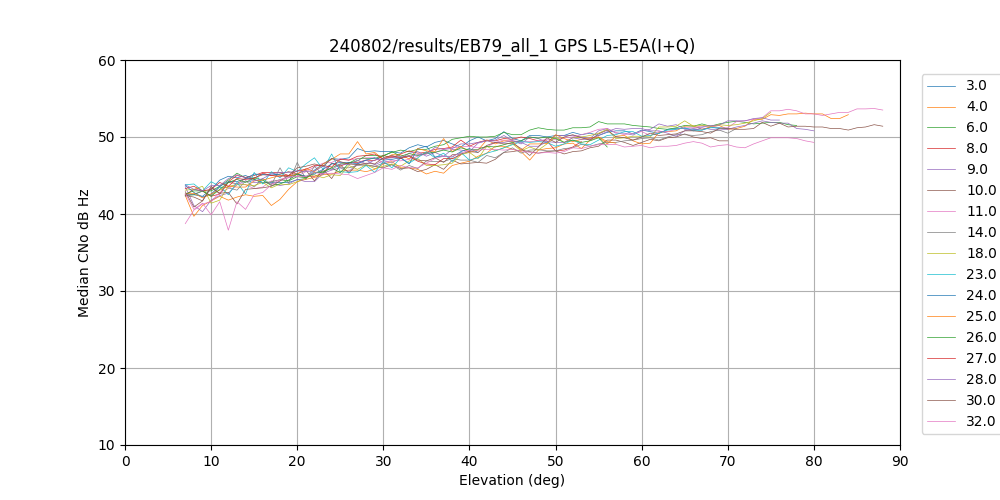

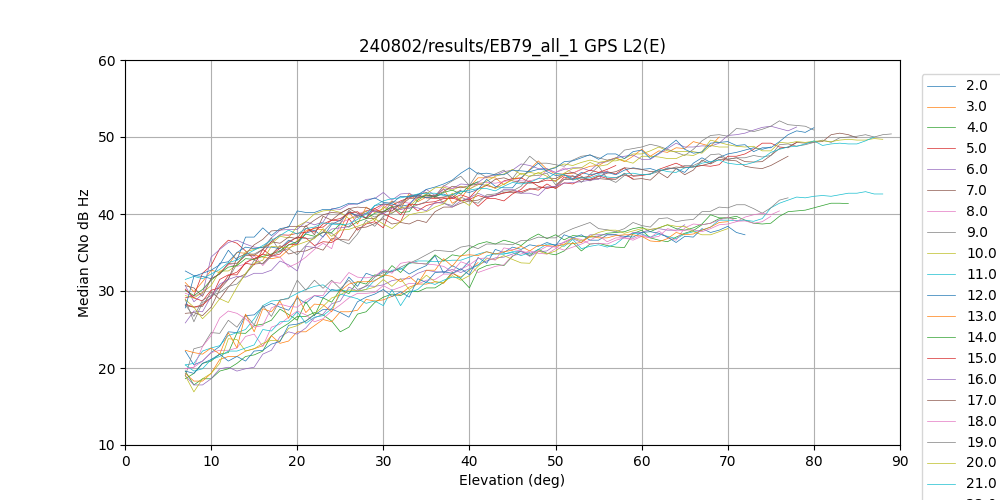

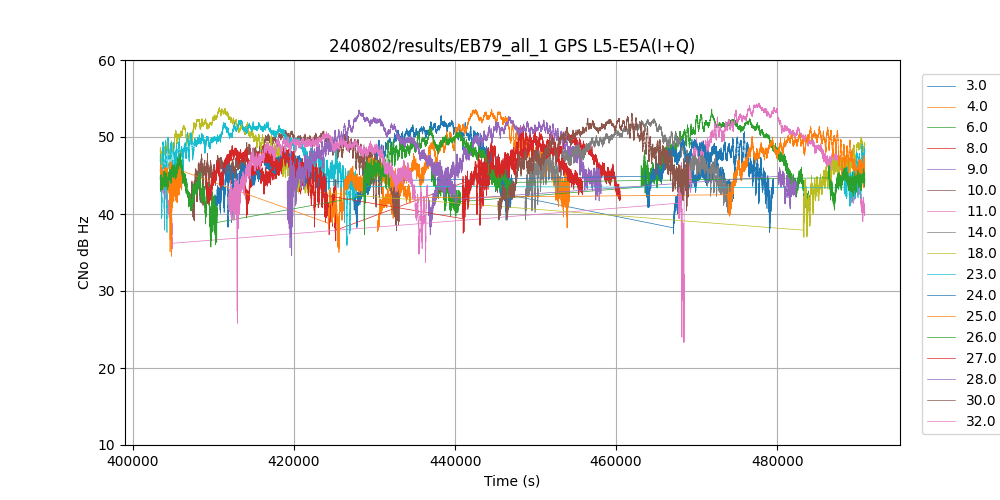

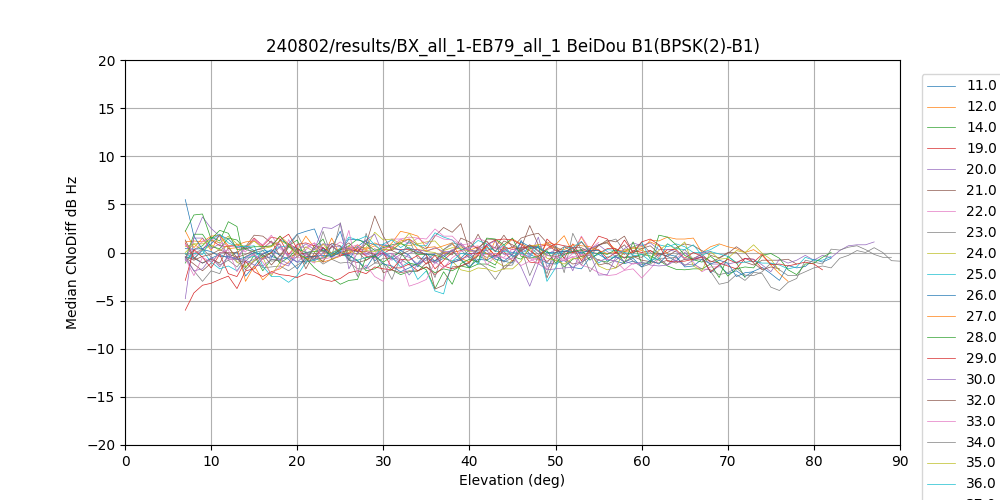

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.5 49.4 30.4 219 [86.0, 93.0] [1.0] 30518
3 32.7 0.0 43.6 52.3 14.0 105 [90.0, 94.0] [1.0] 27063
4 45.4 0.0 44.8 51.8 34.4 0 [73.0] [1.0] 23842
5 41.0 0.0 45.1 51.5 9.8 547 [75.0, 79.0] [1.0] 24333
6 38.3 0.0 44.0 52.4 19.3 479 [86.0, 83.0] [1.0] 24541
7 45.1 0.0 46.1 52.6 27.3 4 [85.0] [1.0] 25498
8 27.4 0.0 42.4 50.4 27.2 234 [92.0, 86.0] [1.0] 29172
9 44.0 0.0 45.3 52.8 30.5 3 [88.0] [1.0] 21443
10 43.5 0.0 46.7 54.7 13.3 79 [95.0] [1.0] 25764
11 43.9 0.0 45.6 52.8 31.8 121 [92.0, 89.0] [1.0] 24642
12 37.4 0.0 44.4 51.4 31.1 130 [92.0, 93.0] [1.0] 24190
13 26.6 0.0 42.2 49.4 18.2 358 [86.0, 92.0, 85.0] [1.0] 31299
14 44.2 0.0 44.7 50.8 28.3 7 [77.0] [1.0] 25710
15 29.4 0.0 43.5 51.0 28.2 168 [82.0, 89.0, 83.0] [1.0] 29176
16 31.3 0.0 42.7 51.4 26.8 134 [92.0, 94.0] [1.0] 27056
17 45.7 0.0 46.4 52.7 31.7 0 [95.0] [1.0] 24100
18 44.1 0.0 44.9 51.7 29.2 104 [91.0, 90.0] [1.0] 26295
19 44.6 0.0 45.3 52.4 33.8 0 [90.0] [1.0] 24588
20 33.8 0.0 43.4 50.7 27.9 225 [80.0, 84.0, 92.0] [1.0] 27372
21 26.6 0.0 42.0 49.2 25.0 227 [76.0, 94.0] [1.0] 30246
22 44.4 0.0 45.2 51.3 13.1 69 [75.0] [1.0] 26002
23 42.4 0.0 43.7 51.9 16.9 234 [72.0] [1.0] 26806
24 25.6 0.0 40.5 48.5 24.5 155 [79.0, 82.0] [1.0] 29829
25 28.1 0.0 41.5 49.3 19.4 263 [78.0, 80.0, 91.0] [1.0] 29892
26 27.6 0.0 42.4 51.0 30.9 211 [93.0, 82.0, 80.0] [1.0] 29832
27 26.1 0.0 41.8 49.6 23.6 193 [80.0, 89.0] [1.0] 29909
28 39.7 0.0 43.9 51.6 19.3 333 [87.0, 85.0] [1.0] 23201
29 47.9 0.0 45.9 51.9 33.5 25 [74.0, 78.0] [1.0] 24052
30 45.9 0.0 46.1 53.0 31.6 0 [81.0] [1.0] 23644
31 45.3 0.0 46.6 52.2 33.3 0 [91.0] [1.0] 22332
32 45.3 0.0 47.6 55.2 29.0 10 [88.0] [1.0] 24630
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.2 48.9 32.2 250 [80.0, 95.0] [1.0] 30532
3 32.7 0.0 43.6 52.5 31.0 98 [90.0, 94.0] [1.0] 27073
4 45.4 0.0 44.4 50.9 32.9 0 [73.0] [1.0] 23829
5 40.9 0.0 44.8 51.2 23.1 82 [75.0, 80.0, 79.0] [1.0] 24420
6 38.3 0.0 43.8 52.6 28.0 81 [85.0, 93.0] [1.0] 24536
7 45.1 0.0 45.6 51.9 32.4 1 [86.0] [1.0] 25464
8 27.4 0.0 42.0 50.4 28.5 133 [78.0, 85.0] [1.0] 29132
9 44.0 0.0 45.1 52.3 29.4 5 [91.0] [1.0] 21423
10 43.5 0.0 46.6 52.6 27.9 6 [92.0] [1.0] 25789
11 43.9 0.0 45.4 52.6 34.1 226 [94.0, 91.0] [1.0] 24667
12 37.4 0.0 44.7 51.3 26.2 149 [78.0, 95.0] [1.0] 24232
13 26.6 0.0 43.0 49.1 30.3 211 [85.0, 82.0, 93.0] [1.0] 31264
14 44.1 0.0 44.9 50.2 26.5 1 [77.0] [1.0] 25734
15 29.4 0.0 43.4 50.5 32.5 295 [84.0, 71.0] [1.0] 29127
16 31.3 0.0 42.1 50.0 31.6 5 [94.0] [1.0] 27055
17 45.7 0.0 46.2 52.4 33.6 0 [92.0] [1.0] 24093
18 44.1 0.0 44.5 50.1 31.6 210 [88.0, 89.0] [1.0] 26322
19 44.7 0.0 45.2 51.5 33.2 3 [89.0] [1.0] 24571
20 33.8 0.0 42.7 50.1 28.2 319 [82.0, 81.0, 88.0] [1.0] 27358
21 26.6 0.0 42.6 49.6 33.3 180 [75.0, 94.0] [1.0] 30237
22 44.4 0.0 45.1 51.3 29.7 1 [75.0] [1.0] 26003
23 42.3 0.0 44.6 50.2 34.5 77 [71.0, 72.0] [1.0] 26913
24 25.6 0.0 41.4 48.7 23.3 147 [83.0, 84.0] [1.0] 29827
25 28.1 0.0 42.3 50.8 30.7 304 [81.0, 95.0, 83.0] [1.0] 29829
26 27.6 0.0 41.9 50.0 16.3 249 [93.0, 84.0, 80.0] [1.0] 29835
27 26.2 0.0 42.5 49.0 27.3 198 [95.0, 89.0] [1.0] 29856
28 39.7 0.0 43.9 50.9 27.9 184 [87.0, 84.0] [1.0] 23191
29 47.9 0.0 45.4 51.8 33.7 189 [74.0, 78.0] [1.0] 24035
30 45.9 0.0 45.5 52.9 33.7 0 [83.0] [1.0] 23652
31 45.3 0.0 46.1 52.9 31.4 0 [88.0] [1.0] 22296
32 45.3 0.0 47.5 54.3 29.1 2 [91.0] [1.0] 24635
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.7 5.4 -11.6 [86.0, 80.0, 93.0, 95.0] 30498
3 32.7 -0.0 7.3 -18.2 [90.0, 94.0] 27056
4 45.4 0.5 7.8 -6.0 [73.0] 23829
5 41.0 0.2 13.6 -27.9 [75.0, 79.0, 80.0] 24315
6 38.4 0.2 7.2 -13.0 [86.0, 85.0, 83.0, 93.0] 24505
7 45.1 0.5 7.1 -9.9 [85.0, 86.0] 25464
8 27.4 0.4 9.9 -9.1 [92.0, 78.0, 86.0, 85.0] 29126
9 44.0 0.2 6.8 -4.9 [88.0, 91.0] 21423
10 43.5 0.1 7.5 -22.9 [95.0, 92.0] 25759
11 43.9 0.2 6.7 -5.1 [92.0, 94.0, 89.0, 91.0] 24640
12 37.4 -0.3 9.2 -6.4 [92.0, 78.0, 93.0, 95.0] 24190
13 26.6 -0.8 6.9 -18.7 [86.0, 85.0, 92.0, 82.0, 93.0] 31262
14 44.2 -0.2 8.4 -9.6 [77.0] 25709
15 29.4 0.1 8.1 -10.1 [82.0, 84.0, 89.0, 71.0, 83.0] 29125
16 31.3 0.6 9.4 -9.3 [92.0, 94.0] 27040
17 45.7 0.2 5.2 -7.0 [95.0, 92.0] 24093
18 44.1 0.5 7.5 -5.5 [91.0, 88.0, 90.0, 89.0] 26291
19 44.7 0.1 6.7 -4.7 [90.0, 89.0] 24564
20 33.8 0.7 6.6 -6.1 [80.0, 82.0, 84.0, 81.0, 92.0, 88.0] 27342
21 26.6 -0.6 5.6 -11.4 [76.0, 75.0, 94.0] 30226
22 44.4 0.1 5.5 -23.6 [75.0] 26002
23 42.4 -0.9 7.6 -20.7 [72.0, 71.0] 26804
24 25.6 -1.0 11.1 -12.6 [79.0, 83.0, 82.0, 84.0] 29807
25 28.2 -0.8 6.5 -14.0 [78.0, 81.0, 80.0, 95.0, 91.0, 83.0] 29805
26 27.6 0.5 19.4 -6.9 [93.0, 82.0, 84.0, 80.0] 29801
27 26.2 -0.7 9.2 -12.8 [80.0, 95.0, 89.0] 29856
28 39.7 0.1 7.2 -16.0 [87.0, 85.0, 84.0] 23173
29 47.9 0.5 7.5 -7.6 [74.0, 78.0] 24033
30 45.9 0.5 7.1 -6.6 [81.0, 83.0] 23635
31 45.3 0.5 8.0 -6.2 [91.0, 88.0] 22296
32 45.3 0.1 9.9 -5.6 [88.0, 91.0] 24630
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 37.6 15.6 55 [86.0, 93.0] [1.0] 30518
13 26.7 0.0 27.3 35.8 13.9 299 [86.0, 92.0, 85.0] [1.0] 30934
16 31.5 0.0 28.8 40.1 12.6 131 [92.0, 94.0] [1.0] 26816
19 44.8 0.0 35.3 44.0 16.3 1 [90.0] [1.0] 24506
20 34.2 0.0 30.2 40.4 13.9 70 [80.0, 84.0, 92.0] [1.0] 26953
21 26.6 0.0 28.1 38.1 13.9 174 [76.0, 94.0] [1.0] 30190
22 44.5 0.0 33.0 41.6 14.8 9 [75.0] [1.0] 25917
27 20.0 0.0 22.8 22.8 22.8 0 [80.0] [1.0] 1
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 36.6 14.8 119 [80.0, 95.0] [1.0] 30532
3 32.7 0.0 40.0 50.9 22.6 169 [90.0, 94.0] [1.0] 27073
4 45.4 0.0 32.4 42.8 13.9 0 [73.0] [1.0] 23829
5 40.9 0.0 41.4 50.3 22.0 273 [75.0, 80.0, 79.0] [1.0] 24415
6 38.3 0.0 41.7 52.8 22.0 172 [85.0, 93.0] [1.0] 24536
7 45.1 0.0 41.3 48.9 21.7 1 [86.0] [1.0] 25464
8 27.4 0.0 37.7 47.4 22.3 147 [78.0, 85.0] [1.0] 29132
9 44.0 0.0 43.6 52.9 22.0 5 [91.0] [1.0] 21423
10 43.5 0.0 43.3 50.2 22.8 6 [92.0] [1.0] 25789
11 43.9 0.0 34.0 43.9 17.4 32 [94.0, 91.0] [1.0] 24667
12 37.4 0.0 40.7 50.2 21.1 152 [78.0, 95.0] [1.0] 24232
13 26.6 0.0 27.2 34.9 13.9 179 [85.0, 82.0, 93.0] [1.0] 31264
14 44.1 0.0 34.0 41.5 13.9 1 [77.0] [1.0] 25734
15 29.4 0.0 37.9 47.1 19.9 333 [84.0, 71.0] [1.0] 29127
16 31.3 0.0 27.8 40.2 12.6 6 [94.0] [1.0] 27055
17 45.7 0.0 42.8 51.3 23.6 0 [92.0] [1.0] 24093
18 44.1 0.0 32.8 41.4 16.3 165 [88.0, 89.0] [1.0] 26322
19 44.7 0.0 35.1 43.9 13.9 3 [89.0] [1.0] 24571
20 33.8 0.0 29.2 40.3 12.6 85 [82.0, 81.0, 88.0] [1.0] 27358
21 26.6 0.0 27.9 37.7 15.6 243 [75.0, 94.0] [1.0] 30237
22 44.4 0.0 32.6 40.8 15.6 1 [75.0] [1.0] 26003
23 42.3 0.0 33.2 41.1 16.3 61 [71.0, 72.0] [1.0] 26913
24 25.6 0.0 38.1 45.7 21.7 79 [83.0, 84.0] [1.0] 29809
25 28.1 0.0 37.9 47.6 21.3 265 [81.0, 95.0, 83.0] [1.0] 29829
26 27.6 0.0 36.6 46.4 19.0 30 [93.0, 84.0, 80.0] [1.0] 29825
27 26.2 0.0 38.9 46.2 23.6 87 [95.0, 89.0] [1.0] 29856
28 39.7 0.0 32.2 41.7 15.6 139 [87.0, 84.0] [1.0] 23191
29 47.9 0.0 42.3 51.4 22.2 47 [74.0, 78.0] [1.0] 24035
30 45.9 0.0 42.3 50.9 22.2 0 [83.0] [1.0] 23652
31 45.3 0.0 42.5 51.3 19.9 0 [88.0] [1.0] 22296
32 45.3 0.0 44.4 52.1 14.8 2 [91.0] [1.0] 24635
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.0 8.3 -11.0 [86.0, 80.0, 93.0, 95.0] 30498
13 26.8 0.0 6.8 -8.8 [86.0, 85.0, 92.0, 82.0, 93.0] 30897
16 31.5 0.9 8.5 -6.0 [92.0, 94.0] 26800
19 44.8 0.2 8.0 -6.0 [90.0, 89.0] 24482
20 34.3 0.8 7.6 -6.8 [80.0, 82.0, 84.0, 81.0, 92.0, 88.0] 26923
21 26.7 0.1 8.1 -9.6 [76.0, 75.0, 94.0] 30170
22 44.5 0.3 8.7 -9.3 [75.0] 25917
27 20.0 -12.0 -12.0 -12.0 [80.0, 95.0] 1
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.6 32.0 48 [90.0, 94.0] [1.0] 27043
4 45.4 0.0 45.9 52.5 30.3 0 [73.0] [1.0] 23842
5 41.0 0.0 44.3 49.5 25.0 143 [75.0, 79.0] [1.0] 24333
6 38.3 0.0 45.0 50.4 27.9 236 [86.0, 83.0] [1.0] 24541
7 45.1 0.0 44.1 49.7 34.7 0 [85.0] [1.0] 25498
8 27.4 0.0 42.9 48.0 27.7 80 [92.0, 86.0] [1.0] 29172
9 44.0 0.0 43.8 48.9 26.0 0 [88.0] [1.0] 21443
10 43.5 0.0 44.4 48.9 32.1 0 [95.0] [1.0] 25764
11 43.9 0.0 46.3 52.6 34.1 81 [92.0, 89.0] [1.0] 24642
12 37.4 0.0 43.2 48.9 31.4 127 [92.0, 93.0] [1.0] 24190
14 44.2 0.0 46.6 52.1 35.9 0 [77.0] [1.0] 25710
15 29.4 0.0 42.3 47.8 28.7 184 [82.0, 89.0, 83.0] [1.0] 29176
17 45.7 0.0 44.5 51.0 30.0 0 [95.0] [1.0] 24100
18 44.1 0.0 46.4 51.8 36.2 98 [91.0, 90.0] [1.0] 26295
23 42.4 0.0 46.3 51.1 31.2 4 [72.0] [1.0] 26806
24 25.6 0.0 42.6 47.6 31.1 10 [79.0, 82.0] [1.0] 29795
25 28.2 0.0 41.8 47.3 22.0 333 [78.0, 80.0, 91.0] [1.0] 29787
26 27.6 0.0 41.9 47.7 22.3 302 [93.0, 82.0, 80.0] [1.0] 29832
27 26.1 0.0 42.8 47.4 13.8 90 [80.0, 89.0] [1.0] 29897
28 39.7 0.0 46.3 51.5 28.1 197 [87.0, 85.0] [1.0] 23180
29 47.9 0.0 44.3 50.4 31.7 191 [74.0, 78.0] [1.0] 24052
30 45.9 0.0 43.7 49.1 31.5 0 [81.0] [1.0] 23644
31 45.3 0.0 44.8 50.3 34.1 0 [91.0] [1.0] 22332
32 45.3 0.0 45.0 49.9 26.8 2 [88.0] [1.0] 24630
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.5 20.5 66 [90.0, 94.0] [1.0] 27071
4 45.4 0.0 45.5 52.3 33.3 0 [73.0] [1.0] 23829
5 40.9 0.0 43.9 49.6 27.0 387 [75.0, 80.0, 79.0] [1.0] 24420
6 38.3 0.0 44.6 50.3 30.0 125 [85.0, 93.0] [1.0] 24536
7 45.1 0.0 43.6 49.4 29.7 0 [86.0] [1.0] 25464
8 27.4 0.0 42.4 48.0 29.4 182 [78.0, 85.0] [1.0] 29132
9 44.0 0.0 44.4 49.6 26.8 12 [91.0] [1.0] 21423
10 43.5 0.0 44.2 48.6 31.9 0 [92.0] [1.0] 25789
11 43.9 0.0 46.2 52.1 34.9 220 [94.0, 91.0] [1.0] 24667
12 37.4 0.0 43.2 49.2 31.2 238 [78.0, 95.0] [1.0] 24232
14 44.1 0.0 46.3 51.1 31.3 0 [77.0] [1.0] 25734
15 29.4 0.0 41.6 47.9 15.1 284 [84.0, 71.0] [1.0] 29126
17 45.7 0.0 44.2 50.0 22.9 10 [92.0] [1.0] 24093
18 44.1 0.0 45.8 51.4 36.0 221 [88.0, 89.0] [1.0] 26322
23 42.3 0.0 46.0 51.2 34.3 4 [71.0, 72.0] [1.0] 26913
24 25.6 0.0 42.0 46.9 32.1 184 [83.0, 84.0] [1.0] 29827
25 28.1 0.0 41.8 47.6 24.5 312 [81.0, 95.0, 83.0] [1.0] 29829
26 27.6 0.0 41.7 47.6 27.5 184 [93.0, 84.0, 80.0] [1.0] 29835
27 26.2 0.0 42.3 46.9 32.1 114 [95.0, 89.0] [1.0] 29856
28 39.7 0.0 46.0 51.7 16.5 136 [87.0, 84.0] [1.0] 23190
29 47.9 0.0 44.0 50.1 24.5 102 [74.0, 78.0] [1.0] 24035
30 45.9 0.0 43.2 48.4 28.1 1 [83.0] [1.0] 23652
31 45.3 0.0 44.7 50.3 23.1 6 [88.0] [1.0] 22296
32 45.3 0.0 45.0 50.2 19.6 71 [91.0] [1.0] 24619
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.0 18.3 -5.8 [90.0, 94.0] 27034
4 45.4 0.4 6.4 -6.1 [73.0] 23829
5 41.0 0.3 9.6 -10.7 [75.0, 79.0, 80.0] 24315
6 38.4 0.4 9.0 -6.1 [86.0, 85.0, 83.0, 93.0] 24505
7 45.1 0.5 8.9 -3.6 [85.0, 86.0] 25464
8 27.4 0.5 8.0 -12.4 [92.0, 78.0, 86.0, 85.0] 29126
9 44.0 -0.6 7.0 -7.9 [88.0, 91.0] 21423
10 43.5 0.2 6.7 -8.2 [95.0, 92.0] 25759
11 43.9 0.1 4.9 -6.2 [92.0, 94.0, 89.0, 91.0] 24640
12 37.4 -0.0 7.7 -5.9 [92.0, 78.0, 93.0, 95.0] 24190
14 44.2 0.3 10.6 -8.1 [77.0] 25709
15 29.4 0.6 22.2 -6.1 [82.0, 84.0, 89.0, 71.0, 83.0] 29124
17 45.7 0.3 13.0 -6.4 [95.0, 92.0] 24093
18 44.1 0.6 6.9 -5.0 [91.0, 88.0, 90.0, 89.0] 26291
23 42.4 0.3 7.9 -9.3 [72.0, 71.0] 26804
24 25.7 0.6 8.1 -6.9 [79.0, 83.0, 82.0, 84.0] 29773
25 28.2 0.1 13.4 -17.4 [78.0, 81.0, 80.0, 95.0, 91.0, 83.0] 29700
26 27.6 0.2 6.3 -16.4 [93.0, 82.0, 84.0, 80.0] 29801
27 26.2 0.5 7.7 -26.2 [80.0, 95.0, 89.0] 29844
28 39.7 0.4 15.4 -13.9 [87.0, 85.0, 84.0] 23151
29 47.9 0.3 13.0 -6.9 [74.0, 78.0] 24033
30 45.9 0.5 8.3 -5.0 [81.0, 83.0] 23635
31 45.3 0.1 14.5 -4.9 [91.0, 88.0] 22296
32 45.3 0.0 15.1 -9.8 [88.0, 91.0] 24614
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.0 53.1 37.5 87 [90.0, 94.0] [1.0] 27043
4 45.4 0.0 47.8 53.4 39.0 0 [73.0] [1.0] 23842
6 38.3 0.0 48.0 53.1 29.0 76 [86.0, 83.0] [1.0] 24541
8 27.4 0.0 46.0 50.8 20.1 52 [92.0, 86.0] [1.0] 29172
9 44.0 0.0 48.0 53.2 38.1 0 [88.0] [1.0] 21443
10 43.5 0.0 47.7 52.2 37.9 0 [95.0] [1.0] 25764
11 43.9 0.0 48.4 53.8 29.5 164 [92.0, 89.0] [1.0] 24642
14 44.2 0.0 48.2 52.8 41.3 0 [77.0] [1.0] 25710
18 44.1 0.0 48.3 53.5 40.6 2 [91.0, 90.0] [1.0] 26295
23 42.4 0.0 48.2 53.6 20.4 14 [72.0] [1.0] 26806
24 25.6 0.0 46.0 49.9 37.5 185 [79.0, 82.0] [1.0] 29796
25 28.2 0.0 46.2 51.7 27.9 444 [78.0, 80.0, 91.0] [1.0] 29788
26 27.6 0.0 45.9 50.9 38.5 300 [93.0, 82.0, 80.0] [1.0] 29832
27 26.1 0.0 46.1 49.8 38.6 39 [80.0, 89.0] [1.0] 29909
28 39.7 0.0 48.2 53.6 39.4 142 [87.0, 85.0] [1.0] 23180
30 45.9 0.0 48.3 53.1 40.2 0 [81.0] [1.0] 23644
32 45.3 0.0 46.6 51.4 33.2 0 [88.0] [1.0] 24630
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.3 52.8 37.4 87 [90.0, 94.0] [1.0] 27073
4 45.4 0.0 47.8 53.6 37.7 0 [73.0] [1.0] 23829
6 38.3 0.0 47.9 53.6 39.7 62 [85.0, 93.0] [1.0] 24536
8 27.4 0.0 46.3 51.3 36.5 214 [78.0, 85.0] [1.0] 29132
9 44.0 0.0 48.2 52.7 37.3 0 [91.0] [1.0] 21423
10 43.5 0.0 47.4 51.0 37.8 0 [92.0] [1.0] 25789
11 43.9 0.0 48.5 54.4 23.3 210 [94.0, 91.0] [1.0] 24666
14 44.1 0.0 47.9 52.4 39.2 0 [77.0] [1.0] 25734
18 44.1 0.0 48.2 53.8 37.0 129 [88.0, 89.0] [1.0] 26322
23 42.3 0.0 48.1 52.2 35.9 220 [71.0, 72.0] [1.0] 26913
24 25.6 0.0 46.0 50.7 37.6 132 [83.0, 84.0] [1.0] 29827
25 28.1 0.0 46.2 51.4 34.5 231 [81.0, 95.0, 83.0] [1.0] 29829
26 27.6 0.0 46.0 51.3 35.7 420 [93.0, 84.0, 80.0] [1.0] 29835
27 26.2 0.0 46.1 50.2 37.5 46 [95.0, 89.0] [1.0] 29856
28 39.7 0.0 48.0 53.5 34.6 61 [87.0, 84.0] [1.0] 23191
30 45.9 0.0 48.3 53.1 39.2 0 [83.0] [1.0] 23652
32 45.3 0.0 46.9 50.7 25.8 4 [91.0] [1.0] 24635
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.3 5.8 -5.3 [90.0, 94.0] 27036
4 45.4 -0.0 4.7 -4.0 [73.0] 23829
6 38.4 0.1 5.9 -17.7 [86.0, 85.0, 83.0, 93.0] 24505
8 27.4 -0.2 7.3 -25.7 [92.0, 78.0, 86.0, 85.0] 29126
9 44.0 -0.2 4.8 -6.1 [88.0, 91.0] 21423
10 43.5 0.4 5.1 -4.9 [95.0, 92.0] 25759
11 43.9 -0.2 20.8 -11.0 [92.0, 94.0, 89.0, 91.0] 24639
14 44.2 0.3 5.2 -4.6 [77.0] 25709
18 44.1 0.1 6.3 -4.7 [91.0, 88.0, 90.0, 89.0] 26291
23 42.4 0.1 6.8 -21.5 [72.0, 71.0] 26804
24 25.7 -0.1 5.3 -4.8 [79.0, 83.0, 82.0, 84.0] 29774
25 28.2 -0.0 10.1 -12.6 [78.0, 81.0, 80.0, 95.0, 91.0, 83.0] 29701
26 27.6 -0.2 5.7 -4.6 [93.0, 82.0, 84.0, 80.0] 29801
27 26.2 0.0 6.5 -5.1 [80.0, 95.0, 89.0] 29856
28 39.7 0.2 7.4 -5.8 [87.0, 85.0, 84.0] 23152
30 45.9 -0.0 3.3 -3.9 [81.0, 83.0] 23635
32 45.3 -0.3 17.4 -5.5 [88.0, 91.0] 24630
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 42.8 49.3 29.8 62 [1.0] [1.0] 34055
2 34.9 0.0 46.8 53.3 31.5 347 [-4.0] [1.0] 30985
3 39.2 0.0 44.7 50.4 19.8 16 [5.0] [1.0] 23052
4 38.4 0.0 44.9 50.2 27.8 0 [6.0] [1.0] 23422
5 41.6 0.0 47.3 52.5 35.4 0 [1.0] [1.0] 21594
6 36.9 0.0 35.8 41.6 17.4 705 [-4.0] [1.0] 23471
7 29.6 0.0 44.3 50.2 33.4 43 [5.0] [1.0] 28161
8 30.6 0.0 43.2 49.1 27.1 291 [6.0] [1.0] 34345
9 39.8 0.0 47.2 53.4 21.0 5 [-2.0] [1.0] 23081
10 38.8 0.0 42.5 49.5 13.9 78 [-7.0] [1.0] 23414
11 37.5 0.0 46.8 52.5 36.7 20 [0.0] [1.0] 24883
12 35.9 0.0 46.8 53.0 31.8 209 [-1.0] [1.0] 27953
14 31.3 0.0 46.6 53.4 26.7 124 [-7.0] [1.0] 32548
15 32.6 0.0 46.0 53.1 33.8 475 [0.0] [1.0] 31592
16 40.1 0.0 47.6 53.6 31.9 83 [-1.0] [1.0] 23204
17 35.3 0.0 44.7 51.0 32.6 147 [4.0] [1.0] 30217
18 32.0 0.0 45.4 51.9 36.1 113 [-3.0] [1.0] 25603
19 29.6 0.0 34.8 41.6 8.5 1938 [3.0] [1.0] 26150
20 29.7 0.0 34.3 39.6 19.9 747 [2.0] [1.0] 26396
21 35.4 0.0 45.3 51.3 28.7 93 [4.0] [1.0] 24374
22 41.7 0.0 47.6 53.6 27.3 222 [-3.0] [1.0] 22028
23 37.7 0.0 44.2 50.2 31.1 171 [3.0] [1.0] 31502
24 45.8 0.0 47.1 51.8 28.9 159 [2.0] [1.0] 30862
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 42.0 48.0 30.5 273 [1.0] [1.0] 34046
2 34.9 0.0 46.4 52.6 31.7 129 [-4.0] [1.0] 31001
3 39.2 0.0 44.7 50.0 33.6 0 [5.0] [1.0] 23068
4 38.4 0.0 44.1 49.9 29.5 0 [6.0] [1.0] 23397
5 41.6 0.0 46.2 51.7 26.2 0 [1.0] [1.0] 21559
6 37.2 0.0 35.7 41.4 18.8 627 [-4.0] [1.0] 23159
7 29.6 0.0 43.9 51.7 32.9 137 [5.0] [1.0] 28141
8 30.6 0.0 42.3 48.3 26.7 42 [6.0] [1.0] 34300
9 39.8 0.0 47.3 53.4 36.4 0 [-2.0] [1.0] 23103
10 38.8 0.0 42.2 47.9 29.4 0 [-7.0] [1.0] 23408
11 37.5 0.0 45.9 52.2 34.9 11 [0.0] [1.0] 24870
12 35.8 0.0 46.2 53.2 30.5 111 [-1.0] [1.0] 27989
14 31.3 0.0 46.3 51.9 30.8 329 [-7.0] [1.0] 32547
15 32.7 0.0 45.4 52.1 32.1 339 [0.0] [1.0] 31539
16 40.2 0.0 46.9 52.7 36.5 181 [-1.0] [1.0] 23139
17 35.3 0.0 43.7 49.7 32.6 282 [4.0] [1.0] 30256
18 32.0 0.0 45.3 52.0 34.5 249 [-3.0] [1.0] 25607
19 30.1 0.0 34.6 40.2 22.8 1651 [3.0] [1.0] 25389
20 30.0 0.0 33.6 39.0 20.8 1407 [2.0] [1.0] 26003
21 35.4 0.0 44.5 51.1 25.7 207 [4.0] [1.0] 24360
22 41.7 0.0 47.4 53.4 37.3 184 [-3.0] [1.0] 22026
23 37.7 0.0 43.9 49.8 32.4 236 [3.0] [1.0] 31499
24 45.8 0.0 45.8 51.5 31.8 83 [2.0] [1.0] 30857
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 0.8 8.7 -7.6 [1.0] 34044
2 34.9 0.4 9.4 -10.1 [-4.0] 30964
3 39.2 -0.0 6.0 -18.4 [5.0] 23052
4 38.4 0.7 8.7 -9.4 [6.0] 23392
5 41.6 1.1 14.2 -5.0 [1.0] 21559
6 37.2 0.1 13.0 -14.9 [-4.0] 23155
7 29.6 0.4 7.3 -6.0 [5.0] 28130
8 30.6 0.9 8.0 -9.1 [6.0] 34297
9 39.8 -0.1 6.7 -17.4 [-2.0] 23073
10 38.8 0.3 5.3 -21.5 [-7.0] 23408
11 37.5 0.9 7.1 -4.8 [0.0] 24852
12 35.9 0.6 7.4 -7.8 [-1.0] 27953
14 31.3 0.2 10.7 -11.6 [-7.0] 32515
15 32.7 0.6 9.5 -7.7 [0.0] 31537
16 40.2 0.7 6.4 -7.6 [-1.0] 23139
17 35.3 1.0 7.6 -5.9 [4.0] 30211
18 32.0 0.1 7.2 -6.6 [-3.0] 25602
19 30.1 0.4 8.0 -19.5 [3.0] 25389
20 30.1 0.7 10.9 -10.3 [2.0] 25972
21 35.4 0.8 13.3 -10.9 [4.0] 24360
22 41.7 0.2 5.3 -14.8 [-3.0] 22024
23 37.7 0.3 6.7 -8.0 [3.0] 31497
24 45.8 1.3 7.9 -7.3 [2.0] 30855
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 41.2 47.8 29.0 308 [1.0] [1.0] 34052
2 34.9 0.0 45.5 51.7 32.4 249 [-4.0] [1.0] 30982
3 39.2 0.0 43.4 48.9 24.4 3 [5.0] [1.0] 23050
4 38.4 0.0 42.9 48.1 29.9 1 [6.0] [1.0] 23420
5 41.6 0.0 45.9 50.7 35.5 1 [1.0] [1.0] 21593
6 37.2 0.0 34.6 40.2 21.6 1616 [-4.0] [1.0] 22929
7 29.6 0.0 42.4 47.9 31.4 208 [5.0] [1.0] 28159
8 30.6 0.0 41.2 47.2 28.3 309 [6.0] [1.0] 34342
9 39.8 0.0 45.4 51.1 29.0 1 [-2.0] [1.0] 23080
10 38.8 0.0 41.2 47.1 20.4 62 [-7.0] [1.0] 23381
11 37.5 0.0 45.0 50.3 36.3 238 [0.0] [1.0] 24881
12 35.9 0.0 45.8 51.8 31.7 36 [-1.0] [1.0] 27950
14 31.3 0.0 45.2 51.6 30.9 405 [-7.0] [1.0] 32546
15 32.6 0.0 44.2 50.8 32.6 346 [0.0] [1.0] 31590
16 40.1 0.0 46.0 51.4 31.9 211 [-1.0] [1.0] 23202
17 35.3 0.0 42.7 48.7 30.6 296 [4.0] [1.0] 30213
18 32.0 0.0 43.9 50.3 35.0 72 [-3.0] [1.0] 25601
19 30.1 0.0 33.0 39.0 19.8 3394 [3.0] [1.0] 25475
20 30.0 0.0 33.3 38.4 24.5 1132 [2.0] [1.0] 26057
21 35.4 0.0 43.4 49.3 27.3 253 [4.0] [1.0] 24372
22 41.7 0.0 46.4 51.9 32.1 22 [-3.0] [1.0] 22027
23 37.7 0.0 42.2 48.0 30.1 191 [3.0] [1.0] 31501
24 45.8 0.0 45.5 49.8 28.2 211 [2.0] [1.0] 30861
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 40.0 44.9 20.2 350 [1.0] [1.0] 34049
2 34.9 0.0 44.3 49.8 31.1 131 [-4.0] [1.0] 30982
3 39.2 0.0 45.5 49.9 33.3 1 [5.0] [1.0] 23050
4 38.4 0.0 45.8 49.8 33.4 1 [6.0] [1.0] 23421
5 41.6 0.0 45.3 49.7 25.5 4 [1.0] [1.0] 21593
7 29.6 0.0 44.4 50.8 25.2 190 [5.0] [1.0] 28158
8 30.6 0.0 45.0 49.8 34.4 201 [6.0] [1.0] 34343
9 39.8 0.0 47.0 51.3 35.4 1 [-2.0] [1.0] 23080
10 53.5 0.0 34.3 41.6 6.7 30 [-7.0] [1.0] 31
11 37.5 0.0 45.4 50.8 14.1 244 [0.0] [1.0] 24880
12 35.9 0.0 44.8 50.4 29.1 74 [-1.0] [1.0] 27951
14 31.3 0.0 45.1 49.9 28.5 364 [-7.0] [1.0] 32545
15 32.6 0.0 44.9 50.5 35.0 162 [0.0] [1.0] 31590
16 40.1 0.0 46.0 50.5 34.7 75 [-1.0] [1.0] 23202
17 35.3 0.0 43.7 49.5 26.6 256 [4.0] [1.0] 30214
18 32.0 0.0 44.5 50.5 32.4 98 [-3.0] [1.0] 25601
19 29.6 0.0 42.0 47.0 28.9 130 [3.0] [1.0] 26139
20 30.0 0.0 38.3 43.0 28.1 41 [2.0] [1.0] 26058
21 35.4 0.0 44.2 50.4 30.1 82 [4.0] [1.0] 24372
22 41.7 0.0 46.2 51.6 33.7 167 [-3.0] [1.0] 22027
23 48.6 0.0 34.9 42.5 1.0 176 [3.0] [1.0] 34
24 45.8 0.0 45.4 49.6 30.5 50 [2.0] [1.0] 30861
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 39.8 45.8 16.4 437 [1.0] [1.0] 34031
2 34.9 0.0 44.2 49.3 25.2 274 [-4.0] [1.0] 30998
3 39.2 0.0 45.7 50.1 28.8 1 [5.0] [1.0] 23067
4 38.4 0.0 45.6 49.5 35.4 1 [6.0] [1.0] 23396
5 41.6 0.0 45.3 49.8 32.9 1 [1.0] [1.0] 21558
6 65.0 0.0 7.8 14.5 1.0 1 [-4.0] [1.0] 2
7 29.6 0.0 44.6 49.8 29.2 152 [5.0] [1.0] 28139
8 30.6 0.0 44.9 49.1 32.7 244 [6.0] [1.0] 34297
9 39.8 0.0 46.8 50.9 29.3 1 [-2.0] [1.0] 23102
10 54.4 0.0 30.4 38.6 19.5 10 [-7.0] [1.0] 11
11 37.5 0.0 45.2 50.6 25.8 16 [0.0] [1.0] 24868
12 35.8 0.0 44.5 50.4 17.8 198 [-1.0] [1.0] 27983
14 31.3 0.0 44.9 49.6 34.4 119 [-7.0] [1.0] 32545
15 32.7 0.0 44.7 49.6 20.0 247 [0.0] [1.0] 31534
16 40.2 0.0 45.9 50.7 19.7 256 [-1.0] [1.0] 23133
17 35.3 0.0 44.0 49.3 17.1 222 [4.0] [1.0] 30251
18 32.0 0.0 44.4 49.8 28.8 80 [-3.0] [1.0] 25605
19 30.1 0.0 41.9 46.9 29.8 145 [3.0] [1.0] 25387
20 30.1 0.0 38.0 43.2 22.7 60 [2.0] [1.0] 25866
21 35.4 0.0 44.2 49.8 20.5 70 [4.0] [1.0] 24358
22 41.7 0.0 46.1 51.5 30.4 111 [-3.0] [1.0] 22025
23 49.5 0.0 34.1 40.9 12.0 260 [3.0] [1.0] 53
24 45.8 0.0 45.2 49.4 33.3 24 [2.0] [1.0] 30856
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 0.2 11.9 -8.5 [1.0] 34026
2 34.9 0.1 12.1 -6.2 [-4.0] 30961
3 39.2 -0.3 8.1 -6.8 [5.0] 23050
4 38.4 0.2 7.7 -7.8 [6.0] 23391
5 41.6 -0.0 8.4 -13.5 [1.0] 21558
7 29.6 -0.2 10.2 -7.3 [5.0] 28128
8 30.6 0.1 7.6 -6.7 [6.0] 34294
9 39.8 0.1 8.2 -5.4 [-2.0] 23072
11 37.5 0.2 8.7 -20.4 [0.0] 24849
12 35.9 0.3 17.9 -9.9 [-1.0] 27947
14 31.3 0.2 6.5 -8.1 [-7.0] 32512
15 32.7 0.2 19.5 -8.1 [0.0] 31532
16 40.2 0.1 21.1 -5.5 [-1.0] 23133
17 35.3 -0.3 21.4 -10.5 [4.0] 30206
18 32.0 0.2 13.7 -9.6 [-3.0] 25600
19 30.1 0.0 6.8 -9.2 [3.0] 25387
20 30.4 0.4 8.8 -5.7 [2.0] 25600
21 35.4 0.0 16.2 -9.7 [4.0] 24358
22 41.7 0.0 10.0 -5.7 [-3.0] 22023
24 45.8 0.2 7.2 -9.7 [2.0] 30854
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 38.0 42.8 15.6 451 [1.0] [1.0] 34044
2 34.9 0.0 42.8 48.2 31.6 124 [-4.0] [1.0] 30982
3 39.2 0.0 44.1 48.1 31.5 1 [5.0] [1.0] 23050
4 38.4 0.0 43.8 47.6 34.3 1 [6.0] [1.0] 23421
5 41.6 0.0 44.0 48.3 27.1 12 [1.0] [1.0] 21593
6 33.8 0.0 14.1 16.4 12.5 19 [-4.0] [1.0] 4
7 29.6 0.0 42.8 48.8 24.3 184 [5.0] [1.0] 28158
8 30.6 0.0 43.3 47.5 33.8 159 [6.0] [1.0] 34343
9 39.8 0.0 45.0 48.9 34.7 1 [-2.0] [1.0] 23080
10 48.6 0.0 23.8 42.1 1.0 18 [-7.0] [1.0] 19
11 37.5 0.0 43.7 48.8 18.7 161 [0.0] [1.0] 24879
12 35.9 0.0 42.8 48.4 24.8 92 [-1.0] [1.0] 27950
14 31.3 0.0 43.6 48.7 31.0 265 [-7.0] [1.0] 32546
15 32.6 0.0 43.4 48.8 34.8 325 [0.0] [1.0] 31590
16 40.1 0.0 44.4 48.8 33.3 180 [-1.0] [1.0] 23202
17 35.3 0.0 42.4 47.8 31.2 414 [4.0] [1.0] 30214
18 32.0 0.0 43.0 49.1 32.8 209 [-3.0] [1.0] 25601
19 29.6 0.0 40.4 44.8 27.9 184 [3.0] [1.0] 26139
20 30.0 0.0 36.8 41.4 25.3 392 [2.0] [1.0] 26058
21 35.4 0.0 43.2 48.8 31.6 211 [4.0] [1.0] 24372
22 41.7 0.0 44.6 49.8 34.6 216 [-3.0] [1.0] 22027
23 46.2 0.0 23.7 39.8 1.0 74 [3.0] [1.0] 37
24 45.8 0.0 43.7 47.6 30.5 147 [2.0] [1.0] 30861
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.8 0.0 45.2 49.8 35.6 0 [-2.0] [1.0] 23080
21 35.4 0.0 44.0 49.9 35.2 183 [4.0] [1.0] 24372
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 43.8 48.5 31.9 100 [99.0, 107.0] [1.0] 15679
3 33.2 0.0 46.0 50.3 38.2 0 [106.0] [1.0] 14276
4 36.2 0.0 45.6 51.2 34.8 184 [99.0, 97.0] [1.0] 33489
5 17.3 0.0 43.2 47.2 35.0 60 [102.0, 98.0] [1.0] 18368
7 45.7 0.0 46.5 50.9 36.1 0 [104.0] [1.0] 30597
8 41.7 0.0 47.5 52.5 39.5 0 [98.0] [1.0] 24078
9 28.5 0.0 43.7 50.1 29.7 180 [104.0, 103.0] [1.0] 25063
10 39.1 0.0 46.6 52.7 34.1 130 [111.0, 100.0] [1.0] 36926
11 44.6 0.0 43.1 48.2 17.2 329 [108.0, 104.0] [1.0] 27765
12 35.2 0.0 42.5 48.6 30.0 30 [97.0, 108.0] [1.0] 40720
13 42.9 0.0 45.7 50.6 37.6 100 [100.0, 103.0] [1.0] 30758
15 42.1 0.0 46.2 51.8 36.6 0 [110.0] [1.0] 15830
19 40.4 0.0 42.2 48.7 23.2 98 [101.0, 110.0] [1.0] 36489
21 36.6 0.0 46.9 54.0 32.8 135 [107.0, 100.0] [1.0] 35063
24 45.6 0.0 47.9 53.5 37.9 0 [111.0] [1.0] 30336
25 42.1 0.0 46.5 52.6 32.9 0 [105.0] [1.0] 22788
26 34.6 0.0 45.8 52.2 36.3 210 [105.0, 102.0] [1.0] 40909
27 29.3 0.0 44.8 51.0 28.5 242 [103.0, 96.0] [1.0] 26438
30 17.6 0.0 43.5 48.6 34.6 362 [108.0, 102.0, 110.0] [1.0] 18320
31 45.4 0.0 47.4 54.2 28.7 1 [110.0] [1.0] 32782
33 33.1 0.0 44.6 50.5 29.9 213 [106.0, 107.0] [1.0] 41352
34 16.3 0.0 42.6 48.2 29.9 230 [109.0, 111.0] [1.0] 9635
36 39.7 0.0 45.7 52.9 16.8 20 [98.0] [1.0] 14650
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 27.9 0.0 44.6 49.6 36.8 90 [105.0, 107.0] [1.0] 15721
3 33.2 0.0 46.1 50.7 39.3 0 [108.0] [1.0] 14268
4 36.2 0.0 45.8 51.5 34.2 178 [99.0, 106.0] [1.0] 33473
5 17.3 0.0 42.8 47.0 35.2 11 [107.0, 98.0] [1.0] 18381
7 45.7 0.0 46.4 50.5 35.4 0 [96.0] [1.0] 30620
8 41.7 0.0 46.9 51.3 38.3 0 [109.0] [1.0] 24087
9 28.5 0.0 44.7 50.0 35.4 233 [103.0, 104.0] [1.0] 25046
10 39.1 0.0 46.3 52.6 36.4 242 [105.0, 102.0] [1.0] 36944
11 44.6 0.0 43.2 48.3 30.6 119 [104.0, 100.0] [1.0] 27759
12 35.3 0.0 42.2 48.8 30.4 141 [102.0, 110.0] [1.0] 40525
13 42.8 0.0 45.4 49.4 35.1 28 [104.0, 102.0] [1.0] 30814
15 42.0 0.0 46.0 50.4 35.6 0 [103.0] [1.0] 15859
19 40.5 0.0 42.0 48.2 29.0 159 [106.0, 108.0] [1.0] 36413
21 36.6 0.0 46.2 52.6 35.6 16 [106.0, 109.0] [1.0] 35072
24 45.6 0.0 47.4 53.7 33.7 0 [111.0] [1.0] 30328
25 42.2 0.0 46.8 52.2 36.7 0 [103.0] [1.0] 22762
26 34.6 0.0 45.8 52.2 33.1 132 [97.0, 101.0] [1.0] 40897
27 29.3 0.0 45.4 51.0 34.1 223 [105.0, 101.0] [1.0] 26441
30 17.6 0.0 43.7 48.1 32.6 238 [96.0, 107.0, 108.0] [1.0] 18314
31 45.4 0.0 47.8 53.6 34.0 0 [108.0] [1.0] 32769
33 33.1 0.0 45.0 49.5 35.8 227 [110.0, 107.0] [1.0] 41329
34 16.3 0.0 43.2 47.8 34.8 65 [110.0, 111.0] [1.0] 9623
36 39.7 0.0 46.7 53.6 35.8 0 [98.0] [1.0] 14654
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 -0.8 3.4 -6.7 [99.0, 105.0, 107.0] 15677
3 33.2 -0.2 4.0 -4.2 [106.0, 108.0] 14266
4 36.2 -0.2 6.6 -5.7 [99.0, 97.0, 106.0] 33473
5 17.3 0.4 4.8 -4.6 [102.0, 107.0, 98.0] 18358
7 45.7 0.1 6.2 -5.2 [104.0, 96.0] 30597
8 41.7 0.6 6.4 -4.4 [98.0, 109.0] 24078
9 28.5 -1.0 4.9 -11.5 [104.0, 103.0] 25039
10 39.1 0.3 5.0 -5.3 [111.0, 105.0, 100.0, 102.0] 36916
11 44.6 -0.2 5.4 -17.0 [108.0, 104.0, 100.0] 27734
12 35.3 0.3 7.4 -7.3 [97.0, 102.0, 108.0, 110.0] 40508
13 42.9 0.3 5.6 -3.6 [100.0, 104.0, 103.0, 102.0] 30758
15 42.1 0.2 4.9 -3.7 [110.0, 103.0] 15830
19 40.5 0.2 7.5 -11.2 [101.0, 106.0, 110.0, 108.0] 36413
21 36.6 0.7 6.1 -6.8 [107.0, 106.0, 100.0, 109.0] 35060
24 45.6 0.5 7.7 -5.3 [111.0] 30328
25 42.2 -0.3 4.0 -7.4 [105.0, 103.0] 22762
26 34.7 0.0 6.4 -5.7 [105.0, 97.0, 102.0, 101.0] 40884
27 29.3 -0.6 6.6 -11.6 [103.0, 105.0, 96.0, 101.0] 26432
30 17.6 -0.2 10.0 -5.3 [108.0, 96.0, 102.0, 107.0, 110.0] 18301
31 45.4 -0.4 8.0 -10.6 [110.0, 108.0] 32754
33 33.1 -0.4 5.5 -9.8 [106.0, 110.0, 107.0] 41321
34 16.3 -0.6 3.9 -9.7 [109.0, 110.0, 111.0] 9621
36 39.7 -1.0 5.6 -19.9 [98.0] 14648
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 45.0 48.4 36.0 31 [99.0, 107.0] [1.0] 15679
3 33.2 0.0 45.3 48.0 40.9 0 [106.0] [1.0] 14276
4 36.2 0.0 45.5 50.7 35.9 46 [99.0, 97.0] [1.0] 33489
5 17.3 0.0 42.9 45.9 36.4 116 [102.0, 98.0] [1.0] 18368
7 45.7 0.0 46.0 50.3 31.5 0 [104.0] [1.0] 30597
8 41.7 0.0 45.9 49.4 38.3 0 [98.0] [1.0] 24078
9 28.5 0.0 45.2 49.5 37.0 127 [104.0, 103.0] [1.0] 25063
10 39.1 0.0 45.9 50.3 37.2 129 [111.0, 100.0] [1.0] 36926
11 44.6 0.0 42.6 46.9 31.3 207 [108.0, 104.0] [1.0] 27765
12 35.2 0.0 42.9 48.5 24.0 49 [97.0, 108.0] [1.0] 40720
13 42.9 0.0 45.6 50.1 37.5 251 [100.0, 103.0] [1.0] 30758
15 42.1 0.0 46.1 50.0 38.4 0 [110.0] [1.0] 15830
19 40.4 0.0 41.6 46.9 32.4 59 [101.0, 110.0] [1.0] 36489
21 36.6 0.0 45.2 49.9 34.7 141 [107.0, 100.0] [1.0] 35063
24 45.6 0.0 45.8 50.8 37.0 0 [111.0] [1.0] 30336
25 42.1 0.0 46.1 50.8 39.7 0 [105.0] [1.0] 22788
26 34.6 0.0 45.2 50.5 36.5 245 [105.0, 102.0] [1.0] 40909
27 29.3 0.0 45.1 48.9 30.2 17 [103.0, 96.0] [1.0] 26438
30 17.6 0.0 43.1 46.8 29.5 343 [108.0, 102.0, 110.0] [1.0] 18320
31 45.4 0.0 46.4 50.4 25.9 2 [110.0] [1.0] 32782
33 33.1 0.0 45.8 49.7 20.2 180 [106.0, 107.0] [1.0] 41350
34 16.3 0.0 41.4 45.6 32.3 91 [109.0, 111.0] [1.0] 9635
36 39.7 0.0 45.8 50.3 38.5 0 [98.0] [1.0] 14656
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 45.9 49.0 38.7 63 [99.0, 107.0] [1.0] 15679
3 33.2 0.0 46.3 49.6 41.8 0 [106.0] [1.0] 14276
4 36.2 0.0 46.3 51.8 38.2 141 [99.0, 97.0] [1.0] 33489
5 17.3 0.0 43.9 47.4 33.8 2 [102.0, 98.0] [1.0] 18368
7 45.7 0.0 46.9 51.3 34.9 0 [104.0] [1.0] 30597
8 41.7 0.0 46.8 50.3 39.8 0 [98.0] [1.0] 24078
9 28.5 0.0 45.8 50.2 37.9 93 [104.0, 103.0] [1.0] 25063
10 39.1 0.0 46.3 51.4 36.7 150 [111.0, 100.0] [1.0] 36926
11 44.6 0.0 43.0 47.2 32.0 202 [108.0, 104.0] [1.0] 27765
12 35.2 0.0 43.9 49.1 33.8 1 [97.0, 108.0] [1.0] 40720
13 42.9 0.0 46.5 51.0 39.4 10 [100.0, 103.0] [1.0] 30758
15 42.1 0.0 46.7 50.8 39.7 0 [110.0] [1.0] 15830
19 40.4 0.0 42.4 47.6 33.5 235 [101.0, 110.0] [1.0] 36489
21 36.6 0.0 46.2 50.6 37.9 108 [107.0, 100.0] [1.0] 35063
24 45.6 0.0 46.9 51.0 37.0 0 [111.0] [1.0] 30336
25 42.1 0.0 47.0 51.9 41.0 0 [105.0] [1.0] 22788
26 34.6 0.0 46.0 51.2 36.0 250 [105.0, 102.0] [1.0] 40909
27 29.3 0.0 46.0 49.7 37.4 234 [103.0, 96.0] [1.0] 26438
30 17.6 0.0 44.2 48.0 23.0 302 [108.0, 102.0, 110.0] [1.0] 18320
31 45.4 0.0 46.9 51.0 35.8 0 [110.0] [1.0] 32782
33 33.1 0.0 46.3 50.2 21.9 82 [106.0, 107.0] [1.0] 41352
34 16.3 0.0 42.8 46.9 35.0 169 [109.0, 111.0] [1.0] 9635
36 39.7 0.0 46.6 51.2 28.6 2 [98.0] [1.0] 14656
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 48.0 51.0 41.4 253 [99.0, 107.0] [1.0] 15679
3 33.2 0.0 48.3 50.9 44.5 0 [106.0] [1.0] 14276
4 36.2 0.0 48.5 53.1 41.1 71 [99.0, 97.0] [1.0] 33489
5 17.3 0.0 46.3 49.2 39.7 9 [102.0, 98.0] [1.0] 18368
7 45.7 0.0 49.0 52.9 39.1 0 [104.0] [1.0] 30597
8 41.7 0.0 48.8 52.3 42.8 0 [98.0] [1.0] 24078
9 28.5 0.0 48.0 51.5 42.5 36 [104.0, 103.0] [1.0] 25063
10 39.1 0.0 48.6 52.9 41.2 151 [111.0, 100.0] [1.0] 36926
11 44.6 0.0 45.3 49.0 36.5 155 [108.0, 104.0] [1.0] 27765
12 35.2 0.0 46.3 51.2 35.3 51 [97.0, 108.0] [1.0] 40720
13 42.9 0.0 48.6 52.9 42.5 78 [100.0, 103.0] [1.0] 30758
15 42.1 0.0 48.9 52.4 42.3 0 [110.0] [1.0] 15830
19 40.4 0.0 45.1 50.0 37.6 165 [101.0, 110.0] [1.0] 36489
21 36.6 0.0 48.3 52.4 40.3 230 [107.0, 100.0] [1.0] 35063
24 45.6 0.0 48.9 53.1 41.5 0 [111.0] [1.0] 30336
25 42.1 0.0 49.0 53.5 44.2 0 [105.0] [1.0] 22788
26 34.6 0.0 48.2 52.9 40.4 60 [105.0, 102.0] [1.0] 40909
27 29.3 0.0 48.1 51.3 42.6 115 [103.0, 96.0] [1.0] 26438
30 17.6 0.0 46.5 49.9 35.3 263 [108.0, 102.0, 110.0] [1.0] 18320
31 45.4 0.0 49.1 52.3 41.3 0 [110.0] [1.0] 32782
33 33.1 0.0 48.5 51.9 41.2 153 [106.0, 107.0] [1.0] 41352
34 16.3 0.0 45.2 49.1 38.6 164 [109.0, 111.0] [1.0] 9635
36 39.7 0.0 48.7 52.6 42.5 0 [98.0] [1.0] 14656
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 27.9 0.0 47.7 50.6 42.8 221 [105.0, 107.0] [1.0] 15721
3 33.2 0.0 48.2 51.7 43.0 0 [108.0] [1.0] 14268
4 36.2 0.0 48.6 52.7 35.9 115 [99.0, 106.0] [1.0] 33473
5 17.3 0.0 46.3 49.5 40.5 224 [107.0, 98.0] [1.0] 18381
7 45.7 0.0 49.0 52.5 40.4 0 [96.0] [1.0] 30620
8 41.7 0.0 48.8 52.4 41.7 0 [109.0] [1.0] 24087
9 28.5 0.0 48.0 51.2 41.4 211 [103.0, 104.0] [1.0] 25046
10 39.1 0.0 48.7 53.2 39.7 36 [105.0, 102.0] [1.0] 36944
11 44.6 0.0 45.4 48.5 37.5 10 [104.0, 100.0] [1.0] 27759
12 35.3 0.0 46.3 51.4 36.4 186 [102.0, 110.0] [1.0] 40525
13 42.8 0.0 48.5 52.4 36.2 226 [104.0, 102.0] [1.0] 30814
15 42.0 0.0 48.7 52.1 40.9 0 [103.0] [1.0] 15859
19 40.5 0.0 44.7 50.0 35.8 251 [106.0, 108.0] [1.0] 36413
21 36.6 0.0 48.3 53.0 36.8 132 [106.0, 109.0] [1.0] 35072
24 45.6 0.0 48.9 52.9 40.2 0 [111.0] [1.0] 30328
25 42.2 0.0 49.4 52.4 43.4 0 [103.0] [1.0] 22762
26 34.6 0.0 48.1 52.1 37.8 166 [97.0, 101.0] [1.0] 40897
27 29.3 0.0 47.8 51.7 34.5 164 [105.0, 101.0] [1.0] 26441
30 17.6 0.0 46.3 49.5 34.8 199 [96.0, 107.0, 108.0] [1.0] 18314
31 45.4 0.0 49.2 52.6 41.5 0 [108.0] [1.0] 32769
33 33.1 0.0 48.5 52.0 41.9 4 [110.0, 107.0] [1.0] 41329
34 16.3 0.0 45.2 48.8 39.0 39 [110.0, 111.0] [1.0] 9623
36 39.7 0.0 48.6 52.4 42.7 0 [98.0] [1.0] 14654
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 0.3 2.6 -3.3 [99.0, 105.0, 107.0] 15677
3 33.2 0.1 2.7 -1.6 [106.0, 108.0] 14266
4 36.2 -0.1 5.6 -4.0 [99.0, 97.0, 106.0] 33473
5 17.3 -0.0 2.7 -3.1 [102.0, 107.0, 98.0] 18358
7 45.7 -0.0 3.7 -5.8 [104.0, 96.0] 30597
8 41.7 -0.0 3.0 -2.5 [98.0, 109.0] 24078
9 28.5 0.0 2.9 -3.2 [104.0, 103.0] 25039
10 39.1 -0.1 3.4 -3.1 [111.0, 105.0, 100.0, 102.0] 36916
11 44.6 -0.1 4.6 -3.8 [108.0, 104.0, 100.0] 27734
12 35.3 -0.0 4.9 -6.3 [97.0, 102.0, 108.0, 110.0] 40508
13 42.9 0.2 7.7 -2.7 [100.0, 104.0, 103.0, 102.0] 30758
15 42.1 0.3 3.5 -2.0 [110.0, 103.0] 15830
19 40.5 0.4 5.4 -3.1 [101.0, 106.0, 110.0, 108.0] 36413
21 36.6 0.0 6.5 -4.0 [107.0, 106.0, 100.0, 109.0] 35060
24 45.6 0.0 2.8 -3.0 [111.0] 30328
25 42.2 -0.4 3.1 -3.2 [105.0, 103.0] 22762
26 34.7 0.1 5.3 -4.0 [105.0, 97.0, 102.0, 101.0] 40884
27 29.3 0.2 8.5 -2.0 [103.0, 105.0, 96.0, 101.0] 26432
30 17.6 0.3 6.7 -7.1 [108.0, 96.0, 102.0, 107.0, 110.0] 18301
31 45.4 -0.1 2.7 -2.4 [110.0, 108.0] 32754
33 33.1 0.0 3.4 -3.3 [106.0, 110.0, 107.0] 41321
34 16.3 0.0 3.1 -2.5 [109.0, 110.0, 111.0] 9621
36 39.7 0.1 2.5 -2.5 [98.0] 14654
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 47.0 51.3 34.4 24 [99.0, 107.0] [1.0] 15678
3 33.2 0.0 46.9 49.8 41.0 0 [106.0] [1.0] 14276
4 36.2 0.0 47.6 53.3 36.0 176 [99.0, 97.0] [1.0] 33489
5 17.3 0.0 45.0 48.1 38.0 204 [102.0, 98.0] [1.0] 18368
7 45.7 0.0 48.4 53.0 37.8 0 [104.0] [1.0] 30597
8 41.7 0.0 48.1 52.0 36.1 0 [98.0] [1.0] 24078
9 28.5 0.0 47.0 51.9 34.0 86 [104.0, 103.0] [1.0] 25063
10 39.1 0.0 47.9 53.5 29.4 138 [111.0, 100.0] [1.0] 36926
11 44.7 0.0 44.6 49.5 29.6 210 [108.0, 104.0] [1.0] 27688
12 35.2 0.0 44.5 50.5 30.2 180 [97.0, 108.0] [1.0] 40719
13 42.9 0.0 47.4 52.0 34.8 13 [100.0, 103.0] [1.0] 30758
15 42.1 0.0 48.2 52.5 38.8 0 [110.0] [1.0] 15830
19 40.4 0.0 42.6 48.9 28.1 158 [101.0, 110.0] [1.0] 36479
21 36.6 0.0 47.2 52.6 35.8 34 [107.0, 100.0] [1.0] 35063
24 45.6 0.0 48.4 53.2 31.7 0 [111.0] [1.0] 30336
25 42.1 0.0 49.0 53.7 37.7 0 [105.0] [1.0] 22788
26 34.6 0.0 46.9 52.7 34.5 233 [105.0, 102.0] [1.0] 40909
27 29.3 0.0 47.0 50.8 37.9 248 [103.0, 96.0] [1.0] 26438
30 17.6 0.0 45.0 48.7 24.1 256 [108.0, 102.0, 110.0] [1.0] 18318
31 45.4 0.0 48.5 52.8 37.0 1 [110.0] [1.0] 32782
33 33.1 0.0 47.3 51.6 36.2 188 [106.0, 107.0] [1.0] 41352
34 16.3 0.0 43.7 47.5 33.1 243 [109.0, 111.0] [1.0] 9635
36 39.8 0.0 48.1 51.9 39.1 11 [98.0] [1.0] 14637
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 44.8 50.7 27.3 136 [76.0, 108.0, 77.0] [1.0] 26522
20 29.9 0.0 44.9 52.1 30.2 23 [106.0, 84.0] [1.0] 34139
21 48.0 0.0 48.0 52.8 38.3 102 [99.0, 108.0] [1.0] 17595
22 24.3 0.0 44.0 51.0 32.4 347 [84.0, 73.0, 109.0] [1.0] 22251
23 45.8 0.0 47.7 52.7 34.2 0 [107.0] [1.0] 26133
24 24.1 0.0 43.7 50.4 33.5 77 [83.0, 82.0] [1.0] 27855
25 39.6 0.0 46.7 52.1 32.3 85 [105.0, 110.0] [1.0] 23006
26 22.2 0.0 42.7 48.3 30.2 155 [107.0, 102.0] [1.0] 28764
27 30.9 0.0 44.8 51.7 33.8 142 [85.0, 74.0] [1.0] 33800
28 28.8 0.0 43.6 49.6 27.4 122 [111.0, 78.0] [1.0] 34936
29 46.3 0.0 46.5 51.8 34.3 0 [106.0] [1.0] 27196
30 41.5 0.0 45.9 52.2 26.9 110 [74.0, 101.0] [1.0] 28138
32 34.3 0.0 45.7 53.3 34.8 52 [92.0, 109.0] [1.0] 32455
33 44.0 0.0 46.4 52.8 30.6 0 [109.0] [1.0] 28731
34 54.7 0.0 47.7 52.0 37.8 0 [85.0] [1.0] 16775
35 44.3 0.0 46.3 52.0 31.3 215 [96.0, 99.0] [1.0] 20221
36 44.6 0.0 46.9 51.8 36.4 0 [72.0] [1.0] 24741
37 44.9 0.0 46.8 53.6 23.4 21 [105.0] [1.0] 28601
38 7.0 0.0 38.8 40.5 36.6 0 [75.0] [1.0] 2004
41 45.3 0.0 47.1 53.0 34.8 0 [77.0] [1.0] 27122
42 45.4 0.0 47.1 53.0 33.6 0 [81.0] [1.0] 27026
43 32.2 0.0 44.8 51.2 30.9 249 [71.0, 111.0] [1.0] 33065
44 33.0 0.0 44.3 51.4 37.0 153 [111.0, 87.0] [1.0] 18792
45 35.5 0.0 45.2 51.1 33.8 216 [77.0, 103.0] [1.0] 22111
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 45.1 49.3 32.4 280 [76.0, 108.0, 77.0] [1.0] 26522
20 29.9 0.0 46.0 50.8 38.3 50 [106.0, 84.0] [1.0] 34139
21 48.0 0.0 47.1 50.9 38.1 99 [99.0, 108.0] [1.0] 17595
22 24.3 0.0 44.5 50.0 34.9 91 [84.0, 73.0, 109.0] [1.0] 22251
23 45.8 0.0 47.3 51.4 34.2 0 [107.0] [1.0] 26133
24 24.1 0.0 45.1 49.0 39.1 148 [83.0, 82.0] [1.0] 27855
25 39.6 0.0 45.6 49.3 36.6 168 [105.0, 110.0] [1.0] 23006
26 22.2 0.0 43.2 46.4 32.4 204 [107.0, 102.0] [1.0] 28764
27 30.9 0.0 44.6 49.0 36.9 34 [85.0, 74.0] [1.0] 33800
28 28.8 0.0 44.3 47.9 26.9 137 [111.0, 78.0] [1.0] 34936
29 46.3 0.0 46.4 50.3 39.2 0 [106.0] [1.0] 27196
30 41.5 0.0 45.9 50.1 36.0 160 [74.0, 101.0] [1.0] 28138
32 34.3 0.0 46.2 52.1 36.1 232 [92.0, 109.0] [1.0] 32455
33 44.0 0.0 47.2 51.9 36.2 0 [109.0] [1.0] 28731
34 54.7 0.0 46.2 50.2 37.1 0 [85.0] [1.0] 16775
35 44.3 0.0 45.0 49.9 37.2 88 [96.0, 99.0] [1.0] 20221
36 44.6 0.0 47.1 51.5 37.4 0 [72.0] [1.0] 24741
37 44.9 0.0 47.4 51.3 37.8 0 [105.0] [1.0] 28603
38 7.0 0.0 43.6 45.6 41.7 0 [75.0] [1.0] 2004
41 45.3 0.0 47.1 52.0 38.0 0 [77.0] [1.0] 27122
42 45.4 0.0 46.8 51.2 29.9 0 [81.0] [1.0] 27026
43 32.2 0.0 44.5 50.4 34.1 165 [71.0, 111.0] [1.0] 33065
44 33.0 0.0 44.4 48.8 36.9 4 [111.0, 87.0] [1.0] 18792
45 35.5 0.0 46.6 50.8 38.3 87 [77.0, 103.0] [1.0] 22111

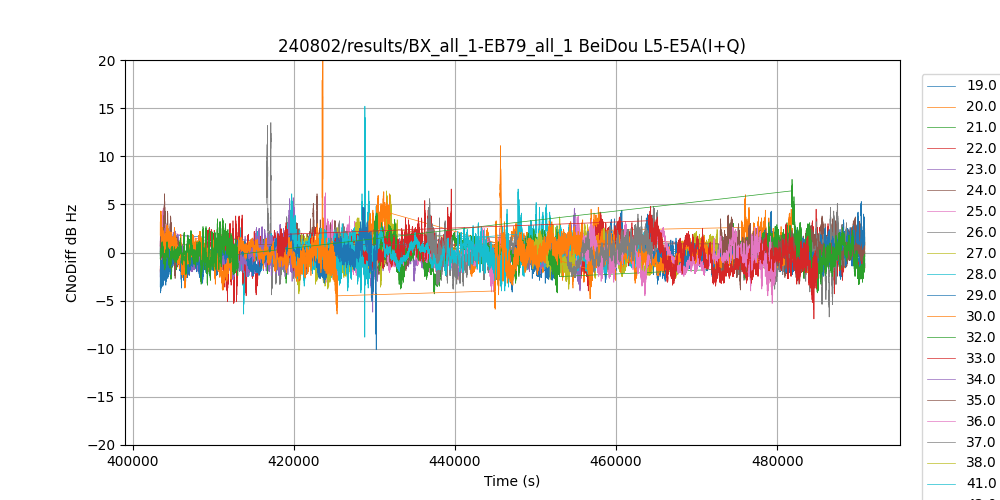

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.0 0.0 45.3 50.0 34.7 150 [76.0, 104.0, 77.0] [1.0] 26446
20 29.9 0.0 45.7 50.3 35.5 19 [110.0, 90.0] [1.0] 34116
21 48.1 0.0 47.2 51.0 37.7 66 [101.0, 110.0] [1.0] 17567
22 24.3 0.0 44.5 50.2 36.1 167 [77.0, 73.0, 97.0] [1.0] 22259
23 45.8 0.0 47.7 51.7 35.2 0 [111.0] [1.0] 26134
24 24.1 0.0 44.6 50.0 37.5 75 [86.0, 82.0] [1.0] 27826
25 39.7 0.0 45.8 50.2 31.2 29 [83.0, 108.0] [1.0] 23002
26 22.2 0.0 43.3 47.0 22.8 254 [111.0, 101.0] [1.0] 28763
27 30.9 0.0 44.8 49.7 36.6 215 [79.0, 74.0] [1.0] 33839
28 28.8 0.0 44.0 47.9 22.7 74 [94.0, 79.0] [1.0] 34911
29 46.3 0.0 46.4 50.3 35.7 0 [109.0] [1.0] 27196
30 41.4 0.0 45.7 50.2 32.6 133 [109.0, 106.0] [1.0] 28168
32 34.3 0.0 46.1 51.8 35.0 133 [78.0, 105.0] [1.0] 32454
33 44.0 0.0 46.9 50.5 35.1 0 [93.0] [1.0] 28723
34 54.7 0.0 46.6 49.8 33.1 0 [79.0] [1.0] 16773
35 44.3 0.0 44.7 49.0 34.3 108 [100.0, 99.0] [1.0] 20225
36 44.6 0.0 47.4 51.8 35.5 0 [72.0] [1.0] 24715
37 44.9 0.0 47.4 51.1 35.4 0 [100.0] [1.0] 28589
38 7.0 0.0 43.2 44.7 41.3 0 [75.0] [1.0] 1976
41 45.3 0.0 47.2 51.5 34.8 0 [76.0] [1.0] 27127
42 45.4 0.0 47.2 51.0 34.2 0 [99.0] [1.0] 27022
43 32.2 0.0 44.6 49.9 21.8 81 [98.0, 107.0] [1.0] 33024
44 33.1 0.0 44.5 49.4 31.0 164 [111.0, 87.0] [1.0] 18758
45 35.4 0.0 47.1 51.4 39.4 134 [76.0, 104.0] [1.0] 22186
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.0 -0.2 4.4 -4.1 [76.0, 108.0, 104.0, 77.0] 26441
20 29.9 0.3 6.0 -3.7 [106.0, 110.0, 84.0, 90.0] 34106
21 48.1 -0.1 2.9 -3.2 [99.0, 101.0, 108.0, 110.0] 17563
22 24.3 0.0 4.5 -6.9 [84.0, 77.0, 73.0, 109.0, 97.0] 22249
23 45.8 -0.3 4.6 -6.2 [107.0, 111.0] 26128
24 24.1 0.5 6.1 -2.6 [83.0, 86.0, 82.0] 27826
25 39.7 -0.2 6.2 -4.1 [105.0, 83.0, 110.0, 108.0] 22989
26 22.2 -0.1 13.5 -6.7 [107.0, 111.0, 102.0, 101.0] 28763
27 30.9 -0.3 6.4 -4.3 [85.0, 79.0, 74.0] 33800
28 28.8 0.3 15.2 -8.8 [111.0, 94.0, 78.0, 79.0] 34899
29 46.3 -0.1 5.3 -3.3 [106.0, 109.0] 27194
30 41.5 0.1 6.3 -4.8 [74.0, 109.0, 101.0, 106.0] 28138
32 34.3 0.2 4.1 -4.3 [92.0, 78.0, 109.0, 105.0] 32450
33 44.0 0.3 6.6 -5.3 [109.0, 93.0] 28723
34 54.7 -0.4 5.7 -3.0 [85.0, 79.0] 16771
35 44.3 0.3 6.1 -3.9 [96.0, 100.0, 99.0] 20219
36 44.6 -0.4 3.8 -5.3 [72.0] 24710
37 44.9 0.0 5.6 -3.8 [105.0, 100.0] 28589
38 7.0 0.4 2.3 -1.7 [75.0] 1976
41 45.3 -0.1 6.1 -4.0 [77.0, 76.0] 27122
42 45.4 -0.4 4.7 -10.1 [81.0, 99.0] 27020
43 32.2 -0.1 20.4 -6.4 [71.0, 98.0, 111.0, 107.0] 33015
44 33.1 -0.0 7.6 -4.2 [111.0, 87.0] 18756
45 35.5 -0.6 4.8 -5.2 [77.0, 76.0, 103.0, 104.0] 22110
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 45.5 50.2 36.6 169 [101.0, 80.0] [1.0] 26855
12 40.5 0.0 45.4 50.0 20.1 87 [94.0, 96.0] [1.0] 17718
14 44.9 0.0 46.7 50.7 37.9 13 [108.0] [1.0] 27900
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 45.7 50.2 24.2 45 [102.0, 82.0] [1.0] 26916
12 40.6 0.0 45.7 49.8 35.9 258 [80.0, 96.0] [1.0] 17707
14 44.3 0.0 46.3 50.0 25.0 0 [100.0] [1.0] 28378
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 -0.2 19.3 -5.6 [101.0, 102.0, 80.0, 82.0] 26855
12 40.6 -0.3 4.7 -18.9 [94.0, 80.0, 96.0] 17694
14 44.9 0.3 15.9 -6.6 [108.0, 100.0] 27900
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 43.8 49.9 32.2 41 [101.0, 80.0] [1.0] 26855
12 40.5 0.0 41.9 48.3 24.5 238 [94.0, 96.0] [1.0] 17755
14 44.8 0.0 43.8 49.3 12.8 73 [108.0] [1.0] 27998
19 29.9 0.0 45.2 51.3 32.4 464 [76.0, 108.0, 77.0] [1.0] 26522
20 29.9 0.0 45.9 53.0 27.2 142 [106.0, 84.0] [1.0] 34139
21 48.0 0.0 47.4 53.8 36.4 215 [99.0, 108.0] [1.0] 17595
22 24.3 0.0 44.4 51.7 27.2 379 [84.0, 73.0, 109.0] [1.0] 22251
23 45.8 0.0 46.9 53.9 34.0 0 [107.0] [1.0] 26134
24 24.1 0.0 43.6 50.2 32.2 201 [83.0, 82.0] [1.0] 27855
25 39.6 0.0 46.8 52.8 33.2 116 [105.0, 110.0] [1.0] 23006
26 22.2 0.0 43.6 49.3 29.1 108 [107.0, 102.0] [1.0] 28764
27 30.9 0.0 45.8 52.3 33.8 134 [85.0, 74.0] [1.0] 33800
28 28.8 0.0 44.8 50.3 27.5 114 [111.0, 78.0] [1.0] 34936
29 46.3 0.0 47.2 52.3 26.3 2 [106.0] [1.0] 27197
30 41.5 0.0 46.5 53.5 15.5 342 [74.0, 101.0] [1.0] 28138
32 34.3 0.0 45.2 52.4 33.7 7 [92.0, 109.0] [1.0] 32455
33 44.0 0.0 46.5 51.9 32.0 0 [109.0] [1.0] 28731
34 54.7 0.0 46.9 52.3 37.6 0 [85.0] [1.0] 16775
35 44.3 0.0 46.8 51.9 34.3 212 [96.0, 99.0] [1.0] 20221
36 44.6 0.0 46.7 53.8 36.8 0 [72.0] [1.0] 24741
37 44.9 0.0 46.5 51.9 26.1 4 [105.0] [1.0] 28603
38 7.0 0.0 41.8 43.4 40.1 0 [75.0] [1.0] 2004
41 45.3 0.0 46.2 52.7 34.2 0 [77.0] [1.0] 27122
42 45.4 0.0 45.5 51.7 32.9 0 [81.0] [1.0] 27026
43 32.2 0.0 44.6 52.7 22.4 244 [71.0, 111.0] [1.0] 33065
44 33.0 0.0 44.2 51.4 33.7 215 [111.0, 87.0] [1.0] 18792
45 35.5 0.0 45.0 51.5 32.9 159 [77.0, 103.0] [1.0] 22111
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 44.2 50.8 32.1 162 [102.0, 82.0] [1.0] 26916
12 40.5 0.0 41.9 48.2 24.2 31 [80.0, 96.0] [1.0] 17723
14 44.3 0.0 44.7 50.0 32.0 0 [100.0] [1.0] 28378
19 30.0 0.0 44.9 51.4 32.4 248 [76.0, 104.0, 77.0] [1.0] 26446
20 29.9 0.0 46.0 52.9 34.1 125 [110.0, 90.0] [1.0] 34116
21 48.1 0.0 47.3 52.5 37.1 158 [101.0, 110.0] [1.0] 17567
22 24.3 0.0 44.3 51.5 23.8 263 [77.0, 73.0, 97.0] [1.0] 22259
23 45.8 0.0 47.7 53.6 34.3 0 [111.0] [1.0] 26134
24 24.1 0.0 43.8 50.2 35.1 80 [86.0, 82.0] [1.0] 27826
25 39.7 0.0 46.7 52.2 31.7 6 [83.0, 108.0] [1.0] 23002
26 22.2 0.0 43.5 49.2 33.3 52 [111.0, 101.0] [1.0] 28763
27 30.9 0.0 45.4 52.2 34.5 138 [79.0, 74.0] [1.0] 33839
28 28.8 0.0 45.1 50.3 30.5 152 [94.0, 79.0] [1.0] 34911
29 46.3 0.0 47.7 52.7 36.3 0 [109.0] [1.0] 27196
30 41.4 0.0 46.6 53.0 28.5 248 [109.0, 106.0] [1.0] 28168
32 34.3 0.0 45.4 54.3 32.6 227 [78.0, 105.0] [1.0] 32455
33 44.0 0.0 46.9 52.1 35.1 0 [93.0] [1.0] 28723
34 54.7 0.0 47.4 51.9 37.2 0 [79.0] [1.0] 16773
35 44.3 0.0 46.9 52.3 34.7 20 [100.0, 99.0] [1.0] 20225
36 44.6 0.0 47.1 53.2 33.5 0 [72.0] [1.0] 24715
37 44.9 0.0 47.3 52.8 30.4 0 [100.0] [1.0] 28589
38 7.0 0.0 39.8 42.2 37.6 0 [75.0] [1.0] 1976
41 45.3 0.0 46.6 52.5 29.5 0 [76.0] [1.0] 27127
42 45.4 0.0 46.4 52.1 33.5 0 [99.0] [1.0] 27022
43 32.2 0.0 45.2 52.5 32.6 250 [98.0, 107.0] [1.0] 33024
44 33.1 0.0 44.2 51.3 31.8 233 [111.0, 87.0] [1.0] 18758
45 35.4 0.0 45.9 52.0 34.6 116 [76.0, 104.0] [1.0] 22186
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 -0.4 6.6 -6.7 [101.0, 102.0, 80.0, 82.0] 26855
12 40.5 -0.0 10.1 -7.4 [94.0, 80.0, 96.0] 17721
14 44.8 -0.9 8.8 -23.0 [108.0, 100.0] 27998
19 30.0 0.3 6.8 -7.3 [76.0, 108.0, 104.0, 77.0] 26441
20 29.9 -0.1 7.1 -13.6 [106.0, 110.0, 84.0, 90.0] 34106
21 48.1 0.1 4.4 -4.3 [99.0, 101.0, 108.0, 110.0] 17563
22 24.3 0.2 7.7 -8.1 [84.0, 77.0, 73.0, 109.0, 97.0] 22249
23 45.8 -0.7 5.3 -6.6 [107.0, 111.0] 26129
24 24.1 -0.2 7.0 -8.9 [83.0, 86.0, 82.0] 27826
25 39.7 0.2 7.5 -5.8 [105.0, 83.0, 110.0, 108.0] 22989
26 22.2 0.1 6.4 -9.2 [107.0, 111.0, 102.0, 101.0] 28763
27 30.9 0.5 7.2 -5.0 [85.0, 79.0, 74.0] 33800
28 28.8 -0.2 8.9 -12.1 [111.0, 94.0, 78.0, 79.0] 34899
29 46.3 -0.5 6.5 -14.9 [106.0, 109.0] 27195
30 41.5 -0.1 9.6 -20.6 [74.0, 109.0, 101.0, 106.0] 28138
32 34.3 -0.2 7.7 -8.1 [92.0, 78.0, 109.0, 105.0] 32451
33 44.0 -0.4 7.2 -6.2 [109.0, 93.0] 28723
34 54.7 -0.5 6.0 -6.2 [85.0, 79.0] 16771
35 44.3 -0.1 7.7 -6.0 [96.0, 100.0, 99.0] 20219
36 44.6 -0.3 5.9 -7.2 [72.0] 24710
37 44.9 -0.8 9.6 -15.0 [105.0, 100.0] 28589
38 7.0 2.0 4.7 -1.1 [75.0] 1976
41 45.3 -0.4 9.9 -6.5 [77.0, 76.0] 27122
42 45.4 -0.9 5.0 -10.9 [81.0, 99.0] 27020
43 32.2 -0.6 6.9 -12.3 [71.0, 98.0, 111.0, 107.0] 33015
44 33.1 -0.1 11.7 -10.8 [111.0, 87.0] 18756
45 35.5 -0.9 5.2 -9.9 [77.0, 76.0, 103.0, 104.0] 22110
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 43.7 48.7 31.2 122 [101.0, 80.0] [1.0] 26855
12 40.5 0.0 44.3 49.5 17.4 98 [94.0, 96.0] [1.0] 17717
14 44.9 0.0 45.4 49.7 34.5 14 [108.0] [1.0] 27900
19 29.9 0.0 44.2 49.0 31.7 206 [76.0, 108.0, 77.0] [1.0] 26522
20 29.9 0.0 44.1 49.1 32.0 132 [106.0, 84.0] [1.0] 34139
21 48.0 0.0 45.6 49.5 34.7 146 [99.0, 108.0] [1.0] 17595
22 24.3 0.0 43.2 48.7 34.1 251 [84.0, 73.0, 109.0] [1.0] 22251
23 45.8 0.0 45.6 49.9 32.0 0 [107.0] [1.0] 26129
24 24.1 0.0 43.4 48.6 35.9 94 [83.0, 82.0] [1.0] 27855
25 39.6 0.0 44.9 49.1 33.1 126 [105.0, 110.0] [1.0] 23006
26 22.2 0.0 42.3 47.2 32.9 216 [107.0, 102.0] [1.0] 28764
27 30.9 0.0 43.6 48.8 22.2 213 [85.0, 74.0] [1.0] 33800
28 28.8 0.0 43.3 48.3 19.3 92 [111.0, 78.0] [1.0] 34935
29 46.3 0.0 45.5 49.6 35.5 2 [106.0] [1.0] 27192
30 41.8 0.0 44.3 49.8 33.1 254 [74.0, 101.0] [1.0] 27886
32 34.3 0.0 44.1 50.5 29.5 239 [92.0, 109.0] [1.0] 32455
33 44.0 0.0 45.5 50.1 31.9 0 [109.0] [1.0] 28731
34 54.7 0.0 45.6 48.9 36.1 0 [85.0] [1.0] 16775
35 44.3 0.0 44.9 49.4 34.0 113 [96.0, 99.0] [1.0] 20221
36 44.6 0.0 45.6 50.2 34.8 0 [72.0] [1.0] 24741
37 44.9 0.0 45.9 50.2 36.1 4 [105.0] [1.0] 28603
38 7.0 0.0 41.2 43.2 38.1 0 [75.0] [1.0] 2004
41 45.3 0.0 45.4 50.0 30.9 0 [77.0] [1.0] 27122
42 45.4 0.0 45.2 50.0 30.9 0 [81.0] [1.0] 27026
43 32.2 0.0 43.5 49.5 30.4 214 [71.0, 111.0] [1.0] 33049
44 33.0 0.0 42.9 48.3 33.2 30 [111.0, 87.0] [1.0] 18792
45 35.5 0.0 44.7 50.5 23.4 169 [77.0, 103.0] [1.0] 22111
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 44.0 48.7 24.7 205 [102.0, 82.0] [1.0] 26916
12 40.6 0.0 44.1 49.5 33.8 132 [80.0, 96.0] [1.0] 17707
14 44.3 0.0 45.2 49.3 29.6 0 [100.0] [1.0] 28378
19 30.0 0.0 44.0 49.1 19.0 58 [76.0, 104.0, 77.0] [1.0] 26446
20 29.9 0.0 44.0 48.8 34.4 135 [110.0, 90.0] [1.0] 34116
21 48.1 0.0 45.9 49.3 36.8 171 [101.0, 110.0] [1.0] 17567
22 24.3 0.0 43.1 49.3 31.8 288 [77.0, 73.0, 97.0] [1.0] 22255
23 45.8 0.0 45.9 50.1 20.6 1 [111.0] [1.0] 26134
24 24.1 0.0 42.7 48.5 33.4 49 [86.0, 82.0] [1.0] 27826
25 39.7 0.0 45.0 49.5 16.3 117 [83.0, 108.0] [1.0] 22999
26 22.2 0.0 42.3 46.6 34.8 140 [111.0, 101.0] [1.0] 28763
27 30.9 0.0 43.2 48.9 19.3 71 [79.0, 74.0] [1.0] 33839
28 28.8 0.0 43.0 47.4 33.2 28 [94.0, 79.0] [1.0] 34911
29 46.3 0.0 45.3 49.6 17.8 4 [109.0] [1.0] 27195
30 41.4 0.0 44.5 49.1 29.6 120 [109.0, 106.0] [1.0] 28168
32 34.3 0.0 44.3 50.0 19.9 193 [78.0, 105.0] [1.0] 32449
33 44.0 0.0 45.4 49.8 33.6 0 [93.0] [1.0] 28723
34 54.7 0.0 45.1 48.9 28.7 0 [79.0] [1.0] 16773
35 44.3 0.0 44.6 49.3 31.7 71 [100.0, 99.0] [1.0] 20225
36 44.6 0.0 45.6 50.0 33.7 0 [72.0] [1.0] 24715
37 44.9 0.0 45.8 50.0 32.2 0 [100.0] [1.0] 28589
38 7.0 0.0 40.5 43.4 36.4 0 [75.0] [1.0] 1976
41 45.3 0.0 45.3 49.9 34.4 0 [76.0] [1.0] 27127
42 45.4 0.0 45.4 49.9 32.0 0 [99.0] [1.0] 27022
43 32.2 0.0 43.2 49.2 17.8 31 [98.0, 107.0] [1.0] 33023
44 33.1 0.0 42.5 48.5 30.2 31 [111.0, 87.0] [1.0] 18758
45 35.4 0.0 45.5 50.0 35.8 48 [76.0, 104.0] [1.0] 22186
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 -0.2 13.0 -6.5 [101.0, 102.0, 80.0, 82.0] 26855
12 40.6 0.3 6.4 -21.5 [94.0, 80.0, 96.0] 17693
14 44.9 0.1 11.3 -3.8 [108.0, 100.0] 27900
19 30.0 0.3 15.4 -3.6 [76.0, 108.0, 104.0, 77.0] 26441
20 29.9 0.1 6.5 -5.4 [106.0, 110.0, 84.0, 90.0] 34106
21 48.1 -0.2 2.2 -6.3 [99.0, 101.0, 108.0, 110.0] 17563
22 24.3 0.1 4.9 -4.8 [84.0, 77.0, 73.0, 109.0, 97.0] 22245
23 45.8 -0.2 18.8 -4.7 [107.0, 111.0] 26124
24 24.1 0.7 6.6 -3.9 [83.0, 86.0, 82.0] 27826
25 39.7 -0.1 20.8 -5.1 [105.0, 83.0, 110.0, 108.0] 22986
26 22.2 -0.1 4.1 -8.3 [107.0, 111.0, 102.0, 101.0] 28763
27 30.9 0.4 11.8 -9.7 [85.0, 79.0, 74.0] 33800
28 28.8 0.3 5.1 -19.5 [111.0, 94.0, 78.0, 79.0] 34898
29 46.3 0.1 24.6 -4.2 [106.0, 109.0] 27189
30 41.8 -0.2 10.5 -4.8 [74.0, 109.0, 101.0, 106.0] 27886
32 34.3 -0.2 22.9 -10.2 [92.0, 78.0, 109.0, 105.0] 32445
33 44.0 0.1 5.2 -7.0 [109.0, 93.0] 28723
34 54.7 0.4 10.0 -3.3 [85.0, 79.0] 16771
35 44.3 0.4 6.2 -3.4 [96.0, 100.0, 99.0] 20219
36 44.6 0.0 5.3 -3.7 [72.0] 24710
37 44.9 0.1 6.3 -5.3 [105.0, 100.0] 28589
38 7.0 0.7 3.1 -1.8 [75.0] 1976
41 45.3 0.1 5.1 -9.4 [77.0, 76.0] 27122
42 45.4 -0.2 4.2 -4.4 [81.0, 99.0] 27020
43 32.2 0.3 23.0 -3.9 [71.0, 98.0, 111.0, 107.0] 32998
44 33.1 0.4 5.9 -5.6 [111.0, 87.0] 18756
45 35.5 -0.8 2.7 -19.0 [77.0, 76.0, 103.0, 104.0] 22110
