REF File: 240802/BX_all.T04
DUT File: 240802/EB81_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 817011 43.9 44.3 4.3 13.0 54.4 41.4 37.0 89.0
GPS L2 CM+CL 619930 44.3 44.8 3.5 22.6 52.4 29.8 38.4 89.0
GPS L2 E 195948 30.2 30.4 6.5 12.6 44.2 31.6 32.9 77.0
GPS L5/E5A I+Q 446249 47.5 47.6 2.9 29.2 54.6 25.4 37.2 88.0
SBAS L1 CA 272820 44.3 44.6 2.3 29.6 48.6 19.0 36.6 42.0
SBAS L5/E5A I 262485 46.1 46.0 0.6 43.7 48.5 4.8 39.8 42.0
GLONASS L1 CA 622898 44.3 45.0 5.0 12.0 53.6 41.6 35.9 86.0
GLONASS L1 P 622290 42.8 43.5 4.9 19.3 51.9 32.6 36.0 86.0
GLONASS L2 CA 544232 44.5 45.1 3.5 10.9 51.7 40.8 35.7 86.0
GLONASS L2 P 544196 42.9 43.5 3.5 6.5 49.6 43.1 35.7 86.0
GLONASS G3 PD 47455 44.5 45.0 3.4 34.8 50.2 15.4 37.5 79.0
Galileo L1 MBOC-PD 622321 45.1 45.5 3.9 13.1 54.2 41.1 36.7 90.0
Galileo L5/E5A BPSK(10)-PD 622319 44.9 45.2 2.8 21.3 50.5 29.2 36.7 90.0
Galileo E5B/B2 BPSK(10)-PD 622321 45.3 45.6 3.0 27.0 51.1 24.1 36.7 90.0
Galileo E5A+B AltBOC-Comp-PD 622321 47.6 47.8 2.5 35.3 52.8 17.5 36.7 90.0
Galileo E6 BPSK(5)-PD 622300 46.8 47.2 3.6 26.5 53.9 27.4 36.7 90.0
BeiDou L1 BOC-PD 611972 45.6 45.8 4.0 24.4 53.2 28.8 36.9 90.0
BeiDou L5/E5A I+Q 611972 45.9 46.0 2.9 30.9 51.9 21.0 36.9 90.0
BeiDou E5B/B2 BPSK(2)-B2 72569 45.6 46.3 2.2 36.6 49.5 12.9 42.0 82.0
BeiDou B1 BPSK(2)-B1 684593 45.4 45.7 4.0 6.5 53.4 46.9 37.5 90.0
BeiDou B3 BPSK(10)-B3 684489 44.6 45.2 3.1 21.7 50.7 29.0 37.5 90.0
start/stop time: 403,387 490,881
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 10,772,691
Avg Samples/sec: 123.1

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 403387.145
Stop Time : 489600.188
Total Hours : 23.9480675
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 817034 43.7 44.0 4.2 22.0 54.0 32.0 37.0 89.0
GPS L2 CM+CL 619990 43.7 44.1 3.2 23.5 51.4 27.9 38.4 89.0
GPS L2 E 196476 29.2 29.4 6.2 13.9 43.7 29.8 32.8 77.0
GPS L5/E5A I+Q 446180 47.0 47.0 2.6 31.5 53.4 21.9 37.2 88.0
GLONASS L1 CA 621061 43.4 44.0 4.9 9.9 54.1 44.2 36.0 86.0
GLONASS L2 CA 542807 43.7 44.3 3.3 16.8 50.1 33.3 35.8 86.0
Galileo L1 MBOC-PD 622150 44.7 45.1 3.9 4.7 53.7 49.0 36.8 90.0
Galileo E5A+B AltBOC-Comp-PD 622161 47.4 47.6 2.3 31.8 52.7 20.9 36.8 90.0
BeiDou L5/E5A I+Q 611944 45.4 45.6 2.6 30.6 50.8 20.2 37.0 90.0
BeiDou E5B/B2 BPSK(2)-B2 73015 45.7 46.5 2.1 30.6 50.2 19.6 41.8 82.0
BeiDou B1 BPSK(2)-B1 684961 45.1 45.5 4.0 23.5 53.0 29.5 37.5 90.0
BeiDou B3 BPSK(10)-B3 684925 44.3 44.7 2.9 18.3 50.3 32.0 37.5 90.0
start/stop time: 403,383 490,884
Total time: 87,501.0 seconds
Total time: 1,458.350 minutes
Total time: 24.306 hours
Total Samples: 6,542,704
Avg Samples/sec: 74.8

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 403383.102
Stop Time : 489770.725
Total Hours : 23.996561944444434
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816378 +0.3 +0.3 +1.7 -16.7 +17.7 +34.4 +37.0 +89.0
GPS L2 CM+CL 619465 +0.6 +0.7 +1.4 -15.3 +12.2 +27.5 +38.4 +89.0
GPS L2 E 195233 +0.9 +1.0 +1.9 -9.4 +8.8 +18.2 +33.0 +77.0
GPS L5/E5A I+Q 445833 +0.5 +0.5 +1.2 -15.4 +8.0 +23.4 +37.3 +88.0
GLONASS L1 CA 620647 +1.0 +1.0 +1.7 -28.0 +28.3 +56.3 +36.0 +86.0
GLONASS L2 CA 542176 +0.9 +0.9 +1.5 -13.1 +11.9 +25.0 +35.8 +86.0
Galileo L1 MBOC-PD 621758 +0.4 +0.4 +1.5 -23.0 +34.6 +57.6 +36.8 +90.0
Galileo E5A+B AltBOC-Comp-PD 621769 +0.2 +0.2 +0.9 -9.5 +9.4 +18.9 +36.8 +90.0
BeiDou L5/E5A I+Q 611564 +0.5 +0.5 +1.2 -8.5 +8.6 +17.1 +37.0 +90.0
BeiDou E5B/B2 BPSK(2)-B2 72538 -0.1 -0.1 +1.1 -5.7 +8.4 +14.1 +42.0 +82.0
BeiDou B1 BPSK(2)-B1 684155 +0.2 +0.2 +1.6 -30.8 +11.5 +42.3 +37.5 +90.0
BeiDou B3 BPSK(10)-B3 684020 +0.3 +0.4 +1.2 -20.2 +22.7 +42.9 +37.5 +90.0
start/stop time: 403,387 490,881
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 6,535,536
Avg Samples/sec: 74.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.472
Median = 0.500
Std Dev= 1.466

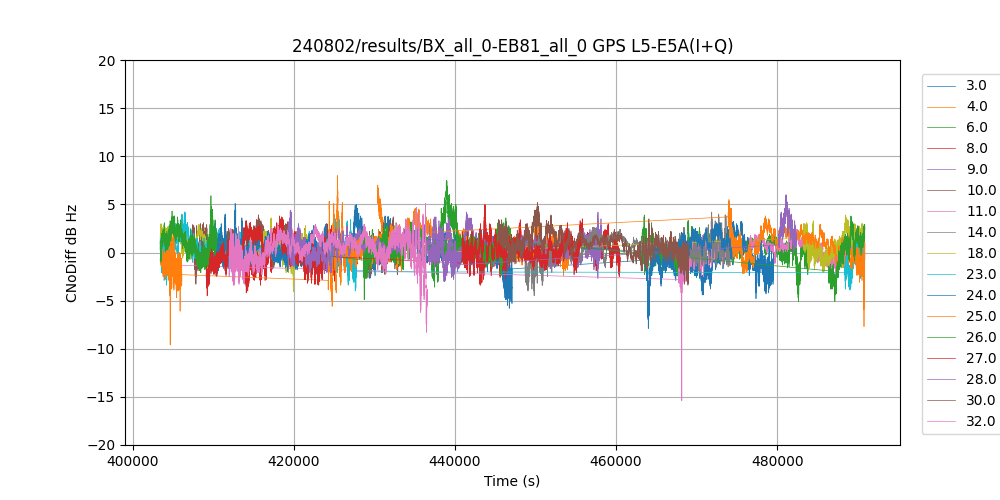

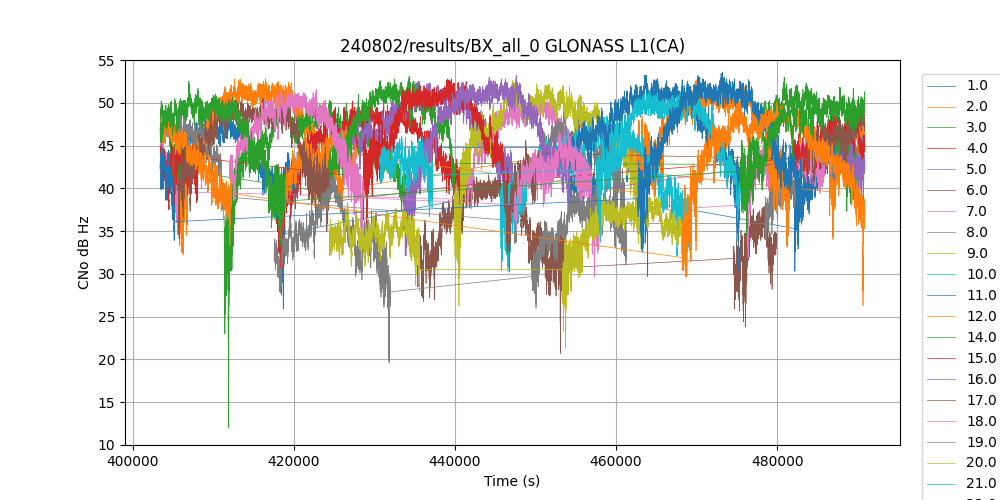

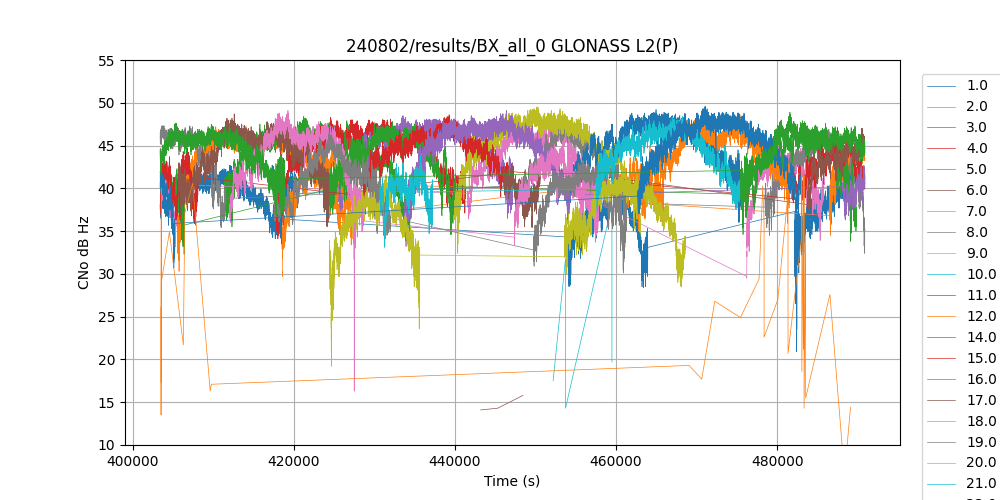

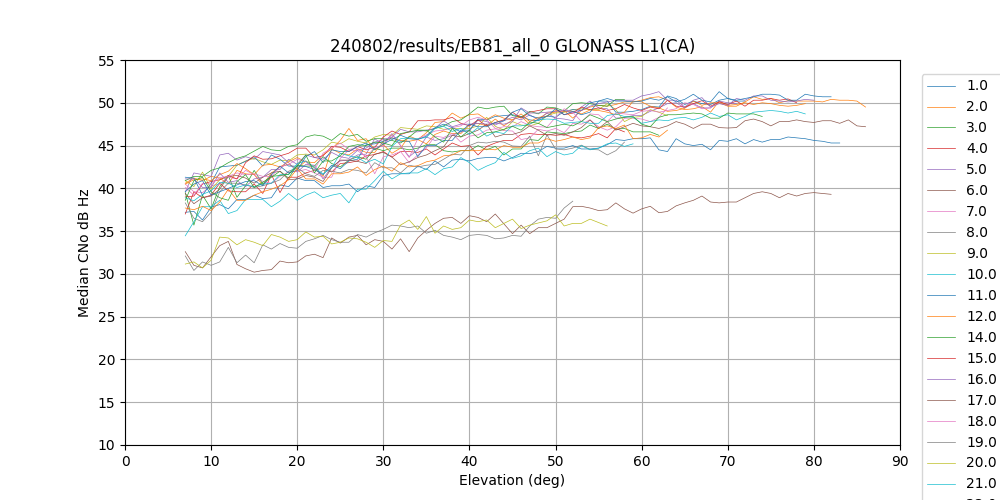

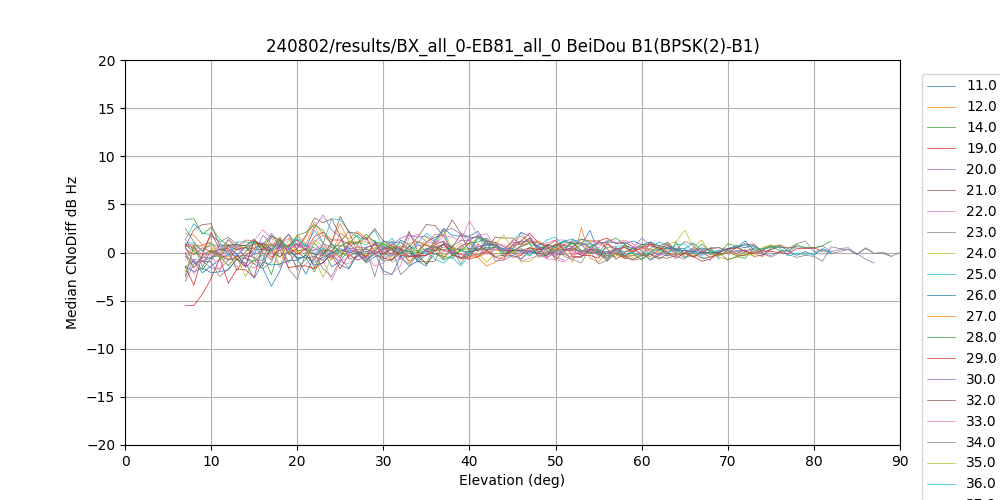

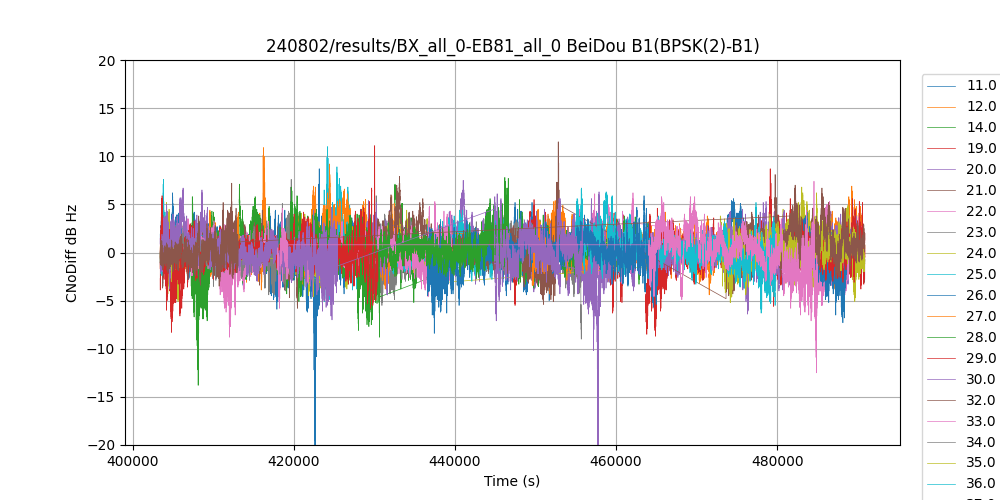

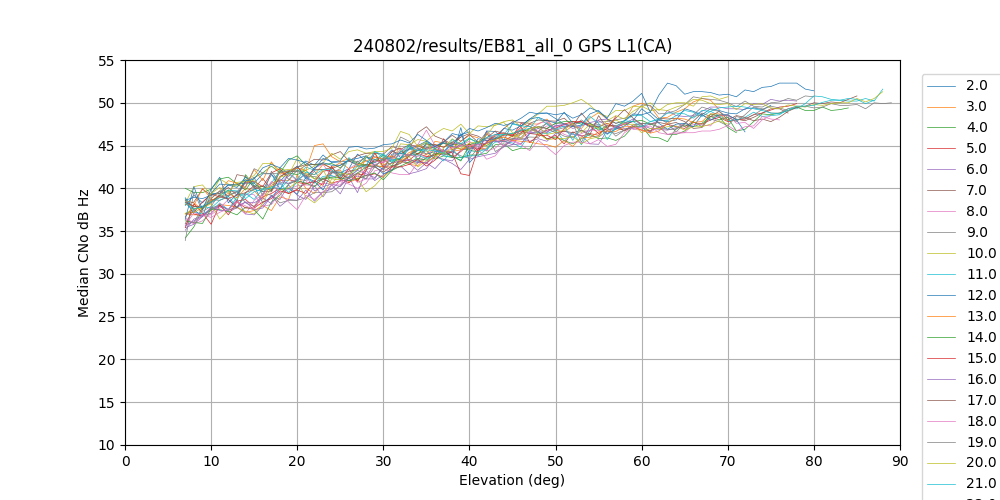

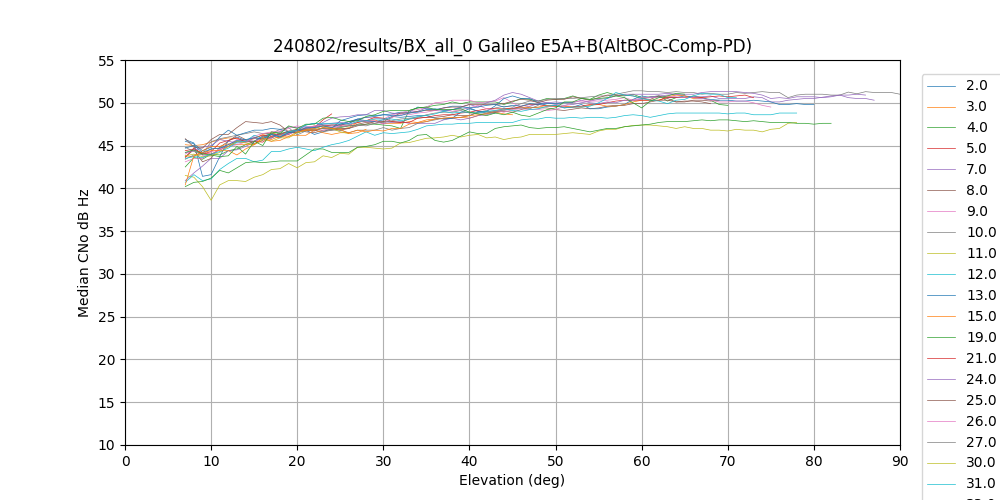

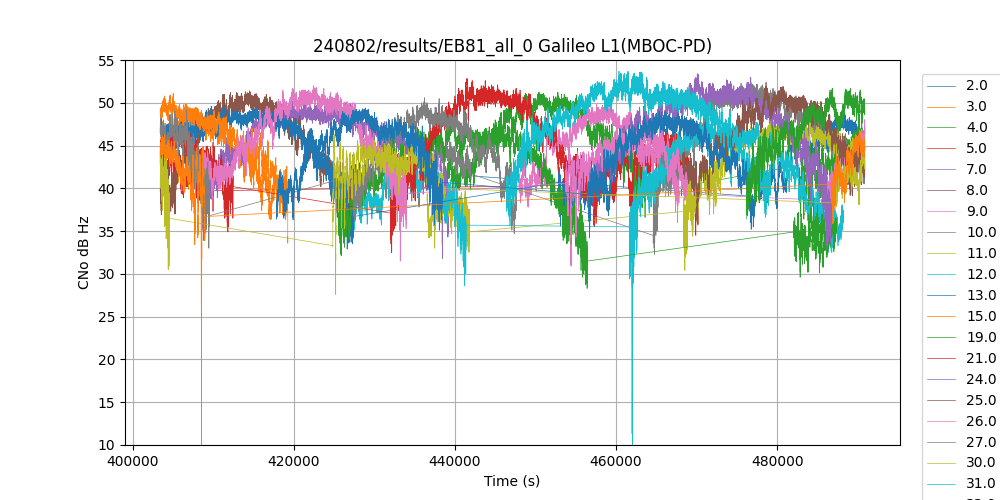

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 49.6 30.1 133 [28.0, 35.0] [0.0] 30518
3 32.7 0.0 42.7 51.9 26.6 62 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 44.8 51.5 33.3 0 [15.0] [0.0] 23842
5 41.0 0.0 44.2 51.5 13.0 302 [17.0, 21.0] [0.0] 24333
6 38.3 0.0 43.5 51.8 24.7 166 [28.0, 25.0] [0.0] 24541
7 45.1 0.0 45.8 51.6 31.2 0 [27.0] [0.0] 25498
8 27.4 0.0 42.4 50.3 31.2 195 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 45.2 53.0 27.9 1 [30.0] [0.0] 21443
10 43.5 0.0 46.8 54.0 31.2 0 [37.0] [0.0] 25764
11 43.9 0.0 44.6 52.7 26.7 224 [34.0, 31.0] [0.0] 24642
12 37.4 0.0 43.8 51.2 23.4 78 [34.0, 35.0] [0.0] 24190
13 26.6 0.0 42.8 50.5 26.0 221 [28.0, 34.0, 27.0] [0.0] 31299
14 44.2 0.0 45.3 51.3 30.7 0 [19.0] [0.0] 25710
15 29.4 0.0 43.4 50.4 30.9 397 [24.0, 31.0, 25.0] [0.0] 29176
16 31.3 0.0 42.1 50.5 28.1 98 [34.0, 36.0] [0.0] 27056
17 45.7 0.0 45.5 52.5 30.9 1 [37.0] [0.0] 24100
18 44.1 0.0 44.9 50.8 33.9 108 [33.0, 32.0] [0.0] 26295
19 44.6 0.0 44.8 52.1 29.9 3 [32.0] [0.0] 24588
20 33.8 0.0 42.5 51.1 29.5 262 [22.0, 26.0, 34.0] [0.0] 27372
21 26.6 0.0 42.1 48.6 19.6 198 [18.0, 36.0] [0.0] 30246
22 44.4 0.0 45.3 51.0 32.5 1 [17.0] [0.0] 26002
23 42.4 0.0 44.7 51.2 29.7 4 [14.0] [0.0] 26806
24 25.6 0.0 41.1 49.1 25.3 236 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 41.3 50.8 24.9 244 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 42.6 50.3 29.5 275 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 42.4 49.5 27.6 157 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 43.2 50.3 23.3 280 [29.0, 27.0] [0.0] 23201
29 47.9 0.0 45.9 52.4 28.2 160 [16.0, 20.0] [0.0] 24052
30 45.9 0.0 46.0 53.1 32.5 0 [23.0] [0.0] 23644
31 45.3 0.0 45.3 53.5 21.5 88 [33.0] [0.0] 22332
32 45.3 0.0 47.1 54.4 31.2 0 [30.0] [0.0] 24630
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.0 48.6 33.0 95 [21.0, 33.0] [0.0] 30505
3 32.7 0.0 42.5 52.0 24.6 192 [36.0, 35.0] [0.0] 27090
4 45.5 0.0 44.3 51.2 29.4 1 [15.0] [0.0] 23797
5 40.9 0.0 43.9 51.4 23.7 393 [17.0, 21.0, 20.0] [0.0] 24419
6 38.4 0.0 43.0 52.0 27.5 140 [25.0, 31.0] [0.0] 24476
7 45.1 0.0 45.4 51.2 31.0 0 [27.0] [0.0] 25518
8 27.3 0.0 41.3 49.3 30.4 279 [32.0, 25.0] [0.0] 29177
9 44.0 0.0 44.8 52.5 29.5 2 [35.0] [0.0] 21435
10 43.5 0.0 46.7 53.0 31.8 0 [37.0] [0.0] 25786
11 43.9 0.0 44.6 52.9 31.5 254 [32.0, 34.0] [0.0] 24675
12 37.4 0.0 43.8 51.6 29.9 209 [32.0, 33.0] [0.0] 24227
13 26.6 0.0 42.7 48.1 30.3 229 [26.0, 31.0] [0.0] 31245
14 44.2 0.0 45.2 50.7 32.3 2 [19.0] [0.0] 25708
15 29.4 0.0 42.8 50.7 29.2 233 [23.0, 25.0] [0.0] 29158
16 31.3 0.0 41.5 49.8 24.1 85 [32.0, 22.0] [0.0] 27078
17 45.7 0.0 45.5 52.5 29.3 0 [37.0] [0.0] 24106
18 44.1 0.0 44.3 50.8 30.5 26 [29.0, 30.0] [0.0] 26287
19 44.7 0.0 44.9 51.8 22.0 42 [30.0] [0.0] 24564
20 33.8 0.0 42.1 49.5 26.8 92 [24.0, 34.0, 29.0] [0.0] 27374
21 26.6 0.0 42.2 49.3 29.6 19 [17.0, 34.0] [0.0] 30287
22 44.4 0.0 45.3 51.2 31.7 4 [22.0] [0.0] 25991
23 42.3 0.0 44.9 50.8 33.6 235 [13.0, 14.0] [0.0] 26926
24 25.6 0.0 41.0 47.2 29.9 216 [25.0] [0.0] 29793
25 28.1 0.0 41.4 50.3 27.4 168 [22.0, 33.0, 26.0] [0.0] 29873
26 27.5 0.0 41.7 50.2 28.3 283 [31.0, 23.0, 21.0] [0.0] 29873
27 26.1 0.0 42.2 48.5 31.9 131 [33.0, 30.0] [0.0] 29888
28 39.7 0.0 42.8 49.8 23.9 167 [28.0, 25.0] [0.0] 23132
29 47.9 0.0 45.3 51.6 28.4 197 [16.0, 19.0] [0.0] 24058
30 45.9 0.0 45.5 52.7 28.8 8 [24.0] [0.0] 23648
31 45.3 0.0 45.3 51.8 32.2 0 [29.0] [0.0] 22324
32 45.3 0.0 47.0 54.0 22.2 44 [35.0] [0.0] 24616
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.1 5.5 -9.9 [28.0, 21.0, 35.0, 33.0] 30482
3 32.7 0.2 7.8 -10.9 [32.0, 36.0, 35.0] 27072
4 45.5 0.5 6.8 -5.4 [15.0] 23797
5 41.0 0.3 11.0 -16.7 [17.0, 21.0, 20.0] 24332
6 38.4 0.4 8.0 -13.7 [28.0, 25.0, 31.0] 24469
7 45.1 0.4 8.0 -5.3 [27.0] 25498
8 27.4 1.1 9.2 -6.6 [34.0, 32.0, 28.0, 25.0] 29169
9 44.0 0.4 6.6 -6.2 [30.0, 35.0] 21434
10 43.5 0.1 6.6 -11.6 [37.0] 25764
11 43.9 -0.0 5.4 -10.6 [34.0, 32.0, 31.0] 24642
12 37.4 0.0 8.2 -11.4 [34.0, 32.0, 35.0, 33.0] 24183
13 26.6 0.1 8.7 -12.3 [28.0, 26.0, 34.0, 27.0, 31.0] 31238
14 44.2 0.1 7.9 -8.5 [19.0] 25708
15 29.4 0.6 9.1 -5.7 [24.0, 23.0, 31.0, 25.0] 29149
16 31.3 0.7 9.1 -6.0 [34.0, 32.0, 36.0, 22.0] 27043
17 45.7 0.0 8.3 -7.5 [37.0] 24100
18 44.1 0.5 8.4 -3.9 [33.0, 29.0, 32.0, 30.0] 26280
19 44.7 -0.1 14.9 -8.4 [32.0, 30.0] 24558
20 33.8 0.4 9.4 -6.1 [22.0, 24.0, 26.0, 34.0, 29.0] 27356
21 26.6 -0.1 6.3 -11.4 [18.0, 17.0, 36.0, 34.0] 30246
22 44.4 0.0 8.1 -9.7 [17.0, 22.0] 25990
23 42.4 -0.2 8.2 -9.5 [14.0, 13.0] 26806
24 25.6 0.1 8.3 -10.5 [21.0, 25.0, 24.0] 29793
25 28.1 -0.1 8.2 -11.9 [20.0, 22.0, 33.0, 26.0] 29847
26 27.6 0.9 10.7 -5.6 [35.0, 31.0, 24.0, 23.0, 22.0, 21.0] 29802
27 26.2 0.1 5.6 -8.8 [22.0, 33.0, 31.0, 30.0] 29882
28 39.8 0.4 8.5 -14.3 [29.0, 28.0, 27.0, 25.0] 23130
29 47.9 0.6 9.1 -6.5 [16.0, 20.0, 19.0] 24046
30 45.9 0.5 7.0 -4.4 [23.0, 24.0] 23631
31 45.3 0.0 4.6 -14.7 [33.0, 29.0] 22324
32 45.4 0.1 17.7 -9.4 [30.0, 35.0] 24607
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.2 37.6 14.8 226 [28.0, 35.0] [0.0] 30518
13 26.6 0.0 27.6 36.3 14.8 370 [28.0, 34.0, 27.0] [0.0] 31243
16 31.3 0.0 28.6 40.9 13.9 210 [34.0, 36.0] [0.0] 27048
19 44.6 0.0 34.9 44.2 15.6 3 [32.0] [0.0] 24588
20 34.2 0.0 29.8 40.6 12.6 272 [22.0, 26.0, 34.0] [0.0] 26943
21 27.0 0.0 28.0 37.6 12.6 250 [18.0, 36.0] [0.0] 29606
22 44.4 0.0 33.4 41.2 15.6 1 [17.0] [0.0] 26002
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 29.5 35.9 18.3 169 [21.0, 33.0] [0.0] 30505
13 26.6 0.0 26.8 34.4 14.8 41 [26.0, 31.0] [0.0] 31245
16 31.6 0.0 27.2 39.3 13.9 128 [32.0, 22.0] [0.0] 26704
19 44.8 0.0 34.4 43.7 13.9 8 [30.0] [0.0] 24445
20 33.9 0.0 28.5 39.9 13.9 479 [24.0, 34.0, 29.0] [0.0] 27299
21 26.6 0.0 27.1 37.6 14.8 182 [17.0, 34.0] [0.0] 30287
22 44.4 0.0 32.4 40.4 15.6 4 [22.0] [0.0] 25991
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.7 7.5 -9.0 [28.0, 21.0, 35.0, 33.0] 30482
13 26.6 0.8 7.5 -8.1 [28.0, 26.0, 34.0, 27.0, 31.0] 31185
16 31.6 1.5 8.8 -4.3 [34.0, 32.0, 36.0, 22.0] 26679
19 44.9 0.6 8.8 -9.4 [32.0, 30.0] 24439
20 34.3 1.2 7.8 -6.5 [22.0, 24.0, 26.0, 34.0, 29.0] 26852
21 27.0 0.7 7.2 -7.8 [18.0, 17.0, 36.0, 34.0] 29606
22 44.4 1.0 6.4 -8.5 [17.0, 22.0] 25990
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.1 34.6 33 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 46.5 51.8 34.5 0 [15.0] [0.0] 23842
5 41.0 0.0 44.5 49.6 32.2 165 [17.0, 21.0] [0.0] 24333
6 38.3 0.0 44.8 50.5 31.0 14 [28.0, 25.0] [0.0] 24541
7 45.1 0.0 44.6 49.2 31.7 0 [27.0] [0.0] 25498
8 27.4 0.0 42.9 47.6 32.5 65 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 45.0 49.8 33.1 0 [30.0] [0.0] 21443
10 43.5 0.0 44.7 49.5 35.7 0 [37.0] [0.0] 25764
11 43.9 0.0 46.3 52.4 30.1 38 [34.0, 31.0] [0.0] 24642
12 37.4 0.0 43.9 48.8 34.2 32 [34.0, 35.0] [0.0] 24190
14 44.2 0.0 46.6 51.7 22.6 16 [19.0] [0.0] 25710
15 29.4 0.0 42.4 47.4 30.9 241 [24.0, 31.0, 25.0] [0.0] 29176
17 45.7 0.0 44.3 49.9 29.9 0 [37.0] [0.0] 24100
18 44.1 0.0 46.7 51.2 35.6 84 [33.0, 32.0] [0.0] 26295
23 42.4 0.0 46.0 51.0 34.0 4 [14.0] [0.0] 26806
24 25.6 0.0 42.2 47.5 28.8 133 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 41.9 48.5 31.0 234 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 42.4 47.9 30.8 171 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 42.4 46.7 30.0 24 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 46.3 51.9 35.5 46 [29.0, 27.0] [0.0] 23201
29 47.9 0.0 44.9 49.3 34.8 25 [16.0, 20.0] [0.0] 24052
30 45.9 0.0 44.3 48.8 34.9 0 [23.0] [0.0] 23644
31 45.3 0.0 44.6 49.9 33.7 0 [33.0] [0.0] 22332
32 45.3 0.0 44.8 49.6 27.6 0 [30.0] [0.0] 24630
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 48.1 32.0 5 [36.0, 35.0] [0.0] 27090
4 45.5 0.0 45.6 51.0 35.3 0 [15.0] [0.0] 23797
5 40.9 0.0 43.7 48.6 33.2 315 [17.0, 21.0, 20.0] [0.0] 24419
6 38.4 0.0 44.2 49.6 32.1 251 [25.0, 31.0] [0.0] 24476
7 45.1 0.0 43.6 48.1 29.7 0 [27.0] [0.0] 25518
8 27.3 0.0 42.5 47.6 31.4 77 [32.0, 25.0] [0.0] 29177
9 44.0 0.0 44.0 48.8 31.3 0 [35.0] [0.0] 21435
10 43.5 0.0 43.9 48.1 32.1 0 [37.0] [0.0] 25786
11 43.9 0.0 45.7 51.4 24.8 81 [32.0, 34.0] [0.0] 24675
12 37.4 0.0 43.1 48.1 31.6 225 [32.0, 33.0] [0.0] 24227
14 44.2 0.0 46.1 50.7 34.1 0 [19.0] [0.0] 25708
15 29.4 0.0 41.8 46.9 28.9 161 [23.0, 25.0] [0.0] 29158
17 45.7 0.0 44.1 48.8 29.0 3 [37.0] [0.0] 24106
18 44.1 0.0 45.7 50.5 35.9 113 [29.0, 30.0] [0.0] 26287
23 42.3 0.0 45.4 50.2 30.1 64 [13.0, 14.0] [0.0] 26926
24 25.6 0.0 41.9 46.8 32.6 56 [25.0] [0.0] 29793
25 28.1 0.0 41.5 46.8 23.5 200 [22.0, 33.0, 26.0] [0.0] 29873
26 27.5 0.0 41.7 47.1 31.8 260 [31.0, 23.0, 21.0] [0.0] 29873
27 26.1 0.0 42.1 46.3 30.9 24 [33.0, 30.0] [0.0] 29888
28 39.7 0.0 45.5 50.2 35.7 122 [28.0, 25.0] [0.0] 23132
29 47.9 0.0 43.9 48.8 33.6 38 [16.0, 19.0] [0.0] 24058
30 45.9 0.0 43.5 47.5 32.4 0 [24.0] [0.0] 23648
31 45.3 0.0 44.0 48.7 32.4 0 [29.0] [0.0] 22324
32 45.3 0.0 44.3 48.5 27.9 2 [35.0] [0.0] 24616
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.1 6.4 -7.0 [32.0, 36.0, 35.0] 27072
4 45.5 0.9 5.2 -7.1 [15.0] 23797
5 41.0 0.8 6.5 -8.2 [17.0, 21.0, 20.0] 24332
6 38.4 0.6 7.5 -7.9 [28.0, 25.0, 31.0] 24469
7 45.1 1.0 6.4 -6.4 [27.0] 25498
8 27.4 0.4 8.4 -4.7 [34.0, 32.0, 28.0, 25.0] 29169
9 44.0 1.1 7.6 -6.1 [30.0, 35.0] 21434
10 43.5 0.9 6.5 -5.4 [37.0] 25764
11 43.9 0.6 5.7 -7.4 [34.0, 32.0, 31.0] 24642
12 37.4 0.8 7.0 -4.5 [34.0, 32.0, 35.0, 33.0] 24183
14 44.2 0.5 4.4 -15.3 [19.0] 25708
15 29.4 0.6 7.8 -6.8 [24.0, 23.0, 31.0, 25.0] 29149
17 45.7 0.2 5.1 -6.8 [37.0] 24100
18 44.1 1.0 4.8 -6.6 [33.0, 29.0, 32.0, 30.0] 26280
23 42.4 0.5 7.3 -10.7 [14.0, 13.0] 26806
24 25.6 0.3 6.7 -10.2 [21.0, 25.0, 24.0] 29793
25 28.1 0.4 12.2 -9.2 [20.0, 22.0, 33.0, 26.0] 29847
26 27.6 0.6 5.9 -6.8 [35.0, 31.0, 24.0, 23.0, 22.0, 21.0] 29802
27 26.2 0.2 6.5 -10.2 [22.0, 33.0, 31.0, 30.0] 29882
28 39.8 0.9 5.8 -5.6 [29.0, 28.0, 27.0, 25.0] 23130
29 47.9 1.0 6.8 -3.2 [16.0, 20.0, 19.0] 24046
30 45.9 0.8 5.1 -4.4 [23.0, 24.0] 23631
31 45.3 0.7 6.0 -3.9 [33.0, 29.0] 22324
32 45.4 0.5 8.6 -9.7 [30.0, 35.0] 24607

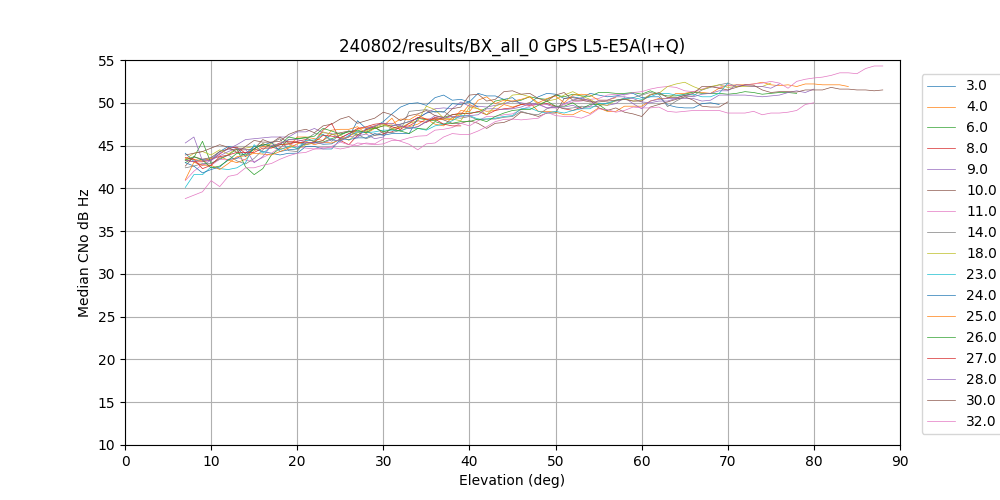

REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.1 52.0 37.6 0 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 48.4 53.0 40.8 0 [15.0] [0.0] 23842
6 38.3 0.0 47.8 52.3 39.9 198 [28.0, 25.0] [0.0] 24541
8 27.4 0.0 46.5 50.5 36.5 64 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 48.5 52.3 40.9 0 [30.0] [0.0] 21443
10 43.5 0.0 47.8 51.3 40.0 0 [37.0] [0.0] 25764
11 43.9 0.0 48.3 54.6 29.2 241 [34.0, 31.0] [0.0] 24642
14 44.2 0.0 48.4 53.0 40.2 0 [19.0] [0.0] 25710
18 44.1 0.0 48.8 53.1 40.9 114 [33.0, 32.0] [0.0] 26295
23 42.4 0.0 48.1 53.0 37.8 4 [14.0] [0.0] 26806
24 25.6 0.0 46.1 50.9 35.6 161 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 46.4 52.0 34.7 304 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 46.3 50.7 38.0 163 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 46.2 49.9 39.7 10 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 48.1 52.7 41.3 176 [29.0, 27.0] [0.0] 23201
30 45.9 0.0 49.0 52.5 40.5 0 [23.0] [0.0] 23644
32 45.3 0.0 46.6 51.0 31.5 0 [30.0] [0.0] 24630
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.9 51.5 39.3 248 [36.0, 35.0] [0.0] 27090
4 45.5 0.0 47.4 52.1 36.3 0 [15.0] [0.0] 23797
6 38.4 0.0 47.3 51.9 38.2 217 [25.0, 31.0] [0.0] 24476
8 27.3 0.0 46.2 50.5 37.1 60 [32.0, 25.0] [0.0] 29177
9 44.0 0.0 47.9 51.7 40.1 0 [35.0] [0.0] 21435
10 43.5 0.0 47.2 50.2 39.7 0 [37.0] [0.0] 25786
11 43.9 0.0 48.0 53.4 40.5 229 [32.0, 34.0] [0.0] 24675
14 44.2 0.0 47.9 52.1 39.8 0 [19.0] [0.0] 25708
18 44.1 0.0 47.9 52.1 39.0 66 [29.0, 30.0] [0.0] 26287
23 42.3 0.0 47.6 51.5 38.3 124 [13.0, 14.0] [0.0] 26926
24 25.6 0.0 45.9 49.9 38.5 6 [25.0] [0.0] 29793
25 28.1 0.0 45.9 50.6 32.6 227 [22.0, 33.0, 26.0] [0.0] 29873
26 27.5 0.0 45.8 50.5 37.3 279 [31.0, 23.0, 21.0] [0.0] 29873
27 26.1 0.0 46.0 49.1 40.1 35 [33.0, 30.0] [0.0] 29888
28 39.7 0.0 47.3 51.9 39.7 121 [28.0, 25.0] [0.0] 23132
30 45.9 0.0 48.1 51.7 40.5 0 [24.0] [0.0] 23648
32 45.3 0.0 46.1 49.3 31.5 0 [35.0] [0.0] 24616
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.1 5.0 -5.8 [32.0, 36.0, 35.0] 27072
4 45.5 1.1 7.0 -2.4 [15.0] 23797
6 38.4 0.6 7.5 -5.1 [28.0, 25.0, 31.0] 24469
8 27.4 0.3 3.8 -4.2 [34.0, 32.0, 28.0, 25.0] 29169
9 44.0 0.6 4.2 -2.7 [30.0, 35.0] 21434
10 43.5 0.6 3.9 -3.3 [37.0] 25764
11 43.9 0.3 2.9 -15.4 [34.0, 32.0, 31.0] 24642
14 44.2 0.5 4.2 -4.5 [19.0] 25708
18 44.1 0.9 3.9 -4.1 [33.0, 29.0, 32.0, 30.0] 26280
23 42.4 0.5 4.2 -4.0 [14.0, 13.0] 26806
24 25.6 0.2 5.1 -7.9 [21.0, 25.0, 24.0] 29793
25 28.1 0.5 8.0 -9.6 [20.0, 22.0, 33.0, 26.0] 29847
26 27.6 0.5 5.9 -5.1 [35.0, 31.0, 24.0, 23.0, 22.0, 21.0] 29802
27 26.2 0.2 5.0 -4.5 [22.0, 33.0, 31.0, 30.0] 29882
28 39.8 0.7 6.0 -3.0 [29.0, 28.0, 27.0, 25.0] 23130
30 45.9 1.0 5.2 -3.4 [23.0, 24.0] 23631
32 45.4 0.5 5.1 -8.3 [30.0, 35.0] 24607
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.4 48.6 44.3 0 [57.0] [0.0] 87495
133 38.0 0.0 42.9 45.2 41.1 0 [56.0] [0.0] 87495
135 39.4 0.0 44.7 46.6 42.4 0 [55.0] [0.0] 87495
158 -45.0 0.0 35.6 38.9 29.6 6 [54.0] [0.0] 10335
DUT SBAS L1(CA)
DIFF SBAS L1(CA)

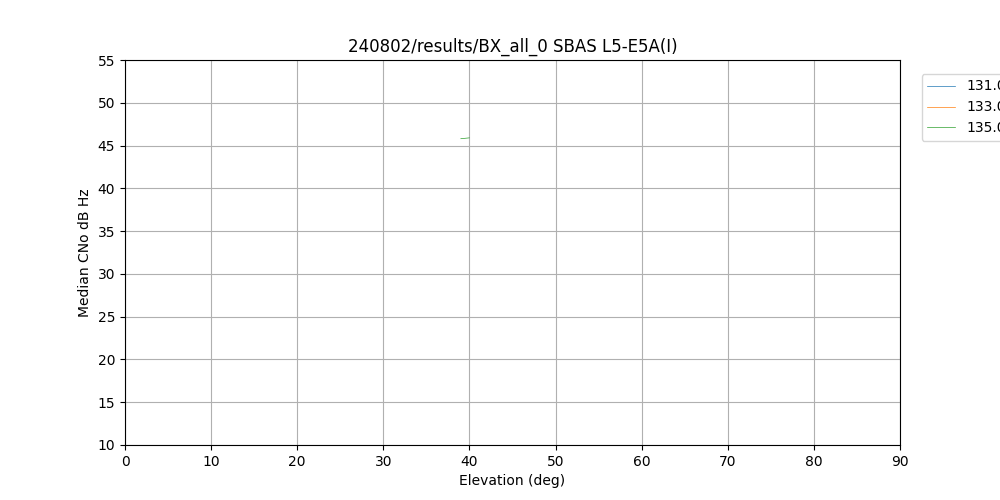

REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.6 48.5 44.9 0 [57.0] [0.0] 87495
133 38.0 0.0 45.9 47.6 43.7 0 [56.0] [0.0] 87495
135 39.4 0.0 45.8 47.5 44.1 0 [55.0] [0.0] 87495
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)

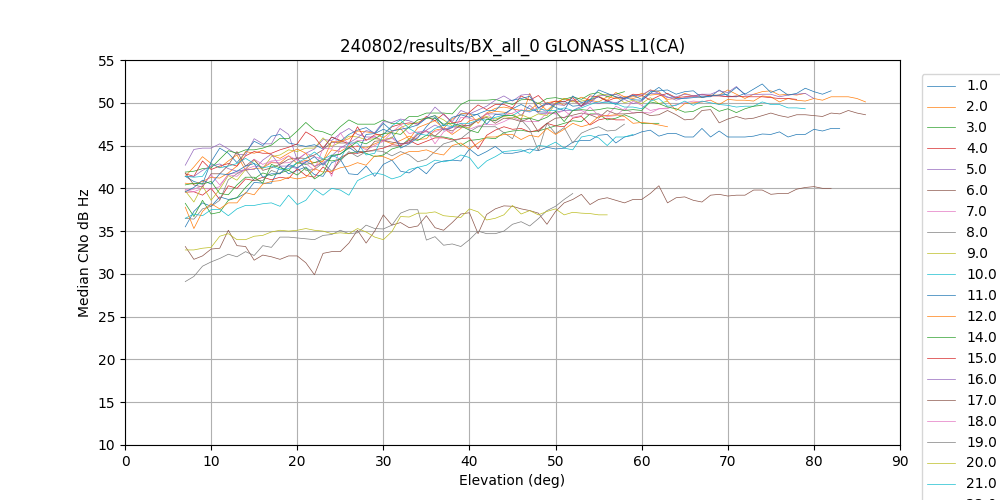

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 43.2 49.3 25.9 21 [1.0] [0.0] 34055
2 34.9 0.0 46.2 52.8 32.2 130 [-4.0] [0.0] 30985
3 39.2 0.0 45.0 50.3 12.0 63 [5.0] [0.0] 23057
4 38.4 0.0 45.2 50.2 30.1 0 [6.0] [0.0] 23422
5 41.6 0.0 47.6 52.5 33.7 0 [1.0] [0.0] 21594
6 36.9 0.0 35.4 41.6 20.7 784 [-4.0] [0.0] 23454
7 29.6 0.0 44.3 51.4 29.7 265 [5.0] [0.0] 28161
8 30.6 0.0 43.7 49.9 31.0 177 [6.0] [0.0] 34346
9 39.8 0.0 47.1 52.6 26.3 0 [-2.0] [0.0] 23081
10 38.8 0.0 42.7 48.8 30.3 0 [-7.0] [0.0] 23414
11 37.5 0.0 46.8 53.2 30.5 144 [0.0] [0.0] 24883
12 35.9 0.0 46.0 52.7 33.1 198 [-1.0] [0.0] 27953
14 31.3 0.0 47.6 53.1 37.3 255 [-7.0] [0.0] 32548
15 32.6 0.0 46.3 52.8 35.6 49 [0.0] [0.0] 31592
16 40.1 0.0 46.9 53.2 32.1 77 [-1.0] [0.0] 23215
17 35.3 0.0 45.1 50.5 30.2 245 [4.0] [0.0] 30217
18 32.0 0.0 45.2 51.6 31.6 185 [-3.0] [0.0] 25603
19 29.6 0.0 35.1 41.6 19.6 533 [3.0] [0.0] 26160
20 29.7 0.0 35.2 39.4 21.3 243 [2.0] [0.0] 26397
21 35.4 0.0 45.7 51.8 33.7 102 [4.0] [0.0] 24374
22 41.7 0.0 47.0 53.6 32.5 162 [-3.0] [0.0] 22028
23 37.7 0.0 44.2 50.1 26.3 61 [3.0] [0.0] 31497
24 45.8 0.0 47.0 52.5 33.3 234 [2.0] [0.0] 30862
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 42.1 48.8 29.5 223 [1.0] [0.0] 34066
2 34.9 0.0 45.1 52.1 32.3 438 [-4.0] [0.0] 31015
3 39.2 0.0 44.4 49.5 20.1 40 [5.0] [0.0] 23067
4 38.4 0.0 44.3 48.9 30.6 0 [6.0] [0.0] 23396
5 41.6 0.0 46.4 51.8 32.6 0 [1.0] [0.0] 21593
6 37.3 0.0 34.8 41.6 14.3 1466 [-4.0] [0.0] 23118
7 29.6 0.0 43.3 51.0 33.4 388 [5.0] [0.0] 28162
8 30.6 0.0 42.2 48.0 31.5 290 [6.0] [0.0] 34355
9 39.8 0.0 46.7 52.3 31.0 0 [-2.0] [0.0] 23091
10 38.8 0.0 42.2 48.8 29.6 0 [-7.0] [0.0] 23416
11 37.5 0.0 45.6 52.0 18.6 23 [0.0] [0.0] 24843
12 35.9 0.0 45.5 52.2 29.9 116 [-1.0] [0.0] 27972
14 31.3 0.0 46.4 52.0 35.4 130 [-7.0] [0.0] 32563
15 32.7 0.0 45.2 54.1 32.6 357 [0.0] [0.0] 31565
16 40.1 0.0 46.1 52.5 34.4 211 [-1.0] [0.0] 23176
17 35.3 0.0 43.5 49.9 29.1 170 [4.0] [0.0] 30251
18 32.0 0.0 44.6 51.2 33.7 103 [-3.0] [0.0] 25586
19 29.7 0.0 34.3 40.0 19.7 896 [3.0] [0.0] 25996
20 30.7 0.0 34.4 39.0 22.9 529 [2.0] [0.0] 25045
21 35.4 0.0 44.1 51.4 24.0 238 [4.0] [0.0] 24364
22 41.7 0.0 46.2 52.7 9.9 31 [-3.0] [0.0] 22020
23 37.7 0.0 43.4 49.3 22.7 22 [3.0] [0.0] 31504
24 45.8 0.0 46.1 51.0 28.1 77 [2.0] [0.0] 30897

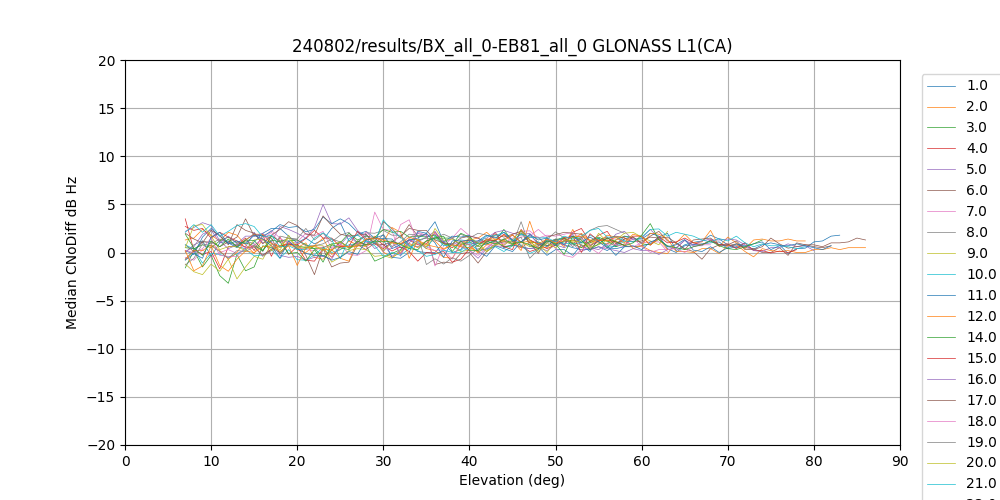

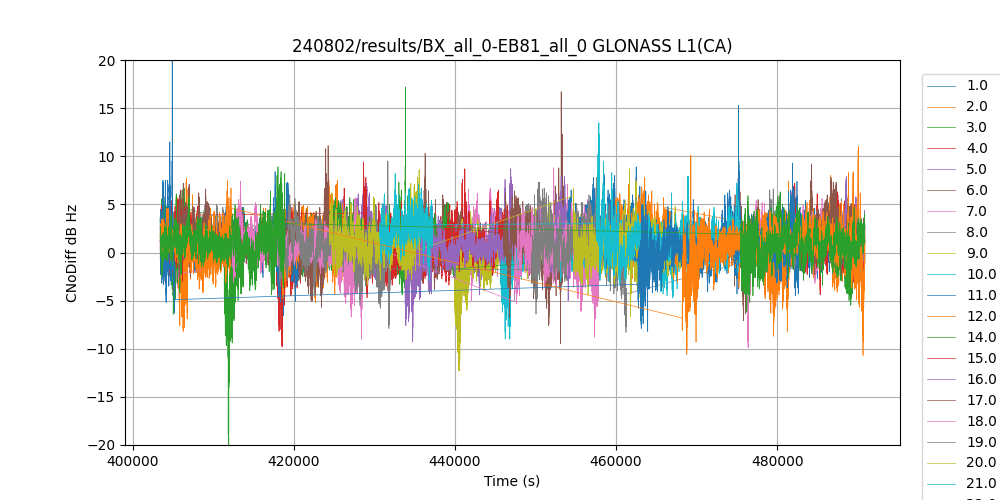

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 1.1 8.9 -8.2 [1.0] 34053
2 34.9 1.1 8.0 -8.2 [-4.0] 30978
3 39.2 0.6 17.2 -28.0 [5.0] 23057
4 38.4 0.9 8.7 -9.8 [6.0] 23392
5 41.6 1.3 8.7 -4.4 [1.0] 21593
6 37.3 0.7 16.7 -9.5 [-4.0] 23113
7 29.6 1.0 7.1 -9.9 [5.0] 28116
8 30.6 1.5 7.3 -8.3 [6.0] 34345
9 39.8 0.4 8.7 -12.3 [-2.0] 23061
10 38.8 0.5 7.9 -9.0 [-7.0] 23414
11 37.5 1.2 15.3 -5.2 [0.0] 24836
12 35.9 0.5 7.4 -8.7 [-1.0] 27953
14 31.3 1.1 6.7 -6.4 [-7.0] 32525
15 32.7 1.1 9.4 -4.7 [0.0] 31546
16 40.1 0.8 7.9 -9.3 [-1.0] 23173
17 35.3 1.6 11.1 -6.8 [4.0] 30216
18 32.0 0.5 8.8 -9.0 [-3.0] 25556
19 29.7 0.8 9.5 -7.9 [3.0] 25957
20 30.7 1.0 8.6 -4.4 [2.0] 25045
21 35.4 1.7 13.5 -3.3 [4.0] 24350
22 41.7 0.8 28.3 -7.9 [-3.0] 22016
23 37.7 0.8 11.0 -10.7 [3.0] 31492
24 45.8 0.9 8.9 -6.2 [2.0] 30860

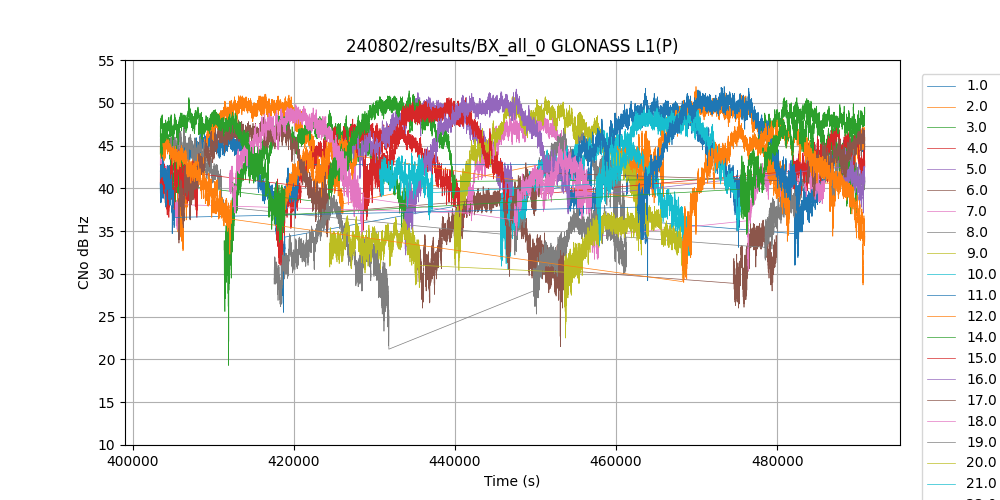

REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 41.7 48.0 25.5 283 [1.0] [0.0] 34055
2 34.9 0.0 44.9 51.0 32.7 196 [-4.0] [0.0] 30985
3 39.3 0.0 43.7 49.1 19.3 22 [5.0] [0.0] 23040
4 38.4 0.0 43.3 48.1 30.5 0 [6.0] [0.0] 23422
5 41.6 0.0 46.3 51.2 34.9 0 [1.0] [0.0] 21594
6 36.9 0.0 34.2 40.2 21.5 811 [-4.0] [0.0] 23411
7 29.6 0.0 42.6 49.4 30.4 319 [5.0] [0.0] 28161
8 30.6 0.0 41.8 47.3 30.3 143 [6.0] [0.0] 34346
9 39.8 0.0 45.6 50.7 30.4 0 [-2.0] [0.0] 23081
10 38.8 0.0 41.4 47.5 30.5 0 [-7.0] [0.0] 23414
11 37.5 0.0 45.1 51.7 33.1 204 [0.0] [0.0] 24883
12 35.9 0.0 45.2 51.9 33.8 33 [-1.0] [0.0] 27953
14 31.3 0.0 46.2 51.4 36.7 330 [-7.0] [0.0] 32548
15 32.6 0.0 44.6 50.6 35.1 273 [0.0] [0.0] 31592
16 40.1 0.0 45.5 51.6 32.2 161 [-1.0] [0.0] 23215
17 35.3 0.0 43.1 48.3 29.7 302 [4.0] [0.0] 30217
18 32.0 0.0 43.7 49.8 34.1 134 [-3.0] [0.0] 25603
19 29.8 0.0 33.3 39.2 21.2 2344 [3.0] [0.0] 25825
20 29.9 0.0 34.2 38.3 22.5 321 [2.0] [0.0] 26188
21 35.4 0.0 44.0 49.6 33.3 154 [4.0] [0.0] 24374
22 41.7 0.0 45.8 51.9 34.0 148 [-3.0] [0.0] 22028
23 37.7 0.0 42.4 48.1 28.7 256 [3.0] [0.0] 31493
24 45.8 0.0 45.5 50.6 33.7 91 [2.0] [0.0] 30862
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 40.2 45.0 24.2 337 [1.0] [0.0] 34055
2 34.9 0.0 44.5 49.2 29.5 260 [-4.0] [0.0] 30985
3 39.2 0.0 45.7 50.3 34.6 0 [5.0] [0.0] 23057
4 38.4 0.0 46.1 50.3 34.1 0 [6.0] [0.0] 23422
5 41.6 0.0 46.3 50.0 35.9 0 [1.0] [0.0] 21594
7 29.6 0.0 44.2 50.0 30.6 218 [5.0] [0.0] 28161
8 30.6 0.0 44.7 50.2 31.4 54 [6.0] [0.0] 34346
9 39.8 0.0 47.0 51.7 32.1 0 [-2.0] [0.0] 23081
10 53.8 0.0 30.2 40.7 13.9 14 [-7.0] [0.0] 15
11 37.5 0.0 46.3 51.0 34.7 133 [0.0] [0.0] 24883
12 35.9 0.0 45.0 50.7 33.7 113 [-1.0] [0.0] 27953
14 31.3 0.0 45.1 50.0 33.2 378 [-7.0] [0.0] 32548
15 32.6 0.0 45.2 50.3 36.2 227 [0.0] [0.0] 31592
16 40.1 0.0 45.8 50.4 31.9 4 [-1.0] [0.0] 23215
17 35.3 0.0 44.5 49.8 33.9 187 [4.0] [0.0] 30217
18 32.0 0.0 44.7 50.5 31.2 51 [-3.0] [0.0] 25603
19 29.7 0.0 41.9 48.4 32.6 129 [3.0] [0.0] 25990
20 29.9 0.0 38.2 43.2 23.9 131 [2.0] [0.0] 26188
21 35.4 0.0 44.2 49.8 33.8 114 [4.0] [0.0] 24374
22 41.7 0.0 46.4 51.1 30.9 253 [-3.0] [0.0] 22028
23 50.0 0.0 36.0 43.2 10.9 166 [3.0] [0.0] 63
24 45.8 0.0 46.3 49.5 34.1 181 [2.0] [0.0] 30862
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 39.2 44.4 28.0 193 [1.0] [0.0] 34066
2 34.9 0.0 43.5 48.3 31.8 116 [-4.0] [0.0] 31015
3 39.2 0.0 45.0 49.5 27.8 0 [5.0] [0.0] 23067
4 38.4 0.0 45.3 49.1 34.7 0 [6.0] [0.0] 23396
5 41.6 0.0 44.9 49.0 33.8 0 [1.0] [0.0] 21593
7 29.6 0.0 44.1 49.3 29.4 191 [5.0] [0.0] 28162
8 30.6 0.0 44.2 48.8 33.1 349 [6.0] [0.0] 34355
9 39.8 0.0 46.0 50.0 28.0 4 [-2.0] [0.0] 23091
10 51.7 0.0 30.6 40.0 19.7 5 [-7.0] [0.0] 6
11 37.5 0.0 45.2 50.1 29.1 8 [0.0] [0.0] 24843
12 35.9 0.0 44.1 49.1 31.9 121 [-1.0] [0.0] 27972
14 31.3 0.0 44.2 48.4 32.2 281 [-7.0] [0.0] 32563
15 32.7 0.0 44.1 48.7 33.8 305 [0.0] [0.0] 31565
16 40.1 0.0 45.0 49.6 33.2 36 [-1.0] [0.0] 23176
17 35.3 0.0 43.9 49.0 33.5 337 [4.0] [0.0] 30251
18 32.0 0.0 43.9 49.0 31.2 136 [-3.0] [0.0] 25586
19 29.8 0.0 41.2 45.7 26.5 188 [3.0] [0.0] 25834
20 30.7 0.0 37.3 42.4 25.9 120 [2.0] [0.0] 24924
21 35.4 0.0 43.5 48.7 31.4 13 [4.0] [0.0] 24364
22 41.7 0.0 45.3 50.1 29.1 181 [-3.0] [0.0] 22020
23 53.5 0.0 33.0 42.0 16.8 78 [3.0] [0.0] 61
24 45.8 0.0 45.2 48.5 31.3 109 [2.0] [0.0] 30897
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 0.9 8.0 -9.0 [1.0] 34053
2 34.9 0.9 9.1 -9.0 [-4.0] 30978
3 39.2 0.7 8.3 -5.1 [5.0] 23057
4 38.4 0.8 6.7 -6.0 [6.0] 23392
5 41.6 1.3 6.9 -3.1 [1.0] 21593
7 29.6 0.1 8.6 -7.8 [5.0] 28116
8 30.6 0.5 7.0 -8.3 [6.0] 34345
9 39.8 1.0 11.1 -8.1 [-2.0] 23061
11 37.5 1.1 9.7 -4.1 [0.0] 24836
12 35.9 0.9 7.1 -6.3 [-1.0] 27953
14 31.3 0.9 7.8 -6.3 [-7.0] 32525
15 32.7 1.1 6.1 -4.9 [0.0] 31546
16 40.1 0.9 8.5 -6.7 [-1.0] 23173
17 35.3 0.6 7.1 -7.3 [4.0] 30216
18 32.0 0.8 10.5 -13.1 [-3.0] 25556
19 30.0 0.7 11.9 -5.5 [3.0] 25625
20 30.7 0.9 7.8 -10.2 [2.0] 24924
21 35.4 0.7 7.8 -6.7 [4.0] 24350
22 41.7 1.0 9.7 -4.5 [-3.0] 22016
23 47.0 -10.9 -10.9 -10.9 [3.0] 1
24 45.8 1.1 7.6 -4.6 [2.0] 30860
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 38.2 42.9 20.9 167 [1.0] [0.0] 34055
2 34.9 0.0 42.8 47.2 30.3 208 [-4.0] [0.0] 30985
3 39.2 0.0 44.3 48.4 33.8 0 [5.0] [0.0] 23057
4 38.4 0.0 44.4 48.3 34.1 0 [6.0] [0.0] 23422
5 41.6 0.0 44.9 48.5 36.5 0 [1.0] [0.0] 21594
6 67.7 0.0 14.7 15.8 14.1 2 [-4.0] [0.0] 3
7 29.6 0.0 42.7 48.0 29.5 238 [5.0] [0.0] 28161
8 30.6 0.0 43.2 48.1 32.4 110 [6.0] [0.0] 34346
9 39.8 0.0 45.1 49.5 32.4 0 [-2.0] [0.0] 23081
10 51.0 0.0 24.3 38.1 14.3 4 [-7.0] [0.0] 5
11 37.5 0.0 44.5 49.2 36.0 173 [0.0] [0.0] 24883
12 35.9 0.0 43.0 48.6 29.7 13 [-1.0] [0.0] 27953
14 31.3 0.0 43.6 48.9 32.3 295 [-7.0] [0.0] 32548
15 32.6 0.0 43.6 48.6 35.7 341 [0.0] [0.0] 31592
16 40.1 0.0 44.3 49.1 33.2 27 [-1.0] [0.0] 23215
17 35.3 0.0 43.2 48.7 35.4 90 [4.0] [0.0] 30217
18 32.0 0.0 43.1 49.1 16.3 16 [-3.0] [0.0] 25601
19 29.7 0.0 40.4 46.4 30.1 158 [3.0] [0.0] 25990
20 29.9 0.0 36.8 41.6 19.2 798 [2.0] [0.0] 26188
21 35.4 0.0 43.3 48.4 33.1 70 [4.0] [0.0] 24374
22 41.7 0.0 44.7 49.6 30.7 111 [-3.0] [0.0] 22028
23 44.5 0.0 26.8 42.6 6.5 69 [3.0] [0.0] 36
24 45.8 0.0 44.6 47.7 34.6 25 [2.0] [0.0] 30862
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.8 0.0 45.2 49.7 34.8 0 [-2.0] [0.0] 23081
21 35.4 0.0 43.9 50.2 35.7 35 [4.0] [0.0] 24374
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 44.4 49.4 35.7 193 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.5 49.7 37.0 0 [48.0] [0.0] 14276
4 36.2 0.0 45.5 51.5 26.6 164 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 43.5 48.5 36.7 221 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 45.8 50.8 32.0 0 [46.0] [0.0] 30582
8 41.7 0.0 46.2 52.0 33.0 0 [40.0] [0.0] 24078
9 28.5 0.0 44.8 50.3 29.8 160 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 46.4 52.9 13.1 55 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 43.2 48.5 28.8 70 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 42.3 48.5 30.7 214 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 45.1 50.5 33.2 205 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 45.9 51.2 35.8 0 [52.0] [0.0] 15830
19 40.4 0.0 41.7 48.2 27.6 50 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 46.3 52.4 33.8 201 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 47.7 53.4 32.6 0 [53.0] [0.0] 30336
25 42.1 0.0 46.8 51.8 37.9 0 [47.0] [0.0] 22788
26 34.6 0.0 45.5 52.2 19.9 56 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 44.9 50.3 23.9 111 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.5 46.8 32.8 329 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.0 54.2 33.5 0 [52.0] [0.0] 32782
33 33.1 0.0 45.0 50.0 31.8 232 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.8 47.8 32.3 188 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 46.8 52.3 33.6 0 [40.0] [0.0] 14647
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 43.9 48.7 35.1 99 [47.0, 48.0] [0.0] 15682
3 33.2 0.0 45.1 49.5 36.4 0 [52.0] [0.0] 14276
4 36.2 0.0 45.4 51.2 36.4 201 [42.0, 40.0] [0.0] 33461
5 17.3 0.0 42.4 47.3 34.5 207 [49.0, 39.0] [0.0] 18359
7 45.7 0.0 45.8 50.2 31.8 0 [38.0] [0.0] 30601
8 41.7 0.0 45.8 51.4 34.1 0 [50.0] [0.0] 24071
9 28.5 0.0 44.7 49.9 34.2 238 [44.0, 47.0] [0.0] 25044
10 39.1 0.0 45.8 52.3 32.3 10 [53.0, 45.0] [0.0] 36921
11 44.6 0.0 43.0 48.2 30.4 31 [47.0, 44.0] [0.0] 27756
12 35.1 0.0 41.5 48.8 9.2 208 [44.0, 52.0] [0.0] 40786
13 42.9 0.0 44.6 49.6 32.9 201 [46.0, 47.0] [0.0] 30794
15 42.1 0.0 45.8 51.1 33.6 0 [45.0] [0.0] 15844
19 40.7 0.0 41.3 48.7 28.3 240 [48.0, 51.0] [0.0] 36218
21 36.6 0.0 45.4 52.8 32.5 176 [48.0, 50.0] [0.0] 35062
24 45.6 0.0 47.2 53.4 33.1 0 [53.0] [0.0] 30318
25 42.1 0.0 46.5 52.4 36.1 0 [46.0] [0.0] 22789
26 34.6 0.0 45.2 52.0 30.9 81 [39.0, 43.0] [0.0] 40938
27 29.3 0.0 44.9 50.6 33.0 81 [47.0, 43.0] [0.0] 26433
30 17.5 0.0 42.2 46.3 27.6 149 [38.0, 49.0, 51.0] [0.0] 18380
31 45.4 0.0 48.0 53.7 35.6 0 [51.0] [0.0] 32769
33 33.1 0.0 44.7 49.4 34.2 151 [52.0, 48.0] [0.0] 41348
34 16.3 0.0 42.4 46.8 4.7 266 [51.0, 53.0] [0.0] 9641
36 39.7 0.0 46.9 51.7 36.4 0 [41.0] [0.0] 14659
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 0.5 6.0 -5.1 [41.0, 47.0, 49.0, 48.0] 15654
3 33.2 0.4 3.9 -4.6 [48.0, 52.0] 14272
4 36.2 0.1 6.5 -14.9 [41.0, 42.0, 39.0, 40.0] 33458
5 17.3 1.2 8.9 -4.4 [44.0, 49.0, 40.0, 39.0] 18350
7 45.7 0.0 6.8 -6.3 [46.0, 38.0] 30582
8 41.7 0.5 5.3 -6.1 [40.0, 50.0] 24067
9 28.5 0.1 5.7 -8.6 [46.0, 44.0, 45.0, 47.0] 25039
10 39.1 0.6 5.6 -23.0 [53.0, 42.0, 45.0] 36912
11 44.6 0.2 4.9 -6.7 [50.0, 47.0, 46.0, 44.0] 27746
12 35.2 0.8 21.5 -4.4 [39.0, 44.0, 50.0, 52.0] 40727
13 42.9 0.5 6.8 -4.5 [42.0, 46.0, 45.0, 47.0] 30758
15 42.1 0.1 5.8 -5.0 [52.0, 45.0] 15830
19 40.7 0.4 7.9 -5.7 [43.0, 48.0, 52.0, 51.0] 36201
21 36.6 0.8 8.2 -5.3 [49.0, 48.0, 42.0, 50.0] 35055
24 45.6 0.5 6.0 -6.1 [53.0] 30316
25 42.1 0.3 6.0 -7.0 [47.0, 46.0] 22786
26 34.6 0.3 7.7 -18.4 [47.0, 39.0, 44.0, 43.0] 40905
27 29.3 -0.0 6.0 -14.6 [45.0, 47.0, 38.0, 43.0] 26416
30 17.5 0.2 10.2 -6.7 [50.0, 38.0, 44.0, 49.0, 52.0, 51.0] 18330
31 45.4 0.0 4.8 -6.1 [52.0, 51.0] 32754
33 33.1 0.4 6.0 -7.6 [48.0, 52.0, 49.0] 41341
34 16.3 0.4 34.6 -9.9 [51.0, 53.0] 9612
36 39.8 -0.2 4.5 -7.2 [40.0, 41.0] 14647
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 44.9 49.4 35.1 69 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.2 48.1 40.3 0 [48.0] [0.0] 14276
4 36.2 0.0 45.5 50.1 21.3 209 [41.0, 39.0] [0.0] 33487
5 17.3 0.0 43.4 47.4 35.8 151 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 46.0 49.9 33.9 0 [46.0] [0.0] 30582
8 41.7 0.0 45.8 49.4 37.4 0 [40.0] [0.0] 24078
9 28.5 0.0 45.3 50.3 37.7 0 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 45.8 50.5 37.0 206 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 42.5 46.4 31.3 59 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 42.9 47.6 34.6 98 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 45.8 49.8 38.1 100 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 45.7 49.5 37.4 0 [52.0] [0.0] 15830
19 40.4 0.0 42.0 46.6 32.8 151 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 45.3 49.7 35.6 195 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 46.5 50.2 36.8 0 [53.0] [0.0] 30336
25 42.1 0.0 46.5 50.0 39.1 0 [47.0] [0.0] 22788
26 34.6 0.0 44.9 49.5 33.4 238 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 44.8 49.0 35.6 124 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.7 45.6 34.7 318 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 46.3 50.0 37.4 0 [52.0] [0.0] 32782
33 33.1 0.0 45.7 49.8 37.9 135 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.1 46.4 31.4 213 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 45.8 49.5 35.9 0 [40.0] [0.0] 14647
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 45.3 49.6 34.6 196 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.6 48.4 41.1 0 [48.0] [0.0] 14276
4 36.2 0.0 45.8 51.1 35.9 168 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 43.6 48.2 37.0 110 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 46.3 50.7 34.7 0 [46.0] [0.0] 30582
8 41.7 0.0 46.2 49.8 37.9 0 [40.0] [0.0] 24078
9 28.5 0.0 45.4 51.0 34.7 66 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 46.0 51.0 38.2 94 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 42.4 46.8 27.0 250 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 43.4 48.8 33.9 193 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 46.3 50.3 38.5 199 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 46.3 50.1 38.7 0 [52.0] [0.0] 15830
19 40.4 0.0 42.5 47.2 33.9 115 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 46.0 50.3 37.4 244 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 46.9 50.8 38.3 0 [53.0] [0.0] 30336
25 42.1 0.0 47.0 50.5 39.1 0 [47.0] [0.0] 22788
26 34.6 0.0 45.5 50.1 36.6 54 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 45.2 49.2 37.3 193 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.9 46.2 37.3 277 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 46.8 50.6 37.1 0 [52.0] [0.0] 32782
33 33.1 0.0 45.9 50.0 31.6 184 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.6 46.5 33.4 125 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 46.7 50.3 38.1 0 [40.0] [0.0] 14647
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 47.6 51.1 39.1 181 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 47.8 50.4 44.0 0 [48.0] [0.0] 14276
4 36.2 0.0 48.1 52.4 35.3 227 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 46.3 50.1 40.7 25 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 48.6 52.3 38.8 0 [46.0] [0.0] 30582
8 41.7 0.0 48.4 51.8 41.5 0 [40.0] [0.0] 24078
9 28.5 0.0 47.8 52.2 40.9 253 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 48.4 52.8 42.1 250 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 44.9 48.7 35.5 101 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 46.0 50.5 37.9 179 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 48.5 52.1 42.6 168 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 48.5 51.8 42.1 0 [52.0] [0.0] 15830
19 40.4 0.0 45.2 49.4 37.5 174 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 48.1 52.3 41.0 134 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 49.1 52.6 41.8 0 [53.0] [0.0] 30336
25 42.1 0.0 49.0 52.2 42.9 0 [47.0] [0.0] 22788
26 34.6 0.0 47.8 52.0 39.4 127 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 47.5 51.3 41.0 226 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 45.7 48.4 39.9 437 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.9 52.4 41.8 0 [52.0] [0.0] 32782
33 33.1 0.0 48.2 51.8 39.8 114 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 45.2 48.8 36.8 24 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 48.7 51.7 42.1 0 [40.0] [0.0] 14647
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 47.5 50.5 42.6 237 [47.0, 48.0] [0.0] 15682
3 33.2 0.0 47.6 50.2 43.9 0 [52.0] [0.0] 14276
4 36.2 0.0 48.0 52.1 40.8 170 [42.0, 40.0] [0.0] 33461
5 17.3 0.0 46.3 49.2 40.4 57 [49.0, 39.0] [0.0] 18359
7 45.7 0.0 48.3 51.8 37.1 2 [38.0] [0.0] 30601
8 41.7 0.0 48.2 51.7 42.2 0 [50.0] [0.0] 24071
9 28.5 0.0 47.7 51.2 42.4 206 [44.0, 47.0] [0.0] 25044
10 39.1 0.0 48.2 52.7 40.8 136 [53.0, 45.0] [0.0] 36921
11 44.6 0.0 44.6 47.4 36.9 61 [47.0, 44.0] [0.0] 27756
12 35.1 0.0 46.0 50.6 39.0 70 [44.0, 52.0] [0.0] 40786
13 42.9 0.0 48.0 51.8 42.4 216 [46.0, 47.0] [0.0] 30794
15 42.1 0.0 48.2 51.4 41.5 0 [45.0] [0.0] 15844
19 40.7 0.0 44.8 49.1 37.2 247 [48.0, 51.0] [0.0] 36218
21 36.6 0.0 47.9 52.1 40.7 70 [48.0, 50.0] [0.0] 35062
24 45.6 0.0 48.7 52.1 42.4 0 [53.0] [0.0] 30318
25 42.1 0.0 48.9 52.1 42.2 0 [46.0] [0.0] 22789
26 34.6 0.0 47.5 51.6 37.8 178 [39.0, 43.0] [0.0] 40938
27 29.3 0.0 47.4 50.7 41.7 215 [47.0, 43.0] [0.0] 26433
30 17.5 0.0 45.7 48.6 35.1 278 [38.0, 49.0, 51.0] [0.0] 18380
31 45.4 0.0 48.8 52.1 42.2 0 [51.0] [0.0] 32769
33 33.1 0.0 48.0 51.7 41.7 110 [52.0, 48.0] [0.0] 41348
34 16.3 0.0 44.9 47.7 31.8 161 [51.0, 53.0] [0.0] 9652
36 39.7 0.0 48.4 51.0 43.3 0 [41.0] [0.0] 14659
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 0.1 3.1 -5.0 [41.0, 47.0, 49.0, 48.0] 15654
3 33.2 0.2 2.0 -2.0 [48.0, 52.0] 14272
4 36.2 0.1 2.8 -9.5 [41.0, 42.0, 39.0, 40.0] 33458
5 17.3 0.1 3.3 -2.5 [44.0, 49.0, 40.0, 39.0] 18350
7 45.7 0.3 4.7 -4.6 [46.0, 38.0] 30582
8 41.7 0.2 2.9 -2.8 [40.0, 50.0] 24067
9 28.5 0.2 3.3 -3.5 [46.0, 44.0, 45.0, 47.0] 25039
10 39.1 0.2 4.1 -2.7 [53.0, 42.0, 45.0] 36912
11 44.6 0.3 6.6 -5.7 [50.0, 47.0, 46.0, 44.0] 27746
12 35.2 -0.1 3.2 -3.6 [39.0, 44.0, 50.0, 52.0] 40727
13 42.9 0.5 3.5 -3.2 [42.0, 46.0, 45.0, 47.0] 30758
15 42.1 0.3 3.2 -2.2 [52.0, 45.0] 15830
19 40.7 0.5 3.6 -2.2 [43.0, 48.0, 52.0, 51.0] 36201
21 36.6 0.2 3.2 -3.3 [49.0, 48.0, 42.0, 50.0] 35055
24 45.6 0.3 2.7 -2.7 [53.0] 30316
25 42.1 0.2 2.4 -2.7 [47.0, 46.0] 22786
26 34.6 0.2 3.2 -4.7 [47.0, 39.0, 44.0, 43.0] 40905
27 29.3 0.1 2.4 -3.6 [45.0, 47.0, 38.0, 43.0] 26416
30 17.5 -0.0 7.5 -4.0 [50.0, 38.0, 44.0, 49.0, 52.0, 51.0] 18330
31 45.4 0.2 2.5 -3.4 [52.0, 51.0] 32754
33 33.1 0.2 3.2 -4.7 [48.0, 52.0, 49.0] 41341
34 16.3 0.3 9.4 -7.1 [51.0, 53.0] 9623
36 39.8 0.3 2.7 -3.2 [40.0, 41.0] 14647
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 46.5 51.2 32.1 36 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 47.0 50.5 40.4 0 [48.0] [0.0] 14276
4 36.2 0.0 47.4 52.5 34.8 103 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 44.5 49.0 36.0 96 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 48.2 52.3 29.0 0 [46.0] [0.0] 30582
8 41.7 0.0 48.1 52.1 38.1 0 [40.0] [0.0] 24078
9 28.5 0.0 46.7 52.5 31.2 215 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 47.9 53.9 33.3 187 [53.0, 42.0] [0.0] 36919
11 44.6 0.0 44.7 49.1 28.1 191 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 44.7 51.1 31.4 241 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 47.7 52.1 37.2 81 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 47.9 53.0 37.9 0 [52.0] [0.0] 15830
19 40.4 0.0 43.4 48.9 32.3 217 [43.0, 52.0] [0.0] 36490
21 36.6 0.0 47.6 52.5 35.4 116 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 49.0 53.8 39.0 0 [53.0] [0.0] 30336
25 42.1 0.0 49.0 52.8 38.0 0 [47.0] [0.0] 22788
26 34.6 0.0 46.8 52.9 34.8 148 [47.0, 44.0] [0.0] 40897
27 29.3 0.0 46.4 51.0 36.1 145 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 44.2 47.6 31.3 119 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.5 52.7 36.2 0 [52.0] [0.0] 32782
33 33.1 0.0 47.1 52.1 26.5 47 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 43.6 48.6 32.0 112 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 48.6 52.6 39.8 0 [40.0] [0.0] 14646
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 45.2 51.0 33.7 487 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.6 52.0 31.4 15 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 47.1 51.9 34.3 93 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.7 51.0 27.1 381 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 46.5 52.8 30.2 2 [49.0] [0.0] 26138
24 24.1 0.0 44.1 49.1 35.2 45 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.5 51.2 33.6 158 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.0 50.3 33.2 144 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 44.6 51.5 34.9 111 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.3 49.3 27.7 178 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 46.9 51.7 24.4 14 [48.0] [0.0] 27198
30 41.5 0.0 45.5 52.2 33.4 191 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 45.2 52.7 27.6 20 [34.0, 51.0] [0.0] 32448
33 44.0 0.0 47.1 52.7 33.1 0 [51.0] [0.0] 28731
34 54.7 0.0 47.1 51.9 35.2 0 [27.0] [0.0] 16775
35 44.3 0.0 46.9 51.9 36.2 174 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 46.9 52.3 31.4 0 [14.0] [0.0] 24741
37 44.9 0.0 47.4 53.2 27.3 2 [47.0] [0.0] 28603
38 7.0 0.0 40.2 42.4 37.7 0 [17.0] [0.0] 2004
41 45.3 0.0 47.1 52.6 36.8 0 [19.0] [0.0] 27122
42 45.4 0.0 46.7 52.6 33.0 0 [23.0] [0.0] 27026
43 32.2 0.0 44.1 51.1 26.3 33 [13.0, 53.0] [0.0] 33056
44 33.0 0.0 45.1 50.5 35.7 97 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.7 52.3 33.4 158 [19.0, 45.0] [0.0] 22111
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)

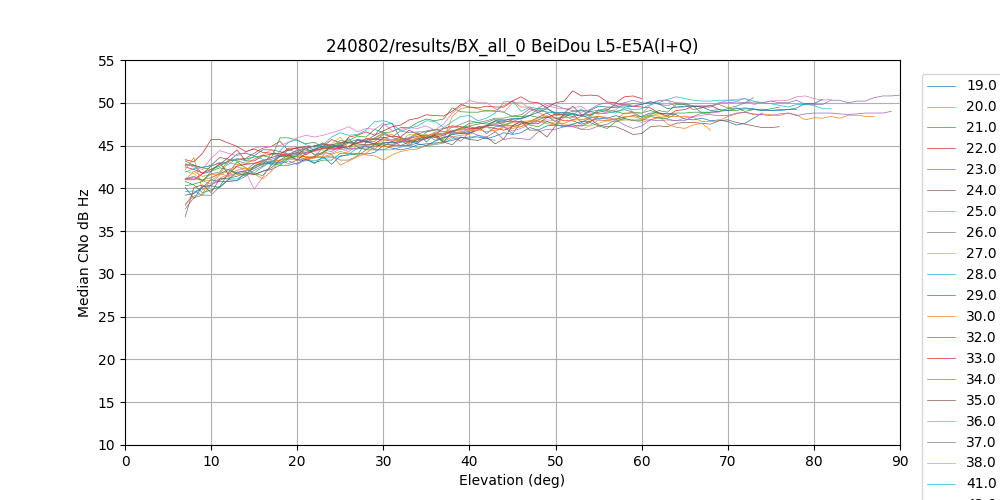

REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 45.7 49.5 37.6 284 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.7 50.9 37.9 46 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 46.9 50.3 36.6 56 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 44.8 49.4 36.3 254 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 47.2 51.7 34.1 0 [49.0] [0.0] 26138
24 24.1 0.0 45.0 49.3 36.8 197 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.8 49.9 38.2 112 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.3 48.2 34.4 158 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 45.0 49.4 37.9 51 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.0 48.7 34.2 182 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 46.2 50.0 36.7 0 [48.0] [0.0] 27198
30 41.5 0.0 45.7 50.5 35.6 131 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 46.2 51.4 38.1 195 [34.0, 51.0] [0.0] 32448
33 44.0 0.0 47.0 50.6 37.7 0 [51.0] [0.0] 28731
34 54.7 0.0 46.8 49.7 38.0 0 [27.0] [0.0] 16775
35 44.3 0.0 45.3 50.2 34.6 49 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 47.9 51.5 40.5 0 [14.0] [0.0] 24741
37 44.9 0.0 47.5 51.4 37.1 0 [47.0] [0.0] 28603
38 7.0 0.0 39.7 41.6 38.2 0 [17.0] [0.0] 2004
41 45.3 0.0 47.7 51.2 39.0 0 [19.0] [0.0] 27122
42 45.4 0.0 46.9 51.1 30.9 0 [23.0] [0.0] 27026
43 32.2 0.0 44.5 49.6 31.3 14 [13.0, 53.0] [0.0] 33056
44 33.0 0.0 45.1 49.5 35.7 61 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 47.4 51.9 37.0 64 [19.0, 45.0] [0.0] 22111
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.0 0.0 45.3 49.7 35.5 444 [18.0, 45.0, 22.0] [0.0] 26459
20 29.9 0.0 45.4 49.5 35.7 49 [52.0, 32.0] [0.0] 34130
21 48.1 0.0 46.3 50.0 39.4 175 [43.0, 52.0] [0.0] 17590
22 24.3 0.0 44.3 49.2 38.0 234 [35.0, 41.0, 39.0] [0.0] 22273
23 45.8 0.0 46.9 50.5 37.7 0 [32.0] [0.0] 26156
24 24.1 0.0 44.5 48.4 35.8 203 [27.0, 24.0] [0.0] 27849
25 39.7 0.0 45.2 49.0 34.0 250 [25.0, 51.0] [0.0] 22995
26 22.2 0.0 43.2 47.3 30.6 26 [26.0, 43.0] [0.0] 28748
27 30.9 0.0 44.7 49.5 36.8 2 [16.0] [0.0] 33825
28 28.8 0.0 43.8 47.5 36.1 171 [53.0, 20.0] [0.0] 34944
29 46.2 0.0 46.1 49.5 36.5 0 [50.0] [0.0] 27232
30 41.4 0.0 45.1 49.7 36.4 84 [50.0, 40.0] [0.0] 28162
32 34.3 0.0 45.6 50.6 37.4 48 [26.0, 49.0] [0.0] 32443
33 44.1 0.0 46.6 49.9 37.1 0 [31.0] [0.0] 28713
34 54.7 0.0 46.0 49.0 36.9 0 [20.0] [0.0] 16783
35 44.3 0.0 44.8 48.3 33.2 7 [42.0] [0.0] 20214
36 44.6 0.0 47.1 50.8 36.9 0 [15.0] [0.0] 24735
37 44.9 0.0 47.1 50.7 35.6 0 [46.0] [0.0] 28603
38 7.0 0.0 42.8 44.3 41.3 0 [17.0] [0.0] 1976
41 45.2 0.0 46.7 50.3 38.5 0 [18.0] [0.0] 27152
42 45.4 0.0 46.3 50.0 34.7 0 [41.0] [0.0] 27024
43 32.3 0.0 44.3 48.8 32.9 245 [40.0, 53.0] [0.0] 32991
44 33.0 0.0 44.1 49.1 34.2 222 [53.0, 36.0] [0.0] 18787
45 35.4 0.0 46.7 50.5 39.9 227 [18.0, 47.0] [0.0] 22160

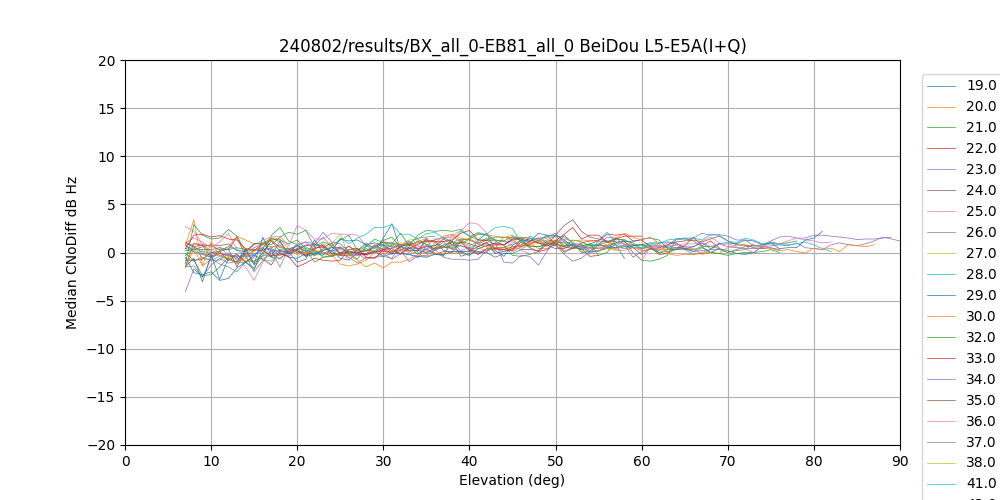

DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.0 0.4 4.9 -4.0 [18.0, 50.0, 45.0, 19.0, 22.0] 26451
20 29.9 0.3 4.8 -4.5 [48.0, 52.0, 26.0, 32.0] 34108
21 48.1 0.5 3.7 -4.8 [41.0, 43.0, 50.0, 52.0] 17582
22 24.3 0.5 5.1 -5.1 [26.0, 35.0, 15.0, 41.0, 51.0, 39.0] 22251
23 45.8 0.3 2.9 -7.7 [49.0, 32.0] 26138
24 24.1 0.5 7.3 -5.5 [25.0, 27.0, 24.0] 27841
25 39.7 0.6 6.9 -5.9 [47.0, 25.0, 52.0, 51.0] 22990
26 22.2 0.1 8.6 -5.0 [49.0, 26.0, 44.0, 43.0] 28748
27 30.9 0.3 4.2 -4.0 [27.0, 16.0] 33793
28 28.8 0.1 3.9 -6.8 [53.0, 20.0] 34906
29 46.3 0.1 3.6 -4.6 [48.0, 50.0] 27198
30 41.5 0.5 7.1 -4.0 [16.0, 50.0, 43.0, 40.0] 28138
32 34.3 0.5 4.0 -3.4 [34.0, 26.0, 51.0, 49.0] 32411
33 44.1 0.5 3.4 -4.6 [51.0, 31.0] 28713
34 54.7 0.8 3.2 -2.2 [27.0, 20.0] 16775
35 44.3 0.6 5.5 -4.4 [38.0, 42.0, 41.0] 20206
36 44.6 0.8 5.0 -2.1 [14.0, 15.0] 24735
37 44.9 0.4 4.5 -5.0 [47.0, 46.0] 28603
38 7.0 -3.1 -1.0 -4.7 [17.0] 1976
41 45.3 0.9 4.3 -3.7 [19.0, 18.0] 27121
42 45.4 0.6 6.7 -5.6 [23.0, 41.0] 27020
43 32.3 0.2 6.0 -8.5 [13.0, 40.0, 53.0] 32987
44 33.1 1.0 6.4 -4.0 [53.0, 29.0, 36.0] 18763
45 35.5 0.7 4.8 -5.7 [19.0, 18.0, 45.0, 47.0] 22110

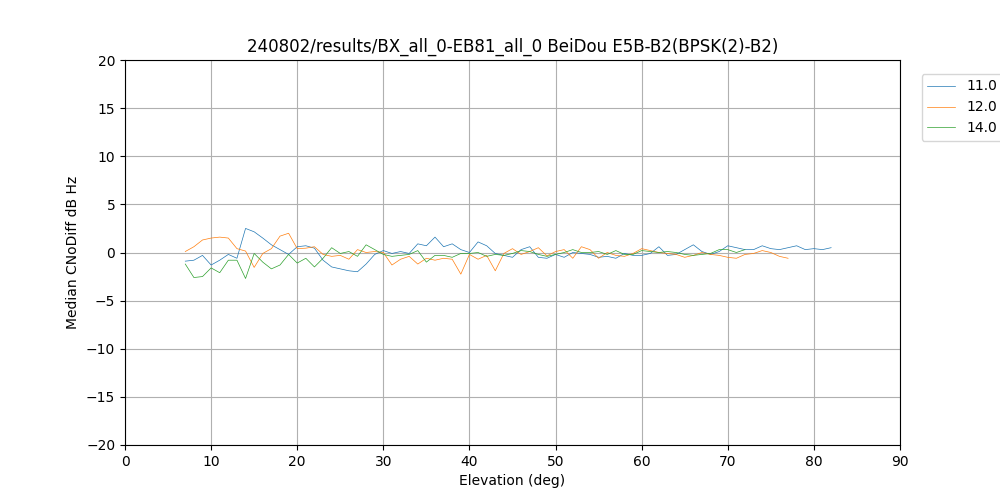

REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 45.5 49.2 37.9 72 [43.0, 22.0] [0.0] 26824
12 40.4 0.0 45.4 49.5 36.6 37 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 46.0 49.4 36.9 7 [50.0] [0.0] 27980
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 45.5 49.3 35.3 208 [44.0, 47.0] [0.0] 26906
12 40.5 0.0 45.5 50.2 35.8 149 [21.0, 38.0] [0.0] 17741
14 44.3 0.0 46.1 49.6 30.6 1 [42.0] [0.0] 28368
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 -0.0 7.0 -3.9 [43.0, 44.0, 22.0, 47.0] 26824
12 40.5 -0.0 5.4 -4.9 [36.0, 21.0, 38.0] 17734
14 44.8 -0.2 8.4 -5.7 [50.0, 42.0] 27980
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 43.0 50.7 8.4 208 [43.0, 22.0] [0.0] 26855
12 40.4 0.0 42.4 49.1 33.3 106 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 44.6 50.5 24.4 14 [50.0] [0.0] 27999
19 29.9 0.0 45.0 51.1 34.5 476 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.8 52.4 6.5 81 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 46.7 52.2 33.5 127 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.8 51.2 29.0 83 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 46.6 53.4 30.5 0 [49.0] [0.0] 26138
24 24.1 0.0 43.8 49.7 35.4 228 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.9 51.9 33.3 33 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.1 50.8 32.8 246 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 45.4 52.6 35.7 173 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.7 49.6 28.9 201 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 47.5 53.1 31.6 0 [48.0] [0.0] 27198
30 41.5 0.0 46.1 53.2 34.2 249 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 44.9 53.0 34.4 172 [34.0, 51.0] [0.0] 32449
33 44.0 0.0 46.8 52.9 32.8 0 [51.0] [0.0] 28731
34 54.7 0.0 46.5 52.7 35.3 0 [27.0] [0.0] 16775
35 44.3 0.0 47.1 52.5 33.1 95 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 47.2 53.0 29.2 0 [14.0] [0.0] 24741
37 44.9 0.0 47.1 53.1 31.4 0 [47.0] [0.0] 28603
38 7.0 0.0 40.4 43.0 37.5 0 [17.0] [0.0] 2004
41 45.3 0.0 46.8 52.7 36.0 0 [19.0] [0.0] 27122
42 45.4 0.0 45.7 51.9 32.8 0 [23.0] [0.0] 27026
43 32.2 0.0 44.1 51.4 31.0 135 [13.0, 53.0] [0.0] 33057
44 33.0 0.0 44.7 51.1 34.6 51 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.4 52.0 32.5 2 [19.0, 45.0] [0.0] 22111
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 43.0 50.1 27.8 241 [44.0, 47.0] [0.0] 26906
12 40.5 0.0 41.8 48.8 27.4 189 [21.0, 38.0] [0.0] 17741
14 44.3 0.0 44.6 50.3 28.1 1 [42.0] [0.0] 28368
19 30.0 0.0 44.6 51.0 31.4 246 [18.0, 45.0, 22.0] [0.0] 26459
20 29.9 0.0 45.6 52.3 35.4 209 [52.0, 32.0] [0.0] 34130
21 48.1 0.0 46.4 52.5 33.2 159 [43.0, 52.0] [0.0] 17590
22 24.3 0.0 43.5 50.1 30.4 327 [35.0, 41.0, 39.0] [0.0] 22273
23 45.8 0.0 46.6 52.9 29.5 0 [32.0] [0.0] 26156
24 24.1 0.0 43.3 49.1 35.3 50 [27.0, 24.0] [0.0] 27849
25 39.7 0.0 45.3 52.0 25.8 84 [25.0, 51.0] [0.0] 22995
26 22.2 0.0 43.0 49.7 32.1 48 [26.0, 43.0] [0.0] 28748
27 30.9 0.0 44.4 51.9 33.9 2 [16.0] [0.0] 33825
28 28.8 0.0 44.6 49.4 33.3 204 [53.0, 20.0] [0.0] 34944
29 46.2 0.0 47.5 52.8 33.7 0 [50.0] [0.0] 27232
30 41.4 0.0 45.7 52.8 33.3 216 [50.0, 40.0] [0.0] 28162
32 34.3 0.0 44.6 53.0 26.0 27 [26.0, 49.0] [0.0] 32443
33 44.1 0.0 47.0 52.5 35.7 0 [31.0] [0.0] 28713
34 54.7 0.0 46.6 52.2 31.1 0 [20.0] [0.0] 16783
35 44.3 0.0 47.0 52.2 34.0 7 [42.0] [0.0] 20214
36 44.6 0.0 46.7 52.7 33.4 0 [15.0] [0.0] 24735
37 44.9 0.0 47.2 52.6 33.6 0 [46.0] [0.0] 28603
38 7.0 0.0 40.4 43.0 36.9 0 [17.0] [0.0] 1976
41 45.2 0.0 46.2 52.7 30.5 0 [18.0] [0.0] 27152
42 45.4 0.0 45.9 51.4 23.5 27 [41.0] [0.0] 27024
43 32.3 0.0 44.0 51.9 29.6 61 [40.0, 53.0] [0.0] 32993
44 33.0 0.0 44.1 50.9 33.2 63 [53.0, 36.0] [0.0] 18787
45 35.4 0.0 45.3 52.6 34.1 35 [18.0, 47.0] [0.0] 22160
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 0.0 8.7 -28.1 [43.0, 44.0, 22.0, 47.0] 26855
12 40.5 0.5 10.9 -3.9 [36.0, 21.0, 38.0] 17734
14 44.8 -0.0 7.1 -13.8 [50.0, 42.0] 27999
19 30.0 0.4 8.7 -6.3 [18.0, 50.0, 45.0, 19.0, 22.0] 26451
20 29.9 0.2 7.5 -30.8 [48.0, 52.0, 26.0, 32.0] 34108
21 48.1 0.3 4.4 -5.8 [41.0, 43.0, 50.0, 52.0] 17582
22 24.3 0.4 7.4 -12.5 [26.0, 35.0, 15.0, 41.0, 51.0, 39.0] 22251
23 45.8 0.0 5.9 -9.0 [49.0, 32.0] 26138
24 24.1 0.5 6.8 -5.1 [25.0, 27.0, 24.0] 27841
25 39.7 0.6 11.0 -5.1 [47.0, 25.0, 52.0, 51.0] 22990
26 22.2 0.1 5.6 -7.3 [49.0, 26.0, 44.0, 43.0] 28748
27 30.9 0.9 9.2 -4.4 [27.0, 16.0] 33793
28 28.8 0.1 7.1 -8.8 [53.0, 20.0] 34906
29 46.3 0.0 5.6 -8.7 [48.0, 50.0] 27198
30 41.5 0.4 6.3 -5.5 [16.0, 50.0, 43.0, 40.0] 28138
32 34.3 0.3 11.5 -5.4 [34.0, 26.0, 51.0, 49.0] 32412
33 44.1 -0.2 5.3 -8.8 [51.0, 31.0] 28713
34 54.7 -0.0 7.6 -4.6 [27.0, 20.0] 16775
35 44.3 0.2 5.2 -5.2 [38.0, 42.0, 41.0] 20206
36 44.6 0.4 6.7 -6.3 [14.0, 15.0] 24735
37 44.9 -0.1 5.9 -8.4 [47.0, 46.0] 28603
38 7.0 0.1 4.5 -3.4 [17.0] 1976
41 45.3 0.7 7.8 -5.1 [19.0, 18.0] 27121
42 45.4 -0.1 11.1 -8.3 [23.0, 41.0] 27020
43 32.3 0.2 6.7 -7.1 [13.0, 40.0, 53.0] 32989
44 33.1 0.6 7.2 -3.5 [53.0, 29.0, 36.0] 18763
45 35.5 0.1 5.8 -7.9 [19.0, 18.0, 45.0, 47.0] 22110
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 44.1 49.0 34.1 258 [43.0, 22.0] [0.0] 26824
12 40.4 0.0 44.5 49.4 33.9 126 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 45.5 49.8 34.7 7 [50.0] [0.0] 27980
19 29.9 0.0 44.5 49.2 34.2 153 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 44.1 49.9 31.0 92 [48.0, 26.0] [0.0] 34095
21 48.0 0.0 45.6 49.9 35.1 110 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.3 48.6 33.6 116 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 45.8 49.9 33.1 0 [49.0] [0.0] 26138
24 24.1 0.0 43.4 48.6 35.8 30 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.2 49.6 36.3 161 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 42.2 47.6 31.9 31 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 43.7 49.1 34.0 164 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 43.3 48.5 32.1 117 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 45.4 49.7 34.9 0 [48.0] [0.0] 27198
30 41.5 0.0 44.2 49.5 30.9 36 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 44.6 50.7 31.4 155 [34.0, 51.0] [0.0] 32444
33 44.0 0.0 45.5 49.4 34.7 0 [51.0] [0.0] 28731
34 54.7 0.0 45.6 49.0 38.1 0 [27.0] [0.0] 16775
35 44.3 0.0 45.4 49.6 34.6 206 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 46.3 50.5 36.9 0 [14.0] [0.0] 24741
37 44.9 0.0 45.9 50.4 35.7 0 [47.0] [0.0] 28603
38 7.0 0.0 38.0 40.7 34.6 0 [17.0] [0.0] 2004
41 45.3 0.0 46.1 50.2 37.1 0 [19.0] [0.0] 27122
42 45.4 0.0 45.5 49.6 31.2 0 [23.0] [0.0] 27026
43 32.2 0.0 43.3 48.8 29.6 203 [13.0, 53.0] [0.0] 33052
44 33.0 0.0 43.6 48.7 35.4 115 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.3 49.9 21.7 222 [19.0, 45.0] [0.0] 22111
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 44.0 48.5 35.6 179 [44.0, 47.0] [0.0] 26906
12 40.5 0.0 43.9 48.6 34.6 226 [21.0, 38.0] [0.0] 17741
14 44.3 0.0 45.1 48.9 18.3 3 [42.0] [0.0] 28367
19 30.0 0.0 44.2 49.1 36.1 378 [18.0, 45.0, 22.0] [0.0] 26459
20 29.9 0.0 44.0 49.1 31.8 219 [52.0, 32.0] [0.0] 34130
21 48.1 0.0 45.2 49.3 35.8 90 [43.0, 52.0] [0.0] 17590
22 24.3 0.0 42.9 48.2 32.7 326 [35.0, 41.0, 39.0] [0.0] 22273
23 45.8 0.0 45.6 49.4 34.0 0 [32.0] [0.0] 26156
24 24.1 0.0 43.1 47.6 34.2 156 [27.0, 24.0] [0.0] 27849
25 39.7 0.0 44.6 49.2 33.7 18 [25.0, 51.0] [0.0] 22995
26 22.2 0.0 42.0 46.5 24.1 179 [26.0, 43.0] [0.0] 28748
27 30.9 0.0 43.5 48.8 34.0 2 [16.0] [0.0] 33825
28 28.8 0.0 43.0 47.5 34.3 95 [53.0, 20.0] [0.0] 34944
29 46.2 0.0 45.4 48.8 33.4 0 [50.0] [0.0] 27232
30 41.4 0.0 44.2 48.9 32.7 76 [50.0, 40.0] [0.0] 28162
32 34.3 0.0 44.1 49.9 32.7 126 [26.0, 49.0] [0.0] 32443
33 44.1 0.0 45.3 48.9 33.0 0 [31.0] [0.0] 28713
34 54.7 0.0 45.1 48.6 35.0 0 [20.0] [0.0] 16783
35 44.3 0.0 44.7 49.0 32.7 7 [42.0] [0.0] 20214
36 44.6 0.0 45.8 50.3 34.9 0 [15.0] [0.0] 24735
37 44.9 0.0 45.7 49.3 33.5 0 [46.0] [0.0] 28603
38 7.0 0.0 39.1 41.1 35.9 0 [17.0] [0.0] 1976
41 45.2 0.0 45.5 49.2 34.3 0 [18.0] [0.0] 27152
42 45.5 0.0 45.3 49.2 25.6 3 [41.0] [0.0] 26995
43 32.3 0.0 43.0 47.9 30.0 212 [40.0, 53.0] [0.0] 32987
44 33.0 0.0 42.7 47.8 31.5 206 [53.0, 36.0] [0.0] 18787
45 35.4 0.0 45.4 49.5 35.7 90 [18.0, 47.0] [0.0] 22160
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 0.1 4.8 -5.7 [43.0, 44.0, 22.0, 47.0] 26824
12 40.5 0.6 4.5 -6.1 [36.0, 21.0, 38.0] 17734
14 44.8 0.3 22.7 -4.0 [50.0, 42.0] 27979
19 30.0 0.3 4.7 -4.1 [18.0, 50.0, 45.0, 19.0, 22.0] 26451
20 29.9 0.2 4.9 -4.9 [48.0, 52.0, 26.0, 32.0] 34064
21 48.1 0.4 4.6 -4.0 [41.0, 43.0, 50.0, 52.0] 17582
22 24.3 0.4 7.1 -4.5 [26.0, 35.0, 15.0, 41.0, 51.0, 39.0] 22251
23 45.8 0.2 5.4 -6.0 [49.0, 32.0] 26138
24 24.1 0.3 5.4 -5.1 [25.0, 27.0, 24.0] 27841
25 39.7 0.5 5.8 -2.9 [47.0, 25.0, 52.0, 51.0] 22990
26 22.2 0.1 10.8 -8.2 [49.0, 26.0, 44.0, 43.0] 28748
27 30.9 0.3 4.4 -4.6 [27.0, 16.0] 33793
28 28.8 0.3 4.3 -5.4 [53.0, 20.0] 34906
29 46.3 0.0 6.5 -4.5 [48.0, 50.0] 27198
30 41.5 0.0 4.2 -5.7 [16.0, 50.0, 43.0, 40.0] 28138
32 34.3 0.6 7.3 -6.7 [34.0, 26.0, 51.0, 49.0] 32407
33 44.1 0.2 5.1 -4.7 [51.0, 31.0] 28713
34 54.7 0.4 4.5 -3.9 [27.0, 20.0] 16775
35 44.3 0.7 4.3 -3.9 [38.0, 42.0, 41.0] 20206
36 44.6 0.6 5.3 -3.7 [14.0, 15.0] 24735
37 44.9 0.3 6.0 -4.0 [47.0, 46.0] 28603
38 7.0 -1.0 1.3 -3.6 [17.0] 1976
41 45.3 0.6 5.9 -3.2 [19.0, 18.0] 27121
42 45.5 0.3 12.5 -5.4 [23.0, 41.0] 26991
43 32.3 0.3 7.0 -6.1 [13.0, 40.0, 53.0] 32983
44 33.1 0.9 6.5 -3.2 [53.0, 29.0, 36.0] 18763
45 35.5 -0.1 4.6 -20.2 [19.0, 18.0, 45.0, 47.0] 22110
