REF File: 240802/BX_all.T04
DUT File: 240802/EB79_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 817011 43.9 44.3 4.3 13.0 54.4 41.4 37.0 89.0
GPS L2 CM+CL 619930 44.3 44.8 3.5 22.6 52.4 29.8 38.4 89.0
GPS L2 E 195948 30.2 30.4 6.5 12.6 44.2 31.6 32.9 77.0
GPS L5/E5A I+Q 446249 47.5 47.6 2.9 29.2 54.6 25.4 37.2 88.0
SBAS L1 CA 272820 44.3 44.6 2.3 29.6 48.6 19.0 36.6 42.0
SBAS L5/E5A I 262485 46.1 46.0 0.6 43.7 48.5 4.8 39.8 42.0
GLONASS L1 CA 622898 44.3 45.0 5.0 12.0 53.6 41.6 35.9 86.0
GLONASS L1 P 622290 42.8 43.5 4.9 19.3 51.9 32.6 36.0 86.0
GLONASS L2 CA 544232 44.5 45.1 3.5 10.9 51.7 40.8 35.7 86.0
GLONASS L2 P 544196 42.9 43.5 3.5 6.5 49.6 43.1 35.7 86.0
GLONASS G3 PD 47455 44.5 45.0 3.4 34.8 50.2 15.4 37.5 79.0
Galileo L1 MBOC-PD 622321 45.1 45.5 3.9 13.1 54.2 41.1 36.7 90.0
Galileo L5/E5A BPSK(10)-PD 622319 44.9 45.2 2.8 21.3 50.5 29.2 36.7 90.0
Galileo E5B/B2 BPSK(10)-PD 622321 45.3 45.6 3.0 27.0 51.1 24.1 36.7 90.0
Galileo E5A+B AltBOC-Comp-PD 622321 47.6 47.8 2.5 35.3 52.8 17.5 36.7 90.0
Galileo E6 BPSK(5)-PD 622300 46.8 47.2 3.6 26.5 53.9 27.4 36.7 90.0
BeiDou L1 BOC-PD 611972 45.6 45.8 4.0 24.4 53.2 28.8 36.9 90.0
BeiDou L5/E5A I+Q 611972 45.9 46.0 2.9 30.9 51.9 21.0 36.9 90.0
BeiDou E5B/B2 BPSK(2)-B2 72569 45.6 46.3 2.2 36.6 49.5 12.9 42.0 82.0
BeiDou B1 BPSK(2)-B1 684593 45.4 45.7 4.0 6.5 53.4 46.9 37.5 90.0
BeiDou B3 BPSK(10)-B3 684489 44.6 45.2 3.1 21.7 50.7 29.0 37.5 90.0
start/stop time: 403,387 490,881
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 10,772,691
Avg Samples/sec: 123.1

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 403387.145
Stop Time : 489600.188
Total Hours : 23.9480675
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816916 43.9 44.2 4.0 16.2 54.1 37.9 37.0 89.0
GPS L2 CM+CL 619910 44.1 44.5 3.3 22.1 52.2 30.1 38.4 89.0
GPS L2 E 816692 36.6 36.9 7.7 13.9 52.5 38.6 37.0 89.0
GPS L5/E5A I+Q 446243 47.6 47.7 2.8 25.4 53.9 28.5 37.2 88.0
SBAS L1 CA 262485 44.0 44.1 0.7 41.3 46.7 5.4 39.8 42.0
GLONASS L1 CA 621271 43.6 44.3 4.9 13.3 52.7 39.4 36.0 86.0
GLONASS L2 CA 543217 44.4 45.0 3.4 25.6 51.7 26.1 35.7 86.0
Galileo L1 MBOC-PD 622100 45.0 45.3 3.7 14.2 53.5 39.3 36.8 90.0
Galileo E5A+B AltBOC-Comp-PD 622100 47.6 48.0 2.3 31.6 52.5 20.9 36.8 90.0
BeiDou L5/E5A I+Q 611804 46.0 46.2 2.7 31.6 51.8 20.2 37.0 90.0
BeiDou E5B/B2 BPSK(2)-B2 73024 45.5 46.4 2.3 33.0 49.5 16.5 41.8 82.0
BeiDou B1 BPSK(2)-B1 684828 45.4 45.7 3.8 22.0 53.5 31.5 37.5 90.0
BeiDou B3 BPSK(10)-B3 684787 44.5 45.0 2.9 19.0 50.0 31.0 37.5 90.0
start/stop time: 403,385 490,879
Total time: 87,494.0 seconds
Total time: 1,458.233 minutes
Total time: 24.304 hours
Total Samples: 7,425,377
Avg Samples/sec: 84.9

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 403385.106
Stop Time : 489600.287
Total Hours : 23.948661388888883
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 816299 +0.0 +0.1 +1.6 -22.8 +19.0 +41.8 +37.0 +89.0
GPS L2 CM+CL 619379 +0.2 +0.3 +1.4 -12.3 +12.9 +25.2 +38.4 +89.0
GPS L2 E 195827 +0.4 +0.5 +1.7 -8.4 +7.5 +15.9 +32.9 +77.0
GPS L5/E5A I+Q 445863 -0.1 -0.1 +1.1 -15.4 +12.5 +27.9 +37.3 +88.0
SBAS L1 CA 262479 +0.6 +0.1 +1.5 -3.0 +4.5 +7.5 +39.8 +42.0
GLONASS L1 CA 620979 +0.7 +0.8 +1.6 -25.9 +18.6 +44.5 +36.0 +86.0
GLONASS L2 CA 542879 +0.1 +0.2 +1.4 -12.6 +13.2 +25.8 +35.8 +86.0
Galileo L1 MBOC-PD 621751 +0.1 +0.1 +1.4 -27.2 +21.7 +48.9 +36.8 +90.0
Galileo E5A+B AltBOC-Comp-PD 621751 -0.0 +0.0 +0.9 -8.8 +7.7 +16.5 +36.8 +90.0
BeiDou L5/E5A I+Q 611562 -0.1 -0.1 +1.1 -7.6 +7.1 +14.7 +37.0 +90.0
BeiDou E5B/B2 BPSK(2)-B2 72532 +0.1 +0.1 +1.0 -4.8 +8.0 +12.8 +42.0 +82.0
BeiDou B1 BPSK(2)-B1 684145 -0.0 +0.1 +1.5 -32.3 +13.9 +46.2 +37.5 +90.0
BeiDou B3 BPSK(10)-B3 684006 +0.1 +0.2 +1.2 -18.3 +22.3 +40.6 +37.5 +90.0
start/stop time: 403,387 490,879
Total time: 87,492.0 seconds
Total time: 1,458.200 minutes
Total time: 24.303 hours
Total Samples: 6,799,452
Avg Samples/sec: 77.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.137
Median = 0.100
Std Dev= 1.400

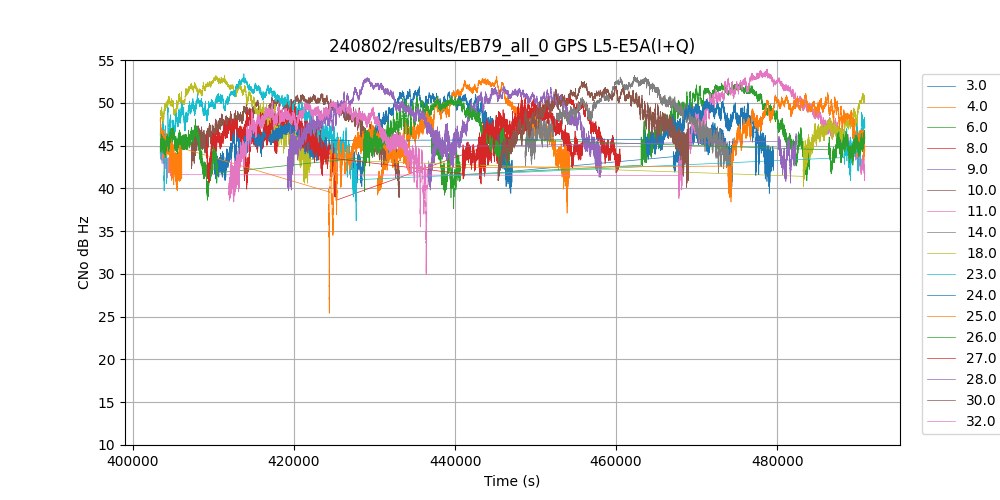

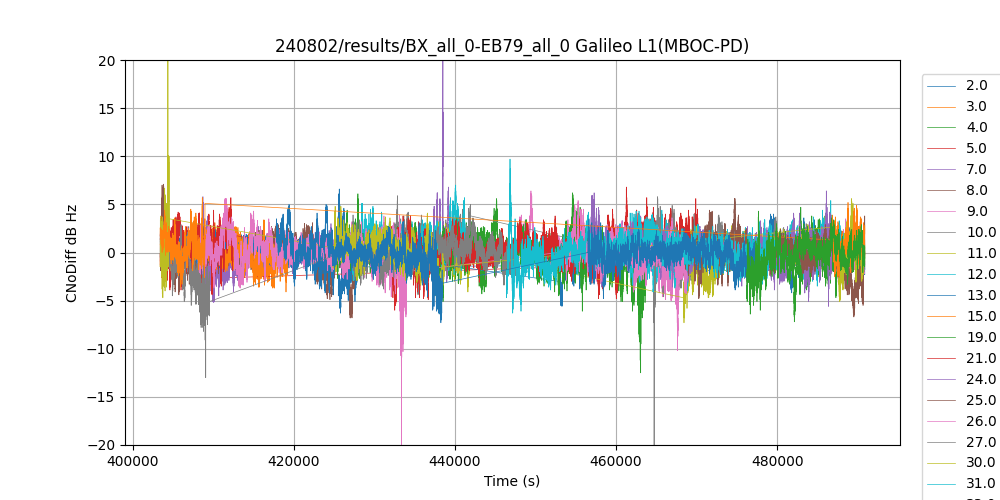

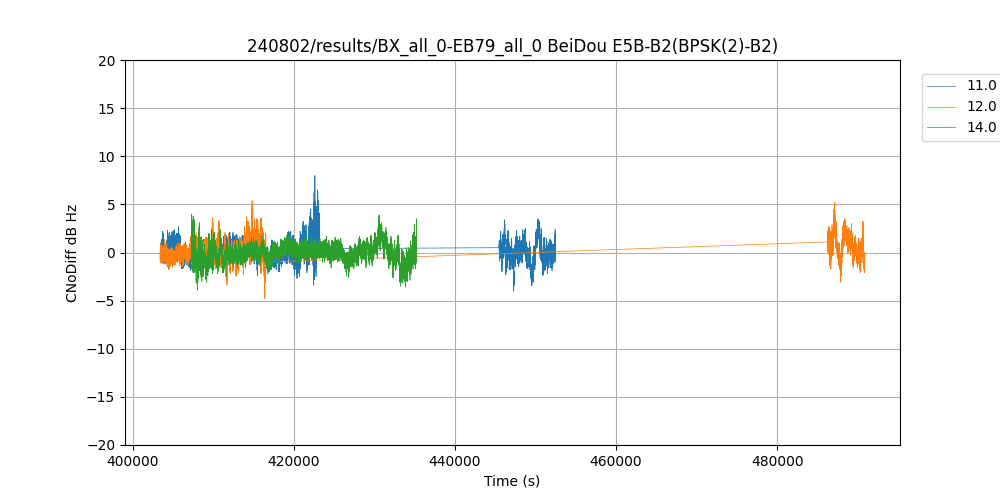

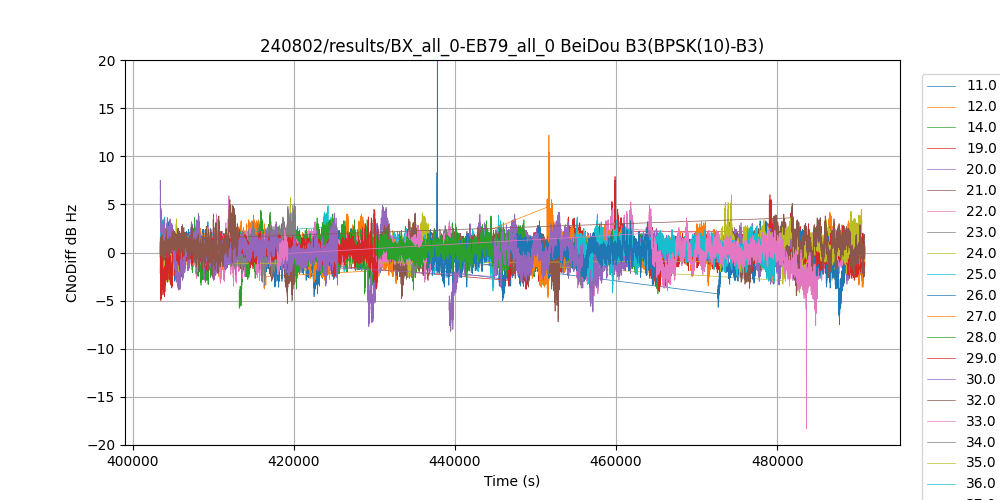

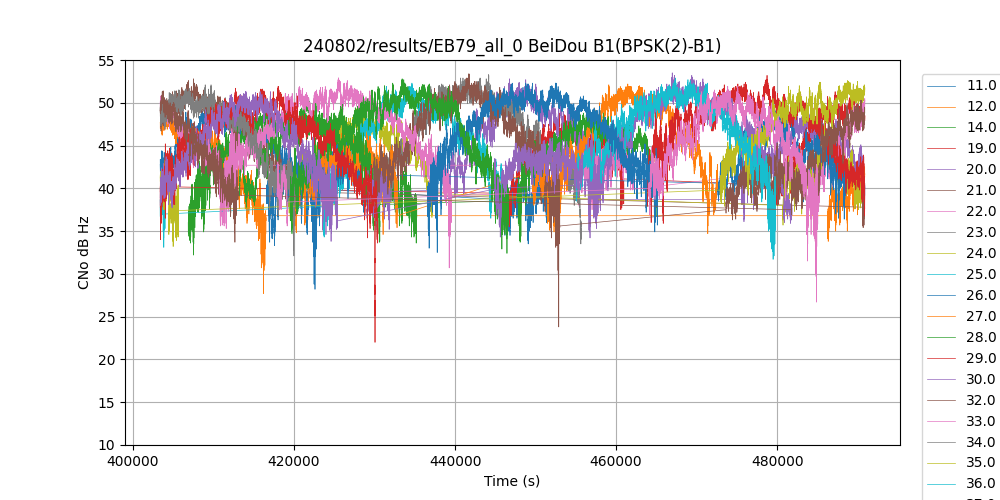

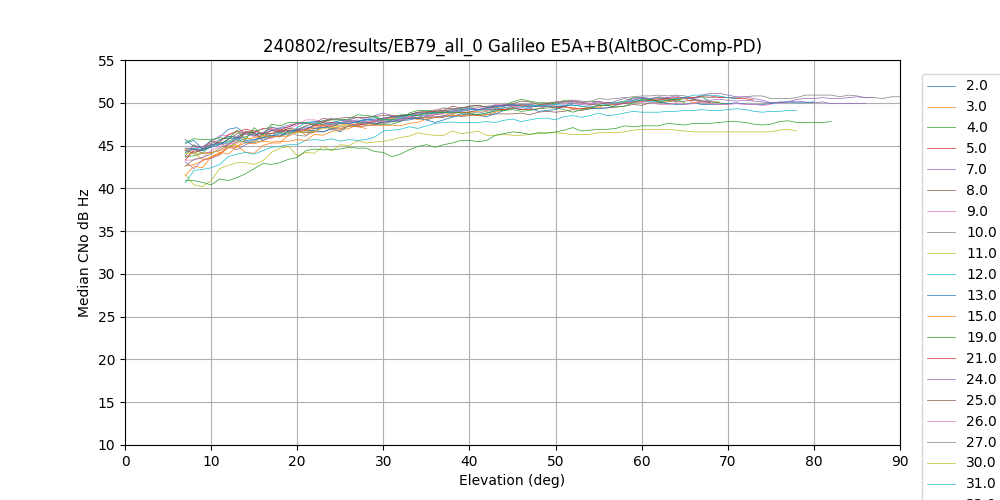

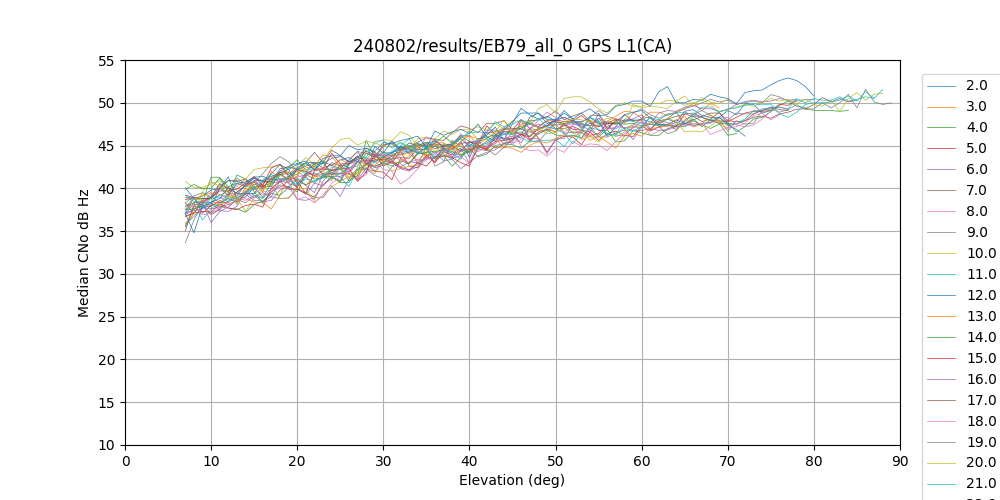

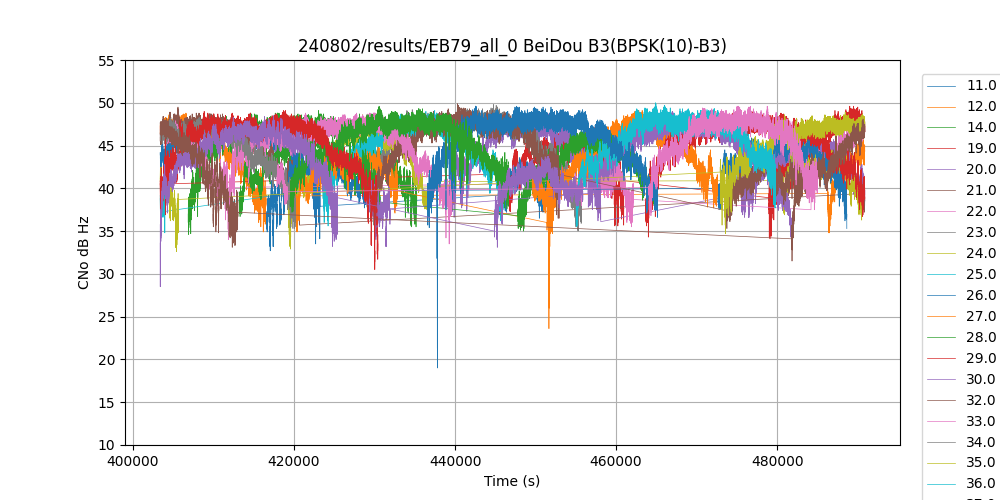

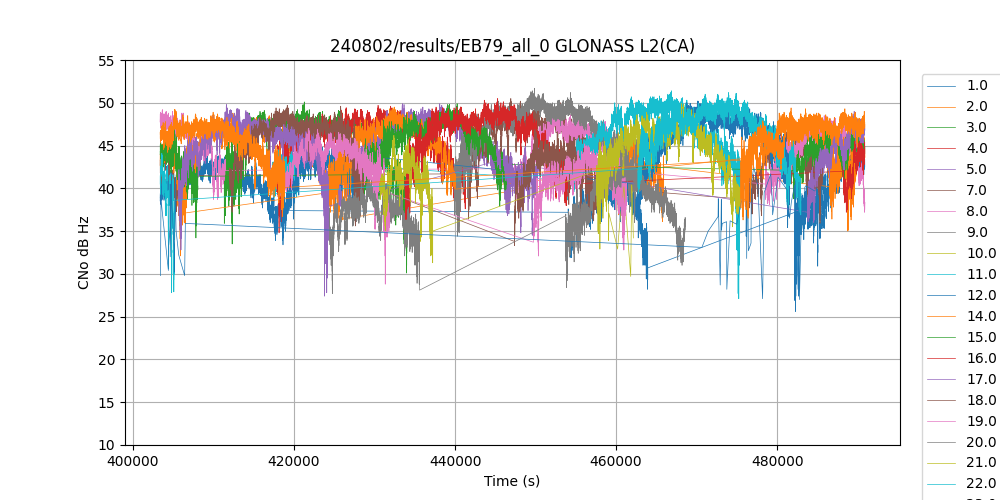

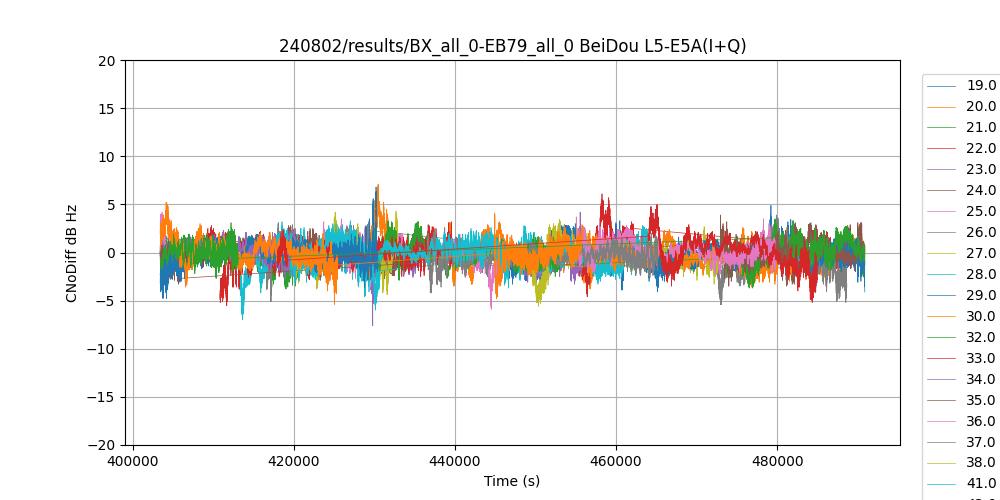

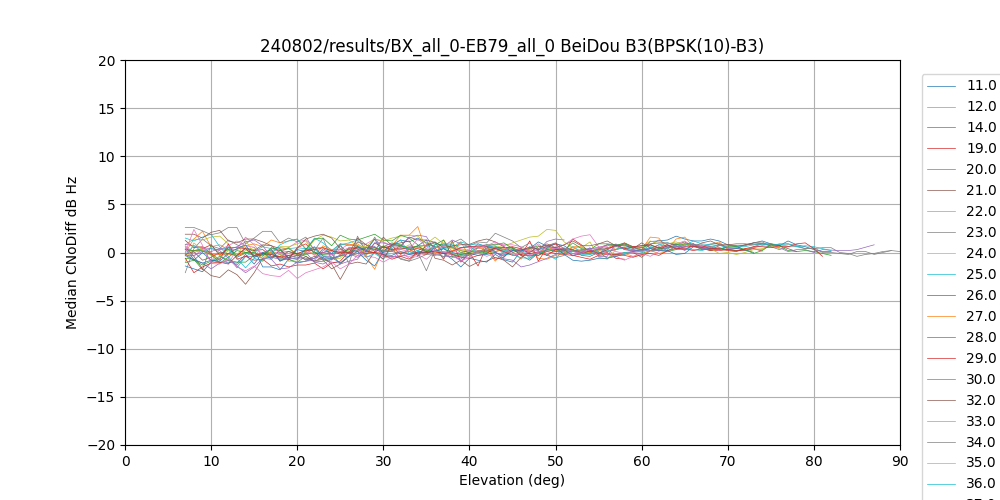

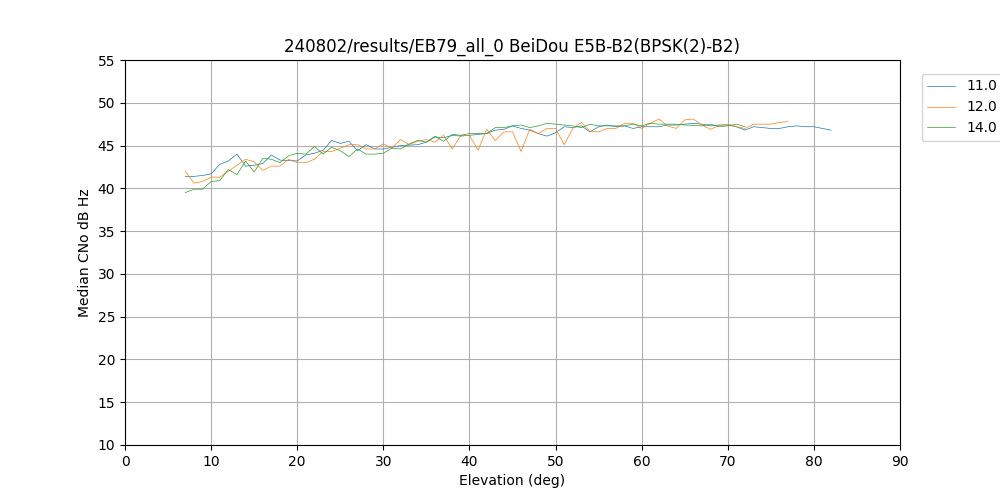

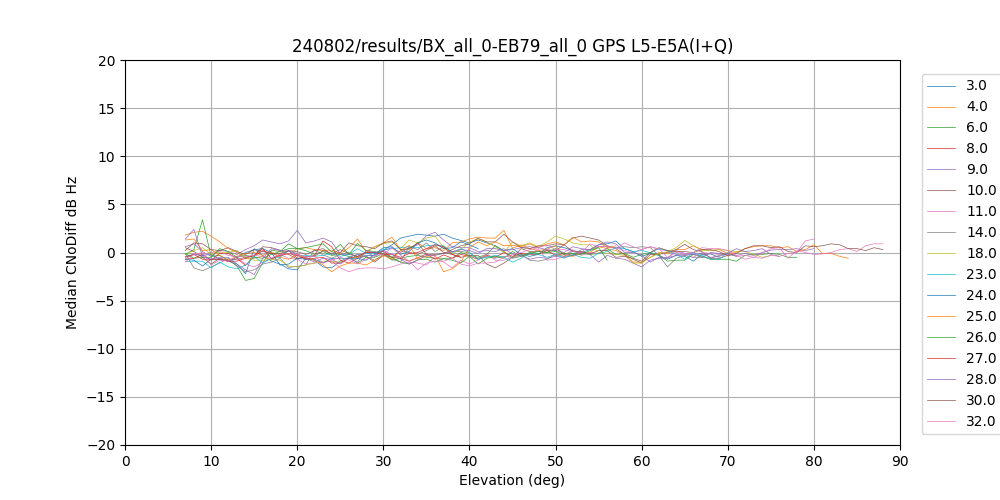

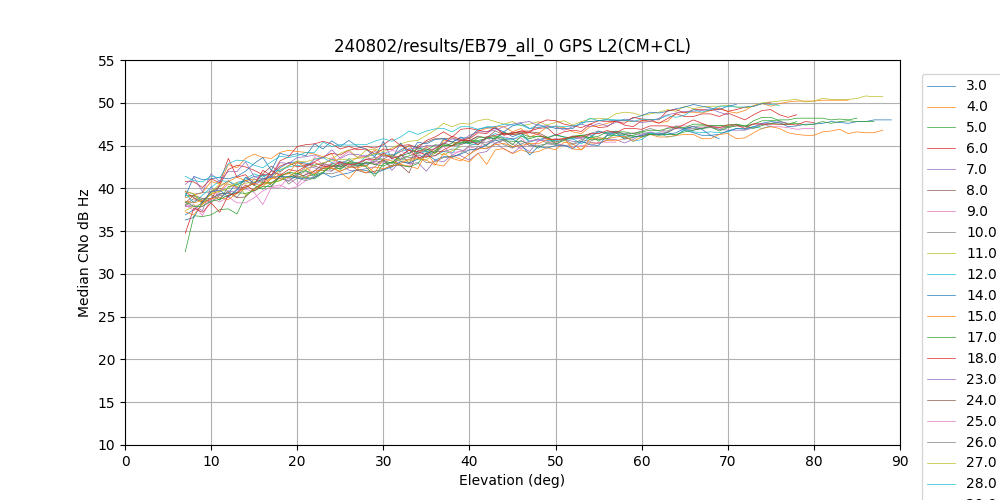

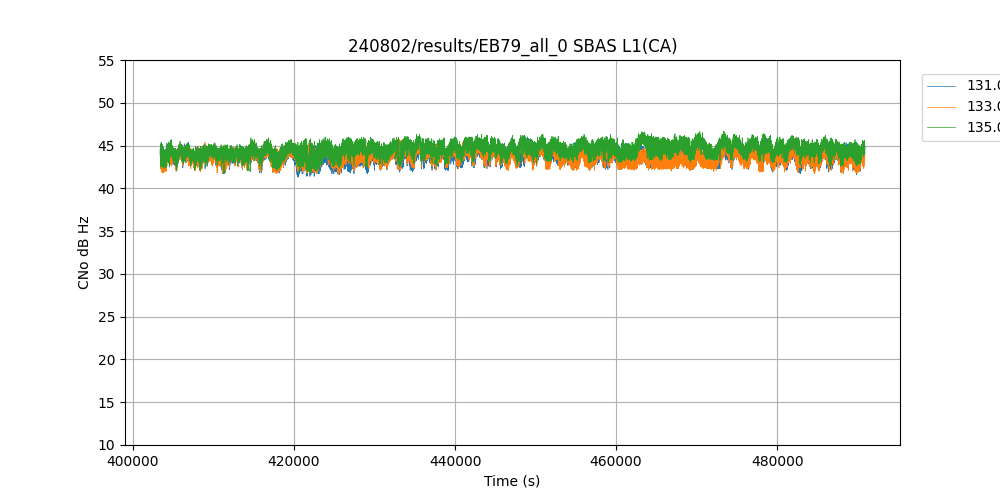

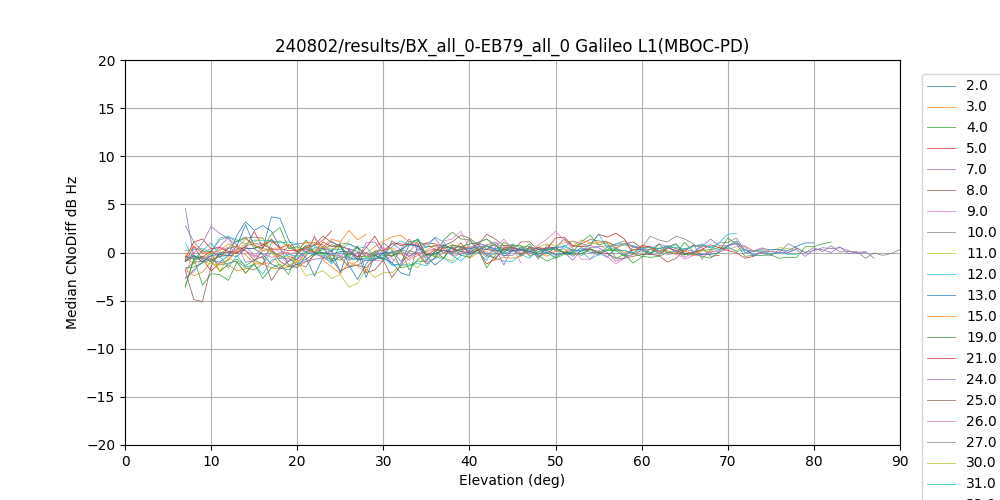

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 49.6 30.1 133 [28.0, 35.0] [0.0] 30518
3 32.7 0.0 42.7 51.9 26.6 62 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 44.8 51.5 33.3 0 [15.0] [0.0] 23842
5 41.0 0.0 44.2 51.5 13.0 302 [17.0, 21.0] [0.0] 24333
6 38.3 0.0 43.5 51.8 24.7 166 [28.0, 25.0] [0.0] 24541
7 45.1 0.0 45.8 51.6 31.2 0 [27.0] [0.0] 25498
8 27.4 0.0 42.4 50.3 31.2 195 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 45.2 53.0 27.9 1 [30.0] [0.0] 21443
10 43.5 0.0 46.8 54.0 31.2 0 [37.0] [0.0] 25764
11 43.9 0.0 44.6 52.7 26.7 224 [34.0, 31.0] [0.0] 24642
12 37.4 0.0 43.8 51.2 23.4 78 [34.0, 35.0] [0.0] 24190
13 26.6 0.0 42.8 50.5 26.0 221 [28.0, 34.0, 27.0] [0.0] 31299
14 44.2 0.0 45.3 51.3 30.7 0 [19.0] [0.0] 25710
15 29.4 0.0 43.4 50.4 30.9 397 [24.0, 31.0, 25.0] [0.0] 29176
16 31.3 0.0 42.1 50.5 28.1 98 [34.0, 36.0] [0.0] 27056
17 45.7 0.0 45.5 52.5 30.9 1 [37.0] [0.0] 24100
18 44.1 0.0 44.9 50.8 33.9 108 [33.0, 32.0] [0.0] 26295
19 44.6 0.0 44.8 52.1 29.9 3 [32.0] [0.0] 24588
20 33.8 0.0 42.5 51.1 29.5 262 [22.0, 26.0, 34.0] [0.0] 27372
21 26.6 0.0 42.1 48.6 19.6 198 [18.0, 36.0] [0.0] 30246
22 44.4 0.0 45.3 51.0 32.5 1 [17.0] [0.0] 26002
23 42.4 0.0 44.7 51.2 29.7 4 [14.0] [0.0] 26806
24 25.6 0.0 41.1 49.1 25.3 236 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 41.3 50.8 24.9 244 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 42.6 50.3 29.5 275 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 42.4 49.5 27.6 157 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 43.2 50.3 23.3 280 [29.0, 27.0] [0.0] 23201
29 47.9 0.0 45.9 52.4 28.2 160 [16.0, 20.0] [0.0] 24052
30 45.9 0.0 46.0 53.1 32.5 0 [23.0] [0.0] 23644
31 45.3 0.0 45.3 53.5 21.5 88 [33.0] [0.0] 22332
32 45.3 0.0 47.1 54.4 31.2 0 [30.0] [0.0] 24630
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 48.9 31.9 65 [22.0, 37.0] [0.0] 30532
3 32.7 0.0 42.9 51.7 23.7 65 [32.0, 36.0] [0.0] 27073
4 45.4 0.0 44.5 51.2 31.6 0 [15.0] [0.0] 23829
5 40.9 0.0 44.2 51.4 16.9 238 [17.0, 22.0, 21.0] [0.0] 24406
6 38.3 0.0 43.5 52.7 18.0 201 [27.0, 35.0] [0.0] 24536
7 45.1 0.0 45.7 51.0 26.0 8 [28.0] [0.0] 25464
8 27.4 0.0 42.0 50.2 26.4 245 [20.0, 27.0] [0.0] 29132
9 44.0 0.0 45.1 52.7 24.0 12 [33.0] [0.0] 21423
10 43.5 0.0 46.9 53.0 31.8 0 [34.0] [0.0] 25789
11 43.9 0.0 44.7 52.4 33.1 218 [36.0, 33.0] [0.0] 24667
12 37.4 0.0 44.0 51.5 16.2 184 [20.0, 37.0] [0.0] 24232
13 26.6 0.0 42.8 49.1 29.2 177 [27.0, 24.0, 35.0] [0.0] 31264
14 44.1 0.0 45.1 49.8 34.0 0 [19.0] [0.0] 25734
15 29.4 0.0 43.2 50.0 31.5 276 [26.0, 13.0] [0.0] 29127
16 31.3 0.0 42.0 50.2 27.8 8 [36.0] [0.0] 27055
17 45.7 0.0 45.4 52.1 28.8 1 [34.0] [0.0] 24093
18 44.1 0.0 44.8 50.3 33.5 22 [30.0, 31.0] [0.0] 26322
19 44.7 0.0 44.7 51.1 25.4 13 [31.0] [0.0] 24571
20 33.8 0.0 42.5 50.2 27.9 229 [24.0, 23.0, 30.0] [0.0] 27358
21 26.6 0.0 42.4 49.3 30.6 29 [17.0, 36.0] [0.0] 30237
22 44.4 0.0 45.4 51.3 32.8 1 [17.0] [0.0] 26003
23 42.3 0.0 44.4 50.2 28.8 47 [13.0, 14.0] [0.0] 26913
24 25.6 0.0 41.4 47.9 31.2 257 [25.0, 26.0] [0.0] 29827
25 28.1 0.0 41.5 49.8 24.8 300 [23.0, 37.0, 25.0] [0.0] 29829
26 27.6 0.0 42.0 50.1 26.5 401 [35.0, 26.0, 22.0] [0.0] 29835
27 26.2 0.0 42.7 48.2 24.7 30 [37.0, 31.0] [0.0] 29856
28 39.7 0.0 43.2 50.7 22.6 159 [29.0, 26.0] [0.0] 23191
29 47.9 0.0 45.6 53.2 34.2 176 [16.0, 20.0] [0.0] 24035
30 45.9 0.0 45.8 52.9 29.5 1 [25.0] [0.0] 23652
31 45.3 0.0 45.5 53.4 25.6 6 [30.0] [0.0] 22296
32 45.3 0.0 46.8 54.1 26.1 8 [33.0] [0.0] 24635
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.0 6.4 -8.2 [28.0, 22.0, 35.0, 37.0] 30498
3 32.7 -0.2 9.8 -9.9 [32.0, 36.0] 27065
4 45.4 0.3 6.0 -6.0 [15.0] 23829
5 41.0 -0.1 17.9 -22.8 [17.0, 21.0, 22.0] 24301
6 38.4 -0.0 14.4 -9.3 [28.0, 27.0, 25.0, 35.0] 24505
7 45.1 0.1 8.2 -4.6 [27.0, 28.0] 25464
8 27.4 0.4 9.6 -7.1 [34.0, 20.0, 28.0, 27.0] 29126
9 44.0 0.1 11.3 -6.8 [30.0, 33.0] 21423
10 43.5 -0.1 6.4 -9.5 [37.0, 34.0] 25759
11 43.9 -0.0 8.6 -11.5 [34.0, 36.0, 31.0, 33.0] 24640
12 37.4 -0.2 19.0 -12.8 [34.0, 20.0, 35.0, 37.0] 24190
13 26.6 -0.0 6.1 -12.4 [28.0, 27.0, 34.0, 24.0, 35.0] 31262
14 44.2 0.1 5.6 -6.3 [19.0] 25709
15 29.4 0.2 7.5 -7.6 [24.0, 26.0, 31.0, 13.0, 25.0] 29125
16 31.3 0.2 7.3 -7.3 [34.0, 36.0] 27040
17 45.7 0.1 9.5 -5.4 [37.0, 34.0] 24093
18 44.1 0.0 5.6 -4.8 [33.0, 30.0, 32.0, 31.0] 26291
19 44.7 0.1 9.1 -8.0 [32.0, 31.0] 24564
20 33.8 -0.1 8.1 -6.1 [22.0, 24.0, 26.0, 23.0, 34.0, 30.0] 27342
21 26.6 -0.4 6.2 -12.8 [18.0, 17.0, 36.0] 30226
22 44.4 -0.1 4.8 -7.7 [17.0] 26002
23 42.4 0.3 7.7 -10.0 [14.0, 13.0] 26804
24 25.6 -0.2 8.4 -11.9 [21.0, 25.0, 24.0, 26.0] 29812
25 28.2 -0.2 7.5 -11.1 [20.0, 23.0, 22.0, 37.0, 33.0, 25.0] 29805
26 27.6 0.6 8.5 -6.4 [35.0, 24.0, 26.0, 22.0] 29801
27 26.2 -0.3 5.3 -7.5 [22.0, 37.0, 31.0] 29856
28 39.7 -0.1 13.4 -12.9 [29.0, 27.0, 26.0] 23173
29 47.9 0.3 7.1 -11.1 [16.0, 20.0] 24033
30 45.9 0.1 6.1 -5.9 [23.0, 25.0] 23635
31 45.3 -0.2 9.0 -17.0 [33.0, 30.0] 22296
32 45.3 0.2 6.1 -7.3 [30.0, 33.0] 24630
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.2 37.6 14.8 226 [28.0, 35.0] [0.0] 30518
13 26.6 0.0 27.6 36.3 14.8 370 [28.0, 34.0, 27.0] [0.0] 31243
16 31.3 0.0 28.6 40.9 13.9 210 [34.0, 36.0] [0.0] 27048
19 44.6 0.0 34.9 44.2 15.6 3 [32.0] [0.0] 24588
20 34.2 0.0 29.8 40.6 12.6 272 [22.0, 26.0, 34.0] [0.0] 26943
21 27.0 0.0 28.0 37.6 12.6 250 [18.0, 36.0] [0.0] 29606
22 44.4 0.0 33.4 41.2 15.6 1 [17.0] [0.0] 26002
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 36.3 17.8 133 [22.0, 37.0] [0.0] 30532
3 32.7 0.0 39.5 50.1 21.8 111 [32.0, 36.0] [0.0] 27050
4 45.4 0.0 32.9 42.6 14.8 0 [15.0] [0.0] 23829
5 40.9 0.0 41.1 50.2 23.0 61 [17.0, 22.0, 21.0] [0.0] 24383
6 38.4 0.0 41.4 52.1 21.5 37 [27.0, 35.0] [0.0] 24514
7 45.1 0.0 41.8 49.2 22.2 4 [28.0] [0.0] 25455
8 27.4 0.0 38.2 47.2 21.3 8 [20.0, 27.0] [0.0] 29132
9 44.1 0.0 43.6 52.5 24.4 5 [33.0] [0.0] 21411
10 43.5 0.0 43.8 50.8 26.0 0 [34.0] [0.0] 25789
11 43.9 0.0 33.2 43.9 15.6 236 [36.0, 33.0] [0.0] 24667
12 37.5 0.0 40.5 49.7 21.3 97 [20.0, 37.0] [0.0] 24126
13 26.6 0.0 27.3 35.9 15.6 44 [27.0, 24.0, 35.0] [0.0] 31264
14 44.1 0.0 34.3 41.2 19.3 0 [19.0] [0.0] 25734
15 29.4 0.0 38.4 46.5 21.1 276 [26.0, 13.0] [0.0] 29127
16 31.3 0.0 27.8 40.1 13.9 8 [36.0] [0.0] 27055
17 45.7 0.0 42.2 50.5 18.3 1 [34.0] [0.0] 24093
18 44.1 0.0 33.4 41.8 16.9 99 [30.0, 31.0] [0.0] 26322
19 44.7 0.0 34.6 43.6 13.9 7 [31.0] [0.0] 24565
20 33.8 0.0 29.1 40.5 14.8 165 [24.0, 23.0, 30.0] [0.0] 27358
21 26.6 0.0 27.8 36.8 15.6 235 [17.0, 36.0] [0.0] 30237
22 44.4 0.0 32.8 40.0 16.3 1 [17.0] [0.0] 26003
23 42.3 0.0 33.0 40.6 15.6 124 [13.0, 14.0] [0.0] 26913
24 25.6 0.0 38.2 46.0 25.7 137 [25.0, 26.0] [0.0] 29827
25 28.1 0.0 37.2 47.3 18.6 337 [23.0, 37.0, 25.0] [0.0] 29829
26 27.6 0.0 37.3 46.3 22.0 183 [35.0, 26.0, 22.0] [0.0] 29835
27 26.2 0.0 39.4 45.3 26.1 189 [37.0, 31.0] [0.0] 29856
28 39.7 0.0 31.6 41.4 15.6 190 [29.0, 26.0] [0.0] 23172
29 47.9 0.0 42.8 51.9 26.4 87 [16.0, 20.0] [0.0] 24035
30 45.9 0.0 43.1 51.0 22.0 1 [25.0] [0.0] 23652
31 45.3 0.0 41.7 50.8 22.8 4 [30.0] [0.0] 22292
32 45.3 0.0 43.7 52.1 19.9 8 [33.0] [0.0] 24635
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.2 6.1 -8.4 [28.0, 22.0, 35.0, 37.0] 30498
13 26.6 0.2 6.4 -7.9 [28.0, 27.0, 34.0, 24.0, 35.0] 31212
16 31.3 0.8 7.5 -5.8 [34.0, 36.0] 27032
19 44.7 0.3 5.8 -8.4 [32.0, 31.0] 24564
20 34.2 0.5 6.6 -7.0 [22.0, 24.0, 26.0, 23.0, 34.0, 30.0] 26913
21 27.0 0.1 5.5 -8.1 [18.0, 17.0, 36.0] 29606
22 44.4 0.6 5.3 -6.5 [17.0] 26002
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.1 34.6 33 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 46.5 51.8 34.5 0 [15.0] [0.0] 23842
5 41.0 0.0 44.5 49.6 32.2 165 [17.0, 21.0] [0.0] 24333
6 38.3 0.0 44.8 50.5 31.0 14 [28.0, 25.0] [0.0] 24541
7 45.1 0.0 44.6 49.2 31.7 0 [27.0] [0.0] 25498
8 27.4 0.0 42.9 47.6 32.5 65 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 45.0 49.8 33.1 0 [30.0] [0.0] 21443
10 43.5 0.0 44.7 49.5 35.7 0 [37.0] [0.0] 25764
11 43.9 0.0 46.3 52.4 30.1 38 [34.0, 31.0] [0.0] 24642
12 37.4 0.0 43.9 48.8 34.2 32 [34.0, 35.0] [0.0] 24190
14 44.2 0.0 46.6 51.7 22.6 16 [19.0] [0.0] 25710
15 29.4 0.0 42.4 47.4 30.9 241 [24.0, 31.0, 25.0] [0.0] 29176
17 45.7 0.0 44.3 49.9 29.9 0 [37.0] [0.0] 24100
18 44.1 0.0 46.7 51.2 35.6 84 [33.0, 32.0] [0.0] 26295
23 42.4 0.0 46.0 51.0 34.0 4 [14.0] [0.0] 26806
24 25.6 0.0 42.2 47.5 28.8 133 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 41.9 48.5 31.0 234 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 42.4 47.9 30.8 171 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 42.4 46.7 30.0 24 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 46.3 51.9 35.5 46 [29.0, 27.0] [0.0] 23201
29 47.9 0.0 44.9 49.3 34.8 25 [16.0, 20.0] [0.0] 24052
30 45.9 0.0 44.3 48.8 34.9 0 [23.0] [0.0] 23644
31 45.3 0.0 44.6 49.9 33.7 0 [33.0] [0.0] 22332
32 45.3 0.0 44.8 49.6 27.6 0 [30.0] [0.0] 24630
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.1 48.3 29.5 50 [32.0, 36.0] [0.0] 27073
4 45.4 0.0 46.1 51.8 33.2 0 [15.0] [0.0] 23829
5 40.9 0.0 44.1 49.3 33.3 326 [17.0, 22.0, 21.0] [0.0] 24420
6 38.3 0.0 44.6 50.2 28.0 119 [27.0, 35.0] [0.0] 24536
7 45.1 0.0 44.2 49.0 32.7 0 [28.0] [0.0] 25464
8 27.4 0.0 42.9 49.0 32.7 224 [20.0, 27.0] [0.0] 29132
9 44.0 0.0 44.4 49.1 33.1 0 [33.0] [0.0] 21423
10 43.5 0.0 44.3 48.4 35.4 0 [34.0] [0.0] 25789
11 43.9 0.0 46.2 52.2 32.1 15 [36.0, 33.0] [0.0] 24667
12 37.4 0.0 43.6 48.4 34.6 214 [20.0, 37.0] [0.0] 24232
14 44.1 0.0 46.5 51.2 33.1 0 [19.0] [0.0] 25734
15 29.4 0.0 42.3 47.9 26.9 263 [26.0, 13.0] [0.0] 29127
17 45.7 0.0 44.5 49.6 30.0 0 [34.0] [0.0] 24093
18 44.1 0.0 46.2 51.2 36.1 63 [30.0, 31.0] [0.0] 26322
23 42.3 0.0 45.9 50.5 35.1 59 [13.0, 14.0] [0.0] 26913
24 25.6 0.0 42.2 47.8 34.2 216 [25.0, 26.0] [0.0] 29827
25 28.1 0.0 41.9 47.4 22.1 288 [23.0, 37.0, 25.0] [0.0] 29829
26 27.6 0.0 42.2 47.2 32.2 286 [35.0, 26.0, 22.0] [0.0] 29835
27 26.2 0.0 42.5 46.8 33.1 249 [37.0, 31.0] [0.0] 29856
28 39.7 0.0 45.9 50.9 32.8 218 [29.0, 26.0] [0.0] 23191
29 47.9 0.0 44.3 49.5 32.6 30 [16.0, 20.0] [0.0] 24035
30 45.9 0.0 43.9 48.0 32.2 0 [25.0] [0.0] 23652
31 45.3 0.0 44.4 48.9 31.2 0 [30.0] [0.0] 22296
32 45.3 0.0 44.8 49.2 30.2 0 [33.0] [0.0] 24635
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.1 6.6 -6.0 [32.0, 36.0] 27065
4 45.4 0.5 7.8 -7.7 [15.0] 23829
5 41.0 0.4 4.9 -5.0 [17.0, 21.0, 22.0] 24315
6 38.4 0.2 9.7 -7.7 [28.0, 27.0, 25.0, 35.0] 24505
7 45.1 0.5 5.3 -5.2 [27.0, 28.0] 25464
8 27.4 -0.1 6.5 -6.5 [34.0, 20.0, 28.0, 27.0] 29126
9 44.0 0.7 7.0 -5.6 [30.0, 33.0] 21423
10 43.5 0.4 4.7 -4.2 [37.0, 34.0] 25759
11 43.9 0.1 3.6 -8.4 [34.0, 36.0, 31.0, 33.0] 24640
12 37.4 0.2 5.9 -4.3 [34.0, 20.0, 35.0, 37.0] 24190
14 44.2 0.1 5.9 -12.3 [19.0] 25709
15 29.4 0.1 11.4 -8.6 [24.0, 26.0, 31.0, 13.0, 25.0] 29125
17 45.7 -0.2 3.8 -6.9 [37.0, 34.0] 24093
18 44.1 0.5 5.2 -6.1 [33.0, 30.0, 32.0, 31.0] 26291
23 42.4 0.1 5.5 -6.3 [14.0, 13.0] 26804
24 25.6 -0.0 4.9 -7.7 [21.0, 25.0, 24.0, 26.0] 29812
25 28.2 0.0 12.9 -7.3 [20.0, 23.0, 22.0, 37.0, 33.0, 25.0] 29805
26 27.6 0.2 6.7 -7.1 [35.0, 24.0, 26.0, 22.0] 29801
27 26.2 -0.2 4.6 -8.2 [22.0, 37.0, 31.0] 29856
28 39.7 0.4 8.0 -6.2 [29.0, 27.0, 26.0] 23173
29 47.9 0.6 7.9 -3.0 [16.0, 20.0] 24033
30 45.9 0.4 6.7 -3.0 [23.0, 25.0] 23635
31 45.3 0.2 7.1 -6.0 [33.0, 30.0] 22296
32 45.3 -0.0 6.7 -6.5 [30.0, 33.0] 24630
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.1 52.0 37.6 0 [32.0, 36.0] [0.0] 27091
4 45.4 0.0 48.4 53.0 40.8 0 [15.0] [0.0] 23842
6 38.3 0.0 47.8 52.3 39.9 198 [28.0, 25.0] [0.0] 24541
8 27.4 0.0 46.5 50.5 36.5 64 [34.0, 28.0] [0.0] 29172
9 44.0 0.0 48.5 52.3 40.9 0 [30.0] [0.0] 21443
10 43.5 0.0 47.8 51.3 40.0 0 [37.0] [0.0] 25764
11 43.9 0.0 48.3 54.6 29.2 241 [34.0, 31.0] [0.0] 24642
14 44.2 0.0 48.4 53.0 40.2 0 [19.0] [0.0] 25710
18 44.1 0.0 48.8 53.1 40.9 114 [33.0, 32.0] [0.0] 26295
23 42.4 0.0 48.1 53.0 37.8 4 [14.0] [0.0] 26806
24 25.6 0.0 46.1 50.9 35.6 161 [21.0, 24.0] [0.0] 29835
25 28.1 0.0 46.4 52.0 34.7 304 [20.0, 22.0, 33.0] [0.0] 29892
26 27.6 0.0 46.3 50.7 38.0 163 [35.0, 24.0, 22.0] [0.0] 29832
27 26.1 0.0 46.2 49.9 39.7 10 [22.0, 31.0] [0.0] 29909
28 39.7 0.0 48.1 52.7 41.3 176 [29.0, 27.0] [0.0] 23201
30 45.9 0.0 49.0 52.5 40.5 0 [23.0] [0.0] 23644
32 45.3 0.0 46.6 51.0 31.5 0 [30.0] [0.0] 24630
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.4 51.9 38.8 191 [32.0, 36.0] [0.0] 27073
4 45.4 0.0 48.0 53.1 37.1 0 [15.0] [0.0] 23829
6 38.3 0.0 47.8 52.3 37.6 130 [27.0, 35.0] [0.0] 24536
8 27.4 0.0 46.7 50.9 38.6 164 [20.0, 27.0] [0.0] 29132
9 44.0 0.0 48.4 51.9 39.8 0 [33.0] [0.0] 21423
10 43.5 0.0 47.9 51.1 38.9 0 [34.0] [0.0] 25789
11 43.9 0.0 48.8 53.9 38.8 210 [36.0, 33.0] [0.0] 24667
14 44.1 0.0 48.8 53.2 40.2 0 [19.0] [0.0] 25734
18 44.1 0.0 48.7 53.2 40.2 98 [30.0, 31.0] [0.0] 26322
23 42.3 0.0 48.3 53.4 36.2 177 [13.0, 14.0] [0.0] 26913
24 25.6 0.0 46.4 50.4 39.4 2 [25.0, 26.0] [0.0] 29827
25 28.1 0.0 46.4 51.2 25.4 210 [23.0, 37.0, 25.0] [0.0] 29829
26 27.6 0.0 46.4 50.8 38.6 242 [35.0, 26.0, 22.0] [0.0] 29835
27 26.2 0.0 46.5 50.4 40.7 10 [37.0, 31.0] [0.0] 29856
28 39.7 0.0 47.9 52.9 39.7 86 [29.0, 26.0] [0.0] 23191
30 45.9 0.0 48.7 52.5 40.1 0 [25.0] [0.0] 23652
32 45.3 0.0 46.8 50.2 29.9 0 [33.0] [0.0] 24635
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.3 5.5 -5.5 [32.0, 36.0] 27065
4 45.4 0.4 4.1 -2.4 [15.0] 23829
6 38.4 -0.0 6.3 -6.0 [28.0, 27.0, 25.0, 35.0] 24505
8 27.4 -0.2 3.3 -3.9 [34.0, 20.0, 28.0, 27.0] 29126
9 44.0 0.2 4.1 -2.4 [30.0, 33.0] 21423
10 43.5 -0.1 2.8 -3.5 [37.0, 34.0] 25759
11 43.9 -0.4 1.7 -15.4 [34.0, 36.0, 31.0, 33.0] 24640
14 44.2 -0.4 2.2 -4.2 [19.0] 25709
18 44.1 0.2 3.3 -2.8 [33.0, 30.0, 32.0, 31.0] 26291
23 42.4 -0.2 3.3 -4.0 [14.0, 13.0] 26804
24 25.6 -0.2 2.8 -8.8 [21.0, 25.0, 24.0, 26.0] 29812
25 28.2 0.0 12.5 -9.1 [20.0, 23.0, 22.0, 37.0, 33.0, 25.0] 29805
26 27.6 -0.1 3.7 -4.9 [35.0, 24.0, 26.0, 22.0] 29801
27 26.2 -0.3 2.8 -4.7 [22.0, 37.0, 31.0] 29856
28 39.7 0.1 5.8 -4.5 [29.0, 27.0, 26.0] 23173
30 45.9 0.3 2.8 -2.4 [23.0, 25.0] 23635
32 45.3 -0.2 3.7 -3.9 [30.0, 33.0] 24630
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.4 48.6 44.3 0 [57.0] [0.0] 87495
133 38.0 0.0 42.9 45.2 41.1 0 [56.0] [0.0] 87495
135 39.4 0.0 44.7 46.6 42.4 0 [55.0] [0.0] 87495
158 -45.0 0.0 35.6 38.9 29.6 6 [54.0] [0.0] 10335
DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 43.8 46.0 41.3 0 [55.0] [0.0] 87495
133 38.0 0.0 43.8 46.1 41.6 0 [56.0] [0.0] 87495
135 39.4 0.0 44.5 46.7 41.7 0 [57.0] [0.0] 87495
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 2.6 4.5 0.6 [57.0, 55.0] 87493
133 38.0 -0.9 1.1 -3.0 [56.0] 87493
135 39.4 0.1 2.4 -2.0 [55.0, 57.0] 87493
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.6 48.5 44.9 0 [57.0] [0.0] 87495
133 38.0 0.0 45.9 47.6 43.7 0 [56.0] [0.0] 87495
135 39.4 0.0 45.8 47.5 44.1 0 [55.0] [0.0] 87495
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 43.2 49.3 25.9 21 [1.0] [0.0] 34055
2 34.9 0.0 46.2 52.8 32.2 130 [-4.0] [0.0] 30985
3 39.2 0.0 45.0 50.3 12.0 63 [5.0] [0.0] 23057
4 38.4 0.0 45.2 50.2 30.1 0 [6.0] [0.0] 23422
5 41.6 0.0 47.6 52.5 33.7 0 [1.0] [0.0] 21594
6 36.9 0.0 35.4 41.6 20.7 784 [-4.0] [0.0] 23454
7 29.6 0.0 44.3 51.4 29.7 265 [5.0] [0.0] 28161
8 30.6 0.0 43.7 49.9 31.0 177 [6.0] [0.0] 34346
9 39.8 0.0 47.1 52.6 26.3 0 [-2.0] [0.0] 23081
10 38.8 0.0 42.7 48.8 30.3 0 [-7.0] [0.0] 23414
11 37.5 0.0 46.8 53.2 30.5 144 [0.0] [0.0] 24883
12 35.9 0.0 46.0 52.7 33.1 198 [-1.0] [0.0] 27953
14 31.3 0.0 47.6 53.1 37.3 255 [-7.0] [0.0] 32548
15 32.6 0.0 46.3 52.8 35.6 49 [0.0] [0.0] 31592
16 40.1 0.0 46.9 53.2 32.1 77 [-1.0] [0.0] 23215
17 35.3 0.0 45.1 50.5 30.2 245 [4.0] [0.0] 30217
18 32.0 0.0 45.2 51.6 31.6 185 [-3.0] [0.0] 25603
19 29.6 0.0 35.1 41.6 19.6 533 [3.0] [0.0] 26160
20 29.7 0.0 35.2 39.4 21.3 243 [2.0] [0.0] 26397
21 35.4 0.0 45.7 51.8 33.7 102 [4.0] [0.0] 24374
22 41.7 0.0 47.0 53.6 32.5 162 [-3.0] [0.0] 22028
23 37.7 0.0 44.2 50.1 26.3 61 [3.0] [0.0] 31497
24 45.8 0.0 47.0 52.5 33.3 234 [2.0] [0.0] 30862
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 42.3 47.9 29.7 202 [1.0] [0.0] 34046
2 34.9 0.0 45.2 52.1 27.8 231 [-4.0] [0.0] 31001
3 39.2 0.0 44.4 49.4 29.6 0 [5.0] [0.0] 23068
4 38.4 0.0 44.5 49.8 30.3 0 [6.0] [0.0] 23397
5 41.6 0.0 46.8 52.4 28.6 0 [1.0] [0.0] 21559
6 37.2 0.0 35.0 41.4 13.3 996 [-4.0] [0.0] 23154
7 29.6 0.0 43.7 50.9 29.0 78 [5.0] [0.0] 28141
8 30.6 0.0 42.7 48.4 31.2 129 [6.0] [0.0] 34303
9 39.8 0.0 46.8 51.9 36.8 0 [-2.0] [0.0] 23103
10 38.8 0.0 42.4 48.2 29.2 0 [-7.0] [0.0] 23413
11 37.5 0.0 46.1 52.4 32.6 8 [0.0] [0.0] 24870
12 35.8 0.0 45.5 52.3 19.6 143 [-1.0] [0.0] 27989
14 31.3 0.0 47.0 52.5 36.4 255 [-7.0] [0.0] 32547
15 32.7 0.0 45.4 52.7 31.1 80 [0.0] [0.0] 31539
16 40.2 0.0 46.1 52.5 30.2 77 [-1.0] [0.0] 23139
17 35.3 0.0 43.9 50.7 30.6 445 [4.0] [0.0] 30256
18 32.0 0.0 44.6 51.4 27.0 139 [-3.0] [0.0] 25607
19 30.1 0.0 34.5 41.1 23.0 514 [3.0] [0.0] 25349
20 30.0 0.0 34.5 39.2 20.7 433 [2.0] [0.0] 26048
21 35.4 0.0 44.7 51.2 28.1 205 [4.0] [0.0] 24360
22 41.7 0.0 46.4 52.7 18.7 154 [-3.0] [0.0] 22026
23 37.7 0.0 43.4 49.8 18.1 97 [3.0] [0.0] 31499
24 45.8 0.0 46.4 51.1 30.7 164 [2.0] [0.0] 30857
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 0.8 6.8 -11.3 [1.0] 34044
2 34.9 1.0 10.8 -8.7 [-4.0] 30964
3 39.2 0.6 6.6 -25.9 [5.0] 23057
4 38.4 0.7 7.7 -10.1 [6.0] 23392
5 41.6 0.8 9.6 -5.7 [1.0] 21559
6 37.3 0.5 17.3 -6.6 [-4.0] 23139
7 29.6 0.6 6.8 -8.4 [5.0] 28130
8 30.6 1.1 7.4 -8.3 [6.0] 34301
9 39.8 0.3 5.1 -12.9 [-2.0] 23073
10 38.8 0.3 5.6 -9.7 [-7.0] 23413
11 37.5 0.7 8.0 -7.5 [0.0] 24852
12 35.9 0.6 15.9 -7.8 [-1.0] 27953
14 31.3 0.6 6.1 -5.7 [-7.0] 32515
15 32.7 0.9 8.4 -6.1 [0.0] 31537
16 40.2 0.8 7.4 -7.7 [-1.0] 23139
17 35.3 1.2 8.4 -7.8 [4.0] 30211
18 32.0 0.5 7.6 -6.8 [-3.0] 25602
19 30.1 0.7 8.1 -8.5 [3.0] 25349
20 30.0 0.7 13.2 -4.7 [2.0] 26018
21 35.4 1.0 10.5 -6.0 [4.0] 24360
22 41.7 0.6 18.6 -6.4 [-3.0] 22024
23 37.7 0.8 12.3 -8.1 [3.0] 31492
24 45.8 0.6 8.3 -7.7 [2.0] 30855
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 41.7 48.0 25.5 283 [1.0] [0.0] 34055
2 34.9 0.0 44.9 51.0 32.7 196 [-4.0] [0.0] 30985
3 39.3 0.0 43.7 49.1 19.3 22 [5.0] [0.0] 23040
4 38.4 0.0 43.3 48.1 30.5 0 [6.0] [0.0] 23422
5 41.6 0.0 46.3 51.2 34.9 0 [1.0] [0.0] 21594
6 36.9 0.0 34.2 40.2 21.5 811 [-4.0] [0.0] 23411
7 29.6 0.0 42.6 49.4 30.4 319 [5.0] [0.0] 28161
8 30.6 0.0 41.8 47.3 30.3 143 [6.0] [0.0] 34346
9 39.8 0.0 45.6 50.7 30.4 0 [-2.0] [0.0] 23081
10 38.8 0.0 41.4 47.5 30.5 0 [-7.0] [0.0] 23414
11 37.5 0.0 45.1 51.7 33.1 204 [0.0] [0.0] 24883
12 35.9 0.0 45.2 51.9 33.8 33 [-1.0] [0.0] 27953
14 31.3 0.0 46.2 51.4 36.7 330 [-7.0] [0.0] 32548
15 32.6 0.0 44.6 50.6 35.1 273 [0.0] [0.0] 31592
16 40.1 0.0 45.5 51.6 32.2 161 [-1.0] [0.0] 23215
17 35.3 0.0 43.1 48.3 29.7 302 [4.0] [0.0] 30217
18 32.0 0.0 43.7 49.8 34.1 134 [-3.0] [0.0] 25603
19 29.8 0.0 33.3 39.2 21.2 2344 [3.0] [0.0] 25825
20 29.9 0.0 34.2 38.3 22.5 321 [2.0] [0.0] 26188
21 35.4 0.0 44.0 49.6 33.3 154 [4.0] [0.0] 24374
22 41.7 0.0 45.8 51.9 34.0 148 [-3.0] [0.0] 22028
23 37.7 0.0 42.4 48.1 28.7 256 [3.0] [0.0] 31493
24 45.8 0.0 45.5 50.6 33.7 91 [2.0] [0.0] 30862
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 40.2 45.0 24.2 337 [1.0] [0.0] 34055
2 34.9 0.0 44.5 49.2 29.5 260 [-4.0] [0.0] 30985
3 39.2 0.0 45.7 50.3 34.6 0 [5.0] [0.0] 23057
4 38.4 0.0 46.1 50.3 34.1 0 [6.0] [0.0] 23422
5 41.6 0.0 46.3 50.0 35.9 0 [1.0] [0.0] 21594
7 29.6 0.0 44.2 50.0 30.6 218 [5.0] [0.0] 28161
8 30.6 0.0 44.7 50.2 31.4 54 [6.0] [0.0] 34346
9 39.8 0.0 47.0 51.7 32.1 0 [-2.0] [0.0] 23081
10 53.8 0.0 30.2 40.7 13.9 14 [-7.0] [0.0] 15
11 37.5 0.0 46.3 51.0 34.7 133 [0.0] [0.0] 24883
12 35.9 0.0 45.0 50.7 33.7 113 [-1.0] [0.0] 27953
14 31.3 0.0 45.1 50.0 33.2 378 [-7.0] [0.0] 32548
15 32.6 0.0 45.2 50.3 36.2 227 [0.0] [0.0] 31592
16 40.1 0.0 45.8 50.4 31.9 4 [-1.0] [0.0] 23215
17 35.3 0.0 44.5 49.8 33.9 187 [4.0] [0.0] 30217
18 32.0 0.0 44.7 50.5 31.2 51 [-3.0] [0.0] 25603
19 29.7 0.0 41.9 48.4 32.6 129 [3.0] [0.0] 25990
20 29.9 0.0 38.2 43.2 23.9 131 [2.0] [0.0] 26188
21 35.4 0.0 44.2 49.8 33.8 114 [4.0] [0.0] 24374
22 41.7 0.0 46.4 51.1 30.9 253 [-3.0] [0.0] 22028
23 50.0 0.0 36.0 43.2 10.9 166 [3.0] [0.0] 63
24 45.8 0.0 46.3 49.5 34.1 181 [2.0] [0.0] 30862
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 39.8 45.4 25.6 337 [1.0] [0.0] 34046
2 34.9 0.0 44.3 48.9 32.1 133 [-4.0] [0.0] 31001
3 39.2 0.0 45.2 50.1 30.1 0 [5.0] [0.0] 23068
4 38.4 0.0 45.8 49.7 34.8 0 [6.0] [0.0] 23397
5 41.6 0.0 45.7 49.9 36.8 0 [1.0] [0.0] 21559
7 29.6 0.0 44.6 50.5 35.9 319 [5.0] [0.0] 28141
8 30.6 0.0 45.0 49.4 36.5 302 [6.0] [0.0] 34303
9 39.8 0.0 46.9 51.7 34.4 0 [-2.0] [0.0] 23103
10 53.6 0.0 36.3 40.4 29.7 9 [-7.0] [0.0] 10
11 37.5 0.0 46.0 51.4 27.1 10 [0.0] [0.0] 24870
12 35.8 0.0 44.9 50.2 33.4 89 [-1.0] [0.0] 27989
14 31.3 0.0 45.1 49.5 35.0 218 [-7.0] [0.0] 32547
15 32.7 0.0 44.9 49.9 34.2 463 [0.0] [0.0] 31539
16 40.2 0.0 45.8 50.5 35.5 1 [-1.0] [0.0] 23139
17 35.3 0.0 44.5 49.8 27.4 268 [4.0] [0.0] 30256
18 32.0 0.0 44.8 49.7 33.3 213 [-3.0] [0.0] 25607
19 30.2 0.0 42.2 47.0 28.8 89 [3.0] [0.0] 25293
20 30.0 0.0 38.0 43.7 27.7 196 [2.0] [0.0] 26044
21 35.4 0.0 43.8 49.9 31.3 177 [4.0] [0.0] 24360
22 41.7 0.0 46.2 51.2 27.8 216 [-3.0] [0.0] 22026
23 50.6 0.0 36.2 42.5 26.9 199 [3.0] [0.0] 62
24 45.8 0.0 45.9 49.3 36.3 39 [2.0] [0.0] 30857
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 38.0 0.3 7.7 -8.5 [1.0] 34044
2 34.9 0.2 6.0 -8.5 [-4.0] 30964
3 39.2 0.5 6.7 -4.2 [5.0] 23057
4 38.4 0.3 5.9 -5.8 [6.0] 23392
5 41.6 0.6 5.6 -4.5 [1.0] 21559
7 29.6 -0.3 5.5 -8.3 [5.0] 28130
8 30.6 -0.3 5.3 -8.4 [6.0] 34301
9 39.8 0.1 7.7 -7.1 [-2.0] 23073
11 37.5 0.3 13.2 -5.0 [0.0] 24852
12 35.9 0.1 5.9 -6.2 [-1.0] 27953
14 31.3 -0.1 6.9 -6.7 [-7.0] 32515
15 32.7 0.3 6.9 -7.1 [0.0] 31537
16 40.2 0.0 5.0 -6.1 [-1.0] 23139
17 35.3 0.0 12.9 -6.5 [4.0] 30211
18 32.0 -0.1 6.5 -12.6 [-3.0] 25602
19 30.2 -0.2 8.8 -6.5 [3.0] 25293
20 30.0 0.2 7.1 -9.4 [2.0] 26018
21 35.4 0.4 8.2 -6.1 [4.0] 24360
22 41.7 0.2 9.6 -5.2 [-3.0] 22024
24 45.8 0.4 6.3 -5.8 [2.0] 30855
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 38.0 0.0 38.2 42.9 20.9 167 [1.0] [0.0] 34055
2 34.9 0.0 42.8 47.2 30.3 208 [-4.0] [0.0] 30985
3 39.2 0.0 44.3 48.4 33.8 0 [5.0] [0.0] 23057
4 38.4 0.0 44.4 48.3 34.1 0 [6.0] [0.0] 23422
5 41.6 0.0 44.9 48.5 36.5 0 [1.0] [0.0] 21594
6 67.7 0.0 14.7 15.8 14.1 2 [-4.0] [0.0] 3
7 29.6 0.0 42.7 48.0 29.5 238 [5.0] [0.0] 28161
8 30.6 0.0 43.2 48.1 32.4 110 [6.0] [0.0] 34346
9 39.8 0.0 45.1 49.5 32.4 0 [-2.0] [0.0] 23081
10 51.0 0.0 24.3 38.1 14.3 4 [-7.0] [0.0] 5
11 37.5 0.0 44.5 49.2 36.0 173 [0.0] [0.0] 24883
12 35.9 0.0 43.0 48.6 29.7 13 [-1.0] [0.0] 27953
14 31.3 0.0 43.6 48.9 32.3 295 [-7.0] [0.0] 32548
15 32.6 0.0 43.6 48.6 35.7 341 [0.0] [0.0] 31592
16 40.1 0.0 44.3 49.1 33.2 27 [-1.0] [0.0] 23215
17 35.3 0.0 43.2 48.7 35.4 90 [4.0] [0.0] 30217
18 32.0 0.0 43.1 49.1 16.3 16 [-3.0] [0.0] 25601
19 29.7 0.0 40.4 46.4 30.1 158 [3.0] [0.0] 25990
20 29.9 0.0 36.8 41.6 19.2 798 [2.0] [0.0] 26188
21 35.4 0.0 43.3 48.4 33.1 70 [4.0] [0.0] 24374
22 41.7 0.0 44.7 49.6 30.7 111 [-3.0] [0.0] 22028
23 44.5 0.0 26.8 42.6 6.5 69 [3.0] [0.0] 36
24 45.8 0.0 44.6 47.7 34.6 25 [2.0] [0.0] 30862
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.8 0.0 45.2 49.7 34.8 0 [-2.0] [0.0] 23081
21 35.4 0.0 43.9 50.2 35.7 35 [4.0] [0.0] 24374
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 44.4 49.4 35.7 193 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.5 49.7 37.0 0 [48.0] [0.0] 14276
4 36.2 0.0 45.5 51.5 26.6 164 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 43.5 48.5 36.7 221 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 45.8 50.8 32.0 0 [46.0] [0.0] 30582
8 41.7 0.0 46.2 52.0 33.0 0 [40.0] [0.0] 24078
9 28.5 0.0 44.8 50.3 29.8 160 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 46.4 52.9 13.1 55 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 43.2 48.5 28.8 70 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 42.3 48.5 30.7 214 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 45.1 50.5 33.2 205 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 45.9 51.2 35.8 0 [52.0] [0.0] 15830
19 40.4 0.0 41.7 48.2 27.6 50 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 46.3 52.4 33.8 201 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 47.7 53.4 32.6 0 [53.0] [0.0] 30336
25 42.1 0.0 46.8 51.8 37.9 0 [47.0] [0.0] 22788
26 34.6 0.0 45.5 52.2 19.9 56 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 44.9 50.3 23.9 111 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.5 46.8 32.8 329 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.0 54.2 33.5 0 [52.0] [0.0] 32782
33 33.1 0.0 45.0 50.0 31.8 232 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.8 47.8 32.3 188 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 46.8 52.3 33.6 0 [40.0] [0.0] 14647
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 27.9 0.0 44.6 49.2 37.0 52 [47.0, 49.0] [0.0] 15721
3 33.2 0.0 45.4 49.3 39.2 0 [50.0] [0.0] 14268
4 36.2 0.0 45.6 51.3 34.7 186 [41.0, 48.0] [0.0] 33473
5 17.3 0.0 43.0 46.8 36.3 206 [49.0, 40.0] [0.0] 18381
7 45.7 0.0 45.7 50.3 14.2 53 [38.0] [0.0] 30620
8 41.7 0.0 46.2 51.4 34.8 0 [51.0] [0.0] 24087
9 28.5 0.0 45.0 50.1 35.7 49 [45.0, 46.0] [0.0] 25046
10 39.1 0.0 46.0 52.5 34.4 241 [47.0, 44.0] [0.0] 36944
11 44.6 0.0 43.3 47.8 33.7 220 [46.0, 42.0] [0.0] 27759
12 35.3 0.0 41.9 48.6 28.9 254 [44.0, 52.0] [0.0] 40528
13 42.8 0.0 45.1 49.9 35.5 20 [46.0, 44.0] [0.0] 30814
15 42.0 0.0 46.0 50.6 36.7 0 [45.0] [0.0] 15859
19 40.5 0.0 41.8 48.7 30.3 223 [48.0, 50.0] [0.0] 36413
21 36.6 0.0 45.9 52.9 34.2 2 [48.0, 51.0] [0.0] 35072
24 45.6 0.0 47.5 53.5 32.7 0 [53.0] [0.0] 30328
25 42.2 0.0 46.9 51.7 37.8 0 [45.0] [0.0] 22762
26 34.6 0.0 45.4 52.1 32.4 28 [39.0, 43.0] [0.0] 40904
27 29.3 0.0 45.3 50.5 33.8 34 [47.0, 43.0] [0.0] 26441
30 17.6 0.0 42.4 46.3 15.7 153 [38.0, 49.0, 50.0] [0.0] 18305
31 45.4 0.0 47.8 52.8 29.7 0 [50.0] [0.0] 32769
33 33.1 0.0 45.1 49.4 33.8 74 [52.0, 49.0] [0.0] 41329
34 16.3 0.0 42.0 46.8 27.1 80 [52.0, 53.0] [0.0] 9623
36 39.7 0.0 47.0 52.2 35.0 0 [40.0] [0.0] 14654
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 -0.3 4.0 -6.3 [41.0, 47.0, 49.0] 15682
3 33.2 0.1 3.6 -3.7 [48.0, 50.0] 14266
4 36.2 -0.2 5.6 -12.5 [41.0, 39.0, 48.0] 33473
5 17.3 0.5 6.8 -5.2 [44.0, 49.0, 40.0] 18358
7 45.7 0.1 21.7 -5.2 [46.0, 38.0] 30582
8 41.7 0.0 7.1 -6.8 [40.0, 51.0] 24078
9 28.5 -0.2 6.4 -10.2 [46.0, 45.0] 25046
10 39.1 0.5 5.9 -27.2 [53.0, 47.0, 42.0, 44.0] 36916
11 44.6 -0.1 3.6 -7.3 [50.0, 46.0, 42.0] 27728
12 35.3 0.4 7.0 -4.1 [39.0, 44.0, 50.0, 52.0] 40511
13 42.9 -0.0 6.6 -5.6 [42.0, 46.0, 45.0, 44.0] 30758
15 42.1 -0.1 3.4 -4.1 [52.0, 45.0] 15830
19 40.5 -0.0 6.2 -7.2 [43.0, 48.0, 52.0, 50.0] 36406
21 36.6 0.4 5.7 -6.0 [49.0, 48.0, 42.0, 51.0] 35060
24 45.6 0.2 6.4 -5.6 [53.0] 30328
25 42.2 -0.1 5.6 -6.7 [47.0, 45.0] 22762
26 34.6 0.1 5.6 -20.6 [47.0, 39.0, 44.0, 43.0] 40891
27 29.3 -0.4 3.9 -13.0 [45.0, 47.0, 38.0, 43.0] 26432
30 17.6 0.1 20.7 -6.3 [50.0, 38.0, 44.0, 49.0, 52.0] 18303
31 45.4 0.1 9.7 -6.3 [52.0, 50.0] 32754
33 33.1 -0.1 5.0 -7.3 [48.0, 52.0, 49.0] 41321
34 16.3 0.8 5.7 -3.6 [51.0, 52.0, 53.0] 9621
36 39.7 -0.2 4.3 -6.4 [40.0] 14645
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 44.9 49.4 35.1 69 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.2 48.1 40.3 0 [48.0] [0.0] 14276
4 36.2 0.0 45.5 50.1 21.3 209 [41.0, 39.0] [0.0] 33487
5 17.3 0.0 43.4 47.4 35.8 151 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 46.0 49.9 33.9 0 [46.0] [0.0] 30582
8 41.7 0.0 45.8 49.4 37.4 0 [40.0] [0.0] 24078
9 28.5 0.0 45.3 50.3 37.7 0 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 45.8 50.5 37.0 206 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 42.5 46.4 31.3 59 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 42.9 47.6 34.6 98 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 45.8 49.8 38.1 100 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 45.7 49.5 37.4 0 [52.0] [0.0] 15830
19 40.4 0.0 42.0 46.6 32.8 151 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 45.3 49.7 35.6 195 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 46.5 50.2 36.8 0 [53.0] [0.0] 30336
25 42.1 0.0 46.5 50.0 39.1 0 [47.0] [0.0] 22788
26 34.6 0.0 44.9 49.5 33.4 238 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 44.8 49.0 35.6 124 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.7 45.6 34.7 318 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 46.3 50.0 37.4 0 [52.0] [0.0] 32782
33 33.1 0.0 45.7 49.8 37.9 135 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.1 46.4 31.4 213 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 45.8 49.5 35.9 0 [40.0] [0.0] 14647
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 45.3 49.6 34.6 196 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 45.6 48.4 41.1 0 [48.0] [0.0] 14276
4 36.2 0.0 45.8 51.1 35.9 168 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 43.6 48.2 37.0 110 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 46.3 50.7 34.7 0 [46.0] [0.0] 30582
8 41.7 0.0 46.2 49.8 37.9 0 [40.0] [0.0] 24078
9 28.5 0.0 45.4 51.0 34.7 66 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 46.0 51.0 38.2 94 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 42.4 46.8 27.0 250 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 43.4 48.8 33.9 193 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 46.3 50.3 38.5 199 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 46.3 50.1 38.7 0 [52.0] [0.0] 15830
19 40.4 0.0 42.5 47.2 33.9 115 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 46.0 50.3 37.4 244 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 46.9 50.8 38.3 0 [53.0] [0.0] 30336
25 42.1 0.0 47.0 50.5 39.1 0 [47.0] [0.0] 22788
26 34.6 0.0 45.5 50.1 36.6 54 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 45.2 49.2 37.3 193 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 42.9 46.2 37.3 277 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 46.8 50.6 37.1 0 [52.0] [0.0] 32782
33 33.1 0.0 45.9 50.0 31.6 184 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 42.6 46.5 33.4 125 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 46.7 50.3 38.1 0 [40.0] [0.0] 14647
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 47.6 51.1 39.1 181 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 47.8 50.4 44.0 0 [48.0] [0.0] 14276
4 36.2 0.0 48.1 52.4 35.3 227 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 46.3 50.1 40.7 25 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 48.6 52.3 38.8 0 [46.0] [0.0] 30582
8 41.7 0.0 48.4 51.8 41.5 0 [40.0] [0.0] 24078
9 28.5 0.0 47.8 52.2 40.9 253 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 48.4 52.8 42.1 250 [53.0, 42.0] [0.0] 36926
11 44.6 0.0 44.9 48.7 35.5 101 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 46.0 50.5 37.9 179 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 48.5 52.1 42.6 168 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 48.5 51.8 42.1 0 [52.0] [0.0] 15830
19 40.4 0.0 45.2 49.4 37.5 174 [43.0, 52.0] [0.0] 36491
21 36.6 0.0 48.1 52.3 41.0 134 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 49.1 52.6 41.8 0 [53.0] [0.0] 30336
25 42.1 0.0 49.0 52.2 42.9 0 [47.0] [0.0] 22788
26 34.6 0.0 47.8 52.0 39.4 127 [47.0, 44.0] [0.0] 40909
27 29.3 0.0 47.5 51.3 41.0 226 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 45.7 48.4 39.9 437 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.9 52.4 41.8 0 [52.0] [0.0] 32782
33 33.1 0.0 48.2 51.8 39.8 114 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 45.2 48.8 36.8 24 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 48.7 51.7 42.1 0 [40.0] [0.0] 14647
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 27.9 0.0 47.6 50.8 43.0 185 [47.0, 49.0] [0.0] 15721
3 33.2 0.0 47.9 51.1 42.6 0 [50.0] [0.0] 14268
4 36.2 0.0 48.2 52.2 39.7 254 [41.0, 48.0] [0.0] 33473
5 17.3 0.0 46.5 49.8 39.8 67 [49.0, 40.0] [0.0] 18381
7 45.7 0.0 48.6 52.1 38.5 0 [38.0] [0.0] 30620
8 41.7 0.0 48.3 52.0 43.1 0 [51.0] [0.0] 24087
9 28.5 0.0 47.9 51.5 43.0 22 [45.0, 46.0] [0.0] 25046
10 39.1 0.0 48.4 52.3 42.1 22 [47.0, 44.0] [0.0] 36944
11 44.6 0.0 45.0 48.0 37.6 190 [46.0, 42.0] [0.0] 27759
12 35.3 0.0 46.3 50.9 39.2 74 [44.0, 52.0] [0.0] 40528
13 42.8 0.0 48.2 52.0 42.5 65 [46.0, 44.0] [0.0] 30814
15 42.0 0.0 48.3 51.9 39.3 0 [45.0] [0.0] 15859
19 40.5 0.0 44.9 49.5 36.5 31 [48.0, 50.0] [0.0] 36413
21 36.6 0.0 48.2 52.2 39.4 110 [48.0, 51.0] [0.0] 35072
24 45.6 0.0 48.9 52.4 42.1 0 [53.0] [0.0] 30328
25 42.2 0.0 49.0 51.9 43.1 0 [45.0] [0.0] 22762
26 34.6 0.0 47.8 51.7 39.8 83 [39.0, 43.0] [0.0] 40904
27 29.3 0.0 47.5 51.5 39.9 78 [47.0, 43.0] [0.0] 26441
30 17.6 0.0 45.9 48.9 34.5 258 [38.0, 49.0, 50.0] [0.0] 18305
31 45.4 0.0 49.0 52.5 42.8 0 [50.0] [0.0] 32769
33 33.1 0.0 48.2 51.9 41.6 93 [52.0, 49.0] [0.0] 41329
34 16.3 0.0 45.3 48.5 31.6 157 [52.0, 53.0] [0.0] 9623
36 39.7 0.0 48.7 51.5 43.7 0 [40.0] [0.0] 14654
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 28.0 -0.0 2.5 -5.6 [41.0, 47.0, 49.0] 15682
3 33.2 -0.1 3.4 -2.3 [48.0, 50.0] 14266
4 36.2 -0.1 3.0 -8.8 [41.0, 39.0, 48.0] 33473
5 17.3 -0.2 2.7 -3.0 [44.0, 49.0, 40.0] 18358
7 45.7 0.0 2.7 -3.7 [46.0, 38.0] 30582
8 41.7 0.0 2.0 -3.5 [40.0, 51.0] 24078
9 28.5 -0.1 2.9 -4.1 [46.0, 45.0] 25046
10 39.1 -0.1 3.0 -3.2 [53.0, 47.0, 42.0, 44.0] 36916
11 44.6 -0.1 6.1 -6.0 [50.0, 46.0, 42.0] 27728
12 35.3 -0.3 3.0 -3.6 [39.0, 44.0, 50.0, 52.0] 40511
13 42.9 0.3 3.1 -2.7 [42.0, 46.0, 45.0, 44.0] 30758
15 42.1 0.1 3.8 -1.9 [52.0, 45.0] 15830
19 40.5 0.3 3.7 -2.9 [43.0, 48.0, 52.0, 50.0] 36406
21 36.6 -0.1 2.4 -4.3 [49.0, 48.0, 42.0, 51.0] 35060
24 45.6 0.1 2.6 -3.0 [53.0] 30328
25 42.2 0.0 3.1 -2.7 [47.0, 45.0] 22762
26 34.6 -0.0 3.1 -3.7 [47.0, 39.0, 44.0, 43.0] 40891
27 29.3 -0.0 2.9 -3.5 [45.0, 47.0, 38.0, 43.0] 26432
30 17.6 -0.2 7.7 -3.3 [50.0, 38.0, 44.0, 49.0, 52.0] 18303
31 45.4 -0.1 2.1 -2.7 [52.0, 50.0] 32754
33 33.1 0.1 3.4 -5.0 [48.0, 52.0, 49.0] 41321
34 16.3 -0.2 6.0 -3.2 [51.0, 52.0, 53.0] 9621
36 39.7 -0.0 2.1 -3.2 [40.0] 14645
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 28.0 0.0 46.5 51.2 32.1 36 [41.0, 49.0] [0.0] 15684
3 33.2 0.0 47.0 50.5 40.4 0 [48.0] [0.0] 14276
4 36.2 0.0 47.4 52.5 34.8 103 [41.0, 39.0] [0.0] 33489
5 17.3 0.0 44.5 49.0 36.0 96 [44.0, 40.0] [0.0] 18368
7 45.7 0.0 48.2 52.3 29.0 0 [46.0] [0.0] 30582
8 41.7 0.0 48.1 52.1 38.1 0 [40.0] [0.0] 24078
9 28.5 0.0 46.7 52.5 31.2 215 [46.0, 45.0] [0.0] 25070
10 39.1 0.0 47.9 53.9 33.3 187 [53.0, 42.0] [0.0] 36919
11 44.6 0.0 44.7 49.1 28.1 191 [50.0, 46.0] [0.0] 27759
12 35.2 0.0 44.7 51.1 31.4 241 [39.0, 50.0] [0.0] 40727
13 42.9 0.0 47.7 52.1 37.2 81 [42.0, 45.0] [0.0] 30758
15 42.1 0.0 47.9 53.0 37.9 0 [52.0] [0.0] 15830
19 40.4 0.0 43.4 48.9 32.3 217 [43.0, 52.0] [0.0] 36490
21 36.6 0.0 47.6 52.5 35.4 116 [49.0, 42.0] [0.0] 35063
24 45.6 0.0 49.0 53.8 39.0 0 [53.0] [0.0] 30336
25 42.1 0.0 49.0 52.8 38.0 0 [47.0] [0.0] 22788
26 34.6 0.0 46.8 52.9 34.8 148 [47.0, 44.0] [0.0] 40897
27 29.3 0.0 46.4 51.0 36.1 145 [45.0, 38.0] [0.0] 26438
30 17.5 0.0 44.2 47.6 31.3 119 [50.0, 44.0, 52.0] [0.0] 18333
31 45.4 0.0 48.5 52.7 36.2 0 [52.0] [0.0] 32782
33 33.1 0.0 47.1 52.1 26.5 47 [48.0, 49.0] [0.0] 41352
34 16.3 0.0 43.6 48.6 32.0 112 [51.0, 53.0] [0.0] 9635
36 39.8 0.0 48.6 52.6 39.8 0 [40.0] [0.0] 14646
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 45.2 51.0 33.7 487 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.6 52.0 31.4 15 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 47.1 51.9 34.3 93 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.7 51.0 27.1 381 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 46.5 52.8 30.2 2 [49.0] [0.0] 26138
24 24.1 0.0 44.1 49.1 35.2 45 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.5 51.2 33.6 158 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.0 50.3 33.2 144 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 44.6 51.5 34.9 111 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.3 49.3 27.7 178 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 46.9 51.7 24.4 14 [48.0] [0.0] 27198
30 41.5 0.0 45.5 52.2 33.4 191 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 45.2 52.7 27.6 20 [34.0, 51.0] [0.0] 32448
33 44.0 0.0 47.1 52.7 33.1 0 [51.0] [0.0] 28731
34 54.7 0.0 47.1 51.9 35.2 0 [27.0] [0.0] 16775
35 44.3 0.0 46.9 51.9 36.2 174 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 46.9 52.3 31.4 0 [14.0] [0.0] 24741
37 44.9 0.0 47.4 53.2 27.3 2 [47.0] [0.0] 28603
38 7.0 0.0 40.2 42.4 37.7 0 [17.0] [0.0] 2004
41 45.3 0.0 47.1 52.6 36.8 0 [19.0] [0.0] 27122
42 45.4 0.0 46.7 52.6 33.0 0 [23.0] [0.0] 27026
43 32.2 0.0 44.1 51.1 26.3 33 [13.0, 53.0] [0.0] 33056
44 33.0 0.0 45.1 50.5 35.7 97 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.7 52.3 33.4 158 [19.0, 45.0] [0.0] 22111
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 29.9 0.0 45.7 49.5 37.6 284 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.7 50.9 37.9 46 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 46.9 50.3 36.6 56 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 44.8 49.4 36.3 254 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 47.2 51.7 34.1 0 [49.0] [0.0] 26138
24 24.1 0.0 45.0 49.3 36.8 197 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.8 49.9 38.2 112 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.3 48.2 34.4 158 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 45.0 49.4 37.9 51 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.0 48.7 34.2 182 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 46.2 50.0 36.7 0 [48.0] [0.0] 27198
30 41.5 0.0 45.7 50.5 35.6 131 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 46.2 51.4 38.1 195 [34.0, 51.0] [0.0] 32448
33 44.0 0.0 47.0 50.6 37.7 0 [51.0] [0.0] 28731
34 54.7 0.0 46.8 49.7 38.0 0 [27.0] [0.0] 16775
35 44.3 0.0 45.3 50.2 34.6 49 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 47.9 51.5 40.5 0 [14.0] [0.0] 24741
37 44.9 0.0 47.5 51.4 37.1 0 [47.0] [0.0] 28603
38 7.0 0.0 39.7 41.6 38.2 0 [17.0] [0.0] 2004
41 45.3 0.0 47.7 51.2 39.0 0 [19.0] [0.0] 27122
42 45.4 0.0 46.9 51.1 30.9 0 [23.0] [0.0] 27026
43 32.2 0.0 44.5 49.6 31.3 14 [13.0, 53.0] [0.0] 33056
44 33.0 0.0 45.1 49.5 35.7 61 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 47.4 51.9 37.0 64 [19.0, 45.0] [0.0] 22111
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.0 0.0 45.7 49.5 36.2 182 [18.0, 46.0, 19.0] [0.0] 26446
20 29.9 0.0 46.0 50.3 37.1 116 [52.0, 32.0] [0.0] 34116
21 48.1 0.0 47.2 50.5 38.9 22 [43.0, 52.0] [0.0] 17567
22 24.3 0.0 44.5 49.7 38.2 414 [19.0, 15.0, 39.0] [0.0] 22259
23 45.8 0.0 47.6 51.8 32.7 0 [53.0] [0.0] 26134
24 24.1 0.0 45.1 49.6 38.4 39 [28.0, 24.0] [0.0] 27826
25 39.7 0.0 45.8 49.7 36.9 74 [25.0, 50.0] [0.0] 23002
26 22.2 0.0 43.8 47.7 36.9 100 [53.0, 43.0] [0.0] 28763
27 30.9 0.0 45.2 50.3 35.0 22 [21.0, 16.0] [0.0] 33839
28 28.8 0.0 44.4 48.2 36.8 183 [36.0, 21.0] [0.0] 34911
29 46.3 0.0 46.6 49.7 38.1 0 [51.0] [0.0] 27196
30 41.4 0.0 45.8 50.3 37.0 159 [51.0, 48.0] [0.0] 28168
32 34.3 0.0 46.3 51.3 37.7 31 [20.0, 47.0] [0.0] 32459
33 44.0 0.0 47.3 50.8 37.1 0 [35.0] [0.0] 28723
34 54.7 0.0 46.5 49.6 38.1 0 [21.0] [0.0] 16773
35 44.3 0.0 45.4 48.9 35.4 117 [42.0, 41.0] [0.0] 20225
36 44.6 0.0 47.7 51.5 38.7 0 [14.0] [0.0] 24715
37 44.9 0.0 47.9 51.4 37.6 0 [42.0] [0.0] 28589
38 7.0 0.0 42.9 45.0 41.1 0 [17.0] [0.0] 1976
41 45.3 0.0 47.4 50.9 39.4 0 [18.0] [0.0] 27127
42 45.4 0.0 47.2 50.9 31.6 0 [41.0] [0.0] 27022
43 32.2 0.0 44.5 49.4 31.7 199 [40.0, 49.0] [0.0] 33024
44 33.1 0.0 44.8 49.9 36.0 221 [53.0, 29.0] [0.0] 18758
45 35.4 0.0 47.3 51.1 39.2 47 [18.0, 46.0] [0.0] 22186
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.0 -0.0 4.9 -3.9 [18.0, 50.0, 46.0, 19.0] 26441
20 29.9 -0.3 3.2 -3.9 [48.0, 52.0, 26.0, 32.0] 34106
21 48.1 -0.3 1.8 -3.8 [41.0, 43.0, 50.0, 52.0] 17563
22 24.3 0.3 6.1 -4.6 [26.0, 19.0, 15.0, 51.0, 39.0] 22249
23 45.8 -0.4 4.2 -7.6 [49.0, 53.0] 26133
24 24.1 -0.1 3.1 -3.5 [25.0, 28.0, 24.0] 27826
25 39.7 -0.0 4.2 -5.9 [47.0, 25.0, 52.0, 50.0] 22989
26 22.2 -0.5 3.9 -5.4 [49.0, 53.0, 44.0, 43.0] 28763
27 30.9 -0.2 4.3 -4.4 [27.0, 21.0, 16.0] 33800
28 28.8 -0.4 3.3 -7.0 [53.0, 36.0, 20.0, 21.0] 34899
29 46.3 -0.4 1.6 -4.1 [48.0, 51.0] 27196
30 41.5 -0.1 7.1 -3.6 [16.0, 51.0, 43.0, 48.0] 28138
32 34.3 -0.1 3.5 -3.7 [34.0, 20.0, 51.0, 47.0] 32448
33 44.0 -0.2 3.2 -5.5 [51.0, 35.0] 28723
34 54.7 0.3 2.4 -2.8 [27.0, 21.0] 16771
35 44.3 -0.0 3.9 -3.5 [38.0, 42.0, 41.0] 20219
36 44.6 0.2 3.7 -2.3 [14.0] 24710
37 44.9 -0.4 2.6 -4.2 [47.0, 42.0] 28589
38 7.0 -3.2 -0.7 -5.6 [17.0] 1976
41 45.3 0.3 3.0 -3.7 [19.0, 18.0] 27122
42 45.4 -0.2 6.8 -4.8 [23.0, 41.0] 27020
43 32.2 0.1 5.2 -5.4 [13.0, 40.0, 53.0, 49.0] 33015
44 33.1 0.3 3.3 -2.7 [53.0, 29.0] 18756
45 35.5 0.1 5.0 -5.2 [19.0, 18.0, 45.0, 46.0] 22110
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 45.5 49.2 37.9 72 [43.0, 22.0] [0.0] 26824
12 40.4 0.0 45.4 49.5 36.6 37 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 46.0 49.4 36.9 7 [50.0] [0.0] 27980
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 45.2 49.2 33.0 245 [44.0, 24.0] [0.0] 26916
12 40.5 0.0 45.1 49.3 36.4 124 [22.0, 38.0] [0.0] 17730
14 44.3 0.0 45.9 49.5 34.8 0 [42.0] [0.0] 28378
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 0.2 8.0 -4.0 [43.0, 44.0, 22.0, 24.0] 26824
12 40.5 0.3 5.4 -4.8 [36.0, 22.0, 38.0] 17728
14 44.8 -0.0 4.0 -3.9 [50.0, 42.0] 27980
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 43.0 50.7 8.4 208 [43.0, 22.0] [0.0] 26855
12 40.4 0.0 42.4 49.1 33.3 106 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 44.6 50.5 24.4 14 [50.0] [0.0] 27999
19 29.9 0.0 45.0 51.1 34.5 476 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 45.8 52.4 6.5 81 [48.0, 26.0] [0.0] 34139
21 48.0 0.0 46.7 52.2 33.5 127 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.8 51.2 29.0 83 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 46.6 53.4 30.5 0 [49.0] [0.0] 26138
24 24.1 0.0 43.8 49.7 35.4 228 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.9 51.9 33.3 33 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 43.1 50.8 32.8 246 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 45.4 52.6 35.7 173 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 44.7 49.6 28.9 201 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 47.5 53.1 31.6 0 [48.0] [0.0] 27198
30 41.5 0.0 46.1 53.2 34.2 249 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 44.9 53.0 34.4 172 [34.0, 51.0] [0.0] 32449
33 44.0 0.0 46.8 52.9 32.8 0 [51.0] [0.0] 28731
34 54.7 0.0 46.5 52.7 35.3 0 [27.0] [0.0] 16775
35 44.3 0.0 47.1 52.5 33.1 95 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 47.2 53.0 29.2 0 [14.0] [0.0] 24741
37 44.9 0.0 47.1 53.1 31.4 0 [47.0] [0.0] 28603
38 7.0 0.0 40.4 43.0 37.5 0 [17.0] [0.0] 2004
41 45.3 0.0 46.8 52.7 36.0 0 [19.0] [0.0] 27122
42 45.4 0.0 45.7 51.9 32.8 0 [23.0] [0.0] 27026
43 32.2 0.0 44.1 51.4 31.0 135 [13.0, 53.0] [0.0] 33057
44 33.0 0.0 44.7 51.1 34.6 51 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.4 52.0 32.5 2 [19.0, 45.0] [0.0] 22111
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 43.2 50.2 28.2 86 [44.0, 24.0] [0.0] 26916
12 40.5 0.0 42.4 49.1 27.7 58 [22.0, 38.0] [0.0] 17730
14 44.3 0.0 44.5 50.7 32.2 0 [42.0] [0.0] 28378
19 30.0 0.0 45.2 51.3 35.5 247 [18.0, 46.0, 19.0] [0.0] 26446
20 29.9 0.0 45.9 52.8 35.1 104 [52.0, 32.0] [0.0] 34116
21 48.1 0.0 46.7 52.8 35.4 209 [43.0, 52.0] [0.0] 17567
22 24.3 0.0 44.1 50.9 26.7 231 [19.0, 15.0, 39.0] [0.0] 22259
23 45.8 0.0 46.6 53.3 33.5 0 [53.0] [0.0] 26134
24 24.1 0.0 43.7 49.3 35.7 18 [28.0, 24.0] [0.0] 27826
25 39.7 0.0 45.9 52.3 33.1 48 [25.0, 50.0] [0.0] 23002
26 22.2 0.0 43.2 50.3 33.3 249 [53.0, 43.0] [0.0] 28763
27 30.9 0.0 44.8 52.2 34.6 231 [21.0, 16.0] [0.0] 33839
28 28.8 0.0 44.9 49.8 33.7 194 [36.0, 21.0] [0.0] 34911
29 46.3 0.0 47.3 53.2 35.9 0 [51.0] [0.0] 27196
30 41.4 0.0 46.0 53.5 34.2 6 [51.0, 48.0] [0.0] 28168
32 34.3 0.0 45.0 53.4 23.8 64 [20.0, 47.0] [0.0] 32459
33 44.0 0.0 47.1 52.9 30.7 0 [35.0] [0.0] 28723
34 54.7 0.0 46.8 52.1 32.1 0 [21.0] [0.0] 16773
35 44.3 0.0 47.0 52.6 33.2 46 [42.0, 41.0] [0.0] 20225
36 44.6 0.0 47.0 52.9 31.7 0 [14.0] [0.0] 24715
37 44.9 0.0 47.0 52.3 32.5 0 [42.0] [0.0] 28589
38 7.0 0.0 41.0 43.5 38.0 0 [17.0] [0.0] 1976
41 45.3 0.0 46.5 52.8 32.4 0 [18.0] [0.0] 27127
42 45.4 0.0 45.8 51.9 22.0 34 [41.0] [0.0] 27022
43 32.2 0.0 44.5 51.3 33.8 55 [40.0, 49.0] [0.0] 33024
44 33.1 0.0 44.7 51.4 33.7 152 [53.0, 29.0] [0.0] 18758
45 35.4 0.0 45.7 51.9 31.5 179 [18.0, 46.0] [0.0] 22186
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 -0.2 5.3 -28.2 [43.0, 44.0, 22.0, 24.0] 26855
12 40.5 0.0 8.3 -5.1 [36.0, 22.0, 38.0] 17728
14 44.8 0.1 5.6 -13.2 [50.0, 42.0] 27999
19 30.0 -0.2 4.3 -5.6 [18.0, 50.0, 46.0, 19.0] 26441
20 29.9 -0.2 5.8 -32.3 [48.0, 52.0, 26.0, 32.0] 34106
21 48.1 0.1 4.1 -5.3 [41.0, 43.0, 50.0, 52.0] 17563
22 24.3 -0.2 9.2 -6.7 [26.0, 19.0, 15.0, 51.0, 39.0] 22249
23 45.8 -0.0 5.6 -9.1 [49.0, 53.0] 26133
24 24.1 0.1 6.0 -5.0 [25.0, 28.0, 24.0] 27826
25 39.7 -0.0 6.4 -5.7 [47.0, 25.0, 52.0, 50.0] 22989
26 22.2 -0.1 5.6 -7.4 [49.0, 53.0, 44.0, 43.0] 28763
27 30.9 0.5 8.8 -4.4 [27.0, 21.0, 16.0] 33800
28 28.8 -0.1 6.2 -8.4 [53.0, 36.0, 20.0, 21.0] 34899
29 46.3 0.2 5.7 -11.0 [48.0, 51.0] 27196
30 41.5 0.1 5.7 -6.1 [16.0, 51.0, 43.0, 48.0] 28138
32 34.3 -0.0 13.9 -5.0 [34.0, 20.0, 51.0, 47.0] 32449
33 44.0 -0.2 6.7 -8.1 [51.0, 35.0] 28723
34 54.7 -0.3 5.3 -5.9 [27.0, 21.0] 16771
35 44.3 0.2 4.9 -6.2 [38.0, 42.0, 41.0] 20219
36 44.6 0.2 5.9 -6.7 [14.0] 24710
37 44.9 0.0 5.4 -7.3 [47.0, 42.0] 28589
38 7.0 -0.6 2.3 -3.1 [17.0] 1976
41 45.3 0.4 6.3 -4.9 [19.0, 18.0] 27122
42 45.4 -0.1 11.5 -8.0 [23.0, 41.0] 27020
43 32.2 -0.3 5.3 -9.3 [13.0, 40.0, 53.0, 49.0] 33015
44 33.1 0.1 5.1 -5.2 [53.0, 29.0] 18756
45 35.5 -0.3 6.4 -8.5 [19.0, 18.0, 45.0, 46.0] 22110
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.1 0.0 44.1 49.0 34.1 258 [43.0, 22.0] [0.0] 26824
12 40.4 0.0 44.5 49.4 33.9 126 [36.0, 38.0] [0.0] 17765
14 44.8 0.0 45.5 49.8 34.7 7 [50.0] [0.0] 27980
19 29.9 0.0 44.5 49.2 34.2 153 [18.0, 50.0, 19.0] [0.0] 26522
20 29.9 0.0 44.1 49.9 31.0 92 [48.0, 26.0] [0.0] 34095
21 48.0 0.0 45.6 49.9 35.1 110 [41.0, 50.0] [0.0] 17595
22 24.3 0.0 43.3 48.6 33.6 116 [26.0, 15.0, 51.0] [0.0] 22251
23 45.8 0.0 45.8 49.9 33.1 0 [49.0] [0.0] 26138
24 24.1 0.0 43.4 48.6 35.8 30 [25.0, 24.0] [0.0] 27855
25 39.6 0.0 45.2 49.6 36.3 161 [47.0, 52.0] [0.0] 23006
26 22.2 0.0 42.2 47.6 31.9 31 [49.0, 44.0] [0.0] 28764
27 30.9 0.0 43.7 49.1 34.0 164 [27.0, 16.0] [0.0] 33800
28 28.8 0.0 43.3 48.5 32.1 117 [53.0, 20.0] [0.0] 34936
29 46.3 0.0 45.4 49.7 34.9 0 [48.0] [0.0] 27198
30 41.5 0.0 44.2 49.5 30.9 36 [16.0, 43.0] [0.0] 28138
32 34.3 0.0 44.6 50.7 31.4 155 [34.0, 51.0] [0.0] 32444
33 44.0 0.0 45.5 49.4 34.7 0 [51.0] [0.0] 28731
34 54.7 0.0 45.6 49.0 38.1 0 [27.0] [0.0] 16775
35 44.3 0.0 45.4 49.6 34.6 206 [38.0, 41.0] [0.0] 20221
36 44.6 0.0 46.3 50.5 36.9 0 [14.0] [0.0] 24741
37 44.9 0.0 45.9 50.4 35.7 0 [47.0] [0.0] 28603
38 7.0 0.0 38.0 40.7 34.6 0 [17.0] [0.0] 2004
41 45.3 0.0 46.1 50.2 37.1 0 [19.0] [0.0] 27122
42 45.4 0.0 45.5 49.6 31.2 0 [23.0] [0.0] 27026
43 32.2 0.0 43.3 48.8 29.6 203 [13.0, 53.0] [0.0] 33052
44 33.0 0.0 43.6 48.7 35.4 115 [53.0, 29.0] [0.0] 18792
45 35.5 0.0 45.3 49.9 21.7 222 [19.0, 45.0] [0.0] 22111
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 40.0 0.0 44.0 48.1 33.5 165 [44.0, 24.0] [0.0] 26916
12 40.5 0.0 44.0 48.8 34.8 139 [22.0, 38.0] [0.0] 17730
14 44.3 0.0 45.3 49.1 34.6 0 [42.0] [0.0] 28378
19 30.0 0.0 44.4 49.6 34.1 215 [18.0, 46.0, 19.0] [0.0] 26446
20 29.9 0.0 44.2 48.7 36.1 10 [52.0, 32.0] [0.0] 34116
21 48.1 0.0 45.6 49.5 35.7 209 [43.0, 52.0] [0.0] 17567
22 24.3 0.0 43.2 48.3 35.5 194 [19.0, 15.0, 39.0] [0.0] 22259
23 45.8 0.0 45.7 49.8 35.0 0 [53.0] [0.0] 26134
24 24.1 0.0 43.1 48.6 32.9 163 [28.0, 24.0] [0.0] 27826
25 39.7 0.0 44.7 49.1 34.8 210 [25.0, 50.0] [0.0] 23002
26 22.2 0.0 42.4 46.9 32.7 99 [53.0, 43.0] [0.0] 28763
27 30.9 0.0 43.5 49.1 23.6 205 [21.0, 16.0] [0.0] 33839
28 28.8 0.0 43.2 47.6 35.0 77 [36.0, 21.0] [0.0] 34911
29 46.3 0.0 45.6 49.0 34.3 0 [51.0] [0.0] 27196
30 41.4 0.0 44.3 49.1 33.2 15 [51.0, 48.0] [0.0] 28167
32 34.3 0.0 44.5 49.9 35.3 209 [20.0, 47.0] [0.0] 32451
33 44.0 0.0 45.2 48.8 33.5 0 [35.0] [0.0] 28723
34 54.7 0.0 45.0 48.3 35.3 0 [21.0] [0.0] 16773
35 44.3 0.0 44.8 48.9 32.6 233 [42.0, 41.0] [0.0] 20225
36 44.6 0.0 46.0 50.0 35.5 0 [14.0] [0.0] 24715
37 44.9 0.0 45.9 49.6 19.0 0 [42.0] [0.0] 28589
38 7.0 0.0 39.7 41.5 37.1 0 [17.0] [0.0] 1976
41 45.3 0.0 45.6 49.6 37.2 0 [18.0] [0.0] 27127
42 45.5 0.0 45.5 49.1 30.5 7 [41.0] [0.0] 26990
43 32.2 0.0 43.1 48.5 28.5 126 [40.0, 49.0] [0.0] 33024
44 33.1 0.0 42.8 48.1 31.5 121 [53.0, 29.0] [0.0] 18758
45 35.4 0.0 45.7 49.6 36.8 104 [18.0, 46.0] [0.0] 22186
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 40.1 0.0 3.3 -5.0 [43.0, 44.0, 22.0, 24.0] 26824
12 40.5 0.6 4.2 -3.8 [36.0, 22.0, 38.0] 17728
14 44.8 0.1 3.6 -3.9 [50.0, 42.0] 27980
19 30.0 0.2 7.9 -3.8 [18.0, 50.0, 46.0, 19.0] 26441
20 29.9 -0.0 4.0 -8.2 [48.0, 52.0, 26.0, 32.0] 34062
21 48.1 -0.0 2.6 -5.3 [41.0, 43.0, 50.0, 52.0] 17563
22 24.3 0.1 5.2 -6.2 [26.0, 19.0, 15.0, 51.0, 39.0] 22249
23 45.8 0.1 4.0 -3.7 [49.0, 53.0] 26133
24 24.1 0.3 5.7 -4.3 [25.0, 28.0, 24.0] 27826
25 39.7 0.4 4.9 -4.0 [47.0, 25.0, 52.0, 50.0] 22989
26 22.2 -0.3 3.9 -7.5 [49.0, 53.0, 44.0, 43.0] 28763
27 30.9 0.2 12.2 -3.5 [27.0, 21.0, 16.0] 33800
28 28.8 0.1 4.4 -5.8 [53.0, 36.0, 20.0, 21.0] 34899
29 46.3 -0.1 2.8 -4.1 [48.0, 51.0] 27196
30 41.5 -0.1 4.9 -7.7 [16.0, 51.0, 43.0, 48.0] 28138
32 34.3 0.1 4.5 -7.2 [34.0, 20.0, 51.0, 47.0] 32436
33 44.0 0.3 5.9 -3.5 [51.0, 35.0] 28723
34 54.7 0.6 5.1 -3.5 [27.0, 21.0] 16771
35 44.3 0.6 6.0 -3.4 [38.0, 42.0, 41.0] 20219
36 44.6 0.3 4.0 -4.2 [14.0] 24710
37 44.9 -0.0 22.3 -3.6 [47.0, 42.0] 28589
38 7.0 -1.7 0.9 -4.7 [17.0] 1976
41 45.3 0.5 4.0 -3.8 [19.0, 18.0] 27122
42 45.5 0.1 4.4 -5.0 [23.0, 41.0] 26988
43 32.2 0.1 7.5 -3.9 [13.0, 40.0, 53.0, 49.0] 33015
44 33.1 0.9 5.5 -2.6 [53.0, 29.0] 18756
45 35.5 -0.4 5.0 -18.3 [19.0, 18.0, 45.0, 46.0] 22110
