REF File: 240801/BX_all.T04
DUT File: 240801/EB81_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 847131 44.1 44.7 4.2 0.0 55.4 55.4 37.2 89.0
GPS L2 CM+CL 644992 44.2 44.5 3.4 17.6 52.4 34.8 38.5 89.0
GPS L2 E 201417 30.3 31.0 6.5 13.9 44.0 30.1 33.2 77.0
GPS L5/E5A I+Q 457424 47.3 47.2 2.9 19.6 53.8 34.2 37.2 88.0
GLONASS L1 CA 638700 44.3 45.1 4.9 16.8 54.8 38.0 36.2 89.0
GLONASS L1 P 636559 42.7 43.5 4.8 20.8 53.0 32.2 36.3 89.0
GLONASS L2 CA 544576 44.6 45.3 3.3 7.4 51.6 44.2 36.2 89.0
GLONASS L2 P 544529 43.0 43.6 3.2 5.3 49.4 44.1 36.2 89.0
GLONASS G3 PD 51498 44.7 45.0 2.8 32.4 50.1 17.7 39.2 80.0
Galileo L1 MBOC-PD 672241 45.4 45.5 3.9 0.0 53.5 53.5 37.4 87.0
Galileo L5/E5A BPSK(10)-PD 672279 44.9 45.1 2.8 17.7 51.3 33.6 37.4 87.0
Galileo E5B/B2 BPSK(10)-PD 672280 45.7 46.0 2.9 21.2 51.6 30.4 37.4 87.0
Galileo E5A+B AltBOC-Comp-PD 672282 48.0 48.2 2.4 32.3 53.3 21.0 37.4 87.0
Galileo E6 BPSK(5)-PD 672121 46.8 47.0 3.6 20.9 53.4 32.5 37.4 87.0
BeiDou L1 BOC-PD 641844 45.6 46.0 3.9 18.7 53.2 34.5 36.8 87.0
BeiDou L5/E5A I+Q 641843 45.7 45.8 2.8 22.8 52.8 30.0 36.8 87.0
BeiDou E5B/B2 BPSK(2)-B2 70522 46.2 46.8 2.3 32.4 50.3 17.9 42.5 86.0
BeiDou B1 BPSK(2)-B1 712447 45.5 45.9 3.6 20.5 53.9 33.4 37.3 87.0
BeiDou B3 BPSK(10)-B3 712355 44.5 44.9 2.9 19.3 50.5 31.2 37.3 87.0
start/stop time: 311,120 402,295
Total time: 91,175.0 seconds
Total time: 1,519.583 minutes
Total time: 25.326 hours
Total Samples: 10,707,040
Avg Samples/sec: 117.4

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 311120.125
Stop Time : 399600.29
Total Hours : 24.577823611111107
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 846721 44.1 44.6 3.9 22.1 54.4 32.3 37.2 89.0
GPS L2 CM+CL 644491 43.6 44.1 3.6 19.7 52.0 32.3 38.5 89.0
GPS L2 E 201394 29.7 30.3 6.3 12.6 43.7 31.1 33.2 77.0
GPS L5/E5A I+Q 457057 47.3 47.5 3.1 25.3 54.1 28.8 37.2 88.0
GLONASS L1 CA 638435 43.7 44.5 4.8 19.7 53.2 33.5 36.2 89.0
GLONASS L2 CA 544158 44.3 45.0 3.3 3.8 51.1 47.3 36.2 89.0
Galileo L1 MBOC-PD 672970 45.3 45.6 3.6 29.1 53.0 23.9 37.4 87.0
Galileo E5A+B AltBOC-Comp-PD 672970 47.7 48.0 2.6 30.5 52.5 22.0 37.4 87.0
BeiDou L5/E5A I+Q 641827 45.7 46.0 2.9 16.9 52.1 35.2 36.8 87.0
BeiDou E5B/B2 BPSK(2)-B2 70509 45.8 46.8 2.5 31.4 50.0 18.6 42.5 86.0
BeiDou B1 BPSK(2)-B1 712375 45.7 46.1 3.6 24.1 53.8 29.7 37.3 87.0
BeiDou B3 BPSK(10)-B3 712271 44.2 44.7 3.2 17.8 50.0 32.2 37.3 87.0
start/stop time: 311,124 402,291
Total time: 91,167.0 seconds
Total time: 1,519.450 minutes
Total time: 25.324 hours
Total Samples: 6,815,178
Avg Samples/sec: 74.8

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 311124.105
Stop Time : 401570.576
Total Hours : 25.12401972222223
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 846160 +0.0 +0.1 +1.9 -38.6 +14.6 +53.2 +37.2 +89.0
GPS L2 CM+CL 644144 +0.5 +0.5 +1.6 -20.4 +16.4 +36.8 +38.5 +89.0
GPS L2 E 200470 +0.6 +0.7 +1.8 -11.3 +10.4 +21.7 +33.3 +77.0
GPS L5/E5A I+Q 456795 +0.0 +0.0 +1.4 -24.6 +12.8 +37.4 +37.2 +88.0
GLONASS L1 CA 637082 +0.6 +0.7 +1.7 -18.9 +14.8 +33.7 +36.3 +89.0
GLONASS L2 CA 543337 +0.4 +0.4 +1.6 -20.0 +19.6 +39.6 +36.3 +89.0
Galileo L1 MBOC-PD 671775 +0.0 +0.1 +1.6 -39.4 +11.1 +50.5 +37.4 +87.0
Galileo E5A+B AltBOC-Comp-PD 671816 +0.2 +0.2 +0.9 -9.1 +10.8 +19.9 +37.4 +87.0
BeiDou L5/E5A I+Q 641377 -0.0 +0.0 +1.3 -20.6 +18.3 +38.9 +36.8 +87.0
BeiDou E5B/B2 BPSK(2)-B2 70459 +0.4 +0.3 +1.3 -8.9 +8.5 +17.4 +42.5 +86.0
BeiDou B1 BPSK(2)-B1 711905 -0.2 -0.1 +1.7 -17.4 +13.9 +31.3 +37.3 +87.0
BeiDou B3 BPSK(10)-B3 711765 +0.3 +0.3 +1.4 -19.1 +19.0 +38.1 +37.4 +87.0
start/stop time: 311,124 402,291
Total time: 91,167.0 seconds
Total time: 1,519.450 minutes
Total time: 25.324 hours
Total Samples: 6,807,085
Avg Samples/sec: 74.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.196
Median = 0.200
Std Dev= 1.568

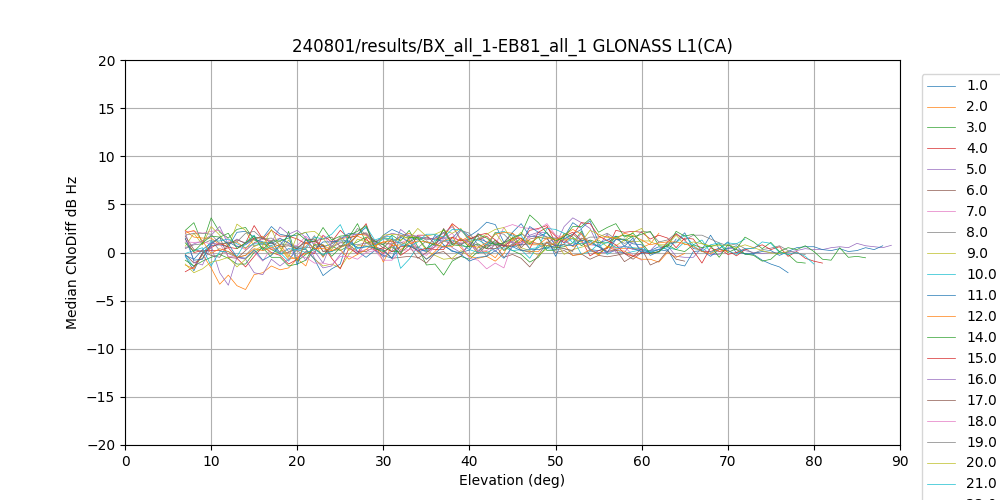

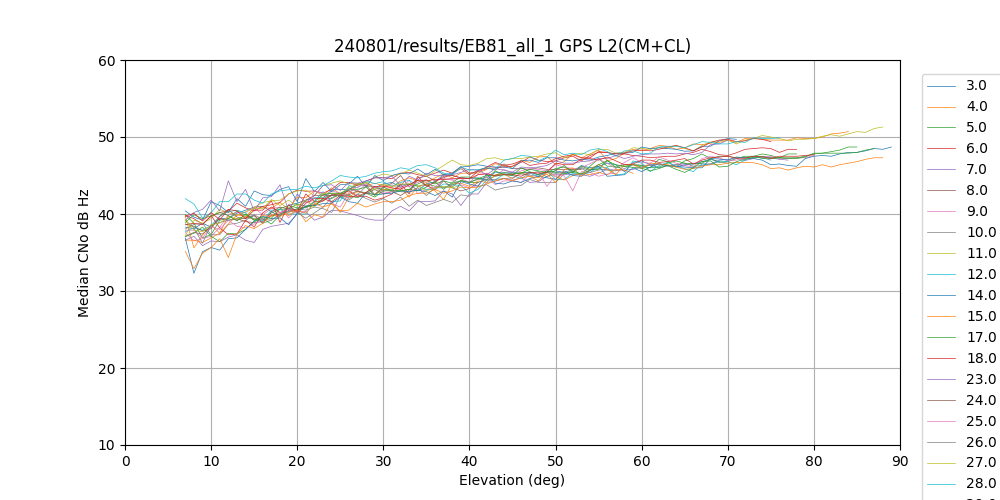

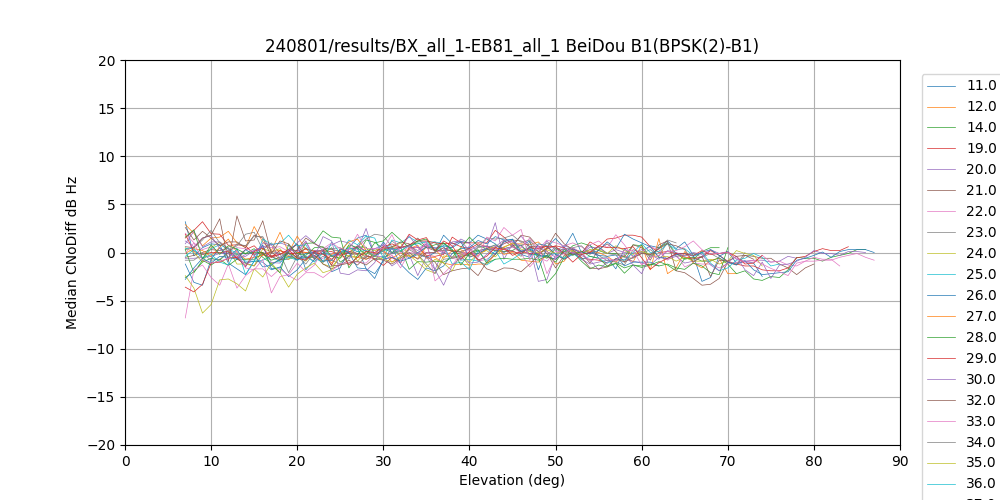

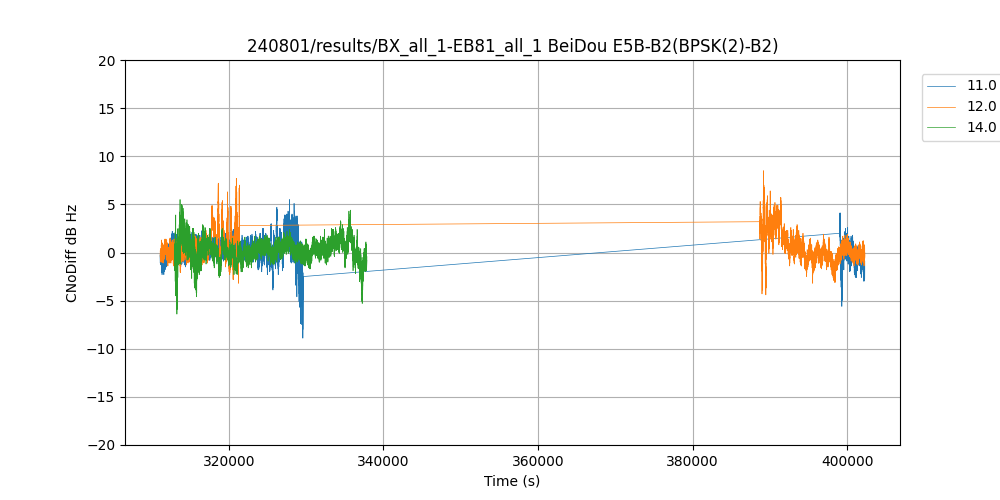

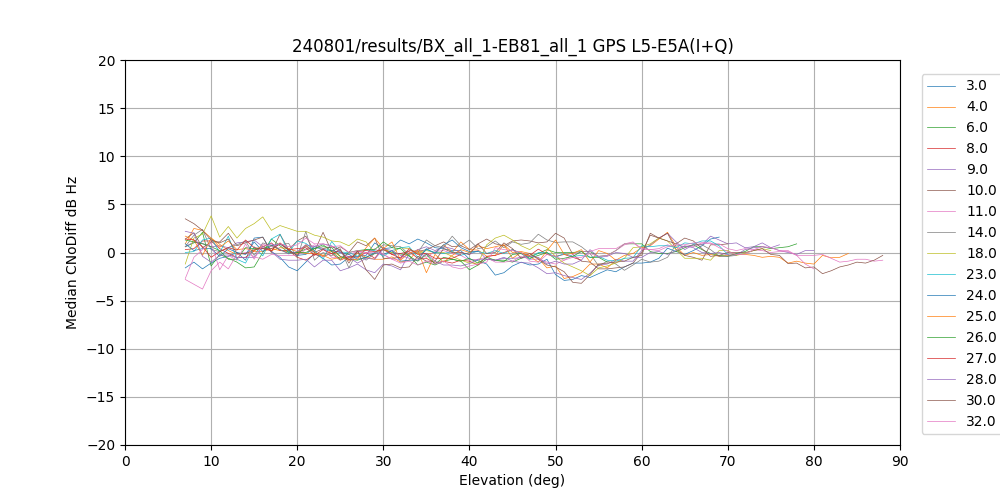

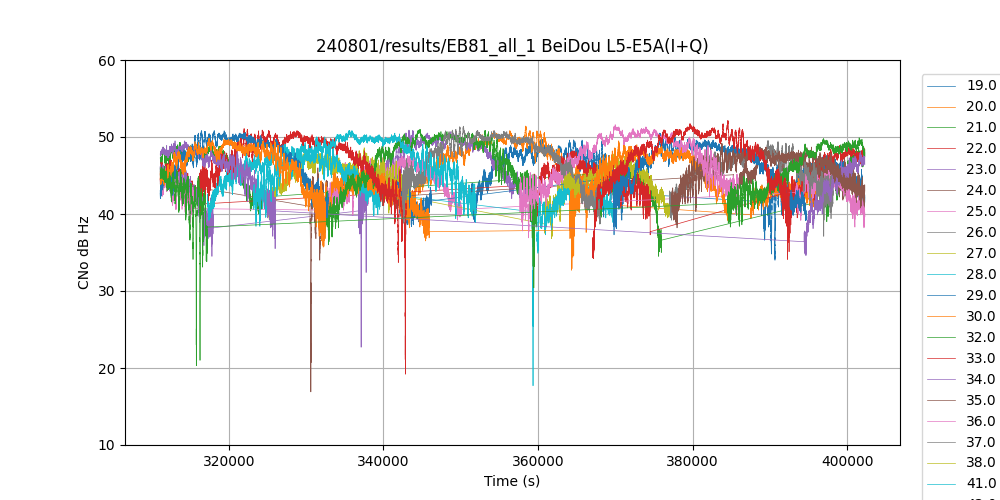

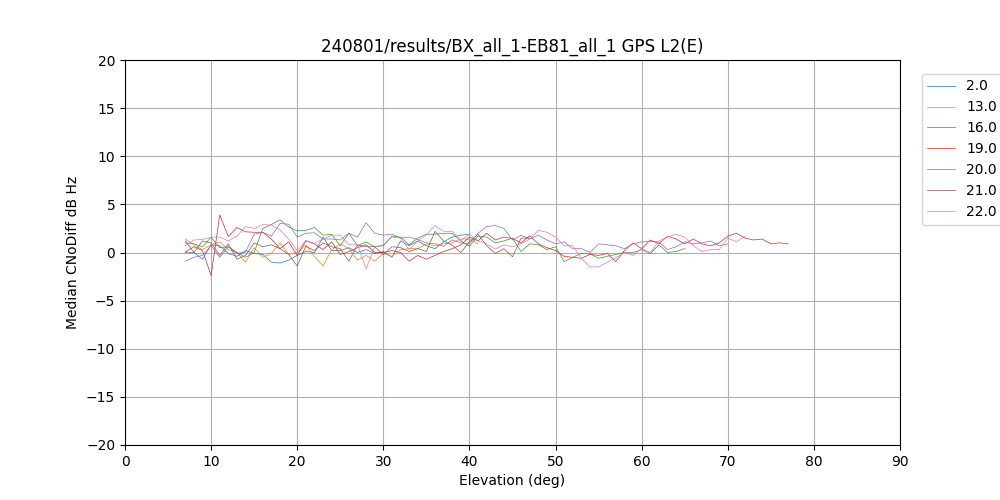

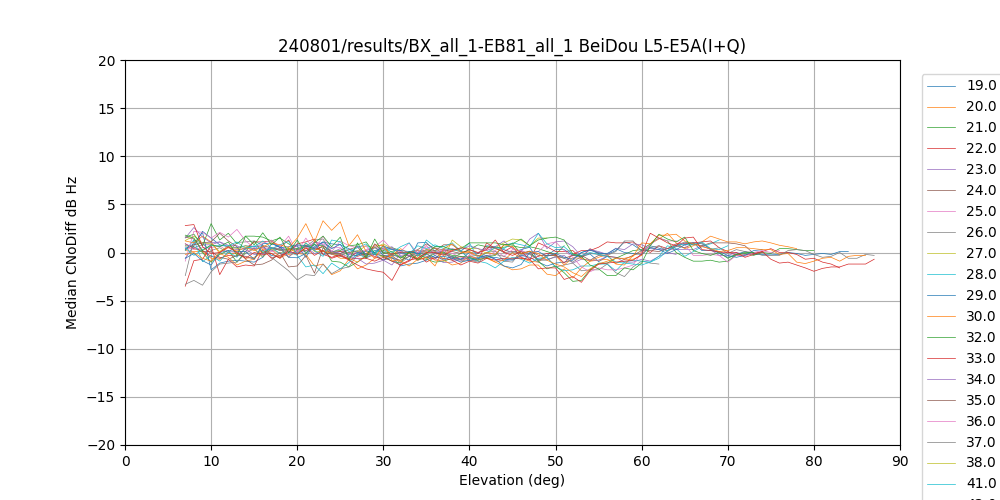

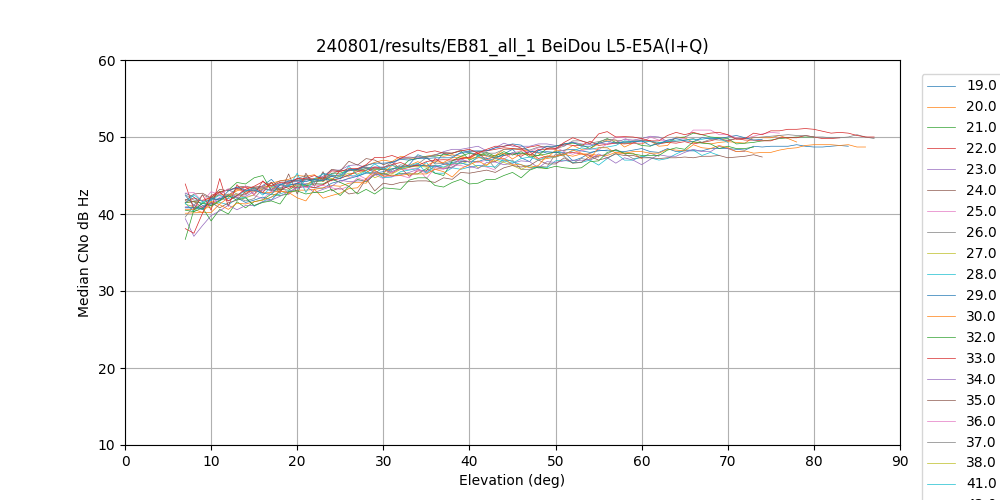

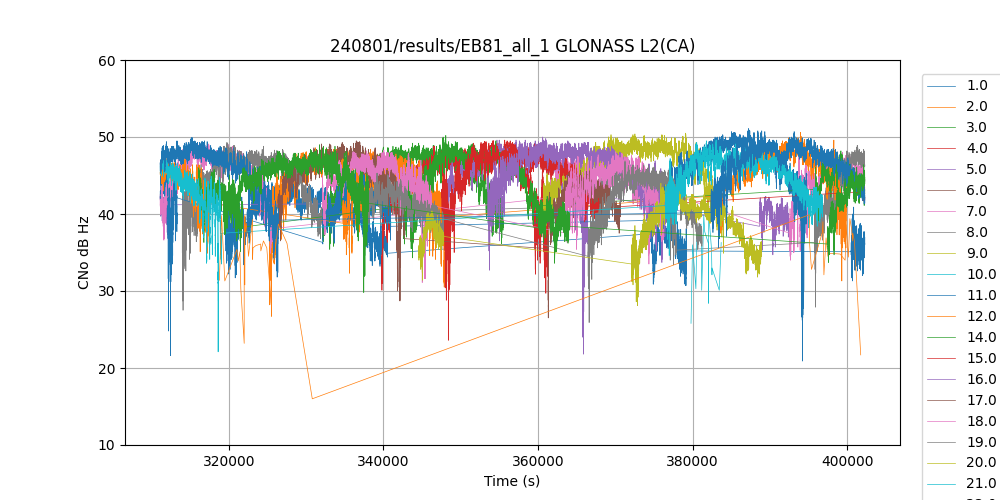

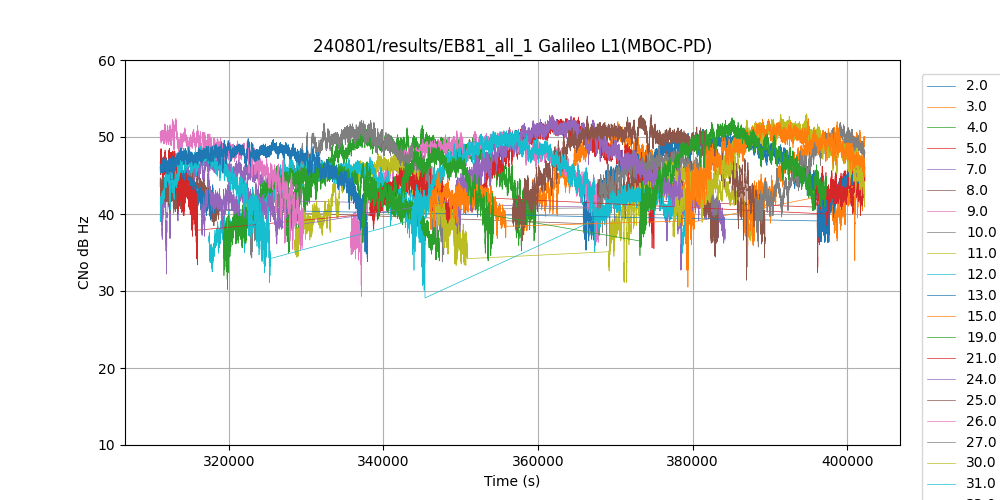

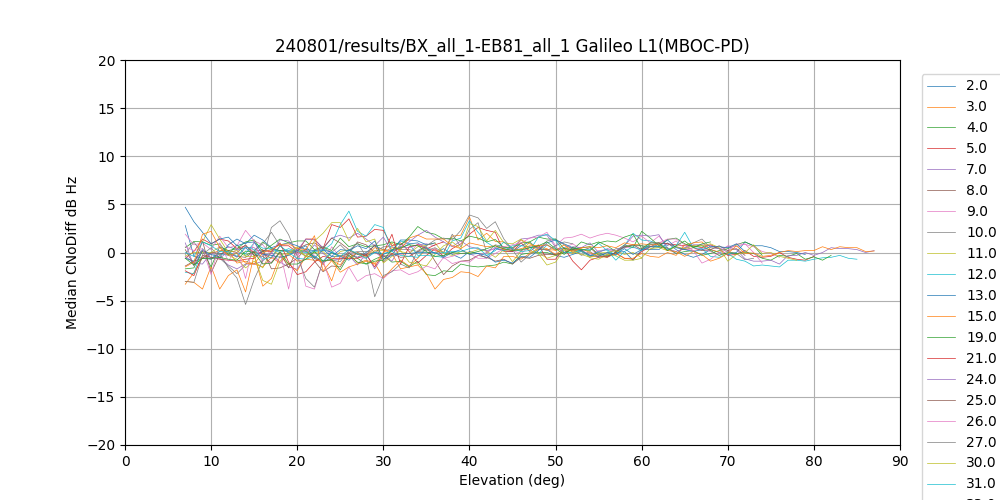

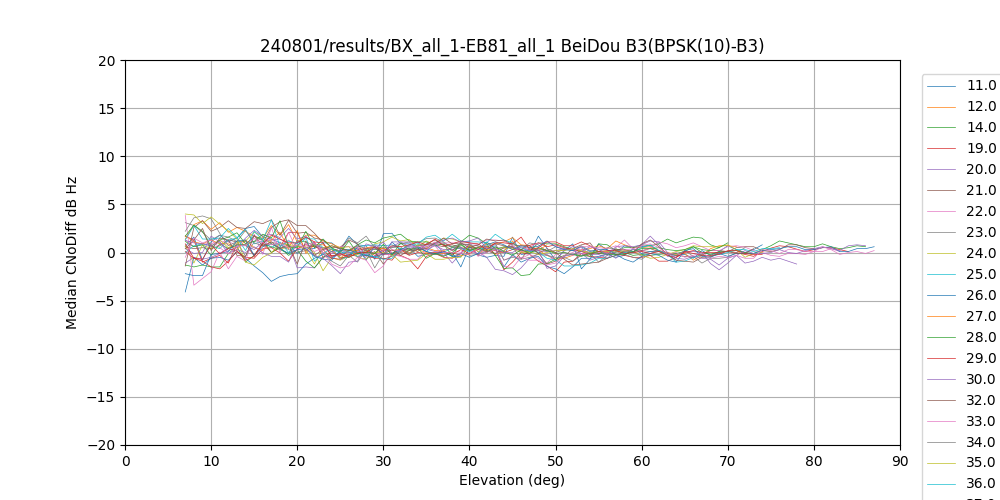

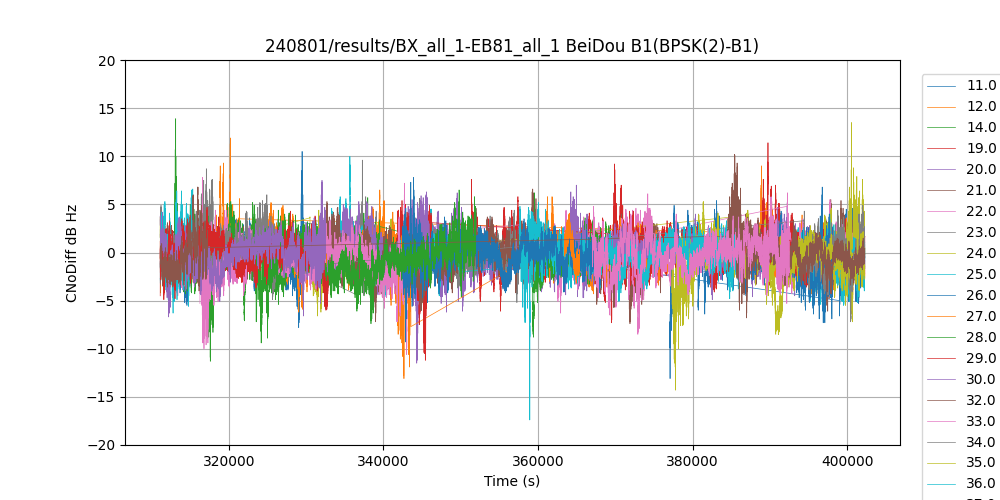

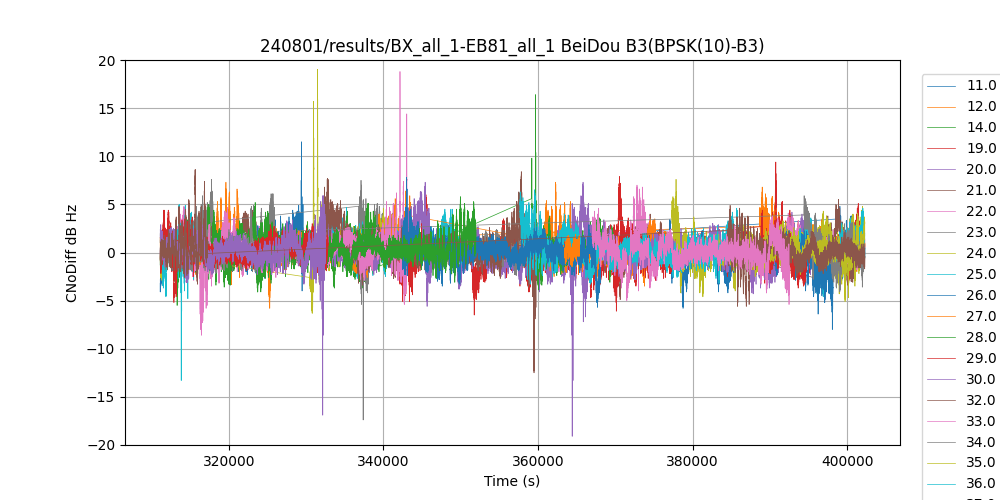

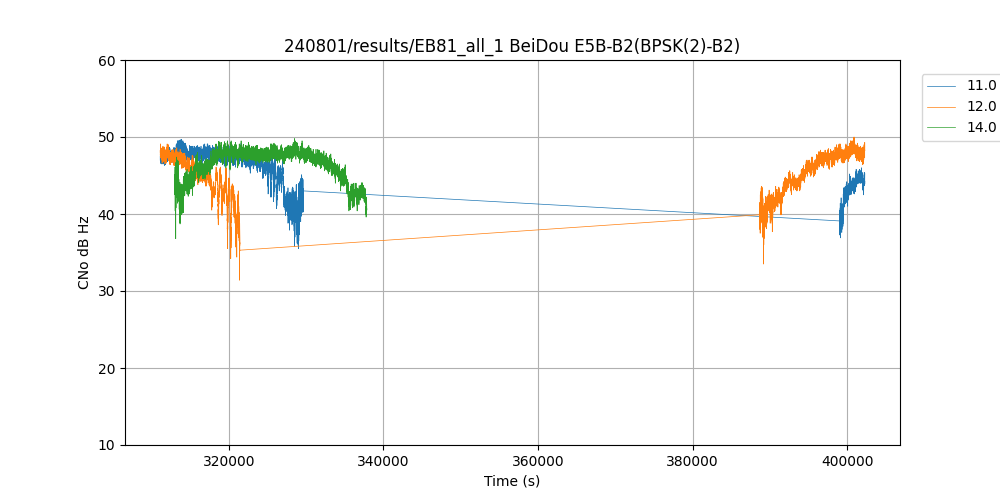

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.5 49.0 30.3 186 [74.0, 89.0] [1.0] 30524
3 32.7 0.0 43.4 52.1 20.7 132 [93.0, 94.0] [1.0] 27049
4 45.4 0.0 44.9 51.1 34.1 0 [95.0] [1.0] 23852
5 45.9 0.0 45.8 51.1 0.0 382 [73.0, 89.0, 75.0] [1.0] 27981
6 37.6 0.0 43.8 52.7 18.9 640 [83.0, 91.0, 86.0] [1.0] 25163
7 45.1 0.0 45.9 52.7 27.5 1 [90.0] [1.0] 25501
8 27.3 0.0 42.5 50.3 27.3 42 [95.0, 81.0] [1.0] 29176
9 44.0 0.0 45.3 52.9 31.6 2 [94.0] [1.0] 21431
10 43.5 0.0 46.7 55.3 0.0 81 [92.0] [1.0] 25757
11 43.8 0.0 45.9 53.3 31.9 45 [93.0, 92.0] [1.0] 28307
12 36.5 0.0 44.5 51.4 31.3 241 [95.0, 89.0] [1.0] 29257
13 25.4 0.0 41.9 49.1 24.6 401 [91.0, 76.0, 86.0] [1.0] 32768
14 44.1 0.0 44.8 51.3 29.1 1 [85.0] [1.0] 25738
15 27.8 0.0 43.5 51.1 31.4 221 [88.0, 83.0, 82.0] [1.0] 30608
16 31.3 0.0 42.5 50.5 26.7 153 [95.0, 84.0] [1.0] 27058
17 45.7 0.0 46.4 52.8 31.6 0 [95.0] [1.0] 24086
18 40.3 0.0 44.5 51.1 29.2 121 [84.0, 91.0] [1.0] 29964
19 44.6 0.0 45.1 51.9 33.8 0 [91.0] [1.0] 24589
20 37.7 0.0 44.4 51.6 24.5 342 [85.0, 78.0, 80.0] [1.0] 31057
21 26.6 0.0 42.0 49.3 26.6 180 [77.0, 78.0] [1.0] 30248
22 44.4 0.0 45.2 51.8 10.5 69 [84.0] [1.0] 25991
23 43.3 0.0 44.1 52.0 24.3 219 [87.0, 72.0] [1.0] 25677
24 25.6 0.0 40.5 48.6 23.8 82 [85.0, 87.0] [1.0] 29799
25 31.1 0.0 42.2 49.6 25.5 208 [92.0, 94.0, 78.0] [1.0] 33556
26 26.8 0.0 42.1 51.0 30.5 278 [82.0, 87.0, 93.0] [1.0] 30618
27 26.2 0.0 41.9 49.2 25.3 112 [86.0, 91.0] [1.0] 29886
28 39.8 0.0 44.0 51.2 24.3 305 [75.0, 87.0] [1.0] 23128
29 48.1 0.0 46.1 51.6 33.0 126 [72.0, 74.0] [1.0] 27748
30 45.8 0.0 46.0 53.0 31.6 1 [80.0] [1.0] 23673
31 45.3 0.0 46.4 52.5 33.0 0 [73.0] [1.0] 22310
32 45.3 0.0 47.6 55.4 28.9 3 [78.0] [1.0] 24631

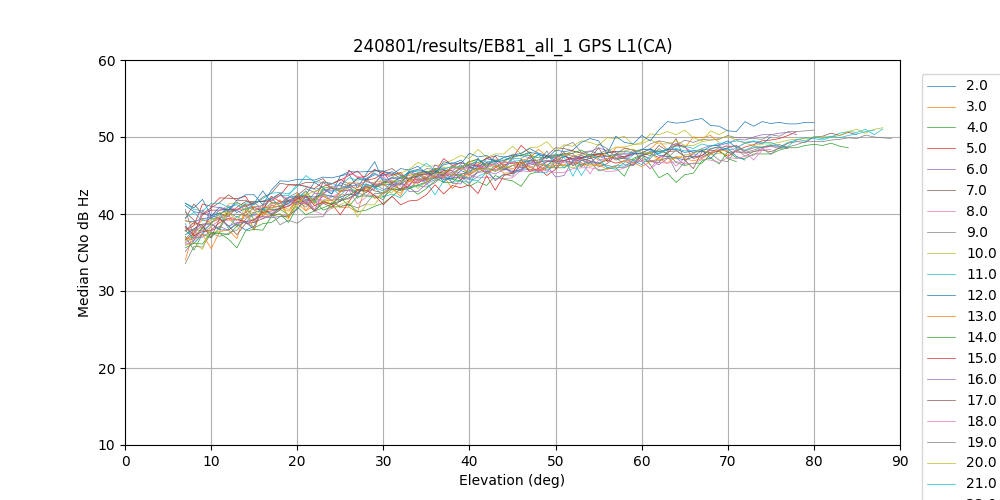

DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 48.8 26.3 33 [75.0, 94.0] [1.0] 30507
3 32.7 0.0 43.6 51.8 31.8 203 [89.0, 91.0] [1.0] 27095
4 45.4 0.0 44.2 50.9 30.4 2 [95.0] [1.0] 23801
5 45.8 0.0 45.7 51.9 25.7 490 [87.0, 94.0, 75.0] [1.0] 28029
6 37.6 0.0 43.9 52.3 28.3 300 [82.0, 87.0, 81.0] [1.0] 25151
7 45.1 0.0 45.8 51.5 32.2 0 [86.0] [1.0] 25505
8 27.4 0.0 42.2 49.6 29.2 15 [95.0, 79.0] [1.0] 29169
9 44.1 0.0 45.0 52.5 29.4 5 [91.0] [1.0] 21405
10 43.4 0.0 46.5 53.2 24.0 18 [88.0] [1.0] 25803
11 43.8 0.0 45.3 52.2 26.5 223 [92.0, 90.0] [1.0] 28304
12 36.5 0.0 44.7 51.4 24.1 288 [85.0, 95.0, 88.0] [1.0] 29259
13 25.4 0.0 42.5 49.5 22.1 134 [91.0, 76.0, 84.0] [1.0] 32769
14 44.2 0.0 44.9 51.1 25.9 15 [77.0] [1.0] 25699
15 27.9 0.0 43.4 49.6 31.2 213 [84.0, 82.0, 81.0] [1.0] 30534
16 31.3 0.0 42.4 49.3 29.9 69 [95.0, 93.0] [1.0] 27061
17 45.7 0.0 46.0 52.2 32.8 1 [95.0] [1.0] 24093
18 40.3 0.0 44.2 50.7 33.0 154 [90.0, 87.0] [1.0] 29952
19 44.6 0.0 44.9 51.3 28.9 1 [87.0] [1.0] 24607
20 37.7 0.0 43.8 49.8 26.6 145 [78.0, 90.0, 82.0] [1.0] 31017
21 26.6 0.0 42.5 49.9 27.4 76 [78.0, 88.0] [1.0] 30246
22 44.4 0.0 45.1 50.8 28.9 0 [93.0] [1.0] 26002
23 43.3 0.0 44.6 50.8 26.5 77 [80.0, 71.0] [1.0] 25713
24 25.6 0.0 41.3 48.1 31.2 13 [85.0] [1.0] 29805
25 31.2 0.0 42.7 50.2 24.3 325 [86.0, 80.0] [1.0] 33399
26 26.8 0.0 42.1 50.3 31.4 324 [81.0, 85.0, 89.0] [1.0] 30585
27 26.1 0.0 42.3 48.9 23.8 291 [86.0, 87.0] [1.0] 29910
28 39.9 0.0 44.0 50.3 23.9 224 [76.0, 85.0] [1.0] 22999
29 48.1 0.0 45.6 51.9 33.8 180 [72.0, 74.0] [1.0] 27718
30 45.9 0.0 45.5 52.3 31.3 0 [78.0] [1.0] 23644
31 45.3 0.0 46.1 52.3 31.2 0 [90.0] [1.0] 22313
32 45.3 0.0 47.5 54.4 29.4 2 [87.0] [1.0] 24627

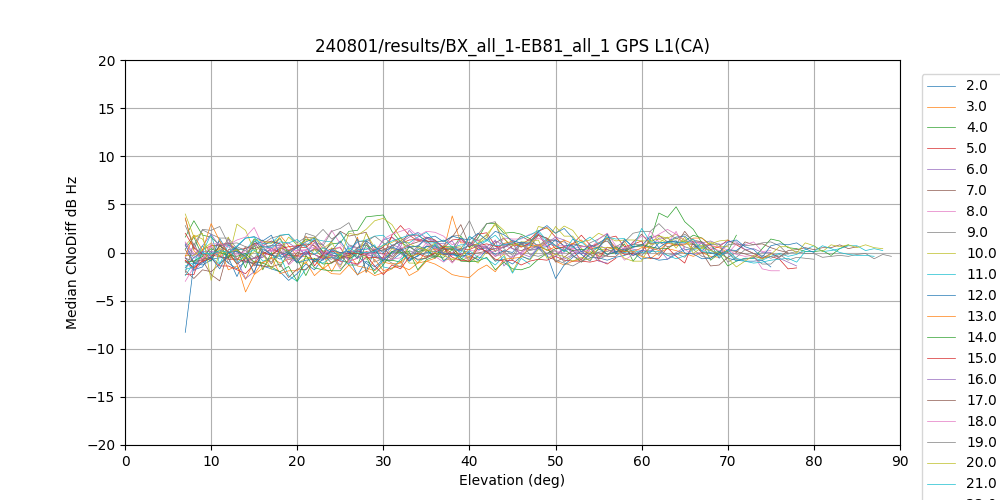

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.6 9.5 -10.3 [74.0, 75.0, 89.0, 94.0] 30483
3 32.7 -0.2 9.6 -17.7 [93.0, 89.0, 94.0, 91.0] 27036
4 45.5 0.7 8.8 -4.3 [95.0] 23791
5 45.9 0.1 12.0 -37.6 [73.0, 87.0, 89.0, 94.0, 75.0] 27937
6 37.7 -0.0 7.7 -16.1 [83.0, 82.0, 91.0, 87.0, 86.0, 81.0] 25123
7 45.1 0.1 5.0 -12.6 [90.0, 86.0] 25482
8 27.4 0.3 8.4 -10.2 [95.0, 81.0, 79.0] 29158
9 44.1 0.3 9.2 -5.5 [94.0, 91.0] 21405
10 43.5 0.2 10.7 -38.6 [92.0, 88.0] 25757
11 43.8 0.6 14.6 -7.5 [93.0, 92.0, 90.0] 28299
12 36.5 -0.2 11.1 -8.8 [95.0, 85.0, 89.0, 88.0] 29241
13 25.4 -0.6 12.3 -12.9 [91.0, 76.0, 86.0, 84.0] 32756
14 44.2 -0.1 9.0 -8.2 [85.0, 77.0] 25699
15 27.9 0.1 9.1 -9.1 [88.0, 84.0, 83.0, 82.0, 81.0] 30534
16 31.3 0.1 7.7 -9.8 [95.0, 84.0, 93.0] 27048
17 45.7 0.4 6.2 -9.8 [95.0] 24086
18 40.3 0.3 5.6 -6.0 [84.0, 90.0, 91.0, 87.0] 29952
19 44.6 0.2 7.5 -5.9 [91.0, 87.0] 24589
20 37.7 0.7 11.4 -8.9 [85.0, 78.0, 90.0, 80.0, 82.0] 31002
21 26.6 -0.5 9.5 -10.5 [77.0, 78.0, 88.0] 30229
22 44.5 0.1 6.7 -22.6 [84.0, 93.0] 25984
23 43.4 -0.5 10.9 -13.7 [87.0, 80.0, 72.0, 71.0] 25673
24 25.7 -0.8 5.3 -13.8 [85.0, 87.0] 29775
25 31.2 -0.4 10.3 -9.2 [92.0, 86.0, 94.0, 78.0, 80.0] 33386
26 26.8 0.0 8.1 -9.5 [82.0, 81.0, 87.0, 85.0, 93.0, 89.0] 30573
27 26.2 -0.4 8.9 -9.2 [86.0, 91.0, 87.0] 29886
28 39.9 0.1 8.2 -13.8 [75.0, 76.0, 87.0, 85.0] 22996
29 48.1 0.5 8.3 -7.2 [72.0, 74.0] 27718
30 45.9 0.5 7.2 -5.5 [80.0, 78.0] 23644
31 45.3 0.3 9.4 -6.7 [73.0, 90.0] 22291
32 45.3 0.2 9.8 -12.4 [78.0, 87.0] 24627
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 37.6 14.8 163 [74.0, 89.0] [1.0] 30524
13 25.4 0.0 26.8 35.8 13.9 302 [91.0, 76.0, 86.0] [1.0] 32694
16 31.4 0.0 28.7 39.8 14.8 116 [95.0, 84.0] [1.0] 26885
19 44.7 0.0 35.2 44.0 14.8 1 [91.0] [1.0] 24532
20 38.0 0.0 31.5 41.0 13.9 178 [85.0, 78.0, 80.0] [1.0] 30714
21 26.7 0.0 28.1 38.3 13.9 94 [77.0, 78.0] [1.0] 30172
22 44.6 0.0 33.1 41.6 14.8 8 [84.0] [1.0] 25895
27 20.0 0.0 24.7 24.7 24.7 0 [86.0] [1.0] 1
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 29.7 36.0 16.3 239 [75.0, 94.0] [1.0] 30498
13 25.4 0.0 26.4 35.3 14.8 262 [91.0, 76.0, 84.0] [1.0] 32738
16 32.0 0.0 28.3 39.6 12.6 165 [95.0, 93.0] [1.0] 26273
19 44.6 0.0 34.5 43.7 12.6 1 [87.0] [1.0] 24607
20 37.7 0.0 30.5 40.1 12.6 55 [78.0, 90.0, 82.0] [1.0] 31017
21 26.6 0.0 27.6 37.3 13.9 118 [78.0, 88.0] [1.0] 30246
22 44.4 0.0 32.1 40.3 14.8 2 [93.0] [1.0] 26002
32 8.0 0.0 17.6 20.4 13.9 0 [87.0] [1.0] 13

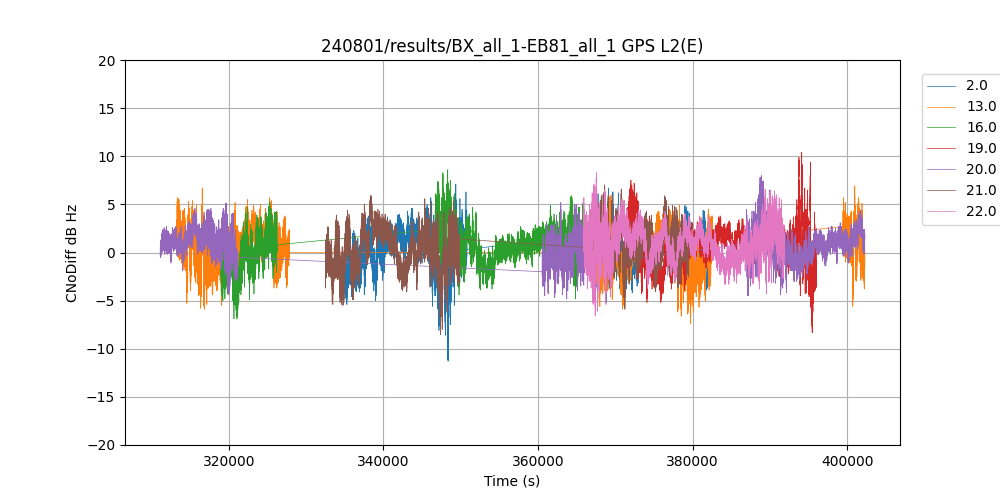

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.4 7.1 -11.3 [74.0, 75.0, 89.0, 94.0] 30474
13 25.4 0.3 6.9 -7.4 [91.0, 76.0, 86.0, 84.0] 32654
16 32.1 0.6 8.6 -6.9 [95.0, 84.0, 93.0] 26098
19 44.7 0.6 10.4 -8.3 [91.0, 87.0] 24532
20 38.0 0.8 8.0 -4.8 [85.0, 78.0, 90.0, 80.0, 82.0] 30671
21 26.7 0.5 7.6 -8.5 [77.0, 78.0, 88.0] 30153
22 44.6 0.9 8.3 -6.6 [84.0, 93.0] 25888
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.4 32.6 158 [93.0, 94.0] [1.0] 27041
4 45.4 0.0 45.9 52.3 31.6 0 [95.0] [1.0] 23852
5 45.8 0.0 44.8 49.5 21.7 242 [73.0, 89.0, 75.0] [1.0] 28073
6 37.6 0.0 44.8 50.0 26.2 61 [83.0, 91.0, 86.0] [1.0] 25163
7 45.1 0.0 44.2 49.6 33.6 0 [90.0] [1.0] 25501
8 27.3 0.0 42.8 48.0 25.2 139 [95.0, 81.0] [1.0] 29176
9 44.0 0.0 43.9 49.2 22.9 3 [94.0] [1.0] 21431
10 43.5 0.0 44.4 48.5 31.8 0 [92.0] [1.0] 25785
11 43.8 0.0 46.6 52.4 34.5 144 [93.0, 92.0] [1.0] 28307
12 36.5 0.0 43.2 49.1 33.1 60 [95.0, 89.0] [1.0] 29257
14 44.1 0.0 46.6 51.4 33.7 0 [85.0] [1.0] 25738
15 27.8 0.0 41.9 48.3 28.1 161 [88.0, 83.0, 82.0] [1.0] 30608
17 45.7 0.0 44.4 50.7 20.9 9 [95.0] [1.0] 24086
18 40.3 0.0 45.9 51.8 35.5 243 [84.0, 91.0] [1.0] 29964
23 43.3 0.0 46.4 51.1 30.7 165 [87.0, 72.0] [1.0] 25677
24 25.6 0.0 42.5 47.3 28.3 22 [85.0, 87.0] [1.0] 29799
25 31.1 0.0 42.3 47.6 27.2 330 [92.0, 94.0, 78.0] [1.0] 33556
26 26.8 0.0 41.6 47.4 21.8 162 [82.0, 87.0, 93.0] [1.0] 30618
27 26.2 0.0 42.7 47.3 17.6 299 [86.0, 91.0] [1.0] 29870
28 39.8 0.0 46.3 51.5 26.1 24 [75.0, 87.0] [1.0] 23128
29 48.1 0.0 44.2 50.2 31.6 130 [72.0, 74.0] [1.0] 27748
30 45.8 0.0 43.7 49.1 31.8 0 [80.0] [1.0] 23673
31 45.3 0.0 44.8 50.0 34.5 0 [73.0] [1.0] 22310
32 45.3 0.0 45.0 50.3 27.3 1 [78.0] [1.0] 24631
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 48.7 33.3 5 [89.0, 91.0] [1.0] 27095
4 45.4 0.0 45.6 51.9 32.4 0 [95.0] [1.0] 23801
5 45.8 0.0 44.3 49.3 29.0 154 [87.0, 94.0, 75.0] [1.0] 28029
6 37.6 0.0 44.3 50.5 30.6 304 [82.0, 87.0, 81.0] [1.0] 25151
7 45.1 0.0 43.2 48.8 32.1 0 [86.0] [1.0] 25505
8 27.4 0.0 42.1 47.7 29.0 33 [95.0, 79.0] [1.0] 29169
9 44.1 0.0 44.2 49.1 28.1 1 [91.0] [1.0] 21401
10 43.4 0.0 43.6 48.2 32.7 0 [88.0] [1.0] 25803
11 43.8 0.0 46.2 52.0 34.1 52 [92.0, 90.0] [1.0] 28304
12 36.5 0.0 43.0 49.0 21.0 315 [85.0, 95.0, 88.0] [1.0] 29259
14 44.2 0.0 46.1 51.1 31.4 0 [77.0] [1.0] 25698
15 27.9 0.0 41.2 47.3 23.2 384 [84.0, 82.0, 81.0] [1.0] 30534
17 45.7 0.0 44.1 49.8 30.3 0 [95.0] [1.0] 24093
18 40.3 0.0 44.6 51.3 33.2 87 [90.0, 87.0] [1.0] 29952
23 43.3 0.0 45.6 51.3 33.1 161 [80.0, 71.0] [1.0] 25713
24 25.6 0.0 41.7 46.0 31.5 6 [85.0] [1.0] 29805
25 31.2 0.0 42.0 47.8 26.0 156 [86.0, 80.0] [1.0] 33399
26 26.8 0.0 41.3 47.3 26.0 451 [81.0, 85.0, 89.0] [1.0] 30585
27 26.1 0.0 42.1 46.4 30.3 25 [86.0, 87.0] [1.0] 29910
28 39.9 0.0 45.7 51.2 28.3 96 [76.0, 85.0] [1.0] 22999
29 48.1 0.0 43.8 49.8 25.7 220 [72.0, 74.0] [1.0] 27718
30 45.9 0.0 43.2 48.5 29.9 1 [78.0] [1.0] 23644
31 45.3 0.0 44.4 49.6 32.9 0 [90.0] [1.0] 22313
32 45.3 0.0 44.6 49.4 19.7 43 [87.0] [1.0] 24611
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.8 0.0 9.3 -6.7 [93.0, 89.0, 94.0, 91.0] 27028
4 45.5 0.3 7.8 -7.1 [95.0] 23791
5 45.8 0.6 11.9 -13.1 [73.0, 87.0, 89.0, 94.0, 75.0] 28029
6 37.7 0.5 7.1 -7.8 [83.0, 82.0, 91.0, 87.0, 86.0, 81.0] 25123
7 45.1 1.0 7.9 -4.5 [90.0, 86.0] 25482
8 27.4 0.7 13.3 -10.8 [95.0, 81.0, 79.0] 29158
9 44.1 -0.3 12.0 -12.0 [94.0, 91.0] 21401
10 43.5 0.8 7.1 -8.7 [92.0, 88.0] 25785
11 43.8 0.3 7.5 -5.5 [93.0, 92.0, 90.0] 28299
12 36.5 0.2 16.4 -5.8 [95.0, 85.0, 89.0, 88.0] 29241
14 44.2 0.5 10.2 -8.3 [85.0, 77.0] 25698
15 27.9 0.8 13.0 -7.7 [88.0, 84.0, 83.0, 82.0, 81.0] 30534
17 45.7 0.3 7.0 -13.2 [95.0] 24086
18 40.3 1.3 11.5 -4.4 [84.0, 90.0, 91.0, 87.0] 29952
23 43.4 0.8 10.0 -10.2 [87.0, 80.0, 72.0, 71.0] 25673
24 25.7 0.8 7.7 -9.0 [85.0, 87.0] 29775
25 31.2 0.3 11.8 -11.1 [92.0, 86.0, 94.0, 78.0, 80.0] 33386
26 26.8 0.3 10.8 -14.5 [82.0, 81.0, 87.0, 85.0, 93.0, 89.0] 30573
27 26.2 0.6 7.6 -20.4 [86.0, 91.0, 87.0] 29870
28 39.9 0.7 7.8 -9.8 [75.0, 76.0, 87.0, 85.0] 22996
29 48.1 0.4 9.2 -5.7 [72.0, 74.0] 27718
30 45.9 0.5 7.8 -4.7 [80.0, 78.0] 23644
31 45.3 0.4 6.5 -6.4 [73.0, 90.0] 22291
32 45.3 0.4 15.6 -8.9 [78.0, 87.0] 24611
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.8 53.0 37.4 183 [93.0, 94.0] [1.0] 27041
4 45.4 0.0 47.7 53.4 38.8 0 [95.0] [1.0] 23852
6 37.6 0.0 47.8 52.9 39.4 286 [83.0, 91.0, 86.0] [1.0] 25163
8 27.3 0.0 46.0 50.5 21.2 57 [95.0, 81.0] [1.0] 29175
9 44.0 0.0 48.1 53.0 39.2 0 [94.0] [1.0] 21431
10 43.5 0.0 47.9 52.6 39.2 0 [92.0] [1.0] 25785
11 43.8 0.0 48.3 53.6 27.1 237 [93.0, 92.0] [1.0] 28307
14 44.1 0.0 48.2 52.9 40.5 0 [85.0] [1.0] 25738
18 40.3 0.0 48.0 53.7 40.2 128 [84.0, 91.0] [1.0] 29964
23 43.3 0.0 48.4 53.8 19.6 178 [87.0, 72.0] [1.0] 25677
24 25.6 0.0 46.0 49.8 36.2 63 [85.0, 87.0] [1.0] 29799
25 31.1 0.0 46.7 52.6 27.8 262 [92.0, 94.0, 78.0] [1.0] 33556
26 26.8 0.0 45.8 50.9 37.5 332 [82.0, 87.0, 93.0] [1.0] 30618
27 26.2 0.0 46.0 49.8 38.8 87 [86.0, 91.0] [1.0] 29886
28 39.8 0.0 48.2 53.4 40.1 45 [75.0, 87.0] [1.0] 23128
30 45.8 0.0 48.3 53.2 39.7 0 [80.0] [1.0] 23673
32 45.3 0.0 46.7 51.4 32.9 0 [78.0] [1.0] 24631

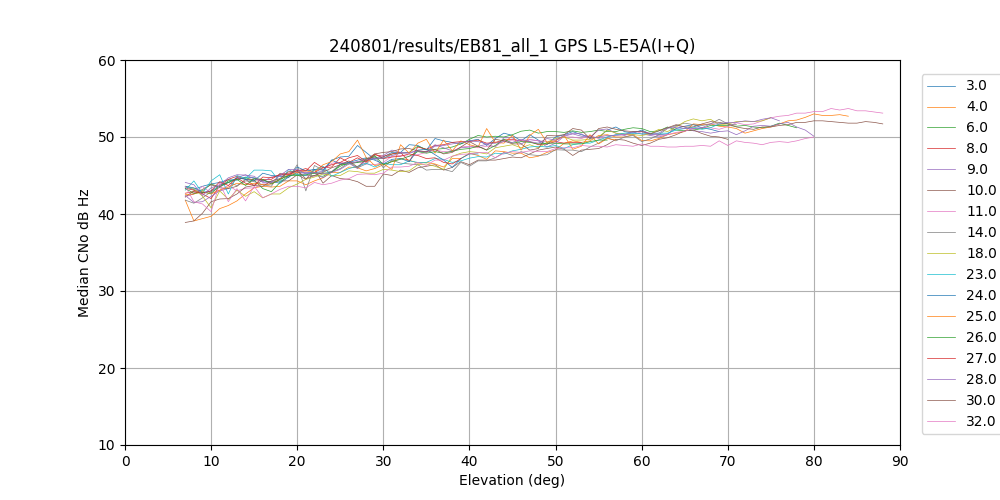

DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.3 52.5 40.9 83 [89.0, 91.0] [1.0] 27095
4 45.4 0.0 47.8 53.5 34.2 0 [95.0] [1.0] 23801
6 37.6 0.0 47.7 52.8 40.0 285 [82.0, 87.0, 81.0] [1.0] 25151
8 27.4 0.0 46.3 50.7 37.7 84 [95.0, 79.0] [1.0] 29169
9 44.1 0.0 48.4 53.0 39.2 0 [91.0] [1.0] 21402
10 43.4 0.0 47.3 51.7 38.5 0 [88.0] [1.0] 25803
11 43.8 0.0 48.7 54.1 41.1 15 [92.0, 90.0] [1.0] 28304
14 44.2 0.0 48.0 52.9 39.7 0 [77.0] [1.0] 25698
18 40.3 0.0 47.4 53.0 38.3 77 [90.0, 87.0] [1.0] 29952
23 43.3 0.0 48.2 52.8 36.1 193 [80.0, 71.0] [1.0] 25713
24 25.6 0.0 46.0 50.2 37.3 6 [85.0] [1.0] 29805
25 31.2 0.0 46.7 51.9 25.9 321 [86.0, 80.0] [1.0] 33399
26 26.8 0.0 45.8 51.2 35.0 410 [81.0, 85.0, 89.0] [1.0] 30585
27 26.1 0.0 46.1 50.0 38.9 229 [86.0, 87.0] [1.0] 29910
28 39.9 0.0 48.1 53.0 30.1 225 [76.0, 85.0] [1.0] 22999
30 45.9 0.0 48.4 52.9 35.5 0 [78.0] [1.0] 23644
32 45.3 0.0 46.9 51.0 25.3 25 [87.0] [1.0] 24627
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.8 -0.5 4.8 -6.7 [93.0, 89.0, 94.0, 91.0] 27028
4 45.5 -0.1 5.9 -4.3 [95.0] 23791
6 37.7 0.1 5.5 -5.6 [83.0, 82.0, 91.0, 87.0, 86.0, 81.0] 25123
8 27.4 -0.3 6.2 -24.6 [95.0, 81.0, 79.0] 29157
9 44.1 -0.3 3.6 -5.6 [94.0, 91.0] 21402
10 43.5 0.6 6.7 -4.3 [92.0, 88.0] 25785
11 43.8 -0.4 2.8 -19.6 [93.0, 92.0, 90.0] 28299
14 44.2 0.3 5.3 -5.3 [85.0, 77.0] 25698
18 40.3 0.6 6.5 -4.1 [84.0, 90.0, 91.0, 87.0] 29952
23 43.4 0.2 8.9 -24.0 [87.0, 80.0, 72.0, 71.0] 25673
24 25.7 -0.0 6.6 -6.9 [85.0, 87.0] 29775
25 31.2 0.1 12.8 -8.1 [92.0, 86.0, 94.0, 78.0, 80.0] 33386
26 26.8 0.0 9.1 -5.3 [82.0, 81.0, 87.0, 85.0, 93.0, 89.0] 30573
27 26.2 -0.0 4.8 -4.7 [86.0, 91.0, 87.0] 29886
28 39.9 0.1 12.5 -4.6 [75.0, 76.0, 87.0, 85.0] 22996
30 45.9 -0.2 6.6 -4.5 [80.0, 78.0] 23644
32 45.3 -0.1 11.8 -9.9 [78.0, 87.0] 24627
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 42.8 48.2 17.7 149 [1.0] [1.0] 27794
2 39.2 0.0 47.4 54.4 28.3 0 [-4.0] [1.0] 23018
3 38.7 0.0 45.3 51.2 31.6 0 [5.0] [1.0] 23359
4 41.9 0.0 44.8 50.0 33.2 0 [6.0] [1.0] 21465
5 37.5 0.0 46.1 52.3 30.7 200 [1.0] [1.0] 24240
6 31.1 0.0 36.0 42.9 22.9 1080 [-4.0] [1.0] 33812
7 33.2 0.0 44.7 49.5 33.7 218 [5.0] [1.0] 38050
8 34.6 0.0 42.6 49.0 31.2 170 [6.0] [1.0] 35095
9 39.4 0.0 47.8 53.3 31.4 0 [-2.0] [1.0] 23267
10 38.0 0.0 41.9 48.5 30.6 220 [-7.0] [1.0] 24493
11 34.6 0.0 46.4 53.4 27.7 240 [0.0] [1.0] 29951
12 32.5 0.0 46.5 52.8 35.6 22 [-1.0] [1.0] 35754
14 32.7 0.0 46.3 54.8 32.7 379 [-7.0] [1.0] 30184
15 43.7 0.0 48.5 53.6 30.6 132 [0.0] [1.0] 20721
16 39.4 0.0 47.8 53.7 16.8 6 [-1.0] [1.0] 22938
17 31.3 0.0 44.9 50.9 34.8 136 [4.0] [1.0] 25743
18 28.7 0.0 45.1 51.9 30.7 240 [-3.0] [1.0] 26735
19 30.2 0.0 35.0 42.5 21.9 1302 [3.0] [1.0] 25261
20 38.4 0.0 36.0 41.8 19.9 1157 [2.0] [1.0] 20992
21 39.1 0.0 46.2 51.8 35.1 21 [4.0] [1.0] 28233
22 43.4 0.0 48.1 54.1 26.5 208 [-3.0] [1.0] 35234
23 40.8 0.0 44.1 50.2 18.1 60 [3.0] [1.0] 34732
24 35.4 0.0 44.8 51.9 27.9 371 [2.0] [1.0] 27629

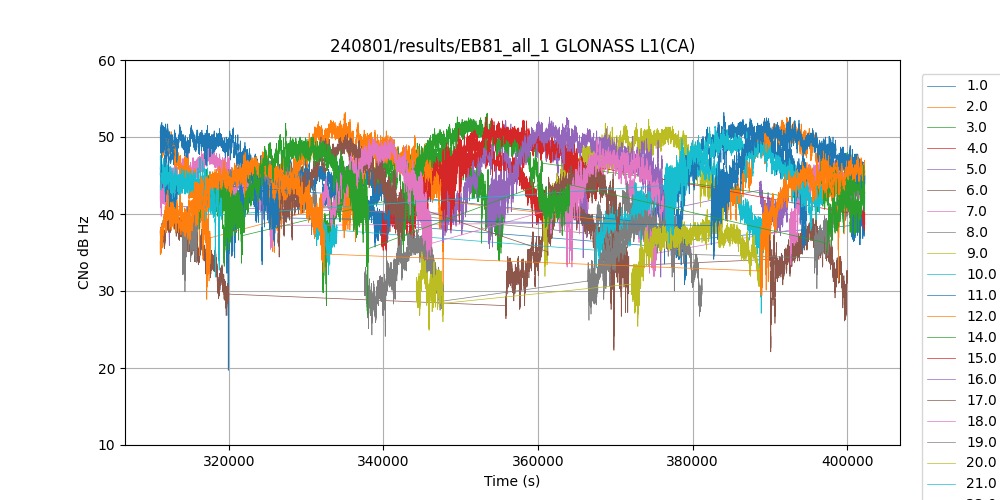

DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 41.9 47.5 19.7 373 [1.0] [1.0] 27756
2 39.2 0.0 47.3 53.2 29.2 1 [-4.0] [1.0] 23006
3 38.6 0.0 44.4 49.3 28.1 2 [5.0] [1.0] 23379
4 41.9 0.0 44.0 49.6 34.0 0 [6.0] [1.0] 21475
5 37.5 0.0 45.3 52.2 34.3 334 [1.0] [1.0] 24199
6 30.5 0.0 35.7 42.3 22.1 1507 [-4.0] [1.0] 34778
7 33.3 0.0 43.8 48.9 31.9 263 [5.0] [1.0] 38008
8 34.7 0.0 41.6 47.3 29.9 303 [6.0] [1.0] 35065
9 39.4 0.0 47.0 52.3 31.9 0 [-2.0] [1.0] 23286
10 38.0 0.0 41.4 48.0 27.1 191 [-7.0] [1.0] 24458
11 34.6 0.0 45.9 53.2 33.5 216 [0.0] [1.0] 29919
12 32.4 0.0 46.1 52.5 28.9 407 [-1.0] [1.0] 35802
14 32.7 0.0 46.1 53.1 33.6 371 [-7.0] [1.0] 30217
15 43.7 0.0 47.9 52.6 37.8 95 [0.0] [1.0] 20697
16 39.4 0.0 47.4 52.6 31.8 0 [-1.0] [1.0] 22934
17 31.3 0.0 44.3 50.4 33.7 119 [4.0] [1.0] 25734
18 28.7 0.0 44.9 49.8 29.6 17 [-3.0] [1.0] 26780
19 30.5 0.0 34.4 40.5 24.1 2062 [3.0] [1.0] 24922
20 39.3 0.0 35.4 40.6 24.9 891 [2.0] [1.0] 20279
21 39.1 0.0 45.6 51.4 31.8 76 [4.0] [1.0] 28215
22 43.4 0.0 47.6 52.6 33.4 37 [-3.0] [1.0] 35184
23 40.8 0.0 43.2 48.2 29.4 88 [3.0] [1.0] 34717
24 35.4 0.0 43.7 51.8 26.9 450 [2.0] [1.0] 27625

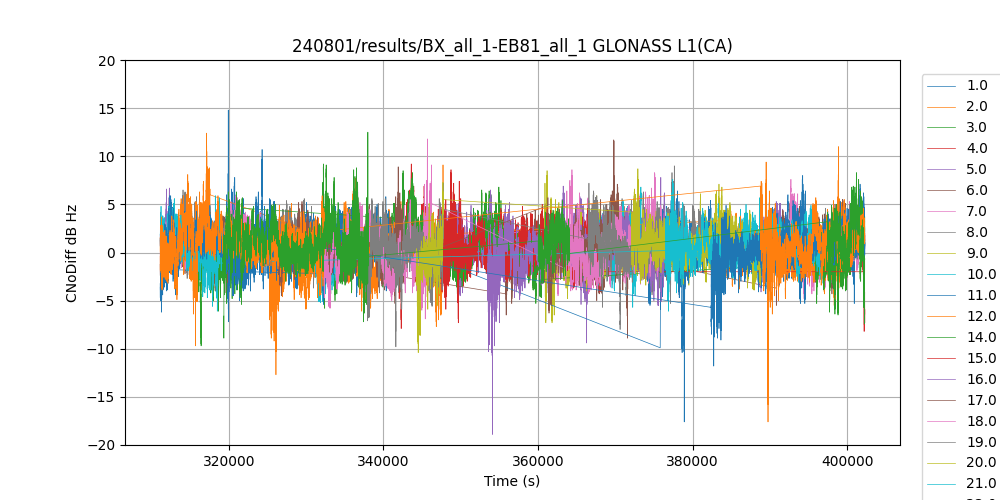

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 35.2 0.8 14.8 -17.6 [1.0] 27756
2 39.2 0.1 9.1 -12.7 [-4.0] 22995
3 38.7 0.9 9.2 -5.8 [5.0] 23359
4 41.9 0.8 9.2 -7.9 [6.0] 21465
5 37.5 0.8 6.7 -9.4 [1.0] 24191
6 31.1 0.2 11.7 -8.9 [-4.0] 33808
7 33.3 0.9 8.3 -4.8 [5.0] 38007
8 34.7 1.0 9.0 -8.0 [6.0] 35048
9 39.5 0.8 8.5 -7.3 [-2.0] 23256
10 38.0 0.5 6.8 -5.7 [-7.0] 24458
11 34.7 0.5 8.0 -10.4 [0.0] 29891
12 32.5 0.4 12.4 -6.4 [-1.0] 35738
14 32.7 0.3 8.5 -9.7 [-7.0] 30180
15 43.8 0.6 8.6 -8.2 [0.0] 20687
16 39.4 0.5 7.8 -18.9 [-1.0] 22934
17 31.3 0.5 8.9 -6.3 [4.0] 25728
18 28.7 0.2 11.8 -7.5 [-3.0] 26728
19 30.5 0.7 7.2 -9.8 [3.0] 24867
20 39.4 0.7 8.7 -10.4 [2.0] 20275
21 39.1 0.7 7.6 -6.1 [4.0] 28199
22 43.4 0.5 10.7 -11.8 [-3.0] 35184
23 40.8 1.0 9.4 -17.6 [3.0] 34717
24 35.4 1.1 12.5 -8.9 [2.0] 27611
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.3 0.0 41.2 46.6 22.2 388 [1.0] [1.0] 27732
2 39.2 0.0 46.0 52.5 30.3 3 [-4.0] [1.0] 23017
3 38.7 0.0 43.7 48.9 30.6 1 [5.0] [1.0] 23358
4 41.9 0.0 42.8 47.9 33.3 1 [6.0] [1.0] 21464
5 37.5 0.0 44.7 50.7 32.8 263 [1.0] [1.0] 24238
6 31.2 0.0 34.7 41.1 24.2 2705 [-4.0] [1.0] 33611
7 33.2 0.0 43.0 47.4 33.3 295 [5.0] [1.0] 38048
8 34.6 0.0 40.7 46.8 30.1 292 [6.0] [1.0] 35091
9 39.4 0.0 46.0 51.4 32.1 1 [-2.0] [1.0] 23266
10 38.0 0.0 40.5 47.2 29.7 62 [-7.0] [1.0] 24491
11 34.6 0.0 44.6 51.4 28.7 96 [0.0] [1.0] 29938
12 32.5 0.0 45.5 51.2 36.1 451 [-1.0] [1.0] 35752
14 32.7 0.0 44.9 53.0 32.8 42 [-7.0] [1.0] 30181
15 43.7 0.0 46.6 51.1 31.1 200 [0.0] [1.0] 20719
16 39.4 0.0 46.3 52.0 23.3 6 [-1.0] [1.0] 22937
17 31.3 0.0 42.8 48.6 32.5 218 [4.0] [1.0] 25741
18 28.7 0.0 43.6 50.0 31.0 90 [-3.0] [1.0] 26733
19 31.0 0.0 33.3 39.8 20.8 2619 [3.0] [1.0] 24110
20 39.4 0.0 35.1 40.1 24.6 1761 [2.0] [1.0] 20310
21 39.1 0.0 44.5 49.6 34.2 160 [4.0] [1.0] 28232
22 43.4 0.0 46.8 51.7 29.0 161 [-3.0] [1.0] 35233
23 40.8 0.0 42.2 47.9 21.9 63 [3.0] [1.0] 34731
24 35.4 0.0 43.2 49.7 26.4 164 [2.0] [1.0] 27626
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 39.5 45.1 20.0 344 [1.0] [1.0] 27789
2 39.2 0.0 45.1 49.5 31.1 1 [-4.0] [1.0] 23017
3 38.7 0.0 45.6 49.8 35.2 1 [5.0] [1.0] 23358
4 41.9 0.0 45.6 49.8 29.8 1 [6.0] [1.0] 21464
5 37.5 0.0 44.4 50.1 23.6 73 [1.0] [1.0] 24238
7 33.2 0.0 45.2 49.6 29.0 193 [5.0] [1.0] 38048
8 34.6 0.0 44.8 49.9 33.1 252 [6.0] [1.0] 35092
9 39.4 0.0 46.9 50.9 36.1 1 [-2.0] [1.0] 23266
10 63.0 0.0 36.2 41.5 23.0 20 [-7.0] [1.0] 21
11 34.6 0.0 45.0 51.6 24.0 267 [0.0] [1.0] 29939
12 32.5 0.0 45.2 50.8 28.7 438 [-1.0] [1.0] 35752
14 32.7 0.0 45.1 50.3 34.1 263 [-7.0] [1.0] 30181
15 43.7 0.0 45.9 50.1 35.4 132 [0.0] [1.0] 20719
16 39.4 0.0 46.4 50.3 34.0 1 [-1.0] [1.0] 22937
17 31.3 0.0 44.2 50.4 25.8 44 [4.0] [1.0] 25740
18 28.7 0.0 45.0 49.6 16.9 223 [-3.0] [1.0] 26732
19 30.6 0.0 42.3 46.8 33.2 74 [3.0] [1.0] 24811
20 39.3 0.0 39.3 43.6 30.5 41 [2.0] [1.0] 20312
21 39.1 0.0 44.9 49.3 33.8 240 [4.0] [1.0] 28232
22 43.4 0.0 46.8 50.6 36.8 71 [-3.0] [1.0] 35233
23 57.9 0.0 33.8 41.7 7.4 236 [3.0] [1.0] 69
24 35.4 0.0 43.6 49.0 29.9 427 [2.0] [1.0] 27626
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 39.2 44.5 30.7 70 [1.0] [1.0] 27753
2 39.2 0.0 44.6 48.6 26.7 3 [-4.0] [1.0] 23005
3 38.6 0.0 45.1 49.2 35.4 1 [5.0] [1.0] 23378
4 41.9 0.0 45.2 49.6 29.7 2 [6.0] [1.0] 21474
5 37.5 0.0 44.5 50.0 21.8 286 [1.0] [1.0] 24195
6 57.0 0.0 3.8 3.8 3.8 0 [-4.0] [1.0] 1
7 33.3 0.0 45.0 49.3 33.5 341 [5.0] [1.0] 38006
8 34.7 0.0 44.2 49.3 27.5 166 [6.0] [1.0] 35060
9 39.4 0.0 46.3 50.5 34.9 1 [-2.0] [1.0] 23285
10 65.4 0.0 34.7 40.3 25.8 17 [-7.0] [1.0] 18
11 34.6 0.0 45.0 51.1 20.9 266 [0.0] [1.0] 29916
12 32.4 0.0 44.8 50.6 31.3 200 [-1.0] [1.0] 35800
14 32.7 0.0 44.6 50.2 34.3 91 [-7.0] [1.0] 30214
15 43.7 0.0 45.5 49.5 23.6 97 [0.0] [1.0] 20695
16 39.4 0.0 46.0 49.7 32.7 1 [-1.0] [1.0] 22933
17 31.3 0.0 44.3 49.5 26.5 255 [4.0] [1.0] 25732
18 28.7 0.0 44.5 48.3 31.1 85 [-3.0] [1.0] 26778
19 30.5 0.0 41.8 46.9 25.9 127 [3.0] [1.0] 24913
20 39.9 0.0 38.7 44.0 28.1 160 [2.0] [1.0] 19932
21 39.1 0.0 44.6 49.6 22.1 46 [4.0] [1.0] 28214
22 43.4 0.0 46.3 50.7 31.8 244 [-3.0] [1.0] 35183
23 58.0 0.0 34.7 39.9 16.0 123 [3.0] [1.0] 51
24 35.4 0.0 43.6 49.0 29.8 349 [2.0] [1.0] 27622
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 35.2 0.3 8.5 -15.1 [1.0] 27751
2 39.2 0.5 12.9 -7.9 [-4.0] 22994
3 38.7 0.5 8.0 -4.6 [5.0] 23358
4 41.9 0.4 9.9 -8.2 [6.0] 21464
5 37.5 -0.1 13.5 -14.2 [1.0] 24187
7 33.3 0.3 7.9 -6.9 [5.0] 38005
8 34.7 0.6 12.6 -6.9 [6.0] 35043
9 39.5 0.5 7.1 -5.7 [-2.0] 23255
11 34.7 0.1 19.6 -14.8 [0.0] 29878
12 32.5 0.4 10.8 -9.7 [-1.0] 35736
14 32.7 0.5 8.3 -7.6 [-7.0] 30177
15 43.8 0.5 18.9 -6.6 [0.0] 20685
16 39.4 0.4 9.2 -5.8 [-1.0] 22933
17 31.3 -0.1 9.9 -12.6 [4.0] 25725
18 28.7 0.5 9.1 -20.0 [-3.0] 26725
19 30.6 0.5 9.1 -6.1 [3.0] 24811
20 40.4 0.6 10.2 -5.7 [2.0] 19621
21 39.1 0.3 14.1 -5.4 [4.0] 28198
22 43.4 0.5 7.6 -4.2 [-3.0] 35183
24 35.4 0.1 6.8 -11.4 [2.0] 27608
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 37.5 42.8 18.7 1290 [1.0] [1.0] 27781
2 39.2 0.0 43.7 47.9 31.3 1 [-4.0] [1.0] 23017
3 38.7 0.0 44.1 47.8 35.9 1 [5.0] [1.0] 23358
4 41.9 0.0 43.9 48.0 30.3 5 [6.0] [1.0] 21464
5 37.5 0.0 42.8 48.3 29.4 464 [1.0] [1.0] 24238
6 41.7 0.0 15.4 19.9 12.6 344 [-4.0] [1.0] 7
7 33.2 0.0 43.9 47.7 33.7 242 [5.0] [1.0] 38048
8 34.6 0.0 43.2 48.0 34.3 435 [6.0] [1.0] 35092
9 39.4 0.0 44.6 48.3 35.6 1 [-2.0] [1.0] 23266
10 45.3 0.0 23.9 40.8 14.9 8 [-7.0] [1.0] 9
11 34.6 0.0 43.2 49.4 30.5 267 [0.0] [1.0] 29939
12 32.5 0.0 43.4 48.8 32.7 373 [-1.0] [1.0] 35752
14 32.7 0.0 43.5 48.7 32.8 293 [-7.0] [1.0] 30181
15 43.7 0.0 44.6 48.6 34.3 174 [0.0] [1.0] 20719
16 39.4 0.0 44.5 48.4 33.7 1 [-1.0] [1.0] 22937
17 31.3 0.0 42.8 48.7 28.7 108 [4.0] [1.0] 25740
18 28.7 0.0 43.5 48.1 17.3 26 [-3.0] [1.0] 26732
19 30.6 0.0 40.7 45.0 32.9 73 [3.0] [1.0] 24811
20 39.4 0.0 37.9 42.1 31.0 108 [2.0] [1.0] 20310
21 39.1 0.0 43.8 48.1 34.0 132 [4.0] [1.0] 28232
22 43.4 0.0 45.2 49.1 35.9 6 [-3.0] [1.0] 35233
23 45.6 0.0 24.9 40.2 5.3 203 [3.0] [1.0] 37
24 35.4 0.0 41.9 47.0 31.3 170 [2.0] [1.0] 27626
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.4 0.0 45.0 49.4 36.9 0 [-2.0] [1.0] 23266
21 39.1 0.0 44.4 50.1 32.4 196 [4.0] [1.0] 28232
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.6 0.0 46.8 51.4 0.0 15 [106.0] [1.0] 31814
3 32.0 0.0 44.7 51.9 30.7 131 [99.0, 106.0] [1.0] 26294
4 45.5 0.0 46.4 51.7 36.4 0 [106.0] [1.0] 32496
5 38.8 0.0 46.7 53.1 32.8 65 [111.0, 102.0] [1.0] 34068
7 20.5 0.0 43.1 48.3 33.1 157 [101.0, 111.0] [1.0] 24398
8 19.9 0.0 43.2 50.0 30.0 133 [109.0, 97.0] [1.0] 23747
9 45.5 0.0 46.7 51.8 7.5 50 [102.0] [1.0] 32106
10 34.5 0.0 46.1 52.4 33.2 19 [107.0, 110.0] [1.0] 40972
11 33.5 0.0 42.2 48.9 30.0 23 [104.0, 103.0] [1.0] 40952
12 36.5 0.0 42.4 49.3 28.4 92 [98.0, 100.0] [1.0] 40031
13 20.1 0.0 43.5 48.2 32.7 221 [107.0, 100.0] [1.0] 13140
15 45.6 0.0 45.7 51.4 27.5 1 [110.0] [1.0] 15740
19 44.1 0.0 42.8 48.1 32.1 3 [109.0] [1.0] 27997
21 16.8 0.0 42.8 48.8 31.4 277 [97.0, 108.0, 107.0] [1.0] 20408
24 36.9 0.0 46.4 53.3 33.2 18 [99.0, 109.0] [1.0] 39760
25 45.4 0.0 47.4 53.2 33.6 0 [105.0] [1.0] 32616
26 44.2 0.0 46.8 52.7 36.3 0 [103.0] [1.0] 18502
27 37.3 0.0 46.6 52.8 33.0 0 [103.0] [1.0] 14128
30 46.6 0.0 47.9 53.5 37.8 0 [108.0] [1.0] 24230
31 34.4 0.0 45.6 52.3 25.7 274 [106.0, 110.0] [1.0] 37950
33 49.8 0.0 46.9 50.9 36.5 0 [108.0] [1.0] 26819
34 41.1 0.0 46.6 52.7 34.3 246 [98.0, 109.0] [1.0] 32974
36 33.9 0.0 45.6 53.3 17.8 158 [99.0, 107.0] [1.0] 41099
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 46.7 51.0 35.3 0 [110.0] [1.0] 31829
3 32.0 0.0 45.1 52.0 34.0 251 [101.0, 110.0] [1.0] 26294
4 45.5 0.0 46.7 51.5 34.9 0 [110.0] [1.0] 32516
5 38.7 0.0 46.4 52.7 32.4 138 [111.0, 107.0] [1.0] 34120
7 20.5 0.0 43.5 47.8 32.2 240 [101.0, 111.0] [1.0] 24381
8 20.0 0.0 43.4 48.3 34.4 173 [109.0, 97.0] [1.0] 23708
9 45.4 0.0 46.6 50.8 29.3 0 [104.0] [1.0] 32141
10 34.5 0.0 46.0 52.2 33.8 115 [108.0, 98.0] [1.0] 40928
11 33.4 0.0 42.4 47.8 31.1 33 [106.0, 105.0] [1.0] 41130
12 36.5 0.0 42.3 48.2 29.1 3 [99.0] [1.0] 39980
13 20.1 0.0 43.2 47.3 34.9 152 [108.0, 104.0] [1.0] 13127
15 45.5 0.0 46.3 50.9 33.1 0 [103.0] [1.0] 15766
19 44.3 0.0 42.3 46.8 30.2 2 [109.0] [1.0] 27908
21 16.8 0.0 43.2 48.5 33.4 341 [97.0, 103.0, 106.0] [1.0] 20423
24 36.9 0.0 46.0 52.8 32.7 173 [110.0, 109.0] [1.0] 39777
25 45.4 0.0 47.4 52.9 31.4 0 [107.0] [1.0] 32649
26 44.2 0.0 47.0 52.4 35.3 0 [105.0] [1.0] 18503
27 37.3 0.0 46.3 51.9 35.7 0 [105.0] [1.0] 14146
30 45.7 0.0 47.5 53.0 37.0 0 [96.0] [1.0] 24804
31 34.5 0.0 45.7 50.9 31.1 99 [102.0, 98.0] [1.0] 37899
33 49.8 0.0 46.7 49.8 33.8 0 [103.0] [1.0] 26823
34 41.0 0.0 46.5 52.4 30.5 94 [100.0, 109.0] [1.0] 33011
36 33.9 0.0 45.8 52.5 33.9 159 [101.0, 106.0] [1.0] 41107
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.6 0.0 6.3 -39.4 [106.0, 110.0] 31784
3 32.0 -0.4 7.2 -9.2 [99.0, 101.0, 106.0, 110.0] 26286
4 45.5 -0.2 6.2 -5.2 [106.0, 110.0] 32494
5 38.8 0.3 7.4 -7.2 [111.0, 102.0, 107.0] 34052
7 20.5 -0.5 9.0 -6.9 [101.0, 111.0] 24381
8 20.0 -0.2 5.7 -9.8 [109.0, 97.0] 23704
9 45.5 0.1 7.1 -32.4 [102.0, 104.0] 32106
10 34.5 0.2 8.6 -10.2 [107.0, 108.0, 110.0, 98.0] 40898
11 33.5 -0.2 5.6 -8.8 [104.0, 106.0, 103.0, 105.0] 40943
12 36.5 0.2 8.8 -8.0 [98.0, 99.0, 100.0] 39980
13 20.1 0.3 4.5 -5.4 [107.0, 108.0, 100.0, 104.0] 13109
15 45.6 -0.7 3.2 -11.1 [110.0, 103.0] 15736
19 44.3 0.5 7.4 -4.9 [109.0] 27897
21 16.8 -0.3 8.9 -10.0 [97.0, 108.0, 103.0, 107.0, 106.0] 20400
24 36.9 0.4 6.9 -7.4 [99.0, 110.0, 109.0] 39760
25 45.4 -0.1 9.5 -6.4 [105.0, 107.0] 32616
26 44.2 -0.2 5.1 -5.8 [103.0, 105.0] 18498
27 37.3 0.2 5.3 -8.5 [103.0, 105.0] 14124
30 46.6 0.2 5.4 -5.0 [108.0, 96.0] 24226
31 34.5 -0.0 5.2 -14.7 [106.0, 102.0, 110.0, 98.0] 37899
33 49.8 0.2 7.2 -3.7 [108.0, 103.0] 26815
34 41.1 0.2 11.1 -5.2 [98.0, 100.0, 109.0] 32970
36 33.9 -0.3 6.5 -19.0 [99.0, 101.0, 107.0, 106.0] 41097
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 46.3 51.3 38.2 0 [106.0] [1.0] 31844
3 32.0 0.0 45.6 49.7 38.5 111 [99.0, 106.0] [1.0] 26294
4 45.5 0.0 46.4 50.4 38.2 0 [106.0] [1.0] 32496
5 38.8 0.0 45.4 50.5 31.8 90 [111.0, 102.0] [1.0] 34068
7 20.5 0.0 43.7 47.9 36.5 34 [101.0, 111.0] [1.0] 24398
8 19.9 0.0 43.4 47.1 36.2 165 [109.0, 97.0] [1.0] 23747
9 45.5 0.0 46.0 50.8 17.7 2 [102.0] [1.0] 32116
10 34.5 0.0 45.4 50.8 20.4 121 [107.0, 110.0] [1.0] 40970
11 33.5 0.0 42.0 46.1 34.1 13 [104.0, 103.0] [1.0] 40952
12 36.5 0.0 42.6 48.7 26.4 168 [98.0, 100.0] [1.0] 40031
13 20.1 0.0 43.4 47.2 36.4 220 [107.0, 100.0] [1.0] 13140
15 45.6 0.0 46.7 50.5 38.9 0 [110.0] [1.0] 15740
19 44.1 0.0 41.9 46.8 29.7 0 [109.0] [1.0] 27997
21 16.8 0.0 42.6 47.0 33.7 138 [97.0, 108.0, 107.0] [1.0] 20408
24 36.9 0.0 45.0 50.3 30.3 58 [99.0, 109.0] [1.0] 39760
25 45.4 0.0 46.5 50.3 37.9 0 [105.0] [1.0] 32616
26 44.2 0.0 45.8 50.3 38.7 0 [103.0] [1.0] 18502
27 37.3 0.0 46.3 50.0 40.4 0 [103.0] [1.0] 14128
30 46.6 0.0 46.8 50.7 38.6 0 [108.0] [1.0] 24230
31 34.4 0.0 45.1 49.2 29.6 98 [106.0, 110.0] [1.0] 37950
33 49.8 0.0 46.5 50.8 34.1 0 [108.0] [1.0] 26819
34 41.1 0.0 46.0 50.5 35.9 177 [98.0, 109.0] [1.0] 32974
36 33.9 0.0 45.2 49.7 37.4 96 [99.0, 107.0] [1.0] 41099
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 47.0 51.3 38.3 0 [106.0] [1.0] 31844
3 32.0 0.0 46.1 49.8 38.9 160 [99.0, 106.0] [1.0] 26294
4 45.5 0.0 47.1 51.3 37.6 0 [106.0] [1.0] 32496
5 38.8 0.0 46.2 51.6 31.4 166 [111.0, 102.0] [1.0] 34068
7 20.5 0.0 44.6 48.9 37.9 113 [101.0, 111.0] [1.0] 24398
8 19.9 0.0 44.6 48.8 37.3 130 [109.0, 97.0] [1.0] 23747
9 45.4 0.0 47.0 51.3 28.0 1 [102.0] [1.0] 32117
10 34.5 0.0 46.3 51.5 35.1 160 [107.0, 110.0] [1.0] 40972
11 33.5 0.0 42.5 46.0 34.7 207 [104.0, 103.0] [1.0] 40952
12 36.5 0.0 43.5 49.1 25.4 187 [98.0, 100.0] [1.0] 40031
13 20.1 0.0 44.3 48.8 37.3 186 [107.0, 100.0] [1.0] 13140
15 45.6 0.0 47.2 50.9 40.2 0 [110.0] [1.0] 15740
19 44.1 0.0 42.9 47.3 29.7 0 [109.0] [1.0] 27997
21 16.8 0.0 43.7 48.6 21.2 210 [97.0, 108.0, 107.0] [1.0] 20407
24 36.9 0.0 45.6 50.8 27.3 147 [99.0, 109.0] [1.0] 39760
25 45.4 0.0 47.2 51.5 39.4 0 [105.0] [1.0] 32616
26 44.2 0.0 46.9 51.2 38.4 0 [103.0] [1.0] 18502
27 37.3 0.0 46.4 49.9 38.5 0 [103.0] [1.0] 14128
30 46.6 0.0 47.2 51.2 37.7 0 [108.0] [1.0] 24230
31 34.4 0.0 45.7 50.4 30.7 212 [106.0, 110.0] [1.0] 37950
33 49.8 0.0 47.5 50.9 24.3 3 [108.0] [1.0] 26818
34 41.1 0.0 46.5 51.5 36.6 196 [98.0, 109.0] [1.0] 32974
36 33.9 0.0 46.1 50.5 37.1 214 [99.0, 107.0] [1.0] 41099
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 49.1 53.3 42.3 0 [106.0] [1.0] 31844
3 32.0 0.0 48.3 51.8 43.4 200 [99.0, 106.0] [1.0] 26294
4 45.5 0.0 49.2 53.1 41.9 0 [106.0] [1.0] 32496
5 38.8 0.0 48.4 52.9 37.8 147 [111.0, 102.0] [1.0] 34068
7 20.5 0.0 47.1 50.6 41.3 132 [101.0, 111.0] [1.0] 24398
8 19.9 0.0 46.9 50.6 40.6 15 [109.0, 97.0] [1.0] 23747
9 45.4 0.0 49.0 53.0 36.9 3 [102.0] [1.0] 32117
10 34.5 0.0 48.5 53.0 41.0 130 [107.0, 110.0] [1.0] 40972
11 33.5 0.0 44.9 47.6 39.4 195 [104.0, 103.0] [1.0] 40952
12 36.5 0.0 46.0 51.3 32.3 184 [98.0, 100.0] [1.0] 40031
13 20.1 0.0 46.7 50.3 40.4 99 [107.0, 100.0] [1.0] 13140
15 45.6 0.0 49.4 52.9 43.7 0 [110.0] [1.0] 15740
19 44.1 0.0 45.5 49.6 35.1 1 [109.0] [1.0] 27997
21 16.8 0.0 46.1 50.0 39.0 199 [97.0, 108.0, 107.0] [1.0] 20408
24 36.9 0.0 48.0 52.4 34.8 216 [99.0, 109.0] [1.0] 39760
25 45.4 0.0 49.3 53.0 43.3 0 [105.0] [1.0] 32616
26 44.2 0.0 48.9 52.7 42.7 0 [103.0] [1.0] 18502
27 37.3 0.0 48.7 51.5 43.7 0 [103.0] [1.0] 14128
30 46.6 0.0 49.4 53.1 41.6 0 [108.0] [1.0] 24230
31 34.4 0.0 48.0 52.2 36.4 87 [106.0, 110.0] [1.0] 37950
33 49.8 0.0 49.4 53.0 38.9 0 [108.0] [1.0] 26819
34 41.1 0.0 48.8 52.8 41.1 147 [98.0, 109.0] [1.0] 32974
36 33.9 0.0 48.3 52.2 40.8 158 [99.0, 107.0] [1.0] 41099

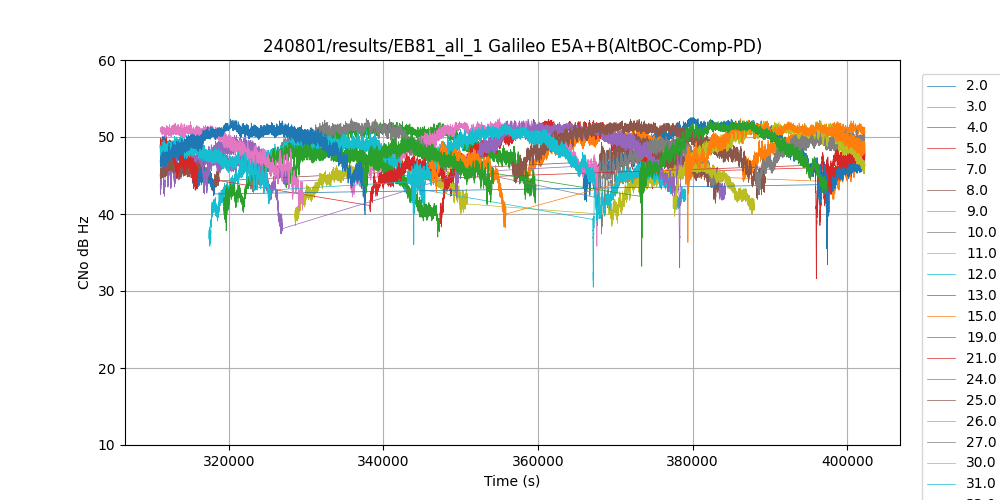

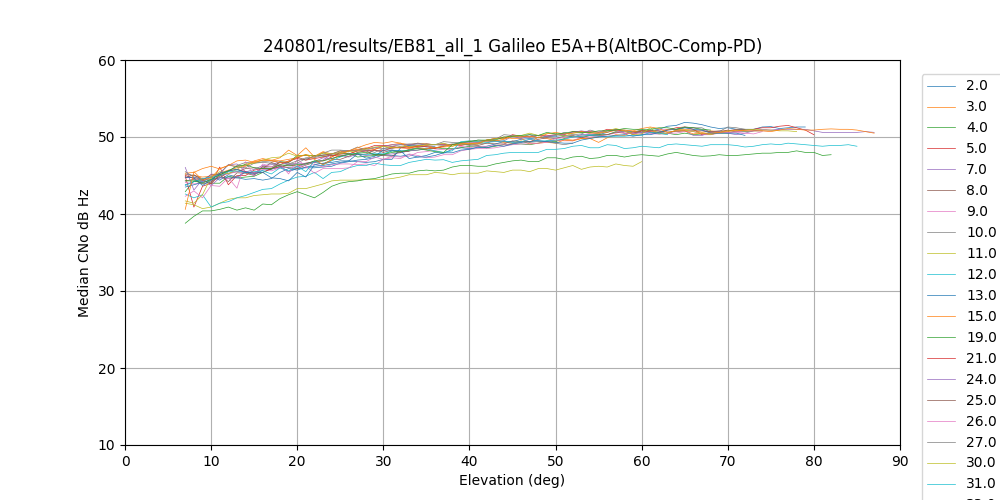

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 48.9 52.5 33.4 4 [110.0] [1.0] 31829
3 32.0 0.0 48.2 51.6 41.9 174 [101.0, 110.0] [1.0] 26294
4 45.5 0.0 48.9 52.0 41.4 0 [110.0] [1.0] 32516
5 38.7 0.0 48.3 52.3 31.6 167 [111.0, 107.0] [1.0] 34120
7 20.5 0.0 46.7 50.2 41.8 117 [101.0, 111.0] [1.0] 24381
8 20.0 0.0 46.6 50.9 41.4 250 [109.0, 97.0] [1.0] 23708
9 45.4 0.0 48.8 52.4 35.8 2 [104.0] [1.0] 32141
10 34.5 0.0 48.4 52.4 37.4 251 [108.0, 98.0] [1.0] 40928
11 33.4 0.0 44.4 47.4 38.4 63 [106.0, 105.0] [1.0] 41130
12 36.5 0.0 45.9 50.8 30.5 13 [99.0] [1.0] 39980
13 20.1 0.0 45.9 50.4 41.4 20 [108.0, 104.0] [1.0] 13127
15 45.5 0.0 49.3 52.1 44.2 0 [103.0] [1.0] 15766
19 44.3 0.0 45.5 49.3 37.0 0 [109.0] [1.0] 27908
21 16.8 0.0 46.1 50.1 40.3 171 [97.0, 103.0, 106.0] [1.0] 20423
24 36.9 0.0 48.0 52.3 33.0 257 [110.0, 109.0] [1.0] 39777
25 45.4 0.0 49.1 52.3 41.9 0 [107.0] [1.0] 32649
26 44.2 0.0 48.4 52.0 40.4 0 [105.0] [1.0] 18503
27 37.3 0.0 48.4 51.0 42.5 0 [105.0] [1.0] 14146
30 45.7 0.0 49.2 52.1 39.7 0 [96.0] [1.0] 24804
31 34.5 0.0 47.9 51.8 36.0 48 [102.0, 98.0] [1.0] 37899
33 49.8 0.0 49.1 52.3 39.9 0 [103.0] [1.0] 26823
34 41.0 0.0 48.7 52.4 36.3 167 [100.0, 109.0] [1.0] 33011
36 33.9 0.0 48.1 52.3 33.2 65 [101.0, 106.0] [1.0] 41107

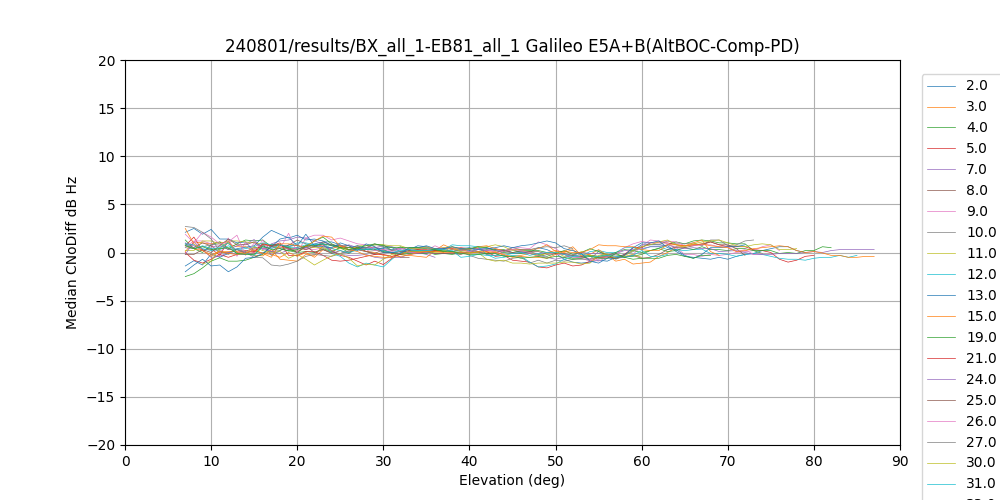

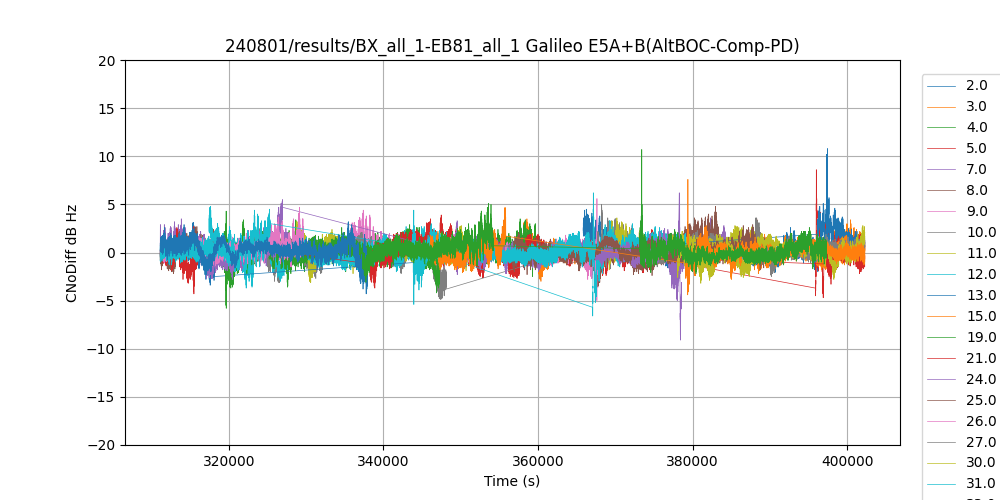

DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.6 0.3 10.8 -2.3 [106.0, 110.0] 31814
3 32.0 0.2 3.5 -3.0 [99.0, 101.0, 106.0, 110.0] 26286
4 45.5 0.3 3.5 -3.6 [106.0, 110.0] 32494
5 38.8 0.1 8.6 -4.7 [111.0, 102.0, 107.0] 34052
7 20.5 0.4 3.6 -3.8 [101.0, 111.0] 24381
8 20.0 0.3 4.8 -3.6 [109.0, 97.0] 23704
9 45.4 0.3 5.6 -5.0 [102.0, 104.0] 32117
10 34.5 0.1 5.0 -4.9 [107.0, 108.0, 110.0, 98.0] 40898
11 33.5 0.4 3.6 -3.1 [104.0, 106.0, 103.0, 105.0] 40943
12 36.5 0.2 6.2 -6.6 [98.0, 99.0, 100.0] 39980
13 20.1 0.8 5.1 -3.4 [107.0, 108.0, 100.0, 104.0] 13109
15 45.6 0.1 2.0 -2.2 [110.0, 103.0] 15736
19 44.3 0.0 4.3 -5.8 [109.0] 27897
21 16.8 0.0 3.5 -4.3 [97.0, 108.0, 103.0, 107.0, 106.0] 20400
24 36.9 -0.0 6.2 -9.1 [99.0, 110.0, 109.0] 39760
25 45.4 0.2 3.5 -2.3 [105.0, 107.0] 32616
26 44.2 0.5 4.7 -1.5 [103.0, 105.0] 18498
27 37.3 0.3 3.6 -2.5 [103.0, 105.0] 14124
30 46.6 -0.0 2.8 -3.2 [108.0, 96.0] 24226
31 34.5 0.2 4.5 -5.4 [106.0, 102.0, 110.0, 98.0] 37899
33 49.8 0.3 3.2 -4.3 [108.0, 103.0] 26815
34 41.1 0.0 7.6 -4.4 [98.0, 100.0, 109.0] 32970
36 33.9 0.2 10.7 -3.1 [99.0, 101.0, 107.0, 106.0] 41097
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.6 0.0 48.2 52.9 29.1 2 [106.0] [1.0] 31801
3 32.0 0.0 46.4 51.2 34.8 31 [99.0, 106.0] [1.0] 26292
4 45.5 0.0 48.4 53.0 36.7 0 [106.0] [1.0] 32496
5 38.8 0.0 47.2 53.0 24.4 171 [111.0, 102.0] [1.0] 34068
7 20.5 0.0 45.3 49.2 34.4 118 [101.0, 111.0] [1.0] 24398
8 19.9 0.0 45.5 49.7 37.7 62 [109.0, 97.0] [1.0] 23747
9 45.5 0.0 48.3 52.9 30.2 20 [102.0] [1.0] 32067
10 34.5 0.0 47.3 53.2 35.8 230 [107.0, 110.0] [1.0] 40972
11 33.5 0.0 43.8 48.9 32.2 214 [104.0, 103.0] [1.0] 40951
12 36.5 0.0 44.1 50.8 29.9 38 [98.0, 100.0] [1.0] 40031
13 20.1 0.0 44.7 49.4 35.7 29 [107.0, 100.0] [1.0] 13140
15 45.6 0.0 49.1 53.4 37.9 1 [110.0] [1.0] 15740
19 44.1 0.0 43.1 49.1 28.6 3 [109.0] [1.0] 27997
21 16.8 0.0 44.3 49.2 34.6 162 [97.0, 108.0, 107.0] [1.0] 20408
24 36.9 0.0 47.1 53.4 23.2 46 [99.0, 109.0] [1.0] 39760
25 45.4 0.0 49.0 53.2 37.2 0 [105.0] [1.0] 32616
26 44.2 0.0 48.1 52.6 35.7 0 [103.0] [1.0] 18502
27 37.3 0.0 47.6 51.9 34.2 0 [103.0] [1.0] 14128
30 46.6 0.0 48.7 53.2 40.9 0 [108.0] [1.0] 24230
31 34.4 0.0 47.1 52.1 26.5 208 [106.0, 110.0] [1.0] 37950
33 49.8 0.0 48.8 52.2 32.4 0 [108.0] [1.0] 26819
34 41.1 0.0 47.7 52.8 30.5 61 [98.0, 109.0] [1.0] 32974
36 33.9 0.0 47.3 52.0 20.9 255 [99.0, 107.0] [1.0] 41034
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.1 51.2 31.4 93 [107.0, 76.0] [1.0] 33115
20 35.1 0.0 45.9 53.2 28.7 88 [100.0, 79.0] [1.0] 32091
21 26.8 0.0 44.6 50.9 33.4 98 [71.0, 72.0, 99.0] [1.0] 26934
22 26.9 0.0 44.2 50.7 24.3 191 [94.0, 79.0, 84.0] [1.0] 30424
23 33.7 0.0 45.8 52.0 34.6 152 [77.0, 101.0] [1.0] 28471
24 22.7 0.0 43.1 49.8 32.7 201 [91.0, 103.0, 81.0] [1.0] 28685
25 23.5 0.0 42.7 49.9 30.1 232 [87.0, 76.0, 105.0] [1.0] 30805
26 37.7 0.0 45.2 50.5 25.5 98 [101.0] [1.0] 21112
27 29.0 0.0 43.5 50.0 22.0 204 [82.0, 87.0] [1.0] 34775
28 32.5 0.0 44.8 51.9 32.2 154 [111.0, 101.0] [1.0] 33057
29 39.4 0.0 45.6 51.3 27.2 178 [111.0, 102.0] [1.0] 29375
30 30.3 0.0 44.6 51.0 27.0 261 [81.0, 74.0] [1.0] 34099
32 45.0 0.0 47.1 52.7 35.5 0 [89.0] [1.0] 27391
33 45.3 0.0 47.0 52.5 31.8 0 [110.0] [1.0] 26829
34 39.9 0.0 45.8 52.3 35.4 188 [104.0, 85.0] [1.0] 22756
35 48.7 0.0 47.2 52.5 27.2 16 [96.0] [1.0] 24982
36 45.1 0.0 46.9 52.7 18.7 50 [104.0] [1.0] 28311
37 45.5 0.0 47.5 51.9 37.6 0 [103.0] [1.0] 25608
38 7.0 0.0 39.4 41.3 37.8 0 [76.0] [1.0] 1932
41 44.2 0.0 46.3 52.8 32.8 0 [105.0] [1.0] 28739
42 43.8 0.0 47.4 52.3 37.9 0 [102.0] [1.0] 21706
43 52.3 0.0 47.4 52.0 38.1 0 [81.0] [1.0] 21357
44 41.3 0.0 45.7 52.4 23.2 68 [111.0] [1.0] 23839
45 45.4 0.0 47.4 52.6 35.8 0 [98.0] [1.0] 25451
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.6 50.5 38.8 3 [107.0, 76.0] [1.0] 33115
20 35.1 0.0 45.8 51.9 36.7 251 [100.0, 79.0] [1.0] 32091
21 26.8 0.0 45.4 49.9 37.2 299 [71.0, 72.0, 99.0] [1.0] 26934
22 26.9 0.0 45.0 49.1 35.0 210 [94.0, 79.0, 84.0] [1.0] 30424
23 33.7 0.0 46.1 50.3 37.3 242 [77.0, 101.0] [1.0] 28471
24 22.7 0.0 44.6 49.1 33.7 188 [91.0, 103.0, 81.0] [1.0] 28685
25 23.5 0.0 43.9 47.5 36.2 264 [87.0, 76.0, 105.0] [1.0] 30805
26 37.7 0.0 44.9 48.3 34.4 0 [101.0] [1.0] 21113
27 29.0 0.0 45.0 49.3 22.8 159 [82.0, 87.0] [1.0] 34771
28 32.5 0.0 44.1 50.3 31.8 231 [111.0, 101.0] [1.0] 33057
29 39.4 0.0 45.6 50.3 35.7 90 [111.0, 102.0] [1.0] 29375
30 30.3 0.0 44.3 49.1 36.7 213 [81.0, 74.0] [1.0] 34099
32 45.0 0.0 46.8 51.9 37.2 0 [89.0] [1.0] 27391
33 45.3 0.0 46.8 51.4 33.4 0 [110.0] [1.0] 26829
34 39.9 0.0 45.4 49.7 37.5 236 [104.0, 85.0] [1.0] 22756
35 48.7 0.0 46.1 50.0 38.6 0 [96.0] [1.0] 24982
36 45.1 0.0 47.4 51.9 37.0 0 [104.0] [1.0] 28313
37 45.5 0.0 47.2 51.5 34.8 0 [103.0] [1.0] 25608
38 7.0 0.0 43.6 45.5 42.0 0 [76.0] [1.0] 1932
41 44.2 0.0 47.4 51.4 34.7 0 [105.0] [1.0] 28739
42 43.8 0.0 47.4 51.1 38.4 0 [102.0] [1.0] 21706
43 52.3 0.0 46.6 50.9 36.5 0 [81.0] [1.0] 21357
44 41.3 0.0 45.3 50.4 33.9 10 [111.0] [1.0] 23839
45 45.4 0.0 47.2 52.8 36.2 0 [98.0] [1.0] 25451
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.9 0.0 45.5 49.7 34.0 192 [106.0, 76.0] [1.0] 33081
20 35.1 0.0 46.0 51.4 37.6 160 [83.0, 101.0] [1.0] 32067
21 26.9 0.0 45.2 49.3 34.5 106 [71.0, 72.0, 101.0] [1.0] 26856
22 26.9 0.0 44.9 48.9 37.3 237 [95.0, 100.0, 93.0] [1.0] 30426
23 33.7 0.0 46.1 50.9 22.7 193 [76.0, 102.0] [1.0] 28497
24 22.7 0.0 44.6 48.9 16.9 259 [91.0, 105.0, 108.0] [1.0] 28645
25 23.5 0.0 43.8 47.6 38.2 141 [80.0, 77.0, 83.0] [1.0] 30803
26 37.6 0.0 45.8 49.5 37.1 0 [102.0] [1.0] 21176
27 29.0 0.0 44.6 48.6 36.8 249 [98.0, 85.0] [1.0] 34810
28 32.5 0.0 44.3 49.5 17.7 127 [111.0, 102.0] [1.0] 33074
29 39.4 0.0 45.6 50.5 37.3 133 [111.0, 104.0] [1.0] 29416
30 30.3 0.0 44.4 49.5 32.7 49 [93.0, 74.0] [1.0] 34147
32 45.0 0.0 46.8 51.0 30.4 0 [94.0] [1.0] 27403
33 45.3 0.0 47.1 51.1 19.2 50 [73.0] [1.0] 26836
34 39.9 0.0 45.2 49.5 34.6 76 [106.0, 78.0] [1.0] 22725
35 48.8 0.0 46.0 49.2 38.2 0 [100.0] [1.0] 24949
36 45.2 0.0 47.2 51.6 36.9 0 [103.0] [1.0] 28272
37 45.4 0.0 47.4 51.4 38.7 0 [105.0] [1.0] 25617
38 7.0 0.0 43.8 45.2 42.1 0 [76.0] [1.0] 1937
41 44.1 0.0 47.0 50.8 38.4 0 [107.0] [1.0] 28746
42 43.8 0.0 47.4 50.8 39.4 0 [104.0] [1.0] 21715
43 52.3 0.0 46.6 49.8 35.7 0 [93.0] [1.0] 21352
44 41.3 0.0 44.8 49.9 20.3 102 [111.0] [1.0] 23823
45 45.4 0.0 47.6 52.1 34.1 0 [83.0] [1.0] 25454
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.9 0.1 9.0 -4.2 [107.0, 106.0, 76.0] 33081
20 35.1 -0.2 4.0 -4.4 [100.0, 83.0, 79.0, 101.0] 32064
21 26.9 0.1 5.8 -5.4 [71.0, 72.0, 99.0, 101.0] 26856
22 26.9 0.1 5.2 -5.0 [94.0, 95.0, 79.0, 100.0, 84.0, 93.0] 30386
23 33.7 0.0 17.7 -4.4 [77.0, 76.0, 101.0, 102.0] 28467
24 22.8 -0.0 18.1 -6.5 [91.0, 103.0, 105.0, 81.0, 108.0] 28614
25 23.5 0.1 5.2 -5.4 [87.0, 80.0, 76.0, 77.0, 105.0, 83.0] 30797
26 37.7 -0.9 4.4 -7.4 [101.0, 102.0] 21113
27 29.0 0.4 5.5 -20.6 [82.0, 98.0, 87.0, 85.0] 34761
28 32.5 -0.3 17.9 -7.5 [111.0, 101.0, 102.0] 33031
29 39.4 0.0 5.4 -4.3 [111.0, 102.0, 104.0] 29366
30 30.3 -0.2 7.7 -4.8 [81.0, 93.0, 74.0] 34099
32 45.0 -0.0 11.6 -4.9 [89.0, 94.0] 27391
33 45.3 -0.4 18.3 -7.9 [110.0, 73.0] 26806
34 39.9 0.3 5.3 -4.5 [104.0, 106.0, 85.0, 78.0] 22719
35 48.8 0.1 4.7 -4.2 [96.0, 100.0] 24949
36 45.2 0.2 7.1 -5.7 [104.0, 103.0] 28272
37 45.5 -0.2 3.5 -6.2 [103.0, 105.0] 25608
38 7.0 -0.2 1.7 -1.8 [76.0] 1931
41 44.2 0.3 5.7 -5.5 [105.0, 107.0] 28738
42 43.8 0.0 4.3 -2.8 [102.0, 104.0] 21702
43 52.3 -0.0 4.8 -4.7 [81.0, 93.0] 21352
44 41.3 0.4 18.0 -3.3 [111.0] 23823
45 45.4 -0.5 6.2 -4.8 [98.0, 83.0] 25451
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.5 0.0 46.1 50.3 32.4 70 [80.0, 101.0] [1.0] 21739
12 36.3 0.0 45.7 50.1 36.7 47 [105.0, 94.0] [1.0] 23897
14 45.0 0.0 46.6 50.3 37.9 0 [100.0] [1.0] 24886
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.4 0.0 45.9 49.7 35.5 8 [77.0, 102.0] [1.0] 21761
12 36.3 0.0 45.1 50.0 31.4 156 [107.0, 79.0] [1.0] 23891
14 45.1 0.0 46.4 49.8 36.8 6 [100.0] [1.0] 24857
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.5 0.3 5.5 -8.9 [80.0, 77.0, 101.0, 102.0] 21731
12 36.3 0.7 8.5 -4.4 [105.0, 107.0, 94.0, 79.0] 23871
14 45.1 0.2 5.5 -6.4 [100.0] 24857
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.3 0.0 44.2 49.8 26.3 133 [80.0, 101.0] [1.0] 21814
12 36.3 0.0 43.2 49.5 30.5 251 [105.0, 94.0] [1.0] 23897
14 45.0 0.0 44.3 49.9 34.1 0 [100.0] [1.0] 24886
19 30.8 0.0 45.4 52.0 34.3 101 [107.0, 76.0] [1.0] 33115
20 35.1 0.0 46.0 53.9 29.9 87 [100.0, 79.0] [1.0] 32091
21 26.8 0.0 44.5 51.2 32.9 309 [71.0, 72.0, 99.0] [1.0] 26934
22 26.9 0.0 45.5 52.5 32.6 246 [94.0, 79.0, 84.0] [1.0] 30424
23 33.7 0.0 45.8 52.7 34.5 227 [77.0, 101.0] [1.0] 28471
24 22.7 0.0 43.3 50.2 30.1 16 [91.0, 103.0, 81.0] [1.0] 28685
25 23.5 0.0 43.5 49.9 32.1 125 [87.0, 76.0, 105.0] [1.0] 30805
26 37.7 0.0 45.5 51.6 26.2 1 [101.0] [1.0] 21116
27 29.0 0.0 45.0 50.5 26.8 69 [82.0, 87.0] [1.0] 34775
28 32.5 0.0 45.1 52.3 28.1 109 [111.0, 101.0] [1.0] 33057
29 39.4 0.0 46.3 52.8 28.1 65 [111.0, 102.0] [1.0] 29375
30 30.3 0.0 45.8 52.2 35.9 4 [81.0, 74.0] [1.0] 34099
32 45.0 0.0 46.5 52.3 34.8 0 [89.0] [1.0] 27391
33 45.3 0.0 46.0 52.1 29.2 0 [110.0] [1.0] 26829
34 39.9 0.0 45.6 51.4 34.1 229 [104.0, 85.0] [1.0] 22756
35 48.7 0.0 47.6 52.3 25.4 3 [96.0] [1.0] 24982
36 45.1 0.0 47.2 52.5 20.5 6 [104.0] [1.0] 28313
37 45.5 0.0 46.7 53.2 34.3 0 [103.0] [1.0] 25608
38 7.0 0.0 41.3 43.6 39.1 0 [76.0] [1.0] 1932
41 44.2 0.0 46.0 52.4 29.1 0 [105.0] [1.0] 28739
42 43.8 0.0 46.4 51.8 36.0 0 [102.0] [1.0] 21706
43 52.3 0.0 46.9 52.4 35.1 0 [81.0] [1.0] 21357
44 41.3 0.0 46.1 51.9 29.5 11 [111.0] [1.0] 23839
45 45.4 0.0 46.4 52.8 34.5 0 [98.0] [1.0] 25451
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.4 0.0 44.7 51.3 30.5 82 [77.0, 102.0] [1.0] 21761
12 36.3 0.0 43.2 51.2 26.7 35 [107.0, 79.0] [1.0] 23896
14 45.1 0.0 44.5 49.3 24.1 9 [100.0] [1.0] 24862
19 30.9 0.0 45.3 51.9 29.5 118 [106.0, 76.0] [1.0] 33081
20 35.1 0.0 46.3 53.8 32.4 126 [83.0, 101.0] [1.0] 32067
21 26.9 0.0 44.7 51.2 35.0 402 [71.0, 72.0, 101.0] [1.0] 26856
22 26.9 0.0 45.3 51.8 33.0 330 [95.0, 100.0, 93.0] [1.0] 30426
23 33.7 0.0 45.4 51.8 31.6 162 [76.0, 102.0] [1.0] 28497
24 22.7 0.0 43.8 49.8 25.4 462 [91.0, 105.0, 108.0] [1.0] 28665
25 23.5 0.0 43.6 50.5 30.3 96 [80.0, 77.0, 83.0] [1.0] 30803
26 37.6 0.0 46.2 52.1 33.2 0 [102.0] [1.0] 21176
27 29.0 0.0 45.1 50.5 34.7 177 [98.0, 85.0] [1.0] 34811
28 32.5 0.0 45.6 51.8 32.8 162 [111.0, 102.0] [1.0] 33077
29 39.4 0.0 46.2 52.1 31.6 35 [111.0, 104.0] [1.0] 29416
30 30.3 0.0 45.3 52.3 35.1 60 [93.0, 74.0] [1.0] 34147
32 45.0 0.0 46.8 53.0 32.2 1 [94.0] [1.0] 27403
33 45.3 0.0 46.8 52.0 29.9 0 [73.0] [1.0] 26839
34 39.9 0.0 45.4 51.9 35.2 209 [106.0, 78.0] [1.0] 22725
35 48.8 0.0 48.2 52.9 36.0 0 [100.0] [1.0] 24949
36 45.2 0.0 47.4 52.9 33.2 0 [103.0] [1.0] 28273
37 45.4 0.0 47.0 51.9 34.8 0 [105.0] [1.0] 25617
38 7.0 0.0 41.0 43.9 38.4 0 [76.0] [1.0] 1937
41 44.1 0.0 46.6 52.5 32.4 0 [107.0] [1.0] 28746
42 43.8 0.0 46.5 51.2 39.9 0 [104.0] [1.0] 21715
43 52.3 0.0 47.1 52.1 31.9 0 [93.0] [1.0] 21352
44 41.3 0.0 46.2 51.9 28.1 11 [111.0] [1.0] 23824
45 45.4 0.0 46.7 52.5 34.0 0 [83.0] [1.0] 25454
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.4 -0.5 10.5 -7.8 [80.0, 77.0, 101.0, 102.0] 21756
12 36.3 0.1 11.9 -4.4 [105.0, 107.0, 94.0, 79.0] 23876
14 45.1 -0.1 13.9 -5.4 [100.0] 24862
19 30.9 0.1 11.4 -7.3 [107.0, 106.0, 76.0] 33081
20 35.1 -0.3 7.0 -11.5 [100.0, 83.0, 79.0, 101.0] 32064
21 26.9 -0.2 5.5 -7.4 [71.0, 72.0, 99.0, 101.0] 26856
22 26.9 0.1 6.2 -7.9 [94.0, 95.0, 79.0, 100.0, 84.0, 93.0] 30386
23 33.7 0.4 9.6 -5.3 [77.0, 76.0, 101.0, 102.0] 28467
24 22.7 -0.5 13.5 -8.5 [91.0, 103.0, 105.0, 81.0, 108.0] 28634
25 23.5 -0.1 10.0 -6.3 [87.0, 80.0, 76.0, 77.0, 105.0, 83.0] 30797
26 37.7 -0.7 6.8 -13.1 [101.0, 102.0] 21116
27 29.0 -0.2 6.5 -13.1 [82.0, 98.0, 87.0, 85.0] 34765
28 32.5 -0.5 6.2 -11.3 [111.0, 101.0, 102.0] 33033
29 39.4 0.1 9.2 -11.2 [111.0, 102.0, 104.0] 29366
30 30.3 0.5 6.3 -4.9 [81.0, 93.0, 74.0] 34099
32 45.0 -0.3 6.6 -7.2 [89.0, 94.0] 27391
33 45.3 -0.8 7.8 -10.6 [110.0, 73.0] 26809
34 39.9 0.1 6.0 -7.2 [104.0, 106.0, 85.0, 78.0] 22719
35 48.8 -0.6 5.3 -14.3 [96.0, 100.0] 24949
36 45.2 -0.2 5.2 -17.4 [104.0, 103.0] 28273
37 45.5 -0.3 7.8 -9.3 [103.0, 105.0] 25608
38 7.0 0.4 3.4 -3.2 [76.0] 1931
41 44.2 -0.6 6.5 -9.4 [105.0, 107.0] 28738
42 43.8 -0.1 4.7 -6.0 [102.0, 104.0] 21702
43 52.3 -0.3 7.5 -6.7 [81.0, 93.0] 21352
44 41.3 -0.1 10.2 -6.8 [111.0] 23824
45 45.4 -0.2 5.8 -8.5 [98.0, 83.0] 25451
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.5 0.0 44.9 49.4 32.9 13 [80.0, 101.0] [1.0] 21739
12 36.3 0.0 44.6 49.6 34.4 99 [105.0, 94.0] [1.0] 23897
14 45.0 0.0 45.0 49.3 35.9 0 [100.0] [1.0] 24886
19 30.8 0.0 44.4 49.5 32.8 174 [107.0, 76.0] [1.0] 33115
20 35.1 0.0 43.8 49.8 33.7 231 [100.0, 79.0] [1.0] 32091
21 26.8 0.0 43.9 48.8 35.9 290 [71.0, 72.0, 99.0] [1.0] 26934
22 26.9 0.0 43.9 48.4 34.0 121 [94.0, 79.0, 84.0] [1.0] 30424
23 33.7 0.0 44.8 49.3 21.3 221 [77.0, 101.0] [1.0] 28471
24 22.7 0.0 43.6 48.8 29.7 331 [91.0, 103.0, 81.0] [1.0] 28685
25 23.5 0.0 42.8 47.7 24.3 170 [87.0, 76.0, 105.0] [1.0] 30805
26 37.7 0.0 44.4 49.7 30.2 0 [101.0] [1.0] 21109
27 29.0 0.0 43.6 47.9 33.2 6 [82.0, 87.0] [1.0] 34775
28 32.5 0.0 43.3 49.6 30.8 153 [111.0, 101.0] [1.0] 33057
29 39.4 0.0 44.0 49.5 32.9 166 [111.0, 102.0] [1.0] 29375
30 30.3 0.0 43.6 48.5 19.3 252 [81.0, 74.0] [1.0] 34099
32 45.0 0.0 45.4 50.3 24.4 0 [89.0] [1.0] 27391
33 45.3 0.0 45.2 49.4 29.4 0 [110.0] [1.0] 26829
34 39.9 0.0 43.9 48.9 36.1 52 [104.0, 85.0] [1.0] 22756
35 48.7 0.0 46.0 49.7 37.6 3 [96.0] [1.0] 24982
36 45.1 0.0 45.9 50.4 36.2 1 [104.0] [1.0] 28303
37 45.5 0.0 45.4 49.5 33.7 0 [103.0] [1.0] 25608
38 7.0 0.0 41.9 43.6 39.6 0 [76.0] [1.0] 1932
41 44.2 0.0 45.7 50.3 33.9 0 [105.0] [1.0] 28739
42 43.8 0.0 45.6 49.1 38.1 0 [102.0] [1.0] 21706
43 52.3 0.0 45.1 49.1 19.6 1 [81.0] [1.0] 21357
44 41.3 0.0 44.4 49.4 34.6 10 [111.0] [1.0] 23839
45 45.4 0.0 45.8 50.5 36.2 0 [98.0] [1.0] 25451
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.4 0.0 44.4 48.7 23.4 174 [77.0, 102.0] [1.0] 21761
12 36.3 0.0 43.8 48.9 31.2 248 [107.0, 79.0] [1.0] 23891
14 45.1 0.0 44.8 48.9 35.8 6 [100.0] [1.0] 24857
19 30.9 0.0 44.5 49.9 32.8 233 [106.0, 76.0] [1.0] 33081
20 35.1 0.0 44.0 49.9 36.5 7 [83.0, 101.0] [1.0] 32062
21 26.9 0.0 43.3 48.9 35.1 215 [71.0, 72.0, 101.0] [1.0] 26856
22 26.9 0.0 43.4 48.4 31.6 428 [95.0, 100.0, 93.0] [1.0] 30426
23 33.7 0.0 44.1 49.2 32.6 1 [76.0, 102.0] [1.0] 28497
24 22.8 0.0 42.9 47.8 17.8 155 [91.0, 105.0, 108.0] [1.0] 28615
25 23.5 0.0 42.3 47.9 34.0 97 [80.0, 77.0, 83.0] [1.0] 30803
26 37.6 0.0 44.9 49.2 35.0 0 [102.0] [1.0] 21176
27 29.0 0.0 43.1 48.0 31.6 28 [98.0, 85.0] [1.0] 34810
28 32.5 0.0 42.8 48.8 18.6 77 [111.0, 102.0] [1.0] 33066
29 39.4 0.0 44.1 49.1 34.1 156 [111.0, 104.0] [1.0] 29416
30 30.3 0.0 43.0 48.8 26.5 148 [93.0, 74.0] [1.0] 34147
32 45.0 0.0 44.7 49.3 29.1 1 [94.0] [1.0] 27403
33 45.3 0.0 44.8 49.1 19.6 2 [73.0] [1.0] 26817
34 39.9 0.0 43.5 48.4 32.3 246 [106.0, 78.0] [1.0] 22725
35 48.8 0.0 45.9 49.3 34.1 0 [100.0] [1.0] 24949
36 45.2 0.0 45.6 50.0 34.1 0 [103.0] [1.0] 28268
37 45.4 0.0 45.3 49.1 34.3 0 [105.0] [1.0] 25617
38 7.0 0.0 41.6 43.4 39.2 0 [76.0] [1.0] 1937
41 44.1 0.0 45.2 49.3 33.5 0 [107.0] [1.0] 28746
42 43.8 0.0 45.3 49.3 36.8 0 [104.0] [1.0] 21715
43 52.3 0.0 44.9 48.9 30.9 0 [93.0] [1.0] 21352
44 41.3 0.0 44.0 49.3 29.1 7 [111.0] [1.0] 23824
45 45.4 0.0 45.8 50.0 35.3 0 [83.0] [1.0] 25454
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.5 0.5 11.5 -4.1 [80.0, 77.0, 101.0, 102.0] 21731
12 36.3 0.8 7.3 -4.0 [105.0, 107.0, 94.0, 79.0] 23871
14 45.1 0.2 3.6 -5.5 [100.0] 24857
19 30.9 -0.1 9.4 -6.5 [107.0, 106.0, 76.0] 33081
20 35.1 -0.2 4.5 -7.2 [100.0, 83.0, 79.0, 101.0] 32059
21 26.9 0.5 5.5 -4.9 [71.0, 72.0, 99.0, 101.0] 26856
22 26.9 0.5 7.0 -4.0 [94.0, 95.0, 79.0, 100.0, 84.0, 93.0] 30386
23 33.7 0.7 7.6 -17.4 [77.0, 76.0, 101.0, 102.0] 28467
24 22.8 0.7 19.0 -6.3 [91.0, 103.0, 105.0, 81.0, 108.0] 28584
25 23.5 0.5 5.0 -13.3 [87.0, 80.0, 76.0, 77.0, 105.0, 83.0] 30797
26 37.7 -0.6 3.4 -8.0 [101.0, 102.0] 21109
27 29.0 0.4 7.3 -5.8 [82.0, 98.0, 87.0, 85.0] 34765
28 32.5 0.5 16.4 -8.7 [111.0, 101.0, 102.0] 33027
29 39.4 -0.2 6.0 -6.1 [111.0, 102.0, 104.0] 29366
30 30.3 0.6 7.3 -19.1 [81.0, 93.0, 74.0] 34099
32 45.0 0.7 8.4 -12.5 [89.0, 94.0] 27391
33 45.4 0.3 18.8 -8.6 [110.0, 73.0] 26787
34 39.9 0.4 6.1 -4.1 [104.0, 106.0, 85.0, 78.0] 22719
35 48.8 0.1 7.6 -4.6 [96.0, 100.0] 24949
36 45.2 0.3 6.5 -3.3 [104.0, 103.0] 28258
37 45.5 0.1 7.8 -5.7 [103.0, 105.0] 25608
38 7.0 0.3 1.9 -1.5 [76.0] 1931
41 44.2 0.5 5.8 -3.2 [105.0, 107.0] 28738
42 43.8 0.4 4.4 -5.2 [102.0, 104.0] 21702
43 52.3 0.2 5.9 -16.9 [81.0, 93.0] 21352
44 41.3 0.3 8.6 -5.6 [111.0] 23824
45 45.4 0.0 4.6 -5.4 [98.0, 83.0] 25451
