REF File: 240801/BX_all.T04
DUT File: 240801/EB79_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 847261 44.0 44.3 4.3 16.0 54.3 38.3 37.2 89.0
GPS L2 CM+CL 645016 44.3 44.8 3.5 20.1 52.1 32.0 38.5 89.0
GPS L2 E 200827 30.3 30.7 6.6 12.6 44.2 31.6 33.3 77.0
GPS L5/E5A I+Q 457438 47.5 47.7 2.9 31.7 54.5 22.8 37.2 88.0
SBAS L1 CA 273528 44.7 44.8 1.5 40.9 48.5 7.6 39.8 42.0
SBAS L5/E5A I 273528 46.2 46.2 0.5 44.2 48.7 4.5 39.8 42.0
GLONASS L1 CA 638753 44.4 45.2 4.9 12.0 53.7 41.7 36.2 89.0
GLONASS L1 P 638650 42.8 43.7 4.9 17.7 51.9 34.2 36.2 89.0
GLONASS L2 CA 545831 44.7 45.3 3.4 21.3 51.6 30.3 36.2 89.0
GLONASS L2 P 545763 43.1 43.7 3.4 1.0 49.9 48.9 36.2 89.0
GLONASS G3 PD 51500 44.9 45.5 3.3 31.2 50.8 19.6 39.2 80.0
Galileo L1 MBOC-PD 672264 45.3 45.4 4.0 0.0 53.7 53.7 37.4 87.0
Galileo L5/E5A BPSK(10)-PD 672263 45.1 45.4 2.8 20.4 51.0 30.6 37.4 87.0
Galileo E5B/B2 BPSK(10)-PD 672264 45.5 45.7 3.0 30.0 51.0 21.0 37.4 87.0
Galileo E5A+B AltBOC-Comp-PD 672264 47.8 48.0 2.5 32.2 52.9 20.7 37.4 87.0
Galileo E6 BPSK(5)-PD 672150 46.9 47.2 3.7 29.6 53.8 24.2 37.4 87.0
BeiDou L1 BOC-PD 641812 45.6 45.8 4.0 25.5 52.9 27.4 36.8 87.0
BeiDou L5/E5A I+Q 641813 45.9 46.1 2.8 30.7 52.1 21.4 36.8 87.0
BeiDou E5B/B2 BPSK(2)-B2 70608 45.9 46.7 2.2 35.0 49.9 14.9 42.5 86.0
BeiDou B1 BPSK(2)-B1 712444 45.4 45.7 3.9 24.2 53.4 29.2 37.3 87.0
BeiDou B3 BPSK(10)-B3 712334 44.7 45.3 3.0 29.0 50.7 21.7 37.3 87.0
start/stop time: 311,120 402,295
Total time: 91,175.0 seconds
Total time: 1,519.583 minutes
Total time: 25.326 hours
Total Samples: 11,258,311
Avg Samples/sec: 123.5

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 311120.125
Stop Time : 399600.29
Total Hours : 24.577823611111107
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 847151 43.9 44.2 4.0 16.2 54.4 38.2 37.2 89.0
GPS L2 CM+CL 644889 44.1 44.5 3.3 10.8 51.9 41.1 38.5 89.0
GPS L2 E 846771 36.6 36.9 7.7 12.6 52.7 40.1 37.2 89.0
GPS L5/E5A I+Q 457481 47.5 47.6 2.8 27.2 53.7 26.5 37.2 88.0
SBAS L1 CA 273498 44.2 44.2 0.7 41.3 46.6 5.3 39.8 42.0
GLONASS L1 CA 638043 43.7 44.5 4.9 16.9 53.6 36.7 36.2 89.0
GLONASS L2 CA 544490 44.5 45.2 3.3 12.3 51.2 38.9 36.2 89.0
Galileo L1 MBOC-PD 673354 45.2 45.3 3.8 19.2 53.7 34.5 37.3 87.0
Galileo E5A+B AltBOC-Comp-PD 673354 47.6 47.8 2.4 35.1 52.6 17.5 37.3 87.0
BeiDou L5/E5A I+Q 641833 45.9 46.2 2.7 19.2 51.6 32.4 36.8 87.0
BeiDou E5B/B2 BPSK(2)-B2 70373 45.4 46.3 2.2 28.9 49.3 20.4 42.6 86.0
BeiDou B1 BPSK(2)-B1 712303 45.4 45.7 3.7 10.7 53.7 43.0 37.3 87.0
BeiDou B3 BPSK(10)-B3 712158 44.5 45.0 2.8 21.3 49.8 28.5 37.3 87.0
start/stop time: 311,122 402,287
Total time: 91,165.0 seconds
Total time: 1,519.417 minutes
Total time: 25.324 hours
Total Samples: 7,735,698
Avg Samples/sec: 84.9

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 311122.105
Stop Time : 401207.986
Total Hours : 25.023855833333332
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 846691 +0.1 +0.1 +1.6 -19.5 +21.0 +40.5 +37.2 +89.0
GPS L2 CM+CL 644532 +0.2 +0.3 +1.4 -13.0 +23.6 +36.6 +38.5 +89.0
GPS L2 E 200701 +0.4 +0.5 +1.7 -9.5 +7.7 +17.2 +33.3 +77.0
GPS L5/E5A I+Q 457168 +0.0 +0.0 +1.1 -9.4 +6.5 +15.9 +37.2 +88.0
SBAS L1 CA 273498 +0.5 +0.4 +1.3 -2.8 +4.1 +6.9 +39.8 +42.0
GLONASS L1 CA 636464 +0.7 +0.7 +1.7 -22.2 +22.5 +44.7 +36.3 +89.0
GLONASS L2 CA 543745 +0.2 +0.2 +1.4 -14.8 +18.2 +33.0 +36.3 +89.0
Galileo L1 MBOC-PD 671885 +0.1 +0.1 +1.4 -37.8 +16.4 +54.2 +37.4 +87.0
Galileo E5A+B AltBOC-Comp-PD 671885 +0.2 +0.2 +0.8 -4.3 +9.1 +13.4 +37.4 +87.0
BeiDou L5/E5A I+Q 641452 -0.0 +0.0 +1.1 -6.3 +21.0 +27.3 +36.8 +87.0
BeiDou E5B/B2 BPSK(2)-B2 70351 +0.5 +0.4 +1.0 -4.1 +12.0 +16.1 +42.6 +86.0
BeiDou B1 BPSK(2)-B1 711921 +0.0 +0.1 +1.5 -13.5 +24.0 +37.5 +37.3 +87.0
BeiDou B3 BPSK(10)-B3 711676 +0.2 +0.2 +1.2 -9.3 +10.4 +19.7 +37.4 +87.0
start/stop time: 311,122 402,287
Total time: 91,165.0 seconds
Total time: 1,519.417 minutes
Total time: 25.324 hours
Total Samples: 7,081,969
Avg Samples/sec: 77.7

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.186
Median = 0.200
Std Dev= 1.394

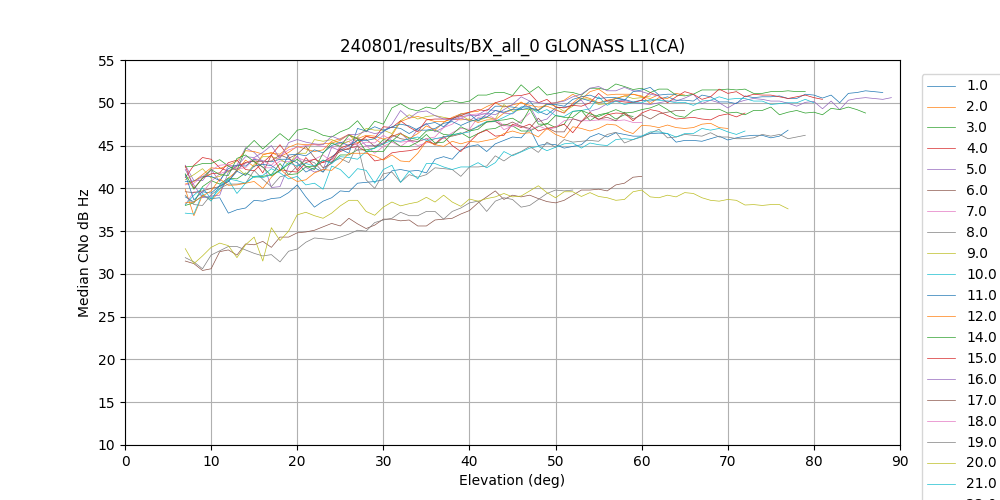

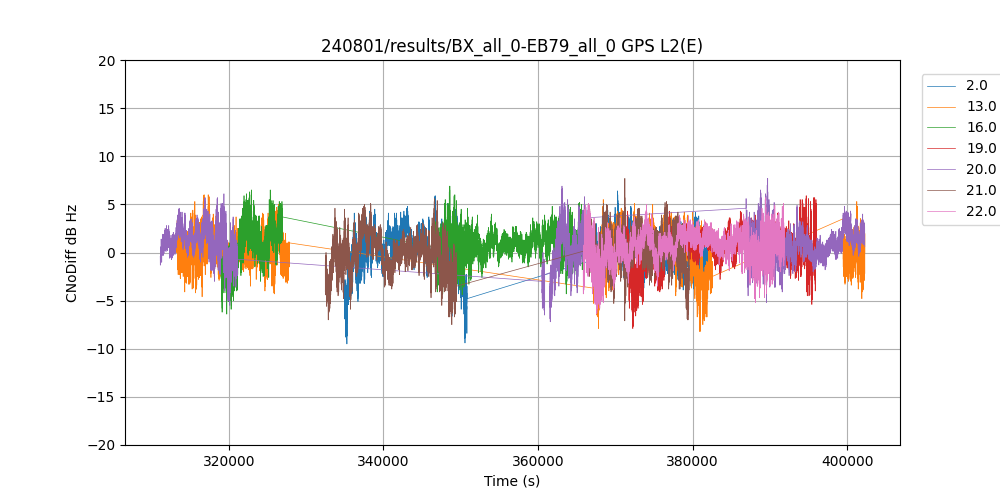

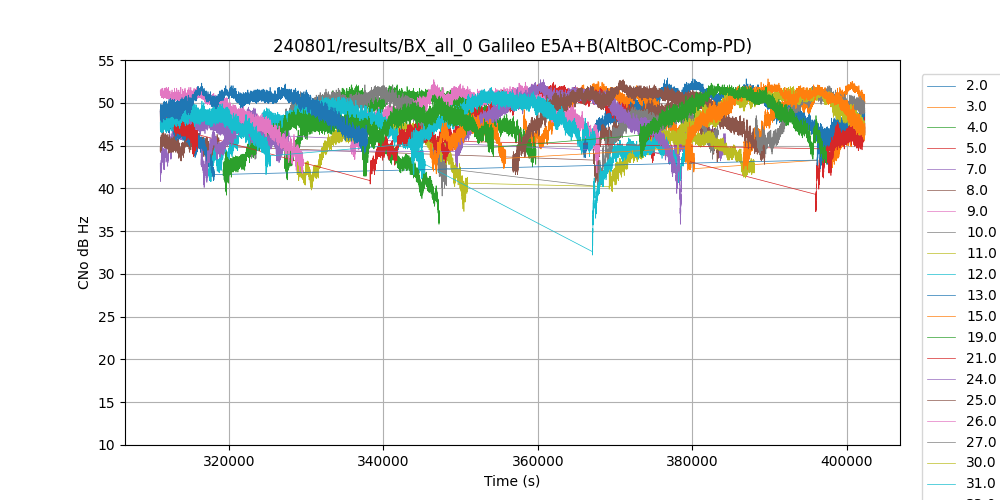

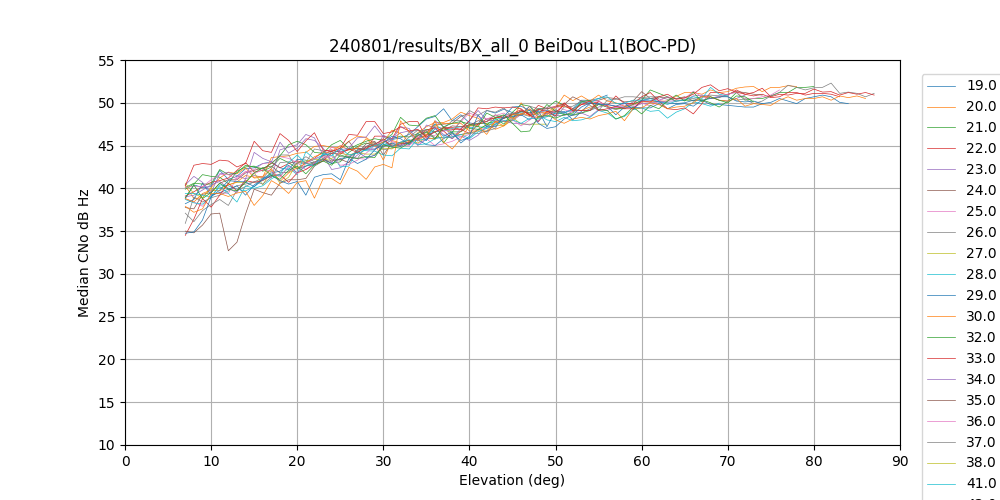

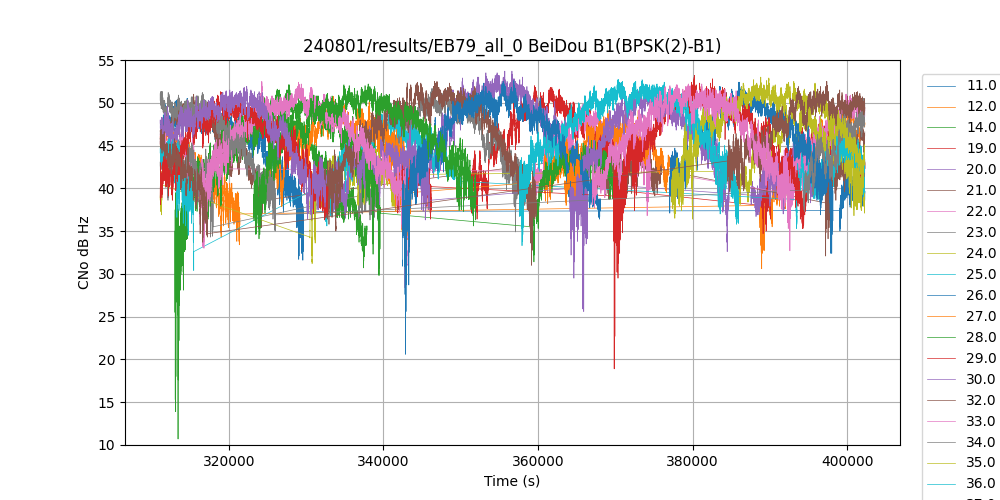

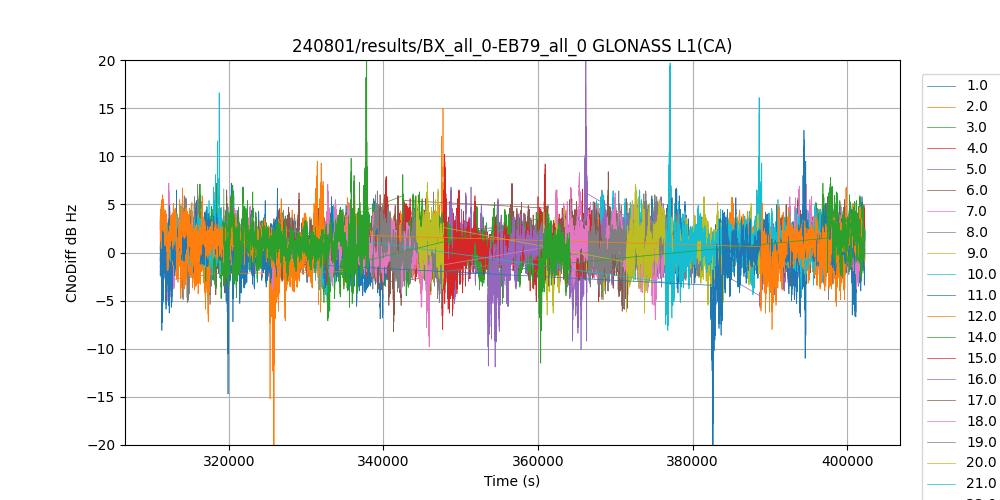

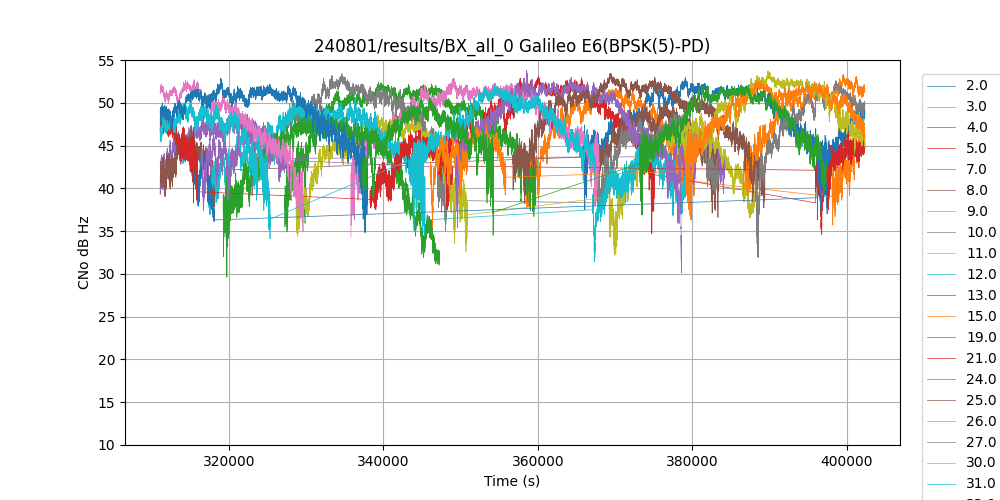

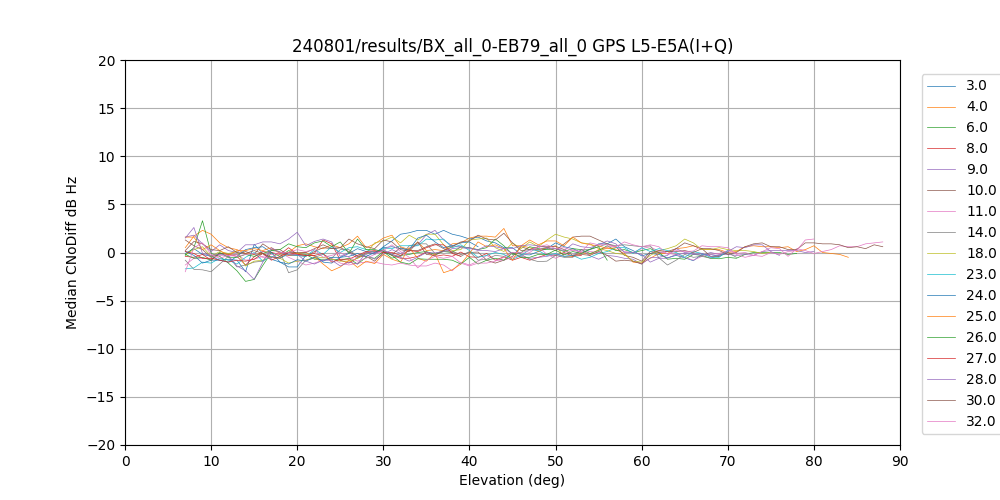

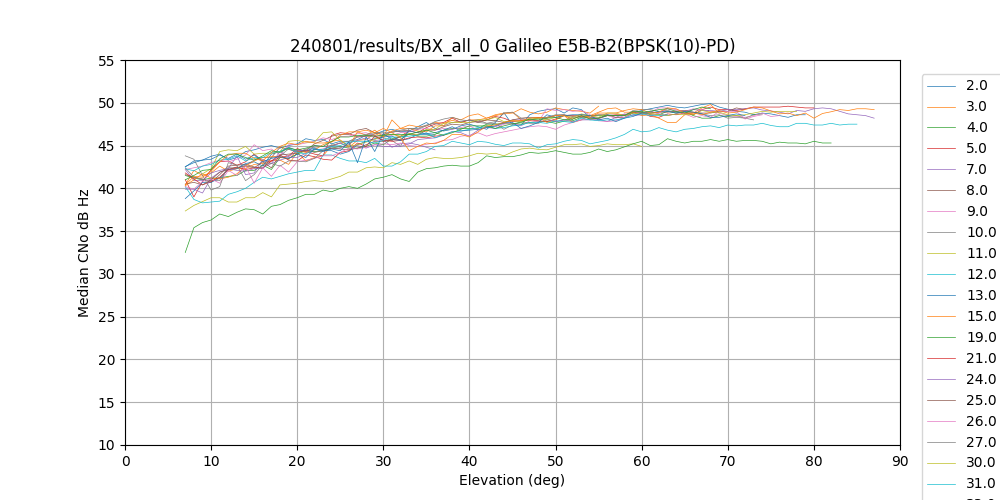

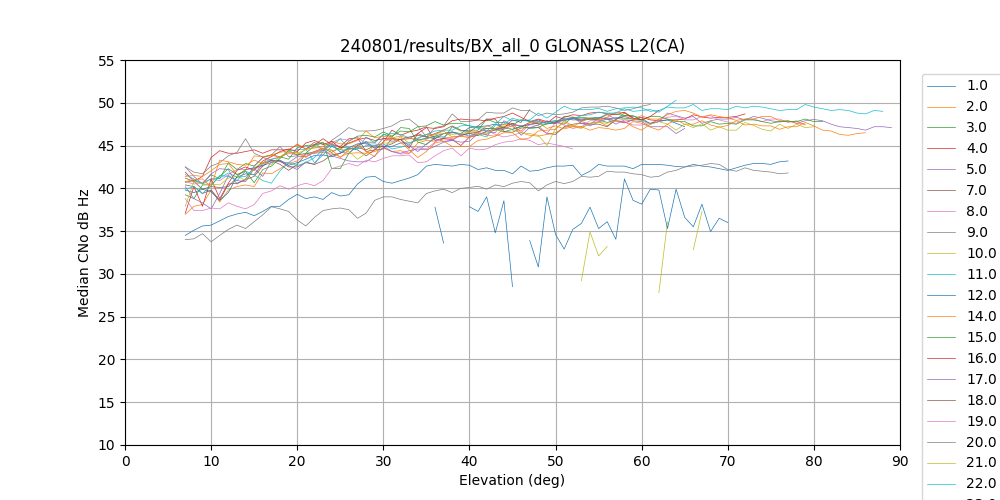

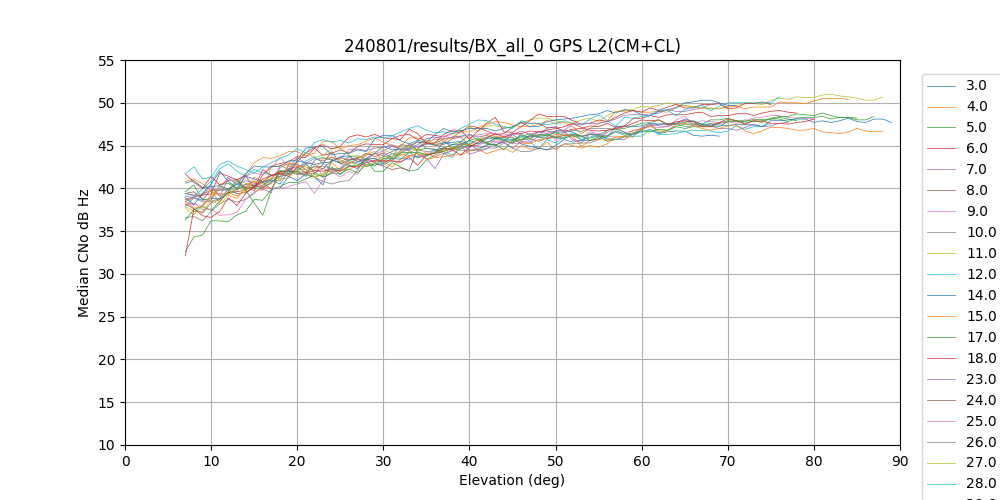

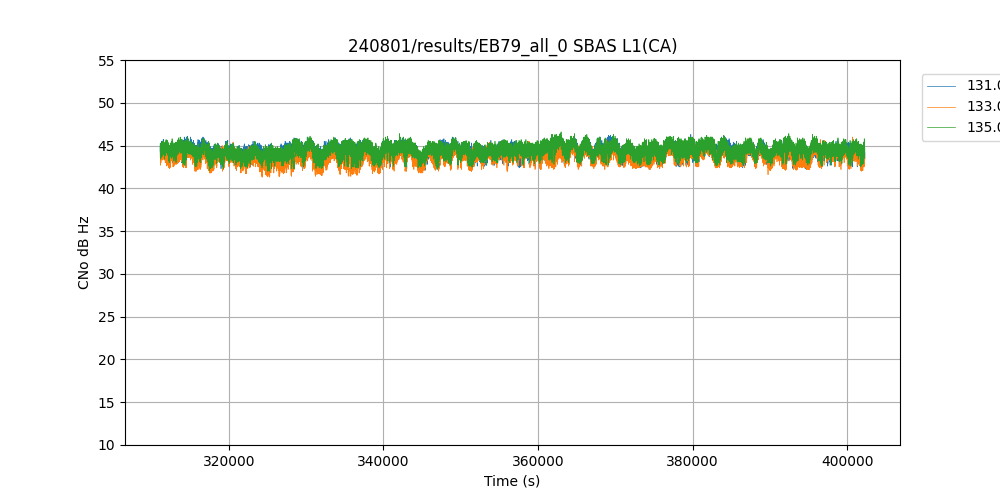

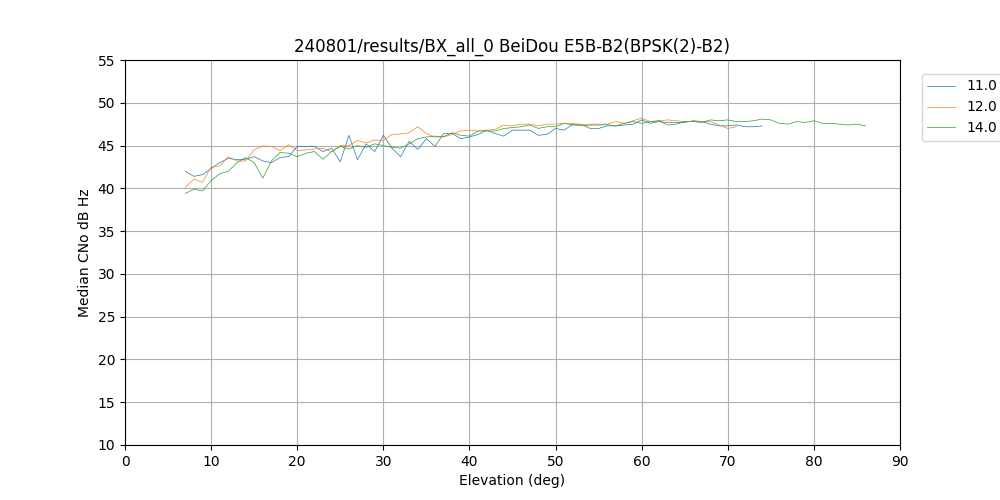

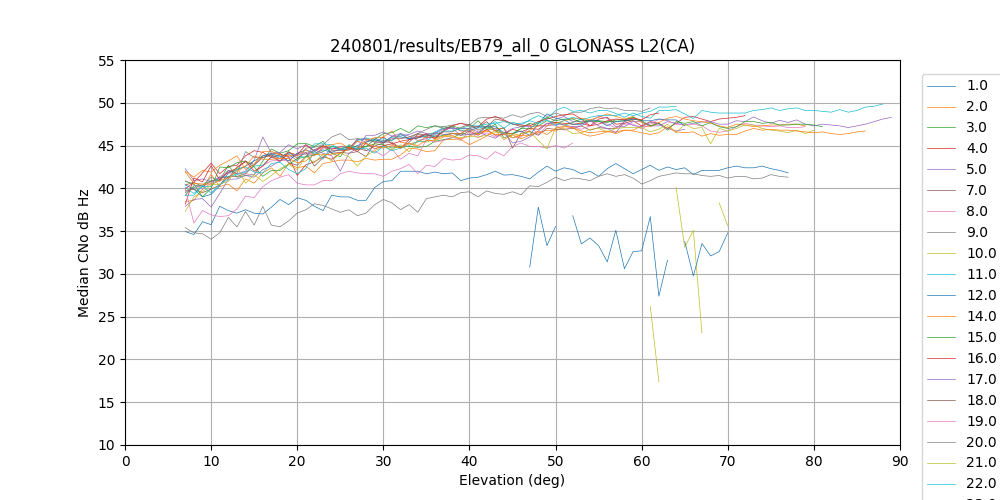

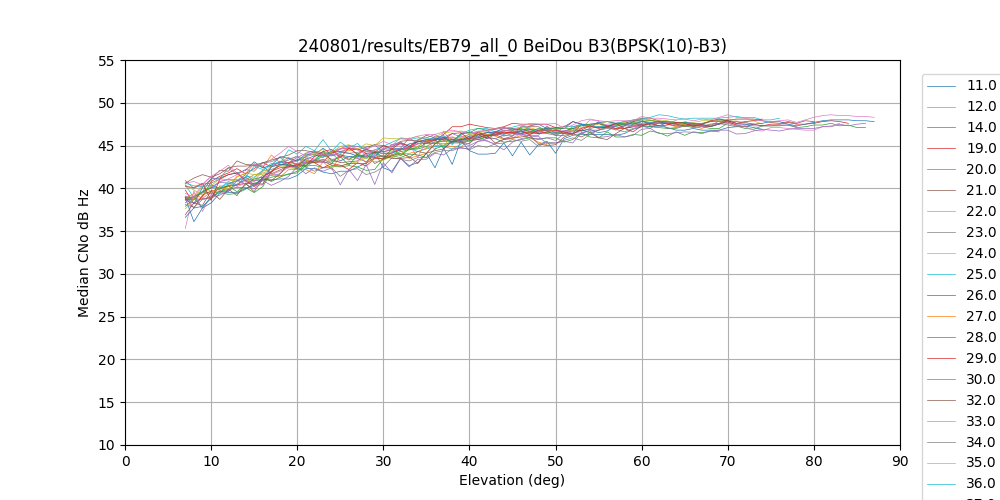

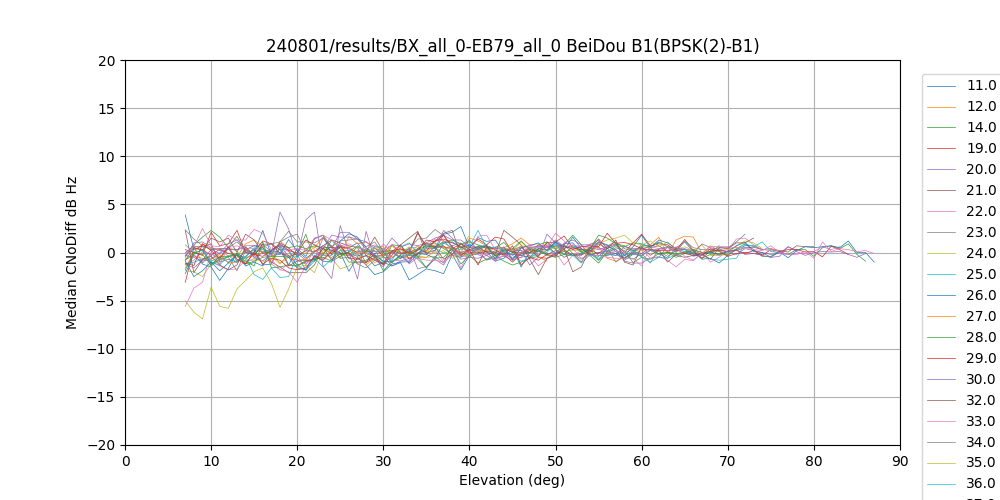

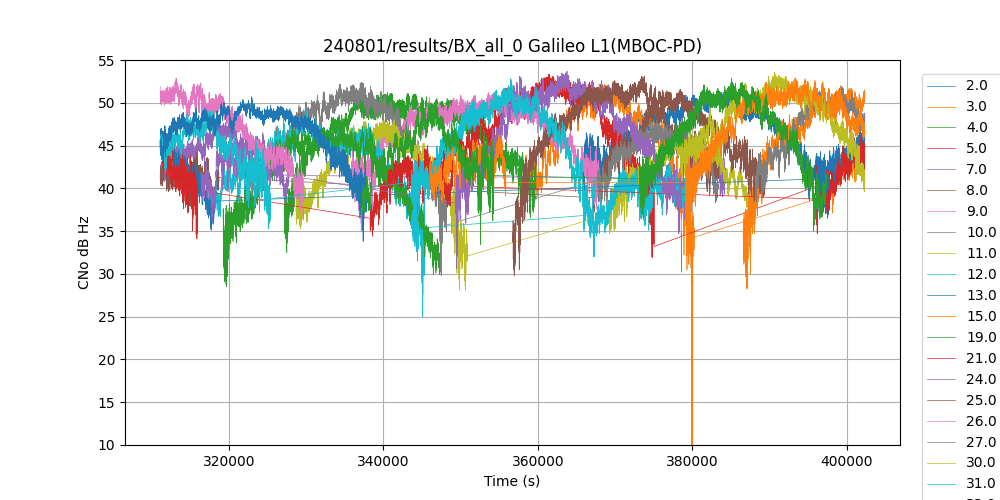

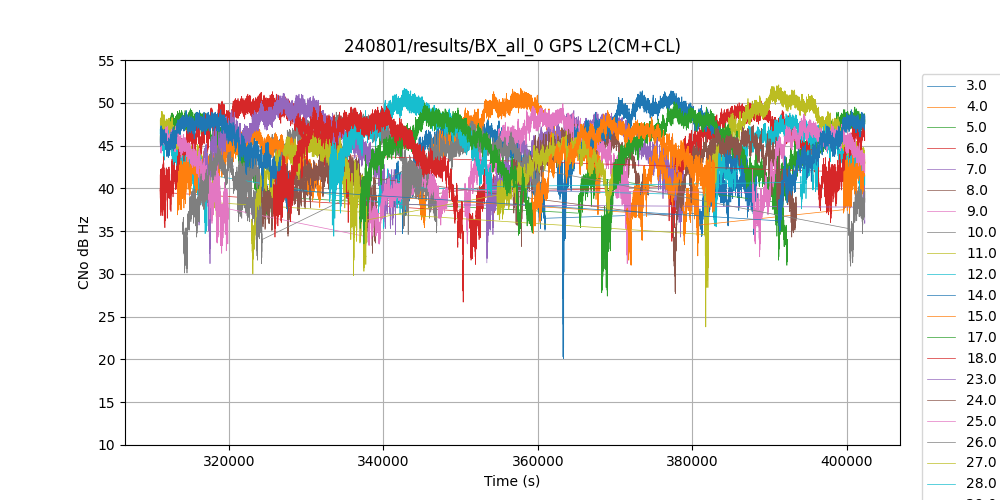

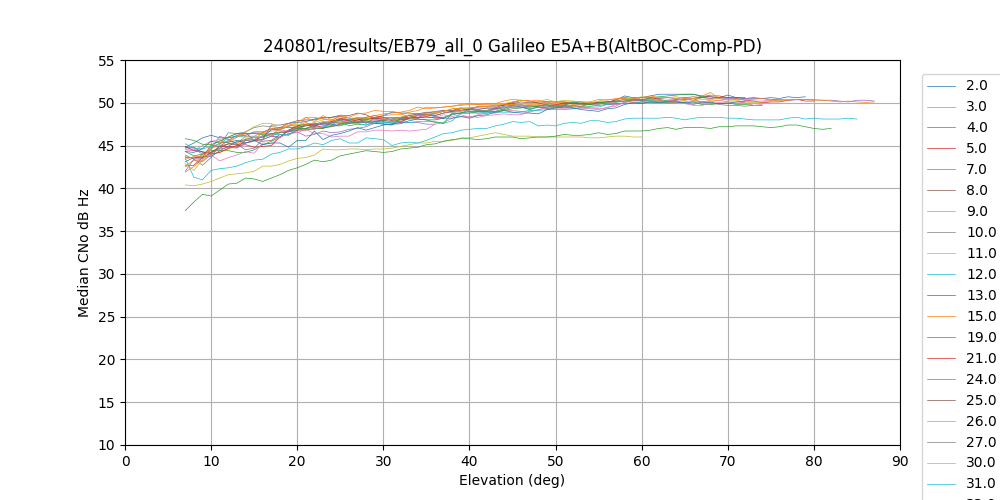

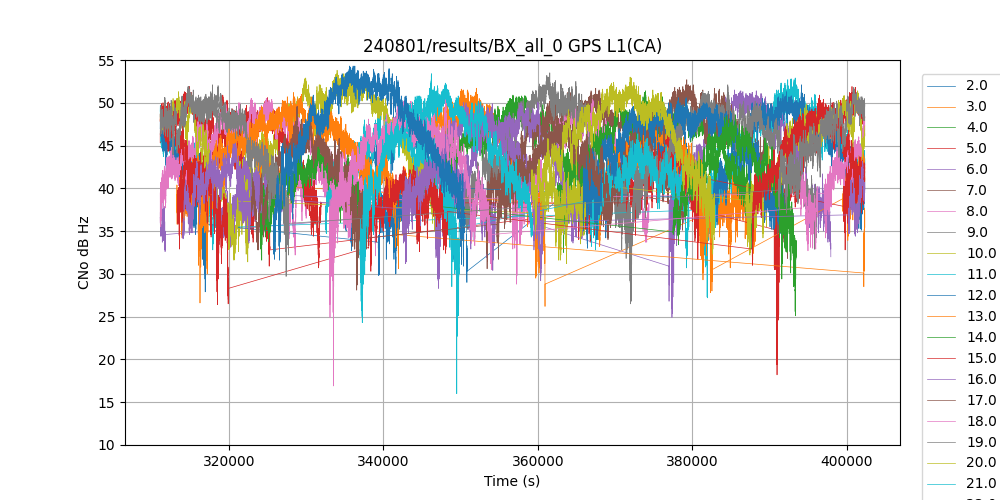

Plots

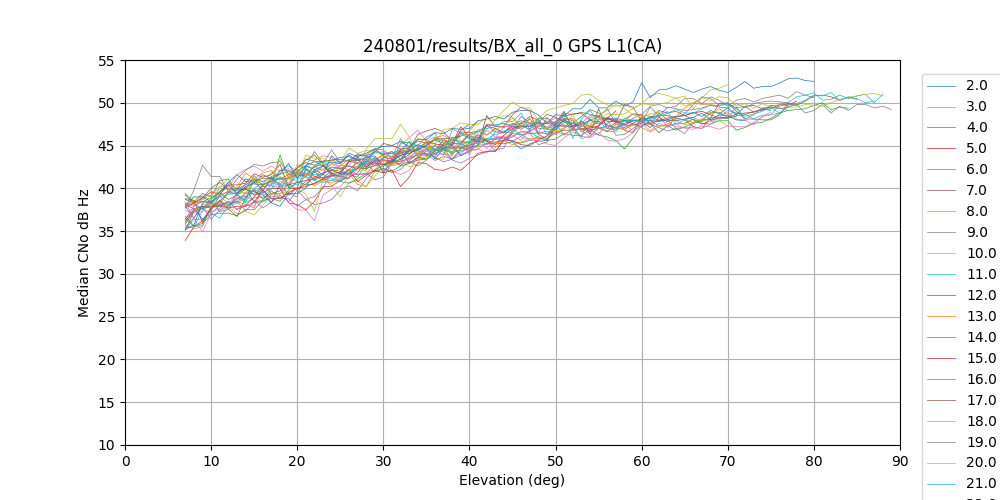

REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.0 49.8 29.0 49 [16.0, 31.0] [0.0] 30524
3 32.7 0.0 42.5 51.7 26.2 130 [35.0, 36.0] [0.0] 27054
4 45.4 0.0 44.7 50.9 34.5 0 [37.0] [0.0] 23852
5 45.8 0.0 45.0 51.9 18.2 321 [15.0, 31.0, 17.0] [0.0] 28073
6 37.6 0.0 43.2 51.5 24.9 134 [25.0, 33.0, 28.0] [0.0] 25163
7 45.1 0.0 45.7 51.7 30.6 0 [32.0] [0.0] 25501
8 27.3 0.0 42.4 50.4 28.8 108 [37.0, 23.0] [0.0] 29176
9 44.0 0.0 45.1 53.5 26.5 1 [36.0] [0.0] 21431
10 43.5 0.0 46.9 53.8 31.4 1 [34.0] [0.0] 25785
11 43.8 0.0 44.9 52.9 27.2 151 [35.0, 34.0] [0.0] 28307
12 36.5 0.0 43.7 52.1 27.9 265 [37.0, 31.0] [0.0] 29257
13 25.4 0.0 42.6 50.6 27.8 300 [33.0, 18.0, 28.0] [0.0] 32768
14 44.1 0.0 45.2 51.4 32.5 0 [27.0] [0.0] 25738
15 27.8 0.0 43.1 50.6 30.7 213 [30.0, 25.0, 24.0] [0.0] 30608
16 31.3 0.0 42.0 50.1 28.3 163 [37.0, 26.0] [0.0] 27058
17 45.7 0.0 45.5 52.7 31.8 1 [37.0] [0.0] 24086
18 40.3 0.0 44.7 50.5 34.2 225 [26.0, 33.0] [0.0] 29964
19 44.6 0.0 44.7 52.1 26.8 2 [33.0] [0.0] 24589
20 37.7 0.0 43.5 51.4 31.2 164 [27.0, 20.0, 22.0] [0.0] 31057
21 26.6 0.0 42.0 49.0 16.0 237 [19.0, 20.0] [0.0] 30253
22 44.4 0.0 45.2 50.6 33.0 0 [26.0] [0.0] 25991
23 43.3 0.0 44.9 51.2 26.6 19 [29.0, 14.0] [0.0] 25677
24 25.6 0.0 41.0 48.6 25.1 148 [27.0, 29.0] [0.0] 29799
25 31.1 0.0 42.0 50.9 26.4 492 [34.0, 36.0, 20.0] [0.0] 33556
26 26.8 0.0 42.3 50.0 29.2 298 [24.0, 29.0, 35.0] [0.0] 30618
27 26.2 0.0 42.3 49.6 28.1 244 [28.0, 33.0] [0.0] 29886
28 39.8 0.0 43.2 50.4 16.9 149 [17.0, 29.0] [0.0] 23128
29 48.1 0.0 46.2 52.1 29.7 216 [14.0, 16.0] [0.0] 27748
30 45.8 0.0 46.0 53.0 32.3 0 [22.0] [0.0] 23673
31 45.3 0.0 45.2 53.4 24.3 39 [15.0] [0.0] 22310
32 45.3 0.0 47.1 54.3 30.9 3 [20.0] [0.0] 24631
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 49.7 33.3 181 [17.0, 31.0] [0.0] 30513
3 32.7 0.0 42.8 51.7 26.1 88 [28.0, 37.0] [0.0] 27070
4 45.4 0.0 44.4 51.1 31.1 0 [34.0] [0.0] 23838
5 45.7 0.0 45.1 52.1 17.3 329 [37.0, 31.0, 17.0] [0.0] 28079
6 37.6 0.0 43.2 52.6 17.6 219 [24.0, 33.0, 27.0] [0.0] 25181
7 45.1 0.0 45.7 51.2 23.0 8 [32.0] [0.0] 25458
8 27.4 0.0 42.0 50.2 26.1 203 [34.0, 27.0] [0.0] 29168
9 44.0 0.0 45.1 53.0 23.3 8 [37.0] [0.0] 21413
10 43.5 0.0 46.9 52.9 32.4 0 [36.0] [0.0] 25786
11 43.8 0.0 44.9 52.5 32.2 114 [32.0, 36.0] [0.0] 28325
12 36.5 0.0 43.9 51.4 16.2 340 [26.0, 34.0, 31.0] [0.0] 29192
13 25.4 0.0 42.7 48.5 30.6 336 [33.0, 24.0, 27.0] [0.0] 32746
14 44.1 0.0 45.1 50.2 34.9 0 [20.0] [0.0] 25721
15 27.9 0.0 42.8 49.9 30.5 427 [27.0, 18.0, 26.0] [0.0] 30558
16 31.3 0.0 41.9 49.6 27.6 14 [34.0, 24.0] [0.0] 27071
17 45.7 0.0 45.3 51.7 26.9 4 [34.0] [0.0] 24080
18 40.3 0.0 44.4 50.7 31.4 159 [29.0, 30.0] [0.0] 29945
19 44.6 0.0 44.6 51.4 21.3 43 [28.0] [0.0] 24607
20 37.7 0.0 43.3 50.0 30.6 377 [20.0, 29.0, 24.0] [0.0] 31048
21 26.6 0.0 42.4 49.4 30.3 158 [20.0, 29.0] [0.0] 30277
22 44.4 0.0 45.2 51.0 33.4 0 [19.0] [0.0] 26002
23 43.3 0.0 44.6 50.2 29.8 177 [22.0, 13.0] [0.0] 25703
24 25.6 0.0 41.3 47.6 31.8 13 [26.0] [0.0] 29837
25 31.1 0.0 42.1 50.0 19.9 467 [30.0, 32.0, 23.0] [0.0] 33513
26 26.8 0.0 41.7 50.0 29.4 83 [23.0, 26.0, 35.0] [0.0] 30636
27 26.1 0.0 42.8 48.2 26.8 49 [30.0, 35.0] [0.0] 29893
28 39.7 0.0 43.1 50.8 16.3 185 [35.0, 26.0] [0.0] 23172
29 48.1 0.0 45.8 53.0 34.9 32 [14.0, 16.0] [0.0] 27741
30 45.9 0.0 45.8 52.8 31.4 1 [21.0] [0.0] 23648
31 45.3 0.0 45.4 53.0 25.2 14 [29.0] [0.0] 22298
32 45.3 0.0 46.8 54.4 25.9 22 [37.0] [0.0] 24632

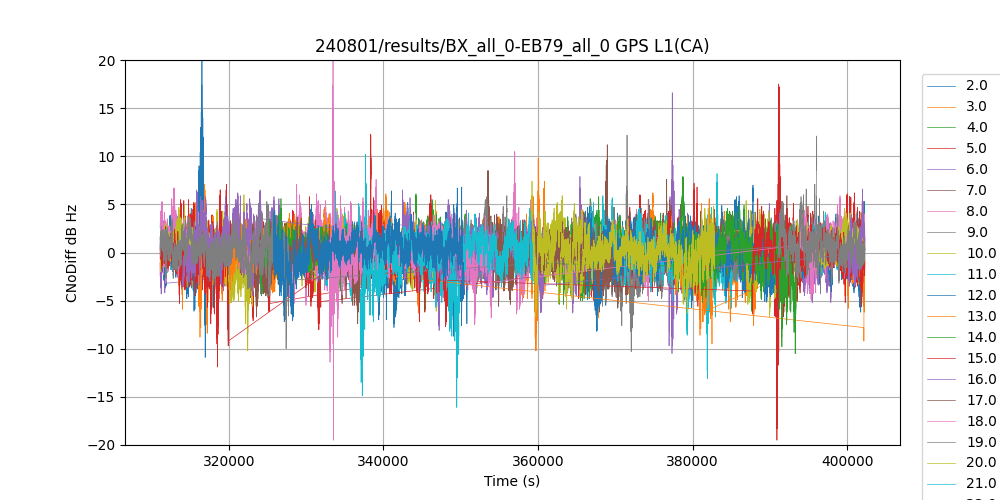

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.0 5.2 -8.7 [16.0, 17.0, 31.0] 30496
3 32.7 -0.2 9.8 -10.2 [35.0, 28.0, 36.0, 37.0] 27035
4 45.4 0.3 6.1 -6.1 [37.0, 34.0] 23833
5 45.7 -0.1 17.5 -19.5 [15.0, 37.0, 31.0, 17.0] 28063
6 37.6 -0.1 16.6 -10.5 [25.0, 24.0, 33.0, 28.0, 27.0] 25159
7 45.2 0.0 8.5 -4.0 [32.0] 25452
8 27.4 0.4 10.5 -6.4 [37.0, 34.0, 23.0, 27.0] 29160
9 44.0 0.0 12.2 -8.2 [36.0, 37.0] 21413
10 43.5 -0.1 6.0 -10.2 [34.0, 36.0] 25779
11 43.8 0.1 8.2 -13.1 [35.0, 32.0, 34.0, 36.0] 28297
12 36.5 -0.2 21.0 -10.9 [37.0, 26.0, 34.0, 31.0] 29192
13 25.4 -0.1 6.2 -9.5 [33.0, 18.0, 24.0, 28.0, 27.0] 32738
14 44.1 0.1 4.9 -6.1 [27.0, 20.0] 25721
15 27.9 0.2 7.2 -8.0 [30.0, 27.0, 25.0, 18.0, 24.0, 26.0] 30551
16 31.3 0.2 7.9 -8.1 [37.0, 34.0, 26.0, 24.0] 27057
17 45.7 0.2 11.2 -5.9 [37.0, 34.0] 24079
18 40.3 0.3 6.7 -4.0 [26.0, 29.0, 33.0, 30.0] 29945
19 44.6 0.2 12.1 -10.3 [33.0, 28.0] 24589
20 37.7 0.2 5.9 -6.7 [27.0, 20.0, 29.0, 22.0, 24.0] 31040
21 26.6 -0.4 6.4 -16.1 [19.0, 20.0, 29.0] 30253
22 44.5 -0.0 5.0 -8.2 [26.0, 19.0] 25983
23 43.4 0.3 7.1 -9.2 [29.0, 22.0, 14.0, 13.0] 25669
24 25.7 -0.3 7.9 -10.5 [27.0, 26.0, 29.0] 29782
25 31.1 -0.1 12.3 -11.9 [34.0, 30.0, 36.0, 32.0, 20.0, 23.0] 33492
26 26.8 0.6 6.6 -6.2 [24.0, 23.0, 29.0, 26.0, 35.0] 30610
27 26.2 -0.5 3.7 -7.4 [28.0, 30.0, 33.0, 35.0] 29882
28 39.8 0.0 20.0 -19.5 [17.0, 35.0, 29.0, 26.0] 23117
29 48.1 0.4 6.0 -10.0 [14.0, 16.0] 27738
30 45.9 0.2 7.4 -6.7 [22.0, 21.0] 23643
31 45.3 -0.1 10.2 -14.9 [15.0, 29.0] 22292
32 45.3 0.3 6.8 -7.2 [20.0, 37.0] 24631

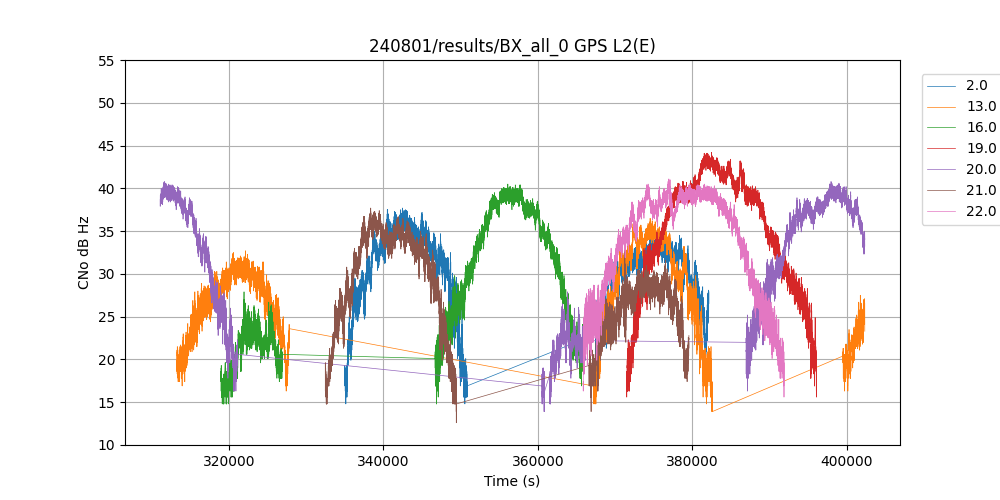

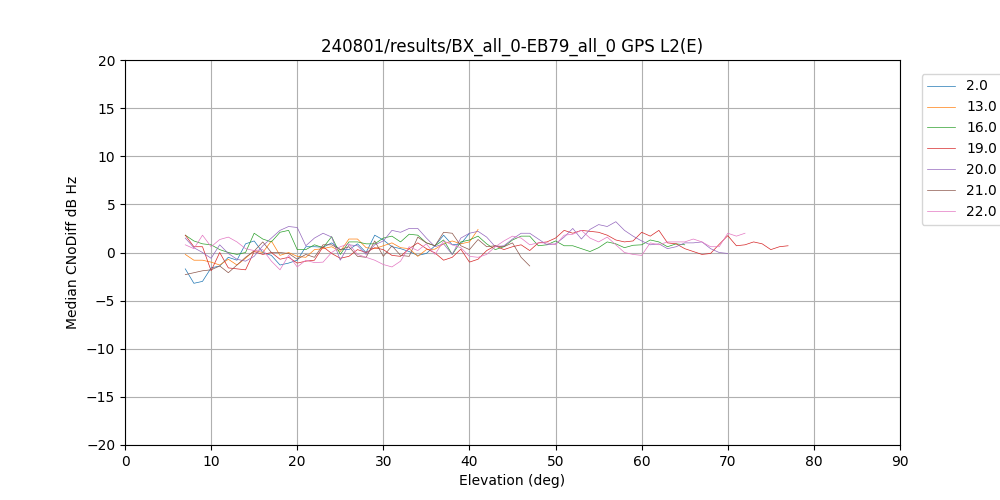

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.2 37.7 14.8 55 [16.0, 31.0] [0.0] 30524
13 25.4 0.0 27.1 36.5 13.9 270 [33.0, 18.0, 28.0] [0.0] 32768
16 31.5 0.0 28.6 40.5 14.8 243 [37.0, 26.0] [0.0] 26841
19 44.6 0.0 34.8 44.2 15.6 3 [33.0] [0.0] 24589
20 38.3 0.0 31.3 40.8 13.9 256 [27.0, 20.0, 22.0] [0.0] 30345
21 26.9 0.0 27.9 37.7 12.6 171 [19.0, 20.0] [0.0] 29769
22 44.4 0.0 33.4 41.1 15.6 0 [26.0] [0.0] 25991
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.0 36.6 19.0 239 [17.0, 31.0] [0.0] 30513
3 32.7 0.0 39.5 49.8 20.1 155 [28.0, 37.0] [0.0] 27070
4 45.4 0.0 32.9 42.6 14.8 0 [34.0] [0.0] 23813
5 45.8 0.0 42.0 50.1 20.1 166 [37.0, 31.0, 17.0] [0.0] 28033
6 37.6 0.0 41.0 52.0 21.7 291 [24.0, 33.0, 27.0] [0.0] 25160
7 45.2 0.0 41.7 49.0 22.5 4 [32.0] [0.0] 25448
8 27.4 0.0 38.2 47.0 20.9 170 [34.0, 27.0] [0.0] 29168
9 44.1 0.0 43.6 52.7 23.6 3 [37.0] [0.0] 21402
10 43.5 0.0 43.9 50.8 26.2 0 [36.0] [0.0] 25786
11 43.8 0.0 33.4 43.5 14.8 53 [32.0, 36.0] [0.0] 28325
12 36.6 0.0 40.3 49.4 19.6 238 [26.0, 34.0, 31.0] [0.0] 29132
13 25.4 0.0 26.9 35.8 16.3 172 [33.0, 24.0, 27.0] [0.0] 32746
14 44.1 0.0 34.2 40.9 18.6 0 [20.0] [0.0] 25721
15 27.9 0.0 37.9 46.5 22.5 313 [27.0, 18.0, 26.0] [0.0] 30558
16 31.3 0.0 27.7 39.8 14.8 155 [34.0, 24.0] [0.0] 27071
17 45.7 0.0 42.0 50.3 17.8 4 [34.0] [0.0] 24080
18 40.3 0.0 32.6 42.0 17.4 240 [29.0, 30.0] [0.0] 29945
19 44.7 0.0 34.5 43.7 12.6 3 [28.0] [0.0] 24547
20 37.7 0.0 30.2 40.2 13.9 204 [20.0, 29.0, 24.0] [0.0] 31048
21 26.6 0.0 27.8 37.3 13.9 44 [20.0, 29.0] [0.0] 30277
22 44.4 0.0 32.8 39.9 15.6 0 [19.0] [0.0] 26002
23 43.3 0.0 33.3 40.9 15.6 40 [22.0, 13.0] [0.0] 25703
24 25.6 0.0 38.2 46.1 25.6 13 [26.0] [0.0] 29837
25 31.2 0.0 38.1 47.2 18.3 89 [30.0, 32.0, 23.0] [0.0] 33435
26 26.8 0.0 36.9 46.3 24.2 267 [23.0, 26.0, 35.0] [0.0] 30636
27 26.1 0.0 39.4 45.8 25.9 82 [30.0, 35.0] [0.0] 29893
28 39.7 0.0 31.4 41.2 14.8 183 [35.0, 26.0] [0.0] 23140
29 48.1 0.0 43.0 51.6 25.7 28 [14.0, 16.0] [0.0] 27741
30 45.9 0.0 43.2 51.5 26.0 1 [21.0] [0.0] 23648
31 45.3 0.0 41.6 50.8 23.3 7 [29.0] [0.0] 22280
32 45.3 0.0 43.7 52.2 18.6 7 [37.0] [0.0] 24613
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.2 6.4 -9.5 [16.0, 17.0, 31.0] 30496
13 25.4 0.2 6.0 -8.2 [33.0, 18.0, 24.0, 28.0, 27.0] 32738
16 31.5 0.8 6.9 -6.4 [37.0, 34.0, 26.0, 24.0] 26840
19 44.7 0.4 5.9 -7.9 [33.0, 28.0] 24547
20 38.3 0.9 7.7 -7.2 [27.0, 20.0, 29.0, 22.0, 24.0] 30328
21 26.9 -0.0 7.7 -7.5 [19.0, 20.0, 29.0] 29769
22 44.5 0.6 5.7 -6.4 [26.0, 19.0] 25983
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.0 34.4 215 [35.0, 36.0] [0.0] 27054
4 45.4 0.0 46.5 51.7 35.4 0 [37.0] [0.0] 23852
5 45.8 0.0 44.9 49.5 31.6 421 [15.0, 31.0, 17.0] [0.0] 28073
6 37.6 0.0 44.6 50.2 31.1 32 [25.0, 33.0, 28.0] [0.0] 25163
7 45.1 0.0 44.6 49.1 31.3 0 [32.0] [0.0] 25501
8 27.3 0.0 42.9 47.6 32.4 168 [37.0, 23.0] [0.0] 29176
9 44.0 0.0 45.0 49.9 31.2 0 [36.0] [0.0] 21431
10 43.5 0.0 44.7 49.3 34.8 0 [34.0] [0.0] 25785
11 43.8 0.0 46.3 52.1 23.8 143 [35.0, 34.0] [0.0] 28307
12 36.5 0.0 43.8 48.8 34.7 64 [37.0, 31.0] [0.0] 29257
14 44.1 0.0 46.7 51.4 20.1 21 [27.0] [0.0] 25733
15 27.8 0.0 42.3 47.5 31.0 341 [30.0, 25.0, 24.0] [0.0] 30608
17 45.7 0.0 44.2 50.1 27.4 0 [37.0] [0.0] 24086
18 40.3 0.0 46.1 51.3 35.4 241 [26.0, 33.0] [0.0] 29964
23 43.3 0.0 46.0 51.1 31.2 61 [29.0, 14.0] [0.0] 25677
24 25.6 0.0 42.1 47.4 27.7 175 [27.0, 29.0] [0.0] 29799
25 31.1 0.0 42.4 48.7 32.0 304 [34.0, 36.0, 20.0] [0.0] 33556
26 26.8 0.0 41.9 47.9 30.1 452 [24.0, 29.0, 35.0] [0.0] 30618
27 26.2 0.0 42.3 46.7 29.8 1 [28.0, 33.0] [0.0] 29886
28 39.8 0.0 46.3 51.7 34.4 81 [17.0, 29.0] [0.0] 23128
29 48.1 0.0 45.1 49.2 34.9 42 [14.0, 16.0] [0.0] 27748
30 45.8 0.0 44.4 49.1 34.7 0 [22.0] [0.0] 23673
31 45.3 0.0 44.6 50.0 33.5 0 [15.0] [0.0] 22310
32 45.3 0.0 44.8 49.7 26.7 0 [20.0] [0.0] 24631

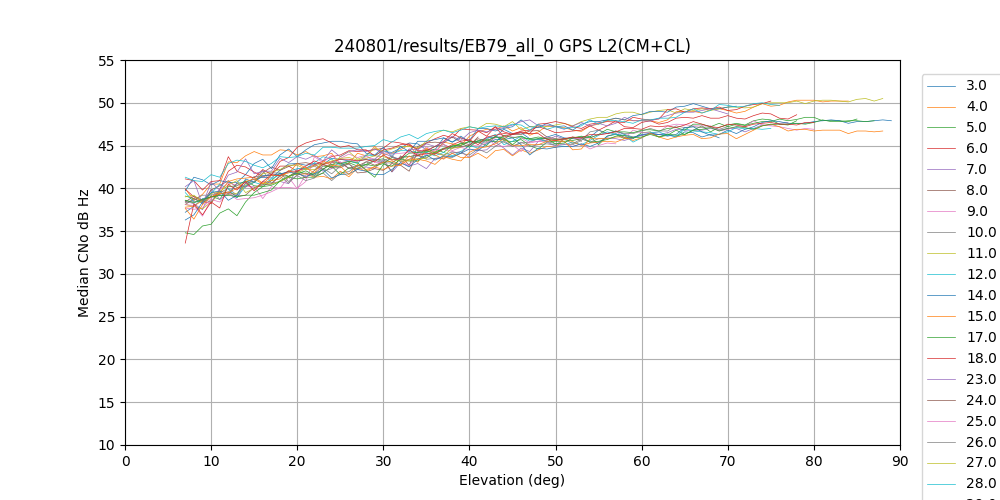

DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.1 48.6 31.8 178 [28.0, 37.0] [0.0] 27070
4 45.4 0.0 46.1 51.9 35.4 0 [34.0] [0.0] 23838
5 45.7 0.0 44.5 49.1 27.9 284 [37.0, 31.0, 17.0] [0.0] 28079
6 37.6 0.0 44.3 49.9 25.6 138 [24.0, 33.0, 27.0] [0.0] 25181
7 45.1 0.0 44.1 48.9 33.7 0 [32.0] [0.0] 25458
8 27.4 0.0 42.9 48.2 33.7 210 [34.0, 27.0] [0.0] 29168
9 44.0 0.0 44.4 49.3 30.5 0 [37.0] [0.0] 21413
10 43.5 0.0 44.3 49.0 33.5 0 [36.0] [0.0] 25786
11 43.8 0.0 46.1 51.7 10.8 129 [32.0, 36.0] [0.0] 28323
12 36.5 0.0 43.5 48.5 31.4 387 [26.0, 34.0, 31.0] [0.0] 29199
14 44.1 0.0 46.5 51.2 31.1 0 [20.0] [0.0] 25721
15 27.9 0.0 42.0 47.6 29.1 85 [27.0, 18.0, 26.0] [0.0] 30558
17 45.7 0.0 44.3 49.7 22.4 10 [34.0] [0.0] 24080
18 40.3 0.0 45.8 51.3 36.4 54 [29.0, 30.0] [0.0] 29945
23 43.3 0.0 46.0 50.5 33.2 183 [22.0, 13.0] [0.0] 25703
24 25.6 0.0 42.2 47.5 34.5 6 [26.0] [0.0] 29837
25 31.1 0.0 42.3 47.3 19.1 227 [30.0, 32.0, 23.0] [0.0] 33510
26 26.8 0.0 42.0 47.1 32.9 292 [23.0, 26.0, 35.0] [0.0] 30636
27 26.1 0.0 42.5 46.7 32.8 3 [30.0, 35.0] [0.0] 29893
28 39.7 0.0 45.9 51.2 30.4 168 [35.0, 26.0] [0.0] 23172
29 48.1 0.0 44.4 49.3 29.5 24 [14.0, 16.0] [0.0] 27741
30 45.9 0.0 44.0 48.4 33.5 0 [21.0] [0.0] 23648
31 45.3 0.0 44.4 49.2 31.2 0 [29.0] [0.0] 22298
32 45.3 0.0 44.9 49.3 25.5 3 [37.0] [0.0] 24632
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.2 5.6 -6.2 [35.0, 28.0, 36.0, 37.0] 27035
4 45.4 0.4 5.4 -7.7 [37.0, 34.0] 23833
5 45.7 0.4 10.4 -5.6 [15.0, 37.0, 31.0, 17.0] 28063
6 37.6 0.3 15.3 -8.8 [25.0, 24.0, 33.0, 28.0, 27.0] 25159
7 45.2 0.5 5.0 -4.7 [32.0] 25452
8 27.4 -0.0 5.6 -6.8 [37.0, 34.0, 23.0, 27.0] 29160
9 44.0 0.7 7.2 -5.4 [36.0, 37.0] 21413
10 43.5 0.4 5.3 -5.0 [34.0, 36.0] 25779
11 43.8 0.2 23.6 -8.6 [35.0, 32.0, 34.0, 36.0] 28295
12 36.5 0.3 6.2 -5.3 [37.0, 26.0, 34.0, 31.0] 29199
14 44.2 0.2 5.9 -13.0 [27.0, 20.0] 25716
15 27.9 0.2 10.7 -7.8 [30.0, 27.0, 25.0, 18.0, 24.0, 26.0] 30551
17 45.7 -0.1 8.7 -8.3 [37.0, 34.0] 24079
18 40.3 0.3 5.2 -7.2 [26.0, 29.0, 33.0, 30.0] 29945
23 43.4 -0.0 4.6 -8.7 [29.0, 22.0, 14.0, 13.0] 25669
24 25.7 -0.0 5.7 -8.9 [27.0, 26.0, 29.0] 29782
25 31.1 0.1 17.4 -6.9 [34.0, 30.0, 36.0, 32.0, 20.0, 23.0] 33489
26 26.8 -0.1 6.9 -7.9 [24.0, 23.0, 29.0, 26.0, 35.0] 30610
27 26.2 -0.2 4.9 -9.1 [28.0, 30.0, 33.0, 35.0] 29882
28 39.8 0.5 9.6 -5.8 [17.0, 35.0, 29.0, 26.0] 23117
29 48.1 0.7 11.1 -3.2 [14.0, 16.0] 27738
30 45.9 0.4 6.9 -4.0 [22.0, 21.0] 23643
31 45.3 0.2 6.4 -5.0 [15.0, 29.0] 22292
32 45.3 -0.1 8.1 -7.2 [20.0, 37.0] 24631
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.0 51.9 38.0 147 [35.0, 36.0] [0.0] 27054
4 45.4 0.0 48.4 52.8 40.0 0 [37.0] [0.0] 23852
6 37.6 0.0 47.7 52.5 40.0 378 [25.0, 33.0, 28.0] [0.0] 25163
8 27.3 0.0 46.5 50.8 36.6 160 [37.0, 23.0] [0.0] 29176
9 44.0 0.0 48.5 51.9 40.8 0 [36.0] [0.0] 21431
10 43.5 0.0 47.9 51.6 39.9 0 [34.0] [0.0] 25785
11 43.8 0.0 48.3 54.5 34.1 121 [35.0, 34.0] [0.0] 28307
14 44.1 0.0 48.4 53.2 39.7 0 [27.0] [0.0] 25738
18 40.3 0.0 48.4 53.0 40.3 95 [26.0, 33.0] [0.0] 29964
23 43.3 0.0 48.3 53.1 37.9 13 [29.0, 14.0] [0.0] 25677
24 25.6 0.0 46.2 51.0 34.4 114 [27.0, 29.0] [0.0] 29799
25 31.1 0.0 47.1 51.9 36.2 294 [34.0, 36.0, 20.0] [0.0] 33556
26 26.8 0.0 46.1 50.7 38.6 225 [24.0, 29.0, 35.0] [0.0] 30618
27 26.2 0.0 46.1 49.8 39.0 34 [28.0, 33.0] [0.0] 29886
28 39.8 0.0 48.1 52.8 41.0 36 [17.0, 29.0] [0.0] 23128
30 45.8 0.0 49.1 52.7 40.7 0 [22.0] [0.0] 23673
32 45.3 0.0 46.7 50.9 31.7 0 [20.0] [0.0] 24631
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.2 51.5 38.6 163 [28.0, 37.0] [0.0] 27070
4 45.4 0.0 47.9 53.0 39.4 0 [34.0] [0.0] 23838
6 37.6 0.0 47.5 52.2 37.4 480 [24.0, 33.0, 27.0] [0.0] 25181
8 27.4 0.0 46.7 51.5 37.6 233 [34.0, 27.0] [0.0] 29168
9 44.0 0.0 48.3 51.9 38.7 0 [37.0] [0.0] 21413
10 43.5 0.0 47.7 51.1 37.6 0 [36.0] [0.0] 25786
11 43.8 0.0 48.8 53.7 38.3 127 [32.0, 36.0] [0.0] 28325
14 44.1 0.0 48.8 53.3 41.7 0 [20.0] [0.0] 25721
18 40.3 0.0 48.2 53.0 39.8 70 [29.0, 30.0] [0.0] 29945
23 43.3 0.0 48.3 52.8 39.0 0 [22.0, 13.0] [0.0] 25703
24 25.6 0.0 46.2 50.2 39.5 4 [26.0] [0.0] 29837
25 31.1 0.0 46.8 51.5 34.4 213 [30.0, 32.0, 23.0] [0.0] 33513
26 26.8 0.0 46.2 50.7 39.0 433 [23.0, 26.0, 35.0] [0.0] 30636
27 26.1 0.0 46.4 49.8 39.4 130 [30.0, 35.0] [0.0] 29893
28 39.7 0.0 47.8 52.9 38.7 31 [35.0, 26.0] [0.0] 23172
30 45.9 0.0 48.8 52.7 40.9 0 [21.0] [0.0] 23648
32 45.3 0.0 46.7 50.3 27.2 3 [37.0] [0.0] 24632
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.1 5.5 -4.9 [35.0, 28.0, 36.0, 37.0] 27035
4 45.4 0.5 4.0 -2.4 [37.0, 34.0] 23833
6 37.6 0.2 6.4 -5.5 [25.0, 24.0, 33.0, 28.0, 27.0] 25159
8 27.4 -0.1 3.7 -3.8 [37.0, 34.0, 23.0, 27.0] 29160
9 44.0 0.2 4.2 -2.2 [36.0, 37.0] 21413
10 43.5 0.1 4.2 -2.8 [34.0, 36.0] 25779
11 43.8 -0.5 2.2 -9.1 [35.0, 32.0, 34.0, 36.0] 28297
14 44.1 -0.3 2.6 -5.0 [27.0, 20.0] 25721
18 40.3 0.2 3.5 -3.6 [26.0, 29.0, 33.0, 30.0] 29945
23 43.4 0.0 3.3 -4.2 [29.0, 22.0, 14.0, 13.0] 25669
24 25.7 -0.0 3.1 -9.4 [27.0, 26.0, 29.0] 29782
25 31.1 0.3 6.5 -4.3 [34.0, 30.0, 36.0, 32.0, 20.0, 23.0] 33492
26 26.8 -0.1 3.8 -5.2 [24.0, 23.0, 29.0, 26.0, 35.0] 30610
27 26.2 -0.3 3.7 -4.3 [28.0, 30.0, 33.0, 35.0] 29882
28 39.8 0.3 6.1 -4.9 [17.0, 35.0, 29.0, 26.0] 23117
30 45.9 0.3 2.9 -3.0 [22.0, 21.0] 23643
32 45.3 0.1 5.6 -3.3 [20.0, 37.0] 24631
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.3 48.5 44.3 0 [57.0] [0.0] 91176
133 38.0 0.0 43.0 45.1 40.9 0 [56.0] [0.0] 91176
135 39.3 0.0 44.8 46.8 42.8 0 [55.0] [0.0] 91176
DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 44.3 46.3 42.0 0 [55.0] [0.0] 91166
133 38.0 0.0 43.8 46.0 41.3 0 [56.0] [0.0] 91166
135 39.3 0.0 44.4 46.6 42.0 0 [57.0] [0.0] 91166
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 2.0 4.1 0.0 [57.0, 55.0] 91166
133 38.0 -0.8 1.3 -2.8 [56.0] 91166
135 39.3 0.3 2.5 -1.8 [55.0, 57.0] 91166
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.7 48.7 45.1 0 [57.0] [0.0] 91176
133 38.0 0.0 46.0 47.5 44.2 0 [56.0] [0.0] 91176
135 39.3 0.0 46.0 47.7 44.2 0 [55.0] [0.0] 91176
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)

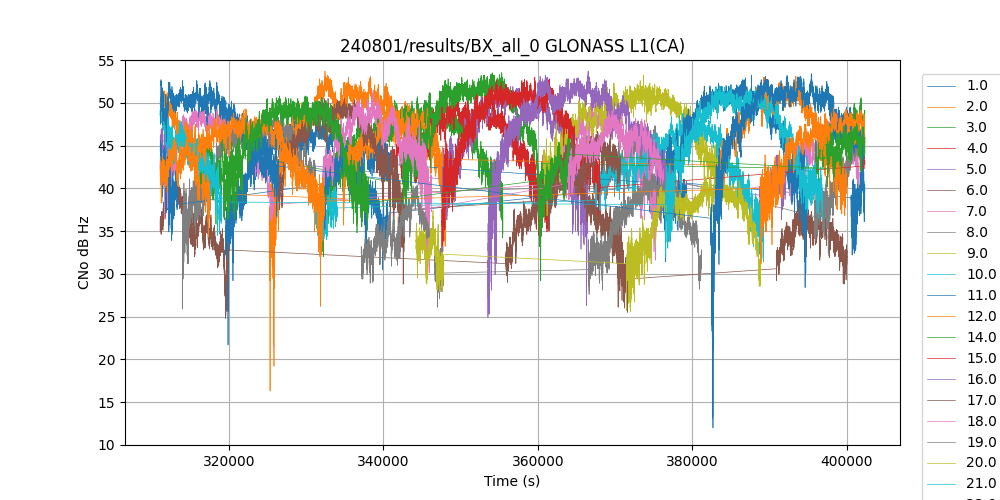

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 41.8 48.3 21.7 171 [1.0] [0.0] 27787
2 39.2 0.0 47.4 53.7 16.3 26 [-4.0] [0.0] 23025
3 38.7 0.0 45.7 51.2 32.0 0 [5.0] [0.0] 23359
4 41.9 0.0 45.6 51.4 34.5 0 [6.0] [0.0] 21465
5 37.5 0.0 45.7 52.7 26.3 248 [1.0] [0.0] 24240
6 31.1 0.0 36.1 43.3 24.8 529 [-4.0] [0.0] 33804
7 33.2 0.0 45.2 50.5 31.6 381 [5.0] [0.0] 38050
8 34.6 0.0 43.0 49.3 25.9 336 [6.0] [0.0] 35095
9 39.4 0.0 47.6 53.2 36.8 0 [-2.0] [0.0] 23267
10 38.0 0.0 42.5 48.8 31.4 100 [-7.0] [0.0] 24500
11 34.6 0.0 45.5 53.2 28.4 157 [0.0] [0.0] 29966
12 32.5 0.0 46.6 53.1 34.3 346 [-1.0] [0.0] 35754
14 32.7 0.0 46.9 53.5 35.8 284 [-7.0] [0.0] 30184
15 43.7 0.0 47.4 53.0 32.6 221 [0.0] [0.0] 20721
16 39.4 0.0 47.9 53.7 24.9 15 [-1.0] [0.0] 22931
17 31.3 0.0 44.6 50.5 28.8 220 [4.0] [0.0] 25743
18 28.7 0.0 45.4 51.5 30.1 122 [-3.0] [0.0] 26735
19 30.2 0.0 35.6 41.8 26.1 257 [3.0] [0.0] 25294
20 38.4 0.0 36.3 42.0 25.6 235 [2.0] [0.0] 20995
21 39.1 0.0 45.7 52.1 31.9 198 [4.0] [0.0] 28233
22 43.4 0.0 48.1 53.4 12.0 359 [-3.0] [0.0] 35234
23 40.8 0.0 44.6 49.4 26.2 71 [3.0] [0.0] 34735
24 35.4 0.0 45.0 50.8 29.2 106 [2.0] [0.0] 27636
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 41.3 47.6 29.2 209 [1.0] [0.0] 27770
2 39.2 0.0 46.9 52.1 22.1 39 [-4.0] [0.0] 23039
3 38.7 0.0 45.1 50.2 31.6 0 [5.0] [0.0] 23365
4 41.9 0.0 44.7 49.6 30.1 0 [6.0] [0.0] 21470
5 37.5 0.0 45.5 52.8 16.9 474 [1.0] [0.0] 24174
6 30.7 0.0 35.2 42.4 19.9 1598 [-4.0] [0.0] 34461
7 33.3 0.0 44.1 49.3 35.1 173 [5.0] [0.0] 38016
8 34.7 0.0 42.0 48.6 27.7 245 [6.0] [0.0] 35055
9 39.4 0.0 47.4 52.4 36.4 0 [-2.0] [0.0] 23268
10 38.0 0.0 41.8 47.8 19.4 121 [-7.0] [0.0] 24472
11 34.6 0.0 45.3 52.6 26.2 124 [0.0] [0.0] 29999
12 32.5 0.0 46.2 52.3 33.9 305 [-1.0] [0.0] 35749
14 32.8 0.0 46.0 53.6 33.4 285 [-7.0] [0.0] 30140
15 43.8 0.0 46.9 52.9 30.9 128 [0.0] [0.0] 20688
16 39.4 0.0 47.5 53.2 32.3 0 [-1.0] [0.0] 22968
17 31.3 0.0 44.0 50.6 29.8 9 [4.0] [0.0] 25694
18 28.7 0.0 45.0 50.8 35.1 190 [-3.0] [0.0] 26771
19 31.1 0.0 35.2 41.3 27.2 151 [3.0] [0.0] 24083
20 38.3 0.0 35.2 40.9 23.7 561 [2.0] [0.0] 21069
21 39.1 0.0 44.7 51.4 16.9 135 [4.0] [0.0] 28215
22 43.4 0.0 47.6 53.2 30.4 211 [-3.0] [0.0] 35230
23 40.8 0.0 43.7 48.8 27.1 43 [3.0] [0.0] 34712
24 35.4 0.0 44.0 51.5 16.9 110 [2.0] [0.0] 27635
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 35.2 0.5 7.2 -14.7 [1.0] 27756
2 39.2 0.6 15.0 -20.9 [-4.0] 23025
3 38.7 0.7 6.3 -7.1 [5.0] 23359
4 41.9 1.0 9.2 -5.1 [6.0] 21465
5 37.6 0.3 20.4 -10.1 [1.0] 24167
6 31.3 0.8 8.4 -6.1 [-4.0] 33514
7 33.3 1.2 8.3 -7.0 [5.0] 38007
8 34.7 1.0 8.3 -5.8 [6.0] 35044
9 39.4 0.2 5.8 -6.5 [-2.0] 23267
10 38.0 0.8 16.1 -5.1 [-7.0] 24463
11 34.6 0.2 12.7 -11.0 [0.0] 29957
12 32.5 0.4 6.8 -7.2 [-1.0] 35719
14 32.8 0.9 8.1 -4.8 [-7.0] 30139
15 43.8 0.6 10.2 -8.0 [0.0] 20683
16 39.4 0.3 5.8 -11.9 [-1.0] 22931
17 31.3 0.6 6.2 -8.2 [4.0] 25694
18 28.7 0.4 7.1 -9.8 [-3.0] 26735
19 31.2 0.6 6.4 -5.6 [3.0] 23884
20 38.5 1.0 7.3 -6.3 [2.0] 20913
21 39.1 1.1 19.7 -8.1 [4.0] 28201
22 43.4 0.5 6.7 -22.2 [-3.0] 35224
23 40.8 1.0 9.5 -8.0 [3.0] 34712
24 35.4 1.0 22.5 -11.5 [2.0] 27605
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 40.3 46.8 25.8 446 [1.0] [0.0] 27786
2 39.2 0.0 46.1 51.8 25.7 5 [-4.0] [0.0] 23025
3 38.7 0.0 44.2 49.1 31.9 0 [5.0] [0.0] 23359
4 41.9 0.0 43.8 49.1 32.6 0 [6.0] [0.0] 21465
5 37.5 0.0 44.4 50.9 29.8 236 [1.0] [0.0] 24240
6 31.1 0.0 34.8 41.8 23.1 1262 [-4.0] [0.0] 33783
7 33.2 0.0 43.6 48.2 31.5 134 [5.0] [0.0] 38050
8 34.6 0.0 41.1 47.0 27.2 316 [6.0] [0.0] 35095
9 39.4 0.0 46.0 51.3 35.9 0 [-2.0] [0.0] 23267
10 38.0 0.0 41.2 47.2 30.9 113 [-7.0] [0.0] 24500
11 34.6 0.0 43.9 50.7 30.4 151 [0.0] [0.0] 29966
12 32.5 0.0 45.7 51.6 35.6 400 [-1.0] [0.0] 35754
14 32.7 0.0 45.5 51.9 34.6 279 [-7.0] [0.0] 30184
15 43.7 0.0 45.7 50.8 32.6 24 [0.0] [0.0] 20721
16 39.5 0.0 46.5 51.9 27.5 7 [-1.0] [0.0] 22916
17 31.3 0.0 42.6 48.5 30.6 133 [4.0] [0.0] 25743
18 28.7 0.0 43.9 49.3 31.0 106 [-3.0] [0.0] 26735
19 30.2 0.0 33.7 39.9 25.1 1447 [3.0] [0.0] 25294
20 38.4 0.0 35.1 40.6 24.9 398 [2.0] [0.0] 20994
21 39.1 0.0 44.0 50.0 31.9 232 [4.0] [0.0] 28233
22 43.4 0.0 46.9 51.8 17.7 42 [-3.0] [0.0] 35169
23 40.8 0.0 42.7 47.3 31.0 185 [3.0] [0.0] 34735
24 35.4 0.0 43.4 49.2 29.6 172 [2.0] [0.0] 27636
DUT GLONASS L1(P)
DIFF GLONASS L1(P)

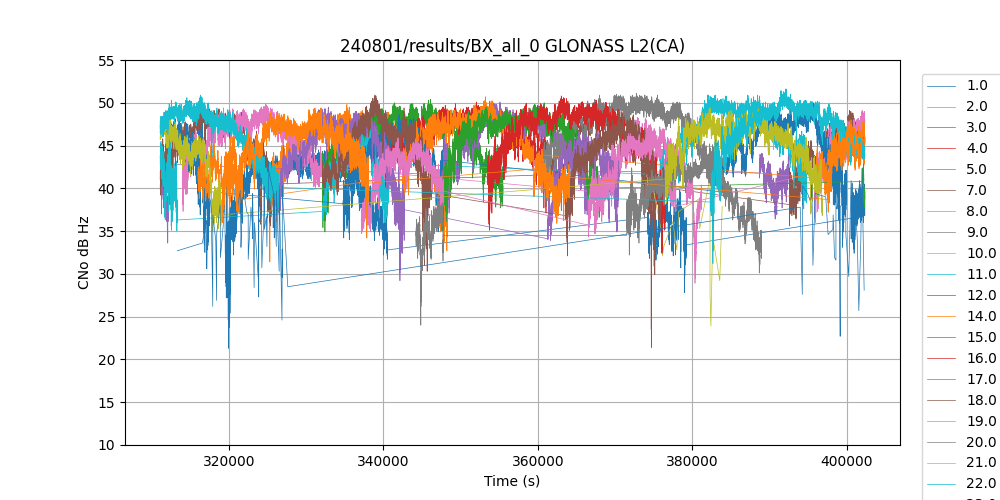

REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 39.7 44.6 21.3 523 [1.0] [0.0] 27784
2 39.2 0.0 45.1 49.8 31.4 0 [-4.0] [0.0] 23025
3 38.7 0.0 46.0 50.4 34.9 0 [5.0] [0.0] 23359
4 41.9 0.0 46.4 50.1 37.1 0 [6.0] [0.0] 21465
5 37.5 0.0 44.8 50.2 33.6 298 [1.0] [0.0] 24240
7 33.2 0.0 45.2 50.0 21.4 262 [5.0] [0.0] 38050
8 34.6 0.0 45.0 49.9 34.7 264 [6.0] [0.0] 35095
9 39.4 0.0 47.3 51.1 37.9 0 [-2.0] [0.0] 23267
10 58.6 0.0 35.0 41.2 23.9 18 [-7.0] [0.0] 19
11 34.6 0.0 45.2 50.9 35.0 259 [0.0] [0.0] 29966
12 32.5 0.0 44.8 50.0 32.5 284 [-1.0] [0.0] 35754
14 32.7 0.0 45.1 50.7 34.6 446 [-7.0] [0.0] 30184
15 43.7 0.0 46.0 50.0 35.0 110 [0.0] [0.0] 20721
16 39.5 0.0 46.5 50.8 32.4 1 [-1.0] [0.0] 22917
17 31.3 0.0 44.0 49.5 29.2 187 [4.0] [0.0] 25743
18 28.7 0.0 44.5 50.9 30.3 33 [-3.0] [0.0] 26735
19 30.2 0.0 42.2 47.2 28.9 20 [3.0] [0.0] 25294
20 38.4 0.0 38.9 43.9 24.0 188 [2.0] [0.0] 20994
21 39.1 0.0 45.1 49.4 35.0 50 [4.0] [0.0] 28233
22 43.4 0.0 46.9 51.6 31.2 155 [-3.0] [0.0] 35234
23 55.9 0.0 35.6 42.3 22.7 339 [3.0] [0.0] 116
24 35.4 0.0 44.4 49.4 34.2 173 [2.0] [0.0] 27636
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 39.6 44.5 21.4 398 [1.0] [0.0] 27769
2 39.2 0.0 44.8 49.0 26.8 0 [-4.0] [0.0] 23039
3 38.7 0.0 45.7 49.9 35.2 0 [5.0] [0.0] 23365
4 41.9 0.0 45.9 50.0 36.2 0 [6.0] [0.0] 21470
5 37.5 0.0 45.0 50.2 27.5 211 [1.0] [0.0] 24174
7 33.3 0.0 45.1 49.5 33.9 113 [5.0] [0.0] 38016
8 34.7 0.0 44.6 49.5 27.6 127 [6.0] [0.0] 35055
9 39.4 0.0 46.9 51.1 33.7 0 [-2.0] [0.0] 23268
10 65.1 0.0 32.2 40.4 12.3 14 [-7.0] [0.0] 15
11 34.6 0.0 45.1 50.9 19.8 153 [0.0] [0.0] 29998
12 32.5 0.0 45.1 50.0 28.4 264 [-1.0] [0.0] 35749
14 32.8 0.0 44.9 50.0 36.7 316 [-7.0] [0.0] 30140
15 43.8 0.0 45.8 49.8 34.0 231 [0.0] [0.0] 20688
16 39.4 0.0 46.3 50.6 35.6 0 [-1.0] [0.0] 22968
17 31.3 0.0 44.1 49.5 21.1 244 [4.0] [0.0] 25693
18 28.7 0.0 44.8 49.7 32.7 31 [-3.0] [0.0] 26771
19 31.1 0.0 42.0 46.8 32.3 50 [3.0] [0.0] 24083
20 38.3 0.0 38.7 43.5 29.7 166 [2.0] [0.0] 21059
21 39.1 0.0 44.5 49.6 29.5 97 [4.0] [0.0] 28215
22 43.4 0.0 46.8 51.2 35.1 86 [-3.0] [0.0] 35230
23 61.2 0.0 33.2 41.3 21.5 148 [3.0] [0.0] 90
24 35.4 0.0 44.1 48.6 30.4 163 [2.0] [0.0] 27635

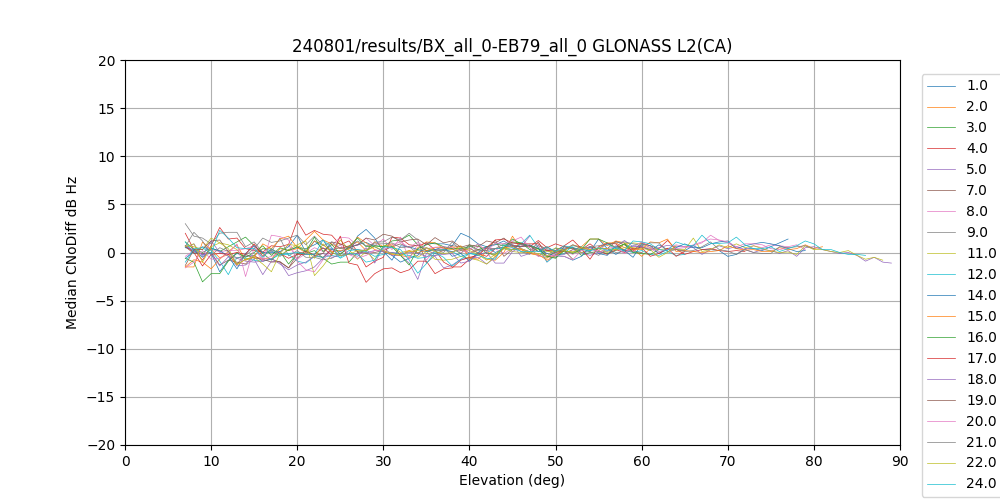

DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 35.2 0.1 11.7 -10.4 [1.0] 27753
2 39.2 0.3 8.3 -6.3 [-4.0] 23025
3 38.7 0.3 6.0 -5.6 [5.0] 23359
4 41.9 0.5 6.4 -4.8 [6.0] 21465
5 37.6 -0.2 11.9 -5.5 [1.0] 24167
7 33.3 0.1 6.4 -14.8 [5.0] 38007
8 34.7 0.3 10.4 -5.2 [6.0] 35044
9 39.4 0.4 7.8 -3.9 [-2.0] 23267
11 34.6 0.1 18.2 -7.9 [0.0] 29956
12 32.5 -0.3 10.1 -8.3 [-1.0] 35719
14 32.8 0.1 5.6 -8.0 [-7.0] 30139
15 43.8 0.2 5.2 -5.0 [0.0] 20683
16 39.5 0.2 4.9 -9.3 [-1.0] 22917
17 31.3 -0.1 16.0 -8.3 [4.0] 25693
18 28.7 -0.3 5.7 -8.7 [-3.0] 26735
19 31.2 0.5 5.7 -7.4 [3.0] 23884
20 38.5 0.2 8.4 -7.7 [2.0] 20902
21 39.1 0.6 8.0 -3.6 [4.0] 28201
22 43.4 0.2 5.7 -7.8 [-3.0] 35224
24 35.4 0.3 8.1 -6.4 [2.0] 27605

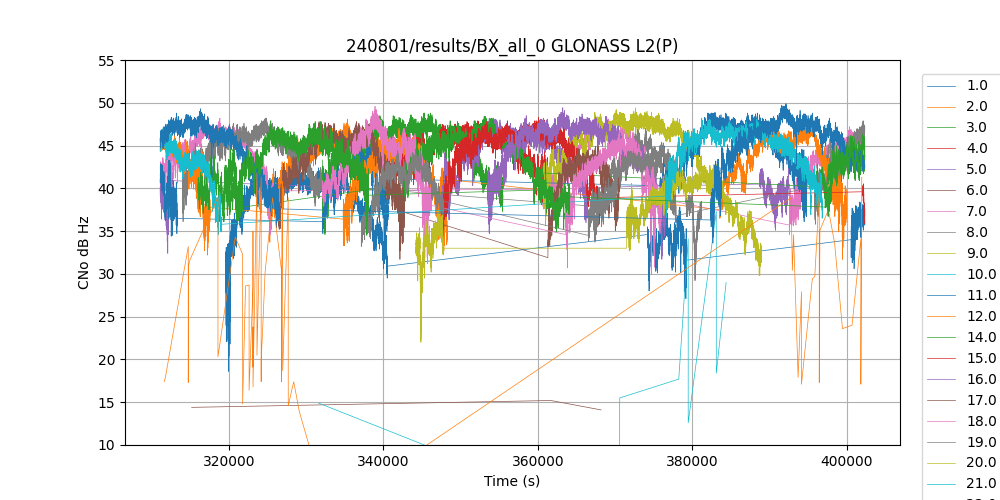

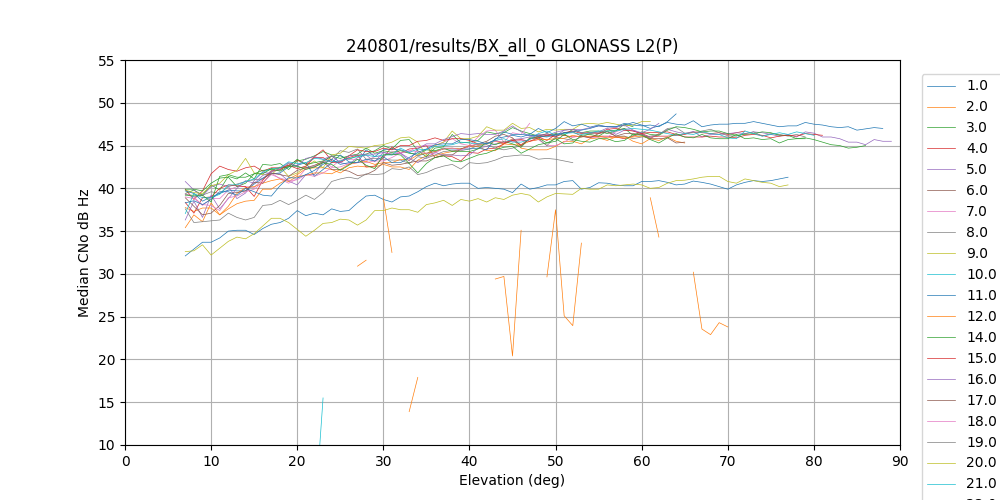

REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 35.2 0.0 37.7 42.5 18.6 586 [1.0] [0.0] 27782
2 39.2 0.0 43.4 48.1 32.7 0 [-4.0] [0.0] 23025
3 38.7 0.0 44.9 48.8 34.6 0 [5.0] [0.0] 23359
4 41.9 0.0 44.5 47.9 36.5 0 [6.0] [0.0] 21465
5 37.5 0.0 43.2 48.2 32.4 149 [1.0] [0.0] 24240
6 41.7 0.0 14.6 15.2 14.1 162 [-4.0] [0.0] 3
7 33.2 0.0 43.9 48.2 29.9 47 [5.0] [0.0] 38050
8 34.6 0.0 43.5 48.2 33.7 275 [6.0] [0.0] 35095
9 39.4 0.0 45.3 49.4 35.6 0 [-2.0] [0.0] 23267
10 46.9 0.0 20.1 37.3 1.0 210 [-7.0] [0.0] 9
11 34.6 0.0 43.4 48.9 34.1 262 [0.0] [0.0] 29966
12 32.5 0.0 42.9 47.9 31.7 343 [-1.0] [0.0] 35754
14 32.7 0.0 43.4 48.4 33.7 160 [-7.0] [0.0] 30184
15 43.7 0.0 44.4 48.3 34.1 181 [0.0] [0.0] 20721
16 39.5 0.0 44.9 49.4 31.7 1 [-1.0] [0.0] 22916
17 31.3 0.0 42.7 47.8 31.7 172 [4.0] [0.0] 25743
18 28.7 0.0 43.0 49.6 30.7 57 [-3.0] [0.0] 26735
19 30.2 0.0 40.7 45.4 29.2 92 [3.0] [0.0] 25294
20 38.4 0.0 37.5 42.4 22.0 436 [2.0] [0.0] 20994
21 39.1 0.0 44.2 48.2 34.6 135 [4.0] [0.0] 28233
22 43.4 0.0 45.3 49.9 33.6 159 [-3.0] [0.0] 35234
23 50.0 0.0 26.4 41.8 1.0 148 [3.0] [0.0] 58
24 35.4 0.0 42.8 47.9 34.5 209 [2.0] [0.0] 27636
DUT GLONASS L2(P)
DIFF GLONASS L2(P)

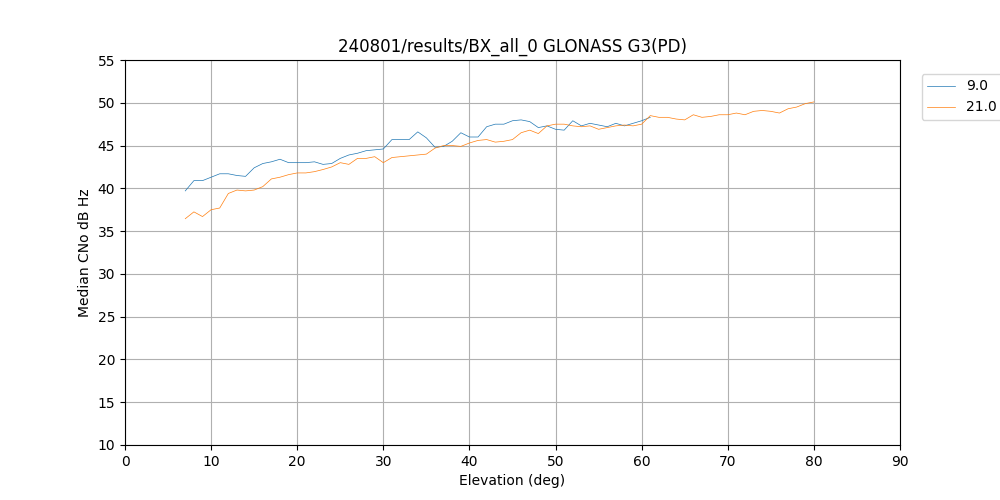

REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 39.4 0.0 45.6 49.5 37.0 0 [-2.0] [0.0] 23267
21 39.1 0.0 44.3 50.8 31.2 68 [4.0] [0.0] 28233
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)

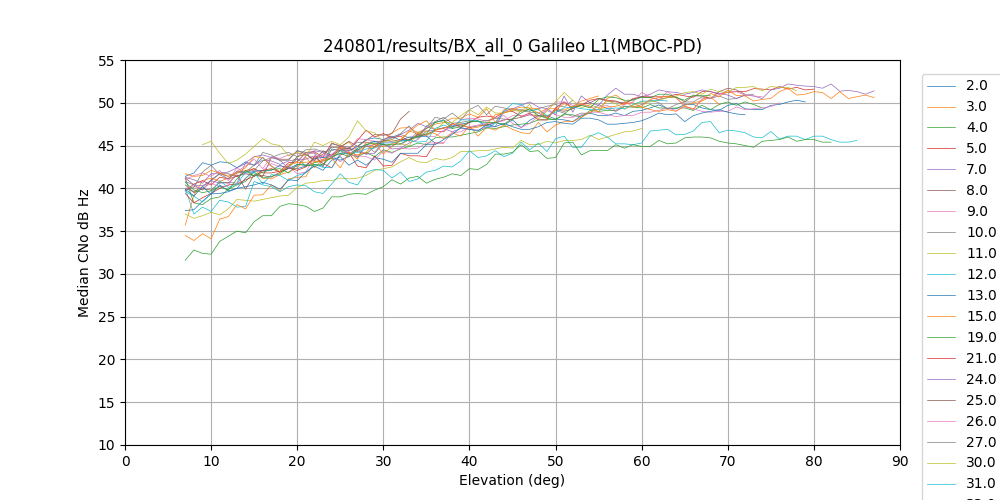

REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 46.9 51.3 37.2 0 [48.0] [0.0] 31844
3 32.0 0.0 45.5 52.2 0.0 144 [41.0, 48.0] [0.0] 26301
4 45.5 0.0 46.5 51.2 32.5 0 [48.0] [0.0] 32496
5 38.8 0.0 46.5 53.3 31.9 22 [53.0, 44.0] [0.0] 34068
7 20.5 0.0 43.4 48.0 36.4 39 [43.0, 53.0] [0.0] 24398
8 19.9 0.0 43.7 50.4 37.2 40 [51.0, 39.0] [0.0] 23747
9 45.4 0.0 46.8 51.2 34.9 0 [44.0] [0.0] 32117
10 34.5 0.0 45.7 52.4 29.8 187 [49.0, 52.0] [0.0] 40972
11 33.5 0.0 42.4 48.0 28.1 256 [46.0, 45.0] [0.0] 40961
12 36.5 0.0 41.9 49.1 25.0 225 [40.0, 42.0] [0.0] 40031
13 20.1 0.0 42.5 47.3 35.1 152 [49.0, 42.0] [0.0] 13145
15 45.6 0.0 46.4 51.7 28.2 3 [52.0] [0.0] 15733
19 44.2 0.0 41.6 47.3 28.5 11 [51.0] [0.0] 27988
21 16.8 0.0 41.5 46.1 34.1 446 [39.0, 50.0, 49.0] [0.0] 20399
24 36.9 0.0 45.9 53.7 30.2 116 [41.0, 51.0] [0.0] 39757
25 45.4 0.0 47.4 53.1 29.8 3 [47.0] [0.0] 32616
26 44.2 0.0 47.2 52.9 36.3 0 [45.0] [0.0] 18502
27 37.3 0.0 47.3 52.0 38.5 0 [45.0] [0.0] 14128
30 46.6 0.0 48.3 53.6 39.6 0 [50.0] [0.0] 24230
31 34.4 0.0 45.5 52.8 34.2 110 [48.0, 52.0] [0.0] 37950
33 49.8 0.0 46.6 50.7 33.8 0 [50.0] [0.0] 26819
34 41.1 0.0 46.6 52.9 34.6 116 [40.0, 51.0] [0.0] 32974
36 33.9 0.0 45.6 52.9 33.4 70 [41.0, 49.0] [0.0] 41088
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 46.8 51.0 37.0 0 [50.0] [0.0] 31827
3 32.0 0.0 45.8 51.9 34.8 168 [43.0, 50.0] [0.0] 26296
4 45.5 0.0 46.4 50.9 33.2 0 [50.0] [0.0] 32497
5 38.7 0.0 46.1 53.7 31.8 14 [53.0, 49.0] [0.0] 34102
7 20.5 0.0 43.2 47.7 37.1 113 [43.0, 53.0] [0.0] 24389
8 20.0 0.0 43.7 50.1 35.2 114 [52.0, 39.0] [0.0] 23708
9 45.4 0.0 46.9 50.8 32.1 0 [46.0] [0.0] 32125
10 34.5 0.0 45.8 52.1 32.9 217 [51.0, 40.0] [0.0] 40974
11 33.3 0.0 42.3 47.9 31.8 80 [48.0, 47.0] [0.0] 41244
12 36.4 0.0 41.5 48.2 26.9 10 [41.0] [0.0] 40182
13 20.1 0.0 42.4 46.8 35.1 92 [51.0, 46.0] [0.0] 13112
15 45.5 0.0 47.0 51.1 37.7 0 [45.0] [0.0] 15762
19 44.1 0.0 41.4 47.4 25.3 36 [52.0] [0.0] 28030
21 16.8 0.0 42.0 46.6 28.0 212 [39.0, 45.0, 48.0] [0.0] 20413
24 36.9 0.0 45.5 53.5 29.0 112 [50.0, 52.0] [0.0] 39759
25 45.4 0.0 47.4 52.4 36.5 0 [49.0] [0.0] 32628
26 44.2 0.0 46.7 52.1 37.5 0 [47.0] [0.0] 18493
27 37.2 0.0 46.8 52.3 36.8 0 [47.0] [0.0] 14172
30 45.7 0.0 47.9 53.4 38.0 0 [38.0] [0.0] 24800
31 34.5 0.0 45.7 51.4 32.6 124 [44.0, 40.0] [0.0] 37913
33 49.8 0.0 46.6 49.8 32.9 0 [45.0] [0.0] 26842
34 41.1 0.0 46.3 52.5 19.2 14 [42.0, 52.0] [0.0] 32975
36 33.9 0.0 45.7 52.8 35.8 48 [43.0, 48.0] [0.0] 41111

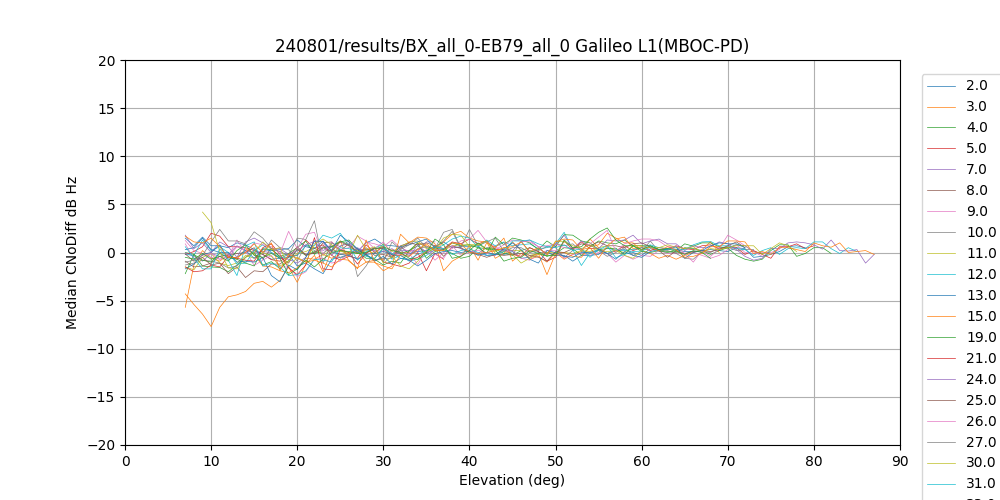

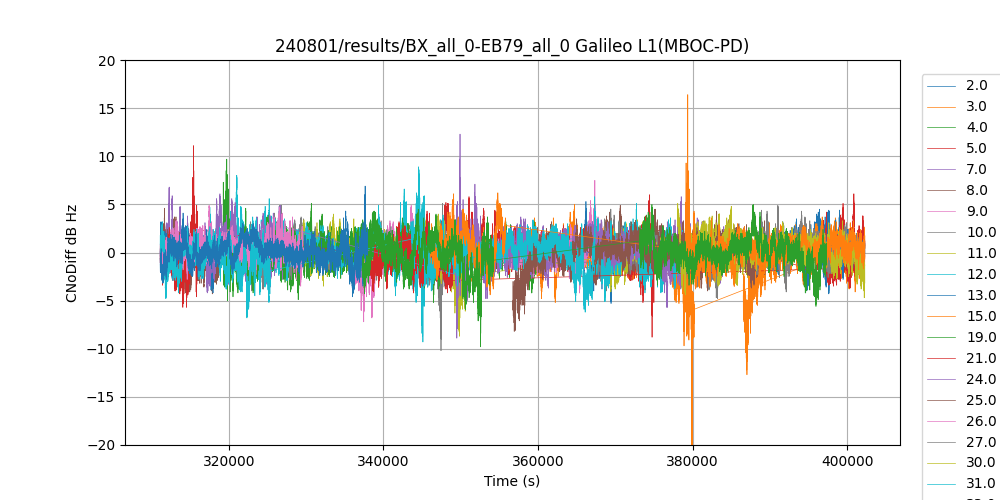

DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.5 0.1 5.3 -5.3 [48.0, 50.0] 31824
3 32.0 -0.4 5.0 -37.8 [41.0, 43.0, 48.0, 50.0] 26289
4 45.5 0.1 5.1 -4.9 [48.0, 50.0] 32490
5 38.8 0.4 6.0 -8.8 [53.0, 44.0, 49.0] 34042
7 20.5 0.2 6.8 -3.8 [43.0, 53.0] 24387
8 20.0 0.0 4.9 -4.3 [51.0, 52.0, 39.0] 23704
9 45.4 -0.1 7.5 -7.2 [44.0, 46.0] 32117
10 34.5 -0.0 5.1 -10.2 [49.0, 51.0, 52.0, 40.0] 40936
11 33.5 0.1 4.1 -8.7 [46.0, 48.0, 45.0, 47.0] 40960
12 36.5 0.3 8.9 -9.3 [40.0, 41.0, 42.0] 40000
13 20.1 0.1 4.5 -4.3 [49.0, 51.0, 42.0, 46.0] 13105
15 45.6 -0.6 3.3 -12.7 [52.0, 45.0] 15725
19 44.2 0.2 9.7 -5.2 [51.0, 52.0] 27988
21 16.8 -0.5 11.1 -5.7 [39.0, 50.0, 45.0, 49.0, 48.0] 20372
24 36.9 0.4 12.3 -8.9 [41.0, 50.0, 51.0, 52.0] 39738
25 45.4 0.0 3.5 -8.2 [47.0, 49.0] 32616
26 44.2 0.5 4.9 -3.5 [45.0, 47.0] 18493
27 37.3 0.5 4.9 -4.1 [45.0, 47.0] 14120
30 46.6 0.2 5.1 -4.7 [50.0, 38.0] 24222
31 34.5 -0.2 6.2 -6.8 [48.0, 44.0, 52.0, 40.0] 37907
33 49.8 0.0 6.9 -4.6 [50.0, 45.0] 26817
34 41.1 0.4 16.4 -4.5 [40.0, 42.0, 51.0, 52.0] 32945
36 33.9 -0.1 5.0 -9.8 [41.0, 43.0, 49.0, 48.0] 41088

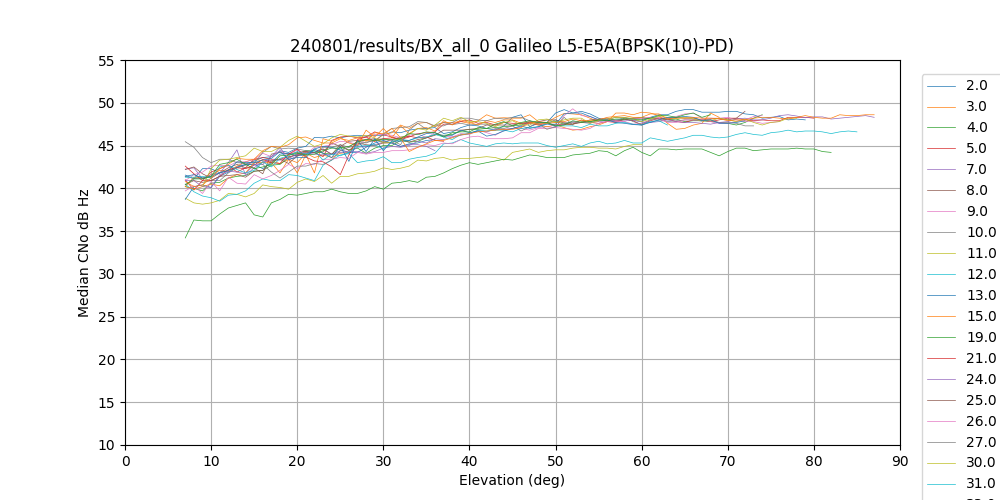

REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 46.8 51.0 37.3 0 [48.0] [0.0] 31844
3 32.0 0.0 45.6 50.6 37.2 245 [41.0, 48.0] [0.0] 26301
4 45.5 0.0 46.2 49.8 36.1 0 [48.0] [0.0] 32496
5 38.8 0.0 45.7 50.1 32.6 56 [53.0, 44.0] [0.0] 34068
7 20.5 0.0 43.6 47.4 35.4 169 [43.0, 53.0] [0.0] 24398
8 19.9 0.0 43.7 47.7 35.7 226 [51.0, 39.0] [0.0] 23747
9 45.4 0.0 46.5 50.9 37.9 0 [44.0] [0.0] 32117
10 34.5 0.0 45.3 50.5 20.4 74 [49.0, 52.0] [0.0] 40971
11 33.5 0.0 42.2 46.4 33.2 166 [46.0, 45.0] [0.0] 40961
12 36.5 0.0 42.9 48.2 27.9 123 [40.0, 42.0] [0.0] 40031
13 20.1 0.0 43.4 47.4 37.3 163 [49.0, 42.0] [0.0] 13145
15 45.6 0.0 46.6 50.1 37.2 0 [52.0] [0.0] 15733
19 44.2 0.0 41.9 46.6 33.1 0 [51.0] [0.0] 27988
21 16.8 0.0 42.9 47.3 37.6 114 [39.0, 50.0, 49.0] [0.0] 20399
24 36.9 0.0 45.0 50.0 31.5 56 [41.0, 51.0] [0.0] 39757
25 45.4 0.0 46.5 50.5 37.0 0 [47.0] [0.0] 32616
26 44.2 0.0 45.6 50.0 37.5 0 [45.0] [0.0] 18502
27 37.3 0.0 46.3 50.0 39.7 0 [45.0] [0.0] 14128
30 46.6 0.0 47.0 50.2 40.1 0 [50.0] [0.0] 24230
31 34.4 0.0 45.2 49.3 36.9 206 [48.0, 52.0] [0.0] 37950
33 49.8 0.0 46.8 50.1 37.8 0 [50.0] [0.0] 26819
34 41.1 0.0 45.9 50.1 36.6 153 [40.0, 51.0] [0.0] 32974
36 33.9 0.0 45.5 50.2 38.0 131 [41.0, 49.0] [0.0] 41088
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 47.2 51.0 39.7 0 [48.0] [0.0] 31844
3 32.0 0.0 46.0 50.8 38.5 109 [41.0, 48.0] [0.0] 26301
4 45.5 0.0 46.6 50.5 36.6 0 [48.0] [0.0] 32496
5 38.8 0.0 46.2 50.8 33.7 49 [53.0, 44.0] [0.0] 34068
7 20.5 0.0 43.6 47.1 36.9 12 [43.0, 53.0] [0.0] 24398
8 19.9 0.0 44.1 48.5 37.4 10 [51.0, 39.0] [0.0] 23747
9 45.4 0.0 47.1 50.6 38.3 0 [44.0] [0.0] 32117
10 34.5 0.0 45.6 50.6 35.3 110 [49.0, 52.0] [0.0] 40972
11 33.5 0.0 42.3 46.5 32.2 56 [46.0, 45.0] [0.0] 40961
12 36.5 0.0 43.4 49.1 30.0 206 [40.0, 42.0] [0.0] 40031
13 20.1 0.0 43.8 47.7 37.2 222 [49.0, 42.0] [0.0] 13145
15 45.6 0.0 47.3 50.8 38.9 0 [52.0] [0.0] 15733
19 44.2 0.0 42.3 47.3 30.5 1 [51.0] [0.0] 27988
21 16.8 0.0 42.9 47.3 37.4 74 [39.0, 50.0, 49.0] [0.0] 20399
24 36.9 0.0 45.2 50.9 31.8 160 [41.0, 51.0] [0.0] 39757
25 45.4 0.0 47.0 50.8 37.7 0 [47.0] [0.0] 32616
26 44.2 0.0 46.1 50.1 37.7 0 [45.0] [0.0] 18502
27 37.3 0.0 46.5 50.4 38.0 0 [45.0] [0.0] 14128
30 46.6 0.0 47.3 50.3 40.7 0 [50.0] [0.0] 24230
31 34.4 0.0 45.9 50.2 37.6 232 [48.0, 52.0] [0.0] 37950
33 49.8 0.0 47.4 50.5 40.2 0 [50.0] [0.0] 26819
34 41.1 0.0 46.3 50.8 37.9 172 [40.0, 51.0] [0.0] 32974
36 33.9 0.0 46.1 50.3 37.6 233 [41.0, 49.0] [0.0] 41088

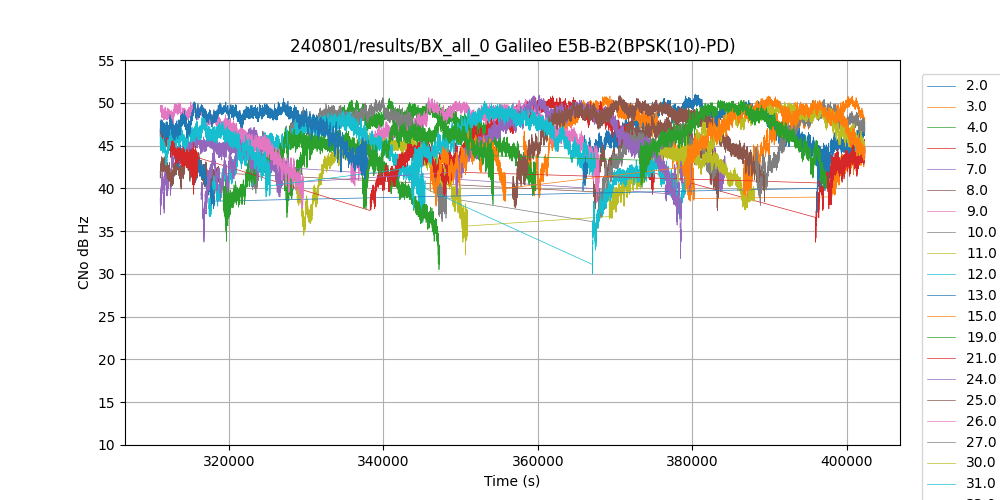

DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 49.4 52.9 42.8 0 [48.0] [0.0] 31844
3 32.0 0.0 48.3 52.5 41.9 117 [41.0, 48.0] [0.0] 26301
4 45.5 0.0 48.8 52.1 41.0 0 [48.0] [0.0] 32496
5 38.8 0.0 48.4 52.4 37.3 198 [53.0, 44.0] [0.0] 34068
7 20.5 0.0 46.4 49.5 40.8 222 [43.0, 53.0] [0.0] 24398
8 19.9 0.0 46.7 50.4 40.7 197 [51.0, 39.0] [0.0] 23747
9 45.4 0.0 49.1 52.7 41.8 0 [44.0] [0.0] 32117
10 34.5 0.0 48.0 52.1 39.1 176 [49.0, 52.0] [0.0] 40972
11 33.5 0.0 44.8 48.2 37.3 1 [46.0, 45.0] [0.0] 40961
12 36.5 0.0 46.0 50.7 32.2 164 [40.0, 42.0] [0.0] 40031
13 20.1 0.0 46.3 49.7 40.9 40 [49.0, 42.0] [0.0] 13145
15 45.6 0.0 49.3 52.5 42.1 0 [52.0] [0.0] 15733
19 44.2 0.0 45.1 49.3 35.8 3 [51.0] [0.0] 27988
21 16.8 0.0 45.8 49.6 40.5 301 [39.0, 50.0, 49.0] [0.0] 20399
24 36.9 0.0 47.7 52.7 35.8 16 [41.0, 51.0] [0.0] 39757
25 45.4 0.0 49.1 52.7 41.6 0 [47.0] [0.0] 32616
26 44.2 0.0 48.4 51.8 41.7 0 [45.0] [0.0] 18502
27 37.3 0.0 48.8 52.0 43.9 0 [45.0] [0.0] 14128
30 46.6 0.0 49.4 51.9 44.0 0 [50.0] [0.0] 24230
31 34.4 0.0 48.0 51.8 41.6 50 [48.0, 52.0] [0.0] 37950
33 49.8 0.0 49.4 52.3 42.1 0 [50.0] [0.0] 26819
34 41.1 0.0 48.6 52.8 41.7 153 [40.0, 51.0] [0.0] 32974
36 33.9 0.0 48.3 52.3 41.4 246 [41.0, 49.0] [0.0] 41088

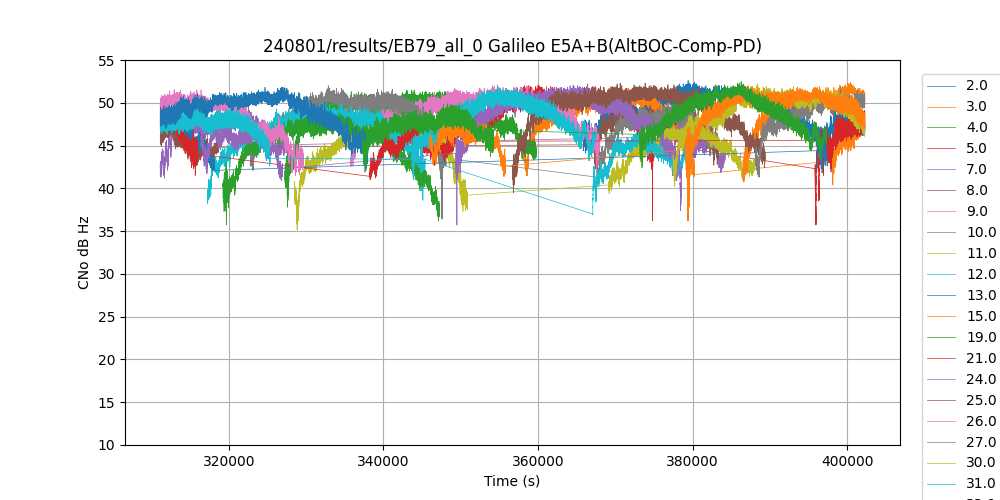

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 49.1 52.6 42.6 0 [50.0] [0.0] 31827
3 32.0 0.0 48.1 51.9 40.4 11 [43.0, 50.0] [0.0] 26296
4 45.5 0.0 48.5 51.5 37.8 0 [50.0] [0.0] 32497
5 38.7 0.0 48.1 52.1 35.7 176 [53.0, 49.0] [0.0] 34102
7 20.5 0.0 46.2 49.6 41.2 183 [43.0, 53.0] [0.0] 24389
8 20.0 0.0 46.8 50.5 41.4 43 [52.0, 39.0] [0.0] 23708
9 45.4 0.0 48.8 52.1 41.7 0 [46.0] [0.0] 32125
10 34.5 0.0 47.9 52.0 36.4 242 [51.0, 40.0] [0.0] 40974
11 33.3 0.0 44.6 47.9 35.1 169 [48.0, 47.0] [0.0] 41244
12 36.4 0.0 45.6 50.2 36.9 2 [41.0] [0.0] 40182
13 20.1 0.0 46.6 49.8 41.8 242 [51.0, 46.0] [0.0] 13112
15 45.5 0.0 49.2 52.4 40.7 0 [45.0] [0.0] 15762
19 44.1 0.0 44.8 48.8 35.7 2 [52.0] [0.0] 28030
21 16.8 0.0 45.7 49.8 41.0 170 [39.0, 45.0, 48.0] [0.0] 20413
24 36.9 0.0 47.7 52.2 35.7 167 [50.0, 52.0] [0.0] 39759
25 45.4 0.0 49.0 52.3 39.5 0 [49.0] [0.0] 32628
26 44.2 0.0 48.1 51.5 41.5 0 [47.0] [0.0] 18493
27 37.2 0.0 48.5 51.9 41.3 0 [47.0] [0.0] 14172
30 45.7 0.0 49.1 52.2 40.2 0 [38.0] [0.0] 24800
31 34.5 0.0 47.8 51.9 41.0 150 [44.0, 40.0] [0.0] 37913
33 49.8 0.0 48.8 51.8 41.9 0 [45.0] [0.0] 26842
34 41.1 0.0 48.4 52.1 36.2 23 [42.0, 52.0] [0.0] 32975
36 33.9 0.0 48.0 52.5 42.1 116 [43.0, 48.0] [0.0] 41111
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 45.5 0.3 2.4 -2.3 [48.0, 50.0] 31824
3 32.0 0.2 5.4 -3.4 [41.0, 43.0, 48.0, 50.0] 26289
4 45.5 0.3 4.4 -2.5 [48.0, 50.0] 32490
5 38.8 0.2 9.1 -3.4 [53.0, 44.0, 49.0] 34042
7 20.5 0.2 4.6 -3.2 [43.0, 53.0] 24387
8 20.0 -0.1 2.7 -3.3 [51.0, 52.0, 39.0] 23704
9 45.4 0.3 2.8 -1.9 [44.0, 46.0] 32117
10 34.5 0.1 4.1 -3.7 [49.0, 51.0, 52.0, 40.0] 40936
11 33.5 0.2 7.8 -3.3 [46.0, 48.0, 45.0, 47.0] 40960
12 36.5 0.4 3.3 -4.3 [40.0, 41.0, 42.0] 40000
13 20.1 -0.3 2.2 -2.6 [49.0, 51.0, 42.0, 46.0] 13105
15 45.6 0.0 2.5 -2.8 [52.0, 45.0] 15725
19 44.2 0.3 5.2 -2.4 [51.0, 52.0] 27988
21 16.8 0.1 4.0 -2.9 [39.0, 50.0, 45.0, 49.0, 48.0] 20372
24 36.9 0.0 7.7 -3.7 [41.0, 50.0, 51.0, 52.0] 39738
25 45.4 0.0 3.3 -2.2 [47.0, 49.0] 32616
26 44.2 0.3 2.2 -2.1 [45.0, 47.0] 18493
27 37.3 0.3 4.8 -3.1 [45.0, 47.0] 14120
30 46.6 0.2 2.5 -2.0 [50.0, 38.0] 24222
31 34.5 0.2 2.6 -2.3 [48.0, 44.0, 52.0, 40.0] 37907
33 49.8 0.6 2.7 -1.4 [50.0, 45.0] 26817
34 41.1 0.2 8.1 -2.6 [40.0, 42.0, 51.0, 52.0] 32945
36 33.9 0.3 2.7 -3.4 [41.0, 43.0, 49.0, 48.0] 41088

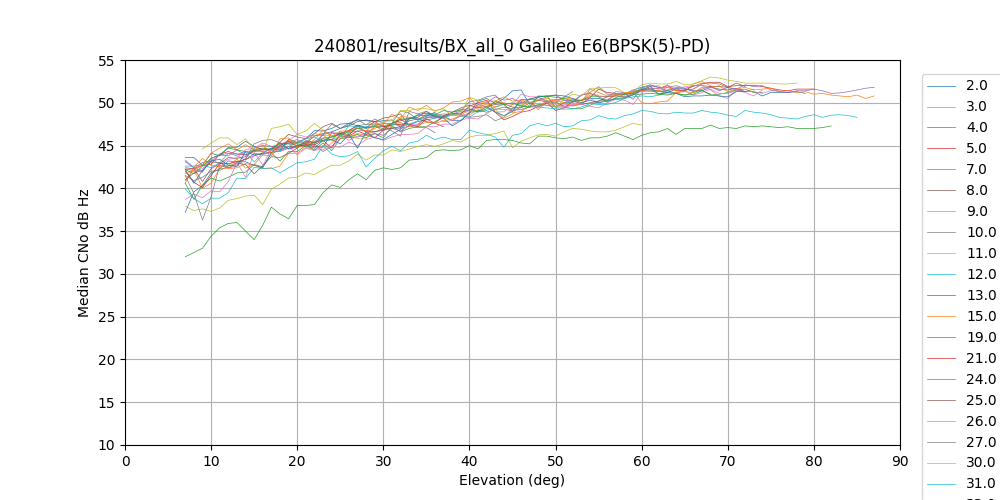

REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 45.5 0.0 48.8 52.9 37.0 0 [48.0] [0.0] 31844
3 32.1 0.0 46.6 51.7 35.7 44 [41.0, 48.0] [0.0] 26189
4 45.5 0.0 48.2 52.4 34.9 0 [48.0] [0.0] 32496
5 38.8 0.0 47.7 53.1 34.6 138 [53.0, 44.0] [0.0] 34068
7 20.5 0.0 45.0 49.1 38.8 31 [43.0, 53.0] [0.0] 24398
8 19.9 0.0 45.4 49.9 36.6 38 [51.0, 39.0] [0.0] 23747
9 45.4 0.0 48.7 52.9 34.3 0 [44.0] [0.0] 32117
10 34.5 0.0 47.1 53.4 35.0 191 [49.0, 52.0] [0.0] 40972
11 33.5 0.0 43.7 48.6 32.1 111 [46.0, 45.0] [0.0] 40961
12 36.5 0.0 44.4 50.6 31.4 171 [40.0, 42.0] [0.0] 40031
13 20.1 0.0 44.8 49.5 36.1 241 [49.0, 42.0] [0.0] 13145
15 45.6 0.0 49.1 53.3 38.6 3 [52.0] [0.0] 15732
19 44.2 0.0 43.1 48.5 29.6 11 [51.0] [0.0] 27987
21 16.8 0.0 43.9 48.8 37.5 388 [39.0, 50.0, 49.0] [0.0] 20399
24 36.9 0.0 47.3 53.8 30.1 213 [41.0, 51.0] [0.0] 39757
25 45.4 0.0 48.8 53.4 37.7 3 [47.0] [0.0] 32616
26 44.2 0.0 47.9 52.7 34.9 0 [45.0] [0.0] 18502
27 37.3 0.0 48.3 52.6 31.9 0 [45.0] [0.0] 14128
30 46.6 0.0 49.6 53.7 42.5 0 [50.0] [0.0] 24230
31 34.4 0.0 47.3 52.0 34.1 251 [48.0, 52.0] [0.0] 37950
33 49.8 0.0 49.2 52.9 34.8 0 [50.0] [0.0] 26819
34 41.1 0.0 47.9 52.6 35.4 33 [40.0, 51.0] [0.0] 32974
36 33.9 0.0 47.5 52.0 34.5 107 [41.0, 49.0] [0.0] 41088
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.4 51.9 30.3 239 [49.0, 18.0] [0.0] 33110
20 35.1 0.0 45.5 52.8 30.7 139 [42.0, 21.0] [0.0] 32091
21 26.8 0.0 44.6 51.0 31.4 141 [13.0, 14.0, 41.0] [0.0] 26934
22 26.9 0.0 44.8 50.9 31.4 147 [36.0, 21.0, 26.0] [0.0] 30424
23 33.7 0.0 45.2 52.1 33.2 73 [19.0, 43.0] [0.0] 28471
24 22.7 0.0 43.4 50.2 31.3 278 [33.0, 45.0, 23.0] [0.0] 28657
25 23.5 0.0 43.3 48.6 30.9 80 [29.0, 18.0, 47.0] [0.0] 30805
26 37.7 0.0 45.8 51.6 29.8 0 [43.0] [0.0] 21122
27 29.0 0.0 44.2 49.2 28.6 42 [24.0, 29.0] [0.0] 34775
28 32.5 0.0 44.1 50.8 32.2 234 [53.0, 43.0] [0.0] 33057
29 39.4 0.0 45.0 51.5 25.5 138 [53.0, 44.0] [0.0] 29375
30 30.3 0.0 44.7 51.0 34.5 87 [23.0, 16.0] [0.0] 34099
32 45.0 0.0 47.3 52.5 35.7 0 [31.0] [0.0] 27391
33 45.3 0.0 46.7 52.5 26.1 6 [52.0] [0.0] 26829
34 39.9 0.0 46.5 52.3 36.0 24 [46.0, 27.0] [0.0] 22756
35 48.7 0.0 47.7 52.1 26.5 9 [38.0] [0.0] 24982
36 45.1 0.0 47.2 52.4 36.2 0 [46.0] [0.0] 28313
37 45.5 0.0 46.5 52.7 27.8 3 [45.0] [0.0] 25597
38 7.0 0.0 40.4 42.7 38.1 0 [18.0] [0.0] 1932
41 44.2 0.0 47.0 52.7 31.6 1 [47.0] [0.0] 28739
42 43.8 0.0 46.3 51.5 32.8 0 [44.0] [0.0] 21706
43 52.3 0.0 47.1 51.6 33.6 0 [23.0] [0.0] 21357
44 41.3 0.0 46.0 52.0 35.0 10 [53.0] [0.0] 23839
45 45.4 0.0 47.6 52.9 31.6 0 [40.0] [0.0] 25451
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)

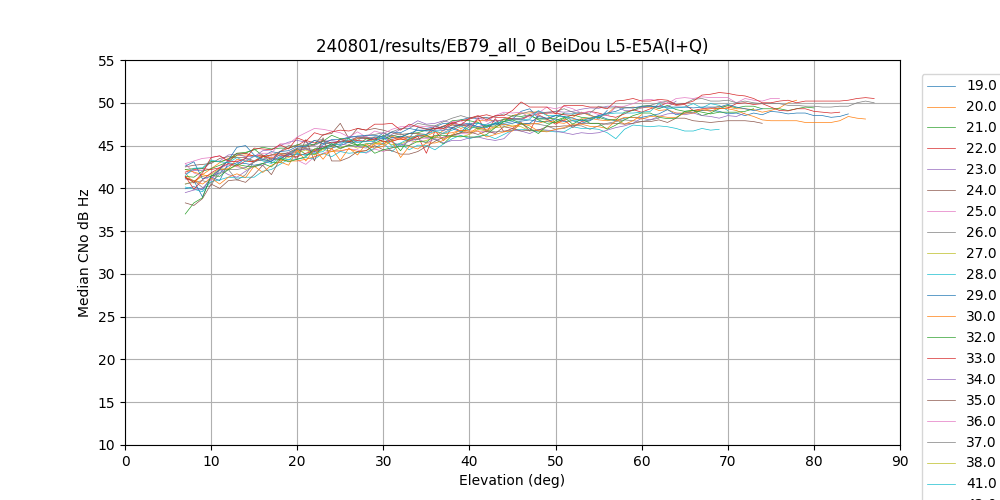

REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.6 51.1 36.9 154 [49.0, 18.0] [0.0] 33110
20 35.1 0.0 45.9 50.6 38.7 43 [42.0, 21.0] [0.0] 32091
21 26.8 0.0 45.5 49.5 38.3 348 [13.0, 14.0, 41.0] [0.0] 26934
22 26.9 0.0 45.2 49.2 38.7 307 [36.0, 21.0, 26.0] [0.0] 30424
23 33.7 0.0 46.5 51.1 37.3 24 [19.0, 43.0] [0.0] 28471
24 22.7 0.0 44.8 49.4 34.8 156 [33.0, 45.0, 23.0] [0.0] 28657
25 23.5 0.0 43.8 47.8 35.7 327 [29.0, 18.0, 47.0] [0.0] 30805
26 37.7 0.0 46.0 50.1 35.5 0 [43.0] [0.0] 21122
27 29.0 0.0 44.7 49.4 35.2 155 [24.0, 29.0] [0.0] 34775
28 32.5 0.0 44.2 49.1 30.7 96 [53.0, 43.0] [0.0] 33057
29 39.4 0.0 45.6 50.7 37.9 55 [53.0, 44.0] [0.0] 29375
30 30.3 0.0 44.8 49.7 37.1 175 [23.0, 16.0] [0.0] 34099
32 45.0 0.0 47.4 51.2 38.3 0 [31.0] [0.0] 27391
33 45.3 0.0 46.9 51.3 32.7 0 [52.0] [0.0] 26829
34 39.9 0.0 45.7 49.7 34.6 36 [46.0, 27.0] [0.0] 22756
35 48.7 0.0 46.1 49.2 36.5 0 [38.0] [0.0] 24982
36 45.1 0.0 47.9 51.8 38.9 0 [46.0] [0.0] 28313
37 45.5 0.0 47.1 51.5 36.6 0 [45.0] [0.0] 25598
38 7.0 0.0 40.1 42.0 38.0 0 [18.0] [0.0] 1932
41 44.2 0.0 47.3 51.2 38.7 0 [47.0] [0.0] 28739
42 43.8 0.0 47.1 50.7 39.2 0 [44.0] [0.0] 21706
43 52.3 0.0 46.9 50.1 40.1 0 [23.0] [0.0] 21357
44 41.3 0.0 45.8 50.1 33.9 10 [53.0] [0.0] 23839
45 45.4 0.0 48.3 52.1 39.7 0 [40.0] [0.0] 25451
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 30.8 0.0 45.8 50.5 21.9 170 [48.0, 18.0] [0.0] 33095
20 35.2 0.0 46.0 51.0 34.5 77 [25.0, 43.0] [0.0] 32024
21 26.8 0.0 45.3 49.9 38.4 250 [13.0, 14.0, 43.0] [0.0] 26897
22 26.9 0.0 45.2 49.5 38.6 331 [34.0, 42.0, 19.0] [0.0] 30372
23 33.7 0.0 46.4 51.0 38.3 47 [18.0, 44.0] [0.0] 28494
24 22.7 0.0 45.0 49.0 19.2 367 [33.0, 47.0, 51.0] [0.0] 28667
25 23.5 0.0 44.1 48.1 36.4 103 [22.0, 19.0, 25.0] [0.0] 30792
26 37.7 0.0 45.9 49.3 35.9 0 [44.0] [0.0] 21157
27 29.0 0.0 44.7 48.7 36.0 121 [40.0, 26.0] [0.0] 34782
28 32.5 0.0 44.0 48.6 24.2 188 [53.0, 44.0] [0.0] 33089
29 39.4 0.0 45.5 50.0 34.2 24 [53.0, 46.0] [0.0] 29408
30 30.3 0.0 44.9 49.8 37.8 244 [18.0, 16.0] [0.0] 34156
32 45.0 0.0 47.1 50.5 38.3 0 [31.0] [0.0] 27397
33 45.3 0.0 47.0 50.7 24.8 38 [15.0] [0.0] 26847
34 39.9 0.0 45.5 49.7 34.3 143 [48.0, 21.0] [0.0] 22754
35 48.7 0.0 46.4 49.3 34.9 0 [42.0] [0.0] 24974
36 45.1 0.0 47.9 51.4 39.8 0 [45.0] [0.0] 28322
37 45.5 0.0 47.3 51.0 36.6 0 [47.0] [0.0] 25612
38 7.0 0.0 42.7 44.5 40.7 0 [19.0] [0.0] 1909
41 44.2 0.0 47.2 50.8 39.6 0 [49.0] [0.0] 28742
42 43.8 0.0 47.2 50.5 39.7 0 [46.0] [0.0] 21691
43 52.2 0.0 46.4 50.1 37.3 0 [35.0] [0.0] 21367
44 41.3 0.0 45.9 50.2 33.0 15 [53.0] [0.0] 23842
45 45.4 0.0 47.9 51.6 35.5 0 [25.0] [0.0] 25443
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 30.9 -0.1 21.0 -4.6 [49.0, 48.0, 18.0] 33069
20 35.2 -0.1 4.6 -4.5 [42.0, 25.0, 21.0, 43.0] 32024
21 26.8 0.2 4.2 -3.7 [13.0, 14.0, 41.0, 43.0] 26897
22 26.9 -0.0 3.0 -3.6 [36.0, 34.0, 21.0, 42.0, 26.0, 19.0] 30372
23 33.7 0.1 4.4 -4.0 [19.0, 18.0, 43.0, 44.0] 28469
24 22.7 -0.2 17.0 -6.3 [33.0, 45.0, 47.0, 23.0, 51.0] 28642
25 23.5 -0.2 3.7 -4.9 [29.0, 22.0, 18.0, 19.0, 47.0, 25.0] 30786
26 37.7 0.2 6.4 -5.5 [43.0, 44.0] 21122
27 29.0 -0.1 5.6 -5.0 [24.0, 40.0, 29.0, 26.0] 34771
28 32.5 0.2 6.8 -3.5 [53.0, 43.0, 44.0] 33055
29 39.4 0.1 7.3 -4.0 [53.0, 44.0, 46.0] 29374
30 30.3 -0.1 3.2 -4.4 [23.0, 18.0, 16.0] 34089
32 45.0 0.3 3.8 -4.4 [31.0] 27391
33 45.3 -0.1 9.2 -4.5 [52.0, 15.0] 26818
34 39.9 0.2 4.4 -2.7 [46.0, 48.0, 27.0, 21.0] 22746
35 48.7 -0.3 3.9 -3.4 [38.0, 42.0] 24974
36 45.1 -0.0 2.8 -3.8 [46.0, 45.0] 28313
37 45.5 -0.3 3.1 -3.2 [45.0, 47.0] 25598
38 7.0 -2.6 -0.2 -4.9 [18.0, 19.0] 1902
41 44.2 0.1 2.8 -4.4 [47.0, 49.0] 28739
42 43.8 -0.1 2.4 -4.6 [44.0, 46.0] 21691
43 52.3 0.5 4.5 -2.6 [23.0, 35.0] 21355
44 41.3 -0.2 3.3 -5.0 [53.0] 23812
45 45.4 0.4 4.2 -3.7 [40.0, 25.0] 25443
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.3 0.0 46.0 49.9 37.7 82 [22.0, 43.0] [0.0] 21825
12 36.3 0.0 45.8 49.8 35.0 160 [47.0, 36.0] [0.0] 23897
14 45.0 0.0 45.9 49.9 37.4 1 [42.0] [0.0] 24886
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.5 0.0 45.3 49.0 34.8 152 [19.0, 44.0] [0.0] 21717
12 36.3 0.0 45.5 49.3 28.9 21 [49.0, 22.0] [0.0] 23908
14 45.2 0.0 45.5 48.8 35.2 26 [42.0] [0.0] 24748
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.5 0.7 4.9 -4.0 [22.0, 19.0, 43.0, 44.0] 21717
12 36.3 0.3 12.0 -4.1 [47.0, 49.0, 36.0, 22.0] 23886
14 45.2 0.4 6.5 -3.9 [42.0] 24748
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.3 0.0 44.7 51.1 32.6 25 [22.0, 43.0] [0.0] 21825
12 36.3 0.0 43.4 50.2 30.5 230 [47.0, 36.0] [0.0] 23897
14 45.0 0.0 43.4 50.0 31.2 1 [42.0] [0.0] 24886
19 30.8 0.0 45.2 52.2 32.7 141 [49.0, 18.0] [0.0] 33111
20 35.1 0.0 45.8 53.3 31.6 19 [42.0, 21.0] [0.0] 32091
21 26.8 0.0 44.3 50.9 32.8 177 [13.0, 14.0, 41.0] [0.0] 26934
22 26.9 0.0 45.0 51.7 33.6 184 [36.0, 21.0, 26.0] [0.0] 30424
23 33.7 0.0 45.1 51.7 34.0 134 [19.0, 43.0] [0.0] 28471
24 22.7 0.0 43.2 50.8 28.5 516 [33.0, 45.0, 23.0] [0.0] 28677
25 23.5 0.0 43.5 49.5 29.3 297 [29.0, 18.0, 47.0] [0.0] 30805
26 37.7 0.0 46.1 52.5 29.8 0 [43.0] [0.0] 21122
27 29.0 0.0 44.9 49.9 28.0 122 [24.0, 29.0] [0.0] 34775
28 32.5 0.0 44.7 52.1 29.4 226 [53.0, 43.0] [0.0] 33057
29 39.4 0.0 45.7 52.3 35.3 22 [53.0, 44.0] [0.0] 29375
30 30.3 0.0 45.2 51.9 36.3 108 [23.0, 16.0] [0.0] 34099
32 45.0 0.0 46.9 52.5 35.2 0 [31.0] [0.0] 27391
33 45.3 0.0 46.0 52.3 24.2 64 [52.0] [0.0] 26829
34 39.9 0.0 46.3 52.7 34.8 84 [46.0, 27.0] [0.0] 22756
35 48.7 0.0 48.0 53.4 25.1 12 [38.0] [0.0] 24982
36 45.1 0.0 47.2 53.2 31.2 0 [46.0] [0.0] 28313
37 45.5 0.0 45.9 52.6 27.7 3 [45.0] [0.0] 25600
38 7.0 0.0 41.1 43.3 38.4 0 [18.0] [0.0] 1932
41 44.2 0.0 46.5 52.9 31.7 0 [47.0] [0.0] 28739
42 43.8 0.0 45.5 50.7 35.1 0 [44.0] [0.0] 21706
43 52.3 0.0 46.9 51.9 36.6 0 [23.0] [0.0] 21357
44 41.3 0.0 46.2 52.8 32.6 10 [53.0] [0.0] 23839
45 45.4 0.0 47.0 52.7 33.3 0 [40.0] [0.0] 25451
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.5 0.0 44.8 50.5 31.6 53 [19.0, 44.0] [0.0] 21717
12 36.3 0.0 42.9 49.8 30.6 247 [49.0, 22.0] [0.0] 23908
14 45.1 0.0 43.2 50.0 10.7 82 [42.0] [0.0] 24839
19 30.8 0.0 45.2 52.0 34.7 82 [48.0, 18.0] [0.0] 33097
20 35.2 0.0 45.8 53.7 25.6 146 [25.0, 43.0] [0.0] 32024
21 26.8 0.0 44.2 51.0 32.1 15 [13.0, 14.0, 43.0] [0.0] 26897
22 26.9 0.0 45.4 51.0 32.7 130 [34.0, 42.0, 19.0] [0.0] 30372
23 33.7 0.0 44.9 51.7 34.3 53 [18.0, 44.0] [0.0] 28494
24 22.7 0.0 43.5 49.7 31.2 440 [33.0, 47.0, 51.0] [0.0] 28670
25 23.5 0.0 43.6 48.9 30.4 278 [22.0, 19.0, 25.0] [0.0] 30792
26 37.7 0.0 46.2 52.4 32.4 0 [44.0] [0.0] 21157
27 29.0 0.0 45.1 50.7 34.0 69 [40.0, 26.0] [0.0] 34782
28 32.5 0.0 44.9 52.1 29.8 70 [53.0, 44.0] [0.0] 33090
29 39.4 0.0 45.5 53.2 18.9 61 [53.0, 46.0] [0.0] 29408
30 30.3 0.0 44.6 52.1 29.5 156 [18.0, 16.0] [0.0] 34156
32 45.0 0.0 46.6 52.5 31.0 0 [31.0] [0.0] 27397
33 45.3 0.0 46.2 52.5 28.4 1 [15.0] [0.0] 26847
34 39.9 0.0 45.8 51.3 35.0 85 [48.0, 21.0] [0.0] 22754
35 48.7 0.0 48.0 53.0 36.4 0 [42.0] [0.0] 24974
36 45.1 0.0 47.4 52.7 33.3 0 [45.0] [0.0] 28322
37 45.5 0.0 46.1 52.6 20.6 8 [47.0] [0.0] 25612
38 7.0 0.0 41.3 43.4 38.0 0 [19.0] [0.0] 1909
41 44.2 0.0 46.6 52.2 34.1 0 [49.0] [0.0] 28742
42 43.8 0.0 45.6 51.3 36.3 0 [46.0] [0.0] 21691
43 52.2 0.0 46.9 51.9 36.4 0 [35.0] [0.0] 21367
44 41.3 0.0 46.2 52.5 33.7 10 [53.0] [0.0] 23842
45 45.4 0.0 46.7 52.2 35.3 0 [25.0] [0.0] 25443
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.5 -0.1 7.2 -4.6 [22.0, 19.0, 43.0, 44.0] 21717
12 36.3 0.4 7.5 -4.7 [47.0, 49.0, 36.0, 22.0] 23886
14 45.1 0.3 24.0 -5.5 [42.0] 24839
19 30.9 -0.0 5.0 -9.3 [49.0, 48.0, 18.0] 33072
20 35.2 0.0 15.4 -8.4 [42.0, 25.0, 21.0, 43.0] 32024
21 26.8 0.2 7.7 -5.9 [13.0, 14.0, 41.0, 43.0] 26897
22 26.9 -0.3 5.6 -6.9 [36.0, 34.0, 21.0, 42.0, 26.0, 19.0] 30372
23 33.7 0.2 5.6 -6.7 [19.0, 18.0, 43.0, 44.0] 28469
24 22.7 -0.3 4.9 -8.5 [33.0, 45.0, 47.0, 23.0, 51.0] 28664
25 23.5 -0.1 5.3 -6.2 [29.0, 22.0, 18.0, 19.0, 47.0, 25.0] 30786
26 37.7 -0.1 5.4 -7.8 [43.0, 44.0] 21122
27 29.0 -0.3 4.7 -10.7 [24.0, 40.0, 29.0, 26.0] 34771
28 32.5 -0.2 7.4 -6.0 [53.0, 43.0, 44.0] 33055
29 39.4 0.2 20.5 -5.1 [53.0, 44.0, 46.0] 29374
30 30.3 0.5 9.3 -5.5 [23.0, 18.0, 16.0] 34089
32 45.0 0.3 8.4 -4.5 [31.0] 27391
33 45.3 -0.2 4.5 -8.0 [52.0, 15.0] 26818
34 39.9 0.4 4.9 -4.6 [46.0, 48.0, 27.0, 21.0] 22746
35 48.7 -0.1 5.9 -13.5 [38.0, 42.0] 24974
36 45.1 -0.2 4.2 -6.1 [46.0, 45.0] 28313
37 45.5 -0.1 10.5 -7.4 [45.0, 47.0] 25600
38 7.0 -0.2 2.7 -2.9 [18.0, 19.0] 1902
41 44.2 -0.1 5.0 -5.6 [47.0, 49.0] 28739
42 43.8 -0.1 4.9 -6.0 [44.0, 46.0] 21691
43 52.3 0.0 7.0 -6.3 [23.0, 35.0] 21355
44 41.3 0.0 4.6 -8.3 [53.0] 23812
45 45.4 0.2 6.0 -6.7 [40.0, 25.0] 25443
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.3 0.0 45.1 49.4 34.5 174 [22.0, 43.0] [0.0] 21825
12 36.3 0.0 45.0 49.6 33.7 213 [47.0, 36.0] [0.0] 23897
14 45.0 0.0 45.0 49.5 34.6 1 [42.0] [0.0] 24886
19 30.8 0.0 44.5 50.3 31.8 90 [49.0, 18.0] [0.0] 33110
20 35.1 0.0 44.2 50.0 32.4 184 [42.0, 21.0] [0.0] 32091
21 26.8 0.0 44.0 48.6 36.2 293 [13.0, 14.0, 41.0] [0.0] 26934
22 26.9 0.0 44.3 48.8 35.5 285 [36.0, 21.0, 26.0] [0.0] 30424
23 33.7 0.0 45.0 49.6 35.8 121 [19.0, 43.0] [0.0] 28471
24 22.7 0.0 43.4 48.7 31.6 229 [33.0, 45.0, 23.0] [0.0] 28653
25 23.5 0.0 42.9 47.8 31.9 137 [29.0, 18.0, 47.0] [0.0] 30805
26 37.7 0.0 44.8 49.2 29.4 0 [43.0] [0.0] 21122
27 29.0 0.0 43.5 49.1 29.4 215 [24.0, 29.0] [0.0] 34775
28 32.5 0.0 43.2 48.7 30.9 253 [53.0, 43.0] [0.0] 33057
29 39.4 0.0 44.0 49.5 29.1 49 [53.0, 44.0] [0.0] 29375
30 30.3 0.0 43.8 49.0 35.4 95 [23.0, 16.0] [0.0] 34099
32 45.0 0.0 45.9 50.0 37.4 0 [31.0] [0.0] 27391
33 45.4 0.0 45.2 49.5 29.0 1 [52.0] [0.0] 26762
34 39.9 0.0 44.6 49.0 35.2 46 [46.0, 27.0] [0.0] 22756
35 48.8 0.0 46.2 49.8 37.2 6 [38.0] [0.0] 24971
36 45.1 0.0 46.5 50.4 35.7 0 [46.0] [0.0] 28313
37 45.5 0.0 45.5 49.8 36.3 2 [45.0] [0.0] 25593
38 7.0 0.0 38.2 40.8 35.8 0 [18.0] [0.0] 1932
41 44.2 0.0 45.7 49.8 36.5 0 [47.0] [0.0] 28739
42 43.8 0.0 45.9 49.6 36.8 0 [44.0] [0.0] 21706
43 52.3 0.0 45.7 49.1 34.8 0 [23.0] [0.0] 21357
44 41.3 0.0 44.8 49.7 33.5 10 [53.0] [0.0] 23839
45 45.4 0.0 46.5 50.7 38.6 0 [40.0] [0.0] 25451
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 46.5 0.0 44.5 48.5 33.3 104 [19.0, 44.0] [0.0] 21717
12 36.3 0.0 44.8 49.1 35.0 141 [49.0, 22.0] [0.0] 23908
14 45.2 0.0 44.9 49.0 31.5 27 [42.0] [0.0] 24748
19 30.8 0.0 44.6 49.1 33.3 89 [48.0, 18.0] [0.0] 33097
20 35.2 0.0 44.0 48.9 31.4 229 [25.0, 43.0] [0.0] 32016
21 26.8 0.0 43.9 48.3 32.8 184 [13.0, 14.0, 43.0] [0.0] 26897
22 26.9 0.0 43.9 49.1 36.8 321 [34.0, 42.0, 19.0] [0.0] 30372
23 33.7 0.0 44.6 49.5 35.8 44 [18.0, 44.0] [0.0] 28494
24 22.7 0.0 43.4 48.2 30.8 220 [33.0, 47.0, 51.0] [0.0] 28665
25 23.5 0.0 42.9 48.0 33.6 238 [22.0, 19.0, 25.0] [0.0] 30792
26 37.7 0.0 45.2 48.9 32.8 0 [44.0] [0.0] 21157
27 29.0 0.0 43.4 47.9 32.9 82 [40.0, 26.0] [0.0] 34782
28 32.5 0.0 43.0 48.5 31.9 1 [53.0, 44.0] [0.0] 33085
29 39.4 0.0 44.1 49.1 30.4 13 [53.0, 46.0] [0.0] 29381
30 30.3 0.0 43.6 48.9 32.2 0 [18.0, 16.0] [0.0] 34156
32 45.0 0.0 45.5 49.5 37.6 0 [31.0] [0.0] 27397
33 45.3 0.0 45.1 49.0 21.3 1 [15.0] [0.0] 26847
34 39.9 0.0 44.0 48.7 30.5 226 [48.0, 21.0] [0.0] 22754
35 48.7 0.0 46.2 49.4 36.1 0 [42.0] [0.0] 24974
36 45.1 0.0 46.0 49.8 35.1 0 [45.0] [0.0] 28322
37 45.5 0.0 45.3 49.6 35.0 3 [47.0] [0.0] 25603
38 7.0 0.0 39.8 41.7 38.1 0 [19.0] [0.0] 1909
41 44.2 0.0 45.6 49.3 36.4 0 [49.0] [0.0] 28742
42 43.8 0.0 45.5 49.1 36.2 0 [46.0] [0.0] 21691
43 52.2 0.0 45.0 48.6 35.2 0 [35.0] [0.0] 21367
44 41.3 0.0 44.5 49.0 34.2 6 [53.0] [0.0] 23842
45 45.4 0.0 46.0 49.8 36.1 0 [25.0] [0.0] 25443
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 46.5 0.6 6.5 -2.7 [22.0, 19.0, 43.0, 44.0] 21717
12 36.3 0.3 4.2 -4.1 [47.0, 49.0, 36.0, 22.0] 23886
14 45.2 0.1 5.0 -3.6 [42.0] 24748
19 30.9 -0.1 4.6 -8.7 [49.0, 48.0, 18.0] 33071
20 35.2 0.2 6.1 -5.2 [42.0, 25.0, 21.0, 43.0] 32016
21 26.8 0.1 5.4 -5.4 [13.0, 14.0, 41.0, 43.0] 26897
22 26.9 0.4 3.7 -3.9 [36.0, 34.0, 21.0, 42.0, 26.0, 19.0] 30372
23 33.7 0.3 5.9 -3.8 [19.0, 18.0, 43.0, 44.0] 28469
24 22.7 0.0 4.1 -5.2 [33.0, 45.0, 47.0, 23.0, 51.0] 28640
25 23.5 -0.0 5.0 -6.3 [29.0, 22.0, 18.0, 19.0, 47.0, 25.0] 30786
26 37.7 -0.4 4.4 -7.1 [43.0, 44.0] 21122
27 29.0 0.1 4.3 -8.0 [24.0, 40.0, 29.0, 26.0] 34771
28 32.5 0.1 7.2 -4.7 [53.0, 43.0, 44.0] 33055
29 39.4 -0.1 6.2 -9.3 [53.0, 44.0, 46.0] 29347
30 30.3 0.2 6.0 -5.5 [23.0, 18.0, 16.0] 34089
32 45.0 0.4 3.9 -4.6 [31.0] 27391
33 45.4 0.0 10.4 -7.2 [52.0, 15.0] 26751
34 39.9 0.6 7.4 -3.3 [46.0, 48.0, 27.0, 21.0] 22746
35 48.8 -0.0 3.1 -3.7 [38.0, 42.0] 24963
36 45.1 0.4 5.0 -3.0 [46.0, 45.0] 28313
37 45.5 0.1 3.8 -3.2 [45.0, 47.0] 25584
38 7.0 -1.6 1.1 -4.2 [18.0, 19.0] 1902
41 44.2 0.1 3.4 -3.4 [47.0, 49.0] 28739
42 43.8 0.4 4.1 -3.8 [44.0, 46.0] 21691
43 52.3 0.7 5.0 -4.3 [23.0, 35.0] 21355
44 41.3 0.2 3.6 -5.5 [53.0] 23812
45 45.4 0.4 5.2 -2.9 [40.0, 25.0] 25443
