REF File: 240729/BX_all.T04
DUT File: 240729/EB81_all.T04

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 838626 43.7 43.9 4.3 20.4 55.5 35.1 37.2 89.0
GPS L2 CM+CL 636104 43.6 44.4 4.1 20.2 51.5 31.3 38.5 89.0
GPS L2 E 197375 29.7 30.0 6.7 12.6 44.5 31.9 33.6 77.0
GPS L5/E5A I+Q 454046 47.1 47.5 3.5 20.3 53.9 33.6 37.7 88.0
SBAS L1 CA 270000 44.3 44.1 1.4 40.8 47.9 7.1 39.8 42.0
SBAS L5/E5A I 270000 45.8 45.8 0.9 43.2 48.6 5.4 39.8 42.0
GLONASS L1 CA 672976 43.8 44.3 5.0 16.9 55.0 38.1 35.8 88.0
GLONASS L1 P 672175 42.4 42.9 4.9 20.3 52.9 32.6 35.9 88.0
GLONASS L2 CA 587148 43.8 44.5 3.9 8.7 50.8 42.1 36.5 88.0
GLONASS L2 P 587110 42.3 42.9 3.7 10.6 48.7 38.1 36.5 88.0
GLONASS G3 PD 60000 43.9 44.3 3.5 28.1 50.5 22.4 35.1 88.0
Galileo L1 MBOC-PD 640804 45.0 45.1 3.9 27.3 54.2 26.9 37.4 88.0
Galileo L5/E5A BPSK(10)-PD 640804 44.5 45.0 3.3 27.0 50.6 23.6 37.4 88.0
Galileo E5B/B2 BPSK(10)-PD 640804 44.9 45.4 3.5 28.5 51.3 22.8 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 640804 47.4 47.7 3.0 33.8 52.9 19.1 37.4 88.0
Galileo E6 BPSK(5)-PD 640801 46.0 46.6 4.4 24.3 53.0 28.7 37.4 88.0
BeiDou L1 BOC-PD 637453 45.5 45.5 4.0 24.2 53.9 29.7 37.5 89.0
BeiDou L5/E5A I+Q 637453 45.6 46.0 3.3 28.0 51.7 23.7 37.5 89.0
BeiDou E5B/B2 BPSK(2)-B2 93745 44.5 45.2 3.3 30.2 50.0 19.8 32.7 85.0
BeiDou B1 BPSK(2)-B1 731206 44.9 45.0 4.1 20.3 54.3 34.0 36.8 89.0
BeiDou B3 BPSK(10)-B3 731192 43.9 44.6 3.7 22.3 50.0 27.7 36.8 89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 11,280,626
Avg Samples/sec: 125.3

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2325']
Start Time : 46800.362
Stop Time : 133200.376
Total Hours : 24.000003888888887
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 838398 43.4 43.7 4.3 7.3 54.6 47.3 37.2 89.0
GPS L2 CM+CL 635944 42.9 43.6 4.1 14.9 51.0 36.1 38.5 89.0
GPS L2 E 196763 28.7 29.0 6.5 12.6 43.9 31.3 33.6 77.0
GPS L5/E5A I+Q 453890 46.4 46.6 3.3 22.3 53.0 30.7 37.7 88.0
GLONASS L1 CA 670732 42.9 43.5 4.9 17.2 54.1 36.9 35.9 88.0
GLONASS L2 CA 585062 42.8 43.4 3.9 0.0 49.8 49.8 36.6 88.0
Galileo L1 MBOC-PD 640887 44.7 44.9 3.9 0.0 53.6 53.6 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 640917 46.8 47.3 2.9 25.8 52.0 26.2 37.4 88.0
BeiDou L5/E5A I+Q 637439 44.8 45.3 3.2 22.2 51.1 28.9 37.5 89.0
BeiDou E5B/B2 BPSK(2)-B2 93634 44.5 44.9 2.9 28.2 49.4 21.2 32.7 85.0
BeiDou B1 BPSK(2)-B1 731246 44.7 45.0 4.2 0.0 54.2 54.2 36.8 89.0
BeiDou B3 BPSK(10)-B3 730863 43.5 44.1 3.8 16.3 50.2 33.9 36.9 89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 6,855,775
Avg Samples/sec: 76.2

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2325']
Start Time : 46800.18
Stop Time : 135395.918
Total Hours : 24.609927222222225
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 837712 +0.3 +0.3 +1.8 -14.3 +28.5 +42.8 +37.2 +89.0
GPS L2 CM+CL 635305 +0.7 +0.7 +1.5 -16.9 +21.5 +38.4 +38.5 +89.0
GPS L2 E 193889 +1.1 +1.1 +1.8 -9.5 +13.0 +22.5 +34.0 +77.0
GPS L5/E5A I+Q 453397 +0.7 +0.8 +1.2 -16.6 +12.9 +29.5 +37.7 +88.0
GLONASS L1 CA 670210 +0.9 +0.9 +1.7 -14.0 +19.9 +33.9 +35.9 +88.0
GLONASS L2 CA 584606 +1.0 +1.0 +1.6 -13.5 +39.0 +52.5 +36.6 +88.0
Galileo L1 MBOC-PD 640535 +0.3 +0.3 +1.5 -8.6 +33.8 +42.4 +37.5 +88.0
Galileo E5A+B AltBOC-Comp-PD 640565 +0.5 +0.6 +1.0 -6.2 +9.7 +15.9 +37.5 +88.0
BeiDou L5/E5A I+Q 637095 +0.8 +0.8 +1.2 -7.3 +17.8 +25.1 +37.5 +89.0
BeiDou E5B/B2 BPSK(2)-B2 93561 +0.1 +0.2 +1.4 -7.1 +9.8 +16.9 +32.7 +85.0
BeiDou B1 BPSK(2)-B1 730837 +0.2 +0.2 +1.7 -18.3 +34.7 +53.0 +36.9 +89.0
BeiDou B3 BPSK(10)-B3 730440 +0.5 +0.4 +1.4 -9.9 +22.4 +32.3 +36.9 +89.0
start/stop time: 46,800 136,799
Total time: 89,999.0 seconds
Total time: 1,499.983 minutes
Total time: 25.000 hours
Total Samples: 6,848,152
Avg Samples/sec: 76.1

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.588
Median = 0.600
Std Dev= 1.537

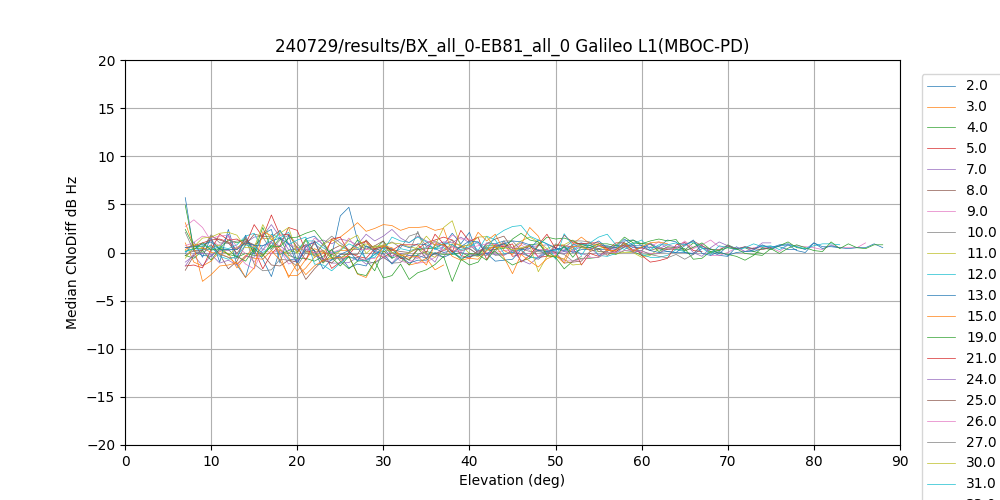

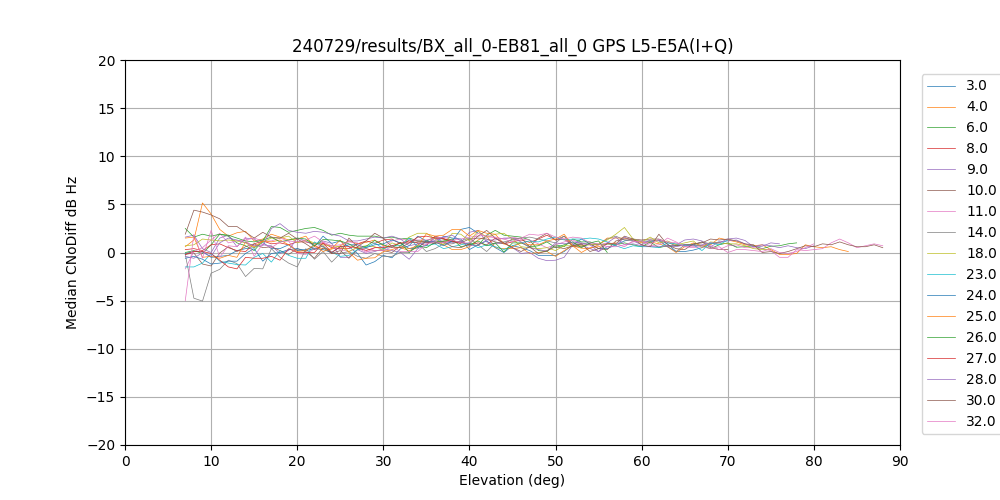

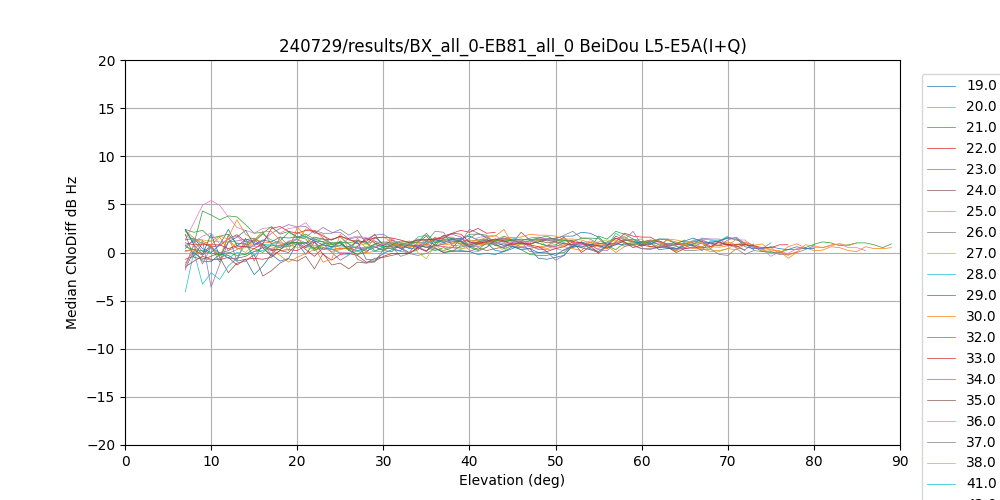

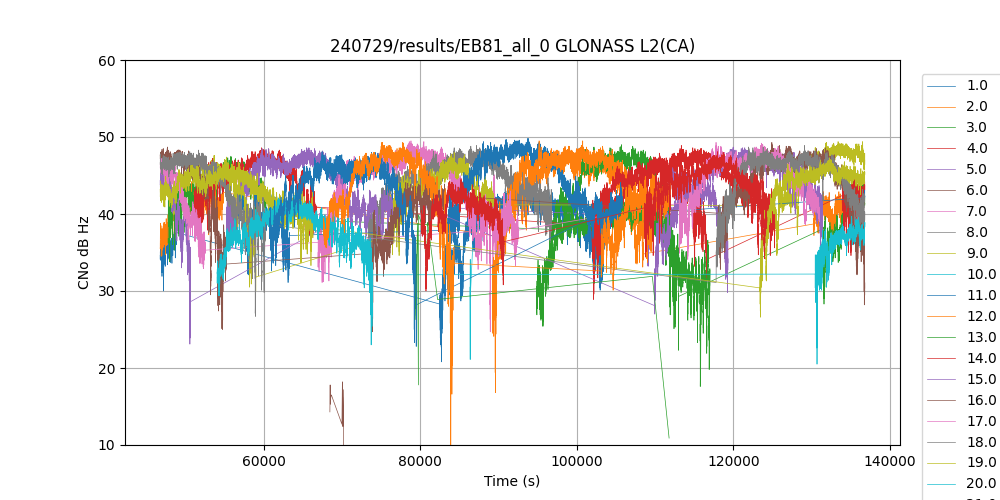

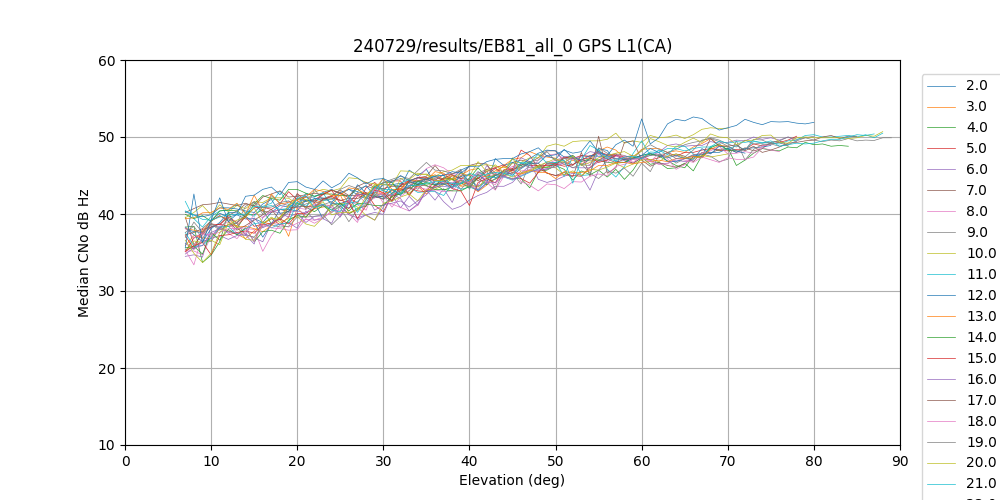

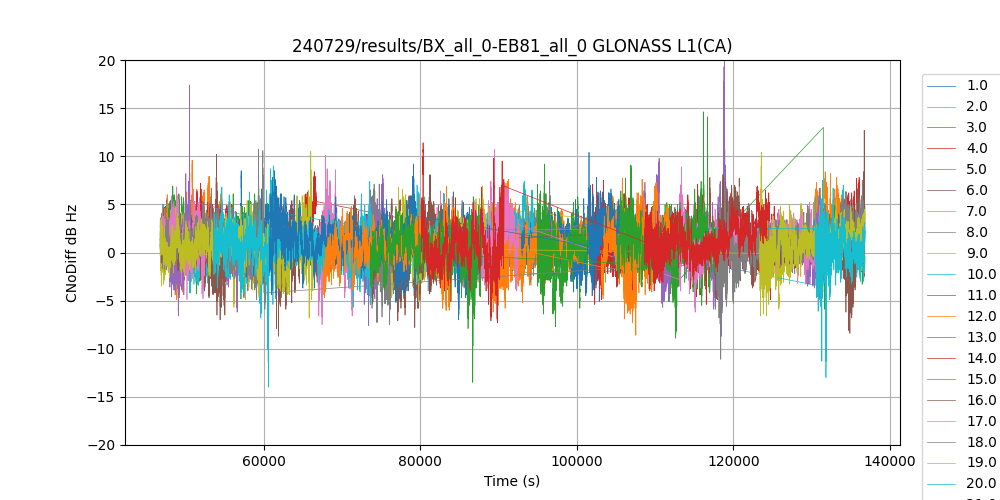

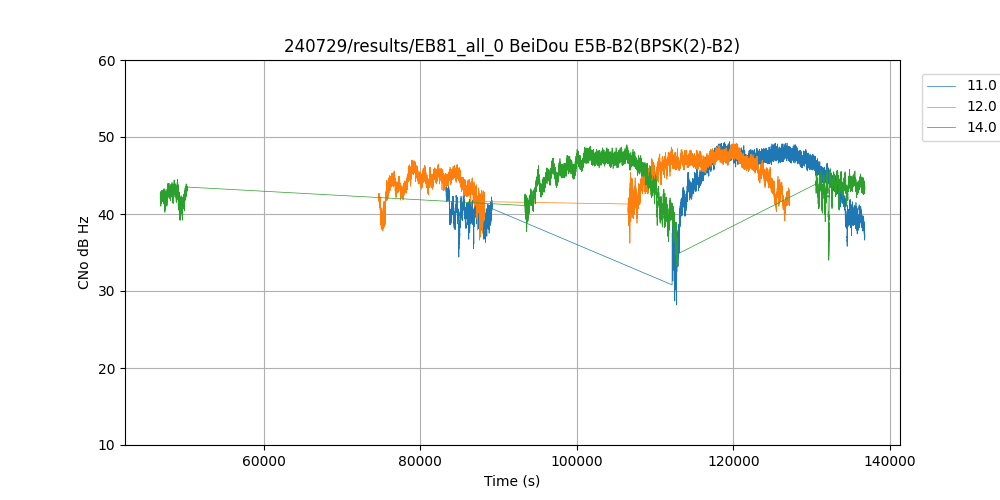

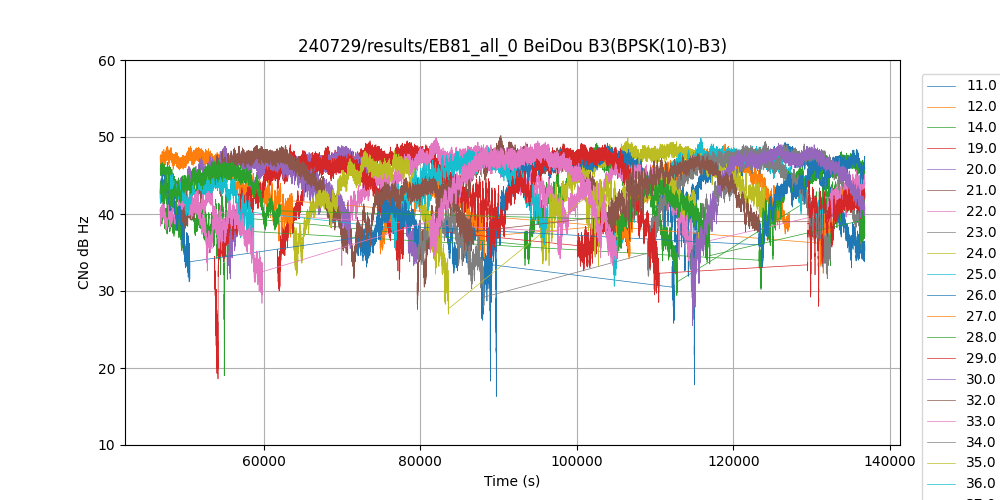

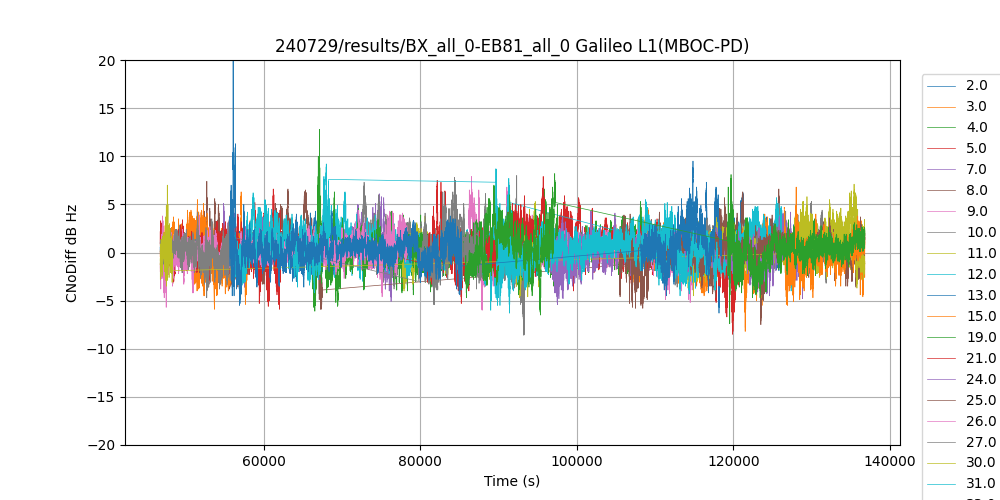

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.9 48.1 31.3 179 [30.0, 13.0] [0.0] 30532
3 32.7 0.0 42.5 52.2 29.4 132 [34.0, 31.0] [0.0] 27048
4 45.4 0.0 44.1 51.0 33.5 0 [35.0] [0.0] 23828
5 38.3 0.0 43.9 52.3 20.4 106 [19.0, 13.0, 15.0] [0.0] 26852
6 37.9 0.0 43.3 52.4 26.5 379 [29.0, 30.0, 28.0] [0.0] 28353
7 45.1 0.0 45.6 51.7 31.3 0 [27.0] [0.0] 25501
8 27.3 0.0 41.8 49.6 27.7 54 [35.0, 23.0] [0.0] 29176
9 44.0 0.0 44.7 52.3 31.6 5 [31.0] [0.0] 21424
10 43.5 0.0 46.9 54.0 25.1 1 [37.0] [0.0] 25757
11 50.3 0.0 45.9 53.3 24.3 115 [33.0, 27.0] [0.0] 27135
12 42.0 0.0 44.4 51.8 26.9 220 [35.0, 36.0] [0.0] 28111
13 26.4 0.0 42.5 48.8 28.7 198 [30.0, 11.0] [0.0] 29920
14 44.2 0.0 45.2 51.1 32.8 0 [16.0] [0.0] 25707
15 29.1 0.0 42.7 49.8 28.0 46 [29.0, 26.0] [0.0] 27786
16 31.3 0.0 41.6 50.3 27.4 133 [35.0, 29.0] [0.0] 27079
17 44.4 0.0 45.3 53.4 33.2 253 [36.0, 37.0] [0.0] 24945
18 44.1 0.0 44.9 51.3 33.6 0 [17.0] [0.0] 24975
19 41.5 0.0 44.2 51.6 23.9 209 [17.0, 30.0] [0.0] 28414
20 36.6 0.0 42.9 52.1 28.5 295 [32.0, 18.0, 33.0] [0.0] 29889
21 26.6 0.0 42.0 49.3 26.6 50 [24.0, 29.0] [0.0] 30267
22 43.8 0.0 45.1 51.1 30.8 76 [11.0, 12.0] [0.0] 26421
23 43.5 0.0 44.9 52.0 32.7 0 [14.0] [0.0] 25558
24 24.9 0.0 40.5 47.3 29.3 72 [24.0, 32.0] [0.0] 31674
25 30.4 0.0 41.7 49.8 25.6 378 [26.0, 33.0, 25.0] [0.0] 32365
26 28.0 0.0 41.8 49.4 27.5 66 [20.0, 14.0] [0.0] 28482
27 26.2 0.0 42.0 47.9 22.2 226 [33.0, 30.0] [0.0] 29881
28 38.1 0.0 43.0 51.0 21.5 389 [24.0, 21.0, 31.0] [0.0] 24398
29 41.7 0.0 44.7 53.4 30.1 77 [18.0, 14.0] [0.0] 26546
30 45.9 0.0 45.3 53.4 29.8 1 [22.0] [0.0] 23629
31 45.3 0.0 45.5 54.3 30.3 1 [17.0] [0.0] 22317
32 45.3 0.0 47.1 55.5 25.2 17 [28.0] [0.0] 24656

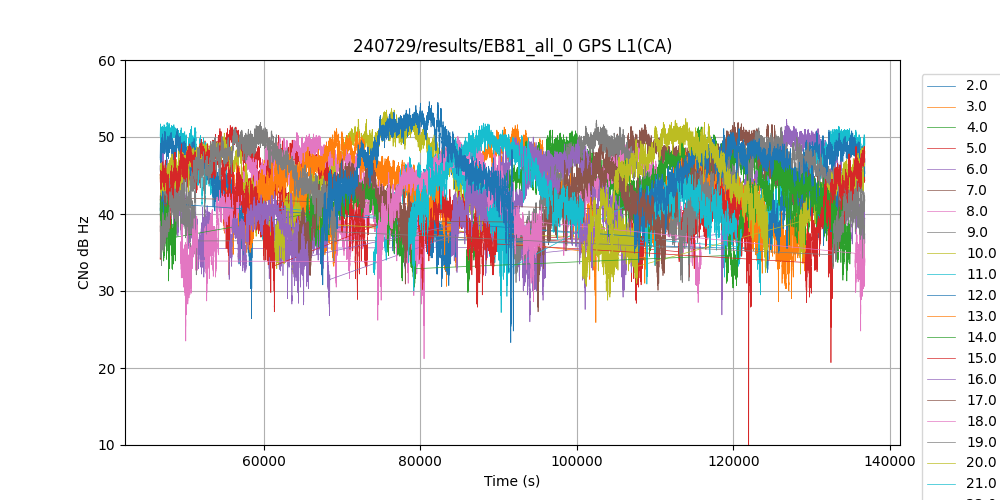

DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.7 48.5 32.2 52 [31.0, 13.0] [0.0] 30551
3 32.7 0.0 42.1 51.6 25.9 31 [34.0, 33.0] [0.0] 27099
4 45.8 0.0 44.1 50.9 29.8 4 [36.0] [0.0] 23600
5 38.2 0.0 43.4 51.5 20.7 242 [19.0, 13.0, 15.0] [0.0] 26909
6 37.9 0.0 42.5 52.3 26.0 121 [30.0, 31.0, 28.0] [0.0] 28322
7 45.1 0.0 45.1 51.6 27.3 6 [27.0] [0.0] 25479
8 27.4 0.0 40.8 50.2 21.2 317 [36.0, 23.0] [0.0] 29156
9 44.0 0.0 44.4 52.2 31.1 7 [33.0] [0.0] 21429
10 43.5 0.0 46.6 53.7 32.2 0 [35.0] [0.0] 25778
11 50.3 0.0 45.5 51.9 29.5 1 [32.0, 27.0] [0.0] 27144
12 42.1 0.0 44.0 51.1 26.4 203 [36.0, 37.0] [0.0] 28086
13 26.4 0.0 42.4 49.0 31.0 103 [31.0, 11.0] [0.0] 29899
14 44.1 0.0 45.1 51.3 33.6 0 [16.0] [0.0] 25729
15 29.1 0.0 42.4 50.2 7.3 195 [30.0, 26.0] [0.0] 27805
16 31.3 0.0 40.9 49.6 26.8 268 [36.0, 30.0] [0.0] 27072
17 44.4 0.0 45.0 51.9 30.1 163 [37.0, 36.0] [0.0] 24947
18 44.1 0.0 44.5 50.6 28.7 2 [17.0] [0.0] 24964
19 41.5 0.0 44.4 51.3 31.3 198 [17.0, 31.0] [0.0] 28409
20 36.7 0.0 42.4 50.5 28.8 272 [28.0, 18.0, 25.0] [0.0] 29837
21 26.6 0.0 41.7 49.0 27.2 220 [27.0, 30.0] [0.0] 30266
22 43.9 0.0 45.0 51.1 33.7 138 [11.0, 12.0] [0.0] 26372
23 43.5 0.0 45.0 51.1 34.7 0 [14.0] [0.0] 25590
24 24.8 0.0 40.4 47.0 30.4 270 [27.0, 28.0, 24.0] [0.0] 31781
25 30.5 0.0 41.7 49.7 27.3 85 [24.0, 32.0, 23.0] [0.0] 32181
26 28.0 0.0 41.3 50.0 27.6 48 [20.0, 14.0] [0.0] 28494
27 26.1 0.0 42.1 48.2 30.9 220 [29.0, 31.0] [0.0] 29903
28 38.0 0.0 42.0 50.1 23.5 480 [27.0, 21.0, 33.0] [0.0] 24433
29 41.6 0.0 44.4 51.9 32.9 47 [18.0, 14.0] [0.0] 26569
30 45.8 0.0 45.1 52.4 30.6 7 [22.0] [0.0] 23656
31 45.3 0.0 45.1 51.8 30.0 1 [17.0] [0.0] 22307
32 45.3 0.0 47.0 54.6 23.3 44 [26.0] [0.0] 24631
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.0 0.2 6.6 -10.6 [30.0, 31.0, 13.0] 30532
3 32.7 0.4 8.6 -7.3 [34.0, 31.0, 33.0] 27048
4 45.8 0.1 7.5 -6.2 [35.0, 36.0] 23582
5 38.3 0.5 9.5 -14.3 [19.0, 13.0, 15.0] 26852
6 37.9 0.9 10.2 -11.0 [29.0, 30.0, 31.0, 28.0] 28314
7 45.1 0.4 9.9 -4.8 [27.0] 25479
8 27.4 1.0 18.1 -8.0 [35.0, 36.0, 23.0] 29134
9 44.0 0.3 8.1 -5.8 [31.0, 33.0] 21424
10 43.5 0.2 6.2 -11.8 [37.0, 35.0] 25757
11 50.4 0.4 7.3 -9.9 [33.0, 32.0, 27.0] 27123
12 42.1 0.4 7.6 -9.4 [35.0, 36.0, 37.0] 28081
13 26.4 0.1 7.1 -9.9 [30.0, 31.0, 11.0] 29899
14 44.2 0.0 6.2 -9.2 [16.0] 25707
15 29.1 0.3 28.5 -6.5 [29.0, 30.0, 26.0] 27763
16 31.3 0.7 9.4 -9.9 [35.0, 36.0, 29.0, 30.0] 27070
17 44.4 0.3 8.9 -8.1 [36.0, 37.0] 24944
18 44.1 0.4 10.2 -6.3 [17.0] 24964
19 41.5 -0.2 10.8 -13.4 [17.0, 30.0, 31.0] 28407
20 36.7 0.6 7.7 -7.9 [32.0, 28.0, 18.0, 33.0, 25.0] 29837
21 26.6 0.3 8.7 -9.0 [24.0, 27.0, 29.0, 30.0] 30242
22 43.9 0.1 7.0 -9.8 [11.0, 12.0] 26372
23 43.5 -0.1 6.8 -7.2 [14.0] 25558
24 24.9 0.1 7.1 -8.7 [24.0, 27.0, 32.0, 28.0] 31647
25 30.5 0.1 8.6 -11.1 [26.0, 24.0, 33.0, 32.0, 25.0, 23.0] 32181
26 28.0 0.5 9.1 -9.1 [20.0, 14.0] 28467
27 26.2 -0.0 6.3 -11.0 [33.0, 29.0, 30.0, 31.0] 29848
28 38.1 1.0 11.7 -14.0 [24.0, 27.0, 21.0, 31.0, 33.0] 24387
29 41.7 0.3 7.3 -9.6 [18.0, 14.0] 26539
30 45.9 0.2 8.3 -7.8 [22.0] 23629
31 45.3 0.4 5.3 -8.3 [17.0] 22298
32 45.3 0.1 16.9 -11.7 [28.0, 26.0] 24627
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.2 0.0 29.4 36.9 12.6 73 [30.0, 13.0] [0.0] 30307
13 27.4 0.0 27.1 35.2 12.6 191 [30.0, 11.0] [0.0] 28387
16 32.4 0.0 28.1 40.3 13.9 128 [35.0, 29.0] [0.0] 25727
19 41.8 0.0 33.3 44.5 13.9 103 [17.0, 30.0] [0.0] 28162
20 37.4 0.0 30.2 41.3 13.9 111 [32.0, 18.0, 33.0] [0.0] 29116
21 27.2 0.0 27.1 36.5 12.6 251 [24.0, 29.0] [0.0] 29255
22 43.8 0.0 32.8 41.1 12.6 179 [11.0, 12.0] [0.0] 26421

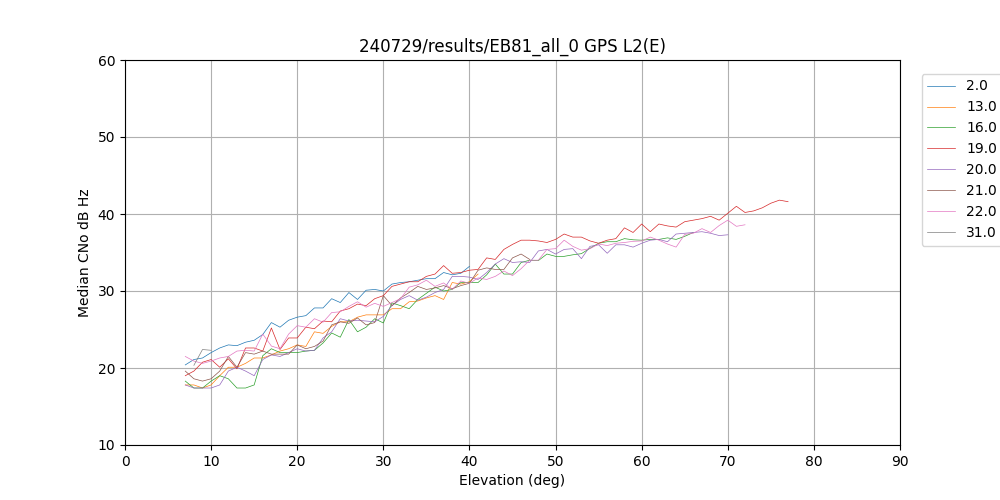

DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 28.5 35.4 14.8 110 [31.0, 13.0] [0.0] 30551
13 26.5 0.0 25.8 34.4 13.9 132 [31.0, 11.0] [0.0] 29860
16 33.4 0.0 26.9 38.6 13.9 148 [36.0, 30.0] [0.0] 24585
19 41.9 0.0 32.3 43.9 12.6 21 [17.0, 31.0] [0.0] 28121
20 38.7 0.0 29.3 39.9 12.6 277 [28.0, 18.0, 25.0] [0.0] 27831
21 27.1 0.0 26.2 37.2 13.9 40 [27.0, 30.0] [0.0] 29430
22 43.9 0.0 31.9 40.6 14.8 196 [11.0, 12.0] [0.0] 26372
31 9.4 0.0 21.9 22.9 20.1 250 [17.0] [0.0] 13
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.2 0.8 6.8 -6.7 [30.0, 31.0, 13.0] 30307
13 27.4 0.9 7.8 -5.4 [30.0, 31.0, 11.0] 28381
16 33.9 1.7 8.0 -4.4 [35.0, 36.0, 29.0, 30.0] 24066
19 42.1 1.1 13.0 -9.5 [17.0, 30.0, 31.0] 27883
20 38.7 1.4 8.4 -5.4 [32.0, 28.0, 18.0, 33.0, 25.0] 27831
21 27.3 0.9 10.2 -8.4 [24.0, 27.0, 29.0, 30.0] 29049
22 43.9 1.0 6.4 -5.1 [11.0, 12.0] 26372
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 41.7 48.3 28.3 71 [34.0, 31.0] [0.0] 27048
4 45.4 0.0 46.2 51.4 37.1 0 [35.0] [0.0] 23828
5 38.3 0.0 43.6 49.3 30.5 363 [19.0, 13.0, 15.0] [0.0] 26852
6 37.9 0.0 44.4 50.0 29.1 300 [29.0, 30.0, 28.0] [0.0] 28353
7 45.1 0.0 44.2 49.1 29.5 0 [27.0] [0.0] 25501
8 27.3 0.0 42.4 48.2 33.5 209 [35.0, 23.0] [0.0] 29176
9 44.0 0.0 44.1 49.4 29.8 0 [31.0] [0.0] 21424
10 43.5 0.0 44.3 49.1 31.7 0 [37.0] [0.0] 25757
11 50.3 0.0 46.3 51.5 27.7 181 [33.0, 27.0] [0.0] 27135
12 42.0 0.0 43.3 49.1 29.0 150 [35.0, 36.0] [0.0] 28111
14 44.2 0.0 46.2 51.5 21.2 40 [16.0] [0.0] 25707
15 29.1 0.0 41.9 47.8 31.6 91 [29.0, 26.0] [0.0] 27786
17 44.4 0.0 43.2 49.8 28.9 86 [36.0, 37.0] [0.0] 24945
18 44.1 0.0 46.4 51.1 35.6 0 [17.0] [0.0] 24975
23 43.5 0.0 45.5 50.8 23.9 68 [14.0] [0.0] 25558
24 24.9 0.0 40.8 47.2 25.4 480 [24.0, 32.0] [0.0] 31674
25 30.4 0.0 41.1 47.3 28.5 344 [26.0, 33.0, 25.0] [0.0] 32365
26 28.0 0.0 41.8 47.8 30.3 246 [20.0, 14.0] [0.0] 28482
27 26.2 0.0 41.7 47.2 20.2 231 [33.0, 30.0] [0.0] 29881
28 38.1 0.0 45.6 51.2 34.1 133 [24.0, 21.0, 31.0] [0.0] 24398
29 41.7 0.0 43.3 49.5 31.6 233 [18.0, 14.0] [0.0] 26546
30 45.9 0.0 44.0 48.6 35.0 0 [22.0] [0.0] 23629
31 45.3 0.0 43.8 49.8 25.8 4 [17.0] [0.0] 22317
32 45.3 0.0 44.3 49.6 28.3 0 [28.0] [0.0] 24656
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 41.4 48.1 24.5 169 [34.0, 33.0] [0.0] 27099
4 45.8 0.0 45.1 51.0 33.8 0 [36.0] [0.0] 23600
5 38.2 0.0 42.6 48.8 29.0 123 [19.0, 13.0, 15.0] [0.0] 26909
6 37.9 0.0 43.6 49.4 28.7 76 [30.0, 31.0, 28.0] [0.0] 28322
7 45.1 0.0 43.3 48.2 27.4 2 [27.0] [0.0] 25479
8 27.4 0.0 41.7 47.2 27.5 2 [36.0, 23.0] [0.0] 29156
9 44.0 0.0 43.2 49.3 23.4 40 [33.0] [0.0] 21429
10 43.5 0.0 43.7 48.7 31.9 0 [35.0] [0.0] 25778
11 50.3 0.0 45.6 50.8 21.5 131 [32.0, 27.0] [0.0] 27144
12 42.1 0.0 42.6 48.5 26.7 40 [36.0, 37.0] [0.0] 28086
14 44.1 0.0 45.8 50.8 31.2 0 [16.0] [0.0] 25729
15 29.1 0.0 40.7 46.3 28.3 155 [30.0, 26.0] [0.0] 27805
17 44.4 0.0 42.8 49.3 24.1 174 [37.0, 36.0] [0.0] 24947
18 44.1 0.0 45.5 50.7 33.3 0 [17.0] [0.0] 24964
23 43.5 0.0 45.0 50.3 31.9 0 [14.0] [0.0] 25590
24 24.8 0.0 40.6 45.8 28.5 352 [27.0, 28.0, 24.0] [0.0] 31781
25 30.5 0.0 40.5 46.7 22.9 435 [24.0, 32.0, 23.0] [0.0] 32181
26 28.0 0.0 40.8 46.5 29.3 84 [20.0, 14.0] [0.0] 28494
27 26.1 0.0 41.4 46.1 22.0 283 [29.0, 31.0] [0.0] 29903
28 38.0 0.0 44.5 50.5 32.9 379 [27.0, 21.0, 33.0] [0.0] 24433
29 41.6 0.0 42.1 49.0 29.4 231 [18.0, 14.0] [0.0] 26569
30 45.8 0.0 42.9 48.1 29.5 1 [22.0] [0.0] 23656
31 45.4 0.0 43.0 49.1 14.9 446 [17.0] [0.0] 22259
32 45.3 0.0 43.5 48.9 21.8 178 [26.0] [0.0] 24631
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.3 10.9 -7.7 [34.0, 31.0, 33.0] 27048
4 45.8 1.2 7.2 -3.2 [35.0, 36.0] 23582
5 38.3 1.0 7.4 -4.8 [19.0, 13.0, 15.0] 26852
6 37.9 0.9 6.8 -4.6 [29.0, 30.0, 31.0, 28.0] 28314
7 45.1 0.9 8.3 -3.4 [27.0] 25479
8 27.4 0.6 9.2 -5.3 [35.0, 36.0, 23.0] 29134
9 44.0 0.9 11.1 -7.5 [31.0, 33.0] 21424
10 43.5 0.6 7.3 -5.6 [37.0, 35.0] 25757
11 50.4 0.7 7.9 -5.0 [33.0, 32.0, 27.0] 27123
12 42.1 0.7 8.8 -5.6 [35.0, 36.0, 37.0] 28081
14 44.2 0.4 5.4 -16.9 [16.0] 25707
15 29.1 1.1 10.5 -4.8 [29.0, 30.0, 26.0] 27763
17 44.4 0.4 9.6 -7.3 [36.0, 37.0] 24944
18 44.1 0.8 8.0 -3.8 [17.0] 24964
23 43.5 0.5 6.4 -13.1 [14.0] 25558
24 24.9 0.2 5.4 -8.0 [24.0, 27.0, 32.0, 28.0] 31647
25 30.5 0.7 14.3 -6.5 [26.0, 24.0, 33.0, 32.0, 25.0, 23.0] 32181
26 28.0 1.0 7.4 -4.1 [20.0, 14.0] 28467
27 26.2 0.2 8.8 -12.0 [33.0, 29.0, 30.0, 31.0] 29848
28 38.1 1.0 7.0 -3.8 [24.0, 27.0, 21.0, 31.0, 33.0] 24387
29 41.7 1.2 10.1 -5.9 [18.0, 14.0] 26539
30 45.9 1.0 7.0 -2.7 [22.0] 23629
31 45.4 0.9 21.5 -7.3 [17.0] 22250
32 45.3 0.8 11.5 -9.1 [28.0, 26.0] 24627
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.3 52.3 36.7 125 [34.0, 31.0] [0.0] 27048
4 45.4 0.0 48.0 52.9 40.7 0 [35.0] [0.0] 23828
6 37.9 0.0 47.5 52.5 38.5 203 [29.0, 30.0, 28.0] [0.0] 28353
8 27.3 0.0 46.3 50.8 36.1 33 [35.0, 23.0] [0.0] 29176
9 44.0 0.0 47.9 52.5 37.2 0 [31.0] [0.0] 21424
10 43.5 0.0 47.8 51.4 36.9 0 [37.0] [0.0] 25757
11 50.3 0.0 48.9 53.9 37.0 198 [33.0, 27.0] [0.0] 27135
14 44.2 0.0 48.0 53.2 31.9 0 [16.0] [0.0] 25707
18 44.1 0.0 48.8 53.5 38.6 0 [17.0] [0.0] 24975
23 43.5 0.0 47.9 53.0 33.7 0 [14.0] [0.0] 25558
24 24.9 0.0 45.1 50.6 20.3 328 [24.0, 32.0] [0.0] 31674
25 30.4 0.0 45.8 51.1 31.6 262 [26.0, 33.0, 25.0] [0.0] 32365
26 28.0 0.0 46.1 50.7 39.2 64 [20.0, 14.0] [0.0] 28482
27 26.2 0.0 46.0 50.0 34.9 154 [33.0, 30.0] [0.0] 29881
28 38.1 0.0 47.6 53.2 38.7 169 [24.0, 21.0, 31.0] [0.0] 24398
30 45.9 0.0 48.7 52.8 40.7 0 [22.0] [0.0] 23629
32 45.3 0.0 46.3 50.7 31.8 0 [28.0] [0.0] 24656
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 45.8 51.8 34.6 120 [34.0, 33.0] [0.0] 27099
4 45.8 0.0 47.2 52.7 35.8 0 [36.0] [0.0] 23600
6 37.9 0.0 46.5 51.5 37.1 159 [30.0, 31.0, 28.0] [0.0] 28322
8 27.4 0.0 45.5 49.4 34.6 123 [36.0, 23.0] [0.0] 29156
9 44.0 0.0 47.2 51.7 36.8 0 [33.0] [0.0] 21429
10 43.5 0.0 47.1 50.9 38.1 0 [35.0] [0.0] 25778
11 50.3 0.0 48.0 53.0 31.5 107 [32.0, 27.0] [0.0] 27144
14 44.1 0.0 47.6 52.8 38.0 0 [16.0] [0.0] 25729
18 44.1 0.0 47.9 53.0 37.9 0 [17.0] [0.0] 24964
23 43.5 0.0 47.4 52.2 36.6 0 [14.0] [0.0] 25590
24 24.8 0.0 44.7 49.3 34.3 53 [27.0, 28.0, 24.0] [0.0] 31781
25 30.5 0.0 45.2 50.1 22.3 313 [24.0, 32.0, 23.0] [0.0] 32181
26 28.0 0.0 45.0 50.3 36.3 113 [20.0, 14.0] [0.0] 28494
27 26.1 0.0 45.5 48.9 36.0 86 [29.0, 31.0] [0.0] 29903
28 38.0 0.0 46.7 52.0 36.2 117 [27.0, 21.0, 33.0] [0.0] 24433
30 45.8 0.0 47.6 52.5 36.3 0 [22.0] [0.0] 23656
32 45.3 0.0 45.6 50.3 32.1 0 [26.0] [0.0] 24631

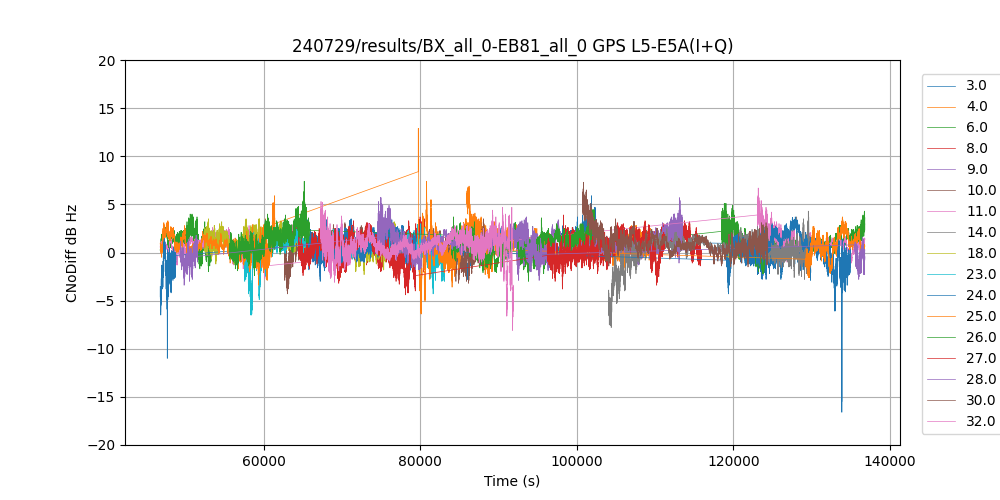

DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 0.5 5.9 -2.9 [34.0, 31.0, 33.0] 27048
4 45.8 0.9 6.9 -1.9 [35.0, 36.0] 23582
6 37.9 1.0 5.1 -3.0 [29.0, 30.0, 31.0, 28.0] 28314
8 27.4 0.8 3.9 -3.2 [35.0, 36.0, 23.0] 29134
9 44.0 0.8 5.7 -2.9 [31.0, 33.0] 21424
10 43.5 0.6 3.5 -4.3 [37.0, 35.0] 25757
11 50.4 0.9 6.7 -2.7 [33.0, 32.0, 27.0] 27123
14 44.2 0.4 4.3 -7.8 [16.0] 25707
18 44.1 0.9 3.5 -2.3 [17.0] 24964
23 43.5 0.5 3.0 -6.5 [14.0] 25558
24 24.9 0.4 3.7 -16.6 [24.0, 27.0, 32.0, 28.0] 31647
25 30.5 0.7 12.9 -6.4 [26.0, 24.0, 33.0, 32.0, 25.0, 23.0] 32181
26 28.0 1.1 7.4 -2.4 [20.0, 14.0] 28467
27 26.2 0.4 3.3 -4.4 [33.0, 29.0, 30.0, 31.0] 29848
28 38.1 0.9 5.7 -3.4 [24.0, 27.0, 21.0, 31.0, 33.0] 24387
30 45.9 1.0 7.3 -1.5 [22.0] 23629
32 45.3 0.7 5.3 -8.1 [28.0, 26.0] 24627
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.0 47.9 43.8 0 [57.0] [0.0] 90000
133 38.0 0.0 42.9 45.2 40.8 0 [56.0] [0.0] 90000
135 39.3 0.0 44.0 46.2 41.9 0 [55.0] [0.0] 90000
DUT SBAS L1(CA)
DIFF SBAS L1(CA)
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.8 48.6 44.9 0 [57.0] [0.0] 90000
133 38.0 0.0 45.8 47.5 44.3 0 [56.0] [0.0] 90000
135 39.3 0.0 44.8 46.4 43.2 0 [55.0] [0.0] 90000
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)

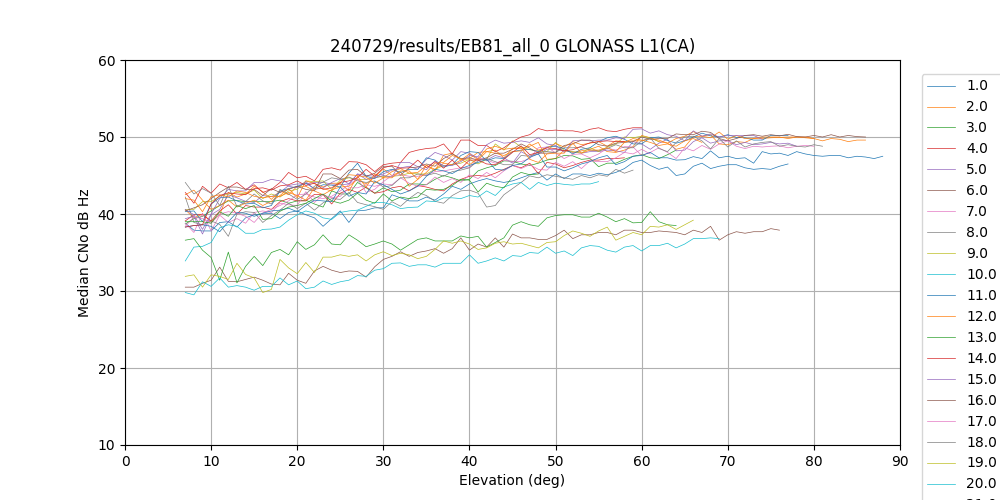

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 43.4 49.9 31.8 233 [1.0] [0.0] 22945
2 33.1 0.0 46.0 53.6 31.3 139 [-4.0] [0.0] 31220
3 31.2 0.0 44.4 51.2 28.1 324 [5.0] [0.0] 34667
4 31.9 0.0 45.0 49.9 34.0 419 [6.0] [0.0] 32419
5 35.0 0.0 45.7 52.7 32.1 8 [1.0] [0.0] 28669
6 36.8 0.0 35.8 42.0 21.7 923 [-4.0] [0.0] 25807
7 39.1 0.0 45.2 50.9 29.8 0 [5.0] [0.0] 23096
8 38.7 0.0 43.9 49.3 31.2 0 [6.0] [0.0] 23392
9 33.0 0.0 46.0 52.5 33.7 360 [-2.0] [0.0] 36934
10 29.2 0.0 41.4 47.2 20.6 109 [-7.0] [0.0] 32566
11 34.9 0.0 46.0 53.5 35.0 125 [0.0] [0.0] 24336
12 44.1 0.0 47.2 53.2 31.7 0 [-1.0] [0.0] 20481
13 40.9 0.0 37.6 44.1 24.2 30 [-2.0] [0.0] 22046
14 39.1 0.0 49.1 55.0 35.6 0 [-7.0] [0.0] 23347
15 35.6 0.0 46.5 53.9 30.0 235 [0.0] [0.0] 28908
16 36.9 0.0 46.4 53.4 33.6 51 [-1.0] [0.0] 36421
17 33.3 0.0 45.0 52.4 31.6 345 [4.0] [0.0] 29890
18 43.1 0.0 47.2 52.6 27.4 128 [-3.0] [0.0] 32396
19 44.1 0.0 36.7 42.1 18.5 1051 [3.0] [0.0] 33779
20 37.5 0.0 33.8 39.9 16.9 1449 [2.0] [0.0] 28141
21 38.6 0.0 44.7 51.4 30.6 96 [4.0] [0.0] 23066
22 31.7 0.0 45.4 52.1 34.3 185 [-3.0] [0.0] 25500
23 28.8 0.0 42.8 48.0 28.2 247 [3.0] [0.0] 26739
24 29.7 0.0 45.9 52.5 32.6 163 [2.0] [0.0] 26211
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 42.6 48.8 32.7 214 [1.0] [0.0] 22946
2 33.1 0.0 44.3 53.3 31.2 182 [-4.0] [0.0] 31216
3 31.2 0.0 43.4 49.8 28.1 271 [5.0] [0.0] 34663
4 31.9 0.0 43.4 49.5 32.0 357 [6.0] [0.0] 32426
5 35.0 0.0 45.1 52.0 22.0 165 [1.0] [0.0] 28639
6 36.7 0.0 34.6 40.2 21.4 1582 [-4.0] [0.0] 25835
7 39.1 0.0 44.5 50.5 27.9 1 [5.0] [0.0] 23103
8 38.7 0.0 43.1 48.3 30.5 0 [6.0] [0.0] 23390
9 33.0 0.0 45.4 51.6 33.7 274 [-2.0] [0.0] 36929
10 29.1 0.0 40.5 46.5 27.8 35 [-7.0] [0.0] 32650
11 34.9 0.0 45.2 52.6 32.6 229 [0.0] [0.0] 24348
12 44.0 0.0 46.6 52.8 34.1 0 [-1.0] [0.0] 20506
13 40.7 0.0 36.8 42.2 17.2 411 [-2.0] [0.0] 22155
14 39.1 0.0 48.3 54.1 34.9 0 [-7.0] [0.0] 23335
15 35.6 0.0 45.6 52.6 19.9 216 [0.0] [0.0] 28936
16 36.9 0.0 45.9 53.3 29.8 145 [-1.0] [0.0] 36431
17 33.3 0.0 43.7 50.9 31.2 395 [4.0] [0.0] 29871
18 43.1 0.0 46.1 51.6 31.0 141 [-3.0] [0.0] 32385
19 45.0 0.0 36.2 41.0 21.3 482 [3.0] [0.0] 32892
20 39.0 0.0 33.4 38.4 18.5 1594 [2.0] [0.0] 26625
21 38.5 0.0 43.3 50.2 27.1 23 [4.0] [0.0] 23088
22 31.7 0.0 44.8 51.5 35.2 185 [-3.0] [0.0] 25483
23 28.8 0.0 42.1 47.1 31.9 117 [3.0] [0.0] 26703
24 29.7 0.0 45.0 51.6 28.9 149 [2.0] [0.0] 26177
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 40.2 0.8 6.4 -5.1 [1.0] 22944
2 33.1 1.7 9.6 -8.6 [-4.0] 31186
3 31.2 1.0 13.0 -8.9 [5.0] 34637
4 31.9 1.6 8.4 -5.4 [6.0] 32396
5 35.0 0.5 19.9 -8.7 [1.0] 28639
6 36.8 1.1 7.8 -8.7 [-4.0] 25807
7 39.1 0.7 10.7 -7.5 [5.0] 23096
8 38.7 0.8 7.4 -7.5 [6.0] 23390
9 33.0 0.7 6.9 -5.9 [-2.0] 36904
10 29.2 0.9 9.0 -14.0 [-7.0] 32564
11 34.9 0.8 8.5 -7.0 [0.0] 24313
12 44.1 0.6 7.7 -6.2 [-1.0] 20481
13 40.9 0.8 14.6 -6.4 [-2.0] 22030
14 39.1 0.8 7.5 -5.4 [-7.0] 23335
15 35.6 0.8 17.4 -7.6 [0.0] 28904
16 36.9 0.5 12.7 -8.4 [-1.0] 36417
17 33.3 1.3 8.9 -6.2 [4.0] 29843
18 43.1 1.1 10.7 -11.1 [-3.0] 32385
19 45.0 0.8 10.5 -6.8 [3.0] 32890
20 39.0 0.6 7.5 -13.0 [2.0] 26621
21 38.6 1.4 10.4 -5.2 [4.0] 23066
22 31.7 0.6 7.3 -6.4 [-3.0] 25483
23 28.8 0.7 9.1 -13.5 [3.0] 26703
24 29.7 1.0 11.4 -7.3 [2.0] 26176
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 41.9 47.9 33.4 247 [1.0] [0.0] 22945
2 33.1 0.0 44.9 51.9 34.6 171 [-4.0] [0.0] 31220
3 31.2 0.0 42.7 49.1 30.1 253 [5.0] [0.0] 34667
4 31.9 0.0 43.2 48.0 32.4 389 [6.0] [0.0] 32419
5 35.0 0.0 44.3 50.8 32.9 149 [1.0] [0.0] 28669
6 36.8 0.0 34.5 39.9 22.8 1491 [-4.0] [0.0] 25792
7 39.1 0.0 44.0 49.8 31.3 0 [5.0] [0.0] 23096
8 38.7 0.0 42.3 47.3 31.5 0 [6.0] [0.0] 23392
9 33.0 0.0 44.6 50.3 34.6 201 [-2.0] [0.0] 36934
10 29.2 0.0 40.2 45.4 25.6 226 [-7.0] [0.0] 32565
11 34.9 0.0 44.5 51.0 33.7 55 [0.0] [0.0] 24336
12 44.1 0.0 46.3 51.9 34.0 0 [-1.0] [0.0] 20481
13 40.9 0.0 36.1 42.3 24.5 235 [-2.0] [0.0] 22027
14 39.1 0.0 47.7 52.9 36.3 0 [-7.0] [0.0] 23347
15 35.6 0.0 44.7 51.9 30.5 46 [0.0] [0.0] 28908
16 36.9 0.0 45.0 51.6 33.6 163 [-1.0] [0.0] 36421
17 33.3 0.0 43.1 50.3 31.1 447 [4.0] [0.0] 29890
18 43.1 0.0 45.8 50.9 32.2 237 [-3.0] [0.0] 32396
19 44.9 0.0 35.1 39.7 23.4 963 [3.0] [0.0] 33020
20 37.5 0.0 32.8 38.4 20.3 2552 [2.0] [0.0] 28134
21 38.6 0.0 43.1 49.3 31.7 57 [4.0] [0.0] 23066
22 31.7 0.0 44.4 50.7 33.6 228 [-3.0] [0.0] 25500
23 28.8 0.0 41.2 45.9 30.9 216 [3.0] [0.0] 26739
24 29.7 0.0 44.4 50.7 31.7 151 [2.0] [0.0] 26211
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 39.7 44.6 27.9 126 [1.0] [0.0] 22945
2 33.1 0.0 43.5 49.5 30.5 220 [-4.0] [0.0] 31220
3 31.2 0.0 43.9 49.6 21.4 381 [5.0] [0.0] 34666
4 31.9 0.0 44.5 49.7 26.0 240 [6.0] [0.0] 32419
5 35.0 0.0 44.3 49.6 35.2 28 [1.0] [0.0] 28669
6 69.9 0.0 15.0 19.5 8.7 10 [-4.0] [0.0] 11
7 39.1 0.0 44.9 50.2 22.8 24 [5.0] [0.0] 23096
8 38.7 0.0 45.5 49.9 34.8 0 [6.0] [0.0] 23392
9 33.0 0.0 45.5 50.8 30.9 211 [-2.0] [0.0] 36934
10 51.7 0.0 28.1 40.1 10.7 23 [-7.0] [0.0] 24
11 34.9 0.0 44.7 50.6 32.9 116 [0.0] [0.0] 24336
12 44.1 0.0 45.4 50.0 30.0 0 [-1.0] [0.0] 20481
13 40.9 0.0 38.0 43.1 23.8 584 [-2.0] [0.0] 22027
14 39.1 0.0 45.7 49.9 35.4 0 [-7.0] [0.0] 23347
15 35.6 0.0 44.6 49.6 34.3 210 [0.0] [0.0] 28908
16 36.9 0.0 44.2 50.0 23.6 258 [-1.0] [0.0] 36421
17 33.3 0.0 43.9 49.9 31.1 404 [4.0] [0.0] 29890
18 43.1 0.0 45.6 49.9 28.7 158 [-3.0] [0.0] 32396
19 44.9 0.0 44.3 48.0 29.7 219 [3.0] [0.0] 33021
20 37.5 0.0 38.5 42.6 18.6 249 [2.0] [0.0] 28140
21 38.6 0.0 43.7 49.1 32.5 190 [4.0] [0.0] 23066
22 31.7 0.0 43.8 50.2 30.7 189 [-3.0] [0.0] 25500
23 43.4 0.0 31.5 41.2 9.3 257 [3.0] [0.0] 28
24 29.7 0.0 43.2 49.1 33.6 127 [2.0] [0.0] 26211
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 38.5 44.1 20.8 564 [1.0] [0.0] 22944
2 33.1 0.0 42.5 48.5 32.4 322 [-4.0] [0.0] 31216
3 31.2 0.0 42.9 49.0 22.3 244 [5.0] [0.0] 34663
4 31.9 0.0 43.6 48.6 30.3 258 [6.0] [0.0] 32426
5 35.0 0.0 43.5 48.6 29.8 250 [1.0] [0.0] 28639
6 72.9 0.0 14.9 18.2 9.8 13 [-4.0] [0.0] 15
7 39.1 0.0 44.0 49.5 21.9 105 [5.0] [0.0] 23103
8 38.7 0.0 44.4 48.9 31.1 0 [6.0] [0.0] 23390
9 33.0 0.0 44.3 49.4 30.0 486 [-2.0] [0.0] 36929
10 55.0 0.0 30.2 36.0 21.1 4 [-7.0] [0.0] 5
11 34.9 0.0 43.8 49.8 31.1 50 [0.0] [0.0] 24348
12 44.0 0.0 44.4 49.5 16.8 153 [-1.0] [0.0] 20498
13 40.8 0.0 36.8 42.4 17.6 1002 [-2.0] [0.0] 22092
14 39.1 0.0 44.4 48.9 28.9 0 [-7.0] [0.0] 23335
15 35.6 0.0 43.3 48.7 23.1 349 [0.0] [0.0] 28936
16 36.9 0.0 43.1 49.3 24.7 324 [-1.0] [0.0] 36431
17 33.3 0.0 43.0 49.3 32.9 204 [4.0] [0.0] 29871
18 43.1 0.0 44.4 48.9 26.7 247 [-3.0] [0.0] 32385
19 45.0 0.0 43.4 47.3 26.6 158 [3.0] [0.0] 32892
20 39.4 0.0 37.5 42.4 20.5 236 [2.0] [0.0] 26207
21 38.5 0.0 42.9 48.1 22.8 121 [4.0] [0.0] 23088
22 31.7 0.0 42.6 49.3 0.0 340 [-3.0] [0.0] 25460
23 45.1 0.0 31.1 39.9 10.9 92 [3.0] [0.0] 12
24 29.7 0.0 42.5 48.1 30.0 38 [2.0] [0.0] 26177
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 40.2 1.2 9.9 -3.2 [1.0] 22942
2 33.1 1.0 9.0 -6.2 [-4.0] 31186
3 31.2 1.0 15.2 -9.8 [5.0] 34636
4 31.9 0.9 6.4 -11.6 [6.0] 32396
5 35.0 0.7 9.7 -5.9 [1.0] 28639
6 76.0 1.9 3.9 -1.3 [-4.0] 3
7 39.1 0.9 14.3 -13.5 [5.0] 23096
8 38.7 1.1 7.3 -4.5 [6.0] 23390
9 33.0 1.2 8.3 -5.9 [-2.0] 36904
10 55.0 -7.7 -2.5 -12.8 [-7.0] 2
11 34.9 0.9 9.5 -5.8 [0.0] 24313
12 44.1 0.9 18.0 -5.3 [-1.0] 20473
13 41.0 1.2 17.1 -7.9 [-2.0] 21948
14 39.1 1.3 7.4 -5.7 [-7.0] 23335
15 35.6 1.4 16.4 -5.2 [0.0] 28904
16 36.9 1.2 12.4 -7.1 [-1.0] 36417
17 33.3 0.9 7.4 -7.3 [4.0] 29843
18 43.1 1.2 15.5 -6.6 [-3.0] 32385
19 45.0 1.0 8.6 -6.6 [3.0] 32890
20 39.4 1.3 10.9 -10.1 [2.0] 26202
21 38.6 0.8 15.8 -5.8 [4.0] 23066
22 31.7 1.2 39.0 -7.2 [-3.0] 25460
24 29.7 0.8 8.9 -5.2 [2.0] 26176
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 40.2 0.0 37.7 42.8 23.6 413 [1.0] [0.0] 22945
2 33.1 0.0 41.8 47.5 30.2 123 [-4.0] [0.0] 31220
3 31.2 0.0 42.4 48.0 22.4 365 [5.0] [0.0] 34665
4 31.9 0.0 42.8 47.9 25.9 325 [6.0] [0.0] 32419
5 35.0 0.0 42.7 47.7 34.2 217 [1.0] [0.0] 28669
6 45.2 0.0 13.8 16.8 10.6 3 [-4.0] [0.0] 4
7 39.1 0.0 43.6 48.4 24.3 214 [5.0] [0.0] 23096
8 38.7 0.0 44.0 48.1 34.6 0 [6.0] [0.0] 23392
9 33.0 0.0 43.3 48.3 29.1 471 [-2.0] [0.0] 36934
10 47.7 0.0 21.3 31.0 15.9 218 [-7.0] [0.0] 3
11 34.9 0.0 43.1 48.7 32.6 157 [0.0] [0.0] 24336
12 44.1 0.0 43.5 47.9 30.1 2 [-1.0] [0.0] 20481
13 40.9 0.0 39.5 44.7 24.8 631 [-2.0] [0.0] 22027
14 39.1 0.0 44.2 48.1 35.1 0 [-7.0] [0.0] 23347
15 35.6 0.0 43.0 48.0 33.2 219 [0.0] [0.0] 28908
16 36.9 0.0 42.6 48.6 24.9 283 [-1.0] [0.0] 36421
17 33.3 0.0 42.3 48.3 28.5 268 [4.0] [0.0] 29890
18 43.1 0.0 43.9 47.9 28.9 88 [-3.0] [0.0] 32396
19 44.9 0.0 42.6 46.1 29.1 203 [3.0] [0.0] 33021
20 37.5 0.0 37.2 41.4 16.6 529 [2.0] [0.0] 28139
21 38.6 0.0 42.7 48.1 33.1 61 [4.0] [0.0] 23066
22 31.7 0.0 42.2 48.5 31.4 205 [-3.0] [0.0] 25500
23 28.1 0.0 24.6 38.4 14.8 40 [3.0] [0.0] 20
24 29.7 0.0 41.7 47.3 32.8 103 [2.0] [0.0] 26211
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 33.0 0.0 44.1 49.0 28.1 345 [-2.0] [0.0] 36934
21 38.6 0.0 43.5 50.5 31.7 24 [4.0] [0.0] 23066
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 46.8 51.1 34.8 0 [47.0] [0.0] 20312
3 20.8 0.0 42.5 49.4 32.5 104 [53.0, 52.0] [0.0] 24600
4 45.5 0.0 46.7 51.5 36.3 0 [41.0] [0.0] 32489
5 36.8 0.0 46.0 52.2 33.2 0 [51.0] [0.0] 23148
7 34.2 0.0 45.2 49.1 33.4 0 [42.0] [0.0] 21851
8 18.8 0.0 42.7 47.3 33.4 151 [48.0, 49.0] [0.0] 25566
9 44.9 0.0 46.2 51.5 34.4 0 [49.0] [0.0] 28888
10 33.1 0.0 45.8 50.9 30.6 103 [43.0, 46.0] [0.0] 41337
11 33.7 0.0 42.3 48.2 29.5 51 [42.0, 53.0] [0.0] 40844
12 33.7 0.0 42.2 48.2 30.8 207 [48.0, 41.0] [0.0] 41079
13 48.6 0.0 46.6 51.3 38.1 0 [52.0] [0.0] 22102
15 27.5 0.0 43.8 50.8 33.6 253 [51.0, 46.0] [0.0] 11658
19 45.5 0.0 42.4 49.0 27.3 12 [50.0] [0.0] 31700
21 34.4 0.0 45.7 52.4 31.1 254 [40.0, 45.0] [0.0] 32070
24 45.5 0.0 47.7 53.9 32.0 0 [43.0] [0.0] 32259
25 46.5 0.0 47.3 52.7 32.9 0 [45.0] [0.0] 31346
26 46.0 0.0 47.4 53.0 36.1 0 [46.0] [0.0] 31526
27 24.2 0.0 43.0 50.5 33.7 60 [43.0, 44.0] [0.0] 17884
30 27.4 0.0 44.9 50.6 35.7 155 [48.0, 49.0] [0.0] 10650
31 35.9 0.0 45.2 53.2 31.9 60 [43.0, 44.0] [0.0] 40360
33 37.2 0.0 44.5 50.5 32.7 141 [49.0, 50.0] [0.0] 39866
34 36.4 0.0 45.3 51.2 31.8 0 [52.0] [0.0] 10286
36 39.4 0.0 45.4 54.2 30.8 157 [51.0, 50.0] [0.0] 28983
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 46.4 51.0 33.2 1 [47.0] [0.0] 20305
3 20.8 0.0 42.9 49.8 32.9 76 [53.0, 51.0] [0.0] 24579
4 45.5 0.0 46.5 51.3 36.4 0 [41.0] [0.0] 32460
5 36.8 0.0 45.8 52.1 32.8 1 [52.0] [0.0] 23177
7 34.3 0.0 44.6 49.8 32.2 0 [42.0] [0.0] 21829
8 18.8 0.0 42.2 48.2 33.9 222 [48.0, 49.0] [0.0] 25549
9 44.9 0.0 45.8 51.5 32.5 1 [49.0] [0.0] 28912
10 33.1 0.0 45.3 51.2 30.6 98 [43.0, 46.0] [0.0] 41342
11 33.7 0.0 41.9 48.0 30.5 67 [42.0, 53.0] [0.0] 40853
12 33.7 0.0 41.7 48.1 28.9 117 [48.0, 41.0] [0.0] 41143
13 48.6 0.0 46.3 50.2 35.8 0 [51.0] [0.0] 22085
15 27.5 0.0 43.2 50.3 35.6 14 [52.0, 46.0] [0.0] 11647
19 45.5 0.0 42.3 48.3 21.7 52 [50.0] [0.0] 31716
21 34.4 0.0 45.1 52.7 32.2 58 [40.0, 45.0] [0.0] 32106
24 45.5 0.0 47.6 53.6 32.4 0 [43.0] [0.0] 32251
25 46.5 0.0 47.1 52.4 37.0 0 [45.0] [0.0] 31374
26 46.0 0.0 47.2 52.2 38.3 0 [46.0] [0.0] 31526
27 24.1 0.0 42.7 51.2 33.2 122 [43.0, 44.0] [0.0] 17930
30 27.4 0.0 44.1 50.8 33.2 226 [48.0, 49.0] [0.0] 10661
31 35.9 0.0 44.5 52.4 27.5 122 [43.0, 44.0] [0.0] 40344
33 37.2 0.0 44.0 50.0 0.0 65 [49.0, 50.0] [0.0] 39828
34 36.4 0.0 45.7 50.9 35.1 0 [51.0] [0.0] 10292
36 39.4 0.0 44.9 52.5 28.4 186 [52.0, 50.0] [0.0] 28978
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 49.4 0.4 7.3 -6.3 [47.0] 20305
3 20.8 -0.4 6.3 -8.2 [53.0, 52.0, 51.0] 24571
4 45.5 0.1 5.3 -4.4 [41.0] 32459
5 36.8 0.2 5.9 -8.5 [51.0, 52.0] 23148
7 34.3 0.6 6.1 -5.1 [42.0] 21829
8 18.8 0.5 7.4 -7.5 [48.0, 49.0] 25546
9 44.9 0.4 7.9 -6.0 [49.0] 28888
10 33.1 0.4 8.0 -8.6 [43.0, 46.0] 41317
11 33.7 0.4 7.1 -4.7 [42.0, 53.0] 40838
12 33.7 0.5 7.7 -6.0 [48.0, 41.0] 41060
13 48.6 0.3 5.4 -3.6 [52.0, 51.0] 22085
15 27.5 0.6 5.5 -5.9 [51.0, 52.0, 46.0] 11647
19 45.5 0.1 12.8 -6.1 [50.0] 31700
21 34.4 0.6 7.9 -5.9 [40.0, 45.0] 32070
24 45.5 0.1 4.3 -5.4 [43.0] 32243
25 46.5 0.2 4.2 -5.8 [45.0] 31346
26 46.0 0.3 4.4 -5.7 [46.0] 31526
27 24.2 0.2 7.8 -5.4 [43.0, 44.0] 17884
30 27.4 0.8 7.0 -3.7 [48.0, 49.0] 10650
31 35.9 0.6 9.2 -6.3 [43.0, 44.0] 40342
33 37.2 0.5 33.8 -5.5 [49.0, 50.0] 39817
34 36.4 -0.4 6.8 -5.5 [52.0, 51.0] 10286
36 39.4 0.5 8.2 -7.4 [51.0, 52.0, 50.0] 28978
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 46.5 50.4 39.6 0 [47.0] [0.0] 20312
3 20.8 0.0 43.2 48.2 32.8 45 [53.0, 52.0] [0.0] 24600
4 45.5 0.0 46.3 50.5 30.4 0 [41.0] [0.0] 32489
5 36.8 0.0 45.1 49.8 33.8 0 [51.0] [0.0] 23148
7 34.2 0.0 45.6 49.2 39.1 0 [42.0] [0.0] 21851
8 18.8 0.0 42.7 47.0 32.9 198 [48.0, 49.0] [0.0] 25566
9 44.9 0.0 46.0 50.3 36.9 0 [49.0] [0.0] 28888
10 33.1 0.0 45.2 49.8 30.8 29 [43.0, 46.0] [0.0] 41337
11 33.7 0.0 42.1 46.2 29.0 162 [42.0, 53.0] [0.0] 40844
12 33.7 0.0 42.4 47.8 32.3 233 [48.0, 41.0] [0.0] 41079
13 48.6 0.0 45.9 50.1 33.2 0 [52.0] [0.0] 22102
15 27.5 0.0 43.9 49.2 35.1 62 [51.0, 46.0] [0.0] 11658
19 45.5 0.0 41.8 46.9 27.0 8 [50.0] [0.0] 31700
21 34.4 0.0 44.6 49.9 34.2 33 [40.0, 45.0] [0.0] 32070
24 45.5 0.0 45.9 50.5 35.4 0 [43.0] [0.0] 32259
25 46.5 0.0 46.2 50.4 30.4 0 [45.0] [0.0] 31346
26 46.0 0.0 46.0 49.9 33.4 0 [46.0] [0.0] 31526
27 24.2 0.0 43.0 49.6 33.1 195 [43.0, 44.0] [0.0] 17884
30 27.4 0.0 44.1 49.0 36.9 202 [48.0, 49.0] [0.0] 10650
31 35.9 0.0 44.3 50.1 33.7 195 [43.0, 44.0] [0.0] 40360
33 37.2 0.0 44.9 50.3 36.9 185 [49.0, 50.0] [0.0] 39866
34 36.4 0.0 44.2 49.2 32.4 0 [52.0] [0.0] 10286
36 39.4 0.0 45.0 50.6 35.5 49 [51.0, 50.0] [0.0] 28983
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 46.7 50.5 38.1 0 [47.0] [0.0] 20312
3 20.8 0.0 43.4 48.3 35.1 163 [53.0, 52.0] [0.0] 24600
4 45.5 0.0 46.6 50.9 31.1 1 [41.0] [0.0] 32489
5 36.8 0.0 45.3 50.4 30.4 2 [51.0] [0.0] 23148
7 34.2 0.0 45.9 50.0 39.3 0 [42.0] [0.0] 21851
8 18.8 0.0 42.7 47.6 32.7 157 [48.0, 49.0] [0.0] 25566
9 44.9 0.0 46.6 51.3 37.4 0 [49.0] [0.0] 28888
10 33.1 0.0 45.3 50.3 32.4 145 [43.0, 46.0] [0.0] 41337
11 33.7 0.0 42.2 46.5 31.5 59 [42.0, 53.0] [0.0] 40844
12 33.7 0.0 42.8 48.7 29.8 92 [48.0, 41.0] [0.0] 41079
13 48.6 0.0 46.7 50.5 34.7 0 [52.0] [0.0] 22102
15 27.5 0.0 44.0 49.8 33.8 116 [51.0, 46.0] [0.0] 11658
19 45.5 0.0 42.4 47.5 28.5 7 [50.0] [0.0] 31700
21 34.4 0.0 45.0 50.3 33.2 15 [40.0, 45.0] [0.0] 32070
24 45.5 0.0 46.3 50.8 31.9 0 [43.0] [0.0] 32259
25 46.5 0.0 46.9 50.8 35.9 0 [45.0] [0.0] 31346
26 46.0 0.0 46.8 50.5 36.1 0 [46.0] [0.0] 31526
27 24.2 0.0 43.1 49.9 30.6 240 [43.0, 44.0] [0.0] 17884
30 27.4 0.0 44.6 49.7 38.4 161 [48.0, 49.0] [0.0] 10650
31 35.9 0.0 44.7 50.7 35.6 240 [43.0, 44.0] [0.0] 40360
33 37.2 0.0 45.0 51.0 35.7 5 [49.0, 50.0] [0.0] 39866
34 36.4 0.0 44.6 50.0 31.1 0 [52.0] [0.0] 10286
36 39.4 0.0 45.2 50.7 34.7 166 [51.0, 50.0] [0.0] 28983
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 49.1 52.3 42.2 0 [47.0] [0.0] 20312
3 20.8 0.0 46.2 50.5 39.1 220 [53.0, 52.0] [0.0] 24600
4 45.5 0.0 48.9 52.6 35.4 2 [41.0] [0.0] 32489
5 36.8 0.0 47.8 52.3 37.4 3 [51.0] [0.0] 23148
7 34.2 0.0 48.2 51.9 43.6 0 [42.0] [0.0] 21851
8 18.8 0.0 45.7 49.6 38.5 1 [48.0, 49.0] [0.0] 25566
9 44.9 0.0 48.8 52.9 41.2 0 [49.0] [0.0] 28888
10 33.1 0.0 47.9 52.1 36.0 107 [43.0, 46.0] [0.0] 41337
11 33.7 0.0 44.7 48.5 34.9 182 [42.0, 53.0] [0.0] 40844
12 33.7 0.0 45.6 50.8 35.6 98 [48.0, 41.0] [0.0] 41079
13 48.6 0.0 48.8 52.3 39.9 0 [52.0] [0.0] 22102
15 27.5 0.0 46.6 51.5 38.5 6 [51.0, 46.0] [0.0] 11658
19 45.5 0.0 45.1 49.7 33.8 14 [50.0] [0.0] 31700
21 34.4 0.0 47.5 52.1 38.4 173 [40.0, 45.0] [0.0] 32070
24 45.5 0.0 48.6 52.8 37.9 0 [43.0] [0.0] 32259
25 46.5 0.0 49.0 52.7 37.7 0 [45.0] [0.0] 31346
26 46.0 0.0 48.8 52.2 39.7 0 [46.0] [0.0] 31526
27 24.2 0.0 45.9 51.7 36.5 73 [43.0, 44.0] [0.0] 17884
30 27.4 0.0 47.0 51.3 41.6 5 [48.0, 49.0] [0.0] 10650
31 35.9 0.0 47.2 52.4 38.8 73 [43.0, 44.0] [0.0] 40360
33 37.2 0.0 47.6 52.5 40.2 63 [49.0, 50.0] [0.0] 39866
34 36.4 0.0 47.1 51.9 36.5 0 [52.0] [0.0] 10286
36 39.4 0.0 47.8 52.7 39.6 66 [51.0, 50.0] [0.0] 28983
DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 48.0 51.9 37.5 0 [47.0] [0.0] 20305
3 20.8 0.0 45.9 49.5 39.7 251 [53.0, 51.0] [0.0] 24579
4 45.5 0.0 48.5 52.0 40.3 0 [41.0] [0.0] 32460
5 36.8 0.0 47.4 51.3 31.7 13 [52.0] [0.0] 23177
7 34.3 0.0 47.6 51.1 43.1 0 [42.0] [0.0] 21829
8 18.8 0.0 45.1 48.6 35.6 143 [48.0, 49.0] [0.0] 25549
9 44.9 0.0 47.8 52.0 34.5 8 [49.0] [0.0] 28912
10 33.1 0.0 47.6 51.3 38.2 44 [43.0, 46.0] [0.0] 41342
11 33.7 0.0 44.0 47.4 37.1 212 [42.0, 53.0] [0.0] 40853
12 33.7 0.0 45.2 50.4 34.6 222 [48.0, 41.0] [0.0] 41143
13 48.6 0.0 48.4 51.9 40.3 0 [51.0] [0.0] 22085
15 27.5 0.0 46.2 51.0 40.7 245 [52.0, 46.0] [0.0] 11647
19 45.5 0.0 44.6 49.3 25.8 43 [50.0] [0.0] 31716
21 34.4 0.0 47.1 51.6 33.5 101 [40.0, 45.0] [0.0] 32106
24 45.5 0.0 48.2 51.9 36.5 2 [43.0] [0.0] 32251
25 46.5 0.0 48.5 51.8 41.0 0 [45.0] [0.0] 31374
26 46.0 0.0 48.4 51.5 41.2 0 [46.0] [0.0] 31526
27 24.1 0.0 46.0 51.0 38.7 143 [43.0, 44.0] [0.0] 17930
30 27.4 0.0 46.4 50.4 40.5 147 [48.0, 49.0] [0.0] 10661
31 35.9 0.0 46.5 51.8 37.3 143 [43.0, 44.0] [0.0] 40344
33 37.2 0.0 46.9 51.9 37.4 240 [49.0, 50.0] [0.0] 39858
34 36.4 0.0 46.9 50.9 35.9 0 [51.0] [0.0] 10292
36 39.4 0.0 46.9 51.7 37.3 245 [52.0, 50.0] [0.0] 28978
DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 49.4 1.1 6.4 -1.1 [47.0] 20305
3 20.8 0.3 4.0 -3.7 [53.0, 52.0, 51.0] 24571
4 45.5 0.3 3.4 -6.2 [41.0] 32459
5 36.8 0.4 9.7 -3.9 [51.0, 52.0] 23148
7 34.3 0.6 3.2 -1.7 [42.0] 21829
8 18.8 0.6 8.2 -3.5 [48.0, 49.0] 25546
9 44.9 1.0 9.7 -2.3 [49.0] 28888
10 33.1 0.3 2.3 -4.0 [43.0, 46.0] 41317
11 33.7 0.7 4.0 -4.1 [42.0, 53.0] 40838
12 33.7 0.3 5.0 -3.8 [48.0, 41.0] 41060
13 48.6 0.5 3.6 -3.7 [52.0, 51.0] 22085
15 27.5 0.4 3.4 -4.4 [51.0, 52.0, 46.0] 11647
19 45.5 0.5 6.8 -4.1 [50.0] 31700
21 34.4 0.3 7.3 -3.6 [40.0, 45.0] 32070
24 45.5 0.4 3.9 -2.8 [43.0] 32243
25 46.5 0.5 2.8 -4.6 [45.0] 31346
26 46.0 0.4 3.1 -4.0 [46.0] 31526
27 24.2 -0.1 5.2 -6.0 [43.0, 44.0] 17884
30 27.4 0.6 2.4 -1.7 [48.0, 49.0] 10650
31 35.9 0.7 6.2 -2.5 [43.0, 44.0] 40342
33 37.2 0.7 6.7 -3.0 [49.0, 50.0] 39847
34 36.4 0.2 3.1 -3.5 [52.0, 51.0] 10286
36 39.4 0.9 6.0 -2.2 [51.0, 52.0, 50.0] 28978
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 49.4 0.0 48.1 52.1 37.8 0 [47.0] [0.0] 20312
3 20.8 0.0 43.5 48.8 30.9 239 [53.0, 52.0] [0.0] 24600
4 45.5 0.0 48.3 52.0 36.3 0 [41.0] [0.0] 32489
5 36.8 0.0 46.7 52.1 29.9 0 [51.0] [0.0] 23148
7 34.2 0.0 47.1 51.4 37.6 0 [42.0] [0.0] 21851
8 18.8 0.0 43.4 48.8 32.9 25 [48.0, 49.0] [0.0] 25566
9 44.9 0.0 47.8 52.8 33.6 0 [49.0] [0.0] 28888
10 33.1 0.0 46.5 51.9 29.1 104 [43.0, 46.0] [0.0] 41337
11 33.7 0.0 43.1 48.9 26.3 170 [42.0, 53.0] [0.0] 40844
12 33.7 0.0 43.6 49.9 28.6 221 [48.0, 41.0] [0.0] 41078
13 48.6 0.0 48.2 52.5 33.0 0 [52.0] [0.0] 22102
15 27.5 0.0 45.4 52.3 29.9 12 [51.0, 46.0] [0.0] 11658
19 45.5 0.0 42.8 48.2 24.3 12 [50.0] [0.0] 31698
21 34.4 0.0 46.2 52.1 31.9 38 [40.0, 45.0] [0.0] 32070
24 45.5 0.0 48.2 53.0 25.6 0 [43.0] [0.0] 32259
25 46.5 0.0 48.8 52.5 32.0 0 [45.0] [0.0] 31346
26 46.0 0.0 48.6 52.0 35.4 0 [46.0] [0.0] 31526
27 24.2 0.0 44.0 52.8 29.1 54 [43.0, 44.0] [0.0] 17884
30 27.4 0.0 45.5 50.4 35.2 29 [48.0, 49.0] [0.0] 10650
31 35.9 0.0 45.6 52.5 31.4 54 [43.0, 44.0] [0.0] 40360
33 37.2 0.0 46.1 52.0 29.8 72 [49.0, 50.0] [0.0] 39866
34 36.4 0.0 46.1 51.9 29.1 0 [52.0] [0.0] 10286
36 39.4 0.0 46.2 52.8 34.2 136 [51.0, 50.0] [0.0] 28983
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.4 0.0 46.6 52.7 34.7 0 [53.0] [0.0] 28279
20 45.5 0.0 46.8 52.7 33.1 0 [34.0] [0.0] 25461
21 41.3 0.0 45.9 53.4 31.5 66 [32.0, 22.0] [0.0] 28599
22 44.3 0.0 47.1 53.1 28.7 1 [52.0] [0.0] 28352
23 43.0 0.0 46.7 52.1 31.9 0 [39.0] [0.0] 22316
24 44.8 0.0 47.9 53.9 35.4 0 [48.0] [0.0] 28717
25 45.8 0.0 46.7 52.2 30.1 0 [15.0] [0.0] 26704
26 45.4 0.0 46.4 52.4 33.7 0 [47.0] [0.0] 27622
27 40.2 0.0 46.0 53.0 34.6 164 [47.0, 18.0] [0.0] 22552
28 36.8 0.0 45.6 52.4 29.0 114 [49.0, 26.0] [0.0] 22182
29 36.8 0.0 44.0 50.8 24.2 99 [44.0, 52.0] [0.0] 30848
30 49.4 0.0 47.2 52.3 35.4 0 [22.0] [0.0] 24292
32 39.0 0.0 46.2 51.7 35.4 0 [21.0] [0.0] 21264
33 24.5 0.0 43.9 50.0 29.4 204 [23.0, 24.0, 16.0] [0.0] 29657
34 34.5 0.0 44.6 52.2 30.7 158 [46.0, 42.0] [0.0] 32034
35 29.4 0.0 44.0 49.2 28.7 98 [51.0, 21.0] [0.0] 34565
36 30.6 0.0 44.1 49.6 30.5 110 [50.0, 18.0] [0.0] 31933
37 25.9 0.0 43.2 49.9 31.8 191 [45.0, 51.0] [0.0] 25298
38 7.0 0.0 39.2 40.9 37.3 0 [50.0] [0.0] 1650
41 23.8 0.0 43.4 48.5 33.7 365 [37.0, 32.0, 44.0] [0.0] 27844
42 34.3 0.0 45.2 51.6 25.8 52 [46.0, 48.0] [0.0] 28865
43 51.6 0.0 47.2 52.6 29.6 1 [38.0] [0.0] 22166
44 29.0 0.0 44.3 49.7 32.7 152 [47.0, 36.0] [0.0] 34735
45 35.4 0.0 44.9 52.2 31.2 224 [45.0, 40.0] [0.0] 31518
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.4 0.0 46.3 51.4 32.6 0 [53.0] [0.0] 28279
20 45.5 0.0 46.3 50.8 33.7 0 [34.0] [0.0] 25461
21 41.3 0.0 46.4 51.2 37.9 220 [32.0, 22.0] [0.0] 28599
22 44.3 0.0 46.9 50.9 33.7 0 [52.0] [0.0] 28352
23 43.0 0.0 47.2 51.3 35.9 0 [39.0] [0.0] 22316
24 44.8 0.0 47.4 51.7 34.5 0 [48.0] [0.0] 28717
25 45.8 0.0 46.4 50.0 38.1 0 [15.0] [0.0] 26704
26 45.4 0.0 45.4 49.8 29.8 0 [47.0] [0.0] 27622
27 40.2 0.0 45.6 49.7 37.2 139 [47.0, 18.0] [0.0] 22552
28 36.8 0.0 43.9 48.9 28.0 47 [49.0, 26.0] [0.0] 22182
29 36.8 0.0 44.5 50.0 34.3 95 [44.0, 52.0] [0.0] 30848
30 49.4 0.0 46.4 49.8 38.9 0 [22.0] [0.0] 24292
32 39.0 0.0 46.9 50.9 39.8 0 [21.0] [0.0] 21264
33 24.5 0.0 44.4 49.6 30.3 166 [23.0, 24.0, 16.0] [0.0] 29657
34 34.5 0.0 44.7 50.0 32.5 61 [46.0, 42.0] [0.0] 32034
35 29.4 0.0 43.5 49.1 30.5 78 [51.0, 21.0] [0.0] 34565
36 30.6 0.0 46.0 50.2 33.7 173 [50.0, 18.0] [0.0] 31933
37 25.9 0.0 44.6 50.3 34.8 98 [45.0, 51.0] [0.0] 25298
38 7.0 0.0 41.3 43.0 38.9 0 [50.0] [0.0] 1650
41 23.8 0.0 44.7 48.4 34.4 411 [37.0, 32.0, 44.0] [0.0] 27844
42 34.3 0.0 45.7 51.1 32.1 130 [46.0, 48.0] [0.0] 28865
43 51.6 0.0 46.6 50.2 33.9 0 [38.0] [0.0] 22166
44 29.0 0.0 44.8 49.2 31.4 121 [47.0, 36.0] [0.0] 34735
45 35.4 0.0 45.9 51.5 35.9 228 [45.0, 40.0] [0.0] 31518
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 44.4 0.0 45.8 50.4 31.7 0 [53.0] [0.0] 28287
20 45.5 0.0 45.5 50.0 27.9 1 [34.0] [0.0] 25417
21 41.3 0.0 45.3 51.0 33.5 12 [29.0, 22.0] [0.0] 28633
22 44.3 0.0 46.1 50.6 35.6 0 [51.0] [0.0] 28352
23 43.0 0.0 46.4 51.0 35.1 0 [39.0] [0.0] 22317
24 44.8 0.0 47.1 51.1 34.8 0 [48.0] [0.0] 28738
25 45.8 0.0 45.2 49.7 32.8 0 [15.0] [0.0] 26684
26 45.4 0.0 44.7 49.4 26.5 10 [47.0] [0.0] 27640
27 40.2 0.0 44.9 49.3 35.4 124 [47.0, 18.0] [0.0] 22540
28 36.8 0.0 43.3 48.3 29.5 239 [49.0, 26.0] [0.0] 22158
29 36.8 0.0 43.6 49.3 22.2 205 [44.0, 51.0] [0.0] 30860
30 49.5 0.0 45.8 49.3 37.6 0 [22.0] [0.0] 24267
32 39.0 0.0 45.8 49.5 37.5 0 [21.0] [0.0] 21261
33 24.5 0.0 44.1 48.3 34.4 417 [23.0, 24.0, 16.0] [0.0] 29649
34 34.5 0.0 43.8 49.2 33.1 102 [46.0, 42.0] [0.0] 32037
35 29.4 0.0 43.0 47.8 28.5 92 [52.0, 21.0] [0.0] 34559
36 30.6 0.0 45.1 49.2 34.6 166 [50.0, 18.0] [0.0] 31899
37 25.9 0.0 43.9 49.5 34.4 66 [45.0, 52.0] [0.0] 25308
38 7.0 0.0 42.1 43.8 40.2 0 [50.0] [0.0] 1644
41 23.8 0.0 44.0 47.3 35.6 460 [35.0, 29.0, 44.0] [0.0] 27843
42 34.3 0.0 44.8 51.0 24.7 244 [46.0, 48.0] [0.0] 28891
43 51.6 0.0 45.7 49.7 33.5 0 [38.0] [0.0] 22167
44 29.0 0.0 44.2 48.0 36.3 64 [47.0, 37.0] [0.0] 34738
45 35.3 0.0 45.0 50.9 34.6 169 [45.0, 40.0] [0.0] 31550
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 44.4 0.5 4.3 -4.8 [53.0] 28257
20 45.5 0.8 9.4 -3.5 [34.0] 25417
21 41.3 1.1 6.7 -2.1 [32.0, 29.0, 22.0] 28599
22 44.3 0.8 4.8 -3.8 [52.0, 51.0] 28352
23 43.0 0.8 5.1 -5.5 [39.0] 22316
24 44.8 0.3 3.3 -5.2 [48.0] 28707
25 45.8 1.2 8.0 -1.6 [15.0] 26674
26 45.4 0.7 8.3 -6.8 [47.0] 27622
27 40.2 0.7 3.7 -3.5 [47.0, 18.0] 22539
28 36.8 0.6 6.7 -6.9 [49.0, 26.0] 22152
29 36.8 0.8 17.8 -4.6 [44.0, 52.0, 51.0] 30830
30 49.5 0.6 3.8 -2.7 [22.0] 24267
32 39.0 1.1 5.3 -1.5 [21.0] 21260
33 24.6 0.3 4.3 -7.3 [23.0, 24.0, 16.0] 29634
34 34.5 1.0 6.8 -5.1 [46.0, 42.0] 32033
35 29.4 0.6 5.4 -5.2 [51.0, 52.0, 21.0] 34535
36 30.6 0.9 5.7 -5.8 [50.0, 18.0] 31891
37 25.9 0.7 5.5 -4.7 [45.0, 51.0, 52.0] 25289
38 7.0 -0.8 1.1 -2.7 [50.0] 1643
41 23.9 0.8 6.7 -3.9 [37.0, 35.0, 32.0, 29.0, 44.0] 27827
42 34.3 0.9 10.3 -6.7 [46.0, 48.0] 28861
43 51.6 0.9 5.1 -3.0 [38.0] 22166
44 29.1 0.7 4.0 -6.7 [47.0, 36.0, 37.0] 34713
45 35.4 1.0 5.5 -3.8 [45.0, 40.0] 31511

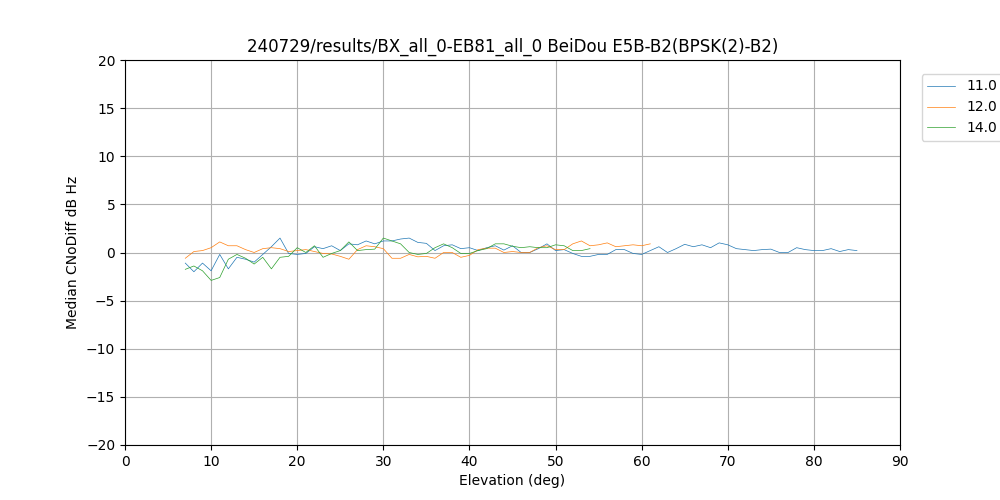

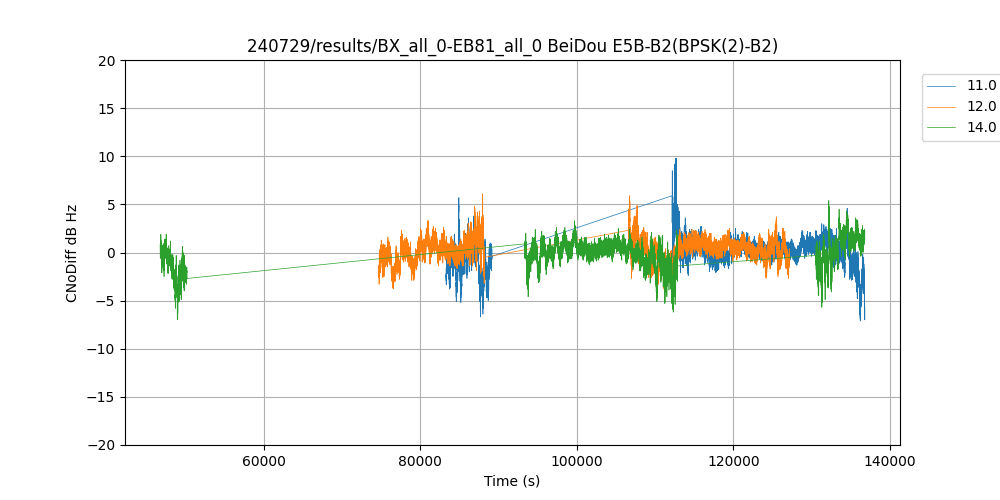

REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 44.2 50.0 30.2 166 [22.0, 40.0] [0.0] 30482
12 30.8 0.0 45.2 49.7 36.1 4 [20.0] [0.0] 34111
14 28.9 0.0 44.2 49.6 31.7 64 [53.0, 19.0] [0.0] 29152
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.4 0.0 44.1 49.4 28.2 198 [22.0, 40.0] [0.0] 30453
12 30.9 0.0 44.9 49.2 36.2 30 [20.0] [0.0] 34023
14 28.9 0.0 44.3 49.0 33.2 192 [53.0, 19.0] [0.0] 29158
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.4 0.1 9.8 -7.1 [22.0, 40.0] 30439
12 30.9 0.3 6.1 -3.8 [20.0] 33979
14 28.9 -0.2 5.4 -7.0 [53.0, 19.0] 29143
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 43.1 52.0 23.7 111 [22.0, 40.0] [0.0] 30490
12 30.8 0.0 41.8 48.8 31.5 4 [20.0] [0.0] 34111
14 28.9 0.0 42.0 48.4 29.7 185 [53.0, 19.0] [0.0] 29152
19 44.4 0.0 46.3 53.0 32.2 0 [53.0] [0.0] 28279
20 45.5 0.0 46.9 53.2 35.3 0 [34.0] [0.0] 25461
21 41.3 0.0 45.7 53.7 33.2 233 [32.0, 22.0] [0.0] 28599
22 44.3 0.0 47.3 53.7 35.1 0 [52.0] [0.0] 28352
23 43.0 0.0 46.2 52.0 33.8 0 [39.0] [0.0] 22316
24 44.8 0.0 47.4 54.3 34.1 0 [48.0] [0.0] 28717
25 45.8 0.0 46.4 53.1 33.6 0 [15.0] [0.0] 26704
26 45.4 0.0 46.5 53.1 34.6 0 [47.0] [0.0] 27622
27 40.2 0.0 46.9 54.2 36.3 135 [47.0, 18.0] [0.0] 22552
28 36.8 0.0 45.7 53.7 32.2 23 [49.0, 26.0] [0.0] 22182
29 36.8 0.0 44.4 51.4 20.3 16 [44.0, 52.0] [0.0] 30848
30 49.4 0.0 47.4 53.0 34.7 0 [22.0] [0.0] 24292
32 39.0 0.0 45.5 52.1 33.6 0 [21.0] [0.0] 21264
33 24.5 0.0 43.2 48.8 31.9 218 [23.0, 24.0, 16.0] [0.0] 29657
34 34.5 0.0 44.4 52.8 33.6 76 [46.0, 42.0] [0.0] 32034
35 29.4 0.0 44.2 49.5 31.6 121 [51.0, 21.0] [0.0] 34565
36 30.6 0.0 44.4 50.7 33.6 35 [50.0, 18.0] [0.0] 31933
37 25.9 0.0 42.6 49.1 31.1 231 [45.0, 51.0] [0.0] 25298
38 7.0 0.0 39.4 41.3 37.4 0 [50.0] [0.0] 1650
41 23.8 0.0 42.9 48.7 31.7 340 [37.0, 32.0, 44.0] [0.0] 27844
42 34.3 0.0 44.1 51.2 29.4 142 [46.0, 48.0] [0.0] 28865
43 51.6 0.0 47.0 52.9 29.9 0 [38.0] [0.0] 22166
44 29.0 0.0 44.3 50.4 33.6 29 [47.0, 36.0] [0.0] 34735
45 35.4 0.0 44.2 52.5 29.2 7 [45.0, 40.0] [0.0] 31518
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 42.7 52.0 23.3 122 [22.0, 40.0] [0.0] 30487
12 30.8 0.0 41.1 48.6 0.0 149 [20.0] [0.0] 34155
14 28.9 0.0 41.8 48.9 29.8 214 [53.0, 19.0] [0.0] 29163
19 44.4 0.0 46.6 53.4 30.8 1 [53.0] [0.0] 28287
20 45.5 0.0 47.1 52.9 35.1 0 [34.0] [0.0] 25417
21 41.3 0.0 45.4 53.2 32.1 184 [29.0, 22.0] [0.0] 28633
22 44.3 0.0 47.3 54.2 35.1 0 [51.0] [0.0] 28352
23 43.0 0.0 45.7 51.8 34.4 0 [39.0] [0.0] 22317
24 44.8 0.0 47.3 53.5 34.4 0 [48.0] [0.0] 28738
25 45.8 0.0 46.1 53.2 18.6 81 [15.0] [0.0] 26684
26 45.4 0.0 46.8 52.1 29.1 2 [47.0] [0.0] 27640
27 40.2 0.0 46.8 53.7 33.1 123 [47.0, 18.0] [0.0] 22540
28 36.8 0.0 46.1 52.4 24.1 253 [49.0, 26.0] [0.0] 22158
29 36.8 0.0 44.5 51.6 32.2 232 [44.0, 51.0] [0.0] 30861
30 49.5 0.0 47.3 53.0 37.3 0 [22.0] [0.0] 24267
32 39.0 0.0 45.2 52.0 32.8 0 [21.0] [0.0] 21261
33 24.5 0.0 43.2 49.2 34.1 173 [23.0, 24.0, 16.0] [0.0] 29649
34 34.5 0.0 44.0 52.0 32.6 126 [46.0, 42.0] [0.0] 32037
35 29.4 0.0 44.0 50.2 28.0 183 [52.0, 21.0] [0.0] 34559
36 30.6 0.0 43.9 51.1 17.4 165 [50.0, 18.0] [0.0] 31899
37 25.9 0.0 42.4 49.5 26.0 214 [45.0, 52.0] [0.0] 25309
38 7.0 0.0 41.5 43.9 38.4 0 [50.0] [0.0] 1644
41 23.8 0.0 42.3 49.3 31.6 183 [35.0, 29.0, 44.0] [0.0] 27843
42 34.3 0.0 44.1 51.2 29.3 207 [46.0, 48.0] [0.0] 28891
43 51.6 0.0 46.8 52.7 28.1 2 [38.0] [0.0] 22167
44 29.0 0.0 43.9 50.2 32.0 113 [47.0, 37.0] [0.0] 34738
45 35.3 0.0 43.9 51.9 32.8 203 [45.0, 40.0] [0.0] 31550
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.3 0.3 14.5 -13.2 [22.0, 40.0] 30481
12 30.8 0.7 34.7 -6.3 [20.0] 34111
14 28.9 0.3 6.3 -7.1 [53.0, 19.0] 29148
19 44.4 -0.2 12.3 -5.7 [53.0] 28257
20 45.5 -0.2 6.7 -6.4 [34.0] 25417
21 41.3 0.3 7.8 -6.0 [32.0, 29.0, 22.0] 28599
22 44.3 -0.0 5.0 -5.2 [52.0, 51.0] 28352
23 43.0 0.5 8.0 -4.8 [39.0] 22316
24 44.8 0.1 5.9 -7.4 [48.0] 28707
25 45.8 0.3 22.7 -6.3 [15.0] 26674
26 45.4 -0.3 11.8 -7.4 [47.0] 27622
27 40.2 0.2 7.7 -5.4 [47.0, 18.0] 22539
28 36.8 -0.4 15.1 -8.0 [49.0, 26.0] 22152
29 36.8 -0.2 6.7 -18.3 [44.0, 52.0, 51.0] 30831
30 49.5 0.2 4.6 -5.3 [22.0] 24267
32 39.0 0.2 6.8 -4.9 [21.0] 21260
33 24.6 -0.0 8.2 -8.8 [23.0, 24.0, 16.0] 29634
34 34.5 0.4 7.9 -8.1 [46.0, 42.0] 32033
35 29.4 0.2 9.1 -6.5 [51.0, 52.0, 21.0] 34535
36 30.6 0.5 17.4 -5.7 [50.0, 18.0] 31891
37 25.9 0.3 9.3 -8.5 [45.0, 51.0, 52.0] 25290
38 7.0 -2.1 1.1 -4.4 [50.0] 1643
41 23.9 0.7 9.8 -5.0 [37.0, 35.0, 32.0, 29.0, 44.0] 27827
42 34.3 -0.0 9.2 -8.8 [46.0, 48.0] 28861
43 51.6 0.1 7.9 -5.0 [38.0] 22166
44 29.1 0.4 9.3 -7.3 [47.0, 36.0, 37.0] 34713
45 35.4 0.3 7.4 -9.8 [45.0, 40.0] 31511
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.3 0.0 43.2 49.5 28.5 148 [22.0, 40.0] [0.0] 30482
12 30.8 0.0 43.7 49.2 34.0 4 [20.0] [0.0] 34111
14 28.9 0.0 42.6 48.8 29.3 127 [53.0, 19.0] [0.0] 29152
19 44.4 0.0 45.1 49.5 28.6 0 [53.0] [0.0] 28279
20 45.5 0.0 44.4 49.1 31.9 0 [34.0] [0.0] 25461
21 41.3 0.0 44.6 49.8 35.4 8 [32.0, 22.0] [0.0] 28599
22 44.3 0.0 45.7 49.7 34.0 0 [52.0] [0.0] 28352
23 43.0 0.0 45.1 49.7 34.8 0 [39.0] [0.0] 22316
24 44.8 0.0 46.0 50.0 32.2 0 [48.0] [0.0] 28717
25 45.8 0.0 45.4 49.7 35.0 0 [15.0] [0.0] 26704
26 45.4 0.0 44.7 49.5 30.5 0 [47.0] [0.0] 27622
27 40.2 0.0 44.5 49.1 35.4 181 [47.0, 18.0] [0.0] 22552
28 36.8 0.0 43.3 48.1 22.3 80 [49.0, 26.0] [0.0] 22182
29 36.8 0.0 42.8 49.0 28.9 241 [44.0, 52.0] [0.0] 30842
30 49.4 0.0 45.2 48.8 33.3 0 [22.0] [0.0] 24292
32 39.0 0.0 45.1 49.7 36.7 0 [21.0] [0.0] 21264
33 24.5 0.0 42.5 48.5 30.5 250 [23.0, 24.0, 16.0] [0.0] 29657
34 34.5 0.0 43.1 49.4 33.5 120 [46.0, 42.0] [0.0] 32034
35 29.4 0.0 42.5 48.9 26.3 189 [51.0, 21.0] [0.0] 34565
36 30.6 0.0 44.3 49.6 35.3 237 [50.0, 18.0] [0.0] 31933
37 25.9 0.0 41.9 48.6 30.3 247 [45.0, 51.0] [0.0] 25298
38 7.0 0.0 36.7 38.4 34.6 0 [50.0] [0.0] 1650
41 23.8 0.0 42.6 48.1 34.7 322 [37.0, 32.0, 44.0] [0.0] 27844
42 34.3 0.0 43.9 49.9 31.9 161 [46.0, 48.0] [0.0] 28865
43 51.6 0.0 45.4 49.4 31.0 0 [38.0] [0.0] 22166
44 29.0 0.0 43.0 48.5 34.2 204 [47.0, 36.0] [0.0] 34735
45 35.4 0.0 43.8 49.9 30.2 246 [45.0, 40.0] [0.0] 31518
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 38.4 0.0 42.5 49.3 25.8 56 [22.0, 40.0] [0.0] 30456
12 30.9 0.0 43.5 49.1 34.2 28 [20.0] [0.0] 34023
14 28.9 0.0 42.4 49.2 29.4 182 [53.0, 19.0] [0.0] 29158
19 44.4 0.0 45.0 49.5 30.0 1 [53.0] [0.0] 28287
20 45.5 0.0 44.1 48.9 31.6 0 [34.0] [0.0] 25417
21 41.3 0.0 43.9 50.2 27.6 209 [29.0, 22.0] [0.0] 28633
22 44.3 0.0 45.2 49.9 33.3 0 [51.0] [0.0] 28352
23 43.0 0.0 44.6 49.4 30.9 0 [39.0] [0.0] 22317
24 44.8 0.0 45.6 49.9 33.3 0 [48.0] [0.0] 28738
25 46.0 0.0 44.7 49.9 30.6 3 [15.0] [0.0] 26586
26 45.4 0.0 44.0 49.2 16.3 5 [47.0] [0.0] 27621
27 40.2 0.0 43.9 48.8 32.3 44 [47.0, 18.0] [0.0] 22540
28 36.8 0.0 42.8 48.1 19.0 43 [49.0, 26.0] [0.0] 22127
29 36.8 0.0 42.0 49.0 18.6 67 [44.0, 51.0] [0.0] 30847
30 49.5 0.0 44.8 48.8 34.8 0 [22.0] [0.0] 24267
32 39.0 0.0 44.7 48.9 34.8 0 [21.0] [0.0] 21261
33 24.5 0.0 42.2 47.0 33.9 150 [23.0, 24.0, 16.0] [0.0] 29649
34 34.5 0.0 42.1 49.0 27.9 206 [46.0, 42.0] [0.0] 32037
35 29.4 0.0 42.2 48.3 27.0 226 [52.0, 21.0] [0.0] 34559
36 30.6 0.0 43.8 48.7 34.0 72 [50.0, 18.0] [0.0] 31851
37 25.9 0.0 41.9 48.4 31.2 51 [45.0, 52.0] [0.0] 25304
38 7.0 0.0 37.5 39.3 34.2 0 [50.0] [0.0] 1644
41 23.8 0.0 42.5 47.0 33.5 284 [35.0, 29.0, 44.0] [0.0] 27843
42 34.3 0.0 43.3 49.2 28.0 106 [46.0, 48.0] [0.0] 28891
43 51.6 0.0 44.9 49.2 25.5 2 [38.0] [0.0] 22167
44 29.0 0.0 42.7 47.8 31.6 54 [47.0, 37.0] [0.0] 34738
45 35.3 0.0 42.9 49.5 28.4 242 [45.0, 40.0] [0.0] 31550
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 38.4 0.7 14.2 -7.1 [22.0, 40.0] 30442
12 30.9 0.2 6.1 -4.0 [20.0] 33979
14 28.9 0.2 6.9 -5.3 [53.0, 19.0] 29143
19 44.4 0.2 5.3 -5.9 [53.0] 28257
20 45.5 0.3 4.6 -4.9 [34.0] 25417
21 41.3 0.6 10.0 -5.0 [32.0, 29.0, 22.0] 28599
22 44.3 0.5 4.4 -4.0 [52.0, 51.0] 28352
23 43.0 0.5 5.7 -2.6 [39.0] 22316
24 44.8 0.4 3.9 -4.8 [48.0] 28707
25 46.0 0.7 8.7 -2.9 [15.0] 26576
26 45.4 0.7 22.4 -4.2 [47.0] 27603
27 40.2 0.6 7.1 -3.6 [47.0, 18.0] 22539
28 36.8 0.5 18.4 -9.9 [49.0, 26.0] 22121
29 36.8 0.7 17.3 -6.5 [44.0, 52.0, 51.0] 30811
30 49.5 0.3 4.9 -3.2 [22.0] 24267
32 39.0 0.4 5.2 -4.4 [21.0] 21260
33 24.6 0.3 5.1 -6.9 [23.0, 24.0, 16.0] 29634
34 34.5 0.9 9.4 -3.5 [46.0, 42.0] 32033
35 29.4 0.3 7.2 -5.6 [51.0, 52.0, 21.0] 34535
36 30.6 0.5 6.2 -3.6 [50.0, 18.0] 31843
37 25.9 0.1 7.6 -6.3 [45.0, 51.0, 52.0] 25285
38 7.0 -0.8 1.6 -2.8 [50.0] 1643
41 23.9 0.1 7.5 -6.2 [37.0, 35.0, 32.0, 29.0, 44.0] 27827
42 34.3 0.6 13.0 -5.5 [46.0, 48.0] 28861
43 51.6 0.5 8.7 -2.8 [38.0] 22166
44 29.1 0.3 4.6 -4.5 [47.0, 36.0, 37.0] 34713
45 35.4 0.9 9.0 -5.2 [45.0, 40.0] 31511
