T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-3030_WiFi_montera/240807_ch1 EB79

Meta Data


Start : 2326 229605.0
Stop : 2326 312264.0
Number Samples : 82660
Input Source : T04
Total Time: 82659.0 seconds = 22.961 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 146.5980
Weighted Mean dist_mean: 0.5746
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.8506
Weighted Mean vprec: 1.3980
Weighted Mean vdiff_mean: 0.3258
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896476 -105.115058 1667.783655 3.148622 0.601458 1.398007 82660 ('WGS-84',) ('0',)
1 39.896480 -105.115062 1667.457816 0.007948 0.002236 0.002428 82660 ('WGS-84',) ('0',)

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.0 0.0 0.0
0 0.05 0.0 0.0 0.0
0 0.10 0.0 0.0 0.0
1 0.03 1.0 1.0 1.0
1 0.05 1.0 1.0 1.0
1 0.10 1.0 1.0 1.0
center 0.03 0.0 0.0 0.0
center 0.05 0.0 0.0 0.0
center 0.10 0.0 0.0 0.0

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 11.0 5.0 0.0 0x1:02x 82660 SBAS corrected DGPS (Kalman Filter); 3D solution; Unknown fix_type 11 to get fix_info. 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 82660 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

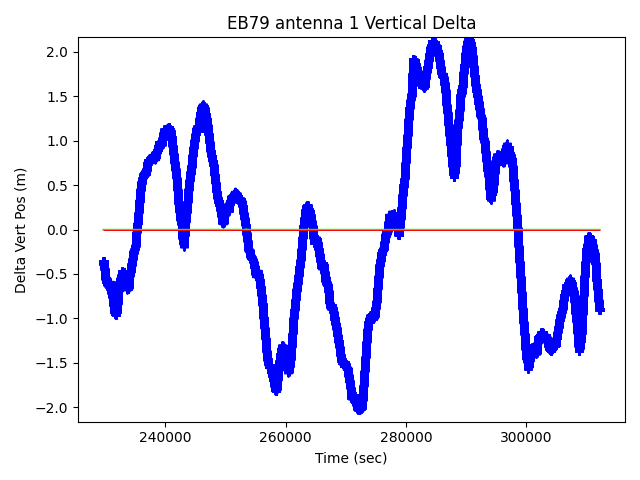

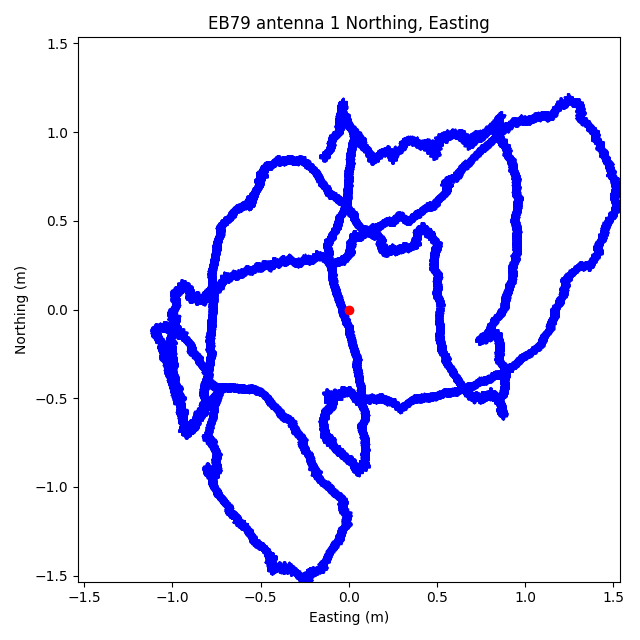

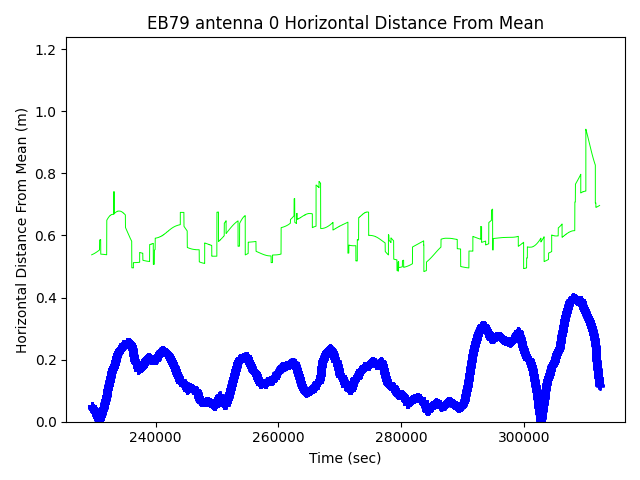

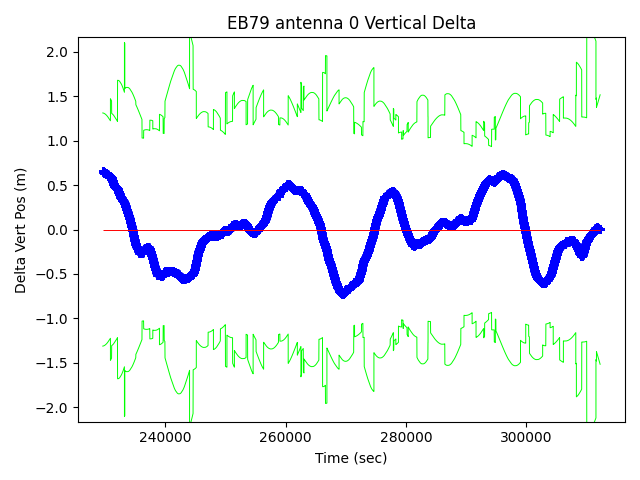

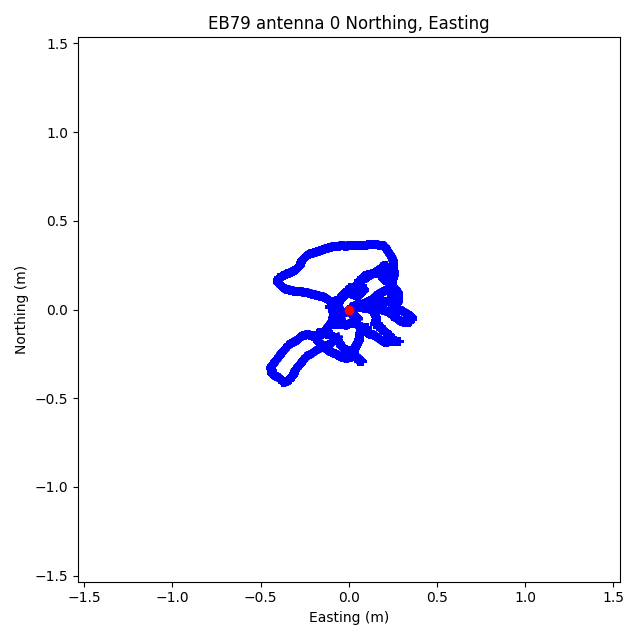

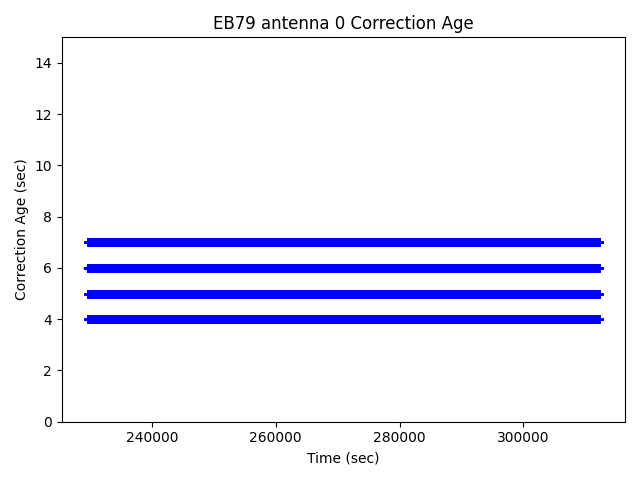

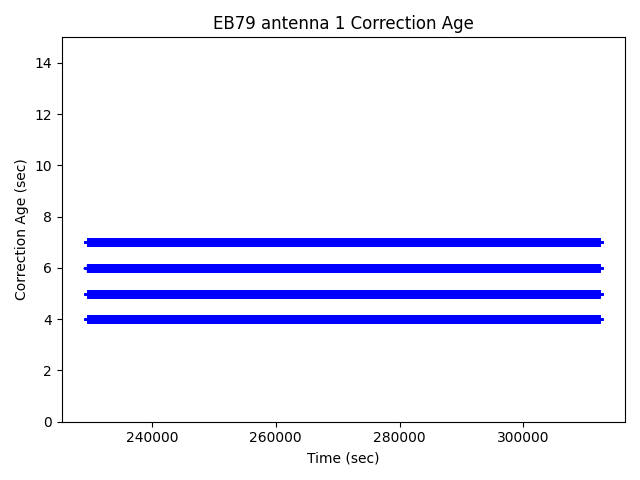

Individual Antennas
