Comments


CH165, Mode A

Files


240816_ch165_mode_a/BX_all.T04 240816_ch165_mode_a/EB79_all.T04 240816_ch165_mode_a/EB81_all.T04
Modified: 2024-08-29 14:01:15

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2327']
Start Time : 397760.154
Stop Time : 478800.285
Total Hours : 22.5111475

Mean Primary Pos: [39.89647546712209, -105.11507170721346]
Mean Secondary Pos: [39.89648707615271, -105.1150670590771]
Mean Heading: 197.08 (deg)
Mean Slope Distance: 1.3504 (m)
 Modified: 2024-08-29 14:01:15

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 397755.121
Stop Time : 478800.123
Total Hours : 22.512500555555565

Mean Primary Pos: [39.89647511369871, -105.11505733625596]
Mean Secondary Pos: [39.89648752580104, -105.11505103338857]
Mean Heading: 201.29 (deg)
Mean Slope Distance: 1.4812 (m)
 Modified: 2024-08-29 14:01:15

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 397751.114
Stop Time : 478800.334
Total Hours : 22.513672222222215

Mean Primary Pos: [39.89647541996874, -105.11504169762478]
Mean Secondary Pos: [39.89648755651756, -105.11503695500164]
Mean Heading: 196.69 (deg)
Mean Slope Distance: 1.4089 (m)

Difference Report Links

240816_ch165_mode_a/results/BX_all_0-EB79_all_0.html
240816_ch165_mode_a/results/BX_all_0-EB81_all_0.html
240816_ch165_mode_a/results/BX_all_1-EB79_all_1.html
240816_ch165_mode_a/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 762,961 0.0 763,040 0.2 762,971 -0.0 763,047 0.1
GPS L2 CM+CL 575,260 0.2 575,354 0.5 575,211 0.2 575,305 0.4
GPS L2 E 187,653 0.4 187,322 0.8 186,968 0.3 185,242 0.7
GPS L5/E5A I+Q 422,473 0.1 422,578 0.6 422,425 -0.2 422,522 0.0
SBAS L1 CA 243,663 -0.5 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 571,489 0.6 571,540 1.0 571,468 0.4 571,826 0.5
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 495,172 -0.0 493,401 0.6 495,616 0.0 495,715 0.3
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 551,255 -0.0 551,146 0.2 551,248 -0.1 551,153 -0.0
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 551,255 0.3 551,146 0.3 551,262 -0.2 551,167 0.1
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou L5/E5A I+Q 562,361 -0.0 562,348 0.4 562,363 -0.2 562,341 0.1
BeiDou E5B/B2 BPSK(2)-B2 72,800 0.4 72,776 -0.0 72,871 -0.4 72,856 -0.1
BeiDou B1 BPSK(2)-B1 635,225 -0.1 635,196 0.2 635,237 -0.3 635,202 -0.2
BeiDou B3 BPSK(10)-B3 635,139 0.1 635,100 0.2 635,220 -0.0 635,181 0.3
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 6,266,706 0.1 6,020,947 0.4 6,022,860 -0.0 6,021,557 0.2

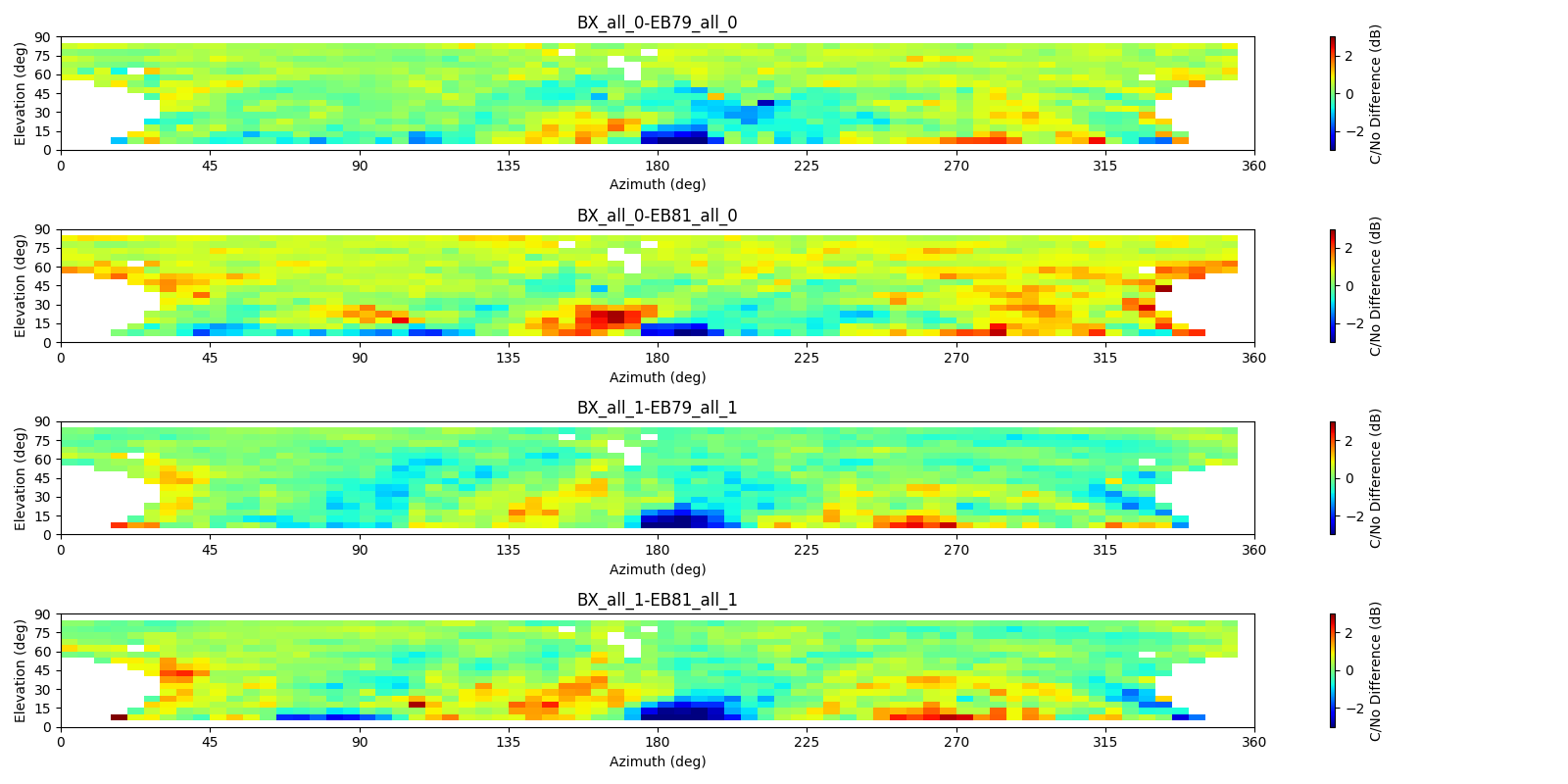

Az-El Plots

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

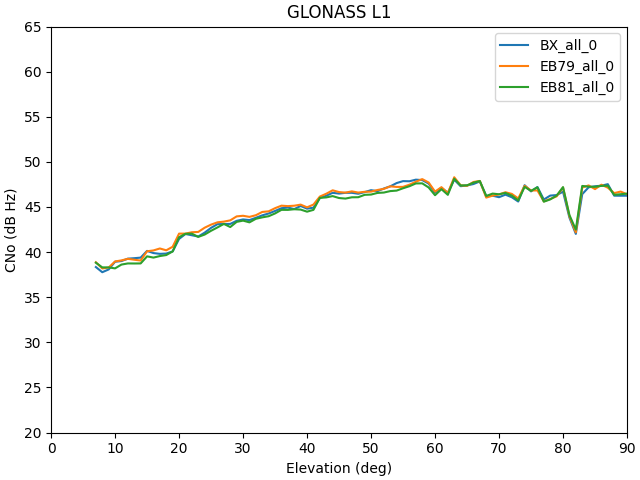

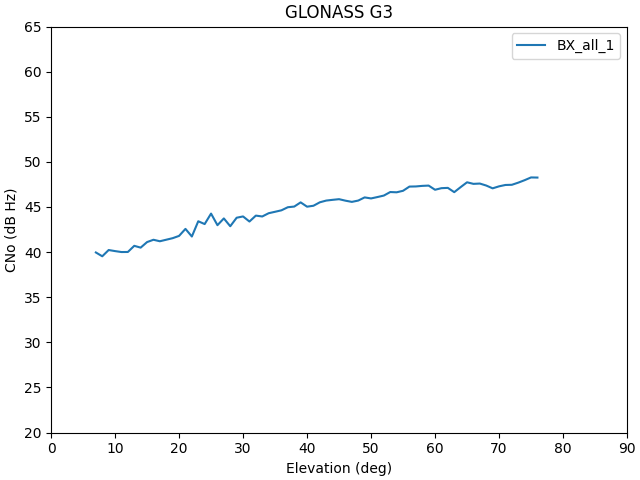

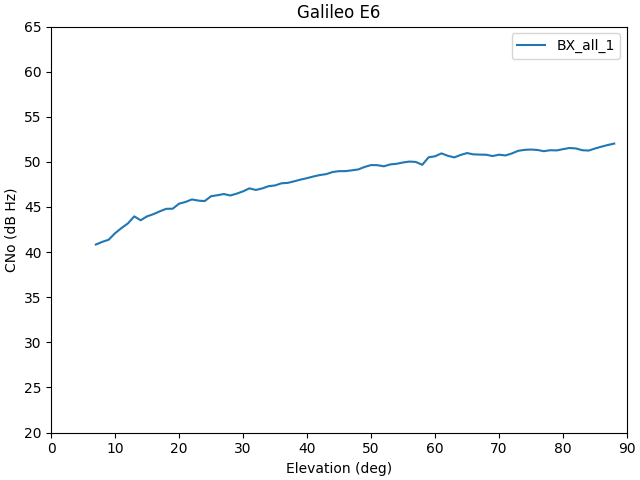

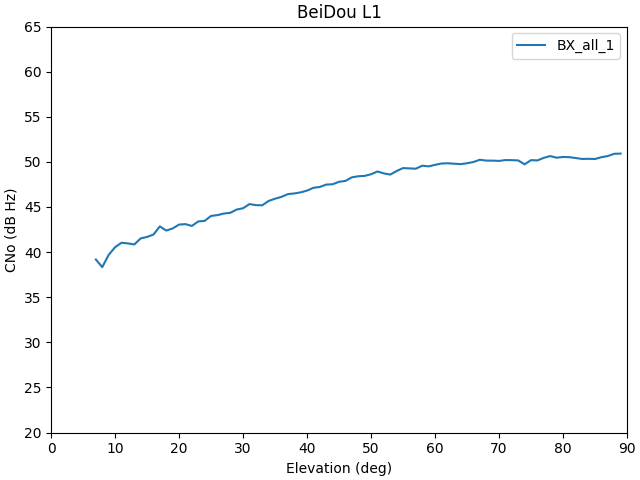

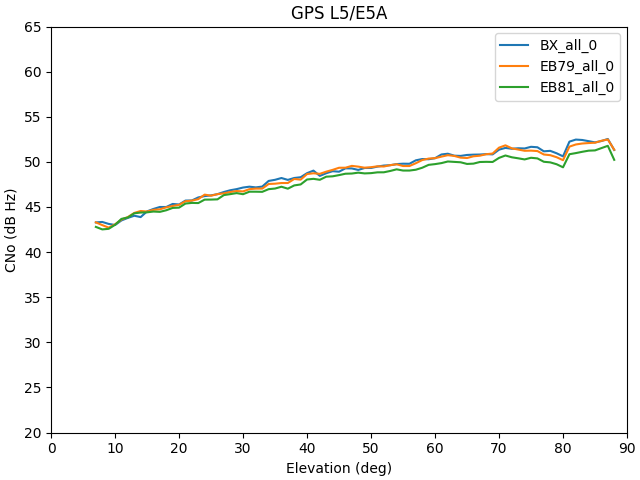

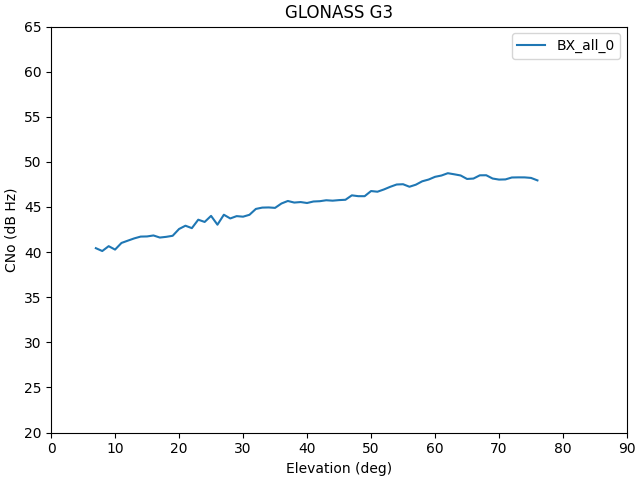

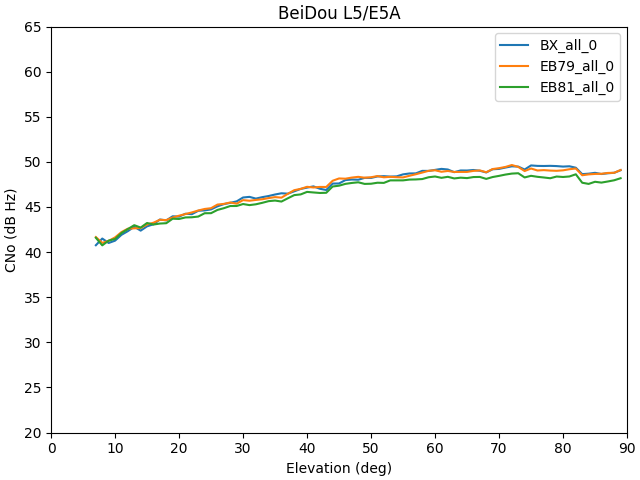

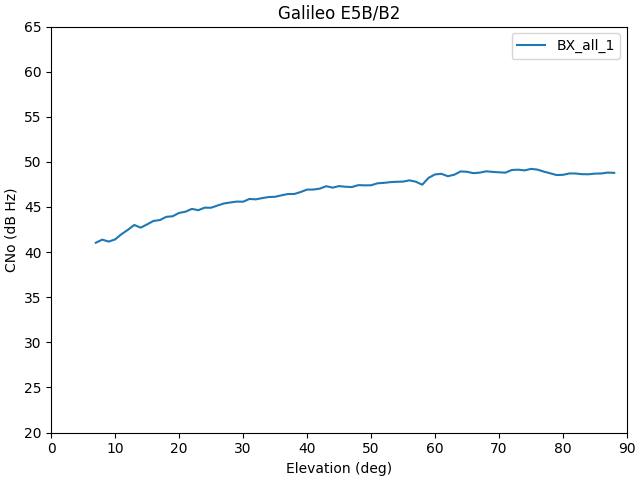

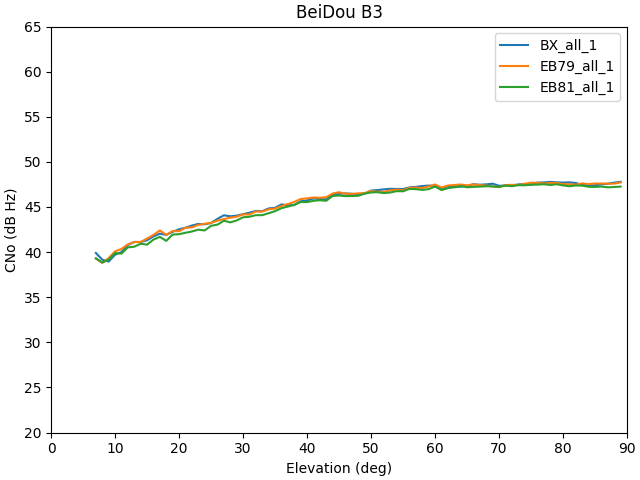

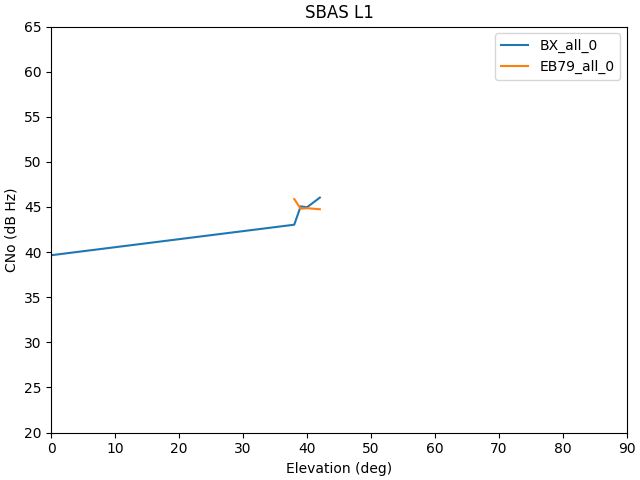

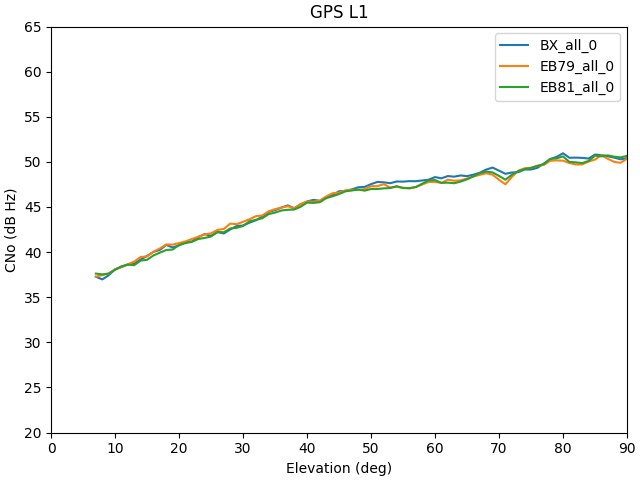

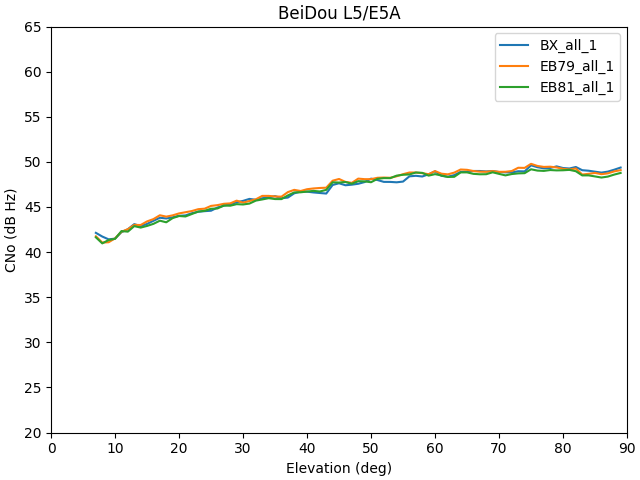

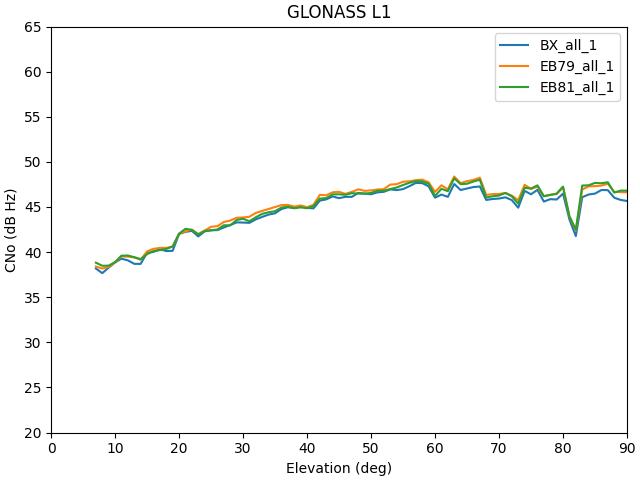

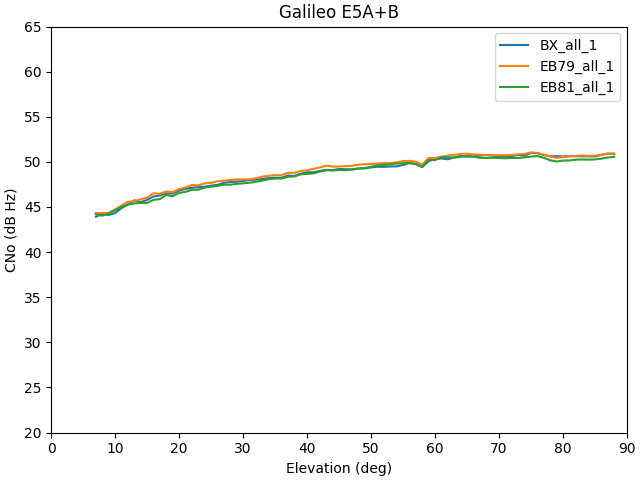

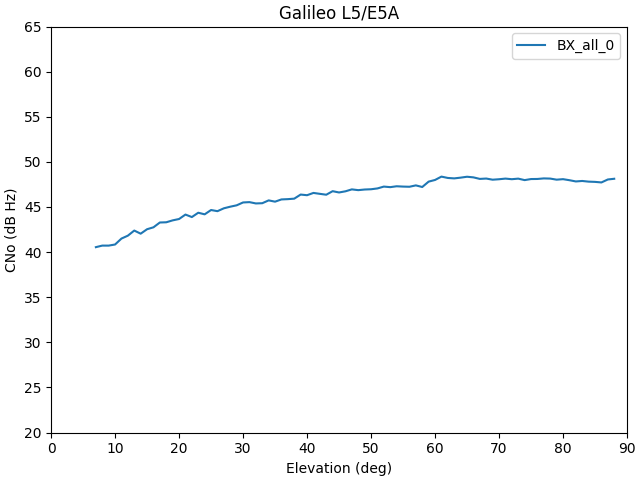

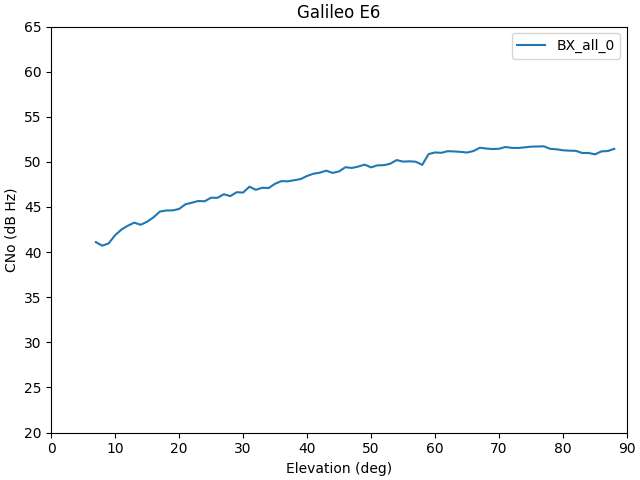

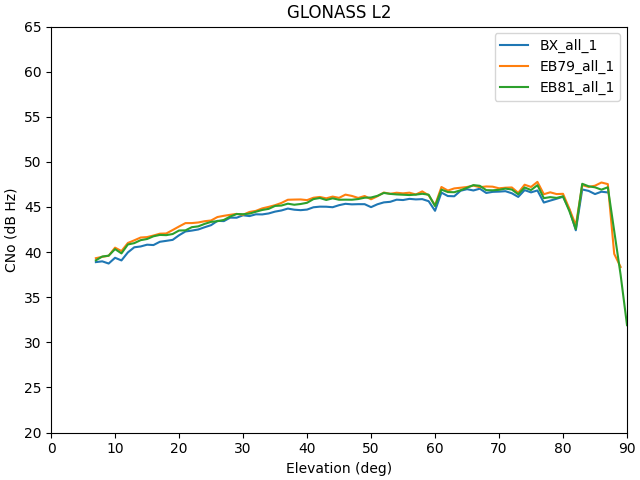

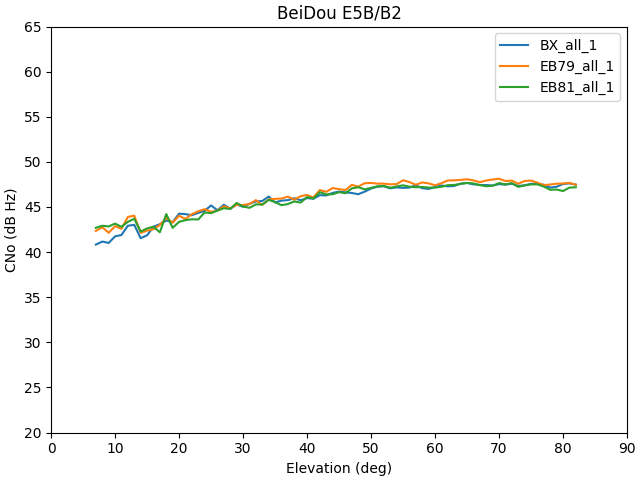

Mean Elevation Plots

Antenna 0

GPS

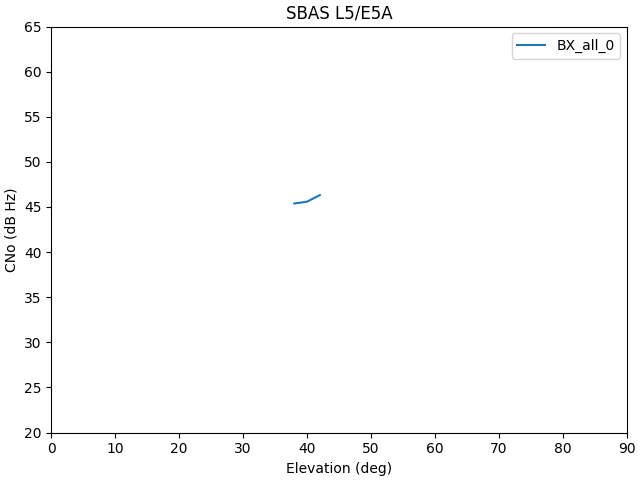

SBAS

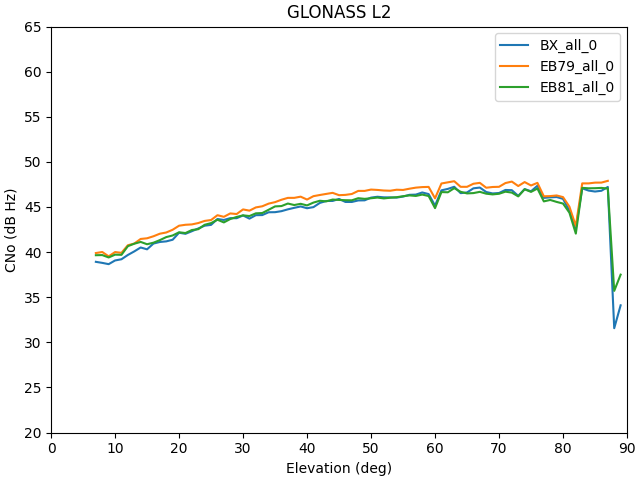

GLONASS

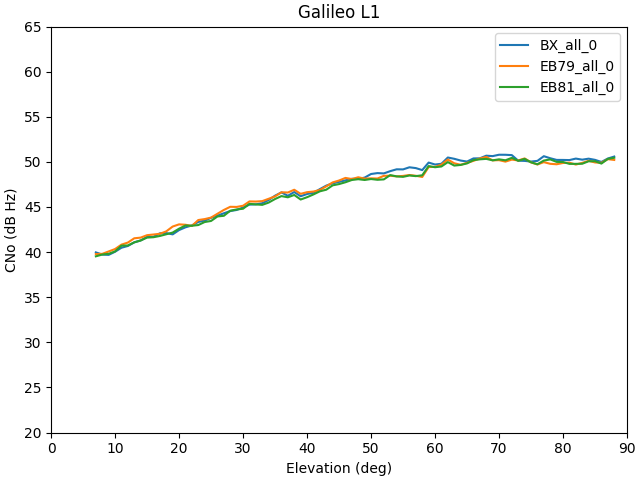

Galileo

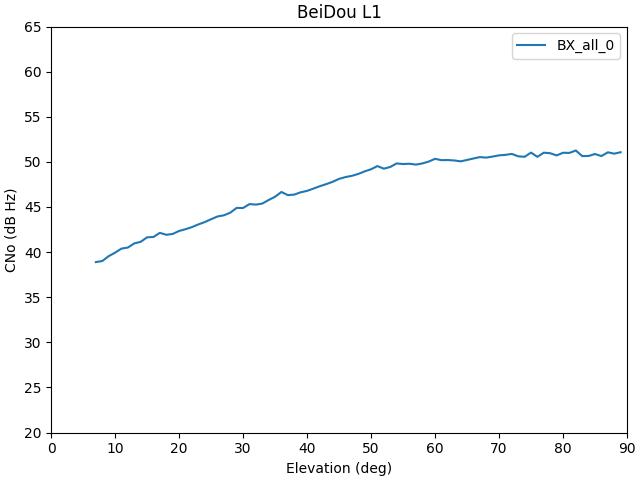

BeiDou

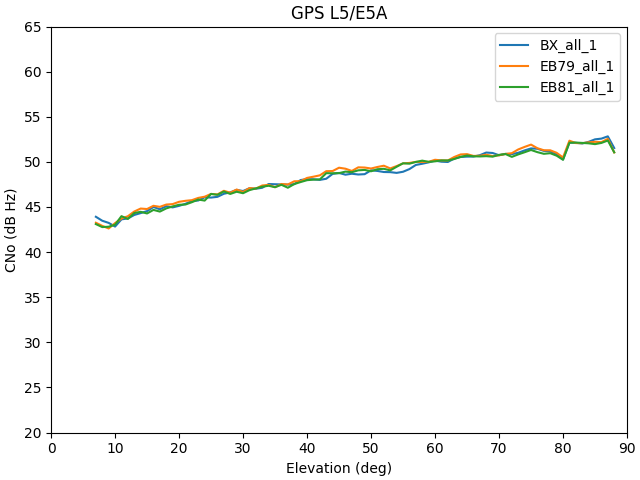

Antenna 1

GPS
GLONASS
Galileo

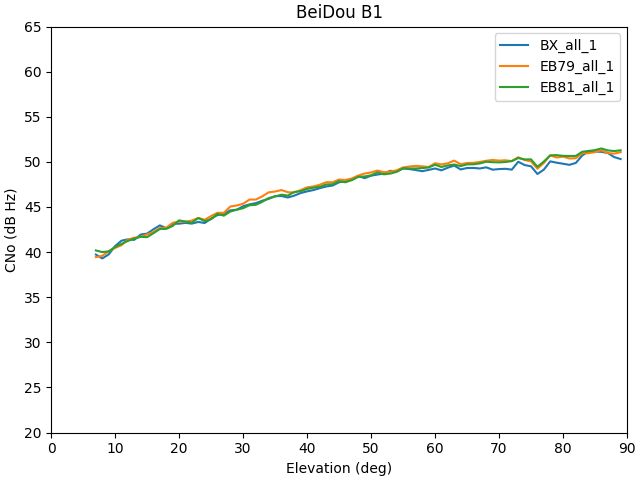

BeiDou

Oscillation Check

BX_all_0: 1432.2
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 7 1,432
0 GLONASS L1 0 12 1,331
0 GLONASS L1 1 7 1,326
0 GPS L1 0 20 1,270
0 Galileo E5A+B 14 30 1,253
0 GPS L1 0 3 1,248
0 GLONASS L1 0 3 1,246
0 GLONASS L1 1 12 1,234
0 GPS L1 0 17 1,197
0 GLONASS L1 0 9 1,196
EB79_all_0: 1589.9
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 8 1,590
0 GLONASS L1 0 12 1,427
0 Galileo E5A+B 14 30 1,218
0 GLONASS L1 0 14 1,153
0 Galileo E5A+B 14 9 1,150
0 GPS L2 5 25 1,135
0 BeiDou E5B/B2 28 12 1,102
0 GPS L2 2 6 1,094
0 GPS L1 0 12 1,082
0 GPS L1 0 9 1,053
EB81_all_0: 1569.0
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 6 1,569
0 GPS L1 0 16 1,540
0 GPS L1 0 8 1,396
0 GLONASS L1 0 14 1,354
0 GPS L1 0 28 1,337
0 GLONASS L2 0 9 1,250
0 GPS L1 0 20 1,242
0 GPS L2 5 25 1,238
0 GLONASS L1 0 4 1,229
0 GLONASS L1 0 8 1,220
BX_all_1: 2129.2
Antenna SVType Freq Track SV osc_factor
1 Galileo L1 23 7 2,129
1 GLONASS L1 0 3 1,822
1 GLONASS L1 1 3 1,773
1 GPS L1 0 3 1,715
1 GLONASS L1 0 11 1,672
1 GLONASS L1 0 4 1,515
1 GPS L1 0 10 1,509
1 GLONASS L1 0 7 1,446
1 GLONASS L1 1 4 1,435
1 GLONASS L1 0 1 1,376
EB79_all_1: 1718.2
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 12 1,718
1 GPS L1 0 3 1,365
1 GPS L1 0 6 1,352
1 GLONASS L1 0 20 1,352
1 GPS L1 0 17 1,300
1 GPS L2 2 3 1,247
1 Galileo E5A+B 14 9 1,200
1 GPS L1 0 11 1,174
1 GPS L2 2 6 1,174
1 GPS L1 0 31 1,154
EB81_all_1: 2067.1
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 20 2,067
1 GLONASS L1 0 12 1,602
1 GPS L2 5 25 1,536
1 GLONASS L1 0 8 1,519
1 BeiDou B3 29 26 1,461
1 GPS L1 0 6 1,393
1 GLONASS L1 0 14 1,355
1 GLONASS L1 0 3 1,336
1 GLONASS L2 0 20 1,318
1 GPS L1 0 25 1,286

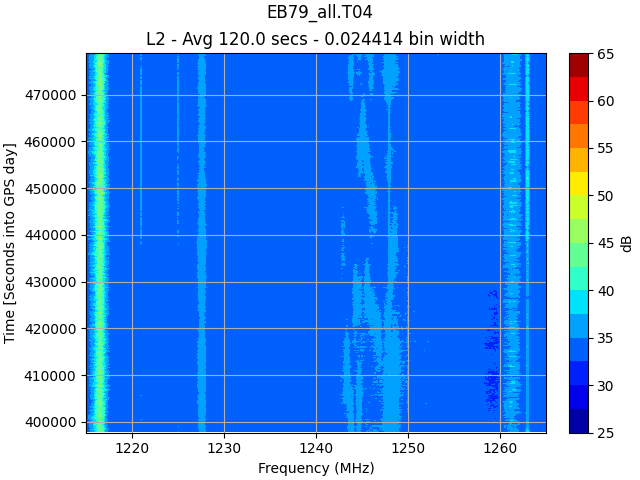

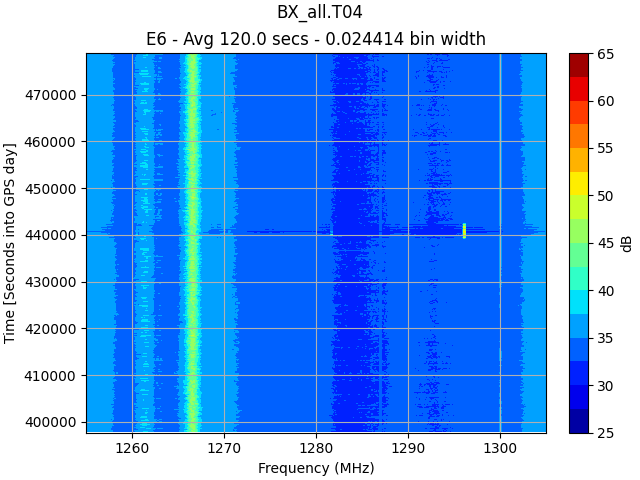

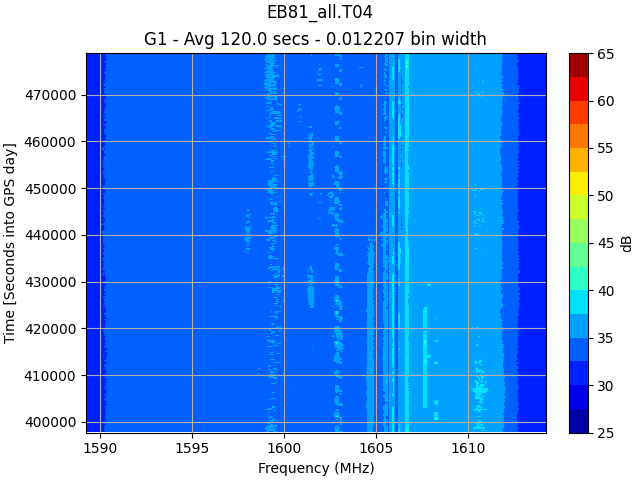

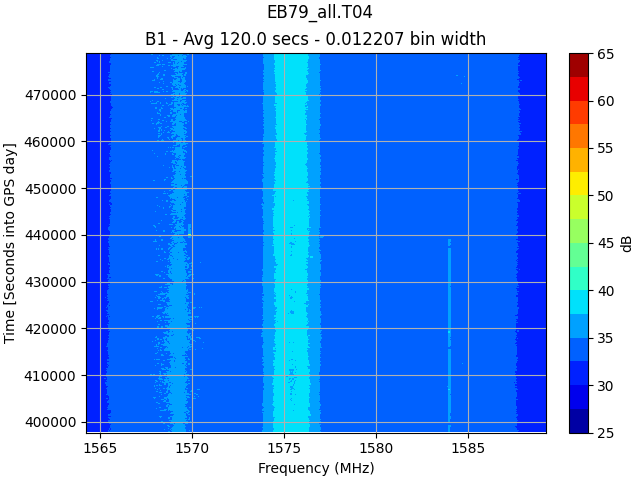

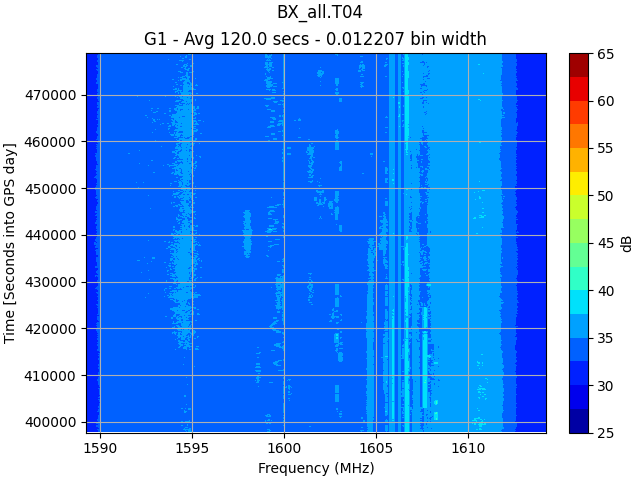

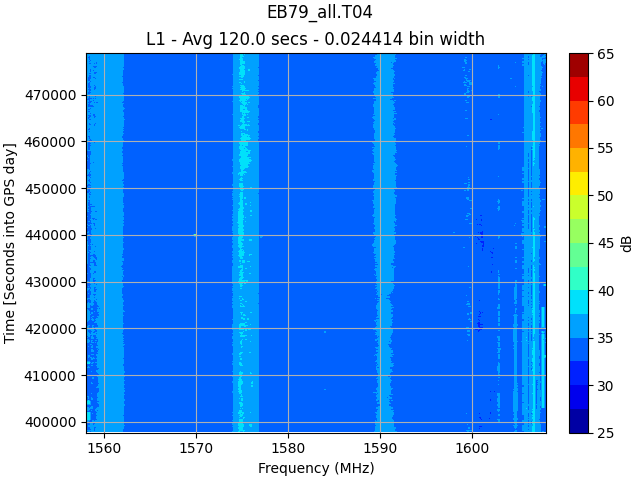

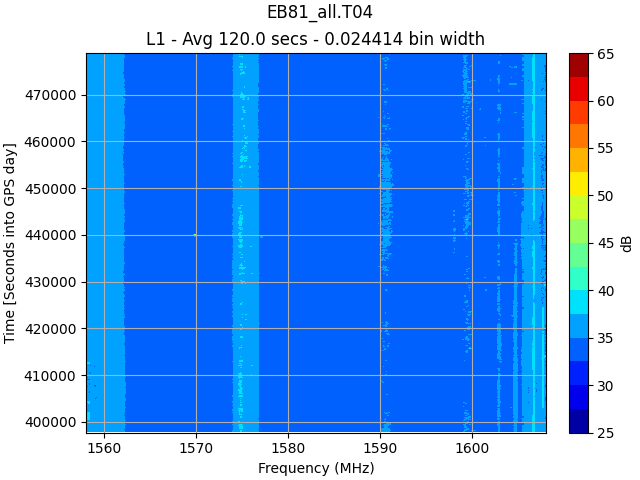

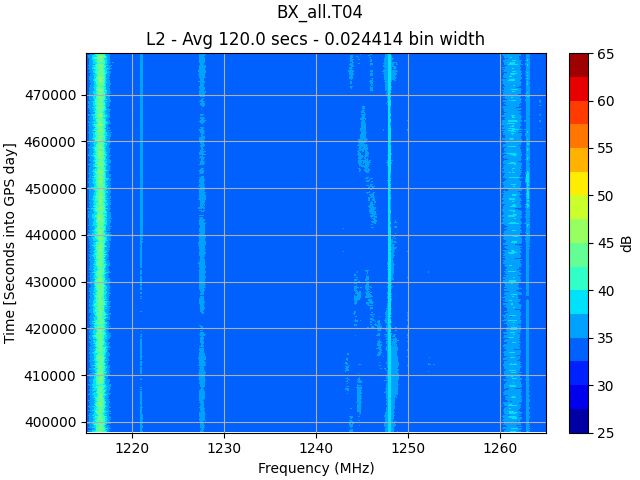

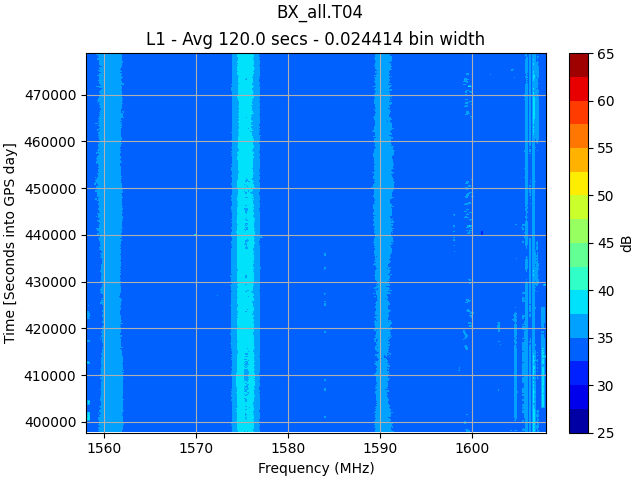

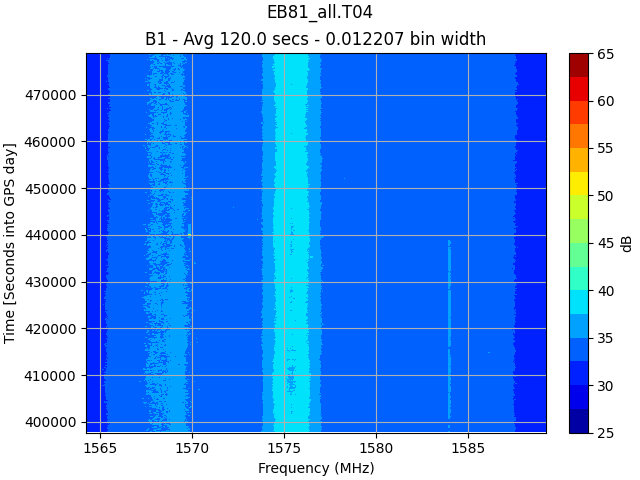

FFT Plots

L1 L2 L5 E6 G1 B1

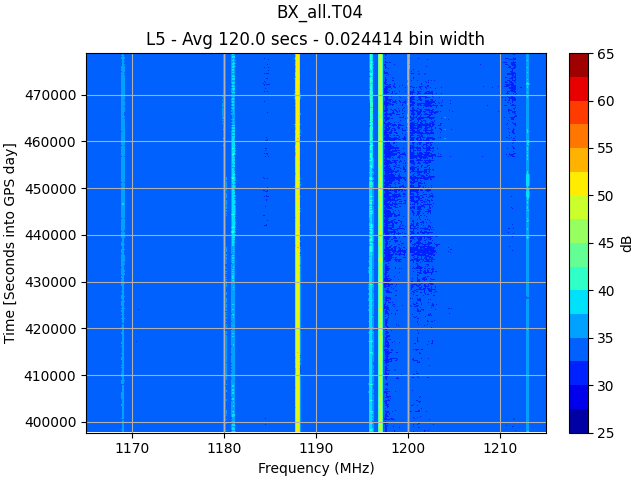

BX
EB79

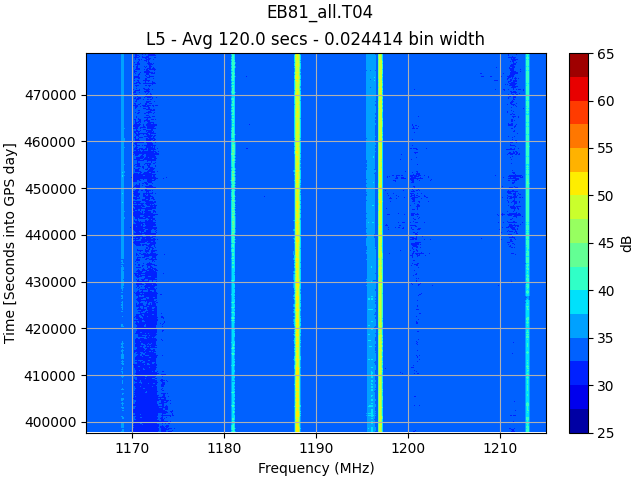

EB81
