CH161, Mode AC

Files


240815_ch161_mode_ac/BX_all.T04 240815_ch161_mode_ac/EB79_all.T04 240815_ch161_mode_ac/EB81_all.T04
Modified: 2024-08-29 14:01:04

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2327']
Start Time : 310464.127
Stop Time : 396000.324
Total Hours : 23.760054722222236

Mean Primary Pos: [39.89647604982874, -105.11507274017764]
Mean Secondary Pos: [39.89648453430244, -105.11507060081786]
Mean Heading: 190.95 (deg)
Mean Slope Distance: 0.96092 (m)
 Modified: 2024-08-29 14:01:04

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 310460.108
Stop Time : 396952.525
Total Hours : 24.02567138888889

Mean Primary Pos: [39.89647572487836, -105.11505824524235]
Mean Secondary Pos: [39.89648773630432, -105.11505606736578]
Mean Heading: 187.92 (deg)
Mean Slope Distance: 1.3485 (m)
 Modified: 2024-08-29 14:01:05

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 310457.099
Stop Time : 396941.994
Total Hours : 24.023581944444448

Mean Primary Pos: [39.89647527841265, -105.11504462952504]
Mean Secondary Pos: [39.89648767687277, -105.11504179113625]
Mean Heading: 189.96 (deg)
Mean Slope Distance: 1.3998 (m)

Difference Report Links

240815_ch161_mode_ac/results/BX_all_0-EB79_all_0.html
240815_ch161_mode_ac/results/BX_all_0-EB81_all_0.html
240815_ch161_mode_ac/results/BX_all_1-EB79_all_1.html
240815_ch161_mode_ac/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 810,188 0.0 809,978 0.2 810,189 -0.0 809,967 0.1
GPS L2 CM+CL 614,291 0.2 614,324 0.5 614,245 0.1 614,251 0.4
GPS L2 E 195,838 0.4 195,396 0.8 195,659 0.2 194,016 0.6
GPS L5/E5A I+Q 441,788 0.1 441,840 0.6 441,740 -0.1 441,765 0.0
SBAS L1 CA 260,598 -0.6 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 610,246 0.6 608,777 1.0 610,259 0.3 608,933 0.5
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 532,105 -0.1 529,956 0.6 529,995 0.0 529,924 0.3
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 604,982 -0.0 604,944 0.2 604,987 -0.0 604,201 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 604,970 0.2 604,936 0.4 604,986 -0.1 604,914 0.2
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou L5/E5A I+Q 607,581 0.0 607,587 0.5 607,606 -0.1 607,614 0.1
BeiDou E5B/B2 BPSK(2)-B2 37,067 0.6 37,038 0.3 37,012 0.3 36,990 0.6
BeiDou B1 BPSK(2)-B1 644,651 -0.0 644,630 0.3 644,651 -0.3 644,647 -0.1
BeiDou B3 BPSK(10)-B3 644,627 0.1 644,555 0.2 644,529 -0.0 644,517 0.3
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 6,608,932 0.1 6,343,961 0.4 6,345,858 -0.0 6,341,739 0.2

Az-El Plots

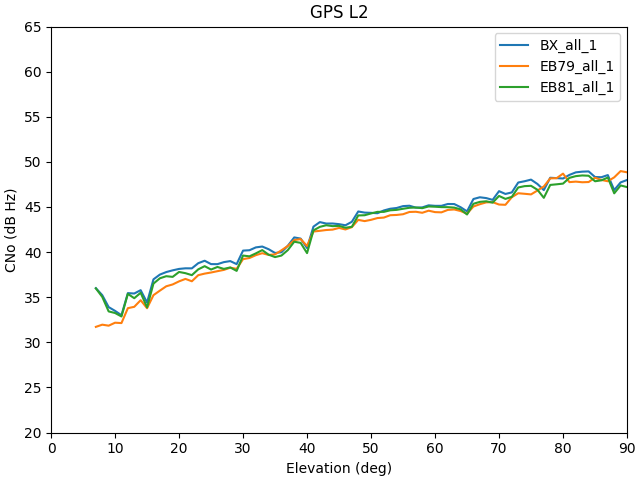

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

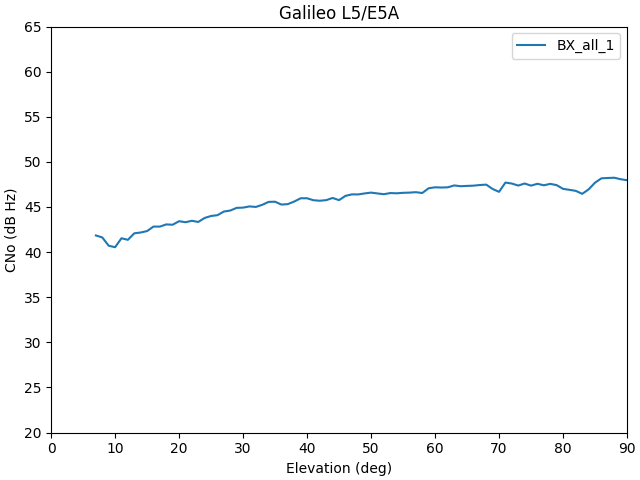

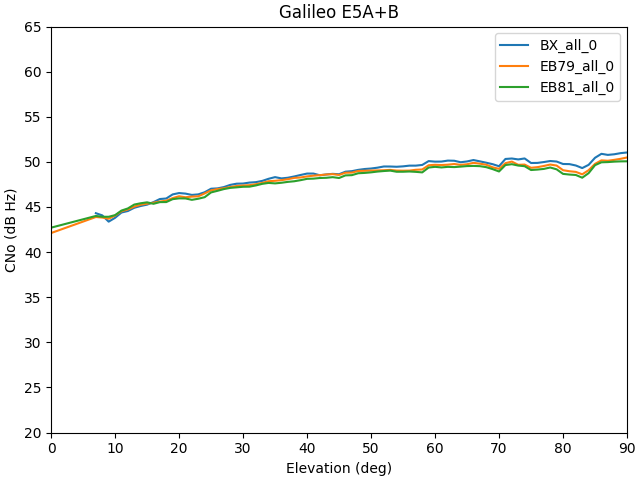

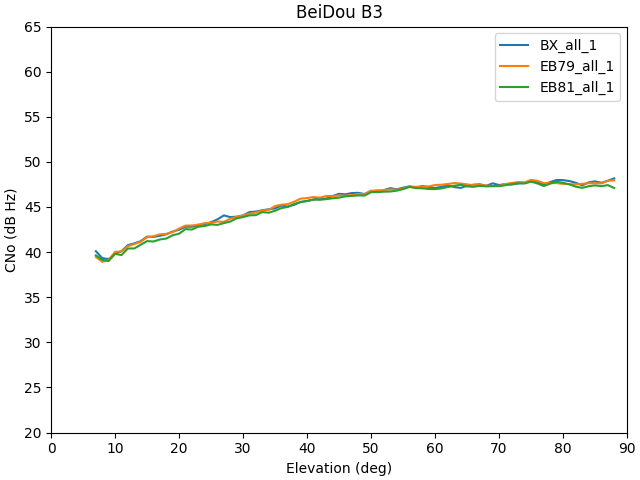

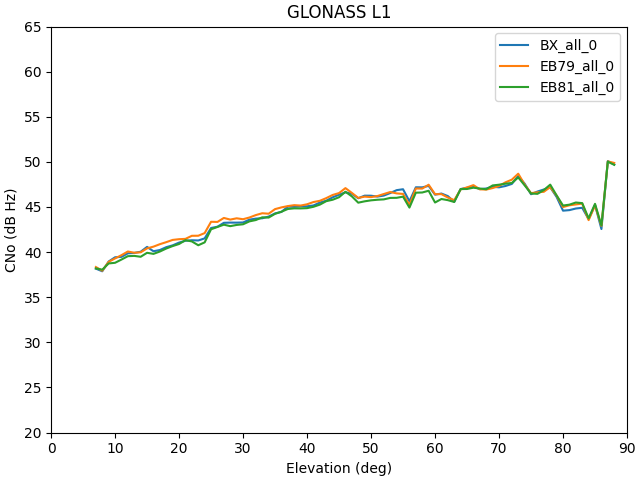

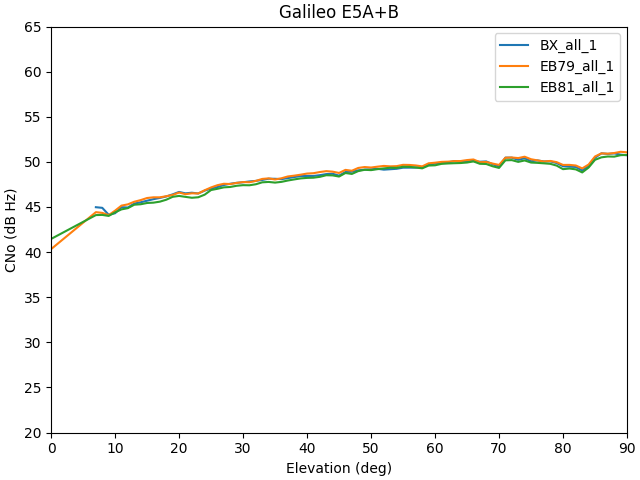

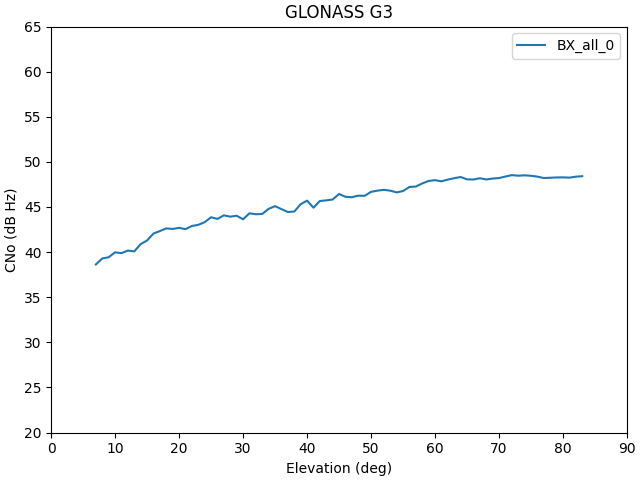

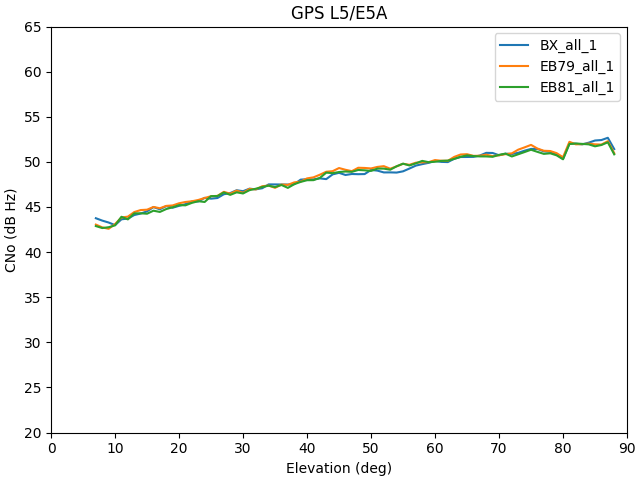

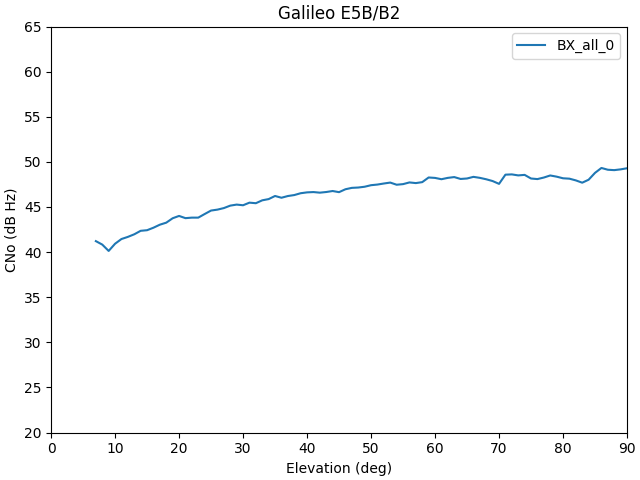

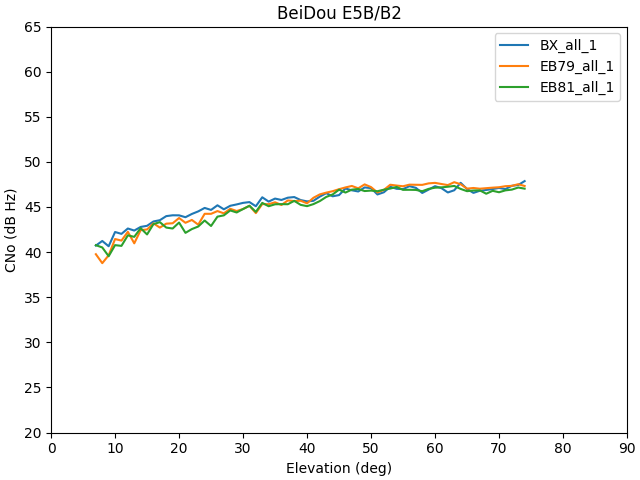

Mean Elevation Plots

Antenna 0

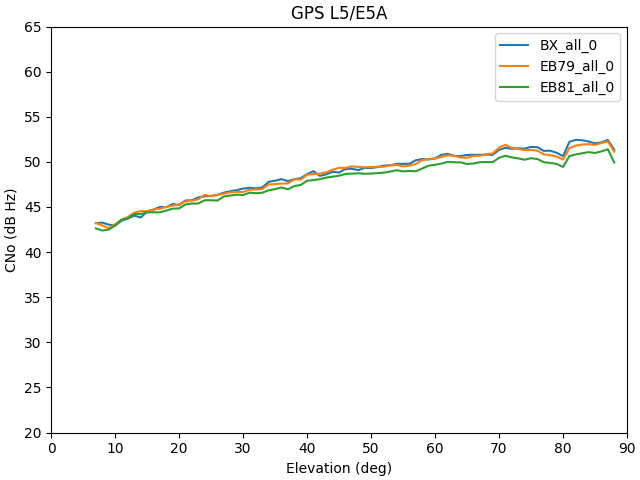

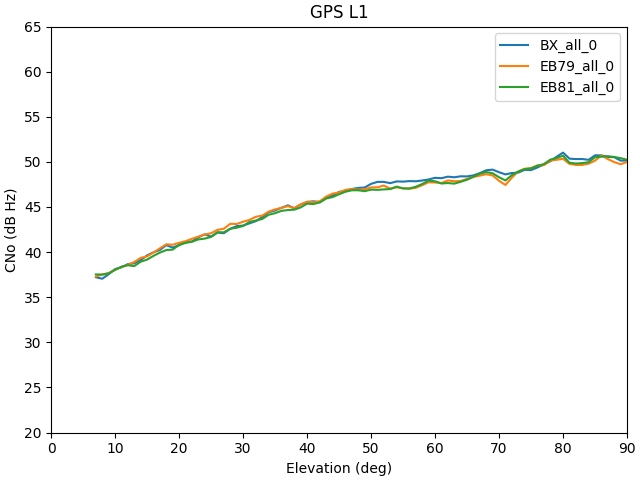

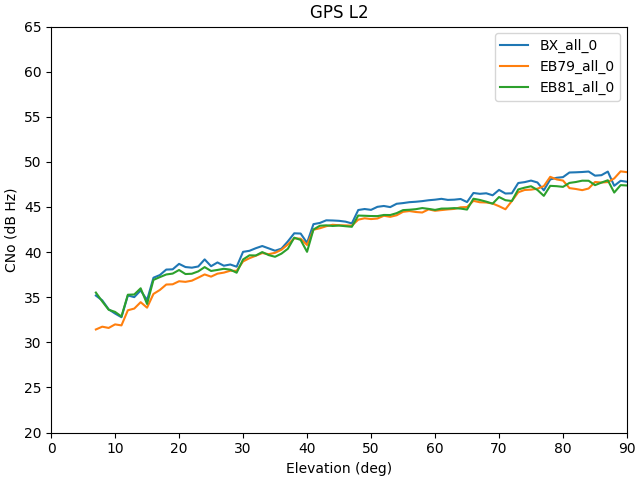

GPS

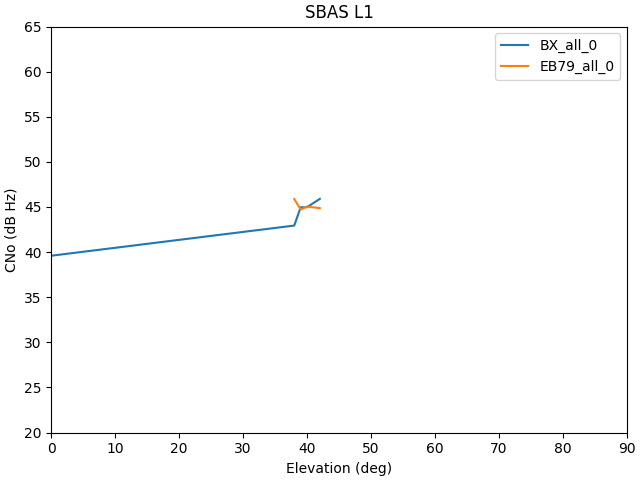

SBAS

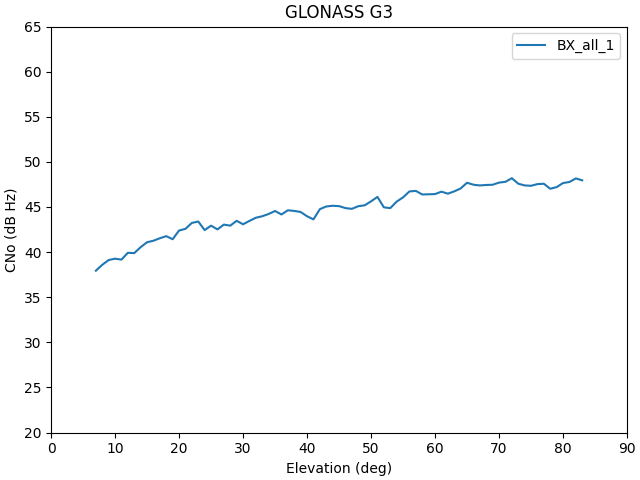

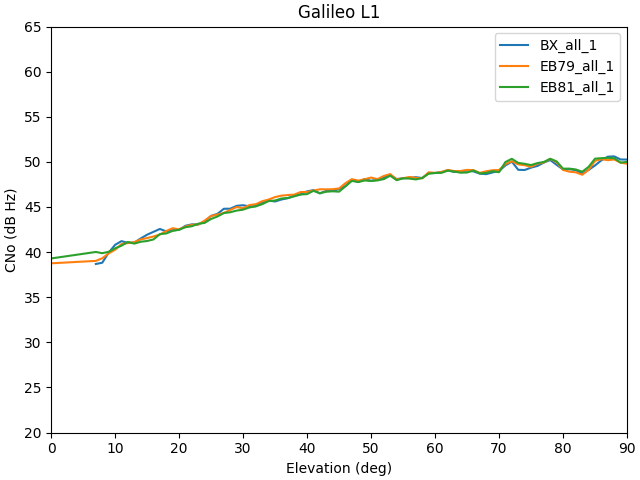

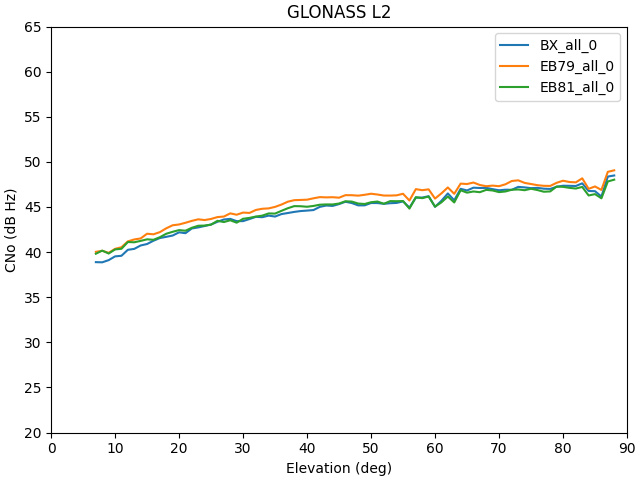

GLONASS

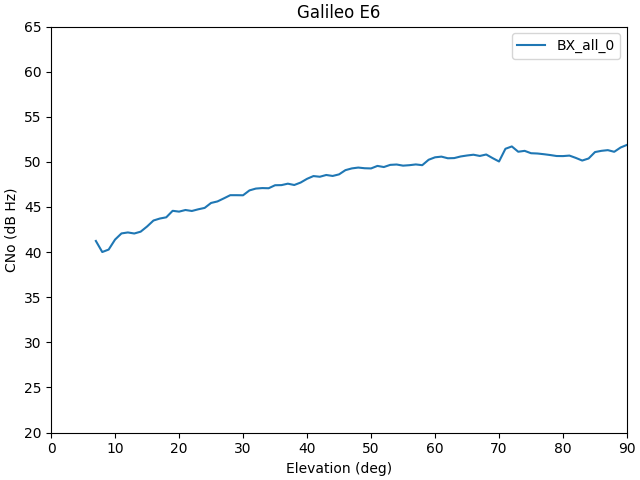

Galileo

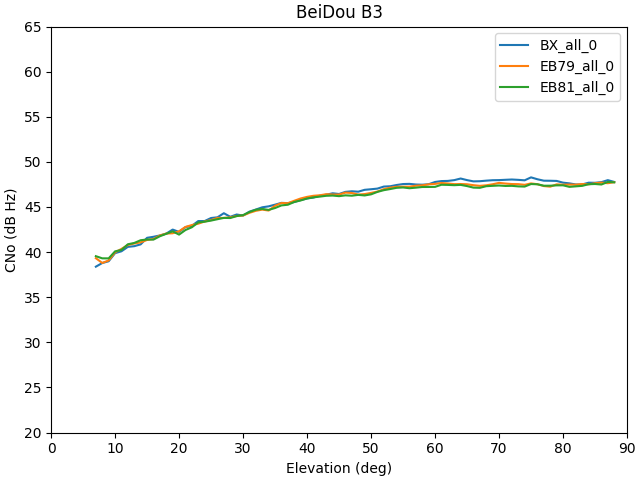

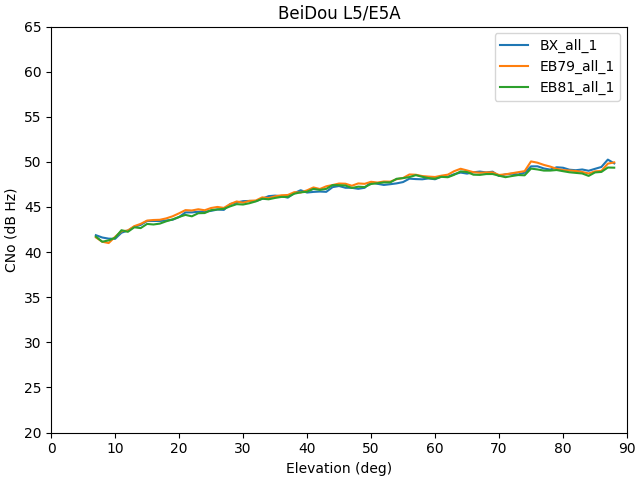

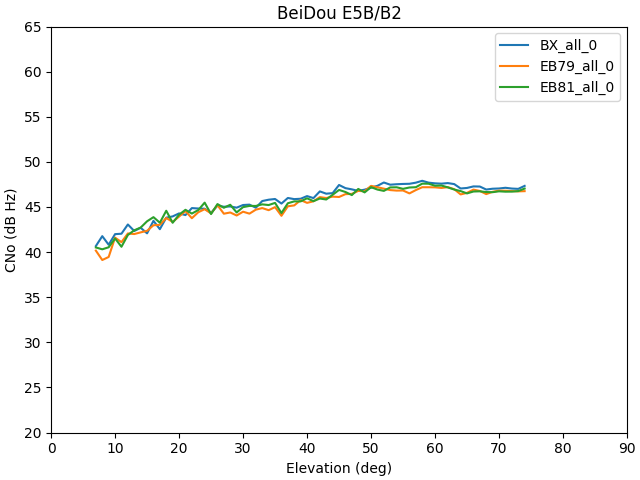

BeiDou

Antenna 1

GPS
GLONASS

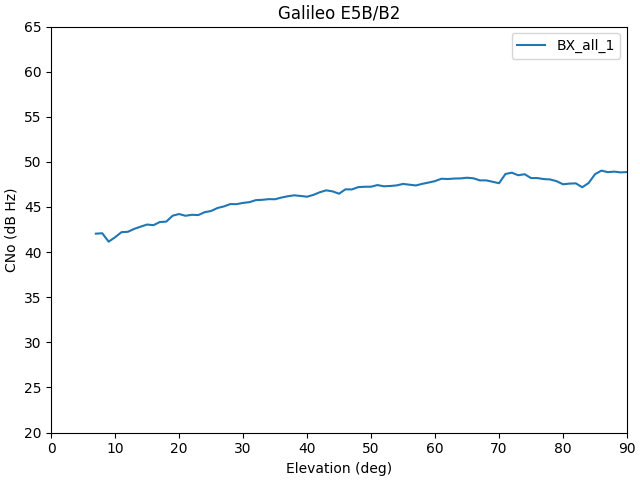

Galileo

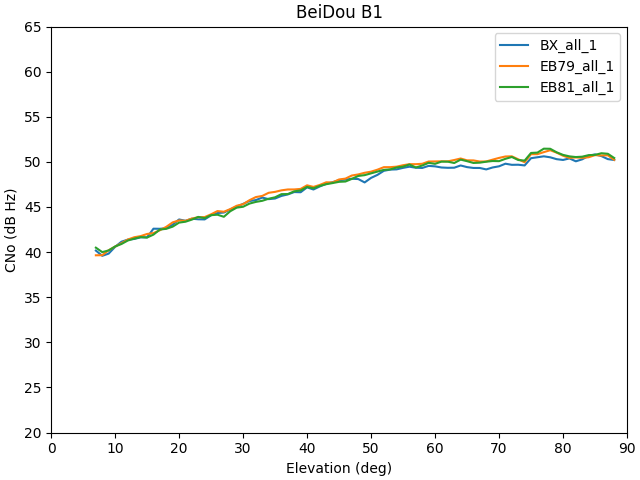

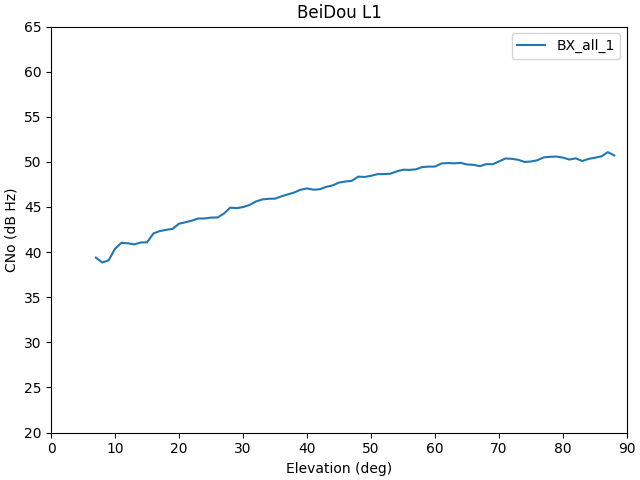

BeiDou

Oscillation Check

BX_all_0: 1566.6
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 12 1,567
0 GLONASS L1 1 19 1,524
0 GLONASS L2 0 9 1,278
0 Galileo E5A+B 14 21 1,267
0 GLONASS L1 0 6 1,254
0 GLONASS L1 0 12 1,199
0 GLONASS L1 0 3 1,179
0 GLONASS L1 0 7 1,162
0 GPS L1 0 2 1,144
0 GLONASS L1 0 11 1,134
EB79_all_0: 1386.6
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 18 1,387
0 GLONASS L1 0 15 1,381
0 GPS L2 2 6 1,248
0 GLONASS L1 0 3 1,232
0 GPS L1 0 8 1,226
0 Galileo E5A+B 14 21 1,217
0 GPS L1 0 16 1,193
0 GPS L2 2 28 1,187
0 GLONASS L1 0 19 1,166
0 GPS L1 0 6 1,139
EB81_all_0: 1693.0
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 19 1,693
0 GPS L1 0 12 1,556
0 GPS L1 0 25 1,528
0 GPS L1 0 16 1,427
0 GPS L1 0 6 1,366
0 GLONASS L1 0 7 1,274
0 GPS L1 0 8 1,239
0 GLONASS L2 0 16 1,230
0 GPS L2 5 25 1,218
0 GPS L1 0 26 1,200
BX_all_1: 1916.0
Antenna SVType Freq Track SV osc_factor
1 BeiDou B1 26 44 1,916
1 GPS L1 0 3 1,720
1 BeiDou L1 20 44 1,559
1 BeiDou B1 26 20 1,508
1 GLONASS L1 0 2 1,504
1 Galileo E5B/B2 11 19 1,484
1 GPS L1 0 10 1,479
1 GLONASS L2 0 9 1,458
1 Galileo E6 36 19 1,428
1 GLONASS L1 0 6 1,426
EB79_all_1: 1639.5
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 2 1,639
1 GPS L2 2 6 1,349
1 GLONASS L1 0 7 1,312
1 GPS L1 0 11 1,296
1 GLONASS L1 0 22 1,284
1 BeiDou B1 26 33 1,247
1 GPS L1 0 8 1,205
1 GLONASS L1 0 19 1,187
1 GPS L1 0 6 1,168
1 GLONASS L1 0 3 1,153
EB81_all_1: 1539.3
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 7 1,539
1 GPS L1 0 12 1,529
1 GLONASS L1 0 19 1,516
1 GLONASS L1 0 6 1,410
1 GLONASS L2 0 17 1,371
1 GLONASS L1 0 13 1,368
1 GLONASS L1 0 14 1,322
1 GLONASS L1 0 2 1,304
1 GLONASS L2 0 9 1,301
1 GPS L1 0 9 1,289

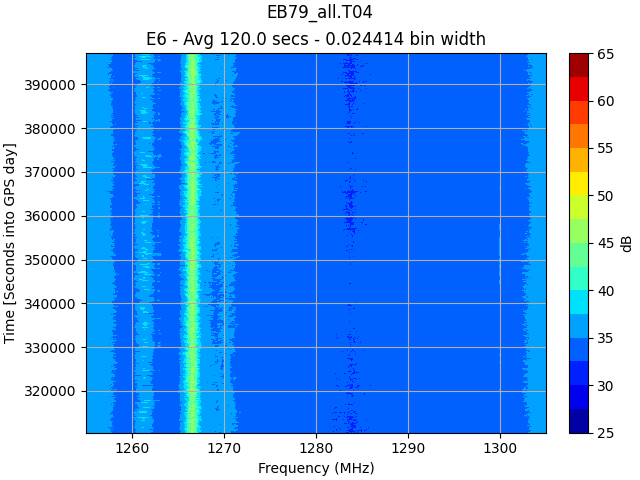

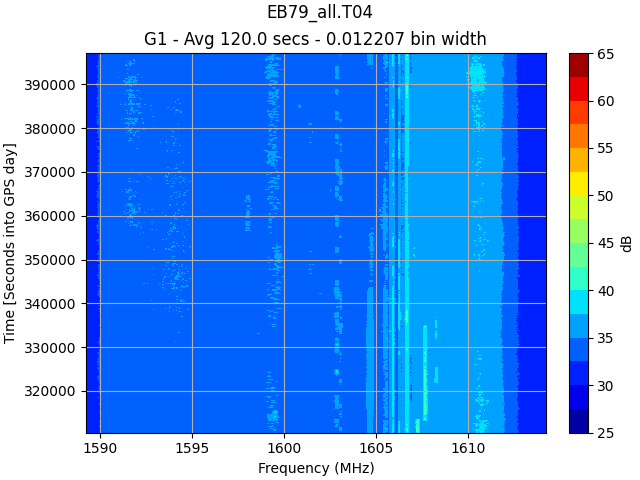

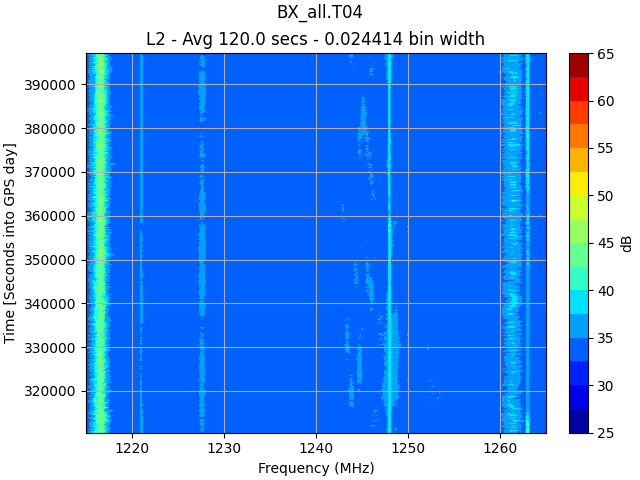

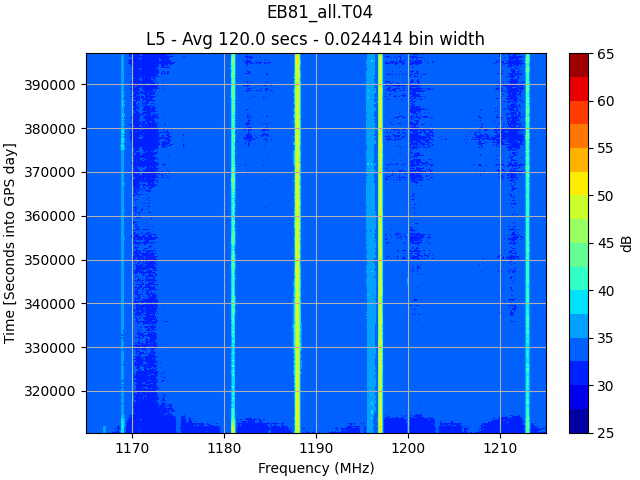

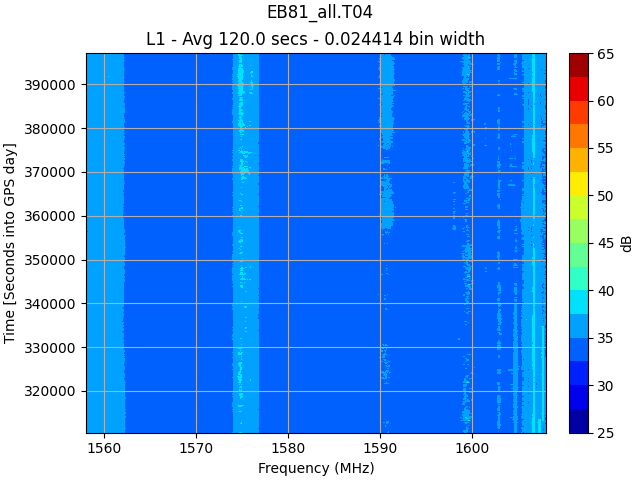

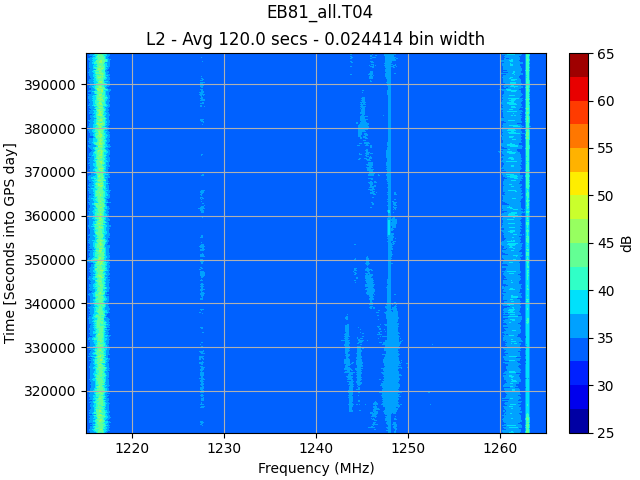

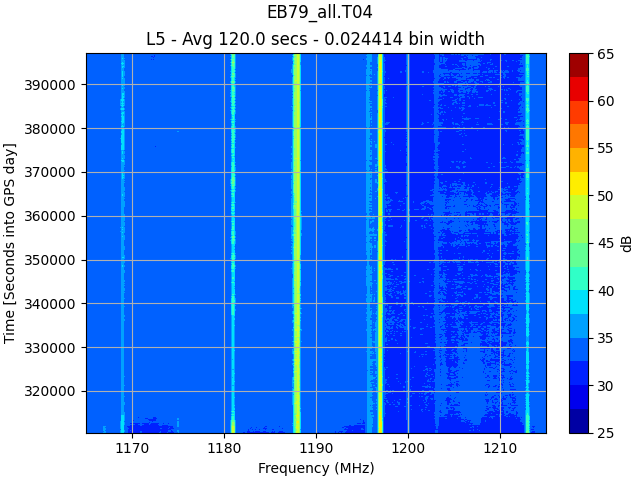

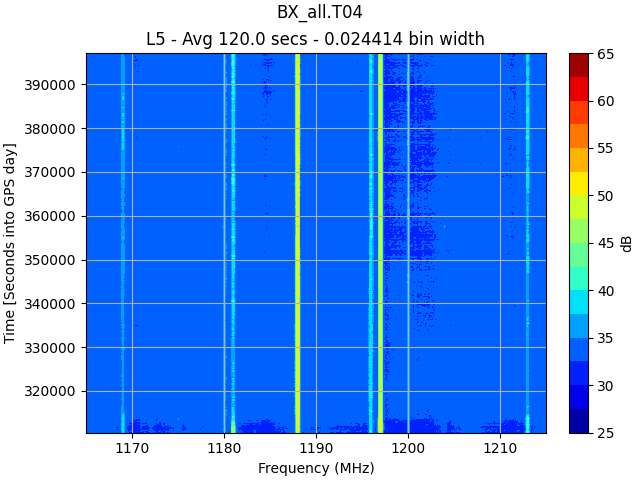

FFT Plots

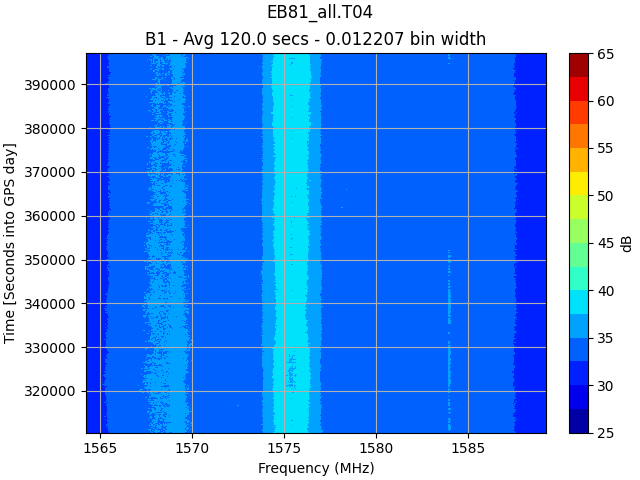

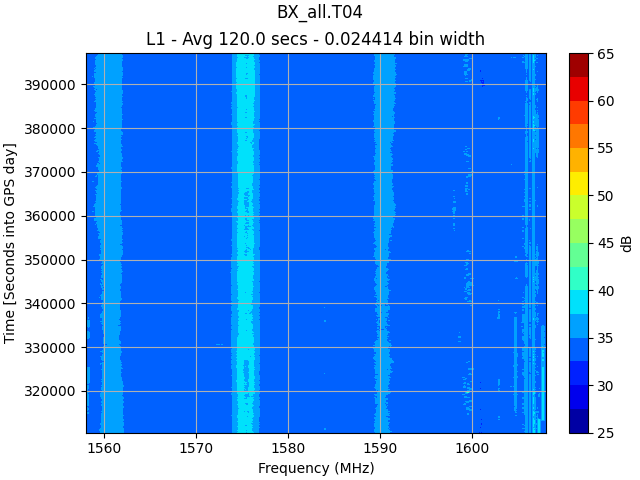

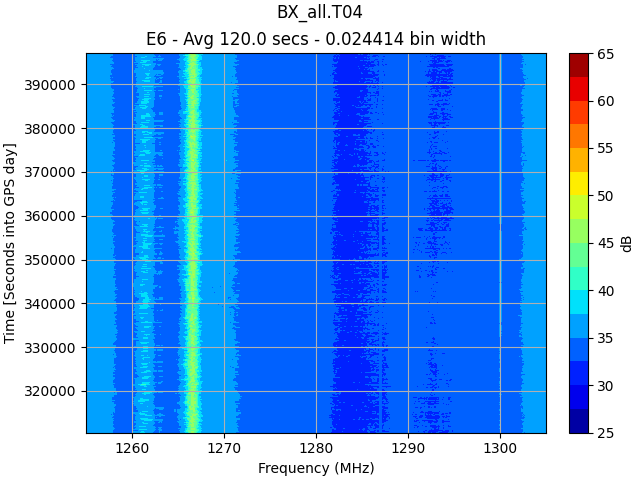

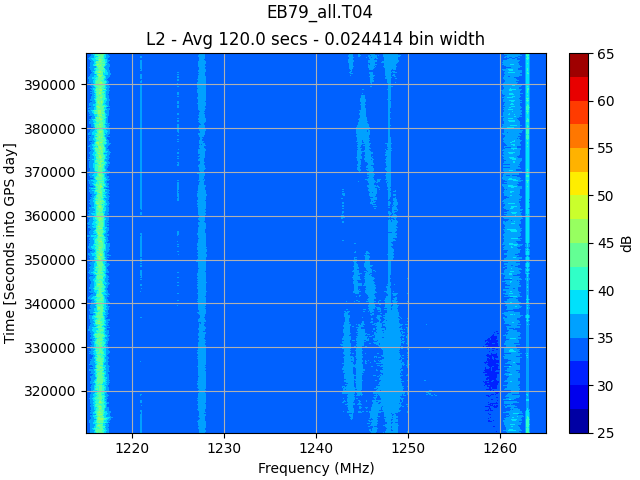

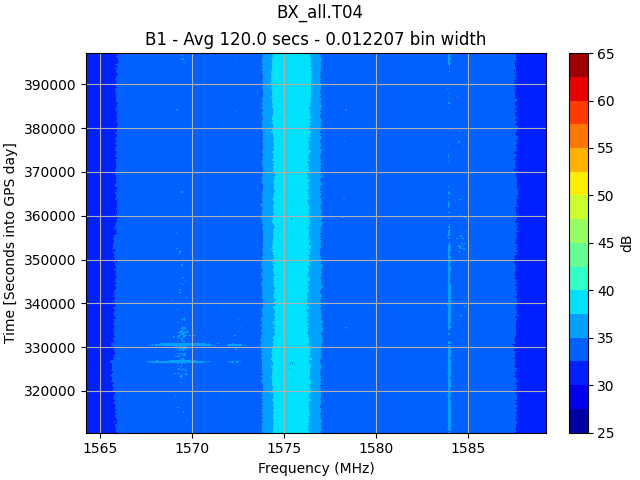

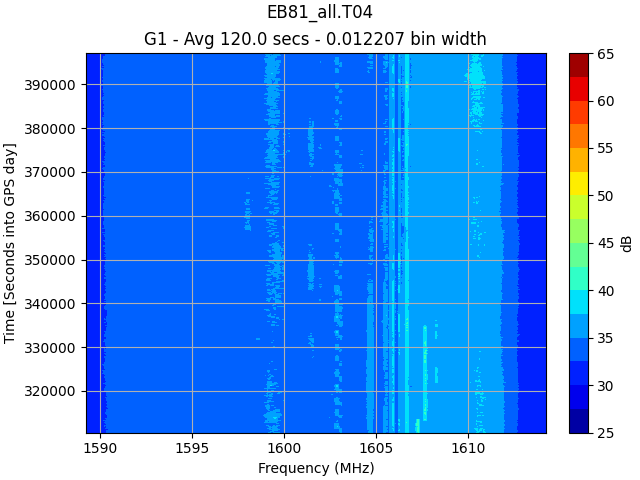

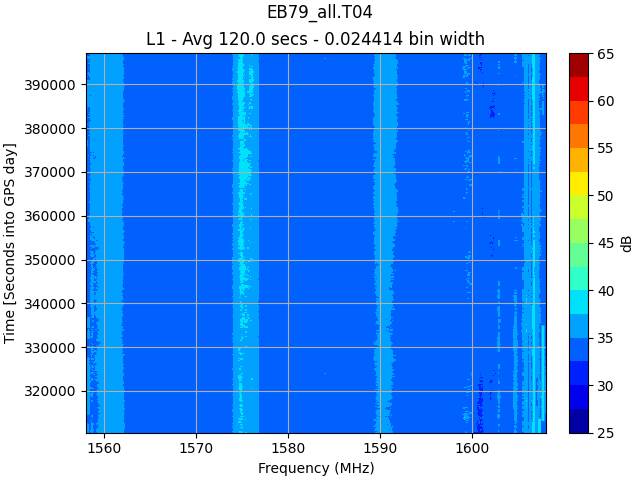

L1 L2 L5 E6 G1 B1
BX
EB79
EB81
