CH36, Mode A

Files


240812_ch36_mode_a/BX_all.T04 240812_ch36_mode_a/EB79_all.T04 240812_ch36_mode_a/EB81_all.T04
Modified: 2024-08-29 11:54:54

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2327']
Start Time : 46800.259
Stop Time : 133200.325
Total Hours : 24.00001833333334

Mean Primary Pos: [39.896477386461406, -105.11507271198244]
Mean Secondary Pos: [39.89648456126822, -105.11507715908394]
Mean Heading: 154.57 (deg)
Mean Slope Distance: 0.88341 (m)
 Modified: 2024-08-29 11:54:54

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 46800.107
Stop Time : 135952.293
Total Hours : 24.76449611111111

Mean Primary Pos: [39.8964769184315, -105.11505837695955]
Mean Secondary Pos: [39.89648627491368, -105.11506290258689]
Mean Heading: 159.64 (deg)
Mean Slope Distance: 1.1097 (m)
 Modified: 2024-08-29 11:54:54

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2327']
Start Time : 46800.286
Stop Time : 135941.547
Total Hours : 24.76146138888889

Mean Primary Pos: [39.89647258051253, -105.11504909249606]
Mean Secondary Pos: [39.8964862354674, -105.11504869530073]
Mean Heading: 181.28 (deg)
Mean Slope Distance: 1.5187 (m)

Difference Report Links

240812_ch36_mode_a/results/BX_all_0-EB79_all_0.html
240812_ch36_mode_a/results/BX_all_0-EB81_all_0.html
240812_ch36_mode_a/results/BX_all_1-EB79_all_1.html
240812_ch36_mode_a/results/BX_all_1-EB81_all_1.html

Summary Table

SVType Freq Track N_Samples_EB79_0 CNo_Mean_EB79_0 N_Samples_EB81_0 CNo_Mean_EB81_0 N_Samples_EB79_1 CNo_Mean_EB79_1 N_Samples_EB81_1 CNo_Mean_EB81_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 833,752 0.0 833,680 0.2 833,754 -0.1 833,666 0.0
GPS L2 CM+CL 634,272 0.2 634,200 0.5 634,253 0.1 634,164 0.4
GPS L2 E 198,991 0.3 198,865 0.7 198,170 0.1 197,622 0.5
GPS L5/E5A I+Q 453,030 -0.0 453,019 0.5 453,017 -0.3 452,981 -0.1
SBAS L1 CA 270,000 -0.4 0 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 648,225 0.5 647,333 0.9 648,183 0.2 647,356 0.4
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 573,764 -0.1 572,086 0.5 573,044 0.0 572,577 0.2
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 630,973 -0.0 631,244 0.3 631,011 -0.1 631,240 0.1
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 630,973 0.1 631,250 0.2 631,011 -0.2 631,276 0.1
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 0 0 0 0
BeiDou L5/E5A I+Q 638,231 -0.1 638,146 0.4 638,147 -0.3 638,071 -0.1
BeiDou E5B/B2 BPSK(2)-B2 64,598 0.1 64,610 -0.2 64,624 -0.3 64,594 0.0
BeiDou B1 BPSK(2)-B1 702,845 -0.1 702,759 0.2 702,806 -0.3 702,719 -0.1
BeiDou B3 BPSK(10)-B3 702,788 0.1 702,682 0.1 702,717 -0.1 702,609 0.1
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS 0 0 0 0
Total 6,982,442 0.0 6,709,874 0.4 6,710,737 -0.1 6,708,875 0.1

Az-El Plots

BX_all_0-EB79_all_0 BX_all_0-EB81_all_0 BX_all_1-EB79_all_1 BX_all_1-EB81_all_1

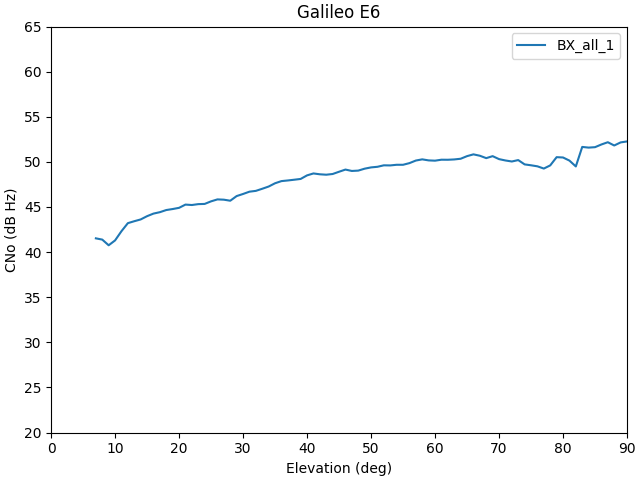

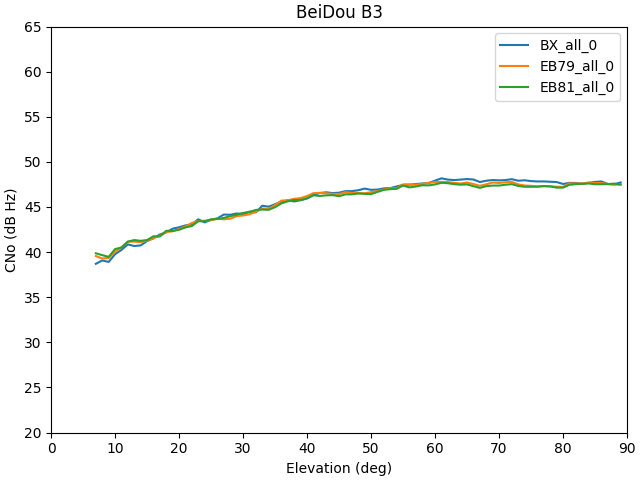

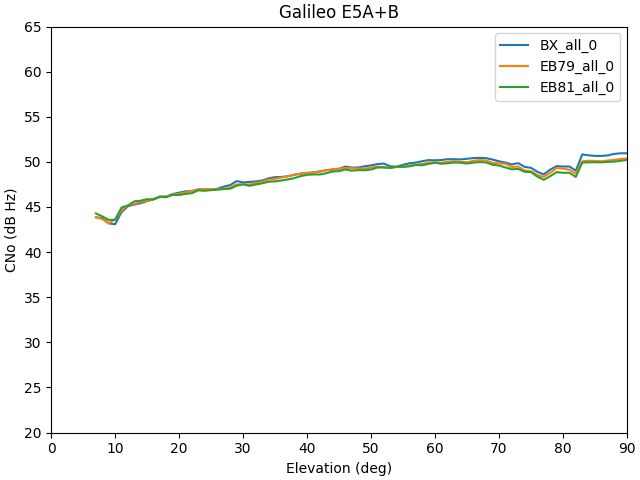

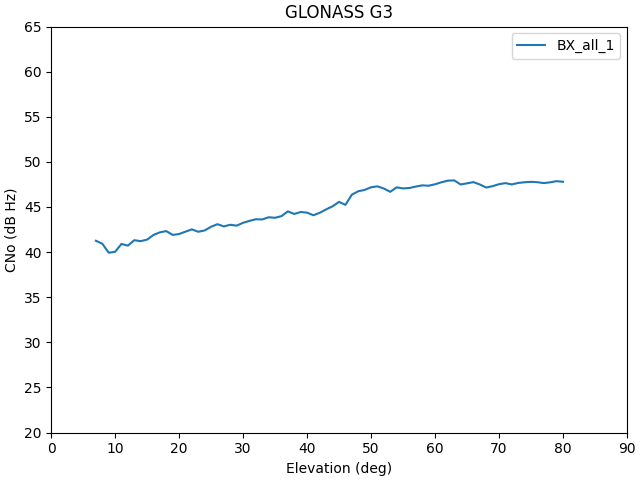

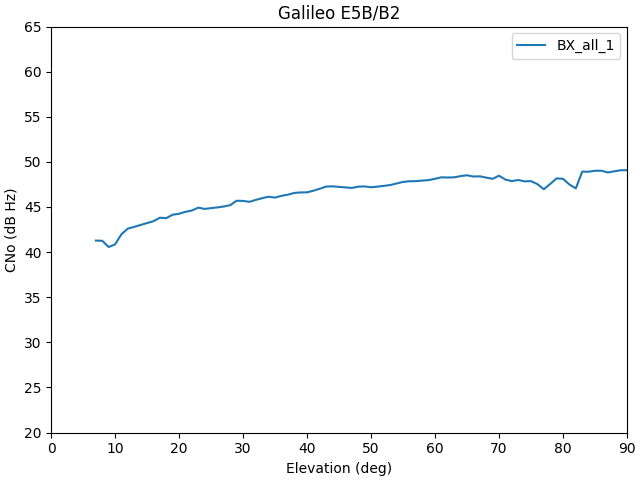

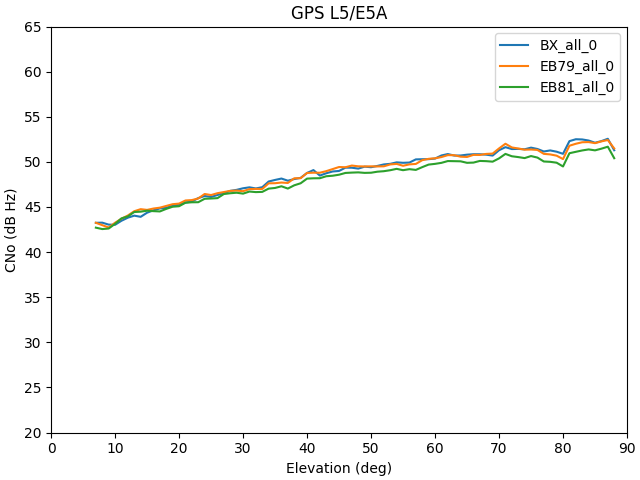

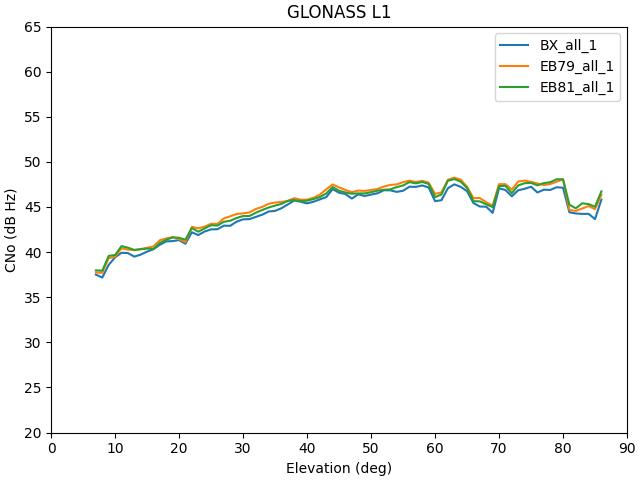

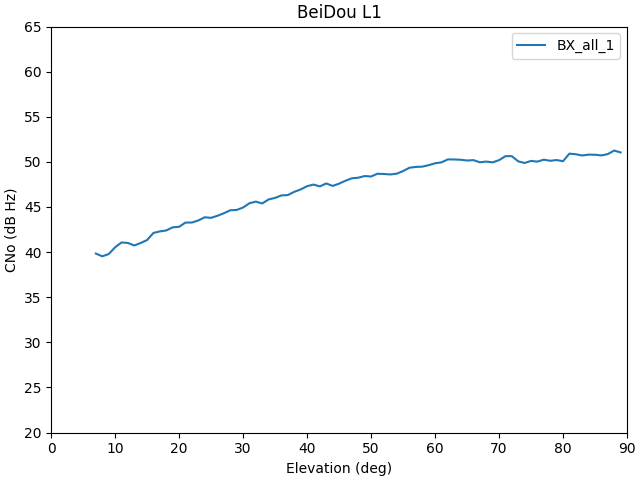

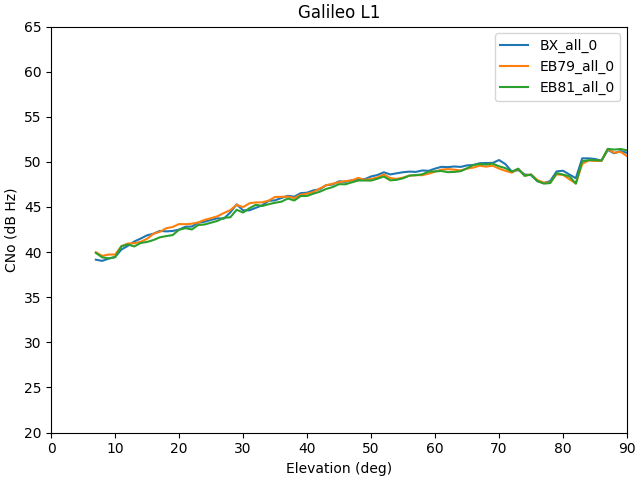

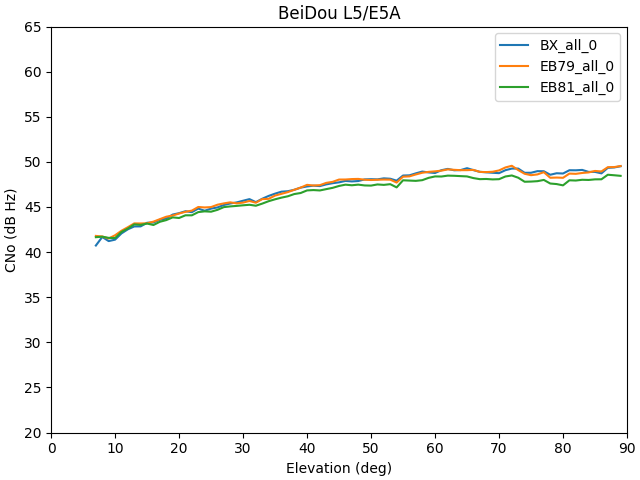

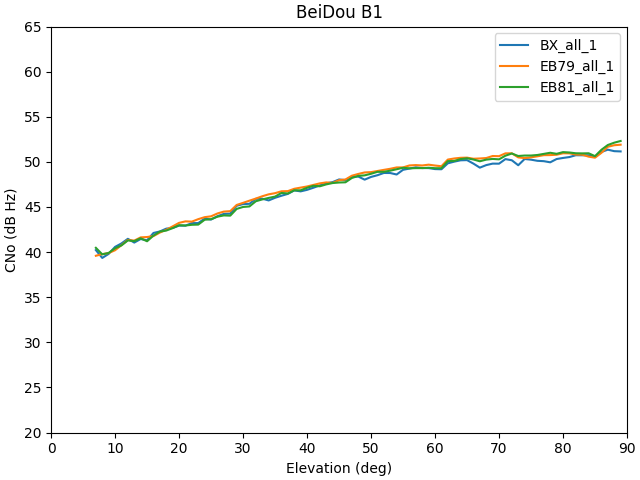

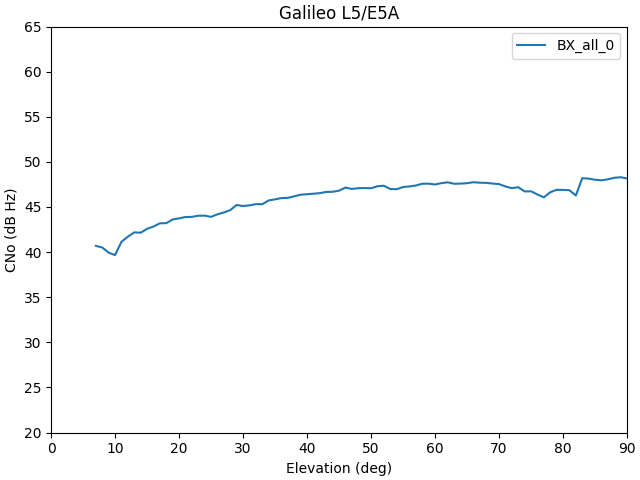

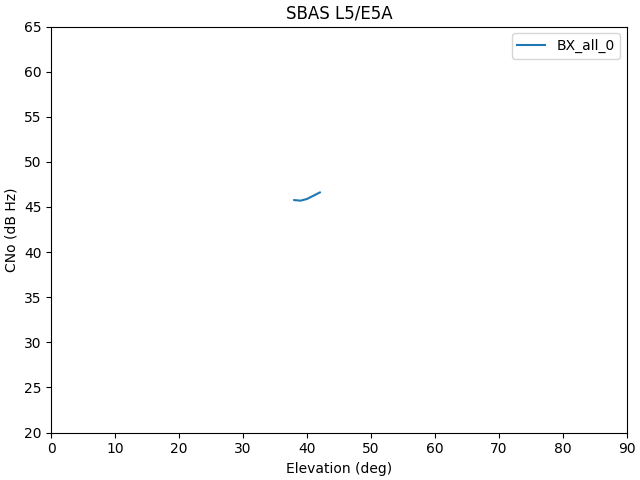

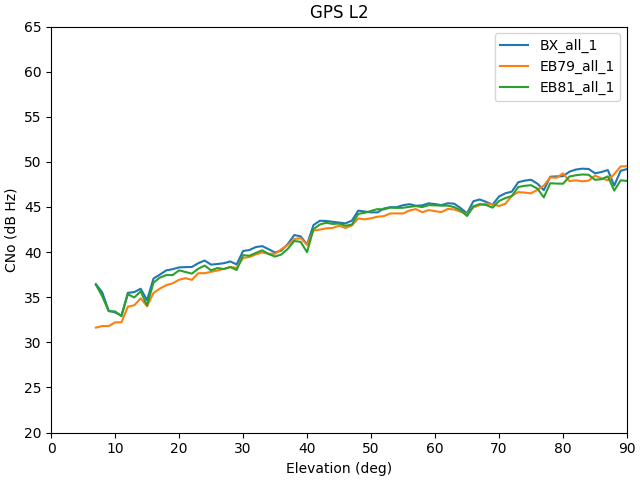

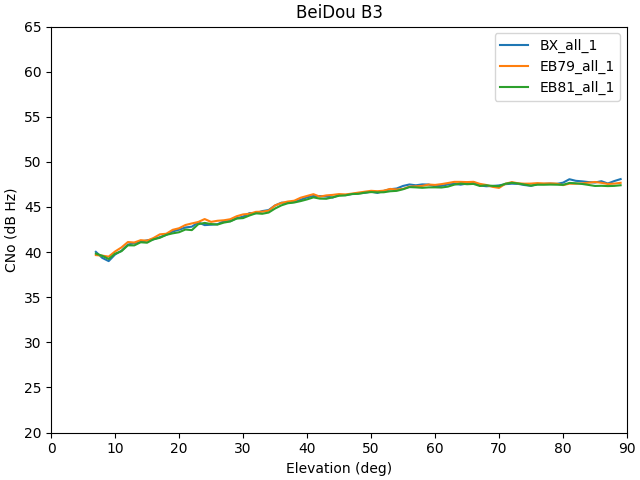

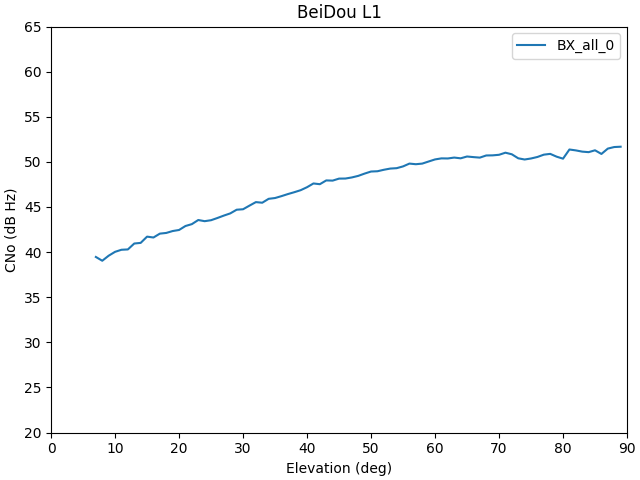

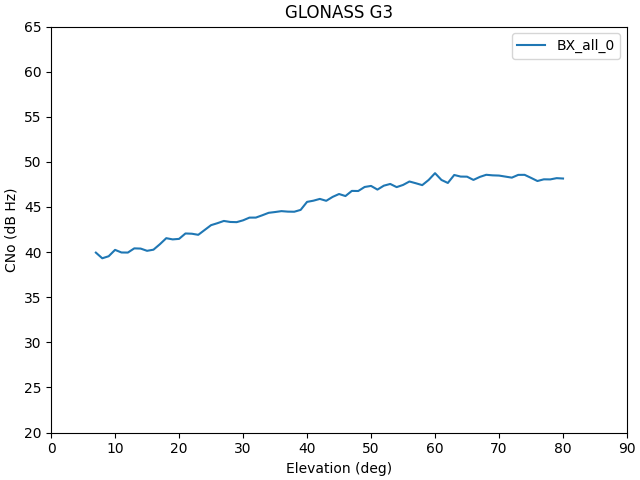

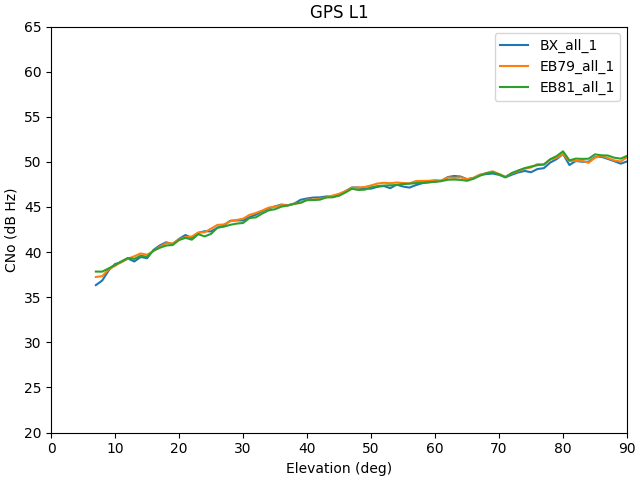

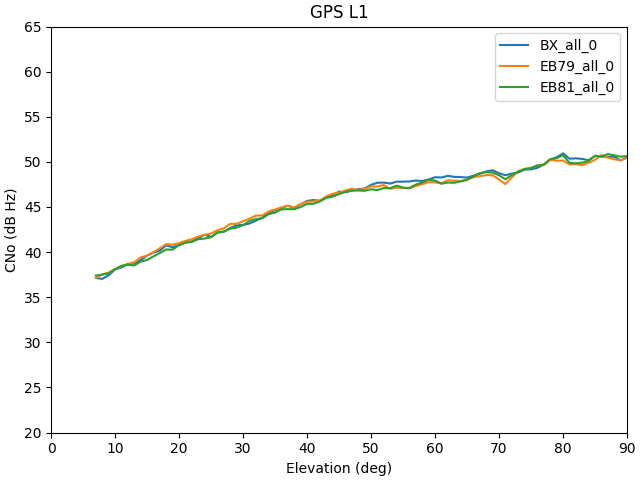

Mean Elevation Plots

Antenna 0

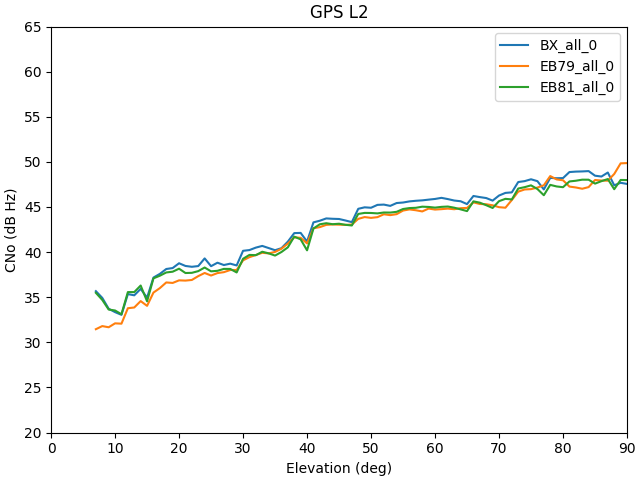

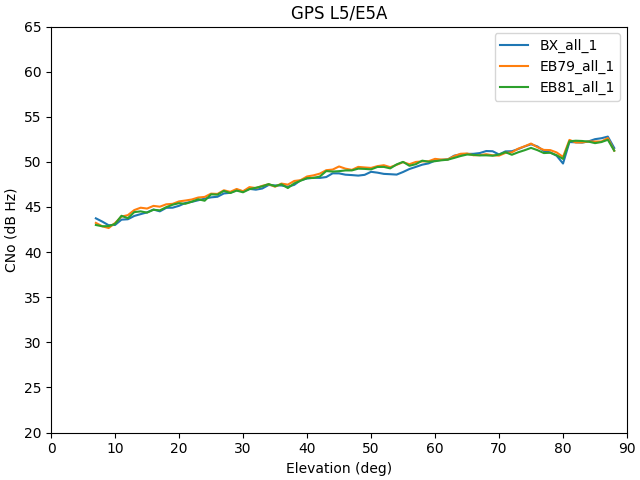

GPS

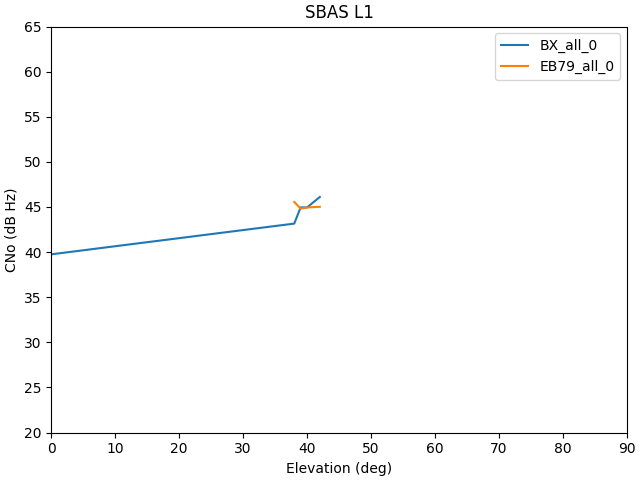

SBAS

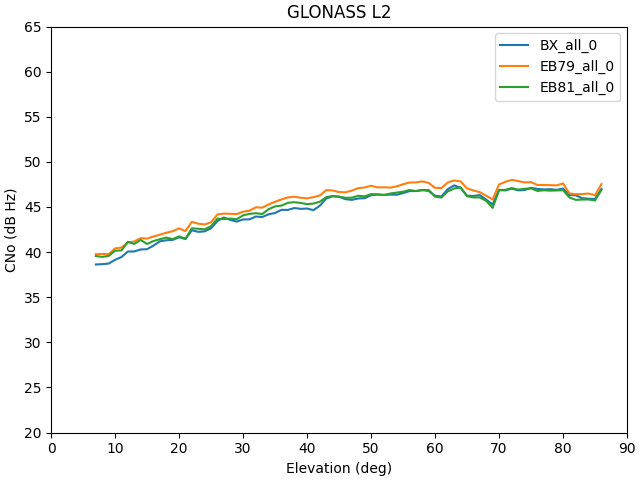

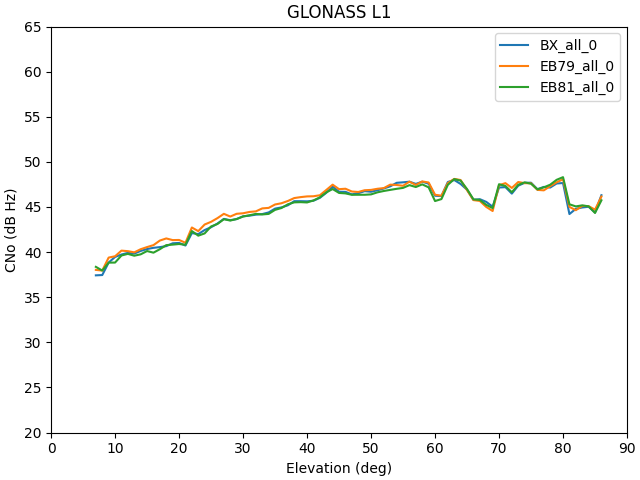

GLONASS

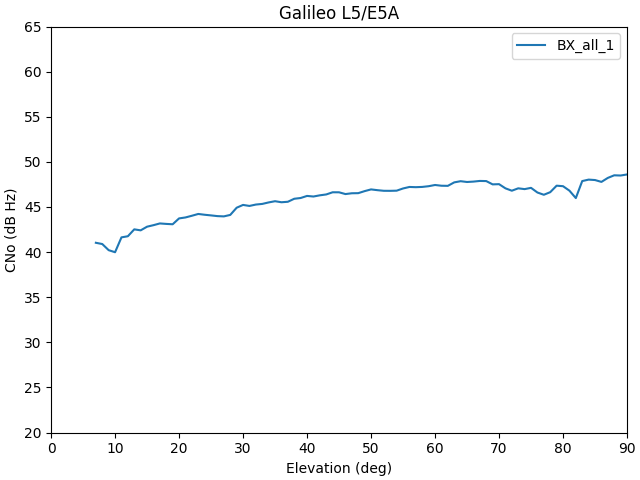

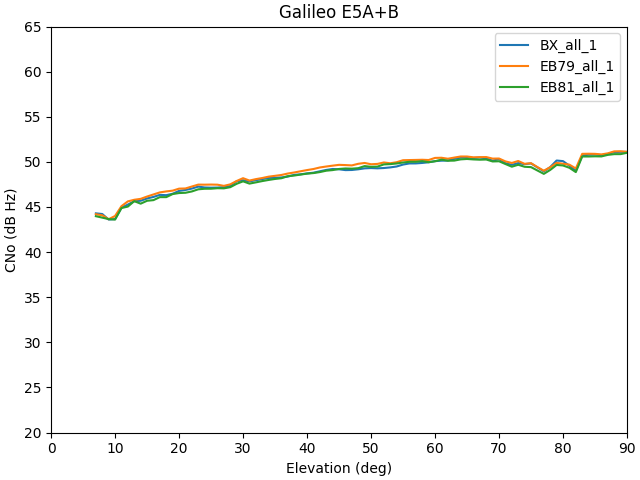

Galileo

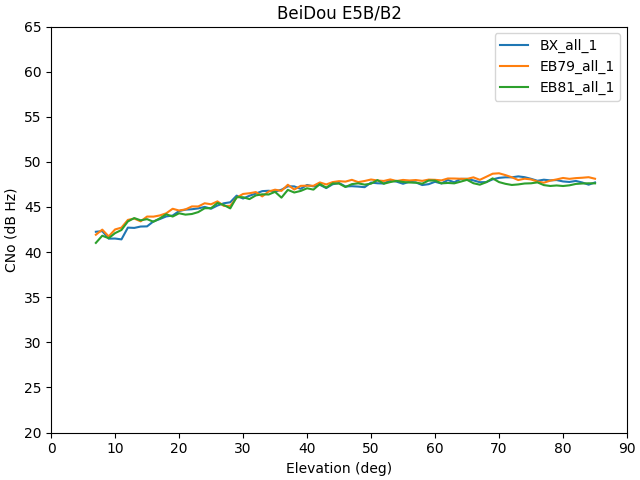

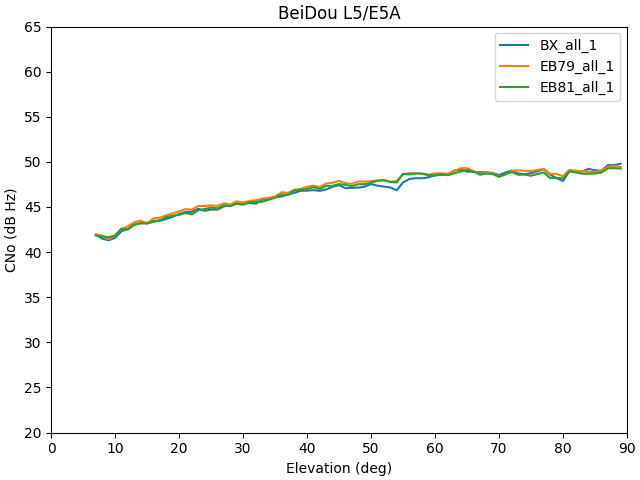

BeiDou

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_all_0: 1558.5
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 9 1,559
0 GLONASS L1 1 9 1,543
0 GLONASS L1 0 3 1,374
0 GLONASS L1 0 2 1,303
0 GLONASS L1 1 3 1,270
0 GPS L1 0 2 1,219
0 GPS L1 0 26 1,215
0 GLONASS L1 1 2 1,163
0 GLONASS L1 0 14 1,136
0 BeiDou L1 20 37 1,129
EB79_all_0: 1236.9
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 8 1,237
0 BeiDou B1 26 42 1,214
0 GLONASS L1 0 18 1,207
0 GLONASS L1 0 6 1,183
0 GLONASS L1 0 9 1,181
0 BeiDou B1 26 36 1,169
0 GLONASS L1 0 13 1,161
0 GPS L2 2 3 1,139
0 Galileo E5A+B 14 13 1,129
0 BeiDou B1 26 21 1,119
EB81_all_0: 2077.2
Antenna SVType Freq Track SV osc_factor
0 GLONASS L1 0 14 2,077
0 GPS L1 0 6 1,491
0 GPS L1 0 11 1,357
0 GPS L1 0 8 1,328
0 GPS L2 2 19 1,327
0 GLONASS L1 0 22 1,265
0 GLONASS L1 0 11 1,237
0 GPS L1 0 28 1,233
0 GLONASS L1 0 2 1,186
0 GLONASS L1 0 3 1,176
BX_all_1: 1759.8
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 11 1,760
1 GLONASS L1 0 9 1,617
1 GLONASS L1 0 23 1,602
1 GLONASS L1 0 14 1,576
1 GLONASS L1 1 14 1,548
1 GLONASS L1 1 11 1,534
1 GLONASS L1 0 7 1,494
1 GPS L1 0 22 1,490
1 Galileo E6 36 36 1,481
1 GLONASS L1 1 9 1,470
EB79_all_1: 1751.5
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 14 1,751
1 GLONASS L1 0 11 1,529
1 GLONASS L1 0 2 1,509
1 GLONASS L1 0 4 1,401
1 GPS L1 0 3 1,384
1 GPS L2 2 3 1,332
1 GLONASS L1 0 5 1,247
1 GLONASS L1 0 9 1,177
1 GPS L1 0 17 1,153
1 GLONASS L1 0 7 1,144
EB81_all_1: 2190.5
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 9 2,191
1 GLONASS L1 0 11 2,020
1 GLONASS L1 0 14 1,963
1 GLONASS L1 0 4 1,623
1 GLONASS L1 0 5 1,586
1 GLONASS L1 0 15 1,521
1 BeiDou B1 26 28 1,317
1 GPS L1 0 9 1,274
1 GLONASS L1 0 7 1,253
1 GLONASS L1 0 2 1,243

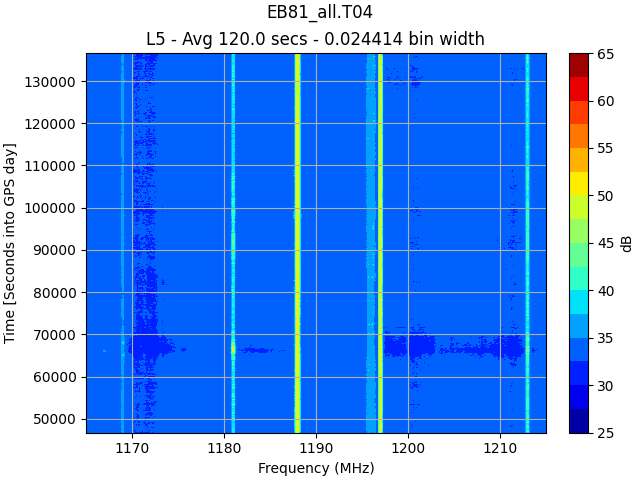

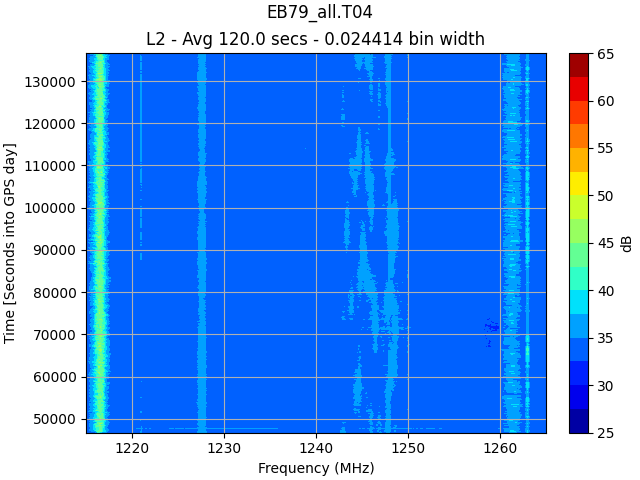

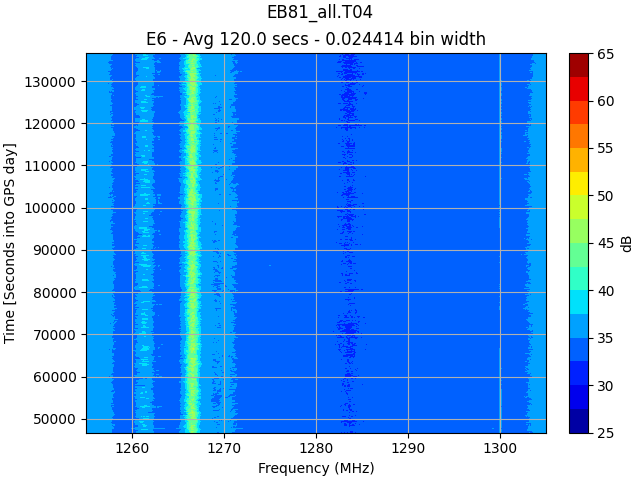

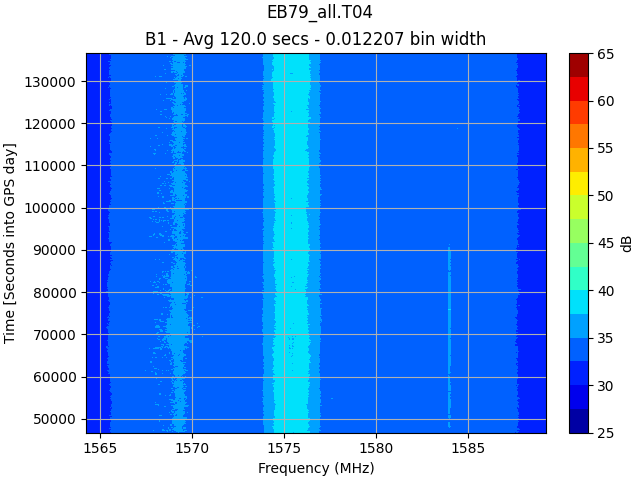

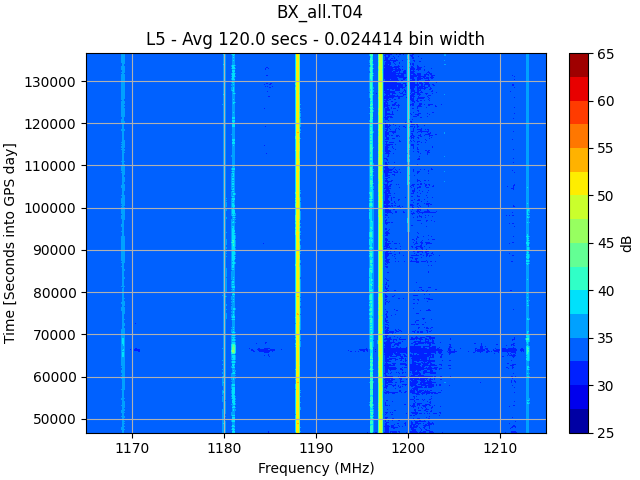

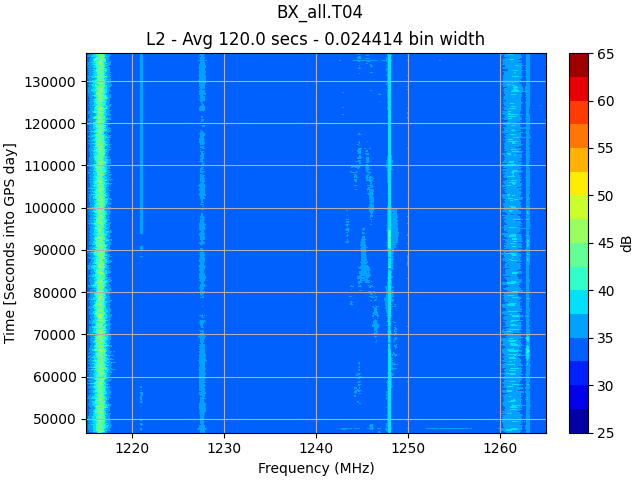

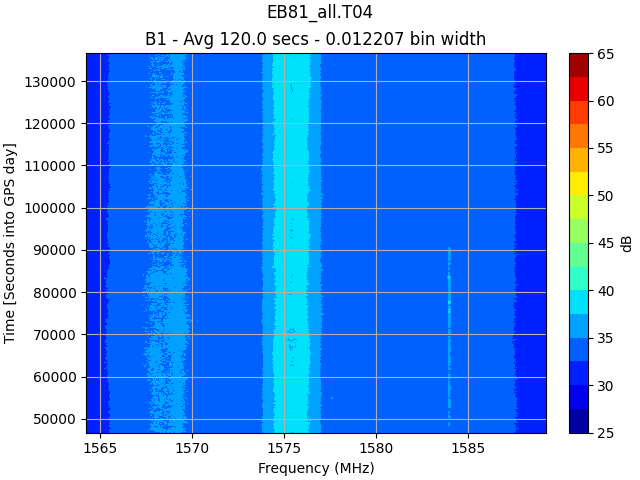

FFT Plots

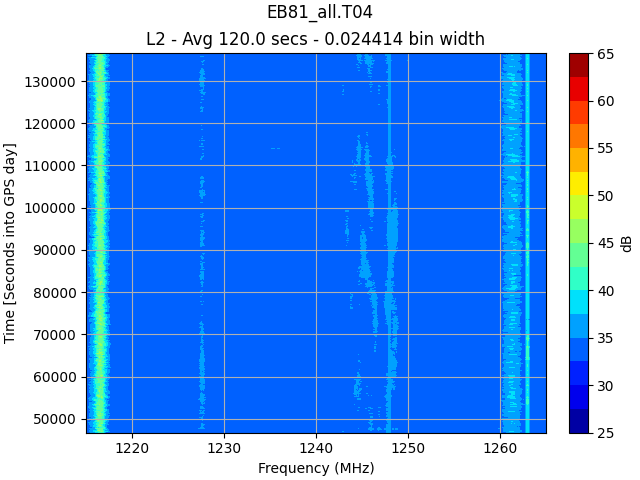

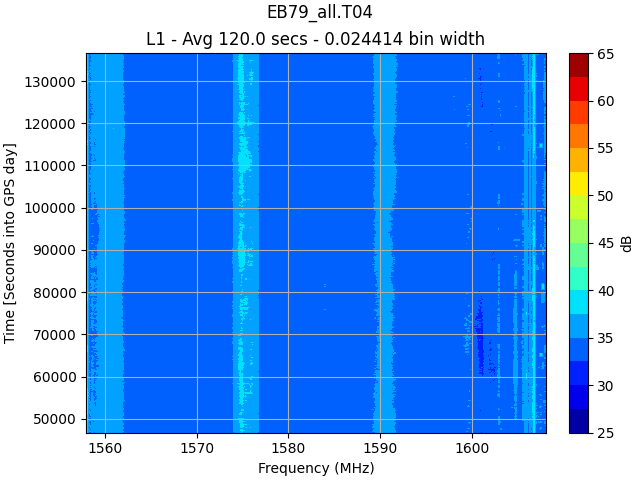

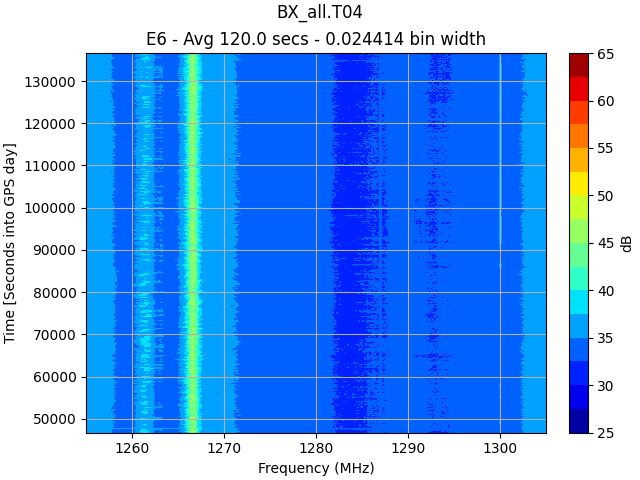

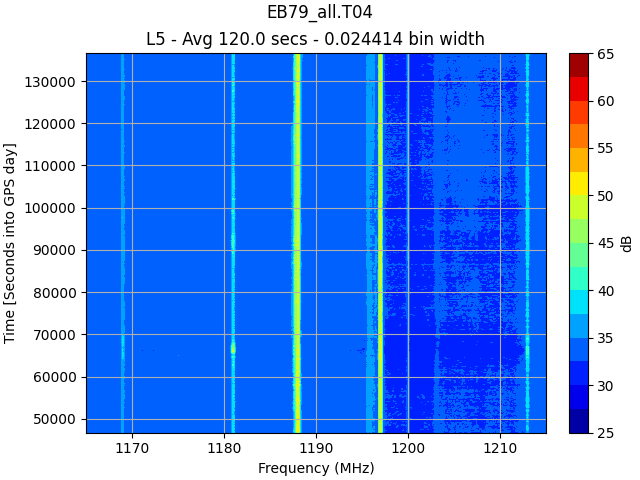

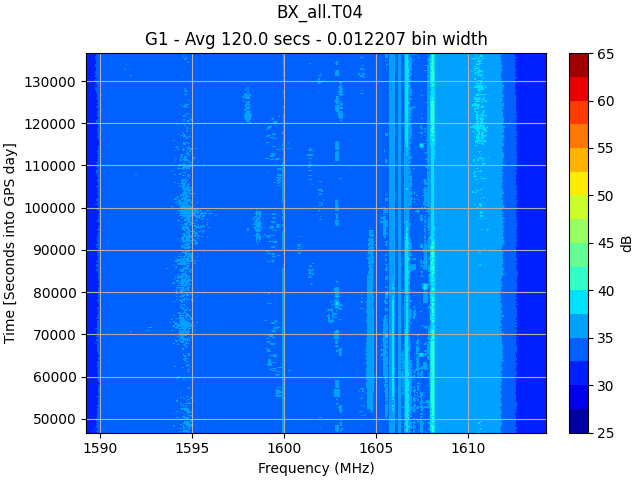

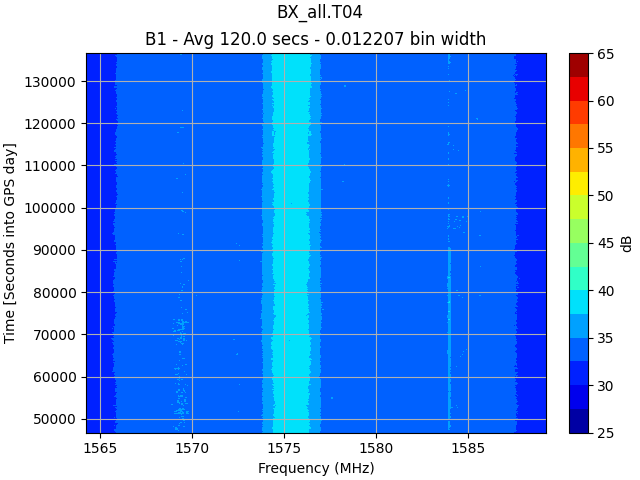

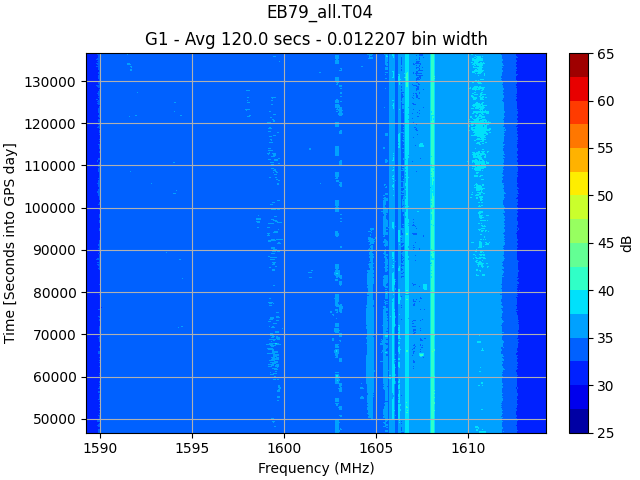

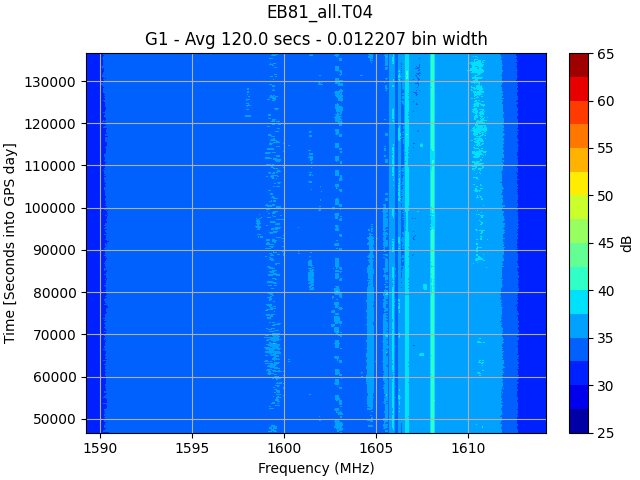

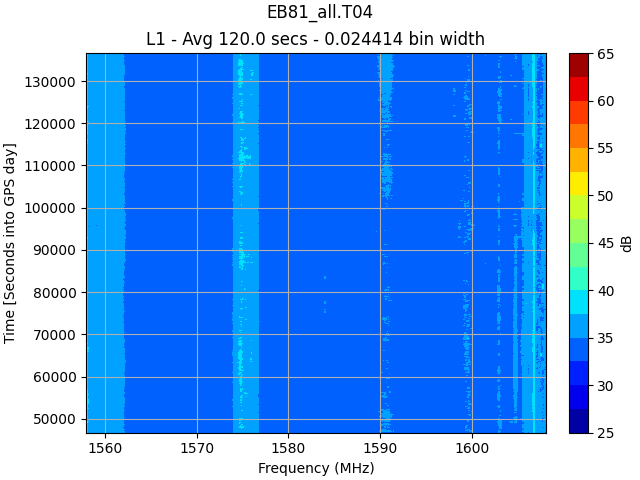

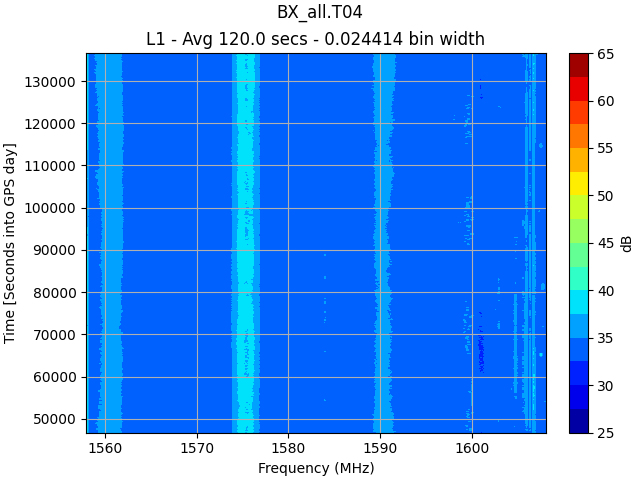

L1 L2 L5 E6 G1 B1
BX
EB79
EB81
