REF File: 240808_ch3/BX_all.T04
DUT File: 240808_ch3/EB81_all.T04

Comments


CH3

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 774039 44.1 44.7 4.3 12.6 54.5 41.9 37.0 90.0
GPS L2 CM+CL 585354 44.2 44.6 3.4 23.3 52.3 29.0 38.4 90.0
GPS L2 E 187225 30.3 31.1 6.4 12.6 43.8 31.2 32.9 77.0
GPS L5/E5A I+Q 427871 47.3 47.3 2.9 22.4 54.0 31.6 37.7 88.0
GLONASS L1 CA 595755 44.2 45.2 5.0 16.9 54.4 37.5 35.9 90.0
GLONASS L1 P 594532 42.6 43.6 5.0 16.8 52.3 35.5 35.9 90.0
GLONASS L2 CA 505112 44.5 45.1 3.3 12.9 51.3 38.4 36.5 89.0
GLONASS L2 P 505004 42.9 43.5 3.3 10.4 49.3 38.9 36.5 89.0
GLONASS G3 PD 52282 44.6 45.4 2.8 35.1 50.2 15.1 40.1 76.0
Galileo L1 MBOC-PD 597244 45.2 45.5 3.9 11.3 53.8 42.5 37.4 88.0
Galileo L5/E5A BPSK(10)-PD 597239 44.7 44.9 2.7 24.0 50.5 26.5 37.4 88.0
Galileo E5B/B2 BPSK(10)-PD 597236 45.4 45.6 2.8 20.6 51.3 30.7 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597240 47.6 47.8 2.4 36.2 52.9 16.7 37.4 88.0
Galileo E6 BPSK(5)-PD 597158 46.8 47.0 3.5 26.1 53.4 27.3 37.4 88.0
BeiDou L1 BOC-PD 576417 45.6 46.2 3.9 23.7 53.2 29.5 37.0 87.0
BeiDou L5/E5A I+Q 576418 45.8 45.9 2.7 33.0 52.0 19.0 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51405 45.7 46.2 2.1 34.9 49.8 14.9 42.1 86.0
BeiDou B1 BPSK(2)-B1 627844 45.6 46.0 3.7 18.3 53.8 35.5 37.4 87.0
BeiDou B3 BPSK(10)-B3 627775 44.4 44.9 3.0 20.6 50.3 29.7 37.4 87.0
start/stop time: 314,181 397,088
Total time: 82,907.0 seconds
Total time: 1,381.783 minutes
Total time: 23.030 hours
Total Samples: 9,673,150
Avg Samples/sec: 116.7

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 314181.154
Stop Time : 396000.361
Total Hours : 22.7275575
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 773858 44.0 44.5 4.1 0.8 55.2 54.4 37.0 90.0
GPS L2 CM+CL 585348 43.7 44.1 3.4 20.3 51.3 31.0 38.4 90.0
GPS L2 E 186729 29.8 30.3 6.2 12.6 43.6 31.0 33.0 77.0
GPS L5/E5A I+Q 427907 47.4 47.5 2.9 22.1 53.7 31.6 37.7 88.0
GLONASS L1 CA 595576 43.7 44.5 5.0 11.7 54.1 42.4 35.9 90.0
GLONASS L2 CA 505266 44.3 45.0 3.2 10.6 50.9 40.3 36.5 89.0
Galileo L1 MBOC-PD 597167 45.2 45.4 3.8 0.0 53.5 53.5 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597188 47.7 47.8 2.4 34.8 52.4 17.6 37.4 88.0
BeiDou L5/E5A I+Q 576505 45.8 46.0 2.7 20.9 51.1 30.2 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51411 45.6 46.3 2.2 33.8 49.6 15.8 42.1 86.0
BeiDou B1 BPSK(2)-B1 627917 45.7 46.0 3.8 19.6 54.3 34.7 37.4 87.0
BeiDou B3 BPSK(10)-B3 627847 44.2 44.7 3.0 20.1 50.2 30.1 37.4 87.0
start/stop time: 314,188 397,095
Total time: 82,907.0 seconds
Total time: 1,381.783 minutes
Total time: 23.030 hours
Total Samples: 6,152,719
Avg Samples/sec: 74.2

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 314188.111
Stop Time : 396940.96
Total Hours : 22.986902500000014
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 773396 +0.0 +0.1 +2.1 -29.8 +36.2 +66.0 +37.1 +90.0
GPS L2 CM+CL 584904 +0.4 +0.5 +1.5 -14.6 +12.6 +27.2 +38.4 +90.0
GPS L2 E 185852 +0.5 +0.5 +2.0 -9.5 +10.4 +19.9 +33.1 +77.0
GPS L5/E5A I+Q 427541 -0.1 -0.1 +1.4 -21.0 +10.6 +31.6 +37.7 +88.0
GLONASS L1 CA 594648 +0.5 +0.5 +1.9 -21.1 +18.2 +39.3 +35.9 +90.0
GLONASS L2 CA 504581 +0.2 +0.3 +1.6 -22.5 +13.4 +35.9 +36.5 +87.0
Galileo L1 MBOC-PD 596825 -0.0 +0.0 +1.7 -12.8 +21.0 +33.8 +37.4 +88.0
Galileo E5A+B AltBOC-Comp-PD 596846 -0.1 +0.0 +1.0 -10.3 +8.2 +18.5 +37.4 +88.0
BeiDou L5/E5A I+Q 576055 -0.0 +0.0 +1.3 -7.9 +21.9 +29.8 +37.0 +87.0
BeiDou E5B/B2 BPSK(2)-B2 51379 +0.2 +0.1 +1.3 -7.1 +9.0 +16.1 +42.1 +86.0
BeiDou B1 BPSK(2)-B1 627455 -0.1 -0.1 +1.8 -21.2 +19.6 +40.8 +37.4 +87.0
BeiDou B3 BPSK(10)-B3 627321 +0.2 +0.2 +1.3 -16.9 +16.2 +33.1 +37.4 +87.0
start/stop time: 314,188 397,088
Total time: 82,900.0 seconds
Total time: 1,381.667 minutes
Total time: 23.028 hours
Total Samples: 6,146,803
Avg Samples/sec: 74.1

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.114
Median = 0.100
Std Dev= 1.640

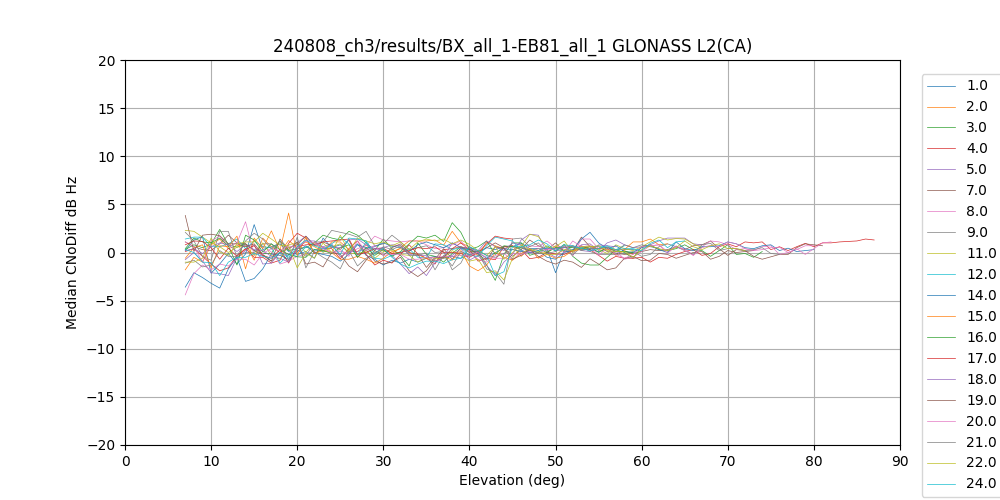

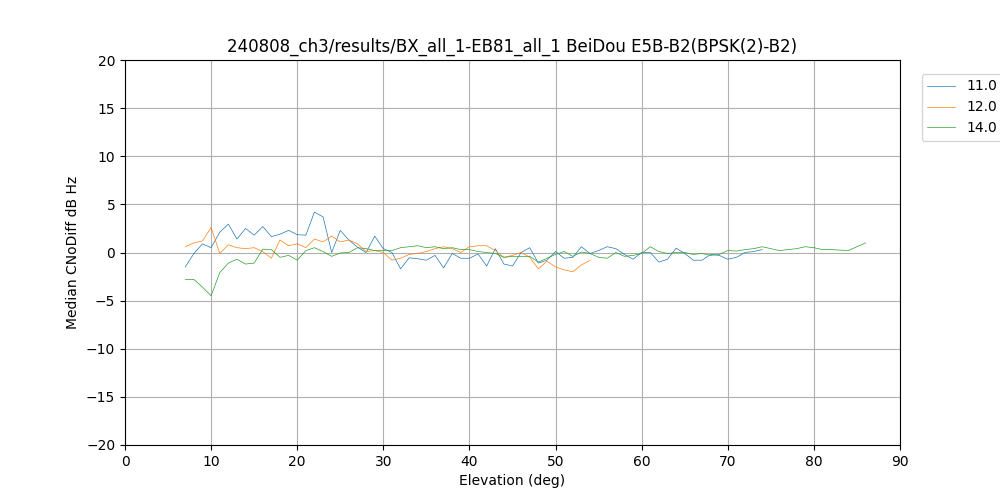

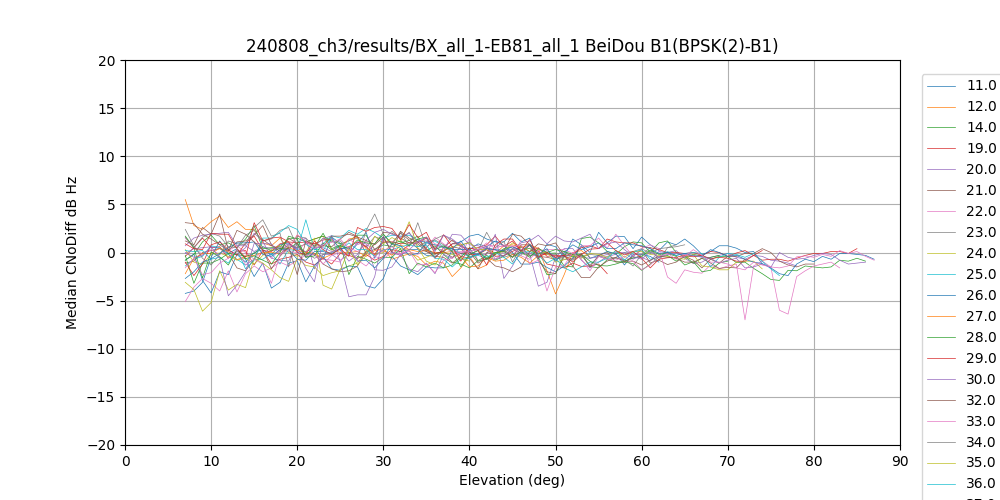

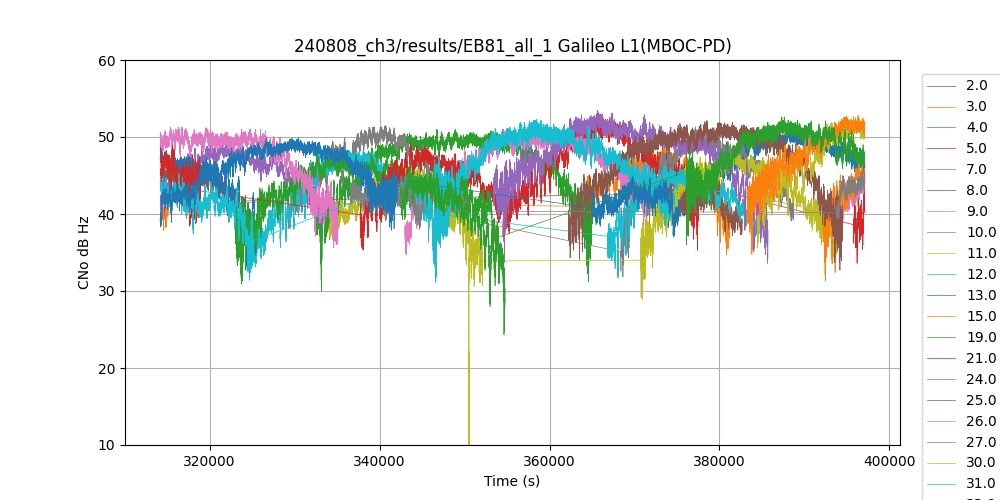

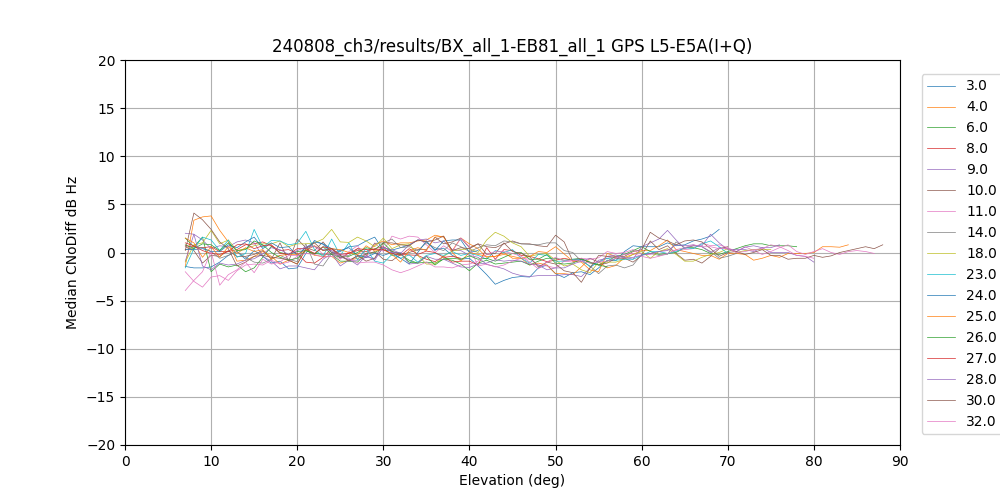

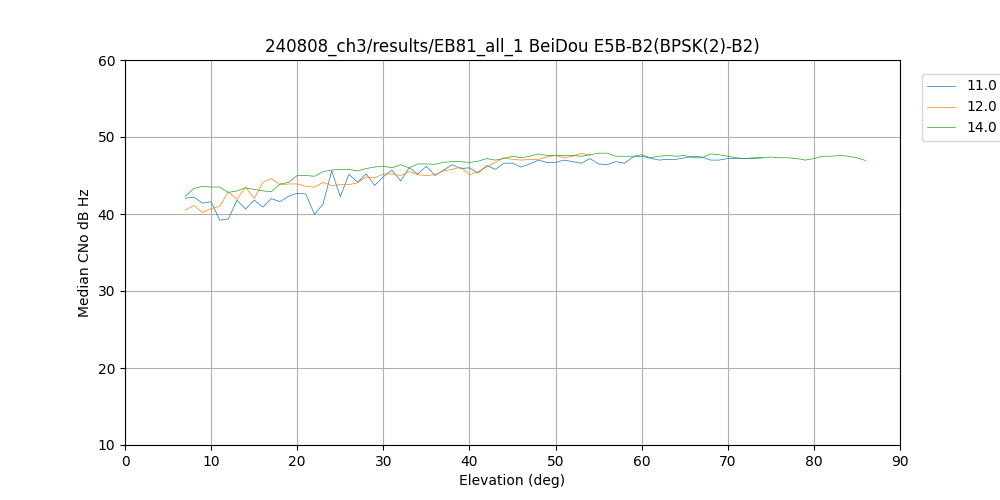

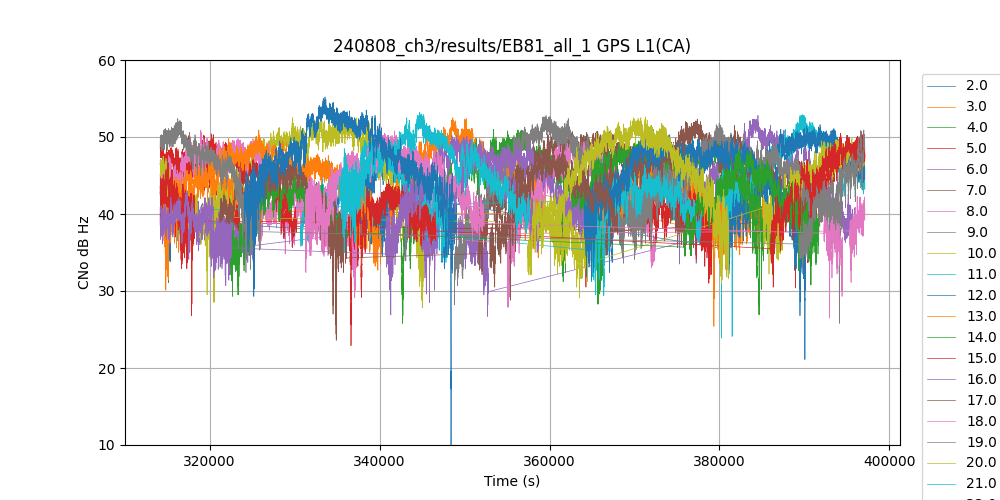

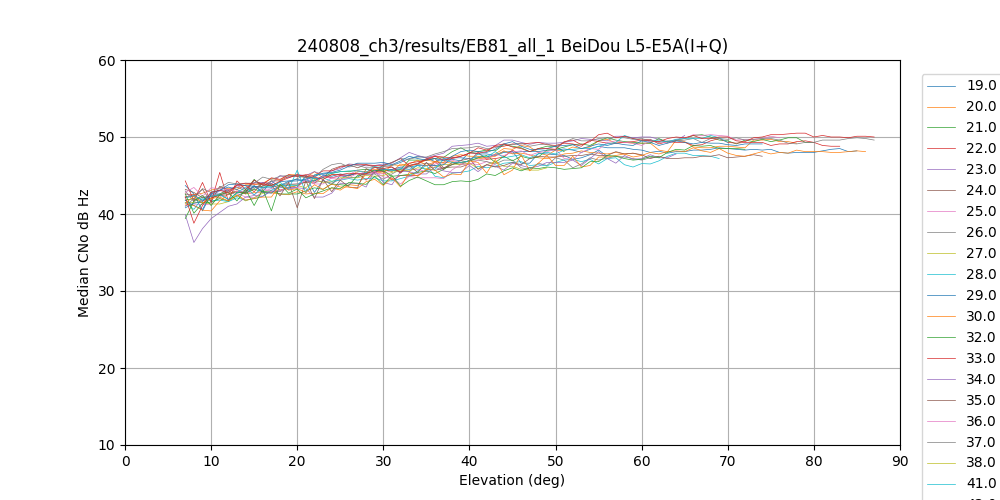

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 42.5 49.2 26.6 271 [73.0, 74.0] [1.0] 30523
3 32.7 0.0 43.5 52.5 26.3 226 [95.0, 92.0] [1.0] 27085
4 45.4 0.0 44.7 51.5 34.8 0 [94.0] [1.0] 23847
5 34.3 0.0 44.5 51.1 20.6 322 [73.0, 74.0, 75.0] [1.0] 19827
6 38.4 0.0 44.2 52.6 20.9 476 [85.0, 89.0] [1.0] 24501
7 45.1 0.0 45.8 52.1 30.1 1 [91.0] [1.0] 25511
8 27.4 0.0 42.6 50.2 26.7 139 [91.0, 93.0] [1.0] 29146
9 44.0 0.0 45.2 52.1 30.0 3 [92.0] [1.0] 21447
10 43.5 0.0 46.7 54.4 12.6 69 [87.0] [1.0] 25774
11 48.2 0.0 46.0 52.1 31.0 159 [92.0, 91.0] [1.0] 20093
12 39.1 0.0 44.4 51.2 33.2 157 [85.0, 91.0, 86.0] [1.0] 20957
13 27.6 0.0 42.7 50.0 17.4 72 [95.0, 76.0] [1.0] 27318
14 44.1 0.0 44.6 51.2 27.7 6 [77.0] [1.0] 25728
15 30.5 0.0 43.4 50.3 29.6 4 [93.0, 85.0] [1.0] 25286
16 31.2 0.0 42.4 50.6 20.8 225 [91.0, 90.0] [1.0] 27076
17 45.7 0.0 46.3 52.3 31.3 0 [94.0] [1.0] 24092
18 47.0 0.0 45.1 51.1 31.1 21 [94.0, 93.0] [1.0] 21725
19 44.7 0.0 45.0 51.9 33.5 0 [95.0] [1.0] 24583
20 31.6 0.0 42.7 50.5 28.3 59 [87.0, 79.0, 82.0] [1.0] 22866
21 26.6 0.0 42.1 50.3 27.1 190 [77.0, 79.0] [1.0] 30225
22 44.4 0.0 45.1 51.2 19.2 20 [90.0] [1.0] 25995
23 43.5 0.0 44.4 51.6 24.9 60 [88.0] [1.0] 25553
24 25.7 0.0 40.5 47.9 14.4 303 [84.0] [1.0] 29779
25 26.7 0.0 41.3 48.7 21.5 236 [80.0, 92.0, 87.0] [1.0] 25298
26 29.1 0.0 42.7 50.9 29.4 117 [90.0, 72.0] [1.0] 26641
27 26.1 0.0 41.6 49.0 25.1 320 [85.0, 84.0] [1.0] 29925
28 39.7 0.0 44.3 51.2 25.1 450 [82.0, 92.0] [1.0] 23148
29 42.5 0.0 45.3 51.8 31.9 60 [72.0, 74.0] [1.0] 19496
30 45.9 0.0 45.9 52.4 32.7 0 [82.0] [1.0] 23655
31 45.3 0.0 46.5 52.9 33.3 0 [83.0] [1.0] 22318
32 45.3 0.0 47.6 54.5 29.4 10 [80.0] [1.0] 24621
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.2 49.0 31.4 165 [73.0, 75.0] [1.0] 30483
3 32.7 0.0 43.7 52.5 33.5 182 [93.0, 92.0] [1.0] 27048
4 45.5 0.0 44.2 51.0 25.8 85 [74.0] [1.0] 23783
5 34.3 0.0 44.1 50.7 30.4 169 [73.0, 75.0] [1.0] 19816
6 38.4 0.0 43.8 52.8 26.7 230 [89.0, 86.0] [1.0] 24465
7 45.1 0.0 45.6 50.7 32.1 0 [88.0] [1.0] 25503
8 27.4 0.0 41.9 50.0 27.9 74 [87.0, 84.0] [1.0] 29161
9 44.0 0.0 45.0 52.8 28.2 10 [91.0] [1.0] 21433
10 43.5 0.0 46.5 52.9 27.8 1 [94.0] [1.0] 25779
11 48.2 0.0 45.9 52.9 23.9 86 [88.0, 91.0] [1.0] 20095
12 39.1 0.0 44.9 51.6 31.1 419 [84.0, 87.0, 88.0] [1.0] 20926
13 27.6 0.0 43.3 49.0 25.4 172 [95.0, 77.0] [1.0] 27260
14 44.2 0.0 44.9 51.0 26.9 37 [79.0] [1.0] 25717
15 30.5 0.0 43.4 50.4 31.0 65 [93.0, 89.0] [1.0] 25274
16 31.2 0.0 42.1 49.6 28.5 184 [87.0, 90.0] [1.0] 27079
17 45.7 0.0 46.0 52.3 34.6 0 [94.0] [1.0] 24120
18 47.0 0.0 44.9 50.9 31.1 241 [91.0, 87.0] [1.0] 21723
19 44.6 0.0 45.0 51.8 25.8 28 [93.0] [1.0] 24612
20 31.7 0.0 42.2 49.8 29.1 393 [81.0, 80.0, 95.0] [1.0] 22810
21 26.6 0.0 42.7 49.8 29.4 186 [77.0, 92.0] [1.0] 30278
22 44.4 0.0 45.0 50.3 21.1 13 [90.0] [1.0] 25998
23 43.5 0.0 44.7 50.9 30.1 1 [82.0] [1.0] 25549
24 25.6 0.0 41.3 48.4 29.3 124 [83.0, 84.0] [1.0] 29803
25 26.7 0.0 42.1 50.5 22.9 506 [79.0, 91.0, 85.0] [1.0] 25319
26 29.1 0.0 42.2 50.5 26.9 219 [89.0, 82.0] [1.0] 26634
27 26.1 0.0 42.4 48.7 23.6 78 [84.0, 85.0] [1.0] 29915
28 39.7 0.0 44.0 50.8 26.5 269 [85.0, 84.0] [1.0] 23209
29 42.5 0.0 44.7 52.4 32.4 37 [72.0, 74.0] [1.0] 19470
30 45.9 0.0 45.4 52.6 31.0 2 [81.0] [1.0] 23652
31 45.3 0.0 46.3 53.2 35.0 0 [95.0] [1.0] 22334
32 45.4 0.0 47.6 55.2 0.8 21 [81.0] [1.0] 24610
DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.7 7.6 -13.0 [73.0, 74.0, 75.0] 30483
3 32.7 -0.2 7.4 -10.0 [95.0, 93.0, 92.0] 27041
4 45.5 0.5 12.8 -4.4 [94.0, 74.0] 23783
5 34.3 0.3 10.5 -15.7 [73.0, 74.0, 75.0] 19808
6 38.5 0.4 8.9 -12.0 [85.0, 89.0, 86.0] 24435
7 45.1 0.2 8.0 -6.5 [91.0, 88.0] 25503
8 27.4 0.7 10.4 -10.3 [91.0, 87.0, 93.0, 84.0] 29123
9 44.0 0.1 9.6 -5.9 [92.0, 91.0] 21432
10 43.5 0.3 11.4 -29.8 [87.0, 94.0] 25774
11 48.2 0.1 20.0 -7.6 [92.0, 88.0, 91.0] 20086
12 39.1 -0.4 6.2 -6.2 [85.0, 84.0, 91.0, 87.0, 86.0, 88.0] 20918
13 27.6 -0.6 8.5 -17.2 [95.0, 76.0, 77.0] 27255
14 44.2 -0.2 11.3 -10.9 [77.0, 79.0] 25717
15 30.5 0.1 6.8 -10.7 [93.0, 85.0, 89.0] 25267
16 31.2 0.3 10.8 -15.7 [91.0, 87.0, 90.0] 27066
17 45.7 0.3 5.3 -9.4 [94.0] 24090
18 47.1 0.2 7.2 -10.7 [94.0, 91.0, 93.0, 87.0] 21695
19 44.7 0.0 10.6 -6.0 [95.0, 93.0] 24583
20 31.7 0.5 8.6 -6.5 [87.0, 81.0, 79.0, 80.0, 82.0, 95.0] 22801
21 26.6 -0.6 10.1 -10.8 [77.0, 79.0, 92.0] 30222
22 44.4 0.1 16.4 -16.9 [90.0] 25995
23 43.5 -0.2 7.2 -15.4 [88.0, 82.0] 25549
24 25.7 -0.8 8.2 -19.6 [84.0, 83.0] 29764
25 26.7 -0.8 10.9 -13.2 [80.0, 79.0, 92.0, 91.0, 87.0, 85.0] 25286
26 29.1 0.5 10.1 -6.4 [90.0, 89.0, 72.0, 82.0] 26633
27 26.1 -0.7 10.8 -13.3 [85.0, 84.0] 29902
28 39.7 0.3 8.1 -12.3 [82.0, 85.0, 92.0, 84.0] 23144
29 42.5 0.6 11.4 -4.5 [72.0, 74.0] 19463
30 45.9 0.5 9.9 -4.3 [82.0, 81.0] 23651
31 45.3 0.2 5.2 -8.0 [83.0, 95.0] 22318
32 45.4 -0.0 36.2 -10.9 [80.0, 81.0] 24609
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.3 38.9 14.8 268 [73.0, 74.0] [1.0] 30523
13 27.8 0.0 28.2 36.2 12.6 226 [95.0, 76.0] [1.0] 26993
16 31.3 0.0 28.5 40.1 14.8 171 [91.0, 90.0] [1.0] 26925
19 44.8 0.0 34.9 43.8 15.6 1 [95.0] [1.0] 24517
20 32.2 0.0 29.2 40.7 13.9 218 [87.0, 79.0, 82.0] [1.0] 22275
21 26.7 0.0 28.2 38.1 14.8 173 [77.0, 79.0] [1.0] 30032
22 44.5 0.0 33.0 41.5 14.8 5 [90.0] [1.0] 25960
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 30.0 36.5 17.4 6 [73.0, 75.0] [1.0] 30483
13 27.6 0.0 27.7 35.5 15.6 250 [95.0, 77.0] [1.0] 27253
16 32.0 0.0 27.9 39.2 12.6 133 [87.0, 90.0] [1.0] 26150
19 44.8 0.0 35.1 43.6 12.6 7 [93.0] [1.0] 24492
20 32.4 0.0 28.5 40.0 13.9 332 [81.0, 80.0, 95.0] [1.0] 22115
21 26.6 0.0 27.8 37.3 15.6 152 [77.0, 92.0] [1.0] 30278
22 44.5 0.0 32.3 40.2 13.9 10 [90.0] [1.0] 25958
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.3 8.8 -9.5 [73.0, 74.0, 75.0] 30483
13 27.8 0.4 6.5 -7.8 [95.0, 76.0, 77.0] 26930
16 32.1 0.9 7.2 -7.4 [91.0, 87.0, 90.0] 26006
19 44.9 -0.1 10.4 -9.4 [95.0, 93.0] 24446
20 32.5 0.8 9.1 -6.9 [87.0, 81.0, 79.0, 80.0, 82.0, 95.0] 22038
21 26.7 0.3 9.8 -8.4 [77.0, 79.0, 92.0] 30029
22 44.5 0.7 7.1 -7.5 [90.0] 25920
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 49.3 25.9 41 [95.0, 92.0] [1.0] 27080
4 45.4 0.0 45.8 52.0 31.6 0 [94.0] [1.0] 23847
5 34.3 0.0 43.3 48.8 27.1 262 [73.0, 74.0, 75.0] [1.0] 19827
6 38.4 0.0 44.8 49.8 30.7 167 [85.0, 89.0] [1.0] 24501
7 45.1 0.0 44.1 49.5 33.9 0 [91.0] [1.0] 25511
8 27.4 0.0 43.1 48.9 30.9 73 [91.0, 93.0] [1.0] 29146
9 44.0 0.0 43.9 49.2 28.3 0 [92.0] [1.0] 21447
10 43.5 0.0 44.4 48.8 27.8 0 [87.0] [1.0] 25774
11 48.2 0.0 46.7 52.3 33.5 40 [92.0, 91.0] [1.0] 20093
12 39.1 0.0 43.3 48.7 32.4 199 [85.0, 91.0, 86.0] [1.0] 20957
14 44.1 0.0 46.7 52.0 35.6 0 [77.0] [1.0] 25728
15 30.5 0.0 42.5 47.8 29.7 90 [93.0, 85.0] [1.0] 25286
17 45.7 0.0 44.5 50.5 30.3 0 [94.0] [1.0] 24092
18 47.0 0.0 46.8 51.8 37.6 211 [94.0, 93.0] [1.0] 21725
23 43.5 0.0 46.4 50.9 35.4 0 [88.0] [1.0] 25553
24 25.7 0.0 42.7 47.6 33.5 7 [84.0] [1.0] 29724
25 26.7 0.0 41.4 47.3 26.5 389 [80.0, 92.0, 87.0] [1.0] 25298
26 29.1 0.0 42.3 47.4 28.1 247 [90.0, 72.0] [1.0] 26641
27 26.1 0.0 42.8 47.7 23.3 45 [85.0, 84.0] [1.0] 29925
28 39.8 0.0 46.1 51.0 32.1 18 [82.0, 92.0] [1.0] 23111
29 42.5 0.0 43.6 50.3 29.9 122 [72.0, 74.0] [1.0] 19494
30 45.9 0.0 43.8 48.8 31.6 0 [82.0] [1.0] 23655
31 45.3 0.0 44.6 50.3 33.3 0 [83.0] [1.0] 22318
32 45.3 0.0 45.0 50.5 24.2 49 [80.0] [1.0] 24621
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.8 48.3 34.5 159 [93.0, 92.0] [1.0] 27048
4 45.5 0.0 45.5 51.2 33.5 0 [74.0] [1.0] 23783
5 34.3 0.0 43.1 48.4 33.1 10 [73.0, 75.0] [1.0] 19816
6 38.4 0.0 44.5 49.7 34.1 110 [89.0, 86.0] [1.0] 24465
7 45.1 0.0 43.3 48.7 32.3 0 [88.0] [1.0] 25503
8 27.4 0.0 42.2 47.8 32.8 192 [87.0, 84.0] [1.0] 29161
9 44.0 0.0 43.9 48.5 32.9 0 [91.0] [1.0] 21433
10 43.5 0.0 43.8 48.2 33.8 0 [94.0] [1.0] 25779
11 48.2 0.0 46.9 51.3 34.1 230 [88.0, 91.0] [1.0] 20095
12 39.1 0.0 43.0 48.4 31.0 101 [84.0, 87.0, 88.0] [1.0] 20926
14 44.2 0.0 46.2 50.7 36.0 0 [79.0] [1.0] 25717
15 30.5 0.0 41.6 47.0 25.9 111 [93.0, 89.0] [1.0] 25274
17 45.7 0.0 44.5 49.4 33.1 0 [94.0] [1.0] 24120
18 47.0 0.0 46.0 51.0 36.4 35 [91.0, 87.0] [1.0] 21723
23 43.5 0.0 45.7 50.5 31.5 0 [82.0] [1.0] 25549
24 25.6 0.0 41.8 46.6 30.2 199 [83.0, 84.0] [1.0] 29802
25 26.7 0.0 41.3 47.2 25.1 334 [79.0, 91.0, 85.0] [1.0] 25319
26 29.1 0.0 41.8 47.3 29.4 12 [89.0, 82.0] [1.0] 26634
27 26.1 0.0 42.2 46.6 33.2 215 [84.0, 85.0] [1.0] 29915
28 39.7 0.0 45.7 50.7 35.6 51 [85.0, 84.0] [1.0] 23209
29 42.5 0.0 42.9 48.7 29.2 108 [72.0, 74.0] [1.0] 19470
30 45.9 0.0 43.2 47.6 33.2 0 [81.0] [1.0] 23652
31 45.3 0.0 44.7 49.3 35.6 0 [95.0] [1.0] 22334
32 45.3 0.0 44.9 49.0 20.3 47 [81.0] [1.0] 24621

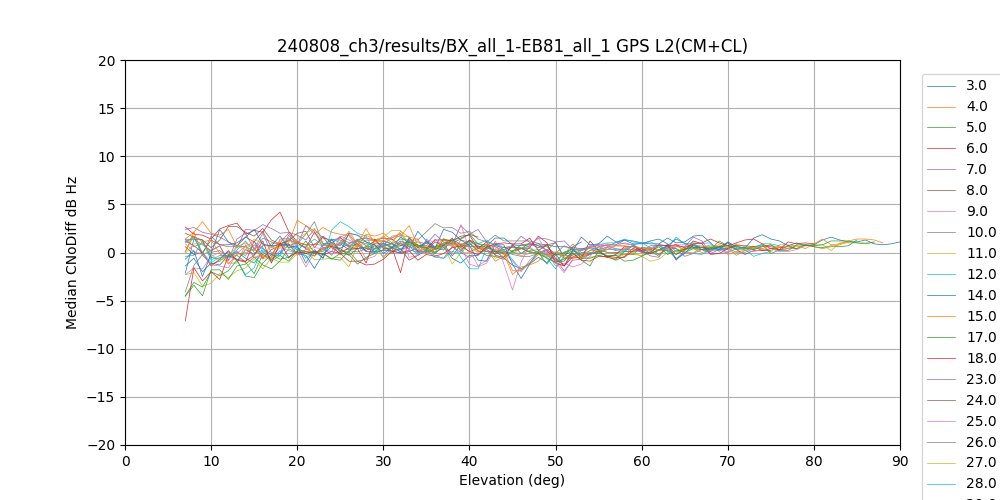

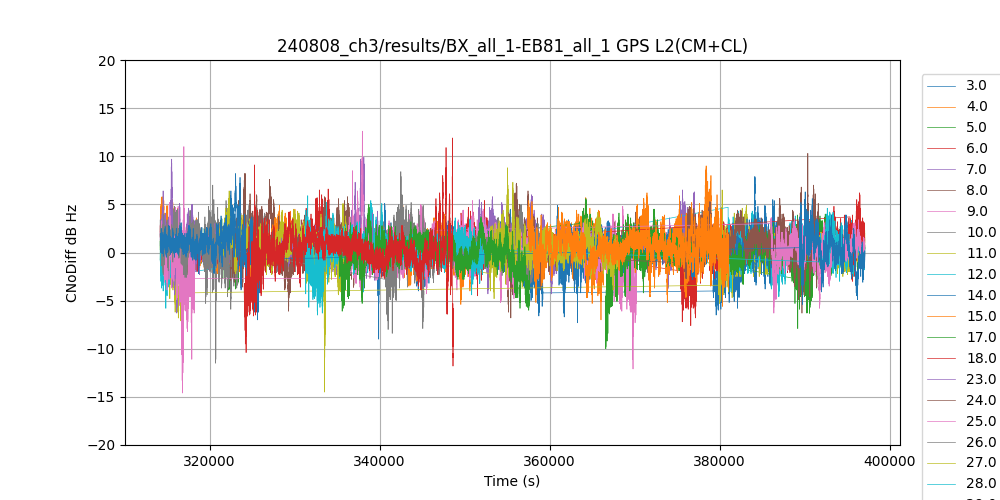

DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.0 5.4 -9.0 [95.0, 93.0, 92.0] 27036
4 45.5 0.4 5.7 -7.0 [94.0, 74.0] 23783
5 34.3 0.3 5.6 -7.9 [73.0, 74.0, 75.0] 19808
6 38.5 0.3 5.4 -7.6 [85.0, 89.0, 86.0] 24435
7 45.1 0.8 6.5 -4.3 [91.0, 88.0] 25503
8 27.4 0.9 7.6 -6.8 [91.0, 87.0, 93.0, 84.0] 29123
9 44.0 0.0 5.4 -12.1 [92.0, 91.0] 21432
10 43.5 0.6 7.0 -11.5 [87.0, 94.0] 25774
11 48.2 -0.2 6.5 -7.1 [92.0, 88.0, 91.0] 20086
12 39.1 0.3 5.4 -5.8 [85.0, 84.0, 91.0, 87.0, 86.0, 88.0] 20918
14 44.2 0.4 7.9 -7.3 [77.0, 79.0] 25717
15 30.5 0.9 9.0 -5.2 [93.0, 85.0, 89.0] 25267
17 45.7 -0.1 4.5 -10.0 [94.0] 24090
18 47.1 0.7 6.6 -3.6 [94.0, 91.0, 93.0, 87.0] 21695
23 43.5 0.7 9.9 -6.3 [88.0, 82.0] 25549
24 25.7 0.9 10.3 -6.3 [84.0, 83.0] 29708
25 26.7 0.1 12.6 -14.6 [80.0, 79.0, 92.0, 91.0, 87.0, 85.0] 25286
26 29.1 0.5 8.4 -8.4 [90.0, 89.0, 72.0, 82.0] 26633
27 26.1 0.6 8.8 -14.5 [85.0, 84.0] 29902
28 39.8 0.4 5.9 -6.5 [82.0, 85.0, 92.0, 84.0] 23107
29 42.5 0.7 8.2 -7.0 [72.0, 74.0] 19463
30 45.9 0.6 6.0 -5.6 [82.0, 81.0] 23651
31 45.3 -0.0 5.0 -6.1 [83.0, 95.0] 22318
32 45.3 0.1 11.9 -11.8 [80.0, 81.0] 24620
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.0 53.5 39.6 123 [95.0, 92.0] [1.0] 27081
4 45.4 0.0 47.7 53.6 37.7 0 [94.0] [1.0] 23847
6 38.4 0.0 47.8 52.8 38.9 49 [85.0, 89.0] [1.0] 24501
8 27.4 0.0 46.2 50.9 22.4 228 [91.0, 93.0] [1.0] 29146
9 44.0 0.0 47.8 52.9 39.2 0 [92.0] [1.0] 21447
10 43.5 0.0 47.5 51.3 38.3 0 [87.0] [1.0] 25774
11 48.2 0.0 49.0 54.0 37.9 123 [92.0, 91.0] [1.0] 20093
14 44.1 0.0 48.1 53.0 39.1 0 [77.0] [1.0] 25728
18 47.0 0.0 48.6 52.8 39.9 46 [94.0, 93.0] [1.0] 21725
23 43.5 0.0 48.4 52.8 38.8 0 [88.0] [1.0] 25553
24 25.7 0.0 46.3 49.9 36.3 7 [84.0] [1.0] 29725
25 26.7 0.0 45.8 50.2 25.3 237 [80.0, 92.0, 87.0] [1.0] 25298
26 29.1 0.0 46.0 50.7 38.3 165 [90.0, 72.0] [1.0] 26641
27 26.1 0.0 46.2 49.9 39.8 55 [85.0, 84.0] [1.0] 29925
28 39.8 0.0 48.1 53.2 38.8 59 [82.0, 92.0] [1.0] 23111
30 45.9 0.0 48.2 52.8 39.2 0 [82.0] [1.0] 23655
32 45.3 0.0 46.6 50.6 25.3 2 [80.0] [1.0] 24621

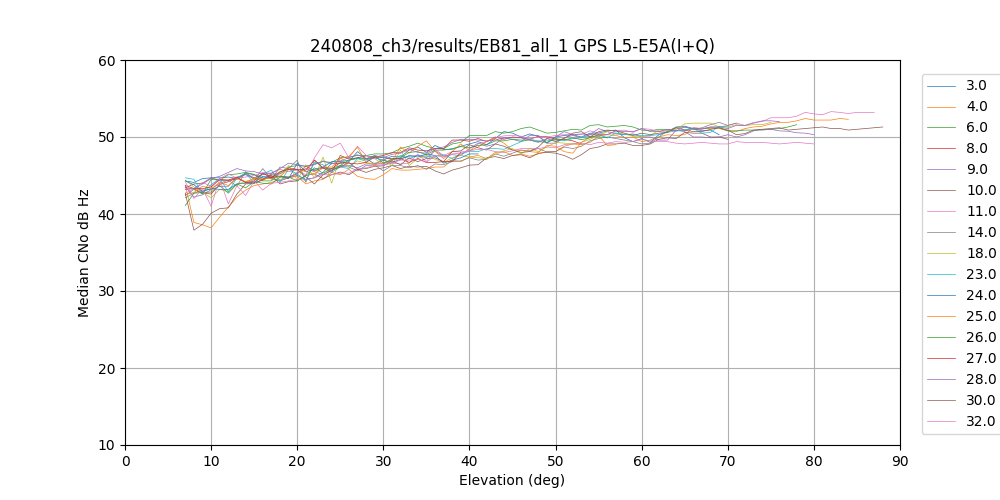

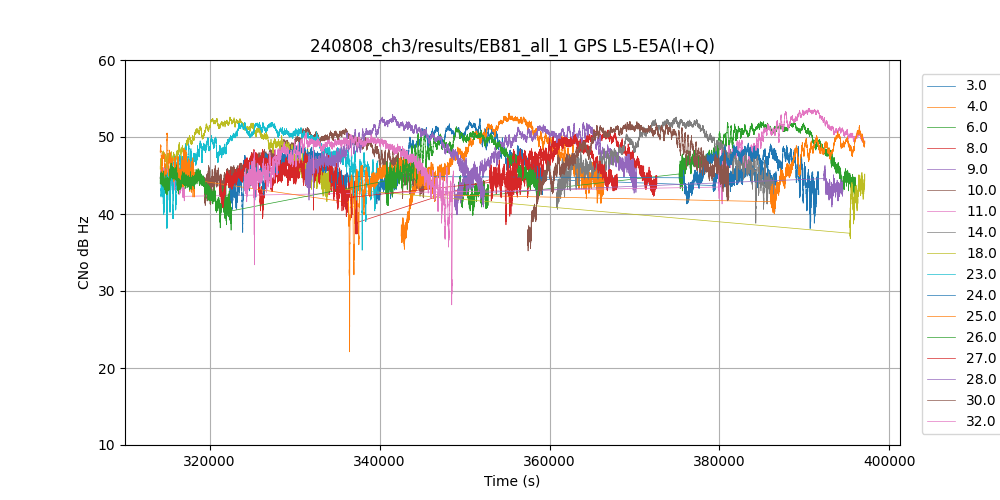

DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.3 52.4 41.3 145 [93.0, 92.0] [1.0] 27048
4 45.5 0.0 47.6 53.1 35.4 0 [74.0] [1.0] 23783
6 38.4 0.0 47.9 52.0 39.8 163 [89.0, 86.0] [1.0] 24465
8 27.4 0.0 46.3 50.9 37.4 140 [87.0, 84.0] [1.0] 29161
9 44.0 0.0 48.2 51.9 39.9 0 [91.0] [1.0] 21433
10 43.5 0.0 47.5 51.2 41.1 0 [94.0] [1.0] 25779
11 48.2 0.0 49.5 53.7 41.3 96 [88.0, 91.0] [1.0] 20095
14 44.2 0.0 48.1 52.6 38.8 0 [79.0] [1.0] 25717
18 47.0 0.0 48.5 52.6 36.8 67 [91.0, 87.0] [1.0] 21723
23 43.5 0.0 48.2 51.9 35.3 0 [82.0] [1.0] 25549
24 25.6 0.0 46.1 49.3 37.6 17 [83.0, 84.0] [1.0] 29803
25 26.7 0.0 46.0 51.5 22.1 301 [79.0, 91.0, 85.0] [1.0] 25319
26 29.1 0.0 46.3 51.3 37.9 104 [89.0, 82.0] [1.0] 26634
27 26.1 0.0 46.2 50.3 38.6 226 [84.0, 85.0] [1.0] 29915
28 39.7 0.0 48.2 52.9 40.9 37 [85.0, 84.0] [1.0] 23209
30 45.9 0.0 48.1 52.0 35.2 0 [81.0] [1.0] 23652
32 45.3 0.0 47.2 50.5 28.2 35 [81.0] [1.0] 24622

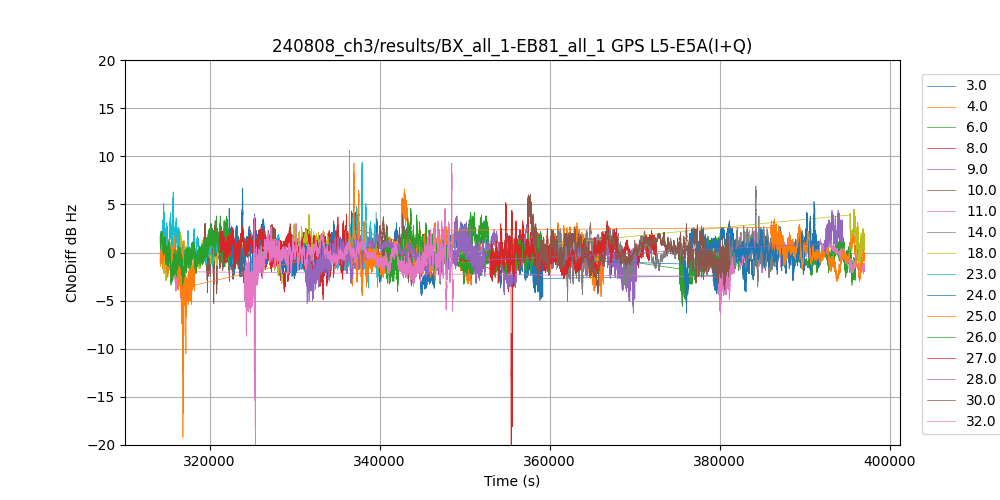

DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.3 4.2 -5.0 [95.0, 93.0, 92.0] 27037
4 45.5 0.1 6.6 -4.6 [94.0, 74.0] 23783
6 38.5 -0.1 4.2 -5.6 [85.0, 89.0, 86.0] 24435
8 27.4 -0.2 4.6 -21.0 [91.0, 87.0, 93.0, 84.0] 29123
9 44.0 -0.4 3.8 -6.3 [92.0, 91.0] 21432
10 43.5 0.1 4.0 -5.3 [87.0, 94.0] 25774
11 48.2 -0.5 2.3 -6.4 [92.0, 88.0, 91.0] 20086
14 44.2 -0.0 6.9 -5.1 [77.0, 79.0] 25717
18 47.1 0.1 4.5 -3.6 [94.0, 91.0, 93.0, 87.0] 21695
23 43.5 0.2 9.4 -3.7 [88.0, 82.0] 25549
24 25.7 0.3 6.7 -6.3 [84.0, 83.0] 29710
25 26.7 -0.3 10.6 -19.2 [80.0, 79.0, 92.0, 91.0, 87.0, 85.0] 25286
26 29.1 -0.2 4.6 -4.1 [90.0, 89.0, 72.0, 82.0] 26633
27 26.1 0.0 5.2 -4.9 [85.0, 84.0] 29902
28 39.8 -0.1 4.4 -5.3 [82.0, 85.0, 92.0, 84.0] 23107
30 45.9 0.2 6.0 -4.3 [82.0, 81.0] 23651
32 45.3 -0.6 9.3 -20.0 [80.0, 81.0] 24621
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 43.4 48.7 16.9 24 [1.0] [1.0] 23175
2 38.6 0.0 48.0 53.3 31.8 0 [-4.0] [1.0] 23353
3 42.4 0.0 45.5 50.9 32.8 0 [5.0] [1.0] 21285
4 38.8 0.0 44.3 51.0 32.2 56 [6.0] [1.0] 22918
5 30.3 0.0 45.8 51.9 32.1 266 [1.0] [1.0] 28344
6 32.9 0.0 35.8 41.9 18.3 1237 [-4.0] [1.0] 29453
7 34.9 0.0 44.0 50.2 33.0 17 [5.0] [1.0] 29577
8 36.4 0.0 43.0 48.5 31.0 75 [6.0] [1.0] 26639
9 37.5 0.0 46.6 52.7 34.1 167 [-2.0] [1.0] 25313
10 15.6 0.0 40.5 44.6 33.9 0 [-7.0] [1.0] 8642
11 33.3 0.0 46.6 52.9 18.4 278 [0.0] [1.0] 29814
12 32.4 0.0 46.7 52.7 35.1 155 [-1.0] [1.0] 29046
13 33.3 0.0 40.4 47.2 27.5 225 [-2.0] [1.0] 27142
14 44.1 0.0 49.4 54.4 39.3 0 [-7.0] [1.0] 20554
15 39.7 0.0 47.9 53.0 34.4 0 [0.0] [1.0] 22929
16 38.7 0.0 48.3 53.9 32.6 0 [-1.0] [1.0] 23386
17 28.5 0.0 44.9 50.6 29.5 2 [4.0] [1.0] 26805
18 29.7 0.0 45.3 51.8 32.9 75 [-3.0] [1.0] 26394
19 33.8 0.0 35.0 41.1 18.4 1326 [3.0] [1.0] 24658
20 41.0 0.0 36.6 41.6 19.9 1235 [2.0] [1.0] 22445
21 42.4 0.0 46.6 51.6 34.8 54 [4.0] [1.0] 26972
22 42.8 0.0 47.8 54.0 31.2 249 [-3.0] [1.0] 26424
23 37.0 0.0 42.8 49.3 27.1 53 [3.0] [1.0] 24796
24 31.1 0.0 45.3 50.8 34.3 92 [2.0] [1.0] 25691

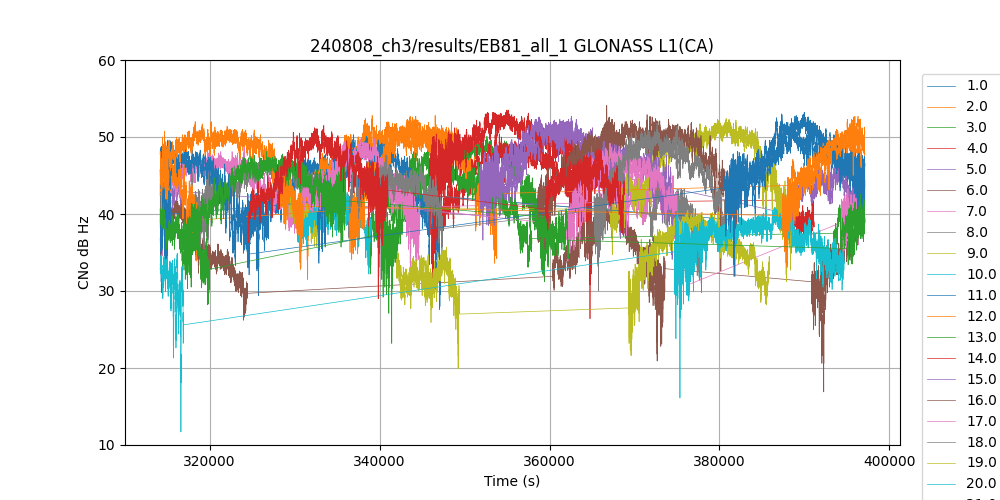

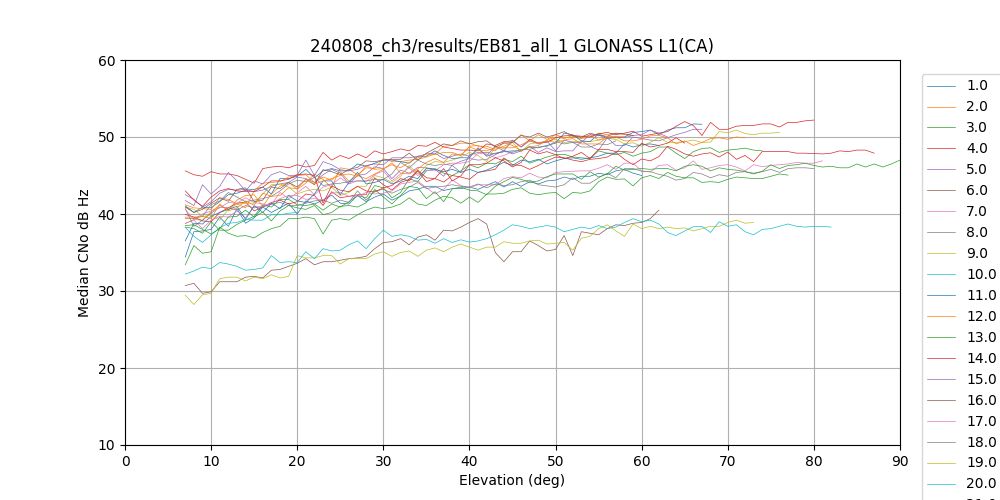

DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 42.9 47.8 27.6 1 [1.0] [1.0] 23179
2 38.6 0.0 47.4 52.8 31.5 0 [-4.0] [1.0] 23350
3 42.4 0.0 44.8 50.1 31.2 0 [5.0] [1.0] 21274
4 38.8 0.0 44.0 51.4 26.4 79 [6.0] [1.0] 22915
5 30.3 0.0 45.5 52.3 36.8 342 [1.0] [1.0] 28352
6 32.6 0.0 35.5 41.8 16.9 1429 [-4.0] [1.0] 29717
7 34.8 0.0 43.0 48.7 28.3 78 [5.0] [1.0] 29638
8 36.4 0.0 42.6 47.4 29.8 253 [6.0] [1.0] 26678
9 37.5 0.0 45.6 52.4 31.2 119 [-2.0] [1.0] 25298
10 15.6 0.0 39.2 43.1 32.2 0 [-7.0] [1.0] 8646
11 33.3 0.0 46.4 53.2 29.8 18 [0.0] [1.0] 29866
12 32.4 0.0 46.1 52.8 33.9 220 [-1.0] [1.0] 29074
13 33.3 0.0 40.1 47.3 23.2 260 [-2.0] [1.0] 27151
14 44.0 0.0 48.9 53.5 37.3 0 [-7.0] [1.0] 20569
15 39.7 0.0 47.7 52.7 34.1 0 [0.0] [1.0] 22903
16 38.7 0.0 47.6 54.1 31.9 0 [-1.0] [1.0] 23383
17 28.5 0.0 44.4 49.8 32.6 10 [4.0] [1.0] 26772
18 29.8 0.0 44.9 51.8 30.0 13 [-3.0] [1.0] 26361
19 34.5 0.0 34.4 40.5 19.9 1454 [3.0] [1.0] 23997
20 40.7 0.0 36.1 41.2 11.7 790 [2.0] [1.0] 22603
21 42.5 0.0 45.9 52.0 31.9 64 [4.0] [1.0] 26948
22 42.8 0.0 47.3 52.7 32.8 110 [-3.0] [1.0] 26445
23 37.0 0.0 42.2 48.1 31.5 384 [3.0] [1.0] 24796
24 31.2 0.0 45.1 51.5 29.0 102 [2.0] [1.0] 25661

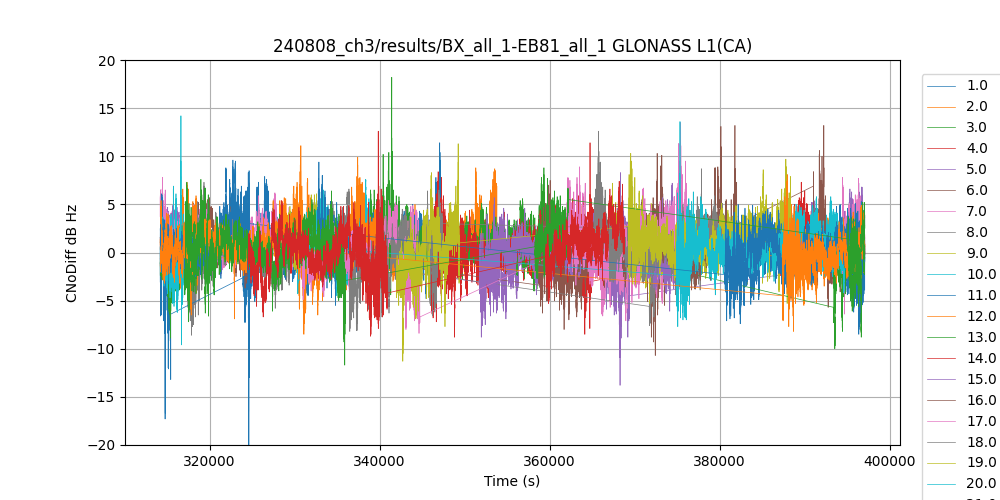

DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 0.4 11.4 -21.1 [1.0] 23175
2 38.6 0.6 8.8 -8.5 [-4.0] 23350
3 42.4 0.6 8.8 -6.0 [5.0] 21255
4 38.8 0.3 11.4 -8.8 [6.0] 22881
5 30.3 0.3 8.3 -13.8 [1.0] 28314
6 32.9 0.2 13.2 -10.7 [-4.0] 29438
7 34.9 1.0 13.5 -7.1 [5.0] 29570
8 36.4 0.4 8.7 -8.6 [6.0] 26636
9 37.5 1.0 9.7 -5.3 [-2.0] 25298
10 15.6 1.3 7.6 -4.5 [-7.0] 8642
11 33.3 0.1 9.4 -17.3 [0.0] 29807
12 32.4 0.6 9.9 -6.5 [-1.0] 29035
13 33.3 0.3 18.2 -10.0 [-2.0] 27107
14 44.1 0.5 8.4 -7.2 [-7.0] 20554
15 39.7 0.2 7.2 -8.8 [0.0] 22899
16 38.7 0.7 13.2 -6.3 [-1.0] 23383
17 28.5 0.5 8.9 -8.4 [4.0] 26772
18 29.8 0.3 12.6 -8.2 [-3.0] 26361
19 34.5 0.8 11.3 -11.3 [3.0] 23997
20 41.0 0.5 14.2 -9.6 [2.0] 22392
21 42.5 0.6 9.6 -7.4 [4.0] 26941
22 42.8 0.5 11.1 -8.2 [-3.0] 26417
23 37.0 0.6 7.3 -11.7 [3.0] 24766
24 31.2 0.2 12.6 -8.7 [2.0] 25658
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 41.7 47.0 16.8 26 [1.0] [1.0] 23164
2 38.6 0.0 46.5 51.3 31.4 1 [-4.0] [1.0] 23351
3 42.4 0.0 43.7 49.0 31.4 2 [5.0] [1.0] 21284
4 38.8 0.0 42.1 48.0 30.4 57 [6.0] [1.0] 22915
5 30.3 0.0 44.4 50.4 34.3 201 [1.0] [1.0] 28342
6 33.0 0.0 34.4 40.2 21.8 1727 [-4.0] [1.0] 29269
7 34.9 0.0 42.4 48.4 32.0 103 [5.0] [1.0] 29575
8 36.4 0.0 41.0 46.1 28.8 182 [6.0] [1.0] 26636
9 37.5 0.0 44.9 50.9 34.8 16 [-2.0] [1.0] 25311
10 15.6 0.0 39.1 43.1 32.2 1 [-7.0] [1.0] 8640
11 33.3 0.0 44.8 50.5 26.3 213 [0.0] [1.0] 29812
12 32.4 0.0 45.7 50.8 36.0 100 [-1.0] [1.0] 29044
13 33.3 0.0 38.9 45.4 27.0 294 [-2.0] [1.0] 27138
14 44.1 0.0 47.9 52.3 39.2 1 [-7.0] [1.0] 20553
15 39.7 0.0 46.0 50.9 34.1 1 [0.0] [1.0] 22928
16 38.7 0.0 46.8 51.5 33.6 1 [-1.0] [1.0] 23385
17 28.5 0.0 42.8 48.1 29.4 4 [4.0] [1.0] 26803
18 29.7 0.0 43.7 49.8 31.3 190 [-3.0] [1.0] 26392
19 34.8 0.0 33.3 38.9 19.8 3161 [3.0] [1.0] 23672
20 41.0 0.0 35.5 40.6 21.8 1328 [2.0] [1.0] 22443
21 42.4 0.0 44.7 49.3 33.4 34 [4.0] [1.0] 26971
22 42.8 0.0 46.5 52.3 31.8 73 [-3.0] [1.0] 26422
23 37.0 0.0 40.8 46.4 30.1 285 [3.0] [1.0] 24793
24 31.1 0.0 43.7 49.3 33.8 20 [2.0] [1.0] 25689
DUT GLONASS L1(P)
DIFF GLONASS L1(P)

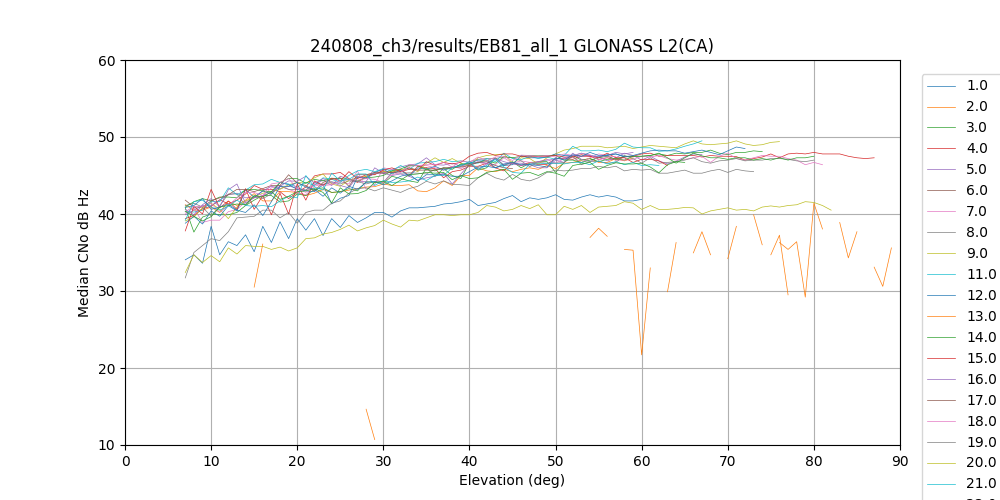

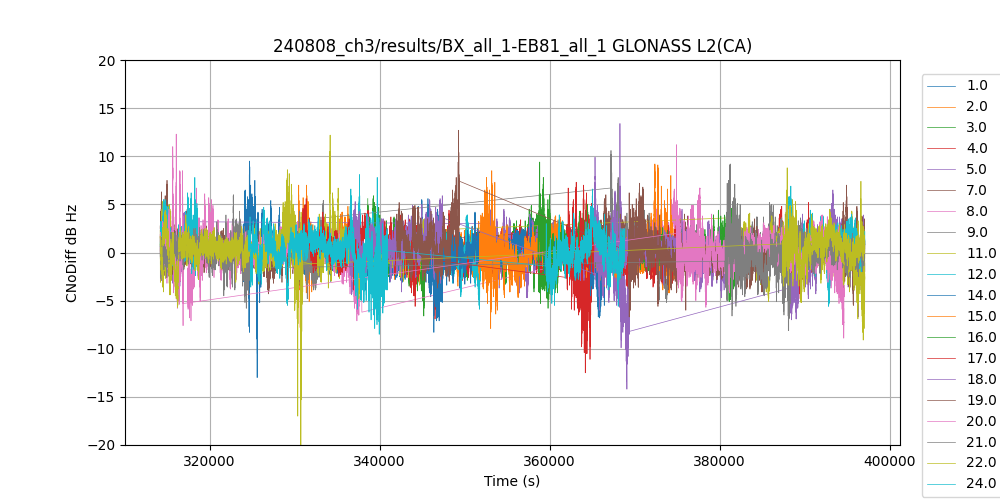

REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.5 44.9 20.3 68 [1.0] [1.0] 23168
2 38.6 0.0 45.1 49.1 29.2 1 [-4.0] [1.0] 23352
3 42.4 0.0 45.4 49.8 35.5 1 [5.0] [1.0] 21284
4 38.8 0.0 44.6 50.2 28.5 249 [6.0] [1.0] 22916
5 30.3 0.0 44.3 50.4 27.0 236 [1.0] [1.0] 28342
6 60.3 0.0 15.4 17.6 13.7 2 [-4.0] [1.0] 3
7 34.9 0.0 44.7 50.2 31.0 53 [5.0] [1.0] 29575
8 36.4 0.0 44.9 49.9 33.0 53 [6.0] [1.0] 26637
9 37.5 0.0 45.7 51.1 34.5 99 [-2.0] [1.0] 25311
11 33.3 0.0 45.8 51.3 31.0 344 [0.0] [1.0] 29812
12 32.4 0.0 45.2 50.0 35.2 106 [-1.0] [1.0] 29044
13 65.3 0.0 32.9 39.6 12.9 20 [-2.0] [1.0] 21
14 44.1 0.0 45.8 50.0 34.0 1 [-7.0] [1.0] 20553
15 39.7 0.0 45.8 50.0 34.0 1 [0.0] [1.0] 22928
16 38.7 0.0 46.1 49.9 36.6 1 [-1.0] [1.0] 23385
17 28.5 0.0 45.1 49.8 33.4 3 [4.0] [1.0] 26803
18 29.7 0.0 45.0 49.7 35.0 241 [-3.0] [1.0] 26392
19 34.5 0.0 42.2 47.1 27.8 238 [3.0] [1.0] 24027
20 41.0 0.0 38.6 44.5 23.1 285 [2.0] [1.0] 22444
21 42.4 0.0 45.5 49.6 34.2 19 [4.0] [1.0] 26971
22 42.8 0.0 46.0 50.2 17.1 46 [-3.0] [1.0] 26420
23 68.0 0.0 34.8 41.8 15.2 35 [3.0] [1.0] 36
24 31.1 0.0 43.7 49.5 32.1 53 [2.0] [1.0] 25688
DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.3 44.0 25.3 30 [1.0] [1.0] 23178
2 38.6 0.0 44.7 48.8 34.7 1 [-4.0] [1.0] 23349
3 42.4 0.0 45.2 49.9 32.7 2 [5.0] [1.0] 21273
4 38.8 0.0 44.8 49.2 35.9 83 [6.0] [1.0] 22913
5 30.3 0.0 44.3 49.5 23.9 459 [1.0] [1.0] 28350
6 57.0 0.0 18.1 18.1 18.1 0 [-4.0] [1.0] 1
7 34.8 0.0 44.2 49.2 31.9 69 [5.0] [1.0] 29636
8 36.4 0.0 44.4 49.5 33.0 204 [6.0] [1.0] 26676
9 37.5 0.0 45.4 50.9 27.7 222 [-2.0] [1.0] 25295
11 33.3 0.0 45.6 50.5 30.5 384 [0.0] [1.0] 29864
12 32.4 0.0 44.7 49.3 33.6 177 [-1.0] [1.0] 29072
13 71.0 0.0 32.9 39.3 11.7 10 [-2.0] [1.0] 11
14 44.0 0.0 45.9 49.6 37.0 1 [-7.0] [1.0] 20568
15 39.7 0.0 45.6 49.9 26.3 7 [0.0] [1.0] 22902
16 38.7 0.0 45.7 49.9 32.6 1 [-1.0] [1.0] 23382
17 28.5 0.0 44.7 49.0 33.4 38 [4.0] [1.0] 26770
18 29.8 0.0 44.6 49.5 32.4 225 [-3.0] [1.0] 26359
19 34.5 0.0 42.0 47.8 23.8 146 [3.0] [1.0] 23981
20 40.8 0.0 38.6 43.5 21.0 465 [2.0] [1.0] 22567
21 42.5 0.0 45.4 49.3 31.0 32 [4.0] [1.0] 26947
22 42.8 0.0 45.5 50.0 32.2 111 [-3.0] [1.0] 26444
23 65.2 0.0 33.3 42.1 10.6 67 [3.0] [1.0] 69
24 31.2 0.0 43.6 49.1 32.7 130 [2.0] [1.0] 25659
DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 0.2 9.5 -13.0 [1.0] 23168
2 38.6 0.4 7.0 -7.8 [-4.0] 23349
3 42.4 0.2 7.8 -6.6 [5.0] 21254
4 38.8 -0.2 5.2 -12.5 [6.0] 22879
5 30.3 -0.1 13.4 -14.2 [1.0] 28312
7 34.9 0.5 7.5 -6.0 [5.0] 29568
8 36.4 0.4 6.7 -7.1 [6.0] 26634
9 37.5 0.3 10.6 -8.1 [-2.0] 25295
11 33.3 0.2 12.2 -9.1 [0.0] 29805
12 32.4 0.5 8.1 -5.9 [-1.0] 29033
14 44.1 -0.1 4.2 -7.1 [-7.0] 20553
15 39.7 0.2 9.2 -7.9 [0.0] 22898
16 38.7 0.4 9.4 -5.1 [-1.0] 23382
17 28.5 0.4 7.3 -6.0 [4.0] 26770
18 29.8 0.5 9.9 -6.0 [-3.0] 26359
19 34.6 0.2 12.7 -6.7 [3.0] 23957
20 41.1 -0.0 12.3 -8.9 [2.0] 22356
21 42.5 0.1 9.2 -6.6 [4.0] 26940
22 42.8 0.5 8.8 -22.5 [-3.0] 26413
24 31.2 0.1 7.8 -8.5 [2.0] 25656
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 38.5 42.7 19.0 244 [1.0] [1.0] 23167
2 38.6 0.0 43.4 47.0 31.6 1 [-4.0] [1.0] 23352
3 42.4 0.0 43.8 48.0 34.6 1 [5.0] [1.0] 21284
4 38.8 0.0 42.7 48.1 29.5 230 [6.0] [1.0] 22916
5 30.3 0.0 42.8 49.0 29.2 104 [1.0] [1.0] 28342
6 39.0 0.0 17.0 18.3 15.4 350 [-4.0] [1.0] 4
7 34.9 0.0 43.3 48.2 33.0 54 [5.0] [1.0] 29575
8 36.4 0.0 43.4 48.4 34.4 74 [6.0] [1.0] 26637
9 37.5 0.0 43.8 49.3 33.5 110 [-2.0] [1.0] 25311
10 14.0 0.0 15.8 15.8 15.8 0 [-7.0] [1.0] 1
11 33.3 0.0 44.0 49.2 32.7 226 [0.0] [1.0] 29812
12 32.4 0.0 43.2 47.5 34.4 162 [-1.0] [1.0] 29044
13 60.2 0.0 25.3 34.1 13.8 8 [-2.0] [1.0] 9
14 44.1 0.0 44.0 48.0 33.3 1 [-7.0] [1.0] 20553
15 39.7 0.0 44.1 48.1 33.1 1 [0.0] [1.0] 22928
16 38.7 0.0 44.2 47.6 35.1 1 [-1.0] [1.0] 23385
17 28.5 0.0 43.3 47.4 33.9 4 [4.0] [1.0] 26803
18 29.7 0.0 43.5 48.0 35.6 152 [-3.0] [1.0] 26392
19 34.5 0.0 40.7 45.7 29.4 30 [3.0] [1.0] 24026
20 41.1 0.0 37.2 42.4 21.2 1196 [2.0] [1.0] 22369
21 42.4 0.0 44.6 48.3 34.1 61 [4.0] [1.0] 26971
22 42.8 0.0 44.4 48.4 18.6 132 [-3.0] [1.0] 26422
23 35.2 0.0 23.3 36.2 10.4 162 [3.0] [1.0] 13
24 31.1 0.0 42.0 47.5 29.2 115 [2.0] [1.0] 25688
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 37.5 0.0 44.3 49.2 35.7 52 [-2.0] [1.0] 25311
21 42.4 0.0 44.8 50.2 35.1 194 [4.0] [1.0] 26971
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)
REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 46.9 50.7 38.1 0 [97.0] [1.0] 23861
3 24.2 0.0 43.4 48.6 26.9 7 [109.0, 101.0] [1.0] 18261
4 45.5 0.0 46.4 51.5 27.2 4 [106.0] [1.0] 32456
5 35.4 0.0 45.7 52.2 32.1 163 [110.0, 101.0] [1.0] 24452
7 36.9 0.0 45.9 49.9 38.9 0 [99.0] [1.0] 19330
8 18.8 0.0 43.1 48.9 34.8 25 [103.0, 98.0] [1.0] 20011
9 41.8 0.0 46.5 51.3 37.8 0 [98.0, 103.0] [1.0] 31995
10 33.1 0.0 45.6 51.7 28.4 8 [104.0] [1.0] 41314
11 33.5 0.0 42.3 48.6 11.3 128 [102.0, 103.0] [1.0] 41224
12 33.7 0.0 42.1 48.8 27.5 225 [103.0, 111.0] [1.0] 41143
13 29.9 0.0 44.4 49.3 36.7 0 [104.0] [1.0] 11491
15 17.9 0.0 41.6 46.3 31.9 1 [106.0] [1.0] 4893
19 45.5 0.0 42.6 48.8 28.8 7 [107.0] [1.0] 31708
21 23.3 0.0 44.6 49.5 35.4 111 [102.0, 100.0] [1.0] 21453
24 45.5 0.0 47.6 53.8 37.1 0 [108.0] [1.0] 32249
25 45.5 0.0 47.1 53.2 33.9 0 [102.0] [1.0] 32293
26 50.8 0.0 47.8 53.0 35.5 0 [105.0] [1.0] 20906
27 12.8 0.0 42.2 45.8 36.4 220 [105.0, 104.0] [1.0] 11970
30 37.4 0.0 45.9 51.4 35.1 0 [107.0] [1.0] 12628
31 36.7 0.0 46.1 52.6 31.0 112 [111.0, 109.0] [1.0] 39171
33 38.4 0.0 45.4 50.6 37.0 22 [97.0, 100.0] [1.0] 38130
34 44.3 0.0 47.1 52.4 39.5 0 [105.0] [1.0] 13833
36 40.2 0.0 46.3 52.8 33.2 26 [110.0, 96.0] [1.0] 32472
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 46.7 51.2 37.4 0 [102.0] [1.0] 23860
3 24.3 0.0 44.4 48.9 34.7 110 [110.0, 100.0] [1.0] 18249
4 45.5 0.0 46.5 51.0 30.0 0 [105.0] [1.0] 32462
5 35.4 0.0 46.3 52.6 33.6 228 [108.0, 103.0] [1.0] 24437
7 36.9 0.0 45.5 49.5 38.2 0 [98.0] [1.0] 19313
8 18.8 0.0 43.0 47.2 37.2 29 [101.0, 98.0] [1.0] 20001
9 41.7 0.0 46.2 51.2 34.7 181 [98.0, 107.0] [1.0] 32046
10 33.1 0.0 46.0 51.5 31.8 44 [103.0] [1.0] 41297
11 33.5 0.0 42.3 47.9 0.0 277 [102.0, 107.0] [1.0] 41144
12 33.7 0.0 42.5 48.3 31.1 249 [107.0, 105.0] [1.0] 41056
13 29.9 0.0 44.0 48.6 32.7 0 [104.0] [1.0] 11490
15 17.9 0.0 42.1 47.0 31.3 0 [105.0] [1.0] 4902
19 45.5 0.0 42.6 48.0 24.3 63 [109.0] [1.0] 31734
21 23.2 0.0 44.5 49.4 35.3 237 [103.0, 100.0] [1.0] 21473
24 45.5 0.0 47.8 53.5 33.6 0 [111.0] [1.0] 32261
25 45.5 0.0 47.1 52.1 32.7 1 [101.0] [1.0] 32280
26 50.8 0.0 47.5 51.3 35.6 0 [106.0] [1.0] 20889
27 12.8 0.0 42.5 45.6 38.0 164 [106.0, 104.0] [1.0] 11980
30 37.3 0.0 46.8 52.8 35.6 0 [109.0] [1.0] 12670
31 36.7 0.0 45.5 52.3 32.3 52 [99.0, 110.0] [1.0] 39151
33 38.4 0.0 44.8 49.9 37.0 41 [97.0, 99.0] [1.0] 38128
34 44.3 0.0 47.7 52.7 34.8 0 [106.0] [1.0] 13840
36 40.2 0.0 46.3 52.6 33.7 230 [108.0, 97.0] [1.0] 32504
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 0.2 5.1 -3.6 [97.0, 102.0] 23853
3 24.3 -1.0 4.9 -12.8 [109.0, 110.0, 101.0, 100.0] 18242
4 45.5 -0.1 9.0 -12.0 [106.0, 105.0] 32450
5 35.5 -0.6 7.3 -6.5 [110.0, 108.0, 101.0, 103.0] 24427
7 36.9 0.4 5.4 -3.9 [99.0, 98.0] 19313
8 18.8 0.1 4.6 -7.1 [103.0, 101.0, 98.0] 20001
9 41.8 0.4 5.4 -5.1 [98.0, 103.0, 107.0] 31990
10 33.2 -0.4 8.8 -11.6 [104.0, 103.0] 41292
11 33.5 -0.0 21.0 -10.2 [102.0, 103.0, 107.0] 41135
12 33.7 -0.3 7.8 -8.7 [103.0, 107.0, 111.0, 105.0] 41039
13 29.9 0.3 6.6 -5.8 [104.0] 11484
15 17.9 -0.5 6.8 -7.0 [106.0, 105.0] 4893
19 45.5 -0.0 9.9 -8.7 [107.0, 109.0] 31708
21 23.3 0.1 6.2 -7.7 [102.0, 103.0, 100.0] 21446
24 45.5 -0.2 7.6 -7.4 [108.0, 111.0] 32237
25 45.5 0.1 7.2 -7.0 [102.0, 101.0] 32271
26 50.8 0.3 5.9 -8.1 [105.0, 106.0] 20889
27 12.8 -0.3 4.3 -5.4 [105.0, 106.0, 104.0] 11962
30 37.4 -0.9 4.8 -5.5 [107.0, 109.0] 12628
31 36.7 0.5 5.5 -6.7 [111.0, 99.0, 109.0, 110.0] 39145
33 38.4 0.6 5.9 -4.2 [97.0, 100.0, 99.0] 38118
34 44.3 -0.6 7.6 -3.9 [105.0, 106.0] 13833
36 40.2 0.1 5.7 -6.6 [110.0, 108.0, 96.0, 97.0] 32469
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 46.2 50.4 37.9 0 [97.0] [1.0] 23861
3 24.2 0.0 44.4 48.2 36.3 143 [109.0, 101.0] [1.0] 18261
4 45.5 0.0 46.0 50.4 26.1 7 [106.0] [1.0] 32456
5 35.4 0.0 45.1 49.7 24.0 158 [110.0, 101.0] [1.0] 24451
7 36.9 0.0 45.9 48.7 38.9 0 [99.0] [1.0] 19330
8 18.8 0.0 43.7 47.0 38.0 38 [103.0, 98.0] [1.0] 20011
9 41.8 0.0 45.0 49.9 35.3 227 [98.0, 103.0] [1.0] 31995
10 33.1 0.0 45.7 49.7 39.4 4 [104.0] [1.0] 41314
11 33.5 0.0 42.0 46.3 32.4 6 [102.0, 103.0] [1.0] 41224
12 33.7 0.0 42.8 47.6 33.2 195 [103.0, 111.0] [1.0] 41139
13 29.9 0.0 44.6 48.9 36.7 0 [104.0] [1.0] 11491
15 17.9 0.0 43.4 46.6 37.4 0 [106.0] [1.0] 4893
19 45.5 0.0 42.1 46.5 28.7 0 [107.0] [1.0] 31708
21 23.3 0.0 44.0 47.7 35.3 59 [102.0, 100.0] [1.0] 21453
24 45.5 0.0 46.2 50.5 34.9 0 [108.0] [1.0] 32249
25 45.5 0.0 45.9 50.2 35.0 0 [102.0] [1.0] 32293
26 50.8 0.0 46.2 49.9 36.8 0 [105.0] [1.0] 20906
27 12.8 0.0 42.4 46.3 36.9 128 [105.0, 104.0] [1.0] 11970
30 37.4 0.0 45.4 49.0 39.0 0 [107.0] [1.0] 12628
31 36.7 0.0 44.6 49.6 34.7 236 [111.0, 109.0] [1.0] 39171
33 38.4 0.0 45.0 49.9 36.4 88 [97.0, 100.0] [1.0] 38130
34 44.3 0.0 46.0 49.8 37.0 0 [105.0] [1.0] 13833
36 40.2 0.0 45.5 49.9 37.9 159 [110.0, 96.0] [1.0] 32472
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 46.8 50.9 38.2 0 [97.0] [1.0] 23861
3 24.2 0.0 44.9 48.7 35.6 28 [109.0, 101.0] [1.0] 18261
4 45.5 0.0 46.7 50.9 20.6 36 [106.0] [1.0] 32454
5 35.4 0.0 45.8 50.1 36.7 91 [110.0, 101.0] [1.0] 24452
7 36.9 0.0 46.7 50.1 39.0 0 [99.0] [1.0] 19330
8 18.8 0.0 44.1 48.3 36.9 159 [103.0, 98.0] [1.0] 20011
9 41.8 0.0 45.9 50.8 35.6 124 [98.0, 103.0] [1.0] 31995
10 33.1 0.0 46.2 50.0 39.4 4 [104.0] [1.0] 41314
11 33.5 0.0 42.5 46.5 21.8 112 [102.0, 103.0] [1.0] 41223
12 33.7 0.0 43.6 49.1 21.9 96 [103.0, 111.0] [1.0] 41138
13 29.9 0.0 45.1 49.1 38.1 0 [104.0] [1.0] 11491
15 17.9 0.0 43.3 46.6 36.7 0 [106.0] [1.0] 4893
19 45.5 0.0 43.0 47.7 31.6 0 [107.0] [1.0] 31708
21 23.3 0.0 44.6 48.5 36.9 178 [102.0, 100.0] [1.0] 21453
24 45.5 0.0 47.0 51.2 38.0 0 [108.0] [1.0] 32249
25 45.5 0.0 46.7 51.3 25.5 8 [102.0] [1.0] 32293
26 50.8 0.0 47.0 50.4 36.8 0 [105.0] [1.0] 20906
27 12.8 0.0 43.1 47.0 37.8 173 [105.0, 104.0] [1.0] 11970
30 37.4 0.0 46.0 49.3 38.6 0 [107.0] [1.0] 12628
31 36.7 0.0 45.4 50.4 35.7 91 [111.0, 109.0] [1.0] 39171
33 38.4 0.0 45.8 50.8 36.5 174 [97.0, 100.0] [1.0] 38130
34 44.3 0.0 47.0 51.2 36.7 0 [105.0] [1.0] 13833
36 40.2 0.0 46.2 50.7 39.0 26 [110.0, 96.0] [1.0] 32472
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 48.9 52.7 41.8 0 [97.0] [1.0] 23861
3 24.2 0.0 47.4 50.6 42.3 175 [109.0, 101.0] [1.0] 18261
4 45.5 0.0 48.8 52.4 39.6 0 [106.0] [1.0] 32456
5 35.4 0.0 48.0 52.0 36.5 172 [110.0, 101.0] [1.0] 24452
7 36.9 0.0 48.6 51.5 40.1 0 [99.0] [1.0] 19330
8 18.8 0.0 46.6 49.8 41.1 196 [103.0, 98.0] [1.0] 20011
9 41.8 0.0 48.0 52.6 38.7 67 [98.0, 103.0] [1.0] 31995
10 33.1 0.0 48.3 51.8 42.8 2 [104.0] [1.0] 41314
11 33.5 0.0 44.8 48.0 36.7 155 [102.0, 103.0] [1.0] 41224
12 33.7 0.0 46.1 51.0 37.9 233 [103.0, 111.0] [1.0] 41139
13 29.9 0.0 47.4 51.3 41.8 0 [104.0] [1.0] 11491
15 17.9 0.0 46.2 48.8 41.9 0 [106.0] [1.0] 4893
19 45.5 0.0 45.5 49.7 36.2 1 [107.0] [1.0] 31708
21 23.3 0.0 46.9 50.2 41.0 69 [102.0, 100.0] [1.0] 21453
24 45.5 0.0 49.1 52.9 40.8 2 [108.0] [1.0] 32249
25 45.5 0.0 48.8 52.7 39.7 0 [102.0] [1.0] 32293
26 50.8 0.0 49.0 52.0 40.3 0 [105.0] [1.0] 20906
27 12.8 0.0 45.7 49.2 41.4 123 [105.0, 104.0] [1.0] 11970
30 37.4 0.0 48.1 50.8 43.2 0 [107.0] [1.0] 12628
31 36.7 0.0 47.7 52.2 39.1 13 [111.0, 109.0] [1.0] 39171
33 38.4 0.0 48.0 52.4 40.4 98 [97.0, 100.0] [1.0] 38130
34 44.3 0.0 49.0 52.7 41.0 0 [105.0] [1.0] 13833
36 40.2 0.0 48.4 52.5 42.5 215 [110.0, 96.0] [1.0] 32472

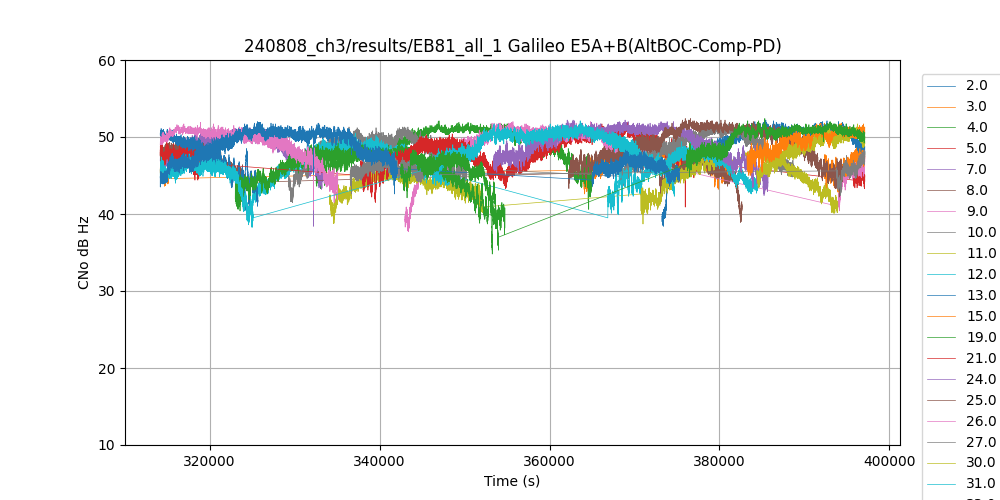

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.1 52.2 38.4 0 [102.0] [1.0] 23860
3 24.3 0.0 47.0 50.0 42.6 28 [110.0, 100.0] [1.0] 18249
4 45.5 0.0 48.8 52.1 40.6 0 [105.0] [1.0] 32462
5 35.4 0.0 48.4 51.9 40.9 19 [108.0, 103.0] [1.0] 24437
7 36.9 0.0 48.5 51.5 38.4 0 [98.0] [1.0] 19313
8 18.8 0.0 46.4 49.7 38.9 188 [101.0, 98.0] [1.0] 20001
9 41.7 0.0 48.3 52.0 37.7 145 [98.0, 107.0] [1.0] 32046
10 33.1 0.0 48.3 51.8 40.9 33 [103.0] [1.0] 41297
11 33.5 0.0 44.6 48.3 38.7 154 [102.0, 107.0] [1.0] 41165
12 33.7 0.0 46.3 50.5 39.5 64 [107.0, 105.0] [1.0] 41056
13 29.9 0.0 47.2 51.1 40.4 2 [104.0] [1.0] 11490
15 17.9 0.0 46.3 48.6 42.8 0 [105.0] [1.0] 4902
19 45.5 0.0 45.6 49.2 34.8 10 [109.0] [1.0] 31734
21 23.2 0.0 47.2 50.4 41.5 94 [103.0, 100.0] [1.0] 21473
24 45.5 0.0 49.2 52.2 42.4 0 [111.0] [1.0] 32261
25 45.5 0.0 48.9 52.4 42.2 0 [101.0] [1.0] 32280
26 50.8 0.0 49.0 51.9 40.5 0 [106.0] [1.0] 20889
27 12.8 0.0 45.9 48.3 42.4 54 [106.0, 104.0] [1.0] 11980
30 37.3 0.0 48.5 51.7 43.4 0 [109.0] [1.0] 12670
31 36.7 0.0 47.8 52.1 38.3 163 [99.0, 110.0] [1.0] 39151
33 38.4 0.0 48.1 52.0 42.6 171 [97.0, 99.0] [1.0] 38128
34 44.3 0.0 49.3 51.8 45.0 0 [106.0] [1.0] 13840
36 40.2 0.0 48.3 52.4 35.3 239 [108.0, 97.0] [1.0] 32504

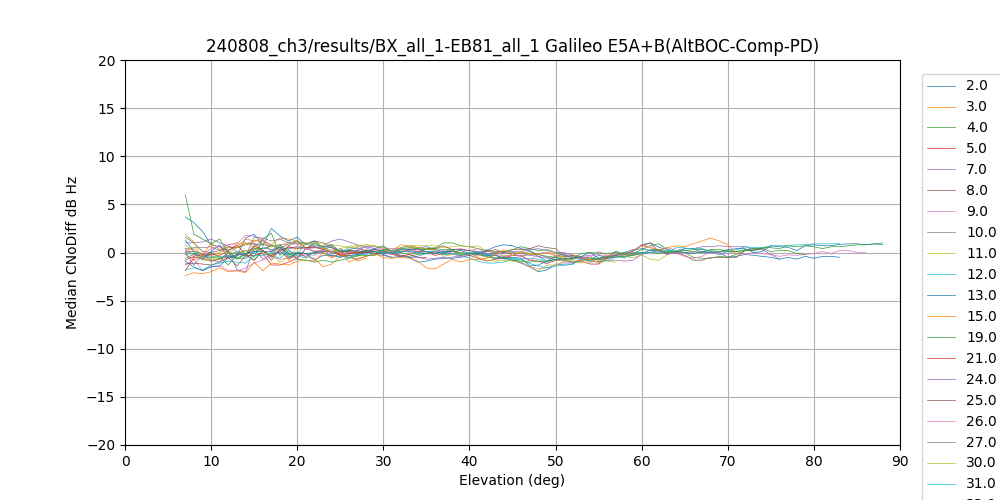

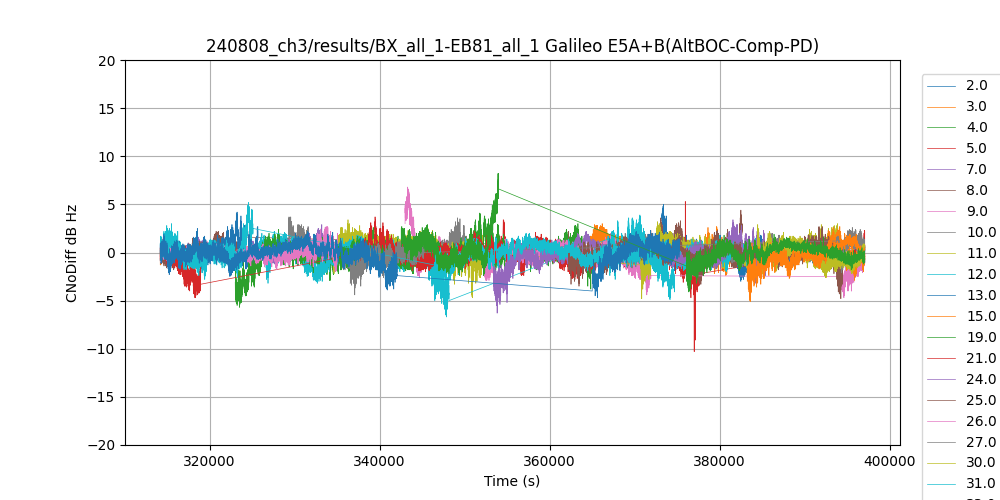

DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 -0.2 5.0 -3.0 [97.0, 102.0] 23853
3 24.3 0.4 3.0 -2.4 [109.0, 110.0, 101.0, 100.0] 18242
4 45.5 0.0 3.0 -3.8 [106.0, 105.0] 32450
5 35.5 -0.5 5.3 -10.3 [110.0, 108.0, 101.0, 103.0] 24427
7 36.9 0.2 2.9 -1.5 [99.0, 98.0] 19313
8 18.8 0.2 4.4 -3.3 [103.0, 101.0, 98.0] 20001
9 41.8 -0.3 6.8 -4.7 [98.0, 103.0, 107.0] 31990
10 33.2 0.0 3.7 -3.1 [104.0, 103.0] 41292
11 33.5 0.3 3.4 -4.8 [102.0, 103.0, 107.0] 41156
12 33.7 -0.2 3.9 -6.7 [103.0, 107.0, 111.0, 105.0] 41039
13 29.9 0.2 4.2 -2.1 [104.0] 11484
15 17.9 -0.0 2.7 -2.9 [106.0, 105.0] 4893
19 45.5 -0.1 4.9 -5.7 [107.0, 109.0] 31708
21 23.3 -0.2 3.7 -4.7 [102.0, 103.0, 100.0] 21446
24 45.5 -0.1 3.4 -6.3 [108.0, 111.0] 32237
25 45.5 -0.1 2.7 -4.8 [102.0, 101.0] 32271
26 50.8 0.0 2.7 -2.0 [105.0, 106.0] 20889
27 12.8 -0.2 2.6 -4.4 [105.0, 106.0, 104.0] 11962
30 37.4 -0.4 2.9 -2.6 [107.0, 109.0] 12628
31 36.7 -0.1 5.2 -4.9 [111.0, 99.0, 109.0, 110.0] 39145
33 38.4 -0.1 2.5 -4.7 [97.0, 100.0, 99.0] 38118
34 44.3 -0.3 1.9 -5.1 [105.0, 106.0] 13833
36 40.2 0.1 8.2 -4.1 [110.0, 108.0, 96.0, 97.0] 32469
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 48.5 52.8 38.8 0 [97.0] [1.0] 23861
3 24.2 0.0 46.0 50.7 32.3 80 [109.0, 101.0] [1.0] 18261
4 45.5 0.0 48.6 52.6 27.8 4 [106.0] [1.0] 32456
5 35.4 0.0 47.6 53.4 33.7 150 [110.0, 101.0] [1.0] 24451
7 36.9 0.0 48.1 51.1 40.6 0 [99.0] [1.0] 19330
8 18.8 0.0 44.9 48.9 36.0 135 [103.0, 98.0] [1.0] 20011
9 41.8 0.0 47.3 53.1 28.8 144 [98.0, 103.0] [1.0] 31995
10 33.1 0.0 47.8 52.4 37.8 8 [104.0] [1.0] 41312
11 33.5 0.0 44.3 49.8 26.1 210 [102.0, 103.0] [1.0] 41146
12 33.7 0.0 44.7 50.6 28.6 26 [103.0, 111.0] [1.0] 41139
13 29.9 0.0 45.7 51.5 36.4 0 [104.0] [1.0] 11491
15 17.9 0.0 44.7 48.0 33.7 1 [106.0] [1.0] 4893
19 45.5 0.0 43.7 48.9 29.6 7 [107.0] [1.0] 31708
21 23.3 0.0 45.6 49.7 35.5 54 [102.0, 100.0] [1.0] 21453
24 45.5 0.0 48.6 53.0 32.9 0 [108.0] [1.0] 32249
25 45.5 0.0 48.8 53.2 28.5 0 [102.0] [1.0] 32293
26 50.8 0.0 48.6 52.0 36.9 0 [105.0] [1.0] 20906
27 12.8 0.0 44.0 47.9 36.8 243 [105.0, 104.0] [1.0] 11970
30 37.4 0.0 48.0 51.9 37.9 0 [107.0] [1.0] 12627
31 36.7 0.0 46.7 52.3 31.0 29 [111.0, 109.0] [1.0] 39171
33 38.4 0.0 46.8 52.7 34.0 248 [97.0, 100.0] [1.0] 38130
34 44.3 0.0 48.4 52.4 37.4 0 [105.0] [1.0] 13833
36 40.2 0.0 47.6 53.0 33.6 234 [110.0, 96.0] [1.0] 32472
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.1 50.2 30.4 151 [103.0, 79.0] [1.0] 29619
20 35.1 0.0 45.7 52.6 24.5 122 [99.0, 81.0] [1.0] 32086
21 20.9 0.0 43.1 50.6 32.8 329 [71.0, 73.0, 102.0] [1.0] 18605
22 24.2 0.0 43.5 49.3 27.3 210 [81.0, 83.0, 90.0] [1.0] 22141
23 36.4 0.0 46.2 51.7 34.8 50 [77.0, 101.0] [1.0] 23722
24 23.9 0.0 43.6 49.4 30.3 109 [111.0, 88.0] [1.0] 24902
25 25.5 0.0 43.6 49.6 28.9 75 [76.0, 108.0] [1.0] 22983
26 37.7 0.0 45.5 51.0 30.1 0 [109.0] [1.0] 21130
27 29.0 0.0 43.8 50.0 23.7 309 [90.0, 78.0] [1.0] 34817
28 32.4 0.0 44.6 51.4 33.7 75 [109.0, 104.0] [1.0] 33120
29 39.4 0.0 45.5 51.7 30.1 212 [109.0, 99.0] [1.0] 29359
30 30.3 0.0 44.5 50.4 28.1 176 [78.0, 88.0] [1.0] 34110
32 45.0 0.0 46.9 53.2 34.8 0 [79.0] [1.0] 27397
33 45.3 0.0 47.0 53.0 31.6 1 [110.0] [1.0] 26843
34 30.9 0.0 44.4 50.9 34.8 109 [101.0, 84.0] [1.0] 14483
35 51.5 0.0 47.9 52.2 33.3 0 [100.0] [1.0] 21456
36 45.1 0.0 46.9 52.1 28.0 3 [107.0] [1.0] 28293
37 45.5 0.0 47.4 52.0 34.5 0 [111.0] [1.0] 25602
38 7.0 0.0 39.6 41.6 37.7 0 [76.0] [1.0] 2411
41 44.2 0.0 46.4 52.7 32.9 0 [108.0] [1.0] 28736
42 47.5 0.0 48.0 51.9 39.7 0 [106.0] [1.0] 16965
43 54.7 0.0 47.4 51.6 35.9 0 [78.0] [1.0] 16602
44 39.4 0.0 45.3 52.5 26.0 145 [107.0, 110.0] [1.0] 15593
45 45.4 0.0 47.5 52.6 36.8 0 [106.0] [1.0] 25442
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.5 49.9 38.9 228 [103.0, 79.0] [1.0] 29619
20 35.1 0.0 45.7 51.4 37.5 42 [99.0, 81.0] [1.0] 32086
21 20.9 0.0 44.8 49.6 37.9 125 [71.0, 73.0, 102.0] [1.0] 18605
22 24.2 0.0 44.8 49.1 35.1 333 [81.0, 83.0, 90.0] [1.0] 22141
23 36.4 0.0 46.5 50.2 37.8 226 [77.0, 101.0] [1.0] 23722
24 23.9 0.0 45.2 49.5 35.6 31 [111.0, 88.0] [1.0] 24902
25 25.5 0.0 44.3 48.0 38.0 191 [76.0, 108.0] [1.0] 22983
26 37.7 0.0 44.9 48.8 34.8 0 [109.0] [1.0] 21131
27 29.0 0.0 44.9 48.8 37.9 16 [90.0, 78.0] [1.0] 34817
28 32.4 0.0 44.3 49.8 33.0 115 [109.0, 104.0] [1.0] 33120
29 39.4 0.0 45.5 50.3 35.7 248 [109.0, 99.0] [1.0] 29359
30 30.3 0.0 44.3 48.8 35.7 180 [78.0, 88.0] [1.0] 34110
32 45.0 0.0 46.8 51.2 37.4 0 [79.0] [1.0] 27397
33 45.3 0.0 46.8 50.7 34.5 0 [110.0] [1.0] 26843
34 30.9 0.0 44.3 48.4 37.3 140 [101.0, 84.0] [1.0] 14483
35 51.5 0.0 46.4 49.7 39.4 0 [100.0] [1.0] 21456
36 45.1 0.0 47.3 51.5 38.8 0 [107.0] [1.0] 28293
37 45.5 0.0 47.3 51.7 35.8 0 [111.0] [1.0] 25602
38 7.0 0.0 42.8 45.0 40.4 0 [76.0] [1.0] 2411
41 44.2 0.0 47.2 51.5 37.9 0 [108.0] [1.0] 28736
42 47.5 0.0 47.7 51.0 40.2 0 [106.0] [1.0] 16965
43 54.7 0.0 46.8 49.9 35.2 0 [78.0] [1.0] 16602
44 39.4 0.0 45.0 50.5 33.7 139 [107.0, 110.0] [1.0] 15593
45 45.4 0.0 47.2 52.0 36.7 0 [106.0] [1.0] 25442

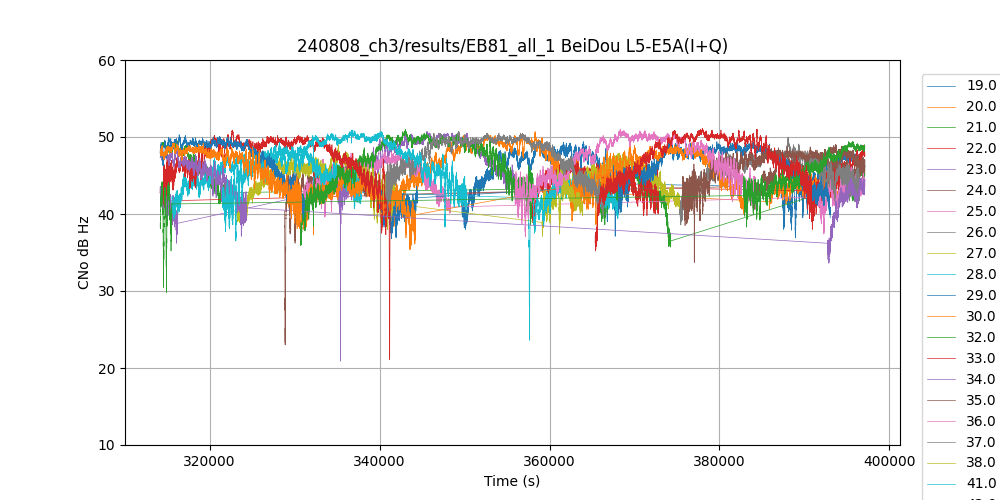

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.7 49.5 36.9 97 [107.0, 81.0] [1.0] 29574
20 35.1 0.0 46.0 50.7 37.9 203 [92.0, 111.0] [1.0] 32024
21 20.9 0.0 44.4 49.5 35.7 210 [71.0, 73.0, 111.0] [1.0] 18587
22 24.2 0.0 44.3 48.9 38.0 437 [83.0, 102.0, 90.0] [1.0] 22120
23 36.4 0.0 46.8 50.7 20.9 94 [77.0, 101.0] [1.0] 23743
24 23.9 0.0 44.8 48.3 23.0 254 [104.0, 100.0] [1.0] 24947
25 25.5 0.0 44.4 48.1 37.4 98 [76.0, 92.0] [1.0] 22992
26 37.6 0.0 45.7 50.0 38.6 0 [110.0] [1.0] 21178
27 29.0 0.0 44.6 49.0 37.1 250 [108.0, 82.0] [1.0] 34835
28 32.4 0.0 44.5 49.3 23.6 218 [110.0, 103.0] [1.0] 33116
29 39.4 0.0 45.7 49.4 36.8 252 [99.0, 104.0] [1.0] 29398
30 30.3 0.0 44.4 49.3 35.4 64 [90.0, 95.0] [1.0] 34112
32 45.0 0.0 46.8 51.0 35.9 0 [79.0] [1.0] 27387
33 45.3 0.0 47.3 50.9 21.1 51 [74.0] [1.0] 26842
34 30.8 0.0 44.0 48.8 33.6 65 [102.0, 73.0] [1.0] 14483
35 51.5 0.0 46.5 49.0 33.7 0 [99.0] [1.0] 21463
36 45.1 0.0 47.0 51.0 37.1 0 [109.0] [1.0] 28320
37 45.5 0.0 47.7 50.7 39.7 0 [104.0] [1.0] 25618
38 7.0 0.0 42.3 44.7 39.8 0 [77.0] [1.0] 2439
41 44.1 0.0 47.1 50.9 36.5 0 [111.0] [1.0] 28769
42 47.6 0.0 47.5 50.3 39.4 0 [105.0] [1.0] 16949
43 54.7 0.0 46.4 49.2 38.1 0 [90.0] [1.0] 16585
44 39.4 0.0 44.9 49.4 29.8 189 [109.0, 108.0] [1.0] 15595
45 45.4 0.0 47.4 51.1 35.2 0 [78.0] [1.0] 25429

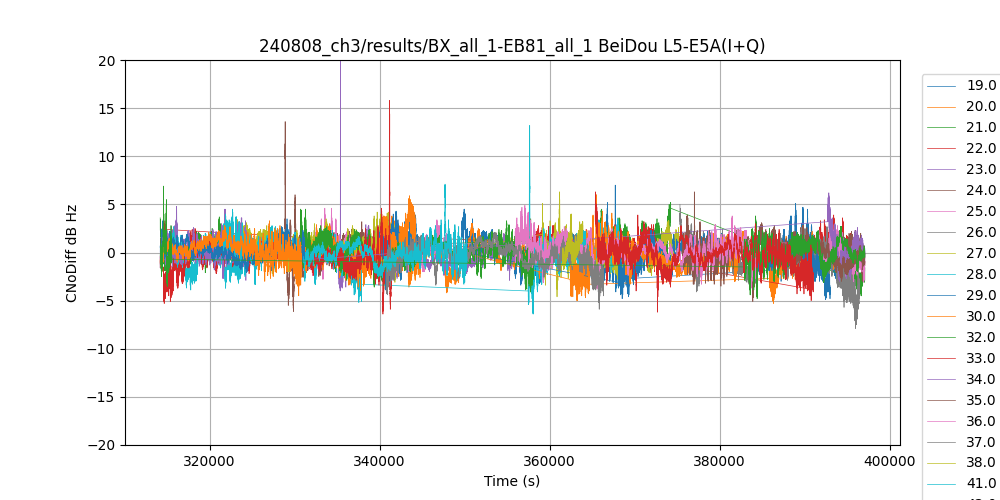

DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 31.8 -0.2 7.0 -4.8 [103.0, 107.0, 79.0, 81.0] 29567
20 35.1 -0.3 3.9 -5.3 [99.0, 92.0, 81.0, 111.0] 32023
21 20.9 0.4 5.2 -5.4 [71.0, 73.0, 102.0, 111.0] 18569
22 24.2 0.5 3.9 -6.2 [81.0, 83.0, 102.0, 90.0] 22103
23 36.4 -0.4 21.9 -4.0 [77.0, 101.0] 23711
24 23.9 0.3 13.6 -6.1 [111.0, 104.0, 88.0, 100.0] 24902
25 25.5 -0.1 4.6 -3.9 [76.0, 108.0, 92.0] 22983
26 37.7 -0.8 5.0 -7.9 [109.0, 110.0] 21131
27 29.0 0.3 6.3 -4.6 [90.0, 108.0, 78.0, 82.0] 34803
28 32.5 -0.2 13.2 -6.4 [109.0, 110.0, 104.0, 103.0] 33077
29 39.4 -0.1 4.3 -4.9 [109.0, 99.0, 104.0] 29348
30 30.3 -0.1 6.0 -5.0 [78.0, 90.0, 88.0, 95.0] 34106
32 45.0 0.0 4.5 -4.1 [79.0] 27386
33 45.3 -0.5 15.8 -6.4 [110.0, 74.0] 26841
34 30.8 0.3 6.2 -3.0 [101.0, 102.0, 84.0, 73.0] 14476
35 51.5 -0.1 6.3 -3.5 [100.0, 99.0] 21456
36 45.1 0.3 4.9 -3.8 [107.0, 109.0] 28293
37 45.5 -0.4 2.1 -5.9 [111.0, 104.0] 25587
38 7.0 0.5 3.2 -1.8 [76.0, 77.0] 2409
41 44.2 0.1 7.1 -3.3 [108.0, 111.0] 28736
42 47.6 0.2 3.5 -2.3 [106.0, 105.0] 16949
43 54.7 0.4 3.3 -4.5 [78.0, 90.0] 16585
44 39.4 0.0 6.9 -4.8 [107.0, 109.0, 110.0, 108.0] 15586
45 45.4 -0.3 6.3 -4.3 [106.0, 78.0] 25428
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.3 0.0 45.9 49.3 35.2 5 [83.0] [1.0] 13747
12 27.4 0.0 44.7 48.3 34.9 64 [108.0, 80.0] [1.0] 15636
14 48.7 0.0 46.4 49.8 36.8 0 [100.0] [1.0] 22022
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.6 49.4 33.8 1 [80.0] [1.0] 13763
12 27.4 0.0 44.2 49.2 35.6 207 [111.0, 83.0] [1.0] 15638
14 48.8 0.0 46.5 49.6 40.9 0 [100.0] [1.0] 22010
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.3 0.2 6.9 -6.9 [83.0, 80.0] 13740
12 27.4 0.4 9.0 -4.9 [108.0, 111.0, 80.0, 83.0] 15629
14 48.8 -0.1 3.5 -7.1 [100.0] 22010
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.4 50.2 18.7 14 [83.0] [1.0] 13764
12 27.4 0.0 41.8 48.6 32.0 61 [108.0, 80.0] [1.0] 15636
14 48.7 0.0 44.8 49.8 35.1 0 [100.0] [1.0] 22022
19 31.8 0.0 45.2 51.3 34.6 86 [103.0, 79.0] [1.0] 29619
20 35.1 0.0 46.0 53.8 30.6 152 [99.0, 81.0] [1.0] 32086
21 20.9 0.0 42.9 50.1 33.9 197 [71.0, 73.0, 102.0] [1.0] 18605
22 24.2 0.0 44.6 50.9 35.4 169 [81.0, 83.0, 90.0] [1.0] 22141
23 36.4 0.0 46.5 52.8 33.9 159 [77.0, 101.0] [1.0] 23722
24 23.9 0.0 43.6 50.0 36.2 110 [111.0, 88.0] [1.0] 24902
25 25.5 0.0 44.6 49.9 35.2 164 [76.0, 108.0] [1.0] 22983
26 37.7 0.0 45.4 52.0 32.0 0 [109.0] [1.0] 21132
27 29.0 0.0 44.9 50.3 30.7 116 [90.0, 78.0] [1.0] 34817
28 32.4 0.0 45.1 52.8 28.2 135 [109.0, 104.0] [1.0] 33123
29 39.4 0.0 46.2 52.8 27.1 156 [109.0, 99.0] [1.0] 29359
30 30.3 0.0 45.5 51.9 37.1 234 [78.0, 88.0] [1.0] 34110
32 45.0 0.0 46.7 52.6 35.7 0 [79.0] [1.0] 27397
33 45.3 0.0 46.0 51.9 27.0 2 [110.0] [1.0] 26843
34 30.9 0.0 44.5 51.2 35.1 141 [101.0, 84.0] [1.0] 14483
35 51.5 0.0 48.0 52.6 33.2 0 [100.0] [1.0] 21456
36 45.1 0.0 47.1 53.0 32.6 0 [107.0] [1.0] 28293
37 45.5 0.0 46.7 52.9 33.9 0 [111.0] [1.0] 25602
38 7.0 0.0 41.2 43.3 39.3 0 [76.0] [1.0] 2411
41 44.2 0.0 46.2 51.9 18.3 42 [108.0] [1.0] 28736
42 47.5 0.0 46.6 51.1 37.7 0 [106.0] [1.0] 16965
43 54.7 0.0 46.9 52.3 31.7 0 [78.0] [1.0] 16602
44 39.4 0.0 45.9 51.2 30.1 230 [107.0, 110.0] [1.0] 15593
45 45.4 0.0 46.2 52.8 33.0 0 [106.0] [1.0] 25442
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.2 49.8 30.1 1 [80.0] [1.0] 13763
12 27.4 0.0 41.1 48.7 26.4 188 [111.0, 83.0] [1.0] 15638
14 48.8 0.0 44.8 49.3 35.2 0 [100.0] [1.0] 22010
19 31.8 0.0 45.4 52.1 33.6 206 [107.0, 81.0] [1.0] 29574
20 35.1 0.0 46.2 54.3 33.4 154 [92.0, 111.0] [1.0] 32024
21 20.9 0.0 43.2 49.9 33.2 404 [71.0, 73.0, 111.0] [1.0] 18587
22 24.2 0.0 44.7 50.6 32.4 248 [83.0, 102.0, 90.0] [1.0] 22120
23 36.4 0.0 45.9 52.1 32.3 106 [77.0, 101.0] [1.0] 23743
24 23.9 0.0 44.2 49.8 32.2 172 [104.0, 100.0] [1.0] 24948
25 25.5 0.0 44.2 50.2 31.6 75 [76.0, 92.0] [1.0] 22992
26 37.6 0.0 46.5 52.2 35.3 0 [110.0] [1.0] 21178
27 29.0 0.0 45.1 50.3 31.6 55 [108.0, 82.0] [1.0] 34835
28 32.4 0.0 45.4 51.8 19.6 168 [110.0, 103.0] [1.0] 33116
29 39.4 0.0 46.2 52.0 32.9 243 [99.0, 104.0] [1.0] 29398
30 30.3 0.0 45.0 52.3 33.3 186 [90.0, 95.0] [1.0] 34112
32 45.0 0.0 46.8 52.9 31.9 0 [79.0] [1.0] 27387
33 45.3 0.0 46.8 52.2 21.1 30 [74.0] [1.0] 26842
34 30.8 0.0 43.5 51.5 29.0 78 [102.0, 73.0] [1.0] 14483
35 51.5 0.0 48.8 53.4 37.1 0 [99.0] [1.0] 21463
36 45.1 0.0 47.3 53.0 33.2 0 [109.0] [1.0] 28320
37 45.5 0.0 46.9 52.3 37.4 0 [104.0] [1.0] 25618
38 7.0 0.0 42.2 44.3 39.5 0 [77.0] [1.0] 2439
41 44.1 0.0 46.7 51.9 32.0 0 [111.0] [1.0] 28769
42 47.6 0.0 46.3 51.6 36.8 0 [105.0] [1.0] 16949
43 54.7 0.0 47.3 52.4 33.8 0 [90.0] [1.0] 16585
44 39.4 0.0 45.8 52.2 29.9 36 [109.0, 108.0] [1.0] 15595
45 45.4 0.0 46.7 52.6 35.0 0 [78.0] [1.0] 25429
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.2 0.2 6.1 -17.1 [83.0, 80.0] 13757
12 27.4 0.6 9.6 -5.9 [108.0, 111.0, 80.0, 83.0] 15629
14 48.8 0.0 4.7 -4.7 [100.0] 22010
19 31.8 -0.2 9.0 -7.7 [103.0, 107.0, 79.0, 81.0] 29567
20 35.1 -0.2 7.6 -9.9 [99.0, 92.0, 81.0, 111.0] 32023
21 20.9 -0.3 6.0 -8.5 [71.0, 73.0, 102.0, 111.0] 18569
22 24.2 -0.0 7.8 -8.6 [81.0, 83.0, 102.0, 90.0] 22103
23 36.4 0.6 8.1 -5.1 [77.0, 101.0] 23711
24 23.9 -0.6 9.2 -8.0 [111.0, 104.0, 88.0, 100.0] 24902
25 25.5 0.4 10.9 -6.6 [76.0, 108.0, 92.0] 22983
26 37.7 -1.1 5.8 -10.9 [109.0, 110.0] 21132
27 29.0 -0.2 9.9 -13.8 [90.0, 108.0, 78.0, 82.0] 34803
28 32.4 -0.3 19.6 -9.1 [109.0, 110.0, 104.0, 103.0] 33080
29 39.4 -0.1 4.9 -11.8 [109.0, 99.0, 104.0] 29348
30 30.3 0.5 8.1 -4.0 [78.0, 90.0, 88.0, 95.0] 34106
32 45.0 -0.1 8.6 -5.7 [79.0] 27386
33 45.3 -0.9 17.7 -12.1 [110.0, 74.0] 26841
34 30.8 1.0 9.7 -4.1 [101.0, 102.0, 84.0, 73.0] 14476
35 51.5 -0.7 5.2 -10.2 [100.0, 99.0] 21456
36 45.1 -0.2 5.8 -6.1 [107.0, 109.0] 28293
37 45.5 -0.3 4.7 -11.0 [111.0, 104.0] 25587
38 7.0 -1.0 1.8 -4.1 [76.0, 77.0] 2409
41 44.2 -0.5 7.7 -21.2 [108.0, 111.0] 28736
42 47.6 0.3 5.1 -6.6 [106.0, 105.0] 16949
43 54.7 -0.4 5.5 -7.7 [78.0, 90.0] 16585
44 39.4 0.1 9.1 -6.9 [107.0, 109.0, 110.0, 108.0] 15586
45 45.4 -0.5 5.3 -7.1 [106.0, 78.0] 25428
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.3 0.0 44.8 48.9 31.1 5 [83.0] [1.0] 13747
12 27.4 0.0 43.1 48.6 31.9 138 [108.0, 80.0] [1.0] 15636
14 48.7 0.0 45.1 49.1 35.8 0 [100.0] [1.0] 22022
19 31.8 0.0 44.4 49.3 34.3 25 [103.0, 79.0] [1.0] 29619
20 35.1 0.0 43.8 50.0 30.8 254 [99.0, 81.0] [1.0] 32086
21 20.9 0.0 43.0 48.7 34.7 111 [71.0, 73.0, 102.0] [1.0] 18605
22 24.2 0.0 43.5 48.5 34.5 286 [81.0, 83.0, 90.0] [1.0] 22141
23 36.4 0.0 45.1 49.6 27.0 87 [77.0, 101.0] [1.0] 23722
24 23.9 0.0 44.0 48.5 33.1 31 [111.0, 88.0] [1.0] 24902
25 25.5 0.0 43.6 47.7 36.3 154 [76.0, 108.0] [1.0] 22983
26 37.7 0.0 44.7 49.8 34.2 0 [109.0] [1.0] 21127
27 29.0 0.0 43.5 48.1 36.3 50 [90.0, 78.0] [1.0] 34817
28 32.4 0.0 43.4 49.0 31.9 86 [109.0, 104.0] [1.0] 33116
29 39.4 0.0 44.0 49.3 33.8 78 [109.0, 99.0] [1.0] 29359
30 30.3 0.0 43.7 48.6 20.6 87 [78.0, 88.0] [1.0] 34110
32 45.0 0.0 45.3 50.0 23.5 0 [79.0] [1.0] 27397
33 45.3 0.0 45.1 49.2 31.8 2 [110.0] [1.0] 26843
34 30.9 0.0 42.4 48.5 33.3 97 [101.0, 84.0] [1.0] 14483
35 51.5 0.0 46.2 49.6 36.8 0 [100.0] [1.0] 21456
36 45.1 0.0 45.9 50.2 35.2 0 [107.0] [1.0] 28293
37 45.5 0.0 45.3 50.0 34.3 0 [111.0] [1.0] 25602
38 7.0 0.0 41.4 43.3 38.4 0 [76.0] [1.0] 2411
41 44.2 0.0 45.7 50.0 35.9 15 [108.0] [1.0] 28696
42 47.5 0.0 45.6 49.3 36.7 0 [106.0] [1.0] 16965
43 54.7 0.0 44.6 49.1 24.3 0 [78.0] [1.0] 16602
44 39.4 0.0 44.2 49.4 32.4 238 [107.0, 110.0] [1.0] 15593
45 45.4 0.0 45.7 50.3 34.0 0 [106.0] [1.0] 25442
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.3 48.6 33.0 1 [80.0] [1.0] 13763
12 27.4 0.0 42.8 48.0 33.4 179 [111.0, 83.0] [1.0] 15638
14 48.8 0.0 45.2 48.4 38.6 0 [100.0] [1.0] 22010
19 31.8 0.0 44.6 49.3 32.1 206 [107.0, 81.0] [1.0] 29574
20 35.1 0.0 43.9 49.4 36.1 237 [92.0, 111.0] [1.0] 32024
21 20.9 0.0 42.3 48.5 35.0 52 [71.0, 73.0, 111.0] [1.0] 18587
22 24.2 0.0 42.9 48.5 34.3 396 [83.0, 102.0, 90.0] [1.0] 22120
23 36.4 0.0 44.7 49.3 35.2 218 [77.0, 101.0] [1.0] 23743
24 23.9 0.0 43.2 47.5 20.1 237 [104.0, 100.0] [1.0] 24943
25 25.5 0.0 43.1 47.6 35.7 53 [76.0, 92.0] [1.0] 22992
26 37.6 0.0 44.6 49.0 36.1 0 [110.0] [1.0] 21178
27 29.0 0.0 43.1 47.7 33.4 43 [108.0, 82.0] [1.0] 34835
28 32.4 0.0 42.8 48.6 22.2 252 [110.0, 103.0] [1.0] 33077
29 39.4 0.0 44.1 49.1 32.9 148 [99.0, 104.0] [1.0] 29398
30 30.3 0.0 43.1 48.6 33.3 240 [90.0, 95.0] [1.0] 34112
32 45.0 0.0 44.8 49.3 33.5 0 [79.0] [1.0] 27387
33 45.3 0.0 45.0 48.8 23.4 9 [74.0] [1.0] 26816
34 30.8 0.0 42.3 48.3 34.0 211 [102.0, 73.0] [1.0] 14483
35 51.5 0.0 46.2 49.3 35.6 0 [99.0] [1.0] 21463
36 45.1 0.0 45.6 50.2 34.7 0 [109.0] [1.0] 28320
37 45.5 0.0 45.6 49.4 36.7 0 [104.0] [1.0] 25618
38 7.0 0.0 39.9 42.0 36.9 0 [77.0] [1.0] 2439
41 44.1 0.0 45.5 49.4 32.5 0 [111.0] [1.0] 28769
42 47.6 0.0 45.7 49.0 38.3 0 [105.0] [1.0] 16949
43 54.7 0.0 44.4 48.6 31.1 0 [90.0] [1.0] 16585
44 39.4 0.0 44.1 48.6 30.1 44 [109.0, 108.0] [1.0] 15595
45 45.4 0.0 45.6 49.8 36.4 0 [78.0] [1.0] 25429
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.3 0.5 5.1 -4.1 [83.0, 80.0] 13740
12 27.4 0.3 5.1 -4.8 [108.0, 111.0, 80.0, 83.0] 15629
14 48.8 -0.1 4.6 -4.6 [100.0] 22010
19 31.8 -0.3 11.7 -5.6 [103.0, 107.0, 79.0, 81.0] 29567
20 35.1 -0.2 4.2 -10.6 [99.0, 92.0, 81.0, 111.0] 32023
21 20.9 0.6 6.4 -5.9 [71.0, 73.0, 102.0, 111.0] 18569
22 24.2 0.7 5.7 -4.7 [81.0, 83.0, 102.0, 90.0] 22103
23 36.4 0.4 5.5 -10.9 [77.0, 101.0] 23711
24 23.9 0.8 16.2 -5.5 [111.0, 104.0, 88.0, 100.0] 24902
25 25.5 0.5 6.5 -3.5 [76.0, 108.0, 92.0] 22983
26 37.7 0.2 4.5 -5.8 [109.0, 110.0] 21127
27 29.0 0.3 6.3 -4.2 [90.0, 108.0, 78.0, 82.0] 34803
28 32.5 0.6 14.1 -8.1 [109.0, 110.0, 104.0, 103.0] 33034
29 39.4 -0.2 5.5 -4.8 [109.0, 99.0, 104.0] 29348
30 30.3 0.6 5.3 -16.9 [78.0, 90.0, 88.0, 95.0] 34106
32 45.0 0.5 7.4 -10.7 [79.0] 27386
33 45.3 0.1 15.4 -5.9 [110.0, 74.0] 26815
34 30.8 0.1 4.9 -4.8 [101.0, 102.0, 84.0, 73.0] 14476
35 51.5 -0.0 5.1 -5.3 [100.0, 99.0] 21456
36 45.1 0.3 6.0 -3.8 [107.0, 109.0] 28293
37 45.5 -0.3 3.7 -6.1 [111.0, 104.0] 25587
38 7.0 1.4 3.3 -0.5 [76.0, 77.0] 2409
41 44.2 0.2 7.5 -4.6 [108.0, 111.0] 28696
42 47.6 -0.0 3.8 -4.2 [106.0, 105.0] 16949
43 54.7 0.2 4.7 -12.7 [78.0, 90.0] 16585
44 39.4 0.1 5.8 -6.4 [107.0, 109.0, 110.0, 108.0] 15586
45 45.4 0.1 4.1 -6.4 [106.0, 78.0] 25428
