REF File: 240808_ch3/BX_all.T04
DUT File: 240808_ch3/EB81_all.T04

Comments


CH3

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 774061 43.9 44.2 4.3 13.3 54.7 41.4 37.0 90.0
GPS L2 CM+CL 585463 44.3 44.7 3.4 23.3 51.8 28.5 38.4 90.0
GPS L2 E 188120 30.3 30.6 6.5 13.9 44.3 30.4 32.8 77.0
GPS L5/E5A I+Q 427973 47.5 47.7 2.9 19.8 54.5 34.7 37.7 88.0
SBAS L1 CA 321073 42.7 44.1 4.0 22.9 48.2 25.3 20.7 42.0
SBAS L5/E5A I 248710 46.2 46.2 0.5 38.6 48.7 10.1 39.8 42.0
GLONASS L1 CA 595660 44.4 45.2 5.0 19.9 54.2 34.3 35.9 90.0
GLONASS L1 P 595338 42.8 43.7 5.0 22.1 52.4 30.3 35.9 90.0
GLONASS L2 CA 505739 44.5 45.1 3.4 1.0 51.4 50.4 36.5 89.0
GLONASS L2 P 505755 42.9 43.6 3.4 9.7 49.7 40.0 36.5 87.0

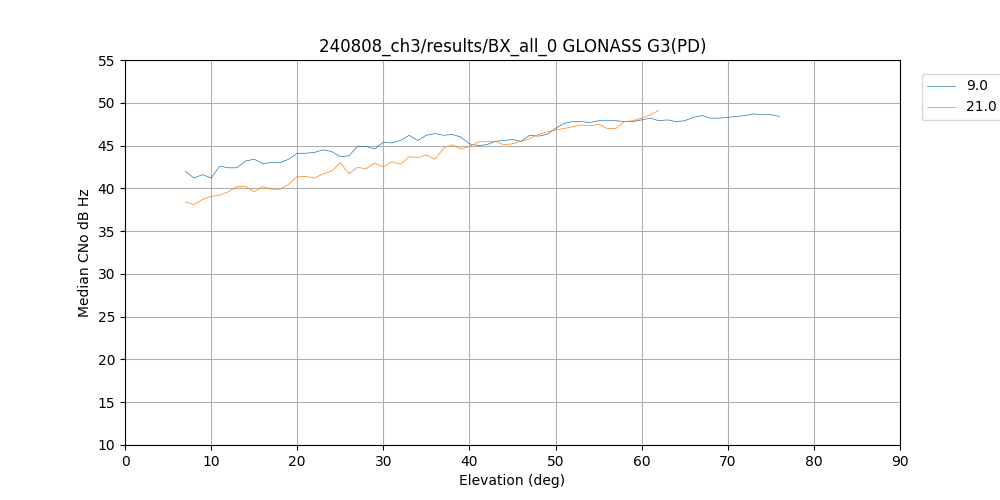

GLONASS G3 PD 52285 45.2 45.7 2.9 33.6 50.2 16.6 40.1 76.0
Galileo L1 MBOC-PD 597261 45.2 45.5 4.0 26.2 53.5 27.3 37.4 88.0
Galileo L5/E5A BPSK(10)-PD 597259 44.9 45.0 2.8 21.1 50.7 29.6 37.4 88.0
Galileo E5B/B2 BPSK(10)-PD 597259 45.4 45.5 3.0 21.1 51.3 30.2 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597261 47.6 47.7 2.5 33.6 52.7 19.1 37.4 88.0

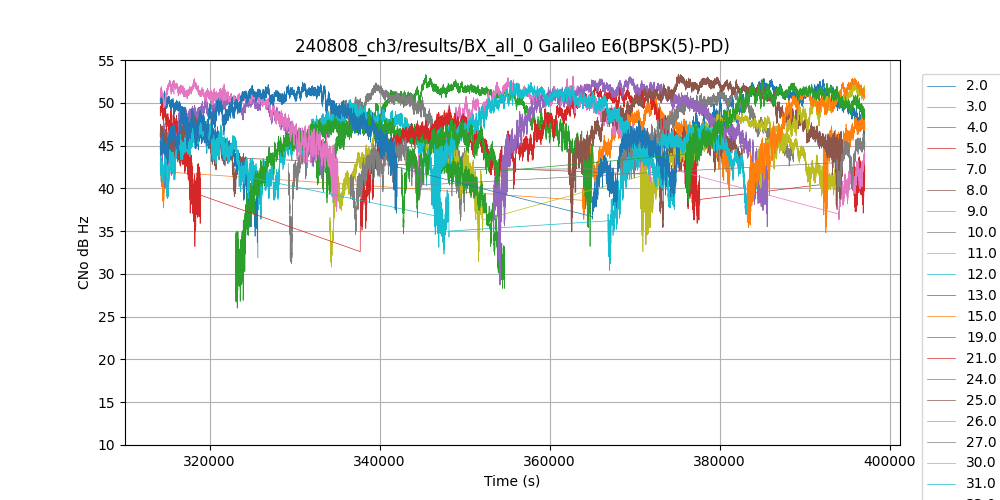

Galileo E6 BPSK(5)-PD 597258 46.8 47.0 3.7 26.0 53.3 27.3 37.4 88.0

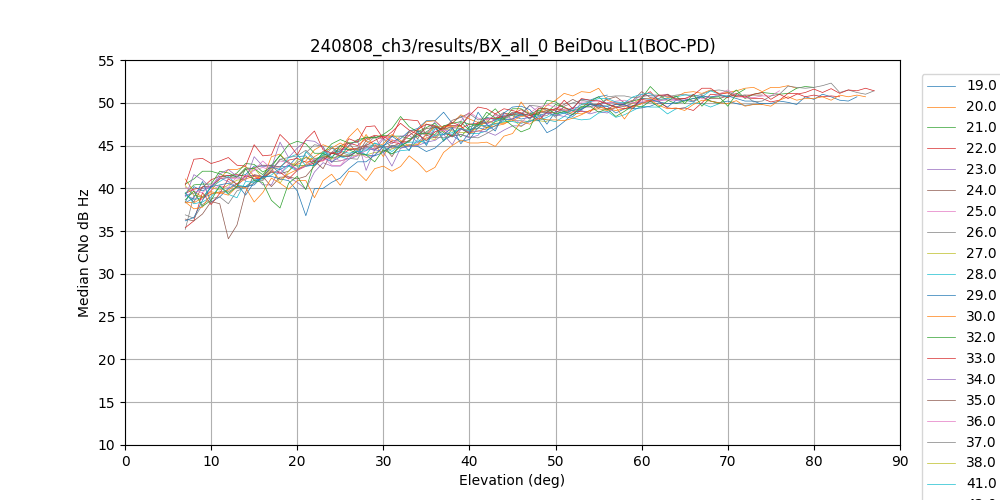

BeiDou L1 BOC-PD 576410 45.7 45.9 4.0 20.1 53.5 33.4 37.0 87.0
BeiDou L5/E5A I+Q 576409 45.9 46.0 2.9 31.1 51.9 20.8 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51422 45.7 46.3 2.0 35.9 49.9 14.0 42.1 86.0
BeiDou B1 BPSK(2)-B1 627835 45.6 45.9 3.9 26.1 53.4 27.3 37.4 87.0
BeiDou B3 BPSK(10)-B3 627821 44.6 45.2 3.1 21.3 50.5 29.2 37.4 87.0
start/stop time: 314,181 397,088
Total time: 82,907.0 seconds
Total time: 1,381.783 minutes
Total time: 23.030 hours
Total Samples: 10,246,372
Avg Samples/sec: 123.6

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 314181.154
Stop Time : 396000.361
Total Hours : 22.7275575
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 773874 43.7 44.1 4.2 14.9 54.5 39.6 37.0 90.0
GPS L2 CM+CL 585339 43.9 44.2 3.3 18.5 51.4 32.9 38.4 90.0
GPS L2 E 188253 29.5 29.8 6.2 12.6 43.3 30.7 32.8 77.0
GPS L5/E5A I+Q 427910 47.0 47.2 2.7 20.5 53.0 32.5 37.7 88.0
GLONASS L1 CA 595526 43.5 44.5 5.1 0.0 53.7 53.7 35.9 90.0
GLONASS L2 CA 504746 44.0 44.7 3.2 5.6 50.8 45.2 36.5 89.0
Galileo L1 MBOC-PD 597161 45.0 45.1 3.9 1.5 53.3 51.8 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597170 47.4 47.6 2.3 31.0 52.1 21.1 37.4 88.0
BeiDou L5/E5A I+Q 576512 45.5 45.8 2.6 23.4 50.7 27.3 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51411 45.7 46.4 2.1 36.3 49.4 13.1 42.1 86.0
BeiDou B1 BPSK(2)-B1 627923 45.3 45.7 4.0 21.5 53.8 32.3 37.4 87.0
BeiDou B3 BPSK(10)-B3 627830 44.4 45.0 2.9 19.0 50.1 31.1 37.4 87.0
start/stop time: 314,188 397,095
Total time: 82,907.0 seconds
Total time: 1,381.783 minutes
Total time: 23.030 hours
Total Samples: 6,153,655
Avg Samples/sec: 74.2

Serial Number : 6348C01910
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : -1
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : -1
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 314188.111
Stop Time : 396940.96
Total Hours : 22.986902500000014
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 773424 +0.2 +0.3 +1.7 -21.7 +23.6 +45.3 +37.0 +90.0
GPS L2 CM+CL 584992 +0.5 +0.5 +1.5 -12.9 +19.0 +31.9 +38.4 +90.0
GPS L2 E 187693 +0.7 +0.8 +1.9 -10.1 +11.2 +21.3 +32.9 +77.0
GPS L5/E5A I+Q 427639 +0.5 +0.5 +1.3 -22.6 +23.3 +45.9 +37.7 +88.0
GLONASS L1 CA 594534 +0.9 +0.9 +1.8 -12.5 +29.0 +41.5 +35.9 +90.0
GLONASS L2 CA 504152 +0.5 +0.6 +1.5 -10.8 +19.9 +30.7 +36.5 +87.0
Galileo L1 MBOC-PD 596810 +0.3 +0.3 +1.4 -10.1 +29.8 +39.9 +37.4 +88.0
Galileo E5A+B AltBOC-Comp-PD 596819 +0.2 +0.2 +0.9 -8.9 +10.4 +19.3 +37.4 +88.0
BeiDou L5/E5A I+Q 576046 +0.4 +0.4 +1.2 -11.3 +16.6 +27.9 +37.0 +87.0
BeiDou E5B/B2 BPSK(2)-B2 51396 -0.0 +0.0 +1.0 -5.2 +6.0 +11.2 +42.1 +86.0
BeiDou B1 BPSK(2)-B1 627446 +0.3 +0.3 +1.6 -12.7 +14.0 +26.7 +37.4 +87.0
BeiDou B3 BPSK(10)-B3 627339 +0.2 +0.2 +1.2 -17.5 +17.4 +34.9 +37.4 +87.0
start/stop time: 314,188 397,088
Total time: 82,900.0 seconds
Total time: 1,381.667 minutes
Total time: 23.028 hours
Total Samples: 6,148,290
Avg Samples/sec: 74.2

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.382
Median = 0.400
Std Dev= 1.488

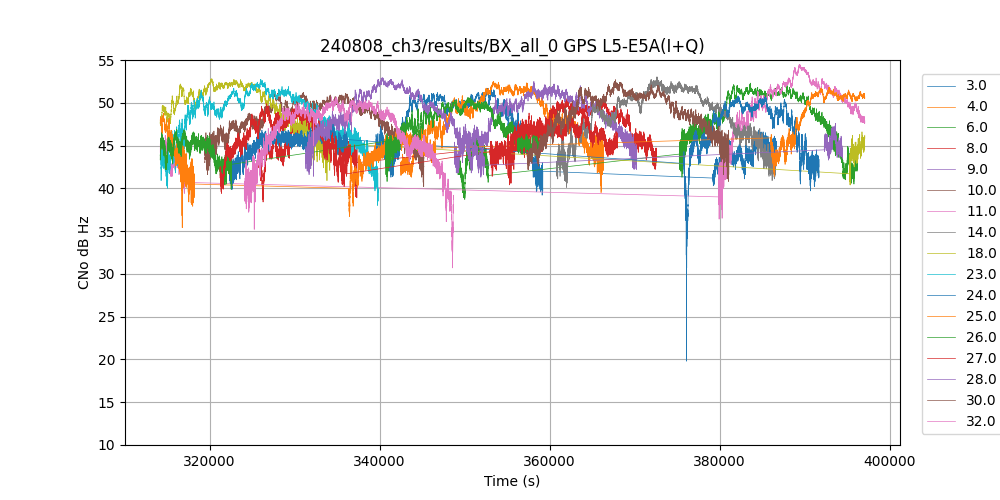

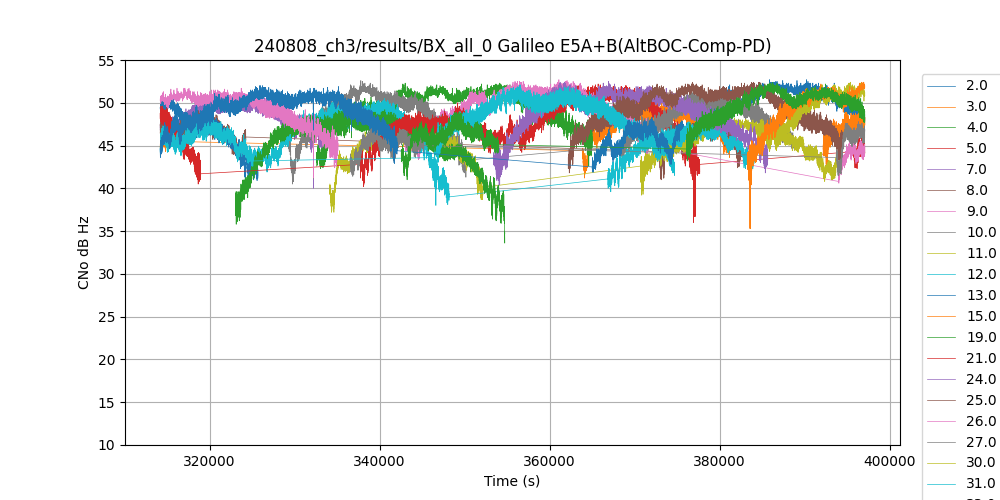

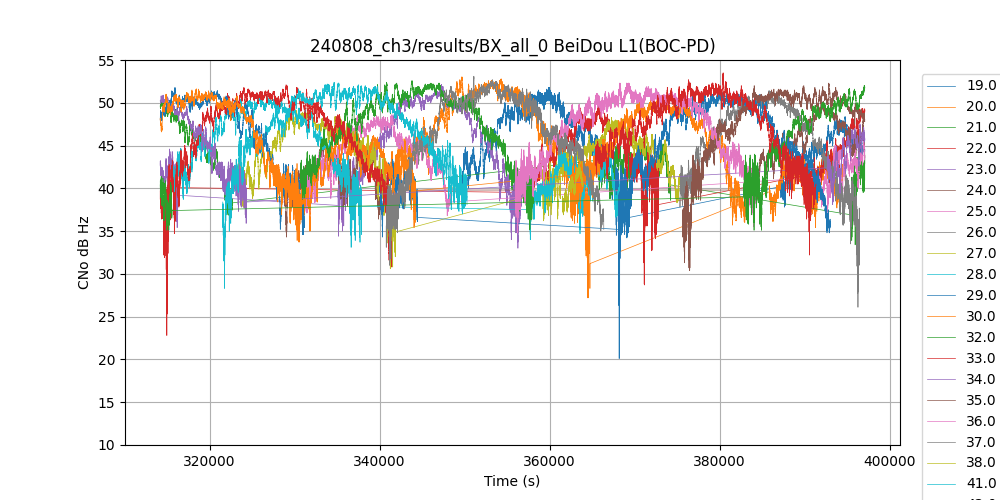

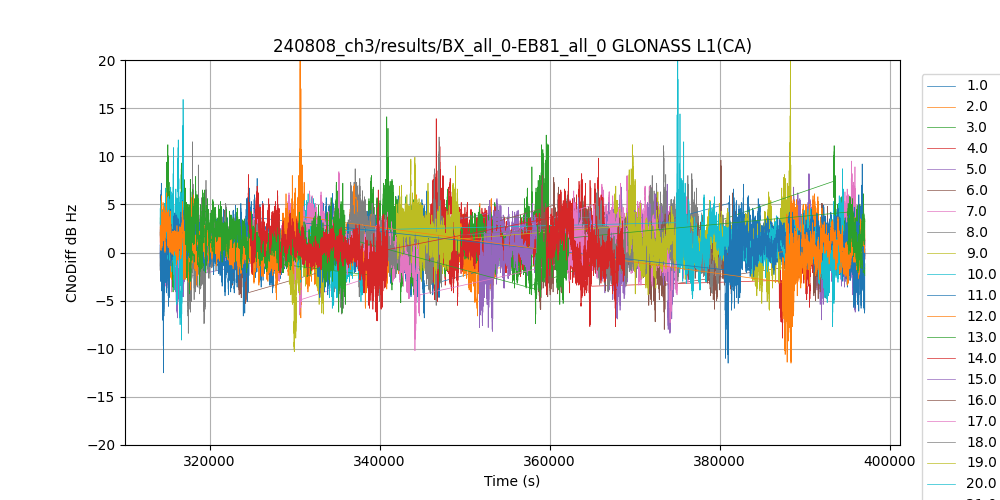

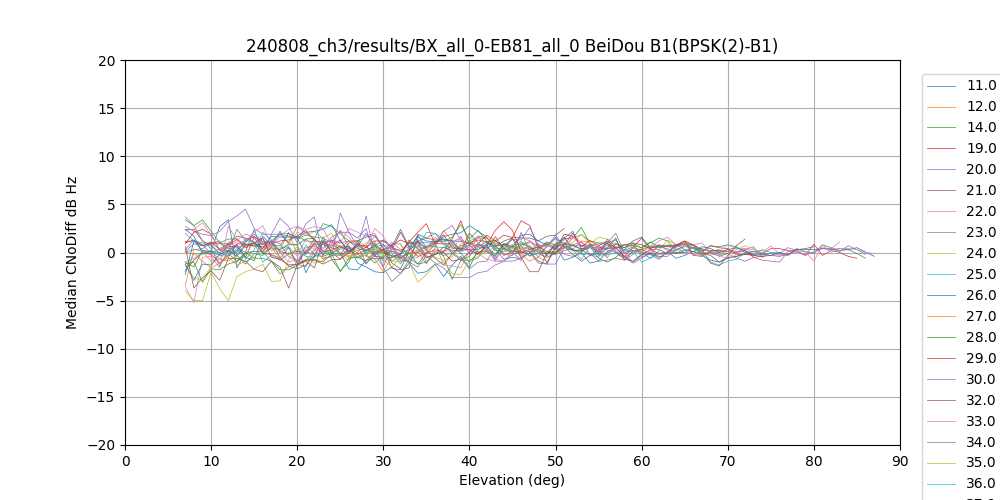

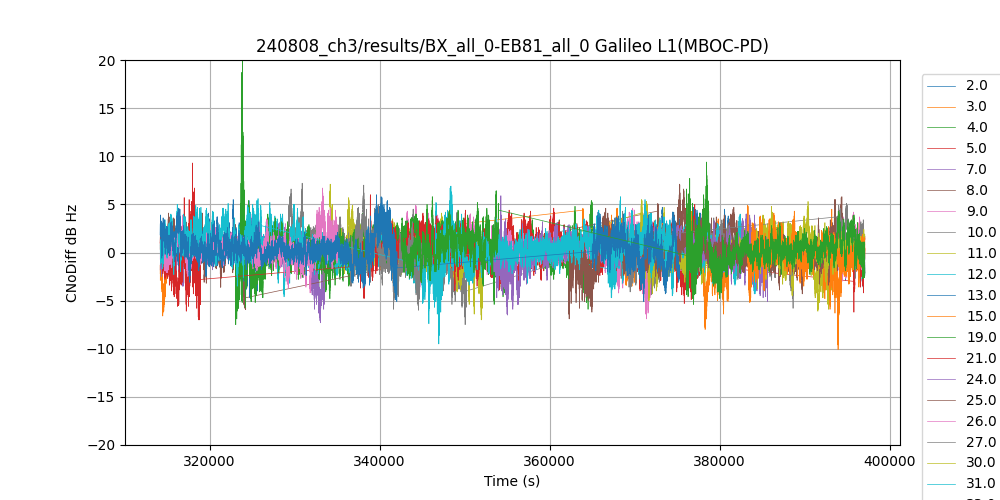

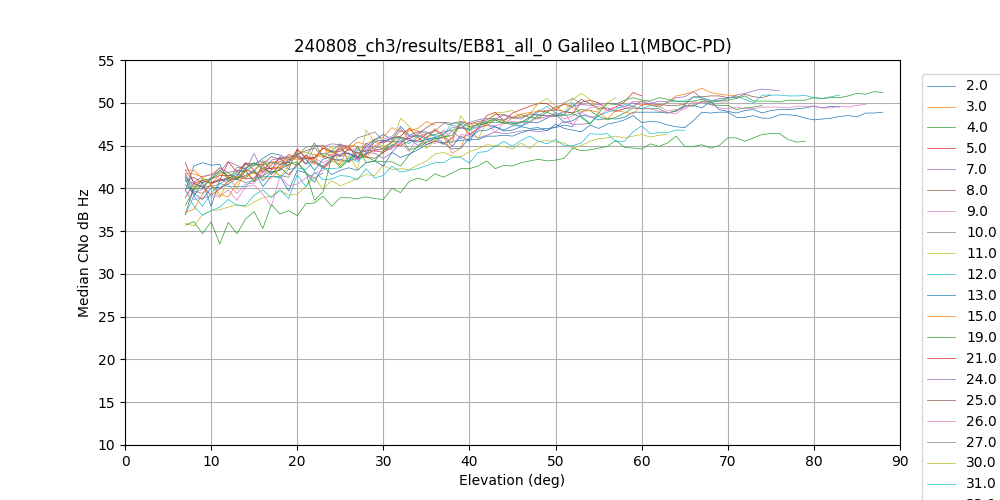

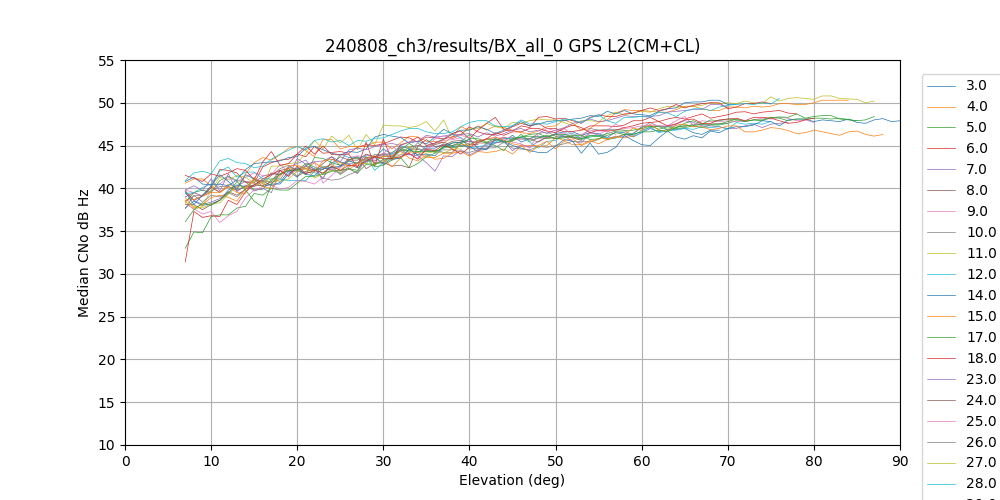

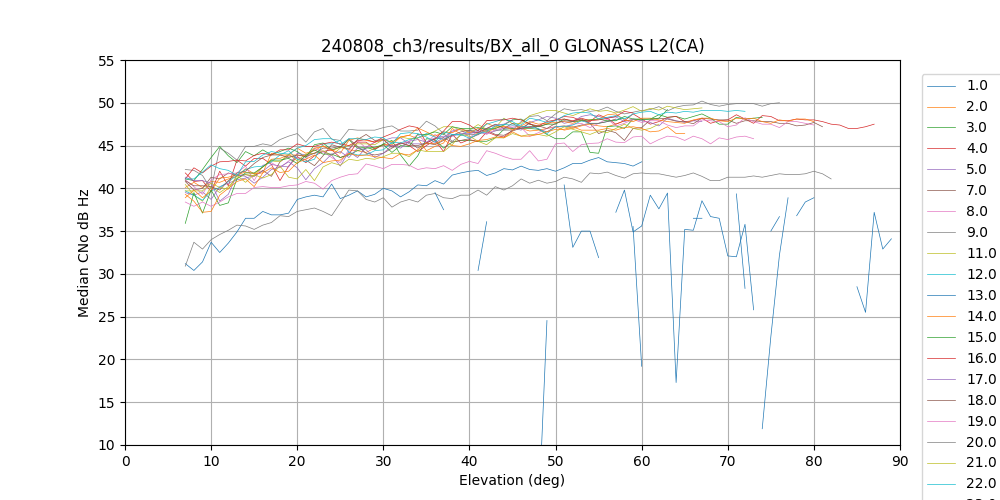

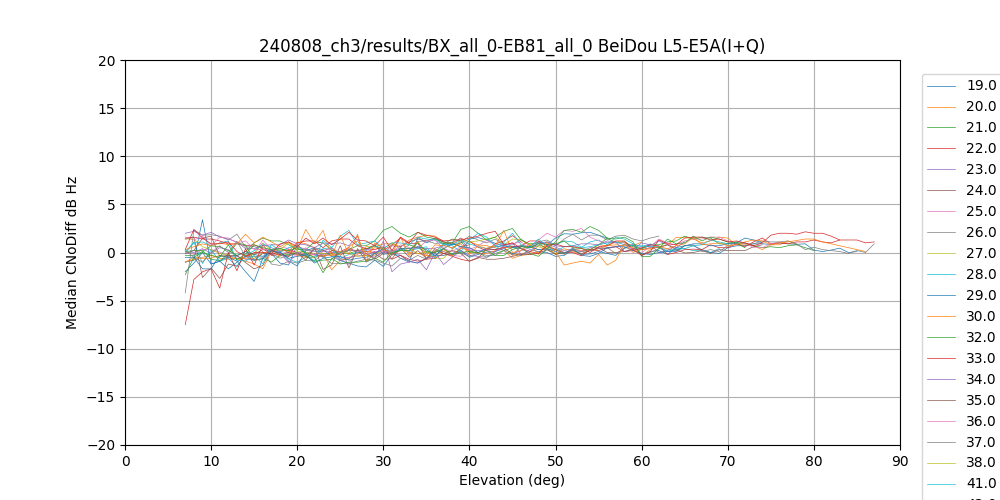

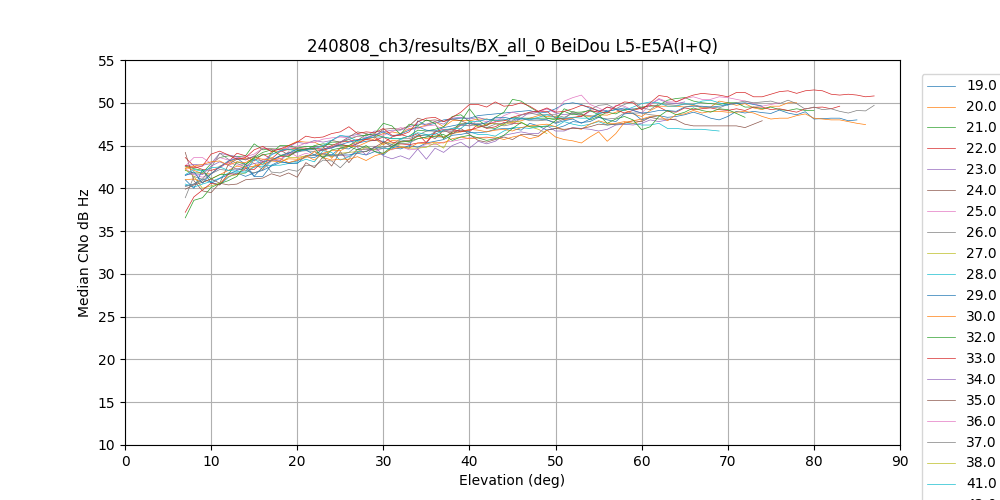

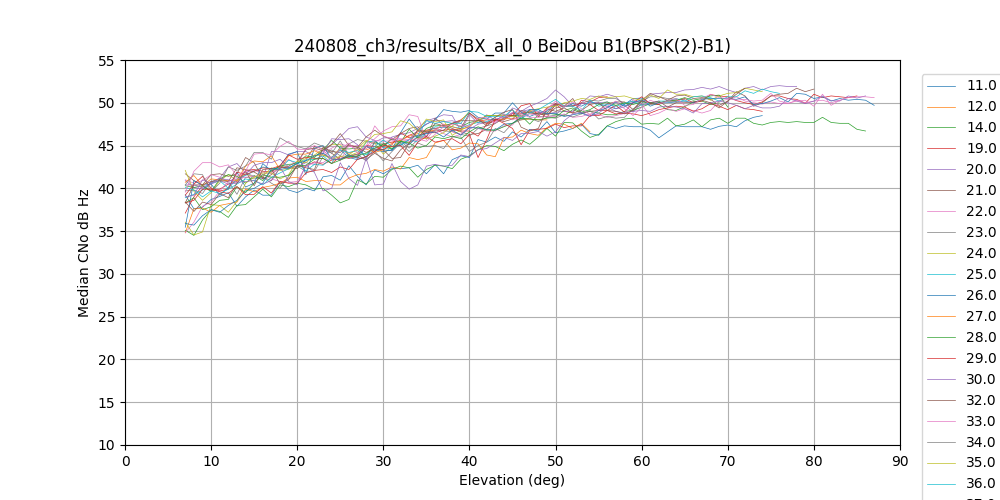

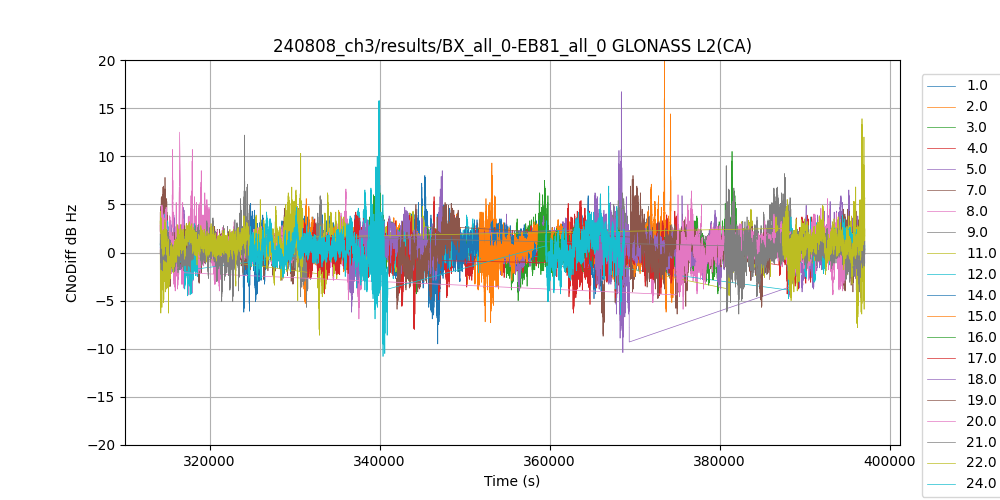

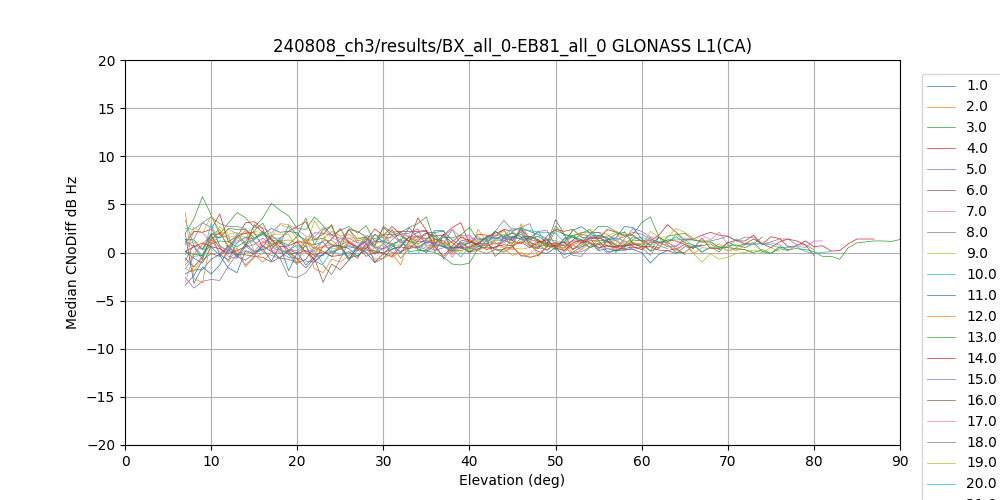

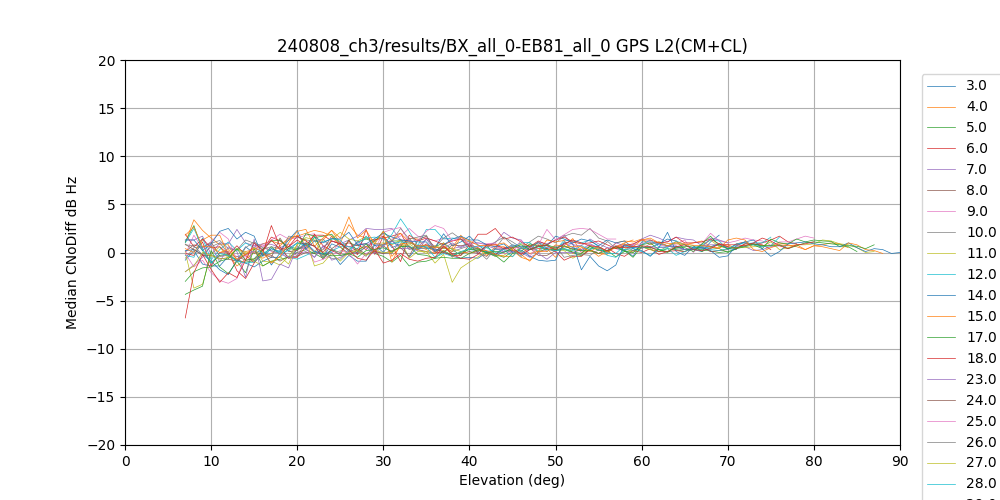

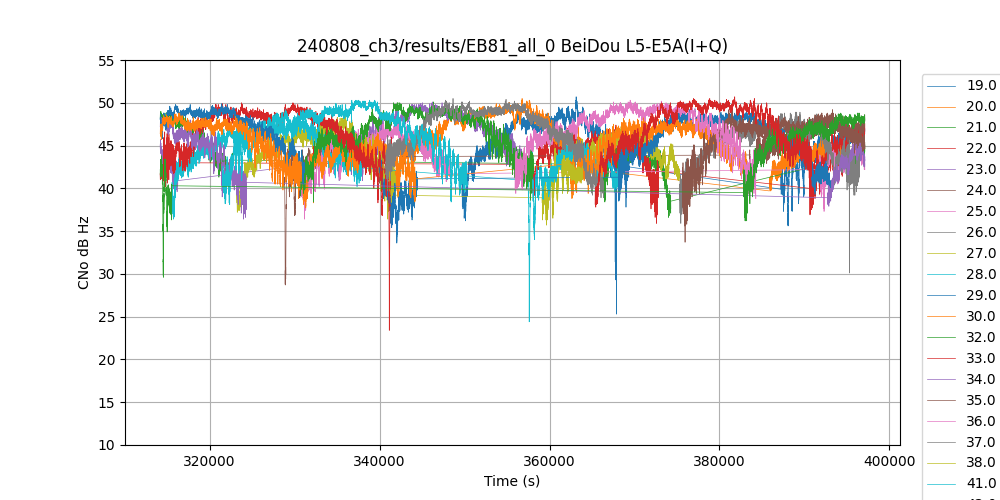

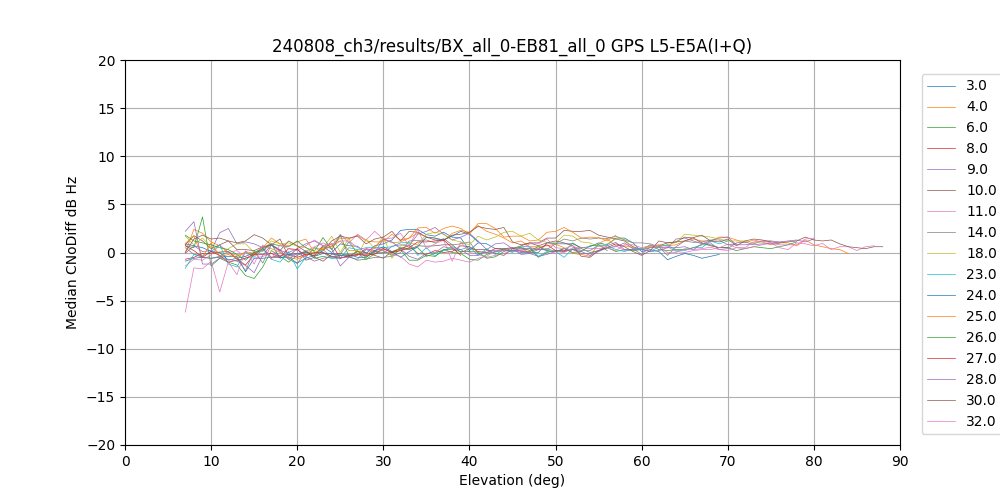

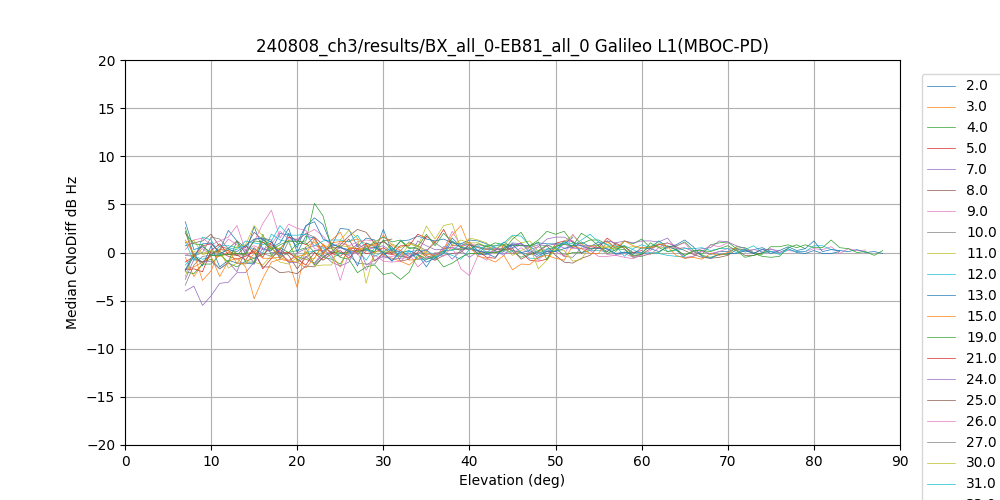

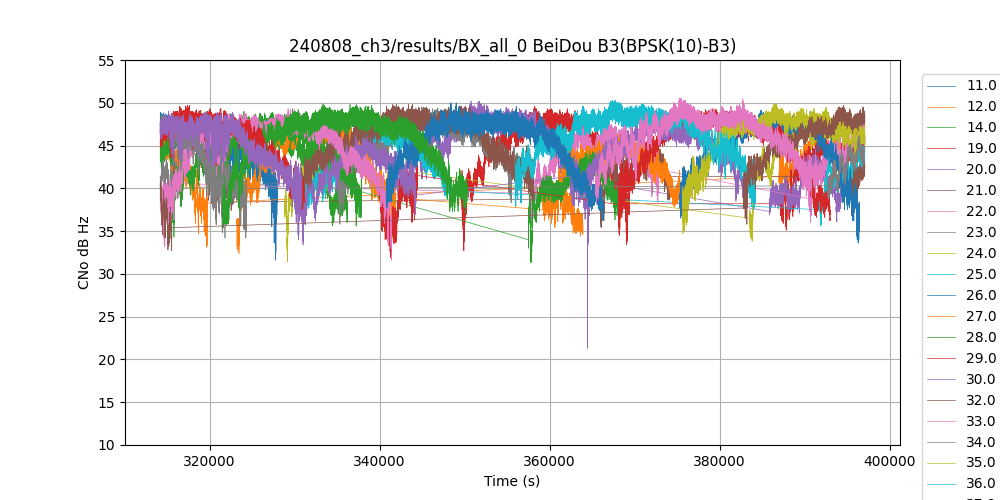

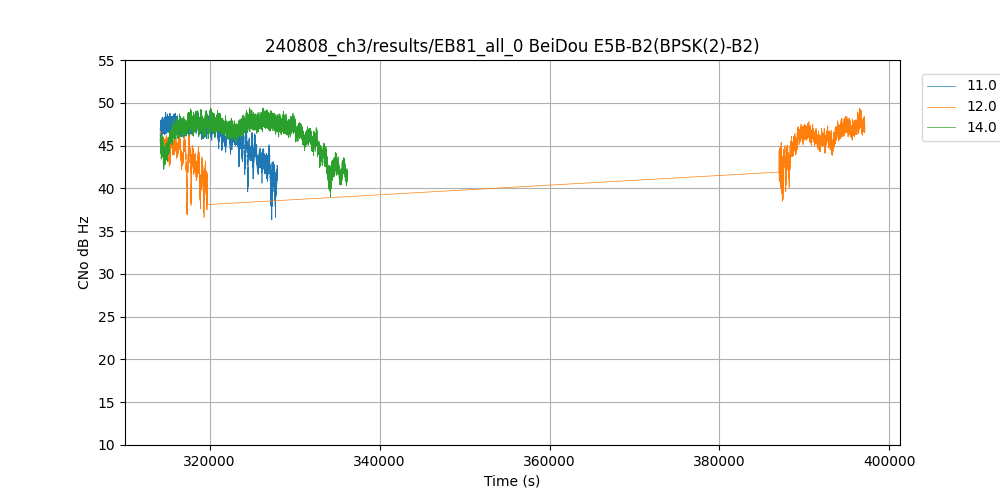

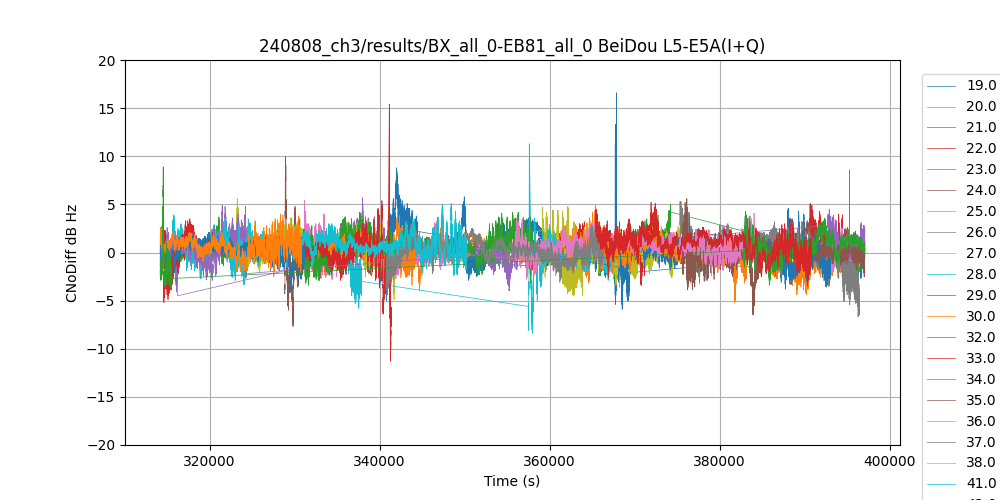

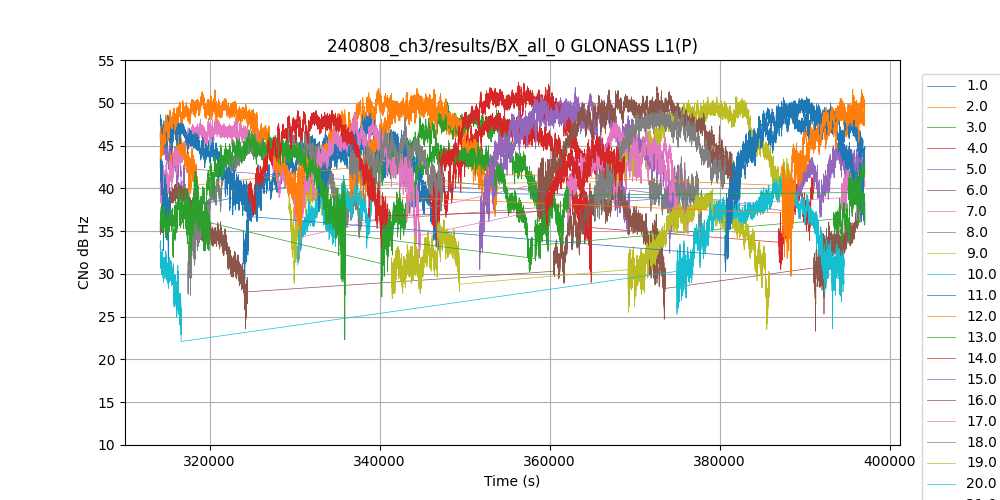

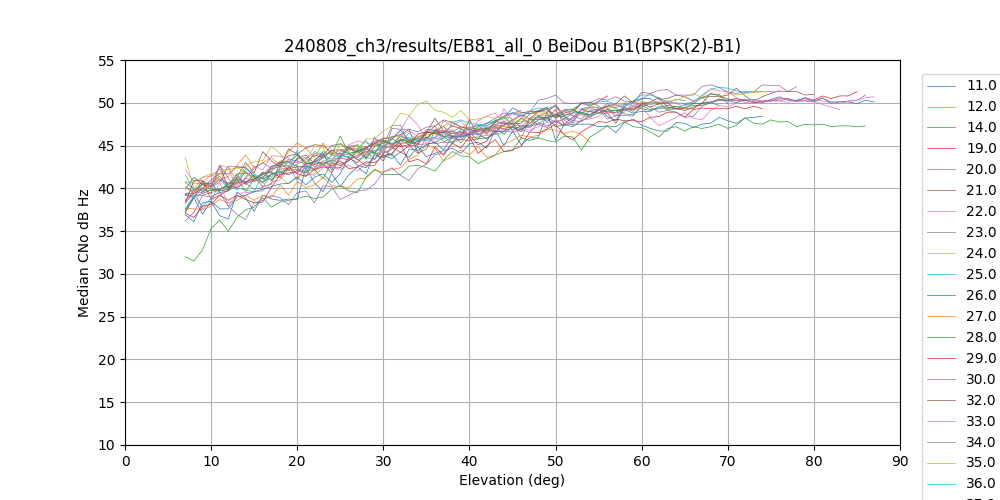

Plots

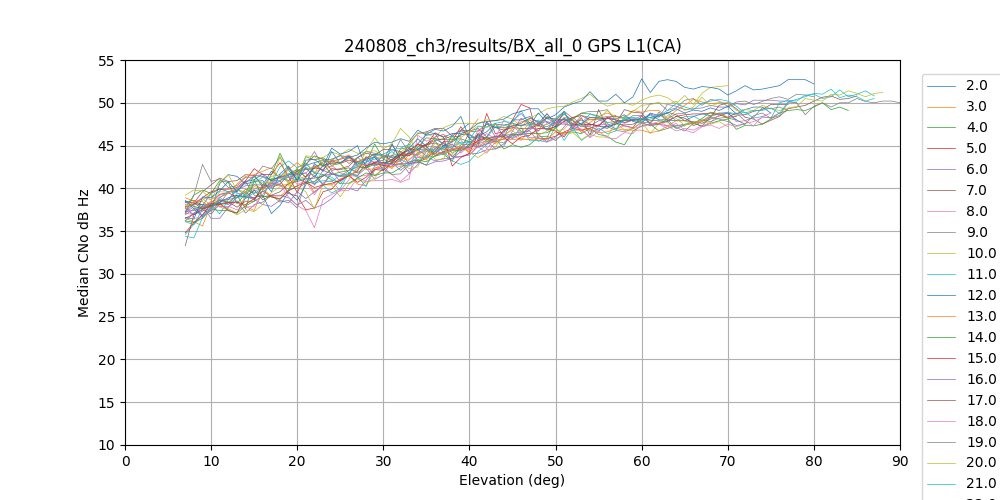

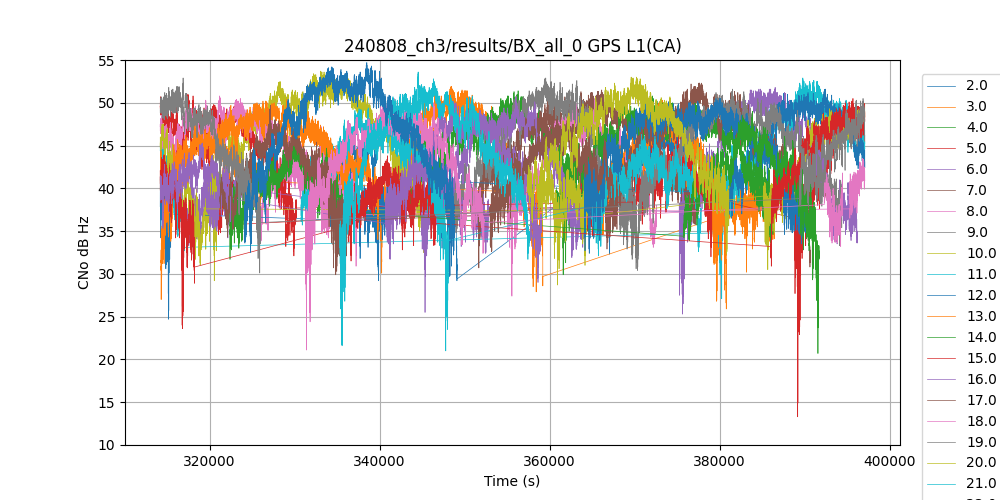

REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 50.1 29.2 159 [15.0, 16.0] [0.0] 30523
3 32.7 0.0 42.7 51.9 27.9 165 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 44.7 51.4 33.7 0 [36.0] [0.0] 23847
5 34.3 0.0 43.2 51.0 13.3 341 [15.0, 16.0, 17.0] [0.0] 19827
6 38.4 0.0 43.4 51.8 25.3 168 [27.0, 31.0] [0.0] 24501
7 45.1 0.0 45.8 51.5 30.7 0 [33.0] [0.0] 25511
8 27.4 0.0 42.4 50.5 27.4 194 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 45.0 52.9 30.6 2 [34.0] [0.0] 21447
10 43.5 0.0 47.0 53.7 29.2 2 [29.0] [0.0] 25774
11 48.2 0.0 45.3 52.9 27.1 28 [34.0, 33.0] [0.0] 20093
12 39.1 0.0 44.4 51.6 24.7 357 [27.0, 33.0, 28.0] [0.0] 20957
13 27.6 0.0 43.1 50.3 25.9 269 [37.0, 18.0] [0.0] 27318
14 44.1 0.0 45.2 50.8 29.9 0 [19.0] [0.0] 25728
15 30.5 0.0 43.5 49.9 32.0 157 [35.0, 27.0] [0.0] 25286
16 31.2 0.0 42.1 50.7 25.5 233 [33.0, 32.0] [0.0] 27076
17 45.7 0.0 45.4 52.3 30.8 4 [36.0] [0.0] 24092
18 47.0 0.0 45.2 50.8 34.2 70 [36.0, 35.0] [0.0] 21725
19 44.7 0.0 44.7 51.6 30.4 4 [37.0] [0.0] 24583
20 31.6 0.0 41.8 50.2 28.7 308 [29.0, 21.0, 24.0] [0.0] 22866
21 26.6 0.0 42.3 49.4 21.0 280 [19.0, 21.0] [0.0] 30237
22 44.4 0.0 45.2 50.7 32.4 0 [32.0] [0.0] 25995
23 43.5 0.0 44.9 50.4 27.0 2 [30.0] [0.0] 25553
24 25.7 0.0 41.1 49.0 20.7 111 [26.0] [0.0] 29779
25 26.7 0.0 41.3 50.5 23.6 514 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 42.7 50.2 29.0 177 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 42.4 49.7 29.9 205 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 43.3 50.5 21.1 272 [24.0, 34.0] [0.0] 23148
29 42.5 0.0 45.2 52.9 30.1 177 [14.0, 16.0] [0.0] 19499
30 45.9 0.0 45.9 53.0 32.3 2 [24.0] [0.0] 23655
31 45.3 0.0 45.4 53.6 21.6 67 [25.0] [0.0] 22318
32 45.3 0.0 47.2 54.7 30.9 3 [22.0] [0.0] 24621
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.1 49.2 32.5 195 [15.0, 17.0] [0.0] 30483
3 32.7 0.0 42.6 52.3 27.9 54 [35.0, 34.0] [0.0] 27048
4 45.5 0.0 44.5 50.9 31.1 0 [16.0] [0.0] 23783
5 34.3 0.0 43.1 50.5 20.9 207 [15.0, 17.0] [0.0] 19816
6 38.4 0.0 43.1 52.2 27.9 171 [31.0, 28.0] [0.0] 24465
7 45.1 0.0 45.6 51.3 31.3 0 [30.0] [0.0] 25503
8 27.4 0.0 41.9 49.7 30.3 6 [29.0, 26.0] [0.0] 29161
9 44.0 0.0 44.6 52.7 28.7 1 [33.0] [0.0] 21433
10 43.5 0.0 46.9 53.4 32.4 0 [36.0] [0.0] 25779
11 48.2 0.0 45.0 52.7 24.3 126 [30.0, 33.0] [0.0] 20095
12 39.1 0.0 44.6 51.8 30.4 111 [26.0, 29.0, 30.0] [0.0] 20926
13 27.6 0.0 42.9 48.5 33.5 116 [37.0, 19.0] [0.0] 27260
14 44.2 0.0 45.1 51.2 33.6 0 [21.0] [0.0] 25717
15 30.5 0.0 43.4 50.3 30.8 205 [35.0, 31.0] [0.0] 25274
16 31.2 0.0 41.6 50.0 23.3 202 [29.0, 32.0] [0.0] 27079
17 45.7 0.0 44.9 52.2 14.9 41 [36.0] [0.0] 24120
18 47.0 0.0 44.8 50.4 30.9 21 [33.0, 29.0] [0.0] 21723
19 44.6 0.0 44.3 51.2 27.5 18 [35.0] [0.0] 24612
20 31.7 0.0 41.7 49.8 27.0 345 [23.0, 22.0, 37.0] [0.0] 22810
21 26.6 0.0 42.4 49.6 30.5 199 [19.0, 34.0] [0.0] 30278
22 44.4 0.0 45.4 50.8 33.6 0 [32.0] [0.0] 25998
23 43.5 0.0 44.8 50.4 31.2 1 [24.0] [0.0] 25549
24 25.6 0.0 41.1 47.8 29.8 208 [25.0, 26.0] [0.0] 29807
25 26.7 0.0 41.0 49.8 24.7 502 [21.0, 33.0, 27.0] [0.0] 25319
26 29.1 0.0 42.3 50.3 25.1 76 [31.0, 24.0] [0.0] 26634
27 26.1 0.0 42.5 47.6 31.3 136 [26.0, 27.0] [0.0] 29915
28 39.7 0.0 43.1 50.5 27.5 164 [27.0, 26.0] [0.0] 23209
29 42.5 0.0 44.6 52.3 29.9 105 [14.0, 16.0] [0.0] 19470
30 45.9 0.0 45.6 52.8 25.5 19 [23.0] [0.0] 23652
31 45.3 0.0 45.2 52.8 27.7 3 [37.0] [0.0] 22334
32 45.3 0.0 46.7 54.5 27.6 3 [23.0] [0.0] 24622

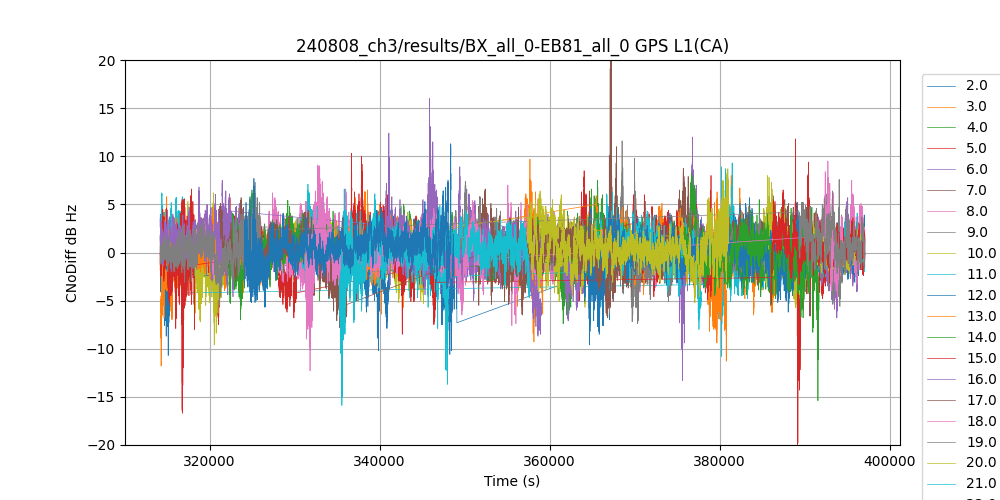

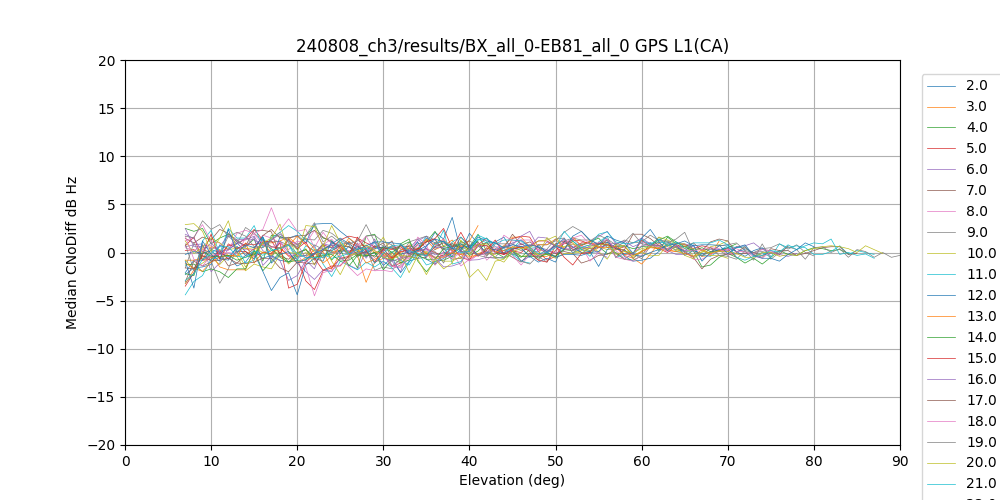

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.0 5.4 -10.6 [15.0, 16.0, 17.0] 30483
3 32.7 0.1 9.7 -9.3 [37.0, 35.0, 34.0] 27042
4 45.5 0.3 7.5 -5.3 [36.0, 16.0] 23783
5 34.3 0.2 11.8 -21.7 [15.0, 16.0, 17.0] 19808
6 38.5 0.3 12.0 -13.3 [27.0, 31.0, 28.0] 24435
7 45.1 0.3 8.7 -5.5 [33.0, 30.0] 25503
8 27.4 0.5 7.0 -7.6 [33.0, 29.0, 35.0, 26.0] 29123
9 44.0 0.4 11.6 -7.2 [34.0, 33.0] 21432
10 43.5 0.0 6.2 -9.6 [29.0, 36.0] 25774
11 48.2 0.3 9.3 -10.8 [34.0, 30.0, 33.0] 20086
12 39.1 -0.2 5.8 -10.7 [27.0, 26.0, 33.0, 29.0, 28.0, 30.0] 20918
13 27.6 0.2 5.9 -11.3 [37.0, 18.0, 19.0] 27255
14 44.2 0.0 5.5 -7.4 [19.0, 21.0] 25717
15 30.5 0.2 8.0 -6.8 [35.0, 27.0, 31.0] 25267
16 31.2 0.5 16.0 -7.1 [33.0, 29.0, 32.0] 27066
17 45.7 0.5 23.6 -6.8 [36.0] 24090
18 47.1 0.3 9.1 -5.0 [36.0, 33.0, 35.0, 29.0] 21695
19 44.7 0.4 9.8 -7.4 [37.0, 35.0] 24583
20 31.7 0.1 8.0 -7.2 [29.0, 23.0, 21.0, 22.0, 24.0, 37.0] 22801
21 26.6 -0.1 7.1 -13.7 [19.0, 21.0, 34.0] 30234
22 44.4 -0.2 5.2 -9.6 [32.0] 25995
23 43.5 0.1 6.5 -11.8 [30.0, 24.0] 25549
24 25.7 0.0 8.3 -15.4 [26.0, 25.0] 29767
25 26.7 0.3 10.3 -16.7 [22.0, 21.0, 34.0, 33.0, 29.0, 27.0] 25286
26 29.1 0.4 12.4 -8.7 [32.0, 31.0, 14.0, 24.0] 26633
27 26.1 -0.1 5.7 -8.2 [27.0, 26.0] 29902
28 39.7 0.2 9.5 -12.3 [24.0, 27.0, 34.0, 26.0] 23144
29 42.5 0.6 7.3 -5.5 [14.0, 16.0] 19463
30 45.9 0.4 8.7 -5.2 [24.0, 23.0] 23651
31 45.3 0.2 6.6 -15.9 [25.0, 37.0] 22318
32 45.3 0.5 11.3 -10.2 [22.0, 23.0] 24621

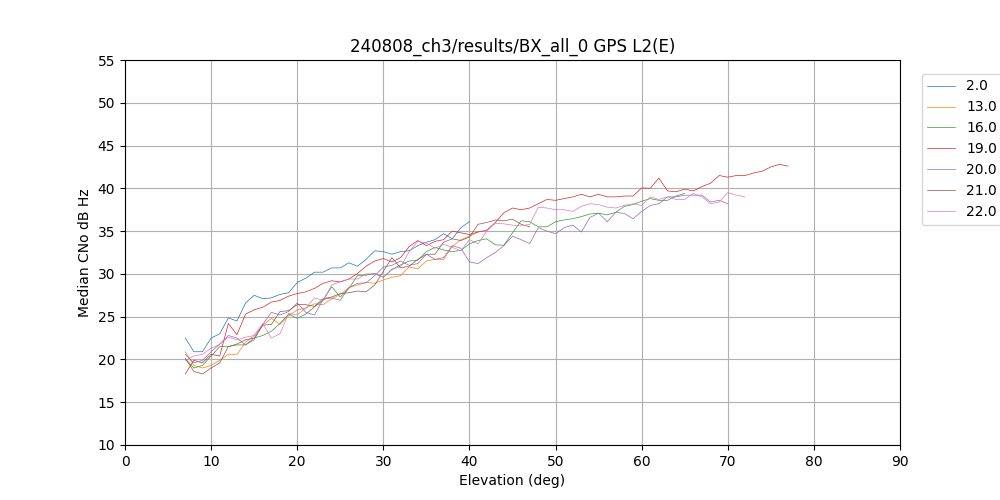

REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.5 38.2 14.8 76 [15.0, 16.0] [0.0] 30523
13 27.6 0.0 28.3 36.5 13.9 198 [37.0, 18.0] [0.0] 27279
16 31.2 0.0 28.5 40.5 13.9 53 [33.0, 32.0] [0.0] 27069
19 44.7 0.0 34.9 44.3 14.8 4 [37.0] [0.0] 24583
20 31.6 0.0 28.5 40.9 13.9 217 [29.0, 21.0, 24.0] [0.0] 22866
21 26.9 0.0 28.2 38.4 13.9 169 [19.0, 21.0] [0.0] 29805
22 44.4 0.0 33.4 41.1 14.8 0 [32.0] [0.0] 25995
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 30.1 36.4 17.8 127 [15.0, 17.0] [0.0] 30483
13 27.6 0.0 27.7 34.7 14.8 217 [37.0, 19.0] [0.0] 27260
16 31.4 0.0 27.4 39.3 13.9 259 [29.0, 32.0] [0.0] 26864
19 44.7 0.0 34.0 43.3 14.8 20 [35.0] [0.0] 24575
20 31.7 0.0 27.7 39.9 13.9 377 [23.0, 22.0, 37.0] [0.0] 22806
21 26.6 0.0 27.6 37.2 12.6 11 [19.0, 34.0] [0.0] 30267
22 44.4 0.0 32.6 40.9 15.6 1 [32.0] [0.0] 25998

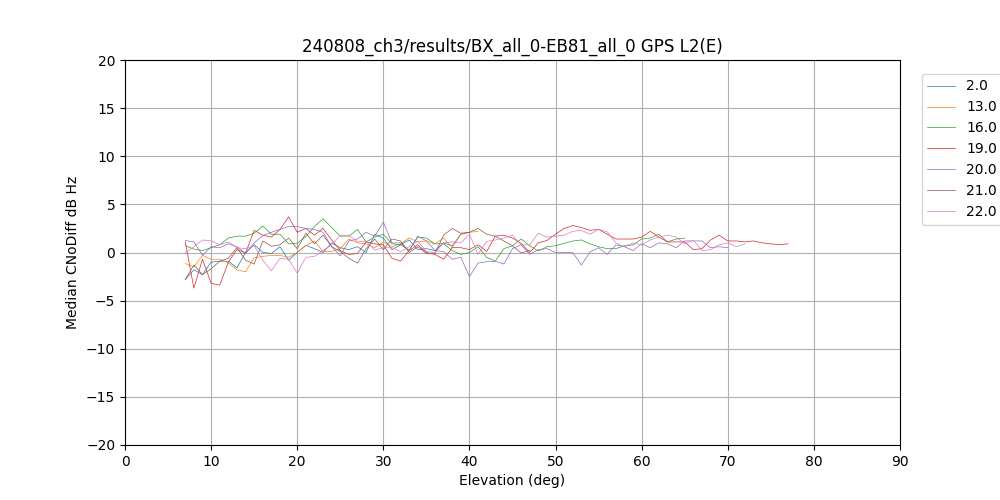

DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.4 7.2 -8.3 [15.0, 16.0, 17.0] 30483
13 27.7 0.6 6.8 -7.1 [37.0, 18.0, 19.0] 27219
16 31.4 1.2 10.6 -5.3 [33.0, 29.0, 32.0] 26851
19 44.7 0.9 10.8 -10.1 [37.0, 35.0] 24546
20 31.7 0.8 9.3 -6.9 [29.0, 23.0, 21.0, 22.0, 24.0, 37.0] 22797
21 26.9 0.4 11.2 -9.3 [19.0, 21.0, 34.0] 29802
22 44.4 0.8 5.9 -7.1 [32.0] 25995

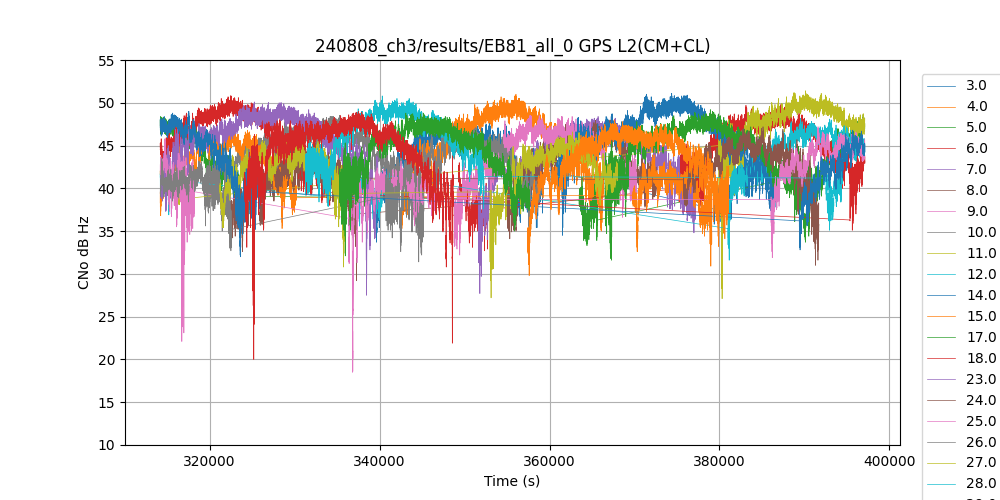

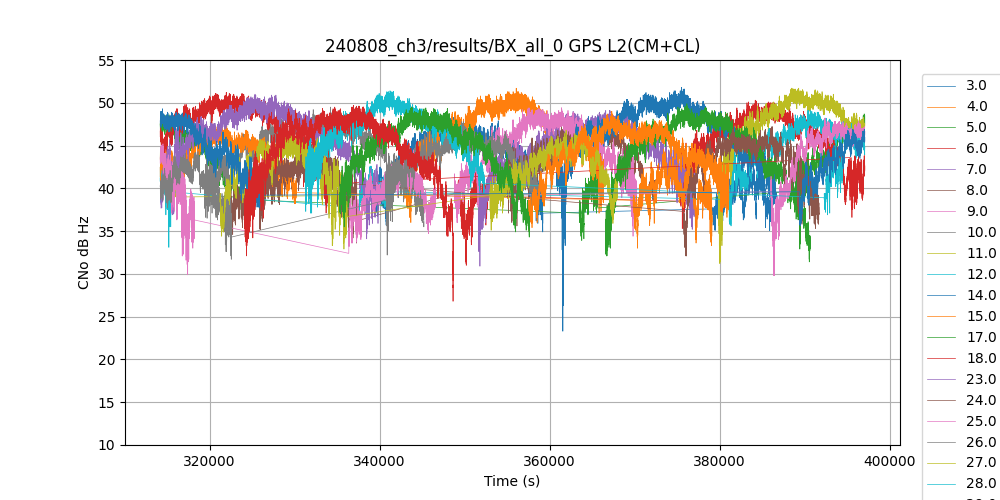

REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.5 34.9 201 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 46.5 51.7 36.0 0 [36.0] [0.0] 23847
5 34.3 0.0 43.6 48.7 32.9 160 [15.0, 16.0, 17.0] [0.0] 19827
6 38.4 0.0 44.8 50.3 31.0 76 [27.0, 31.0] [0.0] 24501
7 45.1 0.0 44.6 49.1 30.9 0 [33.0] [0.0] 25511
8 27.4 0.0 42.9 47.6 33.4 55 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 45.0 49.4 34.4 0 [34.0] [0.0] 21447
10 43.5 0.0 44.7 49.5 35.5 0 [29.0] [0.0] 25774
11 48.2 0.0 46.9 51.7 31.2 45 [34.0, 33.0] [0.0] 20093
12 39.1 0.0 44.1 49.1 33.1 212 [27.0, 33.0, 28.0] [0.0] 20957
14 44.1 0.0 46.7 51.8 23.3 12 [19.0] [0.0] 25728
15 30.5 0.0 42.6 47.5 33.0 58 [35.0, 27.0] [0.0] 25286
17 45.7 0.0 44.4 49.9 31.4 0 [36.0] [0.0] 24092
18 47.0 0.0 46.9 51.2 36.6 21 [36.0, 35.0] [0.0] 21725
23 43.5 0.0 46.1 51.0 34.1 0 [30.0] [0.0] 25553
24 25.7 0.0 42.2 47.2 32.1 6 [26.0] [0.0] 29779
25 26.7 0.0 41.5 48.2 29.8 40 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 42.7 47.8 31.7 71 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 42.4 46.8 32.9 39 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 46.3 51.4 36.9 179 [24.0, 34.0] [0.0] 23148
29 42.5 0.0 44.1 49.3 35.6 100 [14.0, 16.0] [0.0] 19499
30 45.9 0.0 44.3 49.0 35.1 0 [24.0] [0.0] 23655
31 45.3 0.0 44.7 49.5 34.3 0 [25.0] [0.0] 22318
32 45.3 0.0 44.9 49.7 26.8 1 [22.0] [0.0] 24621
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.0 47.9 33.7 99 [35.0, 34.0] [0.0] 27048
4 45.5 0.0 45.6 51.0 34.9 0 [16.0] [0.0] 23783
5 34.3 0.0 43.1 48.6 33.3 131 [15.0, 17.0] [0.0] 19816
6 38.4 0.0 44.4 49.8 32.7 9 [31.0, 28.0] [0.0] 24465
7 45.1 0.0 43.6 48.4 27.7 2 [30.0] [0.0] 25503
8 27.4 0.0 42.6 48.0 29.2 158 [29.0, 26.0] [0.0] 29161
9 44.0 0.0 44.0 48.5 32.2 0 [33.0] [0.0] 21433
10 43.5 0.0 44.0 48.5 31.4 0 [36.0] [0.0] 25779
11 48.2 0.0 46.8 51.4 27.1 226 [30.0, 33.0] [0.0] 20095
12 39.1 0.0 43.4 48.2 31.6 161 [26.0, 29.0, 30.0] [0.0] 20926
14 44.2 0.0 46.3 51.1 34.5 0 [21.0] [0.0] 25717
15 30.5 0.0 42.1 46.9 30.9 10 [35.0, 31.0] [0.0] 25274
17 45.7 0.0 44.4 49.2 31.6 0 [36.0] [0.0] 24120
18 47.0 0.0 46.0 50.8 35.1 206 [33.0, 29.0] [0.0] 21723
23 43.5 0.0 45.8 50.1 27.5 4 [24.0] [0.0] 25549
24 25.6 0.0 42.1 47.2 31.0 104 [25.0, 26.0] [0.0] 29807
25 26.7 0.0 41.4 47.2 18.5 180 [21.0, 33.0, 27.0] [0.0] 25306
26 29.1 0.0 42.0 47.3 32.6 63 [31.0, 24.0] [0.0] 26634
27 26.1 0.0 42.3 46.6 27.2 110 [26.0, 27.0] [0.0] 29915
28 39.7 0.0 45.7 50.8 35.1 158 [27.0, 26.0] [0.0] 23209
29 42.5 0.0 43.2 49.0 32.0 189 [14.0, 16.0] [0.0] 19470
30 45.9 0.0 43.5 48.0 29.8 0 [23.0] [0.0] 23652
31 45.3 0.0 44.4 48.8 32.1 0 [37.0] [0.0] 22334
32 45.3 0.0 44.5 49.0 20.0 60 [23.0] [0.0] 24620
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.1 7.0 -7.2 [37.0, 35.0, 34.0] 27042
4 45.5 0.9 7.1 -5.6 [36.0, 16.0] 23783
5 34.3 0.5 6.8 -6.7 [15.0, 16.0, 17.0] 19808
6 38.5 0.5 7.5 -7.9 [27.0, 31.0, 28.0] 24435
7 45.1 1.0 6.7 -3.6 [33.0, 30.0] 25503
8 27.4 0.3 7.3 -4.6 [33.0, 29.0, 35.0, 26.0] 29123
9 44.0 1.0 6.4 -6.0 [34.0, 33.0] 21432
10 43.5 0.7 8.1 -4.3 [29.0, 36.0] 25774
11 48.2 0.2 7.5 -11.0 [34.0, 30.0, 33.0] 20086
12 39.1 0.6 5.8 -5.4 [27.0, 26.0, 33.0, 29.0, 28.0, 30.0] 20918
14 44.2 0.4 4.2 -12.9 [19.0, 21.0] 25717
15 30.5 0.5 5.8 -6.4 [35.0, 27.0, 31.0] 25267
17 45.7 -0.1 4.9 -8.5 [36.0] 24090
18 47.1 0.9 4.9 -4.7 [36.0, 33.0, 35.0, 29.0] 21695
23 43.5 0.3 8.5 -7.9 [30.0, 24.0] 25549
24 25.7 0.1 5.9 -6.8 [26.0, 25.0] 29767
25 26.7 0.2 19.0 -9.7 [22.0, 21.0, 34.0, 33.0, 29.0, 27.0] 25273
26 29.1 0.7 10.2 -6.6 [32.0, 31.0, 14.0, 24.0] 26633
27 26.1 0.0 8.4 -8.7 [27.0, 26.0] 29902
28 39.7 0.6 7.8 -5.3 [24.0, 27.0, 34.0, 26.0] 23144
29 42.5 0.9 10.4 -3.9 [14.0, 16.0] 19463
30 45.9 0.8 8.5 -3.8 [24.0, 23.0] 23651
31 45.3 0.3 6.0 -4.9 [25.0, 37.0] 22318
32 45.3 0.3 18.6 -11.3 [22.0, 23.0] 24619
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.9 51.7 39.2 53 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 48.2 52.5 39.5 0 [36.0] [0.0] 23847
6 38.4 0.0 47.7 52.3 38.7 30 [27.0, 31.0] [0.0] 24501
8 27.4 0.0 46.5 50.5 38.4 39 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 48.6 52.5 41.8 0 [34.0] [0.0] 21447
10 43.5 0.0 48.0 51.2 40.2 0 [29.0] [0.0] 25774
11 48.2 0.0 49.0 54.5 36.4 0 [34.0, 33.0] [0.0] 20093
14 44.1 0.0 48.5 53.0 40.1 0 [19.0] [0.0] 25728
18 47.0 0.0 49.1 52.8 40.4 104 [36.0, 35.0] [0.0] 21725
23 43.5 0.0 48.3 52.7 38.0 0 [30.0] [0.0] 25553
24 25.7 0.0 46.1 50.8 19.8 15 [26.0] [0.0] 29779
25 26.7 0.0 46.2 51.8 35.4 241 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 46.5 50.6 39.9 154 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 46.2 49.9 39.4 223 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 48.2 52.9 41.3 33 [24.0, 34.0] [0.0] 23148
30 45.9 0.0 48.8 52.7 40.8 0 [24.0] [0.0] 23655
32 45.3 0.0 46.5 50.7 30.7 0 [22.0] [0.0] 24621

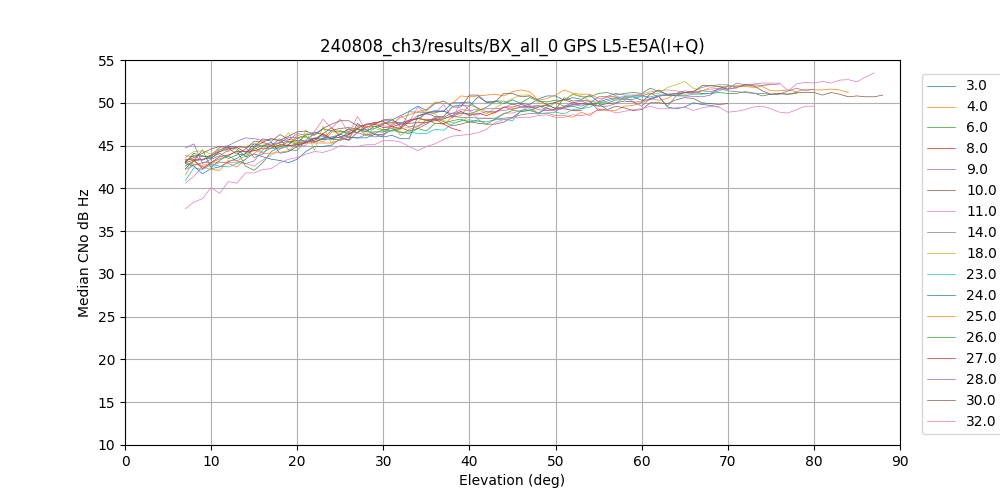

DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.9 51.3 38.6 236 [35.0, 34.0] [0.0] 27048
4 45.5 0.0 47.2 51.9 38.6 0 [16.0] [0.0] 23783
6 38.4 0.0 47.4 51.4 37.2 86 [31.0, 28.0] [0.0] 24465
8 27.4 0.0 46.3 50.7 39.2 34 [29.0, 26.0] [0.0] 29161
9 44.0 0.0 47.9 51.4 39.8 0 [33.0] [0.0] 21433
10 43.5 0.0 47.3 50.5 39.2 0 [36.0] [0.0] 25779
11 48.2 0.0 48.7 53.0 39.6 186 [30.0, 33.0] [0.0] 20095
14 44.2 0.0 47.9 52.0 38.9 0 [21.0] [0.0] 25717
18 47.0 0.0 48.1 51.9 39.3 244 [33.0, 29.0] [0.0] 21723
23 43.5 0.0 47.9 51.3 38.3 0 [24.0] [0.0] 25549
24 25.6 0.0 45.9 49.5 36.9 133 [25.0, 26.0] [0.0] 29807
25 26.7 0.0 45.6 51.1 20.5 248 [21.0, 33.0, 27.0] [0.0] 25318
26 29.1 0.0 46.1 50.3 38.8 45 [31.0, 24.0] [0.0] 26634
27 26.1 0.0 46.0 49.6 39.4 86 [26.0, 27.0] [0.0] 29915
28 39.7 0.0 47.7 51.9 39.6 177 [27.0, 26.0] [0.0] 23209
30 45.9 0.0 47.9 51.5 40.1 0 [23.0] [0.0] 23652
32 45.3 0.0 46.3 49.8 32.1 0 [23.0] [0.0] 24622
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.0 6.1 -5.0 [37.0, 35.0, 34.0] 27042
4 45.5 0.9 5.8 -2.5 [36.0, 16.0] 23783
6 38.5 0.3 7.6 -5.1 [27.0, 31.0, 28.0] 24435
8 27.4 0.2 4.4 -3.1 [33.0, 29.0, 35.0, 26.0] 29123
9 44.0 0.7 4.6 -2.8 [34.0, 33.0] 21432
10 43.5 0.7 4.6 -2.7 [29.0, 36.0] 25774
11 48.2 0.3 3.1 -5.9 [34.0, 30.0, 33.0] 20086
14 44.2 0.6 5.7 -4.2 [19.0, 21.0] 25717
18 47.1 1.1 4.5 -2.1 [36.0, 33.0, 35.0, 29.0] 21695
23 43.5 0.4 4.5 -3.9 [30.0, 24.0] 25549
24 25.7 0.2 6.1 -22.6 [26.0, 25.0] 29767
25 26.7 0.5 23.3 -7.7 [22.0, 21.0, 34.0, 33.0, 29.0, 27.0] 25285
26 29.1 0.4 4.2 -2.8 [32.0, 31.0, 14.0, 24.0] 26633
27 26.1 0.1 5.7 -3.4 [27.0, 26.0] 29902
28 39.7 0.5 6.1 -3.7 [24.0, 27.0, 34.0, 26.0] 23144
30 45.9 0.9 4.3 -3.3 [24.0, 23.0] 23651
32 45.3 0.2 9.0 -9.9 [22.0, 23.0] 24621
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.2 48.2 34.2 2 [57.0] [0.0] 82896
133 38.0 0.0 43.3 45.6 41.0 0 [55.0] [0.0] 82908
135 39.4 0.0 44.7 46.7 42.7 0 [56.0] [0.0] 82908
158 -45.0 0.0 35.7 40.1 22.9 576 [54.0] [0.0] 72361
DUT SBAS L1(CA)
DIFF SBAS L1(CA)
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.7 48.7 38.6 2 [57.0] [0.0] 82894
133 38.0 0.0 46.0 47.7 43.2 0 [55.0] [0.0] 82908
135 39.4 0.0 46.0 47.9 43.4 0 [56.0] [0.0] 82908
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)
REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 43.7 48.8 29.5 1 [1.0] [0.0] 23170
2 38.6 0.0 48.0 53.5 32.2 0 [-4.0] [0.0] 23353
3 42.4 0.0 46.5 52.3 34.9 0 [5.0] [0.0] 21285
4 38.8 0.0 44.6 51.2 32.0 105 [6.0] [0.0] 22911
5 30.3 0.0 45.5 52.2 34.4 142 [1.0] [0.0] 28344
6 32.9 0.0 36.4 42.3 25.4 911 [-4.0] [0.0] 29419
7 34.9 0.0 44.7 50.1 31.9 79 [5.0] [0.0] 29577
8 36.4 0.0 43.0 49.2 28.7 54 [6.0] [0.0] 26632
9 37.5 0.0 46.3 52.7 29.4 82 [-2.0] [0.0] 25313
10 15.6 0.0 38.6 43.0 32.3 0 [-7.0] [0.0] 8635
11 33.3 0.0 46.7 52.6 28.4 142 [0.0] [0.0] 29814
12 32.4 0.0 47.3 52.9 37.1 42 [-1.0] [0.0] 29046
13 33.3 0.0 40.7 47.1 28.0 241 [-2.0] [0.0] 27147
14 44.1 0.0 48.6 54.2 35.6 0 [-7.0] [0.0] 20554
15 39.7 0.0 47.9 53.4 28.4 0 [0.0] [0.0] 22920
16 38.7 0.0 48.2 53.8 36.1 0 [-1.0] [0.0] 23386
17 28.5 0.0 45.5 51.1 31.0 2 [4.0] [0.0] 26805
18 29.7 0.0 45.7 51.3 35.9 80 [-3.0] [0.0] 26394
19 33.8 0.0 35.7 42.4 24.8 483 [3.0] [0.0] 24667
20 41.0 0.0 36.1 43.0 19.9 1118 [2.0] [0.0] 22410
21 42.4 0.0 46.9 52.0 28.0 175 [4.0] [0.0] 26972
22 42.8 0.0 47.5 53.3 27.6 44 [-3.0] [0.0] 26424
23 37.0 0.0 42.8 49.0 23.9 376 [3.0] [0.0] 24791
24 31.1 0.0 45.2 51.1 35.6 199 [2.0] [0.0] 25691
DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 42.9 48.4 29.8 0 [1.0] [0.0] 23179
2 38.6 0.0 47.3 52.5 30.9 0 [-4.0] [0.0] 23350
3 42.4 0.0 44.6 50.5 27.8 4 [5.0] [0.0] 21274
4 38.8 0.0 43.3 50.1 28.3 120 [6.0] [0.0] 22912
5 30.3 0.0 45.1 52.3 34.0 267 [1.0] [0.0] 28352
6 32.6 0.0 35.7 41.7 24.8 1063 [-4.0] [0.0] 29715
7 34.8 0.0 43.2 49.4 32.8 248 [5.0] [0.0] 29638
8 36.4 0.0 41.5 47.7 26.6 249 [6.0] [0.0] 26678
9 37.5 0.0 45.7 53.5 18.9 35 [-2.0] [0.0] 25298
10 15.6 0.0 38.4 43.3 28.8 6 [-7.0] [0.0] 8639
11 33.3 0.0 46.2 53.0 33.3 311 [0.0] [0.0] 29866
12 32.4 0.0 46.3 51.9 33.9 340 [-1.0] [0.0] 29074
13 33.3 0.0 39.5 47.6 19.2 444 [-2.0] [0.0] 27142
14 44.0 0.0 47.7 53.7 26.7 4 [-7.0] [0.0] 20569
15 39.7 0.0 47.2 52.2 32.3 0 [0.0] [0.0] 22903
16 38.7 0.0 47.8 52.8 34.7 0 [-1.0] [0.0] 23383
17 28.5 0.0 44.5 49.4 33.0 104 [4.0] [0.0] 26772
18 29.8 0.0 45.0 50.9 31.9 205 [-3.0] [0.0] 26361
19 34.6 0.0 34.5 40.8 23.2 1155 [3.0] [0.0] 23935
20 40.7 0.0 35.0 42.0 0.0 2604 [2.0] [0.0] 22640
21 42.5 0.0 45.9 51.3 32.7 89 [4.0] [0.0] 26948
22 42.8 0.0 47.0 53.0 16.9 220 [-3.0] [0.0] 26445
23 37.0 0.0 41.8 48.5 22.6 231 [3.0] [0.0] 24795
24 31.2 0.0 44.6 51.4 33.2 233 [2.0] [0.0] 25658
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 0.8 7.7 -6.6 [1.0] 23170
2 38.6 0.7 8.2 -6.8 [-4.0] 23350
3 42.4 1.9 12.2 -3.7 [5.0] 21255
4 38.8 1.3 8.5 -8.9 [6.0] 22881
5 30.3 0.4 8.2 -7.0 [1.0] 28314
6 32.9 0.7 7.8 -8.0 [-4.0] 29404
7 34.9 1.5 9.5 -6.5 [5.0] 29570
8 36.4 1.4 11.5 -8.4 [6.0] 26629
9 37.5 0.6 20.1 -10.3 [-2.0] 25298
10 15.6 0.2 8.5 -5.8 [-7.0] 8635
11 33.3 0.5 9.2 -12.5 [0.0] 29807
12 32.4 0.9 7.1 -5.8 [-1.0] 29035
13 33.3 1.2 14.1 -5.2 [-2.0] 27103
14 44.1 0.9 13.9 -5.5 [-7.0] 20554
15 39.7 0.7 7.1 -8.4 [0.0] 22899
16 38.7 0.4 9.6 -5.9 [-1.0] 23383
17 28.5 1.0 8.4 -10.2 [4.0] 26772
18 29.8 0.7 12.0 -5.5 [-3.0] 26361
19 34.6 1.3 11.2 -6.0 [3.0] 23935
20 41.0 1.0 29.0 -9.1 [2.0] 22401
21 42.5 1.0 7.1 -11.5 [4.0] 26941
22 42.8 0.5 21.2 -11.5 [-3.0] 26417
23 37.0 1.0 7.6 -7.4 [3.0] 24765
24 31.2 0.6 8.1 -7.7 [2.0] 25655
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 42.1 47.1 29.3 2 [1.0] [0.0] 23169
2 38.6 0.0 46.8 51.7 31.7 0 [-4.0] [0.0] 23353
3 42.4 0.0 44.8 50.1 32.6 0 [5.0] [0.0] 21285
4 38.8 0.0 42.6 49.1 29.0 209 [6.0] [0.0] 22910
5 30.3 0.0 44.1 50.7 34.7 389 [1.0] [0.0] 28344
6 32.9 0.0 35.2 41.2 23.3 703 [-4.0] [0.0] 29403
7 34.9 0.0 43.2 48.2 31.4 132 [5.0] [0.0] 29577
8 36.5 0.0 41.1 47.2 27.5 198 [6.0] [0.0] 26609
9 37.5 0.0 44.8 50.7 28.9 107 [-2.0] [0.0] 25313
10 15.6 0.0 37.3 41.5 31.0 3 [-7.0] [0.0] 8634
11 33.3 0.0 45.0 50.7 31.6 310 [0.0] [0.0] 29814
12 32.4 0.0 46.3 51.6 36.7 17 [-1.0] [0.0] 29046
13 33.3 0.0 39.3 45.6 27.3 369 [-2.0] [0.0] 27147
14 44.1 0.0 47.2 52.4 35.3 0 [-7.0] [0.0] 20554
15 39.7 0.0 46.1 51.8 30.5 3 [0.0] [0.0] 22919
16 38.7 0.0 46.8 51.9 36.1 0 [-1.0] [0.0] 23386
17 28.5 0.0 43.5 48.9 31.6 2 [4.0] [0.0] 26805
18 29.7 0.0 44.3 49.3 35.2 206 [-3.0] [0.0] 26394
19 33.8 0.0 33.8 39.9 23.5 528 [3.0] [0.0] 24667
20 41.4 0.0 35.1 41.3 22.1 820 [2.0] [0.0] 22135
21 42.4 0.0 45.1 50.2 30.3 44 [4.0] [0.0] 26972
22 42.8 0.0 46.4 51.6 29.7 245 [-3.0] [0.0] 26424
23 37.0 0.0 41.0 46.8 22.3 332 [3.0] [0.0] 24787
24 31.1 0.0 43.6 49.1 33.2 9 [2.0] [0.0] 25691
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.5 45.1 27.1 19 [1.0] [0.0] 23169
2 38.6 0.0 45.5 49.6 35.1 0 [-4.0] [0.0] 23353
3 42.4 0.0 45.7 49.9 37.1 0 [5.0] [0.0] 21285
4 38.8 0.0 44.8 50.5 34.1 182 [6.0] [0.0] 22910
5 30.3 0.0 44.1 50.1 31.9 289 [1.0] [0.0] 28344
7 34.9 0.0 44.5 49.6 31.1 25 [5.0] [0.0] 29577
8 36.5 0.0 44.7 49.7 34.4 49 [6.0] [0.0] 26610
9 37.5 0.0 46.4 51.2 35.4 48 [-2.0] [0.0] 25313
11 33.3 0.0 45.3 51.4 32.1 342 [0.0] [0.0] 29814
12 32.4 0.0 44.9 49.6 34.1 239 [-1.0] [0.0] 29046
13 63.6 0.0 30.6 40.5 8.4 199 [-2.0] [0.0] 22
14 44.1 0.0 46.0 49.8 35.7 0 [-7.0] [0.0] 20554
15 39.7 0.0 45.7 50.8 30.6 1 [0.0] [0.0] 22919
16 38.7 0.0 46.5 50.8 36.9 0 [-1.0] [0.0] 23386
17 28.5 0.0 44.1 49.8 31.3 2 [4.0] [0.0] 26805
18 29.7 0.0 44.8 49.8 34.1 46 [-3.0] [0.0] 26394
19 33.8 0.0 42.0 47.3 30.3 165 [3.0] [0.0] 24667
20 41.0 0.0 38.9 43.9 28.4 108 [2.0] [0.0] 22404
21 42.4 0.0 45.1 49.4 31.3 94 [4.0] [0.0] 26972
22 42.8 0.0 46.8 50.7 35.2 155 [-3.0] [0.0] 26424
23 65.7 0.0 34.1 42.0 1.0 78 [3.0] [0.0] 80
24 31.1 0.0 43.5 49.1 27.5 237 [2.0] [0.0] 25691

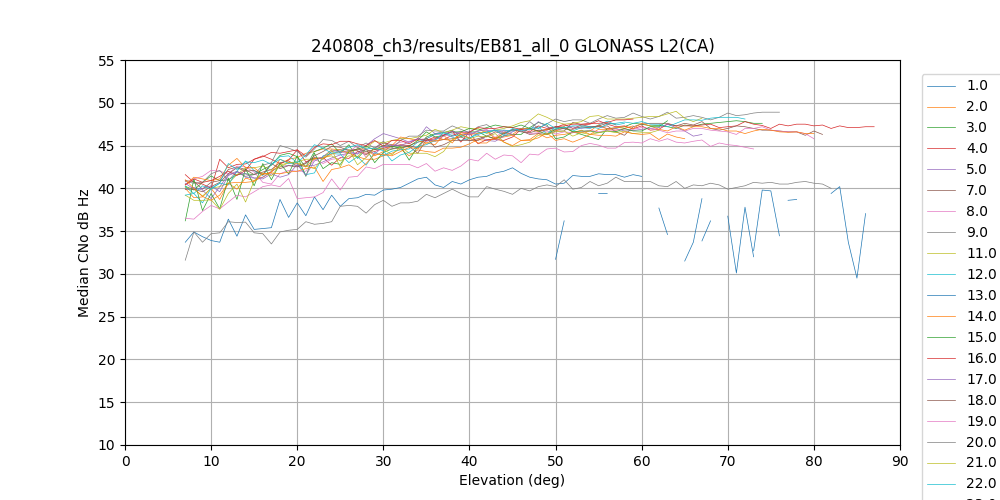

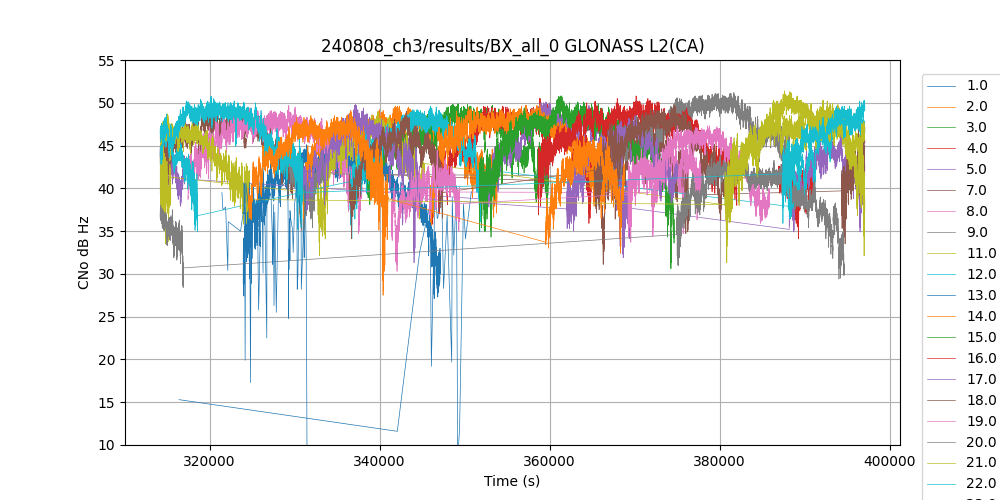

DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 39.8 43.8 28.2 15 [1.0] [0.0] 23179
2 38.6 0.0 44.7 48.7 31.6 0 [-4.0] [0.0] 23350
3 42.4 0.0 45.3 49.3 34.3 0 [5.0] [0.0] 21274
4 38.8 0.0 44.6 49.1 34.3 48 [6.0] [0.0] 22911
5 30.3 0.0 43.7 49.3 25.6 209 [1.0] [0.0] 28352
7 34.8 0.0 44.3 49.3 32.9 52 [5.0] [0.0] 29638
8 36.4 0.0 44.3 48.7 29.8 226 [6.0] [0.0] 26678
9 37.5 0.0 45.3 50.8 35.0 149 [-2.0] [0.0] 25298
11 33.3 0.0 45.0 50.3 27.2 320 [0.0] [0.0] 29866
12 32.4 0.0 44.5 49.4 35.1 464 [-1.0] [0.0] 29074
13 71.9 0.0 35.7 40.2 31.4 10 [-2.0] [0.0] 11
14 44.0 0.0 45.3 48.8 37.1 0 [-7.0] [0.0] 20569
15 39.7 0.0 45.1 49.4 18.0 86 [0.0] [0.0] 22900
16 38.7 0.0 45.9 49.8 32.1 0 [-1.0] [0.0] 23383
17 28.5 0.0 44.1 48.5 33.8 131 [4.0] [0.0] 26772
18 29.8 0.0 44.2 49.2 29.9 234 [-3.0] [0.0] 26361
19 34.8 0.0 41.8 47.2 32.9 8 [3.0] [0.0] 23760
20 41.2 0.0 38.3 43.1 22.1 180 [2.0] [0.0] 22283
21 42.5 0.0 45.0 49.1 27.0 132 [4.0] [0.0] 26948
22 42.8 0.0 45.7 49.8 28.2 31 [-3.0] [0.0] 26445
23 69.1 0.0 34.1 40.6 5.6 36 [3.0] [0.0] 37
24 31.2 0.0 43.2 48.2 23.8 194 [2.0] [0.0] 25657

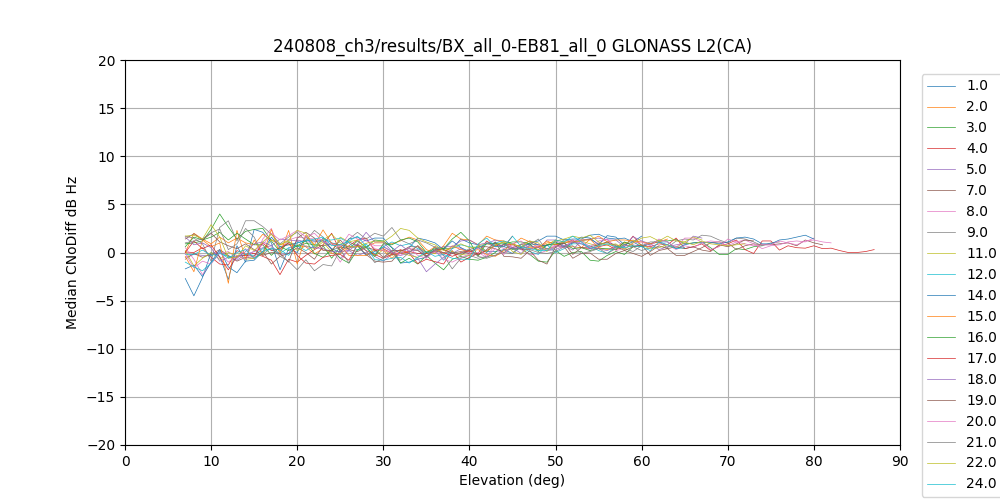

DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 0.7 8.0 -9.5 [1.0] 23169
2 38.6 0.8 9.3 -5.3 [-4.0] 23350
3 42.4 0.5 7.5 -5.0 [5.0] 21255
4 38.8 0.2 5.8 -5.4 [6.0] 22881
5 30.3 0.4 16.7 -10.4 [1.0] 28314
7 34.9 0.2 7.8 -8.7 [5.0] 29570
8 36.5 0.3 10.7 -6.9 [6.0] 26607
9 37.5 1.1 8.2 -5.7 [-2.0] 25298
11 33.3 0.4 13.9 -8.6 [0.0] 29807
12 32.4 0.5 6.5 -4.9 [-1.0] 29035
14 44.1 0.7 5.9 -6.9 [-7.0] 20554
15 39.8 0.6 19.9 -7.3 [0.0] 22896
16 38.7 0.7 10.5 -4.3 [-1.0] 23383
17 28.5 0.0 5.4 -8.0 [4.0] 26772
18 29.8 0.6 8.5 -6.2 [-3.0] 26361
19 34.8 0.3 8.0 -5.9 [3.0] 23760
20 41.4 0.7 12.5 -4.6 [2.0] 22128
21 42.5 0.2 12.2 -6.4 [4.0] 26941
22 42.8 1.1 10.3 -5.0 [-3.0] 26417
24 31.2 0.3 15.8 -10.8 [2.0] 25654

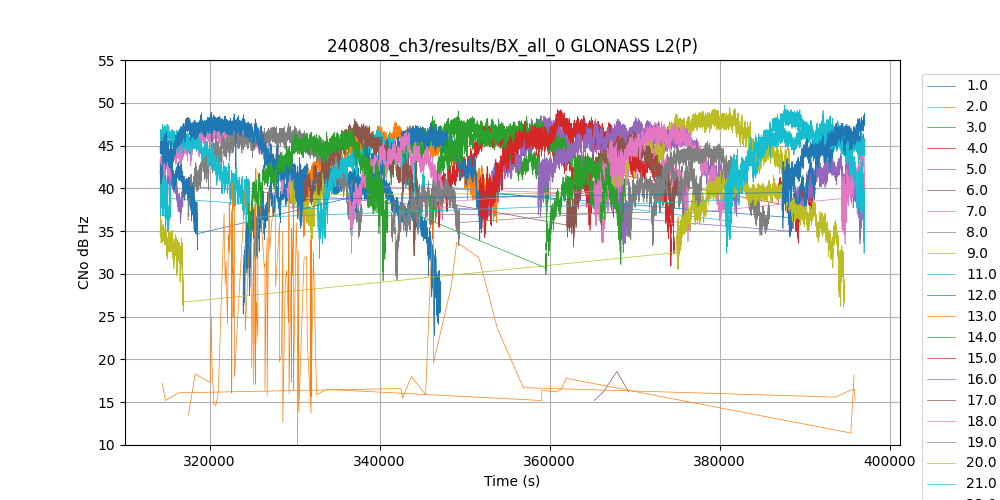

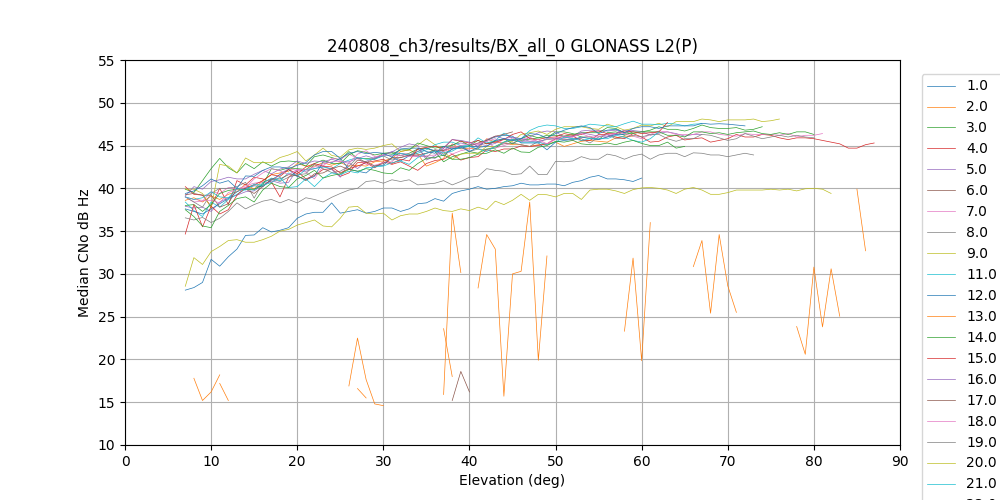

REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 38.5 43.1 22.8 900 [1.0] [0.0] 23169
2 38.6 0.0 43.7 47.8 34.3 0 [-4.0] [0.0] 23353
3 42.4 0.0 44.8 49.0 36.6 0 [5.0] [0.0] 21285
4 38.8 0.0 42.8 47.9 33.6 188 [6.0] [0.0] 22910
5 30.3 0.0 42.5 48.5 32.5 355 [1.0] [0.0] 28344
6 37.8 0.0 16.6 18.6 15.2 3 [-4.0] [0.0] 4
7 34.9 0.0 43.2 47.8 33.5 121 [5.0] [0.0] 29577
8 36.5 0.0 43.0 47.6 33.3 227 [6.0] [0.0] 26610
9 37.5 0.0 44.4 49.5 34.1 207 [-2.0] [0.0] 25313
11 33.3 0.0 43.6 49.7 31.8 241 [0.0] [0.0] 29814
12 32.4 0.0 43.1 47.8 32.8 235 [-1.0] [0.0] 29046
13 35.5 0.0 20.6 38.1 15.2 287 [-2.0] [0.0] 18
14 44.1 0.0 44.5 48.4 35.1 0 [-7.0] [0.0] 20554
15 39.7 0.0 44.2 49.2 30.9 3 [0.0] [0.0] 22919
16 38.7 0.0 44.5 48.3 36.7 0 [-1.0] [0.0] 23386
17 28.5 0.0 42.9 48.1 32.1 2 [4.0] [0.0] 26805
18 29.7 0.0 43.2 47.8 32.4 68 [-3.0] [0.0] 26394
19 33.8 0.0 40.2 45.5 29.2 15 [3.0] [0.0] 24667
20 41.0 0.0 37.2 42.1 25.6 424 [2.0] [0.0] 22404
21 42.4 0.0 44.2 47.8 32.4 212 [4.0] [0.0] 26972
22 42.8 0.0 45.1 48.9 35.3 3 [-3.0] [0.0] 26424
23 53.6 0.0 26.4 42.3 9.7 309 [3.0] [0.0] 96
24 31.1 0.0 41.8 47.1 29.2 151 [2.0] [0.0] 25691
DUT GLONASS L2(P)
DIFF GLONASS L2(P)

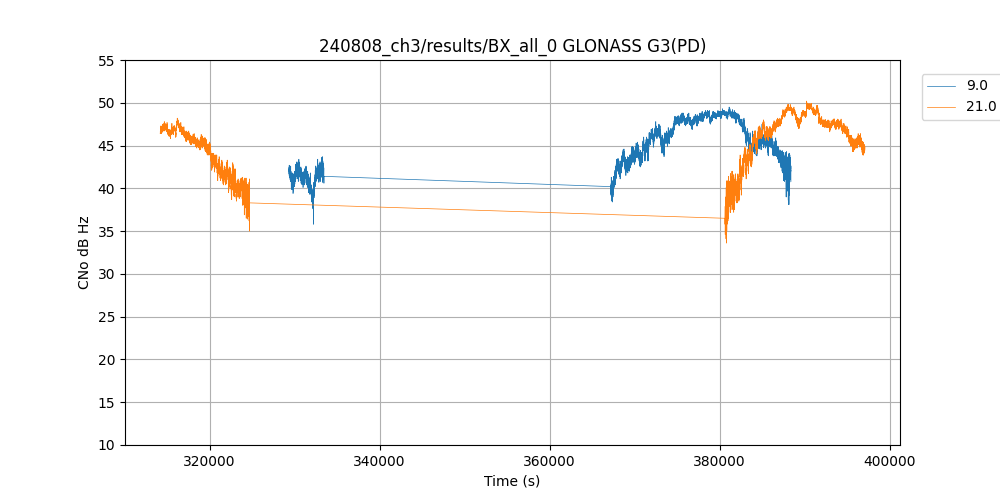

REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 37.5 0.0 45.1 49.5 35.8 147 [-2.0] [0.0] 25313
21 42.4 0.0 45.2 50.2 33.6 95 [4.0] [0.0] 26972
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)

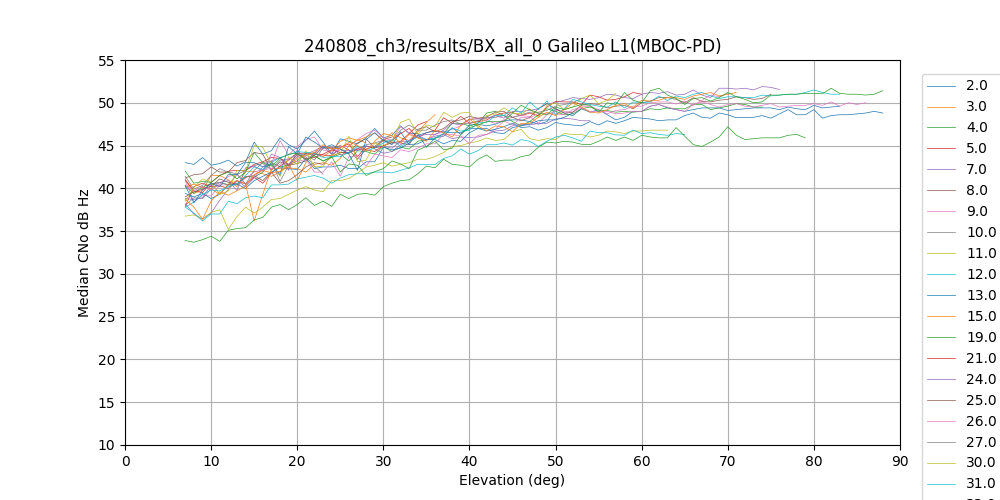

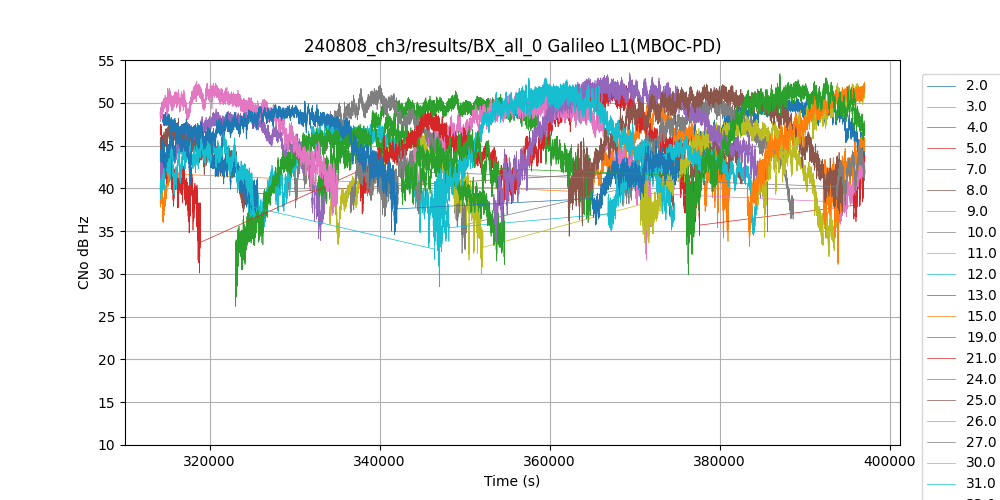

REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.5 51.1 40.9 0 [39.0] [0.0] 23861
3 24.2 0.0 44.4 51.1 33.8 105 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 46.8 51.4 36.0 0 [48.0] [0.0] 32456
5 35.4 0.0 46.2 52.8 34.5 211 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 45.5 49.3 33.9 0 [41.0] [0.0] 19330
8 18.8 0.0 43.5 48.2 36.7 170 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 46.1 51.2 31.6 104 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 46.0 52.0 32.4 5 [46.0] [0.0] 41325
11 33.5 0.0 42.4 48.5 30.0 153 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 42.4 48.2 32.6 130 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 44.2 49.4 36.8 0 [46.0] [0.0] 11491
15 17.9 0.0 41.6 46.6 31.1 1 [48.0] [0.0] 4893
19 45.5 0.0 42.3 49.1 26.2 25 [49.0] [0.0] 31695
21 23.3 0.0 43.7 49.0 30.1 16 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 47.7 53.5 33.7 0 [50.0] [0.0] 32249
25 45.5 0.0 47.2 52.2 34.4 0 [44.0] [0.0] 32293
26 50.8 0.0 47.9 52.5 36.8 0 [47.0] [0.0] 20906
27 12.8 0.0 41.3 45.1 36.2 44 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 47.0 52.3 34.3 0 [49.0] [0.0] 12635
31 36.7 0.0 45.7 52.9 28.5 128 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.0 50.2 34.6 197 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 47.1 52.4 33.2 0 [47.0] [0.0] 13833
36 40.2 0.0 46.2 53.4 29.9 23 [52.0, 38.0] [0.0] 32472
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.0 51.0 38.3 0 [44.0] [0.0] 23860
3 24.3 0.0 44.5 49.3 35.7 89 [52.0, 42.0] [0.0] 18238
4 45.5 0.0 46.7 51.8 34.5 0 [47.0] [0.0] 32462
5 35.4 0.0 45.9 52.9 31.9 75 [50.0, 45.0] [0.0] 24437
7 36.9 0.0 45.5 49.2 39.0 0 [40.0] [0.0] 19313
8 18.8 0.0 42.7 46.9 36.2 66 [43.0, 40.0] [0.0] 20001
9 41.7 0.0 45.8 51.0 35.0 155 [40.0, 49.0] [0.0] 32059
10 33.1 0.0 46.0 52.2 33.8 29 [45.0] [0.0] 41297
11 33.5 0.0 42.2 48.2 29.7 188 [44.0, 49.0] [0.0] 41150
12 33.7 0.0 42.2 49.0 31.2 257 [49.0, 47.0] [0.0] 41076
13 29.9 0.0 43.5 48.3 34.1 0 [46.0] [0.0] 11490
15 17.9 0.0 42.7 47.0 36.8 0 [47.0] [0.0] 4902
19 45.5 0.0 41.9 48.3 1.5 86 [51.0] [0.0] 31714
21 23.2 0.0 43.6 48.6 29.9 35 [45.0, 42.0] [0.0] 21473
24 45.5 0.0 47.5 53.3 33.3 1 [53.0] [0.0] 32254
25 45.5 0.0 47.3 52.4 34.2 0 [43.0] [0.0] 32280
26 50.8 0.0 47.5 52.1 34.8 0 [48.0] [0.0] 20889
27 12.8 0.0 40.9 46.7 35.7 52 [48.0, 46.0] [0.0] 11973
30 37.3 0.0 46.6 52.9 36.3 0 [51.0] [0.0] 12670
31 36.7 0.0 44.9 52.2 32.8 205 [41.0, 52.0] [0.0] 39151
33 38.4 0.0 44.6 49.9 33.4 230 [39.0, 41.0] [0.0] 38128
34 44.3 0.0 47.1 52.7 34.1 0 [48.0] [0.0] 13840
36 40.2 0.0 45.8 52.4 28.0 82 [50.0, 39.0] [0.0] 32504
DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 0.5 4.7 -3.5 [39.0, 44.0] 23853
3 24.3 -0.1 4.6 -8.0 [51.0, 52.0, 43.0, 42.0] 18231
4 45.5 0.0 5.4 -5.9 [48.0, 47.0] 32450
5 35.5 0.3 5.0 -6.2 [52.0, 50.0, 43.0, 45.0] 24430
7 36.9 -0.0 4.0 -7.3 [41.0, 40.0] 19313
8 18.8 0.9 7.1 -5.9 [45.0, 43.0, 40.0] 20001
9 41.8 0.3 4.9 -6.9 [40.0, 45.0, 49.0] 31979
10 33.1 0.1 7.2 -7.5 [46.0, 45.0] 41295
11 33.5 0.3 7.1 -7.0 [44.0, 45.0, 49.0] 41150
12 33.7 0.1 5.8 -7.4 [45.0, 49.0, 53.0, 47.0] 41048
13 29.9 0.6 5.5 -4.7 [46.0] 11484
15 17.9 -1.1 4.5 -10.1 [48.0, 47.0] 4893
19 45.5 0.4 29.8 -7.5 [49.0, 51.0] 31686
21 23.3 0.1 9.3 -7.0 [44.0, 45.0, 42.0] 21446
24 45.5 0.2 5.9 -6.5 [50.0, 53.0] 32230
25 45.5 -0.1 5.8 -6.9 [44.0, 43.0] 32271
26 50.8 0.4 6.7 -4.2 [47.0, 48.0] 20889
27 12.8 0.4 7.0 -6.0 [47.0, 48.0, 46.0] 11961
30 37.4 0.3 5.3 -4.5 [49.0, 51.0] 12635
31 36.7 0.8 6.9 -9.5 [53.0, 41.0, 51.0, 52.0] 39145
33 38.4 0.4 6.0 -5.1 [39.0, 42.0, 41.0] 38118
34 44.3 0.1 4.9 -5.2 [47.0, 48.0] 13833
36 40.2 0.5 9.4 -5.4 [52.0, 50.0, 38.0, 39.0] 32469

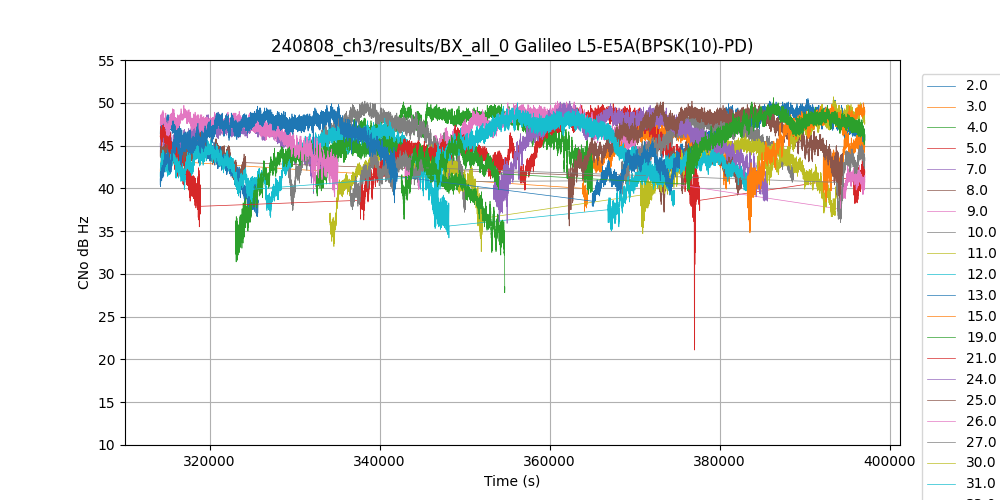

REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.1 50.5 40.7 0 [39.0] [0.0] 23861
3 24.2 0.0 44.8 48.0 37.3 193 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 46.5 50.1 39.1 0 [48.0] [0.0] 32456
5 35.4 0.0 45.6 49.9 21.1 159 [52.0, 43.0] [0.0] 24457
7 36.9 0.0 45.8 48.6 39.4 0 [41.0] [0.0] 19330
8 18.8 0.0 43.4 46.9 37.2 152 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 45.9 50.2 36.9 113 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 45.7 50.2 37.2 5 [46.0] [0.0] 41325
11 33.5 0.0 42.4 46.4 32.6 89 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 42.7 48.2 34.2 85 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 43.6 48.6 36.7 0 [46.0] [0.0] 11491
15 17.9 0.0 43.7 46.5 38.4 0 [48.0] [0.0] 4893
19 45.5 0.0 42.0 46.9 27.8 2 [49.0] [0.0] 31695
21 23.3 0.0 43.4 47.6 35.5 241 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 45.9 50.2 35.9 0 [50.0] [0.0] 32249
25 45.5 0.0 46.4 50.2 35.6 0 [44.0] [0.0] 32293
26 50.8 0.0 46.3 49.7 39.0 0 [47.0] [0.0] 20906
27 12.8 0.0 42.0 45.1 36.0 15 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 46.4 50.7 40.4 0 [49.0] [0.0] 12635
31 36.7 0.0 44.8 50.0 37.9 2 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.3 49.9 37.9 51 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 46.2 50.0 34.8 0 [47.0] [0.0] 13833
36 40.2 0.0 45.6 50.6 36.4 12 [52.0, 38.0] [0.0] 32472
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)

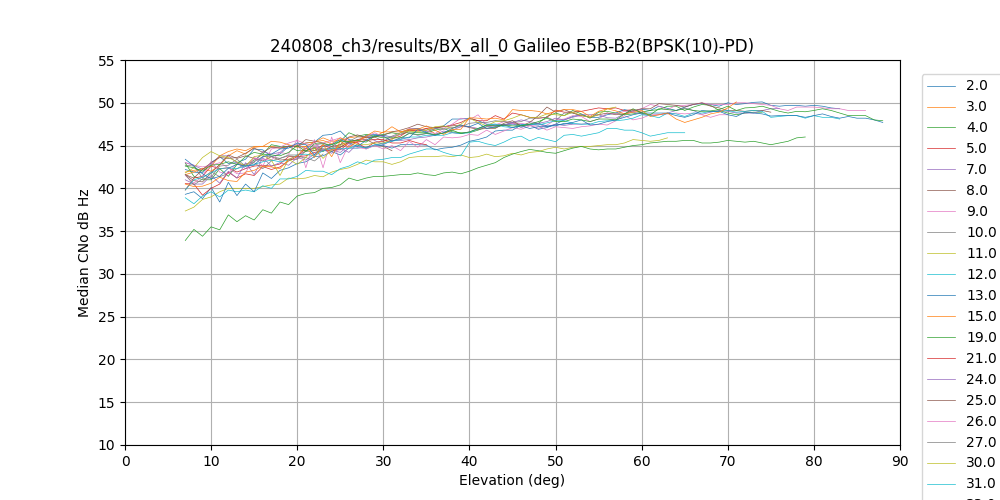

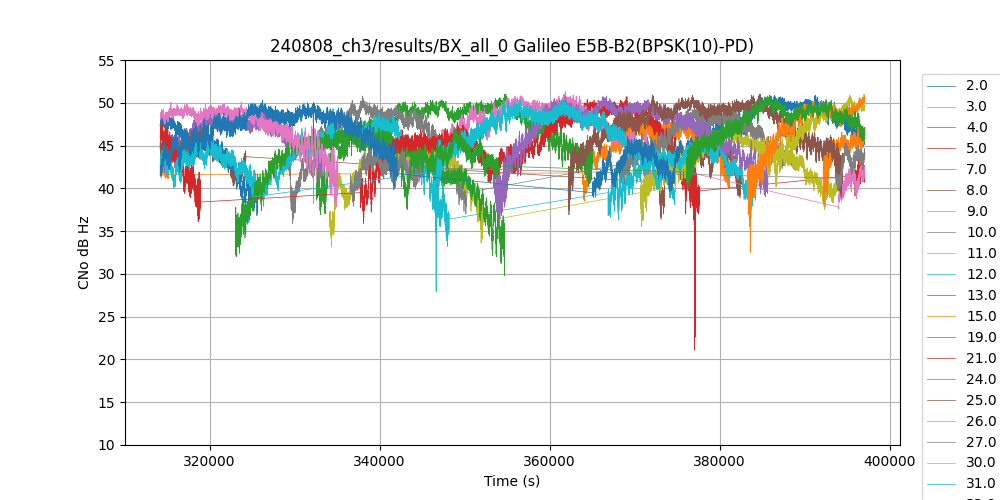

REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.5 50.9 40.7 0 [39.0] [0.0] 23861
3 24.2 0.0 45.3 48.6 38.5 80 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 47.1 51.0 36.9 0 [48.0] [0.0] 32456
5 35.4 0.0 46.1 50.7 21.1 18 [52.0, 43.0] [0.0] 24457
7 36.9 0.0 46.1 49.2 38.5 0 [41.0] [0.0] 19330
8 18.8 0.0 43.6 47.1 36.4 61 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 46.6 51.3 37.6 205 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 45.9 50.8 35.9 4 [46.0] [0.0] 41325
11 33.5 0.0 42.7 47.2 33.2 107 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 43.3 48.9 27.9 70 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 44.1 48.9 36.4 0 [46.0] [0.0] 11491
15 17.9 0.0 44.7 47.2 37.9 0 [48.0] [0.0] 4893
19 45.5 0.0 42.5 47.2 29.8 2 [49.0] [0.0] 31695
21 23.3 0.0 43.8 47.7 35.9 229 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 46.7 50.8 35.5 0 [50.0] [0.0] 32249
25 45.5 0.0 47.3 51.0 36.9 0 [44.0] [0.0] 32293
26 50.8 0.0 47.0 50.1 37.8 0 [47.0] [0.0] 20906
27 12.8 0.0 42.4 45.3 37.9 105 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 46.7 50.9 40.2 0 [49.0] [0.0] 12635
31 36.7 0.0 45.4 50.4 38.1 180 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.8 50.3 38.9 215 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 47.0 51.0 32.5 0 [47.0] [0.0] 13833
36 40.2 0.0 46.2 50.9 37.5 170 [52.0, 38.0] [0.0] 32472
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.6 52.7 43.8 0 [39.0] [0.0] 23861
3 24.2 0.0 47.5 50.5 41.2 73 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 49.1 52.3 42.3 0 [48.0] [0.0] 32456
5 35.4 0.0 48.4 52.2 36.0 146 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 48.2 51.1 40.0 0 [41.0] [0.0] 19330
8 18.8 0.0 46.3 49.1 41.0 10 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 48.6 52.7 40.6 0 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 48.2 52.6 40.5 2 [46.0] [0.0] 41325
11 33.5 0.0 45.0 48.5 37.2 221 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 45.8 50.5 38.0 102 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 46.5 50.7 40.4 0 [46.0] [0.0] 11491
15 17.9 0.0 46.8 49.4 42.8 0 [48.0] [0.0] 4893
19 45.5 0.0 45.1 49.5 33.6 7 [49.0] [0.0] 31695
21 23.3 0.0 46.3 50.0 40.2 86 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 48.7 52.5 40.4 0 [50.0] [0.0] 32249
25 45.5 0.0 49.2 52.4 41.8 0 [44.0] [0.0] 32293
26 50.8 0.0 49.0 51.7 41.2 0 [47.0] [0.0] 20906
27 12.8 0.0 45.2 47.8 41.4 125 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 49.0 52.4 44.3 0 [49.0] [0.0] 12635
31 36.7 0.0 47.6 52.1 41.5 21 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 48.0 52.0 41.9 206 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 49.0 52.4 35.3 7 [47.0] [0.0] 13833
36 40.2 0.0 48.3 52.4 41.0 89 [52.0, 38.0] [0.0] 32472

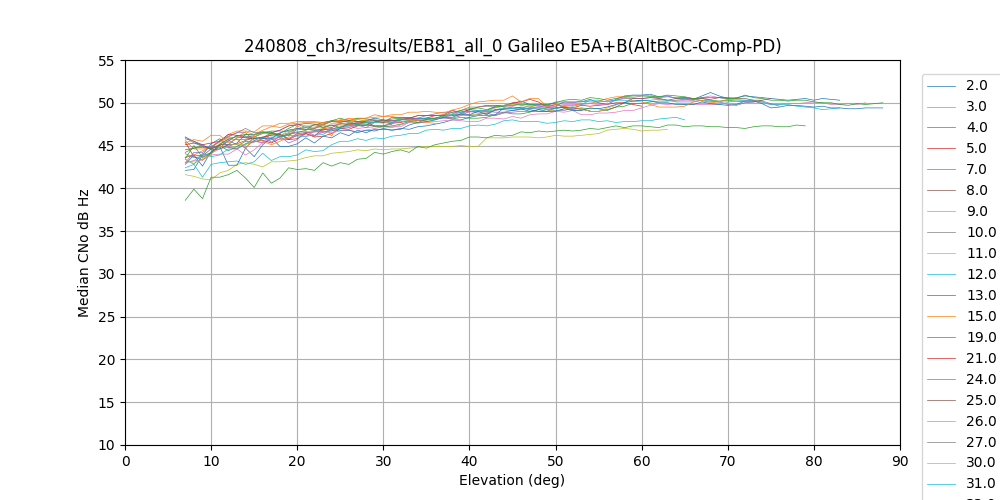

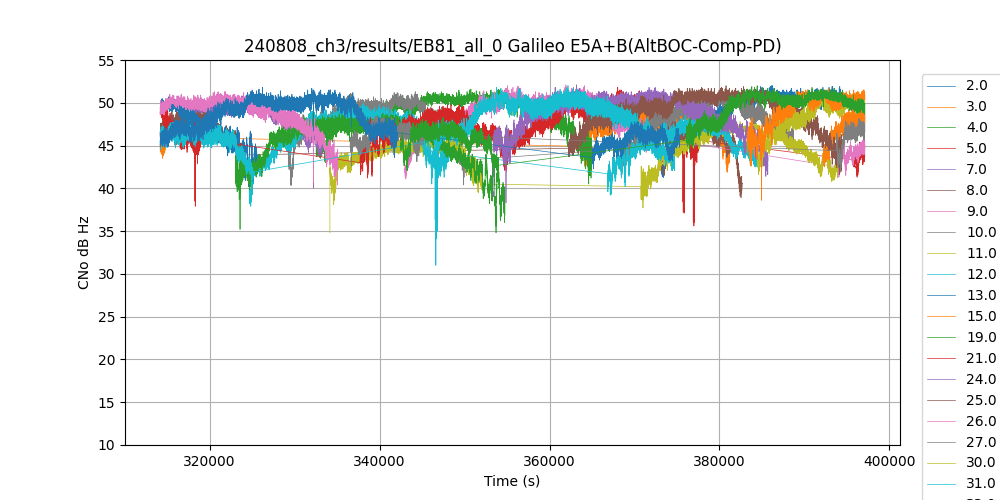

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.1 52.0 41.3 0 [44.0] [0.0] 23860
3 24.3 0.0 47.2 50.1 41.9 180 [52.0, 42.0] [0.0] 18238
4 45.5 0.0 48.6 51.6 40.5 0 [47.0] [0.0] 32462
5 35.4 0.0 47.8 51.8 35.6 217 [50.0, 45.0] [0.0] 24437
7 36.9 0.0 48.0 50.8 40.0 0 [40.0] [0.0] 19313
8 18.8 0.0 46.2 49.1 38.9 16 [43.0, 40.0] [0.0] 20001
9 41.7 0.0 48.1 52.1 41.1 170 [40.0, 49.0] [0.0] 32059
10 33.1 0.0 48.0 51.4 40.3 66 [45.0] [0.0] 41297
11 33.5 0.0 44.5 47.8 34.8 236 [44.0, 49.0] [0.0] 41150
12 33.7 0.0 45.9 49.9 31.0 227 [49.0, 47.0] [0.0] 41076
13 29.9 0.0 46.7 50.8 40.2 0 [46.0] [0.0] 11490
15 17.9 0.0 46.8 49.7 42.5 0 [47.0] [0.0] 4902
19 45.5 0.0 45.2 48.8 34.8 10 [51.0] [0.0] 31723
21 23.2 0.0 46.7 49.9 37.9 152 [45.0, 42.0] [0.0] 21473
24 45.5 0.0 48.6 52.1 38.3 7 [53.0] [0.0] 32254
25 45.5 0.0 48.8 52.0 41.6 0 [43.0] [0.0] 32280
26 50.8 0.0 48.5 51.3 40.4 0 [48.0] [0.0] 20889
27 12.8 0.0 46.1 48.4 41.9 143 [48.0, 46.0] [0.0] 11973
30 37.3 0.0 48.1 51.2 41.6 0 [51.0] [0.0] 12670
31 36.7 0.0 47.5 52.0 40.9 241 [41.0, 52.0] [0.0] 39151
33 38.4 0.0 47.7 51.8 42.3 8 [39.0, 41.0] [0.0] 38128
34 44.3 0.0 49.0 51.7 38.6 2 [48.0] [0.0] 13840
36 40.2 0.0 48.2 52.0 42.1 134 [50.0, 39.0] [0.0] 32504

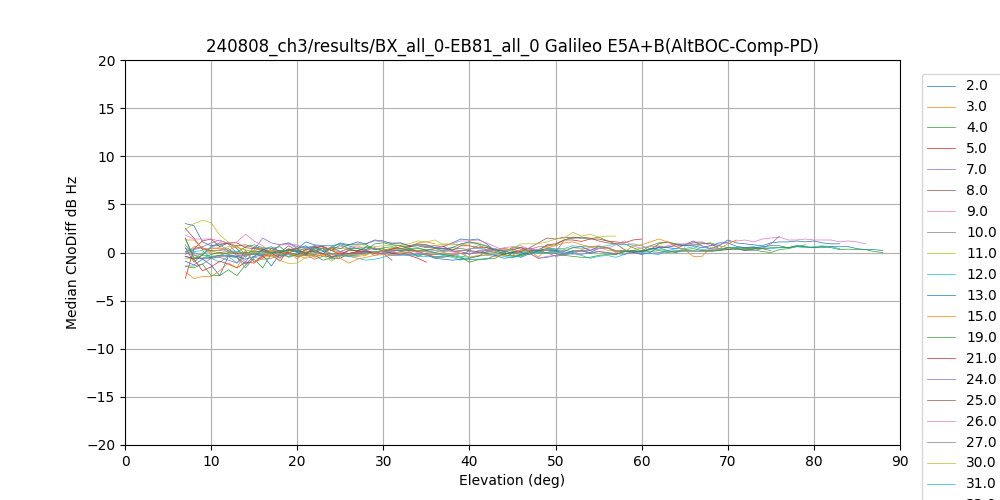

DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 0.5 4.3 -2.0 [39.0, 44.0] 23853
3 24.3 0.3 3.2 -3.2 [51.0, 52.0, 43.0, 42.0] 18231
4 45.5 0.5 4.1 -2.6 [48.0, 47.0] 32450
5 35.5 0.5 8.4 -7.0 [52.0, 50.0, 43.0, 45.0] 24430
7 36.9 0.3 2.9 -2.7 [41.0, 40.0] 19313
8 18.8 0.1 5.8 -2.7 [45.0, 43.0, 40.0] 20001
9 41.8 0.5 4.0 -2.6 [40.0, 45.0, 49.0] 31979
10 33.1 0.2 3.4 -3.5 [46.0, 45.0] 41295
11 33.5 0.5 4.6 -3.4 [44.0, 45.0, 49.0] 41150
12 33.7 -0.0 10.4 -6.5 [45.0, 49.0, 53.0, 47.0] 41048
13 29.9 -0.3 2.2 -3.9 [46.0] 11484
15 17.9 0.0 3.0 -1.9 [48.0, 47.0] 4893
19 45.5 -0.1 2.6 -5.9 [49.0, 51.0] 31695
21 23.3 -0.4 5.0 -4.9 [44.0, 45.0, 42.0] 21446
24 45.5 0.0 5.2 -5.4 [50.0, 53.0] 32230
25 45.5 0.4 3.4 -3.2 [44.0, 43.0] 32271
26 50.8 0.5 4.1 -1.2 [47.0, 48.0] 20889
27 12.8 -0.9 1.4 -4.2 [47.0, 48.0, 46.0] 11961
30 37.4 0.9 4.7 -2.3 [49.0, 51.0] 12635
31 36.7 0.1 3.1 -2.8 [53.0, 41.0, 51.0, 52.0] 39145
33 38.4 0.3 2.8 -2.5 [39.0, 42.0, 41.0] 38118
34 44.3 0.0 6.5 -8.9 [47.0, 48.0] 13833
36 40.2 0.1 3.3 -2.6 [52.0, 50.0, 38.0, 39.0] 32469
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.2 52.8 40.8 0 [39.0] [0.0] 23861
3 24.2 0.0 46.0 51.0 36.4 177 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 48.8 53.3 33.2 0 [48.0] [0.0] 32456
5 35.4 0.0 47.3 52.1 35.9 70 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 47.9 51.0 40.1 0 [41.0] [0.0] 19330
8 18.8 0.0 44.8 48.6 35.4 141 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 47.8 53.1 33.4 133 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 47.5 52.3 31.2 5 [46.0] [0.0] 41325
11 33.5 0.0 44.1 49.3 30.8 41 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 44.5 50.4 30.4 170 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 45.5 51.4 31.9 0 [46.0] [0.0] 11491
15 17.9 0.0 45.5 48.6 34.8 1 [48.0] [0.0] 4893
19 45.5 0.0 43.5 48.8 26.0 25 [49.0] [0.0] 31693
21 23.3 0.0 45.1 50.3 32.6 219 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 48.8 53.0 28.7 0 [50.0] [0.0] 32249
25 45.5 0.0 49.1 53.3 34.9 0 [44.0] [0.0] 32293
26 50.8 0.0 49.0 52.8 37.3 0 [47.0] [0.0] 20906
27 12.8 0.0 42.9 46.4 34.6 123 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 48.2 52.3 40.0 0 [49.0] [0.0] 12635
31 36.7 0.0 46.9 52.6 33.1 221 [53.0, 51.0] [0.0] 39170
33 38.4 0.0 47.2 52.4 36.4 229 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 48.4 52.9 35.4 0 [47.0] [0.0] 13833
36 40.2 0.0 47.7 52.7 34.7 163 [52.0, 38.0] [0.0] 32472
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.6 51.8 34.2 96 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 45.6 53.0 27.2 219 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.6 50.4 33.4 259 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.3 50.0 28.7 277 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.5 52.1 33.0 121 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.9 50.2 34.3 204 [53.0, 30.0] [0.0] 24895
25 25.5 0.0 43.8 48.6 35.3 150 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 45.7 51.4 26.1 9 [51.0] [0.0] 21138
27 29.0 0.0 44.3 49.4 30.6 8 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.3 50.8 33.1 46 [51.0, 46.0] [0.0] 33119
29 39.4 0.0 45.0 51.6 20.1 251 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 44.6 50.8 35.0 61 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.4 52.6 35.2 0 [21.0] [0.0] 27397
33 45.3 0.0 46.8 52.1 22.8 13 [52.0] [0.0] 26836
34 30.9 0.0 44.9 50.9 35.9 158 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 48.1 52.3 30.4 0 [42.0] [0.0] 21456
36 45.1 0.0 47.3 52.3 34.8 0 [49.0] [0.0] 28293
37 45.5 0.0 46.6 53.1 31.0 0 [53.0] [0.0] 25602
38 7.0 0.0 40.2 42.8 36.9 0 [18.0] [0.0] 2411
41 44.2 0.0 47.1 52.4 28.3 2 [50.0] [0.0] 28736
42 47.5 0.0 46.9 51.8 34.6 0 [48.0] [0.0] 16965
43 54.7 0.0 47.0 51.6 33.7 0 [20.0] [0.0] 16602
44 39.4 0.0 45.8 52.0 35.1 191 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 47.6 53.5 32.2 0 [48.0] [0.0] 25442
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)
REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.5 50.8 36.3 60 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 45.9 50.8 38.4 47 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 44.8 49.5 39.1 468 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.8 48.7 37.9 93 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 46.8 51.0 36.3 62 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 45.0 49.5 33.8 8 [53.0, 30.0] [0.0] 24895
25 25.5 0.0 44.1 47.4 37.2 41 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 45.8 50.1 34.2 0 [51.0] [0.0] 21138
27 29.0 0.0 44.5 49.6 35.9 137 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.2 49.1 31.1 45 [51.0, 46.0] [0.0] 33119
29 39.4 0.0 45.3 50.3 35.4 27 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 44.7 49.0 37.3 109 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.3 51.2 37.9 0 [21.0] [0.0] 27397
33 45.3 0.0 46.8 50.5 31.2 0 [52.0] [0.0] 26835
34 30.9 0.0 44.6 48.8 35.7 238 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 46.3 49.5 37.3 0 [42.0] [0.0] 21456
36 45.1 0.0 47.8 51.7 39.5 0 [49.0] [0.0] 28293
37 45.5 0.0 47.0 51.5 38.4 0 [53.0] [0.0] 25602
38 7.0 0.0 39.4 41.3 37.4 0 [18.0] [0.0] 2411
41 44.2 0.0 47.4 51.2 39.0 0 [50.0] [0.0] 28736
42 47.5 0.0 47.4 50.5 39.4 0 [48.0] [0.0] 16965
43 54.7 0.0 46.5 49.6 39.9 0 [20.0] [0.0] 16602
44 39.4 0.0 45.6 50.1 34.3 223 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 48.1 51.9 40.5 0 [48.0] [0.0] 25442
DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.3 50.7 25.3 196 [49.0, 23.0] [0.0] 29574
20 35.1 0.0 45.8 50.5 38.4 118 [34.0, 53.0] [0.0] 32024
21 20.9 0.0 44.3 49.3 36.6 272 [13.0, 15.0, 53.0] [0.0] 18587
22 24.2 0.0 44.2 48.0 35.9 393 [25.0, 44.0, 32.0] [0.0] 22120
23 36.4 0.0 46.5 50.1 39.6 147 [19.0, 43.0] [0.0] 23743
24 23.9 0.0 44.9 48.7 28.7 91 [46.0, 42.0] [0.0] 24954
25 25.5 0.0 44.0 47.6 36.4 58 [18.0, 34.0] [0.0] 22992
26 37.6 0.0 45.3 48.9 30.1 0 [52.0] [0.0] 21178
27 29.0 0.0 44.2 48.5 35.7 197 [50.0, 24.0] [0.0] 34835
28 32.4 0.0 44.1 48.8 24.4 95 [52.0, 45.0] [0.0] 33116
29 39.4 0.0 45.0 49.3 33.6 85 [41.0, 46.0] [0.0] 29398
30 30.3 0.0 44.6 48.5 37.7 187 [32.0, 37.0] [0.0] 34112
32 45.0 0.0 46.5 50.1 38.4 0 [21.0] [0.0] 27387
33 45.3 0.0 46.5 50.0 23.4 42 [16.0] [0.0] 26842
34 30.8 0.0 43.9 48.4 36.4 135 [44.0, 15.0] [0.0] 14483
35 51.5 0.0 46.2 49.4 33.7 0 [41.0] [0.0] 21463
36 45.1 0.0 47.0 50.3 38.8 0 [51.0] [0.0] 28320
37 45.5 0.0 46.8 50.5 38.9 0 [46.0] [0.0] 25618
38 7.0 0.0 42.0 43.9 40.5 0 [19.0] [0.0] 2439
41 44.1 0.0 46.6 50.3 38.1 0 [53.0] [0.0] 28769
42 47.6 0.0 47.2 49.9 40.5 0 [47.0] [0.0] 16949
43 54.7 0.0 45.9 48.8 38.8 0 [32.0] [0.0] 16585
44 39.4 0.0 45.2 48.8 29.6 107 [51.0, 50.0] [0.0] 15595
45 45.4 0.0 47.2 50.7 37.8 0 [20.0] [0.0] 25429
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 31.8 0.2 16.6 -5.9 [45.0, 49.0, 21.0, 23.0] 29567
20 35.1 0.1 4.9 -4.4 [41.0, 34.0, 23.0, 53.0] 32023
21 20.9 0.4 5.0 -2.9 [13.0, 15.0, 44.0, 53.0] 18569
22 24.2 0.6 5.2 -3.4 [23.0, 25.0, 44.0, 32.0] 22103
23 36.4 0.4 5.7 -4.5 [19.0, 43.0] 23711
24 23.9 0.1 10.0 -7.7 [53.0, 46.0, 30.0, 42.0] 24895
25 25.5 0.0 5.4 -2.9 [18.0, 50.0, 34.0] 22983
26 37.7 0.5 8.6 -6.7 [51.0, 52.0] 21138
27 29.0 0.3 5.6 -4.9 [32.0, 50.0, 20.0, 24.0] 34803
28 32.5 0.1 11.3 -8.4 [51.0, 52.0, 46.0, 45.0] 33076
29 39.4 0.3 8.8 -5.0 [51.0, 41.0, 46.0] 29348
30 30.3 0.1 4.9 -5.2 [20.0, 32.0, 30.0, 37.0] 34106
32 45.0 0.8 4.2 -3.4 [21.0] 27386
33 45.3 0.3 15.4 -11.3 [52.0, 16.0] 26833
34 30.8 0.7 4.9 -2.9 [43.0, 44.0, 26.0, 15.0] 14476
35 51.5 0.1 5.6 -3.9 [42.0, 41.0] 21456
36 45.1 0.8 4.1 -2.8 [49.0, 51.0] 28293
37 45.5 0.2 2.9 -4.4 [53.0, 46.0] 25587
38 7.0 -2.7 -0.5 -4.5 [18.0, 19.0] 2409
41 44.2 0.7 5.1 -3.4 [50.0, 53.0] 28736
42 47.6 0.2 2.7 -4.1 [48.0, 47.0] 16949
43 54.7 0.6 4.0 -2.5 [20.0, 32.0] 16585
44 39.4 0.4 8.9 -3.9 [49.0, 51.0, 52.0, 50.0] 15586
45 45.4 0.9 4.5 -3.5 [48.0, 20.0] 25428

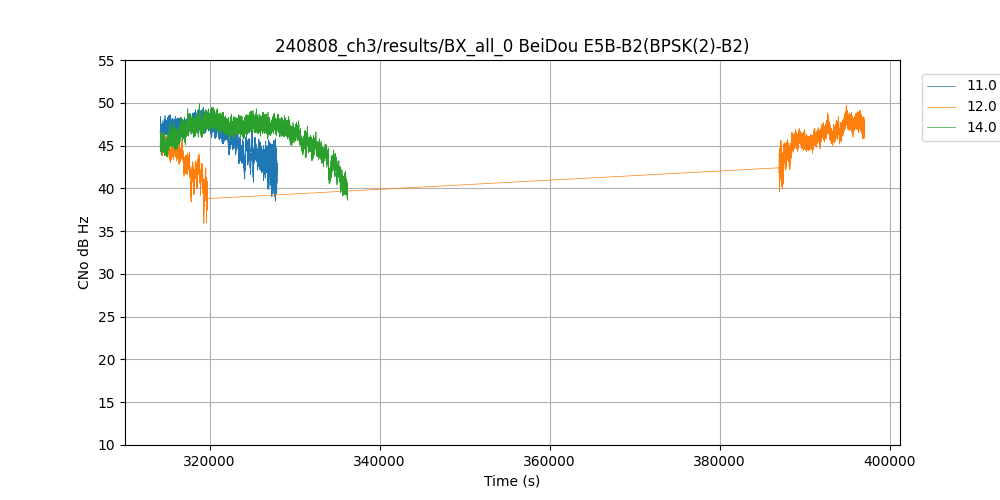

REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.8 49.5 38.5 0 [25.0] [0.0] 13764
12 27.4 0.0 45.0 49.7 35.9 104 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 46.1 49.9 38.6 0 [42.0] [0.0] 22022
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.7 49.0 36.3 0 [22.0] [0.0] 13763
12 27.4 0.0 45.0 49.4 36.6 12 [53.0, 25.0] [0.0] 15638
14 48.8 0.0 46.3 49.4 39.0 6 [42.0] [0.0] 22010

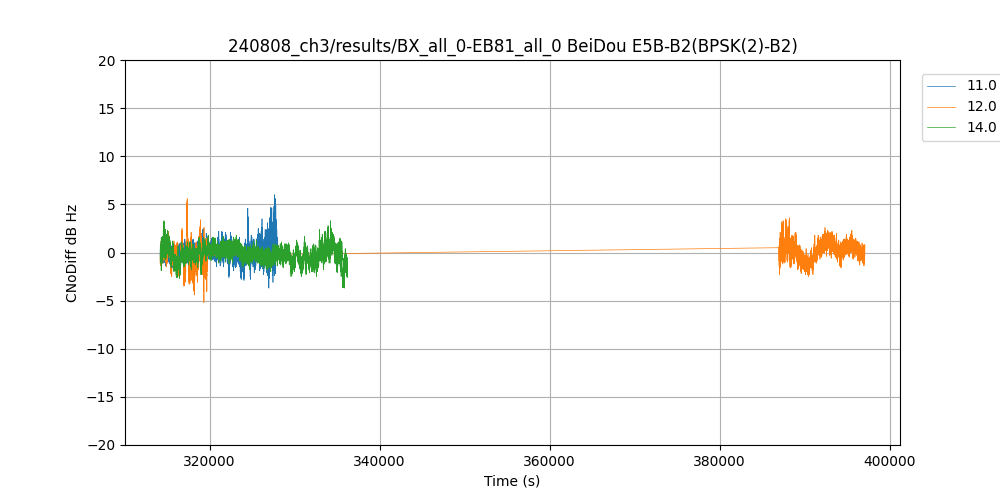

DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.2 0.2 6.0 -3.7 [25.0, 22.0] 13757
12 27.4 -0.0 5.6 -5.2 [50.0, 53.0, 22.0, 25.0] 15629
14 48.8 -0.2 3.3 -3.7 [42.0] 22010
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.9 51.0 30.6 0 [25.0] [0.0] 13764
12 27.4 0.0 41.9 49.0 30.0 73 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 44.3 49.7 33.1 0 [42.0] [0.0] 22022
19 31.8 0.0 45.4 52.4 32.9 110 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 46.0 53.4 26.1 132 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.5 50.7 33.5 347 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.6 50.7 33.9 228 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.6 52.1 35.0 6 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.8 50.5 33.1 1 [53.0, 30.0] [0.0] 24896
25 25.5 0.0 44.1 49.6 35.4 145 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 46.1 51.7 27.3 1 [51.0] [0.0] 21138
27 29.0 0.0 45.0 50.2 31.0 76 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.9 51.9 31.3 158 [51.0, 46.0] [0.0] 33120
29 39.4 0.0 45.9 52.5 33.1 122 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 45.2 51.9 35.7 117 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.0 52.8 34.9 0 [21.0] [0.0] 27397
33 45.3 0.0 46.2 52.1 27.2 0 [52.0] [0.0] 26837
34 30.9 0.0 44.8 51.0 34.8 9 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 48.5 53.4 30.1 0 [42.0] [0.0] 21456
36 45.1 0.0 47.2 53.2 32.6 0 [49.0] [0.0] 28293
37 45.5 0.0 46.2 52.5 29.0 0 [53.0] [0.0] 25602
38 7.0 0.0 40.7 42.9 37.6 0 [18.0] [0.0] 2411
41 44.2 0.0 46.7 52.8 29.9 0 [50.0] [0.0] 28736
42 47.5 0.0 46.2 51.2 36.2 0 [48.0] [0.0] 16965
43 54.7 0.0 46.9 52.3 35.9 0 [20.0] [0.0] 16602
44 39.4 0.0 45.9 52.7 29.5 157 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 47.1 52.4 34.2 0 [48.0] [0.0] 25442
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.0 50.5 31.2 0 [22.0] [0.0] 13763
12 27.4 0.0 41.6 48.9 33.4 218 [53.0, 25.0] [0.0] 15638
14 48.8 0.0 43.9 49.6 29.0 6 [42.0] [0.0] 22010
19 31.8 0.0 45.1 53.2 33.2 192 [49.0, 23.0] [0.0] 29574
20 35.1 0.0 45.5 53.8 27.7 95 [34.0, 53.0] [0.0] 32024
21 20.9 0.0 42.8 49.8 35.1 363 [13.0, 15.0, 53.0] [0.0] 18587
22 24.2 0.0 44.4 50.3 31.2 137 [25.0, 44.0, 32.0] [0.0] 22120
23 36.4 0.0 45.2 52.3 29.8 213 [19.0, 43.0] [0.0] 23743
24 23.9 0.0 43.4 49.7 31.3 133 [46.0, 42.0] [0.0] 24954
25 25.5 0.0 43.9 49.8 35.9 22 [18.0, 34.0] [0.0] 22992
26 37.6 0.0 45.8 52.1 27.4 4 [52.0] [0.0] 21178
27 29.0 0.0 45.1 51.3 33.3 93 [50.0, 24.0] [0.0] 34835
28 32.4 0.0 44.5 51.6 24.0 82 [52.0, 45.0] [0.0] 33116
29 39.4 0.0 45.3 52.2 31.0 161 [41.0, 46.0] [0.0] 29398
30 30.3 0.0 44.6 51.5 34.9 122 [32.0, 37.0] [0.0] 34112
32 45.0 0.0 46.9 53.0 34.6 0 [21.0] [0.0] 27387
33 45.3 0.0 45.8 51.8 21.5 57 [16.0] [0.0] 26842
34 30.8 0.0 44.2 50.8 32.4 104 [44.0, 15.0] [0.0] 14483
35 51.5 0.0 48.7 53.1 36.8 0 [41.0] [0.0] 21463
36 45.1 0.0 47.1 53.5 31.8 0 [51.0] [0.0] 28320
37 45.5 0.0 45.7 51.9 31.7 0 [46.0] [0.0] 25618
38 7.0 0.0 39.0 41.6 35.2 0 [19.0] [0.0] 2439
41 44.1 0.0 46.8 53.1 35.3 0 [53.0] [0.0] 28769
42 47.6 0.0 45.8 51.3 34.5 0 [47.0] [0.0] 16949
43 54.7 0.0 46.6 52.3 32.8 0 [32.0] [0.0] 16585
44 39.4 0.0 46.2 52.2 32.4 42 [51.0, 50.0] [0.0] 15595
45 45.4 0.0 46.4 53.0 25.8 0 [20.0] [0.0] 25429
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.2 -0.1 6.8 -4.6 [25.0, 22.0] 13757
12 27.4 0.3 4.3 -6.9 [50.0, 53.0, 22.0, 25.0] 15629
14 48.8 0.4 6.3 -5.0 [42.0] 22010
19 31.8 0.3 7.0 -5.6 [45.0, 49.0, 21.0, 23.0] 29567
20 35.1 0.5 12.7 -10.4 [41.0, 34.0, 23.0, 53.0] 32023
21 20.9 0.8 7.1 -7.9 [13.0, 15.0, 44.0, 53.0] 18569
22 24.2 0.2 8.3 -5.8 [23.0, 25.0, 44.0, 32.0] 22103
23 36.4 0.4 10.4 -6.0 [19.0, 43.0] 23711
24 23.9 0.4 8.7 -7.1 [53.0, 46.0, 30.0, 42.0] 24896
25 25.5 0.2 6.2 -6.4 [18.0, 50.0, 34.0] 22983
26 37.7 0.3 11.4 -8.6 [51.0, 52.0] 21138
27 29.0 -0.1 8.0 -8.0 [32.0, 50.0, 20.0, 24.0] 34803
28 32.5 0.4 11.8 -9.5 [51.0, 52.0, 46.0, 45.0] 33077
29 39.4 0.6 7.6 -4.6 [51.0, 41.0, 46.0] 29348
30 30.3 0.6 6.3 -5.9 [20.0, 32.0, 30.0, 37.0] 34106
32 45.0 0.1 6.4 -4.1 [21.0] 27386
33 45.3 0.4 14.0 -12.7 [52.0, 16.0] 26835
34 30.8 0.5 7.5 -4.7 [43.0, 44.0, 26.0, 15.0] 14476
35 51.5 -0.2 4.0 -8.6 [42.0, 41.0] 21456
36 45.1 0.1 7.0 -6.3 [49.0, 51.0] 28293
37 45.5 0.5 7.3 -10.3 [53.0, 46.0] 25587
38 7.0 1.7 6.2 -1.9 [18.0, 19.0] 2409
41 44.2 -0.2 3.9 -8.2 [50.0, 53.0] 28736
42 47.6 0.5 5.1 -3.1 [48.0, 47.0] 16949
43 54.7 0.3 8.3 -4.9 [20.0, 32.0] 16585
44 39.4 -0.3 6.1 -7.5 [49.0, 51.0, 52.0, 50.0] 15586
45 45.4 0.7 9.8 -4.2 [48.0, 20.0] 25428
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.8 48.9 31.6 0 [25.0] [0.0] 13764
12 27.4 0.0 43.9 49.3 33.1 200 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 45.1 49.1 35.6 0 [42.0] [0.0] 22022
19 31.8 0.0 44.5 49.6 32.7 234 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 44.2 50.2 21.3 213 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.0 48.6 35.4 302 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.0 48.0 35.1 314 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.2 49.5 35.7 252 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.7 48.4 31.4 113 [53.0, 30.0] [0.0] 24891
25 25.5 0.0 43.3 47.8 35.6 240 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 44.8 49.1 33.6 1 [51.0] [0.0] 21138
27 29.0 0.0 43.4 48.4 32.4 33 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 43.2 48.9 31.3 88 [51.0, 46.0] [0.0] 33115
29 39.4 0.0 44.0 49.3 31.7 1 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 43.8 48.8 33.4 172 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 46.1 49.8 37.9 0 [21.0] [0.0] 27397
33 45.3 0.0 45.1 49.3 31.6 0 [52.0] [0.0] 26833
34 30.9 0.0 43.2 48.6 34.2 22 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 46.4 49.9 34.7 0 [42.0] [0.0] 21456
36 45.1 0.0 46.4 50.3 37.5 0 [49.0] [0.0] 28293
37 45.5 0.0 45.5 50.0 36.2 0 [53.0] [0.0] 25602
38 7.0 0.0 37.2 39.8 34.4 0 [18.0] [0.0] 2411
41 44.2 0.0 45.7 49.9 35.4 0 [50.0] [0.0] 28736
42 47.5 0.0 45.8 49.7 36.4 0 [48.0] [0.0] 16965
43 54.7 0.0 45.4 49.0 34.0 0 [20.0] [0.0] 16602
44 39.4 0.0 45.0 49.7 32.7 245 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 46.3 50.5 37.3 0 [48.0] [0.0] 25442
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.3 48.2 34.1 0 [22.0] [0.0] 13763
12 27.4 0.0 43.4 48.3 33.1 143 [53.0, 25.0] [0.0] 15638
14 48.8 0.0 45.2 48.6 36.6 6 [42.0] [0.0] 22010
19 31.8 0.0 44.6 49.4 30.3 155 [49.0, 23.0] [0.0] 29574
20 35.1 0.0 43.9 49.5 34.7 206 [34.0, 53.0] [0.0] 32020
21 20.9 0.0 43.1 48.7 35.9 231 [13.0, 15.0, 53.0] [0.0] 18587
22 24.2 0.0 43.5 47.5 34.0 199 [25.0, 44.0, 32.0] [0.0] 22120
23 36.4 0.0 44.8 49.6 31.3 216 [19.0, 43.0] [0.0] 23743
24 23.9 0.0 43.4 48.6 29.8 132 [46.0, 42.0] [0.0] 24954
25 25.5 0.0 43.3 47.6 34.8 178 [18.0, 34.0] [0.0] 22992
26 37.6 0.0 45.0 49.3 29.5 4 [52.0] [0.0] 21178
27 29.0 0.0 43.3 48.3 33.3 176 [50.0, 24.0] [0.0] 34835
28 32.4 0.0 43.0 48.2 28.4 60 [52.0, 45.0] [0.0] 33100
29 39.4 0.0 44.2 49.0 34.0 145 [41.0, 46.0] [0.0] 29398
30 30.3 0.0 43.6 48.6 34.2 174 [32.0, 37.0] [0.0] 34112
32 45.0 0.0 45.5 49.3 33.7 0 [21.0] [0.0] 27387
33 45.4 0.0 45.1 48.8 19.0 12 [16.0] [0.0] 26769
34 30.8 0.0 42.5 48.1 32.3 115 [44.0, 15.0] [0.0] 14483
35 51.5 0.0 46.3 49.3 32.8 0 [41.0] [0.0] 21463
36 45.1 0.0 45.9 50.1 35.0 0 [51.0] [0.0] 28320
37 45.5 0.0 45.7 49.2 36.9 0 [46.0] [0.0] 25618
38 7.0 0.0 39.8 41.7 36.7 0 [19.0] [0.0] 2439
41 44.1 0.0 45.6 49.5 34.4 0 [53.0] [0.0] 28769
42 47.6 0.0 45.5 49.3 36.9 0 [47.0] [0.0] 16949
43 54.7 0.0 44.6 48.4 33.1 0 [32.0] [0.0] 16585
44 39.4 0.0 44.6 49.0 31.4 133 [51.0, 50.0] [0.0] 15595
45 45.4 0.0 45.8 50.0 37.5 0 [20.0] [0.0] 25429
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.2 0.5 5.5 -5.6 [25.0, 22.0] 13757
12 27.4 0.5 4.3 -5.1 [50.0, 53.0, 22.0, 25.0] 15629
14 48.8 -0.1 3.1 -3.7 [42.0] 22010
19 31.8 -0.2 7.2 -5.4 [45.0, 49.0, 21.0, 23.0] 29567
20 35.1 0.3 6.2 -17.5 [41.0, 34.0, 23.0, 53.0] 32019
21 20.9 -0.0 3.7 -4.6 [13.0, 15.0, 44.0, 53.0] 18569
22 24.2 0.4 6.7 -4.8 [23.0, 25.0, 44.0, 32.0] 22103
23 36.4 0.4 10.0 -4.2 [19.0, 43.0] 23711
24 23.9 0.2 9.8 -10.6 [53.0, 46.0, 30.0, 42.0] 24891
25 25.5 0.1 4.0 -3.5 [18.0, 50.0, 34.0] 22983
26 37.7 -0.1 10.5 -7.2 [51.0, 52.0] 21138
27 29.0 0.0 5.6 -5.2 [32.0, 50.0, 20.0, 24.0] 34803
28 32.5 0.2 8.9 -9.3 [51.0, 52.0, 46.0, 45.0] 33056
29 39.4 -0.2 5.2 -5.0 [51.0, 41.0, 46.0] 29348
30 30.3 0.2 6.3 -4.7 [20.0, 32.0, 30.0, 37.0] 34106
32 45.0 0.6 8.1 -3.2 [21.0] 27386
33 45.4 -0.1 17.4 -7.2 [52.0, 16.0] 26758
34 30.8 0.7 6.3 -4.2 [43.0, 44.0, 26.0, 15.0] 14476
35 51.5 0.1 7.1 -3.6 [42.0, 41.0] 21456
36 45.1 0.5 4.3 -3.2 [49.0, 51.0] 28293
37 45.5 -0.2 2.5 -4.5 [53.0, 46.0] 25587
38 7.0 -2.6 -0.6 -5.3 [18.0, 19.0] 2409
41 44.2 0.2 4.2 -5.7 [50.0, 53.0] 28736
42 47.6 0.4 5.0 -3.7 [48.0, 47.0] 16949
43 54.7 0.8 6.2 -4.2 [20.0, 32.0] 16585
44 39.4 0.4 6.0 -5.2 [49.0, 51.0, 52.0, 50.0] 15586
45 45.4 0.5 4.4 -3.9 [48.0, 20.0] 25428
