REF File: 240808_ch3/BX_all.T04
DUT File: 240808_ch3/EB79_all.T04

Comments


CH3

Ref Statistics

DUT Statistics

Difference Statistics
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 774061 43.9 44.2 4.3 13.3 54.7 41.4 37.0 90.0
GPS L2 CM+CL 585463 44.3 44.7 3.4 23.3 51.8 28.5 38.4 90.0
GPS L2 E 188120 30.3 30.6 6.5 13.9 44.3 30.4 32.8 77.0
GPS L5/E5A I+Q 427973 47.5 47.7 2.9 19.8 54.5 34.7 37.7 88.0
SBAS L1 CA 321073 42.7 44.1 4.0 22.9 48.2 25.3 20.7 42.0
SBAS L5/E5A I 248710 46.2 46.2 0.5 38.6 48.7 10.1 39.8 42.0
GLONASS L1 CA 595660 44.4 45.2 5.0 19.9 54.2 34.3 35.9 90.0
GLONASS L1 P 595338 42.8 43.7 5.0 22.1 52.4 30.3 35.9 90.0
GLONASS L2 CA 505739 44.5 45.1 3.4 1.0 51.4 50.4 36.5 89.0
GLONASS L2 P 505755 42.9 43.6 3.4 9.7 49.7 40.0 36.5 87.0
GLONASS G3 PD 52285 45.2 45.7 2.9 33.6 50.2 16.6 40.1 76.0
Galileo L1 MBOC-PD 597261 45.2 45.5 4.0 26.2 53.5 27.3 37.4 88.0
Galileo L5/E5A BPSK(10)-PD 597259 44.9 45.0 2.8 21.1 50.7 29.6 37.4 88.0
Galileo E5B/B2 BPSK(10)-PD 597259 45.4 45.5 3.0 21.1 51.3 30.2 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597261 47.6 47.7 2.5 33.6 52.7 19.1 37.4 88.0
Galileo E6 BPSK(5)-PD 597258 46.8 47.0 3.7 26.0 53.3 27.3 37.4 88.0
BeiDou L1 BOC-PD 576410 45.7 45.9 4.0 20.1 53.5 33.4 37.0 87.0
BeiDou L5/E5A I+Q 576409 45.9 46.0 2.9 31.1 51.9 20.8 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51422 45.7 46.3 2.0 35.9 49.9 14.0 42.1 86.0
BeiDou B1 BPSK(2)-B1 627835 45.6 45.9 3.9 26.1 53.4 27.3 37.4 87.0
BeiDou B3 BPSK(10)-B3 627821 44.6 45.2 3.1 21.3 50.5 29.2 37.4 87.0
start/stop time: 314,181 397,088
Total time: 82,907.0 seconds
Total time: 1,381.783 minutes
Total time: 23.030 hours
Total Samples: 10,246,372
Avg Samples/sec: 123.6

Serial Number : 6221C43829
Firmware Date : Mar 6, 2024
Release Ver : 5.70
Nav Proc Ver : 0.47
Radio Lib Ver : None
Primary Antenna Type : MI
Primary Antenna Height : 0.0000 m
Secondary Antenna Type : MI
Secondary Antenna Height : 0.0000 m
week_list : ['2326']
Start Time : 314181.154
Stop Time : 396000.361
Total Hours : 22.7275575
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 774001 43.9 44.3 4.0 12.7 54.3 41.6 37.0 90.0
GPS L2 CM+CL 585473 44.2 44.5 3.4 20.0 51.9 31.9 38.4 90.0
GPS L2 E 773857 36.8 37.1 7.7 12.6 52.6 40.0 37.0 90.0
GPS L5/E5A I+Q 428015 47.5 47.6 2.9 20.5 53.6 33.1 37.7 88.0
SBAS L1 CA 248715 45.1 45.1 0.7 30.3 47.8 17.5 39.8 42.0
GLONASS L1 CA 595422 43.8 44.7 5.0 19.6 54.1 34.5 35.9 90.0
GLONASS L2 CA 505104 44.7 45.3 3.4 10.2 51.4 41.2 36.5 88.0
Galileo L1 MBOC-PD 597095 45.2 45.3 3.8 0.0 53.6 53.6 37.4 88.0
Galileo E5A+B AltBOC-Comp-PD 597117 47.5 47.6 2.4 35.4 52.3 16.9 37.4 88.0
BeiDou L5/E5A I+Q 576553 45.9 46.1 2.8 21.4 51.7 30.3 37.0 87.0
BeiDou E5B/B2 BPSK(2)-B2 51382 45.3 46.0 2.1 35.5 49.1 13.6 42.2 86.0
BeiDou B1 BPSK(2)-B1 627938 45.5 46.0 3.8 28.8 53.8 25.0 37.4 87.0
BeiDou B3 BPSK(10)-B3 627933 44.5 45.0 3.0 26.4 50.2 23.8 37.4 87.0
start/stop time: 314,184 397,092
Total time: 82,908.0 seconds
Total time: 1,381.800 minutes
Total time: 23.030 hours
Total Samples: 6,988,605
Avg Samples/sec: 84.3

Serial Number : 6348C01835
Firmware Date : Jun 21, 2024
Release Ver : 5.70
Nav Proc Ver : 0.51
Radio Lib Ver : None
Primary Antenna Type : E
Primary Antenna Height : 0.1080 m
Secondary Antenna Type : E
Secondary Antenna Height : 0.1080 m
week_list : ['2326']
Start Time : 314184.115
Stop Time : 396951.954
Total Hours : 22.9910663888889
SVType Freq Track N_Samples CNo_Mean CNo_Median CNo_Std CNo_Min CNo_Max CNo_Range El_Mean El_Max
GPS L1 CA 773624 +0.0 +0.1 +1.6 -23.5 +24.2 +47.7 +37.0 +90.0
GPS L2 CM+CL 585160 +0.2 +0.2 +1.3 -12.2 +17.8 +30.0 +38.4 +90.0
GPS L2 E 187992 +0.4 +0.5 +1.6 -8.8 +8.9 +17.7 +32.8 +77.0
GPS L5/E5A I+Q 427794 +0.0 +0.0 +1.0 -24.2 +24.0 +48.2 +37.7 +88.0
SBAS L1 CA 248703 -0.3 +0.0 +1.4 -4.3 +3.9 +8.2 +39.8 +42.0
GLONASS L1 CA 594535 +0.5 +0.6 +1.6 -13.8 +16.8 +30.6 +35.9 +90.0
GLONASS L2 CA 504584 -0.1 -0.1 +1.5 -9.6 +22.9 +32.5 +36.5 +87.0
Galileo L1 MBOC-PD 596828 +0.0 +0.1 +1.4 -10.3 +32.9 +43.2 +37.4 +88.0
Galileo E5A+B AltBOC-Comp-PD 596850 +0.2 +0.2 +0.8 -5.9 +8.4 +14.3 +37.4 +88.0
BeiDou L5/E5A I+Q 576082 -0.0 +0.0 +1.1 -7.2 +20.8 +28.0 +37.0 +87.0
BeiDou E5B/B2 BPSK(2)-B2 51378 +0.4 +0.3 +1.0 -5.7 +6.4 +12.1 +42.2 +86.0
BeiDou B1 BPSK(2)-B1 627466 +0.0 +0.1 +1.5 -13.3 +10.2 +23.5 +37.4 +87.0
BeiDou B3 BPSK(10)-B3 627452 +0.2 +0.2 +1.1 -16.3 +8.2 +24.5 +37.4 +87.0
start/stop time: 314,184 397,088
Total time: 82,904.0 seconds
Total time: 1,381.733 minutes
Total time: 23.029 hours
Total Samples: 6,398,448
Avg Samples/sec: 77.2

Statistics for full C/No Observations dataset
(df_ref - df_dut => positive numbers mean DUT is worse)
Mean = 0.089
Median = 0.100
Std Dev= 1.356

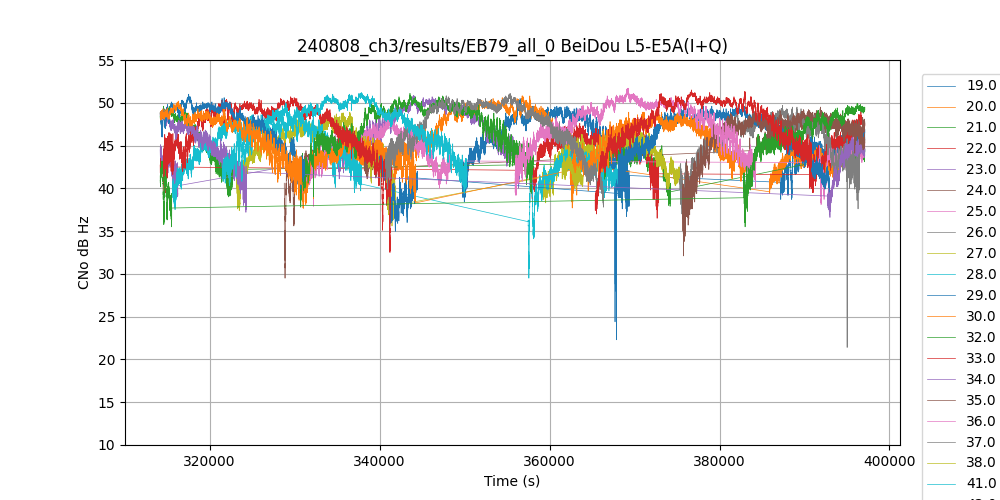

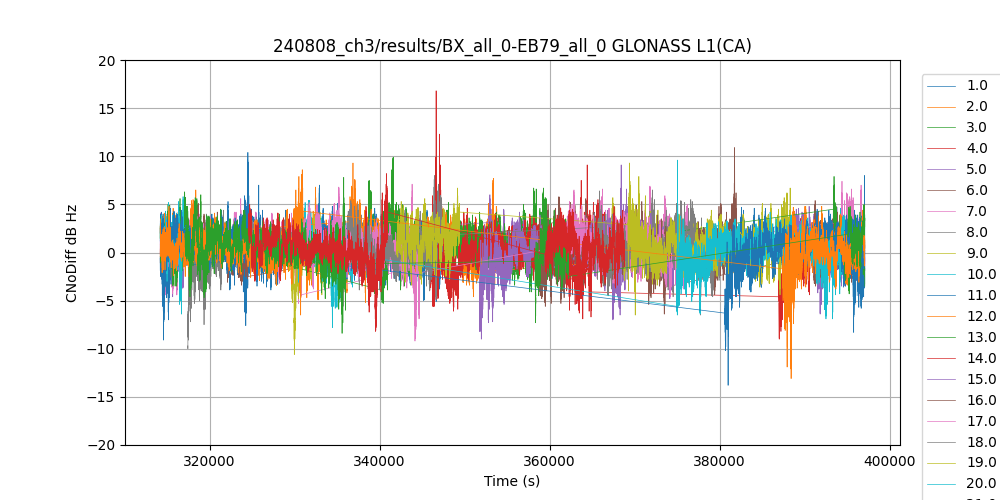

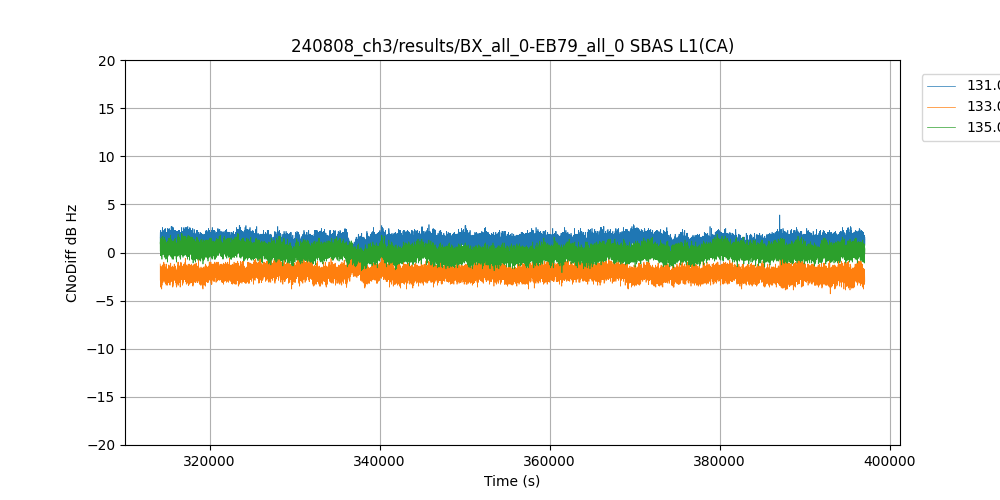

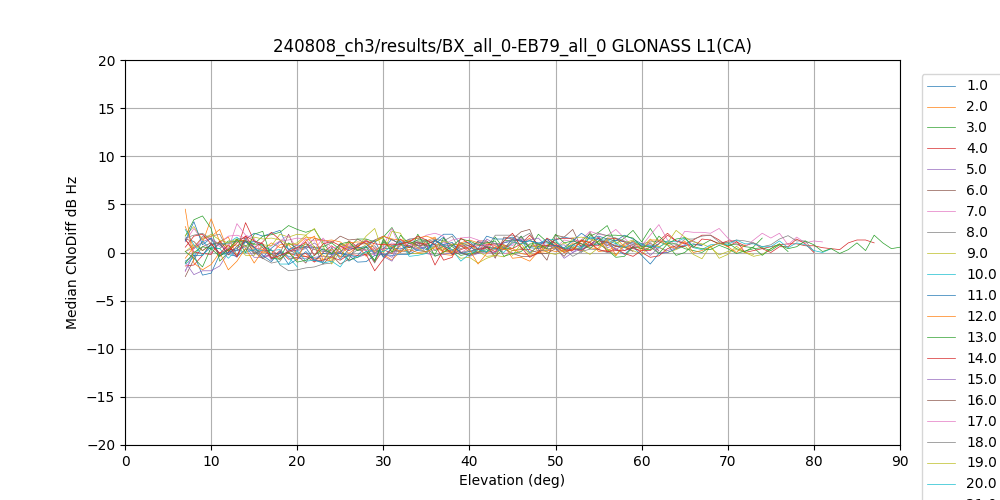

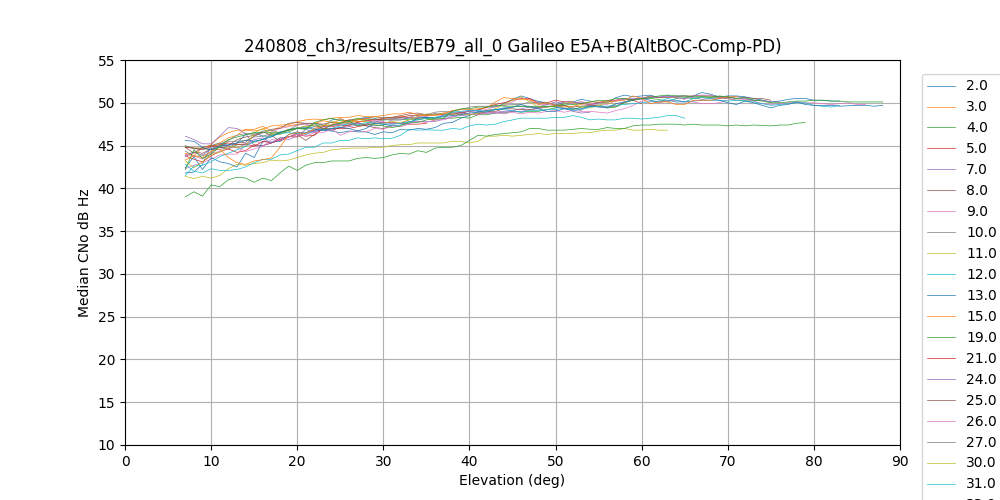

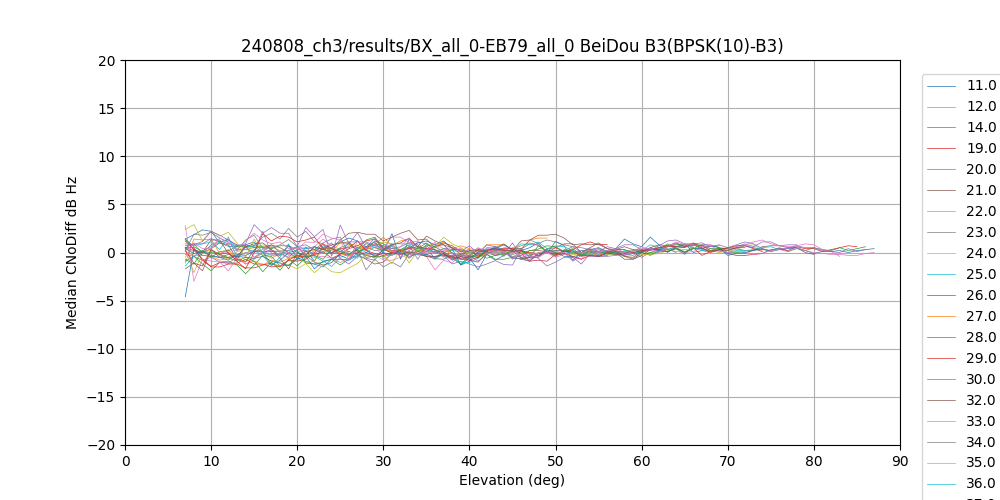

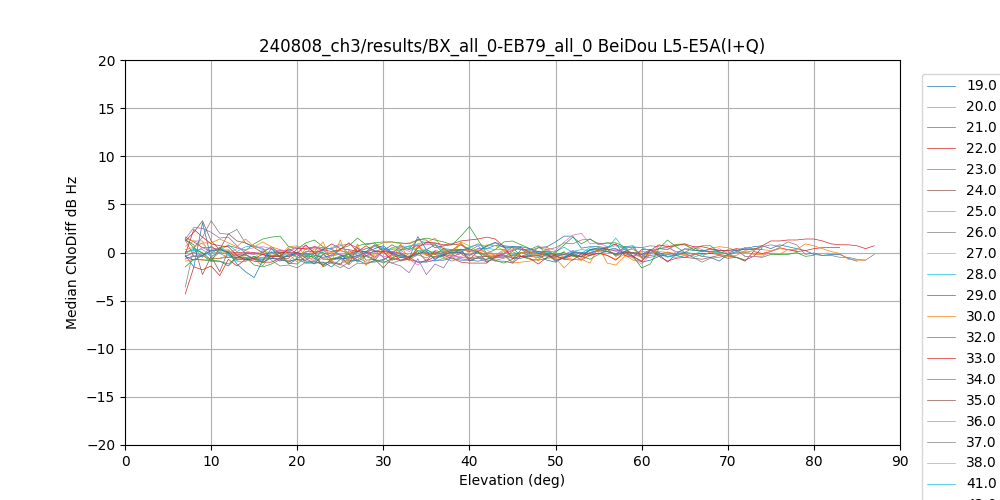

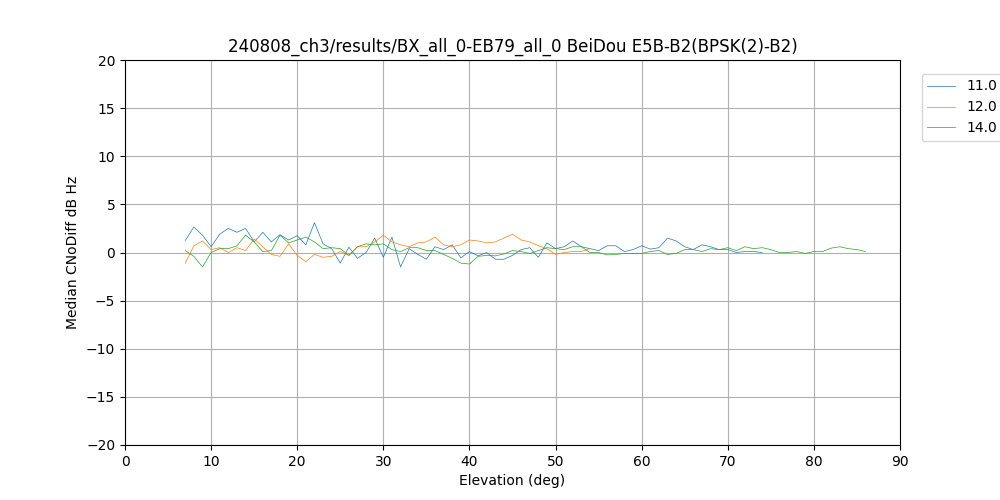

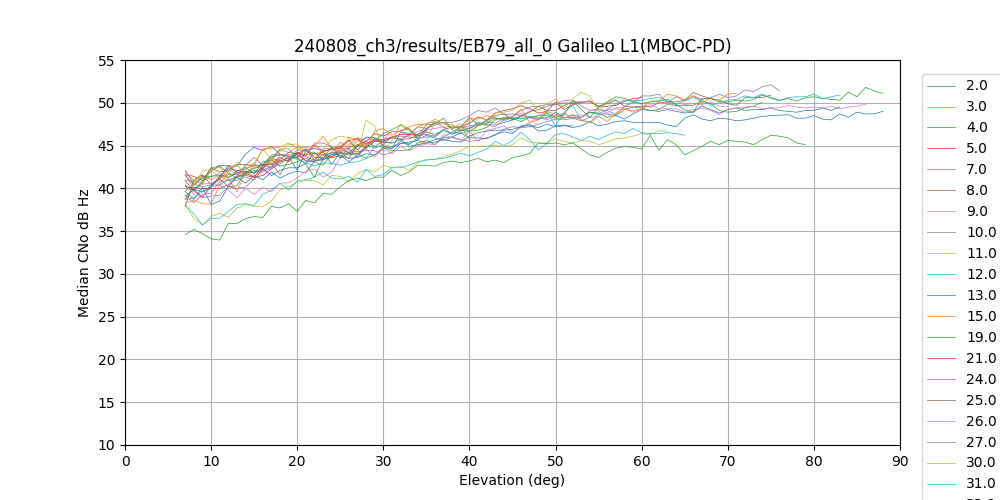

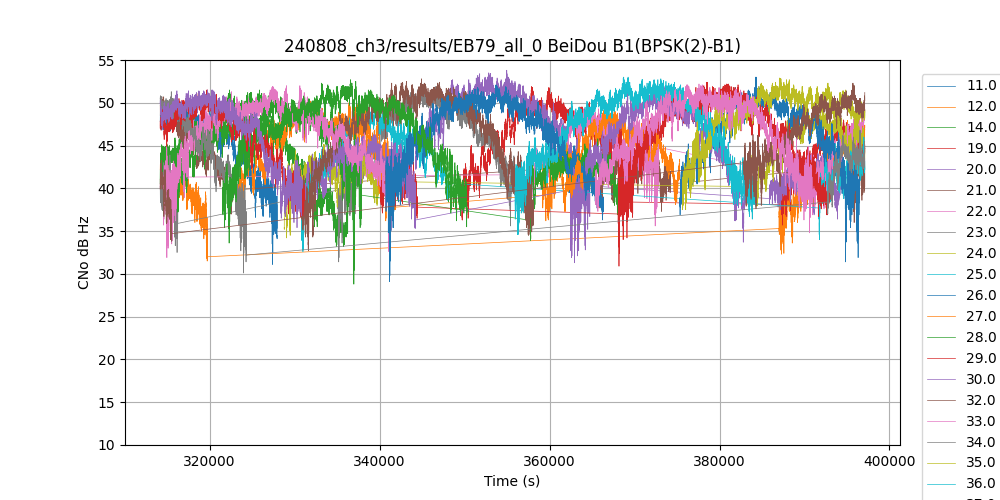

Plots


REF GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 43.1 50.1 29.2 159 [15.0, 16.0] [0.0] 30523
3 32.7 0.0 42.7 51.9 27.9 165 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 44.7 51.4 33.7 0 [36.0] [0.0] 23847
5 34.3 0.0 43.2 51.0 13.3 341 [15.0, 16.0, 17.0] [0.0] 19827
6 38.4 0.0 43.4 51.8 25.3 168 [27.0, 31.0] [0.0] 24501
7 45.1 0.0 45.8 51.5 30.7 0 [33.0] [0.0] 25511
8 27.4 0.0 42.4 50.5 27.4 194 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 45.0 52.9 30.6 2 [34.0] [0.0] 21447
10 43.5 0.0 47.0 53.7 29.2 2 [29.0] [0.0] 25774
11 48.2 0.0 45.3 52.9 27.1 28 [34.0, 33.0] [0.0] 20093
12 39.1 0.0 44.4 51.6 24.7 357 [27.0, 33.0, 28.0] [0.0] 20957
13 27.6 0.0 43.1 50.3 25.9 269 [37.0, 18.0] [0.0] 27318
14 44.1 0.0 45.2 50.8 29.9 0 [19.0] [0.0] 25728
15 30.5 0.0 43.5 49.9 32.0 157 [35.0, 27.0] [0.0] 25286
16 31.2 0.0 42.1 50.7 25.5 233 [33.0, 32.0] [0.0] 27076
17 45.7 0.0 45.4 52.3 30.8 4 [36.0] [0.0] 24092
18 47.0 0.0 45.2 50.8 34.2 70 [36.0, 35.0] [0.0] 21725
19 44.7 0.0 44.7 51.6 30.4 4 [37.0] [0.0] 24583
20 31.6 0.0 41.8 50.2 28.7 308 [29.0, 21.0, 24.0] [0.0] 22866
21 26.6 0.0 42.3 49.4 21.0 280 [19.0, 21.0] [0.0] 30237
22 44.4 0.0 45.2 50.7 32.4 0 [32.0] [0.0] 25995
23 43.5 0.0 44.9 50.4 27.0 2 [30.0] [0.0] 25553
24 25.7 0.0 41.1 49.0 20.7 111 [26.0] [0.0] 29779
25 26.7 0.0 41.3 50.5 23.6 514 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 42.7 50.2 29.0 177 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 42.4 49.7 29.9 205 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 43.3 50.5 21.1 272 [24.0, 34.0] [0.0] 23148
29 42.5 0.0 45.2 52.9 30.1 177 [14.0, 16.0] [0.0] 19499
30 45.9 0.0 45.9 53.0 32.3 2 [24.0] [0.0] 23655
31 45.3 0.0 45.4 53.6 21.6 67 [25.0] [0.0] 22318
32 45.3 0.0 47.2 54.7 30.9 3 [22.0] [0.0] 24621
DUT GPS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 43.2 49.5 34.2 49 [15.0, 17.0] [0.0] 30493
3 32.7 0.0 43.0 51.9 26.5 51 [35.0, 33.0] [0.0] 27076
4 45.4 0.0 44.4 51.2 32.6 0 [16.0] [0.0] 23836
5 34.3 0.0 43.4 50.7 19.2 72 [15.0, 17.0] [0.0] 19826
6 38.4 0.0 43.4 52.7 26.9 225 [31.0, 28.0] [0.0] 24519
7 45.1 0.0 45.4 51.1 28.0 3 [30.0] [0.0] 25495
8 27.4 0.0 42.1 50.3 27.7 136 [29.0, 26.0] [0.0] 29135
9 44.0 0.0 45.4 52.2 33.3 0 [33.0] [0.0] 21450
10 43.5 0.0 46.7 53.5 31.1 1 [36.0] [0.0] 25768
11 48.2 0.0 45.4 52.5 29.0 11 [29.0, 34.0] [0.0] 20075
12 39.1 0.0 44.6 51.2 29.5 415 [25.0, 29.0, 30.0] [0.0] 20952
13 27.6 0.0 43.2 49.0 30.5 216 [37.0, 18.0] [0.0] 27297
14 44.1 0.0 45.0 50.0 34.1 0 [21.0] [0.0] 25732
15 30.5 0.0 43.4 50.0 32.0 200 [35.0, 31.0] [0.0] 25273
16 31.2 0.0 41.8 49.8 30.7 100 [29.0, 32.0] [0.0] 27078
17 45.7 0.0 45.2 51.8 12.7 75 [36.0] [0.0] 24101
18 47.0 0.0 44.9 50.3 28.0 83 [33.0, 29.0] [0.0] 21722
19 44.6 0.0 44.8 50.8 31.8 0 [35.0] [0.0] 24600
20 31.6 0.0 42.0 50.4 31.4 108 [23.0, 22.0, 37.0] [0.0] 22838
21 26.6 0.0 42.6 49.6 31.6 93 [19.0, 34.0] [0.0] 30242
22 44.5 0.0 45.0 51.1 28.8 1 [32.0] [0.0] 25979
23 43.5 0.0 44.7 50.3 30.6 1 [24.0] [0.0] 25581
24 25.7 0.0 41.3 47.5 31.4 100 [25.0, 26.0] [0.0] 29777
25 26.7 0.0 41.4 49.7 27.3 213 [20.0, 33.0, 27.0] [0.0] 25299
26 29.1 0.0 42.3 50.4 28.0 71 [30.0, 24.0] [0.0] 26663
27 26.1 0.0 42.6 48.7 30.2 104 [26.0, 27.0] [0.0] 29899
28 39.7 0.0 43.4 51.0 25.2 176 [27.0, 26.0] [0.0] 23157
29 42.5 0.0 45.0 52.6 34.8 199 [14.0, 16.0] [0.0] 19489
30 45.9 0.0 45.7 52.8 30.6 4 [23.0] [0.0] 23671
31 45.3 0.0 45.6 52.8 20.1 11 [37.0] [0.0] 22323
32 45.3 0.0 47.1 54.3 28.3 4 [23.0] [0.0] 24655

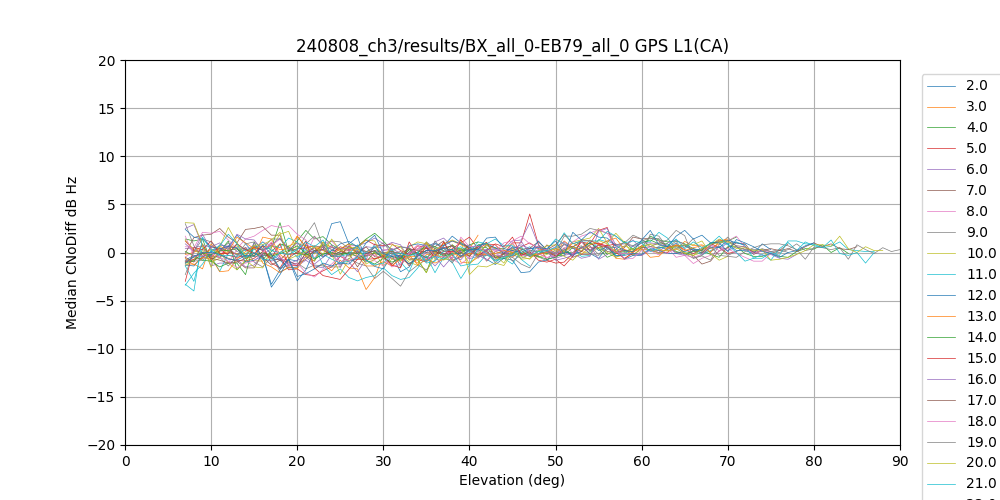

DIFF GPS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 -0.1 5.8 -9.4 [15.0, 16.0, 17.0] 30490
3 32.7 -0.3 10.5 -10.5 [37.0, 35.0, 34.0, 33.0] 27076
4 45.4 0.3 5.7 -6.5 [36.0, 16.0] 23836
5 34.3 -0.2 11.9 -23.5 [15.0, 16.0, 17.0] 19808
6 38.4 -0.0 5.9 -9.9 [27.0, 31.0, 28.0] 24483
7 45.1 0.4 9.0 -4.0 [33.0, 30.0] 25495
8 27.4 0.3 8.1 -7.6 [33.0, 29.0, 35.0, 26.0] 29135
9 44.0 -0.3 4.4 -7.1 [34.0, 33.0] 21447
10 43.5 0.2 6.0 -7.5 [29.0, 36.0] 25768
11 48.2 -0.0 8.2 -8.2 [34.0, 29.0, 33.0] 20071
12 39.1 -0.2 7.1 -11.7 [27.0, 25.0, 33.0, 29.0, 28.0, 30.0] 20924
13 27.6 -0.1 5.9 -12.0 [37.0, 18.0] 27297
14 44.2 0.2 5.1 -7.0 [19.0, 21.0] 25716
15 30.5 0.1 6.8 -7.1 [35.0, 27.0, 31.0] 25266
16 31.2 0.3 7.5 -7.6 [33.0, 29.0, 32.0] 27057
17 45.7 0.2 24.2 -6.8 [36.0] 24089
18 47.1 0.3 7.4 -3.7 [36.0, 33.0, 35.0, 29.0] 21705
19 44.7 -0.1 4.7 -7.4 [37.0, 35.0] 24583
20 31.6 -0.1 5.6 -8.2 [29.0, 23.0, 21.0, 22.0, 24.0, 37.0] 22833
21 26.6 -0.3 4.3 -14.0 [19.0, 21.0, 34.0] 30224
22 44.5 0.2 7.5 -8.8 [32.0] 25979
23 43.5 0.2 6.1 -11.8 [30.0, 24.0] 25553
24 25.7 -0.2 5.4 -15.2 [26.0, 25.0] 29769
25 26.7 -0.1 7.5 -13.7 [22.0, 20.0, 34.0, 33.0, 29.0, 27.0] 25283
26 29.1 0.4 9.4 -6.5 [32.0, 30.0, 14.0, 24.0] 26635
27 26.1 -0.3 5.4 -8.0 [27.0, 26.0] 29899
28 39.7 -0.1 8.0 -16.3 [24.0, 27.0, 34.0, 26.0] 23142
29 42.5 0.2 4.9 -7.7 [14.0, 16.0] 19485
30 45.9 0.3 6.4 -6.9 [24.0, 23.0] 23655
31 45.4 -0.2 12.8 -16.1 [25.0, 37.0] 22300
32 45.3 0.1 5.3 -9.1 [22.0, 23.0] 24621
REF GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.0 0.0 30.5 38.2 14.8 76 [15.0, 16.0] [0.0] 30523
13 27.6 0.0 28.3 36.5 13.9 198 [37.0, 18.0] [0.0] 27279
16 31.2 0.0 28.5 40.5 13.9 53 [33.0, 32.0] [0.0] 27069
19 44.7 0.0 34.9 44.3 14.8 4 [37.0] [0.0] 24583
20 31.6 0.0 28.5 40.9 13.9 217 [29.0, 21.0, 24.0] [0.0] 22866
21 26.9 0.0 28.2 38.4 13.9 169 [19.0, 21.0] [0.0] 29805
22 44.4 0.0 33.4 41.1 14.8 0 [32.0] [0.0] 25995
DUT GPS L2(E)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 26.1 0.0 30.3 36.6 18.3 58 [15.0, 17.0] [0.0] 30493
3 32.7 0.0 39.7 50.5 23.4 93 [35.0, 33.0] [0.0] 27076
4 45.4 0.0 33.1 42.3 14.8 0 [16.0] [0.0] 23836
5 34.3 0.0 39.9 49.2 22.3 67 [15.0, 17.0] [0.0] 19799
6 38.4 0.0 41.5 51.8 21.7 97 [31.0, 28.0] [0.0] 24519
7 45.1 0.0 41.7 49.2 21.7 3 [30.0] [0.0] 25495
8 27.4 0.0 38.2 47.6 22.2 131 [29.0, 26.0] [0.0] 29135
9 44.0 0.0 44.1 52.6 29.8 0 [33.0] [0.0] 21450
10 43.5 0.0 44.0 51.4 26.1 1 [36.0] [0.0] 25768
11 48.2 0.0 34.7 43.6 15.6 11 [29.0, 34.0] [0.0] 20075
12 39.1 0.0 41.1 49.6 26.4 324 [25.0, 29.0, 30.0] [0.0] 20952
13 27.6 0.0 28.0 35.4 15.6 251 [37.0, 18.0] [0.0] 27297
14 44.1 0.0 34.3 41.7 18.3 0 [21.0] [0.0] 25732
15 30.5 0.0 38.8 46.4 21.5 171 [35.0, 31.0] [0.0] 25273
16 31.2 0.0 27.7 39.9 13.9 224 [29.0, 32.0] [0.0] 27073
17 45.9 0.0 42.3 50.4 17.4 24 [36.0] [0.0] 24002
18 47.0 0.0 33.9 41.9 16.3 165 [33.0, 29.0] [0.0] 21722
19 44.6 0.0 34.5 44.1 14.8 0 [35.0] [0.0] 24600
20 31.6 0.0 28.2 40.2 12.6 330 [23.0, 22.0, 37.0] [0.0] 22838
21 26.6 0.0 28.0 37.6 14.8 210 [19.0, 34.0] [0.0] 30242
22 44.5 0.0 32.7 40.5 15.6 1 [32.0] [0.0] 25979
23 43.5 0.0 33.7 40.6 16.9 1 [24.0] [0.0] 25581
24 25.7 0.0 38.3 46.0 23.6 110 [25.0, 26.0] [0.0] 29777
25 26.7 0.0 36.9 47.2 19.9 144 [20.0, 33.0, 27.0] [0.0] 25299
26 29.1 0.0 37.8 47.1 21.3 165 [30.0, 24.0] [0.0] 26663
27 26.1 0.0 39.3 45.8 25.6 26 [26.0, 27.0] [0.0] 29899
28 39.7 0.0 32.0 41.3 14.8 251 [27.0, 26.0] [0.0] 23148
29 42.5 0.0 41.8 51.9 26.5 54 [14.0, 16.0] [0.0] 19489
30 45.9 0.0 43.3 51.8 25.0 4 [23.0] [0.0] 23671
31 45.3 0.0 42.1 50.8 26.2 8 [37.0] [0.0] 22319
32 45.3 0.0 44.1 52.5 19.3 4 [23.0] [0.0] 24655
DIFF GPS L2(E)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 26.1 0.2 5.8 -8.8 [15.0, 16.0, 17.0] 30490
13 27.6 0.3 6.2 -8.0 [37.0, 18.0] 27266
16 31.3 0.8 8.8 -4.8 [33.0, 29.0, 32.0] 27045
19 44.7 0.3 6.7 -5.9 [37.0, 35.0] 24583
20 31.6 0.3 8.9 -7.5 [29.0, 23.0, 21.0, 22.0, 24.0, 37.0] 22833
21 26.9 0.0 5.7 -8.6 [19.0, 21.0, 34.0] 29796
22 44.5 0.7 5.4 -5.8 [32.0] 25979
REF GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 42.9 48.5 34.9 201 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 46.5 51.7 36.0 0 [36.0] [0.0] 23847
5 34.3 0.0 43.6 48.7 32.9 160 [15.0, 16.0, 17.0] [0.0] 19827
6 38.4 0.0 44.8 50.3 31.0 76 [27.0, 31.0] [0.0] 24501
7 45.1 0.0 44.6 49.1 30.9 0 [33.0] [0.0] 25511
8 27.4 0.0 42.9 47.6 33.4 55 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 45.0 49.4 34.4 0 [34.0] [0.0] 21447
10 43.5 0.0 44.7 49.5 35.5 0 [29.0] [0.0] 25774
11 48.2 0.0 46.9 51.7 31.2 45 [34.0, 33.0] [0.0] 20093
12 39.1 0.0 44.1 49.1 33.1 212 [27.0, 33.0, 28.0] [0.0] 20957
14 44.1 0.0 46.7 51.8 23.3 12 [19.0] [0.0] 25728
15 30.5 0.0 42.6 47.5 33.0 58 [35.0, 27.0] [0.0] 25286
17 45.7 0.0 44.4 49.9 31.4 0 [36.0] [0.0] 24092
18 47.0 0.0 46.9 51.2 36.6 21 [36.0, 35.0] [0.0] 21725
23 43.5 0.0 46.1 51.0 34.1 0 [30.0] [0.0] 25553
24 25.7 0.0 42.2 47.2 32.1 6 [26.0] [0.0] 29779
25 26.7 0.0 41.5 48.2 29.8 40 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 42.7 47.8 31.7 71 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 42.4 46.8 32.9 39 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 46.3 51.4 36.9 179 [24.0, 34.0] [0.0] 23148
29 42.5 0.0 44.1 49.3 35.6 100 [14.0, 16.0] [0.0] 19499
30 45.9 0.0 44.3 49.0 35.1 0 [24.0] [0.0] 23655
31 45.3 0.0 44.7 49.5 34.3 0 [25.0] [0.0] 22318
32 45.3 0.0 44.9 49.7 26.8 1 [22.0] [0.0] 24621
DUT GPS L2(CM+CL)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 43.1 48.7 32.6 23 [35.0, 33.0] [0.0] 27076
4 45.4 0.0 46.2 51.9 35.1 0 [16.0] [0.0] 23836
5 34.3 0.0 43.4 48.9 32.4 169 [15.0, 17.0] [0.0] 19826
6 38.4 0.0 44.6 49.9 28.0 63 [31.0, 28.0] [0.0] 24519
7 45.1 0.0 44.2 49.2 32.5 0 [30.0] [0.0] 25495
8 27.4 0.0 42.8 48.6 31.8 66 [29.0, 26.0] [0.0] 29135
9 44.0 0.0 44.5 49.4 35.3 0 [33.0] [0.0] 21450
10 43.5 0.0 44.5 49.1 36.4 0 [36.0] [0.0] 25768
11 48.2 0.0 46.8 51.8 29.1 48 [29.0, 34.0] [0.0] 20075
12 39.1 0.0 43.8 48.6 33.8 116 [25.0, 29.0, 30.0] [0.0] 20952
14 44.1 0.0 46.5 51.2 30.8 0 [21.0] [0.0] 25732
15 30.5 0.0 42.4 47.0 28.5 109 [35.0, 31.0] [0.0] 25273
17 45.7 0.0 44.4 49.6 27.0 10 [36.0] [0.0] 24101
18 47.0 0.0 46.5 51.6 35.3 12 [33.0, 29.0] [0.0] 21722
23 43.5 0.0 46.2 50.7 36.0 0 [24.0] [0.0] 25581
24 25.7 0.0 42.2 47.5 33.7 158 [25.0, 26.0] [0.0] 29777
25 26.7 0.0 41.5 47.3 20.0 350 [20.0, 33.0, 27.0] [0.0] 25298
26 29.1 0.0 42.3 47.3 32.1 147 [30.0, 24.0] [0.0] 26663
27 26.1 0.0 42.5 46.7 32.3 250 [26.0, 27.0] [0.0] 29899
28 39.7 0.0 46.1 51.0 36.2 13 [27.0, 26.0] [0.0] 23157
29 42.5 0.0 43.7 49.1 32.6 43 [14.0, 16.0] [0.0] 19489
30 45.9 0.0 44.0 48.9 32.2 0 [23.0] [0.0] 23671
31 45.3 0.0 44.7 49.1 35.2 0 [37.0] [0.0] 22323
32 45.3 0.0 44.9 49.8 22.3 18 [23.0] [0.0] 24655
DIFF GPS L2(CM+CL)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.2 6.5 -6.1 [37.0, 35.0, 34.0, 33.0] 27076
4 45.4 0.3 6.7 -6.1 [36.0, 16.0] 23836
5 34.3 0.2 5.4 -5.4 [15.0, 16.0, 17.0] 19808
6 38.4 0.2 10.6 -6.9 [27.0, 31.0, 28.0] 24483
7 45.1 0.5 5.9 -3.4 [33.0, 30.0] 25495
8 27.4 0.1 9.7 -5.4 [33.0, 29.0, 35.0, 26.0] 29135
9 44.0 0.5 5.0 -6.1 [34.0, 33.0] 21447
10 43.5 0.2 4.0 -4.4 [29.0, 36.0] 25768
11 48.2 0.1 6.1 -8.8 [34.0, 29.0, 33.0] 20071
12 39.1 0.3 5.0 -4.3 [27.0, 25.0, 33.0, 29.0, 28.0, 30.0] 20924
14 44.2 0.2 4.4 -12.2 [19.0, 21.0] 25716
15 30.5 0.2 6.3 -7.8 [35.0, 27.0, 31.0] 25266
17 45.7 -0.1 6.2 -7.4 [36.0] 24089
18 47.1 0.4 5.9 -5.1 [36.0, 33.0, 35.0, 29.0] 21705
23 43.5 -0.1 5.9 -6.1 [30.0, 24.0] 25553
24 25.7 -0.0 5.6 -5.9 [26.0, 25.0] 29769
25 26.7 0.0 17.8 -7.3 [22.0, 20.0, 34.0, 33.0, 29.0, 27.0] 25282
26 29.1 0.4 7.8 -6.4 [32.0, 30.0, 14.0, 24.0] 26635
27 26.1 -0.1 5.4 -5.2 [27.0, 26.0] 29899
28 39.7 0.2 6.1 -4.6 [24.0, 27.0, 34.0, 26.0] 23142
29 42.5 0.4 7.3 -3.6 [14.0, 16.0] 19485
30 45.9 0.3 5.8 -3.9 [24.0, 23.0] 23655
31 45.4 0.0 6.1 -5.6 [25.0, 37.0] 22300
32 45.3 -0.0 16.8 -5.9 [22.0, 23.0] 24621
REF GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 46.9 51.7 39.2 53 [37.0, 34.0] [0.0] 27092
4 45.4 0.0 48.2 52.5 39.5 0 [36.0] [0.0] 23847
6 38.4 0.0 47.7 52.3 38.7 30 [27.0, 31.0] [0.0] 24501
8 27.4 0.0 46.5 50.5 38.4 39 [33.0, 35.0] [0.0] 29146
9 44.0 0.0 48.6 52.5 41.8 0 [34.0] [0.0] 21447
10 43.5 0.0 48.0 51.2 40.2 0 [29.0] [0.0] 25774
11 48.2 0.0 49.0 54.5 36.4 0 [34.0, 33.0] [0.0] 20093
14 44.1 0.0 48.5 53.0 40.1 0 [19.0] [0.0] 25728
18 47.0 0.0 49.1 52.8 40.4 104 [36.0, 35.0] [0.0] 21725
23 43.5 0.0 48.3 52.7 38.0 0 [30.0] [0.0] 25553
24 25.7 0.0 46.1 50.8 19.8 15 [26.0] [0.0] 29779
25 26.7 0.0 46.2 51.8 35.4 241 [22.0, 34.0, 29.0] [0.0] 25298
26 29.1 0.0 46.5 50.6 39.9 154 [32.0, 14.0] [0.0] 26641
27 26.1 0.0 46.2 49.9 39.4 223 [27.0, 26.0] [0.0] 29925
28 39.7 0.0 48.2 52.9 41.3 33 [24.0, 34.0] [0.0] 23148
30 45.9 0.0 48.8 52.7 40.8 0 [24.0] [0.0] 23655
32 45.3 0.0 46.5 50.7 30.7 0 [22.0] [0.0] 24621
DUT GPS L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
3 32.7 0.0 47.1 51.9 38.4 233 [35.0, 33.0] [0.0] 27076
4 45.4 0.0 47.9 52.7 40.2 0 [16.0] [0.0] 23836
6 38.4 0.0 47.7 52.0 37.5 59 [31.0, 28.0] [0.0] 24519
8 27.4 0.0 46.7 51.0 39.8 155 [29.0, 26.0] [0.0] 29135
9 44.0 0.0 48.4 51.9 40.4 0 [33.0] [0.0] 21450
10 43.5 0.0 47.9 51.2 40.2 0 [36.0] [0.0] 25768
11 48.2 0.0 49.2 53.6 20.5 250 [29.0, 34.0] [0.0] 20075
14 44.1 0.0 48.5 53.0 40.8 0 [21.0] [0.0] 25732
18 47.0 0.0 48.9 52.7 40.4 197 [33.0, 29.0] [0.0] 21722
23 43.5 0.0 48.4 52.8 39.6 0 [24.0] [0.0] 25581
24 25.7 0.0 46.1 50.1 36.6 98 [25.0, 26.0] [0.0] 29777
25 26.7 0.0 45.8 51.5 31.5 195 [20.0, 33.0, 27.0] [0.0] 25299
26 29.1 0.0 46.4 50.8 39.1 233 [30.0, 24.0] [0.0] 26663
27 26.1 0.0 46.3 49.7 40.6 16 [26.0, 27.0] [0.0] 29899
28 39.7 0.0 48.1 52.7 40.3 247 [27.0, 26.0] [0.0] 23157
30 45.9 0.0 48.6 52.5 40.2 0 [23.0] [0.0] 23671
32 45.3 0.0 46.7 51.0 32.6 0 [23.0] [0.0] 24655
DIFF GPS L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
3 32.7 -0.2 5.2 -4.5 [37.0, 35.0, 34.0, 33.0] 27076
4 45.4 0.3 3.9 -2.1 [36.0, 16.0] 23836
6 38.4 0.0 7.2 -5.6 [27.0, 31.0, 28.0] 24483
8 27.4 -0.2 3.4 -3.9 [33.0, 29.0, 35.0, 26.0] 29135
9 44.0 0.1 3.3 -3.0 [34.0, 33.0] 21447
10 43.5 0.1 2.4 -2.8 [29.0, 36.0] 25768
11 48.2 -0.2 24.0 -6.8 [34.0, 29.0, 33.0] 20071
14 44.2 -0.1 2.7 -3.8 [19.0, 21.0] 25716
18 47.1 0.3 2.6 -2.3 [36.0, 33.0, 35.0, 29.0] 21705
23 43.5 -0.1 2.1 -3.5 [30.0, 24.0] 25553
24 25.7 0.0 4.7 -24.2 [26.0, 25.0] 29769
25 26.7 0.3 8.8 -6.1 [22.0, 20.0, 34.0, 33.0, 29.0, 27.0] 25283
26 29.1 0.1 3.8 -2.5 [32.0, 30.0, 14.0, 24.0] 26635
27 26.1 -0.1 2.9 -3.8 [27.0, 26.0] 29899
28 39.7 0.1 5.7 -3.8 [24.0, 27.0, 34.0, 26.0] 23142
30 45.9 0.2 3.7 -3.2 [24.0, 23.0] 23655
32 45.3 -0.2 4.4 -5.8 [22.0, 23.0] 24621
REF SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.2 48.2 34.2 2 [57.0] [0.0] 82896
133 38.0 0.0 43.3 45.6 41.0 0 [55.0] [0.0] 82908
135 39.4 0.0 44.7 46.7 42.7 0 [56.0] [0.0] 82908
158 -45.0 0.0 35.7 40.1 22.9 576 [54.0] [0.0] 72361

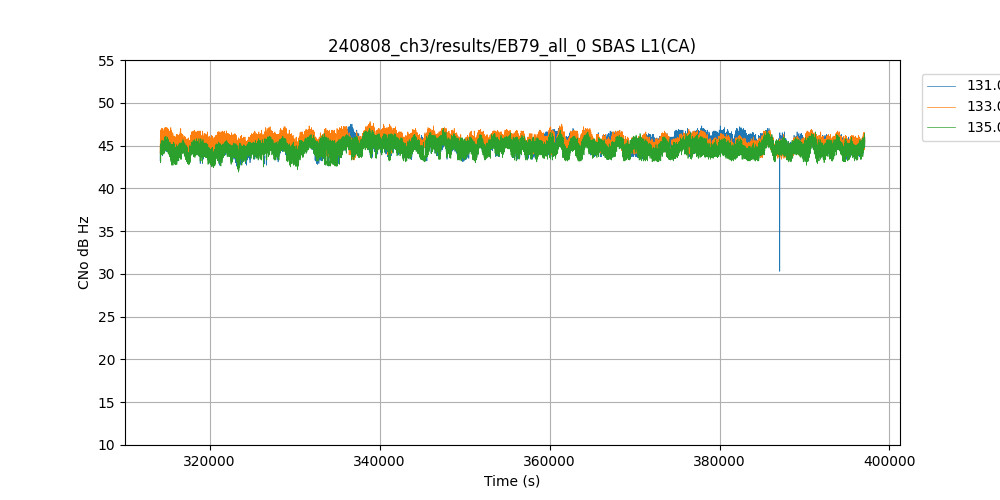

DUT SBAS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 45.1 47.5 30.3 2 [55.0] [0.0] 82897
133 38.0 0.0 45.4 47.8 43.3 0 [57.0] [0.0] 82909
135 39.4 0.0 44.7 47.0 41.9 0 [56.0] [0.0] 82909
DIFF SBAS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
131 42.0 1.1 3.9 -1.3 [57.0, 55.0] 82893
133 38.0 -2.2 0.2 -4.3 [55.0, 57.0] 82905
135 39.4 0.0 2.0 -2.1 [56.0] 82905
REF SBAS L5/E5A(I)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
131 42.0 0.0 46.7 48.7 38.6 2 [57.0] [0.0] 82894
133 38.0 0.0 46.0 47.7 43.2 0 [55.0] [0.0] 82908
135 39.4 0.0 46.0 47.9 43.4 0 [56.0] [0.0] 82908
DUT SBAS L5/E5A(I)
DIFF SBAS L5/E5A(I)

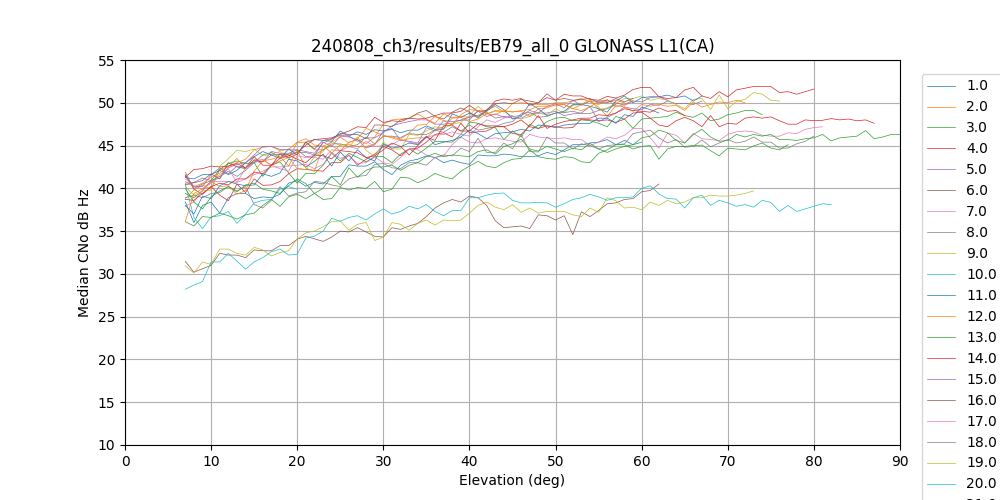

REF GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 43.7 48.8 29.5 1 [1.0] [0.0] 23170
2 38.6 0.0 48.0 53.5 32.2 0 [-4.0] [0.0] 23353
3 42.4 0.0 46.5 52.3 34.9 0 [5.0] [0.0] 21285
4 38.8 0.0 44.6 51.2 32.0 105 [6.0] [0.0] 22911
5 30.3 0.0 45.5 52.2 34.4 142 [1.0] [0.0] 28344
6 32.9 0.0 36.4 42.3 25.4 911 [-4.0] [0.0] 29419
7 34.9 0.0 44.7 50.1 31.9 79 [5.0] [0.0] 29577
8 36.4 0.0 43.0 49.2 28.7 54 [6.0] [0.0] 26632
9 37.5 0.0 46.3 52.7 29.4 82 [-2.0] [0.0] 25313
10 15.6 0.0 38.6 43.0 32.3 0 [-7.0] [0.0] 8635
11 33.3 0.0 46.7 52.6 28.4 142 [0.0] [0.0] 29814
12 32.4 0.0 47.3 52.9 37.1 42 [-1.0] [0.0] 29046
13 33.3 0.0 40.7 47.1 28.0 241 [-2.0] [0.0] 27147
14 44.1 0.0 48.6 54.2 35.6 0 [-7.0] [0.0] 20554
15 39.7 0.0 47.9 53.4 28.4 0 [0.0] [0.0] 22920
16 38.7 0.0 48.2 53.8 36.1 0 [-1.0] [0.0] 23386
17 28.5 0.0 45.5 51.1 31.0 2 [4.0] [0.0] 26805
18 29.7 0.0 45.7 51.3 35.9 80 [-3.0] [0.0] 26394
19 33.8 0.0 35.7 42.4 24.8 483 [3.0] [0.0] 24667
20 41.0 0.0 36.1 43.0 19.9 1118 [2.0] [0.0] 22410
21 42.4 0.0 46.9 52.0 28.0 175 [4.0] [0.0] 26972
22 42.8 0.0 47.5 53.3 27.6 44 [-3.0] [0.0] 26424
23 37.0 0.0 42.8 49.0 23.9 376 [3.0] [0.0] 24791
24 31.1 0.0 45.2 51.1 35.6 199 [2.0] [0.0] 25691

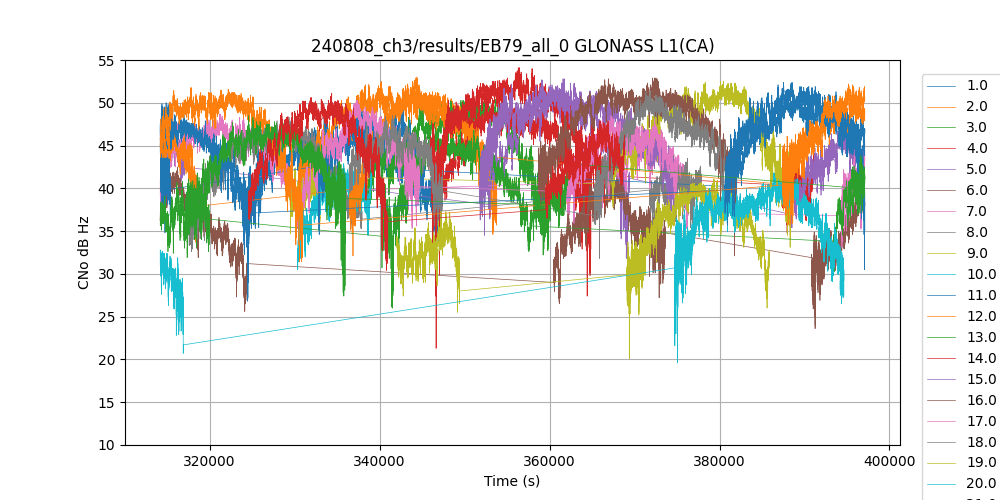

DUT GLONASS L1(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 43.0 48.8 31.0 0 [1.0] [0.0] 23165
2 38.6 0.0 47.5 53.0 31.4 0 [-4.0] [0.0] 23343
3 42.4 0.0 45.4 50.4 32.2 0 [5.0] [0.0] 21265
4 38.9 0.0 44.2 51.2 27.4 255 [6.0] [0.0] 22872
5 30.4 0.0 45.2 52.1 31.8 262 [1.0] [0.0] 28305
6 32.7 0.0 35.7 42.5 23.6 1000 [-4.0] [0.0] 29653
7 34.9 0.0 43.6 48.7 33.1 160 [5.0] [0.0] 29601
8 36.4 0.0 42.2 48.3 32.6 39 [6.0] [0.0] 26635
9 37.6 0.0 45.9 52.5 33.1 127 [-2.0] [0.0] 25277
10 15.6 0.0 38.6 42.9 30.5 6 [-7.0] [0.0] 8661
11 33.3 0.0 46.5 52.4 30.5 239 [0.0] [0.0] 29829
12 32.4 0.0 46.4 52.0 32.1 83 [-1.0] [0.0] 29062
13 33.2 0.0 40.1 47.1 26.0 323 [-2.0] [0.0] 27179
14 44.1 0.0 48.3 54.1 21.3 4 [-7.0] [0.0] 20555
15 39.7 0.0 47.7 52.8 34.5 0 [0.0] [0.0] 22910
16 38.7 0.0 47.9 52.9 32.1 0 [-1.0] [0.0] 23344
17 28.5 0.0 44.7 50.3 35.3 102 [4.0] [0.0] 26777
18 29.8 0.0 45.3 51.4 31.8 148 [-3.0] [0.0] 26360
19 34.4 0.0 35.0 41.1 20.1 575 [3.0] [0.0] 24150
20 40.7 0.0 35.8 41.8 19.6 947 [2.0] [0.0] 22619
21 42.4 0.0 46.2 51.1 26.8 92 [4.0] [0.0] 26973
22 42.8 0.0 47.2 52.2 31.4 129 [-3.0] [0.0] 26426
23 37.0 0.0 42.3 48.5 27.4 340 [3.0] [0.0] 24773
24 31.1 0.0 44.7 51.1 30.4 18 [2.0] [0.0] 25688
DIFF GLONASS L1(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 0.7 7.0 -7.6 [1.0] 23160
2 38.6 0.5 7.7 -6.5 [-4.0] 23343
3 42.4 1.1 7.5 -4.3 [5.0] 21255
4 38.9 0.4 9.1 -9.0 [6.0] 22872
5 30.4 0.2 9.1 -7.0 [1.0] 28301
6 32.9 0.7 5.8 -6.4 [-4.0] 29380
7 34.9 1.0 7.4 -6.3 [5.0] 29570
8 36.5 0.7 6.5 -10.0 [6.0] 26596
9 37.6 0.4 6.7 -10.6 [-2.0] 25277
10 15.6 0.0 5.4 -7.8 [-7.0] 8635
11 33.3 0.2 8.0 -9.1 [0.0] 29805
12 32.4 0.9 9.3 -5.2 [-1.0] 29028
13 33.3 0.6 9.9 -5.3 [-2.0] 27138
14 44.1 0.3 16.8 -6.1 [-7.0] 20554
15 39.7 0.2 4.4 -9.0 [0.0] 22899
16 38.7 0.3 10.9 -5.6 [-1.0] 23344
17 28.5 0.7 7.1 -9.2 [4.0] 26777
18 29.8 0.4 8.0 -4.9 [-3.0] 26355
19 34.5 0.8 9.3 -6.5 [3.0] 24025
20 41.0 0.2 9.6 -6.9 [2.0] 22379
21 42.4 0.7 10.4 -13.8 [4.0] 26969
22 42.8 0.3 8.6 -13.1 [-3.0] 26421
23 37.0 0.5 7.8 -8.4 [3.0] 24766
24 31.1 0.4 8.2 -8.2 [2.0] 25686
REF GLONASS L1(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 42.1 47.1 29.3 2 [1.0] [0.0] 23169
2 38.6 0.0 46.8 51.7 31.7 0 [-4.0] [0.0] 23353
3 42.4 0.0 44.8 50.1 32.6 0 [5.0] [0.0] 21285
4 38.8 0.0 42.6 49.1 29.0 209 [6.0] [0.0] 22910
5 30.3 0.0 44.1 50.7 34.7 389 [1.0] [0.0] 28344
6 32.9 0.0 35.2 41.2 23.3 703 [-4.0] [0.0] 29403
7 34.9 0.0 43.2 48.2 31.4 132 [5.0] [0.0] 29577
8 36.5 0.0 41.1 47.2 27.5 198 [6.0] [0.0] 26609
9 37.5 0.0 44.8 50.7 28.9 107 [-2.0] [0.0] 25313
10 15.6 0.0 37.3 41.5 31.0 3 [-7.0] [0.0] 8634
11 33.3 0.0 45.0 50.7 31.6 310 [0.0] [0.0] 29814
12 32.4 0.0 46.3 51.6 36.7 17 [-1.0] [0.0] 29046
13 33.3 0.0 39.3 45.6 27.3 369 [-2.0] [0.0] 27147
14 44.1 0.0 47.2 52.4 35.3 0 [-7.0] [0.0] 20554
15 39.7 0.0 46.1 51.8 30.5 3 [0.0] [0.0] 22919
16 38.7 0.0 46.8 51.9 36.1 0 [-1.0] [0.0] 23386
17 28.5 0.0 43.5 48.9 31.6 2 [4.0] [0.0] 26805
18 29.7 0.0 44.3 49.3 35.2 206 [-3.0] [0.0] 26394
19 33.8 0.0 33.8 39.9 23.5 528 [3.0] [0.0] 24667
20 41.4 0.0 35.1 41.3 22.1 820 [2.0] [0.0] 22135
21 42.4 0.0 45.1 50.2 30.3 44 [4.0] [0.0] 26972
22 42.8 0.0 46.4 51.6 29.7 245 [-3.0] [0.0] 26424
23 37.0 0.0 41.0 46.8 22.3 332 [3.0] [0.0] 24787
24 31.1 0.0 43.6 49.1 33.2 9 [2.0] [0.0] 25691
DUT GLONASS L1(P)
DIFF GLONASS L1(P)
REF GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.5 45.1 27.1 19 [1.0] [0.0] 23169
2 38.6 0.0 45.5 49.6 35.1 0 [-4.0] [0.0] 23353
3 42.4 0.0 45.7 49.9 37.1 0 [5.0] [0.0] 21285
4 38.8 0.0 44.8 50.5 34.1 182 [6.0] [0.0] 22910
5 30.3 0.0 44.1 50.1 31.9 289 [1.0] [0.0] 28344
7 34.9 0.0 44.5 49.6 31.1 25 [5.0] [0.0] 29577
8 36.5 0.0 44.7 49.7 34.4 49 [6.0] [0.0] 26610
9 37.5 0.0 46.4 51.2 35.4 48 [-2.0] [0.0] 25313
11 33.3 0.0 45.3 51.4 32.1 342 [0.0] [0.0] 29814
12 32.4 0.0 44.9 49.6 34.1 239 [-1.0] [0.0] 29046
13 63.6 0.0 30.6 40.5 8.4 199 [-2.0] [0.0] 22
14 44.1 0.0 46.0 49.8 35.7 0 [-7.0] [0.0] 20554
15 39.7 0.0 45.7 50.8 30.6 1 [0.0] [0.0] 22919
16 38.7 0.0 46.5 50.8 36.9 0 [-1.0] [0.0] 23386
17 28.5 0.0 44.1 49.8 31.3 2 [4.0] [0.0] 26805
18 29.7 0.0 44.8 49.8 34.1 46 [-3.0] [0.0] 26394
19 33.8 0.0 42.0 47.3 30.3 165 [3.0] [0.0] 24667
20 41.0 0.0 38.9 43.9 28.4 108 [2.0] [0.0] 22404
21 42.4 0.0 45.1 49.4 31.3 94 [4.0] [0.0] 26972
22 42.8 0.0 46.8 50.7 35.2 155 [-3.0] [0.0] 26424
23 65.7 0.0 34.1 42.0 1.0 78 [3.0] [0.0] 80
24 31.1 0.0 43.5 49.1 27.5 237 [2.0] [0.0] 25691

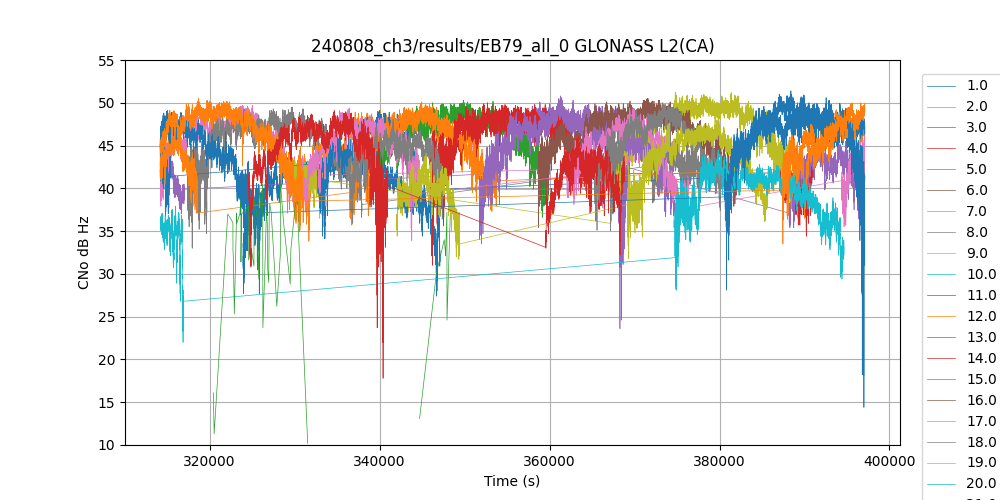

DUT GLONASS L2(CA)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 40.6 44.6 27.4 4 [1.0] [0.0] 23165
2 38.6 0.0 45.4 49.8 33.8 0 [-4.0] [0.0] 23343
3 42.4 0.0 46.2 50.3 36.6 0 [5.0] [0.0] 21265
4 38.9 0.0 45.1 50.0 31.0 154 [6.0] [0.0] 22872
5 30.4 0.0 44.3 50.1 23.6 291 [1.0] [0.0] 28305
6 57.0 0.0 11.7 11.7 11.7 0 [-4.0] [0.0] 1
7 34.9 0.0 44.8 49.7 35.5 103 [5.0] [0.0] 29600
8 36.4 0.0 44.8 49.5 33.0 93 [6.0] [0.0] 26635
9 37.6 0.0 46.1 51.2 35.5 185 [-2.0] [0.0] 25277
10 14.0 0.0 11.3 11.3 11.3 0 [-7.0] [0.0] 1
11 33.3 0.0 45.6 51.4 14.4 247 [0.0] [0.0] 29827
12 32.4 0.0 45.2 50.1 35.7 326 [-1.0] [0.0] 29062
13 70.8 0.0 31.4 39.6 13.1 8 [-2.0] [0.0] 9
14 44.1 0.0 45.9 49.8 35.6 0 [-7.0] [0.0] 20555
15 39.7 0.0 45.9 50.8 33.5 0 [0.0] [0.0] 22910
16 38.7 0.0 46.5 50.5 35.4 0 [-1.0] [0.0] 23344
17 28.5 0.0 45.0 49.4 33.9 83 [4.0] [0.0] 26777
18 29.8 0.0 44.7 49.9 35.0 237 [-3.0] [0.0] 26359
19 34.5 0.0 42.3 48.1 31.7 137 [3.0] [0.0] 24067
20 40.7 0.0 38.9 44.5 22.0 178 [2.0] [0.0] 22600
21 42.4 0.0 45.9 50.0 28.1 122 [4.0] [0.0] 26973
22 42.8 0.0 46.3 50.5 33.5 30 [-3.0] [0.0] 26426
23 65.3 0.0 33.0 40.6 10.2 43 [3.0] [0.0] 44
24 31.1 0.0 43.6 49.1 17.8 47 [2.0] [0.0] 25687

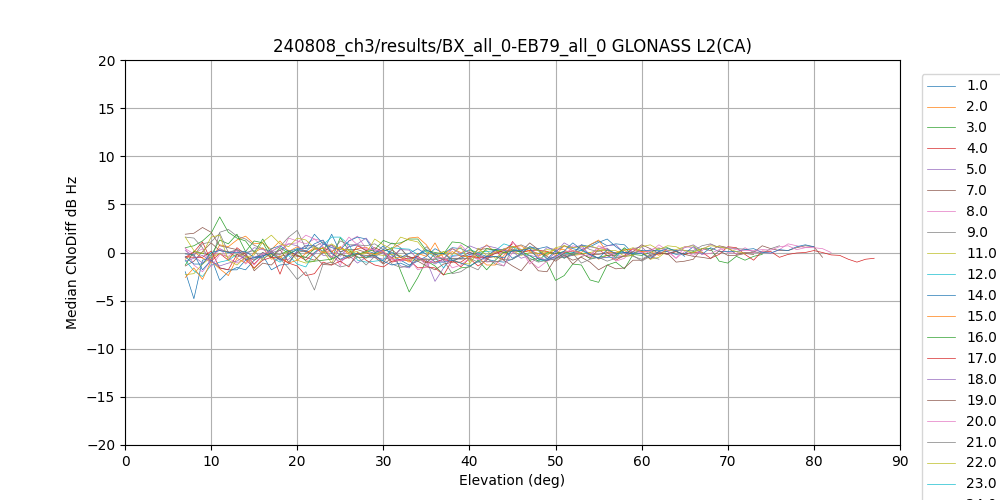

DIFF GLONASS L2(CA)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff FDMA N_Samples
1 39.0 -0.1 7.1 -9.0 [1.0] 23159
2 38.6 0.1 7.6 -5.1 [-4.0] 23343
3 42.4 -0.4 6.6 -6.1 [5.0] 21255
4 38.9 -0.2 6.7 -5.9 [6.0] 22872
5 30.4 -0.1 17.3 -8.4 [1.0] 28301
7 34.9 -0.3 8.0 -9.6 [5.0] 29570
8 36.5 -0.2 8.5 -6.8 [6.0] 26574
9 37.6 0.3 7.3 -5.4 [-2.0] 25277
11 33.3 -0.3 22.9 -7.4 [0.0] 29803
12 32.4 -0.2 6.0 -5.3 [-1.0] 29028
14 44.1 0.1 7.7 -7.2 [-7.0] 20554
15 39.7 -0.1 5.8 -8.0 [0.0] 22899
16 38.7 0.0 5.2 -6.6 [-1.0] 23344
17 28.5 -0.9 6.9 -7.5 [4.0] 26777
18 29.8 0.1 7.9 -4.7 [-3.0] 26354
19 34.5 -0.2 7.4 -7.1 [3.0] 24025
20 41.1 -0.0 7.4 -5.7 [2.0] 22373
21 42.4 -0.8 8.0 -6.5 [4.0] 26969
22 42.8 0.4 7.3 -5.1 [-3.0] 26421
23 41.0 -6.6 -6.6 -6.6 [3.0] 1
24 31.1 -0.0 19.4 -8.0 [2.0] 25685
REF GLONASS L2(P)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
1 39.0 0.0 38.5 43.1 22.8 900 [1.0] [0.0] 23169
2 38.6 0.0 43.7 47.8 34.3 0 [-4.0] [0.0] 23353
3 42.4 0.0 44.8 49.0 36.6 0 [5.0] [0.0] 21285
4 38.8 0.0 42.8 47.9 33.6 188 [6.0] [0.0] 22910
5 30.3 0.0 42.5 48.5 32.5 355 [1.0] [0.0] 28344
6 37.8 0.0 16.6 18.6 15.2 3 [-4.0] [0.0] 4
7 34.9 0.0 43.2 47.8 33.5 121 [5.0] [0.0] 29577
8 36.5 0.0 43.0 47.6 33.3 227 [6.0] [0.0] 26610
9 37.5 0.0 44.4 49.5 34.1 207 [-2.0] [0.0] 25313
11 33.3 0.0 43.6 49.7 31.8 241 [0.0] [0.0] 29814
12 32.4 0.0 43.1 47.8 32.8 235 [-1.0] [0.0] 29046
13 35.5 0.0 20.6 38.1 15.2 287 [-2.0] [0.0] 18
14 44.1 0.0 44.5 48.4 35.1 0 [-7.0] [0.0] 20554
15 39.7 0.0 44.2 49.2 30.9 3 [0.0] [0.0] 22919
16 38.7 0.0 44.5 48.3 36.7 0 [-1.0] [0.0] 23386
17 28.5 0.0 42.9 48.1 32.1 2 [4.0] [0.0] 26805
18 29.7 0.0 43.2 47.8 32.4 68 [-3.0] [0.0] 26394
19 33.8 0.0 40.2 45.5 29.2 15 [3.0] [0.0] 24667
20 41.0 0.0 37.2 42.1 25.6 424 [2.0] [0.0] 22404
21 42.4 0.0 44.2 47.8 32.4 212 [4.0] [0.0] 26972
22 42.8 0.0 45.1 48.9 35.3 3 [-3.0] [0.0] 26424
23 53.6 0.0 26.4 42.3 9.7 309 [3.0] [0.0] 96
24 31.1 0.0 41.8 47.1 29.2 151 [2.0] [0.0] 25691
DUT GLONASS L2(P)
DIFF GLONASS L2(P)
REF GLONASS G3(PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count FDMA Ant N_Samples
9 37.5 0.0 45.1 49.5 35.8 147 [-2.0] [0.0] 25313
21 42.4 0.0 45.2 50.2 33.6 95 [4.0] [0.0] 26972
DUT GLONASS G3(PD)
DIFF GLONASS G3(PD)

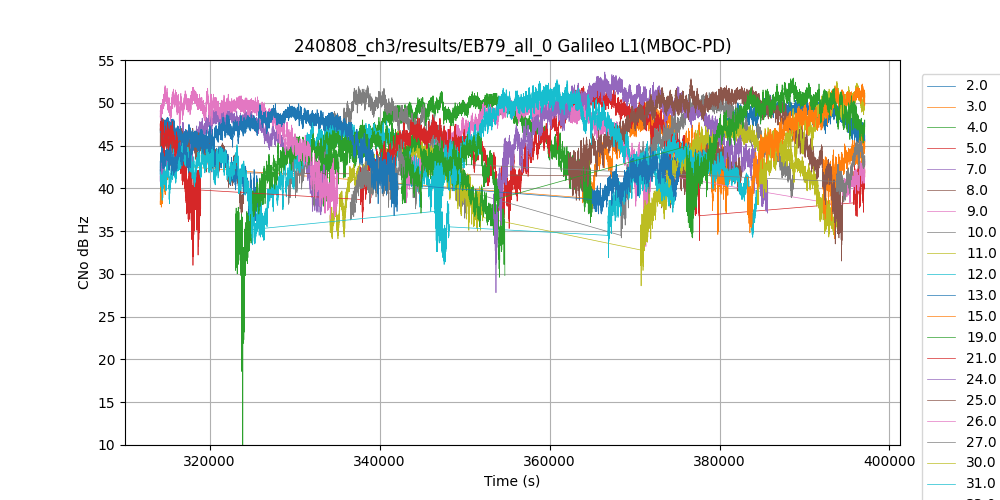

REF Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.5 51.1 40.9 0 [39.0] [0.0] 23861
3 24.2 0.0 44.4 51.1 33.8 105 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 46.8 51.4 36.0 0 [48.0] [0.0] 32456
5 35.4 0.0 46.2 52.8 34.5 211 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 45.5 49.3 33.9 0 [41.0] [0.0] 19330
8 18.8 0.0 43.5 48.2 36.7 170 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 46.1 51.2 31.6 104 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 46.0 52.0 32.4 5 [46.0] [0.0] 41325
11 33.5 0.0 42.4 48.5 30.0 153 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 42.4 48.2 32.6 130 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 44.2 49.4 36.8 0 [46.0] [0.0] 11491
15 17.9 0.0 41.6 46.6 31.1 1 [48.0] [0.0] 4893
19 45.5 0.0 42.3 49.1 26.2 25 [49.0] [0.0] 31695
21 23.3 0.0 43.7 49.0 30.1 16 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 47.7 53.5 33.7 0 [50.0] [0.0] 32249
25 45.5 0.0 47.2 52.2 34.4 0 [44.0] [0.0] 32293
26 50.8 0.0 47.9 52.5 36.8 0 [47.0] [0.0] 20906
27 12.8 0.0 41.3 45.1 36.2 44 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 47.0 52.3 34.3 0 [49.0] [0.0] 12635
31 36.7 0.0 45.7 52.9 28.5 128 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.0 50.2 34.6 197 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 47.1 52.4 33.2 0 [47.0] [0.0] 13833
36 40.2 0.0 46.2 53.4 29.9 23 [52.0, 38.0] [0.0] 32472
DUT Galileo L1(MBOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.2 50.9 39.1 0 [44.0] [0.0] 23859
3 24.3 0.0 44.7 50.0 34.6 205 [52.0, 42.0] [0.0] 18239
4 45.5 0.0 46.8 51.3 36.0 0 [47.0] [0.0] 32457
5 35.4 0.0 46.3 51.9 33.9 252 [50.0, 45.0] [0.0] 24486
7 36.9 0.0 45.5 49.5 36.9 0 [40.0] [0.0] 19322
8 18.8 0.0 43.2 47.7 37.0 167 [43.0, 40.0] [0.0] 20017
9 41.7 0.0 46.2 50.9 33.2 229 [40.0, 49.0] [0.0] 32011
10 33.2 0.0 46.2 52.0 34.2 4 [45.0] [0.0] 41282
11 33.5 0.0 42.3 48.0 28.6 147 [44.0, 49.0] [0.0] 41186
12 33.7 0.0 42.4 48.5 31.1 64 [49.0, 47.0] [0.0] 41094
13 29.9 0.0 44.0 48.3 36.2 0 [46.0] [0.0] 11490
15 17.8 0.0 42.8 47.3 34.1 0 [47.0] [0.0] 4927
19 45.6 0.0 42.3 48.0 0.0 72 [51.0] [0.0] 31680
21 23.3 0.0 44.0 48.8 31.0 49 [45.0, 42.0] [0.0] 21443
24 45.5 0.0 47.8 53.6 27.8 0 [53.0] [0.0] 32247
25 45.5 0.0 47.3 52.8 31.5 0 [43.0] [0.0] 32288
26 50.8 0.0 47.4 52.0 36.4 0 [48.0] [0.0] 20889
27 12.8 0.0 41.5 45.9 36.3 59 [48.0, 46.0] [0.0] 11961
30 37.4 0.0 47.2 52.5 38.1 0 [51.0] [0.0] 12645
31 36.7 0.0 45.4 52.7 33.4 36 [41.0, 52.0] [0.0] 39148
33 38.4 0.0 44.7 49.9 36.8 42 [39.0, 41.0] [0.0] 38118
34 44.4 0.0 47.5 52.2 34.8 0 [48.0] [0.0] 13817
36 40.2 0.0 46.3 52.9 34.2 24 [50.0, 39.0] [0.0] 32489

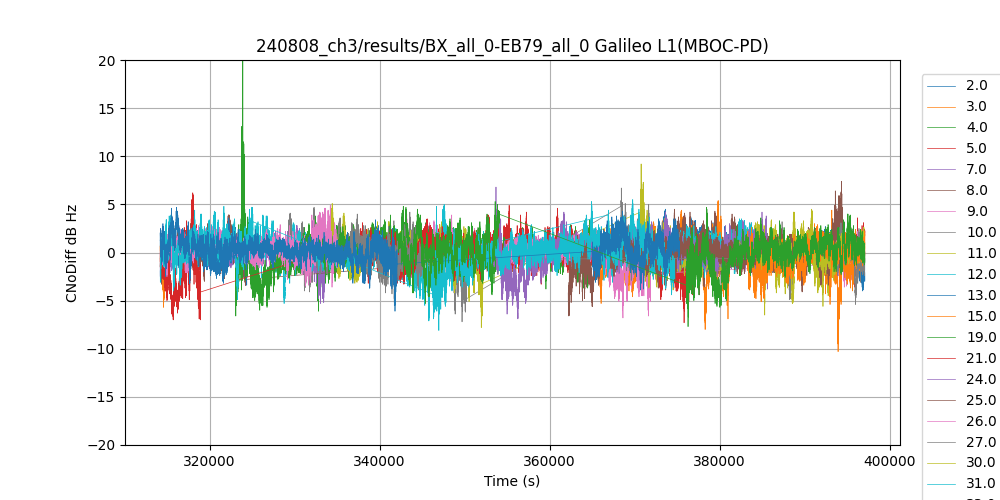

DIFF Galileo L1(MBOC-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 0.3 4.5 -4.0 [39.0, 44.0] 23855
3 24.3 -0.3 5.4 -8.0 [51.0, 52.0, 43.0, 42.0] 18236
4 45.5 -0.0 3.7 -6.1 [48.0, 47.0] 32447
5 35.4 -0.2 4.9 -7.3 [52.0, 50.0, 43.0, 45.0] 24459
7 36.9 -0.0 3.3 -5.3 [41.0, 40.0] 19322
8 18.8 0.4 4.5 -4.4 [45.0, 43.0, 40.0] 20007
9 41.8 -0.1 4.0 -6.8 [40.0, 45.0, 49.0] 31936
10 33.2 -0.1 6.7 -7.2 [46.0, 45.0] 41275
11 33.5 0.1 9.2 -7.8 [44.0, 45.0, 49.0] 41186
12 33.7 0.0 5.0 -7.1 [45.0, 49.0, 53.0, 47.0] 41083
13 29.9 0.1 3.6 -3.4 [46.0] 11488
15 17.9 -1.2 4.4 -10.3 [48.0, 47.0] 4893
19 45.6 -0.0 32.9 -6.6 [49.0, 51.0] 31664
21 23.3 -0.3 6.2 -7.0 [44.0, 45.0, 42.0] 21428
24 45.5 -0.1 6.8 -6.9 [50.0, 53.0] 32247
25 45.5 -0.1 7.4 -6.6 [44.0, 43.0] 32288
26 50.8 0.5 4.9 -3.6 [47.0, 48.0] 20889
27 12.8 -0.2 4.0 -5.5 [47.0, 48.0, 46.0] 11957
30 37.4 -0.2 4.5 -6.5 [49.0, 51.0] 12635
31 36.7 0.3 5.5 -8.1 [53.0, 41.0, 51.0, 52.0] 39148
33 38.5 0.3 4.7 -6.1 [39.0, 42.0, 41.0] 38102
34 44.4 -0.4 3.0 -5.1 [47.0, 48.0] 13813
36 40.2 -0.0 5.3 -7.7 [52.0, 50.0, 38.0, 39.0] 32470
REF Galileo L5/E5A(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.1 50.5 40.7 0 [39.0] [0.0] 23861
3 24.2 0.0 44.8 48.0 37.3 193 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 46.5 50.1 39.1 0 [48.0] [0.0] 32456
5 35.4 0.0 45.6 49.9 21.1 159 [52.0, 43.0] [0.0] 24457
7 36.9 0.0 45.8 48.6 39.4 0 [41.0] [0.0] 19330
8 18.8 0.0 43.4 46.9 37.2 152 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 45.9 50.2 36.9 113 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 45.7 50.2 37.2 5 [46.0] [0.0] 41325
11 33.5 0.0 42.4 46.4 32.6 89 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 42.7 48.2 34.2 85 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 43.6 48.6 36.7 0 [46.0] [0.0] 11491
15 17.9 0.0 43.7 46.5 38.4 0 [48.0] [0.0] 4893
19 45.5 0.0 42.0 46.9 27.8 2 [49.0] [0.0] 31695
21 23.3 0.0 43.4 47.6 35.5 241 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 45.9 50.2 35.9 0 [50.0] [0.0] 32249
25 45.5 0.0 46.4 50.2 35.6 0 [44.0] [0.0] 32293
26 50.8 0.0 46.3 49.7 39.0 0 [47.0] [0.0] 20906
27 12.8 0.0 42.0 45.1 36.0 15 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 46.4 50.7 40.4 0 [49.0] [0.0] 12635
31 36.7 0.0 44.8 50.0 37.9 2 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.3 49.9 37.9 51 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 46.2 50.0 34.8 0 [47.0] [0.0] 13833
36 40.2 0.0 45.6 50.6 36.4 12 [52.0, 38.0] [0.0] 32472
DUT Galileo L5/E5A(BPSK(10)-PD)
DIFF Galileo L5/E5A(BPSK(10)-PD)
REF Galileo E5B/B2(BPSK(10)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 47.5 50.9 40.7 0 [39.0] [0.0] 23861
3 24.2 0.0 45.3 48.6 38.5 80 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 47.1 51.0 36.9 0 [48.0] [0.0] 32456
5 35.4 0.0 46.1 50.7 21.1 18 [52.0, 43.0] [0.0] 24457
7 36.9 0.0 46.1 49.2 38.5 0 [41.0] [0.0] 19330
8 18.8 0.0 43.6 47.1 36.4 61 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 46.6 51.3 37.6 205 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 45.9 50.8 35.9 4 [46.0] [0.0] 41325
11 33.5 0.0 42.7 47.2 33.2 107 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 43.3 48.9 27.9 70 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 44.1 48.9 36.4 0 [46.0] [0.0] 11491
15 17.9 0.0 44.7 47.2 37.9 0 [48.0] [0.0] 4893
19 45.5 0.0 42.5 47.2 29.8 2 [49.0] [0.0] 31695
21 23.3 0.0 43.8 47.7 35.9 229 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 46.7 50.8 35.5 0 [50.0] [0.0] 32249
25 45.5 0.0 47.3 51.0 36.9 0 [44.0] [0.0] 32293
26 50.8 0.0 47.0 50.1 37.8 0 [47.0] [0.0] 20906
27 12.8 0.0 42.4 45.3 37.9 105 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 46.7 50.9 40.2 0 [49.0] [0.0] 12635
31 36.7 0.0 45.4 50.4 38.1 180 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 45.8 50.3 38.9 215 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 47.0 51.0 32.5 0 [47.0] [0.0] 13833
36 40.2 0.0 46.2 50.9 37.5 170 [52.0, 38.0] [0.0] 32472
DUT Galileo E5B/B2(BPSK(10)-PD)
DIFF Galileo E5B/B2(BPSK(10)-PD)
REF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.6 52.7 43.8 0 [39.0] [0.0] 23861
3 24.2 0.0 47.5 50.5 41.2 73 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 49.1 52.3 42.3 0 [48.0] [0.0] 32456
5 35.4 0.0 48.4 52.2 36.0 146 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 48.2 51.1 40.0 0 [41.0] [0.0] 19330
8 18.8 0.0 46.3 49.1 41.0 10 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 48.6 52.7 40.6 0 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 48.2 52.6 40.5 2 [46.0] [0.0] 41325
11 33.5 0.0 45.0 48.5 37.2 221 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 45.8 50.5 38.0 102 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 46.5 50.7 40.4 0 [46.0] [0.0] 11491
15 17.9 0.0 46.8 49.4 42.8 0 [48.0] [0.0] 4893
19 45.5 0.0 45.1 49.5 33.6 7 [49.0] [0.0] 31695
21 23.3 0.0 46.3 50.0 40.2 86 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 48.7 52.5 40.4 0 [50.0] [0.0] 32249
25 45.5 0.0 49.2 52.4 41.8 0 [44.0] [0.0] 32293
26 50.8 0.0 49.0 51.7 41.2 0 [47.0] [0.0] 20906
27 12.8 0.0 45.2 47.8 41.4 125 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 49.0 52.4 44.3 0 [49.0] [0.0] 12635
31 36.7 0.0 47.6 52.1 41.5 21 [53.0, 51.0] [0.0] 39171
33 38.4 0.0 48.0 52.0 41.9 206 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 49.0 52.4 35.3 7 [47.0] [0.0] 13833
36 40.2 0.0 48.3 52.4 41.0 89 [52.0, 38.0] [0.0] 32472

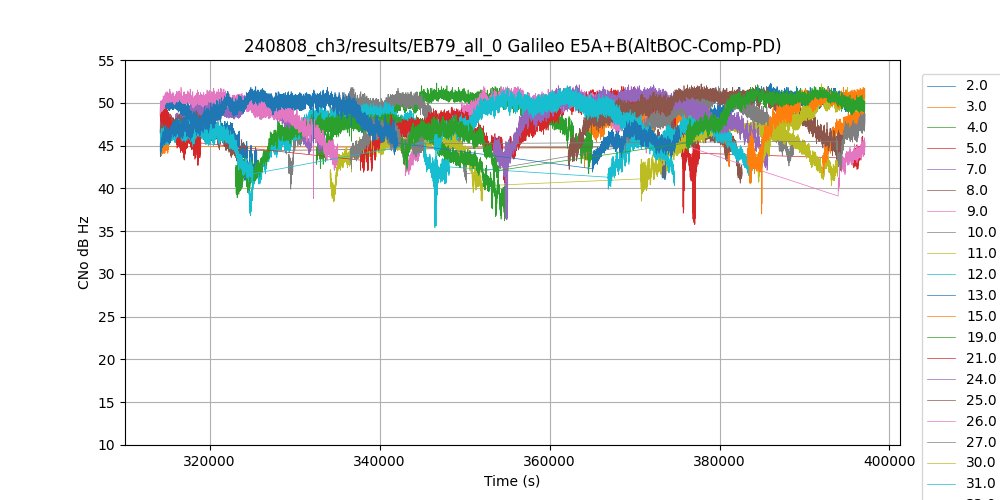

DUT Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.1 52.3 41.0 0 [44.0] [0.0] 23859
3 24.3 0.0 47.5 50.2 42.4 60 [52.0, 42.0] [0.0] 18239
4 45.5 0.0 48.7 52.3 41.7 0 [47.0] [0.0] 32457
5 35.4 0.0 47.9 51.9 35.8 138 [50.0, 45.0] [0.0] 24486
7 36.9 0.0 48.1 51.1 39.3 0 [40.0] [0.0] 19322
8 18.8 0.0 46.1 49.1 40.6 27 [43.0, 40.0] [0.0] 20017
9 41.7 0.0 48.2 52.1 39.1 140 [40.0, 49.0] [0.0] 32011
10 33.2 0.0 48.1 51.9 39.9 4 [45.0] [0.0] 41282
11 33.5 0.0 44.8 48.0 38.4 59 [44.0, 49.0] [0.0] 41186
12 33.7 0.0 45.9 50.1 35.4 65 [49.0, 47.0] [0.0] 41094
13 29.9 0.0 46.8 51.1 40.2 0 [46.0] [0.0] 11490
15 17.8 0.0 46.8 49.4 41.8 0 [47.0] [0.0] 4927
19 45.5 0.0 45.3 49.1 36.2 2 [51.0] [0.0] 31702
21 23.3 0.0 46.5 49.7 41.9 49 [45.0, 42.0] [0.0] 21443
24 45.5 0.0 48.6 52.1 36.3 32 [53.0] [0.0] 32247
25 45.5 0.0 48.9 52.2 42.1 0 [43.0] [0.0] 32288
26 50.8 0.0 48.8 51.8 38.8 0 [48.0] [0.0] 20889
27 12.8 0.0 45.8 48.8 42.3 72 [48.0, 46.0] [0.0] 11961
30 37.4 0.0 48.3 52.2 40.7 0 [51.0] [0.0] 12645
31 36.7 0.0 47.5 52.0 40.3 5 [41.0, 52.0] [0.0] 39148
33 38.4 0.0 47.8 51.9 41.9 86 [39.0, 41.0] [0.0] 38118
34 44.4 0.0 48.7 51.8 37.0 9 [48.0] [0.0] 13817
36 40.2 0.0 48.2 52.1 41.2 42 [50.0, 39.0] [0.0] 32489

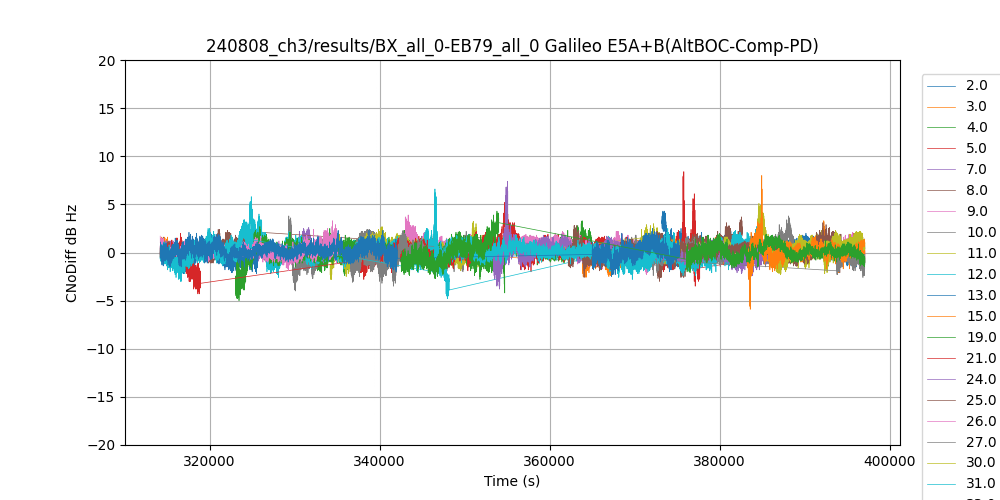

DIFF Galileo E5A+B(AltBOC-Comp-PD)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
2 48.8 0.5 4.3 -1.6 [39.0, 44.0] 23855
3 24.3 0.0 2.5 -2.6 [51.0, 52.0, 43.0, 42.0] 18236
4 45.5 0.4 3.3 -2.4 [48.0, 47.0] 32447
5 35.4 0.4 8.4 -3.5 [52.0, 50.0, 43.0, 45.0] 24459
7 36.9 0.1 2.6 -2.3 [41.0, 40.0] 19322
8 18.8 0.2 3.7 -3.0 [45.0, 43.0, 40.0] 20007
9 41.8 0.5 3.9 -2.3 [40.0, 45.0, 49.0] 31936
10 33.2 0.1 3.8 -4.0 [46.0, 45.0] 41275
11 33.5 0.3 3.2 -2.8 [44.0, 45.0, 49.0] 41186
12 33.7 -0.0 6.6 -4.8 [45.0, 49.0, 53.0, 47.0] 41083
13 29.9 -0.3 1.9 -2.2 [46.0] 11488
15 17.9 0.0 3.3 -2.1 [48.0, 47.0] 4893
19 45.6 -0.1 2.7 -5.0 [49.0, 51.0] 31686
21 23.3 -0.2 2.7 -4.3 [44.0, 45.0, 42.0] 21428
24 45.5 0.1 7.4 -3.8 [50.0, 53.0] 32247
25 45.5 0.3 3.1 -2.6 [44.0, 43.0] 32288
26 50.8 0.3 3.3 -1.9 [47.0, 48.0] 20889
27 12.8 -0.6 2.3 -3.5 [47.0, 48.0, 46.0] 11957
30 37.4 0.7 5.1 -2.3 [49.0, 51.0] 12635
31 36.7 0.1 3.4 -3.0 [53.0, 41.0, 51.0, 52.0] 39148
33 38.5 0.2 2.5 -2.5 [39.0, 42.0, 41.0] 38102
34 44.4 0.3 8.0 -5.9 [47.0, 48.0] 13813
36 40.2 0.1 4.3 -2.7 [52.0, 50.0, 38.0, 39.0] 32470
REF Galileo E6(BPSK(5)-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
2 48.8 0.0 49.2 52.8 40.8 0 [39.0] [0.0] 23861
3 24.2 0.0 46.0 51.0 36.4 177 [51.0, 43.0] [0.0] 18261
4 45.5 0.0 48.8 53.3 33.2 0 [48.0] [0.0] 32456
5 35.4 0.0 47.3 52.1 35.9 70 [52.0, 43.0] [0.0] 24459
7 36.9 0.0 47.9 51.0 40.1 0 [41.0] [0.0] 19330
8 18.8 0.0 44.8 48.6 35.4 141 [45.0, 40.0] [0.0] 20011
9 41.8 0.0 47.8 53.1 33.4 133 [40.0, 45.0] [0.0] 31984
10 33.1 0.0 47.5 52.3 31.2 5 [46.0] [0.0] 41325
11 33.5 0.0 44.1 49.3 30.8 41 [44.0, 45.0] [0.0] 41233
12 33.7 0.0 44.5 50.4 30.4 170 [45.0, 53.0] [0.0] 41150
13 29.9 0.0 45.5 51.4 31.9 0 [46.0] [0.0] 11491
15 17.9 0.0 45.5 48.6 34.8 1 [48.0] [0.0] 4893
19 45.5 0.0 43.5 48.8 26.0 25 [49.0] [0.0] 31693
21 23.3 0.0 45.1 50.3 32.6 219 [44.0, 42.0] [0.0] 21453
24 45.5 0.0 48.8 53.0 28.7 0 [50.0] [0.0] 32249
25 45.5 0.0 49.1 53.3 34.9 0 [44.0] [0.0] 32293
26 50.8 0.0 49.0 52.8 37.3 0 [47.0] [0.0] 20906
27 12.8 0.0 42.9 46.4 34.6 123 [47.0, 46.0] [0.0] 11970
30 37.4 0.0 48.2 52.3 40.0 0 [49.0] [0.0] 12635
31 36.7 0.0 46.9 52.6 33.1 221 [53.0, 51.0] [0.0] 39170
33 38.4 0.0 47.2 52.4 36.4 229 [39.0, 42.0] [0.0] 38130
34 44.3 0.0 48.4 52.9 35.4 0 [47.0] [0.0] 13833
36 40.2 0.0 47.7 52.7 34.7 163 [52.0, 38.0] [0.0] 32472
DUT Galileo E6(BPSK(5)-PD)
DIFF Galileo E6(BPSK(5)-PD)
REF BeiDou L1(BOC-PD)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.6 51.8 34.2 96 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 45.6 53.0 27.2 219 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.6 50.4 33.4 259 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.3 50.0 28.7 277 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.5 52.1 33.0 121 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.9 50.2 34.3 204 [53.0, 30.0] [0.0] 24895
25 25.5 0.0 43.8 48.6 35.3 150 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 45.7 51.4 26.1 9 [51.0] [0.0] 21138
27 29.0 0.0 44.3 49.4 30.6 8 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.3 50.8 33.1 46 [51.0, 46.0] [0.0] 33119
29 39.4 0.0 45.0 51.6 20.1 251 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 44.6 50.8 35.0 61 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.4 52.6 35.2 0 [21.0] [0.0] 27397
33 45.3 0.0 46.8 52.1 22.8 13 [52.0] [0.0] 26836
34 30.9 0.0 44.9 50.9 35.9 158 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 48.1 52.3 30.4 0 [42.0] [0.0] 21456
36 45.1 0.0 47.3 52.3 34.8 0 [49.0] [0.0] 28293
37 45.5 0.0 46.6 53.1 31.0 0 [53.0] [0.0] 25602
38 7.0 0.0 40.2 42.8 36.9 0 [18.0] [0.0] 2411
41 44.2 0.0 47.1 52.4 28.3 2 [50.0] [0.0] 28736
42 47.5 0.0 46.9 51.8 34.6 0 [48.0] [0.0] 16965
43 54.7 0.0 47.0 51.6 33.7 0 [20.0] [0.0] 16602
44 39.4 0.0 45.8 52.0 35.1 191 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 47.6 53.5 32.2 0 [48.0] [0.0] 25442
DUT BeiDou L1(BOC-PD)
DIFF BeiDou L1(BOC-PD)

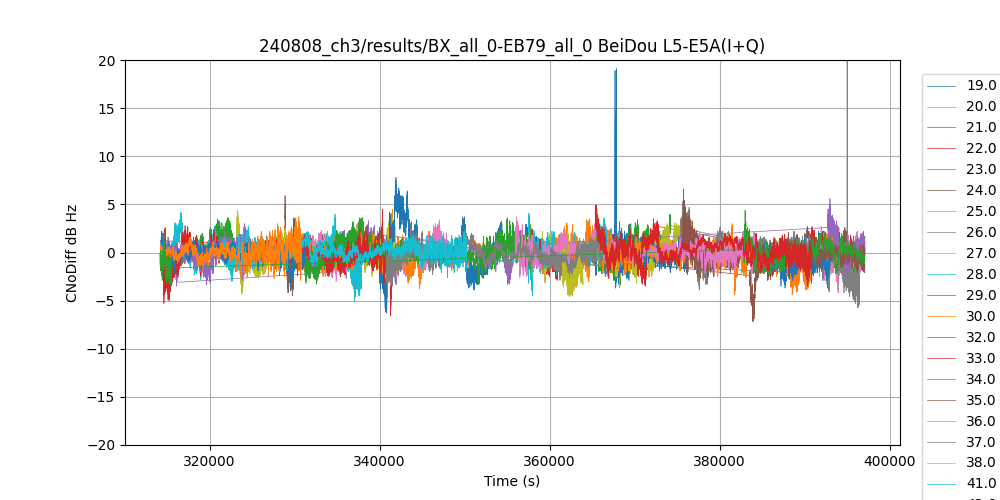

REF BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.5 50.8 36.3 60 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 45.9 50.8 38.4 47 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 44.8 49.5 39.1 468 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.8 48.7 37.9 93 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 46.8 51.0 36.3 62 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 45.0 49.5 33.8 8 [53.0, 30.0] [0.0] 24895
25 25.5 0.0 44.1 47.4 37.2 41 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 45.8 50.1 34.2 0 [51.0] [0.0] 21138
27 29.0 0.0 44.5 49.6 35.9 137 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.2 49.1 31.1 45 [51.0, 46.0] [0.0] 33119
29 39.4 0.0 45.3 50.3 35.4 27 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 44.7 49.0 37.3 109 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.3 51.2 37.9 0 [21.0] [0.0] 27397
33 45.3 0.0 46.8 50.5 31.2 0 [52.0] [0.0] 26835
34 30.9 0.0 44.6 48.8 35.7 238 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 46.3 49.5 37.3 0 [42.0] [0.0] 21456
36 45.1 0.0 47.8 51.7 39.5 0 [49.0] [0.0] 28293
37 45.5 0.0 47.0 51.5 38.4 0 [53.0] [0.0] 25602
38 7.0 0.0 39.4 41.3 37.4 0 [18.0] [0.0] 2411
41 44.2 0.0 47.4 51.2 39.0 0 [50.0] [0.0] 28736
42 47.5 0.0 47.4 50.5 39.4 0 [48.0] [0.0] 16965
43 54.7 0.0 46.5 49.6 39.9 0 [20.0] [0.0] 16602
44 39.4 0.0 45.6 50.1 34.3 223 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 48.1 51.9 40.5 0 [48.0] [0.0] 25442

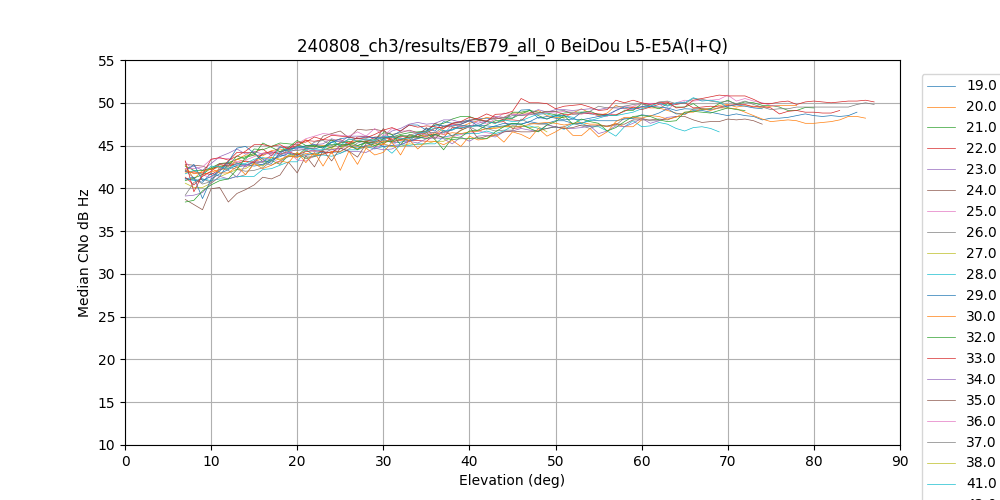

DUT BeiDou L5/E5A(I+Q)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
19 31.8 0.0 45.6 50.5 22.3 31 [49.0, 23.0] [0.0] 29601
20 35.1 0.0 46.0 50.8 37.8 200 [34.0, 53.0] [0.0] 32074
21 20.9 0.0 44.5 49.6 37.9 273 [13.0, 15.0, 53.0] [0.0] 18594
22 24.2 0.0 44.9 49.0 36.5 156 [26.0, 44.0, 32.0] [0.0] 22133
23 36.4 0.0 46.8 50.8 39.0 82 [19.0, 43.0] [0.0] 23749
24 23.9 0.0 45.1 48.8 29.5 201 [46.0, 42.0] [0.0] 24968
25 25.5 0.0 44.4 48.3 37.9 27 [21.0, 33.0] [0.0] 22957
26 37.7 0.0 45.7 49.7 21.4 5 [52.0] [0.0] 21129
27 29.0 0.0 44.6 48.9 35.6 63 [50.0, 24.0] [0.0] 34815
28 32.4 0.0 44.2 49.2 29.5 11 [52.0, 45.0] [0.0] 33089
29 39.3 0.0 45.3 50.2 35.0 119 [41.0, 46.0] [0.0] 29434
30 30.3 0.0 44.9 48.9 37.7 8 [32.0, 37.0] [0.0] 34123
32 45.0 0.0 47.1 51.1 37.8 0 [20.0] [0.0] 27410
33 45.3 0.0 47.0 50.7 32.5 0 [16.0] [0.0] 26834
34 30.8 0.0 44.5 49.1 36.6 88 [44.0, 15.0] [0.0] 14493
35 51.5 0.0 46.4 49.5 32.1 0 [41.0] [0.0] 21459
36 45.1 0.0 47.7 51.7 39.2 0 [51.0] [0.0] 28306
37 45.5 0.0 47.3 51.1 37.8 0 [46.0] [0.0] 25621
38 7.0 0.0 41.9 43.8 39.9 0 [20.0] [0.0] 2441
41 44.1 0.0 47.3 51.2 39.4 0 [53.0] [0.0] 28755
42 47.5 0.0 47.5 51.0 40.0 0 [47.0] [0.0] 16957
43 54.7 0.0 46.5 50.2 38.6 0 [32.0] [0.0] 16603
44 39.4 0.0 45.8 49.9 35.5 188 [51.0, 50.0] [0.0] 15585
45 45.4 0.0 47.8 51.5 37.0 0 [20.0] [0.0] 25423
DIFF BeiDou L5/E5A(I+Q)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
19 31.8 -0.1 19.1 -3.9 [45.0, 49.0, 21.0, 23.0] 29597
20 35.1 -0.2 4.5 -4.4 [41.0, 34.0, 23.0, 53.0] 32073
21 20.9 0.3 4.0 -3.4 [13.0, 15.0, 44.0, 53.0] 18571
22 24.2 -0.0 3.5 -3.5 [23.0, 26.0, 25.0, 44.0, 32.0] 22090
23 36.4 0.0 3.6 -3.5 [19.0, 43.0] 23714
24 23.9 -0.0 5.9 -7.2 [53.0, 46.0, 30.0, 42.0] 24895
25 25.5 -0.3 3.4 -4.2 [18.0, 21.0, 50.0, 33.0] 22953
26 37.7 0.1 20.8 -5.7 [51.0, 52.0] 21129
27 29.0 -0.1 4.4 -4.6 [32.0, 50.0, 20.0, 24.0] 34810
28 32.5 0.1 4.2 -5.1 [51.0, 52.0, 46.0, 45.0] 33075
29 39.4 -0.1 7.8 -6.3 [51.0, 41.0, 46.0] 29359
30 30.3 -0.2 3.6 -4.4 [20.0, 32.0, 30.0, 37.0] 34095
32 45.0 0.1 3.6 -3.3 [21.0, 20.0] 27380
33 45.3 -0.2 4.5 -6.6 [52.0, 16.0] 26826
34 30.9 0.1 5.6 -3.3 [43.0, 44.0, 26.0, 15.0] 14480
35 51.5 -0.2 6.6 -2.7 [42.0, 41.0] 21455
36 45.1 0.1 3.7 -3.5 [49.0, 51.0] 28293
37 45.5 -0.3 2.9 -4.6 [53.0, 46.0] 25591
38 7.0 -2.5 -0.3 -4.6 [18.0, 20.0] 2411
41 44.2 0.0 2.7 -3.0 [50.0, 53.0] 28725
42 47.5 -0.1 2.2 -4.0 [48.0, 47.0] 16957
43 54.7 -0.0 3.7 -2.9 [20.0, 32.0] 16599
44 39.4 -0.1 4.4 -3.5 [49.0, 51.0, 52.0, 50.0] 15581
45 45.4 0.3 4.9 -3.5 [48.0, 20.0] 25423
REF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 45.8 49.5 38.5 0 [25.0] [0.0] 13764
12 27.4 0.0 45.0 49.7 35.9 104 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 46.1 49.9 38.6 0 [42.0] [0.0] 22022
DUT BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.3 0.0 45.3 48.8 37.1 0 [22.0] [0.0] 13755
12 27.5 0.0 44.6 49.1 35.5 46 [53.0, 25.0] [0.0] 15621
14 48.8 0.0 45.9 49.0 37.7 0 [42.0] [0.0] 22006
DIFF BeiDou E5B/B2(BPSK(2)-B2)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.3 0.5 5.9 -2.8 [25.0, 22.0] 13755
12 27.4 0.4 6.4 -5.7 [50.0, 53.0, 22.0, 25.0] 15617
14 48.8 0.2 3.5 -2.8 [42.0] 22006
REF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.9 51.0 30.6 0 [25.0] [0.0] 13764
12 27.4 0.0 41.9 49.0 30.0 73 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 44.3 49.7 33.1 0 [42.0] [0.0] 22022
19 31.8 0.0 45.4 52.4 32.9 110 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 46.0 53.4 26.1 132 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.5 50.7 33.5 347 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.6 50.7 33.9 228 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.6 52.1 35.0 6 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.8 50.5 33.1 1 [53.0, 30.0] [0.0] 24896
25 25.5 0.0 44.1 49.6 35.4 145 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 46.1 51.7 27.3 1 [51.0] [0.0] 21138
27 29.0 0.0 45.0 50.2 31.0 76 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 44.9 51.9 31.3 158 [51.0, 46.0] [0.0] 33120
29 39.4 0.0 45.9 52.5 33.1 122 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 45.2 51.9 35.7 117 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 47.0 52.8 34.9 0 [21.0] [0.0] 27397
33 45.3 0.0 46.2 52.1 27.2 0 [52.0] [0.0] 26837
34 30.9 0.0 44.8 51.0 34.8 9 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 48.5 53.4 30.1 0 [42.0] [0.0] 21456
36 45.1 0.0 47.2 53.2 32.6 0 [49.0] [0.0] 28293
37 45.5 0.0 46.2 52.5 29.0 0 [53.0] [0.0] 25602
38 7.0 0.0 40.7 42.9 37.6 0 [18.0] [0.0] 2411
41 44.2 0.0 46.7 52.8 29.9 0 [50.0] [0.0] 28736
42 47.5 0.0 46.2 51.2 36.2 0 [48.0] [0.0] 16965
43 54.7 0.0 46.9 52.3 35.9 0 [20.0] [0.0] 16602
44 39.4 0.0 45.9 52.7 29.5 157 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 47.1 52.4 34.2 0 [48.0] [0.0] 25442
DUT BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.3 0.0 45.1 50.0 31.1 0 [22.0] [0.0] 13755
12 27.5 0.0 41.3 48.8 31.5 176 [53.0, 25.0] [0.0] 15621
14 48.8 0.0 44.1 49.5 33.2 0 [42.0] [0.0] 22006
19 31.8 0.0 45.4 51.9 34.2 42 [49.0, 23.0] [0.0] 29602
20 35.1 0.0 46.0 53.8 32.1 135 [34.0, 53.0] [0.0] 32074
21 20.9 0.0 43.3 50.7 36.0 199 [13.0, 15.0, 53.0] [0.0] 18594
22 24.2 0.0 44.7 50.0 35.6 491 [26.0, 44.0, 32.0] [0.0] 22133
23 36.4 0.0 45.5 51.9 31.4 212 [19.0, 43.0] [0.0] 23749
24 23.9 0.0 43.8 49.8 34.2 44 [46.0, 42.0] [0.0] 24969
25 25.5 0.0 44.0 50.1 32.6 181 [21.0, 33.0] [0.0] 22957
26 37.7 0.0 46.4 53.0 31.4 0 [52.0] [0.0] 21130
27 29.0 0.0 45.2 50.2 36.2 117 [50.0, 24.0] [0.0] 34815
28 32.4 0.0 45.2 51.5 28.8 156 [52.0, 45.0] [0.0] 33089
29 39.3 0.0 45.7 52.4 30.9 197 [41.0, 46.0] [0.0] 29434
30 30.3 0.0 44.7 52.1 31.3 36 [32.0, 37.0] [0.0] 34123
32 45.0 0.0 46.7 52.8 32.7 0 [20.0] [0.0] 27410
33 45.3 0.0 46.4 52.0 31.9 0 [16.0] [0.0] 26834
34 30.8 0.0 44.2 51.3 30.1 224 [44.0, 15.0] [0.0] 14493
35 51.5 0.0 48.7 52.9 37.5 0 [41.0] [0.0] 21459
36 45.1 0.0 47.2 53.0 34.6 0 [51.0] [0.0] 28306
37 45.5 0.0 46.3 52.1 29.1 0 [46.0] [0.0] 25621
38 7.0 0.0 40.8 43.7 37.3 0 [20.0] [0.0] 2441
41 44.1 0.0 46.8 52.7 33.6 0 [53.0] [0.0] 28755
42 47.5 0.0 46.1 51.5 36.7 0 [47.0] [0.0] 16957
43 54.7 0.0 46.8 51.5 35.4 0 [32.0] [0.0] 16603
44 39.4 0.0 46.1 52.3 33.8 168 [51.0, 50.0] [0.0] 15585
45 45.4 0.0 46.9 52.2 34.8 0 [20.0] [0.0] 25423
DIFF BeiDou B1(BPSK(2)-B1)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.3 -0.2 5.3 -4.2 [25.0, 22.0] 13755
12 27.4 0.6 6.0 -4.0 [50.0, 53.0, 22.0, 25.0] 15617
14 48.8 0.1 5.3 -5.2 [42.0] 22006
19 31.8 -0.1 4.5 -7.4 [45.0, 49.0, 21.0, 23.0] 29598
20 35.1 -0.0 7.6 -13.3 [41.0, 34.0, 23.0, 53.0] 32073
21 20.9 0.2 6.0 -6.4 [13.0, 15.0, 44.0, 53.0] 18571
22 24.2 -0.1 4.9 -5.5 [23.0, 26.0, 25.0, 44.0, 32.0] 22090
23 36.4 0.1 7.4 -5.3 [19.0, 43.0] 23714
24 23.9 -0.1 5.2 -5.1 [53.0, 46.0, 30.0, 42.0] 24896
25 25.5 0.1 6.7 -4.0 [18.0, 21.0, 50.0, 33.0] 22953
26 37.7 -0.3 6.1 -8.7 [51.0, 52.0] 21130
27 29.0 -0.2 5.2 -8.4 [32.0, 50.0, 20.0, 24.0] 34810
28 32.5 -0.3 10.2 -6.6 [51.0, 52.0, 46.0, 45.0] 33076
29 39.4 0.2 7.3 -6.1 [51.0, 41.0, 46.0] 29359
30 30.3 0.6 8.7 -4.9 [20.0, 32.0, 30.0, 37.0] 34095
32 45.0 0.3 9.7 -5.1 [21.0, 20.0] 27380
33 45.3 -0.3 5.9 -8.2 [52.0, 16.0] 26828
34 30.9 0.6 7.6 -5.4 [43.0, 44.0, 26.0, 15.0] 14480
35 51.5 -0.2 3.9 -10.1 [42.0, 41.0] 21455
36 45.1 0.1 5.0 -6.3 [49.0, 51.0] 28293
37 45.5 -0.2 6.5 -9.2 [53.0, 46.0] 25591
38 7.0 -0.1 2.7 -2.6 [18.0, 20.0] 2411
41 44.2 -0.2 3.8 -7.4 [50.0, 53.0] 28725
42 47.5 0.1 3.7 -4.4 [48.0, 47.0] 16957
43 54.7 0.1 6.3 -5.5 [20.0, 32.0] 16599
44 39.4 -0.3 4.5 -9.7 [49.0, 51.0, 52.0, 50.0] 15581
45 45.4 0.2 5.7 -6.3 [48.0, 20.0] 25423
REF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.2 0.0 44.8 48.9 31.6 0 [25.0] [0.0] 13764
12 27.4 0.0 43.9 49.3 33.1 200 [50.0, 22.0] [0.0] 15636
14 48.7 0.0 45.1 49.1 35.6 0 [42.0] [0.0] 22022
19 31.8 0.0 44.5 49.6 32.7 234 [45.0, 21.0] [0.0] 29619
20 35.1 0.0 44.2 50.2 21.3 213 [41.0, 23.0] [0.0] 32086
21 20.9 0.0 43.0 48.6 35.4 302 [13.0, 15.0, 44.0] [0.0] 18605
22 24.2 0.0 44.0 48.0 35.1 314 [23.0, 25.0, 32.0] [0.0] 22141
23 36.4 0.0 45.2 49.5 35.7 252 [19.0, 43.0] [0.0] 23722
24 23.9 0.0 43.7 48.4 31.4 113 [53.0, 30.0] [0.0] 24891
25 25.5 0.0 43.3 47.8 35.6 240 [18.0, 50.0] [0.0] 22983
26 37.7 0.0 44.8 49.1 33.6 1 [51.0] [0.0] 21138
27 29.0 0.0 43.4 48.4 32.4 33 [32.0, 20.0] [0.0] 34817
28 32.4 0.0 43.2 48.9 31.3 88 [51.0, 46.0] [0.0] 33115
29 39.4 0.0 44.0 49.3 31.7 1 [51.0, 41.0] [0.0] 29359
30 30.3 0.0 43.8 48.8 33.4 172 [20.0, 30.0] [0.0] 34110
32 45.0 0.0 46.1 49.8 37.9 0 [21.0] [0.0] 27397
33 45.3 0.0 45.1 49.3 31.6 0 [52.0] [0.0] 26833
34 30.9 0.0 43.2 48.6 34.2 22 [43.0, 26.0] [0.0] 14483
35 51.5 0.0 46.4 49.9 34.7 0 [42.0] [0.0] 21456
36 45.1 0.0 46.4 50.3 37.5 0 [49.0] [0.0] 28293
37 45.5 0.0 45.5 50.0 36.2 0 [53.0] [0.0] 25602
38 7.0 0.0 37.2 39.8 34.4 0 [18.0] [0.0] 2411
41 44.2 0.0 45.7 49.9 35.4 0 [50.0] [0.0] 28736
42 47.5 0.0 45.8 49.7 36.4 0 [48.0] [0.0] 16965
43 54.7 0.0 45.4 49.0 34.0 0 [20.0] [0.0] 16602
44 39.4 0.0 45.0 49.7 32.7 245 [49.0, 52.0] [0.0] 15593
45 45.4 0.0 46.3 50.5 37.3 0 [48.0] [0.0] 25442
DUT BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgOffset AvgCNo MaxCNo MinCNo Slip_Count SVChan Ant N_Samples
11 48.3 0.0 44.4 48.2 35.2 0 [22.0] [0.0] 13755
12 27.5 0.0 43.7 48.5 34.6 117 [53.0, 25.0] [0.0] 15621
14 48.8 0.0 45.2 49.1 37.2 0 [42.0] [0.0] 22006
19 31.8 0.0 44.5 49.2 29.8 86 [49.0, 23.0] [0.0] 29602
20 35.1 0.0 44.1 49.4 36.1 94 [34.0, 53.0] [0.0] 32074
21 20.9 0.0 43.1 48.5 35.1 325 [13.0, 15.0, 53.0] [0.0] 18594
22 24.2 0.0 43.5 47.9 34.7 363 [26.0, 44.0, 32.0] [0.0] 22133
23 36.4 0.0 44.9 49.7 35.8 92 [19.0, 43.0] [0.0] 23749
24 23.9 0.0 43.6 48.1 28.2 179 [46.0, 42.0] [0.0] 24964
25 25.5 0.0 43.2 47.9 34.7 111 [21.0, 33.0] [0.0] 22957
26 37.7 0.0 45.0 49.0 32.6 0 [52.0] [0.0] 21130
27 29.0 0.0 43.3 48.0 32.5 60 [50.0, 24.0] [0.0] 34815
28 32.4 0.0 42.9 48.5 28.7 205 [52.0, 45.0] [0.0] 33089
29 39.3 0.0 44.2 49.2 32.7 162 [41.0, 46.0] [0.0] 29434
30 30.3 0.0 43.5 48.8 33.4 27 [32.0, 37.0] [0.0] 34123
32 45.0 0.0 45.5 49.7 36.6 0 [20.0] [0.0] 27410
33 45.3 0.0 45.1 48.9 26.4 0 [16.0] [0.0] 26834
34 30.8 0.0 42.7 48.2 33.9 170 [44.0, 15.0] [0.0] 14493
35 51.5 0.0 46.4 49.3 30.2 0 [41.0] [0.0] 21459
36 45.1 0.0 46.1 50.2 35.6 0 [51.0] [0.0] 28306
37 45.5 0.0 45.6 49.5 36.0 0 [46.0] [0.0] 25621
38 7.0 0.0 39.9 42.0 37.9 0 [20.0] [0.0] 2441
41 44.1 0.0 45.7 50.2 34.8 0 [53.0] [0.0] 28755
42 47.5 0.0 45.6 49.3 37.9 0 [47.0] [0.0] 16957
43 54.7 0.0 44.7 48.6 33.4 0 [32.0] [0.0] 16603
44 39.4 0.0 44.7 48.9 35.0 146 [51.0, 50.0] [0.0] 15585
45 45.4 0.0 46.1 50.2 35.5 0 [20.0] [0.0] 25423
DIFF BeiDou B3(BPSK(10)-B3)

SV AvgEl AvgCNoDiff MaxCNoDiff MinCNoDiff SVChan N_Samples
11 48.3 0.4 5.4 -4.8 [25.0, 22.0] 13755
12 27.4 0.2 4.3 -4.7 [50.0, 53.0, 22.0, 25.0] 15617
14 48.8 -0.1 3.8 -3.9 [42.0] 22006
19 31.8 -0.1 7.1 -4.5 [45.0, 49.0, 21.0, 23.0] 29598
20 35.1 0.1 5.6 -16.3 [41.0, 34.0, 23.0, 53.0] 32073
21 20.9 -0.0 4.1 -3.8 [13.0, 15.0, 44.0, 53.0] 18571
22 24.2 0.5 5.9 -3.0 [23.0, 26.0, 25.0, 44.0, 32.0] 22090
23 36.4 0.4 6.4 -3.8 [19.0, 43.0] 23714
24 23.9 0.1 7.1 -4.1 [53.0, 46.0, 30.0, 42.0] 24891
25 25.5 0.1 4.4 -4.6 [18.0, 21.0, 50.0, 33.0] 22953
26 37.7 -0.2 8.2 -6.9 [51.0, 52.0] 21130
27 29.0 0.1 5.8 -4.8 [32.0, 50.0, 20.0, 24.0] 34810
28 32.5 0.3 4.8 -4.6 [51.0, 52.0, 46.0, 45.0] 33071
29 39.4 -0.2 4.7 -6.2 [51.0, 41.0, 46.0] 29359
30 30.3 0.4 5.6 -3.7 [20.0, 32.0, 30.0, 37.0] 34095
32 45.0 0.6 5.3 -2.6 [21.0, 20.0] 27380
33 45.3 -0.0 7.6 -6.5 [52.0, 16.0] 26824
34 30.9 0.5 4.2 -3.9 [43.0, 44.0, 26.0, 15.0] 14480
35 51.5 0.0 5.6 -4.2 [42.0, 41.0] 21455
36 45.1 0.3 3.9 -3.7 [49.0, 51.0] 28293
37 45.5 -0.1 3.2 -3.7 [53.0, 46.0] 25591
38 7.0 -2.7 -0.3 -5.4 [18.0, 20.0] 2411
41 44.2 0.0 2.7 -4.8 [50.0, 53.0] 28725
42 47.5 0.2 3.3 -4.0 [48.0, 47.0] 16957
43 54.7 0.7 4.7 -3.7 [20.0, 32.0] 16599
44 39.4 0.3 3.3 -4.2 [49.0, 51.0, 52.0, 50.0] 15581
45 45.4 0.3 4.0 -3.3 [48.0, 20.0] 25423
