HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2982_whip_permutations/240328_remote_940mm titan P3ENCL-all

Meta Data


Start : 2307 345600.0
Stop : 2307 431999.0
Number Samples : 86400
Input Source : HUD
Total Time: 86399.0 seconds = 24.000 hours

P3ENCL-all

Heading, Antenna distance

Weighted Mean heading_mean: 1.4653

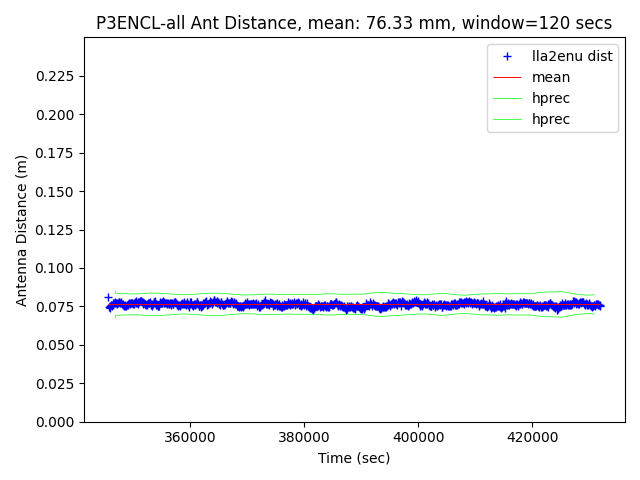

Weighted Mean dist_mean: 0.0763
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0099
Weighted Mean vprec: 0.0155

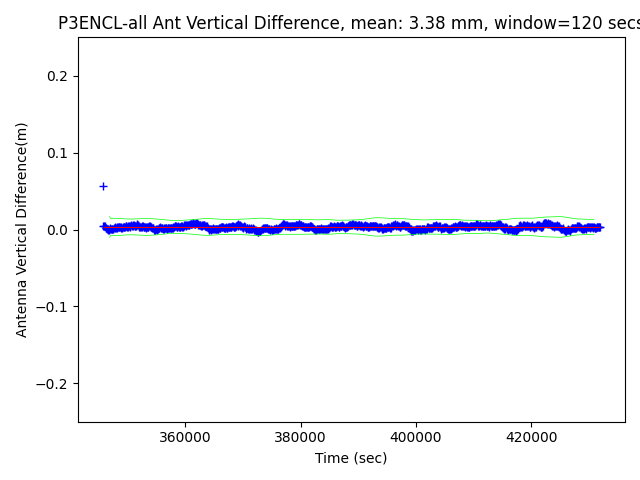

Weighted Mean vdiff_mean: 0.0034
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896473 -105.115071 1667.627338 0.022258 0.017151 0.032224 86400.0 NaN NaN
1 39.896472 -105.115071 1667.623959 0.007690 0.002500 0.003212 86397.0 NaN NaN
ref 39.897100 -105.115838 1671.451800 NaN NaN NaN NaN NaN NaN

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.999931 0.999931 0.999931
0 0.05 0.999931 0.999931 0.999931
0 0.10 0.999931 0.999931 0.999931
1 0.03 0.999919 0.999919 0.999919
1 0.05 0.999919 0.999919 0.999919
1 0.10 0.999919 0.999919 0.999919

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 3 Autonomous solution 0 NaN
NaN 3.0 1.0 86394 RTK solution 0 NaN
NaN 20.0 0.0 3 Code differential GNSS solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 86394 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

Individual Antennas
