T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2982_whip_permutations/240320_900only_uhf P3ENCL-all

Meta Data


Start : 2306 241200.0
Stop : 2306 330810.0
Number Samples : 89611
Input Source : T04
Total Time: 89610.0 seconds = 24.892 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 1.0980

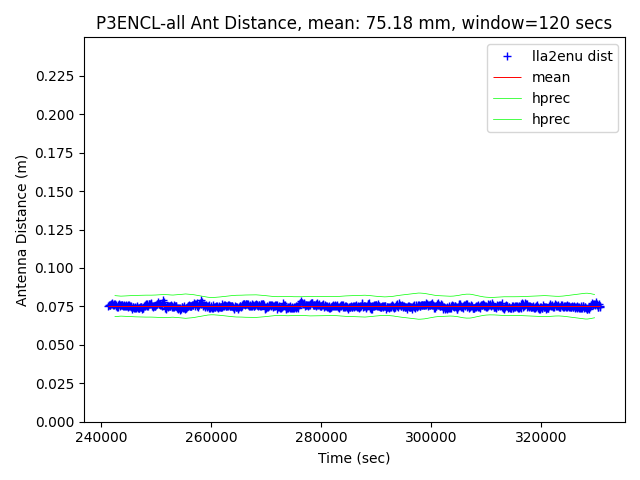

Weighted Mean dist_mean: 0.0752
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0068
Weighted Mean vprec: 0.0102

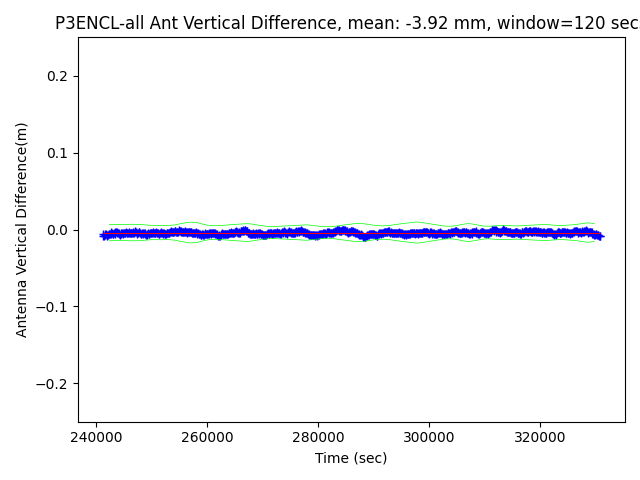

Weighted Mean vdiff_mean: -0.0039
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896468 -105.115056 1668.523121 0.021551 0.004355 0.009902 89611 WGS-84 0
1 39.896467 -105.115056 1668.527037 0.007225 0.002109 0.002293 89611 WGS-84 0
ref 39.897093 -105.115120 1672.363500 3.340560 NaN NaN 89611 WGS-84 0

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 1.0 1.0
0 0.05 1.0 1.0 1.0
0 0.10 1.0 1.0 1.0
1 0.03 1.0 1.0 1.0
1 0.05 1.0 1.0 1.0
1 0.10 1.0 1.0 1.0

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 4.0 5.0 0.0 0x17:02x 89611 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 89611 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

Individual Antennas
