T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2982_whip_permutations/240318_whip_both P3ENCL-all

Meta Data


Start : 2306 64234.0
Stop : 2306 151252.0
Number Samples : 87019
Input Source : T04
Total Time: 87018.0 seconds = 24.172 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 1.1902
Weighted Mean dist_mean: 0.0740
Weighted Mean ant_list: [0, 1]

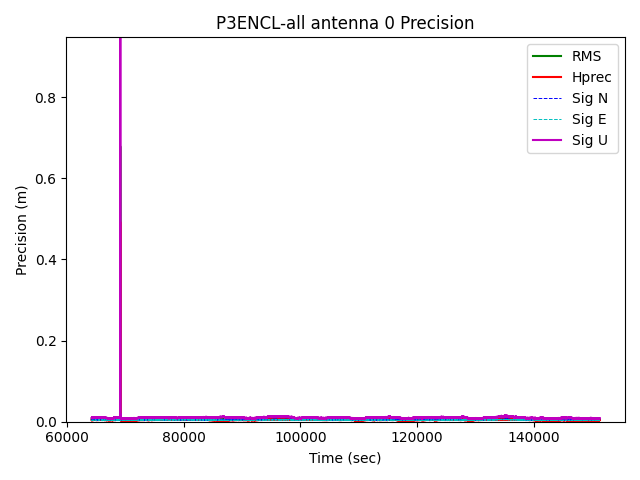

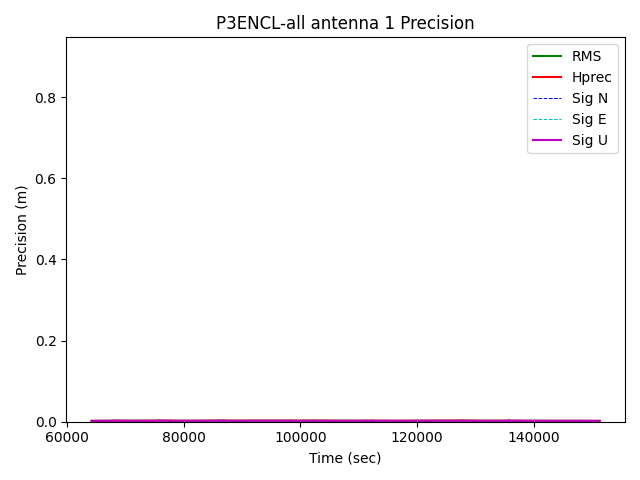

Weighted Mean hprec: 0.0124
Weighted Mean vprec: 0.0173

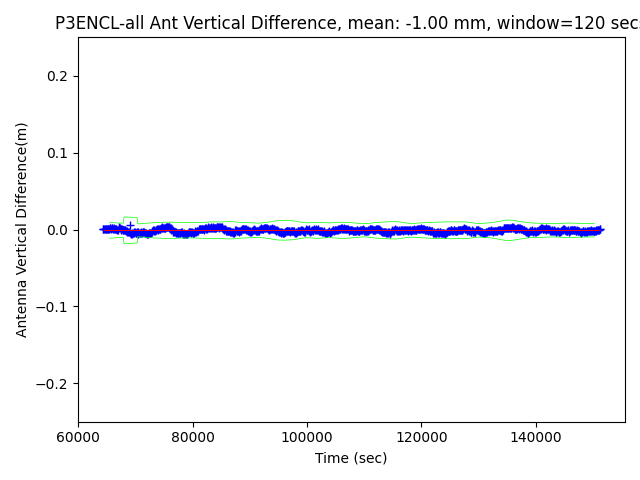

Weighted Mean vdiff_mean: -0.0010
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896468 -105.115056 1668.519794 0.022319 0.008506 0.017128 87019 WGS-84 0
1 39.896467 -105.115056 1668.520790 0.007433 0.002144 0.002328 87019 WGS-84 0
ref 39.887006 -105.088545 1671.940696 3.389947 NaN NaN 87019 WGS-84 0

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.999747 0.999747 0.999747
0 0.05 0.999747 0.999747 0.999747
0 0.10 0.999747 0.999747 0.999747
1 0.03 1.000000 1.000000 1.000000
1 0.05 1.000000 1.000000 1.000000
1 0.10 1.000000 1.000000 1.000000

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 4.0 5.0 0.0 0x17:02x 86997 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
NaN 10.0 5.0 0.0 0x1:02x 22 Conventional DGPS (Kalman Filter); 3D solution; Unknown fix_type 10 to get fix_info. 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 87019 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

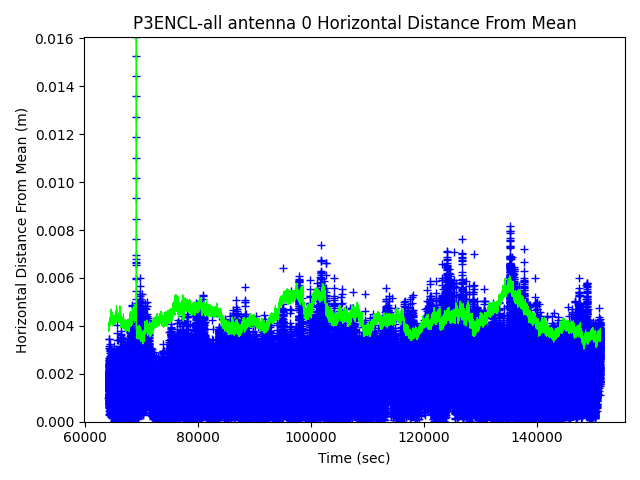

Individual Antennas
