HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2982_whip_permutations/240317_whip_halow titan P3ENCL-all

Meta Data


Start : 2305 507600.0
Stop : 2306 63383.0
Number Samples : 160584
Input Source : HUD
Total Time: 160583.0 seconds = 44.606 hours

P3ENCL-all

Heading, Antenna distance

Weighted Mean heading_mean: 1.5879

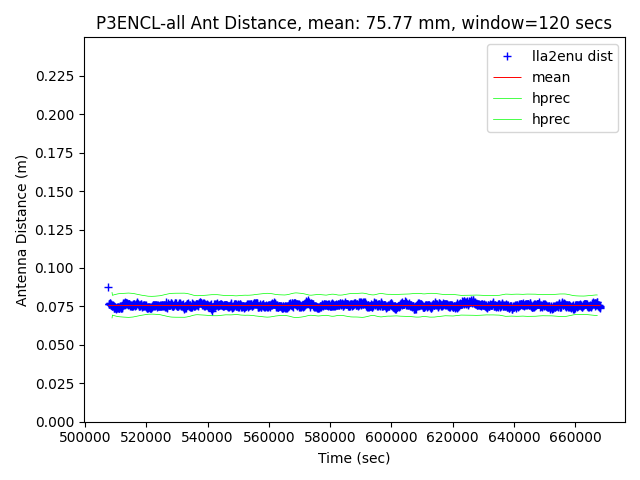

Weighted Mean dist_mean: 0.0758
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0094
Weighted Mean vprec: 0.0142
Weighted Mean vdiff_mean: 0.0076
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896473 -105.115071 1667.624184 0.016855 0.012922 0.023729 160584.0 NaN NaN
1 39.896472 -105.115071 1667.616634 0.005534 0.002332 0.002796 160581.0 NaN NaN
ref 39.897100 -105.115838 1671.451800 NaN NaN NaN NaN NaN NaN

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.999963 0.999963 0.999963
0 0.05 0.999963 0.999963 0.999963
0 0.10 0.999963 0.999963 0.999963
1 0.03 0.999956 0.999956 0.999956
1 0.05 0.999956 0.999956 0.999956
1 0.10 0.999956 0.999956 0.999956

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 3 Autonomous solution 0 NaN
NaN 3.0 1.0 160578 RTK solution 0 NaN
NaN 20.0 0.0 3 Code differential GNSS solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 160578 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

Individual Antennas
