T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2982_whip_permutations/240312_no_whips P3ENCL-all

Meta Data


Start : 2305 155896.0
Stop : 2305 242752.0
Number Samples : 86857
Input Source : T04
Total Time: 86856.0 seconds = 24.127 hours

pos_ant.csv

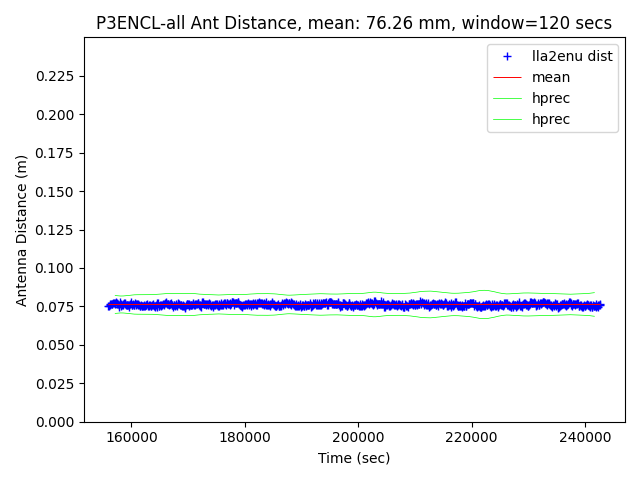

Heading, Antenna distance

Weighted Mean heading_mean: 1.3599
Weighted Mean dist_mean: 0.0763
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0071
Weighted Mean vprec: 0.0109
Weighted Mean vdiff_mean: -0.0031
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896468 -105.115056 1668.524142 0.023233 0.004582 0.010636 86857 WGS-84 0
1 39.896467 -105.115056 1668.527233 0.007273 0.002102 0.002264 86857 WGS-84 0
ref 39.897093 -105.115120 1672.363500 3.393107 NaN NaN 86857 WGS-84 0

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 1.0 1.0
0 0.05 1.0 1.0 1.0
0 0.10 1.0 1.0 1.0
1 0.03 1.0 1.0 1.0
1 0.05 1.0 1.0 1.0
1 0.10 1.0 1.0 1.0

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 4.0 5.0 0.0 0x17:02x 86857 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 86857 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

Individual Antennas
