T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2919-WCO_Roof_montera/231027 P4-03-all

Meta Data


Start : 2285 416975.0
Stop : 2285 511305.0
Number Samples : 94331
Input Source : T04
Total Time: 94330.0 seconds = 26.203 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 319.1526
Weighted Mean dist_mean: 0.1560
Weighted Mean ant_list: [0, 1]

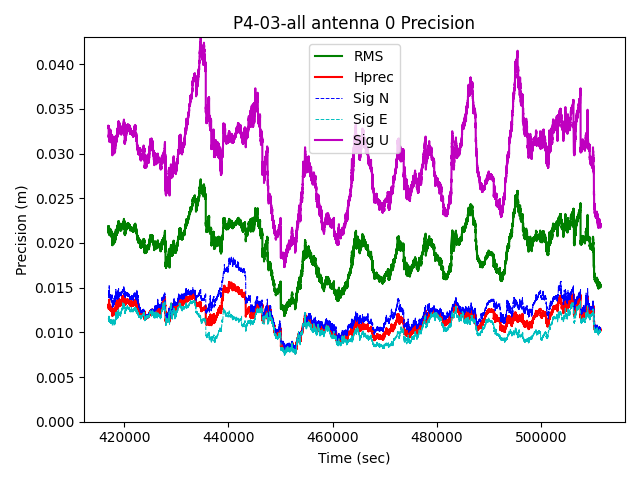

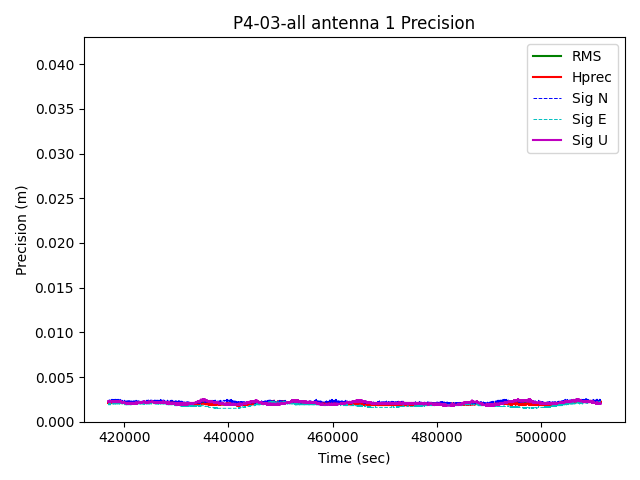

Weighted Mean hprec: 0.0169
Weighted Mean vprec: 0.0297

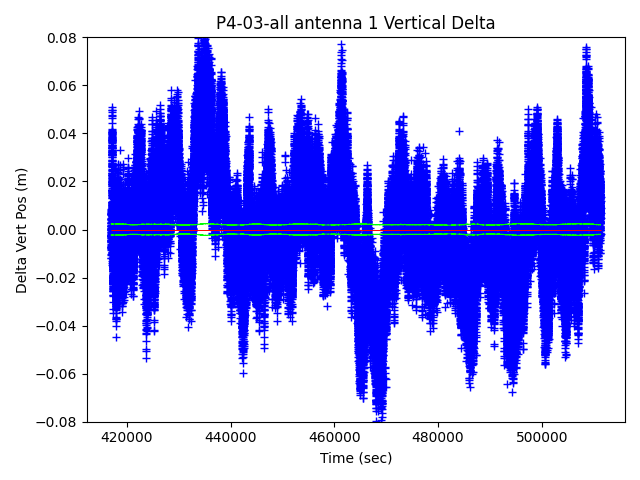

Weighted Mean vdiff_mean: -0.0052
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896473 -105.115043 1667.586774 0.060987 0.011759 0.029597 94331 ITRF2020 202382
1 39.896472 -105.115042 1667.591963 0.006662 0.002034 0.002100 94331 ITRF2020 202382
ref 39.896473 -105.115043 1667.586717 3.255913 NaN NaN 94331 ITRF2020 202382

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 0.516394 0.516394
0 0.05 1.0 1.000000 1.000000
0 0.10 1.0 1.000000 1.000000
1 0.03 1.0 1.000000 1.000000
1 0.05 1.0 1.000000 1.000000
1 0.10 1.0 1.000000 1.000000

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 15.0 5.0 1.0 0x17:02x 94331 RTx; 3D solution; AM 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 94331 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

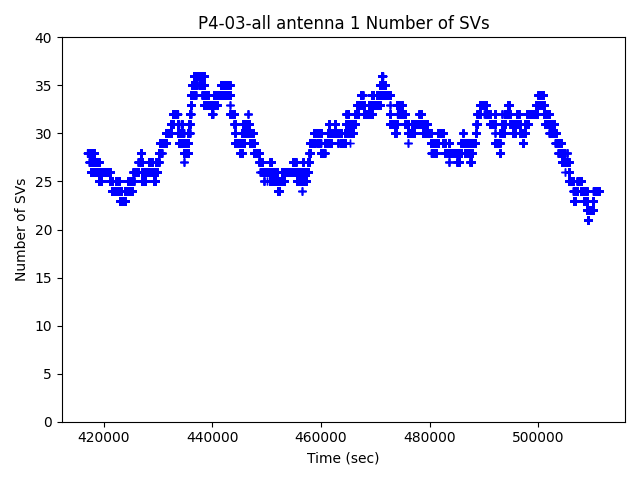

Individual Antennas
