T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2919-WCO_Roof_montera/231021 BX992-all

Meta Data


Start : 2284 518400.0
Stop : 2284 604799.0
Number Samples : 86400
Input Source : T04
Total Time: 86399.0 seconds = 24.000 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 329.2733
Weighted Mean dist_mean: 0.1533
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0046
Weighted Mean vprec: 0.0054
Weighted Mean vdiff_mean: -0.0104
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896473 -105.115057 1667.633302 0.011863 0.002563 0.004985 86400 ITRF2020 202381
1 39.896472 -105.115057 1667.643720 0.006943 0.002025 0.002098 86400 ITRF2020 202381
ref 39.896473 -105.115057 1667.633330 3.402069 NaN NaN 86400 ITRF2020 202381

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 1.0 1.0
0 0.05 1.0 1.0 1.0
0 0.10 1.0 1.0 1.0
1 0.03 1.0 1.0 1.0
1 0.05 1.0 1.0 1.0
1 0.10 1.0 1.0 1.0
center 0.03 1.0 1.0 1.0
center 0.05 1.0 1.0 1.0
center 0.10 1.0 1.0 1.0

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 15.0 5.0 1.0 0x19:02x 86400 RTx; 3D solution; AM 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 86400 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

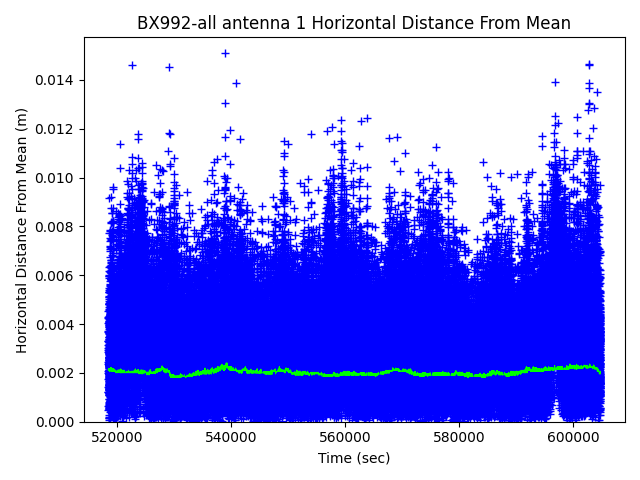

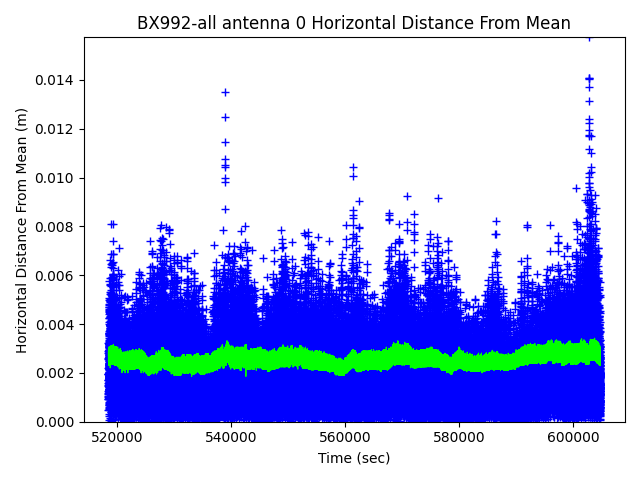

Individual Antennas
