HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240122 titan P4-05

Meta Data


Start Time : 64800.0
Stop Time : 143999.0
Input Source : HUD
Total Time: 79199.0 seconds = 22.000 hours

P4-05

Heading, Antenna distance

Weighted Mean heading_mean: 96.4075
Weighted Mean dist_mean: 0.1523
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0222
Weighted Mean vprec: 0.0328
Weighted Mean vdiff_mean: -0.0022
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.896903 -105.115057 1650.980409 0.034386 0.024215 0.046262 79200
1 39.896903 -105.115059 1650.982607 0.009341 0.003178 0.004271 79200

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.981616 0.019823 0.019823
0 0.05 0.999899 0.702955 0.702955
0 0.10 0.999899 0.999053 0.999053
1 0.03 0.999912 0.999912 0.999912
1 0.05 0.999912 0.999912 0.999912
1 0.10 0.999912 0.999912 0.999912
center 0.03 0.974848 0.397576 0.397576
center 0.05 0.999899 0.974848 0.974848
center 0.10 0.999899 0.999899 0.999899

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 8 Autonomous solution 0 NaN
NaN 3.0 0.0 6 RTK solution 0 NaN
NaN 3.0 1.0 79186 RTK solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 79194 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

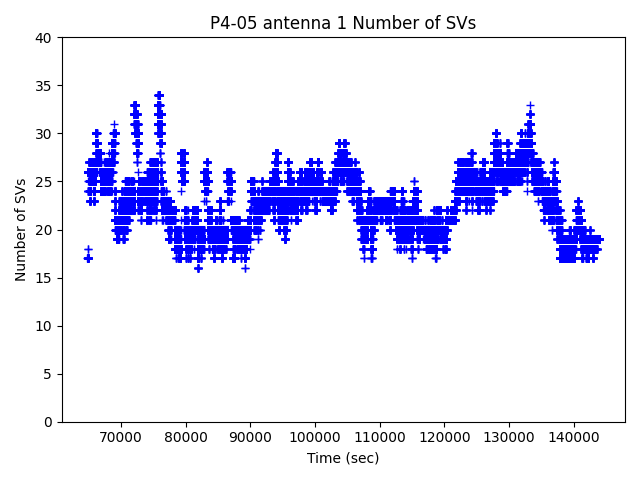

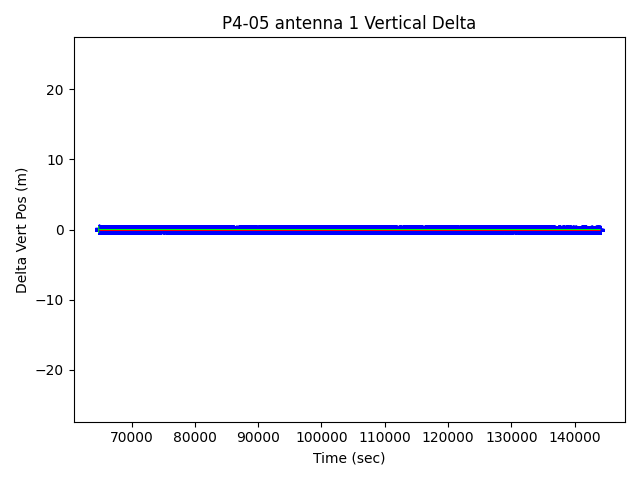

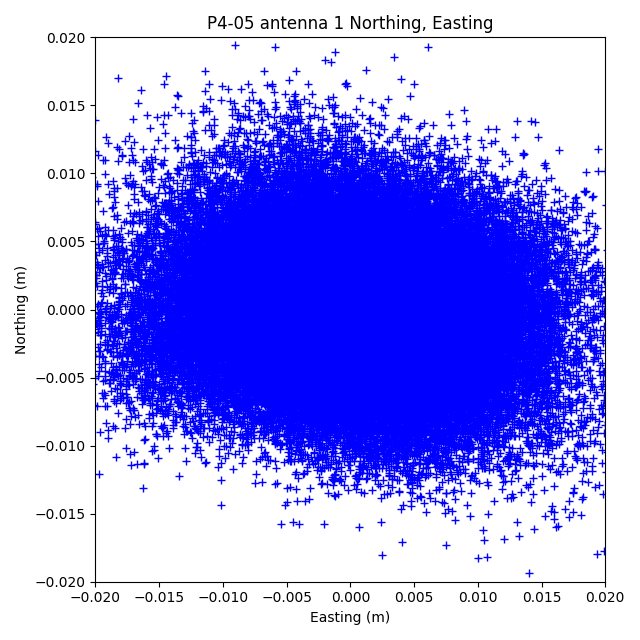

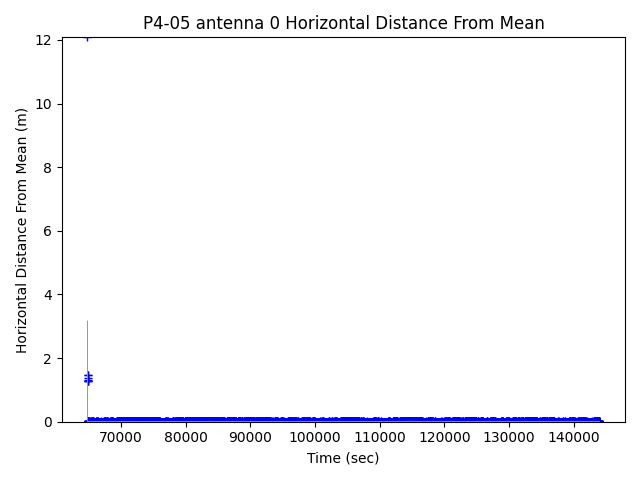

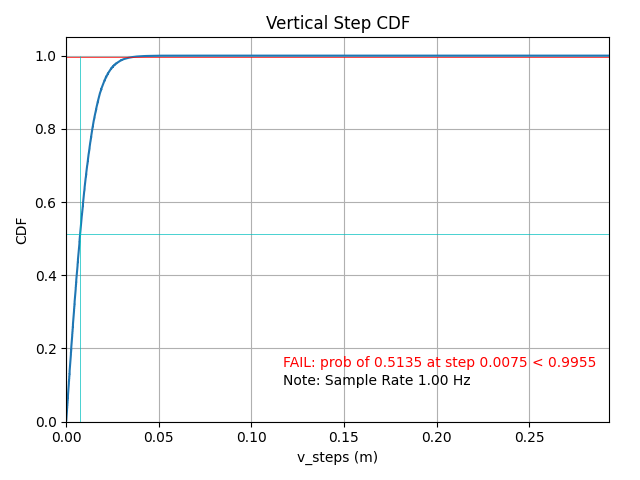

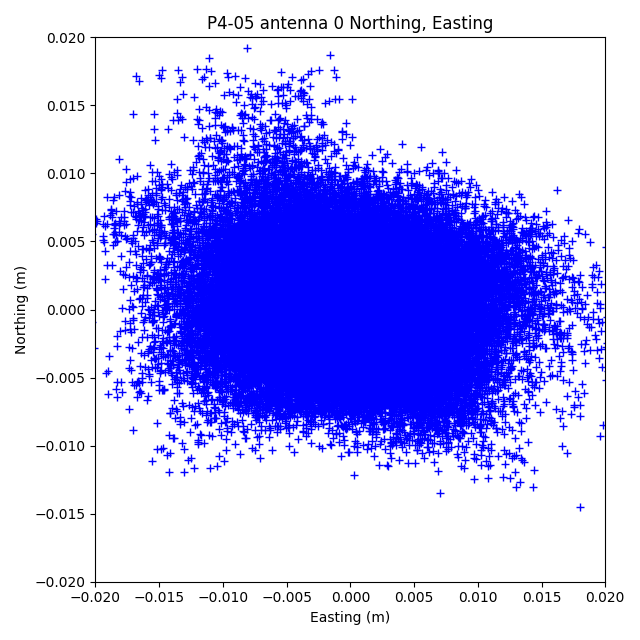

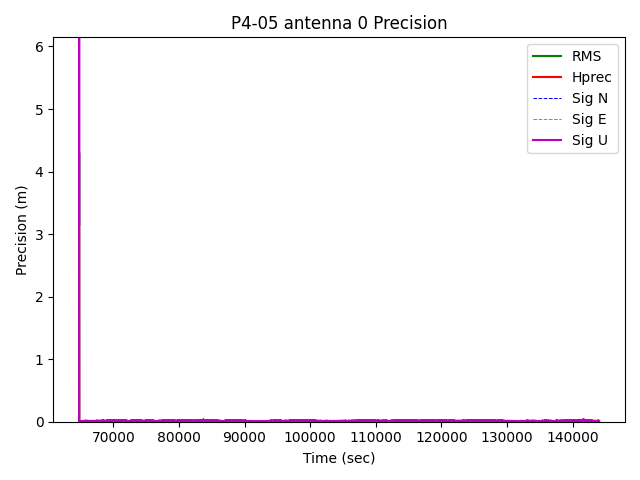

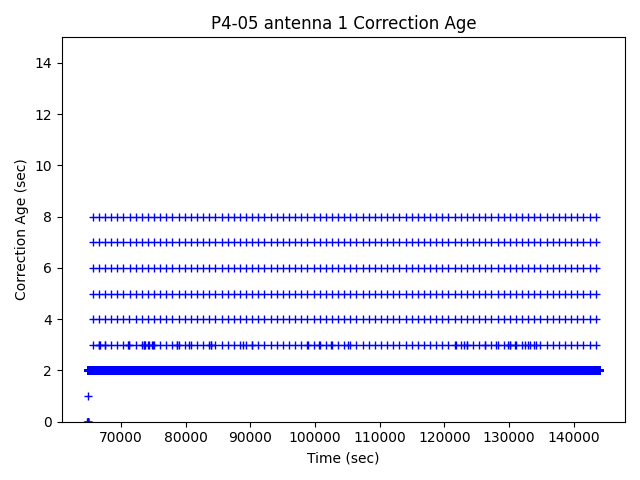

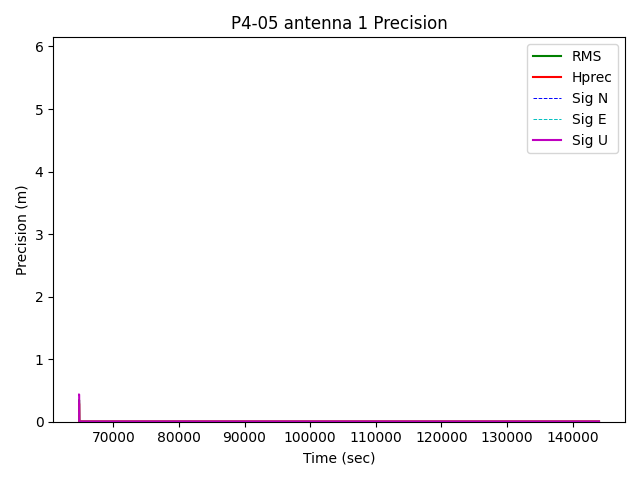

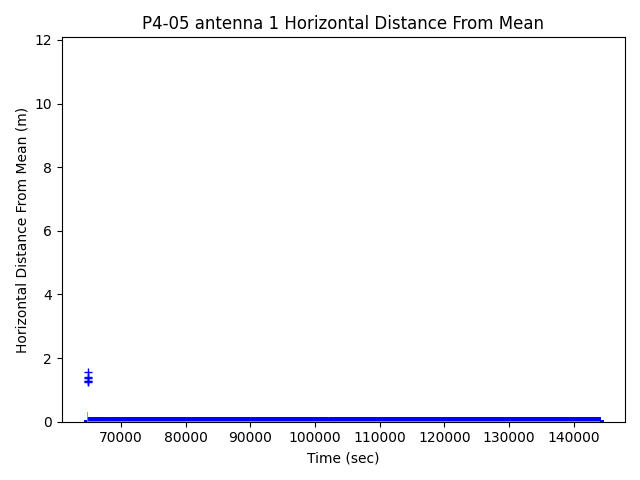

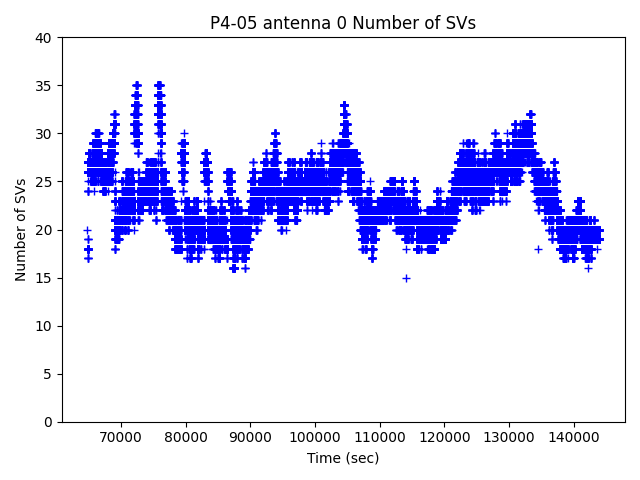

Individual Antennas
