HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240121 titan-vsbl P4-05-all

Meta Data


Start : 2297 589006.0
Stop : 2298 64799.0
Input Source : HUD
Total Time: 80593.0 seconds = 22.387 hours

P4-05-all

Heading, Antenna distance

Weighted Mean heading_mean: 96.4377
Weighted Mean dist_mean: 0.0763
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0144
Weighted Mean vprec: 0.0221
Weighted Mean vdiff_mean: -0.0009
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.896908 -105.115073 1650.105946 0.035892 0.290074 0.654468 80594
1 39.896908 -105.115074 1650.106800 0.009494 0.003082 0.003687 80594

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.999926 0.999243 0.999243
0 0.05 0.999926 0.999926 0.999926
0 0.10 0.999926 0.999926 0.999926
1 0.03 0.999913 0.999913 0.999913
1 0.05 0.999913 0.999913 0.999913
1 0.10 0.999913 0.999913 0.999913

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 1 Autonomous solution 0 NaN
NaN 3.0 1.0 80588 RTK solution 0 NaN
NaN 20.0 0.0 5 Code differential GNSS solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 80588 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

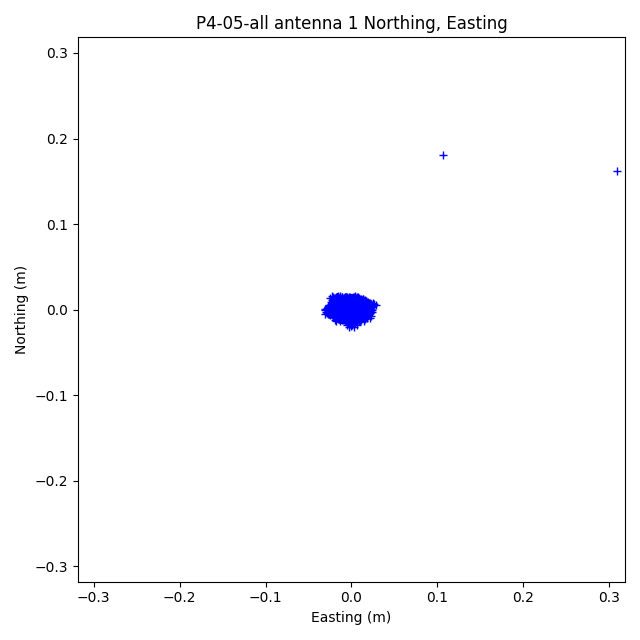

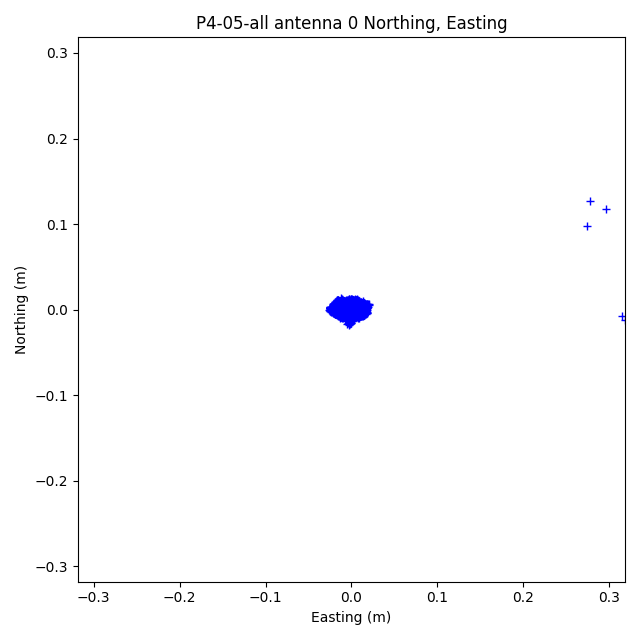

Individual Antennas
