HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240120 titan-vsbl P4-05-all

Meta Data


Start : 2297 498754.0
Stop : 2297 588772.0
Input Source : HUD
Total Time: 90018.0 seconds = 25.005 hours

P4-05-all

Heading, Antenna distance

Weighted Mean heading_mean: 85.2786
Weighted Mean dist_mean: 0.0764
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0158
Weighted Mean vprec: 0.0249
Weighted Mean vdiff_mean: -0.0026
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.896918 -105.115089 1650.185744 0.037386 0.272461 0.621216 90019
1 39.896918 -105.115089 1650.188304 0.009282 0.003515 0.004483 90019

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.999933 0.991657 0.991657
0 0.05 0.999933 0.999933 0.999933
0 0.10 0.999933 0.999933 0.999933
1 0.03 0.999922 0.999922 0.999922
1 0.05 0.999922 0.999922 0.999922
1 0.10 0.999922 0.999922 0.999922

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 1 Autonomous solution 0 NaN
NaN 3.0 1.0 90013 RTK solution 0 NaN
NaN 20.0 0.0 5 Code differential GNSS solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 90013 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

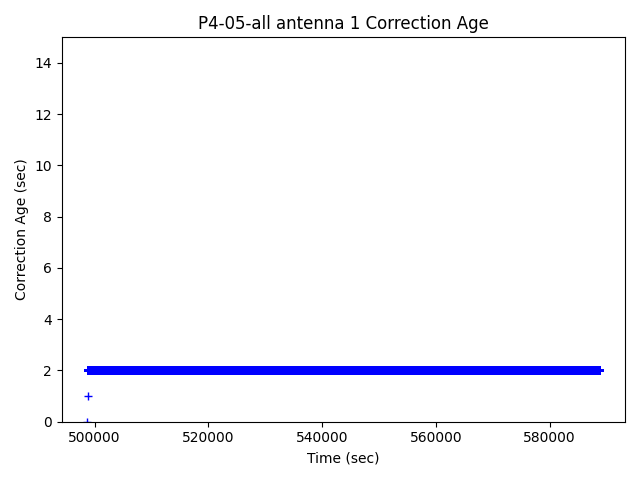

Individual Antennas
