T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240120 P4-03-all

Meta Data


Start : 2297 498777.0
Stop : 2297 552111.0
Input Source : T04
Total Time: 53334.0 seconds = 14.815 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 94.6142
Weighted Mean dist_mean: 0.1523
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0204
Weighted Mean vprec: 0.0397
Weighted Mean vdiff_mean: 0.0012
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896908 -105.115072 1650.050235 0.105551 0.014199 0.039651 53335 ('ITRF2020',) ('202405,202406',)
1 39.896908 -105.115074 1650.049081 0.011470 0.002659 0.002720 53335 ('ITRF2020',) ('202405,202406',)

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.000000 0.000000 0.000000
0 0.05 0.938221 0.000000 0.000000
0 0.10 1.000000 0.259117 0.259117
1 0.03 1.000000 1.000000 1.000000
1 0.05 1.000000 1.000000 1.000000
1 0.10 1.000000 1.000000 1.000000
center 0.03 0.000000 0.000000 0.000000
center 0.05 0.927290 0.000000 0.000000
center 0.10 1.000000 0.899691 0.899691

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 15.0 5.0 1.0 0x17:02x 53335 RTx; 3D solution; AM 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 53335 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

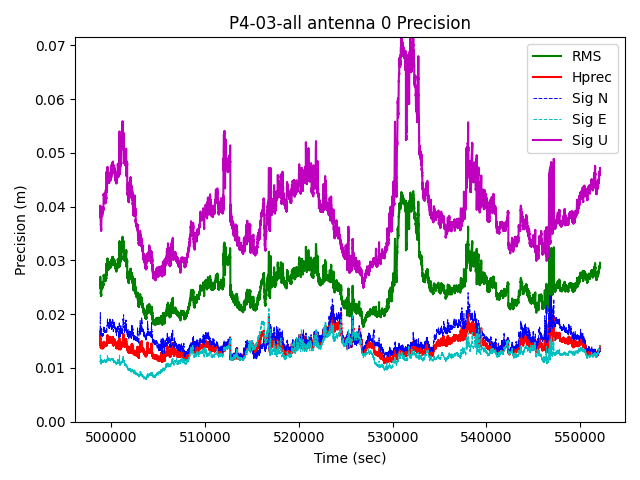

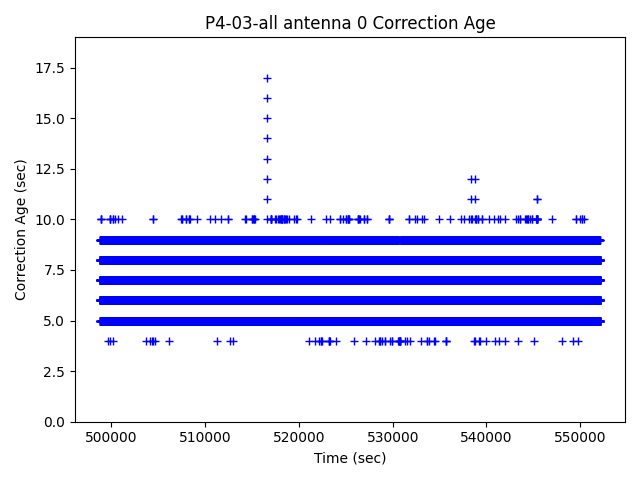

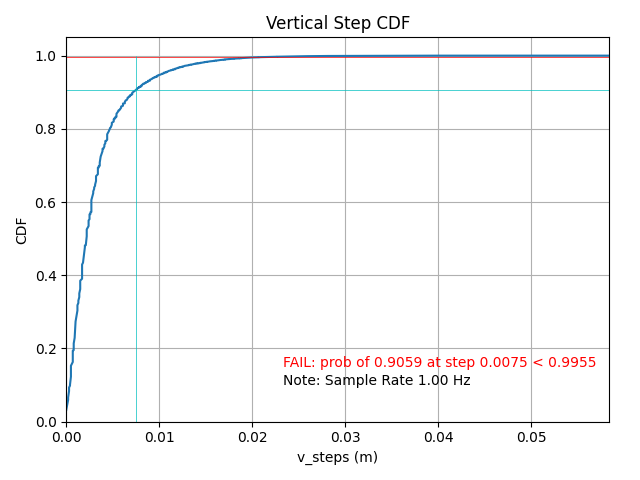

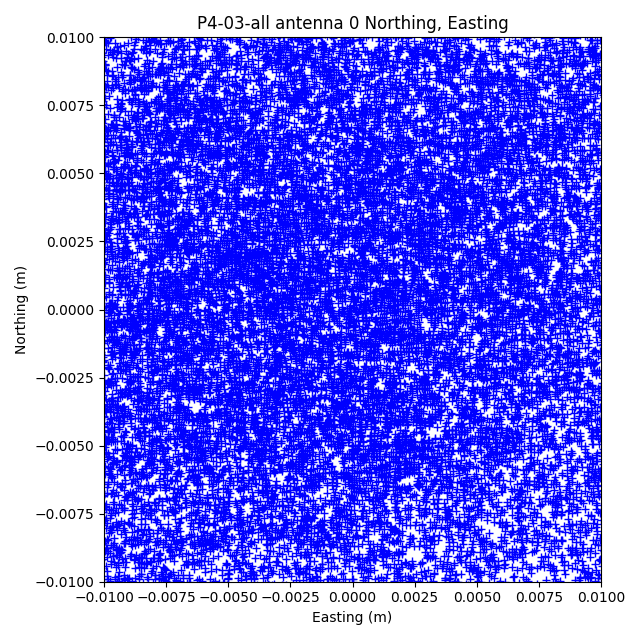

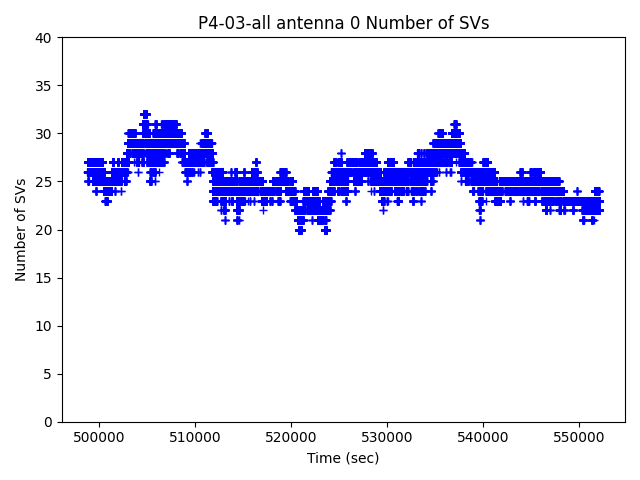

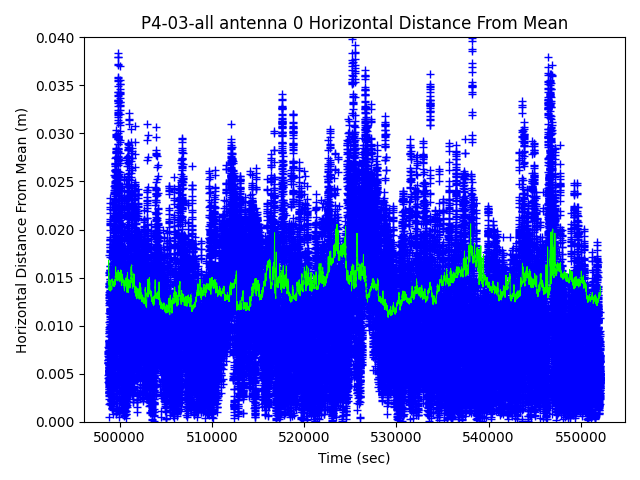

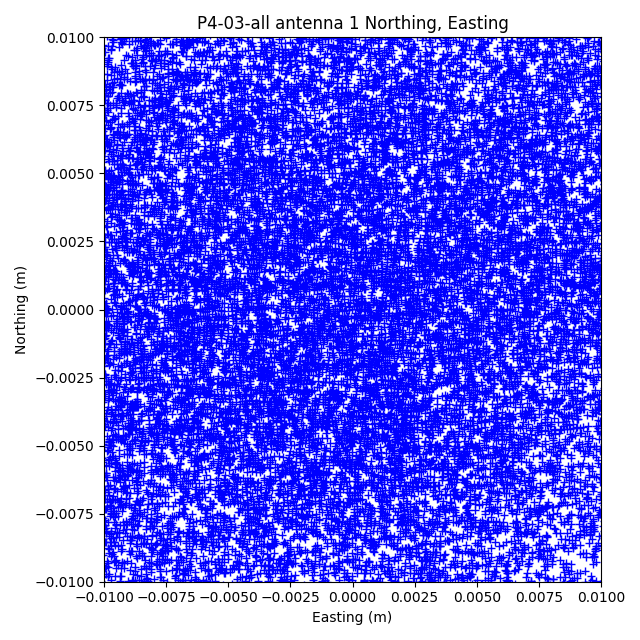

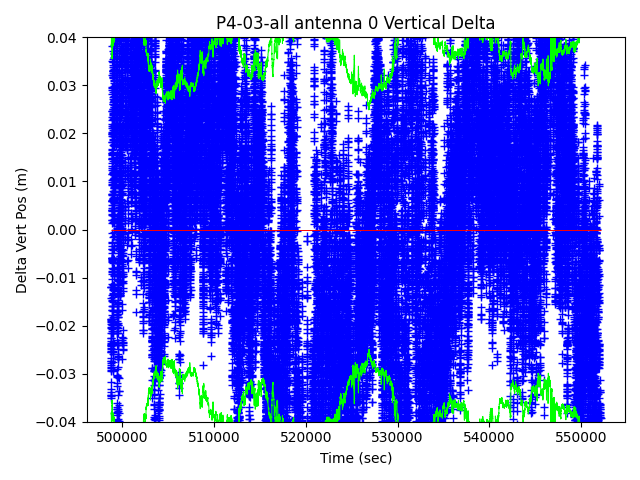

Individual Antennas
