HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240117 titan P4-05

Meta Data


Start Time : 262004.0
Stop Time : 345930.0
Input Source : HUD
Total Time: 83926.0 seconds = 23.313 hours

P4-05

Heading, Antenna distance

Weighted Mean heading_mean: 115.8667
Weighted Mean dist_mean: 0.1773
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.9145
Weighted Mean vprec: 1.4040
Weighted Mean vdiff_mean: 0.0244
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.896909 -105.115186 1650.347841 3.237001 0.648483 1.406056 83927
1 39.896910 -105.115188 1650.323419 0.009479 0.004367 0.007399 83927

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.000000 0.000000 0.000000
0 0.05 0.000000 0.000000 0.000000
0 0.10 0.000000 0.000000 0.000000
1 0.03 0.999917 0.999869 0.999869
1 0.05 0.999917 0.999917 0.999917
1 0.10 0.999917 0.999917 0.999917
center 0.03 0.000000 0.000000 0.000000
center 0.05 0.000000 0.000000 0.000000
center 0.10 0.000000 0.000000 0.000000

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 83927 Autonomous solution 0 NaN
0.0 NaN NaN 4 RTK solution 1 3.0
1.0 NaN NaN 83920 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

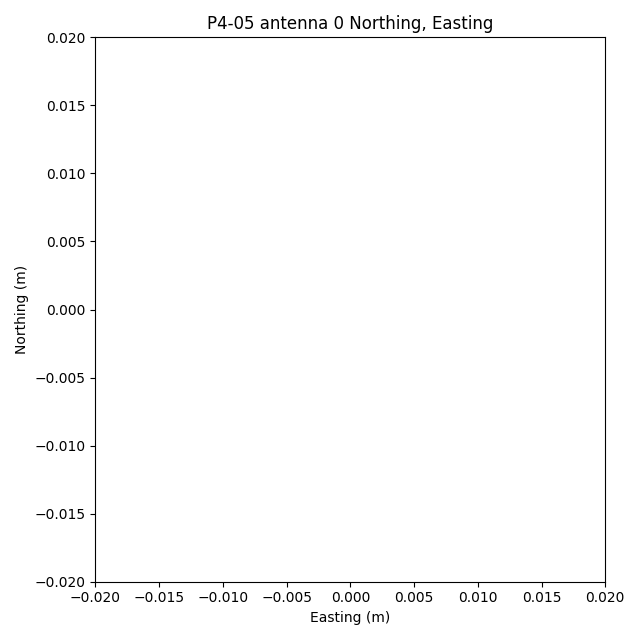

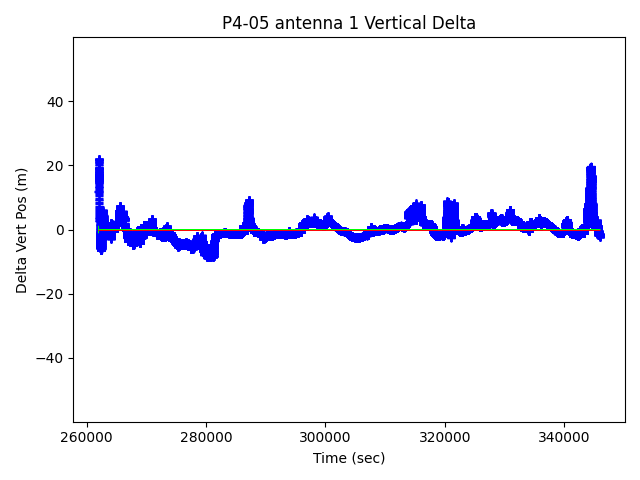

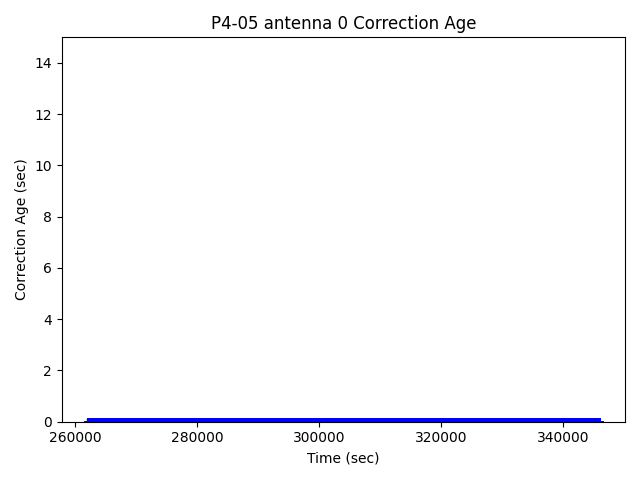

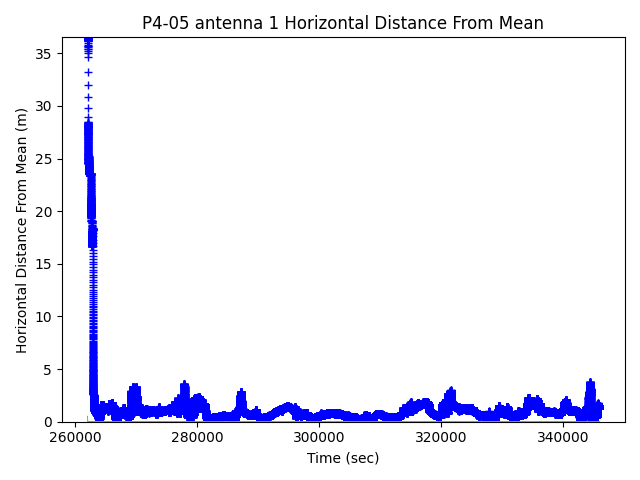

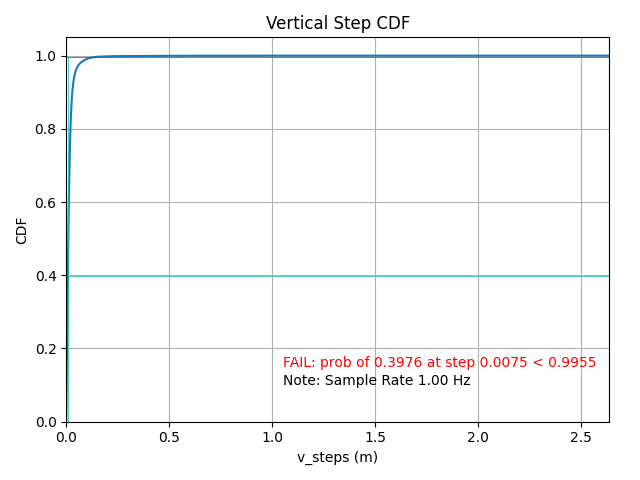

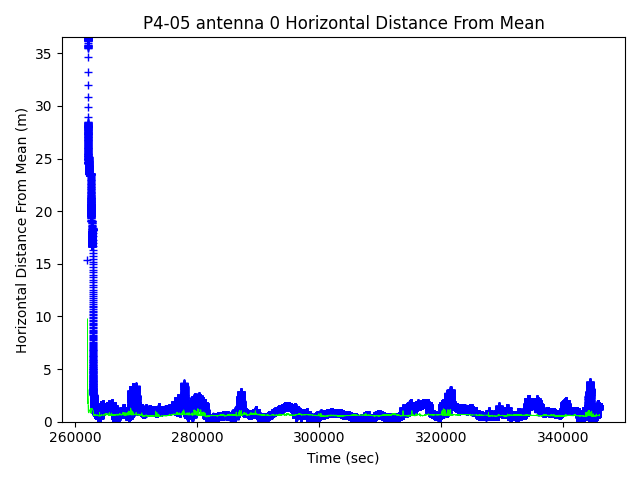

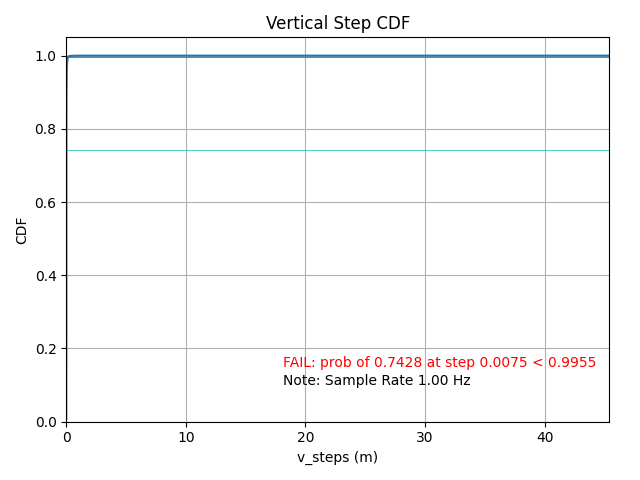

Individual Antennas
