HUD: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240116 titan P4-03

Meta Data


Start Time : 165006.0
Stop Time : 252910.0
Input Source : HUD
Total Time: 87904.0 seconds = 24.418 hours

P4-03

Heading, Antenna distance

Weighted Mean heading_mean: 79.2896
Weighted Mean dist_mean: 0.1720
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.8903
Weighted Mean vprec: 1.3697
Weighted Mean vdiff_mean: -0.1816
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count
0 39.896908 -105.115185 1651.141408 3.102731 0.630201 1.370974 87905
1 39.896908 -105.115187 1651.322998 0.008621 0.002940 0.004029 87905

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.00000 0.00000 0.00000
0 0.05 0.00000 0.00000 0.00000
0 0.10 0.00000 0.00000 0.00000
1 0.03 0.99992 0.99992 0.99992
1 0.05 0.99992 0.99992 0.99992
1 0.10 0.99992 0.99992 0.99992
center 0.03 0.00000 0.00000 0.00000
center 0.05 0.00000 0.00000 0.00000
center 0.10 0.00000 0.00000 0.00000

Fix Summary

VFixedFlag MGnssSolution MFixedFlag count Fix_Description Ant VGnssSolution
NaN 2.0 0.0 87905 Autonomous solution 0 NaN
0.0 NaN NaN 3 RTK solution 1 3.0
1.0 NaN NaN 87899 RTK solution 1 3.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

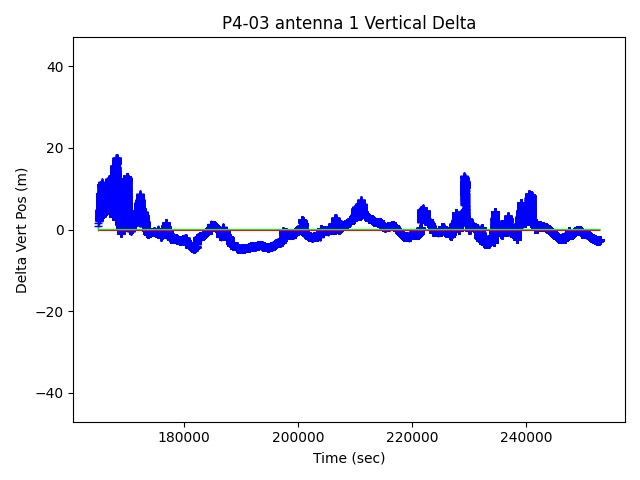

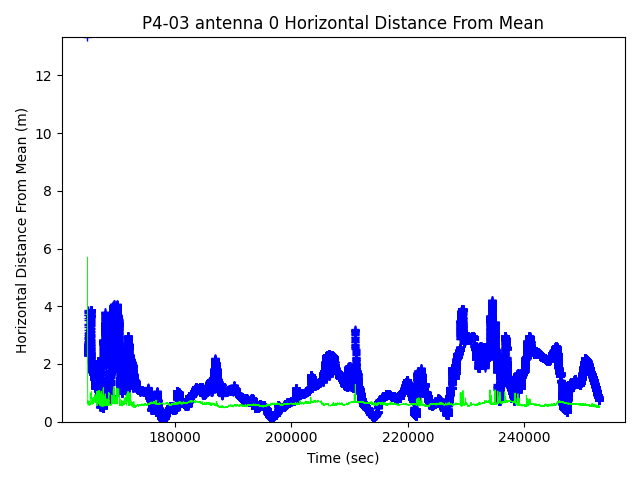

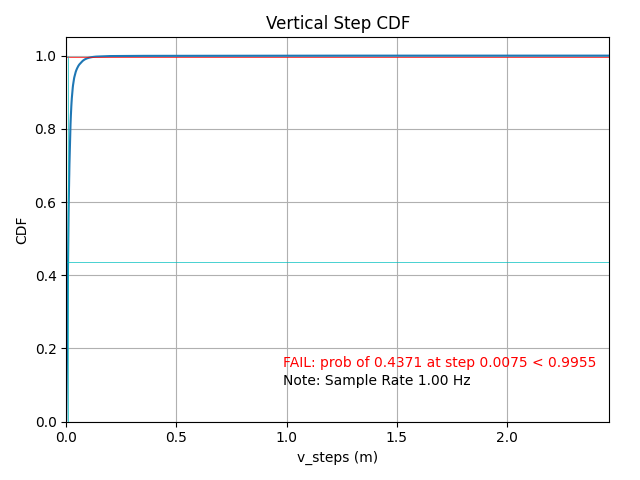

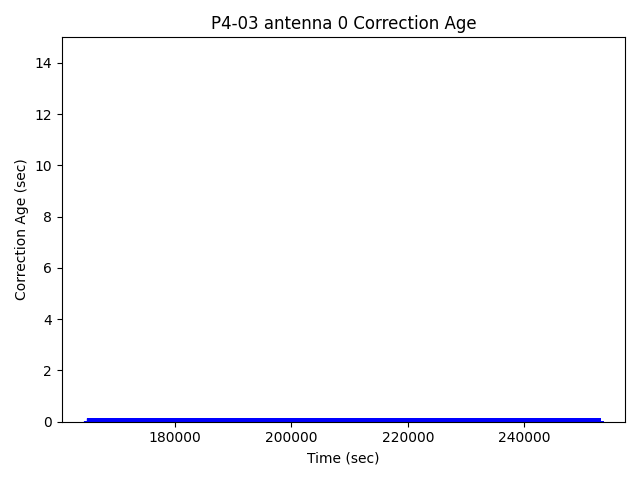

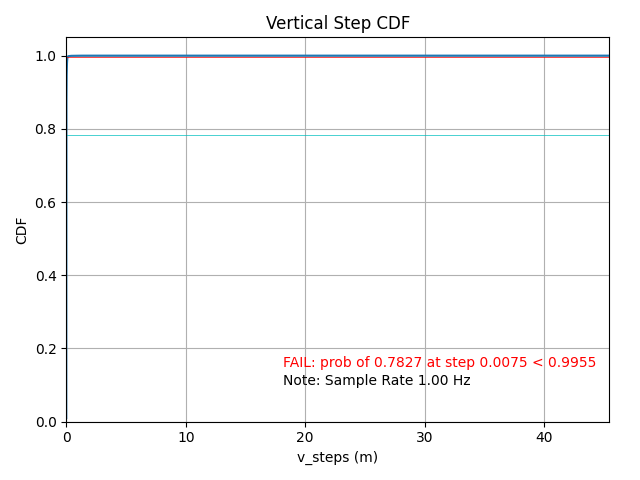

Individual Antennas
