T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240116 P4-03-all

Meta Data


Start : 2297 165006.0
Stop : 2297 219835.0
Input Source : T04
Total Time: 54829.0 seconds = 15.230 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 88.9299
Weighted Mean dist_mean: 0.1528
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0108
Weighted Mean vprec: 0.0180
Weighted Mean vdiff_mean: -0.0046
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896896 -105.115170 1650.937798 0.046293 0.007207 0.017780 54830 ('WGS-84',) ('0',)
1 39.896896 -105.115172 1650.942405 0.011074 0.002615 0.002612 54830 ('WGS-84',) ('0',)

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 0.981817 0.000000 0.000000
0 0.05 1.000000 0.571512 0.571512
0 0.10 1.000000 0.995258 0.995258
1 0.03 0.999982 0.999982 0.999982
1 0.05 0.999982 0.999982 0.999982
1 0.10 0.999982 0.999982 0.999982
center 0.03 0.957523 0.202936 0.202936
center 0.05 0.999982 0.912110 0.912110
center 0.10 0.999982 0.999964 0.999964

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 3.0 5.0 0.0 0x17:02x 34 RTK float; 3D solution; Min error 0 NaN NaN NaN
NaN 4.0 5.0 0.0 0x17:02x 54796 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
0x0.0:02x NaN NaN NaN NaN 54829 RTK fixed; 3D solution; Unknown fix_info RTK value 10.0. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

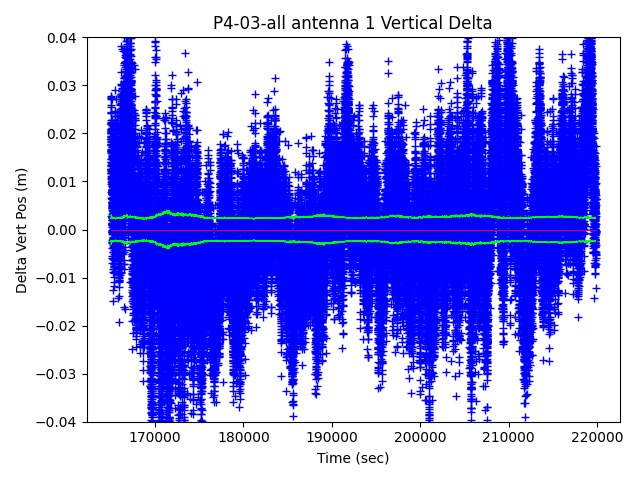

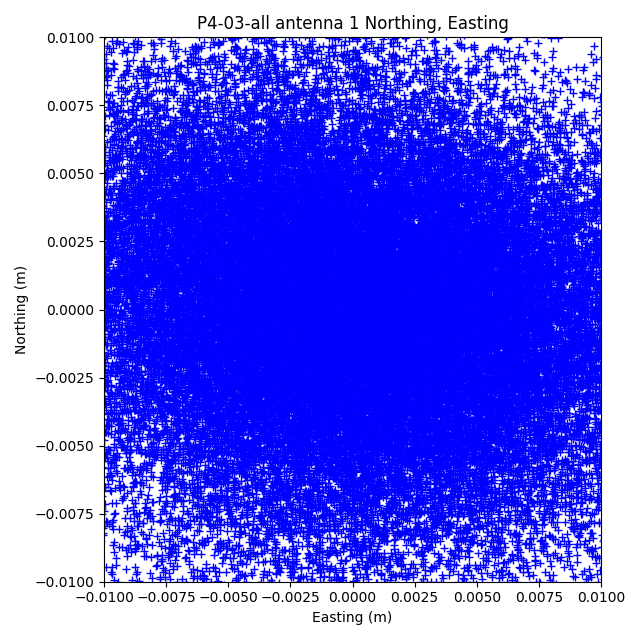

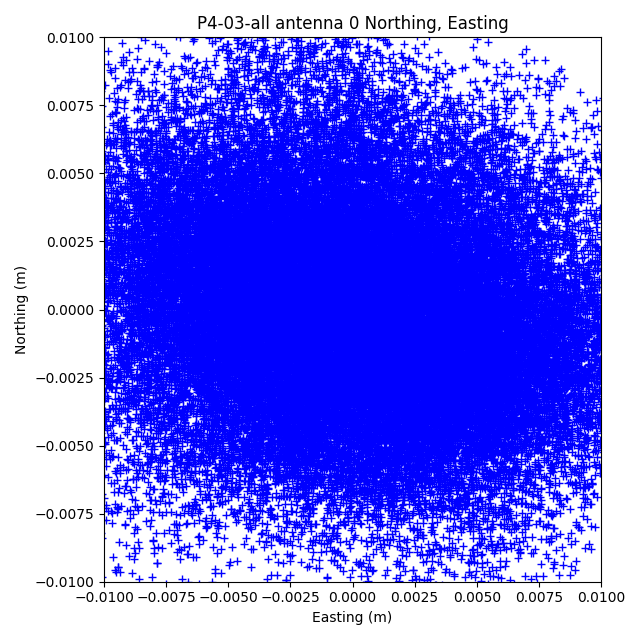

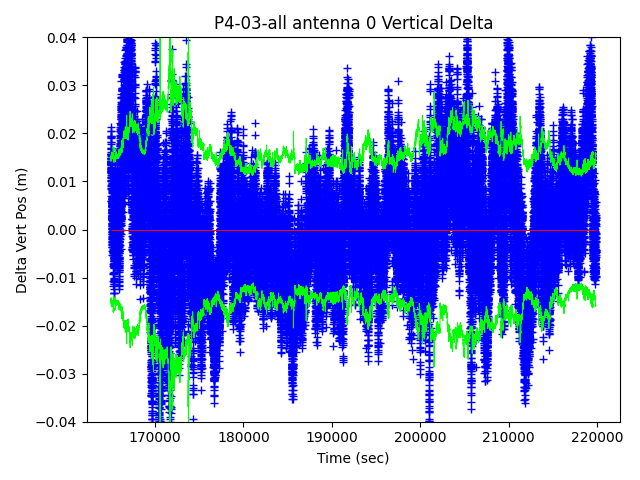

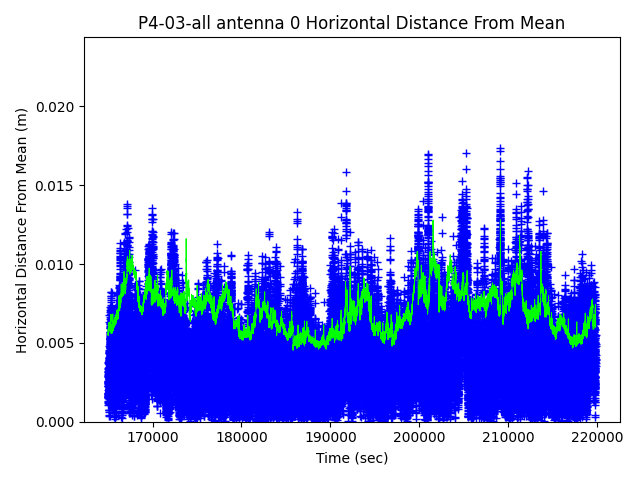

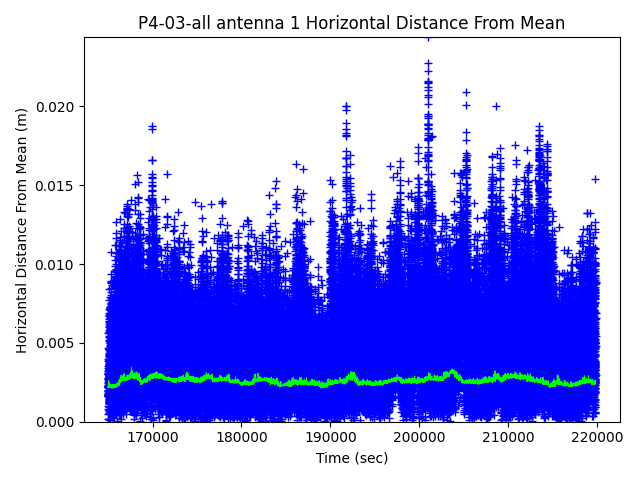

Individual Antennas
