T04: /home/russ/Documents/_GNSS_data/2024/CSNMR-2877_VSBL_Urban_Canyon/240113 P4-05

Meta Data


Start : 2296 518400.0
Stop : 2296 604799.0
Input Source : T04
Total Time: 86399.0 seconds = 24.000 hours

pos_ant.csv

Heading, Antenna distance

Weighted Mean heading_mean: 86.7039
Weighted Mean dist_mean: 0.1519
Weighted Mean ant_list: [0, 1]
Weighted Mean hprec: 0.0118
Weighted Mean vprec: 0.0197
Weighted Mean vdiff_mean: -0.0062
Weighted Mean heading_uptime: 0.0000

Stats


antenna w_mean_lat w_mean_lon w_mean_hgt std_err std_err_hprec std_err_vprec count datum datum_epoch
0 39.896904 -105.115183 1651.00211 0.039762 0.007929 0.019525 86400 ('WGS-84',) ('0',)
1 39.896904 -105.115185 1651.00830 0.009067 0.002708 0.002693 86400 ('WGS-84',) ('0',)

Uptime


antenna limit h_uptime v_uptime hv_uptime
0 0.03 1.0 0.966829 0.966829
0 0.05 1.0 0.999282 0.999282
0 0.10 1.0 1.000000 1.000000
1 0.03 1.0 1.000000 1.000000
1 0.05 1.0 1.000000 1.000000
1 0.10 1.0 1.000000 1.000000
center 0.03 1.0 0.997986 0.997986
center 0.05 1.0 0.999977 0.999977
center 0.10 1.0 1.000000 1.000000

Fix Summary

VSysFlgs MFixType MFixMode MFixInfo MSysFlgs count Fix_Description Ant VFixType VFixMode VFixInfo
NaN 3.0 5.0 0.0 0x17:02x 143 RTK float; 3D solution; Min error 0 NaN NaN NaN
NaN 4.0 5.0 0.0 0x17:02x 86257 RTK fixed; 3D solution; Min error 0 NaN NaN NaN
0x0:02x NaN NaN NaN NaN 86400 RTK fixed; 3D solution; Unknown fix_info RTK value 10. 1 4.0 5.0 10.0
Flags Bit Table
Bit Description
0 1 if this is the master position (i.e. record 29 position)
1 1 if the solution is a propagated solution (e.g. PM_FIX_20_HZ)
3 1 if reference station is sending moving base CMRs. Only b0 and b1 of "rtkMode" are defined in Record 29, in the rtk block "mode" field.
4 rtkMode bit 0: 0=synchronized rtk solution; 1=low-latency rtk solution;
5 rtkMode bit 1: 0=no canopy detected; 1= canopy detected;
6 1 if a baseline length constraint was used to form RTK vector.
7 1 if a clock constraint was used to form RTK vector.
8 1 if the RTK position is bridged
9 1 if the OmniSTAR position is authenticated

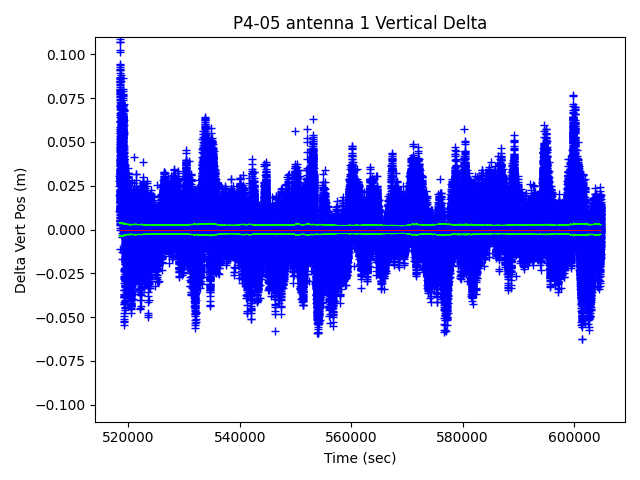

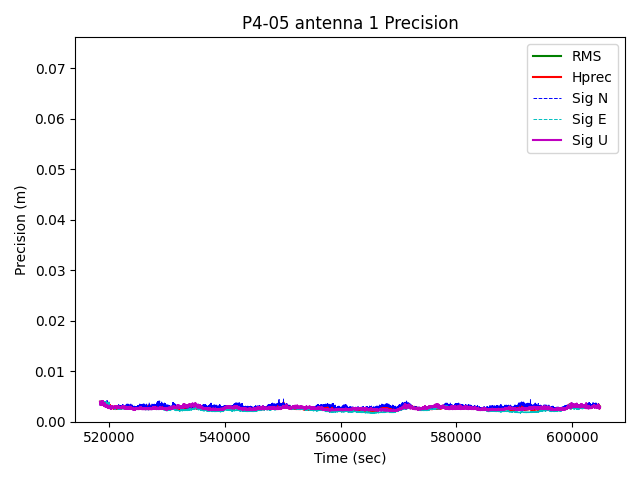

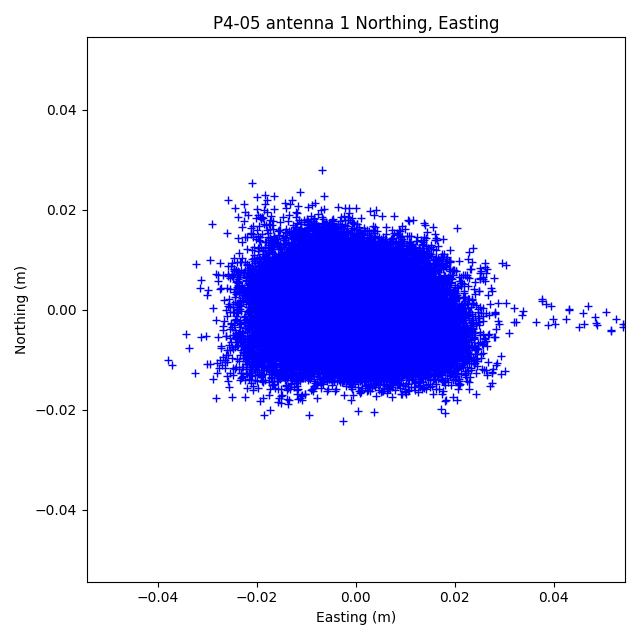

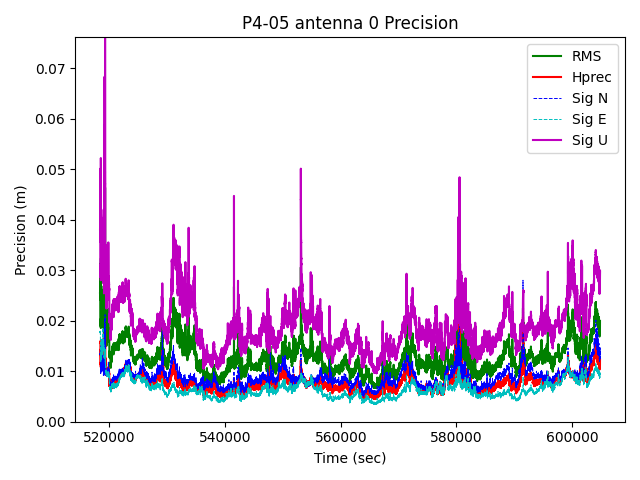

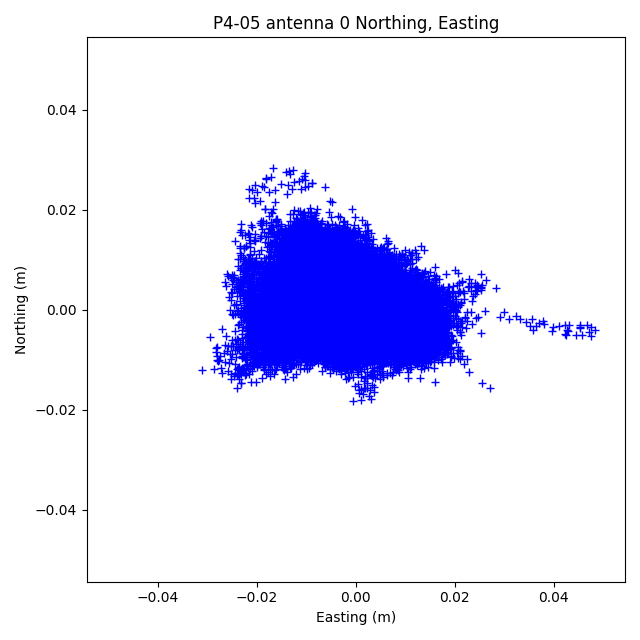

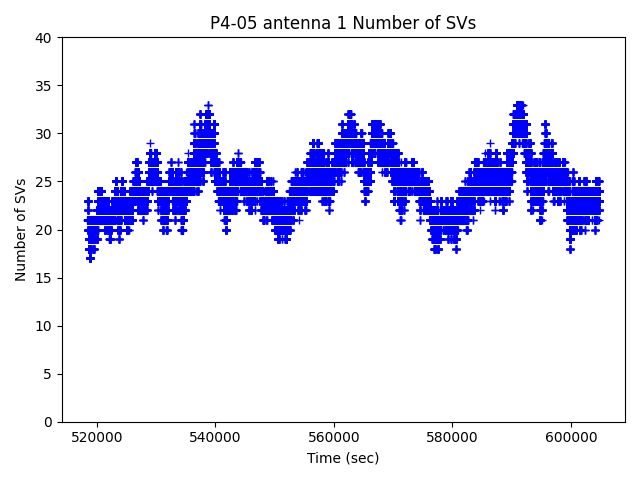

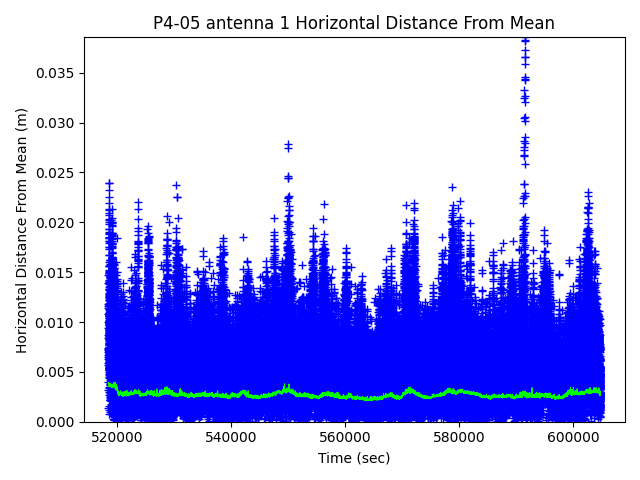

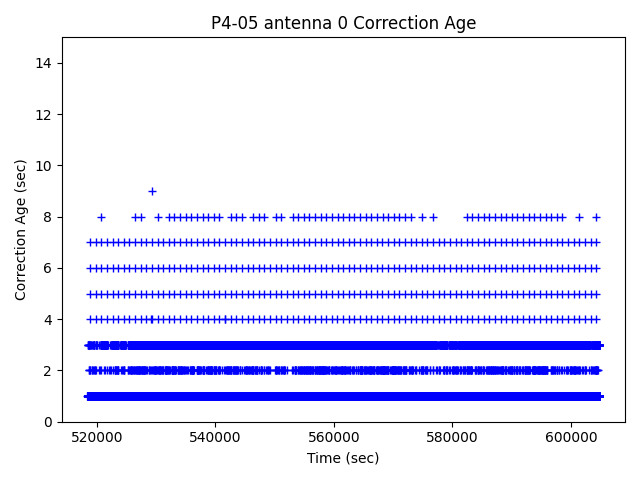

Individual Antennas
