Comments


SUHF receiving CMRx on 469.5 MHz, 25 kHz BW, CMRx, TM3 at 9600.
P4-03 East, Long engineering cable.
P4-05 West, Production cable sample.
4W Ethernet 10 Mbps, no traffic.
2W interfaces disabled (powered off).

Files


1116_469.5mhz/BX_gt35.T04 1116_469.5mhz/P4-03_gt35.T04 1116_469.5mhz/P4-05_gt35.T04
Modified: 2023-11-17 15:02:20

Serial Number : 6221C43829
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 18.917 hours

Mean Primary Pos: [39.89647322963655, -105.11505751328598]
Mean Secondary Pos: [39.89647205465066, -105.1150565717585]
Mean Heading: 328.42 (deg)
Mean Slope Distance: 0.15337 (m)
 Modified: 2023-11-17 15:02:23

Serial Number : 6303C55289
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 20.261 hours

Mean Primary Pos: [39.89646834624013, -105.11502833388474]
Mean Secondary Pos: [39.89646729301348, -105.11502714702007]
Mean Heading: 319.15 (deg)
Mean Slope Distance: 0.15481 (m)
 Modified: 2023-11-17 15:02:20

Serial Number : 6303C55359
Firmware Date : Jun 27, 2023
Release target version:
Navi Processor Version: 6.21
Radio library version : 5.61

Total Time : 20.345 hours

Mean Primary Pos: [39.8964684418284, -105.11505681845497]
Mean Secondary Pos: [39.89646736121811, -105.11505567550577]
Mean Heading: 320.94 (deg)
Mean Slope Distance: 0.15474 (m)

Difference Report Links

1116_469.5mhz/results/BX_gt35_0-P4-03_gt35_0.html
1116_469.5mhz/results/BX_gt35_0-P4-05_gt35_0.html
1116_469.5mhz/results/BX_gt35_1-P4-03_gt35_1.html
1116_469.5mhz/results/BX_gt35_1-P4-05_gt35_1.html

Summary Table

SVType Freq Track N_Samples_P4-03_0 CNo_Mean_P4-03_0 N_Samples_P4-05_0 CNo_Mean_P4-05_0 N_Samples_P4-03_1 CNo_Mean_P4-03_1 N_Samples_P4-05_1 CNo_Mean_P4-05_1
GPS L1 BOC-PD 0 0 0 0
GPS L1 CA 340,993 0.1 340,988 0.2 340,993 0.2 340,988 0.1
GPS L2 CM+CL 269,005 0.2 269,005 0.1 269,005 -0.0 269,005 -0.2
GPS L2 E 71,988 0.5 71,983 0.6 71,988 0.1 71,983 -0.2
GPS L5/E5A I+Q 182,740 0.4 182,737 0.2 182,740 -0.0 182,737 0.0
SBAS L1 CA 221,350 -0.4 221,347 0.9 0 0
SBAS L5/E5A I 0 0 0 0
GLONASS L1 CA 264,244 0.4 264,240 0.4 264,244 0.6 264,240 0.3
GLONASS L1 P 0 0 0 0
GLONASS L2 CA 231,719 0.3 231,713 0.1 231,719 -0.2 231,714 -0.2
GLONASS L2 P 0 0 0 0
GLONASS G3 PD 0 0 0 0
Galileo L1 MBOC-PD 251,442 0.0 244,037 0.2 251,442 0.0 244,037 -0.0
Galileo L5/E5A BPSK(10)-PD 0 0 0 0
Galileo E5B/B2 BPSK(10)-PD 0 0 0 0
Galileo E5A+B AltBOC-Comp-PD 251,442 -0.0 244,037 0.1 251,442 0.0 244,037 0.3
Galileo E6 BPSK(5)-PD 0 0 0 0
BeiDou L1 BOC-PD 263,284 0.2 263,282 0.3 263,284 0.4 263,282 0.3
BeiDou L5/E5A I+Q 263,284 0.3 263,282 0.2 263,284 0.0 263,282 0.1
BeiDou E5B/B2 BPSK(2)-B2 51,976 -0.4 51,976 -0.2 51,976 0.0 51,976 0.2
BeiDou B1 BPSK(2)-B1 315,260 0.1 315,258 0.0 315,260 -0.0 315,258 0.0
BeiDou B3 BPSK(10)-B3 315,260 0.1 315,258 0.1 315,260 -0.1 315,258 -0.0
QZSS L1 CA 0 0 0 0
QZSS L1 SLAS 0 0 0 0
QZSS L2 CM+CL 0 0 0 0
QZSS L5/E5A I+Q 0 0 0 0
MSS MSS 45,215 -1.2 45,272 -0.4 0 0
Total 3,293,987 0.1 3,279,143 0.2 3,072,637 0.1 3,057,797 0.1

Az-El Plots

BX_gt35_0-P4-03_gt35_0 BX_gt35_0-P4-05_gt35_0 BX_gt35_1-P4-03_gt35_1 BX_gt35_1-P4-05_gt35_1

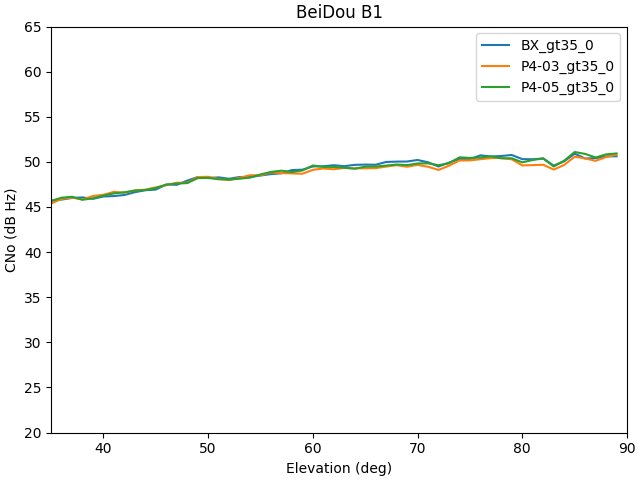

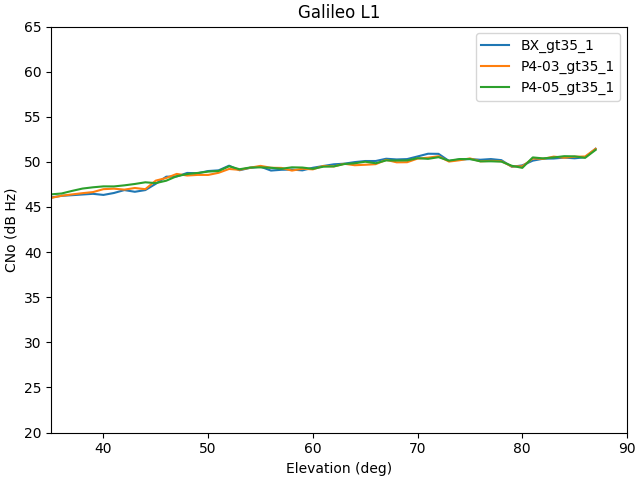

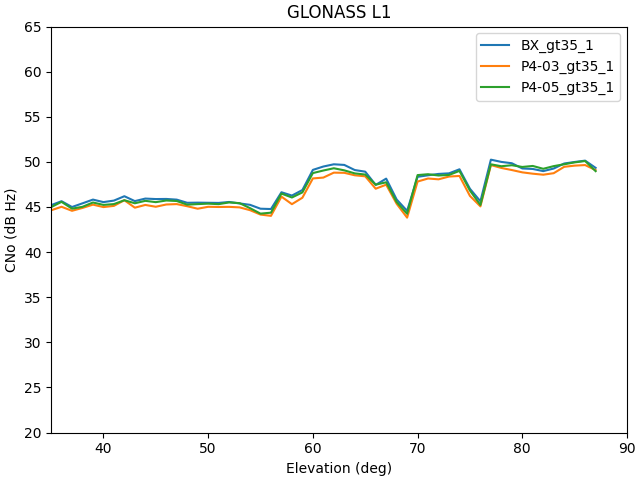

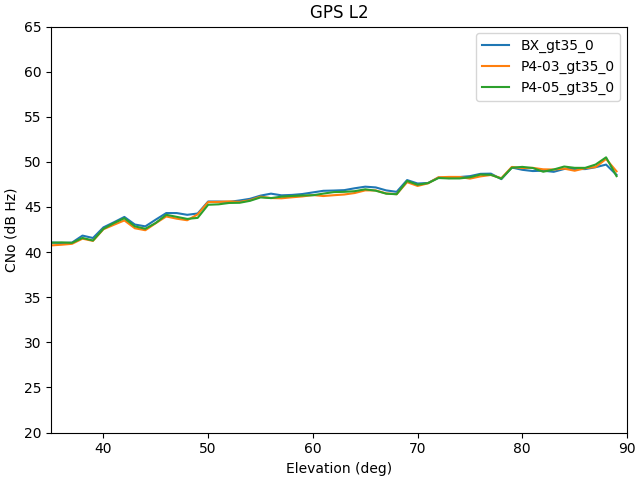

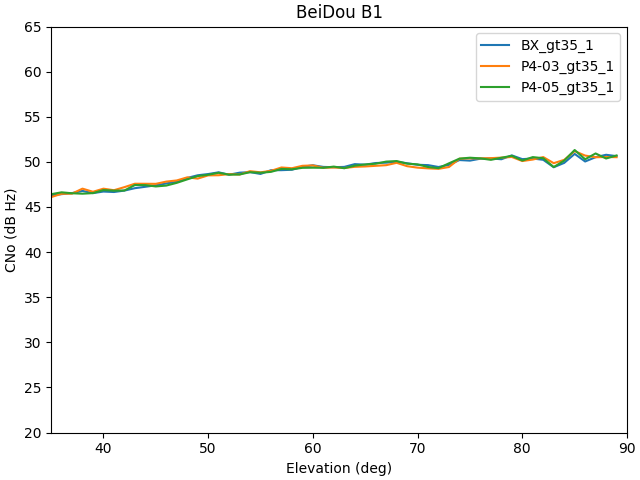

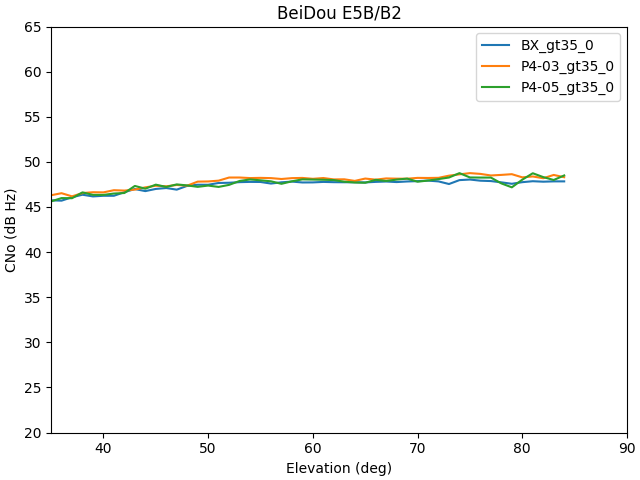

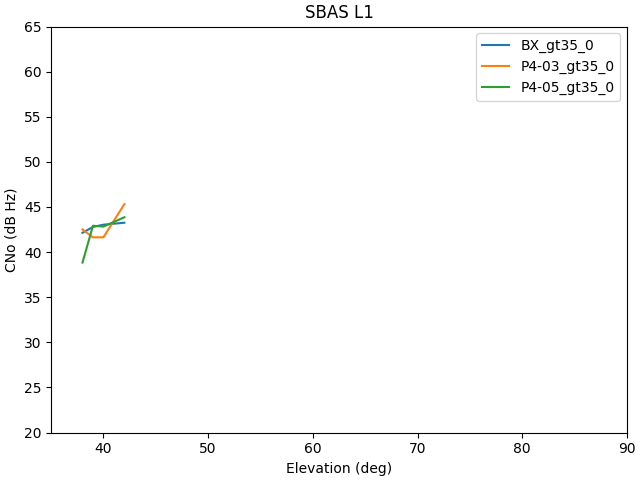

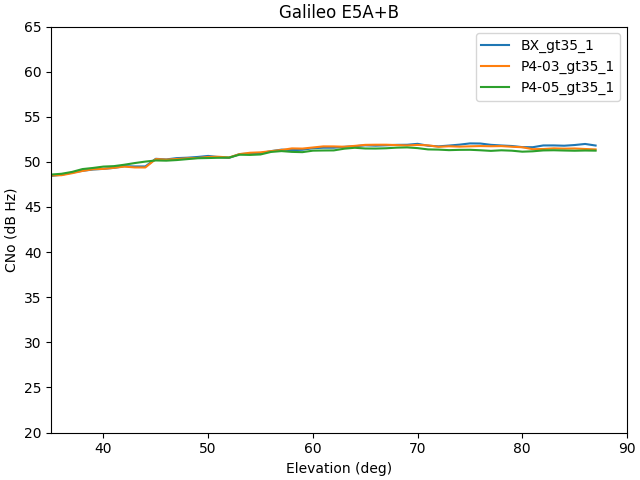

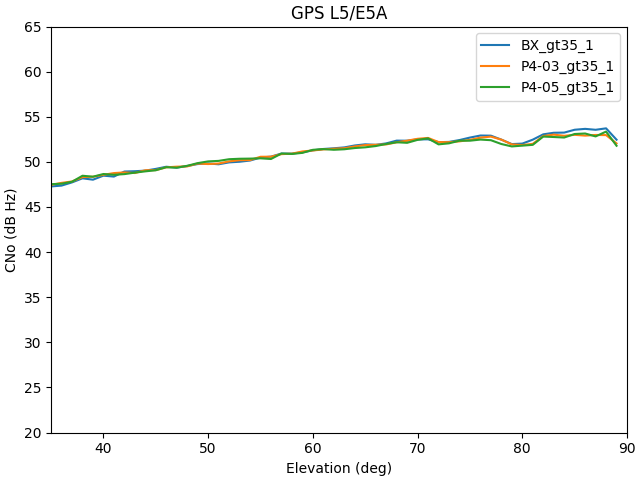

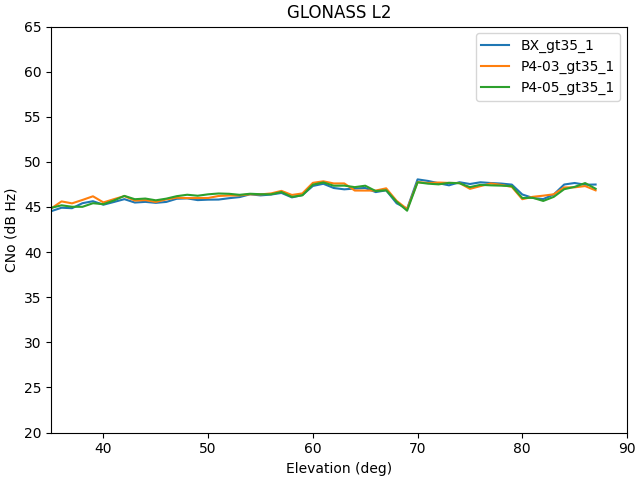

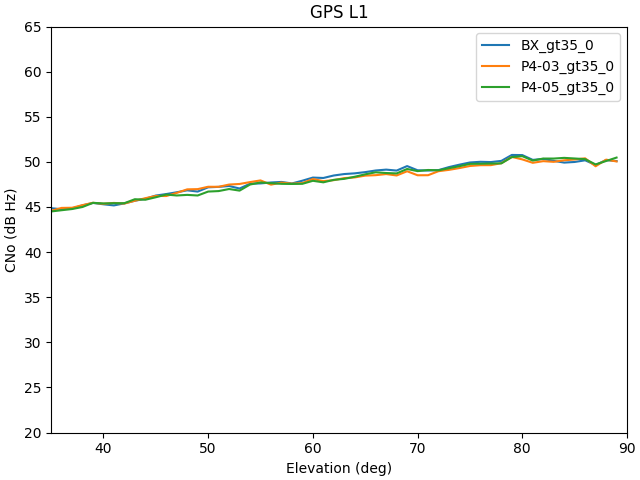

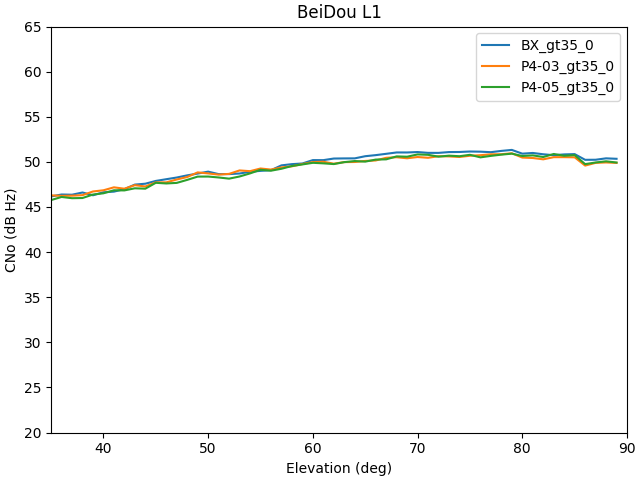

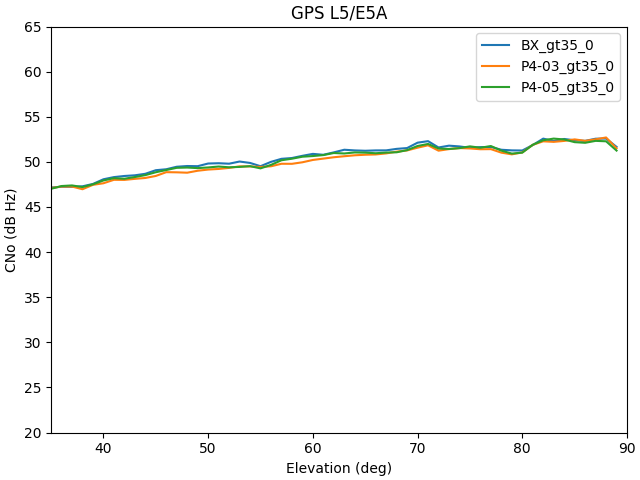

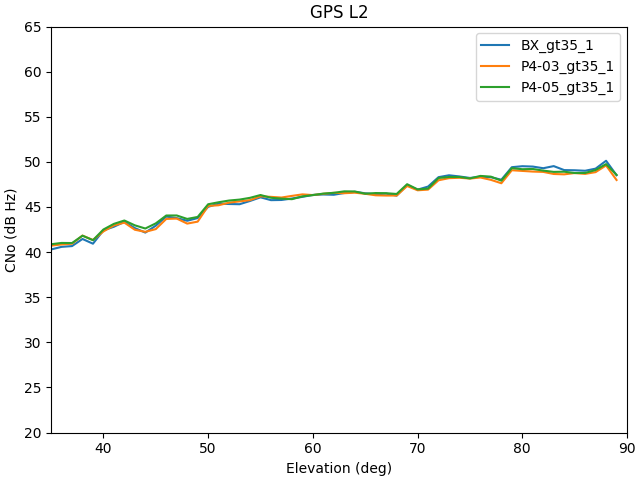

Mean Elevation Plots

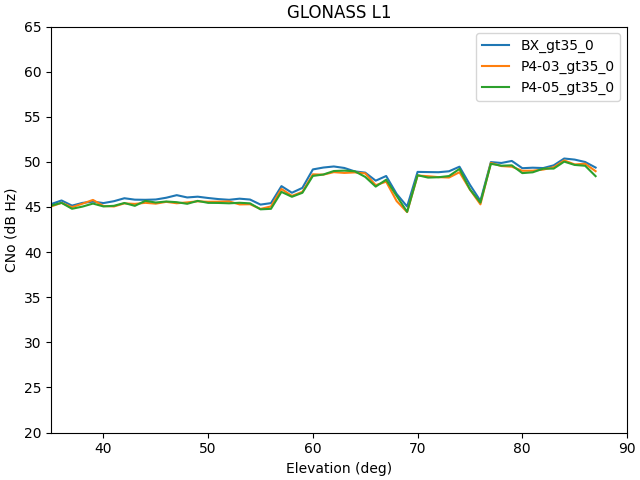

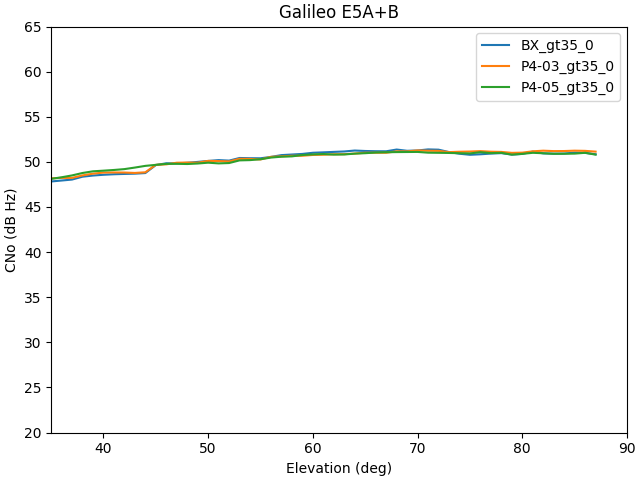

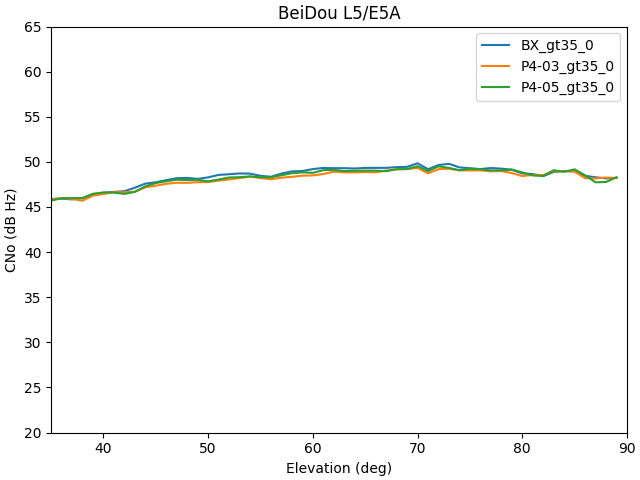

Antenna 0

GPS
SBAS
GLONASS
Galileo
BeiDou

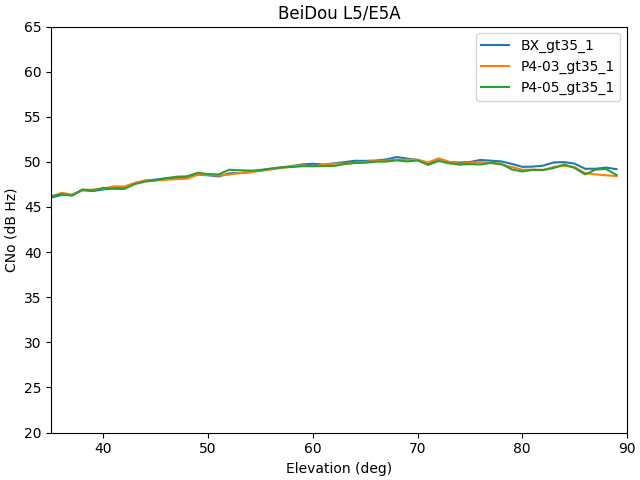

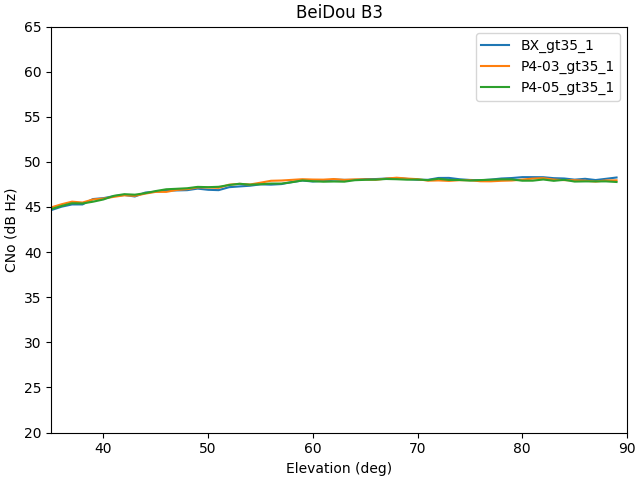

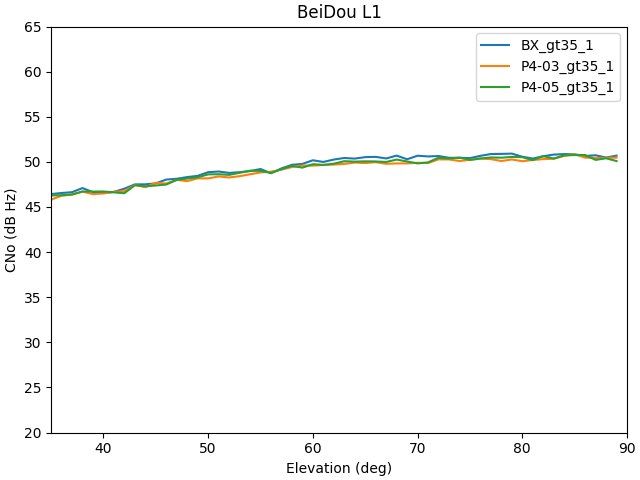

Antenna 1

GPS
GLONASS
Galileo
BeiDou

Oscillation Check

BX_gt35_0: 1408.0
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 29 1,408
0 GLONASS L1 0 23 1,156
0 BeiDou B3 29 32 1,043
0 BeiDou B3 29 41 993
0 GPS L1 0 28 984
0 GPS L1 0 6 918
0 GLONASS L1 0 9 906
0 GLONASS L1 0 13 901
0 BeiDou B3 29 36 900
0 BeiDou E5B/B2 28 12 889
P4-03_gt35_0: 1479.4
Antenna SVType Freq Track SV osc_factor
0 GLONASS L2 0 14 1,479
0 GLONASS L2 0 13 1,132
0 GLONASS L1 0 7 1,050
0 Galileo E5A+B 14 33 1,044
0 BeiDou B3 29 32 1,012
0 BeiDou B3 29 41 991
0 BeiDou B3 29 33 960
0 GPS L1 0 25 951
0 BeiDou B1 26 21 914
0 GLONASS L1 0 23 900
P4-05_gt35_0: 1283.8
Antenna SVType Freq Track SV osc_factor
0 GPS L1 0 30 1,284
0 GLONASS L1 0 13 1,120
0 GPS L1 0 29 1,100
0 BeiDou B3 29 32 1,085
0 BeiDou B3 29 41 1,018
0 GPS L1 0 28 988
0 BeiDou B3 29 33 981
0 GLONASS L1 0 4 955
0 GLONASS L1 0 19 941
0 BeiDou B3 29 28 939
BX_gt35_1: 1636.4
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 14 1,636
1 GLONASS L2 0 20 1,344
1 GLONASS L1 0 20 1,262
1 GLONASS L2 0 8 1,169
1 GPS L1 0 5 1,122
1 GLONASS L2 0 13 1,104
1 GLONASS L1 0 6 1,077
1 Galileo E5A+B 14 33 1,063
1 BeiDou B3 29 32 1,042
1 BeiDou B3 29 41 1,024
P4-03_gt35_1: 1359.6
Antenna SVType Freq Track SV osc_factor
1 GLONASS L2 0 14 1,360
1 GLONASS L1 0 14 1,217
1 GLONASS L2 0 13 1,209
1 GLONASS L1 0 17 1,083
1 GLONASS L1 0 20 1,065
1 GLONASS L1 0 4 1,002
1 GLONASS L1 0 19 964
1 BeiDou B3 29 32 908
1 BeiDou B3 29 33 903
1 BeiDou B3 29 41 903
P4-05_gt35_1: 1549.0
Antenna SVType Freq Track SV osc_factor
1 GLONASS L1 0 14 1,549
1 GLONASS L1 0 20 1,334
1 GPS L1 0 29 1,164
1 BeiDou B1 26 14 1,044
1 BeiDou B3 29 32 1,039
1 GPS L2 5 28 1,032
1 GLONASS L1 0 17 964
1 BeiDou B3 29 41 956
1 GLONASS L1 0 9 939
1 BeiDou B3 29 27 921

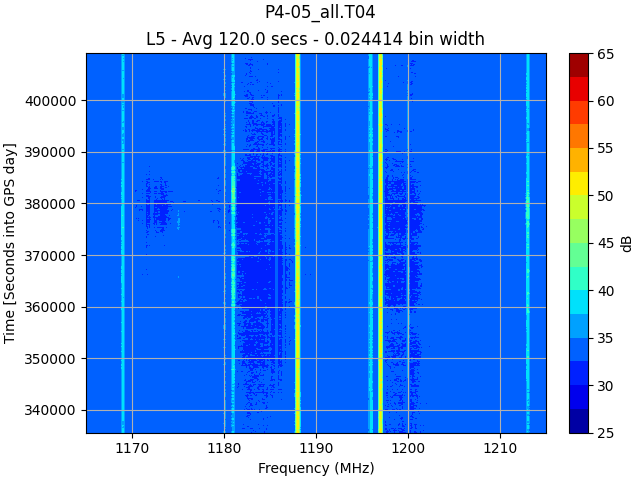

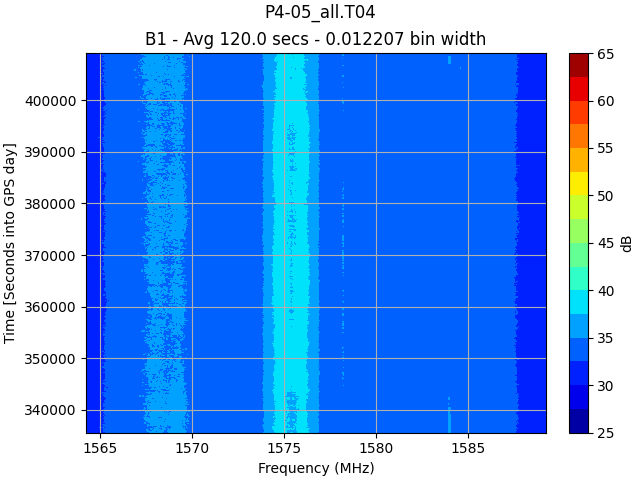

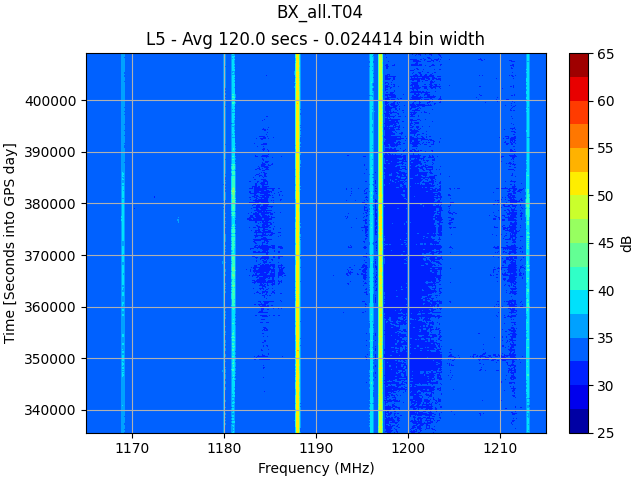

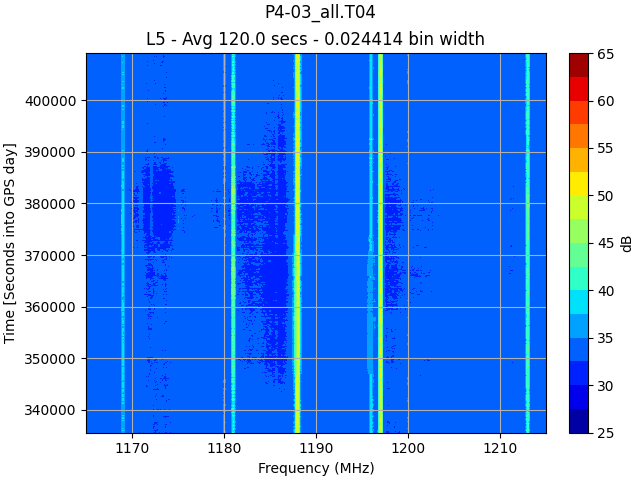

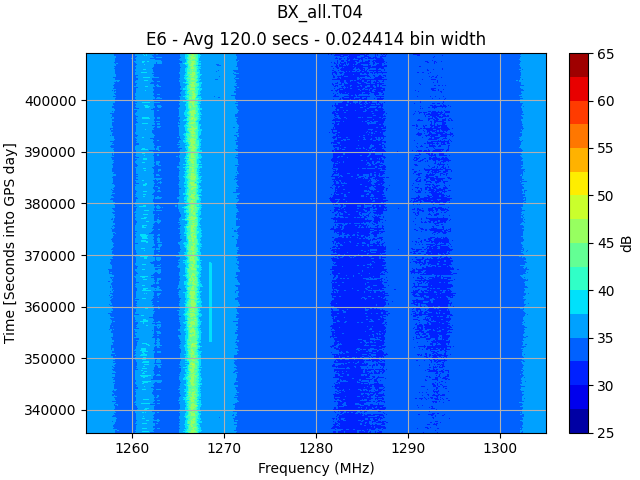

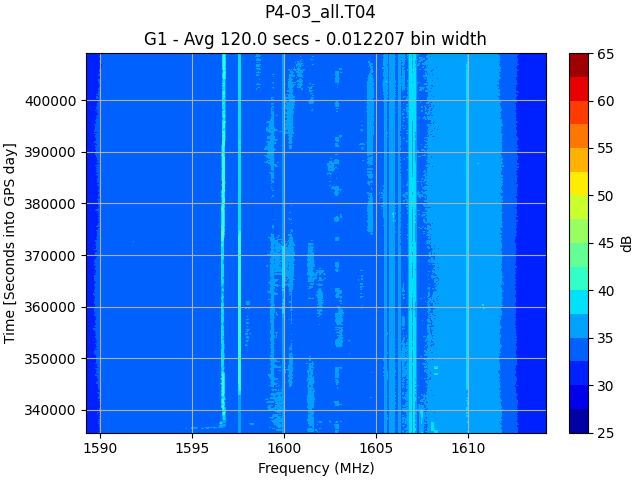

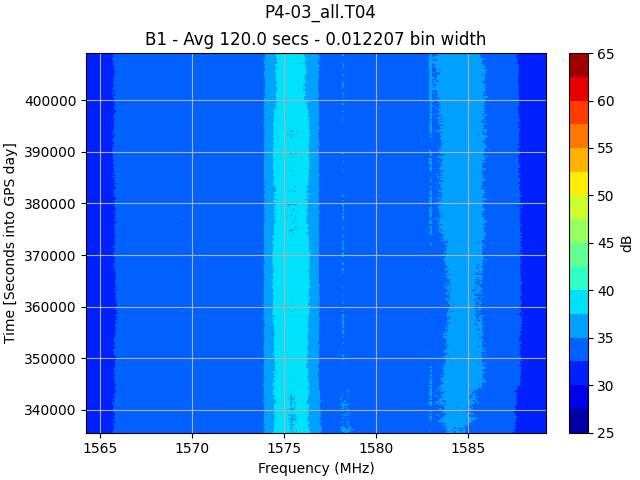

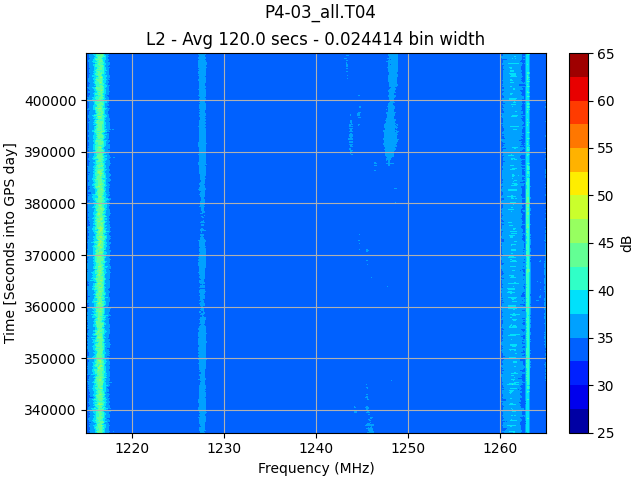

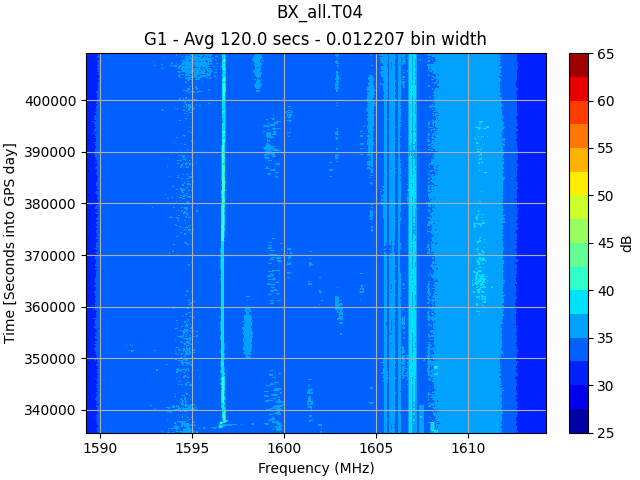

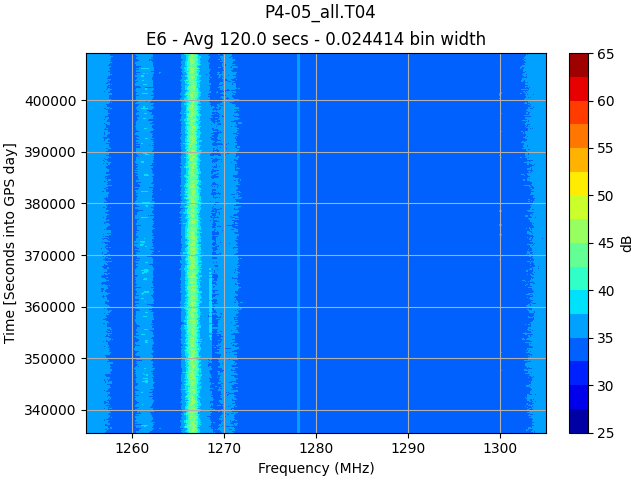

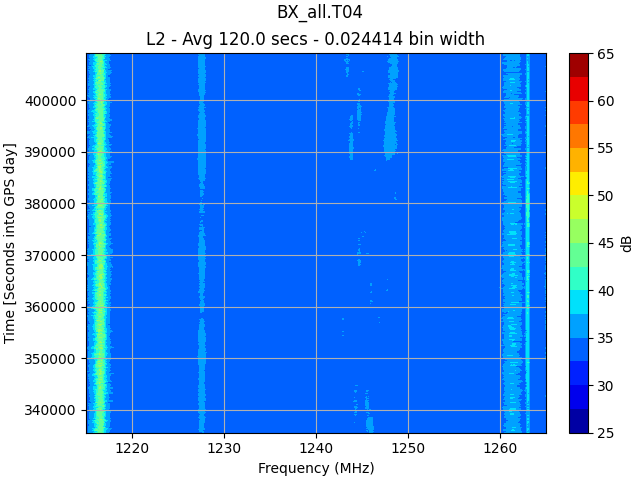

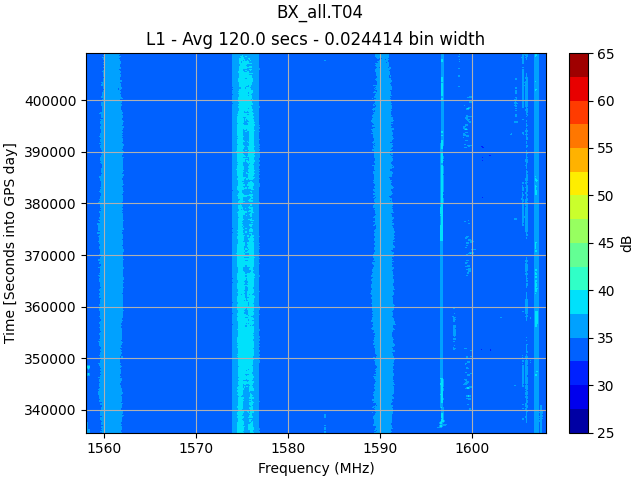

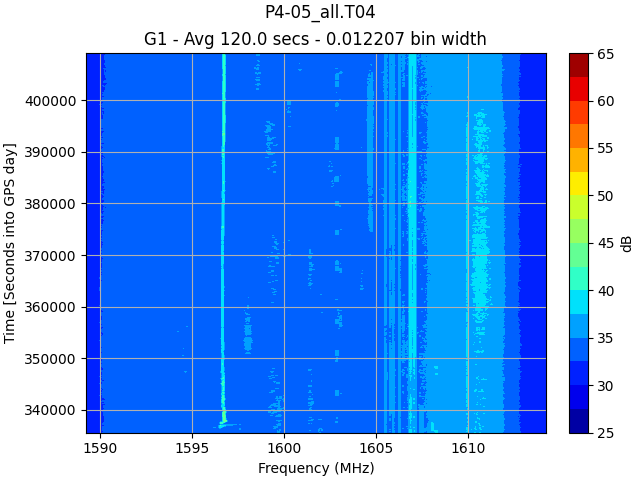

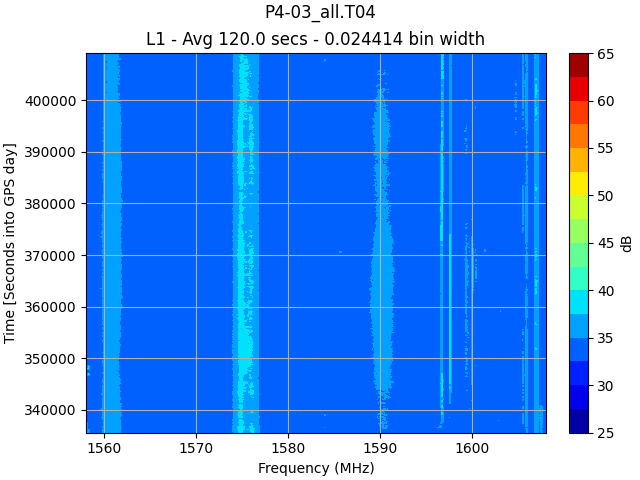

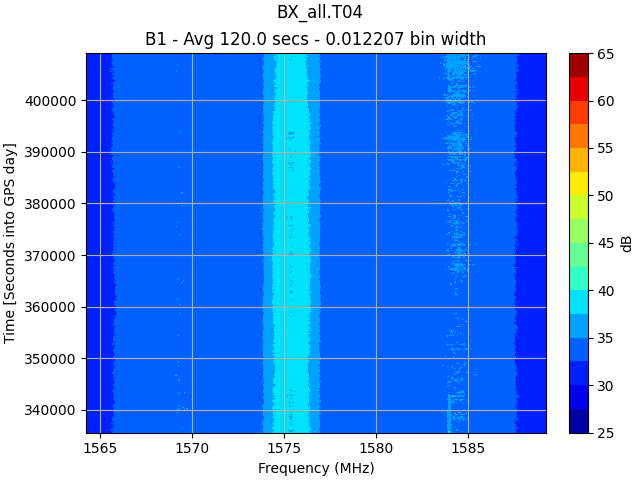

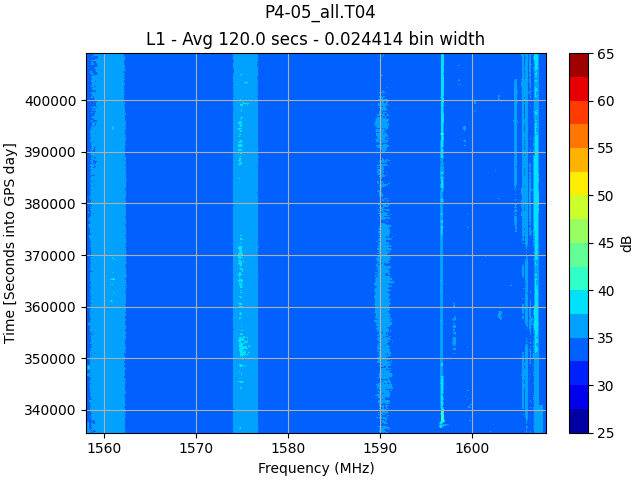

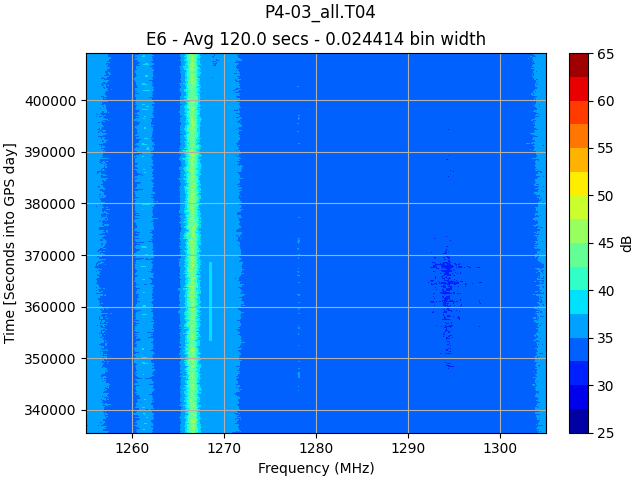

FFT Plots

L1 L2 L5 E6 G1 B1
BX
P4-03
P4-05
